The New Pinscape Build Guide
by Michael Roberts
First edition, October 2019
Revised and updated from time to time, most recently in March, 2024
>
Copyright and license
Copyright ©2016-2024 Michael J. Roberts.
This book is licensed under a
Creative Commons
Attribution-ShareAlike 4.0 International License. In brief, this means that
you're free to use, share, and adapt this work for any purpose,
without seeking further permission from the author, as long as you
give appropriate credit and pass along the same permissions in
your adapted material.
The Pinscape Controller firmware and the Expansion Board hardware
designs have similar Open Source license terms. See their respective
license files for details.
No Warranty
Just to be sure there's
no misunderstanding, I want to spell out that this documentation and
the related mechanical and electronic designs and computer software
have NO WARRANTY of any kind. This entire enterprise is a hobby
project, and I don't have a Quality Assurance department to
independently test any of it, so the material undoubtedly contains
numerous errors.
I'm making all of this available at no charge in the hope that it's
useful, but I can't guarantee that it'll work or that you'll be
successful building any of it.
Work involving electronic
circuitry has the potential to damage other connected equipment,
including expensive items such as computer motherboards.
Proceed at your own risk.
THIS WORK IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.
IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE,
ARISING FROM, OUT OF OR IN CONNECTION WITH THE WORK OR THE
USE OR OTHER DEALINGS IN THE WORK.
Caution
Building a
virtual pinball machine involves some inherently dangerous equipment
and activities, such as power tools and high voltages. Read the
manufacturer's instruction manuals for your tools and follow their
safety precautions. Wear safety glasses, hearing protection, and
other appropriate safety gear for each task. Don't attempt anything
that you don't understand or don't feel comfortable with.
Exercise extreme caution when working with electricity, especially
with high voltages. Higher voltages can cause electrocution, and even
low voltages can start fires and damage other equipment. Always
disconnect the power at its source before doing work on anything
electrical. Don't just switch it off - unplug it from the wall
outlet.
1. Preface
I first started thinking about building a virtual pinball machine at
least a couple of years before I actually did anything about it. I
was on the fence for so long because I thought it was one of those
ideas that sounds better than it really is. I also thought I might
get bored of it quickly. I loved the idea of a life-sized
pinball simulator, but I didn't think the real thing could live up to
my mental image of it. It didn't help that Visual Pinball always
seemed a little disappointing on my desktop PC. I thought a cabinet
would just make the video game's limitations more obvious by putting it on a bigger
screen. You've probably heard it said that the great thing about a
virtual cab is that it's like having 1,000 pinball machines
packed into the space of just one, but surely the variety is only
of secondary importance: if it weren't fun to play one virtual table,
why would you want 1,000 of them?
But I kept coming back to the idea. I'd check in on the forums from
time to time to see what was new. At some point, people started

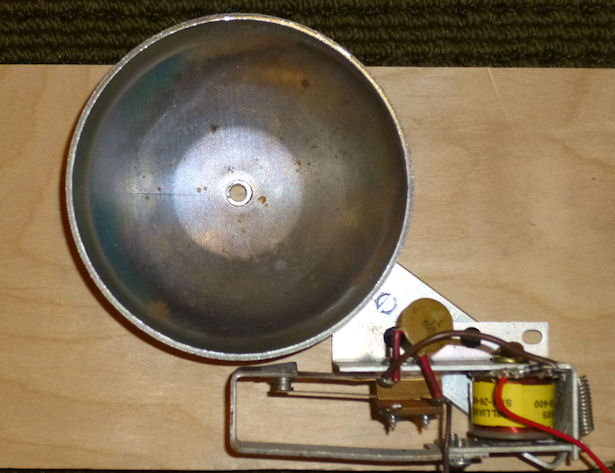

talking about putting "feedback toys" in their cabs
.
That's when I finally decided I had to build one. "Toys" are physical
devices that create special effects in sync with the on-screen action.
The thing that grabbed my attention most was the idea of using
solenoids for a tactile
thunk when a flipper or bumper fires.
The ability to
feel the game action struck me as a whole new
dimension that you can't get in mere video pinball.
It's probably needless to say that all of my early reservations were
turned around once I started building my cab.
If you're reading this guide, you're probably at least curious about
building your own cab. In case you're still undecided, like I was,
let me offer this nudge: I think a cab really is a different
experience from playing pinball simulations on a desktop PC. It's not
just the same thing in a different box. The real controls and the
full-scale physical setup are more than just decorations; they're
transformative.
I should temper that by adding that a virtual cab won't trick you into
thinking you're playing a real pinball machine. It's not that
realistic. But it's not just desktop video pinball in a fancy box,
either. "Virtual" and "real" pinball each have their own advantages,
and they're each fun to play in their own way. I'm fortunate to have
a small collection of real pinball machines at home, and while I'd never
consider the virtual cab to be a replacement for any of those,
it is a great addition to the lineup, adding its own unique play style.
Pin cabs aren't just fun to play; they're fun to build. They make
great DIY projects. As much as I enjoy playing games on my cab, I
also really enjoyed building it, and I'm still coming up with ways to
improve it. Most of that work is on the software side these days,
although I still tinker with the hardware, too. One of the great
things about this hobby is that most of the software involved is open
source, so if there's something you don't like, you can change it.
That's one of my motivations for sharing the Pinscape Controller
project: I wanted to bring the benefits of open source to the hardware
side. When I started my cab, most of the hardware options were
proprietary devices designed more with video arcade projects in
mind, so I'm glad that I've been able to add some more
pinball-oriented designs into the mix.
This is a great time to be building a DIY pin cab, thanks to a
confluence of trends. One is that real pinball continues to thrive
among collectors, which is good for us because it keeps an active
market going for the specialized pinball-machine parts we need for our
projects. Another helpful trend is the popularity of hobby robotics,
which has made lots of advanced electronics accessible to DIYers. A
third is the growing interest in virtual pinball itself, which has
attracted a talented group of people who work on the open-source
software that makes virtual cabs possible. Virtual cabs will keep
getting better as long as people are actively working on the software.
The Pinscape Controller
This guide has grown into a pretty comprehensive set of instructions
for building a pin cab, from the woodworking and trim hardware to the
electronics and the software. It started out with a much smaller
scope, of serving as the user manual for my Pinscape Controller
project, and that remains a significant part of the book. The
Pinscape Controller is an open-source hardware and software project
that can act as the central hub for connecting most of the specialized
input and output electronics unique to virtual pin cabs: buttons,
sensors, and feedback devices like solenoids and lights. The
controller can handle nearly all of the special I/O functions in
a pin cab, including:
- Connecting flipper buttons and other pinball-style buttons to the PC
and using them to control the game
- Connecting a physical pinball plunger to the software, via a
position sensor that detects its position and motion, so that you can
launch the ball the traditional way, with precise control for tricky
skill shots
- Using an accelerometer to sense the motion of the cabinet,
so that you can nudge the cabinet and get a realistic, proportional
response in the simulated game
- Connecting feedback devices to the PC, so that the pinball software
can create lighting effects and tactile effects cued to the game action
Physically, the core of the Pinscape project is the Freescale
FRDM-KL25Z, a tiny, self-contained computing device about the size of
a credit card. It costs about $15 and comes fully assembled and ready to
use. You don't need to know anything about electronics to set it up;
you just plug in a USB cable and load some software.
The KL25Z by itself does a lot of the heavy lifting. It has a
built-in accelerometer (a good one), which nicely handles nudge sensing.
You can connect buttons (like the flipper buttons) directly
to the KL25Z, with no more work than running some wires.
Beyond buttons and nudging, the electronics work gets a little more
complicated. If you want to hook up a plunger sensor or connect
feedback devices (lights, motors, solenoids), you have to buy some
electronic components, and do some additional wiring and electronic
assembly work. That's all laid out in detail in this guide, and it's
very scalable - you can do as much or as little of this as you want,
according to your interests and comfort level working with
electronics. And you can add new features over time; it's all pretty
modular. I've tried to make all of the projects approachable even if
you don't already know much about electronics.
For the plunger, several options of varying difficulty are available.
The easiest option only requires buying a particular kind of
potentiometer (about $6) and connecting three wires. A more complex
but more precise option is what I'd call an "intermediate level" DIY
electronics project. All options are documented in detail in this
guide with step-by-step instructions.
If you want to connect feedback devices to the KL25Z, that also
requires some additional electronics work. There are some simple
options involving pre-built circuit boards that you can buy on eBay or
Amazon. The more advanced and more full-featured options involve the
"Expansion Boards", a set of circuit board plans that you can build
yourself. Again, this is all documented in this guide.
The Pinscape Controller is an entirely "open source" project, meaning
that all of the software is free to use, all of the source code and
hardware designs are published, and you're free to change and
customize them in any way. I'm always happy to integrate any
customizations that are generally useful back into the official
version so that everyone can benefit from them, but you're also free
to make private changes for your own use if you prefer.
Cabinet build guide
Beyond the Pinscape-specific material, this guide includes a lot of
information about building virtual pin cabs in general. The goal is
to provide a complete instruction manual for the DIY pin cab builder.
The guide even includes information on the various commercial products
that can fill the same roles as the Pinscape project, for people who
aren't interested in DIY for those aspects and prefer something
that comes ready-made.
I'm including the general virtual cab building material because I
would have really liked something like this when I started on my own
cabinet. There's a lot of information on building these machines on
the Web, mostly in forums and blogs, but it's really scattered and
hard to find and navigate. There is one other full build guide out
there that I'm aware of, though: Major Frenchy's
Mame in a Box, which offers a
big library of video tutorials on pin cab building. If your learning
style favors video presentations, or you just want another resource to
add to this one, check it out.
I can't quite boil things down to a ready-made kit with a master parts
list and easy assembly instructions. There are too many possibilities
and variations for that. Every cab is unique, which is exactly as it
should be for a DIY enterprise like this. So I'll try to go into as
much detail as I can, but in many areas the information is more like
advice than outright instructions.
Currency and updates
The first complete edition of this guide appeared in October, 2019
(after about three years of partial versions that were kept online as
a work-in-progress). "Complete", in the sense of covering all of the
topics I set out to cover at a level of detail that I set out to reach
- but not necessarily "finished", in the sense of the last possible
word being said on every subject, the text set in stone, never to
change again. I still see it as an ongoing project, and I revise and
expand it from time to time as I encounter errors and omissions, and
to keep up with changes in the virtual pinball world. (Most recently
in March 2024, according to the electronic
librarian that keeps track of the text.)
Many parts of this guide have an inherently long shelf life, because
the "real" pinball machines that virtual cabs are based on tend to
look and act much the same year after year. I don't think that's
likely to change, either, because at least a part of pinball's market
demand comes from nostalgia. The pinball makers are aware of this and
know that they can't change things too much before people stop
thinking of their products as "pinball". A lot of the basic design of
a commercial pinball machine (and thus of a virtual cab) is pretty
well anchored in the 1990s. That's good for the longevity of this
guide, because it means the parts about cab building don't need to be
updated every couple of months to chase a new fad. The same is true
of the backgrounder sections on woodworking, soldering, and so forth.
Some things do change rapidly, though, some so quickly that I know
there's no hope of keeping any guide up-to-date with them. The things
that move at warp speed are primarily related to the core electronics
- specifically, the TVs and video displays and the PC hardware specs.
All of that tends to undergo a complete revolution every four to six
months. I know there's no hope of keeping a list of "Best Intel Chips
of 2024" or "The Sharpest TVs Right Now" up to date, so I
don't even try to provide such ephemeral shopping lists. Instead, the
relevant sections provide a more general, and hopefully more lasting,
idea of what to prioritize when shopping. My hope is that this will help
the material remain relevant and useful for at least a little while.
In between those extremes - the Moore's-law churn of consumer
electronics on the one hand, and the timeless arts of woodworking and
soldering on the other - there's another area that changes at a
middling pace: the special software and hardware devices for playing
virtual pinball. Visual Pinball, PinMAME, DOF, etc - these are
generally open-source projects, or in some cases tiny one-person
businesses, that are in active development and that come out with new
versions once in an unpredictable while. I confess that I don't track
every one of those projects closely enough to know immediately when
something I've written about it here needs to be updated, and even if
I did, it would still take me a while to catch everything up. So it's
best to treat the guide as a secondary source of information
for the big software components, and look to the projects themselves, or
forum activity from their contributors, for the latest news.
If you encounter any errors, or anything that's out of date, I'd be
happy if you pointed it out so I could try to fix it. You can contact me on
vpforums.org (my user ID there is mjr.)
An explanation of "section incomplete" warnings
I originally started posting this guide in draft form in October 2016,
when it was just a skeletal outline. Back then, most of the sections
were just placeholders, like this:
This section is incomplete and will be expanded when time permits. Material to be added: (Some notes about what I intended to write would go here)
Those placeholders were there so that I could use the guide as its own
outline, and also so that readers would know that I hadn't forgotten
about the topic in question.
I finally finished filling in all of the planned material in October
2019, so at that point there were exactly zero of those boxes
remaining. You probably won't see any in the current guide - but I
can't rule that out entirely. I'm still revising and updating the guide
on a regular basis, and occasionally a new topic comes up that's big
enough that it will take some time to cover. When that happens, I
might resort to adding a few of those boxes back in. If you see any,
they mean that there's some new material I intend to add when I get a
chance.
>
2. What is a pin cab?
I'm not sure who created the first virtual pinball cabinet, but the
seed of the idea is pretty obvious in hindsight. Someone must have
been playing around with a pinball program on their desktop PC, and
wondered what it would be like to turn the monitor sideways, to make
the layout more like a real pinball table's proportions.
Then they thought to lay it down flat, so they could stand over it
like a real pinball playfield. And then what about switching to a big
flat-panel TV that's the same overall size as a real pinball table?
The finishing touch was putting the big TV inside an old cabinet
salvaged from a defunct real pinball, right where the playfield used
to go, for the full life-sized experience.
At its most basic, that pretty much sums up a virtual pin cab. You
take a Windows PC, install Visual Pinball and/or other pinball
simulator software, attach a TV in the 40" range as the primary
monitor, and put the TV inside a pinball cabinet body where the
playfield would normally go. Put another TV in the backbox to display
the backglass artwork. Connect some speakers in the backbox to the PC
sound card, and you have the full audio/visual simulation.
What makes this so special?
Okay, you're thinking, so a pin cab is just a desktop pinball player
in the guise of a real machine. Maybe that sounds somewhat
interesting: the idea of playing on a full-size
playfield is pretty novel if you're used to playing pinball in a
cramped little perspective window on a PC monitor. But in the end,
isn't it just the same game on a bigger screen? Wouldn't the novelty
wear off pretty quickly?
As they say in the infomercials, "but wait, there's more..."
Real flipper buttons! Once we have the displays in a proper
cabinet arrangement, we can't just plop a boring old PC keyboard on
top and go on batting the ball with the Shift keys like on the
desktop. It's a real pin cab, so it needs real flipper buttons.
Yes, you can connect the real buttons to the PC. There's a special
device called a key encoder that lets you do this. Key encoders are
fairly cheap and easy to set up (and the Pinscape Controller can
handle this function, of course). They trick Windows into thinking
you're still just pressing regular keyboard keys, so you can go on
using the same pinball software.
This makes a positively huge difference in playability. If you've
played any desktop pinball or tablet pinball, you probably already
have a sense for how awkward the controls are; you've undoubtedly lost
a good number of balls from having your fingers stray just a little
off the keys at crucial moments. Even so, it'll probably still be a
revelation the first time you play virtual pinball with real flipper
buttons.
You don't have to (and shouldn't) stop at flipper buttons, by the way.
You can hook up all of the standard buttons - the Start button, Magna
Save buttons, the coin chutes, even the service buttons inside the
coin door that let you access the operator menus.
A real plunger! Desktop pinball games all use a "timed" plunger
that pulls back as long as you're pressing a key. Which obviously
doesn't even remotely resemble how you interact with the plunger on a real
machine. On a cabinet, you can install an actual pinball plunger, and
connect it to a sensor that lets the PC read its position. This lets
you launch a ball exactly like in a real game. The Pinscape
Controller offers this capability, and several commercial options are
available as well.
Real nudging! Real pinball games are physical, mechanical
systems. The game action obeys the laws of physics, not the whims of
a video game programmer. I think that's why pinball remains
interesting to so many people even in an age of impossibly
sophisticated video games. Pinball's physicality means you can
interact with the game in a very direct and visceral way.
Desktop pinball offers an imitation of nudging that's half-hearted at
best, letting you "nudge" by pressing a button. Like the timed
plunger, it's nice that they tried, but it's nothing like the real
thing.
A pin cab makes it possible to bring back real physical interaction.
A virtual cab already has the same heft and feel of a real cab, so
you'll find yourself unconsciously nudging it like the real thing,
your brain expecting it to influence the ball. But what if you really
could influence the ball that way? Good news: you can! There's a
device called an accelerometer that can measure exactly the sort of
motion you impart to the cabinet by nudging. Accelerometers are cheap
and ubiquitous these days, thanks to smart phones. The
microcontroller board used in the Pinscape Controller has an
accelerometer built in, and the Pinscape software is set up to read
the acceleration data and send it to the pinball simulator
program. Most of the available commercial plunger kits offer the same
capability. The accelerometer doesn't just sense the fact that you
nudged, but actually measures the amount of force you applied, and
passes that along to the simulator, so that the response in the
simulation is proportional to the strength of the physical nudge.
Mechanical feedback! Blinking lights! Once the early cabinet
builders mastered all of the above, they started coming up with ways
to make the experience even more realistic by adding mechanical
feedback - devices that actually move inside the cab to simulate
flippers, slingshots, and bumpers.
Real pinball is a tactile
experience. The solenoids that whack the ball around are really
powerful, and you can feel them shake the cabinet every time they
fire. Digitized sound effects just aren't the same. For a more
realistic virtual experience, you can put solenoids and other
physical devices inside your cab that produce similar tactile
effects in the virtual game. The pinball software can
trigger these feedback devices in sync with the game play. So when a
bumper fires in the simulation, you can actually feel a solenoid fire
in your cab. You can likewise add bright LEDs and strobes that
flash in sync with game events. This makes for a dramatic light
show, much more interesting than just images on a TV.
The current generation of pinball software makes it fairly
straightforward to attach an array of mechanical devices and external
lights. You need another I/O controller for this capability, known in
this case as an "output controller". The Pinscape Controller can
handle this task, and there are several commercial options as well.
As for the feedback effects, there's a fairly standard set of lights,
solenoids, and motors that most people use, but the control systems
are so flexible that you hook up almost anything you can think of.
That sounds like a lot of work...
If you're new to the virtual cabinet world and you weren't already
acquainted with all of these bells (literally) and whistles, you might
be feeling a little intimidated by all of this. You might have been
picturing just the basics of the Windows PC in the fancy wooden box,
and you might have been thinking in terms of what you could build out
of ordinary PC equipment. But a lot of the stuff I just mentioned
obviously can't be done with ordinary PC parts alone.
The good news is that everything described above is not only possible,
but well understood. It's all been reduced to recipes that you can
follow. Lots of people have built cabs with these features. The
software infrastructure that supports all of this is mature, and it's
specifically designed with all of these features in mind. There's no
need to "hack" anything to trick the software into doing these things;
the software already knows all about backbox displays, DMDs, nudging,
plungers, and feedback devices. You just need to tell it what you
have installed, and it'll take advantage of it to create a great
playing experience.
Most importantly, the whole setup can be built by a committed DIYer.
That's where this guide comes in. We'll explain how to implement all
of the things that go into a virtual pin cab, covering the best DIY
solutions as well as the commercial product options.
By the way, "DIY" doesn't mean "poor man's", which is the way a lot of
people think of it. In fact, it's really quite the opposite these
days, thanks to technologies like ubiquitous computing, 3D printing,
and the relentless pace of progress in electronics. DIY means you
can build exactly what you want. It means you don't have to settle
for what some marketing department thought was good enough for the
least common denominator. Yes, you do still see forum discussions
about "hacks" and cheap solutions. That's not what this guide is
about. The approaches we'll cover in this guide are modern,
no-compromises solutions. Some of them have capabilities that you
simply can't find in the commercial alternatives.
3. A Visual Guide to the Virtual Pinball Cabinet
A Visual Guide to the Virtual Pinball Cabinet
When I first started building my own pin cab, I found it hard to get a
handle on all of the pieces involved. I knew I wanted real flipper
buttons, but how do you connect them to the PC? I wanted a plunger,
but how the heck do you make a PC take input from a plunger? I wanted
feedback devices to simulate the flipper solenoids and replay knocker
and so on, and I understood that I needed an LedWiz for that, but
beyond that I didn't really know what it could do or how to
connect anything to it. And knowing how many questions I had,
I shuddered to think about the questions I didn't even know enough
to ask.
The diagram below will, I hope, clear up some of that fog, especially
the unknown unknowns. It's is a comprehensive map of all of the
electronic systems and devices that make up a virtual pinball machine.
It doesn't answer the detailed questions, like exactly how you hook up
the LedWiz or install software, but it offers a bird's-eye view of
everything that goes into one of these machines. It shows what each
component does and how everything fits together. The idea is to let
you see the whole system at a glance. This diagram shows pretty much
everything electronic in a pin cab, so you should be able to
quickly spot any major components that weren't already on your radar,
and decide if you need to add them to your plans.
This is a big-picture view, but it's also loaded with details that
you can view interactively. Roll over any component with the mouse
(or tap it) to learn more about it. There are also some general notes
following the diagram. But don't feel like you have to cram for
a quiz: we'll cover everything in the chart in much
greater depth in later sections.
Roll over/tap features to show details • See notes below
Feature Details
Notes
- The machine shown here is fully decked out. A bit more than fully,
in fact: some things are redundant, such having both a "real DMD" and
a "DMD TV". If you're in the planning stages for building a cab, you'll
only need to consider the components related to the features you
plan to include.
- This isn't a complete wiring diagram or schematic. For that,
refer to the Build Guide sections on the individual subsystems.
- "DOF" (referred to several times in the detail popups) stands for
DirectOutput Framework, one of the key pieces of software you'll want
to install on the PC inside a cab. DOF is the software that handles
the feedback devices.
How the Pinscape Controller fits in
You won't find any one box on the diagram that represents the Pinscape
Controller. That's because Pinscape is only one of several possible
choices for the functions it performs, and because Pinscape can perform
several different functions. So the diagram instead shows boxes for the
individual functions conceptually. If you do decide to use a Pinscape
Controller, it can fill any or all of these roles:
- Key encoder
- Accelerometer
- Plunger interface
- Output controller
Even though these functions are shown as separate boxes on the diagram,
a single Pinscape unit can fill
all
of these roles simultaneously.
The Pinscape Expansion Boards also serve as the "Power
Booster", which is shown as another separate box.
If you're using the stand-alone KL25Z without
the expansion boards, you'll need something to serve as
the power booster if you want to connect feedback devices. The Build
Guide includes circuit plans.
15,11-337,235 24V power supply
#num top: 40%;
A number of common feedback devices require 24V DC power. These
include the most common type of contactors used to simulate
flippers, slingshots, and bumpers, as well as real pinball
chime coils. If you're using any devices requiring 24V, it's
handy to have a dedicated 24V supply in the cabinet, since this
isn't one of the voltages you can get from the secondary PC power
supply. If you don't have any of the common 24V devices, there's
no need for this extra unit.
390,19-823,236 Secondary PC power supply
#num top: 40%;
This is a second PC-type power supply that isn't connect
to your PC at all, but is used to provide power to the feedback
devices and other devices in your cab. You actually don't need
to use a PC power supply per se here, since we're not using any
of its special PC capabilities but just using it as a source of
5V and 12V DC. But PC power supplies are great for this because
they're an extremely cheap way to get a good high-current source
of 5V and 12V power. The reason we care about having a 5V and 12V
supply is that these two voltage levels are exactly what's needed
for most of the common feedback devices. And for devices requiring
other voltage levels, we can usually use inexpensive step-up
and step-down converters that draw their power from the 5V or
12V lines.
9,426-229,571 RGB flashers
Real pinballs usually have a number of "flasher" lights (bright lamps
under plastic domes) around the playfield. These produce a brilliant
light that's a key part of the show. Emulated tables will of course
include the playfield flashers in the on-screen image, but a video
monitor can't approach the brightness of the real thing. For a better
simulation of the original light show, virtual cabs often include
real flashers, usually a set of 5 positioned inside the cabinet
just behind the back edge of the playfield TV, and/or on top of the backbox.
The flashers in virtual cabs usually use clear plastic domes rather than
colored domes, and use RGB LEDs as the lamps, so the software can
use them to display flashes in any color. High-power
RGB LEDs that produce very bright light can be found on eBay: look for
"3W star RGB LED".
Note that this type of LED usually requires a resistor for each
color channel, to limit the electric current that flows through the
LED element. The resistors aren't shown on the diagram, but the
Build Guide section on wiring these devices has full details.
9,593-228,718 Strobe lights
This is another popular lighting effect on virtual cabs. These are simply
bright white lights. You can find the type most pin cab people use by
searching eBay for "22 LED strobe". These are designed
for use on cars and trucks, which means they run on 12VDC, which is
perfect for a pin cab.
9,744-206,913 Contactors/solenoids
The most basic "tactile" effect in a virtual cab is the
thunk
made by the flippers, slingshots, knockers, and the like. The best way to
implement this is with something physically similar that actually goes
thunk itself. Digitized sound from the speakers just doesn't have
the same tonal quality or create the same sensation in your fingertips.
One obvious approach is to use real pinball flipper and bumper
assemblies, hidden inside the cab. Some cab builders do go that route, but
these are expensive and take up a lot of space. A good compromise that many
cab builders use is some kind of self-contained solenoid device. The most
popular choice is the Siemens 3RH1140-1BB40 24VDC contactor, which is basically
a beefy relay designed to switch high-power loads; it has a solenoid-driven
switching mechanism inside that makes a decently pinball-like sound. Another
popular option is automotive starter solenoids. Open-frame relays (easily
found on eBay) can also serve.
44,913-180,1100 Replay knocker
The replay knocker is such a distinctive feature of pinball machines that
most virtual cab builders wouldn't dream of being without one. Digitized
audio simply can't do justice to the hammer blast of a real knocker. Most
cab builders opt for an authentic knocker coil assembly, which you can buy
new from any pinball supplier. The real ones aren't very expensive, so hardly
anyone bothers to look for a DIY alternative.
9,1105-216,1246 Shaker motor
If you've ever played a real
Earthshaker, or almost any recent
Stern game, you've probably encountered a shaker motor in a real pinball.
Shakers do what the name implies: they shake the machine (and the floor around it)
like a minor earthquake is going on. This is one of the most dramatic feedback
effects you can include in your machine, and it can really add excitement
during play. The implementation is simple: it's just a DC motor with an off-balance
weight attached. It's fairly straightforward and inexpensive to build one
yourself. If you do include one, you'll get a lot of use out of it, because
the standard DOF setup triggers it at well-chosen events in many tables,
even those without shakers originally.
9,1246-195,1398 Gear motor
Lots of real tables have something on the playfield that's controlled
by a little electric motor, which you can hear when it's in action.
These motors are usually linked with gears to the playfield features
they control, and the gears are what make most of the noise. For a more
realistic rendition of this distinctive sound, many cab builders like to
include an actual geared motor in their cab. The software can activate
this in sync with the game action, just like in the real game.
Two main types of motor are popular among cab builders for this role.
The first is the robotics motors available from many sellers on eBay:
small DC motors with a couple of brass gears attached.
They make about the right amount of noise, but some people think
the quality of the noise is too "whiny". The other common type is
auto windshield wiper motors. These are usually quieter and lower
pitched than the robotics motors.
9,1399-194,1564 Fan
A small handful of real pinballs featured fans on the backbox, most notably
Whirlwind. Given the puny number of real machines with fans,
you might wonder why you'd want one for a virtual cab.
But then you'd be surprised at how many virtual cab builders include one.
Like the shaker motor, the standard DOF setup triggers the fan on suitable
events in lots of tables that didn't have one in real life, so you'll get a
lot more use out of it than just playing
Whirlwind and
Twister.
And like the shaker, it's
a particularly tactile and dramatic effect that can be a lot of fun.
Many cab builders use fans that are designed for automotive or boat use
(since these conveniently run on 12VDC) and mount them on top of the
backbox
a la Whirlwind. Some cab builders have created sneaky
hidden fan setups, with the fan inside the cab, blowing air at the player
through an opening in the coin door or a vent under the machine. My own
machine uses a replica of the
Whirlwind fan with a custom
enclosure designed to fit the theming of my cabinet art.
29,1599-189,1764 Beacons
This is another popular light-show effect: a police-car rotating beacon
light, or a pair of them, on top of the backbox. A surprising number of
real machines had beacons; police themes are apparently as popular
in pinball as on CBS. (In fact,
F-14 Tomcat had
three,
and it wasn't even police-themed.) Like the shaker and fan, you'll get
plenty of use out of beacons even in games that never had them originally.
It's fairly easy to find suitably sized rotating lights of this sort
on-line, especially from auto supply stores. A bonus is that anything
designed for cars will conveniently run on 12VDC. There are also novelty
beacon lights designed as party decorations, but those tend to be
poor imitations.
3,1780-268,1986 Chimes & bells
If you're a fan of classic electromechanical pinballs, you might
consider installing some real chimes and/or bells. As with the knocker,
recorded audio doesn't do justice to real percussion instruments.
One option is to install an original pinball "chime unit" from the 1960s
or 70s. These are basically little xylophones, with three or four metal
bars and solenoid-driven hammers. The pinball manufacturers haven't made
these in a long time, so if you want the real equipment from the EM era,
your best bet is to find a salvaged unit on eBay. It might take some
patience since there aren't all that many in circulation. There's also
at least one modern reproduction unit available commercially (look for
"McCullough's Chime Unit"), but reviews are mixed as to whether it
sounds like the originals. The pinball suppliers don't sell full chime
units, but they do sell many of the parts, so you might be
able to cobble one together with a mix of original and improvised parts.
Another option is to find some suitable "shell" type bells, which were
used instead of chimes on many EM machines. You can use a regular knocker
coil to strike them. Bells have their own distinctive sound, so
a serious EM enthusiast might even want both bells and chimes, for more
variety and authenticity in configuring different tables. Yet another
possibility is an alarm-clock type of bell that strikes repeatedly when
energized, since a few real pinballs had these (
Taxi,
Space
Shuttle). Finally, a working decorative bell can also make a nice
"topper" (something mounted on top of the backbox), as in the original
Fire!.
4,2004-263,2049 LED strips/undercab lighting
Many cab builders like to put RGB LED strips on the bottom of the cabinet
or the back of the backbox. Look for "5050 LED strip" on eBay; these
are adhesive-backed strips with LEDs spaced every couple of centimeters,
designed for accent lighting. These strips only show one color at a
time across the whole strip (unlike the "addressable" strips, which
can show animated effects but require a special controller), so
they're best for ambient lighting effects. This is a popular "mod"
among real pinball owners, too. It creates a pool of light around
the machine, adding to the overall show.
423,823-731,1050 Step-up converter for knocker
#num top: 30%;
Real pinball knockers in modern games are mostly designed to run on 50V.
They'll work on lower voltages, but to get the proper amount of force for
the knocker effect, you need at least 35V or so. There's nothing else in
a typical virtual cab that needs that kind of voltage, so in all likelihood
you'll end up needing a special power supply just for the knocker. A cheap
and easy way to do this is to use a step-up voltage converter. These are
available on eBay for about $15. These take 12V as input (which you can
get from your secondary PC power supply), and let you dial in a higher
voltage for the output up to some limit. Look for a converter that can go
up to at least 35V, and preferably closer to 50V, and one that can supply
about 5A at the highest output voltage.
430,1058-749,1209 Step-down converter for shaker motor
#num top: 35%;
If you build a custom shaker motor, you'll probably want to base it on
a 12V DC motor, which means that you could power it directly from the 12V
line from your secondary power supply. However, many people find that
their shakers are too intense at full power, so they want to be able to
turn down the power a bit. One easy way to do this is by dropping the
voltage slightly with an adjustable step-down voltage converter. You
can find these on eBay for a few dollars. These take 12V as input and
produce an output voltage that you can adjust to any lower voltage.
Connect the output to the motor, and adjust the output (by turning
the control screw on the converter) to get the level of intensity you
find most pleasing.
419,1271-719,1403 Output controller
#num top: 20%;
To control feedback devices, you need an output controller. This is
a special device that you connect to the computer with a USB cable.
The device takes software commands from the PC and translates them to
electrical signals that turn your output devices on and off, in sync
with the on-screen game action, to create feedback effects to enhance
play. Almost any sort of electrical device can be used for feedback:
lights, motors, solenoids, bells, chimes. Some controllers use relays
to switch connected devices on and off (e.g., Sainsmart relay boards).
Others use solid-state (transistor) circuitry (LedWiz, PacLed, Pinscape).
Solid-state controllers almost always require some sort of "power booster"
to connect anything more powerful than an LED or small lamp.
$pinscapeLogo$The Pinscape Controller can serve as an output controller. If you use
the stand-alone KL25Z, the number of outputs is limited: about 20 devices
if you're also using it for any button inputs, or about 30 if not. The
plain KL25Z also requires power booster circuits to power anything, even
small LEDs. With the expansion boards, the number of outputs is practically
unlimited, plus the power boosters are built in, so you can connect
powerful devices like solenoids and motors directly.
419,1445-703,1643 Output power booster
If your output controller has solid-state (transistor) outputs, you'll
probably need some kind of power booster to connect anything beyond
LEDs and small lamps. The LedWiz and PacLed devices
both have this requirement, as does the stand-alone KL25Z with the Pinscape
software.
There are several ad hoc solutions that work with any controller.
One is to use relays; that's a simple solution, but has some drawbacks.
Another is to use the common "LED amplifiers" sold on eBay. These work
for high-current LEDs but might not be suitable for solenoids and motors.
For a more robust solution, you can use a booster designed specifically
for your controller. Zeb's Boards sells specially designed booster boards
for the LedWiz and PacLed devices. That's a more expensive option, but
easy to set up and superior to the ad hoc solutions.
$pinscapeLogo$If you're using the Pinscape Controller with the expansion boards, you
won't need any other boosters, because the expansion boards have powerful
booster circuits built in. If you're using the stand-alone KL25Z, you can
use one of the ad hoc solutions (relays, LED amplifiers), or you can build
your own inexpensive solid-state booster circuits using a simple circuit
design detailed in the Build Guide.
784,839-1056,1191 Addressable LED strips
#num top: 25%;
An addressable LED strip is an adhesive-backed strip about a
centimeter wide with a row of small LEDs down its length.
"Addressable" means that each LED on the strip can be controlled
independently, for animated lighting effects. This is still a
relatively new and rare "toy" in virtual pin cabs. Some cab
builders place these strips along each side of the playfield TV,
where the addressable lights can be tied to flashing lights and
other events on the playfield.
A special controller device is required to connect this type of
light strip to the PC, typically by USB. Free open-source firmware
is available that turns a Teensy 3.1 (an inexpensive Ardunio-type
USB device) into an addressable strip controller that works with
Visual Pinball.
735,1705-1003,1853 Plunger interface
#num left: auto; right: 0px; top: 15%;
This is a USB device that connects the plunger sensor to the PC.
Several options are available, including commercial products from
Zeb's Boards and VirtuaPin. Many of the available plunger devices
also include accelerometers for nudge sensing, and some also
include key encoders for button input. Plunger input is sent to
the PC as joystick input, since that's the format that Visual Pinball
and other emulators use to read the data.
$pinscapeLogo$This is one of the roles the Pinscape Controller can fill.
In fact, plunger sensing was the whole project's original purpose.
548,1746-735,1988 Plunger sensor
#num top: 25%;
To connect a standard pinball plunger to the PC, you need some kind
of sensor that reads the position of the physical plunger and
converts it into an electrical signal. There are many approaches.
The Pinscape Controller can use an optical sensor that
essentially takes rapid pictures of the plunger and finds the
position by scanning the images; it can also work with
a potentiometer that's mechanically linked to the plunger, using
the varying electrical resistance of the pot to determine the position.
The Zeb's Boards kit uses a quadrature sensor,
which senses the motion by counting pulses in a moving magnetic
bar code. The VirtuaPin kit uses an IR proximity sensor, which uses the
brightness of infrared light reflected from the tip of the
plunger to estimate the distance from sensor to tip.
The type of sensor you use will depend primarily on which
controller you choose; if you go with a commercial kit, it will
include the sensor.
Note that virtually all of the sensor options are designed
to work with a standard pinball plunger assembly. The
commercial kits usually include the plunger.
For Pinscape or other DIY options, you can get the
plunger assembly from any pinball parts supplier.
748,2018-973,2134 Accelerometer
#num top: 25%;
Nudging is such an integral and unconscious part of real pinball
play that good emulation demands a way to sense when you nudge,
shake, or shove the cabinet. The best way to do this is with
an accelerometer. A good one can tell the difference between
a slight nudge and a hard shove, allowing the simulation to
react proportionally.
Visual Pinball and other pinball emulators have good support
for accelerometer-based nudging. They take accelerometer
input via the standard USB joystick interface, so you just
need a device that reports acceleration data this way.
$pinscapeLogo$The Pinscape Controller can fill this role
(and the accelerometer on the KL25Z is very good). Most of the
commercial plunger kits also include a nudge feature, so you
probably won't need a separate accelerometer if you have any sort of
plunger device. If you decide not to install a plunger, you can
install a Pinscape Controller or one of the other plunger kits for
its accelerometer features alone if you wish.
960,15-1301,158 Switched power strip
This is a second power strip that provides line power to
all of the secondary devices in your system: the TVs, the
audio amplifiers, and the feedback devices. The line power
coming into this strip is controlled by the power switch
relay, so the strip receives power when the PC is turned
on and is effectively "unplugged" when the PC is off. This
provides nice integration for all of the systems in your
cabinet so that you can control everything with the main
PC soft power button.
An alternative to using the switching relay and a
second power strip here is to combine everything into one
"smart" power strip designed for computers. A smart strip
has a "master" outlet that plugs into the PC, and controls
the other outlets according to whether the PC is turned on
or off. This is simpler to set up than using a separate
relay, but some people have trouble getting these to work
reliably. Some motherboards don't seem to draw enough
power to trigger the "smart" switching function on some
of these strips.
1286,17-1526,247 Power switch relay
#num top: 50%;
This lets the PC control power to all of the secondary
systems in your cabinet: the TVs, the audio amplifiers,
and the feedback devices. This works as follows: when the
PC is turned on, the 12V power supply from the PC turns on,
which activates this relay, supplying power to the second
"switched" power strip. When the PC is off, the 12V line
turns off, which turns off the relay, which cuts power to
the second power strip. This effectively "unplugs" all of
the devices on the second power strip. You'll want to choose
a relay specifically designed for switching high-power loads.
The type designed for air conditioners and water heaters is
perfect. Because of the high voltage going through the
relay terminals, you'll want to be sure to thoroughly enclose
this relay in a protective plastic box so that you don't
ever accidentally touch any exposed wires, and so that
nothing shaking loose in the cabinet can ever come into
contact with the wires.
An alternative to the power switch relay is to use a
"smart" power strip designed for computer use. Smart power
strips do the same thing as the relay, but this action is
built in to the strip, so you don't have to buy extra parts
or do any wiring. Smart power strips are more expensive,
though, and some cab builders have had problems with their
sensitivity. Smart strips are triggered by the amount of
power being drawn through the "master" outlet connected to
the PC, so if your PC doesn't draw enough power, it might
not trigger the smart strip to turn on the other outlets.
An external relay doesn't have this
problem because it's triggered by PC power supply voltage
output rather than its current input, which makes the relay
approach work on every PC. Smart strips can also be
perfectly reliable, but this depends on the combination
of PC and smart strip model you choose.
1536,17-1774,161 Main power strip
#num top: 50%;
For the PC power supply connection, you'll want a simple
power strip that's left plugged in all the time. This lets
you control power to the PC with the "soft" power button.
Most people use a power strip with a built-in surge
suppressor to protect the PC from power spikes in your
house wiring and utility service. For a neat, integrated
look to your cabinet, mount this inside the cabinet, and
run its power cord out through a hole, to serve as the
main power cord that you plug into the wall outlet.
Note that most power strips have a built-in manual switch
to turn power to the outlets on and off. Even though
we're calling this the "unswitched" power strip, it's
perfectly okay to use a power strip with one of these
manual switches. You'll just ignore that switch and
leave it on all the time.
593,336-1045,571 Playfield audio amplifier
This is a
secondary audio amplifier, connected to your
extra sound card. This is an optional system; most cab builders
don't bother with it. If you choose to use it, this is simply
another amplifier like the one powering your main speakers.
This one connects to the second sound card in the PC and to the
playfield effects speakers, usually positioned inside
the cabinet under the playfield TV. The purpose of this second
set of speakers is to audibly place the table sounds effects
closer to their simulated sources. The table sounds are things
like the ball rolling around and bumping into things, the flippers,
the bumpers, and so on - sounds that in the real game would
be coming from the playfield area.
One alternative to a separate playfield audio amp is to
use the speakers built in to your playfield TV. Many flat
panel speakers are too small and tinny for this to sound any
good, though. Another alternative is to use a multi-channel
amp for the main audio amplifier, with enough independent
channels to drive the main speakers and the playfield
speakers.
594,575-983,792 Playfield speakers
#num top: 50%;
This is an optional,
secondary set of speakers dedicated
to reproducing the playfield sound effects, such as the ball
rolling around and bumping into things, the bumpers, the flippers,
etc. These speakers should be placed inside the main cabinet,
under the playfield. Visual Pinball doesn't currently do
anything to position these sound effects spatially, so a single
speaker is all you really need here. However, you'll probably
want a stereo pair anyway to help spread out the sound so
that it doesn't sound like it's all coming from a single point
on the playfield. You can also use a separate subwoofer for
this set of outputs. Some people use "tactile" subwoofers
here - the type that video gamers and home theater enthusiasts
attach to their chairs to create a Sensurround® effect.
A tactile subwoofer can let you feel the ball rolling and
bumping effects through the cabinet, which can add to the
realism, although you might find that you have to edit some
tables to tone down their effects. Some are too much of a
good thing with a tactile sub.
An alternative to using separate speakers here is to play
these effects through your playfield TV's built-in speakers.
Flat panel TV speakers are often too small and tinny for
this to sound any good, though; many table
effects need good bass reproduction to sound right.
1247,404-1705,556 Main audio amplifier
#num left: -4ex; top: 50%;
The audio amplifier for your main speakers. This connects to your
PC's audio output - the "line out" jack on your motherboard, if
it has one, or on your main sound card - with a standard audio
cable. Many types of amplifiers can be used here. Many people
use car amps, since they're compact and run on 12V, which means
they can be powered from a PC power supply. Another popular
option is to use powered computer speakers. You could even use a
home-audio receiver or amplifier, although these tend to be too
bulky to easily fit in a pin cab. If you use a subwoofer, you'll
want at least a "2.1" channel amp - two stereo channels plus a
mono subwoofer channel. Some 4-channel car amps can be wired
with one pair of channels "bridged" together to serve as the
subwoofer channel.
1211,580-1720,776 Main speakers and subwoofer
#num left: 25%; top: 5%;
If you're building your cab in the style of the real machines from
the 1980s and 90s, the main speakers will consist of a pair of small
(4" to 5") "satellite" style speakers mounted behind the speaker
panel in the backbox, and a separate large (8" to 10") subwoofer
mounted on the floor of the main cabinet, facing down through a
circular opening. Cab builders often use car speakers for these,
since many good options are available in the right size range.
If you're building your cab in the style of an older machine from
the electromechanical era, you'll have to be more creative about
where to put the speakers, since the "sound systems" on those
machines consisted of actual noisemakers (chimes and bells), not
speakers.
1440,821-1972,989 Backglass TV
This is a TV positioned where the translite or backglass would
normally go in a real pinball. This is connected to the PC video
card with HDMI or DVI like an ordinary PC monitor, and Windows sees
it as a second display. If you haven't done this before, it's
easier than it sounds, because Windows has built-in support for multiple
displays that actually works pretty effortlessly. Visual Pinball and other
emulators can easily be set up to display the animated backglass
graphics on this separate monitor for realistic play.
If you build your cab following the 1990s style, with a separate
speaker/DMD panel, most
30" widescreen (16:9) TVs will be a good fit. They're almost
exactly the right width, but they're not quite tall enough, so
there will be about a 1" gap above and below. You can cover
the gap with a painted or decal mask on the translite.
Some cab builders opt for a single
monitor filling the whole backbox area rather than using a
separate speaker panel. That arrangement is even tricker
because the backbox has a nearly square aspect ratio, and
square TVs simply don't exist. The usual solution is to use
a widescreen monitor in portrait mode, and submerge part of
into the cabinet below the backbox. This has disadvantages,
obviously.
1200,839-1378,874 Backglass TV video cable
The backglass TV connects to the PC video card with an ordinary
video cable, usually HDMI on the TV side, and either HDMI or DVI-D
on the PC side.
1482,1095-1951,1165 Real DMD
Most real pinballs from the 1990s and later used Dot Matrix Displays,
or DMDs, positioned in the speaker panel at the bottom of the backbox.
The real DMDs from the 90s were mostly 128x32 plasma displays; these
are extremely bright and have a distinctive amber color. Recent Stern
games have switched to LED displays with the same pixel layout, and still
in monochrome, but with different colors on different games. Visual Pinball
and some other emulators can take advantage of the authentic equipment,
either plasma or LED, to display animated graphics just like the real
machines. You can't get more
authentic for the games that had DMDs originally. For a modern
variation, full-color RGB LED panels are now available with the same
pixel layout, allowing more variations than the traditional monochrome.
A slight drawback to real DMDs is
that their low resolution makes them less flexible for games from the
pre-DMD era, such as the alphanumeric games. Another complication is that
you'll need some extra hardware: namely, a DMD interface board to connect
it to the PC, and in the case of a plasma DMD, a special power supply.
1170,1050-1442,1125 Power supply for real DMD
#num left: -10%;
If you're using a
plasma Dot Matrix Display (DMD), you'll need a
special power supply module just for the display, since the plasma
panels require high voltages that you can't get from a regular PC power
supply. Suitable power supplies are available
commercially, or you can build one yourself if you're good with
electronics. Most LED DMDs run on 5V, meaning they don't need
separate power supplies but can use the regular PC PSU.
1170,1131-1442,1240 DMD interface module
#num left: -10%;
If you're using a Dot Matrix Display (DMD), you'll need a special
device to connect the DMD to the PC. This applies to both the
plasma and LED panels. DMD panels won't work directly with a PC,
as they don't have any of the necessary electronics on board to
connect to a regular video source. Fortunately, there are special interface
modules available that bridge this gap. These connect to the PC
via USB cable, and translate the PC software commands to the
electronic signals that control the DMD. One option is a commercial
product called PinDMD (available in verions, PinDMD2 and PinDMD3).
Another option is an open-source DIY project with the confusingly similar
name Pin2DMD.
1479,1221-1951,1344 DMD TV
Most real pinballs from the 1980s and 90s had score displays
positioned in the speaker panel the bottom of the backbox. The
early versions of these panels used 14-segment alphanumeric
displays. More modern games changed to Dot Matrix Displays (DMDs),
which can display full graphics, albeit at
fairly low resolution (usually 128x32 pixels). One
way to simulate both types of display is to use a small TV or a
laptop LCD panel, positioned in the speaker panel where the DMD
would go in a modern machine. Like the playfield and backbox
TVs, this is just another video monitor as far as Windows is concerned.
Visual Pinball and other pinball programs can take advantage of it show
the DMD graphics or alphanumeric score. A 15" laptop screen is
almost exactly the right width for the standard DMD size of real
pinballs; it's taller than the real thing, but you can hide the excess
height behind the speaker panel. An alternative is to use a real
pinball DMD. Another is to leave this out entirely, and overlay the
DMD area onto the bottom of the main backglass TV.
1286,1332-1395,1361 DMD monitor video cable
If you use a TV or video monitor for the DMD area, this connects
to the PC video card with an ordinary video cable. This is usually
VGA for a third monitor, for the simple practical reason that
most video cards don't have three HDMI/DVI ports but do usually
have a spare VGA port left over even after connecting two other
monitors.
1471,1363-1951,1725 Playfield TV
#num left: -3ex;
A large TV or monitor goes where the main playfield sits in a real
pinball. You connect this to the PC video card with an ordinary
video cable, and Windows simply sees the TV as a monitor.
A regular 16:9 widescreen TV is a pretty good approximation
to the aspect ratio of a real playfield when rotated 90° (for
"portrait mode"). You can either choose a TV that fits your cabinet,
or build a custom cabinet around your TV. Before deciding, you should
be aware that all of the pinball cabinet hardware you can buy off-the-shelf
is designed to fit just two size options, known as "standard body"
and "widebody". If you build a cabinet with custom dimensions, you'll
need custom versions of some of the accessory hardware.
The standard body is 20.5" wide on the inside, which
is enough to fit most 39" TVs and some 40". The widebodies are 23.25"
wide on the inside, which will fit up to about a 45" TV. In terms
of the displayed image size, a 39" TV yields about the closest match
to the true object sizes; the image on a larger TV in a widebody is
a bit larger than life. Many people use widebody plans anyway, for
the greater flexibility in choosing a TV, and also because larger-than-life
can also be fun.
1244,1668-1432,1700 Playfield TV video cable
The playfield TV connects to the PC video card with an ordinary
video cable, usually HDMI on the TV side, and either HDMI or DVI-D
on the PC side.
1237,1772-1764,1867 Sound card for secondary audio
#num left: -10%;
Visual Pinball can take advantage of
two separate audio systems.
The first is used to play back the original "soundtrack" of the game (the
music, speech, and sound effects that played through the backbox speakers
on the original arcade machine). The second system plays the "table" sound
effects, such as the sound of the ball rolling around the field and hitting
things, and the sounds made by the bumpers, flippers, and other solenoids.
It makes the simulation a little more realistic to play the table
effects from speakers inside the cabinet, under the main TV, closer
to where they'd come from in a real machine. To take full advantage of VP's
ability to separate the sound effects, you have to add a separate sound card.
Most modern motherboards have a "sound card" built in, so all you need is
one add-in sound card to get the second set of channels. This might sound
like it's asking for trouble with Windows device conflicts, but it's
actually no problem, as Windows has good support for using multiple
sound cards. Connect your backbox speakers
to the primary audio output (usually the one on your motherboard),
and connect your in-cabinet "table effects" speakers to the extra
audio card. The second sound card is completely optional, as VP
will play everything through a single set of speakers by default,
but the extra spatial separation from a second set of speakers is a
nice little enhancement.
1214,1889-1618,1963 Video (graphics) card
#num left: -10%;
Pinball emulators are fundamentally video games, so a good video card
is important. Video pinball doesn't lean on the graphics processor
quite as heavily as the most demanding 3D games, so you don't need a super
high-end gaming rig, but you'll definitely want something more powerful
than a basic business-graphics card. Look for a good mid-range gaming card.
An important feature to consider is support for multiple monitors.
If you plan a 3-monitor setup (playfield, backglass, DMD), be sure
your card has at least three outputs, with a set of connectors
compatible with your monitors. The reason that multiple-monitor
support is important is that most people find that you get much
better performance by connecting
all monitors to
one
video card than splitting monitors across cards.
1223,1990-1382,2211 PC motherboard
#num left: -33%;
The heart of a virtual pinball machine is a standard PC motherboard
running Windows.
1473,2106-1906,2220 PC soft power button
#num left: -5%;
Standard PC motherboards have wiring for connecting a "soft" power
button - push the button to turn the PC on, push it again to tell
Windows to power down. The button wiring can be connected to any
ordinary momentary pushbutton switch. The type of button commonly
used for a real pinball machine's front-panel Start button is a good choice, because
it's easy to install in cabinet and has an integrated microswitch
that's easy to wire. On real pinball machines, it's standard to
place a "hard" on/off switch (which physically connects and
disconnects line power) on the bottom of the cabinet, near the
right edge and a few inches back from the front. This is nicely
hidden away but easy to reach and easy to find by feel. For a
virtual machine, I recommend placing the "soft" power button in
the same spot.
1473,2221-1834,2334 PC reset button
#num left: -5%;
Most PC motherboards have wiring for connecting a reset button,
to forcibly reboot the system in case the operating system crashes.
This can be connected to a simple pushbutton switch, such as the type
used for the soft power button or the front-panel Start button; one
possibility is to place this on the bottom of the cabinet near the
power button. Or you can connect this to something akin to the
"service buttons" inside the coin door. For modern Windows systems,
this type of button isn't all that useful, but some people like to
include one just in case.
1193,2297-1470,2453 PC power supply
An ordinary PC power supply unit (PSU) is needed to power the
motherboard. This should be connected to an
unswitched
power inlet, since the PC should always be physically plugged in
to wall power to allow turning it on with the soft power switch.
I recommend powering
only the PC components with this PSU,
and using separate power supplies for the feedback devices.
823,2350-1019,2481 Key encoder
#num top: 15%; left: -3ex;
This is a core device that almost every virtual pinball machine needs.
It lets you to connect real pinball buttons (flipper buttons, Start
buttons, etc) to the PC. Most of these devices connect via USB, while
some connect to a PS/2 keyboard port. Depending on the
device, the physical buttons in your cabinet are mapped either to
keyboard input on the PC or joystick button input. Some key encoders
let you program which keyboard keys or joystick buttons are sent to
the PC, and some have pre-set mappings that you can't change.
$pinscapeLogo$The Pinscape Controller can fill this role. It lets you
map buttons to keyboard keys or joystick buttons of your choosing (or a
mix of the two), and lets you program all of the mappings individually.
Pinscape also lets you assign a "Shift" button that gives every other
button a secondary assignment, letting you access more functions
without adding more physical buttons. There are also commercial key encoder
devices available that offer similar features, including the i-Pac and KeyWiz.
Or, if you buy one of the commercial plunger kits, it will probably
provide button input as a bonus feature, although it'll have a limited
number of inputs and probably won't let you choose your own key mappings.
630,2206-1069,2305 6.3V step-down converter
#num top: -3ex;
The most common type of illuminated pushbutton for the front panel
of your machine (e.g., the Start button) uses #555 light bulbs. These
bulbs are designed to run on 6.3V, which is a rather odd voltage that
you won't find anywhere in a PC. These bulbs will also work on 5V
(available from the PC power supply), but they'll look a little
dim at the reduced voltage. If you don't like that, one solution is to replace
your incandescent #555 bulbs with LED equivalents, most of which will
work on 5V without loss of brightness. Another solution is to keep
the incandescent bulbs and supply them with the right voltage, by using an
adjustable step-down voltage converter, which can be found on eBay
for a few dollars. What these do is take a power supply voltage
on their input terminal, say 12V, and let you select a lower
voltage on the output terminal by turning a dial. Get one of
these and set it to 6.3V for your illuminated buttons. A single
converter can supply power to multiple buttons.
25,2125-338,2476 Coin door position switch
Real pinball machines have a switch that senses when the coin door
is open. This is usually implemented with a plunger switch that's
pushed in by a bracket when the coin door is closed, and released
when the door is open. You can get the authentic type of switch
from pinball suppliers. You can also use a regular microswitch,
although it's a little harder to get the mounting geometry right
with such a small switch. You can also just install a manual
"coin door" button, which is simpler to set up but a little
less convenient to use, obviously. In any case, it's useful to
have something to serve this role, since many tables
won't let you access the service menu unless they think the door
is open, which requires that they get the appropriate switch signal.
Whatever type of control you choose for this, you can connect it to
the key encoder like your other buttons.
381,2123-560,2461 Tilt bob & slam tilt
#num top: 25%;
If you have an accelerometer, you'll probably also want a real
tilt bob. This is a really simple device that consists of a freely
hanging metal weight surrounded by a metal ring. When the
weight touches the ring, it makes electrical contact and acts
like a switch. Shaking the machine makes the weight swing; shaking
too much makes it swing far enough to touch the ring. The pinball
software can simulate this at a simplistic level using the accelerometer
data, but real cabinet motion is complex enough that the simulation isn't
usually very convincing. A real tilt bob works better, and it's cheap
enough and easy enough to set up that I think every cab with an
accelerometer should have one. Just wire it to the key encoder
like a button.
There's another type of tilt detector called a "slam tilt". It's
usually built in to real coin doors. It looks like an oversized leaf
switch with a big metal weight at the end of one leaf. This detects
hard shoves on the front of the cabinet, mostly to deter arcade customers
from seriously abusing the equipment or trying to break into the coin box.
It's not very important in
a virtual machine because you're probably going to treat it more kindly
anyway. But if you're a completist, you can connect this to the key
encoder like your other switches. As with other coin door items,
it will probably be wired to the coin door wiring harness.
26,2649-323,2876 Hidden buttons
Some cabinet builders like to add a few extra buttons that aren't
part of a real pinball, but serve some special "virtual" function.
And because the buttons aren't authentic, many builders like to put
such buttons somewhere out of plain sight, so as not to affect the
aesthetics. One good hidden location is the bottom
of the cabinet, near the front edge, where buttons can be
easily reached and identified by feel. This is good for buttons
you might want to access frequently, like a volume control or
a manual "Coin In" button. Another option is to hide buttons inside
the cabinet, close to the coin door or even mounted on the coin door
itself. This option is best for buttons that you'll access
infrequently or that you don't want curious guests messing
around with, like a manual "coin door" button or service
menu buttons.
338,2621-555,2876 Coin acceptor switch
If you have a real coin door, and you choose to install real
coin acceptors (often called "coin mechansims" or just "mechs"),
you can set up your machine so that feeding in a quarter sends
a coin signal to Visual Pinball. This is actually pretty easy,
because the coin mechs use a simple microswitch that's tripped
by the passage of a coin through the acceptor slot. So all you
have to do is wire the switch to your key encoder. The slight
complication (as with the coin door service buttons) is
that the coin switches are usually wired to a connector or wire
harness along with all of the other coin door wires, so you
might have to spend a little time sleuthing out which wires
connect to the coin switches. Once you do, just connect them
to the key encoder. Note that if you also have a manual
"Coin In" button, you can simplify things by wiring the
coin acceptor switch and Coin In button in parallel, so that
either one can be used to add a coin in the simulation.
570,2660-751,2876 Manual coin button
It's handy to have a dedicated button somewhere on your machine
to simulate inserting a coin. You won't need it very often,
because it's fairly easy to set most games to Free Play
mode where coins aren't needed. Some older games are difficult
or impossible to set to Free Play, though; the easiest way
to handle them is to feed them fake coins with a button. Some
cab builders just add a Coin button to the front panel, alongside
the Start and Exit buttons. Others hide a button under the
bottom of the cabinet or inside the coin door. My favorite
solution is to use the Coin Reject buttons on the coin chutes,
assuming you have a standard coin door. You can position
microswitches behind these buttons so that pushing one triggers
a switch. Whatever placement you choose, you can simply wire
this button to your key encoder like the rest.
770,2660-1019,2876 Service buttons
Real pinball machines from the 1980s onward have a set of
"service" buttons inside the coin door. These let the operator
access the machine's setup menus for adjusting game options,
pricing, etc. The same buttons are useful in
your virtual machine because they let you make the same
types of adjustments to the virtual tables you play.
If you have a real coin door on
your machine, it'll come with the standard set of service
buttons for its vintage (older machines usually had three
buttons, newer machines usually have four). You can wire
these to your key encoder just like all of the other buttons.
The only complication is that your real coin door will probably
be pre-wired to some kind of wiring harness or connector, so
you'll have to figure out what each connector terminal is
wired to. An alternative to using the genuine coin door
service buttons is to install some extra buttons of your own,
probably placed out of sight somewhere (see "hidden buttons").
1020,2660-1484,2876 Front panel buttons
Most virtual pinball machine builders include the most
common buttons that real machines have. The only one that's truly
universal is the Start button, but enough machines from the 1990s
also had an "Extra Ball" button (sometimes called "Buy In" or
something else) that many virtual cabs include one. A "Launch Ball" button
is also useful, as a fair number of 1990s pinballs had buttons in lieu of
plungers. Some cab builders even dispense with the plunger entirely and
use only a Launch button, since plungers are more expensive and
more complicated to set up than buttons.
Some cab builders add one or more buttons on top of the lockdown
bar (the bar at the front that holds the top glass in place),
replicating the "Fire" button found on many recent Stern games.
A handful of older games had one or more extra buttons here as well.
These are trickier to install than front-panel buttons
because they need holes in the lock bar.
Virtual pin cabs need at least one extra button that
real games lack: an "Exit" or "Menu" button, to exit the
current table and return to the game picker menu.
Some cab builders add other special-purpose buttons
for other game picker functions, such as
"Instructions" or "Flyer"; others prefer to keep the front panel buttons
to a minimum, to be more like real machines.
A "Coin In" button can also be handy, although this can be
handled more elegantly by using the Coin Reject button on the
coin chute.
The best choice for most of the front panel buttons is the
"button & lamp assembly" that you can find from
pinball and arcade suppliers. These have everything in one nicely
integrated package: pushbutton, trim, microswitch, and lamp.
They easily mount on the panel face through a round drill hole,
and can optionally be set flush with the panel by routing a
recess. ("Launch Ball" buttons have
a larger button face, but these are available in the same
type of combined assembly.)
The buttons have four terminals on the back: two for the
switch, and two for the lamp. Connect the switch terminals to
your key encoder, and connect the lamp terminals to your output
controller. The output controller can then turn the button light
on at appropriate times in the game.
1496,2518-1968,2867 Flipper buttons
If there's a single must-have feature for a virtual pinball machine,
this would be it. There's a certain feel unique to real flipper
buttons, which makes them essential to proper emulation. You can
order standard flipper buttons from a pinball supplier, along with
leaf switches. The leaf switches connect to your Key Encoder the
same way as any other switch.
Most cab builders install two sets of flipper buttons on
each side of the cabinet. The second set is optional, but I'd
recommend them. The front set, as you'd expect, is for
the flippers. The rear set, located just behind these, is used for
other functions that vary by table. Everyone calls these
"Magna Save" buttons, because that's the most widely known
feature on real machines that used extra buttons like these.
But it's a bit of a misnomer, since most of the tables that
had extra buttons like these used them for different purposes
entirely. There are enough tables that take advantage of extra
buttons that most cab builders think it's worthwhile to include
them.
Starting in the mid 1990s, the real pinball manufacturers began
moving from leaf switches to optical-interruptor switches.
You can use optical switches in a virtual cab if you wish, although
they're more expensive, and they don't feel exactly the same. The
main reason they moved to optical switches on real machines is that
they stand up better to heavy arcade use than leaf switches. That's
less of a concern with home use, so most cab builders go with the
cheaper and simpler leaf switches.
Flipper buttons are available in numerous colors, so you can
choose something that coordinates with your cabinet artwork.
Or, for a cool lighting effect, use clear buttons, and place a
pair of small RGB LEDs behind each one. Connect the LEDs to
your output controller. The pinball software will then be able
to light up your flipper buttons in the same color originally used
on the real machine whenever you load a table.
4. Resources
Here are some resources I've found helpful while building my cabinet.
Contacting the author
I encourage you to use the
virtual
cabinet forums for most support-type questions. The forums have
the advantage that other people might be able to answer before I see
the question, so you might get an answer more quickly. The other plus
is that the public discussion might help other people who have similar
questions.
If you don't want to post the question publicly for some reason, you
can send me a private messages (PM) on
vpforums. My ID there is
mjr.
Other build guides
- Major Frenchy's Mame in a Box
offers a large set of video tutorials on building pin cabs. Its goal
is to be a comprehensive build guide like this one, including
a lot of material in video format.
- Pinball Electrical 101
by Maxxsinner. This is one of the first guides to wiring common I/O devices
in a pin cab, primarily buttons and feedback devices. This guide
is quite old and out of date at this point, and many of its ideas
have been superseded by better and more modern ways of doing things,
so I wouldn't use it as a blueprint for a new build. I'm mentioning it mostly
for historical reference, since it was highly influential in the
early days and had some great ideas that led us to where we are now.
Web forums
There are a number of Web forums dedicated to virtual cab building.
These are good places to seek help with general questions on your
build, and to connect with other virtual pinball enthusiasts.
- VP Forums >
Virtual
Pinball Cabinets forum. I read this one regularly and try to help
out with questions when I can (Pinscape-related and otherwise). This
is the most active of the cab-focused forums I frequent. It has a
broad membership, a fair number of whom are long-time members with a
lot of pin cab experience. Technical questions posted here usually
get prompt and helpful replies.
- VP Universe >
Cabinet Discussion. This is another good cab
builder forum. It has more of a DIY bent than VP Forums,
which you'd think would make it a better fit for my projects, but I
have to admit that I don't keep up with this one as much as VPF.
- Pinside. This is a forum site
for people who collect real pinball machines, so don't go here
for help setting up Visual Pinball or an electronic plunger. Even so,
the real pinball sites can still be interesting to visit, because
virtual cabs do have some things in common with the real ones,
particularly in the physical construction of the cabinet. Pinside can
also be a great resource if you're working on a Visual Pinball
re-creation of a particular table. It's a good bet that you can
connect there with collectors who own the table you're working on, and
they might be able to answer questions about the finer points of that
game's operation, send you closeup photos of playfield parts, etc.
Pinball cabinet bodies, pre-built and kits
- VirtuaPin sells everything from
individual replacement parts to complete, fully assembled, fully
operational virtual pinball machines. They have an especially good
selection of parts and kits for DIYers. Notably, they sell "flat
pack" cabinet kits, with all of the wood for a cab pre-cut, routed,
mitered, and ready to assemble: kind of like an Ikea bookshelf without
the ümlauts. They also offer fully assembled (empty) cabinets.
They use quality materials and computer-controlled cutting, and let
you customize the standard plans if you have something unusual in mind
(e.g., non-standard dimensions to fit a specific monitor). Their
standard cab kits are faithful replicas of the Williams/Bally
1990s cabinet design, which in my opinion is the gold standard. I used a
VirtuaPin flat pack as the basis for my own machine and couldn't be
happier with it.
Pinball cabinet artwork - design
- Stuzza on
VP Forums has long been designing custom cabinet artwork for other
forum members. You can commission a custom project through him
for a fee. He doesn't do the printing, just the
graphic design work, providing the artwork in digital form ready for
printing. He also has a large collection of past work that he makes
available for free.
- VirtuaPin offers custom graphic design
services for a fee. They also offer several ready-made themes of their own
design, as well as licensed reproductions of the original artwork from several
real pinball machines.
Pinball cabinet artwork - printing
- Brad Bowman a/k/a Lucian045 on VP Universe
offers custom decal printing for pin cabs. Brad has a unique combination of
skills for this, because he not only runs a print shop, but also happens
to be a long-time virtual cab enthusiast himself.
Brad offers special pricing to pin cab builders in his
VP Universe thread.
Brad printed the decals for my own machine; he was great to work with and
the print work was top notch. I was also greatly impressed by the
materials he uses. I read a lot of horror stories before building my cab
about how difficult it is to install decals properly, but the media that Brad
uses are easy to work with. Brad's
standard package is for the main cabinet and backbox, but he was able to do my
speaker panel and translite art as custom add-ons.
- VirtuaPin also offers custom
decal printing. VirtuaPin's standard package is for the main cabinet and
backbox art, and they have add-on options for speaker panels and
translites.
- GameOnGrafix.com offers
custom decal printing for arcade machines. They specialize mostly in
video game cabs, but they have a pinball package as well. Look for it
under the "customer designed" section.
Pinball cabinet hardware and other pinball parts
- VirtuaPin stocks most of the
essential cabinet hardware used in virtual cabs. They have some nice
bundle kits that are good deals and can save you a lot of time figuring
out which parts you need. Their selection is limited, but they have
good coverage for the most common virtual cab parts.
- Pinball Life is a parts
supplier for real pinball owners, which makes them a great place to
find authentic cabinet parts. They sell a wide range of replacement
parts for the real machines. I've ordered from them several times
(both for my real machines and my virtual cab) and have always had
good experiences. PBL's catalog is a good middle ground between
VirtuaPin's very targeted selection and Marco's almost too-big catalog.
- Marco Specialties is
another pinball parts supplier. I've ordered from Marco a few
times and recommend them. They have by far the biggest catalog of all of
the suppliers I've encountered. So big that it's almost too big!
It's so big that it can be difficult to find what you're
looking for. But by the same token, if you need something obscure,
this is often the only place to find it. Tip: if a search on
the Marco site turns up so many hits that your eyes are glazing
over scrolling through the results, try a Google search for Marco Specialties
plus what you're looking for. Google tends to be better at finding
the most relevant matches, so it might get you to the right product page
quicker. Also, if possible, search by part number, since more generic
keyword searches can turn up so many hits, and since the Marco product
listings don't always use the same keywords you're expecting.
- Planetary Pinball Supply,
yet another pinball parts vendor. PPS mostly stocks specialty parts
for machines from the 1990s and later, with better coverage for later
models. They don't seem to have nearly
the same catalog depth as Marco, but what they have in stock often
seems to be somewhat complementary to Marco: if it's a reasonably
common part and Marco doesn't have it on hand, try PPS, and vice
versa.
- SuzoHapp is a giant manufacturer
of parts for all things coin-operated, which incidentally includes
pinball machines. They're the original manufacturer for a lot of the
standard parts that Williams and Stern used. They make a lot of
the basic parts you find in common across machines, such as buttons,
trim, coin doors, and so on. The pinball suppliers above resell a lot
of SuzoHapp's pinball-related parts, but it can be worth checking
SuzoHapp's site as well, because they sometimes offer additional
variations of the parts that the pinball supplier sites don't sell.
- Bolt Depot is a great source
for fasteners. If you haven't built a pin cab before, you're probably
thinking that nuts and bolts are just an afterthought and that you can
pick up what you need at Home Depot. But pin cabs actually use a lot
of weird specialty fasteners that can be tough to find.
There's nothing pinball-specific about Bolt Depot, but I'm including
them in the Cabinet Hardware section because they turned out to be a
great source for most of the obscure nuts and bolts I couldn't find
at my local big-box stores.
- eBay is great for some things,
but it's definitely not the first place I'd look for pinball parts.
The main reason is price. There seem to be a lot of price gougers
on eBay when it comes to pinball parts. I've seen many cases where the
price for a shiny, brand-new part from Pinball Life or Marco
Specialties is less than the eBay price for the same part in a rusty,
beat-up, old used version. Even so, some virtual cab builders have
gotten lucky with great deals on eBay, so it can be worth doing some
comparison shopping there as you compile your parts lists. eBay
is a good option - sometimes the only option - for out-of-production parts that the suppliers
no longer carry. For example, chime units from the 1970s are all but
impossible to find anywhere else.
Special-purpose electronics for virtual pinball
Given how obscure a hobby this is, it's kind of amazing how many
commercial products are available for it. Here are some of the specialized
products that cab builders often find useful.
- Zeb's Boards makes a number
of electronic devices specifically for virtual pin cabs, ranging from
add-ons and accessories for DIYers (LedWiz booster board, voltage
converters) to complete turn-key solutions for input and output
(plunger kit, feedback kit). Zeb's is well regarded for great
products and excellent customer service. (I'm a delighted customer of
Zeb's myself.)
- VirtuaPin sells a number of specialized
pin cab devices, including a plunger kit and DMD (dot matrix display) kits.
- Groovy Game Gear makes the
LedWiz, which is probably the most widely used device in pin cabs for
connecting feedback devices. They also make a key encoder device, and
sell lots of arcade game accessories like joysticks and buttons. Their
focus is actually DIY video arcade games rather than pinballs, but there's
obviously a lot of overlap between the two.
- Ultimarc is another company that
makes products for DIY video games that can cross over to
virtual pinball. Notable Ultimarc products include the PacLed output
controller devices (similar to the LedWiz) and the i-Pac key
encoder. They also sell controls like joysticks and buttons.
- Arnoz sells a number of
fully built circuit boards based loosely on the Pinscape Expansion Boards designs.
His system is modular, so you can buy what you need and add onto it as
you go. This is a great option if you want some of the
Expansion Board features but you don't want to build the boards yourself.
TVs and other general consumer electronics
I probably don't need to mention any of these unless you
time-traveled here from 1972, but then again, maybe you did; pinball is an anachronistic
sort of hobby... Very briefly, a few places to look for your
cabinet TVs and other basic consumer electronics:
PC components
As with the consumer electronics, you probably already know the right
places to go for PC components. But for the sake of completeness:
Electronic parts and components
- Mouser Electronics is my go-to
Web retailer for electronics. Mouser is a major electronics
distributor that carries a staggering range of components. They have just
about everything electronic you could ever need, and their product
pages have excellent technical detail and links to manufacturer
data sheets and documentation. Their
prices are moderate: generally lower than buying the same thing from a
general retailer like Amazon (when you can find it there
at all), but generally higher then buying from the cheapest sellers on
eBay (again, if you can even find it there). One of Mouser's great
features is their careful packaging for loose parts: everything gets
wrapped in clearly labeled zip-lock bags, so you can easily tell the
100-ohm resistors from the 1K resistors without having to read the
color-stripe codes. Mouser's only downside is also one of their big
virtues: that their catalog is so huge. The vast number of parts they
stock can make it hard to find things, even with their excellent
parametric search system. Fortunately, you won't have
to do your own searches for most of the Pinscape parts, since we give
you exact part numbers for just about everything.
- DigiKey is another major
electronics distributor very much like Mouser. They have a similar
selection and similar prices.
- Newark is yet another
distributor. They also run the element14
community for electrical engineers and hobbyists, which has forums
and online articles related to electronics.
- eBay is a good place to find
some electronics. Anything you need in large quantities can be
a real bargain on eBay compared to buying from a regular retailer,
especially if you can find a Chinese warehouser selling it. The
downsides of eBay are (a) that eBay's search engine is just miserable
at finding generic parts like "100 ohm resistors", (b) only a very
limited selection of electronic parts are available at all, (c)
there's often no way to know the manufacturer or source of the parts,
so quality can be unpredictable, and (d) the listings don't tend to
give you the same level of detail you get on Mouser (e.g., the exact
size of the part). Despite all of those drawbacks, I've had good luck with generic parts
like MOSFETs and resistors - those can be much cheaper than buying
the equivalent name-brand parts from Mouser.
Custom circuit boards
- OSH Park is a US PCB maker that
specifically caters to hobbyists like us. They charge by square inch
of board space - as of this writing, $5/sq in, for three copies of the
board, with shipping included. That makes them a fantastic bargain
for small prototype boards. They also make it extremely easy to
order, by letting you upload an EAGLE .brd (board layout) file
directly (most of the other guys make you do some extra steps to
generate special CAD/CAM formats). And they're in the US, so if
you're also in the US, turnaround tends to be quick - you don't have
to wait for international shipping or customs clearance. The only
snag is that the per-square-inch pricing gets really expensive for
larger boards.
- elecrow.com is a Chinese
company that makes custom circuit boards in small batches (lots of 5
to 10 pieces) at bargain prices. Look under "Services" and "PCB
Prototyping" in their category list. I've been using them for group
orders of the Pinscape Expansion Boards, and all of the batches have
turned out well. The downside, if you're not in China, is that the
international shipping is expensive - more expensive than the
manufacturing cost in most cases. But the boards are cheap enough
that the overall price usually comes out to only about $2 to $3 per
board when ordering minimum lot sizes. Like most PCB makers, Elecrow
requires you to generate "Gerber" files (a special file format for
manufacturing use) rather than uploading the EAGLE design files
directly. That takes a little extra work and probably seems very
intimidating if you haven't done it before, but it's not actually all
that hard; the process is explained step-by-step in
Chapter 93, Fabricating the Expansion Boards.
- PCB Shopper is a great
comparison site for PCB manufacturers. The site lets you enter
the details of your order, then provides quotes from a wide
range of vendors.
3D printing
If you don't plan to buy a 3D printer at home, there are several
excellent online 3D-print services that you can send your design out
to.
- All3DP is a shopping service for 3D
printing. Upload your design, and it'll give you price quotes from
multiple vendors for different materials and process options, with
direct ordering links. This has become the first place I check
because of the excellent price comparison engine.
- Shapeways has been my top
vendor for a long time because of their excellent materials and
reasonable prices for small jobs. I've had several items made here
with good results.
- 3D Hubs is another on-line 3D
print service. In the past, they were the "Über for 3D printing"
(connecting buyers with local sellers offering 3D printing services),
but lately (2019) they seem to have dropped that model and switched
to simply offering their own fabrication services.
The online services cost more than home printing in terms of
materials, but of course that doesn't count the cost of buying the
printer itself. Plus, the commercial vendors offer far superior
materials to what you can use in a home printer. Home printers mostly
use ABS and PLA, which are fine for prototyping, but not for
functional parts, since they're brittle and tend to disintegrate if
exposed to any friction. The commercial services offer nylon
materials (such as PA12 and PA11) that are much more durable. Many
also offer the newer MJF (multi-jet fusion) process, which seems to
produce particularly tough and durable parts. I'd highly recommend
considering MJF for any functional mechanical parts.
Custom laser cutting and CNC fabrication
- SendCutSend offers precision
laser cutting for metals, plastics, and other materials, and CNC
cutting for wood. They can also do custom bending of metal parts.
They do a really great job and their prices are
quite reasonable.
- Ponoko does custom laser
cutting of a wide range of materials, including plastics and metals. This is
a good option for custom flat plastic parts that require precision
cutting. I've used Ponoko for several projects, including the acrylic
face plate for my speaker/DMD panel, all with good results.
- TAP Plastics does laser
cutting, and they can also do straight cuts with conventional
equipment. The latter is a cheaper option for basic rectangular
pieces like a translite cover or apron cover. TAP has numerous store
locations on the west coast - if there's one in your area, you can
avoid shipping costs by visiting in person.
Software source code
Many of the core software components in a virtual pinball machine are
open source, meaning that the source code is published for anyone to
inspect, customize, and contribute to.
- Visual Pinball.
The leading open-source pinball simulator and table design tool.
- DirectOutput Framework (DOF).
System software that allows applications (Visual Pinball, PinballX)
to control feedback devices in the cabinet (lights, solenoids, etc).
- B2S Backglass.
Software that works with Visual Pinball to display animated backglass artwork,
with the animations synchronized to the game play.
- Pinscape controller.
KL25Z firmware for an all-in-one virtual pinball I/O controller, with
plunger sensing, button input, accelerometer nudge sensing, and feedback
device control.
- PinballY. A menu
system and game launcher (also known as a "front end") for virtual
pin cabs. This lets you browse your games, start games, and switch
between games using a graphical arcade-style UI rather than the
Windows desktop, to give your cab more of a finished arcade machine
feel and disguise the fact that it's a Windows PC under the covers.
In case you're wondering about some obvious omissions in the list
above, the following are not open-source: PinballX, HyperPin,
Future Pinball, and the online DOF config tool. Those are "freeware",
meaning there's no charge to use them, but their creators chose to
keep the source code secret. That might not matter to you if you
didn't want to see the source code, but I generally prefer using
open-source programs even then, because of the greater assurance that
the project can keep going if and when the original developer gets
bored of it and stops working on it.
Pinball table information
- IPDB (the Internet Pinball
Database) has detailed information on, and photos of, nearly all of
the commercial pinball machines ever made.
- vpforums has a collection of
resources useful for creating new virtual pinball tables,
such as playfield graphics, sound effect recordings, and 3D models of
playfield parts. Click "Design Resources" in the top navigation bar
for links to the various collections.
Part Two. Planning and Building the Cabinet
5. Road Map
Building a virtual pin cab is a big project. You shouldn't go into it
thinking it's the light work of a couple of weekends. But it's also
not an impossibly huge job, even though it can seem that way at times
- especially during the research phase when you're trying to get your
arms around all of the details.
Good organizers always say that the way to tackle a big job is to
break it down into smaller pieces until the pieces are manageable. So
let's look at the main sub-tasks that go into a pin cab build.
You don't have to attack these sub-tasks in the exact order listed
here. Even so, we've tried to put things in a reasonable order
that'll make the build process efficient. Some tasks are easier if
others have been completed first, so you might find yourself
backtracking or putting a job on hold if you tackle some of the later
tasks on our list before completing some of the earlier ones.
Decide on the cabinet dimensions and TV size
You don't have to plan out your entire system in advance, but one
thing you should settle early is the overall scale of your build and
the size of TV you're going to use. Many other decisions depend
upon the exact cabinet dimensions and the amount of space the TV
will occupy, so you'll save yourself a lot of backtracking if you
have hard numbers for these from the very beginning.
The thing that makes TV sizing tricky is that you can only buy TVs in
certain sizes. Ideally, you'd be able to design and build your
cabinet without giving too much thought to a TV, and then just drop in
a suitable TV when the time comes. But when that time comes, you
might find that all of the models you like are 1" too wide to fit, and
the next size down is 4" narrower than you wanted.
This leads some cab builders to start by picking a TV, and then tailor
the cabinet to fit the TV like a glove. But that's not for everyone.
If you plan to re-use an old pinball cabinet or buy an off-the-shelf
cabinet kit, you're stuck with standard dimensions. You might also
want to use standard dimensions for the sake of faithful simulation,
or simply because the cabinet hardware parts (lockdown bars, side
rails) are cheapest and easiest to find in the standard sizes.
The same issues apply to a lesser extent to the backbox TV, although
most cab builders aren't as concerned about an exact fit here since
it's hardly the focal point of the game. My advice is to figure out
the backbox TV separately after deciding on the main TV and cabinet
dimensions.
Go shopping
Once you know the basic scale of your system, you can start buying the
main components. We provide a master part list for a fully decked-out
cabinet in
Chapter 20, Cabinet Parts List. You can choose a subset from that
list that fits your own goals and budget.
Even with our master parts list to work from, you'll still have to do
some original research, particularly for selecting the TV monitors and
the PC components. There are too many options for both to allow
simple one-size-fits-all recommendations, plus those product
categories move so quickly that any concrete advice we could offer
would be obsolete before you read this. Fortunately, apart from the
TV and PC, a lot of the rest of the cabinet can be built out of
standard parts. The real pinball machine manufacturers were very
cost-conscious, which drove them to build their games on common
platforms with mostly interchangeable parts. The exterior shell of a
virtual cab is almost identical to a real pinball (or can be, at
least, depending on your design goals), so we can build our cabs
out of those same interchangeable parts.
Build the PC
Now that you have some of the groundwork laid, you can start actually
building something. Most cab builders like to start with the PC,
probably because it's the most familiar territory to PC gamers. Plus
it provides some (relatively) instant gratification, since it doesn't
take too much work to get a new PC up and running.
If you've ever built your own desktop PC from scratch, you'll know
exactly what's involved in building the PC inside your pin cab. The
main work required is the research needed to pick out the parts:
motherboard, CPU, graphics card, power supply, memory, hard disk.
We'll tell you all the parts you need in
Chapter 10, Designing the PC, and we'll
offer some advice about how to select them, but you'll still have to
do the research to select the exact components you want. Once you
pick out the parts, it's pretty easy these days to do the actual
assembly.
Set up the main PC software
The next step after building the PC is usually installing the core
software, including the operating system and some pinball simulators.
Most of the popular pinball software runs only on Windows, so that's
the OS that almost all pin cabs use. We'll cover how to install
the main pinball players in
Chapter 15, Pinball Software Setup.
Build the cabinet body
Now we come to the cabinet itself, in the literal sense of the wood
box that houses everything. This part of the build can be as simple
as buying a new or used cabinet that's already assembled, or as
elaborate as doing the woodworking from scratch. We'll cover the
various options in
Chapter 21, Cabinet Body.
Design and install the artwork
A pin cab is a significant piece of furniture to have in your house,
so it's worth putting some effort into its exterior appearance. Some
cab builders opt for a natural wood look to better fit in a domestic
environment, and some choose a simple one-color paint job. For most
of us, though, the aim is to replicate the look of a real pinball
machine, which means using custom artwork in the distinctive graphic
style of the real machines. One great way to get a thoroughly
authentic look is with digitally printed decals. We'll cover the
options in
Chapter 22, Cabinet Art.
This is one of those steps where the order is fairly important.
You'll want to get the artwork in place before you start installing
the cabinet hardware or any of the insides of the machine.
Assemble the cabinet hardware
Once you have the wood shell of the cabinet built and finished
with artwork, you can install the "hardware" - the side rails,
lockdown bar, coin door, legs, and the parts that attach the
backbox to the main body. We'll go over the standard equipment
and how to install it all in
Chapter 23, Cabinet Hardware Installation.
Set up your power supplies
You'll need a standard PC power supply to power the motherboard and
other PC components. If you're installing any feedback devices,
you'll need additional power supplies for those. We'll explain what
you need in terms of power supplies for the various components in
.
Most cab builders also like to set up a power distribution system that
turns power on and off across the whole system with a single button.
We'll explain how to do this in
Chapter 11, Power Switching.
This is all basic infrastructure that the rest of your system will
depend upon, so it's a good idea to get this figured out and installed
now, before installing any of the electronics. Another reason to do
this early is that the power supplies take up a lot of space - it's
good to reserve the space they'll need early so you don't find
yourself having to move things around later to make room.
Install the PC in the cabinet
You can now finalize the PC installation inside the cab body.
If you haven't already put together the computer components,
this is a good time to finish that up.
Mounting the PC in the cabinet is usually straightforward. The main
decision to make is what kind of enclosure you want to use: some
people use a regular desktop case, but most cab builders use the
cabinet itself as the "case", simply mounting the motherboard and
other components to the cabinet floor or walls. We cover the
possibilities in
Chapter 10, Designing the PC.
Install the TVs
I think it's better to get the TV installed fairly early in the build
process, but a lot of cab builders feel it needs to go in last,
because it covers the whole top of the cabinet.
In either case, you should at least map out exactly where the TV will
go before getting too much further, so that you can plan around its
space requirements when installing everything else.
My recommendation is to install the TV in such a way that it can be
easily removed at any time. If you do that, you can get everything in
place for it early on, which will give you a very concrete idea of the
space you need to carve out for it in the cab. But you can leave it
out of the cab while installing the power supplies and feedback
systems, so that you have easy access to the interior, knowing that
you can pop the TV back in place when the time comes. And if you make
the install/uninstall process easy enough, you can pop it in just to
test clearances and fit from time to time.
We'll look at options for installing the playfield TV, including
advice about how to maintain easy access to the cabinet, in
Chapter 29, Playfield TV Mounting. That chapter includes a detailed plan
for how to install the TV that achieves the goal of easy installation
and removal, as well as allowing access to the cabinet interior for
most jobs without even removing the TV.
Install buttons
You'll probably want to install and wire your cabinet buttons shortly
after getting the cabinet assembled and the PC working, both for the
sake of early play testing and because it's easier to do the
installation work while the cabinet is still fairly empty. We'll
go over which buttons you need and how to install them in
Chapter 34, Cabinet Buttons.
Set up I/O controllers
I/O controllers are separate components - usually USB devices - that
handle the connections between the PC and the unique devices in a
virtual pin cab: buttons, plunger, accelerometer (for nudging),
flashing lights, and mechanical and tactile feedback devices.
You don't have to set up all of the I/O controllers or functions at
once. At this stage in the build, though, you'll at least want to set
up the button input controller (also known as the key encoder), so
that you can test out the newly installed cabinet buttons.
Install a plunger
The plunger can be installed at any point in the build, but you'll
want to get it in place before you finalize the TV installation. The
space in the plunger area is tight (even on a real machine), so it's
worthwhile to do some measuring and planning. The plunger is close to
the flipper buttons, and on a virtual cab it competes for space with
the TV. We'll cover the details of installing the basic physical
plunger as well as the options for connecting it to the software
in
Chapter 37, Plunger.
Install feedback devices
You'll probably find that you'll install the feedback devices in
stages, rather than as all at once. Output controllers control
devices individually, so you can easily set up a few now and add more
later.
Set up the sound system
The audio system in a pin cab is essentially just a PC desktop speaker
system, but it has some special considerations. The main one is that
most cab builders want to place the speaker drivers in the same places
they go in the standard 1990s cabinet design. You can also embellish
your system by using two independent audio systems - one for music and
one for mechanical sound effects - or even a tactile subwoofer like the
ones popular for home theaters and gaming chairs. We'll cover the
options in
Chapter 41, Audio Systems.
6. Serviceable Design
Real pinball machines have numerous design elements that are there
purely for the sake of serviceability - that is, to make the machines
easier to repair, upgrade, and maintain. These features are often the
products of a series of refinements that wouldn't have been obvious
without experience, and a lot them are hidden, internal features that
you wouldn't even realize are there when you're just playing the
games.
It's not surprising that serviceability is such a high priority for
the pinball manufacturers when you consider who their customer is.
The thing to realize is that players are not their customer.
Players are only the "end users". The customer is the
commercial operator who buys the machines for their arcades and
routes. The player mostly wants machines that are fun to play. An
operator certainly cares about that, too, because an arcade game earns
quarters by being fun to play. But what the operator cares even more
about is high reliability and low repair costs. A machine that's down
for repairs isn't earning quarters no matter how much fun it is.
Some of things that they do in real pinball machines to make them
serviceable translate readily into the world of virtual cabs, where we
can copy them to get the same benefits. But new virtual cab builders
are often unaware of how the real machines work, so they don't know
there's a good design they can copy - instead they make things up as
they go. And of course the first time you build anything,
you're likely to come up with quick-and-dirty ways to solve immediate
problems without considering the longer-term costs. So I want to
point out a few of the serviceability features in the real machines
that we can leverage for virtual use, so that you're aware of them,
and so you can keep them in mind as you plan your build.
What makes a machine serviceable
Before we get to implementation details, let's look at what
serviceability really means in the abstract. These are what I
consider the key goals of a serviceable design:
- Accessibility. You should be able to access everything in the
machine easily, without having to destroy anything, without having to
de-construct anything, and ideally without any tools.
- Modularity. You should be able to remove and replace most
individual parts or subsystems without having to destroy anything, and
with as little work as possible. Electrical connections should be
pluggable, for example, rather than being hard-wired or soldered;
parts should be secured with removable/reusable fasteners like screws,
rather than permanently glued or nailed.
Specific recommendations
With the abstract goals above in mind, here are some concrete
recommendations for how to achieve them, based in part on how the real
machines accomplish the same ends. Things are different in a virtual
cab, naturally, but some of the ideas from the real machines carry
over surprisingly well.
Liftable playfield
The real machines are set up so that the playfield can be tilted up
from the front and lifted all the way up to lean against the backbox.
This lets you access the entire interior of the main cabinet and the
entire underside of the playfield without taking anything
apart. It's like popping the hood of a car to get to the engine.
It lets you get in and out quickly. Minor jobs remain minor because
it only takes a few seconds to open the machine up.
In my opinion, this is the ideal way to arrange a virtual cab as well.
Accessing the interior of the main cabinet is at least as important in
a virtual cab as a real machine, as that's where we typically install
the PC motherboard and most of the feedback devices. In the virtual
cab, it's the main TV (in place of the playfield) that needs to tilt
up and out of the way like a car hood.
This is why I always advise against any design that involves the main
TV being difficult or impossible to remove, such as installing the TV
in routed grooves along the side walls.
Removable TVs
On the real machines, the playfield not only tilts up and out of the
way, but can also be removed entirely. They even make this fairly
easy: the playfield isn't actually permanently attached, but is only
resting on the pivots that let it tilt up, so remove it is just a
matter of lifting it off the pivots.
In a virtual machine, it's equally important to make the TVs
removable. They are of necessity at the very front of every part
of the machine, so you need to get past them to get to anything
else. If it's hard to remove any of the TVs, it's hard to service
what's behind it.
For the playfield TV, the ideal as far as I'm concerned is to
installed it analogously to a real playfield, with the same ability to
tilt it up for smaller jobs and remove it entirely for larger jobs.
The backbox TV(s) should likewise be removable, and like the playfield
TV, this should be possible without a lot of disassembly and certainly
non-destructively (meaning you shouldn't have to rip off the sides or
cut any new holes anywhere).
If you're using a separate DMD TV, that should of course be removable
as well. This one is usually easy to make modular, at least, since
it's so small.
Foldable backbox
On the real machines, the backbox is attached to the main body with a
hinge that lets it fold forward, so that it lies flat on top of the
main cabinet. This is a key feature to make it practical to transport
the machine, since it's too tall, top-heavy, and fragile to move it
with the backbox upright.
Some pin cab builders figure that they can just remove the backbox if
they ever need to move the machine. Consider the amount of wiring
that you'd have to disconnect to do that, and the risk of breaking
something when redoing the wiring. If a folding backbox is impossible
because of the geometry of your backbox TV, then at the very least, be
sure that the wiring connectors are all modular, so that it's quick
and reliable to reconnect the wiring.
Modular wiring connectors
Real pinball machines have lots of wiring internally, with many
interconnections. (Stern Pinball has estimated that there's about
half a mile of wire in a typical Stern machine from the 2000s. It
might even be a bit higher in the 1990s machines, since they used
lower-tech electronics to implement a similar feature complexity.)
The real machines deal with their many connection points mostly by
using plug-and-socket connectors.
In the 1990s machines, they made heavy use of a few different
connector types made by Molex. You see the term "Molex connector"
used almost generically as though it referred to some specific
physical plug type, but it's actually a particularly unhelpful term
when you're searching for parts. Molex the company makes a
huge array of diverse connector types, so "Molex connector" can refer
to all sorts of things. If you want to be helpful when describing a
particular connector to someone, you need to give them a Molex part
number or at least the Molex product line name.
Pluggable connectors of the sort used in the real machines have two
important virtues:
- You can easily connect and disconnect them at any time
- You can't get a connection wrong when re-connecting something,
because the plug only fits in the one place where it's supposed to go
Most virtual pin cab builders intuitively recognize the important of
modular wiring - of using some kind of removable connectors rather
than soldering everything together permanently. But many new pin cab
builders gravitate towards screw-terminal blocks, and in my opinion,
those don't quite achieve the full goal here. Terminal blocks do
avoid the need for permanently soldered connections, so they address
the first point above right, but they miss the mark on the second
point. Consider what happens if you have a couple of terminal blocks
for wiring a particular part, and you disconnect the wiring: where do
the wires go when it's time to reconnect them?
Proper pluggable connectors of the sort we're talking about are
definitely a bit more work to set up than screw terminals. But
they're great once they're in place, because you can arrange things so
it's practically impossible to plug things in the wrong way. These
connectors can also be time-consuming to select during the design
phase, because there are so many options available. I'm convinced you
could build a nice engineering career on a solid knowledge of the Molex
catalog and of which connector to use when. I've tried to make your
job here a little easier via pointers to some good basic options
in
Chapter 80, Connectors.
There are three clever techniques used in the real machines to make
the connections "idiot-proof", which are worth cribbing when you're
wiring your virtual cab:
- Whenever possible, use a unique connector type. It's impossible to
plug a nine-prong Molex .062" plug into an eight-prong socket. If
there's only one nine-prong Molex .062" plug and one nine-prong socket
in the whole build, that's one connection that you can't plug back
in to the wrong place.
- Wherever you have to use the same connector type more than once, use
a "keyed" connector. That means that you snip off one pin on the plug
side, and block the corresponding socket on the receptacle side. If
you try to plug the wrong 9-pin plug into the wrong 9-pin receptacle,
that wrong plug won't have the right pin clipped, so it won't fit into
the blocked socket.
- Use plug-and-socket connectors that only plug in one way, so that
you can't accidentally plug something in backwards. You get this
benefit automatically for connector types that have asymmetrical
shapes. All of the Molex .062 and .093 connectors are inherently
designed this way, for example.
7. Selecting a Playfield TV
For most cab builders, the playfield TV is the most important piece of
hardware in the system. A pin cab is, after all, fundamentally a
video game. The weight of this importance makes it tough to decide
on the perfect TV, but it's even more complicated because of the
physical constraints of a pin cab, and the special performance
demands of video gaming.
I'd love to simplify this by offering a list of Amazon "buy it now"
links for the best TVs for the job. Unfortunately, I really can't,
because any such list would be out of date by the time you're reading
this. TV product life cycles are only about six months these days.
In fact, even "real time" recommendations on the forums can go stale
quickly. If you talk to someone who already finished their project,
they probably bought their TV at least a few months ago, so their
particular model might already be hard to find. Your best bet is
usually to share notes with other people who are out shopping right
now.
Since I can't give you a list of models to choose from, I'll instead
try to offer some advice to help you figure out what to buy. This
section attempts to answer the questions that new pin cab builders
often have when looking for a TV (and maybe answer some questions you
didn't know you should ask).
Size constraints
Whatever else you look for in a TV, it has to fit your cabinet.
Obviously that means it can't be bigger than the available space.
Most people want a TV that's as big as possible within that
constraint, to minimize any "dead space" not covered by the TV image.
There are two ways to approach this problem of finding the ideal fit:
- Pick a TV that fits your cabinet
- Build a cabinet that fits your TV
Most people go with the first approach, because they've already
decided to use the standard dimensions of a real pinball machine.
Using standard dimensions is important if you want it to look
authentic, since the real machines all come in about the same size and
have recognizable proportions. Building to a standard size also lets
you use off-the-shelf pinball parts for your cabinet hardware
(lockdown bar, side rails, legs, and so on), which is another key part
of making it look authentic.
Not everyone feels compelled to use standard dimensions, though. If
you're doing your own woodworking, you can tailor the machine's
dimensions for a custom fit to any TV of your choosing. This gives
you more flexibility in picking out a TV. The tradeoff is that a
non-standard size and proportions can harm the illusion that it's a
real machine. You'll also need to buy custom parts for some of the
cabinet hardware, since off-the-shelf parts are sized to fit the
standard cabinet widths and lengths. Custom parts are almost always
more expensive than standard parts and can be harder to find.
In either case, whether you're picking a TV to fit your cabinet or
sizing your cabinet to fit a TV, the dimensions that matter are the
inside width of the cabinet and the exterior height of
the TV. You're going to turn the TV sideways to mimic the layout of a
pinball playfield, so the height of the TV has to fit across the width
of the cabinet.
Note that the width of the TV isn't a constraint in most cases.
Normal pinball playfields are considerably more elongated than 16:9
TVs, so any TV that fits into the available cabinet width will easily
fit front-to-back, with room to spare.
Leftover front-to-back space
As mentioned above, a 16:9 TV will fit front-to-back in a normally
proportioned cab with room to spare, meaning there will be some extra
space that the TV doesn't fill. Assuming you find a TV that's nearly
as big as possible for the cabinet width, the extra space will amount
to about 6" in a standard body cabinet, and about 7" in a widebody.
Some people are bothered by that leftover space, and some aren't.
Before you decide that it's a problem, consider that you can put the
space to good use. If you're using a plunger, it will jut into the
front of the cabinet by about 3", which might necessitate moving the
TV back that far. You can fill the gap that creates with an "apron",
similar to on a real pinball machine, with an instruction card and
price sheet. A 3" apron at the front still leaves 3" to 4" at the
back. This is an ideal place to put a row of flasher domes, for
bright lighting effects during play.
Some new cab builders get very fixated on the idea of covering every
available millimeter with video display, and especially hate the idea
of any extra space at the front. They insist on having the TV start
exactly zero millimeters from the lockbar. I understand this
instinct; I had the same thoughts myself when I was first building my
cab and discovered the space conflict between plunger and TV. I
ultimately decided that the plunger was important enough to justify
the space at the front. Once I had everything assembled, I found that
it makes absolutely no difference when playing to have the TV set back
a few inches. If you think about it, you'll see why: your brain pays
attention to the parts of the visual field where the action is taking
place, and essentially makes you blind to the rest. It's the same
effect as when you're watching a movie: you really don't see the
curtains around the screen, you just see what's on the screen. A few
inches of "curtains" in the form of an apron won't even register
visually during play.
If you're still absolutely certain you can't live with any leftover
space front-to-back, there are a couple of options for eliminating it:
- Build your cab to a non-standard size, shortening it from the
standard length to eliminate the excess space. This can make the
proportions of the finished product look unusual or "wrong" if you're
used to seeing the real machines, but that doesn't bother everyone,
and some cab builders prefer that to the excess space. A non-standard
length also means you can't use a standard pinball glass cover or side
rails.
- Use an ultra-wide TV instead of a 16:9 set. A few TVs are available
with 21:9 aspect ratios. That's actually even more oblong than
standard playfields (which are about 18.7:9), so it goes too far the
other direction, but you could tuck some of the extra TV length into
the area under the backbox.
This approach has some downsides. For one, it's hard to find
ultra-wide TVs in our size range. The format never caught on with
consumers, so there aren't very many models available. For another,
you might be making things hard on yourself when it comes time
to setting up software. Almost everyone uses 16:9 TVs or monitors
for playing pinball, so most of the software assumes that layout.
Picking a TV based on cabinet size
If you're basing your design on a pre-determined cabinet size,
you need to pick a TV that fits the cabinet.
TV sizes are always stated in terms of the "diagonal" size, which
is the distance between diagonal corners on the display area.
However, recall that the relevant dimension for fitting to a
pin cab is the TV's height. How do you translate between
height and diagonal size? You can get a rough approximation
using this formula:
D = 2.04 × (W − 1)
>
W is the inside width of the cabinet in inches (the distance
between the inside surfaces of the cabinet side walls), and
D is the nominal diagonal size in inches of the
biggest TV that will fit. This formula assumes a ½" bezel all
around.
But that's only an approximation, because manufacturers always round
the diagonal size up, and because the the size of the bezel varies
from model to model. So use the formula as a guideline, not as an
exact specification. Shop for TVs with a stated diagonal size within
an inch (plus or minus) of the size you get out of the formula. Then
check each TV's specifications to get its actual height.
When you're looking at the TV specs, the one to pay attention to is
usually called "height without stand". Most flat-screen TVs come with
a stand that you can choose to attach or not. In our case, we won't
need it, since we're going to lay the TV on its back rather than
stand it up on a tabletop.
Applying the formula, we get the following results for the standard
cab dimensions:
Type | Cab inside width | Max. TV size (diagonal) |
Standard body | 20.5" | 39.8" |
Wide body | 23.25" | 45.4" |
So if you're building a standard body cab, you should be able to fit
most 39" TVs, and possibly a 40" TV, if it has a narrow enough bezel.
For a widebody, you can fit about a 45" TV.
Building a cab around the TV
If you're willing to customize your cab dimensions to fit your TV,
you're much less constrained in your TV options. You can go out and
find the perfect TV first, then measure it and design your cabinet
plans around the TV's dimensions.
I'd recommend adding ¼" to ½" to the exterior height you
measure for the TV to get the cabinet inside width. This will give
you a little extra room for getting the TV in and out of the cabinet.
Remember that the TV height determines the inside width of the
cabinet, but most other dependencies are tied to the outside width.
The width of your lockdown bar, front and back cabinet walls, and
glass cover all depend on the outside width. If you're using
standard ¾" plywood, the outside width will be 1.5" wider
than the inside width.
Custom-width cabinet hardware
There are two main pieces of cabinet hardware that depend on the
cabinet width: the lockdown bar and the glass cover.
You can buy a custom-made lockdown bar with a tailored width
from
VirtuaPin and others.
Search for "custom lockdown bar". The prices on these are about twice
the price of the standard lock bars, but it will let you create an
authentic look for your custom cabinet.
You won't be able to find custom-width playfield glass from pinball
vendors, but it should be easy to find locally from any window glass
shop. Ask for 3/16" tempered glass. Window glass vendors should be
able to cut this to any custom size for you. Alternatively, you can
use acrylic (plexiglass), which you can buy in custom sizes from local
vendors like
TAP Plastics.
Squeezing in a too-big TV
The perennial question that new cab builders ask is: how do I cram in
a TV that's slightly too big for my cabinet design?
Part of the reason this comes up so often is that you can't buy a TV
in just any size. You can only buy a size they actually sell. It's
unlikely that you'll find a TV for sale that's a perfect fit to any
standard cabinet plans. So you have two options: (a) you can pick a
TV that's slightly smaller than the ideal, which (being smaller) will
easily fit, but which (being smaller) will leave an unsightly gap
around the edges. Or (b) you can pick a TV that's slightly bigger
than ideal, and find some "hack" to make it fit.
The other part of why this comes up so often is that most new cab
builders hate option (a) and believe they won't be happy unless they
find a way to cram in a too-big TV.
My advice is to suppress your knee-jerk reaction to option (a). When
we were considering the related problem of the leftover front-to-back
space earlier, I mentioned that you won't really notice the space
while playing, because your brain tends to focus so much on the action
and ignore the periphery. Well, the same thing applies to leftover
space side-to-side. Despite what your instincts might tell you, it
really won't make much of a difference during play if you leave a
little blank space on each side of the screen. In fact, if you look
closely at real pinball machines, you'll observe that they give up
about half an inch on each side of the playfield for wood rails around
the perimeter.
What you gain by going with the "next notch down" option is an easy
fit, a simpler design, and the ability to maintain easy access to
the cabinet interior after the TV is installed. I consider these
to be important features.
Okay, I tried. I know some people just can't be convinced of this.
So what if you have your heart set on a TV that's a little too big?
Is there any way you can squeeze it in without redesigning the whole
cab? Yes, there are some options.
De-case it
One approach is to "de-case" the TV - remove the outer plastic case
and just use the internal LCD panel.
A few years ago, this was practically a standard practice among cab
builders. At the time, the plastic cases were quite a lot larger than
the panels inside, so the only way to get a reasonable fit was to take
the cases off.
Times have changed, though, and most cab builders now leave their TVs
intact. There are two main reasons for this. The first is that cases
have shrunk to the point where they're practically no bigger than the
panels inside, so de-casing doesn't offer a meaningful size reduction.
The other is that many newer TVs simply can't be de-cased without
damage. The way manufacturers have managed to make modern cases so
svelte is that they've removed the internal supports that made older
models bulkier. That means the cases themselves now have to serve as
exoskeletons that hold everything together. There's a big risk of
cracking the delicate glass panel that holds the LCD elements if you
remove the structural support provided by the case.
I'd advise against de-casing for any newer set. If you want to
attempt it despite the risk, I'd try to get advice first from someone
who's disassembled the same model. The pin cab community is small
enough that you probably won't find anyone there, so you might try
casting a wider net. For example, perhaps look for someone who's
successfully repaired the type of TV you have.
Route grooves for the TV
Another way to make a slightly-too-big TV fit is to make the cabinet
a little wider on the inside, but only where the TV goes, by routing
out grooves in the side walls wide enough for the TV. Here's how
this might look:
I'm not a big fan of this approach for two reasons. First, it weakens
the side walls. Second, it makes it much more difficult to remove the
TV if you want to access the inside of the cabinet for repairs or
upgrades. I see easy access to the interior as a top priority. If
you use routed grooves, you'd have to remove either the front wall or
the back wall of the cabinet to take out the TV, and to do that you'd have
to take off the legs. That's enough to make me rule out this approach
if it were my own cab.
A similar alternative is to route out grooves like this all the way to
the top of the side walls. That would at least let you remove the TV
from the top, but it would weaken the walls even more than simple
grooves.
Despite my strong reservations, routed grooves like this are fairly
popular among cab builders. But the tradeoffs are too onerous for
me to recommend this approach.
Use thinner plywood
Rather than routing grooves, you could simply use thinner plywood for
the walls. That would increase the inside width without changing
the exterior dimensions. You'd still be able to use off-the-shelf
hardware (like the lockbar), since that's all sized according to the
exterior width.
One downside of this approach is that the cabinet would obviously be a
little less sturdy. But that's probably okay for home use, since your
cab won't have to stand up to the punishment a public arcade machine
receives. The other downside, probably more important, is that
flipper buttons and some other parts are sized for the plywood width,
so you'll have some ill-fitting parts to deal with.
Also, keep in mind that you'll have to make adjustments to the
carpentry if your plans call for miter joints or the like. Joint
dimensions will depend on the plywood width.
TV features and performance
So far, we've been focused exclusively on picking the right size of
TV. But that's hardly the only criterion. You also want a TV that
displays a good image, and one that works well for games, which have
somewhat different characteristics from ordinary video sources.
Let's look at some of the specific features to consider, and the
performance metrics you should pay attention to.
1080p vs 4K vs 8K
1080p HD TVs were the standard for pin cab playfields for a long time,
largely because that was the highest resolution we could get in this
size range. Starting around 2017, though, the industry starting
moving towards the "Ultra HD" standard, also known as "4K". And
in mid 2019, an even newer generation known as "8K" has started to
become available.
The difference between 1080p, 4K, and 8K is pixel resolution. In
other words, the pixels on 4K sets are smaller than on 1080p sets, and
the pixels on 8K sets are smaller still. A 4K set has four times the
number of pixels per unit area as 1080p, and 8K has four times the
pixels per unit area as 4K. The smaller the pixels are, the harder it
is for the eye to discern individual pixels; smaller pixels blend
together better to make a more realistic image.
Higher pixel resolution comes at a cost in performance, though (in
addition to the higher dollar cost). More pixels means more work for
the PC. The PC has to fill in every pixel on the display on every
video frame, so the larger number of pixels means the PC has to do
more computation on every frame. If you use a 4K TV, you'll need a
more powerful CPU and graphics card to keep up with the higher
computational load. So if you want to use 4K, you'll need a more
powerful and thus more expensive computer rig. 8K likewise requires
a more powerful computer than 4K.
Recommendations
If I were building a new cab right now, I'd go with 4K for the
playfield TV. It's well supported by the operating system and pinball
software, and the price premium for a 4K TV over a 1080p TV isn't that
large. You will have to spend more for a 4K-capable video card, but
even that is entering the mainstream, and enough options are available
that the price doesn't have to go into the stratosphere.
I wouldn't go as far as 8K right now, though. It's much more
expensive than 4K right now, and I'm skeptical that it will even make
much of a visible difference in a pin cab application, since at this
viewing distance, 4K is already approaching the limits of the human
retina's ability to resolve pixels. (Although I'm sure some people
will be able to see the difference.)
Finally, on the off chance you come across a 720p set, skip it. 720p
used to be common in this size range; it's almost extinct at these
sizes now, but you might still see a few on sale. They're cheap, but
they're really not suitable for the playfield. 720p simply isn't
adequate resolution for the viewing distance of a playfield TV. (720p
is generally just fine for a backglass TV, though. That's a
smaller TV at a greater distance, and the graphics it displays aren't
as demanding.)
LCD, LED, QLED, OLED
There are currently two main display technologies available: LCD and
OLED. There's also an older flat-panel technology called plasma
that's not currently being manufactured, but you might still see used
sets or remainders available. Here's a brief overview of each panel
type.
LCD: This is currently the most common display type. An LCD
panel uses liquid crystal pixels that can range between (almost)
opaque and (almost) transparent. A backlight is placed behind these
pixels. When the liquid crystal turns opaque, it looks black (or at
least dark gray) because it's blocking the light from the backlight.
When it turns transparent, it looks white because it lets (most of)
the light from backlight through.
LED: This is really the same thing as an LCD TV, but it uses
an LED-based backlight instead of the fluorescent backlights used
on older LCD TVs. "LED" is a marketing term that the manufacturers
use as an intentional bit of misdirection, because they know that
consumers think of LCDs as an older, boring technology. But an
LED TV actually is an LCD TV by a different name.
QLED: This is yet another marketing term for an LCD TV. In
this case, it's an LCD panel with a special type of LED backlight
called a QLED or quantum-dot LED. Quantum sounds even more cutting-edge
than LED, doesn't it?
All of these LCD TV types, whether the manufacturers call them LCD,
LED, or QLED, are fundamentally the same backlight-and-shutter design.
The fundamental weakness shared by all LCD panels is that the
shutters can't turn 100% opaque, so they can't display true blacks,
just varying shades of dark gray. Some panels are better at this
than others, and it's one of the big quality differentiators among
LCD models. LCD panels also have inherent limits on viewing angle
because of the way light has to be funneled through the shutters.
Again, some models are better at this than others.
The backlight type does make some difference. LED backlights
generally produce better color fidelity than fluorescent tubes did,
and they use less power and run cooler. All of that is great for a
pin cab, so if you're considering an LCD TV, I'd definitely give
priority to the LED models. But you'll hardly have to even think
about that since practically all of the TVs in this size use LED
backlights. QLED backlights supposedly have even better color
fidelity than regular LEDs, according to the manufacturer's claims,
but I haven't seen any independent testing confirming this.
OLED: This is a truly is a different display type, not just a
variation on the LCD. An OLED panel is an array of small "organic
LED" pixels, each of which can be turned on or off individually.
There's no backlight, since the OLED pixels emit their own light
directly. ("Organic" doesn't mean that they grow them without
antibiotics and pesticides, but rather refers to the chemical
components making up the emitter.)
On paper, OLED has big advantages over LCD. Producing light at the
pixels rather than blocking light with a shutter allows for true
blacks, which makes for higher contrast and better-looking images.
Emitting light directly at the display surface (rather than blocking
light from a backlight) allows for unlimited viewing angle. However,
OLED is still a relatively immature technology, and reviews of current
models are mixed. There are several potential drawbacks. The first
is brightness: current OLED models are only about half as bright as
LED-backlit LCDs. The second is display lag. Console gamers have
reported substantial lag in many available OLED sets. A third is
"burn in", where pixels get "stuck" if a static picture (like a
pinball playfield!) stays on the screen for too long at a time. Early
OLED models also had problems with pixel lifetime, which was
particularly problematic in that the color components in the pixel can
degrade over time at different rates, causing the color balance to
change as the panel ages. Newer OLED panels will probably have
better longevity and color stability, but I'm not sure the problem has been
completely solved yet. In any case, don't dismiss OLED because of
these concerns. These are just things you should dig into when you're
researching models. These concerns might disappear entirely over the
next few model years as the technology matures.
Plasma: There used to be yet another display technology known
as plasma. These used gases trapped in tiny glass cells to generate
light. As in an OLED, the individual pixels emitted light (rather
than blocking light like in an LCD), so plasmas had many of the same
virtues as OLEDs. But they were never as popular with consumers as
LCDs, and never as cheap to manufacture, so the electronics companies
eventually all stopped making them (the last ones were built around
2015). Plasmas generally had excellent picture quality, but they had
a couple of drawbacks for virtual pin cab use. For one, they
generated a lot of heat; for another, their glass panels were fragile
and not meant to support their own weight when laid on their backs, as
we need to do in a pin cab. I'd avoid them for pin cabs as a result.
But it's really moot now given that you can't buy them anyway.
Recommendations: Most of your options in our size range will be
LED-backlit LCD TVs. Fortunately, that also happens to be an
excellent choice for our needs. It's a mature technology that the TV
manufacturers have gotten very good at building, so many excellent
TVs in our size range are available.
I'd also consider OLED if you can find a suitable model. I think OLED
will eventually be a superior option, because the light-emitting
pixels are inherently superior to the shutter-based LCD design for
producing high contrast and for wide viewing angle. However, there
aren't many OLED models available yet, so your options will be
limited. They're also more expensive, and the technology might not be
mature enough yet to be an ideal fit for gaming. Be sure to look
carefully at the concerns mentioned above relating to OLED,
particularly display lag and image retention. If you find an OLED you
like, do some research on the Web to see if any console gamers have
experience with it, since console gaming places the same demands
on a TV as virtual pinball.
Flat vs. curved screens
It almost goes without saying, but a pinball playfield is best
simulated with a flat-screen display.
This is generally an easy requirement to fill with current TVs, since
most LCD and OLED models have perfectly flat screens. But some models
are now available with a convex curvature across the width of the
panel. This is supposed to give you a wrap-around effect like in a
large-format movie theater. Some people like the effect, others see
it as little more than a sales gimmick. Whatever your feelings about
it for a living room TV, though, I'd recommend against it for a
virtual pinball playfield TV. A playfield TV is oriented in portrait
mode, which defeats the purpose any wrap-around effect. The curvature
will only serve to distort the geometry of the image.
Input lag
One of the really important differences between video gaming and
regular TV viewing is that gaming is interactive. The animation on
the screen responds to actions you take in the game. This exposes an
element of TV performance that's not noticeable in normal passive
viewing: "input lag". This is the amount of time that passes between
the TV receiving the electronic signal for a video frame, and the
video frame actually appearing optically on the display panel.
Input lag is important (in a bad way) to video gaming because it
creates a time gap between when you press a button and when the
resulting action appears on screen. If the time gap is long enough
for you to perceive, it makes the gaming action feel leaden and
unresponsive. You want the flipper to flip the instant you press the
button, not a couple of seconds later after the ball has already
rolled off the end!
Don't confuse input lag with "refresh rate", "response time", or
"pixel cycle time". The refresh rate refers to how many times per
second the TV draws a video frame. The response time or pixel cycle
time refers to how quickly a physical pixel can change color. These
times are important in their own right, because they affect how smooth
motion looks on the display. But they're entirely different things
unrelated to input lag.
Where to find input lag numbers
I've never seen a manufacturer list input lag in their spec sheets, so
you have to dig a bit to find information on it. Manufacturers do
often quote pixel cycle times, response times, and/or refresh times,
but remember that input lag isn't in any way related to those.
Your best bet for finding concrete data on input lag is console gaming
Web sites, since console gamers use regular TVs like we do. One good
site is
displaylag.com. They
measure input lag with special equipment and post the numbers on their
site. They have a large database of current models that they update
regularly.
What's an acceptable input lag?
Short answer: 40ms or less.
You don't need a TV with zero input lag, and it's impossible to find
such a thing anyway. As long as the actual lag time is below a certain
threshold, you won't be able to perceive any lag time at all, so
anything below that threshold might as well be zero.
Human time perception varies according to context, but for video
gaming, the main thing that matters is action/reaction timing. An
action/reaction sequence is something like this: You push a button. A
light appears on screen. Did the light appear exactly when you pushed
the button, slightly before, or slightly after? When researchers do
this experiment, they find that time gaps of up to about 50ms are
perceived as exactly simultaneous. In other words, humans can't tell
the difference between truly simultaneous and about a 50ms delay.
It's not a matter of how smart you are or how closely you're paying
attention; it's simply a fact of human nervous system physiology.
Our neurons can only move signals so quickly, and as a result our
brains perceive events that are very close together in time as
though they were perfectly simultaneous.
This doesn't mean a TV with a 50ms input lag time is automatically
good enough. You don't perceive the TV's lag time in isolation, but
rather in combination with all of the other sources of latency in the
overall system: delays from the key encoder device, the USB
connection, the Windows video drivers, the pinball software itself.
The latency from these other components varies, but in a well-tuned
system it might add up to around 10 to 20ms. So that leaves us with
30 to 40ms to work with for the TV.
What causes input lag?
Input lag is caused by the internal digital processing that the TV
does to the image before realizing it on the display. Most of this is
processing that enhances the picture in some way: resolution
up-scaling, frame interpolation, sharpness enhancement, noise
reduction, motion smoothing. Modern TVs all do these enhancements
digitally, by putting the pixels into a memory buffer inside the
TV and running some software algorithms over the pixels. The
software processing takes time, just like on a PC, and that
processing time is what causes the lag.
Note that input lag has nothing to do with the physical pixels, so you
can't guess anything about input lag based on what type of panel
technology the TV uses. LCD, LED, OLED, plasma - none of those are
inherently faster or slower in terms of input lag. It's purely a
function of the digital image processing going on inside the TV.
How can you minimize input lag?
The best way to minimize input lag is to buy a TV with low input lag.
You can't generally find this information on manufacturer spec sheets,
but you can check gamer Web sites like
displaylag.com. As described
above, you don't need a TV with zero
input lag (such a thing doesn't exist), you just need a TV with input
lag low enough to be imperceptible. I'd use a threshold of 30ms to
40ms, and rule out sets with much higher lag times.
Definitely stay away from sets with unusually high lag times. Some
TVs currently on the market have lag times above 100ms, which will be
maddeningly obvious during game play.
Even if your TV has great lag time numbers on paper, you'll still need
to adjust its menu settings to get the best performance out of it.
Even the fastest TVs can have bad lag times when all of their picture
enhancement modes are enabled, and all of those modes are usually enabled
by default when you first take your new TV out of the box. Every TV has
its own menu settings that affect lag in different ways, so you might
need to do a little Web research or experimentation, but here are a
couple of rules of thumb applicable to most TVs:
- Turn on "Game Mode". Most TVs have a few master modes you can
select from, with names like Movie, Pro, Vivid. One of these is
usually a Game mode. If your set has such a mode, select it. In most
cases, the main purpose of this mode is to minimize input lag, so it's
the easiest way to go straight to the right settings on most sets.
- Turn off all picture and motion enhancement features: sharpness,
noise reduction, high frame rates (120Hz or 240Hz, for example), and
especially anything related to motion smoothing. Motion smoothing is
the worst offender because it usually involves
buffering up several frames for interpolation purposes, which
deliberately delays the display by that many frames.
Effect of connector types on lag
In some cases, you might see different lag times with different
connector types. Most newer TVs use HDMI connectors exclusively, so
you might not have any other options. But if your TV has a mix of
connector types (HDMI, DVI-D, DP), and you can't eliminate lag via
mode settings, you might try different connector types to see if one
type is better than the others.
There's nothing inherently good or bad about any of the connector
types that affects input lag, so don't look for a rule like "DVI-D is
fastest". Any such claims you see on the Web would only apply to a
particular TV model, if they're even true. The only reason connectors
would have any effect is that the internal electronics in some TVs
have a faster path for some connectors than others.
Picture quality
This is probably the easiest metric to find opinions on, since
everyone buying a TV for any use cares about it. You can simply look
at user reviews on Web stores that sell the TV to get an idea of what
people think of different models. For professional reviews, you can
check Web sites and magazines that specialize in consumer electronics.
Basic video picture quality is generally excellent for most newer TVs,
so user reviews are more useful for ruling out the occasional problem
model than for distinguishing among the best models.
Viewing angle
Some types of displays produce a better image when viewed head-on than
when viewed at an angle. LCD panels tend to have this property.
Viewing from a steep angle can make the picture look dimmer, washed
out, or uneven.
The position of the playfield TV is in a full-sized cabinet
creates an off-axis viewing angle of about 50° to 60°,
depending on the height of the player, so it's important to
find a TV that maintains its image quality when viewed from that
kind of angle.
Unfortunately, the manufacturer claims for viewing angles in the
specifications aren't usually helpful, because they only tell you the
range where you can see any image at all. In fact, they usually quote
the viewing angle as 180°, which is just the maximum for viewing a
planar surface. We're really interested in the range of angles where
the picture quality holds up without significant loss of brightness or
uniformity. The best way to check is to look at the set in person and
specifically try viewing it from about 60° off axis.
If you can't check your candidate models in person, you can at least
check user reviews for any red flags about viewing angle. Viewing angles
are generally excellent in newer 1080p and 4K LCD panels, and people
have come to expect this, so other buyers will probably have noticed if a
model has any problems with this.
Note that viewing angle is almost never an issue with OLED or plasma
displays. These technologies have their light emitters located
directly at the surface of the display, which makes them viewable from
any angle.
Motion artifacts
Some TVs are better than others at displaying moving objects
realistically. Pinball simulation obviously involves a bunch of
rapidly moving objects, so motion rendering is an important
element of the overall picture quality in a pin cab TV.
When a TV doesn't handle motion well, you'll perceive effects known as
motion artifacts:
- Blur (a moving object looks fuzzy)
- Ghosting (a moving object looks washed out or partially transparent)
- Jitter or judder (objects jerk or vibrate rather than
moving smoothly)
It's commonly understood that the "pixel refresh time", also known as
"response time", tells you how well a TV renders motion. Yes and no;
the refresh rate is important, but it doesn't tell the whole story.
Don't get too attached to the idea that you can just look for a TV
with the fastest pixel update speed and call it a day. One problem is
that there's no standard way to measure these values, so manufacturers
can pick whatever measurement is the most favorable; this makes it
fairly meaningless to compare the numbers for different models. The
other issue is that the apparent smoothness of motion depends on other
factors besides the pixel response time. It's more complex than that
because motion perception happens in the human visual system, not in
the TV. Motion artifacts like those listed above are caused by the
interactions between your visual system and the display technology.
Faster refresh rates generally reduce these artifacts, but other
factors contribute to the artifacts as well, so refresh rate isn't a
perfect proxy for motion rendering quality.
The best way to determine a TV's motion handling is (as always) to
view it in person with suitable content. If possible, watch the TV in
action playing a pinball video game, or some other video game with
small moving objects against a fixed background. If that's not
possible, try ESPN - sports tend to have a lot of motion of the right
sort.
If you can't check the TV in person and you can't find another pin cab
builder using the same TV, try user reviews on Web stores. Motion
rendering is important to regular TV viewers, especially sports fans,
so you should at least be able to check for complaints about
particular motion artifacts or problems.
Image retention
Some TVs suffer from a problem known as image retention, or "pixel
burn-in", where pixels get "stuck" if you leave a static image on the
screen for too long. This leaves a sort of ghost image stuck on the
screen. This was a major problem in the ancient days of CRTs. This
is, in fact, why they invented "screen saver" programs. The job of
the screen saver is to keep varying the image displayed so that no one
pixel will ever be held on at the same color for long periods.
Image retention has always been a concern for gamers because many
video games have portions of the image that are fairly static for long
periods. For example, console games often have score displays and
on-screen controls that are always in the same place. Pinball is even
worse in that most of the playfield just sits there motionless most of
the time.
Fortunately, image retention is practically non-existent for LCD
panels. If you're considering an LCD TV (whatever the backlight type
- LED, QLED, fluorescent), you'll probably be immune from any concerns
about pixel burn-in.
OLED sets are a different matter. Some OLED TVs are reportedly
affected by image retention. If you're looking at an OLED model, look
for reviews from console gamers to see if anyone has had problems with
image retention on that model.
8. Selecting a Backbox TV
Most virtual cabs use a TV to simulate the backglass artwork of the
real pinball machines. The backglass art is a distinctive and
universal feature of pinball, and an important part of the aesthetic,
so it's a must for most cab builders to replicate it in our virtual
systems. It also serves a practical purpose, in that it's where
many games display the score.
This chapter will try to help you design your backbox layout and
pick a TV for it. We're just in the planning stages here; we'll
get into the details of actually installing everything in
Chapter 30, Backbox TV Mounting.
Choosing the right backbox TV
If you've just gone through the
Chapter 7, Selecting a Playfield TV chapter,
you're probably exhausted from thinking about all of the complex
technical criteria that go into picking the right TV for your main
cabinet. Fortunately, the backbox TV is a lot less demanding
in terms of tech specs.
Really, the only important factor in choosing a backbox TV is size.
You have to pick a TV that will fit in your backbox and fill the space
it's supposed to cover. Most of the rest of this chapter is devoted
to helping you decide what type of backbox layout you'd prefer, and to
helping you determine the right TV size for your selected layout.
You can mostly ignore the rest of the technical factors that are so
important to the playfield TV. The backglass area isn't part of the
physical action in a real pinball machine, with the exception of a
handful of tables with extremely novel designs, and even for those
it's only a very small part of the action. For most games, it's
mostly decorative, and shows mostly static images. So it's not all
that important to find a TV with fast motion rendering or low input
lag.
You don't even need a very high res monitor. Most people find that a
720p TV is perfectly fine for the backbox TV. The backglass artwork
from real pinballs is mostly hand-painted graphics, and that kind of
source material tends to look good even on lower resolution displays.
The main picture quality features I'd look for are good black levels
and color accuracy; those are more important than pixel resolution for
cartoon graphics. Also consider viewing angle, so that the image
doesn't fade too much when you're standing off to the side.
Virtual backglass options
There are two very different ways that you can set up your cab's
backglass TV. Before you start picking out a TV, you should
decide on one of these configurations, since it will determine
the TV size you need.
The two options are commonly known as the two-monitor and
three-monitor configurations.
The
three-monitor setup mimics the physical layout of real
pinballs made from about the mid 1980s. That's when the real
machines started using a "speaker panel", a separate section
at the bottom of the backbox containing the score display
and speakers. Nearly all pinballs made after about 1984
used this arrangement.
For virtual pinball, this is called the "three-monitor"
setup because it means you'll have a total of three video displays
in your cabinet: the main one for the playfield, the
TV in the backglass area, and a small monitor in the
"DMD" (dot matrix display) area. The third monitor
can be a small TV or laptop display, or it can be an
actual pinball score display device just like the real
1990s machines used.
Most virtual cab builders creating full-sized cabinets use
the three-monitor setup. It provides the most realistic
rendition of modern games that had speaker panels in the
real machine, and it also gives you a good place to put
the audio speakers (which is one of the big reasons the
real machines adopted this design in the first place).
The
two-monitor setup dispenses with the speaker panel
and uses a single large monitor to fill the whole backbox.
The advantage of the two-monitor design is flexibility. Classic
tables from the 1960s and 1970s had larger backglasses that filled the
entire backbox area, and the full-size monitor lets you display these
older backglasses more realistically. A three-monitor setup has to
squeeze the older, taller backglasses into a shorter area, which can
distort the artwork. And you can still play modern games that had
speaker panels originally, since the software can display a graphic
rendition of the speaker panel on the screen.
Two-monitor setups are less common in full-sized virtual cabs, but you
might be drawn to this design if you're especially fond of older
tables from the "EM" (electro-mechanical) era. The artwork on those
older tables can't be displayed as nicely on a three-monitor setup.
To help you decide, let's look at how various generations of real
machines configured their backboxes.
Backglass styles through the years
Early pinballs displayed the score by lighting up individual point
counter lights on the backglass. Pinballs in the 1960s and early 70s
used mechanical score reels, which were positioned in little windows
in the backglass art. These changed to 7-segment digital displays
(similar to early pocket calculator displays) in the mid 70s, but they
kept the same basic layout, with the digital displays positioned in
the same little windows in the artwork that the mechanical reels had
occupied.
Examples of pinball score display styles through the ages:
point value lights (1940s-50s); mechanical reels (1960s);
7-segment digital displays (1970s-80s); dot matrix displays (1990s)
The biggest change came in the late 1980s, when Williams split the
backbox between the glass artwork and a separate speaker/display
panel. This arrangement had some major advantages, so it quickly
became the standard. For one thing, it provided a good place for
speakers. Pinball makers were doing everything they could to
keep up with the competition from video games, and part of that
was replacing the old bells and chimes from the electro-mechanical
days with digital sound effects. Hiding the speakers inside
the cabinet didn't make for very good acoustics, so Williams
decided to dedicate some of the backbox area to speaker grilles.
That meant sacrificing some of the artwork area.
Early examples of the split design with separate backglass and
speaker/display panel (1987). The lower panel is a separate
piece that contains the score displays and a pair of speakers.
These early games used 14-segment alphanumeric displays; later
games used a single large 128x32 dot matrix display.
The three-monitor configuration in detail
Most people building full-sized cabs opt for the three-monitor setup.
Part of the reason is practical. It's easier to make everything fit,
it gives you a good place for the speakers, and it's easier to find a
suitably sized TV. The other part is the aesthetics: it looks more
like a real machine from the modern era.
You'll probably gravitate towards this design if you're generally more
interested in modern tables than classics from the 1970s or earlier.
This is also the most straightforward design if you plan to use a
dedicated dot matrix display (DMD) device, since it replicates the
setup of the real pinball machines that used those devices. It would
be possible to fit a DMD somewhere else if you really wanted to, but
the main motivation most people have for using a real DMD in the first
place is to make the cab look more authentic, so unconventional
placement would somewhat defeat the purpose.
Standard three-monitor setup, with TV for backglass
and separate display for DMD area. The third display
can be a small TV or laptop display panel, or it can
be a real pinball DMD device. The clear glass or acrylic
cover in the shape of a standard translite is optional;
it's there to better replicate the appearance of a real
machine, and to help hide the edges of the TV, which
won't quite perfectly fill the space.
A 16:9 TV is a close (but not perfect) match to the standard
proportions for modern translites. It leaves just a little
extra space above and below.
The three-monitor setup is great for reproducing the backglass art for
modern machines that had the speaker panel setup in real life. It's
not as good for older machines without speaker panels, since their
backglass art was almost square. Displaying square artwork on a 16:9
TV requires a vertical squeeze to make it fit. This distorts the
geometry a bit, as illustrated below.
Original proportions of classic backbox artwork (left);
squeezing it onto a 16:9 monitor (right)
As you can see, full-height artwork is a little distorted by the
vertical squeeze. I'm personally not too bothered by it on my own
three-monitor setup, but then again I mostly play newer tables. If
you play a lot of older games and you think the distortion would
really bother you, you might consider the two-monitor option described
later in the chapter.
Sizing the TV
The standard size of a modern backbox is about 27" by 27" on the
inside. This leaves room side-to-side for about a 30" widescreen TV.
Unfortunately, it's not possible (currently) to buy a 30" TV. The
closest options I've seen are 28" and 29". If you can find a 30", it
should be a perfect fit, but failing that you should look for a 29" or
28".
The next size up is 32", but this is too wide for a standard backbox.
(You can't even fit a 32" with kludges like thinner side walls or
routed slots in the side walls, since most 32" TVs are a hair wider
than the outside dimensions of a standard backbox.) The only
way to make a 32" fit is to build a custom backbox that's about two
inches wider than standard. For some cab builders, it's worth doing
this to get a perfect fit to a common TV size. If you go this route,
keep in mind that you'll also need to a custom speaker panel and
translite to match the special width.
The proportions of the standard translite space are approximately
16:10 (width to height). That's very close to standard 16:9 TVs -
just a hair taller. Some computer monitors come in 16:10 ratios, so
you might check to see if you can find something like that in the 29"
or 30" range, but it's unlikely. Fortunately, 16:9 is so close to the
real aspect ratio that you don't have to worry about distorted
geometry in the artwork. The only reason to prefer a 16:10 monitor is
that it would more completely fill the available space.
Score panel options
The three-screen configuration obviously requires that third screen,
in the score panel window in the speaker panel.
This third screen can be another video display, or it can be a
dedicated DMD (dot matrix display) device like the ones used in the
real machines from the 1990s. Furthermore, it can be exactly
like the ones used in the 1990s - specifically, a certain type of
monochrome plasma display, which is still being made - or it can be
a similar device with the same pixel layout that uses LEDs instead
of plasma.
The two-monitor configuration in detail
So far, we've only looked at the "three-monitor" setup. Way back at
the top of the chapter, we said that there was another option,
without the speaker panel, where you use one large TV to fill
the entire backbox space. This is known as the "two-monitor"
configuration, because you end up with two TVs in your system (one for
the main playfield, one for the backglass). Let's finally take a look
at this alternative.
This is arguably the more flexible option, although it's also the more
difficult of the two to set up. It's more flexible because it does a
better job at reproducing older machines with full-height backglasses
at the correct proportions, but it doesn't leave out the newer
machines either, since it can show a newer machine's speaker panel
"virtually" with on-screen graphics. The virtual rendition of a
speaker panel obviously can't look quite as realistic as an actual
speaker panel, but it does the job. If you're a big fan of classic
tables from the electromechanical era, where the backglass art filled
the whole backbox space, you might be willing to live with the fake
speaker panels on modern machines in exchange for proper artwork proportions
on classic tables.
But there are some major drawbacks. One is that it doesn't leave
room for speakers. The real pinball makers adopted the separate panel
design in part because it allowed the speakers to be exposed, which
makes them sound better. You'll have to find another place for
your speakers if you go the two-monitor route. You might be stuck
(as the older real machines were) with placing the speakers somewhere
inside the cabinet, which might somewhat reduce the audio quality.
The other big challenge is that it's impossible to buy a TV with
exactly the right proportions to fit a backbox. The modern standard
backbox is roughly square, about 27" wide by 27" tall (on the inside).
Virtually all TVs and computer monitors sold today have 16:9 aspect,
and the ones that don't are mostly even wider.
The solution that most two-screen cab builders use is to turn the TV
sideways, so that the long dimension is vertical. This will make the
TV too tall for the backbox, but you can cut an opening in the floor
of the backbox and tuck part of the TV through the opening and into
the main cabinet. This is illustrated below.
Typical two-monitor setup. The TV has to extend into
the cabinet through the "neck" in order to fit vertically.
Proportions of the display in a two-monitor setup. The
monitor can't fill the whole width of the backbox because
it has to fit through the neck into the main cabinet.
You should be aware of a big drawback of this arrangement: you won't
be able to fold the backbox down without removing the TV. On real
pinball machines, the backbox is designed to fold down so that it lies
flat on top of the cabinet, to allow for easier transportation. With
the TV arranged like this, you'll have to take out the TV if you want
to fold down the backbox. And you really should fold it down before
transporting it, because there's a big risk of breaking something
during transport with the backbox up, due to its weight and the
leverage it has in that position.
TV size
Considering only the backbox inside width of 27", the ideal set would
be about 53". But that won't work because of the need to tuck the end
of the TV into the main cabinet. So your actual size constraint is
the main cabinet width. This means that your maximum backbox TV
size is exactly the same as your main playfield TV size. For a
standard width cabinet (20.5" inside width), you can use a 39" or
possibly a 40" TV; for a widebody cabinet (23.25" inside width), you
can use a 45" TV.
This will leave some leftover space on either side of the TV if you
use the standard modern backbox dimensions. You could simply fill
this area with a black border or decorative graphics.
There's another alternative, though. If you're enough of a fan of
older EM machines to want a two-monitor setup in the first place, I'd
suggest adjusting your cabinet plans to use a narrower backbox to fit
the monitor. This will actually make your whole cabinet better fit the classic
theme, since narrower backboxes were common until about the early
1980s. For example, the classic Gottlieb "wedgehead" style of the
1960s had backboxes about the same width as the cabinets. A 39"
TV will fit these backboxes perfectly.
9. Selecting a DMD Device
Most real pinball machines from the mid 1980s to present use a split
backbox setup, with a backglass at the top showing the game's theme
artwork, and a separate panel at the bottom containing a scoring
display and the audio speakers.
Typical WPC backbox layout. The bottom 1/3 is the speaker panel,
containing the audio speakers and a dot matrix display (DMD).
Games made up until about 1995 used the style shown here, with
silkscreened graphics on the front of the speaker panel. Later
Williams games used a more generic black plastic panel without
any graphics apart from a Williams or Bally logo. The upper 2/3 is the backglass,
displaying backlit still artwork for the game.
The backglass portion on most machines from the 1990s is just some
static artwork, usually a "translite" (a screen-printed piece of
plastic film stuck to the back of a clear sheet of glass), lit
from behind.
The scoring window changed over the years. In the 1980s, they used
segmented numeric displays, and later alphanumeric displays, like on
old pocket calculators. In the early 90s, they switched to
monochrome dot matrix displays ("DMDs"), typically 128x32 dots. The
DMDs could display full graphics, although 128x32 monochrome pixels is
obviously very coarse by today's standards.
Many virtual cab builders follow the 1990s design, except that they
replace the backglass with a video monitor. This means that you need
a separate display device in the DMD area, which is why this design is
usually called the "three-screen" cabinet: you have one screen for the
playfield, a second for the backglass, and a third for the DMD. The
third screen can be an actual 128x32 monochrome plasma DMD, just like
in the the 1990s originals, but most cab builders these days
substitute a small video panel instead, since that's cheaper, easier
to set up, and more versatile.
This section looks at the options for the third screen, to help you
decide which type to use, and offers some pointers for buying the
equipment you decide on.
Overview of DMD technologies
The DMDs in the original 1990s pinball machines were monochrome plasma
displays, 128 pixels wide by 32 pixels high. That made for very large
pixels that you could see individually. This visible "dot" structure,
and the particular amber color of the plasma, gave the displays a
distinctive appearance that many people now see as a defining feature
of this generation of pinballs. To a lot of people, it doesn't
feel like real pinball if it doesn't have the amber dots.
You can still buy the original plasma panels, and it's even possible
to use them in a virtual cab (although, as of this writing, there are
no commercial interface kits available to facilitate this). There are
also newer display technologies that can be substituted into the score
panel to achieve similar looks, with some modern improvements.
The first newer alternative is LED-based 128x32 dot matrix displays. LED
displays are available with the same pixel pitch and layout as the
original plasmas, so they can serve as close substitutes. LEDs don't
perfectly replicate the nuances of plasma's visual effect, which has a
soft, analog, neon feel to it that some people find charming.
LEDs are crisp and bright but can seem a little harsh in comparison.
But LEDs definitely share some of the more important positive
properties of plasma, particularly high brightness and wide viewing
angle. LEDs are also cheaper than plasma and longer lasting, so
collectors of the real machines often replace defunct plasmas with LED
panels when repairs are needed. LEDs are also being used on many new
titles being shipped today, so plasma is no longer the sole "original
equipment" on real pinballs. Stern no longer ships new games with
plasma displays at all; they switched to LED DMDs in 2013.
The original LED DMD panels were monochrome (available in a variety of
colors, including something approximating the distinctive plasma
amber), but panels are now widely available with RGB pixels, which can
display full-color graphics.
The other newer alternative to plasma is to use an actual video
display, typically an LCD panel. For a virtual cab, an LCD panel is
easier to set up in terms of software, since it just looks like
another video monitor as far as Windows is concerned. Pinball
simulators will happily simulate the look of a plasma DMD on a video
display by drawing large amber dots to simulate the 128x32 pixel
structure. Of course, an LCD panel can't perfectly reproduce the
brightness or viewing angle of a plasma, but it can at least do a
passable impression of the appearance.
A 15" diagonal 16:9 LCD screen happens to fit the width of the standard
DMD opening in the pinball speaker panels. It's a trifle taller than
the standard panels overall, but since it sits behind the panel,
that's not typically a problem, as it's hidden behind the translite,
which sits directly on top of the speaker panel.
Recommendations
For a virtual cab, you can in principle use any of these technologies
- an original plasma DMD, a monochrome LED DMD, a full-color RGB LED DMD, or a
video display. (Although what you can actually buy right now is
somewhat more limited.) The tradeoffs are complex, but it mostly
comes down to your priorities:
- If you have fond memories of the 1990s machines, and you want to
match that look, a plasma display is the way to go. Plasmas are the
authentic equipment, so they'll look exactly right. A plasma is also
quite bright, so some people like the way it becomes part of the
"light show". The downsides are that plasma displays are expensive
and fairly complex to set up. They require a special high-voltage
transformer as the power supply; VirtuaPin sells an appropriate
transformer, so it's at least easy to source, but it adds to the
complexity for installation. Another downside to plasma devices is
that they fade as they age and eventually wear out, although I believe
their longevity is a function of powered-on time, so you can probably
expect a plasma to last a very long time in home use. I have several
real pinball machines with original plasma displays that have been in
home use for over 25 years, and I haven't had one exhibit any signs of
fading or failing yet.
- If you want to replicate the 1990s look but want to reduce the
complexity a bit, a monochrome LED is a good choice. These look very
close to the plasmas - they're even brighter, and you can even get
them in a fairly close color match to that special plasma amber if you
want, as well as in a range of other colors. They're a bit simpler to
set up than plasmas because they don't require the special power
supply. They also have a longer reliable service life than plasma.
They're more complex to set up than a video display, though, and
more expensive.
- If you like the "dots" look of the 1990s machines but want to add
full color support, consider an RGB LED. These are slightly
more expensive than the monochrome LEDs, and they're about the same in
terms of setup complexity.
I was really excited when the RGB LEDs first came out, because
I thought they were going to be the perfect combination of
the original plasma look and modern full-color flexibility.
But I'm sorry to report that the reality isn't that simple. I know
some people are going to hate me for saying this (particularly people
selling RGB DMDs!), but I actually think a video display does a more
convincing job of replicating the "dots" look than an RGB LED. The
problem is that the sub-pixel structure on the RGB LEDs is way
too obvious; it makes the individual dots look too small. It's
very noticeably different from the plasma and monochrome LEDs.
That's a first-hand opinion, too: I have machines with both kinds
of displays at home, and to my eye the video display looks more
like the real thing.
- If you're not attached to the idea of using 1990s-era equipment for
its own sake, a video display is the best overall option. It's
cheaper than any of the 128x32 DMD options, it's easier to set up,
it's more flexible, and to my eye it actually does a better job of
re-creating the "dots" look than the RGB LED displays do.
The only drawback of a video display (other than that it's not
authentic 1990s pinball equipment, which you might or might not
consider a drawback) is brightness. The plasma displays are
quite bright, and a monochrome LED is even brighter. (RGB LEDs
are a mixed bag on this score because of the sub-pixel structure;
brightness depends quite a bit on the color being displayed at
any given pixel.) From comparing my own machines with different
display technologies, though, I think this is often overblown
when people talk about it on the forums. Side by side, they're
really not that different. And I think when you compare the
overall visual quality, an LCD video panel has the edge.
In terms of flexibility, a video display can do both "dots" and
full-resolution graphics. The "dots" look can be easily
simulated on a full-res display, and all of the pinball software
is set up to do just that, because it's all written primarily for
desktop machines where video displays are the only thing going.
What a video panel can do that a 128x32 DMD can't is display
high-res graphics when it's not displaying "dots". For example,
when playing an EM game that doesn't use the score window at all,
you can use it to display added game graphics or manufacturer
logos at full resolution. Video panels also look much
nicer when playing 1980s "alphanumeric display" games, because
they can accurately simulate the 14-segment display look.
Video is also the most compatible option. Every pinball program
for Windows naturally works with a video display, since that's
just how Windows works; support for a DMD device has to be
intentionally added on by each program's creator (or hacked in
by reverse-engineering, which the pin cab community has
successfully accomplished with several commercial titles).
When I first started on my virtual pin cab project, almost everyone
building cabs felt that plasmas were the Cadillac of scoring displays,
worth almost any amount of extra cost and extra trouble to set up.
But I think this has completely reversed in the time since then,
because the real pinball world has largely moved on to more modern
technologies. These days, pinball machines you might see in public
places use such a mix of dot matrix and video displays that both seem
perfectly "real" now. Some of the newer Stern titles are shipping
with DMD-sized video displays as original equipment, and Jersey Jack
Pinball's entire line uses large video monitors in place of the DMD
panel. You even see lots of classic 1990s machines retrofitted with
full-color video displays, thanks to
ColorDMD, a company that makes
drop-in replacement displays for the old machines. So I expect that
many cab builders starting new projects now and in the days to come
will be less fixated than earlier cab builders were on the idea that
the plasma DMDs were the only "real" pinball displays. There's
definitely a lot of nostalgia value to the old plasmas, but overall
I've come to think that video is the best option.
Purchase options
At one point, it was possible to buy any of the display technologies
mentioned above - plasma, monochrome LED, RGB LED, or video. But the
buying options have become a lot narrower lately. The PinDMD v2
doesn't appear to be available any longer, and that was the only
readily available way to hook up an original plasma display or a
monochrome LED panel.
So at the moment, there are two options: video, or RGB LED.
LCD video panel
If you plan to use a video panel for the score display, the best fit
is a 16:9 panel, approximately 15.5" diagonal. This is just about a
perfect fit for the 13.6" width of the standard DMD opening in a
speaker panel. A panel of that size is just barely taller (by about a
centimeter) than the standard speaker panel's outside dimensions, but
that's typically not a problem, because the excess height is easily
behind the translite panel, assuming you're using one.
A few TVs are available in this size range, but I'd recommend against
those. They tend to use low-quality LCD panels. The much better
solution is to use a laptop display panel.
You can buy replacement laptop LCD panels in this size range on eBay
or Amazon. These panels come bare, with no interface electronics,
because they're sold for repair work where you only need to replace
the panel and nothing else. This means that you have to buy a
separate piece of electronics, called a video controller, that
serves as the interface between the panel and the PC video card.
To find these parts, start by searching eBay for "15 wuxga". You
should find a number of matches, usually listed as replacement parts
for Dell, HP, Acer, and other laptop brands. You should narrow the
list to panels that specify 1080p or, equivalently, WUXGA (1920x1080)
resolution, and a screen size of 15.5 or 15.6 inches. The price range
for these panels as of this writing is about $50 to $100. The matches
you're looking for are just bare laptop display panels - an LCD screen
in a thin metal shell. They'll look something like this:
Don't try to choose a specific panel yet; just keep the search results
ready. The next step is to find a video controller that works with
one of these panels. eBay doesn't provide any tools to help with
this, so you'll have to do some manual searching. Open a new eBay
search window. Go down your list of panels. For each one, find its
model number in the listing and type it into the search window, adding
"controller". For example, if you find a panel with model number
LP156WH4T, type "LP156WH4T controller" into the search box. If you're
lucky, that will turn up a few hits with the model number in the
title. Be sure the model number is actually in the title or is
explicitly mentioned in the listing as a compatible model. The
controllers will usually look something like this:
If you don't have any luck, or you're not sure you found the right
match, I'd recommend picking a panel that looks good and contacting
the seller to ask which controller to use. The seller should be able
to point you to the right device. Most of these panels use similar
control interfaces, so you don't actually need a controller designed
especially for your panel. Sellers list them for specific panels
simply because they know people like us are searching for them that
way! Technically, you just need a controller that matches the
interface type on your panel, but the ads don't usually list enough
information to find them that way, so a model number search is the
only way to be sure.
Pay attention to connectors. Most of the interface boards will have a
VGA input and either a DVI-D or HDMI input. If you've already picked
out a graphics card for your cabinet PC, be careful to pick an
interface board that has a connector matching an available output on
your graphics card, taking into account the outputs you'll be using
for your main playfield TV and backbox TV.
How do you know if a panel is good in terms of video quality,
reliability, etc.? You're not going to find reviews (professional or
user-written) for any of these OEM parts, so it's a bit of a
crapshoot. Fortunately, laptop panels in this class have gotten to be
good enough that you should be okay with anything that meets the
specs. Do pay attention to the resolution, though: the WUXGA laptop
displays seem to be uniformly good, but the lower res displays are
uniformly bad.
One note on setting up your new panel: be aware that the control board
might support more resolution modes and refresh rates than the panel
itself does. Many of the modes that the controller allows you to
select with the Windows control panel might simply not work with the
panel or might produce poor-quality video. When you first set up the
panel in Windows, make sure you select the screen size (resolution)
and refresh rate that exactly match the panel's physical design. That
might take some trial and error, since eBay OEM parts don't usually
come with any documentation. If the display looks fuzzy or distorted,
or doesn't show anything at all, try other refresh rates to see if you
can find one that looks better.
RGB LED
If you decide on to use an RGB LED dot matrix display device, there
are two ways to accomplish it: you can buy one commercially, or you
can build one yourself using DIY plans that some pin cab enthusiasts
developed and published.
RGB LED - commercial
VirtuaPin sells the PinDMD v3, a
full-color (RGB), LED-based, 128x32 dot matrix display. The display
panel has the same physical dimensions and dot pitch as the original
plasma displays in the 1990s machines. It's about $270.
This is a turn-key commercial kit, so it's relatively plug-and-play.
It uses a USB device to interface to the PC. It requires some
software setup; instructions are included, and VirtuaPin offers
warranty support.
RGB LED - semi-DIY
Pin2DMD is a DIY project for
building an RGB DMD panel from parts. The site provides a parts list and
assembly instructions, as well as software for a microcontroller to
interface to the PC and run the display. The prices for the parts
vary, but at a guess they'll total about $100.
Note the confusingly similar name: Pin2DMD is the DIY project,
and PinDMD v3 is the commercial product above.
The Pin2DMD site includes software to install on a microcontroller
board (one of the parts that goes into building the project) that
interfaces with the PC and runs the display. However, note that the
software is not open-source, and requires payment of a license
fee.
The closed-source software makes me hesitate to recommend the project.
It's supposedly "DIY", but given that you don't have any control over
the software or any ability to change it to suit your needs, I think
"DIY" is actually a negative in this case. You have to do the
assembly yourself, you don't get any warranty support, and you don't
even get any control over the final product. Open-source projects
have the first two drawbacks, but they make up for it by giving you
full control to customize and expand. You don't get that here; you
just get the bad aspects of DIY and the lack of control of commercial
products. But I guess you can at least save some money vs the
retail version.
Plasma panels
Plasma doesn't appear to be an option at the moment. VirtuaPin
formerly offered the "v2" PinDMD, which was a monochrome of the PinDMD
v3 device mentioned above that worked with your choice of monochrome
128x32 LED panels or the original plasma panels used in the 1990s
machines. But that product doesn't appear to be available anywhere as
of this writing.
You can still buy the bare Vishay plasma panels from
VirtuaPin, along with the special
80V/100V transformers needed to power their high-voltage sections, but
VirtuaPin doesn't sell anything that would let you hook it up to a PC.
I don't know of any other commercial or DIY options for connecting
these.
If you're an experienced software developer with some hardware
knowledge, you could design your own controller using one of the
inexpensive ARM-based microcontroller boards, such as a Raspberry,
BeagleBone, or one of the STM32F series boards. The software involved
is actually very simple: you just need to consume USB packets from
the PC and send out a clocked serial bit stream to the plasma device,
1 bit per pixel. The electronic interface is documented in the Vishay
data sheets, and it will be immediately recognizable and
straightforward to anyone who's done any device interface work with a
microcontroller before. If you do create such a project, please
publish it as open source, and let me know about it so I can include
here.
Monochrome RGB panels
As with the plasma panels, you can buy monochrome RGB panels as
components, but there's no software interface to the PC available.
The panels are available from a few after-market pinball suppliers who
sell them as drop-in replacements for dead plasma displays in real
pinballs. Since they're specifically designed as drop-in replacements
for the Vishay panels, their electronic interface is identical, so any
solution you can find that will work with the Vishay panels will work
equally well with these. As requested above, please let me know about
any solution you develop or find for this and I'll add it here.
10. Designing the PC
The core of a pin cab is a PC running Windows. You could
theoretically build a pin cab around a Mac, an iPad, a Raspberry Pi,
or just about any other sort of computer. But for our purposes in
this guide, the only real option is a Windows PC, because that's where
all of the software runs.
I've observed that most pin cab builders like to start their projects
by building the PC and setting up the software, before they've even
started thinking about what's needed to build the pinball machine body
that'll house it. This is a natural first step for most of us,
because most of us know our way around PCs at least a little bit - the
way that most people discover the pin cab world in the first place is
through the PC pinball simulation community. It's also an attractive
place to start because you can see some immediate results, before
getting into the more daunting parts of the project.
Off-the-shelf or custom build
The easiest and most obvious way to get a PC is to buy one from a
retail PC maker, or even re-use one you already have. But most pin
cab builders come from a PC gaming background, so you probably already
know enough about PCs to know the benefits of building one yourself
rather than buying off-the-shelf. If you've built your own PCs in the
past, you know what's involved. If you haven't built one before, you
might be surprised at how easy it is. Modern PCs snap together out of
components practically like Lego blocks. The hardest part is often
the shopping, since there are so many options out there.
The big benefit of building your own PC is that you get to pick
exactly what you want for each component. The retail PC makers
usually give you a few options for CPU speed, hard disk size, graphics
card, and so on, but they're usually pretty limited choices from a
small pre-set list. If you build your own, you can choose exactly
what you want from the whole universe of available products in each
category.
The rest of this chapter proceeds from the assumption that you're
going to build a custom PC, because that's what most pin cab builders
do. But that's not a must; if you're not comfortable building your
own PC, you can definitely build a perfectly good pin cab around a
retail PC. If you go that route, I'd suggest you focus on PCs that
are specifically designed and marketed for gaming. PC pinball is
fundamentally a video game, and it benefits from exactly the same
hardware upgrades that mainstream video gamers need. Pay particular
attention to the graphics card: that's the hardware element that makes
the biggest different for PC pinball performance. You might find the
material in this chapter helpful even for picking out a pre-built PC,
just for the background knowledge of what to look for and which
elements are the most important to pin cab performance.
Performance considerations
I can't give you any hard numbers for performance metrics, since
things change too quickly in this business and any benchmarks I quote
would be obsolete in a couple of months. I can offer some general
advice, though.
The first bit of advice is that you should consider the virtual cab PC
to be a gaming PC. That might seem obvious, but my point isn't merely
that you're going to use it to play games, but rather that "gaming PC"
is a special category of PC. The thing that makes a gaming PC
different from a run-of-the-mill home or business PC is upgraded
performance, particularly for graphics. Gamers use special disks,
special memory, and most of all special graphics cards.
The second bit of advice is that you don't have to take this idea of
upgraded performance to its logical extreme. You do need good
performance, but you don't need the absolute best performance
available. Pinball emulation is demanding, but it's not as complex as
the latest "triple A" video games at any given time. My rule of thumb
is that you should look for the "second best" in most of the product
categories. Survey what's available, and don't buy the most expensive
thing you can find; focus your attention on the second price tier.
Products in that second tier are usually only slightly less capable
than the top-tier products, but much cheaper - you often see crazy
things like 90% of the performance for half the price. The gamers who
want the very best are willing to pay, pay, pay for it. So
products in that second tier often offer a much better balance between
price and performance.
To a first approximation, the CPU and GPU together determine your
machine's overall performance. And of the two, the graphics card is
generally the more important. These are the parts you should pay the
most attention to when researching what to buy.
Other components - motherboard, memory (RAM), disks, USB controllers -
also contribute to performance, but to a much lesser degree. How much
should you worry about those? If you talk to serious video gamers,
they'll tell you that every element is critical, down to the
military-grade titanium screws holding their ballistic carbon-fiber
cases together. That's true as far as it goes, but "extreme gaming
RAM" and the like will only contribute a few percentage on most
systems. Most people can't perceive that kind of difference in actual
use; you'd only know it's there if you measured it with benchmarking
tools. If it's important to you to build the fastest system possible,
then by all means do so; that can be fun in its own way. If your main
focus is pinball rather than PC benchmarks, I'd focus my research time
and cash budget on the CPU and GPU, and I wouldn't go too far out
of my way seeking the optimal choices for the other components.
Just look for parts from reputable manufacturers that fit the specs
you need.
Operating System
Recommended: Windows 11, 64-bit, Home edition. Windows 10 is also
still a good choice.
Windows is the best operating system option for a pin cab PC, because
almost all of the popular pinball software runs only on Windows.
This is starting to change, with some of the open-source software
being ported to Linux and MacOS, but it will be a while before the
ports are as solid as the Windows versions, and most of the
commercial games will probably never be ported.
Which version
I'd recommend the latest, currently Windows 11. The main reason is
that Microsoft only offers full updates to their DirectX technologies
(their gaming technlogy layer) on the current OS version at any given
time. This means that newer games will increasingly be unable to run
on the older Windows versions; if you want to be able to run the
latest games, you pretty much have to have the latest Windows.
Older versions: As of this writing, Windows 10 is still well
supported, but all of the older versions are now out of support, so
they're no longer receiving updates from Microsoft. As I'm sure
you've heard from many other people, the big concern when Microsoft
terminates updates is that security bugs in the OS won't get fixed, so
it will become increasingly vulnerable to malware. For a pin cab PC,
I think the termination of DirectX updates is an even bigger problem.
Which edition?
The "Home" edition of Windows is fine for a pin cab. You can buy the
more expensive "Pro" edition if you prefer, but the added features in
the Pro editions are intended more for business users. I don't think
there's anything in Pro that's important for a typical pin cab.
32-bit or 64-bit?
Easy: Use the 64-bit edition. The 32-bit version
of Windows is only for old hardware with CPUs from about 2002 or
earlier. Every Intel and AMD PC CPU you can buy today is 64-bit. The
64-bit version of the operating system takes full advantage of the
CPU's capabilities, and is still fully compatible with 32-bit
application software.
Emulation and virtualization options
Nope. Don't even consider it. Even though it's technically possible
to run Windows as a guest operating system using VM software on Linux
and MacOS, it's not a viable option for gaming software. 3D gaming
performance on virtualized hardware is uniformly unacceptable. The
same applies to Wine (a Windows API emulator on Linux).
Hardware components
Here are the PC components you need to assemble the computer that
runs a virtual pin cab.
CPU
Most people start planning PC builds with the CPU, because other
choices hinge on which CPU you choose.
This is obviously an area where any specific product recommendations I
make will quickly become outdated, but there are some guidelines that
seem pretty stable over time.
First, any current Intel or AMD CPU that's in the middle of the
performance range or better should handle most of the pinball software
easily.
Second, most gaming software, including pinball simulators, generally
benefits more from what they call "scalar performance" than from
adding more "cores". Scalar performance refers to how fast each
individual CPU core runs, and it's roughly proportional to the clock
speed, as long as you're comparing chips that are from the same
generation.
Adding more cores is usually less beneficial for pinball software than
scalar performance, because most game software has a single critical
path (that can only run on a single core at a time) that determines
the overall performance. However, more cores are better to a point;
I'd go with a CPU with at least four to six cores.
Third, the CPU feature called "hyperthreading" is generally considered
not very useful for gaming software. Hyperthreading is the main
distinguishing feature of some of the highest-end Intel and AMD CPUs,
and it improves performance for many types of software, but most
gaming software is designed in a way that hyperthreading doesn't do
much for it. It might not be worth the cost bump in a pin cab.
CPU performance is always a hot topic in the gaming community, so it's
easy to find lots of detailed performance data on gaming-related Web
sites. Several sites run extensive benchmarking suites and publish
their results. You should give the most weight to tests for gaming
performance, since pinball simulators are similar to other video games
in the way they use the machine's hardware resources.
CPU fan
Most modern CPUs require a special fan mounted directly on top of the
chip. If you buy your CPU in retail packaging, it usually includes a
suitable fan. However, some vendors sell unpackaged "OEM" versions
intended for use by business buyers building systems for resale, and
these usually don't include anything but the bare CPU. In that case,
you'll need to buy a CPU fan separately. These can be found on Newegg
and other sites that sell components by using a search term like "i5
fan". Check the specs on the options you find to make sure your
specific CPU type is listed, since these fans usually have to match
the exact shape and size of the chip.
Motherboard
The motherboard is the main system board with all of the core
electronics, and connectors for all of the add-in cards, disks, and
input devices.
Choose a CPU before looking for motherboards.
Any given motherboard only works with specific CPUs. Once you
know the CPU you're going to use, you should be able to find
suitable motherboards by searching the Web for "xxx motherboard",
where "xxx" is your CPU type. Use the detailed CPU part number,
like "i5-7600k".
I've had good results with motherboards from Gigabyte, but several
other manufacturers make good motherboards as well.
For a pin cab, your needs from a motherboard aren't very complex.
Here are the main features I'd look for:
- Must have: Compatibility with your chosen CPU
- Must have: At least one fast expansion slot for a graphics card,
typically PCI Express x16 (as of this writing).
- Must have: At least two additional expansion slots, in case you want
to add a sound card, Wi-Fi card, USB card, or any other add-ins.
- Must have: Memory slots for at least 8GB of RAM. (This is almost a given;
it's hard to find a board without at least this much capacity
these days.)
- Nice to have: on-board Ethernet port. This is standard on nearly
all modern motherboards. Wi-Fi is less important, because you might
not be able to use a built-in antenna effectively; the walls of a
pin cab are thick enough to significantly block the signal. An
external antenna is usually better if you want Wi-Fi on the cab,
and for that you'll probably need an add-in card or an external
USB Wi-Fi adapter.
- Nice to have: integrated audio. Nearly all modern motherboards
include audio outputs. This isn't required, though, as you can add a
sound card via an expansion slot if needed.
- Nice to have: USB 2 and USB 3 connectors. Some older USB
devices don't work well with USB 3 ports, so it's helpful to have both
types in case you need a USB 2 port for some devices. This isn't
required, though, since an external USB 2 hub can serve the same
function.
Performance considerations: Not really an issue, unless you're
looking to build an extreme gaming system. A motherboard designed for
a particular CPU is almost always based on the Intel or AMD chipset
mated to that CPU, so you won't see a huge amount of variation among
different boards for the same CPU. If you're concerned about finding
the fastest motherboard for your CPU, you can do some research on
benchmark sites on the Web.
What about on-board graphics? Unimportant,
because you'll need a separate graphics card whether or not the
motherboard has its own built-in graphics. There might be exceptions,
but all of the built-in motherboard graphics chip sets I've ever seen
are low-end, suitable for business graphics, not gaming.
If the motherboard doesn't have on-board graphics, great, that's one
less thing to worry about when configuring the BIOS. If it does have
on-board graphics, as most modern motherboards do, it's still not a
problem because you should be able to disable it in
the BIOS setup. In fact, many BIOSes will do this automatically
when they detect the presence of a separate video card.
Graphics cards
The graphics card is the most important component for game
performance. It's even more important than the CPU for games, because
it's actually a whole separate computer in its own right that does
most of the computing work for displaying 3D graphics. Fast graphics cards
are capable of drawing more complex images more rapidly, making for
smoother game action.
You should wait until after selecting a motherboard to choose a
graphics card, because you need a graphics card that matches the
"slot" type on your motherboard. Your motherboard specs should tell
you what kind of graphics cards it accepts; look for "graphics cards"
or "expansion slots" in the spec sheet. For quite a while now,
motherboards have been standardized on "PCI Express" slots for the
graphic interface. These are quoted with a speed like "x16", so you
might see "PCI Express x16" in the expansion slot list. Once you find
that information, that tells you what types of graphic cards are
compatible.
Graphics cards are available from many manufacturers, but most
(regardless of manufacturer) use chip sets made by either Nvidia or
AMD. The spec sheet should tell you the underlying chip set, and in
fact, most cards from most brands include this information right in
the name. For example, a "Gigabyte Geforce GTX 1050" is based on the
Nvidia 1050 chip set. You'll start to recognize the chip set names if
you shop around enough, since you'll see the same numerical
designations over and over on different brands of cards. The
performance of a graphics card is almost entirely a function of the
chip set, not the brand, so you should see reasonably similar
performance from cards based on a given chip set even if they're from
different brands.
Which chip set? Check the forums for advice on current models.
This is another area where something in the second tier of the current
available performance range is usually a good choice.
Note that a 4K main monitor is more demanding than a regular HD (2K)
monitor, so you should bias your search towards the higher end if
you're planning on 4K.
Video memory: Video cards have their own on-board memory,
usually 1GB or more on a modern card. The fastest type of memory has
a type like "GDDR3" or "GDDR5". A higher number suffix indicates
faster memory. Visual Pinball and other gaming software benefits from
larger memory sizes with faster memory.
Display size and refresh rate: Any modern video card should be
able to drive a 1080p main monitor and a couple of additional smaller
monitors. (1080p or even 720p is perfectly adequate for a backglass
TV.) A higher-end card might be needed if you're using a 4K main
monitor.
Outputs/connectors: Be sure you have enough outputs for all of
the monitors you plan to connect, taking into account the playfield
TV, the backbox TV, and the score display (DMD) TV, if you're using
that.
Most higher-end graphics cards offer several output ports with
different types of connectors. You can almost always use all of the
outputs simultaneously to drive multiple monitors. This lets you
use a single graphics card to drive all of the TVs in your system.
I'd recommend finding a card with at least two of the following
connectors, in any combination: HDMI, DVI-D, Display Port (DP). All
of these types can be connected (using passive adapters) to HDMI
inputs, which is what you'll need on almost any modern TV. As long as
you have two ports of these types, you should have no problem
connecting two TVs to the card.
If you're planning to also use a third display for the DMD area,
you'll need a third output for that. A VGA or DVI-D connector will
usually work for this third output, since DMD monitors are usually
implemented with laptop displays or small desktop monitors. Most
video cards have a VGA output in addition to one or more of the more
modern connectors listed above, so this is fairly easy to find.
If you're going to use a real pinball DMD instead of a small video
display, you won't need to connect that the graphics card.
Real DMDs aren't video devices, so they don't connect to your graphics
card; they connect instead to a special external controller via USB.
You should check the specs to confirm that the card you're considering
can handle the two or three simultaneous outputs you plan to use.
Nearly all modern graphics cards allow this, but it's worth checking
to be sure.
Port compatibility: You don't necessarily need an exact match
between the output port types on your video card and the input ports
on your TVs and monitors. Many of the port types are electrically
compatible with each other, meaning you can connect them with a
simple cable that has the right plug on each end.
The following combinations of port types are compatible.
The only requirement is a cable with the corresponding connector
type at each end. These are relatively inexpensive and can be
easily found online.
TV IN | Video Card OUT | Compatible? |
HDMI | HDMI | Yes |
DVI-D | Yes |
DisplayPort | Yes |
DVI-D | HDMI | Yes |
DVI-D | Yes |
DisplayPort | Yes |
DisplayPort | DisplayPort | Yes |
VGA | VGA | Yes |
DVI-I | Yes |
Two cards for two monitors: Not advised. It
seems like
two cards would be better than one - more hardware is always faster,
right? But in practice, two cards are actually
slower than one.
Everyone on the forums who's tried this has had the same results: you
get lower frame rates, more stutter, and more lag with multiple video
cards.
The technical reasons for this are unclear (my wild guess is that it's
due to increased PCIe bus contention). Without understanding the
cause, I can't rule out the possibility that some systems exist
where two cards would go faster than one. But if there are, they seem
to be the exception; many people have tried it and had poor results.
By far the best way that anyone has found to improve performance of the
pinball simulators is to use a faster video card.
Memory (RAM)
I'd recommend at least 8GB of motherboard RAM. This is enough memory
for Windows plus the pinball simulator to run comfortably without
"swapping" to disk. More RAM is generally better - particularly for
future-proofing, considering that Windows and other software tends to
need more memory on every update. If you have the budget, you can
install as much memory as your motherboard can accept.
The type of RAM chip you use must match the requirements for your
motherboard. You can find the RAM type requirements in your
motherboard's spec sheet, but it's usually easier to find the right
chips by typing your motherboard's model number into a Web store's RAM
search. Most online stores that sell RAM let you search for
compatible chips by motherboard, narrowing the results to show only
compatible products once you enter the motherboard information.
You'll probably be able to find many compatible RAM chips for your
motherboard. These will be listed with a speed class like "DDR3-2000"
or "DDR4-2133". "DDR3" and "DDR4" are essentially versions of the
electrical interfaces, so your motherboard will probably accept
exactly one of these types. The suffixes like "-2000" are clock
speeds, so higher numbers are faster in terms of the bus clock. These
numbers don't translate directly or linearly to overall system
throughput, since there are many other factors besides the raw clock
speed that affect the actual performance, but using higher-speed RAM
will generally increase overall system speed. I'd recommend buying
the fastest speed class that your motherboard supports, since the
price differences between RAM types aren't usually dramatic, but you
can let your budget decide, since the performance differences probably
won't be dramatic either.
Note that you might see the "DDR" speed class combined with another
class with a "PC" prefix, such as "PC3-16000". These are just
different ways of stating the same information. Don't compare "DDR"
speeds with "PC" speeds, since they're different systems - only
compare "DDR" speeds with other "DDR" speeds, and "PC" speeds with
other "PC" speeds.
In addition to the "DDR" speed class, you might see a series of other
specs, such as "Timing 15-17-17-35" or "CAS Latency 15". These
numbers are further details about the memory speed. Hardcore gamers
try to optimize these, but I don't recommend worrying about them,
because they represent very slight differences in speed that might not
even be noticeable in actual use. The "DDR" speed class and the total
amount of RAM are much more important.
Hard Disk
The best type of hard disk for a virtual pin cab PC is an SSD, which
isn't actually a "disk" at all, but serves the same storage function
using flash memory instead of magnetic media. SSDs are much faster
than conventional hard disks, especially for booting Windows and
loading software. Booting Windows from an SSD typically takes ten or
twenty seconds, compared with a minute or more with a conventional
hard disk.
SSDs also smaller than convention disks, and they're essentially
immune to damage from vibration or shock. The shock resistance is
good for a pin cab since you'll want to be able to nudge the machine
without worrying about damaging the disk.
The main drawback of SSDs is that they're more expensive than
conventional hard disk per gigabyte. Fortunately, a pin cab doesn't
need a very large disk, so most pin cab builders will find that a
suitably sized SSD is well within a reasonable budget for the PC
components.
How much storage do you need? Let's look at what you'll typically
need to install on a pin cab PC:
- Windows operating system: about 20GB
- Visual Pinball: about 20MB
- Future Pinball: about 100MB
- VP and FP tables: varies, hundreds of MB
- PinballX (menu system): about 40MB
- PinballX media (table images, videos, etc): varies, hundreds of MB
- Web browser: 1GB
- Other software and utilities: varies, hundreds of MB
We obviously can't come up with an exact number here because the total
will depend on how many tables you install. But we can still come up
with a pretty good upper bound, since there are only so many tables
out there (perhaps 1000 in circulation), and they're not all that big
individually (perhaps 1MB to 20MB apiece). Even if you install all of
the tables you can find, and even if you never delete the less
interesting ones, you're probably talking about less than 20GB of
total disk space required for them.
Adding all of this up, we come up with about 45GB. Realistically,
you'll want to increase that figure to account for the inherent
overhead in the way Windows uses disk space, and to leave some room
for temporary files, downloads, etc. So I'd recommend an absolute
minimum disk size of about 65GB, and preferably at least 120GB. But
given current prices, I'd step up to about 250GB - that size is available
for about $100 US as of this writing, which makes it the best value in
terms of price per gigabyte. 250GB is plenty of space for all current
pin cab needs and leaves lots of space for future expansion. Depending
on when you read this, the best value size might be even larger, so
shop around to see what's available.
Power supply
Virtually all motherboards and disk drives are compatible with the
standard "ATX" type of power supply. The only exceptions are
motherboards designed for very small form factor machines, so as long
as you're using a standard full-sized motherboard, you should be able
to use any ATX power supply from any manufacturer.
ATX power supplies are so standardized that you don't have to worry
about the types of plugs it has or the types of voltages it produces.
These are all uniform across all ATX power supplies. The only thing
that varies is the total power capacity, expressed as a number of
Watts. You'll have to pick a power supply that produces at least
the wattage required by your motherboard and other components.
You can determine your wattage requirement by adding up the power
figures in the specs for your motherboard and video card. Those are
the two components that draw the most power in your system. Be sure
to pay attention to the video card, because it might require even more
power than your motherboard does.
For example, if your motherboard spec sheet says that it requires
200W, and your video card requires 300W, you'll need a power supply
that provides at least 500W. I'd add about 100W to the total you come
up with from the motherboard and video specs, to account for the
little bit of extra power that will be drawn by the disk and USB
devices, so in this example I'd look for a power supply rated for at
least 600W. The number you come up with here is just a minimum: you
can buy any power supply rated at this number or higher.
Sound cards
Most modern motherboards have integrated audio. For a basic setup,
this is all you'll need.
If you want, you can add a separate sound card that plugs into an
expansion slot on your motherboard. This will let you set up a
second, independent set of speakers on the added card, in addition to
the main set of speakers attached to the motherboard audio outputs.
Why would you want two sets of outputs? Visual Pinball has a special
feature that lets you take advantage of two audio systems to separate
the "music" tracks from the playfield sound effects. Many pin cab
builders set things up so that the music plays from the backbox
speakers, the same arrangement as in the real machines from the 1990s,
and the playfield sound effects play through a separate set of
speakers located inside the cabinet under the TV. The playfield
effects include the sound of the ball rolling and bumping into things,
so it improves the simulation to have these sounds come from the
direction of the playfield.
If you do want to install a separate sound card for the playfield
effects, you don't need anything fancy. Any inexpensive sound card
will do. Just make sure that it uses the same type of expansion slot
that you have on your motherboard. For most modern motherboards,
these will be standard PCI slots.
Case or caseless
Most pin cab builders house the whole PC inside the cabinet. This
makes everything self-contained and adds to the illusion of a real
machine. That's not a requirement, though: some cab builders simply
put a regular PC on the floor next to the cabinet. This works, but
it's not as nicely integrated, and you'll have to run several cables
(video and USB) between the external PC and the cab. It's fairly
obvious how to set that up, so we'll ignore that option and focus on
how to set up a PC inside the cabinet.
There are two main options for mounting the PC components inside
the cabinet. The first is to build the PC using a conventional
tower case, and then put the case inside the cabinet. The second
is to skip the case and mount all of the PC components directly
inside the cabinet, attaching them to the floor of the cabinet
or one of the inside walls. The cabinet itself serves as the
case. Each approach has some tradeoffs.
The main advantage of using a conventional PC case is that it
provides structural support to hold the video card and other add-in
cards in place, and provides places to mount the disks. A case also
provides physical protection from falling objects, and provides
shielding for the radio frequency energy that a PC produces.
The big downside of using a case is that it takes up a lot of space.
A typical mid-tower case is about 14x16x7 inches. A standard pin cab
is 20.5" wide on the inside, and you'll have about 9 or 10 inches of
vertical clearance between the floor and the playfield TV. That
leaves enough room for a tower case lying on its side, but just
barely.
Note that there's such a thing as a "small form factor" case. These
take up less space, as the name suggests, but they're not really a
good option for pin cabs. The big problem is that they don't
accommodate full-size PCIe video cards. The video card is so critical
to performance that you won't want to be limited to the few available
small form factor options.
If you skip the case, it's straightforward to mount the motherboard,
disk, and power supply to the floor of the cabinet. The only real
complication is that the video card and other add-in cards will need
some kind of structural support to keep them from working loose from
the motherboard slots. One option is a partial case, known as an "I/O
panel" or "I/O tray". You can search for these on the Web by looking
for terms like "ATX I/O panel" or "mATX motherboard tray" (use "ATX"
or "mATAX" according to your motherboard's "form factor" spec).
Another option is to fashion your own ad hoc support from wood or
sheet metal. We'll look at specifics in
Chapter 27, Installing the PC.
Fans
PC components and TVs generate heat when running, so you'll want to
make sure the cabinet interior is well ventilated. Most cab builders
do this by installing a couple of PC case fans in specially cut
openings in the floor or back wall of the cabinet. See
Chapter 28, Cooling Fans for more.
Network
You'll definitely want network connectivity in your cab PC, so that
you can download software and pinball tables from the Internet.
Nearly all motherboards have built-in Ethernet ports for wired
connections. If you'll have access to a wired router port in your pin
cab's ultimate location, the built-in Ethernet port is all you'll
need. If not, you'll want to consider another option, such as WiFi or
powerline networking.
If you're already using WiFi for your other devices, you can get your
pin cab on the network by adding a WiFi card. Some motherboards have
built-in WiFi, so you might not even need to add anything; check your
motherboard specs.
If you do add WiFi to your pin cab PC, I'd recommend doing so with a
PCI add-in card that has an external antenna with at least a few feet
of wire, to allow locating the antenna away from the motherboard. The
reason is that the wood walls of a pin cab can substantially block the
WiFi radio signal, so you'll get a much better signal if you can move
the antenna outside of the cabinet. A built-in antenna or an antenna
that's attached directly to the PCI card might not get a strong enough
signal.
Another option is a "powerline" network. These send signals over your
house's AC electrical wiring rather than by radio, so they're not
susceptible to the interference and blockage problems that make WiFi
problematic in some setups. They also don't require any extra wiring,
since they use the existing power wiring in your house. To make this
work, you'll need one powerline adapter connected to the pin cab PC
via the motherboard's Ethernet port, and a second powerline adapter
connected to a port on your Ethernet router. Netgear, Linksys, and
others make starter kits that come with the necessary equipment to set
this up.
I always prefer a wired Ethernet connection when possible, since it's
extremely reliable and almost effortless to set up. Powerline is my
second choice when a wired Ethernet connection isn't possible, since
it tends to be more reliable than WiFi and easier to set up. WiFi
is great for mobile devices, but a pin cab has to be plugged into
the power outlet anyway, so I think powerline is the way to go if
you can't arrange a regular wired Ethernet connection.
Port connections
Assuming you're placing your PC inside the cabinet, you'll need a way
to connect the keyboard, mouse, and (if you're using one) the Ethernet
cable.
One easy way to deal with the keyboard and mouse is to buy wireless
devices. Modern wireless keyboards and mice come with USB
transceivers; just plug the transceivers into USB ports on the
motherboard and you're set. Similarly, using WiFi or powerline
Ethernet (see the
Network section
above) eliminates the need for external network cabling. Making
everything wireless is the most convenient approach, but it's more
expensive, and I've never been fully satisfied with the performance
of any wireless keyboard or mouse I've used.
If you're using wired devices, a simple solution is to drill a hole in
the cabinet big enough for the cables (preferably somewhere
inconspicuous, like the floor or back wall), pull the cables through
the opening, and plug them into the appropriate motherboard ports.
The downsides of this approach are that it uses up a couple of feet of
cable inside the cab (which might put your keyboard and mouse on too
short a leash), and that it's inconvenient to disconnect and reconnect
the devices (you have to open up the machine to get to the plugs).
If you want something a little more elegant and flexible, you can
install the appropriate port connectors on the exterior of your
cabinet and wire them to the motherboard internally. You can set this
up pretty easily with parts made for installing data jacks in wall
plates that resemble regular electrical outlet plates. These are
commonly used for home theater and office installations. Here
are the parts I'd recommend:
- 1 Keystone wall plate insert with 2 openings, for the keyboard and
mouse
- 1 Keystone wall plate insert with 1 opening, for the Ethernet port
- 2 Keystone snap-in USB 3.0 female-to-female couplers
- 1 Keystone PS2 (6-pin mini DIN) female-to-female coupler
(optional, if you're using an older keyboard with a PS2 connector
instead of USB)
- 1 Keystone snap-in RJ45 Cat6 female-to-female coupler
- 4-foot standard male-to-male cables for each of the above
connections
Optical disks
Most pin can builders don't include any optical disks (CD-ROM or
DVD-ROM) in their systems. And it almost goes without saying that
floppy disks and other removable media are obsolete and can be
skipped.
Apart from the operating system, you should be able to load all
necessary software by network download. The operating system itself
can be installed from a USB thumb drive. Newer versions of Windows
can be purchased on a pre-loaded thumb drive, and you can also use
your existing desktop PC to create an installable thumb drive image
from Windows DVD-ROM install media.
11. Power Switching
When you push the ON button your virtual cab, you want everything
to turn on automatically: all the TVs, the audio system, the feedback
devices, etc. Likewise, when you're done playing, you don't want to
run around shutting everything off separately; you just want to press
the OFF button and have the whole thing shut down.
There are some challenges to achieving this kind of power integration,
but they can all be overcome with a little planning and setup work.
This chapter covers what you need to know to achieve single-button
on/off control.
Soft power control through the computer
The key to whole-system power control is to let the computer control
the power. Modern PCs are designed for "soft power" control, which
means that the operating system software controls the power to the
motherboard. This is how Windows shuts off power when you select
"Shut Down" from the Start menu.
Using the soft power control on the PC motherboard itself is easy.
You just need to wire a pushbutton to the power control pins on
your motherboard. These pins are usually part of the "Front Panel"
or "F_PANEL" header. If you were going to install the motherboard
in a regular desktop case, the case would have a 10-pin connector
that you'd plug into this header on the motherboard.
The exact location of the front panel header varies by motherboard,
but it's usually easy to find. Look for a 10-pin connector near one
of the edges of the motherboard. It's usually labeled F_PANEL or
FRONT PANEL.
Intel defined a standard arrangement for this header a long time ago,
so almost all motherboards use the same setup. You should check your
motherboard's documentation to be sure, but the power switch pins are
almost always the red pins in the diagram above - pins number
6 and 8 in the standard numbering.
To power up the PC via the soft power control, all you have to do is
connect those two red pins together for a moment. To turn the power
off through Windows, just momentarily connect them again.
To connect a pushbutton to the soft power controls, you simply connect
one terminal of the pushbutton to one of the red pins, and the other
terminal to the other red pin. It doesn't matter which order they're
connected in.
The standard place on a virtual cab to mount the power button is
on the bottom of the cabinet, at the lower right corner. See
the "Floor" section in
Chapter 21, Cabinet Body for
the standard location in the WPC cabinet plans.
Type of connector use with F_PANEL
The standard F_PANEL connector uses two rows of pins with 0.1" pin
spacing. This is a standard type of connector. To learn more about
how to build a plug to connect here, see "0.1" pin headers" in
Chapter 80, Connectors. I'd recommend building a connector using a
0.1" crimp pin housing, as described in that section.
Controlling everything else through the PC
If you have a desktop PC, you've probably noticed that your monitor
shuts itself off whenever you power down the computer, and turns
itself back on when you boot up the computer. You don't have to worry
about switching your monitor on and off separately; it just follows
the PC's lead.
That's the template for how the cab should work. We want the TVs and
everything else in the cab to follow the PC's lead when turning on or
off.
Unfortunately, we can't count on the other devices in a pin cab to
switch themselves on and off with the PC the way a computer monitor
does. Computer monitors only do this because they're specifically
designed for it. They work by way of the video signal. When there's
no incoming video signal, a monitor assumes that the computer is
turned off, so it goes into standby mode. Regular TVs usually don't
have this feature, nor do audio amplifiers or the miscellaneous power
supplies we use in a pin cab for feedback devices. So we have to give
them some help, by adding our own power control machinery that we
design to mirror the PC's power state.
There are two main options for implementing this, but they both work
the same way: they control power to the AC outlets for the TVs
and other devices, according to whether the PC is on or off.
The basic idea is that we install a power strip inside our pin cab,
with a set of outlets for plugging in the AC power cords for the
various devices. But we have two kinds of outlets in the power strip:
one special outlet for the PC, and a bunch of outlets for everything
else. The special outlet for the PC is always powered - that is, you
effectively leave the PC plugged into the wall outlet all the time.
The other outlets are switched, meaning that they only receive
power when the switch is on. When the switch is off, they don't
receive any power at all, so it's exactly like completely unplugging
whatever's plugged into them. We use those switched outlets for the
TVs, audio system, and all feedback devices.
Conceptual outline of how the PC can control
power to other devices. The PC is plugged into an
outlet that always receives AC power, allowing it to be
switched on and off through the PC's "soft power" button. The
TVs, audio system, and feedback devices are plugged into a
second set of outlets that are controlled by an automatic
switching control. The automatic control cuts AC power to the
secondary outlets whenever the PC is off, forcing all of the
other devices to turn off.
The final piece of the puzzle is how the outlet switch is controlled.
It's not a "switch" in the sense of a wall switch that you operate
manually. Rather, it's an electronically controlled switch,
controlled by the PC's power state. When the PC is on, the switch
turns on automatically. When the PC is off, the switch turns off
automatically.
Since everything except the PC is plugged into switched outlets, all
of those devices have no choice but to follow the PC's lead. When the
PC is off, the switch cuts their power off at the source, so they have
to turn off immediately whether they want to or not. They don't need
any in-built circuitry to know whether the PC is on or off; we
override all of that and control their power at the source.
Let's look at the two main ways we can implement this "switched
outlet" setup.
Option 1: Smart power strip
You can buy pre-packaged "smart power strips" from Amazon or Best Buy
that implement the sort of behavior we've been describing. This is
supposed to be the easy way to implement a switched outlet, since it's
plug-and-play. Just plug your computer into the designated outlet and
the strip does its magic.
The reason I hedged by saying it's supposed to be the easy way
is that it doesn't always turn out to be that easy. Some people run
into snags with it, which we'll come to in a moment.
If you want to buy a smart power strip, try searching online stores
for "smart power strip" and "green power strip". ("Green" because
they save energy by cutting power to idle devices.) The specific
product I used in my cab is an APC P7GB, which works well for me.
A retail smart power strip will have a specially designated "master"
outlet or "computer" outlet, which is where you plug in the PC. The
smart switching feature works by monitoring this special outlet to see
if any power is flowing through it. When the sensor detects power
flowing through the master outlet, the strip figures that the PC is
on, so it turns on power to the other outlets. When the master outlet
isn't drawing any power, the strip assumes that the PC is off, so it
cuts power to the other outlets.
The good thing about this design is that doesn't require any special
cooperation with the PC. It doesn't need any special connections to
the PC or any special software. It works purely by monitoring the
PC's power usage through its main power plug.
The weakness of the design is that nearly all PCs draw a little bit of
power even when they're off, so the sensor in the smart strip that
detects power usage in the master outlet has to be calibrated to allow
for that. The smart strip can't just wait for the power level to drop
to absolute zero, because that never actually happens. To make
matters worse, there's no "standard" idle power level; every PC is a
little different, and it can even depend upon what's connected to the
computer, since some USB devices draw power through the PC even when
the PC is off. The maker of a smart strip doesn't know what kind of
PC you're going to use with it, so they can't tailor the threshold level
to your particular model. They just pick a level based on averages
across many models. This usually works, but not always. Some
PCs are so energy-efficient that they always stay below the threshold
levels, so a smart strip might never detect that those PCs are on.
Other PCs draw enough power when turned off that they remain above the
threshold levels at all times, so a strip might never detect that
those PCs are off.
Every strip has its own power threshold level, and every PC has its
own power characteristics, so it's not easy to predict if a given
strip will work with a given PC. The only way I know to find out is
to test the specific pairing. So if you're going to test a smart
strip, buy it from a store with a good return policy, in case it
doesn't work with your computer.
Another disadvantage of the packaged smart strips is that they usually
have a mix of switched and non-switched outlets, which means that they
don't have very many switched outlets. For example, my APC P7GB only
has three switched outlets out of 7 total, which isn't enough for all
of the things I need to plug into switched outlets. That's easily
solved by plugging a regular dumb power strip into one of the switched
outlets to create more switched outlets, but that takes up extra space
in the cab, so it would be tidier if the smart strip had more switched
outlets built-in.
Option 2: DIY switched outlets
Note: there's a retail product called the IoT Power Relay that's
almost exactly like the DIY solution we're about to describe, but it
comes pre-built, saving you the work of finding the component parts
and assembling them. You might also prefer it for safety reasons, if you're
uncomfortable working with high-voltage wiring. See
Option 3 below for more details.
A second way to implement automatic power switching is to build it
yourself. This is more complex than buying a retail smart power
strip, but it's more reliable and more flexible. It eliminates the
problem that some smart strips have with properly sensing the on/off
status of the computer. If you have any problems getting a smart
strip to work with your computer, you can use this approach instead.
This approach also makes it easier to add more switched outlets; the
smart strips usually only have three or four switched outlets, which
might not be enough for a decked-out pin cab. (With a smart strip,
you can always plug a dumb power strip into one of the switched
outlets add more switched outlets, but that takes up more space in the
cabinet. If you build your own DIY switcher, you can start with
a dumb strip that already has enough outlets for your needs.)
You'll need three things to build your own switched outlets:
- A small power strip (the ordinary "dumb" kind) with 2 or 3 outlets, to provide
the unswitched outlets for the PC and the switched power strip
- A second ordinary power strip, with 6 or so outlets, to provide
the switched outlets
- A 12VDC relay that can switch large power loads of at least
120VAC and 20A
For both power strips, I recommend buying strips equipped with
surge suppressors. The primary strip will be running your
PC, and the secondary strips will be running your TVs, so both
would benefit from surge suppression.
Relays that switch large loads are also known as contactors.
You can find suitable devices on eBay, built into little circuit
boards that simplify the wiring. Here's a picture of what to look
for:
Search on eBay for "12V contactor board". You should be able to find
listings that look similar to the picture above. (You don't need to
find an exact match - the picture is just to give you an idea of what
they look like.) The most common type currently listed has output
limits of 250VAC and 30A, which is safely above our minimums.
Make sure the control signal is listed as exactly 12VDC.
Be sure that your relay or contactor has a diode installed
across the coil. This is important because it protects the
12V power supply and your PC electronics from the voltage
spikes caused by the relay's magnetic coil.
If you use an eBay contactor board, it'll
probably have such a diode pre-installed, but you should
visually inspect the board to make sure. If you're using
a plain relay or contactor you bought as a separate component,
you'll have to install a diode yourself. See
Chapter 53, Coil Diodes
for wiring instructions.
>
Here's the basic wiring diagram:
The theory of operation is simple. When the PC is ON, the PC power
supply sends power to the disk connectors. This provides 12V to
the relay, which turns the relay on, which in turn connects AC
power to the switched power strip. When the PC is in one of the "soft
off" modes, the PC power supply turns off power to the disk
connectors, which cuts the 12V power to the relay. This switches
the relay off, which cuts AC power to the switched power strip.
This is equivalent to unplugging everything connected to the switched
power strip, so all of the TVs and other devices will turn off.
Most of the connections shown are just a matter of plugging in power
cords: plug the PC power supply into the unswitched outlet, plug the
TVs and other devices into the switched outlet. But there are three
DIY steps required:
Step one: Find an unused disk connector on your PC
power supply. Connect the control wires from the relay
board to the disk connector wires as follows:
- Red relay wire → Yellow power supply wire
- Black relay wire → Black power supply wire
Step two: Make absolutely sure everything is unplugged
for this step, because we have to cut into the AC power wiring.
On this step, we're going to cut the power cord in half for your
second power strip: the one with 6+ outlets that's going to
become the switched power strip. You don't have to cut it
exactly in half, though; you should cut it where it will be
most convenient for your physical layout. To figure out where that
is, you should take a moment to do a rough fit in your cabinet to
determine where you're going to situate the two power strips and the
relay. Look at the diagram above and observe how the power cord from
the second strip is going to be split into two parts, with the relay
in the middle. Find a good point to cut the power cord so that you'll
have a little slack on both sides of the cut when all of this is
assembled.
Inside the power cord, you're going to find three internal wires.
They should be color coded black, white, and green. The black wire
is the one that we're going to connect to the relay. This is the
"hot" or "line" wire that carries the voltage, so it's the one we
want to interrupt to switch the outlets off.
The white and green wires are going to simply connect directly across
both halves of the split power cord. In the diagram, we showed them
connected by wire nuts, because we're assuming that you're going to
have to cut the cord in half all the way through, severing all three
wires inside. If you're really careful, you might be able to save
that step by cutting only the black wire in half and leaving the white
and green wires intact. If you can manage that, there's no need for
the wire nuts. If you do end up having to cut the cord fully in half,
though, reconnect the white and green wires by stripping a bit of
insulation off the ends (about 1/2" worth), feeding the ends into a
wire nut, and twisting them together until their securely in place.
Make sure there's no exposed bare wire sticking out of the nut when
you're done. As shown in the diagram, connect green to green and
white to white - all we're doing here is undoing the cut and restoring
the green and white wires to their original condition. You might want
to wrap the nuts and some of the surrounding wire in electrician's
tape when you're done to secure everything in place.
The black wires connect to the input and output terminals on the
relay. It doesn't matter which black wire goes to the input and which
goes to the output; either way is equivalent. The relay terminals
might be labeled input and output or K0 and
K1. Many of these boards have four terminals; when they do,
each pair of terminals is simply connected together. For example,
there might be two terminals labeled K0; these are wired together
inside the board, so you can just pick one of the two to connect one
black wire.
Step three: Secure everything in place and cover the
high-voltage wiring for safety.
Once everything is wired, permanently fasten the relay board to the
cabinet floor (or wall) with screws. I'd also recommend using
standoffs, to leave a little open air under the board. Secure the
power strips in place. I'd also secure the cut power cord portions,
perhaps with wiring staples, to ensure that the wire nut joints aren't
jostled or stressed and that the black wires can't be accidentally
pulled out of the relay terminals.
Finally, you'll have to improvise a cover for the entire relay
assembly, so that there's absolutely no exposed metal or wire. The
black wires will carry AC line voltage, which is hazardous high
voltage. You don't want to allow anything loose in the cabinet to
come into contact with the AC wiring, and you don't want any risk of
touching it yourself while working in the cabinet. Remember that
the AC line voltage will be live on these wires whenever the
cabinet is plugged in, even when the computer is turned off. I'd
recommend going to Home Depot and getting a plastic electrical
junction box, of the type used inside the wall in your house wiring
for switches and outlets. Get a box big enough that the relay board
will entirely fit into it. Place it over the relay board and screw it
into the cabinet so that the relay is permanently covered.
Option 3: IoT Power Relay
There's a retail product, called the IoT Power Relay, that implements
the functionality described in the
DIY
option above, but without the need for you to buy individual
components and assemble them. You can buy these from Amazon and other
online retailers; search for
IoT Power Relay. As of this
writing (February 2021) they sell for about $27.
The IoT Power Relay is set up to trigger based on just about any AC or
DC voltage, so you can set it up exactly as described above for the
DIY option, using the 12V wires (yellow and black) from one of your
primary PC power supply's unused disk connectors as the trigger
source. Note that the IoT Relay's trigger input is polarized, so you
have to connect yellow and black in the correct order. Be sure that
the yellow wire from the disk plug connects to the "+" terminal of the
IoT Relay trigger input, and the black wire from the disk plug
connects to the "-" terminal of the relay trigger input.
Once you have that wired up, just get an ordinary "dumb" power strip,
and plug it into one of the IoT Relay's "Normally Off" outlets. The
Relay may have outlets marked "Normally Off", "Normally On", and/or
"Unswitched", depending on which revision you get. For our purposes,
you can ignore everything except the "Normally Off" outlets. Those
are the ones that switch ON when the trigger voltage from the main
power supply switches on. Note that you don't even need an extra dumb
power strip if you only need two switched outlets, since all
versions of the IoT Relay have at least two switched outlets built in.
For most cabs, though, that's probably not enough - you'll probably
have four or five things that you want to plug into the switched power
strip (secondary ATX power supply, 24V power supply, DMD or DMD video
panel, backglass TV, audio amplifier). The extra power strip is
just there to provide those additional outlets.
The TV Power Memory Problem
Now we come to the eternal bane of pin cab builders everywhere:
power memory, or more typically, power forgetfulness.
If you've been following along for the first part of this chapter,
your cabinet is now set up (or you at least have a plan) so that
everything in it will turn on and off automatically with the computer.
This happens thanks to our "smart strip", which controls AC power to
every outlet (apart from the computer's own outlet) according to
computer's power status.
The "power memory problem" in a nutshell is that many TVs won't
turn on with this setup. Instead, they'll go into "standby" mode,
where they'll stay dark while awaiting an IR remote control command.
A TV in standby mode won't show a picture even if it's receiving an
active video signal. This is bad for our "smart strip" system,
because the smart strip makes the TV think it's being plugged
in anew each time the PC is powered up. If the TV is designed to go
into standby mode each time it's plugged in, the TV will effectively
remain off, defeating our wonderful one-button power control.
How to tell if your TV has the problem
The only reliable way to determine if a particular TV has the power
memory problem is to test it. If you're still shopping and want to
test a TV before you buy it, you really have to find the exact model
you're considering in a showroom or friend's house and test that
specific TV. Don't count on similar models from the same manufacturer
working the same way; it's not consistent across product lines.
The thing that really makes it hard to shop for this feature is that
it's almost impossible to find good information about this online.
You won't find it listed in a spec sheet or Amazon product page, and
most people won't even know what you're talking about it if you ask.
Your best bet is to ask on the virtual pin cab forums, because at
least some people there will understand the question; even so, there
are so many TV models that it's always hard to find someone who owns
the exact one you're considering.
If you do have a way to test a model in person (or by proxy), you can
get a definitive answer using the following text procedure. Ideally,
you should try this using the same video input on the TV that you're
going to use when it's installed in your cabinet. For example, if
you're going to connect it to your PC by HDMI, run the test with the
TV set to view an HDMI video source. The reason this is important is
that some TVs have different behavior on this test with different
sources.
Here's the test:
- Plug in the TV
- Turn it on
- Let it run for a couple of minutes
- Unplug the TV without turning it off first
- Wait a few minutes
- Plug it back in
On that last step, if it turns back on and returns to showing the same
video source as before, hooray! The TV has good power state memory.
It should just work automatically with a smart strip in a pin cab, so
you shouldn't need to pursue any of the solutions below.
If the TV goes into standby mode after being plugged back in, it has
the problem. You'll need one of the solutions below if you want to
use it in your cab and you want single-button power control to work
properly.
Solutions to the TV power-on problem
Fortunately, the power memory problem can be solved. Here are several
possible solutions, in order of DIY-ness.
Solution 1: Buy a TV that doesn't have the problem
The easiest solution to this problem is to not have it in the first
place. You can simply decide when buying a TV that power memory is a
must-have feature, and reject any models that lack it.
My guess is that about 50% of the people in the pin cab forums would
agree with that approach, because they really don't want to mess with
any of the workarounds. Personally, I don't like this
approach, because power memory is hardly the most important thing to
me about choosing a TV. I think it's much more important to consider
picture quality, motion blur, input latency, physical fit for the
cabinet, price, and probably a few other features, before worrying
about whether it has power memory. You might rule out some otherwise
superior candidates if you consider this a deal-breaker. I'd only
consider power memory a "nice-to-have" feature, meaning I'd only use
it to decide between sets that are otherwise equals. The power memory
problem is solvable by the other means we'll see below, so it's really
not the end of the world if your TV needs a little help powering on.
Solution 2: Keep the remote handy
Of the 50% of cab builders who don't think power memory is the
king of all TV features, I'd guess that about 50% of them throw in the
towel on single-button power-up if their TVs don't have it. Because
there's always the easy manual solution: keep the remote handy and
press the On button every time you power up the cabinet.
This really isn't a terrible solution. I'm too much of a
perfectionist to accept it for my own cab. It's not the inconvenience
of it that's the problem for me; it's just that it makes the project
feel a little unfinished. But in practical terms, it costs no
significant amount of time and is only a minor inconvenience. If you
can live with the rough edge, and the solutions below seem like more
trouble than they're worth, you can stop here and call it done.
Solution 3: Tape down the On button
For some TVs, you can get away with a simple hack. It's
inelegant (which is, after all, the proper definition of "hack"), and
it doesn't work at all on most TVs. But it's worth trying, because if
it does happen to work on your TV, it's a really simple solution
that you can implement in a matter of minutes.
Here's the idea. On some TVs, if you keep the on/off button pressed
down all the time, the TV will turn on and stay on whenever you
plug it in. If your TV works this way, you can improvise some simple
mechanical way of keeping the button pressed down permanently.
Before you start thinking about how to stick the button down, test
your TV to see if the trick works for it:
- Unplug the TV.
- Manually hold down the On/Off button.
- Keep holding down the button while you plug in the TV.
- Keep holding it down continuously for a couple of minutes.
Don't let go even briefly on that last step. The point is to test to
see if holding the power button down for 10 seconds or 30 seconds or
60 seconds activates some special hidden action, like powering the TV
back off, or rebooting it, or bringing up a service menu. "Long
press" gestures often do something special like that on modern
electronics, since everything these days needs to have a way to reboot
it in case of software crashes. 30 seconds is almost always enough
for a "long press" to take effect, but I'd give it a couple of minutes
just to be sure.
If the TV turned on and stayed on, and you didn't activate some
special hidden action by holding down the button for a long time, the
hack will work.
To implement the hack, you just need to fashion something mechanical
to hold down the button permanently. For some models, it's as easy as
wrapping some duct tape around the bezel to apply pressure to the
button. If that doesn't work for your TV's geometry, try taping a
small object (a few pennies, perhaps) between the button and the tape,
or try fashioning the right shape out of a paper clip or a little
strip of sheet metal. If you have a 3D printer, maybe you can come up
with the right shape for a custom plastic clip.
The big limitation of this hack is that it only works for certain TVs.
Many TVs will respond by cycling repeatedly between On and Off or
activating some special action. That's why you should try the test
before worrying about how to implement the hack.
Solution 4: Pinscape TV ON system
If you're using the Pinscape expansion boards, there's a feature built
in to help deal with TVs that won't turn on automatically when plugged
in. The Pinscape boards have a power sensor that tracks the power
supply status, and two mechanisms for sending an ON command to the TV:
a relay that can be hard-wired to the TV's On/Off button, and an IR
emitter that can be programmed to send the TV's IR remote control
command code to turn on. These features can be configured in the
Pinscape software to send the TV ON signal (by relay and/or remote)
after an adjustable delay interval after the rest of the system powers
up, to give the TV a chance to "boot up" and make itself ready to
receive commands.
Solution 5: eBay timer board
You can build your own equivalent of the Pinscape TV ON feature using
a type of electronic timer circuit board available on eBay.
Note: I recommend against using this solution, because it
requires taking the TV apart; it's only included here for reference.
If possible, use the Pinscape IR transmitter solution instead.
See
Chapter 114, TV ON Switch. The IR approach is non-invasive and fairly
easy to build. You can use it even if you're not using Pinscape for
anything else.
>
This approach works by simulating a manual button press on the TV's
On/Off button, shortly after the system power is turned on. We don't
physically press the button, but rather simulate it electronically, by
soldering wires to the button's switch contacts and connecting them
briefly at the proper moment.
There are three important details required to make this work properly:
- We have to sense when the TV power switches from OFF to ON
- We have to wait a few seconds after that, to give the TV time to
initialize
- We have to simulate a momentary button press only; we
can't continuously hold down the button.
To accomplish all of this, we need a timer circuit. The circuit has
to be triggered by the power coming on. It then has to pause for a
delay time, long enough for the TV to get ready to accept command
input, then it has "press the button" for just a moment. Here's
what the timing looks like:
We're assuming that the timer is controlling a relay (an electronic
switch). The "button press" is simulated by the relay toggling on
briefly.
To implement this, we need the timer circuit itself, and then we need
to connect it electrically to the TV's On/Off button.
Buying a timer: Suitable boards are available on eBay, but
unfortunately it's rather difficult to find the needle in the haystack
for this sort of item. The ones you're looking for are no-brand
hobbyist products sold by Chinese companies, so there's not a
particular store or product name I can point you to. You'll have to
sift through the listings to find the right thing, but here's an eBay
search term you can use as a starting point: "relay cycle timer".
To find the right timer, first make sure you find something with a
relay. Most of the timer boards you'll find do use a relay, but some
use solid-state switches (such as MOSFETs) instead. A relay is
important for this application. Second, read through the descriptions
and look for a list of "modes". The mode you're looking for should be
described like this: "when the power turns on, the relay is
disconnected, then delay T1, turn on the relay, delay T2, turn off the
relay".
When you get the board, you'll have to program it according to the
instructions (if any are provided) to set the correct mode and delay
times. Set the initial delay time to about 7 seconds, and the second
delay time to about 0.25 seconds. You can test that it's configured
properly by cycling the power: each time you plug it into power, there
should be about a 7 second delay, and the relay should click ON and
immediately OFF.
Connecting to the TV: You'll have to be comfortable with taking
the TV apart at this stage, because we have to connect some wires to
the On/Off button.
There are no generic instructions for taking a TV case apart, so you're
on your own for this part. Your goal is to open the case and expose the
little circuit board containing the On/Off button.
Needless to say, use extreme caution with this step. In modern LCD
TVs, the LCD panel and polarizing filter are very thin, brittle
plastic sheets and often have no structural support other than the
outer case, so it's very easy to crack them during the removal process
or after the case is off. Removing the case will also void the
warranty, so you're assuming the entire risk of breaking something
by proceeding.
>
Once you get the case open, you should find a little circuit board
located under the area where the buttons on the case are situated.
It's usually long and narrow, and looks something like this:
The red arrows in the photo above show the soldering points for the
button leads. The little squarish silver objects are the buttons.
These are normally situated immediately under the exterior plastic
buttons on the TV's bezel; pressing on the exterior plastic button has
the effect of pushing down on this metal part, which is the real
button.
Once you find this circuit board, identify which button corresponds to
the On/Off button on the outer case. Do this by position: just find
the inner button that's situated underneath the On/Off button on the
case. You can also do this by counting buttons from right to left,
since there should be the same number of silver buttons on the circuit
board as plastic buttons on the case.
Next, identify the switch leads. There are probably four leads to
these switches, one at each corner. On the TVs I've looked at, the
leads are in pairs that are electrically connected together, so there
are really only two wires here even though it looks like four. Put
your multimeter in continuity test mode and check the leads in pairs.
Find a pair that are not connected normally, but that become
connected when you press the button. These are the leads you want
to solder to.
The next step is possibly even more delicate and tricky than opening
the case. You have to solder wires to the button leads you just
identified. To do this, use fine hookup wire, 24 AWG or thinner.
Strip a very short length of insulation from the ends, around 1/8".
Melt a little solder onto the end of the wire. Position the end of
the wire at the desired contact point. Now get out some tape (I used
thin strips of masking tape here) and secure the wire to the board a
couple of inches away from the contact point. The idea is to hold it
in place at the desired position before soldering so that the solder
can just flow over the junction with everything already positioned
properly. Once everything is in place, heat the end of the wire for a
few moments, long enough for the solder to melt and flow onto the
switch lead. Remove the soldering iron carefully and try to hold
everything very still for a few moments so that the solder can
solidify over the junction point. If all went well, the wire should
stick to the switch lead. The connection will be delicate at best, so
you'll want to secure the wire with a couple more pieces of tape to
minimize mechanical stress on it.
TV On/Off switch with wires soldered to leads
Repeat this process for the second lead. Once both are soldered and
held securely in place with tape, test your work with the multimeter.
Use continuity test again. Connect the meter leads to the free ends
of the wires you just soldered. The meter should read open/no
connection. Press the button, and the meter should read
closed/connected. If that works, you're set. Put the TV case
back together, taking care to run your newly attached wires out
a suitable opening.
Now you just need to connect the newly attached wires to the timer
board relay. Attach the wires to the relay common (COM) and
normally open (NO) terminals on the timer board. (If the relay
only has two switch terminals, those are the two to use!)
Finally, to power the relay board itself, connect its DC+ and DC-
terminals to the appropriate voltage inputs from the
secondary
ATX power supply. For example, if it requires 5V for power, connect
its DC+ input to the red +5V wire on the secondary power supply, and
connect its DC- input to the black 0V/Ground wire on the secondary
power supply. See
Chapter 45, Power Supplies for Feedback for advice on connecting
wires to the power supply.
Note that you must use a secondary ATX power supply to power
the timer board (not the main PC power supply), and the
secondary power supply must be plugged into the switched power
strip. That's key to the whole scheme, because the timer board has to
be powered up at the same time as the TV in order for the countdown to
start at the same time the TV receives power.
Solution 6: DIY timer circuit
This works much like the eBay timer board described above, except that
it saves you the trouble of tracking down the right item on eBay. The
tradeoff is that you have to assemble your own circuit board instead.
But you don't have to design the circuit: you can just build it from
my plans.
As with the eBay timer board, I recommend against using this solution,
because it requires taking the TV apart. If possible, use the Pinscape
IR transmitter solution instead. See
Chapter 114, TV ON Switch.
>
You can download the schematic, in EAGLE and PDF format, along with
and an EAGLE printed circuit board layout, here:
Beta test warning: I haven't built or tested this incarnation
of the schematic linked above, which is an EAGLE rendition of the
original hand-drawn schematic I used to build the TV ON timer in my
own cab. The circuit I built based on the hand-drawn original is
well-tested (I've used it for several years without a hitch), but I
could have made errors doing the EAGLE translation. I also haven't
done a test run of the board design, although my experience has been
that EAGLE PCB layouts work fine as long as the schematic is sound.
If you're willing to be a beta-tester for these plans, please let
me know how it goes!
Before ordering parts, check your TV's timing! If you need
different timing, you will need to order different values for parts C8
and/or R10. These parts determine the initial delay time. The
delay time can be calculated from these as:
1.1 × R × C
>
where R is in Ohms and C is in Farads. With the default values
as shown in the shematic, the delay is 1.1 × 2.2M × 2.2uF
= 5.3 seconds. Before you order parts, test your TV to determine
if it requires a longer delay time:
- Unplug it
- Wait a few minutes
- Plug it in
- Use a timer to wait for 4 seconds
- Press the On button
If the TV turns on, try the test a few more times to make sure the
timing is reliable. If so, the default 5 second delay should work.
If your TV ignores the first button press on some trials, it probably
needs a longer delay time. Try the test again with longer wait times
until you find the shortest reliable waiting period. I'd add a second
or two to the result as a cushion. Now you can reverse the timing
formula above to find new values R10 and/or C8. For example, if you
need a delay of 7 seconds, you could keep the resistance value the
same and calculate a capacitor value of 2.89uF. Round up to the next
common size, which in this case is 3.3uF, which would make the actual
wait time about 8 seconds.
Build the board: Assemble the circuit, following the schematic
or using the printed circuit board (PCB) design provided in the plans.
The circuit is complex enough that I'd recommend building it on the
PCB rather than ad hoc. You can have the PCB manufactured by
OSH Park for about $12 for three
copies of the board, or at any PCB maker of your choice. You'll have
two copies of the board left over to give to friends or use on your
next cab!
Install the TV wires: The next step is to open your TV and
solder wires to its On/Off button. The procedure is described in the
section on eBay timers above.
Connect the board: Once you have wires connected to the TV's
On/Off button, connect the other ends of the wires to one of the "K1"
relay switches, on the Normally Open side. If you're connecting
directly to the relay, connect to pins 4 and 8 or pins 9 and
13. The relay in the spec is double-pole, meaning that it can
switch two separate televisions on at the same time. That's why you
have your choice of which relay pins to connect. If you have a second
TV that needs the same treatment, you can simply connect it to the
other pair of pins. If you use the PCB design, connect the TV wires
to JP12 pins 1 and 2 (labeled "TV1" on the board silkscreen) or
pins 3 and 4 ("TV2").
Connect power to the board: Finally, connect the power inputs
to your
secondary ATX power supply. As with the eBay timer,
the scheme is predicated on the timer getting its power through a
source that's switched on at the same time as the TV, because the
power-on time is the start of the delay timer countdown. If you're
building from the schematic, connect VCC to +5V (a red wire) from the
ATX supply, and connect GND to ATX ground (a black wire). If you're
using the PCB layout, connect an ATX red wire to the JP7 +5V (marked
on the silkscreen), and connect a black wire to JP7 GND. See
Chapter 45, Power Supplies for Feedback for advice on connecting wires to an ATX
power supply.
This circuit design is designed for this single function, so there's
no need to "program" it as with the eBay timers. All you have to
do is plug it in and it should work.
Solution 7: Use a USB IR transmitter
I'm only going to provide an outline for this solution, because I
haven't tried implementing it myself. You'll have to do a little
product research to fill in the details.
You can buy a device for your PC that lets you plug an IR transmitter
into a USB port. Software on the PC can then command the IR
transmitter to send a signal. You can use one of these to send the ON
command to your TV via IR remote during the Windows boot process.
I don't have any specific product recommendations, but your best bet
might be to search for "winlirc transmitter" or "winlirc blaster".
winlirc is open-source software that lets Windows send and receive IR
commands, so a winlirc-compatible device with a transmitter should
serve the function we need here.
Once you find a suitable device, install it on your PC and arrange the
IR emitter so that it's within range of your TV's remote receiver.
Now you just need to set up a script on the PC that sends your TV's
ON command while Windows is booting. You should be able to do this
by creating a .CMD file containing the command line sequence to
send the IR command, then placing a shortcut to the .CMD file in
your Start menu's Startup folder.
12. I/O Controllers
One of the big things that elevates the virtual cabinet experience
above ordinary desktop computer pinball is the ability to use real
pinball controls: flipper buttons, coin slots, a plunger, "nudging" by
actually nudging the cabinet. An equally big enhancement is feedback
devices that create tactile effects, lighting effects, and mechanical
sound effects that aren't just coming from a speaker.
If you're new to virtual pinball, you might wonder how all of this is
possible, since normal PCs don't have any provisions for connecting
any of these unusual devices. There's no "flipper button" connector
on a Dell desktop. The secret ingredient is something called an I/O
Controller ("I/O" for "Input/Output"). These are special hardware
devices that plug in to the standard PC ports (usually USB) and
provide the special wiring needed to connect buttons, accelerometers,
plunger sensors, solenoids, lights, and so on. They provide the
physical bridge between the PC and the unique pinball hardware.
This chapter gets into the details of what these devices do, and
offers some suggestions for what to buy. The subject can seem
overwhelming at first, because there are lots of product options, and
they all have different combinations of features and functions. We'll
try to make it easier by breaking things down by function, and giving
you a comprehensive list of the products available and which functions
they offer. Towards the end of the chapter, you'll find a
product/feature matrix that shows everything at a glance.
I/O controller functions
Let's start by looking at the main categories of functions that these
devices can handle.
Button input: A device that lets you wire regular pinball
buttons to the PC is called a "key encoder". These devices are pretty
easy to set up. You just run a pair of wires to each button (flipper,
Start, etc) and connect them to the encoder. The encoder attaches to
the PC with a USB cable. When you press a connected button, the
encoder emulates either a keyboard key press or a joystick button
press. As far as the PC software is concerned, you're just typing
on the keyboard or using a joystick.
Nudge input: This type of device uses an electronic
accelerometer to sense the motion of the cabinet. Good accelerometers
are sensitive enough and accurate enough to detect when you nudge the
cabinet and to measure how hard each nudge is. The pinball software
can use this information to apply a corresponding acceleration to the
virtual ball - in proportion to the strength of the nudge, so you can
get realistic reactions for soft nudges, hard nudges, and a continuum
in between. Nudge devices usually connect to the PC via a USB cable
and emulate joysticks, so a physical nudge looks to the PC software
like a momentary deflection on a joystick handle. The strength of the
nudge is indicated by the magnitude of the deflection, which is what
allows the software to differentiate between soft nudges and hard
nudges.
Plunger input: This is a very specialized type of input device,
because it has to use some type of position sensor to track the motion
of the plunger, and then translate the readings from that sensor into
a format that the PC can understand. Plunger devices usually attach
to the PC via a USB cable and emulate joystick input. This is the
same way most nudge sensors work, so we need a way for the PC to tell
the two apart. This is usually accomplished by using different
"joystick axis" assignments for each device.
Feedback output: Output controllers let you connect
feedback devices to the PC so that the software can control them. As
with the other devices, these usually use USB connections to the PC.
Unlike the various input controllers, which all emulate ordinary PC
input devices (mainly keyboards and joysticks), output controllers all
need special software on the PC. Fortunately, the required special
software is already integrated with the main pinball player programs.
Available devices
Now let's look at the available devices. Some of the devices fall
neatly into single categories, and others can perform multiple functions.
Pinscape Controller, running on just the KL25Z (no expansion boards).
Open source software, DIY hardware; about $15 for the main microcontroller board.
Key encoder, plunger input, nudge input, feedback device control.
This is an open source project that can handle all of the I/O
controller functions with a single device. The main hardware required
is a KL25Z, which is a $15 microcontroller that comes fully assembled
and ready to use. By itself, the KL25Z can handle button input and
nudging (it has an excellent built-in accelerometer). Plunger input
and feedback device control require additional hardware that's
described later in this Build Guide. The Pinscape software does just
about everything the various single-function commercial devices do,
with some added bells and whistles of its own. It includes fully
assignable button inputs (using keyboard keys and/or joystick
buttons), a "shift button" feature, LedWiz emulation for universal
software compatibility, "night mode", high-precision nudge input,
high-precision plunger input, and numerous other features. It's
highly configurable via its setup program (which runs on Windows,
and is free and open-source), and the firmware itself is
open-source, so you're free to customize it if you need to do
anything beyond what the configuration options allow, or if
you want to add whole new features. The firmware includes
built-in support for several types of plunger sensor technologies,
so you have a choice of different plunger setups.
The standalone KL25Z can handle button, nudge, and plunger input
with little more work than attaching wires. It gets a little more
complicated if you want to use it with feedback devices, because
it needs some additional electronics to do that, as explained
in Chapter 49, Pinscape Outputs Setup (Standalone KL25Z).
>
Pinscape Controller with expansion boards. Open source
software and hardware design; components cost about $100 for
a full build. Key encoder, plunger input, nudge input, feedback
device control.
This is an extension of the basic Pinscape Controller project that
adds a set of circuit boards, primarily to provide more
feedback device outputs. The boards make it possible to
control a much larger number of feedback devices than the KL25Z can
control on its own. The boards also provide built-in handling for
high-power devices, so that you can connect things like motors,
solenoids, replay knockers, fans, and flashers without any
additional booster circuits. The hardware design is open-source,
so you can build everything yourself from components, which add up to
about $100 for a full-featured build. You can also opt to build only
sections of the boards if you only need a subset of the features,
which reduces the cost accordingly.
>
Zeb's Boards plunger kit. Commercial, about $140 from
zebsboards.com. Plunger
input, nudge sensor, key encoder.
This kit comes with the control board and plunger sensor that attaches
to a standard pinball plunger (available separately for about $30).
In addition to plunger input, Zeb's kit also handles nudging via an
on-board accelerometer, and provides key encoding for up to 20 buttons
(with fixed key mappings). Zeb's plunger gets the best user
reviews of the commercial plunger options. It uses a high-precision
sensor for the plunger that provides realistic plunger motion in
the pinball simulation.
>
VirtuaPin plunger kit. Commercial, $140 to $160 from
virtuapin.net. Plunger input,
nudge sensor, key encoder.
The VirtuaPin kit comes with a control board and plunger sensor, and
optionally includes the physical plunger assembly. Like other
commercial plunger kits, the VP kit is very easy to set up, with
little assembly required beyond attaching the sensor to the plunger.
The control board has an excellent on-board accelerometer for nudge
sensing, and has wiring for up to 16 button inputs. Button inputs are
hard-coded as joystick buttons and can't be assigned to keyboard keys.
If you're picky about realism in the plunger, be aware that this kit
uses an IR proximity sensor to detect plunger position, and these
sensors have relatively poor distance resolution. Some users have
reported that the plunger animation can be choppy.
>
i-Pac 2 and i-Pac 4. Commercial, $39/$59 from
ultimarc.com. Key encoder.
The i-Pac devices are full-featured key encoders. Their target market
is video game cabinet builders, but they work equally well for virtual
pinball, since the needs are basically the same. Buttons are fully
assignable (via a setup program on the PC) to keyboard keys and
joystick buttons. The devices have a "shift button" feature that lets
you assign two meanings to each physical button by holding down a
designated shift button to activate the second meaning.
>
i-Pac Ultimate I/O. Commercial, $99 from
ultimarc.com. Key encoder,
feedback device control.
This is a hybrid of the i-Pac and PacLED devices that provides button
input encoding and feedback device control. The key encoder features
are just like the i-Pac devices, with 48 button inputs. The feedback
output controller is designed specifically for attaching 32 small
(20mA) RGB LEDs. For a virtual pinball cabinet, you'll want to attach
other devices that require higher power, so you'll need external
booster circuitry, such as Zeb's booster board. One warning: as of
this writing, this device's output controller feature isn't as well
supported in the standard virtual pinball software as the LedWiz and
PacLed devices, so you might encounter some difficulty setting up the
software to take advantage of it. The button input feature will work
seamlessly, though.
>
The LedWiz was the first output controller widely adopted among
virtual pinball cabinet builders, and as a result, it's the most
universally supported option. This device is aimed at video game
cabinet builders, so it was designed especially for controlling LEDs
(thus the name), but it's not limited to LEDs. It can control just
about any type of device. The caveat is that it has a low limit
on how much current it can control per device (500mA), so you can't
connect high-power devices directly. You can work around that by
adding an external booster board to increase its power limits.
That 500mA limit is adequate for most types of lights, including
flasher LEDs and button lamps. A booster is needed for most
mechanical devices, like knockers, motors, and solenoids.
>
PacLed-64. Commercial, $59 from
ultimarc.com. Feedback
device control.
This device is well supported by the newer open-source pinball
software systems (including Visual Pinball and PinballX), but it's not
as compatible with older systems like Future Pinball as the LedWiz is.
It provides 64 outputs for small LEDs. Like the LedWiz, this device
was designed for video game cabinet builders, but its power handling
is even more limited and isn't sufficient for high-powered lights like
flashers and strobes. So you'll need to combine this with a booster
board for almost anything in a virtual pinball cabinet.
>
SainSmart USB relay boards. Commercial, about $20-$40. Feedback
device control.
SainSmart makes USB-controlled relay board with 8 relay outputs.
Software on the PC can send USB commands to turn attached devices on
and off through relay switches. The relays can be used to control
devices that use high power levels, so they're good for devices
like solenoids, contactors, and replay knockers. However, these
boards aren't a good choice for lighting devices, since relays
on simple on/off switches and thus can't control brightness. For
lights (especially flashers and button lights), you'll want to be
able to control the intensity level of each output. The other
slight disadvantage of relays is that they add a small lag time
for switching devices on and off, which can make the device response
slightly out of sync with the game action. Most people don't find
this noticeable, though.
Warning! DOF is currently only compatible with the 8-relay Sainsmart
boards. Sainsmart makes the boards in different sizes, from 4 to 16
channels, but DOF only works with the 8-relay version.
Warning! There seem to be some no-brand devices out there that
look ridiculously similar to the Sainsmarts, with the same blue
lays laid out the same way, but which aren't compatible at the software level.
That means they won't work with the existing pinball software,
unless you can do some additional programming to add support
yourself. I'd avoid look-alike boards that aren't clearly branded
as Sainsmart products.
>
Zeb's Boards booster board. Commercial, $75 from
zebsboards.com. Feedback
device add-on.
This board lets boost the power from 16 outputs on an LedWiz or PacLed
output controller. The booster board itself isn't an output
controller, so you can't use it alone; it has to be used in
conjunction with one of the output controllers. The booster board
raises the power level on 16 of the output controller's ports to 6A,
which is enough to control anything in a pin cab, including high-power
devices like replay knockers, shaker motors, gear motors, fans,
beacons, and solenoids. If you need more than 16 boosted ports, you
can add more of these boards to boost an additional 16 ports per
board.
>
SainSmart (non-USB) relay board. Commercial, $20 to $40.
Feedback device add-on.
These boards are similar to the SainSmart USB relay boards, but they're not
controlled by USB. Instead, they're controlled by individual inputs
to the relays. You can connect the relay control inputs to the
output ports of an LedWiz or PacLed unit to boost the power
handling capability of the controller via the relays. You can
then attach a high-power device, such as a replay knocker or
solenoid, to the relay. The controller unit will switch the relay on
and off, and the relay will in turn switch your high-power device
on and off. This is a simple way to boost the power handling of
an LedWiz or PacLed unit. Note that the relay switching adds a
small amount of lag time, which can make the feedback response
slightly out of sync with the game action, although most people
who have set these up don't find this to be noticeable.
>
Zeb's Boards output kits. Commercial, $550 to $900 from
zebsboards.com. Feedback
system including controller
and feedback devices.
These kits offer turnkey feedback setups that include not only the
output controller device but also all of the feedback devices
themselves, all fully assembled and wired. Everything comes
pre-mounted to a couple of modular panels for easy installation in a
cabinet.
>
Recommendations
For the DIYer: I'm biased, obviously, but if you like building
things yourself, my pick would be Pinscape. For a fully decked-out
system with all the feedback devices, go with the expansion boards.
For the input features only (buttons, plunger, nudging), the
standalone KL25Z is all you need. I'm pretty sure Pinscape has all of
the features of the best-of-breed commercial products
(plus some extra features they don't have), equal or better
performance, and a lower price tag. And the open-source design
puts you in complete control. You can change anything that's not
to your exact liking; and if you take "DIY" especially seriously,
you can use my code as a starting point and rewrite as much of
it as you want from scratch.
If you want "no compromises": Again, I'm biased, but I think
the answer here is Pinscape. It has the most full-featured and
highest performance implementation I'm aware of for each of the
components. It's highly configurable through its Config Tool, so you
can set it up exactly how you want it. And again, it's open-source,
so if there is anything you want it to do that it doesn't already do,
you can add it; or if there's anything it does do that's not quite the
way you want it, you can change it.
If you're uncomfortable with DIY: You'll probably be happier
with the commercial options if you're not comfortable building this
sort of thing yourself. The commercial products come ready to
install, with only some basic setup required. The big challenge is
figuring out which devices you need, since their functions overlap in
somewhat confusing ways. Here are my recommendations for some common
scenarios:
>
For a simple feedback system with lights only: If the only
feedback devices you want are lighting devices (flashers, strobes, and
button lights, for example), I'd recommend an LedWiz as the output
controller. The LedWiz is inexpensive, and for just lights, it's
simple to set up, since that's exactly what it's designed for. A
single LedWiz has plenty of ports for a pin cab's lighting needs. The
LedWiz is a good choice for lighting devices because it can display a
range of brightness levels, which allows for fades, flash patterns,
and RGB color mixing effects. The LedWiz isn't as ideal for
high-power devices like solenoids and motors, since it can only handle
limited power to each port; while it's possible to use it for these
devices, you need additional hardware add-ons, which largely negates
the whole "it's simple" advantage.
For a simple feedback system with solenoids and motors only: If
you want a feedback system consisting only of tactile effects (replay
knocker, flipper and bumper solenoids, shaker motor), get a SainSmart
USB relay board. I'd get the 16-output type so that you have plenty
of outputs for extras you might want to add later. The SainSmart
board is the easiest thing to set up for high-power devices. The
downside is that relays are strictly On/Off switches, so the SainSmart
can't display different brightness levels if you use it to control
lights - it can only turn them fully on and fully off. That makes it
good for devices like solenoids and motors, but not so good for lamps
and LEDs, where you need brightness control to get the full range of
effects. The other disadvantage is that the relays are mechanical, so
they can eventually wear out; some people on the forums have reported
having to replace their SainSmart boards every couple of years due
to relay failure.
For a plunger-less system: If you don't want to include a
plunger in your setup, use a KL25Z running Pinscape as the input
device. You don't need the expansion boards if you're just using the
input features. The installation work for buttons and nudge input is
pretty much the same as for any of the commercial options, and
Pinscape is a lot cheaper and has more features.
For a turn-key plunger: If you want a plunger but don't want to
build the electronics yourself, buy Zeb's plunger kit. It's easy to
set up and gets generally good reviews from users.
For a turn-key feedback system: If you're the opposite of a
DIYer, and you don't want to do a lot of planning or parts sourcing or
assembly work, buy one of Zeb's pre-built feedback kits. They're
expensive, but they'll save you a lot of work, and they'll eliminate
any anxiety you might feel about the things going wrong if you build
it yourself.
>
Feature matrix
Here's a summary of the key features of the available controllers,
to help you decide on a combination of devices for your system based
on the features you plan to include.
Device |
Key Encoder |
Plunger |
Nudge |
Feedback Output |
Name |
Type/ Price |
|
|
|
>
|
|
>
✔ |
|
|
|
|
>
Pinscape (standalone) |
Open source $15 |
24+ |
✓ |
✓ |
Multiple options |
High |
✓ |
22+ |
4mA |
✓ |
Yes |
Pinscape w/expansion boards |
Open source ∼$100 |
24+ |
✓ |
✓ |
Multiple options |
High |
✓ |
Zeb's Boards plunger kit |
Commercial $140 |
20 |
- |
- |
Poten-tiometer |
High |
✓ |
|
|
|
|
VirtuaPin plunger kit |
Commercial $140 |
16 |
- |
- |
IR |
Low |
✓ |
|
|
|
|
i-Pac 2 |
Commercial $39 |
32 |
✓ |
✓ |
|
|
|
|
|
|
|
i-Pac 4 |
Commercial $65 |
56 |
✓ |
✓ |
|
|
|
|
|
|
|
i-Pac Ultimate I/O |
Commercial $99 |
48 |
✓ |
✓ |
|
|
|
SainSmart USB relay board |
Commercial $20-$40 |
|
|
|
|
|
|
4- 16 |
12A |
|
No |
Zeb's Boards booster board |
Commercial $75 |
|
|
|
|
|
|
SainSmart relay board (non-USB) |
Commercial $20-$40 |
|
|
|
|
|
|
Zeb's Boards output kits |
Commercial $550- $900 |
|
|
|
|
|
|
16- 64 |
1A- 6A |
✓ |
No |
Footnotes:
1. The 4 Amp limit applies to the
general purpose outputs on the power board. There are 32 of these on
each power board. In addition, the main board has 16 flasher/strobe
outputs that can handle 1.5A each, and 16 outputs for button LEDs that
can handle 20-50mA each. The typical setup uses one main board and
one power board, which gives you 65 total outputs, plenty for a
decked-out cab. If you need more, you can add extra power boards for
another 32 of the high-power outputs per, up to the software limit of
128 total outputs.
2. This device's outputs are
designed to drive low-power LEDs, which it can do without any extra
booster circuitry. A booster board is needed to drive anything
needing higher power, such as flasher LEDs or mechanical feedback
devices.
3. The LedWiz can handle 500mA per
output, which is sufficient for most types of lights, including LED
flashers and button lamps. A booster board is required for most
non-lighting devices, such as contactors, replay knockers, solenoids,
fans, shakers, and gear motors.
4. This device works in conjunction
with one of the output controllers (LedWiz, PacLed-64, etc). It
can't be used alone; it has to be used in combination with an output
controller.
13. PC Hardware Setup
If you bought an assembled PC, all you have to do at this stage is
unpack it. If you're building a PC from parts, you might want to do a
preliminary test build at this point to make sure everything's working,
and to confirm that you have everything you need.
If you're going to install your PC equipment in your pin cab without a
standard PC case, you can do your test build with the parts spread out
on a tabletop. Be sure to do your work on a non-conductive surface
like wood to avoid accidental shorts.
Static electricity precautions
Many of the parts in a PC are sensitive to static electricity,
particularly the CPU and memory chips. That's why everything comes
packaged in those silvery plastic anti-static bags.
Your body can accumulate a significant static charge, enough to damage
semiconductors, so you have to be careful handling these parts to
avoid zapping them when you touch them.
The way to protect against damage when handling static-sensitive parts
is to frequently "ground" yourself, meaning that you electrically
connect yourself to the earth. Professional engineers do this with
something called a grounding strap, which is a conductive bracelet
that you wear on your wrist and connect by a wire to your house's
ground wiring. That keeps you connected to the earth ground the whole
time you're working. You probably don't have one of these unless you
do a lot of electronics work, but you can achieve the same thing by
simply touching a metal surface that's connected to earth ground
periodically while you're working.
Where do you find a grounded metal surface to touch while working?
When you're working on a PC, there's one that's always close at
hand: the power supply case.
Here's what I suggest. Before you start any other work, get your
power supply out of the box and plug it in. Put it on the
table where you're going to do your work. Find a bare metal
surface on the power supply case. If there are no bare metal
surfaces, an unpainted screw head on the case will work. The key is
bare metal attached to the case.
As long as the power supply is plugged in with a three-pronged plug,
you can now ground yourself at any time by touching that bare metal
surface.
You don't have to keep in contact with the grounded metal all the
time, although it's ideal if you do (which is why they invented those
grounding bracelets). But do ground yourself frequently while
working, at least every few minutes, and every time you return to the
work station after walking around. Walking around is is a great way
to accumulate static charge. Another good time is whenever you're
about to open an anti-static bag or start handling a new part.
Assembling the motherboard
You should find detailed installation instructions for assembling your
motherboard in its packaging. If you bought a retail-packaged CPU, it
should also include its own instructions for installing it in the
motherboard.
You should follow the setup instructions in your motherboard's
documentation, since every board is a little different. In general,
though, here are the steps:
- Install the CPU in its socket. Be especially diligent about
static electricity precautions while handling the bare CPU.
- Install the CPU fan. Most motherboards have clips or sockets
for securing the fan, so this is usually just a matter of fitting
the fan into place.
- Connect the CPU fan wiring. The CPU fan should have a short wire
connector that mates to a "CPU FAN" socket or pin header on the
motherboard.
- Plug in the memory (RAM) chips.
- Insert the video card into its motherboard slot. Note that some
motherboards have multiple slots that are physically capable of
holding the video card, but one slot might be better than the others
because it has a faster data connection. Check your motherboard
documentation to see if one slot is designated as the special slot for
the video card. The documentation might not put it in these terms;
it might instead list the PCI "x" speeds for the different slots,
such as x1, x4, or x16. The highest "x" speed is the fastest slot,
so it's the one to use for the video card.
- Connect the storage device (hard disk or SSD).
- Connect the power supply to the motherboard. There are usually
two connectors from the power supply that plug directly into the
motherboard.
- Connect the power supply to the video card. Most higher-end
video cards have a dedicated connection directly to the power
supply. Your power supply should have the special mating
plug attached to one of the wires in the bundle of cables
coming out of the supply.
- Connect the power supply to the hard disk or SSD. These
devices have their own power connection. As with the video card,
the hard disk/SSD has a dedicated power connector that will mate
with one of the connector wires coming out of the power supply.
- Connect a video monitor to the video card.
- Connect a keyboard and mouse to USB ports on the motherboard.
- If you have a wired Ethernet network, connect a cable to the
network plug on the motherboard.
Video card precautions
If you're assembling everything on a tabletop without a standard PC
case, the video card's connection to the motherboard will be
fragile, since it won't have the structural support that a normal case
provides. The PCI slot is really only meant to provide the electrical
connection; it's not meant to provide structural support or anchor the
card in place.
You'll definitely need to secure the card physically in your eventual
installation in the pin cab. For testing purposes, though, you can
work with this flimsy setup as long as you're careful not nudge
anything while the power is on. Even a little nudge, like someone
bumping into the table, can be enough to momentarily
interrupt the electrical connection in the socket. I'd avoid that; in
most cases the only harm will be to make the PC reboot itself
immediately, but these cards really aren't meant to be hot-plugged
(taken in and out with the power on) and could be damaged by this.
Power it on
Once you have everything assembled as described above (and according
to any additional instructions in your motherboard's documentation),
you're ready to give it a test run.
Modern PC motherboards have "soft power" controls, so even though it's
already connected to the power supply, it won't actually turn on until
you press the "on" button. If you have a case, the "on" button is the
one on the case. If you're working without a case, though, you have
to find the "Power Switch" pins on the motherboard. Check your
motherboard documentation to find the right pins. The motherboard
manual will tell you that these are the pins to connect to the "Power
Switch" connector wires from your case.
Once you identify the "power switch" terminals, you turn the PC on
simply by shorting these two pins together for a moment. They're
usually right next to each other on the motherboard, so if you don't
have the right kind of connector handy, you can simply touch a metal
screwdriver tip to both pins at the same time. (Be careful not to
touch any other pins while doing this, of course.)
BIOS Setup
When the PC first powers up, you should see a brief message flash on
the screen telling you to press a key on the keyboard to enter the
BIOS Setup. It's usually one of the function keys, often F8 or F12,
but it varies by motherboard. You'll just have to watch for the
message to find the right key. You should also be able to find this
information in your motherboard's documentation.
You should be able to reboot by pressing Alt+Ctrl+Del on your
keyboard, which should give you another chance to press the magic BIOS
Setup key. You can also power cycle by shorting the "Power Switch"
pins together again to turn the PC off, then wait a few seconds and do
it again to power up again.
You have to press the magic BIOS Setup key at just the right moment
after the power comes on. It usually works to tap on the key rapidly
while the machine is powering up.
The BIOS Setup lets you configure the machine's hardware and verify
that everything you physically attached (memory, disk, video card) is
being properly recognized by the motherboard. It's worth running
the setup as a very basic test, since the fact that it runs at all
confirms that the video card, keyboard, CPU, and memory are all
working.
14. Windows Setup
Once you have the PC hardware set up, the next step is to
install Windows.
We won't try to provide a Windows installation tutorial here, since
the Web has much more comprehensive information on that than we could
provide here - and you probably won't need to look at any of that
anyway, since Microsoft has managed to make the process fairly
automatic in most cases. But we do have some recommendations for
settings specifically for pin cabs.
So continue below after you've gone through the basic Windows
installation procedure.
DON'T turn off UAC
User Account Control (UAC) is a Windows security feature added in
Windows Vista, and present in all Windows versions since, that makes
Windows ask for your permission when an application tries to do
something that affects core resources in the operating system, such as
altering a system registry setting.
You might see advice on the forums telling you to turn off UAC to
avoid those prompts. I recommend ignoring that advice. Leave
UAC enabled.
I recommend
against disabling UAC because doing so can cause software
compatibility problems. UAC is an integral part of modern Windows
systems, and removing it actually changes the way Windows works
internally, which can break some application software. If you're
technically inclined and curious about the details, see Mark
Russinovich's article in Microsoft's TechNet Magazine, June 2007,
Inside
Windows Vista User Account Control. For a less technical
explanation, try a Google search for "Why not disable UAC".
Disabling UAC also increases your vulnerability to system damage
from malware and unintentional software bugs.
Any advice you see about disabling UAC is likely outdated. The notion
comes from the early days of Windows Vista, when UAC was first
introduced. A lot of software at the time wasn't properly designed
for the tighter security rules added in Vista, so some people resorted
to disabling UAC in an attempt to keep their old software running.
As time has gone on, though, most software has been updated to work
properly, and UAC itself has been improved to make it less intrusive.
Arrange monitors
If you're using multiple monitors, Windows will combine their display
areas into a single large virtual desktop.
Windows lets you adjust the way the monitors are arranged within the
virtual desktop via a control panel. The idea is that if you have two
physical monitors sitting side by side on a desk, you can arrange the
virtual desktop to match. To reach this control panel, bring up the
Display control panel, then click Adjust Resolution.
This control panel shows a diagram of how the physical monitors are
lined up across the virtual desktop. You can drag the monitors in
the diagram to rearrange them. How you arrange your monitors is
mostly up to you, but there's one important rule you should
follow:
The main display should be
at the upper left of the virtual display area.
Note that the "main display" isn't necessary display #1. The
numbering is just a way to identify the monitors and is somewhat
arbitrary. The "main display" is simply the one you designate as such
using the "Make this my main display" button in the control panel.
I recommend the following layout:
- Make your playfield monitor the main display
- Arrange the monitors in a single row
- Make sure the main display is at the left end of the row
Some versions of Windows only allow certain monitors to be the main
display, so you might not have the option to make your playfield
monitor the main one. If you can't, you should still arrange things
so that the main monitor is at the left end of the row.
The reason I recommend this arrangement is that some software, notably
VPinMAME, can have odd problems if the main monitor isn't at the left
extreme of the virtual desktop. Windows internally assigns the
"origin" of the pixel coordinate space to the top left of the main
monitor, so any monitor that's to the left of this (or above it) in
the virtual desktop area will have negative pixel coordinates. Some
software (like VPinMAME) gets confused by the negative coordinates.
If you don't follow this advice about the layout, VPinMAME won't be
able to properly remember your screen layout, because it incorrectly
interprets negative coordinates as errors.
Turn off "Sticky Keys"
Most pinball software uses the Shift keys to control the flippers.
Windows has an accessibility feature called "Sticky Keys" that locks
the shift keys on if you press them several times in a row. The
feature is well-intentioned - it's there to help people who have
difficulty pressing several keys at once - but it interacts horribly
with pinball games. It can make the flipper get stuck in the up
position after a bunch of rapid flips.
Sticky Keys is an accessibility feature, so you'll find it on the
"Ease of Access Center" control panel, which you can find in the
main Control Panel window.
On most versions of Windows, you can also find this control panel by
pressing Windows+S ("Search") and typing "Sticky Keys" into the box.
Look for "Change how your keyboard works" or "Make the keyboard
easier to use" in the search results.
Once you find the dialog, look for the checkbox labeled "Turn on
Sticky Keys". Make sure it's un-checked.
Automatic login
Windows normally asks you for a username and password every time you
start up the computer. This is great for office or work PCs.
It's not great for pin cabs, where you want to be able to turn on
the machine and get straight to playing pinball. It's a little crazy
to have to get out the keyboard and log in first.
Fortunately, Windows lets you disable the login requirement, so that
the machine boots straight to the Windows desktop each time you turn
it on. Here's the procedure:
- Press Windows+R ("Run Program")
- Type netplwiz into the Run box and press Enter.
This should bring up the advanced user accounts control panel
(titled "User Accounts" on most Windows versions).
- Look for the checkbox "Users must enter a user name and password to
use this computer" (circled on the screen shot above). Un-check this box.
- Click OK to confirm the changes.
- A new dialog should appear asking you to enter the credentials
to use to sign in automatically when Windows reboots. Enter the
username and password you wish to use and click OK.
The next time you boot, Windows should automatically log in to
the account you selected and go straight to the desktop.
Remove (or don't install) anti-virus software
On any gaming PC, it's best to minimize the number of background tasks
running. Background tasks take CPU time away from the main program
that's running. This can have a visible effect on the animation in a
game, since even a very short interruption in the animation updates
can cause momentary glitches and stutters.
Probably the most important background task to get rid of is
third-party antivirus or anti-malware software. Virtually all of
these programs use significant system resources and will noticeably
hurt game performance. If you built the PC yourself and did a fresh
install of Windows, you can simply elect not to install any
third-party security software. If you bought a pre-built PC, and the
vendor larded it up with "free trial" security software, I'd remove it
all.
It might seem crazy in this day and age to run a PC without any
security software, and I certainly wouldn't recommend going without on
an ordinary PC, but a pin cab isn't an ordinary PC. The difference is
that you'll probably only use it for playing pinball - not for
browsing random Web sites, opening random emails, or downloading
random programs. As long as you're careful about what you install,
your risk of encountering any malware should be small. Stick to the
well-known pinball programs and add-ons, and always get them from
reputable sites.
An exception: you can (and should) leave the built-in Windows
security features enabled, particularly Windows Defender and the
Windows Firewall. Those have a negligible impact on system
performance, and they provide a good baseline level of protection.
Backing up your system data
Everyone knows how important it is to back up the data on a PC, in
case you ever need to recover from hardware failures, accidental file
deletions, or malware attacks. It's a lot of work to set up all
the software on a pin cab, so backups are as important for a pin cab
as for any other PC.
The approach I've used for a long time is to back up to external USB
hard disks. Those are reliable and fairly inexpensive, and most of
them come bundled with backup software. More recently I've added
cloud backup as a second layer of protection. There are several good
on-line backup services that run about $10/month for reasonable
storage quotas.
Here are some things I consider important when setting up your
backup plan:
- It should be automatic. It should run on a schedule so that
you don't have to remember to run it yourself. It's too easy to put
it off or forget about it entirely if you have to do it manually.
The cloud backup services make this particularly easy.
- The media should be offline between backup sessions, meaning
not physically connected computer you're backing up. This will
protect your data in case of a hardware failure (such as a power spike
that fries everything connected to the computer) or a system-wide
malware infection. If you back up to an external USB disk, simply
unplug it from the computer after each backup.
- Better still, the media should be off-site, at a physically
separate location. This will protect your data in case of a
whole-house disaster like a fire or flood. This is a big benefit
of cloud services.
- Backups should be versioned. Versioning is particularly
critical for malware protection, because an infection might not be
immediately apparent, so your most recent backup might include
infected files without your knowing it. Keeping multiple versions
lets you go back in time to a point before the infection. Versioning
is also a nice safety net in general - it lets you go back to
an older working configuration if something goes wrong with a
software update, for example.
- The backup software should do a whole-disk scan. If you have to
manually choose the files that get backed up, you'll inevitably miss
something important. I always prefer starting with a default that
includes everything on the disk, and then manually selecting files
to exclude.
- The backup scan should include the Windows registry as part of the
backup, since Windows itself and many application programs
store a lot of important configuration data there.
15. Pinball Software Setup
Now let's look at the software needed to transform this from
a plain Windows PC to a pin cab machine.
The main software you need, of course, is the pinball simulator. To
take advantage of the special features of a cab, you also need some
add-ons to display the backglass artwork and control the feedback
devices. You'll also want a "front end" program that provides an
interactive menu for selecting tables to play. We'll look at the
options for all of these in this chapter.
Should I use "Run as Administrator" for everything?
The simple answer is No. You might find advice in the forums or FAQs
or other guides saying that you should routinely run everything in
Admin Mode. My advice is to ignore that other advice, because it's
usually outdated or misinformed.
What is "Admin Mode" anyway? Microsoft divided things into "Admin"
and "User" spaces to protect the internals of the system from being
accidentally damaged by software bugs or user errors, or intentionally
damaged by malware. Programs running in User Mode have some
restrictions on what they can access, but Admin Mode programs can
access everything. Admin Mode is supposed to be reserved for special
system programs that have a legitimate reason to modify your system
internals - programs like installers, disk management tools, and
system control panels. Everything else is supposed to run in regular
"User" mode.
So why do so some people on the forums tell you that you should
use Admin Mode routinely, when Microsoft says you shouldn't? The
reason is mostly "history". In the old days, there were a few
isolated software components in the pinball simulation ecosystem that
really did require Admin Mode to work properly. The snag is that
Windows erects protective barriers around an Admin Mode program.
Those barriers prevent it from interacting with regular User programs.
But the pinball ecosystem is made up of a bunch of programs that were
designed to interact with each other. So if you run program X in
Admin Mode, and program Y needs to interact with it, then you
also have to run program Y in Admin Mode. I think you can see
where this idea that "you've got to just run everything in Admin Mode
all the time" came from - it was a blunt instrument, but it was a way
to get around these program interaction problems that Admin Mode
created.
Okay, so if "Admin Mode everywhere all the time" is a simple way to
solve thorny problems, why am I saying you shouldn't use it?
The main reason is that, while it might solve some problems, it
creates others. Microsoft doesn't want you to use Admin Mode
routinely for everything, so you're always somewhat fighting with
Windows if you do. It also reduces your system's security by
defeating all of the protective mechanisms that Microsoft designed
into Admin Mode in the first place.
The right solution - from a security perspective, and in terms of
simplicity - is to stop using Admin Mode for any of your
pinball software. If you run everything in regular User Mode,
everything will be able to interact as it was designed to, with no
hassles at the system level. Remember how I said that this whole
Admin Mode fiasco is historical, because it was a requirement for
certain components in the old days? Fortunately, it really is
mostly relegated to the past now. Those old Admin Mode requirements
were almost all due to software bugs, not actual engineering
requirements, and all of the cases that I'm aware of have been fixed
in modern versions. As of 2020, I don't think that any of the common
pin sim components require Admin Mode, as long as you've updated to
current versions.
If you do encounter any up-to-date pinball-related programs that say
"Admin mode required", you should take a critical look at them and
make sure the requirement is real, not just a misunderstanding.
There's still a lot of confusion about this, so you can't always trust
the FAQs and guides. My personal policy is that I simply won't run
programs with unnecessary Admin Mode dependencies until the developer
fixes them. I realize that not everyone can bring themselves to be so
ruthless, when faced with a fun new feature that they really want. If
you find a program that you can't live without, and there's just no
way around its "requires Admin Mode" problem, I'd at least try to hold
firm on one thing: don't let it "infect" the rest of your system with
its Admin Mode requirement. One concrete thing you can do is to use
PinballY as your front end. It
has the ability to launch Admin Mode programs
without running
in Admin Mode itself. A major cause of the Admin Mode infection is
that none of the other front ends can launch Admin Mode programs
unless you also run them in Admin Mode, and of course if you do that,
everything they launch will be in Admin Mode. And as I said, that
might
seem like it works for a while, but it's likely to
eventually cause its own problems.
Customization log
Before you do anything else, I think it's a good idea to create
"customization log" file. This is just text file for your own use -
you can create it with Notepad and leave it empty for now. Put it
someplace where you'll be able to find it easily in the future, such
as right on the Windows desktop on your cab PC.
The point of this file is to jot down all of the special
customizations you make to Visual Pinball and other software. VP in
particular forces you to make some customizations in ways that you'll
have to repeat each time you update to a new version. For example,
some customizations require that you hand-edit VP's shared script
files, and those changes will be lost on each update because VP will
overwrite the scripts with its own updated copies. That's not a very
friendly design on VP's part, I know, but it's just the way some
things in VP work.
I'll mention this file again in other chapters when these sorts of
changes come up, with a suggestion that you make a note in your
customization log file. For now, just create the file so it'll be
ready when you need it. In the future, whenever you make a change
that warrants inclusion, add a note about it to the file. When it
comes time to update VP or other software, you can refer back to this
file to reinstate any customizations that got lost in the update
process. The same goes if you ever have to rebuild your Windows
system due to a system upgrade or disk failure.
Free pinball players
There are three main free pinball player programs for Windows:
- Visual Pinball 9
- Visual Pinball 10 (also known as VP X)
- Future Pinball
Visual Pinball is the essential program for a virtual cab. VP is an
open-source project with an active developer community and frequent
updates. Hundreds of tables are available, including re-creations of
a pretty good percentage of all of the real pinball machines across
the decades, plus many original tables. VP has excellent support for
the whole gamut of special pin cab features: backglass monitors, DMDs,
feedback devices, plunger inputs, accelerometer nudging.
I counted VP 9 and 10 as two separate programs because they're not
compatible with each other's tables, so you really have to install
both. There's also a much older version 8, plus a couple of
different, mutually incompatible versions of VP 9. Some people like
to keep all of these installed because, again, individual tables are
all tied to specific VP versions, so you need all of the VP versions
if you want the ability to play all of the tables out there. (VP
isn't very good at compatibility.) Fortunately, there's a combined
installer that sets up the whole collection of VP versions with a
single download and a single install process.
Future Pinball is another free player, but unlike VP, it's no longer
being maintained or updated. Its original creator abandoned it a long
time ago and never released the source code, so it's basically a dead
end. Even so, you might want to install it to gain access to its
tables, since there are a few re-creation tables (particularly from
the 1970s or before) where there's an FP version but no VP version.
Visual Pinball 9 and 10
Visual Pinball 10, or "VP X", is the latest version, and VP 9 is the
previous version. You'll want to install both versions because
they're not compatible with each other's table files, and you'll want
to be able to run both kinds of tables.
You can recognize VP 9 tables by the ".vpt" filename suffix. VP 10
tables use the ".vpx" suffix.
The easiest way to set up both versions is to use the VP Installer.
VP is actually a collection of about five programs that work together,
and in the old days, you had to go download them all individually and
then go through a complex series of steps to configure them. The VP
Installer bundles everything into a single download, and provides a
Windows Setup program that configures it all automatically.
Here are the steps to install VP (both versions 9 and 10) with the
VP Installer:
- Go to vpforums.
- On the navigation bar near the top, click Getting Started. This
will pop up a menu. Under "Install Visual Pinball", click "VP Installer".
- Even though this is called the "VP X Installer", it's actually
the combined installer for VP 9 and 10.
- Click the Download button and follow the instructions to download
the file. If you see several version options, pick the one with the
highest number, since it should be the latest. You might need to
create an account and log in before you can start the download.
- Unzip the downloaded file into a temporary folder on your hard disk.
- Double-click the Setup program.
- Important: when the program asks for a destination folder,
use a folder in your hard disk's root folder, such as
C:\Visual Pinball.
You can use a folder different name, but don't use anything
within the Windows "Program Files" folder tree. Yes, that's
the normal location for installing programs, but don't use it
for VP. You'll create huge headaches for yourself if you do.
The issue is that some VP components need to write files
to their own install folders, and Windows has security restrictions
against programs writing within the Program Files tree. The simple
solution is to install VP somewhere else.
- If the program asks which DMD components to install, it's talking
about the special "Dot Matrix Display" hardware devices that you can
optionally install in your cab to re-create the plasma scoring display
on 1990s pinballs. If you're using a video monitor (such as a small
TV or laptop display) for this, or you don't have a DMD panel at all,
use the default option. If you're using a special external DMD device
(PinDMD 2, PinDMD3, or Pin2dmd), select the corresponding option.
The VP Installer asks this question because each of the external hardware
DMD devices require their own special software. The VP developers are
working to combine all of this into a single unified system, which
will eventually make it unnecessary to choose which one to use.
If the installer doesn't ask this question, don't worry - it means
you have a newer version with the unified software.
Future Pinball
Future Pinball isn't as essential as VP. It's an older system that
hasn't been updated since 2010, and it's unlikely that it ever will be
updated again, since its author abandoned the project without ever
publishing the source code. I don't find its physics as convincing
as VP's, and due to its age, FP's support for special
cabinet features is limited.
Even so, many cab builders think FP is worth installing, since it's
free and it has lots of tables available.
You can recognize tables written for FP by the ".fpt" filename suffix.
To install FP:
- Go to the Future Pinball site, futurepinball.com
- Click on the Download button near the top of the page
- Click on the Download link
- Run the downloaded .exe file, which will set up the program for you
Commercial pinball players
Some good commercial pinball games are also available. Here are
the main commercial titles popular with cabinet builders:
- Pinball FX.
A commercial pinball simulation available on Windows and other
platforms. In 2018, this company acquired the Williams licenses that
Farsight (see below) formerly held. They're gradually releasing table packs
featuring re-creations of Williams/Bally/Midway titles. Pinball FX
also offers a large collection of "fantasy" titles (original tables
that never existed as real machines) from before they bought the
Williams licenses, many based on popular media themes including the
Star Wars movies and Marvel comics. Their older fantasy games
had a decidedly unreal flavor, as they chose to fully embrace their
video-game-ness by including elements that would have been impossible
in a physical table. For some people that's a positive, since it
makes the game action more diverse than in a real pinball machine, but
it can be a negative if your tastes run more toward simulation and
realism. Recognizing this, the FX developers say they've made changes
to the physics engine in the new re-creations to make them
play more realistically. This product has a Pin Cab mode available;
to get it, you have to send a request to the publisher's tech
support staff and provide proof that your cab is operated
non-commercially.
- The Pinball Arcade by
Farsight Studios. Detailed and accurate re-creations of real machines
from the 1960s through the 2000s, available on Windows and other
platforms. TPA formerly boasted a large collection of
Williams/Bally/Midway titles that included many of the best
pinballs ever made. But Farsight's license to those titles was
terminated in 2018 (to be taken over by the Pinball FX developers), so
the editions you can buy now only include Gottlieb and Stern titles.
Gottlieb dominated the EM era, so there are some great classics in
there if you like the older machines, and Stern has been steadily
producing newer machines since Williams withdrew from the market, many
of which are popular and well-regarded.
The commercial games are playable on pin cabs, but they cater mostly to
desktop users, and have limited support for pin cab features (DOF,
multiple monitors, real DMDs, etc). Pin cab users aren't a big enough
market to attract much commercial support, and of course the
open-source developers who created all of the pin cab technologies
are unable to modify closed-source commercial products.
Cabinet enhancements
Visual Pinball and the other pinball player programs are basically PC
video games. To take full advantage of a cabinet, there are some
additional pieces of software that you need.
Backglass display software
To display backglass artwork when playing Visual Pinball games, you
need an add-on program called B2S Backglass Server. B2S is installed
automatically along with VP if you used the VP Installer. If you set
up VP manually, you'll have to install B2S separately.
Tactile feedback and lights
If you're installing any feedback devices in your cab - solenoids,
shaker motors, flashing lights - then you need some additional
software called DOF (DirectOutput Framework) to control the feedback
devices.
DOF is an add-on program that lets Visual Pinball and other software
access your output controller. DOF acts as the coordinator between
the simulated game and the physical feedback devices, to synchronize
feedback effects with the game action: firing your flipper solenoids
when the flipper flips, activating the shaker motor when the castle is
destroyed, etc.
PinVol
PinVol is a utility I wrote to make it easier to control the audio
volume during play. It lets you adjust the volume using cabinet
buttons, and its special ability is that it helps equalize the volume
level across different tables. It remembers your volume settings for
each table individually, and automatically restores the table-specific
settings whenever you switch tables. It has some additional special
features for pin cabs, such as "night mode" (to reduce volume across
all tables for late-night play) and individual level controls for
multiple sound cards, all accessible from cabinet buttons.
You can find the download link and installation instructions
on the
PinVol page.
Game selectors, or "front ends"
When your pin cab is finished, you'll probably want it to give the
appearance of being a full-fledged arcade machine, not a plain old
Windows PC. When you turn on the power, you won't want to see the
Windows desktop at any point; you'll want something that looks more
like a video game instead. It's also important to be able to operate
all controls with the basic set of pin cab buttons - flipper buttons,
Start, Exit.
This can all be accomplished with a program known on the forums as a
"front end", so-called because it's the first thing you see when you
walk up to the pin cab. A front end program serves as a replacement
for the Windows desktop. It provides a video game-style user
interface that lets you browse through your installed tables, launch
tables, and switch between tables. A good front end will let you
operate everything with the pin cab buttons so that you don't have to
reach for the mouse or keyboard.
The most widely used front end currently is PinballX, which is free
but closed-source. The original front end, HyperPin (also
free-but-closed-source), is still around, but it's not very widely
used any more; most people consider PinballX's user interface to be
more modern and more pin-cab-friendly. There are also two newer
options: PinUp Popper, another free/closed-source program; and my own
PinballY, free and open-source.
PinballY
This is my own project, brand new in late 2018. I tried to make it
easy and quick to set up so that you can try it out without a lot
of hassle. It's designed specifically for pin cabs, and has built-in integration
with most of the pin cab ecosystem, including
Chapter 46, DOF,
real DMD devices, joysticks (for button input), and multiple monitors.
It's also highly customizable via a built-in Javascript scripting
engine.
PinballY is similar to the other front ends in terms of user interface
appearance and functionality. The main reason I wrote it was that I
wanted an open-source option (all of the other front ends I know of
are closed-source).
PinUp Popper
PinballX
PinballX is currently the most popular front end for pin cabs. It has
a minimalistic user interface that's well designed for pin cabs,
letting you access all functionality with just four buttons
(flippers, Start, and Exit), but also letting you use
other buttons if you have them (e.g., MagnaSave).
You can download PinballX from its home site,
pinballx.com. It's free to
download, but it's closed-source, and installed versions "expire"
after a period of time, requiring you to update. Follow the Download
link from the main page to download the installer.
After running the installer program, you have to run the
Settings.exe program in the PinballX folder. PinballX needs to
know a bunch of things about your system before it will work properly.
You should go through at least the Basic settings. Pay particular
attention to the following:
- Display Settings page: Assign the monitors you're using
for the playfield (which PinballX calls the "main display"),
backglass, and DMD (dot matrix display). Also set the rotations.
- Startup Settings: Set "Start with Windows" to Yes if you want
the program to launch automatically when you boot the system.
- Keyboard Input Settings: set the key assignments to match
the keys assigned to your cabinet buttons. If you're mapping
the buttons to joystick buttons, you can assign those on the
next page, Joystick Input Settings.
- Future Pinball, Visual Pinball: Set the directory paths
for these programs. The "Working Path" field should be set
to the folder containing each program.
Adding tables to the PinballX menu
PinballX doesn't go out and find your tables by itself. You
have to enter each table into PinballX's menu list yourself.
You do this using the Game List Manager program in the PinballX
program directory. Before running this, make sure you configured
the directory locations with the PinballX Settings program as
described above.
The PBX installer will pre-populate the menu list with a few
games for demo purposes, so the first thing you'll probably want
to do is delete these. Simply click the Delete button next to
each game in the list. Note that there are multiple game lists
(Visual Pinball, Future Pinball, MAME), so you'll have to select
each list with the drop list at the top of the window and delete
its games.
Each pinball game you set up has a bunch of associated "media" items:
a "wheel" image, which provides the title graphic shown in the menu
when you navigate to the table; a playfield image; a backglass image;
a DMD image; the advertising flyer for the game; an instructions card;
video versions of the table and backglass images; and audio to play
when you launch the game. You can set up each of these items
individually, but that's extremely tedious, especially if you have
lots of games to add.
Fortunately, there's an easier way.
The quick way to set up a game is to use the "Import Media Pack"
button at the top. This lets you add a game, along with all of
its related media items, in one operation. You'll still need to
select the game's playable file (the .vpx file for VP 10, for
example), but everything else will be set up automatically.
To set up a game using the "import" button, start by downloading the
game's media pack. You can find media packs on
vpforums. Select "Frontend
Media & Backglass" on the navigation bar, then click "Complete
Media Packs" under the Media Packs section. This will take you to a
gigantic list of "HP Media Pack" files. The "HP" is for HyperPin, but
PinballX knows how to read these same files. Navigate through the
list to find the game you're looking for.
Each of these "HP Media Pack" files is an ordinary ZIP file.
Don't unpack them. Simply download them to the Tables directory
for the appropriate pinball player version. For example, if you're
setting up a Visual Pinball 10 game, download the corresponding
table pack to the Visual Pinball 10\Tables folder.
Now go to the PinballX Game Manager. Select the list for the
appropriate pinball player at the top (e.g., select "Visual Pinball").
Don't click Add Game at any point. Instead, click Import Media
Pack. Select the ZIP file you downloaded. This will automatically
create a new entry for the game and populate it with the media items
in the ZIP file. Now click on the Select button next to the Game
field for the newly added item. Choose the playable game file from
the list. Note that this will only show you a list of game files
you've already installed in the Tables folder, so you'll have to
actually download the game into the Tables before you can complete
this step.
After you exit out of the Game Manager program and restart PinballX,
you should now see the newly added game show up in the menu.
As you add tables to your system, you'll need to repeat this process
for each one.
HyperPin
HyperPin was the original front end for pin cabs. It's an offshoot of
the similarly named HyperSpin, which is a popular front end for
home-brew video game cabinets. Since HyperPin came from the video game
world, it was designed around an assumption that you have a big bunch
of buttons. Pin cab builders tend to prefer a more minimalistic
approach, with only a small set of buttons closer to what's found on
most real pinball machines. This has always made HyperPin a little
ill-fitting on a pin cab, since its UI depends on having a fairly
large number of buttons that can be mapped to individual functions. A
lot of early pin cab builders designed their cabs specifically for
HyperPin by installing four or five extra buttons on the front panel
dedicated to front-end functions. But most of us don't like the extra buttons
on aesthetic grounds, because they take away from the real pinball
look. That's a big part of why so many pin cab builders migrated to
PinballX when it became available.
The home site for HyperPin is
hyperspin-fe.com. Click
the Download button in the main navigation bar, then look for
"HyperPin" in the Category list.
Where to find tables
Visual Pinball tables: The biggest collection I've seen of VP
cabinet-mode tables is
vpforums. Click "Visual
Pinball Tables" in the navigation bar at the top. The popup menu has
several sections; the ones you'll want to look in for pin cab use are
"VP9 Cabinet Tables" and "VPX Tables" section. VP 9 requires tables
to be designed specially for cabinet use, which is why it has a
special section. VP 10 unifies cabinet and desktop modes, so it
doesn't have a separate cabinet section - any VPX table should work in
cabinet mode.
vpuniverse also hosts
VP tables, although their collection isn't as extensive. Click
the Downloads link in the navigation bar to find tables.
Future Pinball tables: As with VP 10, all Future Pinball table
files are playable in cabinet mode. You just have to adjust the
camera settings for each table to get it lined up properly for
cabinet play.
vpforums
has a large collection of FP tables: click "Downloads" in
the navigation bar, then look in the "Future Pinball Tables"
section.
Backglasses: Some tables include the B2S backglass files
with the Visual Pinball table files, but most don't, so you'll
usually have to download backglass files separately.
vpforums has a large
collection of these: click "Frontend Media & Backglasses"
on the navigation bar, then select "dB2S Animated Backglasses"
under the Backglasses section.
PinballX & HyperPin media:
vpforums has a large collection
of media packs for the front-end menu program. Click "Frontend Media
& Backglasses" on the navigation bar, then select "Complete Media
Packs" from the "Media Packs" section. "HP Media Pack" files
work in both HyperPin and PinballX.
16. Backglass Software Setup
If your pin cab has a separate backglass monitor, you'll want it to
display the appropriate backglass artwork for the current game. And
you'll want this to be more than just a still image, since the
backglass is an active part of many games, showing information on
score, bonus features, etc.
Fortunately, this is well supported in Visual Pinball. VP can display
live, animated backglass artwork that synchronizes with the game
action. VP requires an add-on program called B2S Backglass Server to
do this. B2S works alongside Visual Pinball to display the animated
backglass artwork, simulating the same backglass lighting effects,
score displays, and animated elements that you'd see on a real
machine. B2S is specifically designed for a cabinet setup where you
have a separate monitor for the backglass.
To get all of this working, you have to install the B2S software
itself, and then there are some extra setup steps required for each
table. This chapter explains how to set up the B2S software and
configure tables to use it.
B2S Installation
The first step to getting backglasses working is to install the
B2S software itself.
If you installed Visual Pinball using the VP Installer program, B2S
should have been installed automatically as part of the setup process,
so you're already set.
If you didn't use the VP installer (that is, you installed VP manually
from ZIP files or something like that), you'll have to install B2S
separately. To find the download:
- Go to vpforums.org
- Click Getting Started the top navigation bar
- Select Essential Files > Frontends and Addons
- Find "B2S Backglass Server" in the file listing
There might be several versions of B2S Backglass Server in the file
list. I'd recommend picking the one with the highest version number
to make sure you have the latest update. Click the link, which will
take you to the download page. That should contain links for
downloading the file and for installation instructions. Note
that you'll have to create a vpforums account to download a
file, if you don't already have one.
Click the "instructions" link on the download page and follow the
steps. Here's the basic procedure:
- Unzip all of the files from the downloaded B2S ZIP file
into your Visual Pinball\Tables folder.
- Right-click the file B2SBackglassServer.dll. Select Properties from
the menu. Check for a message under the "General" tab saying
something like "This file was downloaded from the Internet and has
been blocked." If you find this, there should be an "Unblock" button.
Click it. If you don't find any such message, no action is required.
- Right-click the application file B2SBackglassServerRegisterApp.exe.
Select Run as administrator from the menu.
- Check the README.TXT file from the downloaded ZIP file for any
additional instructions or notes for the version you downloaded.
Download backglass files
Okay, you've installed B2S, loaded up a game in VP... and didn't
see any backglass artwork. That's because installing B2S isn't
the last step. You also have to do a little extra work to set up
each table. This is work that you'll have to repeat for each
new table you download, but fortunately it's only a one-time job for
each table.
Most VP table files are distributed without any backglass artwork.
Some authors bundle the two together, but in most cases you have
to download the backglass file separately.
Fortunately, it's fairly easy to find backglass files.
vpforums.org has a large collection:
- Go to vpforums.org
- Click Frontend Media & Backglass on the top
navigation bar
- Click Backglasses > dB2s Animated Backglasses
Files are listed by table title, so just find the title of the table
you're looking for and click through the links to download the file.
Are B2S files and .vpt/.vpx files paired?
No. You don't have to find the exact matching B2S
version for your table. Any B2S for a given title should work
with any .vpt/.vpx game for the same title. E.g., you don't need a
specially paired B2S for "Funhouse_NightMod_ToyMod_991_v26.vpt"; any
B2S for Funhouse should work.
This is the whole reason that the table files and backglass files are
usually distributed separately. The B2S files and VP table files are
more or less independent in terms of their operation and design. A
particular .vpt or .vpx file should work with just about any
.directb2s file for the same table. There's no need to find a
matching set for a particular version of either.
2-screen and 3-screen versions
Some of B2S backglasses have "2-screen" and "3-screen" variants. The
difference is how the speaker/DMD panel graphics are handled:
- A 2-screen backglass includes graphics for the speaker panel as part
of the backglass window. This is ideal if you have a single large
monitor in your backbox and no separate DMD video monitor or real DMD
device.
- A 3-screen backglass separates the graphics for the backglass area
and speaker panel area into different windows, so that you can
position the two areas separately on your physical monitor layout.
This is ideal if you have a 1990s-style backbox, with a 16:9 monitor
at the top, and a separate speaker panel with its own DMD video
monitor or real DMD device.
In cases where both types are available, choose the one that matches
your physical cab setup. But it's also okay if only one type is
available and it's the "wrong" one for your cab. You can always use
either format. The worst that happens with the "wrong" format is that
the geometry will be a bit distorted because the proportions were
designed for a different monitor layout.
Installing the .directb2s file
After downloading a backglass file, perform
these steps:
- Unpack it from the ZIP/RAR container if necessary
- Put it in your Visual Pinball Tables folder (the same
folder where you keep your .vpt/.vpx files)
- Rename the file so that it matches the name of the .vpt/.vpx
file you want to use it with, but keeping the .directb2s suffix
(e.g., if the table file is called Funhouse_NightMod_v2.vpx,
rename the B2S file as Funhouse_NightMod_v2.directb2s)
It's essential to put the .directb2s file in the same location
as the table file and to rename it to match the .vpt/.vpx file name.
That's how B2S finds the file. If the name and location aren't
matched like this, B2S can't usually locate the file and won't
show any backglass artwork.
(B2S does actually have some "fuzzy matching" that tries to find a
matching file even if the name doesn't exactly match, but in my
experience, that does more harm than good. B2S's fuzzy matching
usually just picks something random and wrong, and the fact that
it's doing it at all makes it that much harder to figure out why
the wrong file is getting picked. The only way to make B2S pick
the right file reliably is to give it the exact same name as
the table file.)
Enable B2S on each table
There's one more step before the backglass artwork will appear during
a game: you have to enable B2S mode for each individual game. This is
a one-time step, but you have to do it separately for each table.
Most VP 10 tables will automatically use B2S if present, so this step
isn't usually required for VP 10. However, if you try a VP 10 table
and it doesn't work, it might be an unusual case that requires the VP
9 procedure below.
Some later VP 9 tables, from 2016 and later, also will automatically
work with B2S.
Given that most VP 10 tables and some VP 9 tables will work "out of
the box" without any modification, the first step is to simply fire up
the game in VP and see if the backglass appears. If so, you're all
set with that game. If not, try this procedure:
- Open the table in the VP editor (see Chapter 18, Customizing VP Tables)
- Open the table script (VP 9: Edit > Script menu command;
VP 10: View > Script command)
- Look for a line like this:
Const cController = 0
- Note that the variable name cController might be slightly different,
so just look for something that roughly matches that format.
- If you find such a line, change the "0" to the number listed for B2s
(usually 3). Save and run the table. If it successfully displays
the backglass, you're set.
- If you can't find the code above, look for something like this:
Set Controller = CreateObject("VPinMAME.Controller")
- If you find that, replace it with this:
Set Controller = CreateObject("B2S.Server")
- Save the game and try again.
If none of the above helped, and the table is a re-creation of an
older EM (electro-mechanical) game from the 1970s or earlier, the game
will need more extensive modification to make it work with B2S. The
work needed is beyond the scope of this chapter. Your best bet might
be to contact the author of the table and request a B2S-capable
update, or see if someone else on the forums wants to take it on.
17. Optimizing Performance
Virtual pinball is in essence a video game, and video games place
special demands on PC performance. The first prerequisite for
adequate performance is adequate hardware, particularly the CPU and
graphics card. You can find advice on selecting suitable components
in
Chapter 10, Designing the PC.
Even with fast hardware, though, you'll need to do some tuning to get
the best video game performance out of your system. This chapter
offers some advice on things to try.
Here's my quick list of the most fruitful optimizations with VP:
>
- Minimize background tasks and other running programs (see
General Windows optimizations)
>
- Use a CPU affinity tool to give VP exclusive access to a group
of CPU cores (see Controlling CPU affinities)
>
>
How to approach system optimization
The whole point of optimizing is to make the game play better, in your
subjective view. It's worth making a point to keep that in mind,
because it's easy to get bogged down in the numbers, trying to make
specific benchmark figures or performance metrics as perfect as
possible. It's best not to get too obsessed with any one benchmark,
because there's no benchmark that captures everything, and there's
always a point of diminishing returns when you start focusing on
making one number as high as you can get it.
That said, objective metrics are extremely helpful when making
adjustments. For many of the adjustments you can make, there's no
one-size-fits-all ideal setting, since the effects vary by system, so
you'll have to experiment in many cases to find the right setting.
You'll also have to experiment to see which types of adjustments make
any sort of difference. Objective numbers can be really helpful
to see if adjustments are having any effect and if they're moving
the needle in the right direction. It's easy to trick yourself
into seeing differences that aren't there if you don't have some
kind of hard data to look at.
Measuring VP performance: frames per second
The most common performance metric in video games is the "frame rate",
in Frames Per Second or FPS. This is the number of times per second
that the game software can fully render the scene and update the video
graphics.
VP can display the current frame rate and some other statistics
on-screen while you play. Activate this display by pressing F11 while
a game is running.
At first glance, it might seem strange that this isn't identical to
your video card's refresh rate, usually 60 Hz (updates per second).
The reason for the difference is that most video games (VP included)
do their graphics rendering on their own schedule, according to how
quickly they can do the computing work to produce each frame.
In order to produce smooth animation, VP's frame rate has to be at
least as fast as the hardware refresh rate. If VP can't produce a new
frame in time for the next hardware refresh, the TV will keep
displaying the same frame as on the last refresh. This will make the
picture momentarily freeze on the TV, which makes the motion appear
jerky.
In practice, it's not good enough for the VP frame rate to merely be
higher than the TV's refresh rate. It has to be much higher,
by a factor of two or more. This is because the FPS rates that VP
shows you is an average over many frames. The actual time it takes to
produce any individual frame can vary quite a lot from one frame to
the next. Some frames might take two or three times as long as the
average frame to produce. If your average FPS rate is only marginally
above the TV's refresh rate, all of those slower-than-average frames
will take longer than one refresh cycle to generate, so you'll see a
lot of repeated frames and jerky motion.
What makes a frame take longer than average? It's a matter of the
complexity of the physics and graphics models that go into making up
the frame. You'll typically see the frame rate slow down during
multiball sequences, for example, since the physics engine has to
compute the motion of the additional balls.
How to check your graphics card refresh rate
- Open the Display control panel in Windows
- Go to the Adjust Resolution section
- Click Advanced settings
- In the Adapter tab, click List All Modes
This will show you the list of screen resolutions and refresh rates
that your GPU supports.
Most graphics cards and TVs use a standard 60
Hz video refresh rate. Many LCD TVs have nominal refresh rates of 120
or 240 Hz, but this isn't the video signal rate; it's just the LCD
panel update rate, which uses interpolation to synthesize fake frames
between the actual frames. A small number of TVs and computer
monitors can accept true video signal rates higher than 60 Hz, but to
take advantage of that you also need a video card that can generate
such signals.
It's always best to use a graphics mode that exactly matches the
native resolution of your TV: 1280x720 for a 720p TV, 1920x1080 for a
1080p TV, or 3840x2160 for a 4K TV.
How to reduce stutter
The jerky motion that happens when frames are repeated due to slow
rendering is called "stutter". It's more or less impossible to make
VP absolutely stutter-proof, since there are occasional oddball
situations in any game where the physics computations get extremely
complex and overwhelm even the fastest hardware. But it's at least
possible to reduce stutter to the point where you'll hardly ever see
it.
There are really two separate sources of stutter, which require
separate solutions.
The first source of stutter is the raw computational time that VP
spends updating the physics and rendering the graphics. The physics
updates are done on the main CPU, and the rendering is mostly done on
the graphics card (the GPU). So the obvious route to faster updates
is faster hardware. For most people, that's something to consider in
the planning stages, but it's not practical in terms of budget to
update your whole PC every time a table is too slow. Barring hardware
updates, the main way to increase VP's raw rendering rate is by
adjusting VP's graphics options. We'll cover that below in
VP video settings.
The second source of stutter is a little more subtle. Windows
multi-tasks - runs many programs at once - by letting programs
take turns using the CPU. Windows lets each program run for a
fraction of a second, then interrupts it and lets another app take its
turn. With most applications, you never notice this turn-taking,
because it happens so quickly that it creates the illusion that every
program is running at the same time. The illusion can start to break
down with video games, though. The problem is that the turn-taking
interruptions can happen at inopportune times that make VP miss its
window for updating the graphics in time for a video refresh cycle,
causing repeated frames and thus stutter.
One obvious way to reduce these interruptions is to minimize the
number of other running programs, as outlined in
General Windows optimizations below.
That only goes so far, though, as you can't shut off everything else.
To deal with the programs that have to keep running, there's a
powerful technique known as CPU "affinity", which lets you partition
your hardware and give special VP special access to parts of it.
We'll talk about that later in
Controlling
CPU affinities.
General Windows optimizations
You can find lots of advice on the Web about general Windows tuning
and gaming PC tuning. There's so much advice of that sort available
that I won't try to reiterate it all in detail here, other than to
mention the main points:
- Delete unused programs, especially any bloatware pre-installed
by the PC vendor
- Disable unnecessary startup programs
- Remove or disable unnecessary background programs and Windows "services"
- Disable programs running in the "system tray" (the little icon area
in the Windows task bar near the clock)
- If you're using Windows 10, turn off all of the cloud features in
the system "Privacy" settings, to minimize background network access.
- Remove third-party antivirus/antimalware software
The last one (removing third-party antimalware programs) might make
you uncomfortable. It's up to you, obviously, but I think it's
worthwhile for a machine that you use as a dedicated pin cab PC and
not as your main PC. There are two reasons I think you can go
without. First, Windows 7 and later have pretty good protection
built-in, in the form of Windows Defender. That's positioned for
marketing purposes as "basic" protection only, to give you the
impression you need something stronger, but it actually scores fairly
high in most independent testing. Second, you can greatly reduce your
exposure to malware by using the pin cab PC exclusively as a pin cab
PC: don't store sensitive personal files on it, don't use it for
email, don't use it for random Web browsing (limit Web use to trusted
sites), and don't download random files (only download from trusted
sites). Email and random Web browsing are the primary vectors for
malware, so you can minimize exposure to avoiding those vectors as
much as possible.
Controlling CPU affinities
The most powerful tool I've found for reducing stutter is CPU
affinity. This a mechanism inside Windows for assigning each running
program to a preferred group of CPU cores.
A "core" is a CPU within your CPU. The processor chips used in modern
PCs, such as Intel i5 or i7 chips, are actually made up of multiple
CPUs packed onto one piece of silicon. For example, an i5-8250 chip
contains four complete CPUs. The term "core" is used to distinguish
these CPU sub-units from the chip as a whole, which is also commonly
called a CPU.
Windows has built-in support for multi-core chips. It automatically
spreads work across the cores to optimize overall system throughput,
and for most purposes you don't even have to think about it. As
usual, though, video gaming doesn't exactly fit the typical program
profile that the Windows default settings are designed for. The
core affinity feature in Windows lets you override the defaults
to optimize performance for special cases like games.
CPU affinity goals
The basic idea is to partition your CPU's cores into two groups: VP,
and everything else. When you're running a table in VP, the game
itself is the only performance-critical task in the whole system;
everything else can take a back seat and wait its turn. So we're
going to give the lion's share of your PC's computing power to the
game, and give all other running programs the leftovers. For CPU affinity
settings, the smallest unit we can work with when dividing things up
is one CPU core, so if your CPU has N cores, we're going to allocate
N-1 of the cores to the game, and give the one remaining core to
everything else.
The point of this partitioning is to give the pinball software the
most exclusive access we can to a set of CPU cores. This reduces the
chances that another program running in the system will be able to
interrupt VP or its components in the middle of some time-critical
tasks. (And virtually everything VP does is time-critical, since it's
a real-time physics simulation.)
In practice, I find that this makes a night-and-day difference in
stutter, reducing it from noticeable to practically never on my pin
cab.
CPU affinity tools
PinAffinity: This is a simple CPU affinity setter I wrote
specifically for pin cabs. It's designed to be extremely simple to
set up and completely automatic once configured, and it's free and
open-source. You can find it here:
PinAffinity.
Instructions for basic pin cab setup are included in the download, but
here's a quick overview:
- Download the "bit" version that matches your copy of Windows (32-bit or 64-bit)
- Unzip the files into a folder on your hard disk
- Run PinAffinity.exe
- Use the "Add Program" menu to add the .EXE file for each pinball
player program on your system to the designed Pinball program list
- Minimize the PinAffinity window and leave it running in the background
while you play. It automatically sets CPU affinities for new processes
as they're created.
- If you wish, you can create a shortcut to PinAffinity.exe in your
Start Menu "Startup" folder so that the program automatically launches
each time you boot
Other tools: On my own cab, I used to use a freeware program
called PriFinitty. Unfortunately, it's no longer available; the
developer abandoned the project a long time ago and never released the
source code.
Another option is Process Hacker 3, available here:
wj32.org/processhacker/. Process Hacker is a full
Task Manager replacement, so it's not specifically designed for the
pin cab use case, but it has the basic function we need (the ability
to set CPU affinities persistently on a per-program basis). Note that
you'll need a "nightly build" version of Process Hacker 3. The
current public release version, Process Hacker 2, can control CPU
affinities for live processes but can't save them or apply them
automatically to new processes.
Recommended CPU affinity configuration
I recommend the following basic configuration:
- Assign three cores to VP (and any other pinball software you use)
- Assign the remaining cores to everything else
PinAffinity uses those settings by default.
Why three cores for VP? You might have read that Visual Pinball is
single-threaded, so it might not seem like it would benefit from more
than one core. It's true that VP's core physics and graphics run on a
single thread, but if you look at a VP process with a tool like
Process Explorer, you'll see that it has about 20 threads running.
Where are they all coming from if VP is single-threaded? Mostly from
the external subsystems that VP uses. VPinMAME runs on its own
thread; DirectInput and DirectSound create multiple threads to service
I/O events; DOF creates a thread for each output controller it
accesses; and most video card graphics drivers create several
additional threads.
The main VP physics/rendering thread and the VPinMAME thread each
consume significant CPU time; the rest of the threads do little actual
computing work, as they only exist to service I/O events and timed
events as they occur. The VP and VPM threads probably don't come
close to saturating the CPU on your machine; you'll probably see only
10% to 20% CPU usage on these threads. But even so, they both benefit
from having a free core available because they both need "real time"
responsiveness to keep up with external events. In the case of
VPinMAME, it has to respond to game events immediately when they
happen, and has to maintain precise time sync with the audio playback
to prevent audible glitches in the soundtrack. In the case of VP, the
physics/rendering thread has to keep in precise sync with the video
refresh cycle; any lag in rendering is visible as stutter. It also
has to respond quickly to input events to avoid perceptible latency
(e.g., so that the flippers don't feel sluggish when you press the
buttons).
That's why three cores seems to be the sweet spot for VP performance.
We have two threads that run more or less continuously (the main VP
physics/rendering thread, and the VPinMAME thread), and a bunch of
other threads that need to respond quickly to events but do little
work. If you give this collection of threads three cores to work
with, Windows will be able to balance the load so that everything has
near-real-time CPU access.
One video card or two?
One of the frequently asked questions on the forums is whether it's
better to use a single video card that can support multiple monitors,
or a separate video card for each monitor. (Most pin cabs have either
two or three monitors: the main playfield TV, the backglass TV, and
possibly a third monitor for the score display or "DMD" - the dot
matrix display.)
This question actually contains two components, so let's unpack it.
The first part is: can my video card handle multiple monitors? The
second part is: would I get better performance by adding an extra
video card for the second and third monitors?
The answer to the first part is basically always yes. All modern
gaming cards have support for multiple monitors and provide built-in
ports for connecting two to four monitors. And Windows has excellent,
fully automatic support for multiple monitors built in. When you're
setting up your system, there shouldn't be anything special you have
to do with either your video card or Windows to configure multiple
monitors; you shouldn't have to do anything more than just plugging
them all in.
What about performance, though? Intuitively, it seems like more video
hardware should translate to faster performance, for the same reasons
that CPUs with more cores run faster. It seems like an extra card
would take some load off the main graphics card. In practice, though,
adding a second card makes most systems run slower. I can only
speculate about the reasons for this, but I suspect that it has to do
with contention for the data bus that connects the CPU and GPU. A
second video card creates bus contention that doesn't exist if there's
only one video card. Whatever the reason, most system in practice run
faster with a single video card handling all monitors.
"One card is faster" isn't an absolute rule, though. I have heard
from people who found that adding a second card actually did improve
performance on their systems. But this seems relatively uncommon; for
most systems, it seems that you'll get better performance by buying
one fast video card than by trying to split the load across two
or more cards.
Input lag
A common performance problem in video games is input lag: a noticeable
delay between pressing a button and seeing the result on-screen. On a
pin cab, this is mostly noticeable with the flippers. Input lag makes
it feel like the flippers are slow to respond when you push the
buttons.
Latency can come from many sources, but in most cases, the culprit
turns out to be the TV. That's the place to focus your efforts to fix
the problem, in part because it's almost always the biggest
contributor to lag by far, and in part because there aren't really any
adjustments to be made anywhere else in the system. Everything else
is probably already running as fast as it can.
You can find more about input lag and how to minimize it in
Chapter 7, Selecting a Playfield TV. We won't repeat all of the detail
here, but the main point is that you should be sure your TV is set up
with as little image processing as possible, especially enhancement
modes related to "motion smoothing". Look for a Game Mode setting in
your TV's setup menus; that usually selects the right combination of
settings to minimize lag, since this is a concern for video games in
general.
Audio lag
Audio lag is a noticeable delay between visual events appearing
on-screen and the playback of the corresponding audio effect. This
fortunately isn't a common problem. If you experience it, though,
here are a few things to try.
Check your sound card's settings. (Open the Windows "Sound"
control panel, select your card, and click Properties.) Make sure
that everything is turned off under the Enhancements tab.
Some sound cards have extra properties tabs that control special
hardware features of the card. Check any extra you see and make sure
that any processing modes, effects, or enhancements are disabled.
If you're using an add-in sound card (rather than motherboard audio),
and it came with its own separate settings program, go through that
and make the same kinds of checks: look for any effects or processing
modes that might be slowing things down, and disable any you find.
If you're using your TV's built-in speakers through the HDMI video
connection, check the setup menus to see if there's a setting
specifically for audio delay or audio sync. Your TV might be
intentionally delaying the audio signal so that it syncs up with
delays in the video signal processing, and it might let you adjust the
delay time. If so, make it as short as possible.
VP video settings
Visual Pinball has a number of options related to graphics rendering
that can affect performance. To access these options, start VP without
loading a game, in editor mode. On the menu, select Preferences >
Video Options.
The effects on performance of the different settings vary by system,
and many of them trade off between quality and speed, so you'll have
to experiment to find the ideal settings for your system. Here's
an overview of the main settings that affect performance:
- Anti-aliasing: this controls extra graphics processing to make edges
look smoother. Disabling it does the least processing, so it will be
the fastest, at the expense of rougher looking edges. The performance
impact of the different anti-aliasing modes depends on your video
card.
- Ball reflections, ambient occlusion: these control extra rendering
to create more realistic graphics. Turning them off results in
faster rendering times.
- FPS limiter: setting this to 0 (the default) allows VP to render
video frames as fast as it can. Setting it to 1 makes VP synchronize
its rendering cycle with the actual video refresh rate. Some people
find that synchronized rendering produces smoother graphics, so you
might want to try it to see if it makes any noticeable difference for
you. If not, I'd leave it at the default 0 setting.
- Exclusive full-screen mode: this makes VP take over the monitor
completely when running in full-screen mode, rather than sharing it
with other programs. This can improve graphics performance on some
systems, but it can cause weird glitches with Windows multitasking,
so I'd avoid it unless it makes a big difference for you.
18. Customizing VP Tables
One of the great things about the Windows virtual pinball environment
is that so many tables are available in a format that lets you modify
and customize them in any way you please. The free pinball player
programs (Visual Pinball, Future Pinball) are also full pinball
construction programs. You can open any table for Visual Pinball or
Future Pinball in its editor and make your own modifications.
(The same can't be said of the commercial pinball games, such as
Farsight's Pinball Arcade or Pinball FX/2 and FX/3. With those,
you're stuck with what they sell you, which is never a perfect fit for
cabinet play. That's one big reason that VP is so popular with pin
cab builders.)
This chapter provides an overview of how to customize tables in Visual
Pinball. We go into detail on a few of the key customizations often
needed to adapt a table to cabinet play. Many of the tables available
for VP were designed with regular desktop in mind, and weren't
tested on a cab by their original authors, so they
need some tweaking to look and play their best on a cab.
Opening a table in the VP editor
Visual Pinball is, at its core, a pinball construction program that
also happens to let you play the tables. So editing a table is
really the default thing that VP does.
In VP 8 and 9, the first thing you see when you start the program
is a blank table editor window. Use the File > Open menu
command to open a table in the editor.
In VP 10, they tried to make VP a little friendlier for the "average
user", who just wants to play existing tables rather than creating
their own. So VP 10 starts by bringing up a "Select Table File"
dialog when you first start the program, and then immediately starts a
game session with the table you select. If you want to edit a table instead,
you have to bypass this initial dialog. Just click Cancel in the
dialog, then use the File > Open menu to open a table in the
editor, just like in VP 8/9.
Adjusting the viewing angle
When VP runs a game, the image you see on the display is a rendering
of a 3D model of the table. To construct this image, VP uses an
imaginary camera that views the model from a selected position in
space. You can adjust this camera position to create different views
of the table.
I find that most of the VP tables I download need some adjustment in
their viewing angle to look their best on a pin cab display. And most
pin cab builders feel the same way, because the ideal viewing angle is
subjective. No one viewing angle will satisfy everybody.
VP 9: Adjusting the viewing angle in VP 9 is a bit tedious
because you have to do it by typing numbers into a property sheet in
the editor, and then run the game to test the results. I always have
to iterate this process five or ten times before I find a satisfactory
solution.
- Open the table in the VP editor
- On the left tool palette, click the Backdrop button
- Make sure the properties panel on the right is showing; if it's
not, click the Options button on the left tool palette
- The properties panel should be labeled Backdrop at the
top; if it's not, click in a background area of the editor window
to select the backdrop
In the Backdrop properties window, the Colors & Formatting
section contains all of the viewing angle options. The exact settings
vary a lot from one table to the next, so there's no one-size-fits-all
setting list I can give you. You'll just have to experiment with the
different settings to see the effect they have. Change a setting and
run the table to see the result. Change one thing at a time so that
you can see each setting's individual effect.
Here's an overview of the individual settings and what they do:
- Inclination: The camera tilt, in degrees. 0 points the
camera straight down at the table. Positive values tilt the camera
upwards. For cabinet use, this should usually be close to 0.
- Field of view: The camera's viewing angle. This is analogous
to a zoom lens on an optical camera. Zero produces an extremely flat
view, like a telephoto image from a long way away; a high number
(120-150) creates an exaggerated fisheye lens view. A value around 20
is usually good for cabinet use.
- Layback: The camera's distance from the front of the table.
Higher values create a more tilted perspective. 0 creates a view from
right over the center of the table. You want a value that places the
camera a little ways out in front of the table, just like the normal
viewing position for a player. A value of about 2/3 of the Y offset
below is usually good.
- XY Rotation: For cabinet play, set this to 270.
- X Scale: This adjusts the table's size relative to the
width of the monitor, which is confusingly the height of the table,
when rotated 270 degrees for cabinet play. Adjust this to fit
the table in the monitor across the monitor's width. This varies
a lot by table, since it's a function of the playfield dimensions
as well as the camera angle settings above. A value of around 1.4
works for many tables, but you'll have to fine-tune it for each table.
- Y Scale: This adjusts the table's size relative to
the height of the monitor, which is the width of the table, when
rotated 270 degrees for cabinet play. Adjust to fit. A value
of around 2.0 works for many tables, but you'll have to
fine-tune it for each table.
- X Offset: This adjusts the side-to-side position of
the table, which is confusingly the vertical position on the
monitor, when rotated 270 degrees for cabinet play. Adjust
this so that the table is positioned properly. A value of
around -450 works for most tables, but you'll have to fine-tune
it for each table.
- Y Offset: This adjusts the top-to-bottom position of
the table, which is confusingly the horizontal position on the
monitor, when rotated 270 degrees for cabinet play. Adjust
this so that the table is positioned properly. A value of
around 50 works for most tables, but you'll have to fine-tune it.
VP 10: You can use exactly the same procedure as above with VP
10, but VP 10 also has an interactive "camera mode" that's a little
easier to use. Camera mode lets you see the effect of each change
immediately on the rendered table, without having to switch back and
forth between editor mode and play mode repeatedly.
To activate camera mode, use the menu command Table >
Camera/Light Edit Mode, or press F6. Follow the on-screen
instructions to cycle through the settings and make adjustments.
The settings listed above for VP 9 all have the same meanings
here.
The camera mode controls are a little cumbersome, and it's hard to set
exact values with them. You can always go back and fine-tune
the values with the properties editor (using the VP 9 procedure
above) to make any final adjustments.
Fake 3D table elements
One thing to note is that a lot of tables have some "fake 3D" table
elements that don't respond well to viewing angle adjustments.
For example, consider Rudy's head in Funhouse. On the real
machine, of course, Rudy is a rather large 3D chunk of plastic. But
some VP versions of Funhouse don't use a 3D model object for
Rudy; they just use a photo of Rudy pasted onto a flat surface in the
VP model. That's what I mean by a "fake 3D" element: it's meant to
look like it's 3D, but it's actually just a flat photo in the
software.
The problem with these fake 3D objects is that the viewing angle captured
in the photo will stay the same no matter how much you change the
viewing angle of the table. The photo is, after all, just a photo. If
you change the overall table viewing angle too far, it will become
extremely obvious that the flat photo is now from the wrong
perspective.
There are a few ways you can deal with this when you run into it:
- You can live with the distortion. The distortion will become
more obvious the further you change the table viewing angle, so
if you only need to adjust the angle a little bit, the distortion
might remain tolerable.
- You can take or find a new photo from the new angle and replace
the one in the table. This is tough unless you have access to the
real machine, but you might get lucky and find a suitable image
on the Web. You can find a lot of images on the Web for the more
popular titles, after all.
- You can substitute a real 3D model (known in VP parlance as
a "primitive") for the fake, flat photo. Ask on the forums to
see if someone has already created one; there are 3D models
of lots of pinball elements floating around (even unique ones
like Rudy's head). Browse through some generic 3D model
sites looking for something similar that you can adapt via
Blender or SketchUp. If it's not too complex, create one
yourself with one of those programs.
Once you have a 3D object, you have to save it in the Wavefront
".obj" format. This is a common format that most 3D editors
can save to. Next, create a "primitive" object in VP and
import the .obj file. You'll also need a "texture" (an image
that's projected onto the 3D surface to provide its coloration).
The details are beyond the scope of this guide, but you should be
able to get help in the forums if you're not familiar with
VP primitives.
Viewing and editing the table script
Many customizations in VP are made through the table's "script".
Every table has a script, which is basically a little computer program
that carries out certain operations when you're playing a game with
the table. It's called a "script" by way of analogy to the script for
a movie or play. A movie script is a series of things the actors are
supposed to say and do during the movie; a VP table script is a series
of things the computer is supposed to do while the the is running.
To view a table's script:
- In VP 8/9, use the Edit > Script menu command
- In VP 10, use the View > Script menu command
That brings up a text editor window showing the script. You can
simply type into this window to edit the code.
Table scripts are by their nature utterly unique, meaning there are no
fixed patterns that they have to follow. However, there are certain
conventions that many table authors follow, so you'll start to see
patterns after you've looked at a few scripts.
VP scripts are written in the Visual Basic language. (Which makes for
some confusing initials: VP scripts are VB scripts!) If you want to
be more technical, VP actually uses a variant of Visual Basic called
"Visual Basic Scripting" or VBS. Beware example code you find on the
Web, because many Web examples of "Visual Basic" use a different
variant known as "Visual Basic for Applications" or VBA. VBA is much
more powerful, so unfortunately, many generic Visual Basic examples on
the Web just won't work in VP's simpler version of the language.
Option variables
As mentioned above, many VP table authors follow common conventions
and patterns for how scripts are arranged. One of these common
patterns you'll often see is a set of "option variables" defined near
the top of the script, that let you select some pre-programmed
variations on the table's behavior. It's always a good idea to scan through
the script for a new table you've installed to see if it has any
option settings and customize them to your liking.
To see if a table has any option variables, read through the comments
near the top of the script. A comment in VP starts with an
apostrophe ('), and the VP editor usually shows it as green text:
Script options are typically defined as Visual Basic variable
assigments or Const (named constant) definitions.
Most authors group these near the start of the script, to make
them easy for people to find without having to read through the
whole of the script, and prominently label them with comments
so that you'll know what they're for.
For example, here are the options at the top of Whirlwind for
VP 9:
Const cController = 3
Const cDMDRotation = 0
Const cGameName = "whirl_l3"
Const Flashers_ON = 1
Const GI_ON = 1
Const Flippers_Sound_ON = 1
Const SlingShot_Sound_ON = 1
Const Bumpers_Sound_ON = 1
Const StormMode = 1
Const RotatingWilliamsW_ON = 1
Const BlueApron_ON = 1
Const Plunger2Ramp_ON = 1
You don't have to be much of a programmer to know what to do
with these: just change the number after the "=" in any line where you want
to change to a different setting.
How to fix up tables for a real plunger
Many VP 9 tables require some scripting changes before they'll work
properly with a plunger device. Most VP 10 tables work with plungers
automatically, but you might run into a few that need the same kind
of fixup as is often needed for VP 9. The changes are sometimes
fairly complex, so we cover this topic in a separate
chapter:
Chapter 39, Fixing VP Plungers.
How to enable B2S backglasses
Most VP 10 tables will work with B2S without any modification, as
will some later (2016+) VP 9 tables. Earlier VP 9 tables often require
some slight modifications to the table script to enable backglass
art, though. See
Chapter 16, Backglass Software Setup for details.
How to play table sound effects through the backbox speakers
If you have a separate set of playfield effects speakers inside your
cabinet, VP decides whether to use your main backbox speakers or
your playfield effects speakers as follows:
- If the sound comes from the game's ROM (the original game's
software, being emulated in VPinMAME), it's played through the backbox
speakers
- Otherwise, it's played through the playfield effects speakers
If you don't have a separate set of playfield effects speakers, all
sounds are played through your main speakers. See "Playfield effects
speakers" in
Chapter 41, Audio Systems for more about
setting up the extra speakers.
Assuming you do have playfield effects speakers, you might want to
override the rule about playing all of the non-ROM sounds through
the playfield effects speakers. VP lets you override it on an
effect-by-effect basis.
First, let's think about why the rule is set up this way in the first
place. The ROM soundtrack is the game's original soundtrack from the
arcade game, so on the real version of the machine, all of the
sounds from the ROM were played back through the real machine's
backbox speakers. So it makes sense that we'd want to do the same
thing in a virtual cab. What about the "non-ROM" sounds? Those are
sound effects that the VP table author added into the simulation of
the table. These are almost all meant to simulate the sound made by
something mechanical on the playfield, like the ball rolling around
and bumping into things, bumpers bumping, etc. So in almost all
cases, you want these to sound like they're coming from the playfield
area rather than from the backbox.
Now let's think about why you might want to override this for some
sounds. Occasionally, you might have a mechanical sound that actually
would have come from the backbox on the original real machine. For
example, some EM-era machines had scoring bells situated in the
backbox. Likewise, any simulated score reel sounds ought to come from
the backbox area. In addition, some tables might have the occasional
added voice or music effect that supplements the game's original ROM
soundtrack, so you might want these to play through the backbox
speakers as though they were part of the ROM soundtrack.
In VP, table sound effects are tied to one or the other set of
speakers (playfield or backbox) on an effect-by-effect basis. All of
the sounds are initially set to play through the playfield effects
speakers. To change an effect to play through the backbox speakers
instead, here's the procedure:
- Launch VP
- Open the game in the VP editor (don't run it)
- On the menu, select Table > Sound Manager
- Find the sound you want to redirect to the backbox speakers and select
it in the list; you can use the Play button to listen to each sound if
you're not sure it's the one you're looking for
- Check its current speaker assignment:
- In VP 9, if the "Import path" looks like a regular file name,
it's assigned to the playfield effects speakers; if it says
*Backglass Output*, it's assigned to the backbox speakers
- In VP 10, the "Output" column will say either Table
(plays through the playfield effects speakers) or Backglass
(plays through the backbox speakers)
- If it's not already on the backbox speakers, click Toggle BG Out
(VP 10) or To BG Out (VP 9)
If you want to go the other direction - change a sound that's already on
the backbox speakers to use the playfield effects speakers instead -
the process is exactly the same with VP 10. Just select the sound in
the list and click Toggle BG Out to switch it back to
Table mode. The process in VP 9 is rather ugly: you have to
export the sound effect to a WAV file and re-import it. What's more,
some VP versions have a bug that won't let you export a sound that's
been set to the backglass output, so you're kind of stuck. The best
workaround would be to download a fresh copy of the table, export the
sound from that fresh copy, and import the sound into your modified
version of the game.
What about changing some of the ROM sounds to play back through the
table effects speakers? Sorry; it can't be done. All of the ROM
sounds are handled by VPinMAME, which doesn't have any options for
changing the speakers for a specific sound. Remember that the ROM
software is more of a "black box" than a VP table, since it's
emulating an old arcade machine that didn't work like a PC with modern
abstractions like WAV files. VPinMAME doesn't have any way to
make a simple list of the sounds in a ROM that you could use to choose
speakers like you can with the table sounds in VP.
How to enable DOF
DOF support is similar to B2S support: for most VP tables and some
later VP 9 tables, DOF support is automatic, whereas earlier VP 9
tables usually require some script modifications. See
Chapter 46, DOF Setup for details.
Removing sound effects for DOF play
If you have DOF mechanical feedback devices (solenoids, gear motors),
you'll usually want to disable the digitized sound effects that tables
play back to simulate the same events, since the digitized sounds tend
to sound fake (not to mention redundant) when real mechanical devices
are firing at the same time.
Chapter 46, DOF Setup describes how to remove
the unwanted sound effects.
How to fix EM tables that use the wrong coin keys
Some re-creations of EM (electro-mechanical) tables use the "wrong"
keyboard keys for some functions, especially the coin-in buttons.
If you're having problems with an EM game where it won't respond
to your pin cab's coin buttons, this might be the cause.
The reason you see this in EM tables in particular (as opposed to more
modern "solid state" games - the type with electronic displays of some
kind) has to do with VPinMAME. VPinMAME is the part of the Visual
Pinball system that normally handles most of the keyboard functions,
including coin handling. The thing is that EM re-creations don't
typically use VPinMAME, because VPM's function is to emulate the
original ROM software from an electronic game. Part of the definition
of "EM" is that it doesn't have any software, ergo no VPM involvement.
And without VPM, it's completely up to the table script to handle all
of the keyboard interaction, including the coin keys. EM table
authors often hard-code the coin function to a specific keyboard
key, which might not match your pin cab's button setup.
Fortunately, it's not too hard to fix these when you find them.
The procedure is to find the place in the table's script where the
coin key is handled, and change the script to test for the
correct key.
- Open the table in the VP editor
- Open the table's script
- Search for the string "_KeyDown". This should take you to
a line that looks like this:
Sub Table_KeyDown(ByVal keycode)
- Note that the "Table_" prefix might be different in the actual
table, but the rest should be the same. This is the start of the
key handler subroutine. The code we're looking for now is
somewhere in this subroutine, which is all of the code up until
the next line like this:
End Sub
- Most people indent the code in this section to make it easier
to see that all of the code up to the End Sub goes
together.
- At this point, you'll have to read through the code to find the
section that handles the coin input. Hopefully, the table author will
have put in a comment, or at least used well-named variables. Look
for the words "coin", "credit", or maybe something like this:
Credits = Credits + 1
- If you can find the right section, it should be preceded by a
test for the key code. That will usually look like one of the following:
Case 6:
If KeyCode = 6 Then
- The number after "Case" or "Keycode=" might be different. It's
usually 6, which is the scan code for the "5" key on the keyboard
(confusingly!), since that's what most desktop users expect for the
coin-in key. It might also be 4 (the scan code for the "3" key),
since that's another common coin-in assignment.
- If you find that line, change the number to the word AddCreditKey
- Close the script and save the table
The special symbol AddCreditKey is VP's way of referring
to the key assigned to the coin function in the VP option settings.
If the script was using a hard-coded scan code, this change should
make the table use the correct key as set in the options.
19. Cabinet Building Tools
It's hard to overstate the importance of using the right tool for a
given job. Good tools can make a seemingly difficult task easy, and
can let an amateur produce professional-looking results. Here are
some recommendations for the tools needed to build a virtual cab.
Basic hand tools
These core tools are needed for the most basic DIY projects. You'll
probably already have most of them on hand for routine home
maintenance needs. You'll probably need most of these even if you're
starting with a pre-assembled cabinet, and you'll certainly need them
if you're assembling a cabinet from a flat-pack kit or from scratch.
- Screwdrivers: a basic set of Phillips and flat-head screwdrivers
in assorted sizes
- Hex nut driver set with assorted English and metric sizes
- Hammer
- Pliers
- Needle-nose pliers
- Sheet-metal shears
- Assorted wood and metal files
Basic power tools
Some basic wood-working power tools are good to have on hand even if
you're starting with a pre-assembled cabinet, to facilitate finishing
work and simple customizations.
- Drill
- Assorted drill bits, from ⅛" to ½"
- Hole saws for your drill, various sizes (3/4", 1", 1⅛", 1⅜")
(some people swear by Forstner bits, but I find hole saws are easier
to work with for these sizes)
- Power screwdriver (optional, but makes for less manual labor)
- Power sander (essential for surface preparation if you're going to
apply paint or decals)
- Jigsaw (not essential, since a router can handle just about any
job where a jigsaw would be useful, and a router can often do it better;
but a jigsaw is easier for quick-and-dirty cuts)
Saws
If you're building a pin cab from scratch, you'll need one or more of
the following:
- Table saw
- Track saw
- Band saw
A track saw is basically a circular saw that runs along a metal track,
allowing you to cut nice straight lines at precise locations. This is
a great tool for cutting up large sheets of plywood, and for making
cuts at arbitrary angles (such as the sloped side walls of a pin cab). A regular
circular saw can work for this, too, but it's more difficult to cut
perfectly straight lines with finish quality.
Most woodworkers would probably pick the table saw if they could have
only one type of saw. Table saws are extremely versatile and are capable
of precise, repeatable work. I think the ideal setup is to have
both a table saw and a track saw. Table saws are perfect for
about 90% of the cuts needed to build a pin cab, but a few of the
larger pieces in a pin cab are difficult and cumbersome on a table
saw. Track saws excel at handling large pieces.
A band saw can probably do everything a table saw can do. Some
woodworkers consider them superior and safer tools. I don't have any
experience with band saws myself, so I don't have much of an opinion,
but I can appreciate their inherent safety advantages. Band saws
don't tend to cause "kickback" (throwing a work piece back at the
operator at high speed), which is a major hazard with table saws.
Table saw accessories: If you go with a table saw, there are
a couple of accessories that are worth buying along with it.
- Finish blade for plywood. Table saws usually come packaged with
coarser blades meant for cutting solid wood. Plywood is more delicate
because of its layered structure, so it's better to use a finer-tooth
blade. Look for a blade labeled as a "finish" blade or a "plywood"
blade - these usually have 40 or more teeth and will produce a smooth
edge that will need little or no sanding. The same goes for track
saws, but those usually seem to come with finer-tooth blades by
default.
- Push block with a "tunnel" for the blade, such as a Microjig
Grr-ripper or Delmar Tools push block. These make it easier and safer
to push work pieces through the table saw, especially when making
narrow rip cuts (lengthwise down the board).
Router
If you're building a cabinet from scratch, it's good to have a router
on hand. This is useful even if you're building from a kit, since you
might want to add extra openings beyond what comes with the kit. A
router is a versatile power tool with a high-speed rotating bit that
can move over a piece of wood to cut grooves, holes, and edges. Some
of the things a router can help you accomplish:
- Cutting custom-shaped holes
- Forming joinery edges (bevels, miters, rabbets, dados)
- Cutting grooves
- Routing out depressions or hollows
If you're starting with a flat-pack kit, most of the cuts and joinery
edges should be pre-cut, but a router is still useful for a few tasks
that the kits usually leave for you to do. In particular, a router is
required to cut the edge grooves needed to install the plastic holders
for the playfield glass, and you can also use it to cut custom holes
for speakers, fans, and buttons. For this type of light usage, a
hand-held router is adequate; good options are available for under
$100.
Hand routers come in two main types: fixed-base routers and plunge
routers. A plunge router has a spring mechanism that lets you lower
the bit straight down into the work piece while keeping the base flat
against the work piece; this is useful for routing grooves and cutting
openings in the interior of a work piece. Plunge routers usually have
a latch that locks in a depth, effectively making it the same as a
fixed-based router, so plunge routers are the more versatile of the
two types. However, plunge routers won't always fit into router
tables (see below), so check compatibility before buying a router and
table. Some routers come with both fixed bases and plunge bases that
you swap as desired.
Recommended router bits:
- For general hole-cutting and dados, a basic set of straight bits in
assorted sizes (1/4", 3/8", 1/2", 3/4").
- For installing the playfield glass guides, a slot cutter bit with a
3/32" groove width. Freude makes a suitable groove cutter with a
9/16" groove depth and 3/32" grove width (part number 63-106).
- If you're building a cabinet from scratch, there are special router
bits you can use to make certain types of corner joins for the main
cabinet. My preference is type of a corner join that doesn't require
special bits, as described in Appendix 12, Lock Miter I: The Plywood-Friendly Way.
Router accessory:
- Circle jig for your hand router. This is an attachment for the
router that lets you cut circular openings of just about any size. This
is good for cutting large circular openings (larger than a drill bit
can make). It's fairly easy to create a circle jig yourself (look it
up on Youtube), or you can buy one.
Router table
Some routing tasks require a table-mounted router, and some are just
easier with a table.
If you have a hand router, you can buy a bench-top table that you
can attach your existing hand router to. There are several
"universal" router tables available that will work with most brands of
routers, so you probably don't need to buy a table made especially for
your router - it's usually possible to mix and match brands.
Electronics
- Soldering station. If you're doing even simple electronics work,
it's worth investing in a decent soldering station. A soldering
station is different from a basic soldering iron in that a station has
a thermostat that controls the tip temperature, which maintains
consistent soldering conditions. Stations also heat up much more
quickly and have much better tips than cheap soldering irons. I'm
very happy with my Hakko FX88D (available for under $100). If you've
been frustrated in the past trying to do soldering work with a cheap
iron, and you think it's because you don't have the right skills,
you'll be amazed at your overnight transformation into a soldering
genius when you switch to a proper soldering station.
- Solder. Another thing that will amaze you by improving you
soldering skills overnight is to switch to a good solder. The stuff
they sell at Home Depot might be okay for plumbing and other rough
work, but it's not very good for electronics. The type I like is
Kesler 44 63/37 Sn/Pb rosin core solder.
- Digital multimeter. An essential tool for troubleshooting
electronics. The main functions I use regularly are continuity testing,
voltage, resistance, and current. Virtually ever meter available
will have these basic functions.
One feature you should definitely look for is "auto-ranging".
That means that the meter automatically senses the order of
magnitude of the reading for each input type (rather than requiring
you to select the range with the dial). The cheapest meters (in
the $10 range) lack auto-ranging. It's worth a few extra dollars
to get this feature.
I don't have any specific brand recommendations. My professional
electrical engineer friends have always sworn by their Fluke meters,
and I'm sure they're great products, but they're quite pricey. You
can find less prestigious brands with similar capabilities for
as little as $20. I think that even the cheap meters are pretty
good at this point in terms of accuracy and features, thanks to the
relentless march of progress on digital electronics, although they
probably lack the build quality of the Flukes and other top brands.
If you're looking for a meter for occasional hobby use,
I'd buy based on price and user reviews.
20. Cabinet Parts List
When I built my cabinet, one of the unexpectedly big jobs was just
figuring out what I needed to buy. This chapter is an attempt to save
you some of that legwork by presenting a master list of everything that
goes into a virtual pinball machine. The list is organized into
categories to make it easier to digest and easier to find things.
The list starts
below after a few
preliminary notes.
Pinball part references
Many of the items on the list are replacement parts for real pinball
machines. When possible, these are listed with the original
manufacturer part numbers. This makes it easy to find the exact part
you're looking for, since most arcade suppliers include these numbers
in their catalogs and databases. You can enter one of these numbers
into the search box on most pinball vendor Web sites to find that
exact part, without having to wade through a ton of hits for similar
items, as is often the case if you search by name or description.
Most of the part numbers are even unique enough to yield good results
from a Google search.
The part numbers listed are mostly for Williams/Bally 1990s era
machines, also known as WPC machines (for "Williams Pinball
Controller", the core electronics platform used throughout that
generation). Those machines had a very uniform cabinet design, and
most of the core cabinet parts used a single design shared across many
games. Williams is no longer in the pinball business (much to the
regret of pinball enthusiasts), but the modern machines being made by
Stern and a few smaller boutique pinball companies still hew very
closely to the WPC cabinet design, and use most of the same parts, or
equivalents that can be used interchangeably. As a result, it's easy
to find new replacement parts for most of the WPC cabinet components,
which makes the WPC hardware an excellent basis for building a new
cabinet from scratch.
Fasteners
Pinball machines use a lot of different fasteners, including machine
screws, wood screws and sheet-metal screws, carriage bolts, hex nuts,
flange nuts, and T-nuts. Most of these are generic parts that you can
buy anywhere, but some of them are unusual and can be hard to find
outside of the pinball vendors.
Here's a quick overview of the terminology and sizing specifications
for most of the fasteners used in a pin cab.
Wood screws and sheet-metal screws have pointy ends that are designed
to penetrate soft material and form threads in the material as you
screw them in the first time. Machine screws and bolts have flat ends
that can only be used with pre-threaded receptacles, usually nuts.
Machine screw sizes are specified by three quantities, like so:
diameter-thread x length
>
For example:
#8-32 x 1" bolt = diameter #8, thread pitch 32, length 1"
>
There are two unit systems for this:
- The American (also known as Imperial) system, used for most American
products, expresses the diameter in inches or "#" units (see below);
it gives the length in inches; and the thread pitch is expressed in
threads per inch. So a #8-32 x 1" machine screw has a diameter
of #8 (about 5/32"), 32 threads per inch, and 1" length.
- The Metric system, used almost everywhere outside of the US,
expresses everything in millimeters. Metric parts are designated
with an "M" before the diameter. An M5-0.8 x 12mm machine screw
has a diameter of 5mm, thread pitch of 0.8mm between threads,
and a length of 12mm.
Wood screws and sheet metal screws are sized by just the diameter and
length, as in #6 x 1". Since they form their own threads when screwed
in, you don't need a matching part with the same thread pitch, so
that's not usually specified. Sheet metal screws and wood screws are
basically the same thing, with subtle differences in the way the
threads are shaped. Sheet metal screws come in a bewildering variety
of options for the exact shape of the pointy end, with the different
shapes being optimized for tapping into particular types of
material, but I've never found any virtual pinball situation where
this matters. Sheet metal screws often work well with wood, and in
fact, they're often used this way in the original pinball machines.
The length of a screw or bolt is the portion excluding the head.
The "#" diameter units are used in the American system for sizes less
than 1/4", where the fractions become inconvenient to write. (In this
context, "#" is pronounced "number". Modern audiences will be tempted
to call a #8 screw a "hashtag eight", but that will get you funny
looks from machinists.) Each "#" size represents an exact size in
fractions of an inch, but I don't think there's any kind of formula
for it; you just have to look it up in a table. Higher "#" numbers
are larger diameters: #10 is bigger than #8, which is bigger than #6.
Here's a quick reference to the "#" sizes commonly used in pinball
machines (you can find more comprehensive tables on the Web):
# Size | Decimal Inches | Nearest fraction | Metric |
#4 | 0.109375" | 7/64" | 2.778mm |
#5 | 0.125" | 1/8" | 3.175mm |
#6 | 0.140625" | 9/64" | 3.572mm |
#8 | 0.15625" | 5/32" | 3.969mm |
#10 | 0.1875" | 3/16" | 4.763mm |
Every hardware manufacturer and hardware store uses these standard
units to label their parts. #6 always means the same thing in a
machine screw no matter where you buy it. Note, however, that M6 and
#6 are different sizes, and can't be used together. This can be
confusing because the "M" sizes and "#" sizes happen to look very
close to each other when you eyeball them, but they're not close
enough to actually mix and match parts.
For machine screws, the thread number (the "32" in "#10-32",
for example) is an important extra spec giving the thread pitch (the
number of threads per inch). Screws and nuts will only fit together
if they have the same diameter and thread pitch; for example, a
⅜"-20 bolt won't fit into a ⅜"-32 nut, because the
threads are spaced differently.
The terms "machine screw" and "bolt" are basically interchangeable.
"Bolt" is usually used for larger parts, above about 1/4", but otherwise
a bolt is just a big machine screw.
Here are the most common fastener types you'll see in the parts lists:
- Machine screws with slotted heads for tightening with a screwdriver
(usually flat or Phillips)
- Hex-head machine screws and bolts, for tightening with a socket wrench
- Carriage bolts.
These are bolts with smooth rounded heads, for places where an
external bolt should be inconspicuous and not easily removable from
the outside. They have square necks that fit into square holes on the
receiving end, which is what serves in place of a wrench to hold them
still when you're tightening a nut on the other end. Most of the
carriage bolts used in a pinball machines are available with a black
finish that makes them blend better with the artwork.
- Flange nuts are
hex nuts with integral washers. Whiz flange nuts or flange lock
nuts have serrated surfaces on the bottom of the integrated washer
to help lock them in place when tightened.
- T-nuts are threaded sockets
that are installed permanently in a piece of wood. These are used
when you need to be able to screw a bolt into an internal location
that you can't access to insert a regular nut by hand. Some T-nuts
have prongs that let you pound them into like a nail to secure them,
while others can be screwed in to their install location with wood screws.
SEMS screws and lock nuts
Almost all of the machine-screw fasteners in a commercial pinball
machines are special vibration-resistant variations of the basic
types. It's easy to understand why, given the amount of mechanical
action in a physical pinball game. I think it's worth using these
parts in a virtual cabinet, too, especially if you're including
tactile feedback devices. It's annoying to have to keep re-tightening
screws that shake loose over time, and parts that work themselves free
can cause damage.
There are three special fasteners in particular that are used over and
over in the commercial machines. You can substitute these just about
anywhere that regular machine screws and nuts are called for.
- SEMS machine screws are regular machine screws with the
addition of an attached lock washer at the head. The lock washer adds
a lot of grip between the head and the attached part once once the
screw is tightened down. ("SEMS" is reportedly a shortening of
"asSEMbled".)
- Elastic Stop Nuts (ESN)s are steel hex nuts with nylon thread
inserts that add a lot of friction, requiring extra torque to turn the
nut. Also known by the trade name Nyloc nuts. Note that we're not
talking about nuts made entirely of plastic - the nylon part in these
is just a lining inside the threading, and the main body is made of
steel, zinc, or stainless steel.
- Keps nuts are hex nuts with permanently attached lock
washers. As with SEMS screws, the lock washers add grip between the
nut and the attached part when the nut is tightened. In the
commercial pinballs, ESNs are much more common and could be considered
the default, but Keps nuts are useful in places where you can't (or
don't want to) apply a lot of torque to the screw that the nut
attaches to. ("Keps" is a trade name, taken from "shaKEProof".
They're also called K-lock nuts and washer nuts.)
Cabinet trim hardware variations
The WPC cabinets were basically all the same - Williams came up with a
good design and stuck to it for many years. But there was one
significant variation to be aware of: a number of titles, marketed as
the "Superpin" games, had extra-wide bodies for the main cabinet,
allowing a wider-than-normal playfield. All of extra-wide titles came
in the same extra-wide size, so even taking these into account, there
are still only two widths we need to concern ourselves with: the
standard machines and the widebody machines. What's more, the only
thing that's different about the widebody machines is the width of the
main cabinet; the other dimensions (including the backbox dimensions)
and all design elements are identical between the regular and widebody
machines. As a result, the widebodies share all of the same hardware
with the standard machines except for the main front-top metal trim
piece, known as the lockdown bar, and of course the glass cover.
If you go back further in time, before the 1990s, the cabinets become
increasingly different from WPC machines. You should be aware of this
when you go shopping, particularly if you shop on eBay for used parts.
If you're building from scratch to the WPC plans, you'll want to make
sure that any used parts you buy are compatible with WPC cabinets.
By the same token, if you're refurbishing a used cabinet from the
1980s or before, check carefully when buying new replacement parts
from arcade suppliers, because arcade suppliers mostly stock parts for
1990s machines. New parts probably won't fit a 1970s cabinet unless
they're specifically listed as such. If you are trying to refurbish
an old cabinet, one particularly good arcade vendor to try is Marco
Specialties. They have an unusually deep catalog with parts for lots
of older machines. Find the original operator's manual for the
machine you're restoring, if possible, since that will usually include
a detailed list of the machine's parts, with manufacturer part numbers
that you can look up on pinball vendor Web sites to find the exact
version. If you shop on eBay, it's harder to be sure of
compatibility. Ideally, look for parts for the exact title you're
refurbishing, but failing that, go by manufacturer and year; the
pinball makers mostly re-used parts across their product lines for a
few years at a time, so a part of the same vintage from the same
manufacturer will usually fit.
Where to buy
Most of the parts in the master list are fairly standardized,
interchangeable parts used in most WPC-era machines, and in most
cases, used in 2000s machines from Stern, Jersey Jack, and others.
Most of these parts are readily available on the Web from pinball
parts vendors and arcade machine dealers. If you live in a major
metro area, you might even be able to find a local arcade dealer
who stocks some parts, although you'll probably need to
look to the Web for the more obscure stuff.
Some of the vendors I've used:
Most of the generic hardware (nuts, bolts, screws) can also be found
at hardware stores, Amazon, and eBay. Note that some of these are
available in special finishes from the pinball vendors that you might
not find at regular hardware stores (e.g., carriage bolts in black,
chrome bolts for attaching the legs).
Custom-cut pieces of glass can be found locally almost anywhere from
window glass stores. Check for local businesses that install and
repair residential windows. Custom sizes of acrylic and other
plastics can be found locally at plastics stores and some hardware
stores. (If you're on the west coast, check for a local
TAP Plastics.) You can also buy
an uncut acrylic sheet from a hardware store and cut it to size
yourself with a special plastic cutter knife, but that doesn't produce
as clean a cut as you can get from a pro at a plastics store.
VirtuaPin part bundles
If you're building a cab from scratch, you can save some time on
shopping (and possibly save money as well) by buying a pre-packaged
parts bundle from
VirtuaPin.
You can find these on their Web site under "Bundle Deals". They offer
two packages of particular interest to new cab builders:
VirtuaPin Cab Builder's Kit: This includes most of the standard
cabinet hardware items used on typical 1990s era machines (the
"Williams WPC" style). The kit comes in standard-body and wide-body
versions, so choose the one matching your cabinet plans. Parts
included in these kits are marked in the lists below with
VP Cab Kit
.
I recommend this kit. It's cheaper than buying the same parts
individually, and it gets you about 80% of the way to a complete cab
in terms of the accessories.
The only downside is that the kit is only available in the standard
chrome/stainless steel finishes for the trim parts. That's exactly
what most people want, since it's the standard look on most real
machines. But some of the newer Stern machines come with a
powder-coat finish on most of the metal trim, color-coordinated to
complement the artwork. That's a nice upgraded look that you might
want for your own build. Other metallic finishes are possible as
well, such as brass. Another custom upgrade that some people want is
a lock bar with a "Fire" button in the middle. That requires a
special lock bar and matching "receiver", which you can't currently
get with the VirtuaPin kit. If you want to choose your own finishes
(see "Custom finishes" below) or include a "Fire" button on the lock
bar, you're better off skipping the kit and buying everything
à la carte, since you'd throw away most of the kit.
VirtuaPin Button Kit: This includes most of the buttons in a
typical virtual cab. In the list below, we've marked the items in
this kit with
VP Button Kit
.
I'm ambivalent on this kit. It'll save you some time, but it's less
of a bargain than the cab builder's kit because it includes some
buttons you probably won't use. It also lacks some that you might
want to add. If you don't mind doing the extra planning and shopping,
I'd skip this kit and buy buttons individually, so that you can get
exactly what you want.
Custom finishes
Most of the exterior metal trim - legs, side rails, lockdown bar - is
available in multiple finishes. The "standard" finishes are chrome
for the legs, brushed stainless steel for the lock bar and side rails,
and black powder-coat for the coin door. With some extra work, you
can get all of these parts in other finishes, such as brass, gold, or
just about any powder-coat color.
The big vendors mostly just offer the standard finishes, but Marco
Specialties often has a few alternatives available to match recent
Stern titles. Stern typically releases a Limited Edition version of
each new title, with upgraded trim, usually in a powder-coat color
that complements the cabinet art. Marco usually stocks a selection of
such trim, but it's hit or miss. If you're lucky, you might be able
to find a full set of trim in a color featured on a past Stern LE
game.
You might also be able to find trim in alternative finishes from pinball
"mod" sellers. A number of small vendors sell upgrade parts,
including custom-finished trim, to the pinball collector market.
These guys all sell online and on eBay; try a Web search for "pinball
side rail" (for example) plus the type of finish you're seeking.
If you have a specific idea for the look you want, your best option
might be to buy "raw" or "unfinished" trim and find someone to apply
the desired custom finish.
Pinball Life sells
unfinished legs, side rails, and backbox hinges, specifically as a
base for custom finishes. This is a much better starting point than
the standard parts, because a refinisher would have to strip the
existing finish off first, which is expensive and time-consuming.
You can find services online that offer custom powder coat and
metallic finishes - you ship them the parts, and they do the work and
ship them back. You might also be able to find a local business that
does this, if you live in a major metro area. Try looking for local
shops that refinish antiques and/or auto and motorcycle parts.
Master parts list for a virtual pinball machine
>
| |
Item | Qty |
---|
Wire: 22-24 AWG stranded You'll use a surprising
amount of wire to connect various parts of the machine together:
buttons, lights, feedback devices. It's convenient to have a few
spools of wire on hand throughout the build. You can use 22 or 24
gauge wire for practically everything, and it's cheaper (by the foot)
to buy wire in large spools, so I'd pick one size and buy lots of it.
If you're only installing buttons, 100ft should be adequate; if you're
installing feedback devices, you'll probably want at least 200ft on
hand. Buy several assorted insulation colors to make the wiring
easier to trace.
| 100ft+ |
Wire: 18 AWG stranged You'll also need some thicker wire for some of the power wires
and speaker wires. I recommend 18 AWG as a good general-purpose
choice for these higher power wires. 50 to 100 feet should be
adequate for most pin cabs. I'd start with two 25' spools, one with
white insulation and one with black.
| 50ft |
Solder A good quality solder makes a surprising difference in the
ease of work and the quality of your results. I really like
Kester 44 rosin core solder. You can get it in
1oz tubes, but the 1lb rolls are a much better deal if
you think you might do any significant amount of soldering
in the future.
| 1oz-1lb |
#6 wood screws, various lengths I found that I used an amazing number of wood screws for
all sorts of random tasks. The vast majority were #6 wood
screws - these are the right size for all sorts of miscellaneous
jobs. Keep an ample supply on hand so that you don't have to
keep running to Home Depot. Recommendation: buy 100 #6 x ½",
100 in ¾", 100 in 1", 100 in ¾", and perhaps 25 1¼".
| Lots |
Nails As with #6 screws, it's convenient to have a supply of various nails
on hand. You'll mostly need finishing nails rather than anything
heavy-duty. I mostly used 1" and ¾" brads, so I'd recommend
buying a bunch of each.
| Lots |
Wood glue If you're doing your own woodworking or building from a flat pack,
you'll need a good wood glue for the joints. It's a good
thing to have on hand for miscellaneous jobs even if you have a
pre-assembled cab.
| 1 tube |
Epoxy Some things are easiest to assemble or attach with a strong glue.
Get a two-component epoxy (the type with two tubes of goo that
you mix together just before use). I don't recommend "superglues"
(cyanoacrylate glues) for most cab uses.
| 1 tube |
Hardwood plywood, ¾", 4'x8' sheet If you're doing your own woodworking from scratch, I recommend using
a furniture-quality hardwood plywood for all of the cabinet pieces.
This is what they used on the real machines. The ¾" thickness
is important for making the accessories fit properly. Some people
use particle board or melamine, which are cheaper, but I prefer
plywood. MDO plywood (a hybrid sheet product with a plywood core
and an MDF veneer) is an excellent alternative if you can find it.
It combines plywood's superior strength with the perfectly smooth
surface finish of MDF, so there's essentially no prep work needed
for paint or decals. It's possible to make do with a single
4'x8' sheet, but it's easier with two sheets. See
Appendix 9, Plywood Cutting Plans for Cabinet Construction.
| 1 or 2 |
Plywood, ½", 4'x8' sheet The cabinet floor and the back wall of the backbox are typically
made from 1/2" material. Most commercial machines use particle
board for these parts, since they're not cosmetic. I prefer
plywood since it's stronger and lighter.
| 1 |
Flat pack kit As an alternative to raw lumber, you can buy a pre-cut flat pack
kit. VirtuaPin and others sell these. A flat pack has all of the
cabinet pieces cut to size and ready to assemble.
| 1 |
Custom cabinet decal set A set of decals covering the visible surfaces of the cabinet and
backbox.
| 1 |
Translite decal The backbox TV's display area will necessarily be smaller than
the translite, so there will be some gaps around the edges.
You can use decals to fill the gaps decoratively.
| 1 |
DMD panel decal The real machines during the late 1980s and early 1990s had
printed artwork filling the DMD panel, with a custom design
for each title to complement the backglass artwork.
The later WPC-era machines (from about 1995 to 2000)
switched to generic, matte black panels, decorated only with
the manufacturer logo. I personally prefer the more
ornate look of the early 1990s machines, which you can
reproduce using a printed decal with your own custom artwork
based on the graphics theme for your main cab. If you
prefer the more neutral style of the later generic panels,
you can approximate that with a simple black paint job.
| 1 |
Side rails WPC style: Williams/Bally A-12359-3, 01-8993-2
| 2 VP Cab Kit |
Mounting tape for side rails Double-sided foam tape, ¾" wide, .032" (approx) thick. This goes between the
rails and the side of the cabinet. About 80" length required.
| 80 inches |
#8-32 x 1¼" carriage bolts For attaching the side rails
| 2 |
#8-32 hex ESN lock nut These go with the carriage bolts for attaching the side rails
| 2 |
Lockdown bar
- WPC Standard: Williams/Bally D-12615, A-18240
- WPC Widebody: Williams/Bally A-16055, A-17996
- WPC Custom width: available from VirtuaPin and others
- Stern standard width with center "FIRE" button: search for "premium lockbar"
| 1 VP Cab Kit |
Lockdown bar receiver
- WPC (standard, widebody, or custom): Williams/Bally part A-16673-1, A-9174-4
- Stern lockbar receiver with center "FIRE" button: Stern 500-7237-00
Important: This part mates with the lockdown bar, so make sure you choose a receiver that matches the type of lockdown bar you have. The Williams WPC receiver is the same for standard, widebody, and custom widths of WPC lockbars. For other brands, check the vendor site for the compatible receiver after you select a lockbar. | 1 VP Cab Kit |
Leg brackets Williams/Bally 01-11400-1
| 4 VP Cab Kit |
#8 x 5/8" wood screws, hex-head, slotted For attaching the leg brackets to the cabinet.
Williams/Bally 4108-01219-11, 4608-01081-1
| 32 |
Steel legs Williams/Bally A-19514
| 4 VP Cab Kit |
Leg levelers with nuts Williams/Bally 08-7377
| 4 VP Cab Kit |
Cabinet leg protectors Optional; these can help protect the cabinet decals or paint from wear around
the leg joints. These weren't original equipment on WPC-era machines; Marco
Specialties and Pinball Life carry several options, including felt and metal
versions. The metal ones are said to be better for decals, but this is moot
if you trim the decals around the leg contact area.
| 4 |
Leg bolts, ⅜"-16 x 2¾" or 2½" The longer 2-¾" length is easier to work with, especially if you're using
leg protectors. The type sold by pinball vendors has a chrome finish and
rounded dome ("acorn") head for a nicer appearance than generic hex
bolts from hardware stores.
Williams/Bally 4322-01125-40
| 8 VP Cab Kit |
Leg bolt nuts, ⅜"-16 thread Hex nuts, ⅝" outside diameter. Williams/Bally 4422-01117-00
| 8 |
⅜"-16 T-nuts Install in the "shelf" at the back of the cabinet, to mate with the
wing bolts installed in the backbox floor to secure the backbox in the
upright position.
| 2 |
Coin door The WPC style is available fully assembled with the mounting frame, coin
slots, slam tilt switch, operator buttons, and wiring harness, but
generally without the coin acceptor mechanisms. Williams/Bally
part 09-37000-1; alternate part numbers: 09-46000, 09-96017,
09-17002-26, 09-23002-1, and 09-61000-X, 09-61000-1.
Available as an add-on in the VP cab kit | 1 |
Coin mechanisms for coin door Optional. You need these if you want use actual coins.
One "mech" is required per coin slot (the WPC doors above have two slots).
| 1-2 |
¼"-20 x 1¼" carriage bolts, black For attaching coin door and lockdown bar. Williams/Bally 4320-01123-20B
Note: another 6 are needed for backbox | 6 VP Cab Kit |
¼"-20 flange locknuts Williams/Bally 4420-01141-00
Note: another 6 are needed for backbox | 6 VP Cab Kit |
Cashbox Optional. Sits under the coin slots to collect inserted coins. You
need something for this purpose if you plan to use coins; the
standard box is well designed for the job, but it's rather large.
You might prefer to improvise something more compact.
The standard cashbox consists of two parts: the plastic tray
(Williams part 03-7626, Stern part 545-5090-00), and a metal cover
(Williams part 01-10020, Stern 535-5013-03, 535-5013-02, 535-5013-01).
| 1 |
Cashbox nest bracket Optional; recommended for use with a standard cashbox.
Attaches to the inside front wall of the cabinet just under the coin
door to keep the cashbox from sliding around.
Williams part #01-6389-01.
| 1 |
Cashbox lock bracket Optional; recommended for use with a standard cashbox.
Attaches to the short dividing wall on the cabinet floor that
delineates the cashbox area at the front, to anchor the cashbox when
installed. Williams/Bally part 01-10030 or 1A-3493-1.
| 1 |
Tempered glass sheet for playfield cover
- Standard body: 43" x 21" x 3/16", Williams A-08-7028-T
- Widebody: 43" x 23¾" x 3/16", Williams A-08-7028-1
- Custom cabinet: 3/16" thick
tempered glass, cut to a custom size per your plans.
You should be able to order this at a local window glass shop.
Tip: ask the shop to omit any marking or etching certifying
that it's tempered glass. Glass makers might assume that
you want a certification mark, since some building codes
require the marking for certain uses in home construction,
such as a glass shower enclosure. You don't need any
certification for use in a pinball machine, though,
so you'd probably prefer to omit any such markings,
to avoid visual clutter.
| 1 |
Playfield glass rear plastic channel Standard width: Williams/Bally 03-8091
Widebody: Williams/Bally 03-8091-2
| 1 VP Cab Kit |
Playfield glass side rail plastic channels Williams/Bally 03-7135-1
| 2 VP Cab Kit |
Fully assembled: Williams/Bally B-12445-1, B-12445-6, B-12445-7.You can also buy the individual parts separately if you wish to
customize. Pinball Life lets you choose colors for the knob and
rubber tip, but you'll have to buy à la carte if
you want a custom knob. Note that you can buy a knobless shooter
rod and epoxy on your own custom knob for a unique look.
Note also that springs are available in different tensions.
I'd recommend a lower tension spring for virtual pinball use
since you're never going to hit an actual ball: lower tension
means lower speed and less cabinet rattling.
The part numbers below are Williams/Bally references as usual:
- Shooter rod: 20-9253
- Shooter housing: 21-6645-1
- Shooter housing sleeve: 03-7357
- Barrel spring (¾" long x ⅝" diam): 10-149
- Inner spring (5½" long x ½" diam): 10-148-1
- E-clip (⅜" shaft, 5/16" groove): 20-8712-37
- Washers (25/64" x ⅝", 16 gauage, qty 2): 4700-00051-00
- Rubber Tip: 545-5276-00
If you buy a commercial plunger kit, the plunger assembly is usually included. | 1 |
Ball shooter mounting plate Williams/Bally 01-3535
Note! This isn't typically included in the commercial plunger kits or the "complete assemblies" sold by arcade vendors. | 1 |
#10-32 x ⅝" machine screws
Not typically included with commercial plunger kits or complete assemblies. | 3 |
Tilt-up playfield TV mounting
Playfield holder bracket (left side) Williams/Bally 01-8726-L-1
| 1 |
Playfield holder bracket (right side) Williams/Bally 01-8726-R-1
| 1 |
Pivot nut, 7/16" Williams/Bally 02-4244. The 1/2" version (Williams 02-4329) will also work.
| 2 |
Carriage bolt, 3/8"-16 x 1-3/4", black | 2 |
Washer, 3/8" x 1" outside diameter (quantity 2) | 1 |
Hex nut, 3/8"-16
| 2 |
Backbox hinges Williams/Bally 01-9011.2-R, 01-9011.2-L
| 2 VP Cab Kit |
Hex pivot bushings for backbox hinges ½" shaft, ¾" diameter head, ¼" hex center, ⅜-16 thread.
Williams/Bally 02-4352
| 2 VP Cab Kit |
Pivot bushing carriage bolts ⅜"-16 thread, ¾" long. Williams/Bally 4322-01139-12B
| 2 VP Cab Kit |
¼"-20 x 1¼" carriage bolts, for attaching backbox hinges Williams/Bally 4320-01123-20B
This is in addition to the 6 needed for the coin door and lockdown bar. The VP cab kit provides 10, so you need two extra for the full set. | 6 VP Cab Kit |
Backbox hinge backing plates These go inside the backbox to strengthen the connection points for
the carriage bolts above. Williams/Bally 01-9012
| 2 |
¼"-20 whiz flange locknuts Williams/Bally 4420-01141-00
This is in addition to the 6 needed for the coin door and lockdown bar. The VP cab kit provides 10, so you need two extra for the full set. | 6 VP Cab Kit |
Backbox latch Williams/Bally 20-9347
| 1 VP Cab Kit |
Backbox latch bracket Williams/Bally 01-8397
| 1 VP Cab Kit |
Wing bolts, ⅜"-16 x 2" Install in the floor of the backbox to lock the backbox in the upright position.
Williams/Bally 20-9718
| 2 |
Backbox translite lock plate assembly Keyed lock to secure the translite. Not truly necessary in home use,
but a nice touch to complete the look of the real machines.
Williams/Bally A-13379
| 1 |
Lower speaker panel bracketA black metal "U" channel that screws into the bottom of the backbox, to
hold the DMD panel in place. The only place I've seen the original
part for sale is PlanetaryPinball.com, but you
can sometimes find upgraded versions in custom finishes (brass,
chrome) from "mods" vendors. You can substitute a generic aluminum
⅝" x ⅝" U channel from a hardware store, cut to
the required length (27⅛" for the standard backbox width)
and painted black.
Williams/Bally 01-8569-1
| 1 |
Tempered glass or acrylic (Plexiglass) sheet, 18⅞" x 27" x ⅛" thick | 1 |
Backglass side trim, Black trim pieces that attach to the side edges of the translite.
Williams/Bally 03-8228-3
| 2 VP Cab Kit |
Backglass top trim Black trim piece that attaches to the top edge of the translite.
Williams/Bally 03-8228-2
| 1 VP Cab Kit |
Backglass lift channel Black trim piece that attaches to the bottom edge of the translite,
and serves as a handle for removing it from the backbox. This fits
into the speaker panel H channel.
Williams/Bally 03-8229-1
| 1 VP Cab Kit |
Speaker/DMD panel (pre-WPC-95 style)
Speaker panel H channel Black trim piece that attaches to the top edge of the DMD panel. The
"H" shape makes a channel in the top that the translite fits into, to
hold the translite in place.
Williams/Bally 03-8265-1
| 1 VP Cab Kit |
Speaker panel latch brackets These hold the speaker panel in place in the backbox.
Williams/Bally 01-8535
| 2 |
#8-32 x 3/8" flat-head countersunk machine screws These attach the latch brackets to the speaker panel.
Williams/Bally 4008-01041-06
| 4 |
#8-32 x 3/8" pan-head machine screws For attaching the speakers and "H" channel trim to the speaker panel.
Williams/Bally 4008-01005-06, or SEMS version (with attached locking washer) 4006-01003-06
| 12 |
#8 external tooth locking washer For attaching the speakers and "H" channel trim to the speaker panel
(required only if you're not using a SEMS screw with attached washer).
Williams/Bally 4703-00008-00
| 12 |
4" Speaker screen for backbox speakers Use for DMD panels with 4" speaker openings. The standard type is black plastic; they're also available in metallic finishes
(brass, chrome).
Stern 535-8081-00, 535-8081-01
| 2 |
WPC-95 speaker screen for backbox speakers This is specifically designed for the molded plastic WPC-95 speaker panel, but
it should also be adaptable to a 5.25" speaker opening in the older style
of panel. You might have to cut holes for the speaker mounting screws to
make it fit properly.
Williams/Bally 04-10382-7-4
| 2 |
7" Speaker screen for backbox speakers Can be used for DMD panels with 5.25" speaker openings, but you have to cut it to size.
Williams/Bally 03-8603-1, 03-8603-3, 01-6733.
| 2 |
Dot Matrix Display deviceThis is the display device that goes in the opening
in the middle of the panel to display the score and other
graphics. Options:
- 15-16" LCD TV, monitor, or laptop display
- PinDMD 2 or 3 (commercial "real DMD" device)
- Pin2dmd (DIY open-source LED DMD device)
| 1 |
Speaker/DMD panel (WPC-95 style)
WPC-95 speaker panel Available with embossed Williams or Bally logos in silver or gold.
Williams/Bally 04-10382-7A, 04-10382-7B, 04-10374-7A, 04-10374-7G.
| 1 |
Bushing buttons Installed in the backbox to support the speaker panel.
Williams/Bally 02-5223
| 4 |
Speaker grill Usually included with the speaker panel assembly; available separately if not.
Williams/Bally 04-10382-7-4
| 2 |
Speaker retainer rings for 5.25" speakers The speaker panel assembly might include retainer rings for 5.25" and 3"
speakers. For a virtual cab you'll usually want two of the 5.25" retainers,
so you might need to order one separately.
Williams/Bally 04-10382-7-2
| 2 |
Dot matrix display shield Clear plastic cover for the DMD window. Might be included with the
speaker panel assembly.
Williams/Bally 01-13636
| 1 |
Operating System Windows 7, 8, or 10 recommended. Home edition is fine.
| 1 |
CPU A CPU with 4 or more cores is recommended, such as a current generation
Intel Core i5 series.
| 1 |
Motherboard Choose a motherboard based on the CPU you wish to use. Motherboards
are designed to work with specific CPU types, so your choices will depend
on the CPU type you plan to use.
| 1 |
CPU fan Most modern CPUs require a powered fan to be directly mounted on the
CPU itself. Your CPU purchase might include this if you buy a boxed
retail package; if not, many suitable third-party options are available.
| 1 |
Graphics adapter Virtual Pinball isn't as demanding as other 3D games but does require
at least a mid-range graphics adapter. If cost is no object, buy a
high-end gaming card. But those are usually two
to three times as expensive the mid-range cards, which are fine for
pinball. Get a card with at least 2GB, preferably 3G or more.
You generally should use only one graphics adapter even for
a 2- or 3-monitor system, as performance is usually higher with one
card driving multiple monitors than with multiple cards.
| 1 |
ATX power supply Choose the wattage capacity according to the needs of your motherboard
and graphics card.
| 1 |
RAM (system memory) Choose RAM chips that match the specs for your motherboard. RAM
contributes to performance; more is better.
| 1 |
Hard disk or SSD I'd recommend using an SSD (solid-state disk) over a conventional
hard disk, both for the dramatically faster boot times and for the
immunity to shock and vibration.
| 1 |
Case or tray Optional. Some people like to use a conventional PC case, but
this takes up a lot of room inside the cabinet. It's more common
to mount the motherboard and other components directly to the cab
wall or floor. You might also consider a conventional metal case
to enclose the PC parts, or a "motherboard tray" (an open frame
that holds the motherboard and helps secure the expansion cards, but
doesn't enclose anything).
| 1 |
Fans Most cab builders include at least two standard PC case fans
to move air through the cabinet. These can be mounted on the floor
and/or the rear wall.
| 2+ |
Disk cables Your motherboard will probably come with suitable cables for
connecting your hard disk, but if not, you can buy these separately.
| 1 |
Power strip Most cab builders like to be able to control power to the whole
system through the PC's soft power button. You can do this with
a "smart" power strip inside the cab, or you buy an ordinary
power strip and make it "smart" with a contactor. A separate
power strip in the backbox is useful (perhaps a small one with
only 3 or 4 outlets), for plugging in the backbox TV(s) and any
other devices situated there.
| 1+ |
12VDC contactorNot needed if you buy a "smart" power strip. If you buy an ordinary
power strip, though, you use a contactor to make it act like a
smart one. Route the line power to all devices other than the PC
(including the TVs and the feedback device power supplies) through
the contactor, and control the contactor via the main PC power
supply's 12V output. When the PC is on, the contactor turns on and
supplies power to everything else. More on this in Chapter 11, Power Switching.
| 1 |
Flipper buttons You need two for regular flipper buttons, and another two for Magna Save
buttons if desired. If you want to light the buttons, buy a transparent
type; if you want to light them with variable color (RGB) lights, buy
clear transparent buttons.
Flipper buttons come in two lengths: 1⅛" and 1⅜". The
VirtuaPin button kit uses the longer type to mate with their switch
holders. Most real machines use the shorter length, so most of the
options available from pinball vendors are only available in the
shorter length. If you're looking for transparent buttons for
illumination but you want the longer length so that you can use the
VirtuaPin switch holders, look for part 515-7791-00.
- 1⅛" buttons: part number A-16883
- 1⅜" buttons (not transparent): part 3A-7531
- 1⅜" buttons, transparent: 515-7791-00, 3A-7531-13
| 2-4 VP Button Kit |
Flipper button leaf switches The flipper buttons mentioned above are just the buttons, without
the electronic switch part. The buttons have to be paired with switches.
The gold standard is leaf switches. Some newbie cab builders really
want to use microswitches instead, since they're so much easier to find
and install, but it's almost universally agreed that leaf switches are
the only thing that feels right. The problem with microswitches is that
they have some intentional mechanical hysteresis at the point of contact,
whereas leaf switches are perfectly smooth. That's critical for
flippers because it gives you greater control and better tactile feedback.
For a virtual pin cab, it's best to use low-voltage leaf
switches with gold-plated contact points. That's the only type
VirtuaPin sells, so you'll be safe if you go with theirs. If you buy
from a pinball vendors like Pinball Life or Marco Specialties, make
sure you get the low-voltage, gold-plated type, because the pinball
parts vendors also sell a high-voltage type designed for older
pinball machines. The high-voltage switches use tungsten contact
points, which have higher electrical resistance than gold contacts,
so they don't work as well in low-voltage logic circuits.
| 2-4 VP Button Kit |
Flipper button leaf switch holders Optional. VirtuaPin sells their leaf switches with plastic holders that fit
over the buttons and are held in place with Palnuts (below). This
makes the switch positioning and installation dead simple, but be
aware that these only work with the long (1⅜") buttons. If
you're using the more common 1⅛" buttons, these won't fit.
The holders might also conflict with lighting devices for the buttons,
such as the LiteMite boards (below).
If you can't use the holders, it's still fairly easy to install the leaf
switches, by attaching them directly to the wall of the cabinet.
So you definitely don't need the holders.
But they're convenient if you're using compatible buttons.
| 2-4 VP Button Kit |
Palnuts This screw onto the flipper button shaft on the inside of the cab to
hold the button in place. You need one for each button. I prefer the
nylon type, because they won't run the risk of shorting any nearby
wire connections.
Williams/Bally 02-3000, 20-9222, 3A-7532.
| 2-4 VP Button Kit |
LiteMite PCBs for flipper button lighting (optional) These make it easy to install LEDs to illuminate transparent flipper buttons.
Buy the full-color RGB type to let DOF set custom colors per game.
Use one per flipper and Magna Save button.
| 2-4 |
Start button | 1 VP Button Kit |
Exit button | 1 VP Button Kit |
Extra Ball button (optional) | 1 |
Launch Ball button (optional) | 1 VP Button Kit |
Coin button (optional) | 1 |
Main PC power button | 1 VP Button Kit |
Tilt bob (optional)
| 1 |
Amplifier for primary (backbox) audio system The standard setup needs a "2.1" channel amplifier (two stereo channels, one subwoofer channel).
Most people use 12VDC car amplifiers. You can skip the amplifier if you're using
powered PC speakers with their own built-in amplifier.
| 1 |
Midrange speakers for backbox speaker panel (primary audio system) | 2 |
Subwoofer for main cabinet (primary audio system) | 1 |
Amplifier for secondary audio system Optional. Only needed if you have a second audio system for mechanical playfield sounds.
| 1 |
Midrange speakers for secondary "in-cabinet" audio system Optional. Use one or two speakers for a basic system, four for a "surround"
system (for placing sound effects at their proper location in the playfield area).
| 1-4 |
Subwoofer for secondary audio system Optional. Used for a 2.1 or 4.1 in-cabinet speaker system.
| 1 |
Tactile subwoofer for secondary audio system Optional; replaces the regular "subwoofer for secondary audio system" above. This
can be used as a substitute for other tactile feedback devices, or together with them.
| 1 |
7" Speaker screen for subwoofer (or larger, if you're using a larger subwoofer) Williams/Bally 03-8603-1, 03-8603-3, 01-6733.
| 1 |
Output controllerUSB device that receives commands from the pinball software on the PC
and switches lights, solenoids, and motors on and off. Options:
- LedWiz
- PacLed
- Pinscape Controller
- SainSmart
| 1 |
Power boostersMost output controllers can only handle devices with low power, such as
LEDs. Power boosters let you connect higher power devices, such as
solenoids and motors.
| 1 |
Secondary PC power supply Most cab builders install a second ATX power supply for feedback
devices, so that the main PC supply isn't affected by the extra load.
PC power supplies are great for 5V and 12V devices because they have
very large capacity; a cheap and low-end supply is fine for this job.
| 1 |
24V power supply Some devices require higher voltages. You can add an inexpensive
closed-frame 24V supply if you have any devices that need it.
| 1 |
Step-down converter for 6.3VIf you're using front-panel buttons with #555 incandescent bulbs,
you can supply them using a step-down converter board to convert 12V
from the PC PSU to the required 6.3V. Inexpensive converters are
available on eBay to convert to selectable voltage levels. You
can also find fixed-voltage 6V converters at pololu.com.
| 1 |
Step-down converter for shaker motor A second step-down converter can be used to supply your shaker
motor. You can use this to reduce the voltage level if the shaking
effect is too strong at full speed.
| 1 |
Step-up converter for replay knocker Pinball replay knockers are built for 50V supplies; they'll run on
less but will make a weaker sound. A step-up converter can be used
to supply them with higher voltages if desired.
| 1 |
High-output RGB LEDs for flashers A set of five bright RGB lights to reproduce the bright flashing lights
on pinball playfields, for a more faithful reproduction of the real
thing's brightness than the video rendition can achieve. Most people
use 3W RGB "star" LEDs available on eBay.
| 5 |
Pinball dome lights for flashers | 5 |
Strobe light This supplements the RGB flashers with an extra-bright white light for
strobe effects. Most people use 22-LED white car strobe lights available
on eBay.
| 1-2 |
Flipper feedback simulators A device inside the cabinet to simulate the tactile "thunk" of a flipper
firing. You can use a real flipper assembly for the most authentic effect,
but most people use a lower-cost option such as a contactor (a large relay)
or a solenoid.
| 2 |
Slingshot feedback simulators Another tactile "thunk" effect generator. This is the same sort of effect
as the flippers or bumpers, so most people use the same types of devices
for all of these, but some like to vary the devices to get different effects.
| 2 |
Bumper feedback simulators Another "thunk" device, usually done with the same types of devices as
for flippers and slingshots.
| 6 |
Shaker motor A DC motor with an off-balance weight attached, to make the machine
vibrate when activated for a rumble or earthquake effect.
| 1 |
Gear motor A DC motor with an integrated step-down gear, used for the noise the
gears make. This is to simulate the sound of the motors that many
real pinballs use to animate playfield elements.
| 1 |
Replay knocker | 1 |
FanUsually placed on the top of the backbox, à la Whirlwind.
| 1 |
Beacons Rotating or flashing lights like on a police car, usually placed on
top of the backbox. This is another light-show element, but it's
also popular because so many real pinballs have these.
| 1 |
Under-cab or rear-facing RGB light strips RGB light strips attached to the underside of the cabinet and/or
the back of the backbox, for ambient lighting while playing.
| 1 |
In-cab addressable RGB light strips A different type of light strip that allows each LED to be controlled
individually. These can create animated lighting effects like on a
theater marquis. A controller is required (below).
| 1 |
Controller for addressable RGB light strips
| 1 |
>
21. Cabinet Body
On the forums, virtual pinball machines are always called "pin cabs".
It's appropriate that the cabinet is the defining feature of these projects,
since it's what sets them apart from video pinball on an ordinary PC.
This chapter is about the literal cabinet part of
that - building the physical housing of the machine.
The bulk of this section consists of detailed plans for building a
replica of a 1990s-era Williams pinball cabinet, with some slight
changes to accommodate video pinball instead of a mechanical
playfield. With some tweaks, you can use the plans here to build a
replacement cabinet for an actual WPC-era pinball machine. The plans
are complete enough to build the whole thing from scratch, starting
with a couple of sheets of plywood.
Before we get to the building plans, we'll discuss the reasons behind
the design of the cabinet (both the original pinball machine design
and our "virtual" modifications), and some important things you should
consider before finalizing your own design. Every pin cab project is
unique, and I think most people will want to make at least some
customizations to the generic plans I provide.
This section has a lot of background information and digressions on
small (sometimes trivial) details, so it's rather lengthy. When
you're ready to go out to your workshop and get building, you might
prefer a more concise step-by-step list of dimensions and tasks. I've
tried to provide something along those lines in a couple of
appendices:
Design goals
The goal for most of us is to replicate the exterior appearance of a
real pinball machine. That's what I set out to do with my own virtual
cab, and I'm assuming in this section that it's your goal as well.
This chapter is therefore mostly a guide to building a replica of a
Williams pinball machine cabinet from the 1990s, using the same
materials and parts. The plan here isn't an exact replica,
because some modest changes are needed to make the virtual-pinball
elements fit better, but most of the differences are small. For the
most part, you could use the plans here to build a replacement cabinet
for a real machine (and just in case you actually want to do that,
I've tried to point out where and how my plans diverge from the WPC
design).
Even though the WPC design is more than 30 years old now, it's still
more or less the most "modern" pinball cabinet design, since most new
pinball titles today are built with essentially the same cabinet plan
and trim hardware as in the 1990s. Pinball is a much smaller industry
today than it was then, and I don't think the manufacturers have the
scale these days to do as much custom designing and machining, so they
keep re-using a lot of the time-tested parts and designs from the 90s.
Plus, the WPC cabinet design simply got most things right; there's not
much practical reason to change it. So newer machines look very much
like machines from the 1990s, as far as the basic cabinet shell goes.
The only major change on the outside is the audio/video panel in the
backbox, which on newer machines usually features a video screen in
place of a dot matrix display, but that's not really a change to the
cabinet; it's just something that drops in to the standard cabinet
layout. You can build the basic WPC cabinet plan and take your pick
of speaker/display panel styles.
When I was building my own virtual machine, I discovered that the
design of the 1990s pinball cabinets is something of a secret art.
It's not secret due to any conspiracy of silence; it's just that
there's a lot of knowledge and experience that went into the design
that no one bothered to write down anywhere. Not anywhere public,
anyway; I imagine that there are still a lot of old engineering
diagrams and blueprints gathering dust in a basement file cabinet
somewhere, but those documents aren't available to hobbyists.
Owners of the real machines can learn a lot of the design details of
the original cabinets through observation, but if you don't have a
real machine to take apart and examine, you pretty much have to guess.
I'm fortunate to have some real machines at home, and that turned out
to be a huge help for building a virtual cab. Whenever I was unclear
on something, I could look at a couple of actual examples to see how
they did it, and see some of the variations in different model years. I
took advantage of that many times. So my goal in this section is to
pass along as much of that otherwise undocumented knowledge as I can,
in this one place, in an order that essentially provides a recipe for
building one of these cabinets.
I know that not everyone wants their cab to look exactly like a modern
commercial pinball machine. You might be basing your project on the
classic Gottlieb wedge-head machines of the 1970s, for example, or you
might want to create something completely novel. Even if you're
aiming for a different look, though, you might find it helpful to
understand how the 1990s WPC cabinet design works. Those cabinets are
the result of decades of refinement. Pin cabs have to solve a number
of geometry and functional constraints, and you'll face many of the
same issues in creating a wholly new cabinet design. It can be
helpful to see what the pros came up with after many iterations.
Build, buy, or convert?
There are three main options for creating the body of your cabinet:
- Build it yourself from scratch
- Buy a new empty pinball cabinet, pre-built or as a kit
- Convert an old real pinball machine into a virtual cabinet
If you're new to virtual pinball, the approach that might seem most
appealing at first glance is to convert an old real machine. Indeed,
some of the earliest virtual cabs were built as conversions from
machines that would otherwise have been scrapped, and it was a popular
approach in the early years. It has the advantage that it starts off
from the very beginning looking exactly like a real pinball machine,
and it saves you the trouble of coming up with your own cabinet
design and sourcing parts.
The conversion approach has become a lot less appealing lately because
of increasing prices. Almost every pinball machine is a collector's
item these days; old machines command surprisingly high prices even
when they're beat up, since there are plenty of people looking for
restoration projects. If you're lucky enough to find a donor machine
that no one wants to restore, it'll probably be in such bad cosmetic
condition that it might actually be cheaper and easier to start from
scratch. (You should also be prepared for some negative comments on
the forums, since there's a preservationist sentiment even among the
virtual pinball crowd. Many people see pinballs from past decades as
works of historical significance that can't be fully or genuinely
re-created once lost.)
Happily, the "build" and "buy new" alternatives are both quite
practical, and I consider both of them superior to conversion, even
without the price considerations. You can buy high-quality
reproduction cabinets that look exactly like the real thing, in kit
form or fully assembled. Or, if you have some basic woodworking
skills, you can build an excellent reproduction cabinet yourself. The
real machines use fairly simple designs that you don't have to be a
master carpenter to reproduce. This section provides ready-made
plans, so there's no research required.
What's more, it's easy to obtain all of the genuine cabinet hardware
(metal rails, legs, etc) needed to fit out a custom-built cabinet and
make it look exactly like a real machine. All of the hardware is
standardized across machines, and several big online pinball suppliers
sell the parts. You can thank the collectors for that - they buy
these parts to repair and restore their machines, so there's a
healthy market in the parts that keeps them readily available.
Here are my recommendations:
- For most people, I recommend using a VirtuaPin flat-pack kit. I
used this approach myself, and I'm very happy with the results. It's
not the cheapest option, but it's reasonably priced, and it yields an
excellent finished product. It's about the same level of difficulty
as assembling an Ikea product. With a little care, the result will be
essentially indistinguishable from a brand new commercial pinball machine
cabinet.
- If you enjoy woodworking and have a decently equipped workshop,
consider a scratch build. Doing it yourself is much cheaper than
buying a VirtuaPin flat pack, assuming you already have the tools, and
you should be able to get equally professional results with a little
care. Pinball cabinets are relatively simple as woodworking projects
go; they're built out of ordinary plywood, and they're all straight
lines and (mostly) easy joinery. But it does require some tools
beyond the home-handyman basics, and it's a fair amount of work, so
don't choose this option just because of the potential cost savings -
choose it because you enjoy this sort of construction project.
- If you don't want to do any woodworking, and you don't even want to
assemble a kit, you can order a fully built cabinet from VirtuaPin or
from a number of other vendors. VirtuaPin's pre-assembled product is
the best one I've seen, and it's the only one I know of that
faithfully reproduces the design of the real pinball machines. (It's
good enough that some collectors restoring real machines buy this kit
to use as their replacement cabinets.) The products I've seen from
other vendors use idiosyncratic designs and non-standard trim
hardware, so they don't look quite like the real thing. If a
realistic appearance is important to you, take a close look before
buying to make sure you like the design.
- I generally don't recommend trying to re-purpose an old real pinball
as a virtual cab, in part because old cabinets tend to be so beat up
that restoration would be more labor-intensive than building a new one,
and in part because the economics rarely pan out.
More on that below.
Economics of new vs used
If you're set on the idea of re-purposing a used cabinet, I'd suggest
doing a little research first to make sure you don't overpay. The
question you want to ask is: would I actually save money buying the
used cab, or would it be cheaper to buy the same parts new?
To answer this, ask the seller for a list of all the hardware parts
that the used cabinet includes - the legs, side rails, lockbar, etc.
Don't assume that everything is included, because a lot of eBay
sellers strip all of the parts out and sell them separately; a used
cabinet might not come with anything beyond the wood box. And only
consider the hardware that you'll actually use on your virtual cab,
since those are the only parts you'd have to buy if you were starting
from scratch. Only count parts that you actually need in the virtual
cab (e.g., don't count the playfield, bumper caps, etc), and only
count used parts if they're in usable condition.
To help you get started here's a list of the main parts that real
machines and virtual cabs have in common. See
Chapter 20, Cabinet Parts List
for a more detailed parts list with descriptions. We left the price
column blank, since prices obviously vary over time and from one
vendor to the next, so you'll have to fill that in by checking current
prices at your preferred vendor(s) (such as
VirtuaPin,
PinballLife, or
Marco Specialities). For
the "wood body" line item, you can use VirtuaPin's flat pack or
unfinished cab body offerings for comparison. Remember, only include
the parts that the seller is including with the new cab, since you
want to compare new-vs-used for what you're actually getting from the
seller.
Add up the prices of the new parts, and compare the result to the
seller's asking price for the used cab. If the asking price for the
used cab is cheaper than the new parts, and everything's in good
enough shape that you can actually use it, you've found a good bargain.
If the seller is asking more for a beat-up used cab than what you'd
pay new, I'd pass on the deal.
☑ | Description | Price New |
☐ | Main cabinet wood body | $ |
☐ | Backbox wood body | $ |
☐ | Legs (qty 4) | $ |
☐ | Leg levelers ("feet") (qty 4) | $ |
☐ | Leg brackets (qty 4) | $ |
☐ | #8 x 5/8" wood screws for leg brackets (Williams ref 4108-01219-11, 4608-01081-11), or #10 screws if preferred (qty 32) | $ |
☐ | Leg bolts (⅜"-16 x 2¾" or 2½") (qty 8) | $ |
☐ | Side rails (qty 2) | $ |
☐ | Lockbar | $ |
☐ | Lockbar receiver | $ |
☐ | Coin door | $ |
☐ | Coin acceptors ("coin mechs") | $ |
☐ | Cashbox tray (Williams ref 03-7626) | $ |
☐ | Cashbox lid (Williams ref 01-10020) | $ |
☐ | Cashbox nest bracket (Williams ref 01-6389-01) | $ |
☐ | Cashbox lock bracket (Williams ref 01-10030) | $ |
☐ | Carriage bolts, black, ¼"-20 x 1¼" (qty 6: 4 for coin door + 2 for lockbar) | $ |
☐ | Flange locknuts, ¼"-20 (qty 6: 4 for coin door + 2 for lockbar) | $ |
☐ | Top glass | $ |
☐ | Rear plastic channel for glass | $ |
☐ | Side rail plastic channels for glass (qty 2) | $ |
☐ | Plunger (ball shooter) assembly | $ |
☐ | Ball shooter mounting plate (Wiliams ref 01-3535) | $ |
☐ | #10-32 x ¾" bolts for mounting plunger assembly (qty 3) | $ |
☐ | Backbox hinges (qty 2) | $ |
☐ | Backbox hinge backing plates (qty 2) | $ |
☐ | Carriage bolts, ¼"-20 x 1¼" (qty 6, for backbox hinges) | $ |
☐ | Flange locknuts, ¼"-20 (qty 6, for backbox hinges) | $ |
☐ | Pivot bushing carriage bolts (qty 2) | $ |
☐ | Hex pivot bushings (qty 2) | $ |
☐ | Backbox latch | $ |
☐ | Backbox latch bracket | $ |
☐ | Backbox lock plate assembly | $ |
☐ | U-channel, metal, ⅝" x ⅝" x 27⅛" (backbox speaker panel holder) | $ |
Where to find used machines
Your best bet for finding a used machine at a good price will be local
sellers. Search your local craigslist and local newspaper classified
ads. A particularly good place to find a deal is at an estate sale.
Heirs often want to clear out the house quickly and won't have any
sentimental attachment to an old pinball.
If you can't find anything locally, eBay will give you access to
sellers nationally (and even internationally). But I wouldn't get my
hopes up; it's hard to find a good deal on a used cab on eBay these
days. For one thing, shipping a cabinet is expensive due to the size
and weight; shipping can add about $400 to the price. For another,
eBay sellers know they can get top dollar for used cabs, so the base
price is unlikely to be a bargain. Most eBay sellers are also savvy
enough to strip a machine of all of the parts and sell them off
separately, which largely defeats the purpose of reusing an old
machine.
Kits and pre-built cabinets
If you can't find or don't want to use a salvage machine, but you also
don't want to build everything from scratch, there are several
companies that will sell you a brand new cabinet. For options, search
the web for "new pinball cabinet" or "pinball cabinet restoration".
One vendor I can recommend from personal experience is
VirtuaPin. They sell cabinets in both kit
form and fully assembled, and can customize them to your specifications.
You should be able to find options ranging from "flat pack" kits that
you assemble yourself, to fully assembled cabinets with all of the
hardware and artwork installed.
The cheapest and most DIY option is a flat pack kit. This is like an
Ikea bookshelf: it consists of the wood parts, pre-cut and
pre-drilled, ready for you to assemble. This is the cheapest kit
option, since you provide the assembly labor, and because shipping is
cheaper than for a bulky assembled cab. The degree of difficulty is
slightly higher than for assembling Ikea furniture, but only slightly;
no real woodworking skills are required, and you'll just need basic
tools like screwdrivers and hammers. You might also have to do some
sanding to even out corners and edges. And you'll have to do your own
finish work (painting, staining, or applying decals). I used the
VirtuaPin flat-pack kit for my own cabinet, and I highly recommend it.
They use a good furniture-grade plywood, and the design is a faithful
reproduction of the WPC cabinets that Williams shipped in the 1990s,
so the result is exactly like a brand new real machine.
The next step up in price and completeness is an assembled cabinet
shell. This is just the wood shell, typically unfinished (ready for
you to paint, stain, or apply decals), and without any of the cabinet
hardware accessories installed. This eliminates the assembly work
required for a flat pack. It's considerably more expensive to ship
because it's so bulky.
At the high end price-wise, you can buy a fully assembled cabinet with
all of the hardware and graphics pre-installed. VirtuaPin sells these
in addition to their flat-pack and assembled-but-unfinished products.
All of the VirtuaPin options use the same materials and design as
their flat pack, so they all yield excellent reproductions of the
1990s Williams machines. There are other vendors selling pre-built
cabinets as well, but check their designs carefully before buying,
because I've seen a couple of other vendors who use their own ad hoc
designs that look a bit cheap and cheesy to my eye.
Tip: Ask about the
button hole layout. If you order a kit or pre-built cabinet, ask
the seller for details on the locations of button holes they
pre-drill, and ask them to customize the drilling to your plans if you
have something else in mind. The vendor might drill holes by default
that you don't want. Pay particular attention to the placement of the
plunger and flipper button holes. Many virtual cab builders choose
non-standard locations for these to accommodate the playfield TV (see
"The dreaded plunger space conflict" in
Chapter 29, Playfield TV Mounting
and "Positioning the plunger" in
Chapter 37, Plunger).
If you're
not sure how you want to handle this at the time of your order, you
can simply ask the vendor not to drill any holes for the plunger or
other controls. That will give you the flexibility to drill them
yourself later when you know how everything will fit together.
Scratch build
A scratch build is the cheapest option if you already have most
of the tools required. The raw materials consist mostly of a couple
of sheets of plywood. If you don't already have the tools, it's probably
cheaper to buy a pre-built cabinet, but not by a huge margin
- you don't need a huge set of tools. A scratch build also lets
you build exactly what you want.
Lumber:
- 3/4" (nominal) plywood, two 4'x8' sheets, for almost all of the main cabinet and
backbox. Choose a quality hardwood plywood that's graded for furniture or
cabinetry use. Commercial pin cabs are typically birch.
The ¾" thickness is important, as many of the
trim parts and controls (like flipper buttons and plunger) are
designed to fit into ¾" walls.
MDO plywood is even nicer, if you can find it. MDO is a
hybrid product with a plywood core and an MDF veneer, so it has
the strength and lightness of plywood and the flat, grainless
surface finish of MDF. The MDF veneer saves hours of prep work
for painting and decals.
It's just barely possible to fit a standard-width cab into a single 4' x 8' sheet,
but it's much easier with two sheets. See Appendix 9, Plywood Cutting Plans for Cabinet Construction
for layout suggestions.
- 1/2" (nominal) plywood or particle board, one 4'x8' sheet, for the
cabinet floor and the back wall of the backbox. Most commercial
machines use particle board, to cut costs, since these pieces aren't cosmetic.
Plywood is a nice upgrade if your budget permits. It's stronger
and lighter.
- A length of 2x2 (nominal) board, for corner braces. A nominal 2x2
is actually 1.5" on a side. It usually comes in 8-foot lengths. You
need at least 5 feet, so one 8-foot board will leave you with some
spare material for test cuts and do-overs.
- A length of 1x2 (nominal) board, for a trim piece for the backbox.
You can also fashion this out of the same 2x2 as the leg braces, but
it's easier with a 1x2. This board needs to be at least 28" long.
"Nominal" lumber dimensions refer to what the lumber yard calls it,
not the true size. Plywood is generally 1/32" thinner than the
nominal thickness, and dimensional lumber, such as 1x2 or 2x2 strips,
is generally 1/4" to 1/2" less in each dimension than the nominal
size. So when the list above calls for 3/4" plywood, it means you
should buy what the lumber yard calls 3/4" plywood, even though the
true thickness will be slightly less than that.
Some cab builders use MDF (fiberboard) instead of plywood for the
whole build. I prefer plywood, but MDF works too. Each material has
some advantages over the other. MDF is cheaper, and it's nearly
perfectly uniform in thickness and composition. MDF sheets also tend
to be perfectly flat, whereas plywood often has some warping, even
fresh from the factory. The downsides of MDF are that it's heavier,
it's not as sturdy or as durable as plywood, it doesn't hold screws as
well, and it can sag over time.
Most commercial cabinets use a mix of plywood and particle board:
plywood for the cab and backbox walls, and particle board for the
cabinet floor and the back of the backbox. I'm normally in favor of
faithfully replicating the original details, but in this case I see no
benefit, since the particle board in the originals was purely for cost
reduction and not for any functional reason. It's a worthwhile
upgrade to use plywood for everything.
I personally prefer to use real pinball parts wherever possible,
instead of trying to improvise something out of common hardware parts.
It can be a bit more expensive to use the real parts, but they tend to
look better, and in many cases they're easier to work with because
they're purpose-built for a specialized job. An exception is that
many of the fasteners and generic nuts and bolts that you can buy
anywhere. But even some of the generic-sounding hardware can be hard
to find outside of pinball vendors. Anything that I listed with a
Williams part number in the master list (
Chapter 20, Cabinet Parts List) is
probably hard to find outside of pinball suppliers.
Choosing a cabinet design
As far as I'm concerned, there's only one cabinet design that we need
to concern ourselves with: the WPC cabinet. This is the cabinet that
Williams (and its co-brands Bally and Midway) used for nearly all of
their machines made during the 1990s, which were based on the
electronics platform known as WPC, for Williams Pinball Controller.
Thus the name "WPC cab". I don't know if Williams ever had an
official internal name for this series of cabinets, but probably
not; I don't think they thought of it like that. My guess is that they
treated each game's cabinet as unique, as suggested by the unique part
number assigned to each game's cab. So "WPC cabinet" is a made-up
term of convenience, not an official name - and it's also not quite
precise, in that the last dozen or so System 11 titles also used the
same design. The wood shop apparently didn't coordinate their
updates in lock-step with the electronics department. But even so,
"WPC cab" is a pretty good name for our purposes, and other pinball
people will probably know what you're talking about if you refer to
it.
One good reason to use the WPC cabinet design is that it's by far the
easiest to find parts for. Machines from this generation are still
widely deployed, and they share a lot of the same parts (Williams
quite intentionally re-used parts across titles to keep their own
costs down), so there's plenty of demand for most of the common
cabinet parts even today. If you design to the WPC specs, you'll be
able to take advantage of that, since your machine will be compatible
with the same readily-available parts. Using real pinball parts gives
your machine an authentic look, and it's a lot easier than engineering
and fabricating your own custom metal parts.
Another reason to use the WPC cabinet plan is that it still looks
up-to-date, because most newer commercial machines are still using the
same exterior design. Stern's latest machines still look almost
identical, as do the machines from the boutique pinball makers like
Jersey Jack and Spooky Pinball. This cabinet style is what you'll see
almost every time you encounter a recent pinball title in an arcade or
bar. A virtual cab following the same plan will look exactly like
what everyone expects a real pinball machine to look like.
For a DIY project, you're always free to come up with something
completely different, either to fit your particular needs or purely to
be unique. If you have other ideas for how your cabinet should look,
you can take as much or as little from the WPC design as suits you.
We provide detailed plans for the WPC design later in this
section. Before we get to the plans, though, there are some
variations that you might want to consider, so that you can customize
the plans for your project's specific goals.
Standard and Widebody cabinets
The WPC design is what we usually call the "standard" cabinet, because
Williams/Bally/Midway used this for most of the machines
they shipped in the 1990s. However, they also used a variation of the
plan with a slightly wider main cabinet, to accommodate a larger
playfield. This wider variation was used for seven titles in all:
The Twilight Zone (1993), Indiana Jones: The Pinball
Adventure (1993), Judge Dredd (1993), Star Trek: The
Next Generation (1993), Popeye Saves the Earth (1994),
Demolition Man (1994), and Red & Ted's Road Show
(1994). The official marketing name for these games was "Superpin",
but no one ever uses that term; everyone in the virtual pinball world
calls these the "widebody" machines.
The widebody design is identical to the standard WPC cabinet in almost
every detail, except that the main cabinet is 2¾ inches wider
than the standard body. All of the other dimensions are exactly the
same as in the standard body.
A lot of people assume that the widebody WPC cabinet design had a
corresponding "widebody backbox", but not so.
Williams used the same backbox dimensions for their standard
and widebody machines. In fact, my guess is that they chose the
widebody width they did precisely because it's as wide
as you can go without making the backbox wider.
That doesn't mean that you can't customize the backbox size if you're
using a widebody design, just that you don't necessarily have to. If
you're going wider than wide, though - if your main cabinet outer
width goes over about 25" - then you will have to widen the backbox,
assuming you plan to use the WPC-style hinges. The backbox has to be
at least 3.5" wider than the cabinet for the WPC-style hinges to
work.
Widebody machines require a wider lockbar and cover glass. Pinball
vendors sell widebody versions of both that fit the Superpin cabinet
dimensions, so you can still use off-the-shelf parts with this design.
The widebody lockbar fits the standard lockbar receiver (the hardware
piece that mounts in the cabinet to hold the lockbar in place), so you
don't need a special version of the receiver. All of the other
hardware is interchangeable with the standard body machines.
Note that my plans in this section peg the standard-body cabinet
exterior width at 21-7/8", which is what I read on the tape when I
carefully measure my own original Williams cabinets, whereas most
other Internet plans I've seen say it's 22". Maybe everyone else is
rounding up, or maybe my cabs have shrunk a little bit over the years
(they did all leave the factory more
than 30 years ago). It's a pretty trivial difference, but I thought
I'd mention it. The standard lockbar will fit in either case, but it
might be a little snug on a 22" wide cabinet.
Custom width
In addition to the WPC standard-body and Superpin widebody designs,
there's a third option: you can design a cabinet with a custom width
that doesn't match either of the Williams WPC-era designs.
The main reasons to build to a custom width are to get an exact fit for
your playfield TV, or to accommodate a TV that's even wider than what
will fit in a WPC widebody cabinet.
A custom width requires a custom lockbar and custom glass cover. As
long as you use the standard cabinet length, you can still use all of
the other off-the-shelf hardware.
To order a custom lockbar, contact
VirtuaPin. They're the only
current source I know of, so hopefully they'll keep selling them. Expect
to pay about double the price of the standard lockbar (which
I think is a pretty reasonable premium for a made-to-order metal
part that has to look nice).
The lockbar is mated with a second part known as the
"lockbar receiver". The receiver does not need to be
customized for different widths; the standard receiver will work with
any lockbar width, as long as your cabinet is wide enough to accommodate it
(a minimum of 19½ inches inside width) . Keep the minimum
size in mind if you're designing a mini-cab that's narrower
than the standard-body cabinets.
Pinball vendors don't sell custom glass, but you should be able to
order it from a local window glass dealer. Any glass shop should be
able to fabricate a custom glass sheet for you in almost any desired
size. Once you know the inside width of your cabinet, order a
tempered glass sheet in the required width, by 43" length, by 3/16"
thickness.
When calculating the required width of your glass, take into account
the overhang beyond the inside dimensions. The easy rule of thumb is
to make the glass ½" wider than the inside width
of your cabinet (that is, the distance between the insides of the side
walls). For example, the standard body cabinet has an inside wall-to-wall
width of 20½ inches, so the standard playfield glass is 21" wide.
One more tip about ordering custom glass: ask the vendor to omit any
marking that identifies the glass as tempered. Glass shops sometimes
include a certification marking on tempered glass, in case you're planning
to use it for something like a shower enclosure where tempered glass
is legally required by building codes. You don't need any such
marking for legal purposes in a virtual cab, so you'll probably prefer
to avoid the visual clutter.
How to choose a cabinet width
If it weren't for the constraint of fitting a TV, I'd recommend the
standard-body plan and leave it at that. Using the standard
dimensions produces a machine with exactly the right proportions to
look authentic, and it lets you use readily available off-the-shelf
parts for all of the hardware. It's the easiest, most cost-effective
approach, and it looks good.
But sadly, TV manufacturers don't always cooperate with our virtual
pinball plans. TV manufacturers only make TVs in certain sizes, so
we're stuck with whatever sizes are on offer. The TV you pick based
on price and performance might not be available in exactly the
right size for a standard cabinet.
What size TVs will the standard cabinet sizes accommodate? There's no
absolute rule here, since the nominal diagonal size of a TV doesn't
tell you the exact exterior dimensions - the only way to be sure is to
measure the TV. You might also be able to find the dimensions listed
in the specs on the manufacturer's Web site or on a retailer site.
Generally speaking, a standard-body cab will accommodate most TVs up
to 39" diagonal, and you might be able to squeeze in some 40" models;
and a widebody should handle most TVs up to 45".
When I built my own cab, I chose standard-body dimensions, mostly
because I wanted my virtual cab to blend in with my small collection
of real standard-body pinballs. At the time, 39" TVs were readily
available, so you could easily find a TV to fit the standard-body
dimensions. As of 2022, though, 39" TVs are rare. The most common TV size
that's in range for a pin cab today is probably 42", and that requires
a widebody cabinet. So if I were building a new cab right now, I'd
probably have to go with a widebody design. In any case, I'd try to
use one of the original WPC sizes - standard or widebody - rather than
building to a custom size tailored to the TV, so that I could
use off-the-shelf cabinet hardware.
Custom length
As long as we're on the subject of custom widths, we should consider
lengths as well.
As with a custom width, the main reason to build to a custom length is
make a TV fit exactly. As discussed in
Chapter 7, Selecting a Playfield TV, a
real pinball playfield is much more elongated than a 16:9 TV screen; a
typical 1990s era playfield is more like 20:9. So placing a 16:9 TV
in a standard-sized cabinet leaves a few inches of dead space at the
front and/or rear of the cabinet. Some cab builders don't like that
idea because they want to fill every square inch with TV display area.
One way to deal with the extra space is to remove it by shortening the
cabinet length to exactly fit the TV.
In my opinion, it's better to stick with the standard cabinet length
and accept that there will be some extra front-to-back space. The
main problem with a custom length is that you won't be able to find
side rails or glass guides; no one sells those in custom sizes as far
as I know, and they'd be difficult to fabricate yourself unless you
have some good metal-working tools. Besides, the extra space can
be put to good use for features that you might want anyway:
- If you're going to install a plunger, you might need 3-4" of extra
space between the front of the TV and the front of the cab to make
room for the plunger mechanism.
- Even if you don't need the space for a plunger, I still like setting
the TV back a few inches from the front for the sake of sight-lines,
so that you don't have to look straight down to see the flippers.
- Space at the front of the TV can be used for an "apron" similar to
that on a real machine, with printed instruction cards, or even small
monitors that display live instruction cards, scores, etc.
- Space at the back of the TV can be used for a flasher panel or
LED matrix.
Custom backbox sizes
As with the main cabinet dimensions, some virtual cab builders choose
to deviate from the standard backbox sizing to better fit a selected
TV.
Finding a backbox TV that fits the available space can be even more
vexing than finding a playfield TV. There are two big problems here.
The first is proportions: modern TVs all use the 16:9 aspect ratio,
but the translites in the WPC design are much squarer: approximately
13:9, closer to the old-fashioned NTSC 4:3 ratio. The second problem
is that there are very few models available that are even close to the
right size. The most popular current TV size that's close to what we
need is probably 32", but a 32" TV is too wide for a standard backbox.
The next size down tends to be 27" or 28". A 28" TV will leave about
an inch of dead space on each side, and a few inches above and below.
A 29" would be close to perfect, but that's never been a common size.
You can't control what sizes the TV manufacturers make available, so
you can either live with a little dead space around the perimeter, or
you can resize the backbox to fit the TV. I personally think the dead
space is the better compromise, in part because it lets you use
standard off-the-shelf pinball parts, but mostly because the backbox
shape will look "wrong" if you change it from the standard. This is a
case where I think a lot of cabinet builders tend to fixate on the
wrong thing during the planning stages, by focusing on the dead space
rather than the overall proportions. The thing that you might not
appreciate during the planning stage is that any dead space tends to
disappear into the background when you're actually playing. Your eye
sees what's there (the backglass graphics), not what's missing (the
dead space around the edges). The proportions of the overall outline,
on the other hand, are always noticeable.
If you do want to consider custom dimensions for the backbox, keep in
mind that some of the associated hardware parts are sized for the
standard dimensions, so you might not be able to use off-the-shelf
parts for everything. Here are the parts that will be affected
(see the illustration below if you're not familiar with all
of these):
- The glass or plexiglass cover for the TV. This isn't a required
part, but I recommend including it because it creates a more authentic
appearance. There's no downside to a custom size for this part,
because it doesn't come in an off-the-shelf version to begin with;
you'll have to custom-order it even if you're using the standard size.
You can have this made at any local window glass shop or plastics
store, and they'll be able to cut it to whatever size you need.
- Trim pieces for the glass/plexi cover. Real pinball machines use
black plastic trim around the edges of the translite. These are only
available in the standard sizes. You can fairly easily cut them to
smaller lengths if necessary, but there's no good way to make them
longer, so you'll have to live with some gaps if you use a wider
or taller than normal size.
- Speaker panel "H" channel and translite lift trim. These are plastic
trim pieces that go at the top of the speaker panel and bottom of the
translite, respectively, and they're sized to the standard width. If
you use a wider-than-normal width, you can use the standard pieces,
but there will be some gaps at the edges.
- Speaker panel. If you use a non-standard width, you'll need a
custom speaker panel, assuming you're using the three-monitor
configuration. No one sells those in custom sizes, so you'll have to
fabricate one yourself. The ready-made speaker panels are made from
plywood or particle board, so building your own only requires
woodworking tools. Be aware that it's a fairly advanced project
requiring precision work. You'll have to cut two large circular holes
the speakers and a large rectangular opening for DMD. I'd recommend
using a CNC machine (a computer-controlled cutting machine that cuts
according to a digital plan). There are online services for this,
such as SendCutSend.
If you live in or near a major city, you might also be able to find
a local CNC service, or a "maker" facility that lets you use their
equipment for an hourly fee.
Mini cabs
A popular variation on the basic cab design is to scale things down a
bit from the real machines. This can be especially attractive if you
don't have a lot of space, and might help gain acceptance from
skeptical spouses or housemates.
There's no "standard" mini-cab design, but you can find ideas from
other people's builds by searching the cab forums at sites like
vpforums. Many people who've built their
own cabs post build logs with details of their design.
If you want to design a mini-cab from scratch, you can start with the
basic WPC design, and just scale down all of the dimensions based on
the playfield monitor you choose. A 32" TV makes a good core to build
a mini-cab around; if you scale everything down proportionally, it
yields a cab that's about 3/4 of the full size. That's enough of a
reduction to fit more comfortably into a residential setting, but it's
still big enough to be free-standing.
A few people on the forum have shrunk things down even further, to
table-top or hand-held size, using a small computer monitor or tablet
as the playfield.
For a mini-cab in the 3/4 scale range, you should be able to build it
pretty much the same way that you'd build a full-size cabinet. You'll
have to make the same adjustments to cabinet hardware discussed above
under "custom width" and "custom length", but otherwise you should be
able to use standard materials (such as ¾" plywood for the
enclosure) and many of the standard hardware parts. One thing to keep
in mind is that interior space will be a bit tight for the
electronics, but you should be able to fit the necessary computer
parts and a basic set of feedback devices.
If you reduce the scale to table-top or hand-held dimensions, you'll
have to invent a lot more of the design on your own, since most of the
standard hardware will be too large. That's beyond the scope of this
guide, but you should be able to find one or two examples in the
forums or elsewhere on the Web if you're looking for inspiration.
Note also that all of the pinball software discussed in this guide is
for Windows PCs, so if you're considering something else (like a
tablet or Raspberry Pi) as the computer core, you'll also have to find
other software to use. There are some decent commercial pinball games
for tablets that could serve, but the commercial games don't tend to
have any integration with cabinet features, so it might be challenging
to make everything work the way you want it to.
WPC cabinet plans
We now present our WPC standard-body cabinet plans. These are based
primarily on measurements taken from actual WPC pinball machines, with
some additions and modifications to accommodate the peculiarities
of virtual pinball. I've tried to identify all of the
deviations from the real machines, for those with a special interest
in accurately re-creating the originals.
Other Internet plans
There are several other pinball cabinet plans available on the Web,
including other replica WPC designs. Some of the other WPC plans I've
seen have slight variations from mine, so you might want to compare
and contrast any others you find as a sanity check, and to see if
there's anything you prefer in the variations. I've taken a great
deal of care to check my plans against actual WPC machines, and I
believe the version presented here is the closest to the real thing
that I've seen, but of course that doesn't mean they're the ideal
plans for every build, just that they're close to what Williams
actually did build. You might have good reasons to deviate from that.
Most of the details can be changed in small ways without much
affecting the usability of the finished machine. (One detail that you
probably shouldn't tinker with is the placement of the
flipper buttons, since that's such a crucial part of the feel,
and it's highly consistent on the real machines.)
One set of plans I'll call out in particular is Jonas Kello's Sketchup
model, available on
github:
>
The nice thing about his 3D model is that you can look at it from all
angles, which might be helpful whenever my illustrations leave
something unclear about the spatial relationships between components.
Jonas's model appears to have been prepared with excellent attention
to detail. One warning, however: he explains that he took his
measurements from a widebody WPC machine (Star Trek: The Next
Generation) and adjusted them to infer the standard-body
dimensions. This creates an opportunity for errors and
inconsistencies to creep in, and I have in fact found a couple of
errors in his model that are likely due to this. My measurements were
taken directly from standard-body machines (Theatre of Magic
and Medieval Madness), so even though my figures undoubtedly
have inaccuracies of their own, they're at least free of that
particular source of error. In addition, even where our measurements
essentially agree, there are a number of slight differences, on the
order of 1/16" to 1/8", which I attribute to some combination of
measurement error and actual variations in the machines we sampled.
Another set of plans worth mentioning can be found in this Pinside
thread by Swinks, which has measurements from original WPC
standard-body machines (per the thread, mostly taken from Creature from the Black Lagoon,
with some corroboration against Bram Stoker's Dracula and Stern's
Iron Man):
>
Finally, Greg Butcher, a/k/a mameman, drew up a set of WPC widebody
plans many years ago that's often referenced in the virtual
cab forums. They have some inaccuracies in the details of the
construction, but they're still a useful reference. Jonas Kello
captured them in his github repository:
>
Joinery
In wood-working, joinery is the art of forming joints where pieces of
wood meet. There's a lot more to this than just nailing boards
together; joins can involve angled edges to hide seams, and
interlocking tabs and slots to add strength. Joinery is a huge
subject that goes well beyond my expertise, so I won't try to offer a
primer here. However, I do want to provide a quick overview of how
the corner joints are built in the real pinball machines, because
you might want to adapt these - either to something simpler or
to something better.
Apart from the corner joins, most of the joins we use in the plans are
straightforward enough that you probably won't need to change them.
Most of the joins (save the corners) are simple dado or rabbet joins
that you can execute with straight router bits or a table saw.
The only place in a pin cab where fancy joins are called for is at the
corners of the main cabinet. The front corners in particular are
prominently visible, so you'll want them to look nice, and they need
to be fairly strong, given how heavy a pin cab is. There are several
good ways to do these joins, and even the commercial manufacturers
haven't settled on a single best way - they've used a number of
approaches over the years. I'll go over the details for several good
options below.
Locking miter: This is the corner join used on the WPC cabinets of
the 1990s. It's called a "locking miter" because the outside edges meet
at a 45° angle (that's the "miter"), and it has a sort of
jigsaw-puzzle pattern of interlocking tabs and slots that align
the pieces and hold them together (the "lock").
Locking miter join, shown at the front left corner of the main cabinet.
This is the type of join that Williams
used for the original WPC cabinets from the 1990s.
This is a really nice way to make your corners. The mitered corner
makes the seam invisible, and the join is very strong when glued
thanks to all of the surface area in the interlocking tabs. You
can see from the diagram that that shape is a little complicated
to cut, but it's surprisingly approachable, even if you don't
have a lot of woodworking experience. For a complete recipe,
using a table saw and router table, see
Appendix 12, Lock Miter I: The Plywood-Friendly Way.
There's also an alternative approach that uses a special-purpose
router bit, explained in
Appendix 13, Lock Miter II: The Special Router Bit Way. The first
approach works a lot better with plywood, so I think
it's the right one for a pin cab project.
Locking rabbet: This is essentially a simplified version
of the locking miter join that dispenses with the 45° bevel
at the corner.
This join was used on many commercial machines of the 1980s, including
many Williams System 11 machines. It has the same self-aligning and
self-squaring advantages as the locking miter join. It's a step down
aesthetically, since there's a seam along one side, but that
can be minimized by making the front tab fairly thin. The trade-off
is that a thinner tab is more delicate prior to assembly, so you have
to be careful handling the piece. This join is quite a lot easier to
execute than the locking miter; it only requires three cuts at each
corner.
I haven't written a recipe for this join, but it's easy to find Web
tutorials, since it's used a lot in mainstream cabinetry,
especially for drawers. Search for "locking rabbet join" or "locking
drawer join".
Mitered rabbet: This is join has a mitered corner like the
lock miter, but it dispenses with the interlocking tabs, and uses
a simpler "rabbet" pattern instead.
Mitered rabbet join, at the corner between the front wall and
left wall of the cabinet.
Top view of the front section, with a mitered rabbet at each
corner.
The mitered rabbet has the same aesthetic advantage as the lock miter,
in that it places the seam exactly at the corner. It's also fairly
strong when glued.
You can make a mitered rabbet using either a special router bit set or
just a table saw. I haven't attempted either myself, so I won't try
to provide instructions, but you can find tutorials on the Web.
Search for "mitered rabbet with table saw" or "mitered rabbet router
bit". The difficulty level seems similar to
that of the lock miter, but it doesn't require as many separate
steps, so it's at least a little less labor-intensive.
Double rabbet: This is a simpler option that you can make with
a table saw or a straight router bit. The double rabbet join
dispenses with the diagonal cut out to the corner, and instead uses
square interlocking notches. It's easier to construct, but it has a
couple of drawbacks. For one, it leaves a visible seam along one of
the joined faces. For another, it makes it a little trickier to
translate the cabinet measurements to the wood pieces, because of the
way one piece slightly extends the apparent length of the adjoining
piece.
Double rabbet join, similar to the join used in Williams System 11 cabinets.
This is a simpler alternative to the lock miter join used in
the WPC cabinets, but it has the drawback that it leaves a
seam along one face near the corner.
If you decide to use the double rabbet join, there are a couple of
things you can do to minimize the visibility of the seam. First,
choose the placement of the seam so that it's on the less visible
face. The seam only affects one or the other adjoining face at each
corner, so you have a choice of which wall will have the seam. The
Williams System 11 cabinets placed the seams on the sides (rather than
the front face), which seems like the better choice aesthetically,
since the front is more visible. Second, cut the front piece a tiny
bit wider (1/16", perhaps) than the final size, so that it leaves a
little overhang when initially assembled, as illustrated below.
After assembly, the overhang lets you sand down the excess material
until it's exactly flush with the adjoining section. It's almost
impossible to get the surfaces perfectly flush in the initial cut, so
your best bet is to start with a slight overhang that you can sand
until flush. You can then add wood filler at the seam to further
smooth it out.
Simple 45° miter: Some pin cab builders simply cut the ends of
the main cabinet walls at a 45° bevel angle, for plain miter
joins:
Woodworkers generally consider this an inferior join for large
cabinets, since glue is weak when joining end-grain to end-grain like
this, and because it's difficult to get the pieces aligned and squared
properly given the lack of any interlocking structure. Even so, it
might be viable for a pin cab if you're using the new-style Williams
leg brackets (part 01-11400-1), since they add a lot of corner
strength. I wouldn't personally use this join, but it's an option if
you want to simplify the woodworking.
Adjusting dimensions for joinery
Pay close attention to the effects of your chosen corner joins on the
overall dimensions.
The dimensions shown in our plans assume that you're using a mitered
join of some kind for the main cabinet corners. Our illustrations
show those corners with a mitered rabbet, so you'll see that join in
the close-ups. Any miter join, including the locking miters and the
simple 45° miter, is equivalent in terms of all of the
measurements, so there's no need to make any adjustments for those.
With the mitered joins, note how each individual piece's dimensions
exactly match the assembled cabinet's outside dimensions for
that section:
In contrast, with the rabbet join, note how the "inside" piece (the
one forming the face with the seam) is slightly shorter than the
assembled cabinet's outside dimensions. This will be shorter at each
corner by the depth of the rabbet groove, which is typically half the
plywood thickness, so assuming there's a join like this at each end,
the overall piece will need to be cut shorter than the desired final
outside dimensions by 2 × ½ × the plywood thickness =
1 × the plywood thickness:
Likewise, for a butt join, the inside piece will need to be shortened
by 2 × the plywood thickness, compared to the finished outside
dimensions:
Our measurements for the main cabinet are based on using mitered joins
at the visible corners, so be sure to adjust the dimensions before
cutting if you're using a different join.
Edge finishes
On the original WPC cabinets, the outside bottom edges of the side and
front walls are finished with a chamfer (a 45° bevel), about
⅛" wide. I don't think they did that for looks, but rather to
soften the plywood edge, to make it less sharp and splintery. On my
cab, I kept it simpler and just sanded the edges smooth. If you do
decide to apply a chamfer with a router bit, it might be a good idea
to test the bit on a piece of scrap plywood first - I've read that
some plywood will chip if you try to bevel the edge like this, and
that would defeat the whole purpose of smoothing it.
On the WPC machines, the front vertical edges (at the corners between
the front wall and the left and right walls) are square, without any
rounding or beveling. Some of the newer Stern machines round those
edges out slightly - it looks like they route the edge with a 1/8"
roundover bit. I just lightly sanded the corners on my cab until they
felt smooth.
Exploded view
This view shows all of the pieces making up the
main cabinet body.
The triangular wood pieces at the corners go under the metal brackets
the leg bolts screw into. They provide reinforcement at the corners
(to prevent the corners from splitting) and help strengthen the leg
attachment. The leg bolts (two per corner) go through these at a
45° angle.
The two pieces at the top rear form a "shelf" that the backbox rests
on. The rectangular routed opening in the horizontal piece is to pass
power and video cables between the cabinet and backbox. The opening
shown is what's used on the real machines, and it works well for a
virtual cab as long as you only need to pass cables through. You
might need a larger opening, though, if you plan to use a large
monitor in your backbox that needs to extend into the main cabinet.
This isn't an issue for a typical three-monitor setup with a laptop
display for the DMD (or a real DMD device).
The smallish slat near the bottom front attaches to the floor on the
real machines to form a niche to hold the cashbox. (The cashbox
sits under the coin slots to collect the inserted coins.) Most
virtual builds omit this piece to leave more room for the PC
motherboard, which most people situate on the floor of the cab about
halfway back.
Cutting up the plywood
Side walls
Here are the side walls. The views are from the interior of the
cabinet, to show details on the joinery routing.
(The flipper button holes and leg bolt holes are marked, but for the
sake of readability, the dimensions aren't shown here. We'll provide
close-up diagrams for these elements, with all of the measurement
details, later in the section.)
Left side wall, viewed from the cabinet interior side
Right side wall, viewed from the cabinet interior. The
right wall is a simple mirror image of the left wall.
Remember that we're measuring the dimensions of the pieces based on a
mitered join (either a mitered rabbet or lock miter) at the front and
rear corners, meaning that the piece's dimensions match the outside
dimensions of the assembled cabinet. If you're using a different join
at the corners, be sure to make any necessary adjustments. See
Joinery above.
Some more views to help with visualization:
Backbox hinge pivot:
The backbox pivot is a ½"-diameter drilled hole for attaching
the WPC-style backbox hinge. If you're using a different hinge system
to attach the backbox, omit this.
Note: Some people prefer to wait to drill for the hinge pivots until
after assembling the cabinet and attaching the hinges to the backbox,
so that they can drill the pivots based on the actual assembled
alignment of the backbox. The procedure I've always used is basically
the opposite: drill the hinge pivot first, attach the hinges there,
and then drill the backbox bolts for the hinges based on the final
alignment. I haven't tried it the other way, so I'm not sure if that
would be easier or harder overall, but the basic idea is the same
either way. Use your discretion as to which approach sounds better.
Floor dado:
The dado at the bottom is for the cabinet floor. Use a ½"
straight router bit to cut a groove ⅜" deep (halfway into the
thickness of the plywood), parallel to the bottom edge of the wall,
¼" from the bottom edge. This is on the inside face of
the wall; the edge of the cabinet floor fits into this groove when
assembled.
Left cabinet wall showing the dado (groove) for joining with
the cabinet floor. Route the dado with a ½" straight bit
to ⅜" depth, ¼" (or ⅜", if you prefer) from the bottom edge. This groove
runs the whole length of the side wall. This is on the interior
face, since it joins with the cabinet floor. The diagonal/step
shape along the vertical edge at the left is the mitered rabbet cut
for joining to the front wall, illustrated in more detail above.
Note: Some other people's WPC-replica plans show the floor dado at
3/8" from the bottom, rather 1/4" as depicted above. My original WPC
cabinets measure 1/4", but I measured one older System 11 machine at
3/8". The larger 3/8" offset will make the joint a little stronger,
and shouldn't much affect anything else, so I don't see any downside;
use your discretion. Whatever you decide, be sure to route the
corresponding dados in the front and back walls at the same offset,
since they all have to align when assembled.
Cashbox fence slot:
The slot for the
cashbox fence is only
needed if you plan on installing said fence, which is useful if you're
going to use the standard type of coin collector box ("cashbox") made
for commercial pinball machines. The cashbox sits at the front of the
cabinet under the coin slots, and the fence helps hold it in place.
Most virtual cab builders don't use the standard cashbox because it
takes up so much space. I'd omit the fence if you're not going to
use the standard cashbox.
The routed slot isn't strictly necessary even if you do include the
fence, but it makes it easier to install the fence during cabinet
assembly by providing an anchor point to glue it to.
The slot only goes in the right wall. You can move it to the left
wall if that's more convenient - it really doesn't matter which side
it's on. But you only need a slot on one side or the other.
If you're going to use a custom cashbox that's not the standard size,
you should move the fence (and thus the fence slot) to match the
depth of the box.
Edge finishes
The original WPC cabinets use a slight chamfer (a 45° bevel) on
the outside bottom edges of the side walls, to soften the edge and
reduce splintering. This is optional, but it will reduce the chances
of snagged clothes and cuts from bumping into the side.
See
Edge finishes above.
Leg bolts
The leg bolt holes are a little tricky. The bolts go through the
corners at a 45° angle, so they bore through both adjoining walls
at each corner. So, as shown in the illustration, the left and right
walls only have "half a hole" for each bolt - really more of a
semicircular notch.
Leg bolt holes, front (above left) and rear (above right).
The distances are shown from the bottom of the cabinet. Note
that the front legs are mounted higher on the wall than the
rear legs. The legs themselves are the identical parts front
and back, so the different mounting position is used to give
the cabinet its characteristic tilt angle. The bolts
are 3/8" diameter.
Cutaway view (with the front wall removed) showing the leg
bolts installed, to better illustrate how the bolt holes
intersect the side wall. The triangular wood piece that
normally fills the gap between the metal plate and the
inside wall is also hidden.
Illustration of how the leg install positions affect the
cabinet slope.
The legs are mounted higher on the cab in the front,
which effectively raises up the back end slightly to slope
the machine down toward the front. Standard
pinball legs come with adjustable foot pads that you can use to
make sure all four legs touch down and to fine-tune the
playfield slope. The slope isn't needed for "physics"
reasons on a virtual machine, but it's still desirable
for an authentic appearance, and it also improves the
viewing angle for the main TV.
There are two approaches to drilling the holes:
Preparing to drill for a leg bolt at the front right corner,
using a general-purpose drill guide block. This drill block features a notch
specifically for drilling into a corner at a 45° angle.
I'm using a band clamp wrapped around the whole cabinet to
hold the drill block in place. You have to clamp the drill
block down pretty tightly, and even then you have to be careful
to use a steady hand - those 45° notches are small, and
the drill gives you a lot of leverage.
Personally, I find the "before" approach too difficult to do by
hand, because of the 45° angle and because you have to get the
notches on the adjoining edges align perfectly. This is
probably only workable if you're making the panels with a CNC machine.
I'd go with the drill-after-assembly approach otherwise.
With either method, the holes should end up being a tight fit for the
bolts. That's good, since you don't want the legs to be wobbly on a
250-pound cabinet. But if they're too tight, try rubbing a little
paraffin wax or a similar dry lubricant on the bolts. (I wouldn't use
anything oily or greasy.) If that still doesn't work, you can use
a small round file to expand the holes slightly - but as little as
possible, to avoid weakening the corner.
Flipper buttons
Here's the drilling plan for a set of two flipper button holes on each
side. The front button in each set is the regular flipper button, and
the rear button is the "MagnaSave" button, which is for the benefit of
some pinball games that have extra controls beyond the regular flipper
buttons. The rear buttons are optional, and not everyone likes them
since they're not all that common on real machines, but I think it's
good to include them because of the large number of virtual tables
that make use of them. See
Appendix 4, Tables with MagnaSave Buttons for more
about these buttons, and a list of some of the tables that use them.
Note! Some side rails are wide enough to cover the flipper
buttons, in which case they'll come with pre-drilled holes for
the buttons. The WPC rails are narrow enough that they sit
entirely above the flipper buttons, so they don't need any
holes for the buttons. If you're using wide rails that do
cover the flipper button area, ignore our drilling locations!
Your cabinet flipper button holes need to line up with the ones in the rails.
So use the button holes in your rails to determine where to drill.
>
Flipper button drill hole detail for WPC-type side rails.
Measurements are in inches; distances are to the center points
of the holes. (Don't use these locations if you're using older
side rails that cover the flipper buttons. Instead, use the
pre-drilled flipper button holes in your rails as drilling templates,
so that the cabinet holes line up with the holes in the rails.)
The distances in the diagram are measured are from the center of the
drill holes to the front and top edges of the wall, square with the
front edge. The measurements are referenced to the outside
face of the fully assembled cabinet. If you're measuring prior to
assembly, make any adjustments needed to account for offsets from your
front corner joins. Mitered joins shouldn't require any adjustments,
since the outside edges of all faces go all the way to the corners.
Don't rely on the locations in the diagram if you're using wide side
rails that extend over the flipper buttons. Those come with
pre-drilled holes for the flipper button, so you'll need the cabinet
wall drill locations to match the pre-drilled rail holes. Do a dry
fit with the rails to determine the drilling location.
How to drill:
- The easy way: drill straight through with a 1⅛" diameter hole
saw or Forstner bit. This works only if you're using something to
anchor the button on the inside, such as the VirtuaPin flipper switch
bracket or an LED board (see Chapter 55, Button Lamps) to illuminate the button.
- The original way (used on most of the real machines): This
pattern has a narrow waist for the stem of the button, and larger
insets on the outside and inside for the body of the button and
the Pal nut, respectively.
- Drill a small pilot hole (1/8") on the center, all the way through
- Use a 1⅛" hole saw, Forstner bit, or router bit to drill a
5/16"-deep depression from the outside, on the same center
- Use the same 1⅛" bit to drill a 3/16"-deep depression from the inside
- Drill the rest of the way through with a ⅝" bit, on
the same center
Schematic diagram of the "original" flipper button drilling
pattern. This is an edge-on view of the side wall.
The original "stepped" pattern lets you fasten the button with a Pal
nut, without any additional brackets on the inside. Use this pattern
if you don't plan to use an LED board or switch holder bracket. The
straight-through approach is better if you're planning to use an LED
board to illuminate the button, since it provides a tunnel for the
light to shine through. But you need some sort of bracket on the
inside in this case, because the Pal nut fits through the larger
1⅛" hole. An LED board can serve as the bracket, as will a
VirtuaPin flipper switch holder. If you're not planning to use one of
those, the original stepped pattern is better.
Variations:
- The rear (MagnaSave) buttons are optional. If you don't want to
include them, simply don't drill the holes. The regular flipper buttons
go at the same position whether or not you include the MagnaSave
buttons.
- There are at least two other good ways to position the MagnaSave
buttons. Some people place them directly below the flipper buttons,
and some people prefer them diagonally behind and below the flipper
buttons. Both of those patterns have precedents in real pinball
machines that had the extra buttons (see
Appendix 4, Tables with MagnaSave Buttons). The layout in my diagrams is based on
the Williams MagnaSave games from the 1980s, so it's probably the most
familiar look to most players, but not everyone likes the feel, due to
the stretch to reach the rear buttons. The more vertical layouts are
arguably easier to reach, and make it it easier to keep a finger on
each button.
- Williams System 11 games (1980s) placed the flipper buttons about
1/4" higher than shown in my diagrams, which are based on the WPC
games (1990s). System 11 games used broader side rails that
covered the flipper buttons, so I think the slightly different
positioning is purely to accommodate the different rails. I don't
think it noticeably affects the feel.
Glass channel slots
If you're going to install the standard side rails and a glass cover
over the playfield, you should also install a set of "glass channels".
These are plastic "U"-shaped trim pieces that fit under the side
rails, along the left and right edges. These hold the glass at the
sides.
Because the glass channels are "U" slots along the length of the
machine, you can slide the glass in and out of the channels through
the front of the machine, after removing the lockbar. This is part of
the tried-and-true design of the real machines that lets an operator
easily open up the machine for maintenance access, and I think it's
a great thing to replicate in a virtual cab.
The glass channels are installed under the side rail. Here's a
close-up of how they look when installed:
The channels attach to the side wall via a "spine" sticking out of the
bottom of the plastic channel. The spine which fits into a slot in the
top edge of the side wall.
This is a neat design, in that you don't need any fasteners or
adhesives. You just press the spine into the slot, and it's held
there by friction. If it's ever necessary to take the channel out,
you can just pull it out. On the other hand, it presents us with
another little wood-working challenge: how do we cut that precise
little slot?
As usual, it turns out that there's a special tool for this job, and
it's really easy once you have that magic tool. What you need in this
case is a special-purpose router bit called (naturally) a slot cutter.
Just as a drill bit is designed to drill a hole of a specific
diameter, each slot cutter bit is designed to make a slot of a
specific width and depth. For this job, you need a bit with a 3/32"
slot width and 3/8" slot depth. (A deeper slot, like 1/2" or 5/8",
will also work if you can't find a bit for that exact depth. But the
width is important - it should be exactly 3/32".) The bit I use
for this is Freude part #63-106, which works perfectly.
Once you have the necessary slot cutter bit, cut a slot along the top
edge of the sloped portion of each side wall, centered along the edge,
starting about 1½" from the front and ending at the top of the
sloped section. The photos below give an overview of how you set up
the bit and cut the slot.
Slot-cutter bit, 3/32" slot width, 3/8" depth (the photo shows a
Freude #63-106, but other brands are available with the same specs)
The slot-cutter bit set up in a hand router. This bit works best
with a fixed-base router. A plunge router will also work -
you just have to lock the depth. You can also do this
with a router table, using your router table's setup for a bit
with a pilot point. I'm using a hand router for these illustrations,
since I've found that to be an easy way to use this bit,
but the process is essentially the same with a table.
Measure the thickness of the plywood, and mark the centerpoint.
To make sure you found the exact center, flip the board over
and measure the same distance from the other side. Adjust your
measurement and repeat until the center mark is accurate.
Now clamp the board to a horizontal surface. Make sure the
router is unplugged! Place the router base flat on top of the board,
with the bit against the edge. Using the router's cut depth
adjustment (see your router's instructions), adjust the bit
depth so that the slot cutter blade lines up with the center
line you marked in the previous step. Lock the router at this
depth - this sets the bit to cut the slot at the center of
the board's edge.
You're all set to cut the slot. Plug the router in. Make sure
the board is securely clamped to a horizontal surface. Place
the router flat against the board with the bit hanging over
the edge right next to the starting point for slot. For safety,
always make sure that the bit isn't touching the work piece
(or anything else!) when you switch the router on - so
position it so that the bit is just clear of the work piece,
at the point you want to start the cut, with the base flat
against the board. Keep the router base flat against the
board at all times throughout this procedure, and hold
the router in both hands to keep it steady. When the router is up to speed, gently
slide it sideways into the edge of the board to start cutting
the slot. The bit's pilot point will automatically stop
the bit at the correct slot depth, so just keep sliding
it into the edge until it hits the pilot point. Now slowly
move the router along the edge of the board, parallel to
the edge, keeping the pilot point pressed against the edge,
until you reach the end of the span where you want the slot
to be. Finally, withdraw the bit from the slot, by sliding
the router sideways away from the edge of the board just far enough
for the bit to move clear of the slot, then turn off the router.
Front wall
The front wall is the most complex section of the cabinet. It has a
whole bunch of things attached: the coin door, several pushbuttons,
the plunger, the lockbar, and the leg bolts. There are so many things
vying for a limited amount of space that the positioning of each part
is pretty constrained; everything fits together like a 3D puzzle.
I initially tried to cram all of the measurements for all of the
cutouts into a single diagram, but I quickly abandoned that idea,
since it was way too busy. So instead, I've broken it out into
several diagrams, one for each set of cutouts. We'll start with the
basic outline and its overall dimensions, with the purpose of each
cutout labeled.
Main cabinet front panel, viewed from the front (exterior side).
Remember that we're measuring the dimensions based on a mitered
rabbet join at the corners, and that you might need to adjust the
dimensions slightly if you're using a different join style.
See
Joinery above.
More views for visualization:
The overall width is based on the standard-body design. If you're
building a widebody or custom-width cabinet, adjust the width of this
piece accordingly. Keep the coin door cutout centered horizontally at
the new width, and keep the buttons and plunger at the same distance
from their respective side walls.
The dado at the bottom is for joining with the floor of the cabinet.
This is exactly the same as the ones in the side walls: route a
½" wide groove to a depth of ⅜" (half the thickness of
the plywood) along the whole bottom edge, on the interior side,
¼" from the bottom. As mentioned earlier, some other published
WPC plans offset this dado from the bottom by 3/8" instead of 1/4";
use the same offset that you used for the side walls.
The leg bolts go through the corners of the front face at a 45°
angle, just like the way they work with the side walls. Route notches
for the bolts exactly as we described earlier for the side walls. Use
the same positioning (measured from the bottom edge) as for the front
legs on the side pieces. The front notches in the side walls need to
align with the notches in the front wall when the cabinet is
assembled.
The top edge of the front wall should be cut at a 10° bevel angle,
to match the slope of the side walls. This corresponds to a rise of
about ⅛ over the thickness of the plywood. In other words, the
height at the back face (the side facing the interior of the cabinet)
should be about ⅛ taller than the height at the front face (the
exterior side), as illustrated below.
Side view of front panel (viewed from right) showing the slight
angle at the top, to match the slope of the side walls.
The angled top edge will result in the best fit, but you can just cut
it square if your saw can't handle beveled cuts. If you cut it
square, cut the piece according to the shorter exterior height.
Using a square cut means that the back top edge won't quite align with
the top edges of the side walls. But this whole area is covered by
the lockbar when the machine is assembled, so it'll only be visible
when you remove the lockbar to access the interior. The gap won't
affect alignments for any of the trim hardware, so it won't have any
functional impact.
If you do use the sloping top edge, note that all of the measurements
shown in our diagrams and plans are based on the front face -
the shorter exterior side. Things will be off by ⅛" if you
measure with reference to the top edge of the back side, since it's
slightly taller. So be sure to do all of your measuring and drilling
from the front side.
Edge finishes
The original WPC cabinets use a slight chamfer (a 45° bevel) on
the outside bottom edge of the front wall, to soften the edge and
reduce splintering. This is optional, but it's a little nicer than a
sharp square plywood edge. See
Edge
finishes above.
Coin door cutout
The rectangular cutout in the center of the front wall is for a
standard pinball coin door. All pinball manufacturers have been using
the same coin door dimensions since the 1980s, so just about any coin
door made for any modern pinball brand should fit the same cutout.
Suzo Happ makes a universal replacement door that fits this template,
and you can also still buy the original Entropy coin doors that
Wiliams used in their 1980s machines. I'm not as certain that
pre-1980s doors are as standardized, so if you have an older coin
door, you should measure it before using the diagram below, to make
sure it fits.
Coin door cutout and bolt locations, viewed from the interior
face of the front panel. Important: the measurements referenced to
the top edge will be slightly different (about 1/8" less) when
measured on the exterior face, because of the angled cut on the
top edge. The interior face is about 1/8" taller than the exterior
face because of the slant.
The cutout in the diagram above is fairly generous. It leaves about
1/8" of play on all sides for an easy fit, so it should easily
accommodate manufacturing variations in the coin doors. By the same
token, when cutting it out, err on the side of cutting inside the lines.
The actual cutout doesn't need to be even a hair
bigger than depicted.
The four 9/32"-diameter drill holes around the perimeter of the coin
door cutout are for the carriage bolts that fasten the door to the
plywood. Use ¼"-20 x 1½" carriage bolts for these.
Mate them to ¼"-20 hex nuts, which go on the inside. The
carriage bolts are available in black, which is what the WPC machines
use to match the powder black finish of the WPC-style doors. The
bolts are also available in stainless steel, chrome-plated steel, and
silicon bronze, one of which might look nicer if you have a door with
a metallic finish.
Note! The spacing between the coin door cutout and the four bolt holes
around the perimeter is tight (only about 3/16"). Measure and
drill carefully.
The coin door is usually centered left-to-right. If you're using a
custom width, simply figure the position so that it's centered
horizontally. Don't try to center it vertically, though. The
vertical position has to align with your lockbar receiver, because the
coin door's top center bolt hole has to align with the receiver's
center bolt hole, as illustrated below.
If you're using the standard WPC-era parts (a 1990s coin door and a
Williams WPC lockbar receiver), the vertical position shown in our
diagrams should align the receiver properly. If you're using
different parts, they might have a different design, so you might need
to adjust the vertical position to match. See the "dry fit" procedure
in the lockbar receiver section below for advice on how to figure the
right position for different parts.
If you're not using a coin door at all, you should obviously omit the
rectangular cutout, as well as the drill holes around the perimeter.
Note that the top center hole is shared by the coin door and lockbar
receiver, though, so if you're using a standard lockbar receiver,
you'll still need to drill that hole even though you don't need it for
the coin door.
Lockbar receiver
The three small drill holes shown at the top of the front wall plan
are for the carriage bolts that fasten the lockbar receiver to the
front wall. (If you're not sure what the receiver is or what it's for,
we'll explain more about it shortly.)
As with the coin door, use the center point of the front wall (left to
right) as the horizontal reference point for the center hole.
The receiver has to be positioned vertically so that the lockbar will
fit properly when inserted into the receiver. The vertical position
of the bolt holes in our plans is specifically for a Williams WPC
lockbar receiver, to place it at the right height so that the lockbar
will fit properly.
Fine-tuning: I've found in my builds that the bolt positions
above, which come from measuring original Williams equipment, can make
the lockbar fit a little tighter than I like - not so much that it
doesn't fit, just enough to make the fit feel a little clunky. Moving
the bolt drill positions upwards by 1/32" to 1/16" might actually work a
little better. If you do this, it would be a good idea to also move
all of the coin door positions (cutout and bolts) by the same amount,
since the coin door has to align with the lockbar center bolt. If you
want to evaluate for yourself whether this would be a good idea or
not, try the "dry fit" procedure described below - that's intended to
help you re-figure the drill positions if you're using non-standard
equipment, but it works equally well with the standard parts. I'd
start by marking the standard positions above on your front wall
panel, then do a dry fit and check the receiver's bolt holes against
the markings. If they look a little off vertically, adjust
accordingly. For the standard Williams receiver, the ideal vertical
position is where the two little tabs sticking up at the front of the
receiver line up exactly with the top edge of the front cabinet wall.
(On my original Williams equipment, I see variations in this fit from
the tabs being perfectly flush with the top of the wall, to being
about 1/16" below.)
If you're using a WPC receiver, but other side rails or glass guides: The measurements
here assume that you're using the WPC lockbar receiver and the
WPC-style side rails and plastic glass guides. The thickness of the
rails and guides is important to the overall positioning. If
any of this is different in your setup, you might have to
adjust the bolt positions vertically, since the lockbar might sit at a
slightly different height than with the full set of standard parts.
It's difficult to figure the right position on paper, because the
parts have to fit together in a sort of 3D puzzle, and they fit
tightly enough that there's not much room for error. I think it's
easier and more reliable to do a "dry fit" with all of the parts
together and take measurements from that. See the procedure below.
If you have to adjust the vertical position of the bolt holes, you
should adjust the coin door position to match. The coin door has to
line up with the lockbar's center bolt, so if you move the lockbar
bolts up or down, the coin door has to be moved up or down by the same
amount.
If you're not using a WPC receiver: There are several other
options for a lockbar receiver besides the WPC part. If you're using
something different, it'll probably have a whole different drilling
pattern for its fasteners. It might not even use the same bolts.
The best way to figure the right drilling positions (if needed at
all) is to gather your equipment and do a "dry fit" as described
below.
Note that the center hole is still needed for the coin door, if you're
using one, regardless of whether your lockbar uses it.
Dry fit: Here's a procedure you can use to fit your lockbar
and other related parts together prior to drilling any holes, to measure
or fine-tune the positioning:
- Set up the front and side walls in their assembled positions.
- Set up the side rails with the glass guides, if they'll be part of
the final setup.
- Plug the lockbar into the receiver.
- Position the lockbar at the top front where it'll be during
normal use. You want the lockbar to sit snugly on top of the
side rails when everything is put together, so at this stage it's
a good simulation to simply set the lockbar on top of the rails.
- Now hold the receiver's front surface flush against the inside front
wall. Make sure the lockbar is still where you want it.
- Mark the positions on the inside of the front wall corresponding to
the positions of the three bolt holes in the receiver. (The bolt
holes in the receiver are actually little slots, to give you a little
wiggle room to make up for measuring errors, so mark the position
at the center of each slot.)
You can now take it all back apart, and drill at the marked
positions instead of the ones in the plans.
How the lockbar works
In case you're not already familiar with how all of the pinball trim
pieces work, here's a brief overview.
The "lockbar" (also known as the "lockdown bar") is the metal trim
piece along the top front edge of the machine. It's so named because
it serves to lock the top glass cover in place. It also functions as
a trim piece, for the sake of appearance as well as to provide a
comfortable place to rest your hands while operating the flipper
buttons. Standard lockbars have nice smoothly rounded corners. Try
playing a round on a machine with the lockbar removed if you want
experience for yourself how unpleasant the plywood edges are as a
hand-rest.
If you're using standard pinball parts, the lockbar mates with a part
inside the cabinet called the "receiver". A couple of prongs that
stick down out of the lockbar fit into receptacles in the receiver,
where there are some spring-loaded latches that grab the prongs and
secure the lockbar. A lever on the receiver, which you can reach
through the coin door opening, lets you release the latches and free
the lockbar. With the lockbar off, you can slide out the glass to
access the interior. It's all cleverly designed to let an operator
open up the machine quickly and without any tools, while keeping it
buttoned up against intrusion by mischief-makers.
The receiver attaches to the inside of the front wall of the cabinet.
It's fastened with three carriage bolts. This is what the drill holes
at the top of the front wall are for. The center bolt is shared
between the coin door and receiver - both parts have holes in this
position that align when everything is assembled. This is why the
vertical position of the coin door is so important: the coin door
aligns with the lockbar receiver, and the receiver has to align with
the top of the wall so that the lockbar fits properly.
Front panel buttons
The three large
circular holes at the top left of the front panel diagram are for
buttons that the player uses to start and exit games and otherwise
interact with the software. Our plans assume that you're using SuzoHapp
small pushbutton (pictured at right), which are the type used for
most of the front-panel button on real machines since the 1990s.
These are the exact type that most pinball suppliers will sell you if
you buy a replacement Start button, Extra Ball button, or generic
"pushbutton with lamp assembly". There are other similar buttons
available from other companies that you can use as well, but you might
need to adjust the drilling dimensions and/or spacing for other
models.
Typical button positioning, with three buttons (usually
"Start", "Extra Ball", and "Exit"). Viewed from front/outside
of front panel.
Attention: Replacement
cabinet builders: If you're building a replacement cabinet for a
real pinball machine, take measurements from a factory original of the
same title to determine the button placement. The cabinet artwork for some
titles includes designs around the front panel button(s), so you might
also want to check alignment with the art.
For the SuzoHapp style of pushbuttons, drill the holes in two stages.
First, using a 1⅜" Forstner bit, from the front (outside) face,
drill a recess 3/8" deep (about half of the plywood thickness).
Don't drill all the way through. In the diagram, the recess
is the larger circle drawn around each button. Then drill a 1" hole
on the same center the rest of the way through. The recess allows the
button to sit flush with the front surface of the cabinet.
Above left: Drilling detail for the button holes, viewed from the exterior
face. Drill a 1⅜"-diameter recess to ⅜" depth
(about halfway through the plywood). A Forstner bit works best
for this. Then drill a 1" diameter the rest of the wall through,
on the same center. Above right: when installed, the
buttons are recessed in the routed depressions, so the button faces are
roughly flush with the outer surface of the cabinet.
The recess is optional. It's the way that the buttons were mounted on
the real 1990s machines, and I think it looks more finished. But if
you want to keep things simpler, you can skip the recess and simply
drill a 1" hole straight through. The buttons will jut out by about a
quarter inch if you omit the inset, but this won't look "wrong", since
the buttons are trimmed to work with this mounting style as well.
Our plans show the positions for three buttons, but that's only a
suggestion. As far as software usability goes, the virtual pinball
software more or less requires a minimum of two buttons: "Start" and
"Exit". The third button in our plans can assigned be any other
function of your choice, or you can omit it entirely. See
Chapter 34, Cabinet Buttons for ideas and recommendations. I think it's a
good idea to include a third button, even if don't already have a
clear use for it in mind, since it will be hard to add one later. You
can change the meanings of the buttons at any time in the software, so
you're not stuck with the functions you choose initially.
I assigned my third button as "Extra Ball", since that's used on a lot
of real machines from the 1990s. Another useful function is "Coin In"
(to simulate inserting a coin), although I prefer implementing that
via the coin return buttons on the coin door, since that's a more
natural and inconspicuous place for it. Other possibilities
include game-specific extra buttons, or special functions in
your game navigator software.
Omitting a button is easy. If you only want to include two buttons,
simply drill the top two holes at the positions shown, and skip the
bottom one.
It's difficult to add more buttons beyond the three shown given the
space constraints. With the spacing shown, there's not enough room
for a fourth button at the top, since the lockbar receiver will get in
the way, nor at the bottom, where the leg brackets will conflict.
However, you just barely make room if you move the top button up about
½" (that's the limit before it conflicts with the lockbar
receiver) and then tighten up the spacing on the other buttons by
about ⅛". That will give you just enough room for a fourth
button at the bottom.
Plunger and Launch button
Our plan includes a traditional mechanical plunger, at the
standard position used on nearly all real machines, at the upper right
corner corner of the front face. We also include a Launch Ball
button, situated just below the plunger, to accommodate tables that
originally used a button or trigger in place of the traditional
plunger.
Be aware that this traditional plunger position doesn't work for
everyone! In particular, it can get in the way of the TV if you want
to place the TV very close to the front wall. See "Other
plunger/Launch button layouts"
below for an alternative
plan that swaps the positions of the plunger and launch button to make
room for the TV. If you haven't thought about the TV conflict issue,
see "The dreaded plunger space conflict" in
Chapter 29, Playfield TV Mounting and "Positioning
the plunger" in
Chapter 37, Plunger.
Attention:
Replacement cabinet builders: If you're building a replacement cabinet
for a real pinball machine, don't rely on my plunger positioning! The
plunger on a real machine has to line up with the shooter lane on the
playfield, so it depends on the playfield depth, which varies from one
title to the next. The differences can be substantial - the
Williams System 11 games generally have the plunger about 1" higher
than on the WPC games. Your best bet is to measure the factory
drill positions from an original cabinet for your specific game. If you
don't have access to one, try asking on a pinball owners forum such as
Pinside.
Drilling positions for plunger
and Launch Ball button, with the plunger in the standard position used
on real machines, and the Launch button below.
Drilling pattern for the plunger opening. Reference the
vertical location from the main plan to the top dotted line.
For the standard plunger-on-top configuration, this is 2½"
from the top of the panel.
To cut the plunger opening:
- Drill a ¾" hole at the large green circle at top
center. It's best to use a router, or a drill with a hole saw bit
or Forstner bit. (Don't use a spade bit; they make ragged, chipped
holes in plywood.)
- Drill ⅜" holes at the three smaller green circles.
- Use a jigsaw or router to cut along the perimeter of the shape described
by the four holes, shown as the black outline on the diagram.
The illustration at right shows how this looks when assembled.
This arrangement, with the plunger on top and a Launch button below,
is the one I prefer. It has two main virtues. First, the plunger
position matches the real machines of the 1990s, so it looks "normal"
if you're used to the way those machines look. Second, it's nice to
have the dedicated Launch button for tables that use one, and this
placement looks the most natural to me. You won't actually find any
real tables that have both a plunger and a Launch button, so that
much is not quite authentic - but many real machines did have some
sort of button at the same location (e.g., an Extra Ball button), so
it doesn't look at all out of place.
Other plunger/Launch button layouts
The traditional plunger location shown above doesn't work for
everyone, because it can create a space conflict with the TV if you
want to position the TV at the very front of the cabinet. Before you
drill anything, take a moment to consider if you'd prefer some other
setup. Here are the most common options:
- Include only the plunger, with no Launch button. Some people prefer
a more authentic-looking setup with just the plunger. This an easy
modification: just don't drill the hole for the Launch button.
- Invert the arrangement so that the Launch button goes on top and the
plunger goes below. Some people use this arrangement to make room for
the TV to fit closer to the front of the cab. To make this change,
use the inverted plan below.
- Include only the plunger, but lower it to get it out of the way of
the TV, so that the TV can be mounted closer to the front of the cab.
To implement this, use the inverted plan below, and skip drilling the
hole for the Launch button.
- Include only the Launch button, with no plunger. To do this, use
the inverted plan below, but don't cut the plunger opening.
Inverted plunger/Launch button
Here's the inverted layout, with the plunger below the Launch button.
This places the Launch button at the exact position used on real
machines that use this control (which also happens to be the standard
plunger position, not surprisingly), so it'll look authentic as far as
that goes; of course, the addition of the plunger below the button
isn't to be found on any real machines.
Inverted arrangement with the Launch button on top and the
plunger on the bottom.
Note that the spacing between the plunger and Launch button is a tiny
bit tighter with the inverted layout than with the normal layout (by
about an eight of an inch). This is due to space constraints. The
plunger can't safely be moved much lower, because the exterior side of
the plunger housing will conflict with the front right leg if you do.
If you really need to move the plunger even lower than shown (to make
room for the TV, for example), you might be able to eke out a few
extra 16ths of an inch, but it might be an uncomfortably tight fit.
Measure your actual parts carefully before making changes.
Other cutouts
I don't recommend any other controls or ports in the front wall, since
this is the most conspicuous part of the machine other than the
playfield area, it's already pretty busy with just the standard
controls. However, there are a few extra items that some people add
here:
- Volume controls
- Night mode switch
- USB/keyboard/mouse ports
I'd personally avoid the front panel for all of these and place them
on the bottom or back of the cab instead, where they'll be less
visible.
For volume controls, I'd recommend using doubled-up flipper buttons
instead of a separate knob (see my
PinVol page for
an explanation). But if you really want a separate knob, and you
don't want to have to reach under the machine to operate it,
one way to make it inconspicuous is to install it in the coin door,
by drilling a hole for the knob stem.
Rear wall
The rear wall is a lot simpler than the front wall. It just has a
couple of openings for cooling vents, and another for the power inlet.
Nothing has to align with standard trim pieces here, so the placement
of the openings is flexible.
Rear wall, viewed from the interior side.
The fan openings are designed to accommodate 120mm PC case fans,
mounted just behind the openings (on the inside of the cab) and
oriented to blow air out the back. These aren't authentic to the
original WPC design (for the original layout, see the diagram below).
The WPC machines had smaller, passive vents. Most virtual cab
builders want to include fans to actively blow air through the
cabinet for cooling, which the larger openings accommodate.
The power inlet opening is there to pass the machine's main power cord
through the back, for plugging into a wall outlet. This is the same
as the original WPC equipment, which has a C14 power inlet (the same
type of power cord connector used on most desktop computers) behind
the opening.
The size and placement of the fan openings and power inlet are merely
suggestions. Customize them as you see fit. Take care that anything
you install on the back wall doesn't get in the way of the playfield
TV, but that usually isn't a problem, since the back end of the TV is
usually well forward of the back wall. The leg notches and floor dado
should be implemented as shown, since those do have to align with
other parts.
Attention:
Replacement cabinet builders: The circular fan openings shown in
the diagram above aren't authentic to the original WPC cabinet design.
A replacement cab for a mechanical pinball machine should follow
the pattern used in the Williams cabinets of the 1980s and 90s,
with passive vent openings as shown below.
Original rear wall design used on the real machines,
with passive cooling vents instead of fan openings, viewed
from the interior side. This
is the layout of the Williams cabinets of the 1980s and 1990s.
Virtual cab builders usually replace the vent slots with larger circular
openings that can accommodate PC case fans, to provide active cooling.
Virtual cabs tend to need active cooling in the main cabinet because
they typically house a TV and a PC motherboard, both of which
can generate a lot of heat.
Most people use the same joinery style for the rear wall as for the
front wall, but that's not required. I think a mitered join (such as
a mitered rabbet or lock miter) is nice here, since it yields seamless
corners, but that's probably not as cosmetically important as it is at
the front. A simpler join that produces visible seams, such as a
rabbet or even a butt join, can be perfectly adequate aesthetically.
Top view of rear section, showing the joinery shapes at the
rear corners. This uses the mitered rabbet as described in
the side walls section earlier.
The leg bolt notches work exactly like on the front and side panels.
Use the same measurements as the rear leg notches on the side
panels, since those need to align with the ones on the back wall when
the cabinet is assembled. See the side wall section above for details.
The floor dado is a routed groove that the floor fits into when you
assemble the cabinet. This is the same as the floor dados on all of
the other pieces: use a ½" straight bit to route a a groove
⅜" deep (about half the thickness of the plywood), parallel to
the bottom edge, offset ¼" from the bottom edge. See the side
wall section above for a diagram. As mentioned earlier, some other
published WPC plans offset the dado by 3/8" from the bottom rather
than 1/4", which might be preferable for added strength at the joint.
Whatever offset you choose, use it consistently for all of the floor
dados on the sides, front, and back.
Power inlet
The hole near the lower right of the back wall plan is for the main AC
power inlet. On the real machines, this is a 2½" diameter hole
positioned as shown. There's nothing special about this location for
a virtual cab; move it and/or resize it as needed for your own power
supply setup. If you're not sure how you're going to set up the main
power supply, you can just follow the generic plan, since it's pretty
versatile; the opening is large enough that you could just feed a
power strip's cord or an extension cord through it, and it could also
accommodate a C14 inlet mounted in the opening. You can drill a hole of
this size with a hole saw bit, or using a hand router with a circle jig.
Fan openings
The fan holes in our back wall plan represent a deviation from the
real WPC cabinet design, to meet the special needs of the virtual cab.
Real pinball machines don't need much cooling for the main cabinet, so
the WPC cabs just have a pair of small passive vents at the back.
Virtual cabs, in contrast, tend to need active cooling with fans, since
the main cab has a big TV and (in most cases) a PC motherboard.
Our plans provide two openings in the rear wall designed for PC case
fans. The idea is that you place an exhaust fan (blowing air out of
the cabinet) on the inside of each opening. The cabinet floor (which
we'll get to next) has another similar opening for an intake fan.
This arrangement is designed to work with the natural air flow from
the tilt of the monitor: the tilt makes the monitor higher at the
back, so warm air will tend to flow towards the back of the cabinet as
it rises. The exhaust fans at the back will help remove the hot air
and pull cooler outside air into the cabinet from the floor vent.
The holes shown in the diagram are for 120mm fans (about 4¾"
inches diameter). This is a common size for PC case fans, but other
sizes are available; some people like to super-size their fans because
larger tends to be quieter. Resize the openings for your fans as
needed.
There's nothing magical about our placement of the fan openings, so
move them as needed. I recommend keeping them relatively high up on
the wall to take advantage of the natural flow of rising warm air.
The point is to remove the hottest air from the cabinet, and that will
tend to move towards the upper portion of the space.
Other rear wall cutouts
Here are some other optional items that you might want to consider, as
long as you're drilling holes in this piece. There's no standard
placement for any of these, so use whatever location is convenient for
your setup.
- Ethernet port. Wired network ports can come in handy even if you're
planning to install a Wi-Fi card or powerline Ethernet. The rear of
the cabinet adjacent to the power inlet is an excellent place for this.
Keystone jacks are useful here. See "External I/O plugs" in
Chapter 27, Installing the PC.
- USB ports. It's also good to have some external USB ports, and the
back of the cab makes a convenient place for a couple of these. As
with Ethernet, you can use Keystone jacks. If you're installing a
Keystone jack plate for Ethernet anyway, you can make it a 3-gang or
4-gang plate and populate it with a couple of USB ports while you're
at it.
- Keyboard/mouse ports (these are usually just more USB ports). I
prefer the floor of the cab near the front, since that's where you'll
actually want to use the keyboard and mouse, but the back of the cab
will do if you just want a single cluster of ports.
- Openings to pass wires for light strips on the back of the cab
(see Chapter 58, Undercab Lighting)
Back rails
The real WPC cabinets have a pair of wood rails on the back, as
illustrated below. Each rail has a pair of hard plastic furniture
slider pads attached (the nail-in type, typically 3/4" diameter, white
or tan), one at each end. These are designed to let you stand the
machine on its back, with the backbox folded. The machine is more
compact in this configuration, which can be helpful for moving,
shipping, and storage.
These rails are optional. If you want to include them, cut the
two strips at the size shown. On the WPC machines, the ends
are beveled at about 30°.
Shipping configuration: legs removed, backbox folded down,
placed on back. The machine can be strapped to a pallet
and boxed or plastic-wrapped. This is good for freight
shipping because it has relatively small footprint and
it's easy to move with a pallet jack.
Floor
The floor is constructed from 1/2" thickness plywood (or particle
board or MDF, if you prefer).
Our plan for the floor of the cab makes some concessions to the
special needs of the virtual cab, so its cutouts aren't quite
identical to the normal WPC floor design. In particular, we moved the
subwoofer from roughly the middle to closer to the rear of the cab,
and we added an opening near the front for a PC case fan to actively
draw outside air into the cabinet, to supplement the fans at the back
that blow hot air out. The power button cutout is also slightly wider
than on the WPC machines (1-3/8" in this plan vs. 1-1/8" in the
originals), to accommodate an arcade-style pushbutton.
Main cabinet floor, viewed from above. Use 1/2" thick material.
When you assemble the cabinet, the floor fits into grooves (dados)
routed in the side, front, and back walls of the cabinet. No
additional joinery routing is required on the floor piece itself.
The "cashbox fence" isn't a cutout - it simply marks the location of a
short wall installed here on the real machines, mostly to hold the
cashbox in place. (The cashbox is a plastic box that sits under the
coin slots to collect the booty. It comes in a standard size for
Williams machines; you can buy one from a pinball vendor.) If you're
not planning to use the standard type of cashbox, you can omit the
fence, which will leave more open space for PC parts. However,
you'll certainly need some sort of container to collect coins,
if you're using them; you don't want loose metal discs rolling around
your electronics-packed cab interior. The standard cashbox is a
convenient solution. But it's also awfully large. On my own cab, I
improvised a much more compact coin box using a plastic food
container.
If you want to install the fence, it's 3" tall by ¾"
thick. Cut the length to match the inside cabinet width. Mount it at
the position shown (or whatever position is right for your cashbox,
if you use something custom). This isn't a structural element, so it
doesn't have to be very strong; you can fasten it with glue and/or
nails. Note: the distance shown (11⅛") is from the front of
the floor piece, which recesses into the dado in the front wall by
about ⅜". If you install this after assembling the rest of the
cab, it goes 10¾" from the inside front wall.
The subwoofer opening is shown at the size used in the WPC machines,
but the position is further back than in the real machines, where it's
closer to the middle (22-1/4" from the back, to be precise). The
virtual plan moves it back to create more contiguous floor space for
the PC motherboard. I don't think it'll affect the acoustics much (if
at all) if you want to move it further back still, for an even bigger
stretch of open space.
You should consider changing the diameter of the subwoofer cutout to
match the speaker you select. The 5-3/8" diameter cutout is based on
the 6" speakers used in the WPC machines. Those are small by modern
standards; automotive subwoofers are in the 8"-and-up range. If you
do use a larger speaker, it'll sound better if the opening is roughly
the same size as the speaker aperture.
The large fan opening towards the front isn't part of the original WPC
design. It's a virtual cabinet add-on for our greater cooling needs.
This is meant to be an
intake fan, with a PC case fan mounted
on the interior surface and oriented so that it blows air
into
the cab. This helps draw in cool air from the bottom to replace hot
air being blown out by the fans at the back. See
Chapter 28, Cooling Fans for
more on this subject.
As with the fan openings in the back wall, the position and size shown
are only suggestions, and there's nothing special about the exact
placement shown, other than that it's generally close to the front of
the cabinet to promote front-to-back air flow. The opening is sized
for a common 120mm PC case fan. Some people think it's better to use
two intakes to match the two vents in the back, so you could add a
mirror-image opening on the opposite side (near the power button).
But I wouldn't go too overboard on adding fan vents, as they eat into
the space available for the PC components and other items, plus
too many cutouts will weaken the floor.
The two small (1½" diameter) holes near the back corners
are from the the original WPC design, and they're for ventilation.
These are redundant in our design with the added opening for the
PC intake fan, but I'd keep them anyway for freer air flow.
They don't take up much floor space.
The power button opening is shown at the standard position for real
machines, which works equally well in a virtual cabinet. The cutout
in our plan is slightly wider than in the original WPC design (1-3/8"
vs. 1-1/8"), to accommodate more types of buttons. The real machines
use a "hard" on/off switch here that controls the AC power to the main
transformer, so turning it off is basically the same as unplugging the
machine from the wall. On a virtual cab, we usually want a "soft"
power button instead, since we're working with a Windows PC, and
Windows doesn't like abrupt power loss. Windows wants the power to
remain on throughout the shutdown process, so a soft power control is
needed. You just need a pushbutton that's wired to the "power
button" connector on the PC motherboard. I use one of the common
SuzoHapp rectangular arcade-style pushbuttons. This type of switch
can be mounted as illustrated below, which recesses it nicely into the
opening.
Installing a SuzoHapp rectangular pushbutton (part #D54-0004-5x)
in the power button opening. Cut a small piece of plywood
(about 2" x 3") to serve as the mounting plate. Drill
holes as shown. Mount the button on the plate, then
insert the button into the cutout. Attach the mounting plate
to the cab floor with a couple of small wood screws.
Cab floor materials
The real WPC machines had particle board floors. I'm usually all for
faithful replication of the originals, but this is a detail that I
only see as a negative. I'm sure the only reason they used particle
board is that it cut a few dollars off the cost. Plywood is lighter
and stronger, so I'd stick with that. The problem with particle board
is that it tends to sag over time, especially in a big unsupported
horizontal span like this. That's been known to happen with older
real machines, and I suspect it might be even more likely in a virtual
cab, because we tend to install more things on the floor.
Customizing cutouts to accommodate the PC
Before finalizing your floor cutouts, you might want to figure out
where you're going to place the PC components, so that you can
customize the cutouts to better suit the PC. Some particular
things to consider:
- If you're going to install the PC in a full case (such as a desktop
case or a mid-tower case), you might need to move the subwoofer
opening further back to make room.
- The PC needs good air flow for cooling. The air intake openings
should be positioned so that they're close to the PC, and so that
they'll be unobstructed. If you're installing the PC in a full case,
you should figure out where the case's air intake will end up, and
place a floor opening at the same spot, so that the case can draw in
outside air directly.
Other floor cutouts
Here are some ideas for other cutouts you might want to make in the
cab floor, as long as you're working on this piece. These aren't
things you'll find in the real machines, and there's no particular
standard place to put them in a virtual cab, but you can consider
making provisions for them if they look useful for your build.
- Keyboard and mouse ports (typically USB). The floor is a good place
for ports for input devices that you might want to connect for doing
administrative work on the PC, since it's out of sight but within easy
reach. I'd pick an area near a front corner, perhaps opposite the
power button. Keystone jacks work well for this. See "External I/O
plugs" in Chapter 27, Installing the PC.
- Openings for undercab light wiring. If you're going to install
light strips on the bottom of the cab for ambient lighting, you'll
need a small hole somewhere in the floor for the wiring. A 1"
diameter hole somewhere along one of the edges is pretty
flexible for this purpose. See Chapter 58, Undercab Lighting.
- Volume buttons or knob. Some people like to put dedicated volume
controls somewhere on the cab, and the bottom (somewhere near the
front) is a popular choice because it's out of sight but easily
reachable. You can use a volume dial here if your amplifier uses one,
or an up/down rocker switch. I installed a rocker switch for this
purpose on my own cab, wired through the keyboard encoder to send the
Volume Up and Volume Down keyboard commands to Windows. On a new
build, I'd probably dispense with the extra switch, and use "shifted"
flipper buttons in combination with
PinVol.
- Other hidden controls, such as an audio mute button or a "night
mode" switch (to silence noisier devices for late night use).
The bottom of the cabinet is a good place for controls that you want
to keep hidden but accessible. There's an even better place for
controls that you want to be
restricted, not merely hidden:
inside the coin door. Controls located there will not only be out of
sight during normal play, but won't even be accessible to ordinary
users who don't have the key, preventing kids or guests from messing
with anything you don't want messed with. It's the same reason the
real machines locate the operator menu buttons on the inside of the
coin door. See
Chapter 40, Coin Door.
Cashbox fence
Cashbox fence. Cut from 3/4" plywood. This piece attaches to
the cabinet floor just behind the cashbox area, to form a well
for the cashbox. Note: adjust the width for your cabinet width
if building a widebody or custom width. The piece should be
3/8" wider than your cabinet's inside width.
Route a 3/8" wide by 3/8" deep groove, flush with one end.
This forms a locking tab that fits into the corresponding
slot in the right side wall, for easier assembly.
Note: If you chose not to pre-route the cashbox fence slot in the
right side wall, omit the locking tab. Simply deduct 3/8" from the
piece's width, and don't route the groove at the end.
This is a short wall on the floor of the cabinet that delineates the
space at the front of the machine where the cashbox goes. On the real
machines, it makes a little cubby hole for the cash box and keeps it
from sliding around, so that it stays positioned properly under the
coin mechanisms.
I don't think most virtual cab builders bother to include a standard
cashbox, since it takes up a lot of space at the front. A virtual cab
often needs this space for the PC components and other electronics.
You'll probably want to skip the fence if you don't use a cashbox. If
you do use the standard type of cashbox, though, the fence is worth
including, since it holds the box in place.
Cashbox fence. The metal tab sticking up
is the "cashbox lock bracket", which is attached to the
fence, and fits through a slot in the cashbox lid.
This is designed to hold a padlock for higher security.
Cashbox lock bracket
(Williams/Bally part 01-10030 or 1A-3493-1).
While you're cutting the piece for the fence, also cut two triangular
pieces that we'll use to attach the fence to the side walls on the
cabinet. These are normally triangular pieces 3" long, which can be
made by slicing a 2x2 board in half down its length at a 45°
angle. The triangular profile of these wedges isn't important; they
just sit in the corners of the fence to help support it. A plain
rectangular piece of 1x2 or 2x2 board would be just as functional. If
you want to use the traditional wedge-shaped pieces, see
Appendix 14, How to Make Corner Braces (and other wood prism shapes) for ideas on fabricating them.
The original machines have a metal bracket in the middle, called the
cashbox lock bracket (part number 01-10030 or 1A-3493-1), which can be
used with a padlock to secure the cashbox. You probably won't feel
the need for such strong anti-theft measures on a home-use machine,
but if you want to include the bracket anyway for the sake of
completeness, attach the bracket to the fence as illustrated below.
Do this before installing the fence in the cabinet, since
it'll be hard to drill the holes after it's in place.
Cashbox lock bracket. Center the bracket left to right, and
make it flush with the bottom of the fence. Attach with two #8 x 7/8"
machine screws mated with #8 T-nuts, or with #8 wood screws.
The original WPC machines use two #8 x 7/8" machine screws and #8
T-nuts to secure the bracket; drill 7/32" holes for this setup, using
the bracket as a template for the drill locations, and pound in the
T-nuts on the back side of the fence. If you want to keep things
simpler, use #6 or #8 wood screws instead of the machine screws and
T-nuts. That won't be as strong, but it doesn't have to be built
like a bank vault for home use.
Rear shelf
This piece sits on top of the cabinet at the very back, where
the slope of the side walls flattens to form a shelf for the
backbox. The backbox sits on top of this piece. It has openings
for the wiring between the backbox and the main cabinet, and
holes for a pair of bolts that secure the backbox, so that
it can't tip over.
Cutting plan:
Rear shelf. Match the shelf's width to the outside
width of your cabinet. Cut the front edge with a 10°
bevel angle, to match the slope of the glass cover.
The width shown is for the standard-body WPC cabinet dimensions. If
you're using a different cabinet width, match the shelf width to your
main cabinet's outside width. Leave the bolt holes and center opening
the same size, keeping them centered left-to-right as shown.
Front edge 10° bevel:
Cut the front edge with a 10° bevel angle. This matches
the slope of the glass cover, so that the plastic trim piece that
holds the back of the glass is angled at the same slope as the glass.
This makes the glass fit more easily into the trim. If your saw can't
make the 10° angled cut, you can cut it square, but it'll make it
a little harder to get the glass to fit into the trim.
Routing: Route the bottom edges of the shelf as shown below. This forms a
"rabbet" that fits into the top of the cabinet.
Shelf lip: A separate piece of plywood attaches under the
shelf, at the very front edge, to form a "lip". This is mostly to
make a big enough area to attach the plastic trim piece that holds the
glass. On the original WPC machines, the lip is only as thick as the
plywood:
Shelf lip on the original WPC machines. The lip is simply
another piece of plywood, about 1" deep. This should be
the same width as the inside of your cabinet.
Optionally, you might want to make the lip extend further
down, perhaps 2", like this:
Alternative shelf lip design that extends further down,
to cover a larger gap between the shelf and the TV and
devices at the back of the machine (e.g., flasher panel).
The height is up to you. It's just a matter of how much space you
want to fill between the shelf and the top of the TV and any other
devices at the back of the TV, such as a flasher panel. On the
original mechanical machines, the lip didn't have to be very tall,
because they wanted to leave a lot of space open to make room for
tall playfield features at the back, such as ramps and decorations. A virtual
cab's "playfield" is just a flat TV panel, though. That might leave a
big vertical gap at the back, which you might want to cover with the
shelf lip. A lot of cabs use some of that space for flasher
panels or LED light strips, in which case the lip can be shorter. If
you haven't decided yet how you're going to use the space at the back
of the TV, I'd probably use a short lip like on the WPC machines, and
fill any leftover space in the final build with a back wall attached
to the TV.
Note that the plywood-thickness lip is probably the smallest you
should make it, so that there's a big enough area to attach the plastic
trim channel for the back of the glass.
In any case, you should cut the lip with the same 10° bevel angle
that you used on the front edge of the shelf so that the slope is
continuous across both pieces.
Central wire opening:
The rectangular center opening is for routing wire bundles between
the main cabinet and the backbox. You can leave this the same
size even if you're using a custom cabinet width - just keep it
centered left-to-right.
The opening is large enough to accommodate a lot of wiring, but
you might need to expand it if you plan to recess an oversized
backbox monitor into the main cabinet.
If you customize the cutout shape, remember to make the same changes
in the cutouts in the backbox floor. For alignment, use the back edge
as the reference point, because the backbox's back wall will be flush
with the cabinet's back wall when the backbox is installed and placed
upright. For left-to-right alignment, use the center point as the
reference; the backbox is wider than the shelf, but it'll be centered
horizontally when installed, so the center points will line up.
Bolt holes:
The 15/32" drill holes on either side of the central opening are for bolts that
secure the backbox in the upright position. Install a ⅜"-16
T-nut on the bottom side of each bolt hole. (A T-nut is a type of
nut that attaches permanently to a piece of wood.) Insert the
barrel of the T-nut into the hole as shown and pound it in to secure it.
When everything's assembled, these T-nuts will mate with wing screws
that you install in the backbox to prevent the backbox from tipping over:
The wing screws are important for safety, so be sure to lay the
groundwork for them by installing the T-nuts. Even if you're
installing a latch on the back of the backbox, you should still use
the wing screws and T-nuts, since most latches aren't strong enough to
truly secure the backbox.
Corner braces for the leg bolts
One last detail. We need some corner braces that go under
the brackets used to fasten the legs.
The corner braces have a triangular profile, with these dimensions:
You'll need four pieces in this shape:
- Two for the front corners, 6" to 8½" long
- Two for the rear corners, 6" to 21½" long
The minimum length is 6" all around, to fill the space under the leg
brackets. But you can make them longer if you want, to provide more
reinforcement at the corners. At the front, they can reach from the
floor of the cabinet to the top of the brackets, which is about
8½". They shouldn't go any higher than that, because if they
did, they could get in the way of the plunger and front panel buttons.
At the back, they can reach from the floor to the top of the cab,
which is about 21½".
If you wish, you can pre-drill the holes for the leg bolts. (This
is best if you're using the minimum 6" length. If you're making the
braces taller, you'll probably want to install them in the corners
first, and then drill holes from the outside, to make sure they
line up with the holes in the cabinet corners.)
If you want to pre-drill the holes, drill ½" diameter holes in each piece. You can
also just use your brackets as drilling templates. Drill through the
diagonal face (the widest face), on the centerline, square through
that face towards the opposite corner.
Drill starting on the diagonal (widest) side, square into
that face. The hole should come out on through the opposite corner.
One hole will be near the center (vertically) of the wood piece, and
the other will be near the edge. Make four identical copies of this piece.
Backbox
The backbox is (happily) a whole lot simpler than the main cabinet.
It doesn't have as many cutouts, and we don't have to get as fancy
with the corner joins. The top and bottom surfaces are typically out
of view, so we can use joins that leave seams, by hiding the seams on
the top and bottom edges where they won't be seen. All of the joins
for the backbox can be accomplished with straight router bits.
The backbox is mostly built from the same ¾" plywood
used in the main cabinet. There's one exception, though: the back
wall is made from ½" plywood. The original WPC backboxes had
½" thick back walls, so we're sticking to the same plan to keep
the interior dimensions the same.
If you want to substitute ¾" plywood for the back wall, it's
fairly easy. You just have to adjust the routed grooves in the other
walls where the back wall joins to accommodate the thicker panel.
We'll give you a reminder about that when we get there.
Exploded view of backbox
Corner joins, viewed from the front. This type of join leaves a
seam along one face, but we orient the joins to place the seams
along the top and bottom , which are normally out of view.
(For purists, I have to confess that my design has a discrepancy from
the original WPC design, which is that the joinery at the bottom of
the back wall is different. The original WPC back wall simply butts
up against the floor, whereas my design uses a rabbet to match the
other three sides of the back wall. This is obviously an
inconspicuous area - I didn't even notice the deviation until some
time after publishing this chapter - and I can't think of any way the
difference affects function. The rabbet is perhaps a bit stronger,
and works as a glue joint, whereas the original butt join requires
nailing. Williams might have used the original butt join simply for
manufacturing convenience: it's more forgiving of measurement errors,
in that you don't have to get the bottom and back pieces to line up
precisely. If you want to modify my plan to reinstate the original
design, cut the back wall 3/8" taller, make the floor piece 1/2" less
deep, and omit the rabbet at the back of the floor.)
Translite and DMD guides
The backbox requires some simple rectangular wood strips that acts as
guides to hold the translite and speaker/DMD panels in place.
Quantity | Material | Dimensions |
2 | ½" plywood | 4¾" x ¾" |
2 | ½" plywood | 15" x ¾" |
1 | ¾" plywood | 27⅛" x ¾" |
2 | ¾" plywood | 12⅜" x 1" |
1 | ¾" reducer molding or nominal 1x2 square-edge board, cut to a similar shape (see diagram below) |
27⅛" length |
The plywood pieces aren't visible to players, so don't worry about
making the edges look pretty. They're all hidden behind the backglass
or speaker panel when the machine is assembled.
The "reducer molding" shape is a more challenging trim piece that
requires an angled cut. And this one is visible to players -
in fact, its whole purpose is cosmetic - so you'll want to make it
look nice.
One way to make the molding piece is to start with a nominal 1x2
board, at least 28" long, and cut it lengthwise ("rip" it) with a
diagonal cut, so that it has this approximate cross-section:
The diagram above is based on the molding used in the original
Williams machines, but you don't have to reproduce the shape
perfectly, because this piece is purely cosmetic - the shape doesn't
have to mesh with any other parts and doesn't serve any mechanical
function. It's just there to hide the top glass channel and give it a
finished look. The only important thing is to give it a pleasing
tapered shape. The rounded corners are likewise not required, but
they look a little nicer; you can get that effect simply by sanding
the corners until they start to round out.
An alternative to cutting this shape yourself is to buy a pre-cut wood
molding in roughly the same shape. There's a common type of floor
trim called a 3/4" reducer molding that has roughly this same
shape and size. A 3/4" reducer molding will typically be a bit deeper
than the profile we want, and it'll usually have a tab that sticks
out from the back. You'll need to cut off the tab if present.
Once you have a strip with the right profile, cut it to a length of 27⅛".
Translite lock plate preparation
If you're planning to install a translite lock plate, there's some
preparation you can do at this stage that will make installing the
lock easier and more secure when you get there. If you don't know
what the translite lock plate is, you can learn about it in the
"Translite lock" section in
Chapter 23, Cabinet Hardware Installation. Briefly, it's a
keyed lock that you can install at the inside top of the backbox to
secure the translite. For a home machine, the security function isn't
important, but you might want to include the lock anyway if you're a
stickler for realism, since it's there on all of the real machines
going back at least to the 1980s.
The translite lock is installed in the front translite guide
(described in the section above), which is part of the ceiling of the
backbox. The front guide has a gap of about 2 inches in the middle,
specifically for the lock.
On the real machines,
they install the lock plate with #8-32 "security" Torx machine screws,
which have a special version of the Torx head that's meant to be
tamper-resistant. These are
machine screws, not wood screws,s
so they can't self-tap in wood; they need to be fastened with
nuts. If you look at the arrangement pictured above, you can see that
there's no way to install ordinary hex nuts by hand with this setup,
because you'd have to get behind the wood trim somehow - and that's
going to be glued in place by the time you're ready to install the
screws. So the question is: how do you install a nut in a place you
can't reach? The answer is a T-nut. A T-nut is threaded like a hex
nut, but it's permanently installed in the wood rather than being
screwed on by hand. They're specifically for this type of situation
where you need to pre-install a nut someplace that'll be inaccessible
after assembly.
So, if you want to install the lock the original way, the
required preparation is to pre-install T-nuts in the 12⅜" x 1"
trim pieces:
- Mark the drill center at 1/2" from one end, centered across the width
- Using a 3/4" Forstner bit, drill an inset on the marked center about 1/8" deep, to countersink the T-nut
- Drill the rest of the way through on the same center with a 7/32" bit
- Insert a #8-32 x 1/4" T-nut from the recess side
- Pound it in flush into the recess
Simpler alternative: rather than pre-drilling and installing the
T-nuts, you can discard the Torx screws that come with the lock plate
kit, and attach the lock to the trim with ordinary wood screws
instead. That eliminates the need for the T-nuts. The reason they
use the machine screws and T-nuts on the commercial machines is to
harden the lock against prying. You're probably not as concerned with
that in a home-use machine, in which case wood screws are fine. You
can install wood screws after the trim is installed, so there's no
need for all this prep work if that's what you're going to use.
Extra routing for translite lock
There's a little extra routing you need to do to ensure a good
fit for the translite lock. You can skip this if you're not
installing a lock.
In the 27⅛" x ¾" x ¾" piece, route a 2"
wide notch in the center of one side, to ⅜" depth.
This is necessary to leave room for the lock tab when it's in the
"locked" position. The tab is slightly wider than the slot, so it
needs this extra room on the other side.
Backbox sides
Backbox left and right sides, shown from the interior side
to detail the routed grooves for the joins. These are mirror images
of one another.
Note that the rear groove's width should equal the thickness of your
back wall plywood. Our plans assume you're using ½" plywood
for the back wall, so the groove is shown at ½" width.
3D view of the routed grooves in the side walls, to clarify the geometry.
The routing at the back edge assumes you're using ½" plywood for
the back wall. If you're using a different thickness, simply increase the
width of the groove to match the thickness of your back wall.
Backbox top
The top of the backbox has a few special features:
- The front edge should be cut at a 7° angle to match the
slope of the front edges of the side walls.
- The side edges are routed on the top side in a rabbet cut, to fit
the rabbet grooves in the side walls.
- The back edge is routed on the bottom side in another rabbet cut,
to fit the back wall.
- A 1/2" wide, 3/8" deep groove runs across the width of the bottom
side of the piece. This matches the plane where the translite fits.
The translite doesn't actually sit in this space most of the time, but
this groove provides a little extra room to lift the translite into
when inserting and removing it. You can omit this if you're not using
a standard translite.
- A 2" wide rectangular depression is routed in the middle of the
translite groove, on the bottom side of the piece, to accommodate the
translite lock. Center this side to side, and refer to the diagram
below for the dimensions. This is only needed to make room for the
translite lock, so you can omit it if you're not using a lock.
Backbox top piece (roof)
To match the slope of the front sides, the front edge of the
top piece should be cut at a 7° angle. This is an edge-on
view from the left side.
3D view of top piece, viewed from top front, to show routing
detail on the top side. The grooves at the wide are ⅜"
deep and ⅜" wide, all the way to the outer edges.
Top piece, bottom side, viewed from the back, to show routing
detail on the bottom side.
If you're planning to install any "toppers" (decorations on top of the
backbox, such as a rotating beacon, fan, bell, or flashers; see
Chapter 42, Backbox Toppers), consider pre-drilling any openings in the roof
that will be needed for mounting hardware or wiring.
Backbox floor
Backbox floor
To match the slope of the front walls, cut the front edge
at a 7° angle. This is an edge-on view from the left side.
3D view of backbox floor, viewed from back side, to show routing
detail. The groove at back is ⅜" deep and ½" wide,
flush with the back edge. The ½" width should match the
plywood thickness of the back wall.
Backbox floor, bottom side, to show routing detail.
Above: Cutouts in floor of backbox. The rectangular
cutout is for passing cables between the backbox and cabinet.
The 1"-diameter holes on either side of the cable cutout are for
safety bolts that lock the backbox in the upright position.
The ¼"-diameter holes along the outer edges (three on
each side) are for the WPC-style hinge brackets that attach
the backbox to the main cabinet. The hinge bolt positions
shown are for a standard-width main cabinet - they need to
be adjusted for a widebody or custom-width cabinet (see below).
Cable cutout: The rectangular center cutout is meant to match
the corresponding cutout in the "shelf" at back of the main cabinet.
If you're customizing the shape of the cutout, remember to make the
same changes in both places. To figure the alignment between the two
parts, use the back edge as the reference point in both places. When
the backbox is installed and placed upright, its back wall will be
flush with the back wall of the main cabinet. For left-to-right
alignment, use the center point as the reference: the backbox is wider
than the shelf, but it will be centered side-to-side when installed,
so the center points will line up.
Lock bolts: The 1"-diameter holes on either side of the center
cutout are for locking bolts. These should be aligned on the same
centers as the corresponding ½" holes in the main cabinet
shelf. If you had to move those to accommodate a custom center
cutout, move these holes to match. Note that the shelf holes are
½" diameter, whereas the corresponding backbox are 1" diameter.
As with the center cutout, the reference point to use for alignment is
the centerpoint of the back edge, because that will line up on the
shelf and backbox.
Hinge bolts: The ¼" diameter holes near the outer edges
(three on either side) are for carriage bolts that attach the
WPC-style hinges to the backbox. Drill these only if you're using the
WPC-style hinges.
Important! The positions shown are for a standard-width main cabinet.
If you're using a widebody or custom-width cabinet, or a custom
backbox width, you'll need to refigure the positions. Use this
formula:
Inset = (Backbox Width - Cabinet Width - 2⅜") ÷ 2
>
Plug in the outside widths of the backbox and cabinet (as they
will be when assembled). The result is the inset of the bolt holes
from the left and right edges of the floor, so simply substitute this
for the measurement shown in our diagram.
If you don't want to take chances on getting the measurements perfect
before-hand, you can wait to drill these holes until you've assembled
your cabinet and backbox, at which point you can set it up and use the
hinges themselves as a drilling template to mark the proper positions.
This is getting a little ahead of ourselves, but here's the procedure:
- Make sure the shelf is in place in the cabinet, if you haven't
already installed it. No need to glue it yet; just set it in place.
- Attach the hinges to the main cabinet using their pivot bolts.
They'll rotate freely, so be careful not to let them scratch anything.
- Put the backbox in position. Center it left-to-right, and align the
back wall of the backbox so that it's flush with the back wall of the
main cabinet. The front of the shelf will stick out slightly further
than the front of the backbox; that's normal. Have an assistant
hold it up so that it doesn't fall over from this precarious
position - it's heavy enough to be dangerous!
- Rotate the hinges up into position where they'll attach to the
backbox. Make sure the contact area is flush with the bottom of
the backbox. Mark bolt hole positions.
- Take down the backbox and drill at the marked positions.
Backbox back wall
The back wall of the backbox on the real machines is typically 1/2"
plywood (or particle board or MDF, if you prefer). It's a simple
rectangular piece, with some holes for passive cooling.
Backbox back wall. The holes near the top are for passive ventilation.
Note that the back wall uses ½" plywood.
Backbox ventilation
The original WPC backboxes used passive ventilation, via seven
1½"-diameter holes along the top of the back wall. ("Passive"
meaning that they didn't use fans to circulate air; they relied on
natural air flow driven by hot air expanding and rising.)
Some virtual cab builders add powered fans to the backbox for extra
cooling. My experience has been that this passive cooling is adequate
for the backbox (see
Chapter 28, Cooling Fans), but some people are concerned
about heat from the backbox video displays. If you want to add active
cooling, I'd remove the passive vent holes and replace them with one
or two larger circular openings for 120mm PC case fans, similarly
placed near the top of the back wall. You could also add some intake
vents at the bottom, although I don't think that's necessary, as air
will be drawn in from the main cabinet through the openings in the
backbox floor.
If you add cooling fans, be aware of the space requirements for the
other equipment plan to install in the backbox, such as the TV, DMD,
replay knocker, and bells.
Backbox back door
Some virtual cab builders make the back of the backbox into a door
rather than a fixed wall.
The plan I'm presenting here uses a fixed back wall, following the
original Williams design. On the real machines, most of the main
control electronics are mounted on this wall - the CPU board, sound
board, power supply board, etc. To access these parts for service,
the operator simply removes the translite and accesses the interior
from the front side.
The complication for a virtual cab is that we fill most of the backbox
with a TV. Some cab builders mount the TV in such a way that it can't
be easily removed, in which case you won't be able to access anything
behind the TV through the translite side. That's where a back door
comes in handy.
I don't have an alternative set of plans to offer using the back door
approach, so if you want to go that route, you'll have to improvise
something. Other people have built such schemes into their cabs, so
you might be able to find ideas by checking build threads on the
forums.
I personally prefer the fixed back wall, instead of a door. The main
reason is that it makes the backbox a lot stronger if the back is a
solid, fixed panel. I also don't like the idea of using a permanent
mounting for any of the TVs, since doing so makes it very difficult to
repair or upgrade the machine later. I prefer to install all of the
TVs (and other major components) in such a way that you can remove
them non-destructively when necessary. In the case of the backbox TV,
I favor mounting it so that it can be removed through the front of the
backbox, preferably without having to disassemble anything. That
removes any need for a back door. It also makes it easy to replace
the TV, if that should ever become desirable or necessary.
Toppers
If you're installing some kind of "topper" (a decoration on top of the
backbox, such as a beacon, fan, bell, or flashers: see
Chapter 42, Backbox Toppers), consider pre-drilling any openings needed for
the mounting hardware and wiring.
How to assemble the cabinet
Before you glue everything together more or less irrevocably, it's a
good sanity check to do a "dry fit" of the pieces (fitting them
together without any glue or nails) to check that everything is the
right size and aligns as expected. Check for any dados that are too
tight, and use sandpaper or a file to expand them slightly as needed.
Check the alignment of the rabbet joins.
Tip: When you do the dry fit, once you have the whole thing
together and you're happy with the fit of all of the corners, make
alignment marks showing the current alignment of the floor with
all four walls. In other words, draw a little line at the inside seam
between the floor and the wall, somewhere along the seam. When you're
doing the final glue assembly, you can use the marks to re-align the
floor at the same, known-to-work position. This is helpful because it
can be difficult to slide the floor around in the groove once the glue
is applied, so it's good to be able to get it in exactly the right
position on the first try.
Have a good quality wood glue on hand. This will be used at all of
the joints. Optionally, you can also use finish nails (perhaps
¾" #18 brads) along the seams, spaced a few inches apart.
Nails will add some strength and will serve to hold the joints in
place while the glue dries, but the trade-off is that they create a
certain amount of risk of splitting wood around the edges. I used
nails for my own build, but I don't think they're really necessary.
If you're using the joins we suggested (dadoes at the floor seams, and
either the mitered rabbet or double rabbet joins at the corners), I
think glue alone will be plenty strong.
It's also great to have an assistant on hand. The job is easier with
two people.
It should be fairly obvious how the pieces fit together, but here's a
suggested assembly order.
Pre-assemble the shelf
Install a #6-32 x ⅜ on the bottom side of each bolt hole.
(These are there to mate with safety bolts screwed in through the
matching holes in the backbox, to secure the backbox in the upright
position.)
Glue together the two pieces that make up the shelf as illustrated
below. The front edge of the lip should be flush with the front edge
of the top piece.
Set the assembled shelf aside for the glue to dry, so that it'll be
set when we're ready to install it in the cab later on.
Main cabinet
Start by joining the floor to one of the
side walls. Put glue along the inside of the dado (groove) at the
bottom of the side wall as illustrated below. Don't use an excess of
glue - you just want a single continuous bead down the center of the
groove. Insert the floor into the groove. Make sure the front and
rear edges are properly aligned and flush, and ensure that it's
pressed down all the way into the dado.
If you made alignment marks during the dry fit, this is the time to
use them! Make sure that the alignment marks made earlier on these
two pieces line up. That should ensure that the floor is properly
aligned relative to the front and back pieces later on.
Beware that this arrangement is precarious! The floor piece will want
to tip over; the dado isn't strong enough by itself to hold it
upright. Keep the floor piece supported so that gravity doesn't
stress the joint. It's good to have an assistant to hold things in
this position until you get to the next piece.
Next, add the back wall. Put glue along the dado and edge of the back
wall that we're about to join, as shown below. Again, use continuous
bead of glue. Put the back wall piece in place. As before, make sure
that the edges are aligned properly and that the floor is pressed all
the way into the dado in the back wall.
Now do the same thing with the front wall.
Add the remaining side panel.
Leg brackets
The next step is to install the leg brackets. The brackets will be
permanently installed in the cabinet, so this is a one-time step that
you won't have to repeat when you want to attach or remove the legs.
The procedure here assumes you're using the standard brackets used on
newer machines, Williams/Bally part 01-11400-1. These brackets have
integrated threading for the bolts, so no additional nuts or other
fasteners are needed - you just screw the bolts into the brackets.
You'll need four of these brackets. The matching bolts are
⅜"-16, in 2½" or 2¾" lengths. Note that you'll
probably want to buy the bolts from a pinball vendor rather than use
generic hardware store bolts, for cosmetic reasons: the ones made for
pinball machines have nice shiny finishes and rounded heads that look
nicer than generic galvanized hex-head bolts. You'll need eight bolts
(two per leg). No washers or nuts are needed, as the brackets are
threaded and serve as the fasteners.
The recommended brackets have their own threading for the bolts, which
lets you attach and detach the legs purely from the exterior of the
cabinet. In other words, there's no need to reach inside the cabinet
with a wrench to turn a nut or other fastener, since no other
fasteners are needed - the bolts screw directly into the threaded
holes in the brackets. That's important because it's difficult to
reach into the interior corners (especially with a wrench) once all of
the equipment inside is installed. So the threaded brackets make
things much easier in the long run, but they require some extra work
for the initial installation, since you have to align them and fasten
them inside the cabinet. That's what the procedure below is intended
to accomplish.
All four legs are interchangeable - there's no such
thing as a "front leg" or a "back leg" or a "right leg" or a "left
leg". You should simply have four identical parts for the legs. The
same is true of the metal leg brackets.
Before we begin, it's worth noting how the positioning of the leg
bolts relative to the floor of the cabinet affects how the brackets
and corner braces are installed. The bolt holes are higher up on the wall
in front, lower in back, to give the cabinet a slight forward tilt
when it's set up. (The legs themselves are all the same length, so we
get the tilt by mounting the legs at different heights.) Because
of this asymmetry, we can flip the brackets upside down in front
to keep them lower on the wall.
We'll start with a dry fit (no glue) to make sure everything fits,
before we finalize the install. The bolt holes tend to be tight,
which is good in that you don't want a lot of play or wobble when the
legs are attached. But the bolt holes in the wood can be so tight
initially that the leg bolts just won't fit. We need to make sure
that the bolts will fit properly.
With the cabinet on its side, place the leg in position, and insert
the bolts through the leg holes and into the cabinet. If the fit is
too tight to get them through by hand, use a round file to ream out
the holes enough to get them to fit.
The point of using the legs for this step is just to make sure that
the spacing of the bolt holes in the legs matches the spacing in the
cabinet. We're not actually attaching the legs permanently yet; we're
only attaching the brackets at this point. The legs can be easily
attached and detached at any time once the brackets are installed.
Once the bolts fit comfortably, slip the triangular wood space piece
over the bolts.
Now attach the metal leg bolt bracket. Screw in the bolts to make
sure everything still fits.
If anything is wrong with the fit, go back and use a round file to
open up the holes in the cabinet walls and/or the corner braces as needed.
(Obviously, don't attempt to modify the legs themselves or the metal
bolt bracket! We consider those to be the source of truth here -
they're the reference points we're trying to match with the wood
parts.)
Once you're satisfied with the fit, take the bracket off and remove
the corner brace. We're now ready to install this all permanently.
Keep the legs and bolts in place, since we still want them there as
the reference point for final alignment.
Apply glue to the sides of the corner brace that face the cabinet walls.
(Those are the narrower sides. Don't glue the wider side that faces
the bracket.) Use a thin layer of glue covering the whole face.
Avoid the area around the bolt holes to avoid too much glue oozing in
there.
Put the corner brace back in place. Press it against the cabinet walls
to attach the glue.
Reattach the bracket and screw the bolts into it. Screw them in all
the way this time so that the leg is firmly attached. Don't
over-tighten.
Use #8 x 5/8" wood screws to attach the metal bracket to the
cabinet walls and to the corner brace. The standard plates have holes for
three screws on each side and two more in the middle to attach to the
brace. Don't leave out any screws; we want the bracket attachment to
be very sturdy, so we want to distribute the load over as many screws
as possible. Tighten the screws but be careful not to over-tighten
and strip the wood.
Note: some people recommend using #10 x 3/4" screws instead of #8,
since the larger screws are a bit stronger. I don't think it's
necessary - the original Williams cabs used #8 screws, and those seem
to hold up over the years - but I also don't see it doing any harm to
upgrade to the larger screws. The only thing to watch out for is that
3/4" screws could potentially poke through 3/4" plywood, or could come
close enough to poking through to dimple the outer veneer. Check
before screwing them in that they're not too long for your actual
plywood stock. If it looks like it's going to be close, you can
simply add a washer or two to each screw for some extra padding.
Use #8 x 5/8" wood screws to fasten the leg bracket to the
cabinet and corner brace at the locations shown (arrows). You can
substitute #10 x 3/4" wood screws for greater strength if desired,
but check them against your plywood stock to make sure they won't
poke through the other side.
Once the wood screws are all in place, unscrew the main leg bolts and
remove the leg.
Repeat this process for each corner until all four leg brackets are
attached.
Cashbox fence
If you decided to include the fence that delineates the cashbox area,
this is a good time to install it. Flip the cabinet upright for this
step.
Installation option 1: using the locking tab. If you routed
a slot in the side wall for the fence's locking tab, apply some glue
to the tab and to the bottom of the fence, and fit the tab into the slot.
Orient the piece so that the tab is on the side facing the front
of the cabinet.
Place it against the floor, straight across the width of the cab.
Glue the triangular braces behind the fence at the corners.
Installation option 2: no locking tab. If you chose to skip the
locking tab and slot, you can position the fence now to fit your
cashbox. Grab your cashbox and place it against the front wall.
Position the fence to leave about 1/2" of play behind the
cashbox.
Without using any glue yet, set the fence in place at the desired
position. The normal location, to fit a standard cashbox, is 10-3/4"
back from the inside of the front wall, but you should change this
to match your cashbox's depth if you're using a non-standard size.
Apply glue to the two square sides of the 3"-tall triangular pieces
that you cut along with the fence. Making sure to keep the fence at
the desired position, press the triangular pieces into place on the
rear side of the fence at each side, to fasten the wall to the
two sides of the cab.
Back rails
If you want to include the back rails, attach them to the back of the
cabinet, oriented vertically, near the edges. The exact positioning
isn't particularly important, as long as the rails form a stable
base for standing the machine on its back, so make any adjustments
needed to keep clear of your fan vents and other openings in the
back wall.
Attach these to the back with glue and finish nails (1¼" #18
brads should work). Nail down the centerline, with a nail every 4" or
so.
If desired, affix hard plastic furniture slider pads near the ends.
The exact type isn't important; the ones Williams used in the 1980s
and 1990s were typically the nail-in type, hard plastic, 3/4"
diameter, white or tan.
Shelf
At this point, you can install the shelf that you assembled back at
the start of the build process. We saved this for last, because the
shelf gets in the way when you're trying to work around the back of
the cabinet interior (such as installing the rear leg brackets). In
fact, for just this reason, you might want to wait even longer on this
step, and come back to it later, after installing parts that attach to
the back wall, such as:
- Fans
- Power inlet
- Power strips
- Ethernet port
- USB ports
If you want to hold off installing the shelf for now, you can just set
it aside and make a mental note to come back here when you're ready.
If you haven't already done so, install ⅜"-16 T-nuts in the
holes on either side of the central rectangular opening, on the
bottom side of the board. These mate with the wing bolts that
are meant to be attached through matching holes in the floor of
backbox. The bolts are an important safety measure to secure the
backbox in the upright position while deployed.
Once you are ready to install the shelf, start by flipping the cabinet
upright.
Run glue around the edges of the shelf where it joins the main cabinet
(as shown below), and set it in place.
If the top of the shelf sticks out at all from the side or back walls,
use a power sander to remove excess material until it's flush with the
adjoining wall.
Backbox
Assembling the backbox is much like assembling the main cabinet.
Start with the top and one of the side walls. Apply a bead of glue to
the groove on the side piece, then fit the top piece into the groove.
Attach the floor.
Add the remaining side wall.
The back wall should now fit into the grooves along the back edges
of all four walls. Apply glue around the grooves, and put the back
wall into place. It should fit so that it's flush with the edges
of the walls.
The back should be flush with the back edges of the adjoining
walls when installed.
In addition to the glue, you can add some finish nails to strengthen
the back wall. Use small finish nails, such as 1" #18 brads. Drive
them in from the back of the back wall, around the perimeter, set in
about 3/16" from the edges. Space them every few inches; four or five
nails on each side should be sufficient.
Corner bracing
The original WPC backboxes had steel braces at the corners to
strengthen the joints. The glued corner joints are actually pretty
sturdy all by themselves, if you construct them using the rabbeted
design described above, but apparently Williams deemed it necessary to
add some heavy reinforcement. I'm sure that came from
experiences with commercial operators who banged up their machines
with rough handling and then complained when they broke.
In my opinion, you shouldn't need any corner braces for a machine in
home use. The glued corners should be plenty strong. But if you'd
like to reproduce the original construction faithfully, or you just
don't trust the glue joints, here are the details for the Williams
design. The part number for the braces is #01-9167, and
they're fastened to the backbox walls with ¼"-20 x 1-¼"
carriage bolts (black finish, 4320-01123-20B) and ¼"-20 flange
nuts (4420-01141-00). You'll need four of the braces and sixteen each
of the carriage bolts and flange nuts. Place one brace at each
corner, more or less all the way back against the back wall, and use
the holes in the brace as a drilling template to drill holes for the
carriage bolts. Insert the carriage bolts with the heads on the
outside, and fasten with the flange nuts on the inside.
WPC backbox brace, Williams part #01-9167, installed at the
upper corner. The real WPC-era machines used one bracket like
this at each corner. If you want to go this route, use the
brace as a drilling template to drill ¼" holes for
the bolts, and fasten the brackets with ¼"-20 x 1¼"
carriage bolts (on the outside) mated with ¼"-20 flange nuts
(on the inside).
The Williams corner bracing is about as strong as you can get. You'd
have to rip the wood apart before those bolts would come out. The
downside is the bolts are visible on the outside of the backbox. (Not
too visible, though; the WPC machines use black bolts that tend
to disappear into the artwork unless you're looking closely.)
How the carriage bolts look on the outside. They have smooth
rounded heads (with no screwdriver slots), and come in silver
and black finishes.
If you don't care about using the exact original parts, but you still
want some kind of corner reinforcement, you might consider using
generic steel 1" corner braces instead. You can buy these at any
hardware store. Use ¾"-long wood screws to attach them, in a
size that fits the holes in the corner braces you buy (typically #6
or #8 wood screws). Use two or three braces per corner. Keep them within
5" of the back wall, so that they won't be visible when the translite
is in place. This setup isn't as ridiculously strong as the Williams brackets
and carriage bolts, but it provides some reinforcement, and it doesn't
require any externally visible fasteners.
Alternative reinforcement using generic hardware-store corner
braces, fastened with wood screws. Be sure to keep the braces
behind the translite plane (5" from the back wall), so that
they're not visible.
Translite/DMD guides
The WPC backbox has some little wood blocks along the walls that act
as guides for the translite and DMD/speaker panel. These might or
might not be interesting to you for your virtual cab, because a
virtual backbox is a little different from a real one. Specifically,
our backbox uses a TV in place of the normal translite, and in some
cases a single TV replaces both the translite and DMD panel.
But it's not a simple matter of TV or translite. You might
actually still want something similar to a translite, to mask out the
bezel around the perimeter of the TV. There are two common ways to
handle this:
- Create a custom wood cover for the TV area, with a cutout for the
TV.
- Use a glass or plexiglass translate in front of the TV. Optionally,
you can use paint of decals around the perimeter of the plexi to mask
out the dead space beyond the edges of the TV display.
Both serve the same function, of hiding the TV's bezel so that you
only see the screen, but I very much prefer the second option. The
first option calls way too much attention to the virtual-ness of the
cab. The second makes it look like a real pinball machine.
(There's a third, less common option. Some people route grooves into
the side of the backbox exactly deep enough to contain the TV's
bezels. This requires an extremely thin bezel, and requires that you
use a custom backbox size chosen to perfectly match the TV, so it's
not compatible with the standard plans.)
If you're planning to use a custom wood cover instead of a translite,
you can skip this section, as your custom cover won't need the guides
that hold the conventional parts in place.
Before proceeding with installing these, there are some cases
where some of the guides should not be installed:
- If you're not using a standard speaker/DMD panel, don't install the
lower guides (the ones at the bottom of the side walls) until you've
worked out whether or not you need them. These are designed for the
pre-WPC-95 style of speaker panel only, and might not work if you're
using a home-brew design of your own.
- If you're using a WPC-95 speaker panel - the type that's made out
of a single piece of molded black plastic - don't install the lower
guides. The lower guides are only for the older pre-WPC-95 speaker
panel. If you're using a standard panel type but you're not sure
whether it's WPC-95 or pre-, consult Chapter 31, Speaker/DMD Panel for
help.
- If you haven't finalized your backbox TV install plan yet, don't
install the upper side wall guides. Those get in the way of some
TV installation methods. See Chapter 30, Backbox TV Mounting for more.
Assuming that you're using the standard translite and the early 1990s
style of speaker/DMD panel, here's a cutaway view showing the
placement of the guides on the sides of the cabinet. Note that the
right side wall isn't shown in this view, but (as you would probably
expect) has the same two guide pieces shown on the left wall, at the
same positions in mirror image.
Guides for the translite and speaker/DMD panel on side walls. The
distances shown are to the inside surfaces of the back wall and floor
in the assembled backbox. Note that some backbox TV installation
designs work better without the 15" upper pieces, so
you might want to defer installing these until you've finalized
your backbox TV plan. Also note that the lower pieces are only
used for the "original" style of speaker/DMD panel, not
the WPC-95 molded plastic type.
The top piece is 15" x ¾" x ½", and the bottom is
4¾" x ¾" x ½". Orient them so that the
¾"-wide face is against the side wall. Both pieces run
parallel to the rear wall.
There's nothing sophisticated about the installation of these on the
real machines - they're just glued and nailed. You should do the same
thing. Apply a little glue on the back of each piece and nail it into
place with finish nails (I'd suggest 1" #18 brads). Use one nail about
every 4" down the length of each strip, centered in the strip.
Here are the guides on the inside of the backbox "roof":
Cutaway side view of the top guides. The pieces labeled "A",
"B", and "C" are detailed below.
Note how the "A" and "B" pieces align with the translite groove
in the ceiling.
Note that piece "A" should be installed with the notch facing
the ceiling of the cab.
Top guides, viewed from below.
All three pieces run parallel to the rear wall.
Aligning the T-nuts in the "B" pieces: If you installed the
T-nuts for the translite lock plate as described earlier, you should
make sure they're correctly aligned for your lock plate when you
install the "B" pieces. Use this procedure:
- Lay out the pieces at the install location as described above,
but don't glue anything yet.
- Orient the pieces so that the T-nuts are on the side that will be
glued to the ceiling of the backbox.
- Grab your lock plate and its Torx screws. You don't need to
assemble the rest of the parts yet, but it's also okay if you've
already done so.
- Put the lock into position. Make any adjustments to the positions
of the "B" pieces to match up the screw holes in the lock plate
with the pre-drilled holes in the "B" pieces.
- Fasten the lock plate by screwing in and tightening the screws.
- With the lock plate installed, glue and nail the trim pieces into
position.
You can now remove the lock plate if desired (for example, if you
still need to paint the backbox), knowing that the "B" pieces will
be perfectly aligned for the lock plate when you're ready to
re-install it.
22. Cabinet Art
If you're building your machine's cabinet from scratch, you'll want
to decide on what the exterior will look like. This might be a simple
flat black paint job, or you might prefer full-color graphics like
on a modern real pinball machine.
Real pinball machines have always featured eye-catching cabinet
artwork. The motivation was always commercial, of course - the art
was there to grab your attention and entice you to drop in a few
quarters. But that didn't mean it wasn't also art. Pinball has a
recognizable graphics style - actually, several different styles over
the decades, but each recognizably "pinball art". It's natural for
virtual pin cab builders to want to tap into that by using artwork
that would look at home on a real pinball machine.
Reproducing the authentic pinball art style can mean different things,
depending on which era you're talking about. Machines built in the
1950s through 1970s tended to use abstract graphics, painted in three
or four bold colors with stencils. The stencil artwork continued into
the 1980s, but the graphics became more intricate and representational.
In the 1990s, the manufacturers started using a multi-color
silk-screening process, which allowed for higher-resolution graphics
with more detailed designs.
Top left: Gottlieb's Abra Cadabra (1975), with abstract
stencil graphics typical of machines built in the 1950s through 70s.
Top right: Williams's Space Station (1987), with the more
intricate stencil graphics of the 1980s. Bottom: Bally's
Theatre of Magic (1995), which used the high-resolution
silk-screen graphics typical of the 1990s.
In the 2000s, the remaining manufacturers switched from screen
printing to plastic decals. Decals are cheaper to produce, but they
also offer more options to the designers, since they can be printed in
high resolution and full color. (Silk-screening's palette is limited
by the number of color layers used, and has to use half-tone patterns
for in-between colors.) The switch to decals opened up even more
options for art designers, including full photo-realism.
When to install artwork
I think it's best to paint or install decals just after completing the
assembly of the wood cabinet, before installing any of the interior
equipment, and certainly before installing the trim.
I'd wait until after assembly to do any decorating, because that lets
you do a final pass with a power sander to even out surfaces, smooth
corners, and remove any excess glue. It also eliminates the risk
of scratching or marring the artwork during the assembly process.
It's better to paint and install decals before installing any interior
equipment, since that will add weight and make the cabinet harder to
move around. You'll want to be able to flip the cabinet onto
different sides while working on paint or decals, so you don't want it
weighed down with internal parts.
Virtual pin cab design options
As a virtual pin cab builder, you have several good options available.
The right option is a matter of taste and budget.
Natural wood style. This isn't common, but some people choose
to make their cabs look like a piece of fine furniture or cabinetry,
to better fit into a home environment. If you want this kind of look,
you can use a wood stain or a natural clear finish with cabinet-grade
plywood. You can even buy pre-finished plywood to skip the staining
step.
Single-color painting. This is another simple, understated look
that some people use to make their machine relatively inconspicuous
for the home environment (as inconspicuous as a six-foot-tall,
five-foot-long, three hundred pound wood box can be, anyway). The
most common single-color paint job is solid black, since that tends to
disappear into the background nicely.
Stencil graphics. To a lot of people, the electromechanical era
(1950s through 1970s) is the Golden Age of pinball, and tables from
that era define what a pinball machine is supposed to look like. To
be sure, the EM era's graphical style is unmistakeably distinctive,
and it's iconic of pinball in popular culture. The stencil graphic
style that these machines used is also something that you can
reproduce on your own, at low cost and without any special equipment.
You just need to make a stencil mask out of cardboard and masking
tape, and then apply spray paint in as many colors as desired.
Full-color decals. Many pin cab builders want to reproduce the
look of machines from the modern era (1990s and onwards). These
machines use elaborate designs printed in full color at high
resolution. The real machines from the 1990s used high-res screen
printing; newer machines almost all use plastic decals to achieve the
same look. Happily, professional custom decal printing is readily
available for one-off print jobs, and is even relative affordable.
This isn't something you can do at home with DIY equipment, since it
requires special industrial printers, but there are lots of print
shops that have the equipment and can do the job for a reasonable fee.
And since the printing is done on what's essentially a giant
industrial version of an ink-jet printer, you can print virtually any
custom design by preparing the graphics with a PC photo editor
program.
Using decals
Most pin cab builders these days opt for decals, since they allow for
such unlimited creativity in the artwork.
First-time cabinet builders are sometimes skeptical about decals,
thinking that they'll look like cheap stickers. It might reassure you
to know that most of the newer real machines now use decals for their
artwork, using the same materials that a good print shop would use for
your cab decals. If you can find a newer Stern machine to look at,
you can get a first-hand look at what kind of finish you can expect.
When printed on quality stock and applied properly, you can achieve a
finish that's pretty close to the screen printing used in the 1990s
machines. Decal printing is actually superior in some ways; you get a
wider color gamut and finer dot pitch, and the plastic finish is more
resistant to light scratches.
Surface preparation for decals
You should check with your decal vendor for advice about surface
preparation. I'd always give your vendor's advice priority over any
generic advice you see on the forums or in build guides like this one.
Different vendors use different film stocks, and what works best for
one type might not be ideal for others.
With that in mind, I'll give you my own generic advice, based on
working with a couple of different decal sources.
The first question is whether or not to paint before applying decals.
I say yes, mostly because I want to make sure that any exposed wood
areas around the edges of the decals match the decal background color,
to hide the transition. Paint can affect how the decals adhere, so if
your vendor says you should or shouldn't paint, I'd follow their
advice; but if they say you can go either way, I'd paint.
Note that paint is probably required if you use a grain filler (which
we'll come to shortly). Grain fillers don't adhere strongly on their
own - they have to be sealed with paint or lacquer.
If your cabinet is built with plywood, the second question is how to
prepare the surface, apart from the optional painting. No additional
prep is necessary for MDF or MDO plywood, since the factory finish is
paper-smooth. With regular plywood, though, the veneer has visible
wood grain. Vinyl decals adhere so tightly that the wood grain will
be visible through the decals if you don't take some additional steps.
Wood grain showing through the decals isn't really a problem, but most
of the commercial machines have a smooth finish, so I prefer to
minimize it for a more "factory" look.
I think the only way to achieve a grain-free finish is to use a wood
grain filler product before painting. My experience is that sanding
alone won't completely eliminate the grain texture, no matter how much
sanding you do or how fine the grit, because sanding won't eliminate
the pores in the wood grain. The pores are what make the grain show
through paint and decals, because they absorb the paint unevenly.
Wood grain fillers are specifically designed to fix this by plugging
up exposed pores at the surface, so that paint is absorbed more
uniformly.
Some pin cab people have reported good results using paint alone.
I've had less than perfect results that way myself, and all of the
kitchen cabinet pros seem to agree that grain fillers are a must if
you want a piano finish, but maybe it's a matter of finding the right
paint. It would certainly save a lot of labor to skip the filler
step. Some paints, particularly primers, do make claims that they can
serve as a surface defect filler.
If you do decide to use a grain filler, you can find lots of how-to
videos about product selection and application procedures on the Web.
Most of the videos I've found are focused on painting kitchen
cabinets, so that's a good search term to use, but the same techniques
work on pin cabs. If you want to skip the video research, here's a
procedure that has worked well for me. It's time-consuming, but it
doesn't require any special expertise or equipment.
Applying decals
Decal application is scary the first time you do it, especially since
the decals are expensive, and there are at least a few horror stories
on the forums about how difficult decals are to work with. But it's
one of those things where you don't need special magical skills. If
you follow the right procedure, you should be able to get good results
reliably.
There are two basic techniques: the "wet" and "dry" methods. This is
one of those topics that inspires an almost religious fervor in a lot
of people: proponents of the wet method will tell you that you'd have
to be crazy to even think about the dry method, and advocates of the
dry method will say the same thing if you're contemplating the wet
way.
The "wet" method involves spraying the cabinet surface and the back of
the decal with a soapy solution just before application. Some decal
film stock requires this as a way to release trapped air bubbles, but
newer, higher-tech decal materials are designed with tiny pores that
release air bubbles on their own, eliminating the hard requirement to
use the wet method. Even so, some people still like the wet method
for a whole separate reason, which is that it keeps the decal from
attaching too strongly at first, so that you can slide the decal
around to fix any initial alignment errors.
The "dry" method simply applies the decal directly to the clean, dry
surface. Newer films don't need any help releasing small air bubbles, so
there's no need for soapy sprays. The decal adheres strongly right
away with this method, so you don't get to slide it around to play
with alignment - but you shouldn't have to do that if you use the
right procedure, because you'll get it aligned beforehand.
You can find Youtube videos for both methods. This is a good
subject to preview on video so that you can get a little mental
practice before attempting it. Search for "pinball decal dry
method", for example.
As with surface preparation, I'd always take your vendor's advice on
application method over anything generic that you see in the forums or
from me. Some media might simply require the wet method, because
of the air bubble issue that affects some film types.
On the other hand, some decals might not be able to tolerate too
much added moisture.
Personally, I prefer the dry method. It's the one that my decal
vendors have all recommended, and it seems simpler and cleaner to me.
I can understand the appeal of the do-over potential of the wet
method, but at the same time, it seems prone to a little less accuracy
exactly because of the slipperiness.
The key to making the dry method work is to lock in the alignment
before you expose the adhesive. Here's the procedure I use:
Trimming edges
Most print shops will print the decals slightly larger than the final
size you want to install, usually about an extra inch on each side.
This is intentional; it's to give you a little room for error in the
final alignment.
The standard procedure is to align the decals, affix them, then go
around the edges with an X-Acto knife to trim the decals to be exactly
flush with the edges. This is surprisingly easy; you just let the
edge of the wood guide the knife. As long as the knife is sharp,
it should make a perfect cut exactly at the edge.
Cutting out holes
When you design and apply the decals, you should simply let them cover
the holes in the cabinet for the flipper buttons, front panel buttons,
and coin door cutout. After installing, use an X-Acto knife to trace
around the edge of each opening. Cut from the outside, and let
the edge of the opening guide the knife - the same procedure used to
trim excess material around the edges.
Finding a printer
My decals were printed by Brad Bowman a/k/a
Lucian045 on
VP Universe (also reachable at
bjbowman045@gmail.com). I
highly recommend him. Brad is a serious virtual pinball enthusiast
who also happens to run a professional sign printing shop. It's great
to work with a printer who knows how pin cabs are set up, because that
means he'll be able to picture what you have in mind for any special
customizations. The decal stock that Brad uses is also just great:
very easy to work with and very durable. I of course can't guarantee
that Brad will still be offering print services by the time you read
this, but you can always drop him a line to find out.
Other options include
VirtuaPin and
GameOnGrafix.com. Both
offer custom decal printing. VirtuaPin specializes in pin cabs and I think
they use similar print stock to what Brad Bowman uses. GameOnGrafix
is more oriented towards home-brew video game cabs, but they also
provide a template for pinball cabinets, and anyway it's basically
the same sort of decal for either type of machine.
You can also try any shop that does commercial sign printing. This is
a common commercial service, so you can probably find local vendors in
your area, especially if you live near a major city. The type of
adhesive plastic material used for pin cab details is also commonly
used for commercial signage.
Artwork requirements
Most print shops will expect you to provide your artwork in an
electronic format, such as JPEG or TIFF. Check with your vendor for
their requirements and recommendations. You should be able to use
just about any photo editor or painting program on your PC to create
the graphics and convert them into the vendor's preferred format.
Decal printing is essentially the same as printing on a home ink-jet
printer. The only real difference is that the decal prints are
physically a lot larger. So keep in mind that the pixels you see on
the computer screen will be spread out over a much larger area when
printed. Images that look smooth and sharp on-screen might be fuzzy
with jagged edges when blown up to pinball decal size. To look good
at full size, the final image will need a pixel resolution of about
300 dots per inch (dpi) when printed. The side panels of a full-sized
pinball machine are about 50" x 24", so if you want to fill that space
at 300dpi, you'll need the source image to be about 15,000 pixels by
7,200 pixels - about 100 Megapixels.
Creating your artwork
There are three main options for creating your artwork.
Design it yourself. If you're feeling creative and you're good
with a graphics editor like Photoshop or Illustrator, you can design
your own original artwork.
Opting for a completely original design gives you the freedom to
come up with whatever look appeals to you. But starting with a blank
page is also pretty intimidating. Here are some ideas for where
to begin:
- If you want to create something in the style of the real machines,
start by choosing an era. Go to IPDB
and browse through pictures of machines from the era, to get a sense of the
prevailing graphic style. If a particular machine's design strikes
you as particularly appealing, use that as your starting point.
- Choose a name for your machine. That will automatically plant some
ideas about its theme. A lot of pin cab builders name their machines
after their favorite movie, TV show, or comic book character,
following the long tradition in the real machines of using licensed
themes.
- A popular motif is to focus on the virtualness of the
machine and/or its ability to run many different games: "Multiball",
"Megapin", "Pinball Holodeck", "Pinball Matrix", etc.
- Another way to emphasize the multi-game aspect of a virtual cab is
to use a collage of prominent artwork elements from your favorite real
pinball machines, such as Rudy from Funhouse and the
Addams family characters from The Addams Family.
- There's a lot of public-domain (copyright-free) artwork on the Web
that you can use as a starting point. For example, if you like space
themes, check the NASA, JPL, and Hubble Space Telescope Web sites for
some very pretty, high-resolution astronomy images that are free to use.
I used a Hubble photo of the Carina nebula as the backdrop for my own
cab side art. (Do be sure that any images you take from the Web are
truly public-domain or licensed for free use. Reputable print shops
won't accept artwork that you don't have the proper rights for.)
Commission original custom art. If you're not interested in
creating your own artwork, but you still want something original, you
can find an artist to create something custom for you. For example,
stuzza on
vpforums creates original art for
forum members, for a fee. A stuzza design is generally a pastiche of
pop culture clip art based on a theme you provide. See the
long-running thread
"
Cabinet
Artwork I have created" for his contact information and examples
of his work.
VirtuaPin also
offers custom graphic design services for a fee.
Use a pre-made design. Stuzza on vpforums has also released a
number of free designs that you can download and use without a
commission fee. See the "Cabinet Artwork" thread mentioned above for
links. I've also come across occasional pin cab artwork
elsewhere on the Web; try an image search for "pinball cabinet side art".
Reproduce artwork from a real pinball. Some cab builders opt to
use the original artwork from their favorite real machine. Be aware
that the graphics from virtually all historical commercial machines
are still under copyright, so a reputable print shop won't accept an
order that reproduces a real machine's artwork without proper
clearance from the rights holders, which almost always requires paying
a license fee.
VirtuaPin sells
authorized reproductions of the original art for several popular
classic pinball titles. You can also find ready-to-use decal sets
with reproduction artwork from many more titles from pinball supply
vendors - search for "pinball cabinet decals".
Backbox warning label
Most commercial machines display a big block of warning text on the
back of the backbox, warning operators to bolt the backbox properly
and fold it down for transport. The warnings were there for the usual
legal liability reasons, so if you're just building a cab for your
own use at home, you can leave the area blank. But some cab builders
might like to include the warnings for the sake of meticulous
re-creation of the originals. See
Chapter 43, Extras - Backbox warning
label for a picture of the typical text.
23. Cabinet Hardware Installation
This section covers the hardware trim on the main cabinet, with
details on what all the hardware does and how to install it.
We assume that you've already built the basic plywood cabinet as
described in
Chapter 21, Cabinet Body, and that you've already painted it
and/or applied decals, as described in
Chapter 22, Cabinet Art. It's best
to finish the artwork before installing any hardware, since some the
hardware will get in the way of painting or applying decals once
installed.
The sections below are arranged in our recommended order of
installation. The order matters in some cases because of dependencies
among parts. For example, you should install the side rails before
installing the lockbar, since the lockbar's final alignment depends on
the side rails being there, and you have to install the glass channels
before the side rails because the channels act as spacers and supports
for the rails. We've tried to present things in the easiest overall
order, to get alignments right the first time and to minimize
backtracking.
What to buy
Leg brackets
You should attach the leg brackets early in the cabinet build, during
the basic wood assembly. The brackets are meant to be permanently
installed; they can be left in place with the legs on or off the
machine.
You probably won't want to attach the legs themselves early on, since
you'll probably want the cab sitting on the floor or workbench while
you install the PC, TVs, and other internal components.
Note that we won't get to the legs themselves until
near the end
of this chapter, as you'll probably want to keep the cab on the floor
or on your workbench while you're installing the PC, TVs, and other
internal components.
Glass channels
These are plastic pieces that go under the side rails, to hold the top
glass cover in place.
The glass channels aren't visible, so they're not "trim" in the
cosmetic sense, but they have two important functional roles. The
first is that they let you slide the top glass in and out of the
machine at any time, without tools. To remove the glass, you just
unlatch and remove the lockbar, then slide the glass out the
front. To put the glass back, slide it in the front, and
pop the lockbar into place.
The second important functional role of the glass channels is to act
as vertical spacers and supports for the metal side rails. All of the
side rails made since the 1970s or so are designed to be paired with
the glass channels. The geometry of the rails simply takes it for
granted that the plastic channels will be there - if they're not,
there will be a big gap under the rails, which would make them
too weak.
To install the glass channels, the first step is to route a groove
along the center top of the side wall. (If you followed our
construction plans in
Chapter 21, Cabinet Body, you should already have
done this.) There's a special router bit for this job, called a slot
cutting bit. For this particular slot, you need a slot cutter bit
with a 3/32" slot width and a depth of ⅜" or greater. I
used Freude part number 63-106; equivalent bits are available from
other brands.
Alternative to routing the slot
Some virtual cab builders forego
routing the slot, because it seems too difficult, or just because they
don't want to buy a special tool that they'll only ever use once. But
they still want to install the channels. How do you make the spine
fit without the slot? You can't, but you can chop off the
spine to take it out of the picture. The glass channels are a fairly
strong plastic, but they are just plastic, so it's possible to remove
the spine with a sharp utility knife, a Dremel tool, or something
similar. With the spine removed, you can install the channel with
staples or glue. You don't have to go overboard with a super-strong
attachment, since the metal rail will sit directly on top of the
channel, and that by itself will largely keep it from going anyway.
Personally, I don't recommend this approach. I'd install it the
"right" way with the slot, since it makes a tidier installation and
doesn't risk damaging the plastic piece. Cutting the slot probably
seems intimidating if you haven't done that sort of thing before, but
the special bit makes it really easy.
Installing the channel
Once the slot is routed, install the plastic channel simply by
pressing the "spine" that runs along the bottom of the channel into
the plywood slot. Don't use any glue or fasteners; the spine
will be held in place by friction, and if that's not enough, the side
rail on top of it will prevent it from going anywhere.
You should expect the spine to be a tight fit in the slot. You'll
need to press it in fairly firmly. Don't force it too aggressively,
though - you don't want to split the plywood. If the channel is way
too tight, you can always go over the channel with the router bit
again to widen it out slightly.
Alternatives to the glass channels
What if you don't want to include the glass channels? Not all virtual
pin cab builders do, either because they're not using the cover glass
at all, or because they want to install it some other way.
My own recommendation is to use cover glass and use the standard glass
channels. That'll look the most authentic and it'll be easier to set
up than something improvised. But if you're intent on another
approach, you'll still need something to serve as spacers under
the rails.
If all you need is to fill the space, and you don't care about sliding
the glass in and out, you can use any material of the right size.
Something like foam tape or rubber weather-stripping material would
work. The target size for the spacer is about 7/16" thick, 5/8" wide,
and 42" long. Affix your chosen spacer material with glue or
double-sided foam tape, starting about 3" from the front of the cab.
Be sure to take the thickness of the adhesive into account when sizing
the spacer - the total overall thickness (height) of the
spacing material should be about 7/16", including any adhesive
layer. If you're using foam tape that's ¼" thick, for example,
the spacer material would only need to be about 3/16" thick.
Improvised spacer material under the side rail. Only use this
if you're not using the normal glass channels! The point is
to substitute something that provides the same vertical spacing and
support as the glass channels if you're not using the actual
glass channels.
If you're using cover glass and want to be able to slide it in and
out, I don't think there's any reason to look for alternatives to the
standard plastic channels. They're the exact right thing for the job.
Side rails
These are trim pieces that go along the top side edges of the cabinet.
On all modern machines, they're made of sheet metal, usually with a
stainless steel finish.
(In the very early days of pinball, the side edges were trimmed with
wood molding instead of metal, which is the source of the term "wood rail
pinballs" that's often used to refer to such machines. If you want to
use something like that, it would require custom wood-working; there's
no such thing as a "standard" wood side rail, and nothing
of the sort that you can buy off-the-shelf, as they haven't made
commercial wood-rail machines in many decades.)
WPC-style side rail. Note that the rail is narrow enough
along the side wall that it doesn't reach the flipper buttons.
Older side rails (from the 1980s and before) extend further
down the side and typically do cover the flipper buttons,
requiring holes in the rails for the flipper buttons.
The WPC-style rails
The design of the side rails varies by manufacturer and vintage. The
illustration above shows the WPC style from the 1990s, which continues
to be the standard for everything made since. It's the type I'd
recommend if you're buying new parts from a pinball supply vendor.
It's the easiest type to find, too, since it's the only type anyone
has been using in new machines for the last 30 years or so.
If you're using side rails salvaged from an older (1980s or earlier)
machine, they might look different. The big difference with the older
designs is that they're usually much wider, extending down the sides
far enough to cover the flipper buttons. Because they overlap the
flipper buttons, the older rails usually have pre-drilled holes for
the buttons - so you have to be careful to drill the cabinet button
holes so that they line up with your rails. The WPC rails don't have
any such alignment requirement because they don't overlap the flipper
buttons. The only alignment you have to worry about for them is making
sure that the buttons are entirely below the rails.
The WPC-style rails are symmetrical. They don't have "left" and
"right" versions because the same rail can be used on either side.
Simply flip the rail over to switch sides. The older rails with
pre-drilled flipper button holes can't do that trick, so they
come in left/right sets.
Fasteners
Three fasteners are required for each side rail:
- At the front, an #8-32 x 1-1/4" carriage bolt, #8-32 ESN lock nut,
and #8 washer
- Along the sides, double-sided foam tape, about 3/4" wide by .03" thick
- At the back, a spiral nail (Williams part numbers FA-701,
20-6505-L, or 20-6505-K), or a plain nail or wood screw (see notes below)
Foam tape: Side rails sometimes come with foam tape already
installed. If yours didn't, you can buy the tape separately from a
pinball vendor (search for "side rail tape"), or use a generic
double-sided foam tape. You need tape that's about ¾" wide and
about .03" (0.75mm) thick. (The original Williams specs called for
.032" thickness, but you don't have to match that perfectly.) Each
rail takes 40" of tape, for 80" total.
Rear fasteners: The original machines used spiral nails to
fasten the rails at the back. Spiral nails have flat, smooth
heads like nails, and spiral ridges like screws. You pound them in
with a hammer like regular nails. The spiral ridges give them a
lot more grip than regular nails, to prevent loosening from
vibration.
Spiral nails, 0.1" diameter x 1" length, Williams/Bally
part 20-6505-L. These are traditionally used to fasten
the side rails at the back.
I actually don't much like the spiral nails, because they're quite
difficult to remove, which causes a lot of grief to collectors
restoring old machines. You might wonder (I sure did) why you can't
use the same carriage bolts as at the front. The answer is that the
shelf gets in the way on the inside - you can't access the fastener
from the inside to attach a nut. So you need a fastener that screws
in or pounds in purely from the outside, without the need to attach
anything on the inside. Spiral nails fit the bill, but so would a
plain nail or wood screw. The next question, then, is why not just
use regular wood screws? You could simply unscrew them if you ever
wanted to remove them. Part of the rationale at the factory might be
tamper resistance, which you probably don't care about for home use,
but the other reason is that whatever fastener you use has to fit into
the tiny gap between the side rails and the backbox hinge arms. Most
nails (including the spiral nails) meet this need. Most regular
screws don't; the heads are too thick. You need something that's 1mm
or less. For reference, the spiral nail heads are about 0.8mm thick.
Here are the thinnest options I've found in a wood screw:
- "Pancake-head" roofing screws, such as Bolt Depot part number 27072
(#10 x 1" combination Phillips/square drive, pancake-head, type 17,
zinc-plated steel)
- Grabber BP32Z screws (#8 x 1"
Phillips drive, modified truss head, fine thread)
The heads on both of those are quite thin as screws go, but they're
still too thick for our purposes. The heads on the Bolt Depot roofing
screws are about 1.6mm thick, and the Grabbers are about 2mm thick.
That's thicker than our maximum of 1mm. One solution is to
modify these screws, by using a metal file or grinding wheel to shave
some material off the tops until they're down to 1mm.
Grabber BP32Z screws, original condition on left, and with the
head filed flatter on the right. The original head is about 2mm
thick; I was able to get this one down to about 1.2mm, which
was thin enough to fit under my backbox hinges.
Top view of the BP32Z screws, original on left, filed down on right.
I filed it until there was no evidence of the domed part in the
center, leaving the head almost as flat as a nail head. There's
still enough of the Phillips indents to work with.
Alternatively, you might be able to make a flat-head wood screw work,
if you can countersink the conical part of the head far enough to make
the top more or less flush with the rail.
You could also use a plain old nail, if you don't care about eventual
removal and you don't want the bother of finding the unusual spiral
nails. A regular nail might work itself loose over time more easily
than a screw or a spiral nail, but that's probably not a huge concern
for a home-use-only machine.
If you find another option that works, please let me know and I'll
mention it here.
Install the glass guides first
Before installing the side rails, install the plastic channels that
hold the top glass (see
Glass channels
above). If you're not planning to use the standard plastic channels,
you should install some kind of spacers of roughly the same size.
Part of the function of the channels is to act as vertical supports
for side rails, so you need something to fill that space if you're not
using the plastic guide channels.
Installing the side rails
Start by sticking a strip of the double-sided tape to the inside of each
rail. The tape should cover most of the length of the "L" shaped part
of each rail, out to about an inch from each end. Don't put any tape
on the tapered end sections.
The tape goes along the inside side surface - the surface that will
face the side wall of the cabinet. Only peel off the backing on the
side facing the metal rail at this point. Leave the backing in place
on the other side.
Next, do a "dry fit" to the cabinet, placing the rail in position,
resting it on top of the glass channel. The front of the rail should
be almost flush with the front wall of the cab. Leave just
enough of a margin (1/16" to 1/8") that it doesn't stick out at all,
so that it won't snag anyone's clothing.
We're going to assume that you haven't drilled the holes for
the side rail carriage bolts yet. This is the time to do that. Mark
the cabinet positions where the front holes in the rails line up.
Only drill for a carriage bolt at the front; at the back, you'll have
to use a screw or nail, because a bolt would conflict with the shelf.
Remove the rails and drill at the marked positions (straight through)
with a 11/64" drill bit.
Warning: if you installed decals that cover this area, you might want
to use an X-acto knife to cut an opening in the decal before drilling,
so that the drill bit doesn't catch on or pull at the decal while
you're drilling. This area will be covered by the side rail once
that's installed, so the decal cut-out won't be visible.
You're now ready for final installation. There are two ways to
proceed from here: you can stick the rail to the cabinet with the foam
tape, or you can leave the tape un-sticky for now and only use the
front bolt. The first way - using the tape - is the way it's meant to
be done for permanent installation. The second way - without sticking
the tape yet - is better if you're not ready to commit to the final
setup yet (for example, if you might want to touch up the artwork
later). The bolt will hold the rail in place well enough for testing
and casual play, so there's no hurry to finalize the tape yet.
In either case, start by setting the rail in place again and lining it
up with the carriage bolt hole you just drilled. Insert the bolt from
the outside, and attach the nut on the inside. If you don't
want to finalize on the tape yet, just tighten the nut, secure the
back of the rail (with a spiral nail, plain nail, or wood screw, as
mentioned earlier), and call it done for now.
If you want to finalize the installation by attaching the double-sided
tape, here's the recommended procedure:
- Start with the side rail bolted on as described above.
- Run a length of wide painter's tape along the bottom edge of the
rail, down its whole length, centered on the bottom edge. In other
words, half of the width of the tape should be sticking to the side
rail itself, and the other half should be sticking to the adjoining
side of the cabinet.
- Remove the bolt.
- Leaving the painter's tape in place, fold the side rail down,
using the painter's tape as a "hinge". The rail should now be
hanging upside down from the painter's tape, with its inside face
(and the double-sticky tape) exposed.
- Remove the adhesive backing from the double-sticky tape.
- Carefully fold the side rail back up and into position, using
the painter's tape as a hinge again. This should precisely
return it to the original position.
- Press along the side to adhere the double-sticky tape to the
cab wall.
- Re-fasten the carriage bolt.
- Install the fastener at the back (spiral nail, plain nail, or wood screw,
as mentioned earlier)
- Remove the painter's tape.
Rear glass trim
Assuming you're going through this section in order, you've already
installed the glass channels that go under the side rails. If not,
you should go back and do that before proceeding.
After the side glass channels are installed, there's one more part to
install for the top glass, which a piece of plastic trim at the back
of the machine. This provides a slot for the rear edge of the glass
to fit into.
This piece of trim attaches to the "shelf" at the back of the cabinet
with a few screws, so it's pretty simple at that level (no wacky new
router bits required!). But I found it a bit tricky to get the
alignment right when I installed it on my machine.
The thing that makes it tricky to install is that the opening in the
trim for the glass is just about the same thickness as the glass, so
there's not much room for error in aligning it. If the trim isn't
aligned perfectly with the glass, the glass will snag on the edges
of the trim when you try to slide the glass into place.
The procedure I used was to try to position the trim using the glass
itself as a guide. Like I said, I found this a bit difficult in the
execution, but I don't have any better ideas.
- Slide the glass into the side channels, almost all the way to the back
- Fit the trim onto the back of the glass, orienting it as shown below
- Slide the glass all the way back, pushing the trim flush against
the back shelf
- Mark the position of the trim on the rear wall
- Remove the glass
At this point, the obvious thing to do is to put the trim back at the
marked position and screw it into the shelf with some wood screws.
That's indeed how I proceeded. The problem I had is that the position
we marked above had the glass already in place, and the glass tends to
apply a little pressure on the bottom lip that tilts it down slightly.
If you install it at exactly this position, the bottom lip of the trim
will spring back up without the glass there, so when you try to insert
the glass, it'll get hung up there.
I ended up just iterating this a few times with test installs before I
found the magic spot. Before you commit to a position, try testing
the proposed location with something to hold it in place temporarily,
such as masking tape, or a trusty assistant. Slide the glass in and
out at the test position. Adjust until you find the spot where the
glass will slide in smoothly.
Once you find the right spot, fasten the trim to the rear wall with
wood screws. #6 x ¾" should work.
For what it's worth, the install positions on the real machines I've
looked at vary from the top of the trim being flush with the top of
the shelf, to being as much as ¼" above the shelf. So maybe
there's not a mathematically predictable position, as it seems that
even the pros resorted to ad hoc alignment. I think this was
especially hard on my virtual cab build because my shelf was cut
square at the front edge - I didn't use the 10° bevel angle
that's recommended in the
Chapter 21, cabinet body plans.
With the square front edge, my plastic trim piece wasn't aligned
properly with the slope of the glass cover. You'll probably have an
easier time with this than I did if you used the bevel angle.
Lockbar and receiver
The "lockbar" is the metal trim piece at the front top of the cabinet,
so named because it serves to lock the glass cover in place. You'll
also see it called a "lockdown bar" and a "lock bar" and various other
variations on the "locking" theme. The vendors use all of these
terms, inconsistently, so you might want to try them all if you're
searching to buy one online.
The "official" name that appears in the Williams parts books is "front
molding assembly", so that's another search term to try when shopping.
The lockbar (the name we'll settle on here) serves three main
purposes. The first is the locking function that's right in the
name. The bar serves to lock the top glass in place, by preventing the
glass from sliding out the front. If you want to remove the glass,
you first have to remove the lockbar. The lockbar itself is secured
by some latches inside the machine, which can be engaged and released
via a lever you can reach by opening the coin door. So you can't
take off the glass without removing the lockbar, which you can't
do without opening the coin door, which you can't do without the keys.
The second function of the lockbar is cosmetic. It serves as
decorative trim along the top front edge, as suggested by the official
Williams name for the part, "front molding assembly".
The third function is to provide a comfortable place to rest your
hands while playing. The natural hand position while playing is to
grip the front corners of the machine with your fingers on the flipper
buttons. The lockbar has nice rounded corners right where your palms
go. This hand-rest function becomes apparent the first time you try
playing a round of pinball on a machine without the lockbar installed
- the bare plywood corners can be awfully sharp.
If you're not planning to use a genuine pinball lockbar, you should
come up with a substitute that at least provides a comfortable
hand-rest, and, if you're using a glass cover, that prevents the
glass from sliding out.
In the standard setup, the lockbar mates with another part, usually
called the lockbar receiver. (The official part name that
appears in the Williams manuals is "lever guide assembly".) The
receiver attaches to the inside of the machine, at the top of the
front wall, and isn't visible to players.
The receiver is installed at the top of the front wall, on the
interior side:
Fire button
Many of the 2000s Stern machines feature a button on the top of the
lockbar, usually labeled "Fire" or something similar. The button
typically activates special features in the game, so it's another
interactive game control on par with the flipper buttons and
plunger.
You don't have to install a physical Fire button on your virtual cab
to play the Stern games that feature a Fire button, since the Visual
Pinball re-creations always provide a substitute control that you can
use instead, usually the MagnaSave buttons (see
Appendix 4, Tables with MagnaSave Buttons.) But some people like to install a
dedicated lockbar Fire button anyway, since it replicates the playing
experiences more faithfully for tables that featured the button in the
original arcade version. If you're a big fan of the more recent Stern
titles, it might be worth including a physical Fire button on your
lockbar.
The simplest and surest way to install a Fire button is to buy a
Fire-button-ready lockbar and receiver made for the Stern machines.
Those parts are specifically designed to accept the button, so
installation is straightforward. You can also adapt regular
lockbar parts to use a Fire button, but it's more work - we'll
explain how below.
Option 1: Use Stern parts designed to include the Fire button.
This is the simplest approach, since you don't have to modify
any of the parts.
- To find a lockbar that can accommodate the button, the search term
that seems to work best is "premium lockbar", because Stern typically
only includes the extra button as an added feature on the upgraded
versions of their games ("premium" or "limited edition"). One
example: lockbar for Star Trek Premium, Stern part 500-7283-22.
- The receiver that's compatible with a center button is
Stern part 500-7237-00
- The button itself is an extra-long (1-3/8") clear flipper
button, Stern part 515-7791-00
- Button collar (mounted on top of lockbar), Stern 545-7292-10
- Mounting plate (mounted under lockbar), Stern 545-7291-00
- Palnut (secures button to lockbar), Stern 240-5003-01, Williams/Bally 02-3000
- #8-32 Keps nuts, quantity 2 (secures mounting plate), Stern 240-5104-00
As far as I can tell, there's no such thing as a "generic"
lockbar-with-button. They're all made for specific games (Star
Trek, Lord of the Rings, Game of Thrones,
AC/DC, etc), and all of the ones I can find come with
powder-coat finishes (not the standard chrome) and special
game-specific badges. The game-specific badge in particular would be
a big negative for me, in that it would clash with my custom theming,
but it's actually a separate part that you could remove and replace
with something custom. You'd also almost be forced to use the
matching powder-coat finish on the legs and side rails. That might
be something you want anyway, as it can look snazzy, but it would
increase the cost for those parts. And finally, keep in mind that
these lockbars are only available in the standard-body cab width, so these
wouldn't be an option if you're building a widebody or custom size.
Feedback request: I'd sure like to know if there are any
generic lockbar-with-button options (with the button
hole, in the standard chrome finish, and without any
game-specific badging). Please pass along a pointer if you know of
such a product available commercially. Also, if you've personally
modified a regular lockbar and receiver combo to include a Fire
button, I'd like to hear about how you did that and how well it turned
out. I'd be thrilled to have detailed conversion plans to add to this
section. The options above seem regrettably limiting.
Option 2: Add a Fire button to a regular lockbar. It's possible
to install a Fire button in a standard Williams lockbar and receiver,
but you have to modify some of the parts and do some custom
assembly work.
Parts:
- Transparent flipper button, 1-1/8" length, part A-16883-13
- Pushbutton mounting spacer, part 545-7292-10
- Pal nut, Part 240-5003-01
- Use my custom board:
- Grab these plans and fabricate them at OSH Park:
www.mjrnet.org/pinscape/downloads/Lockbar-Fire-Button-LED-plus-switch.zip
- Switch: DTS-62K-V
- LEDs: Kingwin WP154A4SEJ3VBDZGC/CA, quantity 2 (or any other 5mm common-anode RGB LED)
- 100 Ohm resistors, 2mm x 7mm size, qty 2 ("R" resistors)
- 47 Ohm resistors, 2mm x 7mm size, qty 4 ("B" and "G" resistor)
- Molex 22-05-3071 connector
- Generic 0.1" crimp-pin wire housing, 7 pin positions
- Or use a generic membrane switch (search Amazon or eBay for single key membrane switch)
and any LED that you can fit into the space
Step 1: Drill a hole in the center of your lockbar the same diameter
as the stem of the flipper button (typically 5/8", but measure
yours to be sure). I haven't tried this myself, but the advice
I've heard is to use a stepped drill bit. Drilling metal usually
works better with the drill at low speeds, and a drill press is
better than a hand drill.
Step 2: Place the spacer on the button, insert the button in the lockbar hole
you just drilled, and secure on the back with the Pal nut.
Step 3: Connect the LED and switch.
If you're using a membrane switch and a separate LED, you'll
have to improvise mountings for them. You should attach everything
to the receiver, not the lockbar, so that you can easily remove
the lockbar. Make sure that all of the wiring connections are
insulated so that nothing shorts if it comes into contact with
the metal parts in the receiver or lockbar.
If you're using my circuit board, solder the parts, then attach it to
the receiver (not the lockbar) directly behind the button. It should
just fit into the space between the lockbar and receiver, so I think
you can get away with a simple approach like taping it to the receiver
with something strong, perhaps electrical tape or duct tape. Make
sure there's a layer of insulation between the board and the metal
receiver parts, to prevent shorts. Electrical tape will work
for this, but something like "fish paper" would be better.
Build the wire housing and wire it to the control boards. The
terminals marked SW connect to the switch, so connect these to
your key encoder (connect one to the key encoder "Common" or "Ground"
terminal, and connect the other to the switch input you've assigned as
the Fire button). Connect the pin marked + to a +5V power
supply. Connect the pins marked R, G, and B to
your DOF output device controller ports for the Red, Green, and Blue
segments of the Fire button light.
Installing the lockbar receiver
Before you install the lockbar receiver, install the side rails, as
described earlier in this section. The lockbar should fit snugly on
top of the side rails, so the rails have to be in position before you
can fine-tune the lockbar positioning.
Start by fitting the lockbar into the receiver (with nothing installed
in the cab yet).
Put the lockbar/receiver assembly into position. On the inside of
the cab, the vertical part of the receiver should be flush with the
front wall. On the outside, the lockbar should be resting on the
side rails, slightly overlapping their front edges so that there's
no gap. The front of the lockbar should overhang the front wall
of the cab slightly (by about 1/8" to 3/16").
If you haven't already drilled the holes in the front wall for the
receiver's three carriage bolts, mark the center positions of the
bolt holes in the receiver on the inside wall. The positions
of the bolt holes are illustrated below. After marking the
locations of the holes, remove the lockbar/receiver assembly
and drill them at 5/16" diameter. Put the assembly back in
place.
The receiver attaches with three ¼-20 x 1¼" carriage
bolts and ¼-20 lock nuts. These are available in silver or
black finishes. Most of the real machines use black bolts to make
them less conspicuous. I've only been able to find them in black
from the pinball supply vendors (Pinball Life, Marco
Specialties) - they're not
just painted black, but actually have
a black oxide finish.
Insert the carriage bolts from the outside of the cabinet:
Attach lock nuts on the inside. You might need to pull the lever on
the receiver to access one or more of them, since parts of the
mechanism can slide in front of the bolt holes. If it's too hard to
fit the nuts onto the bolts with the lockbar in place, remove the
lockbar for that step. I'd put it back in place before final
tightening, though, to make sure things stay properly aligned. The
receiver provides a little bit of play in the bolt holes to let you
fine-tune the position, and the best way to do that is to use the
lockbar itself as the guide.
Note that the center bolt is shared with the coin door, so you should
leave that out for now if you're going to install a coin door next.
I'd still insert the center bolt during the fitting process to make
sure the holes are all properly aligned, but don't actually fasten it
yet.
Check final alignment by removing the lockbar and then putting it back
in place. You should be able to smoothly remove it and re-attach it,
and it should still be sitting at the desired position when latched in
place again. If it's too tight or too loose, you can loosen the bolts
again and tweak the receiver positioning to improve the fit. The
receiver has oversized bolt holes to give you a little play to get the
position right.
You can also adjust the locking tension slightly via the two brass
adjustment screws on the top of the receiver, as illustrated below.
Tighten the screws (turn them clockwise) to push down on the latches
and increase the tension when the lockbar is installed.
DIY alternatives to real pinball lockbars
Some pin cab builders don't use real lockbars because of the cost, or
because they're building an unusual cab design where the standard
lockbar doesn't fit the style or the available space.
If size (not price) is the only factor, note that you can buy lockbars
in custom widths (made to your specifications) from
VirtuaPin.
Fashioning your own metal lockbar seems like a challenging job for a
DIYer, short of having access to a well-equipped metal shop. I'm
afraid I don't have any workable suggestions here; it's not the sort
of thing you can make on a 3D printer, which is the magic answer
to almost everything else these days. The closest starting point
might be an "L" bar, which you can buy from hardware stores in
various metals and thicknesses - but I'm not sure how you'd mold that
to the more complex shape of a standard lockbar with its rounded
corners at each side.
If you're going for a furniture look with wood trim all around, it's
possible to craft a wood version using fairly ordinary wood-working
tools. Here are some vpforums threads that might be helpful:
Another possibility is to use a 3D printer to fabricate a plastic
lockbar. Here's a vpforum thread about that, with advice about
materials and finishes to make it look like a metal lockbar:
DIY alternatives to a real lockbar receiver
To save a little money, some virtual cab builders omit the receiver,
even while using a real lockbar. The receiver is a purely internal
part, so it doesn't serve any cosmetic function, and some pin cab
builders find the price (currently about $80) unreasonable for a part
with such a simple job. The main thing that makes a standard receiver
so expensive is that it has to be rather heavy-duty to fulfill its
role as a security lock. For a home machine, you might not be
concerned about teenagers trying to pry the thing apart to steal
quarters.
One simple solution might be to use Velcro. You'd have to attach some
filler material to the bottom of the lockbar to fill the space between
the lockbar and the top of the front wall. Once the two areas are in
contact, you can simply glue a bunch of Velcro to each side. This
would hold the lockbar reasonably well, although obviously not in a
truly "locking" way, and it would probably feel a bit wobbly compared
with the real ones.
A more elaborate home-made alternative is described here:
>
Briefly, the idea is to place a pair of toggle latches on the inside
front wall of the cabinet, positioned to align with the hooked prongs
that stick out of the bottom of the lockbar. To fasten, you reach in
through the coin door, hook the latches to the prongs, and engage the
latches. To release, you again reach in through the coin door and
disengage the latches. The downside is that it would require a fair
bit of dexterity to reach the latches through the coin door, since
they need to be positioned around the corner on each side. In
contrast, the standard receiver can be engaged and disengaged with a
lever that's positioned within easy reach.
Note that some of the newer Stern machines actually use lockbars with
a similar toggle-latch design. Compatible Stern lockbars are equipped
with under-carriage latch-hook parts that are specifically designed to
be used this way, so you might find it easier to use this approach
with a compatible Stern lockbar than with a lockbar designed to fit
the standard Williams/Bally receiver. Refer to these parts:
- Stern lockbar, dual luggage latch, 5500-6882-03-00
- Luggage latch, 355-5038-00
Cashbox
If you're planning to drop coins into the coin slots, you'll need
something to catch the coins on the other side. You don't want them
rolling around loose where they could randomly short out wiring or get
wedged in something mechanical.
The real machines' solution is the "cashbox". It's a low-profile
plastic box with a metal lid, with slots in the lid that line up with
the coin chutes. It sits just inside the coin door. When a coin
goes through one of the chutes, it drops straight into the cash box.
The cash box is sized to fit through the coin door, so the operator
can easily collect the machine's income when making rounds.
The cashbox has essentially just one design these days, which looks
like the illustration above. Older machines used a variety of shapes
and sizes, but nearly all pinballs made since the 1990s use the same
design that Williams used in the WPC machines. Since it's so close to
a standard, it's the one you can buy from pinball vendors. Most of
them sell it in two separate pieces: a plastic tray, and a metal lid.
They don't separate them just to make your life difficult; it's for
modularity, so that the same tray works with lids with different slot
patterns for different coin door layouts. The three-slot lid
illustrated above is for the typical US coin door configuration. If
you have a non-US coin door, you should be able to find a matching
cashbox lid at a European pinball parts vendor.
Installation
The cashbox itself doesn't require installation per se; you just pop
it into the space at the front of the machine. But you do have to
install two brackets to hold it in place, plus a little "fence"
or divider wall, called out in the illustration above.
The first bracket goes at the front of the cab, directly under the
coin door. This is the "cashbox nest bracket", Williams part
01-6389-01. It prevents the box from sliding back and forth.
The nest bracket has three screw holes. The center one is meant to
align with the bottom bolt in the coin door, so that you share the
same bolt between the coin door and this bracket. If you haven't
already installed the coin door, slip a carriage bolt (¼-20 x
1¼") through the hole from the front of the cab for alignment.
(If you've already installed the coin door, just remove the nut from
the bottom bolt.) Slip the nest bracket's center hole over the
bolt to position the bracket. Make sure it's level, then fasten
the two outside holes to the cab's front wall with wood screws
(#6 x ¾" should work).
If you've already installed the coin door, reattach the nut on the
center bolt. Otherwise just leave that off (and take the bolt
back out) for now; you'll install it when you get to the coin door.
The second bracket is the "cashbox lock bracket" (Williams part
01-10030 or 1A-3493-1), which attaches to the fence
called out in the earlier illustration. If you followed our plans
from
Chapter 21, Cabinet Body, you've already installed that. If not, you
should go back now and follow the plans in that chapter under "Cashbox
fence".
Once both brackets are in place, installing the cashbox is a simple
matter of dropping it into the space delineated by the fence, fitting
the slot at the back of the cashbox lid over the lock bracket. To
remove the cashbox, lift the back edge high enough to clear the lock
bracket, and pull the cashbox out. This is all meant to be done
through the coin door, since the cashbox is sized to fit through the
door.
(If you look more closely at the lock bracket, you'll see that it has
a little slot at the top. That's for attaching a padlock, to add an
extra layer of security to protect the booty even if someone gets past
the coin door. Probably not something you'll need in a home machine.)
DIY cashbox
Apart from cost, the main reason you might want to consider designing
your own home-made cashbox substitute is that the real ones are rather
large. The standard cashbox is great at its job, but it takes up a
whole foot of floor space at the front of the cab, which impinges on
space you might want to use for PC parts or feedback devices.
Improvising a home-made cashbox isn't too challenging, since it's just
a box with a couple of holes in the lid. You could easily fashion one
out of plywood or acrylic. I created one using a plastic food
container; I found one with about the right depth, and used an X-acto
knife to cut slots in the lid that line up with the coin chutes. I
use a bungee cord (connected to a couple of eyelets screwed into the
floor) to hold it in place. It's certainly not as elegant as the real
cashbox (particularly the bungees pinning it down), but it only takes
up about 5" of floor space.
Coin door
The coin door is a complex enough subsystem that we've devoted a whole
chapter to it (
Chapter 40, Coin Door). But we'll go over the basic
installation process here.
If you're using a standard lockbar-and-receiver combination, it's
easier to install the receiver before installing the coin door.
Follow the procedure above. The receiver shares its center attachment
bolt with the coin door, so you'll need to remove the center bolt in
the receiver if it's currently in place.
The standard coin door assembly comes with the door itself and the
frame already assembled, so there's not much to installing it. Start
with the door closed and locked. Fit it into through the coin door
opening in the front wall.
Holding the door in place, insert carriage bolts (¼-20 x
1¼") through the four holes around the perimeter of the door
frame. Fasten them on the inside with ¼-20 lock nuts.
The top bolt in the coin door is shared with the lockbar receiver,
if you're using one. Thread the bolt through the matching hole
in the receiver mechanism, and attach the lock nut on the interior
side of the receiver, so that it secures the receiver as well as
the coin door.
If you're installing the full set of cashbox hardware, the bottom bolt
in the coin door frame will be shared with the cashbox "nest bracket".
Thread the bolt through the matching hole in the nest bracket and
attach the lock nut on the interior side of the bracket.
Coin mechs
If you bought a brand new coin door, it probably didn't come with coin
"mechs" (mechanisms), the gadgets that sit behind the coin
slots to validate inserted coins. You can buy those separately. The
mechanical quarter acceptor used in typical US coin doors is an
inexpensive add-on (about $10 each). I think it's worth including these
in a virtual cab, for the added realism of being able to use real coins.
The installation procedure is
detailed under "Coin mechs" in
Chapter 40, Coin Door.
Custom coin slot inserts
On most types of coin doors, it's possible to replace the illuminated
"25¢" signs (known as "inserts") on the coin slots, to show
different coin denominations, or better yet, your own custom graphics.
See "Custom coin slot inserts" in
Chapter 40, Coin Door.
Coin door position switch
On real pinball machines, there's a switch inside the cabinet that
detects whether the door is open or closed, just like the light switch
in a refrigerator door. It's useful to include this switch in a
virtual cab, because many ROM-based tables won't let you access the
setup menus unless they get a signal from the switch indicating that
the door is open.
Full instructions on setting up the door switch (as well as connecting
it to the virtual pinball software) can be found in
Chapter 40, Coin Door, under the section "Coin
door position switch".
Plunger
If you bought a full plunger assembly, it probably came assembled.
If not, or if you bought the separate components, assemble as shown
below.
- Slip the barrel spring over the shooter rod and push to the knob end
- Slip the washer over the shooter rod and push down to the barrel spring
- Insert the nylon sleeve into the shooter rod opening in the housing
(from the inside of the housing)
- Insert the shooter rod into the opening the housing (from the outside
of the housing)
- Slip the other washer onto the shooter rod
- Slip the main spring onto the shooter rod
- Attach the E-clip to the rod. You'll have to hold the spring back
while you do this, since the spring will be compressed in its normal
position. The E-clip fits into the groove near the end of the rod.
Use needle-nosed pliers to snap it into position.
- Fit the rubber tip over the end of the rod. (This is optional in a
virtual cab; you probably don't need the tip unless you're using some
kind of optical sensor that requires it. Leaving it out will save a
little space if you have tight clearance to the TV.)
If you haven't already routed the opening in the front wall for the
plunger, see "Plunger and Launch button" in
Chapter 21, Cabinet Body.
For installation in the cabinet, you'll need three #10-32 x ⅝"
machine screws (¾" length will also work) and a ball shooter
mounting plate (Williams/Bally part 01-3535). You can improvise
something to replace the mounting plate if you prefer, but the
plate makes things a lot easier and only costs about $2.
Fully assemble all of the plunger parts (except for the mounting
plate) as described above, then fit the assembly through the
triangular opening in the front wall, from the outside. The three
prongs in the front of the housing should fit in the obvious way at
the corners of the triangular cutout. Align the mounting plate on
the inside, fitting the large hole at the center over the shooter
rod. The mounting plate should sit flush with the front wall of
the cabinet. Screw in the three #10-32 bolts.
Legs
You'll probably want to leave the legs off for most of the build
process. It's easier to install the internal parts (the PC, TVs,
buttons, feedback devices, etc) with the machine on the floor or on
your workbench. That's why we've saved this for near the end of the
hardware chapter. On the other hand, it's easy to attach and detach
the legs as needed, so you can always test them for fit.
Assuming the leg brackets are already installed (see
above), attaching the legs is pretty
easy. You'll need eight bolts (two per leg), ⅜-16 by
2½" or 2¾". The longer length is usually needed if you
have leg protectors of some kind. You should buy the bolts from a
pinball vendor rather than using generic hardware store parts, as the
pinball bolts look nicer; this is a cosmetic item.
The legs on modern machine are all interchangeable
front/back/left/right, so you should have a set of four
identical legs. (The front and back legs are the same length. The
forward tilt of the machine comes from the back legs being attached
lower on the cabinet than the front legs.)
If you haven't already attached the "levelers" (the round foot pads)
to the legs, do so before installing the legs. These simply screw in
to the holes on the bottoms of the legs.
The levelers let you adjust the slope of the machine slightly, and
also let you adjust each leg so that all four legs are planted on the
floor (to solve the classic wobble problem with a four-legged table on
an uneven surface). It's best to screw all of the levelers all the
way in initially (so that they're as "retracted" as possible), then
adjust as needed once the machine is situated. The levelers can get a
little wobbly themselves at their maximum extension, so keep them
retracted and only extend as needed.
Start by setting the machine on its back. This lets you attach the
front legs without any weight on them.
Position each leg at the corner of the cabinet where it goes, aligning
the bolt holes in the leg with the bolt holes in the cabinet. If
you're using leg protectors, they go between the leg and the cabinet.
Insert the two bolts and thread them into the bracket. There's no
need for any nuts or washers, as the brackets themselves are threaded
and serve as the fasteners. Use a hex driver or wrench to tighten the
bolts. They should be tight enough that the legs won't wobble, but
don't tighten so much that you strip the threads or crush the plywood.
Tip the machine forward until the front legs touch down on the floor,
then lift the back of the machine high enough to attach the back legs.
Have an assistant hold the back of the machine up while you
install the rear legs, which bolt on just like the front legs. Be
sure to have your assistant continue holding the machine off the
ground in back until all of the rear bolts are fully tightened.
When the machine is situated at its permanent location, adjust the leg
levelers (the foot pads at the bottom) to level the machine, so that
all four feet are firmly on the floor without wobble. (On a real
machine, you'd also take this opportunity to adjust the leg levelers
to fine-tune the cabinet's tilt to level the playfield side-to-side
and make its slope match the manufacturer's prescription. But this is
superfluous on a virtual cab, where game gravity only exists within
the simulation.)
To remove the legs, simply reverse the installation procedure.
Leg protectors: A lot of people use some sort of padding
between the legs and the cabinet, to protect the cabinet corners where
the legs attach against wear from the pressure and motion of the legs.
You can find these on pinball parts vendors by searching for "leg
protectors". I've seen two types: felt and metal. The felt
protectors will just protect against scratches, while the metal ones
help reinforce the whole corner. In commercial pinball machines, it's
common to see wear and damage at the leg attachment points, so a lot
of collectors consider leg protectors a must. My own experience is
that machines in home use don't need them, but they won't do any harm,
and they're a relatively inexpensive bit of insurance. One case where
I'd consider them more seriously is a cabinet built from MDF, since
MDF isn't as strong as plywood, especially for concentrated pressure
points like the leg joints.
Protecting decals: With commercial machines, it seems to be a
common problem that cabinet decals can wrinkle around the legs, due
the pressure that the legs apply against the side of the cabinet and
motion at the joint. I haven't seen many reports of this with virtual
pin cabs, so it might not be as much of an issue in home-use-only
settings, but I think it's worth taking some precautions. One
preventive measure that's often suggested is to use metal leg
protectors, but I've seen mixed reviews of how well this works. The
solution I prefer is to cut out the decals under the legs, to
eliminate any contact between the legs and the decals. With the legs
installed, take an X-Acto knife and cut through the decal around the
perimeter of each leg. You can then peel off the part of the decal
under the leg, or just leave it - even if that section wrinkles, it
shouldn't affect the rest of the decal, since it's no longer attached.
Top glass
If you've set things up as we described above, with the plastic channels
for the glass along the side rails and in back, the glass can be easily
installed and removed at any time, without tools.
To install the glass, remove the lockbar, and slide the glass through
the front of the machine, fitting the edges into the plastic channels
under the side rails. Slide it back until it's nested in the trim at
the back. Put the lockbar back in place to keep the glass from
sliding back out on its own.
To remove the glass, simply reverse the procedure.
24. Backbox Hardware Installation
This section continues with the cabinet trim hardware, moving on now to
the backbox.
We assume that you've already built the wood shell of the backbox as
described in
Chapter 21, Cabinet Body, and that you've already painted it
and/or applied decals, as described in
Chapter 22, Cabinet Art. It's best
to finish the artwork before installing any hardware, since some the
hardware will get in the way of painting or applying decals once
installed.
Translite lock
The real machines have a keyed lock at the top of the backbox that
secures the translite, so that arcade customers can't steal the
translite or get into the backbox to mess with the electronics.
The operating principle is pretty simple. In the locked position, a
metal tab on the lock sticks into the slot at the top of the backbox
trim that the translite fits into. This prevents lifting the
translite, which is necessary to remove it.
In the unlocked position, the metal tab swings out of the way, letting
you lift the translite into the slot, which in turn lets you remove it.
With the lock open, there's enough play that you can remove the
translite, as described
below.
With the lock closed, the tab prevents moving the translite far enough
to free it from the top and bottom trim channels, so it's effectively
locked in place.
The translite lock is purely for the sake of security - it's there to
prevent anyone without the key from removing the glass. The glass
won't fall out on its own, though, even if you don't install the lock
- it's held in place by the slots it sits in, and you have to
intentionally maneuver it out of the slots to remove it. So it's not
a functional necessity in a home setting, unless you have obnoxious
friends. (The exception is that the glass could conceivably come
loose during transport if you give it a bumpy enough ride. A lock
does help prevent this by ensuring that the glass can't move out of
its slots.)
Installing the translite lock
First, assemble the pieces of the lock plate. Slip the lock through
the hole in the plate, slip the hex nut over the back of the lock,
and tighten the nut.
It should look like this when assembled.
The pinball vendors sell the lock plate assembly as a complete kit,
which includes a pair #8-32 machine screws with security Torx heads.
There are two reasons you might want to discard these and substitute
your own wood screws. The first is that they're the security Torx
type, so you need the special security type of Torx driver to use
them. "Security screwdriver" is a bit hyperbolic when anyone can go
buy one at Home Depot, but it's at least a slight deterrent against
mischief simply because most people don't have one lying around. The
second reason you might be inclined to discard the special screws is
that they're machine screws, not wood screws. They won't attach well
to plain wood. They require T-nuts, which must be pre-installed
behind the trim, as explained in "Translite lock plate preparation" in
Chapter 21, Cabinet Body. If you skipped that step
when installing the trim, it's probably too late. Fortunately, wood
screws are a pretty decent alternative, especially if you're not
concerned about the security aspect of the lock. And if you are
concerned about that, you could substitute tamper-resistant wood
screws.
Before installing the lock plate, use a key to check the orientation
of the lock. Turn the lock so that it's in the extended position,
with the lock tab sticking up perpendicular to the plate. Be
sure to install it with the tab facing the back of the backbox.
If you did already install T-nuts for the Torx screws, simply put the
lock plate in position, and fasten it with the Torx screws.
If you didn't install the T-nuts, discard the Torx screws that came
with the kit, and substitute a pair of wood screws. I'd go with #6 x
¾". Rounded-head screws will look better, as will black screws
if you can find them (if not, you can just paint the heads black after
installation if you want).
Line up the lock plate over the gap in the top trim. It should be
centered over the gap, which should be the same as centering it
side-to-side overall in the backbox. Mark the positions of the screw
holes. Remove the plate and drill pilot holes for the #6 screws. Put
the lock plate in position again and fasten the screws.
Where to keep the keys
With the real machines, the standard way to keep track of your
translite keys is to keep them on a little hook inside the coin door.
The WPC and SuzoHapp doors provide a hook specifically for this
purpose, located next to the coin mechs.
If you're not installing a standard coin door or can't find the key
hook, you might put a little eyelet or hook on the inside wall of the
cab somewhere convenient, and hang the keys there.
DIY alternatives
If you don't need the locking function, but your backbox has the gap
in the trim where the lock plate goes, I'd simply install a 1" x 4"
plate, either metal or a thin piece of wood, painted black. Screw it
in with #6 x ¾" wood screws, at holes placed about ⅜"
from either edge. Use rounded-head screws, and either use black
screws or paint the heads black after installation.
If you haven't yet installed the wood trim where the plate goes,
I'd simply run a single piece of wood all the way across rather
than replicating the gap in the standard plans.
Backbox hinges
Real pinball machines are designed with a hinge that lets you tilt the
backbox forward until it's lying flat on top of the main cabinet.
This is an essential feature if you want to transport a pinball
machine, as it would be too tall, top-heavy, and fragile with the
backbox in the normal position. And you certainly wouldn't want to
remove the backbox every time you moved the machine, as that's a major
operation that requires disconnecting a lot of wiring, which always
creates a risk of breaking something when you reassemble it.
WPC hinges
On the WPC machines, the backbox is attached to the main cabinet with
a clever hinge mechanism that uses rotating arms connected to pivots
on the sides of the cabinet.
I consider this setup clever, in part because it wouldn't have
occurred to me to do it this way, but mostly because it has has some
nice functional advantages over the more obvious "door-hinge"
approach, where you simply put a regular hinge at the front of the
backbox. A door-hinge approach is workable, and in fact it's used
on a lot of older pinball machines from before the WPC era - we'll
have more on this shortly, since it's a viable alternative if the
WPC approach doesn't work for you for some reason. But the WPC
system more elegant: it looks nicer, it makes for simpler cabinet
geometry, and it's easier to install and to get everything aligned
properly. Door-hinge systems can be tricky to get aligned.
So assuming you're building a full-scale cabinet, the WPC approach is
all upside. And it's not particularly expensive; the required parts
will only set you back about $30.
The only reasons I can think of not to use the WPC hinges are (a) that
you're building a mini-cabinet that's too small for the standard parts
to fit properly, or (b) that you're specifically reproducing a cabinet
style from a different era, so you want to use the same hinge system
they used. If one of these applies to your build, you can skip down
to the "Alternatives" section below for some other ideas.
Installing the WPC hinges
One of the advantages of the WPC hinge mechanism is that it's
easy to set up. If you followed the WPC cabinet plans in
Chapter 21, Cabinet Body, you've already drilled the mounting holes in
the main cabinet and backbox. To review, the parts get mounted
here:
...and here:
See "Backbox floor" in
Chapter 21, Cabinet Body for
drilling locations, which depend on your cabinet width. If you
haven't already drilled these, an easy way to figure the exact
position is to use the hinge arm itself as a drilling template, after
attaching it to the main cabinet first. We'll point out the right
time to do that in a moment.
You should already have your side rails installed at this point, since
the hinges will get in the way of installing them later.
Note that there's a "left" and a "right" hinge arm - they're mirror
images. Be sure to install the correct one on each side. They should
be oriented with the pivot point pointing towards the front of the
cabinet, and the little "wing" that attaches to the backbox pointing
away from the cabinet side:
Start with the hinge pivot joint. This uses the ½" diameter
hole drilled in the side of the main cabinet:
- Fit a ⅜"-16 x ¾" carriage bolt into the squarish
opening on the side of the hinge arm. Orient the hinge arm so
that it's hanging from the bolt, so that it doesn't swing down
into this position on its own and scratch the side of the cab.
- Insert the carriage bolt into the pivot hole in the main cabinet
- From the inside of the cabinet, thread the pivot bushing
(Williams part 02-4352) by hand onto the end of the carriage bolt
- Use a ¼" hex wrench to tighten the pivot bushing from
the inside of the cab
When tightened, this arrangement should leave a little clearance
(about 1/8") between the hinge arm and the main cabinet, and you
should be able to rotate the hinge arm around the pivot. (It's okay
if it's tight.)
Install both hinge arms (left and right) using the procedure above.
Position the backbox on the shelf at the back of the cabinet, centered
side to side, with its back flush with the back wall of the main
cabinet. (Have an assistant hold the backbox steady while you're
working so that you don't accidentally knock it over.)
Rotate the hinge arm around the pivot until the side with the three
bolt holes meets the bottom side of the backbox. Be careful about
rubbing the sides of the cab so that you don't scratch the artwork.
If you haven't already drilled the holes in the backbox floor for
attaching the hinge bracket bolts, this is the time! Make sure the
hinge arm is flat against the bottom of the backbox, and that it's
precisely parallel to the side of the cab. You should be able to see
a little gap between the hinge arm and cab across its whole length.
The hinge shouldn't be pressing against the cab anywhere, since that
could scratch the artwork when you rotate the backbox. Once you have
it aligned to your satisfaction, mark the positions of the three bolt
holes. Repeat on the other side. Remove the backbox and drill
¼" holes at the marked positions.
On the inside of the backbox, position the backing plate
(01-9012) over the bolt holes.
Install three ¼"-20 x 1¼" carriage bolts in each hinge
arm, inserting from the bottom side, and through the mounting plate.
Fasten each with a ¼"-20 whiz flange locknut. Tighten
securely.
The backbox is now attached! You should be able to freely tilt it
forward so that it lies flat against the top of the cab. (It's a good
idea to put down some padding when doing this, so that you don't
scratch up the side rails or the front edges of the backbox.)
If you ever need to remove the backbox, just take out the carriage
bolts attaching the hinge arms to the bottom of the backbox. You can
leave the hinge arms themselves attached permanently.
Alternative hinge mechanisms
Most commercial machines made from the 1990s to present use the WPC
hinge system described above. Most earlier machines that I've
encountered use something more like conventional door hinges, with the
hinges attached at the bottom front of the backbox. The backbox folds
down forwards onto the cabinet, as in the WPC system, but the pivot
point is the door hinge rather than the side bolts. The Williams
System 11 machines from the 1980s use this approach, as shown below.
Williams System 11 backbox mounting (Space Station,
1987). This used door hinges at the front of the backbox.
Note how the backbox has to be raised slightly above the
cabinet on a pedestal, to make space when folded down
for the part of the backbox that overhangs the front of the hinge.
I think the WPC system is nicer in a lot of ways, but the door-hinge
system might be a good alternative in cases when the WPC parts won't
fit, such as a mini-cab or an ultra-wide cab. If you use the System
11 machines as your model, pay close attention to the way it requires
a "pedestal" to raise the backbox about an inch above the main
cabinet, to make room for the front overhanging portion of the backbox
when it folds down. The standard WPC plans won't work well with a
hinge like this, because the backbox sits directly on top of the
cabinet in the WPC design. If you want to adapt the WPC plans for
this arrangement, you'll have to add something like the System 11
pedestal.
The pedestal has to be at least as high as the distance
the backbox projects out in front of the hinge, to make
room for that part when the backbox is folded down.
Hinge system with backbox folded down.
Backbox latch
This is a minor bit of hardware that helps when setting up the
machine, by temporarily securing the backbox in the upright position,
preventing it from falling forward if bumped. The standard part is a
simple toggle latch that attaches to the back of the main cabinet, with
a mating bracket that attaches to the back of the backbox.
I said "temporarily", because the toggle latch isn't strong
enough to serve as a permanent way of securing the backbox. Let me
show you the warning that they silkscreen on the back of the real
backboxes in big yellow letters:
Their point is that this little toggle latch isn't all that strong; it
could fail if the backbox were bumped too hard. The backbox is quite
heavy and has a lot of leverage, so you need something a lot stronger
to truly secure it. The solution is to install the wing bolts
described below. The toggle latch is just meant to be a temporary
helper while you're getting the wing bolts in place.
Install this after you've set up the backbox hinges, so that you're
working in terms of the actual final alignments.
For fasteners, use any suitable wood screw. On the real machines,
they usually use #6 x ¾" sheet metal screws with hex heads. (I
know, "sheet metal screw" doesn't sound like the right thing for
screwing into wood, but they actually work just fine as self-tapping
screws with plywood.)
- Set up the machine with the backbox in the upright position. Have
an assistant brace the backbox while you're working so that it doesn't
fall forward.
- Attach the bracket (the top piece) first. Align it in the center
of the backbox side-to-side, with the bottom edge roughly flush with
the bottom of the backbox.
- Figure the position of the latch itself by hanging it from the
bracket with the lever pulled partially open, so that there's no
tension on the spring, as illustrated below.
- Fasten the bottom bracket at this position. When you close the
latch all the way, it should pull the spring tight so that the bracket
stays latched.
Backbox safety bolts
As the warning placard above points out, the little toggle latch on
the back of the backbox is helpful to keep the backbox from flopping
over while you're setting up the machine, but it's not strong enough
to rely on beyond that. For a deployed machine, you need something
stronger, specifically a couple of big bolts installed in the floor of
the backbox.
The parts required are a pair of ⅜"-16 x 2" "wing bolts", like
the one pictured below. Wing bolts are basically just regular bolts
with wing nuts in place of the heads. This lets you turn them by
hand, for tool-free installation. (The wing nut at the top isn't a
separate part; it's integral, like the hex head on a regular bolt.)
The wing nut head also serves as a built-in washer.
You can buy wing bolts in the right size from pinball vendors. You
might be able to find them at some hardware stores as well, although
they're too obscure for the big-box stores like Home Depot. In a
pinch, you could substitute ordinary hex-head bolts of the same size,
but note that you'd need to use some kind of giant washers (over 1"
outside diameter) in conjunction, because the hex heads by themselves
will slip right through the 1" top holes (defeating the purpose).
If you've done the necessary prep work as described in the "Rear
shelf" section in
Chapter 21, Cabinet Body, installing the bolts
is trivial. Just pass them through the holes on either side of the
floor opening and thread them into the pre-installed T-nuts. There's
no need for washers or other parts. Hand-tighten. You don't have to
go beyond hand-tight, since they don't have to hold the backbox up
most of the time; gravity takes care of that for the most part.
The bolts only kick in if the backbox gets bumped or pushed.
What is a translite?
We're all pinball nerds here, so a quick digression on definitions is
in order! There's a bit of a disagreement between virtual
pinball people and real pinball people about what "translite" means.
So to avoid confusion, I want to make sure we're all clear on what
we mean by the word.
Throughout this guide, I use the term "translite" to refer to a
clear plastic or glass sheet that you install in front of the main
backbox TV. There's no artwork printed on it (other than perhaps
some masking around the edges, to hide the TV bezel), since we want to
let the TV handle all of the artwork display. The virtual translite
is thus essentially a bit of trim in a virtual cab to disguise the
TV-ness of our virtual setup and make it look on the outside more like
a real pinball machine.
Okay, so that's how I use the term in this guide. It's also how
the term is commonly understood in the virtual pin cab community, so
that's the way you'll usually see it used on the forums. But
technically speaking, it's wrong! At least, it's not what it means
to (most) pinball people when they're talking about the real machines.
Technically, in a real pinball context:
- A translite is a thin, translucent plastic decal, printed
with graphics. There's no glass involved in the translite itself.
This plastic decal that they call the translite is then affixed to a
clear glass sheet to create a pseudo-backglass. Most modern pinball
machines (1990s and later) use this type of assembly in place of a
true backglass. It's only a "pseudo" backglass because...
- A backglass is a glass sheet with artwork directly painted or
silkscreened on the glass. True backglasses were usually used on
machines built before about 1990, when the manufacturers switched to
the cheaper translite process.
Those are the technical meanings, but even real pinball people often
use the words translite and backglass loosely and
interchangeably. They'll often call the translite-plus-glass assembly
a translite, or even a backglass. So I think we virtual pinball
people can be forgiven for appropriating translite to mean
kind of the opposite of what it really means, in that we use it to
refer to the plain glass sheet without any artwork.
Creating a translite
The basic material for the translite is a clear sheet of either glass
or acrylic. If you're using glass, it should be tempered glass. I
personally prefer acrylic for the translite because it's so much
lighter than glass.
Dimensions for the standard WPC-style translite:
- Thickness: ⅛"
- Size: 18⅞" high x 27" wide
The size obviously depends on your backbox dimensions.
The size above is for the standard WPC setup, with the backbox built
to the standard dimensions and a standard-sized speaker/DMD panel
installed. If you're not using a speaker panel, you'll probably want
to increase the height to cover the entire backbox area, so you'd make
it about 26½" high if you're using the standard backbox
dimensions.
Where to buy: The clear glass or plastic sheet isn't something you
can find as a standard pinball part from any vendor. Fortunately, it's
easily found as a generic part.
- For glass, you can have a custom glass sheet made by just about any
window glass company. Look for local companies that install or repair
residential window glass.
- For acrylic, try TAP Plastics
or a similar local plastics vendor. You can also buy acrylic in
standard sizes at Home Depot and other hardware stores, and cut it to
a custom size yourself using a plastic knife. This doesn't tend to
make as clean an edge as you'd get from a plastics shop, but that
doesn't really matter, since the edges are all covered by trim pieces
anyway.
Edge masking
It's nearly impossible to make the backglass TV fill the entire space
that's available for the translite in the standard backbox design.
Part of the reason is that a TV's viewable screen area never
completely spans the full height and breadth of the unit; there's
always at least a thin bezel around the edges. The other factor is
that the backbox space is much squarer than the 16:9 aspect ratio
that's all but universal on current TVs. It's impossible to find a TV
that fills the vertical space fully, given the constraint of also
fitting in the available width. You can get down to a fraction of an
inch of dead space on the sides, but you'll still have more than an
inch at the top and bottom in the best case.
Most cab builders want to cover up all of the dead space around the
edges of the TV, so that only the live display area of the TV is
visible. Understandably, they don't want the insides of the backbox
to be visible.
One way that some cab builders deal with this is to create a wood
(or similar) cover with a cutout for the TV area.
I don't personally like this look very much, because to my eye, it
calls attention what it's meant to hide. I mean that it makes it more
even more obvious than it otherwise would be that there's a smaller TV
embedded in a bigger backbox space. I also find that it looks too
different from the real machines, which creates an impression of
home-brew-ness that's at odds with my goal of a realistic appearance.
Given that we're talking about translites, I think you can probably
guess that the approach I prefer is to use a clear glass or plastic
cover for the whole area. That's exactly what the real machines use,
so it looks as close to authentic as you can get, given the inherent
differences in what's behind the glass. But that still leaves the
problem that you can see into the dead space around the TV, since
a clear glass or plastic cover is, after all, clear.
The best solution, in my opinion, is to combine the "cutout" idea from
the wood cover with the clear translite, by masking out the edges of
the translite. There are two ways to do this:
- The easy way is to paint around the perimeter with black spray
paint. Paint on the back side of the panel, so that the front has a
uniform glossy sheen - that'll largely eliminate the visibility of the
"cutout" that I find objectionable in the wood cover approach.
Measure the TV display area size, and use masking tape and paper to
cover the cutout area. Paint around the edges.
- The other way is to use printed decals to create the mask. You can
have custom decals made for this use just like for the cabinet artwork
(see Chapter 22, Cabinet Art). I used this approach for my own cab,
because I figured the real machines have artwork here, so I should
too.
I used decals printed in the conventional way, to adhere to the front
side of the translite. It would have been better to print them in a
reverse format, with the adhesive on the graphics side so that they
could have been stuck to the back side of the translite. This would
have created a more uniform finish on the front, just like why you
want to paint on the back if you're using a painted mask.
I really like the way my translite with decals turned out, but for
practical purposes you might be better off with a simple black mask.
The thing that you might not expect about the decals is that you
simply don't see them while playing. The TV display is so much
brighter that it completely overwhelms them to the point of utter
invisibility. Which is exactly what you want, as it turns out: you
want it to look like the backbox of the game you're playing, not like
a TV embedded in a virtual cab. So that works out great, but my point
here is that as far as playing goes, there's no difference between
decals and black paint. And when the cab is powered down, the decals
arguably create the same visual impression that I said I don't
like with the wood cutout approach - the way the visible borders call
attention to what's missing in the middle. But somehow I don't
dislike the look in this flat "2D" version; in person, it actually
looks very much like a real translite, even if it would be a rather
art-impoverished one on a real machine. Even so, a plain black paint
mask would do a better job of hiding the TV cutout when the power's
off; it would just like a solid dark sheet. You could easily
mistake it for a regular translite with really dark graphics that need
some backlighting to come to life.
Assembling the trim
The standard WPC translite setup uses four trim pieces around the
edges:
- A "lift channel" at the bottom, part 03-8228-1
- A top trim piece, part 03-8228-2
- Two side trim pieces (one for each side edge), Williams/Bally part 03-8228-2
They're all dead simple to install. Each is a plastic piece with a U-shaped
channel that the glass/plastic sheet fits into. Just align each piece at the
center of its respective edge and press it onto the glass.
Note that the trim pieces don't cover every millimeter of the edges - there's
a little uncovered space at the corners. That's normal.
How to install the translite
If you installed a translite lock, make sure it's unlocked, with the
tab turned "sideways" so that it's not sticking out into the top glass
channel. You'll have to use the key to do this. The whole purpose of
the lock is that the tab blocks the channel so that the glass can't be
removed, but this equally well prevents inserting the glass when the
tab is in the "locked" position.
Holding the translite at an angle, lean the top edge against the
guides at either side of the backbox, and slide it upwards into the
slot at the top.
Lift it high enough into the slot that the bottom edge clears the
bottom trim channel. Holding it by the "lift trim" at the bottom,
move the bottom edge forwards until the translite is flat against
the guides, then lower it into the bottom trim channel until it's
seated.
If you have a translite lock, turn the key to the locked position to
secure the translite. Most pinball owners store the key inside the
coin door, hanging it on a little wire hook that's usually located
alongside one of the coin slots.
How to remove the translite
If you installed a translite lock, insert the key and turn it to the
unlocked position.
Holding the translite by the "lift trim" at the bottom, slide it
upwards until the bottom clears the lip of the bottom trim channel.
That lets you tilt the bottom outwards.
Now just lower the translite out of the top slot. It's now entirely
free of the backbox trim, so you can remove it.
25. Cabinet Grounding
All of the externally exposed metal parts in your pin cab should be
"grounded", meaning that the metal parts are all electrically
connected to the Earth ground wire in your AC power plug. This
includes the leg bolts, side rails, front lockbar, coin door, and
plunger housing.
Grounding serves several puproses:
- Safety. If a wire inside the cab carrying voltage ever comes loose,
it could come into contact with one of the exposed metal parts, which
would create an electric shock risk to anyone using the cab.
Grounding all of the metal parts reduces shock risk by shunting any
stray voltages directly to ground. It also reduces the chances of
a fire or other damage from an electrical mishap, in that
a short to ground should quickly trip a fuse or circuit breaker and
cut off power at the source, hopefully before anything can get
red-hot inside the cab.
This alone makes grounding a must, since the combination of
electricity and exposed metal surfaces creates a real risk to
human safety in the absence of proper grounding.
- Static electricity protection. Semiconductors are extremely
sensitive to static electricity. You can destroy a computer chip
or transistor just by touching it if you have a static charge on
your body. The cab itself can accumulate a static charge as well,
which can likewise be a threat to the chips inside the cab.
Grounding the metal
parts in the cab neutralizes any charge on them, and neutralizes the
charge on your body when you touch them.
Grounding the metal parts is a huge convenience any time you're
working inside the cab, because it lets you discharge any static
on your body simply by touching the side rails or lockbar.
That greatly reduces the chance that you'll zap any chips
you touch.
- Radio interference shielding. Virtual cabs have computer
motherboards and other electronics inside that both generate radio
frequencies and can be affected by radio waves in the air. The big
metal parts in a cab can act like antennas to transmit and receive
this energy. Grounding the metal parts prevents that, and
reduces the ability of radio waves to penetrate in or out of the
cabinet. This will reduce the chances that your cab will interfere
with nearby Wi-Fi networks or garage door openers or cell phones, and
it'll help avoid things like picking up local radio stations on your
cab speakers.
When to install
Grounding is infrastructure work that should be done early in the
build. The best time is after you've assembled the cabinet body and
installed the metal trim parts, and before you've started installing
the internal components (PC, TV, feedback devices). Running the
grounding wire is easier while the cabinet is still mostly empty.
Parts
The ideal type of wire to use for grounding is flat copper
braid. This is a bare (no insulation) wire bundle with a large
number of small wires woven into a wide, flat braid.
Braided wire is great for this because it has high current capacity,
and the flat form factor makes it easier to connect to metal parts by
providing a large surface for contact. The high current capacity is
important because the whole point is to carry the large surge current
that would occur if a power supply voltage is ever shorted to ground.
The ground wire has to be robust enough that it won't melt before the
fuse or circuit breaker trips and cuts off the power at the source.
I'd recommend 1/4" (or larger) tinned copper braid. 20 or 25 feet
should be adequate. You can find this at electronics vendors, Amazon,
or eBay.
What is Earth ground?
Earth ground is pretty much what it sounds like: an electrical
connection into the soil. If your house is wired properly, there's a
big metal stake driven into the ground somewhere in or around your
foundation, and the stake is wired to the "third prong" in all of the
AC outlets in your house. In the US, that's the round prong at the
bottom of the plug. (In older houses, a buried water pipe might serve
in place of a metal stake, and in older houses still, where the old
two-prong outlets are installed, you might not have any Earth
grounding at all.)
For the purposes of a pin cab, we rely on the house wiring to provide
the connection to Earth ground, via that third prong on the AC plug.
How to connect to the Earth ground
One end of your grounding wire needs to connect to the Earth ground
in your house wiring. To get there, we can piggy-back on the AC power
connection you're using for your PC power supply. That should have a
three-conductor power cord, since your PC power supply needs to be
grounded.
There are several ways to tap into that ground connection. The
best option will depend on your setup and the type of power supply
you're using, so look these over and pick the one that works best
for you.
Option 1: ATX case
If your PC power supply has a bare metal case, the case itself can
serve as the ground connection.
Any ATX power supply with a metal case will have its case connected to
Earth ground, for the same safety reasons we need to ground the metal
parts on the pin cab. If the case isn't painted, you should be able
to get good electrical contact to ground using with the case itself.
It's a good idea to test this with a multimeter, to make sure there's
not some kind of coating that insulates the case. With the PSU
unplugged from power, and your meter set to resistance (Ohms) mode,
measure the resistance between the ground prong on the power supply's
AC wall plug (in the US, that's the round bottom prong) and random points
on the exterior of the case. It should read close to zero Ohms (you
might see a very small resistance on the order of 1 ohm or less). If
you get consistent near-zero readings at various random points on the
case, the case will make an excellent grounding connection.
To connect the ground braid to the power supply case, you can simply
pin the braid under the power supply, pinching the braid between the
PSU and the cabinet surface where you're installing it. As long as
the PSU is attached tightly to some surface, pinning the braid under
it should keep the braid in place and provide a nice solid electrical
connection.
Option 2: ATX case screw
If your PC power supply has a painted or lacquered case that prevents
the first approach, you might still be able to use the case, by
connecting to one of the mounting screw holes - the screw holes
intended to be used for mounting the PSU inside a PC tower or desktop
case. Even if the case is painted, there's a good chance that the
threaded screw holes will be conductive.
You should be able to check this visually. If the threads look
metallic, this is probably a good place to connect.
If the visual check looks promising, try the multimeter test. With
the PSU unplugged from power, and your meter set to measure resistance
(Ohms), test the reading between the ground prong on the PSU's AC wall
plug (the bottom round prong, in the US version) and the threads in
the screw hole. If you see a reading close to zero Ohms, you have a
good place to connect ground.
To use this method of connection, you'll need:
- About 2 feet of 14 gauge (or thicker) wire
- An unpainted metallic #6-32 x ¼" machine screw
- A "ring" terminal that fits around the screw and that fits the wire
To install:
- Cut the wire to about 2 feet
- Attach a ring terminal to each end (by crimping or soldering,
according to what kind of ring terminal you're using)
- Slip one of the ring terminals over the screw, and screw it
tightly into the case
- Slip the other ring terminal over a wood screw, and then screw it
through the grounding braid and into the cabinet wall
The last step can wait until you're ready to install the power supply
in the cab. The dangling ground wire should serve as enough of a
reminder, but put it on your to-do list if you think you might forget!
And when you're running the grounding braid around the cabinet, make
sure you bring it close enough to the area reserved for the power
supply that the ground wire will be able to reach it easily.
Option 3: AC plug
If you can't find a way to make a connection to your ATX power supply,
you can connect directly to the power line. I don't recommend this
approach unless you have some electronics experience, since it
requires cutting into the main AC power wiring. This approach also
has the downside that it doesn't make the ground connection as
permanent as the others, since it uses a removable plug. Someone down
the road might decide to unplug it because they want to use the outlet
for something else, without realizing how important it is to leave
it in place.
In order for this approach to work, you'll need a setup that follows
the basic plan we outlined in
Chapter 11, Power Switching. Something
like this:
Specifically, you'll need an unswitched power strip that connects
directly to the wall outlet. All of the outlets on that power strip
will have a connection to Earth ground through the wall outlet plug,
so we can get the Earth ground connection we need inside the cab via
an unused outlet on the power strip.
The idea here is simple: we need a power cord that only has a
connection to the ground prong in the outlet. I can suggest three
ways to achieve this:
- Buy a "ground plug", such as a "Desco universal ground connection"
or "StaticTek banana jack outlet plug ground adapter" (try Amazon or
eBay). These are AC plugs with dummy prongs for the two power prongs,
and a ground prong that connects to a banana jack or similar
connector. They're designed to be used with anti-static wrist
straps and mats for doing electronics work. You'll also need a banana
plug that fits the jack. Attach a wire (14 gauge or thicker) to the
banana plug; plug it in the jack and secure it; and connect the other
end of the wire to the braid.
This approach has the advantage that
you can't get the wiring wrong, since the ground plug only has a
connection to the one ground prong. The downside is that the banana
plug isn't permanently installed, so it could fall out, disconnecting
all of the ground connections you went to all this trouble to install.
If you go this route, I'd find some way to permanently secure the plug
so it can't fall out, perhaps with electrician's tape or heat-shrink
tubing.
- Buy a replacement power supply cord (making sure it's the 3-prong
type). This has a regular AC outlet plug at one end and three
insulated wires (black, white, and green) coming out the other end.
The green wire is the one that connects to the Earth ground
prong. Use wire nuts to cover the white and black wires, which you
don't want to connect to anything, and secure with
electrician's tape. Connect the green wire to the braid.
- Buy a replacement power plug (e.g., Leviton 3W102-E, GE 54301
household plug). This is similar to the above but doesn't have any
wires attached - it's just the plug, with screw terminals to
attach wires. I like this option a little better than using a cord
because you don't have to secure any stray wires. Simply connect a 14
gauge (or thicker) wire to the ground screw terminal (which is usually
indicated by a green screw, or might simply be labeled "ground" or
"Earth"). Leave the other two terminals unconnected. Connect
the other end of the wire to the braid.
For all of these options, plug the plug into a free outlet on the
unswitched power strip. Connect the ground wire from the plug to your
braid with a "ring" terminal: connect the ring terminal to the wire
(by crimping or soldering, for example), slip the ring over a wood
screw, and drive the screw through the braid into the cabinet
wall or floor.
Whichever type of ground plug you choose, it would be a good idea to
do something to lock the plug into the outlet it's using, so that it
doesn't fall out on its own and so that you don't remove it while
working on something and forget to put it back. This is the crucial
link for all of the grounded metal, so it should always be connected.
Wrap a couple of loops of electrician's tape around the plug and the
power strip, for example. At the very least, put a big "do not
unplug" placard on it.
Option 4: Tap into the power strip
If you're confident that you know what you're doing, there's a better
alternative to the approach above: tap directly into the power strip's
internal wiring. It's better in that it's not easily undone (unlike
the plug-in approach above, where someone could unplug the plug,
thinking it's not important). But it's dangerous unless you know
exactly what you're doing, since it requires modifying the power
strip.
The idea is to connect an additional wire directly to the ground
wire in your main unswitched power strip.
- Open up the power strip (by removing its case)
- Identify where the ground wire from the cord connects to the
internal wiring
- Connect a length of 14 gauge (or thicker) wire to this point
(using whatever technique is appropriate to the way the power
strip is constructed: solder the new wire to the existing wire,
add it to the existing screw terminal, or whatever else works)
- Find a way to route the new wire out of the power strip's
case, perhaps by drilling a hole somewhere for it
- Reassemble the case with the newly added wire routed through
to the outside
- Connect a ring terminal to the other end of the wire
- Slip a wood screw through the ring terminal, and drive the
screw through the braid into the cabinet wall
How to connect cab parts to the ground braid
The basic technique is to run a single, uninterrupted braid around the
perimeter of the cab, bring it into contact with each metal part that
needs to be connected.
The reason it's best to use a single run of wire is that it greatly
reduces the chance of severing the connection to multiple parts.
Consider what might happen if you daisy chained separate wire
segments from one metal part to the next: suppose the Earth ground
connects to A, and A connects to B, and B connects to C. If the
connection between A and B gets disconnected for some reason, you lose
not only the connection to B, but also the connection to C. With a
single braid, in contrast, the only way that could happen is if the
braid itself were to break, which is highly unlikely.
Here's a suggested routing:
Use staples to fasten the braid to the cabinet wall every few inches
between connections, so that it doesn't flop around.
Remember that the ground braid is uninsulated, so you don't want to
let it come into contact with exposed terminals on any powered
devices. Ideally, you should avoid having any bare wire or exposed
terminals (other than the ground braid) in the first place, since
they're inherently dangerous. If possible, cover any exposed
terminals that are present on devices you install with some kind of
insulator, such as heat-shrink tubing, electrical tape, or a plastic
cover.
To connect an individual metal item to the braid, all you have to do
is bring the braid and the metal into contact.
- For anything that has a large surface that fastens tightly to the
cabinet, a great way to accomplish this is to run the braid under that
part, sandwiching the braid between the part and the cab. This
provides a large contact area, ensuring a good electrical connection,
and secures the braid in place mechanically. It also has the virtue
of being easy to set up.
- Alternatively, if there's a place where a metallic screw is attached
to the item, you can drive the screw through the braid, or pin the
braid under a washer held down by the screw.
Legs
Simply run the ground braid under each leg bolt plate.
Side rails
The side rails are held on by carriage bolts at the front. Those are
metallic, and they're in contact with the rails, so we can ground the
rails by grounding the bolts. The bolts don't by themselves offer
much surface area to make contact with the ground braid, though, so we
have to add something to serve as a connector.
My approach was to use a small metal plate with two holes, one for the
bolt itself, and a second for a wood screw. I ran the braid under the
plate, and fastened the wood screw through the braid to ensure a solid
electrical connection.
On some of the real machines, they simply pin the braid under a
washer.
Plunger housing
Run the ground braid under the mounting plate, or fasten it with
a wood screw through one of the free holes in the plate.
Lockbar
Route the braid under a portion of the lockbar receiver where it
attaches to the front wall, or fasten it with a wood screw through
one of the free holes in the receiver.
Coin door
You can ground the coin door through the carriage bolts that attach
it. (It'll also be grounded indirectly through the lockbar receiver,
assuming you've grounded that, since the top coin door bolt also is in
contact with the receiver.) Run the ground braid alongside one or
two of the carriage bolts on either side of the door, and pin it
under a washer.
Backbox
There's not any metal trim in the standard backbox setup, so you might
not need to extend the ground wire there. However, the real machines
do, because they have some hidden metal pieces that benefit from
grounding. In particular, they place a metal grating over the vent
holes along the top of the back side of the backbox, primarily to
serve as radio frequency shielding. That needs to be grounded to be
effective as shielding. They also run the ground braid under the
metal backing plates that mate with the carriage bolts that fasten the
hinge arms, as safety grounding for the exposed carriage bolt heads.
(I guess there actually is some metal trim on the backbox, if
you count those bolts.)
If you do want to run a ground wire to the backbox, I'd use a separate
braid loop in the backbox, and connect it to the braid in the main
cabinet via a run of regular hookup wire (14 gauge or thicker). The
reason to use hookup wire to bridge the sections is that this portion
will need to be long enough to cover the added distance when the
backbox is folded down.
Testing
Before declaring the grounding project complete, test that you have a
good connection between the metal parts and the ground plug on your
main power inlet.
Set your multimeter to resistance (Ohms). With the power unplugged
from the cab, measure the resistance between the ground prong on your
main AC power plug for the cab and each of the exposed metal parts.
It should read close to zero Ohms in each case.
26. Inside the Cabinet
The modern virtual pin cab can be pretty complex on the inside. A
decked-out cab can actually have more equipment packed into it than a
real pinball machine, which is kind of perverse given that this is all
about software simulation. But it makes sense when you consider that
we're not just building a computer; we're building a computer/pinball
hybrid. The computer part by itself has more to it than most desktop
systems, because of the extra monitors and the specialized
input/output peripherals. And the pinball part includes a pretty
large subset of a real machine.
With so much to install, making everything fit can be a challenging 3D
puzzle. I'd like to be able to present a simple, one-size-fits-all
layout here, but that's not really possible. Pin cabs are too
individualized. But I can at least offer one possible solution. In
this section, we'll walk through a model pin cab that includes just
about everything I can think of, and look at where each major element
goes in this setup. The model takes into account the space constraints,
and it also follows my philosophy of serviceability, meaning that it's
designed so that everything can be accessed fairly easily for repairs
and upgrades, even after the machine is fully built.
The arrangement described in this section is based on my own cab, so I
consider many of the design decisions to be tried and true. It's not
an exact replica, though. I've made some revisions in an attempt to
improve things that weren't ideal in my original design. I also made
room for additional equipment that's not in my build. My cab is
pretty decked out, but for the purposes of this section, I've tried to
imagine an "ultimate" cab with all of the toys.
This is, of course, not the only possible solution to the question of
how to arrange things, and I'm sure it's far from the best solution.
Some of it might not work at all for your setup, given that you might
have completely different constraints from your PC packaging or TV
size. So I'll try to explain the rationale behind each element's
placement, so that even if you can't use the exact layout as
presented, you can at least gain some insight from it to use in
formulating your own layout.
Playfield, apron, and flashers
These elements (or some subset of them) form the top layer in the main
cabinet.
The basic arrangement is pretty straightforward, but the details can
be surprisingly hairy. First, there's the placement of the TV: do you
place it flush with the top of the cab, or recessed like a real
playfield? How far in? At what angle? All the way at the front, or
set back to make room for the plunger? These are all among the most
frequent questions that new cab builders ask. You can see from the
diagram what I prefer, but this is a matter of aesthetics, and there
are other schools of thought. Second, once you've decided upon the
desired look, you still have to implement it physically. That's trickier
than it might look, especially if you want to fulfill my admonition to
make the machine serviceable (
Chapter 6, Serviceable Design).
Serviceability requires that the TV be easily removed. You can
probably guess I'm not in favor of just nailing it in there and
calling it done.
It's extremely important to plan out exactly where the TV goes before
you start arranging anything else inside the cabinet. The TV assembly
forms a ceiling that constrains the vertical space available to
everything else, so you need to know where that is.
If possible, you should actually install the TV early on, not just
make plans, so that you can see the space it delineates for real
rather than just as measurements. But don't do that unless you're
using a mounting that's easily removable, because you won't want the
TV in the way while you're installing everything else. If you use a
mounting system like the one I outline in
Chapter 29, Playfield TV Mounting, you'll be able to install and remove
the TV with little effort.
Some notes on the flasher panel. I've depicted the back panel with
the traditional five flasher domes. Each is a clear plastic dome with
a 3W RGB LED inside. This is such a ubiquitous setup that the most
popular pinball software (Visual Pinball with DOF) is programmed to
assume it's there. However, some people replace the five-flasher
panel with an array of individually addressable LEDs - sort of a
coarse dot-matrix display. The physical setup for that is basically
the same; just remove the flasher domes and substitute addressable LED
strips or arrays. Some people also do both, by installing a
five-flasher panel as shown and adding an addressable LED strip or
two, across the top and/or bottom.
See
Chapter 56, Flashers and Strobes and
Chapter 65, Addressable Light Strips.
You could also fit one or more light strips across the "lip"
(illustrated below) that sits below the backbox shelf. Keep
in mind that there's a standard trim piece for the top glass that also
affixes here, so check how that will fit before finalizing plans.
See "Rear glass trim" in
Chapter 23, Cabinet Hardware Installation.
Power inlet
Okay, let's take the TV out and look inside the cab. We'll start with
some simple infrastructure: the power strips. I like to put these at
the very back of the cabinet.
Why at the back? For one thing, that's where the power cord
customarily comes in. For another, it's a really good fit for the
geometry: most power strips are long and narrow, which is a shape that
fits nicely along the bottom of the back wall. And finally, it's good
to put something low-maintenance back there, because that area is
relatively difficult to reach into once everything's assembled. The
very back is blocked from above by the backbox shelf, so it's a little bit
of an inconvenience to access. It's just reachable enough for
plugging and unplugging AC cords, but you wouldn't want to have to get
back there with tools if you can avoid it.
I recommend installing
two power strips: a small strip that
you'll plug directly into the wall outlet, and a second, larger strip
that acts as a "smart" strip, providing power to its outlets only when
the PC is powered on. All of the accessories (the TVs, audio
amplifiers, and feedback devices) plug into the switched outlets,
which lets you turn the whole cab on and off with the PC soft power
controls. You can implement the switched outlets by buying a smart
power strip (they don't design them for pin cabs specifically, but
it's the same idea: they're for turning off your monitors and printers
when you're not using the computer), or by building your own. This is
all covered in much more detail in its own section,
Chapter 11, Power Switching.
I'd put the large put strip along the base of the back wall, and mount
the smaller strip on the rear wall a little ways above. Put it high
enough up that it won't be in the way of the plugs on the main strip.
We have enough stuff to pack in here that it's important to think
three-dimensionally, so utilize wall space when it makes sense.
The power strips should be secured in place somehow. As always, I'd
avoid anything permanent, such as gluing them down: think
serviceability when choosing installation methods. Adhesive Velcro on
the bottom would be a good choice for the large strip mounted on the
floor. I wouldn't use Velcro for anything mounted on a
vertical surface; the glue on it doesn't hold up over time when under
constant tension from gravity. I'd use some sort of screw-in brackets
instead. Or you could build a little shelf for it (jutting out from
the rear wall), and Velcro it to the strip to the shelf.
Rear exhaust fans
As long as we're looking at the back, don't forget the exhaust fans.
As mentioned above, the backbox shelf makes this area at the back
cumbersome to access when the cab gets fuller, so it's good to get
the fans in place early.
Rear wall exclusion zone
After installing the power strips and exhaust fans, there's still
a lot of open space on the rear wall. I'd recommend leaving
this space unused for now, for several reasons:
- It's hard to reach after the machine is assembled, as mentioned
earlier, due to the way the backbox shelf overhangs this area
- There will eventually be a bunch of wires and cables that you'll
have to route through this area from the backbox
- If you're using a liftable playfield TV mounting like the one
outlined in Chapter 29, Playfield TV Mounting, you'll need to keep
most of this space open so that the TV has room to maneuver;
plus, the TV overhang will make the space even harder to reach
After everything else is assembled, you can reconsider this space if
there's "just one more thing" you want to install and you can't find
space for it anywhere else. At that point you'll have a more concrete
idea of the constraints on this space, so it'll be easier to decide
if it makes sense to mount anything else here. In my cab, I find this
space so hard to access that I wouldn't put anything here besides
what we've already covered.
Subwoofer
The subwoofer's position is forced by where you placed the floor
opening for it. That should be installed next, so that you can take
it into account when positioning other things.
Most subwoofers have screw holes around the perimeter of the speaker
opening. Use suitable wood screws. If you're using a screen cover,
place it between the speaker and the cabinet floor. For a plastic
screen, you might want to pre-cut holes where the screws go; driving a
wood screw through the plastic can bend or twist the plastic.
Intake fans
As with the subwoofer, the intake fan or fans are constrained to be
placed at the openings you made for them, so they should be installed
now to ensure that you don't create space conflicts for them later.
Most PC fans come in square mounting frames (like the one illustrated
above) with screw holes at the corners that you can use to secure the
fan to the cab floor.
Note that you can buy dust filters for PC fans. Since this is an
intake fan, it's a great place to put a filter, to reduce dust buildup
inside the cab. Place the filter between the fan and the cab floor.
PC power switch
The SuzoHapp "large rectangular button" (part number D54-0004-5x) is a
good form factor for the main power button. It fits in the power
switch opening used in the standard WPC plans, and it's large enough
that it's easy to operate by feel (which is nice because it's hidden
on the bottom of the cabinet, so you want to be able to just reach
under and press it without having to see what you're doing).
You can install this type of button by creating a small mounting plate
using plywood or any other convenient material. Cut holes in the
mounting plate using the drilling template below, then assemble as
illustrated. Then simply screw the plywood mounting plate into the
cab floor from the inside. This will leave the button perfectly
recessed in the switch opening.
Drilling template for SuzoHapp large rectangular pushbutton
(part D54-0004-5x)
You can easily substitute any of the other similar SuzoHapp
pushbuttons (small round pushbutton, square pushbutton) if you prefer.
I like the large rectangular button because it fits the opening nicely
and it's large enough that it's easy to operate by feel, which is
helpful given the hidden location.
Coin door switch
On a real machine, there's a switch that senses whether the coin door
is open or closed. This is also useful to include on a virtual cab,
because some of the emulated ROMs use it to control access to the
operator menus. See
Chapter 40, Coin Door for more.
The coin door itself should have a pre-installed metal plate that acts
as an actuator for the switch. This is positioned at the bottom of
the door on the hinge side. It's attached to the door, so that it
swings out when the door opens.
There are different ways to mount a coin door switch (which you can
read more about in the
Chapter 40, Coin Door chapter), but my
recommendation is to use the standard pinball parts. They're
purpose-built for this, so they're easy to install and reliable, and
they're not particularly expensive. The standard parts consist of a
metal mounting bracket and a "plunger" switch. The bracket is
designed so that the plunger switch simply snaps - a couple of plastic
clasps on the switch hold in place.
Snap the switch into the plate, then mount the plate so that actuator
on the door presses the switch plunger all the way in when the door
is closed. The plate mounts to the front wall of the cab with
wood screws.
Note that the standard mounting plate has slots for two switches: a
large switch with six connectors, and a small switch with three
connectors. On the real machines, the large switch is used an
interlock to cut off high-voltage power to the playfield when the door
is open, and the small switch is connected to the CPU to let the
software know when the door is open. For a virtual cab, most people
don't bother with the high-voltage interlock, since we don't tend to
have any exposed high voltages to worry about in the first place. So
you probably only need one switch, for the software. The large or
small version will work equally well for that, so just install
whichever one you bought and leave the other slot in the mounting
plate empty.
Front buttons
If you're using the common SuzoHapp "small round pushbutton"
assemblies, they're easy to install. Start by disassembling the
button. Gently twist the squarish base about 1/8 of a turn
to free it, then pull it out. Unscrew the nut
Now just insert the button through the front wall hole (from the
outside) and reverse the disassembly procedure: screw the nut back
onto the shaft, and pop the lamp base assembly back into place, giving
it a slight twist to lock it. The lamp base only fits in a certain
orientation, so just rotate it until you find the magic spot.
If you're installing a Launch Ball button, it works the same way.
Flipper buttons
The flipper buttons simply fit through the holes and are fastened with
Palnuts on the inside. The rounded knob on the outside end of the
button tends to be a tight squeeze - I guess that's intentional to
keep them from getting wobbly over time. But it can take a little
effort to force them into the hole the first time you install them.
Seat them by applying pressure from the outside until the collars are
flush with the cabinet wall. (I wouldn't try to force them flush by
overtightening the Palnuts, since I'd be afraid of stripping the
plastic threads.)
Note that if you drilled the flipper button holes straight through at
1⅛" (which is what I recommend), the Palnuts will be about the
same size as the holes, so they won't clamp the buttons down very
well. Don't worry - this will be fine as long as you're using one or
both of the following:
If you're planning to install one of those, you can just leave the
Palnuts loose for now and come back to this later. If you're not
using one of those, and the Palnuts are too loose, you might need to
add a suitable washer.
If you're installing the LightMite LED boards, they'll go under the
Palnuts as illustrated below. You'll need to assemble them with
LEDs and connectors first, so hold off on installing them if you
haven't gotten to that yet. See
Chapter 55, Button Lamps
for more.
If you're installing the VirtuaPin leaf switch holders, they also
install under the Palnut - it should be pretty obvious how those work.
If you're not using the VirtauPin leaf switch holders, you'll need to
mount the leaf switches to the cab wall instead. This takes a tiny
bit of improvisation.
Here's what I did. The standard leaf switches have little insulator plates at
the bottom that separate the switch leaves. The whole thing is held
together by a pair of bolts fastened with nuts. To attach these to
the cab wall, you can take out the nuts and bolts and substitute wood
screws. Use screws long enough to pass through the whole leaf switch
assembly, with about 1/2" left over to screw into the cab wall.
That's almost all there is to it. But there's a slight snag:
the switches will be too close to the cab wall if you mount them
as-is. You need to add a little spacer to move them out from the wall
about a quarter inch. I found that ⅜" plywood was just about
right, so I cut some small (1" x 1") squares and used those as the
spacers.
One last note before you actually install the switches. If you're
installing a plunger, spacing on the plunger side will be tight. The
flipper buttons happen to be positioned right alongside the plunger
rod.
On the real machines, they leave just enough room to make it work, but
we virtual people have an added challenge here, which is that we also
need to install a plunger position sensor of some kind. That can add
bulk around the plunger rod that isn't there on the real machines.
All of the commercial and DIY sensor designers know this is an issue,
and they take it into account in their designs, but space is so tight
to begin with that some of the sensors push the limits here. So you
might find it difficult to make everything fit.
There are two tricks that can help. The first is that you can mount
the switches sideways or diagonally, instead of vertically as shown in
the illustrations above. That can help get them out of the way of the
moving plunger parts. I'd treat this as a last resort, since sideways
mounts can create other conflicts (with the TV or apron, for example).
The second trick only applies if you're using the VirtuaPin switch
holders. If so, then your flipper buttons are extra-long, and you can
swap them with shorter ones. The VirtuaPin switch holders only fit
onto 1-3/8" buttons, whereas most modern commercial pinball machines
use 1-1/8" buttons. So if you're using the longer buttons, you can
save 1/4" by swapping them for the more common 1-1/8" buttons. The
downside is that this requires ditching the VirtuaPin switch holders,
which are convenient, and instead mounting the leaf switches to the
cabinet wall as described above.
Adjusting the leaf switch gap
Most people in the pinball world agree that leaf switches are the only
thing that feel right for flipper buttons, so they're almost
obligatory in a virtual cab. But they do have one downside, which is
that they sometimes need a little mechanical adjustment to get the
switch blades aligned properly. Good operation depends on having just
the right gap size between the contact points.
I wouldn't worry about making adjustments when first installing brand
new leaf switches. I'd start with the assumption that they were
aligned correctly at the factory. However, once you start using the
buttons, keep an eye out for any flaky behavior: missed presses,
random flipper flipping while holding a button down, weird
auto-repeats, etc. If you see anything like that, you can take a
closer look at the switches to see if they need adjustment. You might
even have to re-adjust them from time to time, although in a home-use
cab I wouldn't expect having to do that more than once every couple
of years.
Whatever you do, don't clean the contacts with anything
abrasive. You might see advice in "real pinball" contexts about
sanding or scrubbing leaf switch contacts to remove oxidation. That's
only for real pinball machines with high-voltage leaf switches, which
use tungsten contact points. For a pin cab, it's better to use
switches with gold contact points, since those work better for low
voltages. Abrasive cleaning is bad for the gold contacts since it can
remove the thin gold plating layer. The main reason that you see
people recommend harsh scrubbing for the old tungsten switches is that
tungsten oxidizes over time (especially in the presence of constant
electrical switching), and the oxide layer is a good insulator, so you
have to periodically scrape it off. Gold doesn't oxidize, so
gold-contact switches don't tend to need much cleaning in the first
place. But if you think your switches do need cleaning, use a
slightly damp soft cloth and rub gently.
Testing: If you suspect flaky behavior from your leaf
switches (or any other switches), but you're not sure, you can use
the Pinscape Config Tool to take a closer look. (Assuming you're
using Pinscape as your key encoder - if not, check your key encoder's
instructions to see if it has a similar testing function.)
Fire up the Pinscape Config Tool, and click on the Button Tester
icon on the main screen. This will bring up a window that gives
you a direct view of each button switch at the hardware level.
For the button or buttons that you suspect,
press and hold the button and observe the status shown in the
tester window. If the button is working properly, the on-screen
status should show a nice, steady "On" indication, without any
blinking or flickering. If you see the "On" indication flicker
at all, you should try adjusting the leaf switch as described
below. Likewise, when you release the button, the on-screen
display should show a solid "Off" indication.
Tools: This is one of those jobs where you really need
a special-purpose tool. The right tool makes this otherwise
quite difficult job pretty easy. The right tool in this
case is a "leaf switch wrench", which is essentially a little metal
rod with a slit in one end that fits over a switch leaf and lets you
bend the metal by a precise amount at a precise point. You can buy
these from pinball vendors. On Pinball Life, search for "Ultimate
Leaf Adjuster Tool". I bought one of those a while back
for work on my real pinball machines, and I highly recommend it.
Dennis Miller on vpforums
sent me a great description of how he created his own leaf switch tool
from scratch, so I'll pass that along in case you'd like to
build one yourself as well:
All leaf bending needs to be done with the proper tool. I made mine
out of 1/8" steel rod. I cut a slot 1/2" deep into the end of the rod
with a hacksaw. I then heated and bent the rod at 90 degrees just
above the slot so that the slot was almost parallel to the shaft.
Slide the tool's slot over the leaf at its base insulator stack and
bend very gently, a little at a time, to coax the leaf into position.
The off-angle slot enables working close to cab walls.
>
How to adjust: Approach this as an iterative process. Make
small adjustments, test, and adjust again as needed. Make your bends
towards the bottom of the leaves, close to the insulators.
- Start with the leaf on the button stem side. Adjust it so that it just
touches the button stem when the button is at rest. There shouldn't
be any open gap between the button stem and the leaf, so that the leaf
starts moving the instant you start pressing the button. But don't
overdo it; you don't want the leaf exerting too much extra pressure
on the button, as that will make the button feel too stiff. The
button already has its own spring for tensioning.
- Once the button side leaf is adjusted properly, adjust the other
leaf so that the gap between the contact points is between 1/16" and 1/8".
- A 1/16" gap will make the button engage after pushing it in by about
a quarter of its total travel. 1/8" is closer to the halfway point.
I think the ideal point is a matter of taste, so test how it feels
to see what you prefer.
- Once you've decided on the preferred gap size, you should adjust
all of the flipper and MagnaSave buttons to use the same gap, to
give them a consistent feel.
Tilt bob
The tilt bob conventionally goes at the front left corner of the cab.
The exact placement isn't critical; just mount it in some free space
below the left flipper buttons. Be sure to leave enough space that
you'll be able to work on the wiring to the front buttons and coin
door.
If you buy your tilt bob as a pre-assembled unit with its own mounting
plate, mounting it is just a matter of screwing the mounting plate to
the cab wall. It's almost as easy if you don't get the assembled
version, though; you just have to mount the pendulum bracket and
the contact ring separately, in the same arrangement as used in
the pre-assembled units. See the illustration below.
Cashbox
This isn't something you have to "install", exactly; it just drops in.
But the standard type does take up a big chunk of space, so if you're
using that, you might want to keep it in place (or keep it handy)
while you're doing your space planning so that you take its bulky
presence into account.
PC and PSU
We're just about out of the standard "real pinball" parts, so let's
turn to the virtual part of the system. I'd start with the PC, since
it has a fairly large footprint.
Let's look at what we have available, now that we've taken into account
most of the items that have to go at pre-determined locations:
Given this layout-so-far, there's an obvious place where something the
size of an ATX motherboard or enclosed PC case would need to go:
We have a little flexibility with the power supply, but only so much:
it has to be close enough to the motherboard that the power cables for
the motherboard and video card can reach their sockets. The obvious
place is just behind the motherboard. That also happens to take good
advantage of the space there, which is somewhat constrained by the
presence of the subwoofer.
Setting up the PC hardware is a fairly significant project in itself,
so we give that its own chapter,
Chapter 27, Installing the PC. That section
covers other ways of installing the PC components, such as enclosing
them in a conventional desktop case, and goes into more detail about
choosing a location and implementing the installation.
Secondary power supplies
If you're installing feedback devices, you'll need to install power
for them. More details can be found in
Chapter 45, Power Supplies for Feedback, but
the executive summary is that you can generally cover most of the
bases with ATX power supply (that is, a separate unit of the same type
used for the PC motherboard's power supply) and one or two generic OEM
power supplies for higher voltages (such as 24V and/or 48V).
For the secondary ATX PSU, a good location is the mirror image of
where we placed the PC power supply: on the other side of the
subwoofer. Assuming you centered the subwoofer, there's a nice
ATX PSU-sized space on either side, so we might as well use it
that way.
The typical OEM power supplies come in long, low cases that fit well
into the space remaining at the back of the cabinet, between the
subwoofer and the power strips.
The OEM supplies are usually a good physical fit for this space, and
they're also a good functional fit, in light what I said earlier about
how the back section becomes increasingly inconvenient to work in as
you build out the cabinet. The power supplies are a good
set-it-and-forget-it kind of thing for a hard-to-access space. They
don't have any controls; you just plug them into power.
You do have to be able to access their power outputs, though,
whenever you want to plug in a new device. So there's a bit of
advance planning you should do when you install them. Specifically,
you should wire their outputs to connectors located somewhere more
accessible in the cabinet, more towards the front. Many people set up
a group of terminal strips like the one illustrated below somewhere
readily accessible, one for each voltage level, so that they can
easily connect each new device to its appropriate supply when the time
comes. (Be sure to protect any exposed terminals like these with
plastic covers, so that loose wires don't accidentally inject high
voltages into unsuspecting logic boards.)
A nice side benefit of installing the two ATX power supplies across
the aisle from one another is that we can use them to construct a
little shelf across the width of the cabinet. That'll be useful
later: you can see that the floor space is already almost all gone,
and we still have a number of important things left to find room for.
If you've been paying attention, you know how important I think it is
that you be able to access everything in the cabinet even after it's
fully assembled - the principle I call serviceability. So you should
be sure that this shelf can be easily removed! Don't glue it in or
anything like that. At the very least, fasten it with a couple of
easily removable screws. But better yet, use something you can undo
without tools: attach it to the power supplies with Velcro, for
example, or use toggle latches to lock it down. That way it'll only
take a few seconds to remove it if you have to get to the power
supplies.
Chime unit
See
Chapter 64, Chimes and Bells. This is a little percussion instrument that
replicates the iconic bings and bongs of the electro-mechanical
pinballs from the 1960s and 70s. The best way I know to accurately
reproduce the original sound is to find an authentic used chime unit
from an old machine, as they have some engineering that's hard to
replicate in a DIY design. The real units are quite bulky, though,
which limits where we can put them. The only place where a chime unit
will fit in our hypothetical fully-loaded cab is in a corner at the
back.
The original chime units are designed to be mounted to a side wall.
Use wood screws to attach it via the integrated mounting plate.
Try to keep the top within about 7" of the floor. This will help
avoid any clearance issues with the back of the TV when you lift it
up. (Assuming you opt for a liftable TV mounting, as outlined in
Chapter 29, Playfield TV Mounting.)
Much as I don't like hiding things away in the back of the machine, we
really don't have much choice when it comes to the chime unit.
There's just not enough space anywhere else. If your cab won't be as
fully loaded as the one we're developing here, though, you might have
some space for it in a more convenient area, so by all means put it
somewhere better if possible. I don't think the placement makes any
significant difference acoustically. For what it's worth, most of the
original machines that used these units also placed them in a corner -
typically the right front corner, below the plunger.
Shaker
See
Chapter 61, Shaker motors. The shaker is another bulky toy, and in this
case it
must be mounted on the cabinet floor to get the proper
effect. Fortunately, we have one large floor section still remaining,
mid-cab, opposite the PC motherboard.
Happily, this works out well, as this is just about exactly where we'd
put the shaker anyway, to get the best tactile effect, if space were
no concern. You want the shaker to be mounted with its motor axis
parallel to the cabinet's long axis, and that's a perfect fit for the
available space. You also want the shaker to be in roughly the middle
of the cab front-to-back so that it imparts a balanced sideways
motion. There's no benefit in centering it side-to-side, so I'd mount
near the wall, to leave more room around the PC for cable connections.
Gear motor
See
Chapter 62, Gear motors. These are meant to reproduce the sound of
the motorized playfield features on many pinballs from the 1980s and
1990s, such as Thing from
The Addams Family or the castle gate
from
Medieval Madness. To localize the sound effect properly,
the gear motor should be somewhere towards the back of the cabinet,
since the playfield features it's meant to imitate are typically
towards the back of the playfield. (The playfield features in
question are all unique to each game, so they're all in their own
unique locations, but for the most part they're somewhere near the
center rear of the playfield.)
There are two rather different types of motors that pin cab builders
tend to use for these. One type is the small robotics servomotors you
can buy on eBay. Those are so compact that space planning really
isn't an issue for them. The other popular type is an automotive
windshield wiper motor. Those are quite a lot larger, and do require
that you block out some space for them. We'll proceed with the
assumption that you're working with the larger type and need to find a
place for it.
If you're using a liftable TV frame design, you might be able to mount
the gear motor on the bottom side of the TV frame. That would let you
put it right in the middle of the playfield area, which is the ideal
location for the sound effect, plus it's easy to access for service.
This is the right option if you have a compatible TV mounting.
In the illustration above, we're assuming that the contactors for the
bumpers and slingshots are also mounted under the TV. A gear motor
should fit nicely between the "bumper" rows in the back half of the
playfield. See "Mounting contactors under the TV"
below for more about this.
If an under-the-TV mounting doesn't work in your cab, there are
several places it might fit. One possibility is to place it alongside
the shaker:
A second option is to use the little shelf we built over the ATX
power supply and subwoofer area:
The shelf is probably the best location in terms of localizing the
audio effect, and it's a great location in terms of service access.
The only problem is that there are a couple of other devices we'll
come to later that we'll need the space for. So we're not
going to be able to leave it here in the model we're developing, but
you can keep this location in mind as an option in your cab, if the
space ends up being available after you consider where the rest of the
parts go.
A third option is to place it in a corner at the back:
If you go this route, try to keep the top within about 7" of the
floor. This will help avoid any clearance issues with the back of the
TV when you lift it up. (Assuming you opt for a liftable TV mounting,
as outlined in
Chapter 29, Playfield TV Mounting.)
As I've said a few times, this isn't a great area to mount just about
anything, because it's hard to reach into in an assembled cab. But
gear motors tend to be zero-maintenance, so if you have to put
something back here, a gear motor isn't the worst choice. What I'd
recommend is to use a mounting apparatus that you can remove without
tools if necessary. Something like this, perhaps:
- Mount the motor to a small sheet of plywood (cut just large enough
for the job) with a pair of "U" clamps, which you can buy at any
hardware store
- Use something like a Z-clip (a heavy-duty type of picture hanger)
to hang the plywood carrier on the wall
- Secure the bottom with a thumb screw or toggle latch, so that it
can't come loose from the hanger
If you do need to access the gear motor, this will let you take it out
as a unit without having to do anything too complicated in the
confined space. Once it's out, you can make whatever changes are
needed, and just as easily put the whole unit back in place.
Controllers
See
Chapter 12, I/O Controllers. A pin cab requires some special USB
devices to connect the button inputs, plunger sensor, and feedback
devices. There are several options for these, but whichever you
choose, you're going to have some little circuit boards that you'll
need to mount somewhere in the cab. Most cabs need two or three
boards, most of which are on the order of 4" by 4".
Most of these boards can go just about anywhere that's convenient, but
there's one type of board that's pretty particular about location: the
accelerometer, also known as the nudge sensor. That board should be
mounted horizontally, close to the front of the cab, preferably close
to the center of the cab. The accelerometer senses the cabinet's
motion, and it does the best job at that if it's mounted in a central
location near the front.
If you're not using a full-sized cashbox, then you still have a
nice open space at the front, where the cashbox would go on a real
machine. That's an ideal spot for the controllers.
If you are using a full-sized cashbox, we're in a bit of a jam
now, because there's enough floor space left for the controllers.
This is, in fact, why I don't have a real cashbox in my own cab. But
I don't really like my hokey improvised substitute (a plastic food
container that happens to be about the right height, with holes cut in
the lid to line up with the coin slots). So given that this section
is about an idealized ultimate cab with everything, let's see how we
could make this work.
My proposal is basically to create some new floor space, by
thinking three-dimensionally:
What you're looking at is a shelf, running the width of the cabinet,
about 6½" above the floor, positioned over the back portion
of the cashbox.
This reclaims the floor space that we gave up to the cashbox. It's at
the right position for our accelerometer, and it gives us enough space
to mount a typical complement of I/O controller boards.
Some important considerations:
- For the sake of the accelerometer, the shelf must be quite solid,
and quite solidly mounted to the cabinet. It must move with
the cabinet; it shouldn't impart any extra vibration or wobble of
its own. For this reason, I think this shelf needs to be securely
screwed in, not held down with Velcro or anything like that.
But I think it's okay for this shelf to be more or less permanent,
since, if it's properly positioned, it won't block access to
anything.
- Position the shelf so that it doesn't block access to the
motherboard. This is especially important given that it needs
to be so solidly (permanently) attached to the cabinet.
- Use a sturdy material. I'd recommend a good quality 3/4" hardwood
plywood, the same sort of material used for the cabinet itself.
The shelf doesn't have to support any significant amount of weight,
but remember that we want it to be very solid so that we get good
accelerometer readings.
- At the recommended height, the shelf will leave enough space that
you can still conveniently maneuver the cashbox in and out
through the coin door, as intended.
- At this height, the shelf should also leave comfortable clearance
for a typical playfield TV with my recommended mounting. For the
purposes of the model, I assumed what are probably the worst-case
conditions in terms of how much headroom we have here: a fairly
thick TV (3.5") and a "deep" mounting style (with the TV at
full playfield depth). With those assumptions, we still have
about 3" of headroom to work with here. That's plenty of space
for any of the controllers I've encountered.
Fuses
See
Chapter 84, Fuses. Fuses can be used to protect your output
controller from overloads. You don't necessarily have to include a
fuse for every device, but it's good to cover the higher power
devices, such as motors and solenoids.
Your output controller might have its own built-in fuse holders, but
most of them don't, so fuses usually have to be installed separately.
We're going to assume you're installing them separately.
There are many types of fuses and fuse holders. For my own cab, I
went with the type that's common on the real pinball machines (not for
the sake of realism, but just because it saved me the trouble of
researching all of the other options). Those are the so-called 3AG
glass cartridge fuses, which look like this:
These can be used with little plastic holders that look like this:
This type of holder is designed to be mounted to any sort of surface
with a screw (which you can see in the photo), so we can mount these
on any convenient wood surface on the cab, such as the floor, a wall,
or that center shelf we created earlier over the ATX power supplies
and subwoofer:
I like the idea of centralizing the fuses in one big set like this,
since it makes it easier to find the fuse for a given circuit.
However, it has some disadvantages: it takes up a big block of space,
and it requires extra runs of wire to and from the central fuse panel.
You also have to make a chart of what each fuse is connected to.
Another option that you might prefer is to place each fuse near the
device it's connected to. The individual fuse holders are small and
can mount just about anywhere, so ad hoc placement per fuse avoids the
need to allocate space for a central fuse panel. And it can save a
lot of wire, since you can place each fuse somewhere along the section
of wire that you'd have to run out to the device anyway. Finally, it
might be easier to figure out which fuse goes with which device this
way, as long as you can manage to place each fuse physically close to
its device.
Keep in mind that the type of fuse holder pictured above has two
exposed metal terminals. If you're creating a central fuse panel out
of these, you should consider placing a plastic cover over it to
protect it from accidental contact from tools or loose wires. If
you're scattering the fuses (rather than creating a central panel),
you might want to use a more fully enclosed fuse holder instead of the
open type. For example, take a look at the Littlefuse 155 series
in-line twist-lock holders. Those are designed so that there are no
exposed terminals.
Littlefuse 155 series in-line 3AG fuse holders
Contactors (and other solenoid simulators)
See
Chapter 59, Flippers, Bumpers, and Slingshots. The real pinball machines have a lot of
powerful solenoids that kick the ball around and actuate other
playfield mechanisms. They're are strong enough that you can not only
hear them but feel the kick. Virtual pinball software can manage the
audio part with recorded audio, although that tends to be a weak
imitation that you'd never mistake for the real thing. In a pin cab,
we can do better, by simulating the kick of the solenoids with actual
solenoids. That can get a lot closer to the real sound, and can also
reproduce the tactile effect.
There are several types of solenoid-based devices that pin cab users
employ as substitutes for pinball solenoids: contactors (such as the
Siemens type pictured below), automotive starter relays, generic
open-frame solenoids, and even real pinball solenoids and their
associated mechanisms.
Common devices used to simulate pinball coil effects: Siemens
contactors; Ford starter relays; generic open-frame solenoids.
>
For the purposes of our illustrations, we'll use the Seimens
contactors. The Ford starter relays and most open-frame relays should
comfortably fit the same spaces, so you should be able to substitute
them without making other changes.
The standard complement of contactors consists of 10 units:
- Two flippers (left and right)
- Two slingshots (left and right)
- Six bumpers (three across the middle, three across the back)
The goal is to locate each contactor so that it matches up with the
position of the device it's intended to simulate, as it'll appear on
the main TV screen when you're playing a game. So you want the
contactor that's going to serve as the "left flipper" to line up
roughly with where the simulated left flipper is drawn on the TV
screen. It's obviously impossible to get that perfect for every game
when you're going to have hundreds of simulated games to choose from.
But all pinball playfields tend to follow the same template for the
core elements around the flipper area, and anyway, we don't have
to get it perfect, just close enough to be convincing.
So, taking the desired positions into mind, here's how we can
arrange the ten devices to fit the available space. Note that
the devices illustrated on the left wall are mirrored on the
right wall, but we're leaving them out of the diagram for the
sake of readability.
Mounting contactors under the TV
If you're using a liftable TV mounting like the one described in
Chapter 29, Playfield TV Mounting, you can move most of these to the
bottom side of the TV mounting frame, as illustrated below.
Here we've moved all of the contactors except the flippers to the
underside of the TV frame. We left the flippers where they were (on
the side walls), because the natural place for them on the TV frame is
a bit too close to the shelf where the I/O controllers are located.
If we didn't have that shelf, we could easily move the flipper
contactors to the TV frame as well. This is what it looks like
when we lower the TV back into its normal position:
As you can see, there's lots of room for everything, except for
the area around the I/O controller shelf.
The under-TV mounting style has some distinct advantages:
- It places the devices closer to the on-screen elements they're
intended to simulate
- It frees up space along the cabinet walls
- There's more room for larger devices than the original side-wall mounting
- The contactors are easier to access for service, since they're
more out in the open after you lift the TV up
I don't think there are any real disadvantages, either. I think it's
the right way to go if you have a suitable TV mounting. And it's
practically required if you plan to use real pinball mechanisms for
any of the solenoid devices; they're too large to be workable with the
side-wall mounting.
There is one important consideration if you go this route. You'll
definitely need to use a pluggable connector for the wiring to the
contactors, so that you can remove the whole TV-and-frame assembly
from the cab without having to cut wires. I recommend using one
of the Molex .062" wire-to-wire connectors, which are available
in plugs with up to 12 pins. That lets bundle the wiring for the
whole set of contactors into a single plug.
In-cab speakers
See
Chapter 41, Audio Systems. We've already covered the subwoofer, which
traditionally goes on the floor in the middle of the cab. But many
cabs also include a set of mid-range speakers inside the main body.
These are usually
in addition to the speakers in the backbox,
and serve a different purpose. The backbox speakers are there to play
the ROM music and voice effects. The speakers in the cab are there to
reproduce mechanical sounds that aren't already covered by the
solenoids and contactors. For example, the sound of the ball rolling
and bumping into things.
Visual Pinball has the ability to separate the music from the
mechanical effects and play each type of through a separate set of
speakers. Playing back the mechanical effects through speakers inside
the cabinet makes them seem to come from the playfield, improving the
illusion. VP 10 takes this one step further, by supporting a
four-speaker "surround sound" arrangement that localizes each sound
effect to the right point in the playfield plane.
There are several ways to configure in-cabinet speakers. If I were
building a new cab today, the only option I'd consider would be a
four-exciter system. This takes advantage of VP 10's spatial
localization capability to position effects in different parts of the
playfield.
An "exciter", by the way, is a type of speaker that works by making
the surface it's attached to vibrate. A conventional speaker works by
vibrating a paper cone. An exciter uses whatever it's attached to in
place of the paper cone. They're better than conventional speakers
for an in-cab speaker system for several reasons:
- They're much smaller than regular speakers, so it's easier to find
room for them in a crowded cab
- They're made specifically to be mounted to flat surfaces (like the
wall of a pin cab!)
- They work by transmitting their sound energy through whatever
they're attached to, which better reproduces the way mechanical sounds
in a real pinball machine travel through the cabinet
- Transmitting the sound through the cab wall produces more of
a tactile effect than a regular speaker does
The ideal mounting positions are at roughly the corners of the TV.
That's the arrangement that the VP software assumes when it calculates
the volume mixing levels to create the illusion that the sound is
coming from a particular point in space. It's pretty simple to
install exciters this way: just install two on each side wall,
below the TV, one near the front and one near the back. Most
exciters are quite flat and compact, so it's not hard to find
room even with everything we've installed so far.
Some people add one or two subwoofers to this setup as well. I
personally don't think that's necessary. For the types of sound
effects we're talking about in a pin cab, the only reason you'd want a
subwoofer is for more of a tactile effect. Exciters are already good
at producing tactile effects because of the way they transmit the
sound energy through the cab wall, so I think a subwoofer is
redundant. Besides, if you really need more bass from these channels,
you can make Windows mix the low-frequency bands from the surround
channels into the main subwoofer output.
I built my own cab before VP supported the four-channel surround
system, so I took a simpler approach, with two regular speakers and
tactile subwoofer:
This produces a decent effect, certainly better than no in-cab
speakers at all, but the lack of spatial positioning is sometimes too
obvious. It's particularly noticeable when the ball is near the top
or bottom of the playfield, since the sound always comes from a fixed
spot in the middle. That's why I'd go with the four-speaker system
now that it's an option.
Amplifiers
See
Chapter 41, Audio Systems. Unless you're using powered speakers, you'll
need some amplifiers. Most pin cab builders use small car amps, since
they're compact and (like everything automotive) run on 12VDC power.
Most of the cheap units can power a stereo speaker pair or a stereo
pair plus subwoofer (the latter being known as a 2.1-channel amp).
Many higher-end car amps can power four independent channels.
You'll typically need the following:
- One 2.1 amp for the backbox speakers + main subwoofer
- A second 2-channel or 2.1 amp for the front surround speakers
- A third 2-channel or 2.1 amp for the rear surround speakers
I've been keeping space for a couple of these units open on the
shelf over the subwoofer area:
What you can fit here will obviously depend on the specific equipment
you choose. You can probably fit two small car amps, and maybe three,
if you're able to stack two of them vertically.
Backbox
In the backbox, as in the main cabinet, we have a top layer that's
visible to the player. In the backbox this consists of the translite,
backglass TV, and speaker/DMD panel.
Those are all covered in detail in other sections:
There are some additional items that we can fit into the backbox, mounted
on the back wall.
- Replay knocker: typically mounted at the top of the backbox in a
corner. The knocker coil is mounted so that the open end points up
at the ceiling, with about a 1" gap to the ceiling. The metal strike
plate is mounted on the ceiling right above it. See Chapter 60, Replay Knockers.
- Shell bells. If you're a big fan of machines from the
electro-mechanical era, you can install a couple of round bells with
solenoid hammers. Similar bells were used in many machines from the
1960s and 70s. These serve exactly the same function as chimes, so in
a way they're redundant with a chime unit, but the reason you might
want to have both is that bells and chimes each have their own
distinctive sound. Some games from the EM era had bells and others
had chimes, so you can more accurately re-create a greater variety of
games if you have both. The backbox is a good place to install bells
if you have them; the bells have a large footprint, but they're flat
enough to fit behind a TV (in most cases, anyway), so this takes good
advantage of the wide but shallow space in the backbox. As a nice
bonus, it's true to the originals: it's where bells were usually
situated in the EM machines. See Chapter 64, Chimes and Bells.
- Repeating bell (not shown). The shell bells above work like chimes
in that they fire with one hammer strike at a time. There's a
different kind of bell used on some machines from the 1980s, which
rings continuously when energized, like an old-fashioned alarm clock
or telephone ringer. These look just like the shell bells, so they're
an equally good fit for this space. There should be plenty of room to
add one of these if desired. See Chapter 64, Chimes and Bells.
- Audio amplifier. We already proposed a place where you can fit a
couple of car-radio amplifiers into the main cabinet. You might also
be able to fit an amplifier into the backbox, either as an alternative
to the main-cabinet mounting or in addition (which might be necessary
if you need four channels of audio in the main cab for a
surround-sound setup). You'll probably have about 1" to 2" of depth
to work with behind the TV, which is enough to fit a small amplifier.
- Power strip. There should be enough space on the floor of the
backbox behind the DMD panel to install a small power strip. A
3-outlet strip fit easily in my backbox in this area. It's convenient
to have a few outlets here, so that you can plug in the backbox items
(TV, DMD panel, audio amp) without having to run more cables through
to the main cabinet.
27. Installing the PC
This section is about physically installing the PC components in your
cabinet. It's not about building the PC per se - things like how to
plug RAM into the motherboard, connect disks, install the graphics
card, connect the power supply cables, and so on. That sort of thing
varies depending on the exact mix of parts you're using, so that's
more the domain of the instructions that came with your components.
What we're going to talk about here is how all of the PC parts fit
into the pin cab.
Location
For a lot of our cabinet design questions, we can follow the example
of the real pinball machines, rather than having to invent
everything ourselves. But the real machines don't have PCs inside!
So they don't give us anything to go on for where to put the computer.
It might seem at first glance that there's at least a close parallel
in the real machines. The solid-state machines from the 1980s and
later might not have PCs inside, but they do contain computers of a
sort. They have a bunch of circuit boards that control the game
(including CPUs and RAM, even), located in the backbox. So if we
could follow what the real machines do, we'd put the PC in the
backbox.
But that doesn't translate very well to virtual cabs. The space
requirements of the respective "computers" are too different. In the
real machines, the electronics were all purpose-built custom boards,
so the designers were able to build them specifically to fit into the
available space in the backbox. We don't have that option; we have to
work with standard PC motherboards, which are designed to fit in a
standard PC case, not the more confined space of a backbox. When you
take into account that we also have to fit a TV into the backbox, we
only have about 1" of depth to work with - which wouldn't even be
enough room for a CPU fan, let alone a video card.
With the backbox ruled out, that leaves the main cabinet. That's assuming
you want the project to be self-contained, anyway, which is what most
cab builders want. If that's not a requirement for you, it opens up
the additional option of keeping the PC in a separate, external case,
and placing it on the floor.
Fortunately, the main cabinet works nicely as the location for the PC.
It's a large space, and it's mostly empty in a real machine, so we
don't have to give up any standard real-pinball elements to make space
available for the PC. And even though we're adding a TV to the main
cabinet, we actually get more space to work with than in a real
machine, because we don't have a physical playfield to contend with. We
just have the TV. A modern flat-screen TV is much thinner than a
typical pinball playfield, because playfields always have a bunch of
big solenoid coils and other mechanical parts sticking out from the
bottom side. So we come out a little ahead of the real machines in
terms of usable interior space.
Enclosure options
There are several different approaches to installing the PC. Here are
the ones I've seen on the forums:
- Build the PC in a conventional case, and put the case inside the cab
- Build the PC in a conventional case, and put the case outside the
cab, such as on the floor next to it
- Use an "open-frame" case or "motherboard tray", which has the
backbone of a regular case for attaching the motherboard, expansion
cards, disk drives, and power supply, but doesn't have an enclosure
- Mount the individual PC parts directly in the cabinet, with no
case or frame of any kind
I think the last option (no case) is probably the most common. It's
how I set up my own cab, and it worked well for me. But each approach
has its own merits. I wouldn't say that there's any single way that's
best for everyone, or conversely that any of them are flat-out wrong.
So let's look at each one in detail, to help you decide what will work
best for your cab, and give you some ideas about how to implement your
chosen approach.
Conventional case, inside the cab
This is the most straightforward approach: build your PC in a
conventional desktop or mid-tower case, and then stick the case
inside the pin cab.
Typical PC mid-tower case, 16" x 16" x 7", lying on its side
in the cab just behind the cashbox area.
The big question to ask when considering this approach is whether or
not it'll fit. If you're building a full-sized cab, and you're using
a typical ATX desktop case or mid-tower case, it should work, although
it'll be a little tight. A typical mid-tower ATX case is in the
neighborhood of 16" x 16" x 7", and a standard-body WPC cabinet has a
floor space of 20.5" x 50", so there's room for the case's footprint
no matter how you orient it. Vertical space is tighter. The cabinet
interior is about 14" high at the front and about 21" high at the
back, but remember that also have to fit a TV into the same space.
What's left over after installing the TV will depend on exactly where
you position the TV. Some people like to put it at the very top edge
of the cab, millimeters from the glass, but most people like to set it
further in, at about the depth of a real pinball playfield. The
latter case is the more difficult one in terms of space left for the
PC, so to be conservative, that's the one we'll assume. If the TV is
about 4" thick, a playfield-level mounting will leave about 7" of
vertical clearance at the very front - just enough for the
16x16x7-inch case lying on its side. But that's only at the very
front; you get more headroom the further back you put the PC, since
the TV slopes up. And you'll actually want to put the PC back a
little further anyway, to leave room at the front for the coin door
and plunger. So the answer is yes, it'll fit, at least for this
hypothetical 16x16x7 case.
Advantages of this approach:
- It's easy to build the PC, since you build it the "normal" way
- It's self-contained
- You can easily remove the whole thing to work on the PC outside
of the cab
- The case protects the PC components from loose objects in the cab
Disadvantages:
- It takes up a lot of space; you'll have less space room for
other things (such as feedback devices) than with an open-frame
case or no case
- Putting an enclosed case inside an enclosed pinball cabinet
might make cooling less effective
Considerations if you choose this approach:
- When building the main cabinet, you should consider moving the
subwoofer opening further towards the back than the location shown in
our WPC-style plans. (And note that our plans already place it further
back than it was in the real WPC machines, where it was nearly centered
front-to-back.) The mock-up diagram above uses the subwoofer
placement from our plans, and you can see that there's almost no room
between the subwoofer opening and the PC case. Keep in mind that the
speaker itself will be slightly larger in diameter than the opening.
- The case will need to be oriented to leave enough clearance for
video cables, USB cables, and power cords. That means that the back
plane of the case can't be flush with a wall. This might affect where
the fan intake vent ends up, so figure it out early so that you can
take it into account when build the cabinet.
- Position the case so that its air intake and cooling fan exhaust
vents aren't blocked. Ideally, position the intake vent close to an
opening in the cab floor, so that the intake can draw in outside air
directly (rather than the warmer recirculated air within the cab).
- You probably won't be able to fit a separate intake fan with this
arrangement. That's okay as long as the PC case intake is near a
floor vent opening. The PC's case fan will pull air in through the
vent and thus will serve the same function that an intake fan would
have served.
- If air flow does turn out to be a problem, you can always take the
cover off the case and just use the chassis, similar to the
"open-frame" case style discussed below. (That gives up one of the
advantages of using a full case, though: the protection afforded by
the complete enclosure.)
- Secure the case in place so that it doesn't slide around the
cabinet. I'd probably use wood blocks (perhaps nominal 2x2 strips) at
the edges, and something like an L-bracket to lock it down vertically.
I'd want the top bracket to be easily removable so that you can take
the PC out when needed. One of the big advantages I see in using a
full case is that it makes it easy to remove the PC as a unit to work
on it outside of the cab. Perhaps fasten the L-bracket with a
thumbscrew or wing bolt, so that you can remove it without tools, or
use something more of the nature of a toggle latch.
- You'll need to connect wiring to the PC's soft power button so that
you can turn the PC on with the cabinet's power button. (See
Chapter 11, Power Switching.) I'd find the wires leading to the
case power button, and splice my own extra wires onto these, running
the extra wires outside the case through an available opening.
You can then connect these to your cabinet power button.
Remember that we want to make it easy to remove the whole PC case
for maintenance work, so be sure to use some kind of modular,
pluggable connector for the switch wiring. Don't hard-wire it.
When you want to remove the case, you can just unplug that
connector to free the wires. See Chapter 80, Connectors.
Open-frame case
An "open-frame" PC case, also sometimes called a motherboard tray, is
an interesting compromise between using a full conventional PC case
and no case at all.
An open-frame case is basically just the backbone of a regular PC
case, without any enclosure. It has the usual mounting apparatus for
the motherboard, power supply, disks, and expansion cards, in the
usual spatial arrangement. Installing all of the parts works just
like in a regular case, except that there's no cover to put on when
you're done. These cases are sold mostly for people doing test builds
and experimentation, where they want easy access for frequent
component changes.
Pros:
- Assembling the PC components is as easy as for a conventional case
- Slightly more compact than an enclosed case
- Open air flow for cooling
Cons:
- Still fairly large, even though it's smaller than a full case
- The spatial arrangement of the components is dictated by the frame
design (you can't customize the footprint to work around space
constraints)
- PC components aren't protected from loose objects in the cab
Considerations for using an open-frame case:
- Secure the frame in the cab so that it doesn't move around. Some
open frames are specifically designed for lab-bench mounting, which
would translate directly for a pin cab setup. Otherwise, you'll have
to improvise something. I'd look for a way to fasten the floor of the
frame to the floor of the cab with a few brackets or latches, so that
it's not too much work to remove it.
- As with a conventional case, an open-frame case might conflict with
the subwoofer placement in our WPC-style plans, so you should plan
around that when building the cab.
- As with a conventional case, you'll have to tap into the frame's
power button wiring, so that you can connect the motherboard's
soft power switch to your cab power switch.
No case
Or, to put it another way, use the pin cab itself as the case. This
is how I built my own cab, and I think it's the most common approach.
I like it for its flexibility, especially the ability to position the
components to make room for other things in the cab. But it's more
work since you have to come up with custom mountings for everything.
Pros:
- Uses the least space
- You can arrange the components however you want, to minimize the
footprint and work around conflicts
- Open air flow for cooling
Cons:
- More work to plan and implement
- Requires ad-hoc support apparatus for the video card
- No protection against loose objects
- More difficult to remove the PC components for service
Tips for a no-case installation:
- The motherboard can go anywhere there's room for it, but I'd
recommend placing it in the middle of the cabinet front-to-back, and
up against one side. You probably don't want to put it at the very
front, because you need to leave room for the standard pinball
equipment like the cashbox, tilt bob, plunger, and flipper buttons.
You also don't want it at the very back, because that makes it hard to
reach once everything else is installed.
Possible placement of the PC motherboard and power supply.
This leaves room along the side opposite the motherboard for
external USB devices such as key encoders, plunger/nudge
devices, and feedback device controllers.
- The PC power supply can be placed up against the wall near the
motherboard. The exact placement isn't critical; it just has to be
within reach of the motherboard power connectors.
- The power supply (like the motherboard) needs to be fixed in place
somehow. I secured mine with L-brackets screwed into the cabinet
floor and wall. They're not screwed into the power supply itself;
they just hold it place by forming a sort of cage around it.
- I mounted my motherboard on a plywood carrier - so in a way it's
just a home-brew version of the "open-frame" case, although with more
control of the geometry than you get with a retail frame. This let me
assemble the PC and its expansion cards outside of the cabinet, and
drop the whole thing in as a unit. It likewise lets me remove the
assembly when necessary to work on it outside of the cab. The plywood
carrier is fastened to the cab floor with wood screws at the corners.
- PC motherboards attach to a conventional case with M3 machine screws
that screw into standoffs, which in turn screw into threaded holes in
the case. The standard standoffs won't work with a plywood carrier,
though, because the plywood doesn't have the threaded holes that the
standoffs fit into. As a replacement, you can use M3 or #4 by 1"
sheet-metal screws, combined with 1/2" tall nylon spacers
underneath. The sheet-metal screws will self-tap in plywood, so you
can simply fit them through the spacers and screw them directly into
the plywood. The spacers take the role of the standoffs to provide a
little air space between the motherboard and the plywood carrier.
- Alternatively, it is possible to use the standard standoffs, but it
requires some prep work. It's also much neater, so you might find it
worth the extra effort. The trick is to pre-install a set of #6
T-nuts in the plywood to fit the #6 machine screw bases of the
standard standoffs. T-nuts install from the back side of a
board. You'll have to drill holes for the T-nuts, and possibly
(depending on the thickness of the board) route insets on the bottom
side so that the T-nuts seat flush with the front surface of the
board. Once the T-nuts are in place, you can screw the standoffs into
the carrier as though it were a regular case chassis, and then install
the motherboard on top of the standoffs using M3 x 1/4" machine
screws.
- Hard disks can be placed anywhere convenient that's within reach of
the data cables and power connectors. If you're using an SSD
(solid-state disk), those are so light that you can secure them to the
floor or a wall with adhesive Velcro. I'd probably even use Velcro
for a hard disk, although due to the extra weight, I'd only mount that
flat on the floor rather than trying to stick it to a wall. That way,
gravity will be working with the Velcro rather than against it. I've
had problems with Velcro on a vertical surface sliding down the wall
over time, so I wouldn't trust it to hold a mechanical hard disk up
against gravity. If you want to mount a hard disk vertically, use
something more robust to secure it, like L-brackets with screws.
- This is more of a PC-planning thing, but you can avoid the need for
a separate disk of any kind by using an M-SATA drive. Those are
SSD/flash drives that are only about the size of a credit card and
plug directly into a slot on the motherboard, so there are no cables
to manage and no separate piece to mount. You need a motherboard with
an M-SATA slot to make this work, obviously.
External case
A rather different option from what we've been talking about thus far
is to "think outside the box": placing the PC in a conventional
tower case sitting on the floor next to the cab.
This doesn't yield the kind of integrated, self-contained, stand-alone
pinball machine replica that most pin cab builders are shooting for,
so it's definitely not to most people's taste. But it has two
features that might make it interesting to some people. The first is
that it lets you share a PC between the cab and other uses, such as
using it as your regular desktop PC most of the time. It's hard to
deny that buying a whole separate PC that will never be used for
anything but playing pinball is a bit of an extravagance. By the same
token, it's hard to deny that building a giant piece of furniture just
to play video pinball is an extravagance; but sharing the PC is one
way to rein in the cost where you can. The second thing that might
make an external PC attractive for some projects is that it uses zero
space inside the cab. That's not much of a concern for a full-size
cab, but if you're building a sufficiently "mini" mini-cab, you might
not have all that much free space to work with - or you might want to
save the space for something else, like more feedback devices.
Pros:
- Saves space inside the cab
- Lets you use the PC for other functions when not pinballing
Cons:
- Not self-contained
- You have to connect several cables each time you use it
The only integration work with an external PC is to run the video and
USB cables between the PC and the cabinet. You'll probably want to
minimize the number of cables, both to reduce visual clutter and to
make it easier to connect and disconnect cables when you want to
switch the PC between pinball mode and desktop mode.
My first suggestion is to place a USB hub inside the cabinet. Connect
all of the USB devices in the cab to the hub; all of that wiring will
be hidden inside the cab, and you won't need to touch any of it when
you connect and disconnect the PC. Then you just need one external
USB cable, between the PC and the hub.
My second suggestion is to use Keystone or similar wall plate
connectors for the USB cable and all of the video cables. See
"External I/O plugs"
below for more on
this. I'd set up all of the external ports on the back wall of the
cab. That will at least centralize all of the cable connections in
one place, which will make it easier to keep the cable bundle neat,
and will also make it easier to plug and unplug everything when you
move the PC. Putting the connectors in the back will keep the rat's
nest of cabling as out of view as possible.
External I/O plugs
If you're using a wired keyboard or mouse, or a wired Ethernet
connection, you'll need a way to plug these into the motherboard
from outside the cabinet.
A simple way to accomplish this is to drill a hole in the cabinet big
enough to accommodate the wires, then simply pull the cables through
the hole and plug them into the motherboard. This isn't very
convenient when you need to unplug or reconnect the cables, though,
since you'll have to open up the cabinet to get access to the plugs.
A better way is to install a set of the appropriate jacks on the
exterior of the cabinet. Then you can easily plug the devices into
the external jacks at any time, and just as easily unplug them. This
is fairly easy to set up, thanks to connectors you can buy for home
theater and office installations, where many people want to put USB
connectors and Ethernet cables in wall outlet plates.
For the keyboard and mouse connector, I recommend placing two USB
connectors (one for each device) on the floor of the cabinet near the
front. For the Ethernet connection, I recommend putting a port on the
back wall of the cabinet near the power inlet.
Warning! Before you install these jacks, you should figure out how
all of the internal parts in your cabinet are going to be laid out, so
that you're sure the chosen locations for the jacks won't get in the
way of anything else. The jacks require cutting holes in the cabinet,
so you can't easily move them if the locations end up conflicting with
something else.
USB, keyboard, mouse
For the keyboard and mouse ports, here are the parts I recommend:
- Keystone wall plate insert with 2 openings
- Keystone snap-in USB 3.0 female-to-female couplers (quantity 2)
- Keystone PS2 (6-pin mini DIN) female-to-female coupler (optional,
if you're using an older keyboard with a PS2 connector instead of USB)
- 4-foot standard USB cables (male A to male A) (quantity 2)
- 4-foot PS2 keyboard male-to-male cable (optional, if you're
using the PS2 keyboard connector instead of USB)
Note: you can get a 3-gang plate if you want to install the keyboard,
mouse, and ethernet in one spot, and you even get a 4- or 6-gang plate
if you want to add even more connections beyond these. I personally
prefer having the keyboard and mouse connections near the front of the
machine, since that's where I tend to use those devices, and I prefer
to have the Ethernet port in back to keep that cable out of the way.
That's why I recommend separate plates for these - it's simply because
I like to locate the two sets of plugs at opposite ends of the machine.
But if you want to minimize the number of holes to drill, you might
prefer to put everything in one plate instead.
To install: figure out where the plugs will go. I recommend the floor
of the cabinet near the front.
Using the wall plate insert as a template, mark the area on the floor inside
the cabinet where the rectangular middle section of the plate will go.
This is the area to cut out. Note that you should mark this area from the inside
to make sure there's room for the screw tabs on either end of the plate.
If you're using a jigsaw to cut this out, drill a hole at one corner big enough
to start the cut, then carefully cut the rectangular area out with the jigsaw.
If you're using a router, carefully route along the cutting outline.
Once the hole is cut, mount the plate on the inside of the cabinet,
with the outside of the plate facing out through the opening. Screw
down the plate with four 1/2" wood screws, one through each screw tab.
Insert the two USB couplers (or one USB coupler and one PS2 coupler, if
you're using that type) into the square openings from the inside of the
cabinet. They should attach so that the jack on the underside (exterior)
of the cabinet is flush; the body of the coupler should stick up into
the interior of the cabinet. Grab the matching 4' cables and plug one
end of each cable into the corresponding coupler. Plug the other end
of each cable into a suitable port on the motherboard.
That's it! This will give you a neat, recessed opening with the two
jacks for the keyboard and mouse. You can now plug your devices into
the jacks without having to open up the cabinet.
Ethernet
The procedure for the Ethernet connection is the same as for USB
ports. Here are the required parts:
- Keystone wall plate insert with 1 opening
- Keystone Cat6 (RJ45) female-to-female coupler
- 4' standard Ethernet Cat6 patch cable
As before, find the location in the cabinet where you'd like to
install the port. I recommend putting this connector on the back wall
of the cabinet near the power inlet, since it's tidier to keep the
Ethernet cable behind the machine rather than having to route it
underneath. Repeat the procedure to mark and cut the opening required
for the plate. Install and screw in the plate as before, pop in the
Ethernet coupler, and connect the short Ethernet cable between the
coupler and the motherboard Ethernet jack. Now you can plug an
external Ethernet cable between the external cabinet jack and your
router or wall plate.
HDMI
Keystone HDMI coupler modules are available that work just like the
USB and Ethernet modules. Follow the same procedures as described
above.
Other video
DVI-D, DisplayPort, and VGA connectors are too large for the standard
Keystone jacks, so you generally can't find these as Keystone modules.
However, you can find non-Keystone wall plates specially made
for the various video connectors. So if you're using an external PC
and need a set of video connectors, don't give up when you can't find
them in Keystone modules; instead look for one-off dedicated plates
for the video connector types you need. The procedure to set those
up is generally the same as for the Keystone plates.
28. Cooling Fans
The TV and the PC components inside a pin cab generate heat when
running, so it's necessary to ventilate the cabinet to keep it cool.
Most pin cab builders accomplish this by cutting a couple of air vents
in inconspicuous places on the cab and installing fans in the vents to
move air through the cabinet.
Most cab builders use PC case fans for this. They're a good fit
because they're designed for exactly this type of use, and they're
quiet and inexpensive. They also fit well with our electrical setup,
since they're built to work with a standard PC power supply, which
we'll already have to run the PC components.
How many fans?
It seems pretty standard to use two exhaust fans at the back of the
main cabinet, using common PC case fans. Most people also add one or
two intake fans on the floor of the cabinet. Passive intake openings
(without additional fans) will also work, since the pressure from the
exhaust fans will draw air in through the intakes anyway, but intake
fans will help increase the air flow.
This design is driven more by the practicalities of available space
than anything else. The back wall of the cabinet can easily fit a
couple of PC case fans, and you can usually find room on the floor of
the cabinet for at least one more, as an intake. I haven't attempted
any sort of quantitative analysis of how much cooling is needed, or
how much cooling this fan arrangement provides, but I think it's
pretty well proven in practice. Lots of people have built cabs with
roughly this setup, and I don't think I've ever seen reports on the
forums of significant problems with heating.
Fan placement
Our goal with the ventilation system is keep air moving throughout the
entire cabinet. We don't want any stagnant pockets of air that can
sit there and gather heat; we want to continually discharge the hot
air within the cab and replace it with fresh air from outside.
The best way to accomplish this is to put vent openings at each end of
the cabinet, front and back, and drive air through the vents with fans
at each opening. The fans should be oriented so that the fan at one
end is drawing air into the cabinet, and the fan at the other end is
blowing air out of the cabinet.
One set of fans should be installed in the back wall of the cabinet.
This is an obvious place in terms of cosmetics, since the back of the
machine isn't normally visible. It's also good in terms of air flow,
since it's at one end of the cabinet in the long direction. What's
more, you can take advantage of the tilt of the playfield TV. The TV
is normally installed at an angle, rising towards the back. Since
hot air naturally rises, heated air will tend to move towards the
raised back end of the playfield. Take advantage of this natural
convective flow by placing the rear vent(s) fairly high up on the
back wall, and orienting the fans so that they blow air out
of the cabinet.
The other set of fans should be installed near the front of the
cabinet. You almost certainly won't want to cut fan vents in the
front wall, for cosmetic reasons, so most people place the front fan
or fans in the floor of the cabinet, close to the front of the cab.
To maximize air flow, orient the front fan(s) to draw air
into the cabinet. The positive pressure (into the cabinet) of the
front fans will combine with the negative pressure (out of the
cabinet) of the rear fans to maintain a constant flow of air
front-to-back.
If you're planning to use coins with the coin chutes, remember to
leave room at the front of the machine for a container to collect
inserted coins. There's a standard coin tray design used on the real
machines, described in the "Cashbox" section in
Chapter 23, Cabinet Hardware Installation. That requires about 12" of clearance
at the front.
Typical cabinet fan arrangement. One or two fans are
placed in the floor near the front of the cabinet,
with the blades oriented to draw air into the cabinet.
Leave room for the coin collector box at the front (12"
for a standard pinball cashbox).
Another set of fans is installed high up on the back wall,
oriented to blow air out of the cabinet. This will
maintain air flow through the whole cabinet from
front to back.
Selecting fans
Most cab builders use 120mm PC case fans, similar to the type pictured
at right. The "120mm" refers to the diameter of the opening; 120mm is
about 4¾ inches.
Case fans come in several sizes, from 70mm to upwards of 200mm.
Larger diameter fans are generally quieter, and gamers building
high-end rigs can sometimes get so obsessed about it that fan size can
seem like a fetish. If you could fit a ceiling fan into a gaming rig,
that would probably be a thing. In my experience, though, you can get
good results in a pin cab with ordinary 120mm fans. Good ones can be
pretty nearly silent, certainly quiet enough to be inaudible over the
pinball action.
Like most PC components, case fans have a standardized form factor
that allows any fan of a given standard size to fit any case designed
for that size. The fan housing includes screw holes at the four
corners for attaching it to the PC case. For our purposes, we can use
wood screws through these holes to attach the fan to the cabinet wall
or floor.
I'd recommend looking for a fan with a 3-or 4-pin Molex plug like
those pictured below. This is the most common design in current use,
so it's the easiest to find and the most likely to be compatible with
your motherboard. These plugs are designed to fit into a mating
connector on your motherboard. Note that the 3-pin plugs are
compatible with 4-pin motherboard connectors (no adapter needed), so
you can buy a fan with either type if your motherboard has 4-pin
connectors.
If your motherboard doesn't have a fan connector at all, you'll have
to plug your fans directly into the ATX power supply. For a fan with
a 3- or 4-pin Molex fan plugs, you can do this with an adapter cable.
3- and 4-pin fan plugs, for connecting to your motherboard's
"SYS FAN" or "SYSTEM FAN" headers.
I don't have any particular brand recommendations. Fans are
standardized enough to be interchangeable, so once you decided on a
size, shop by price and/or user reviews.
Cutting the openings
Once you decide where to mount your fans, you should simply cut
circular openings in the cabinet wall and/or floor of the appropriate
size. If you're using 120mm fans, cut a circular opening 120mm in
diameter for each fan.
You don't have to get the size of the opening exact, since the fan
itself doesn't have to fit into the hole. The opening is purely for
the air vent. The fan itself will simply mount flush against the
inside surface of the cabinet wall or floor, covering the opening.
Installing the fans
Before installing the fans, figure out which way it blows air so that
you can install it with the air flowing in the right direction, into
or out of the cabinet.
How do you tell the direction the fan goes? Look for an arrow printed
or stamped on the side of the housing: if you can find one, it should
indicate the direction of air flow. Failing that, you can simply
connect the fan to power and check which way the air is blowing.
Once you determine which direction the fan goes, simply position it
over the opening with the appropriate side facing outwards, according
to whether you want it to serve as an intake fan or an exhaust fan.
Attach it to the cabinet wall or floor with four wood screws. #4 wood
screws should work well for most fans.
Powering the fans
The next step is to connect the fans to power.
If your fan has a
3-pin or 4-pin Molex connector (like the ones at right), look for a
SYSTEM FAN or SYS FAN connector on your motherboard. Most modern
motherboards have one or two of these connectors.
Motherboard fan connector. These are usually labeled
SYS FAN or SYSTEM FAN. Most modern motherboards have
at least one fan connector, usually two.
You can safely plug a 3-pin fan plug into a 4-bin motherboard fan
header. The connectors have keying slots to make sure the pins line
up correctly even if mixing 3- and 4-pin connectors. As long as the
fan plug physically fits the header, you can just plug it in directly
without any sort of adapter.
If you have more fans than available headers on your motherboard, you
can buy a splitter (also known as a "Y" cable) that lets you connect
multiple fans to one motherboard header.
If your motherboard doesn't have any fan connectors (which is
uncommon), you'll have to plug the fan directly into the power supply
instead. ATX power supplies don't typically include connectors for
the small fan plugs, though, so you'll need an adapter cable. You
can find these at PC component retailers: search for "fan ATX adapter
cable", and look for a cable with a male fan connector.
If your fan
has a larger 4-pin connector like the one pictured at right, it's
designed to plug directly into your ATX power supply rather than
plugging into the motherboard. You should find several mating
connectors on the power cords coming out of your power supply. You
can simply plug the fan connector into the matching power supply
connector.
Extension cables
You'll probably need a longer cable than what's attached to the fan.
The fan's built-in cable will be designed for the relatively confined
area of a normal PC case. Full-size pin cabs are quite a lot larger,
so the fans will probably be further away from the motherboard than in
a regular PC.
You can buy a fan extension cable from a PC parts vendor if necessary.
Alternatively, if you don't mind doing some soldering, you can simply
cut the existing fan wires in half and solder as much additional wire
as you need between the two segments to extend the cable length. If
you do this, be sure to wrap the exposed solder joints with
electrician's tape to insulate the wires.
Backbox cooling
Some cab builders also put a fan or two in the backbox, to provide
active ventilation for the TV there. Others use passive ventilation -
no fans, just vent holes in the rear wall of the backbox.
If you're using an older TV with a display technology that generates
significant heat, such as a plasma TV or an LCD TV with a fluorescent
backlight, a fan is worthwhile. Newer LCD panels with LED backlights
run cool enough that a fan probably isn't necessary, as long as you
provide good passive ventilation.
The standard cabinet design for most real machines in the 1980s and
90s used passive ventilation, typically with seven 1½" diameter
holes running across the width of the back wall, located about 1" from
the top and spaced 1" apart.
Typical backbox passive ventilation holes used in
real pinballs from the 1980s and 90s. Seven holes are drilled
across the width of the backbox's rear wall. Each hole is 1½"
in diameter; holes are spaced 1" apart and 1" from the top.
Note that the standard backbox design allows for some air movement
between the main cabinet and the backbox, via the large opening in the
floor of the backbox. That's why the ventilation holes are only
needed at the top of the backbox: as warm air rises through the
backbox and exits via the top vent holes, cooler air will be drawn in
through the cabinet opening. If you don't use the standard design
with the opening between the backbox and main cabinet, you should add
some air intake holes at the bottom of the backbox.
Is passive ventilation really enough for a TV? Let's consider how
much heat the traditional design was intended to handle in a real
machine, and compare that to our needs for a virtual cab. We'll use
electrical power as a proxy for heat. The real machines housed their
main control electronics in the backbox, along with their score
displays and about a dozen small incandescent bulbs for lighting the
backglass artwork. The total power usage of all of this equipment
adds up to about 50W. A 32" LED-backlit TV runs at about 55W. TVs
will probably get more efficient as time goes on, plus a backbox TV is
usually a little smaller than that (which usually translates to less
heat), so that 55W estimate is probably erring on the cautious side.
In other words, our TV should produce a pretty similar amount of heat
to what was in a real machine, so if the passive cooling was good
enough for the real thing, it should be adequate for a virtual
cab as well.
On the other hand, it seems that we don't have a lot of headroom
here: a TV will use up most of our estimated heat budget. If you're
also installing other backbox elements that generate significant
heat - particularly a plasma DMD - active cooling might start
looking like a good idea.
If you do decide to include a fan in the backbox, I can suggest
two configurations:
- The first is to keep the passive vent holes near the top, in the
same arrangement described above, and add the fan as an intake near
the bottom of the backbox. The positive pressure of the fan will
combine with the natural chimney effect of rising warm air to maintain
steady air flow.
- The second is to remove the passive vent holes and replace them with
one or two openings for, say, 120mm PC case fans, also near the top of
the machine. Install these PC fans in exhaust mode, with the fans
oriented to blow air outwards. This will draw in air from the main
cabinet and blow hot air out the top.
Be sure to consider space conflicts between the fans and the TV
and other backbox elements.
CPU fans
The CPU chip on your motherboard will probably require
a separate fan mounted directly on top of the chip. The CPU generates
a great deal of heat in a very concentrated area, so this fan is
needed to quickly move heat away from the surface of the chip.
The CPU fan shouldn't require any extra cabinet planning or cutting, since
it mounts directly on top of the CPU chip itself. It's basically part
of the CPU/motherboard assembly. If you buy your CPU in retail
packaging, a matching fan is usually included, so the only thing you
have to do is install it when you assemble the motherboard. If you
buy an unpackaged "OEM" CPU, you'll probably need to buy a fan
separately. You have to buy a fan designed for the particular chip
type, because it has to match the CPU's size and shape. You should be
able to find suitable fans on Newegg.com or other sites that
specialize in PC components.
29. Playfield TV Mounting
This section is about how to install the main TV - the one that takes
the place of the playfield.
This section tries to address the two big questions about installing
the TV. The first is where to position the TV in the cabinet, which
is as much a matter of aesthetics as of function. The second
is the engineering question of how to physically attach the TV to the
cabinet, once you've figured out where you want it.
Where to place the TV is one of the top questions that new cab
builders ask on the forums. It's one of those things that seems
self-evident at first glance, but has a lot of subtlety when you look
more closely. It's obvious that the TV has to lie on its back near
the top of the cab, but that doesn't quite answer the question, since
it leaves a few inches to play with to move the TV up and down and
front to back. Those few inches can make a lot of difference
aesthetically - it's that matter of what exact positioning is
ideal that raises all of the forum questions. This chapter surveys
the options and their respective pros and cons. I have some opinions
about what looks best, which I'll share, but I'll also try to give
equal time to the alternatives. I don't think there's a single right
answer, because everyone has their own priorities for their cab and
their own sense of what looks best.
After the survey of positioning alternatives, this section presents my
attempt at an all-purpose, universal TV mounting system. When I was
building my own cab, I found the TV mounting to be one of the more
challenging problems. The TV makers don't expect you to use a TV like
this, and the people who make pinball machines don't think of putting
a TV inside, so neither world gives us an example we can look to for
ideas, and neither world offers a ready-made hardware solution we can
apply. Every cab builder has always been on their own to work out
their own unique, ad hoc scheme. That always seemed like a waste of
energy to me; I've always thought there should be at least a basic
template we can follow. I think I've managed to come up with
something like that. This chapter provides a general-purpose design
that should be flexible enough to work with most TVs and most cabs,
using standard parts that you can readily buy. It's at least an
option to consider, and even if it isn't a good fit for your cab, it
might still give you some ideas to draw on. If you're looking for
even more ideas, at the end of the chapter, I'll outline a few
alternative mounting schemes that other cab builders have used.
We're assuming here that you've already picked out a TV to install.
If you're still shopping for a TV, there's a separate section with
advice about that,
Chapter 7, Selecting a Playfield TV.
Orientation
The playfield TV is always installed in "portrait" mode, to fit
the proportions of the cabinet. This represents a 90°
rotation from the standard way you view a widescreen TV.
But should it be 90° clockwise or 90° counter-clockwise?
Most virtual cab builders install it with the bottom of the TV
facing left in the cab:
In principle, it really shouldn't matter. Windows and all of the
pinball software should let you select whatever rotation you
want. But this is one of those cases where you can save yourself some
hassle by doing it the same way everyone else does it. There's still
a lot of older software in use in the pinball ecosystem, and some of
it might not be as adaptable as modern programs. I don't know of any
actual examples of software that will outright fail to work with other
rotations, but I know from helping people out with PinballY that
monitor rotation in general can cause configuration headaches,
especially with some of the commercial games.
Positioning options
Before we get to the mechanics of installing the TV, let's consider
exactly where you want to position it. To a first approximation, of
course, it goes "where the playfield goes". But a TV isn't quite the
same as a regular playfield, in either its nature or its size and
shape. So saying that the TV goes where the playfield goes is too
vague to constitute a plan. It leaves a couple of important
questions unanswered:
- Should the TV screen be flush with the top glass, or set in a bit
like a real pinball machine's playfield?
- Should the TV be all the way at the front, flush with the lockbar,
or should you set it back a few inches to make room for a plunger?
Judging by how often these questions come up on the forums, many
new cab builders agonize over these quite a bit.
I want to offer some thoughts about how to decide these questions.
Most new cab builders focus on how the placement will affect
playability. That's certainly the right priority. But the
thing is that playability actually won't be much affected, no matter
what TV positioning you go with. When you're playing, your eye adapts
to whatever setup you have, and before long you won't even notice it.
It's the same principle that makes the curtains around a movie theater
screen disappear once the film starts rolling. When you're playing,
it doesn't much matter where the TV is relative to the rest of the
cab. All of that disappears; your eye pays attention to the table.
This should be reassuring if you're been agonizing over the question,
because it means that you'll likely be happy with your cab's
playability no matter what you decide.
TV placement can make a big difference to the aesthetics of the cab,
though. Since playability isn't much of an issue, I think the
aesthetics are the better focus when making these decisions. In
addition, there are some functional considerations, since the TV
placement affects the space layout inside the cabinet. You might have
space constraints that decide some of these variables for you, before
you even get to think about how it'll look.
The dreaded plunger space conflict
One of the key space constraints that affects TV placement is the
plunger. This is an issue because the most natural placement of the
TV and of the plunger put them into conflict: they both want to
occupy the same space.
The natural place for the TV is all the way at the front of the
cabinet. The natural place for the plunger is where it goes on
the real machines. The problem is that the plunger sticks into
the cabinet by about 3", so if the TV is all the way at the
front, it overlaps the plunger.
Why isn't this a problem on the real machines? In part, it's because
the plunger sits just above the playfield on a real machine, so
they're in different planes vertically and thus don't collide. In
addition, on the real playfields, they cut a notch out of the
playfield at that corner specifically to make room for the plunger.
That lets you lift up the playfield without hitting the plunger.
If we could cut a notch out of the TV, we could solve this the
same way, but that's not really an option. Our options all involve
moving either the TV or the plunger to make room for the other:
- Move the TV down a couple of inches to clear the plunger. I don't
think I've ever heard of anyone doing this; I think it would put the
TV lower than anyone wants it. In addition, you'd now have the
problem that the plunger sticks out visibly above the TV, so you'd
have to do something to cover that up.
- Move the plunger upwards far enough to clear the TV. I don't think
this would be practical given the space constraints, but maybe you
could make it work by sharing the work: move the TV down slightly
and move the plunger up slightly. The plunger would stick out above
the TV, so you'd have to cover it up somehow.
- Get rid of the plunger and use a Launch Ball button instead. The
button doesn't create the same space conflict, so you can put it where
the plunger would normally go and still have the TV all the way at the
front. If you're not particularly attached to the idea of a plunger,
this option has the additional upside that it's a big simplification
overall, in that plungers are complicated on a virtual cab by their
very nature. A lot of us would never consider doing without a
plunger, though, since it's such an iconic pinball element.
- Move the plunger down to clear the TV. This requires moving it down
by about 3". Some cab builders take this approach because it lets
them both have a plunger and put the TV exactly where they
want. I personally don't like the resulting look, though - it gives
it a kind of weird home-brew vibe and makes it too obvious that it's
not a real pinball machine.
- Move the TV further back to clear the plunger. This has the
downside that it creates a gap at the front of the cab before the TV
starts, which is unacceptable to some cab builders (who want the TV at
the very front). In my opinion, though, a gap at the front isn't a
problem, and you can even turn it into a virtue. For one thing, you
can fill the space with something resembling the apron on a real
machine. I think a 3D element like this adds some nice texture to the
otherwise flat expanse of TV screen, and it's an opportunity for some
added decorative graphics. For another, you're going to have a
front-to-back gap somewhere, because a 16:9 TV simply doesn't
have the same proportions as a standard cab. If you put the TV at the
very front, the gap all ends up at the very back. I think it creates
a more balanced look to split the gap between the front and the back.
Which option is best comes down to the priority ranking you would
assign to these three goals:
- I want a plunger
- I want the launcher at normal height
- I want the TV at the very front
Basically, you get to pick two of these, but you can't have all three.
Pick the two that you think are the most important, and that decides
the question for you:
- I want a plunger, I want it at normal height: then you should move
the TV back. Personally, I rank these priorities highest, and
this is the solution I like best.
- I want a plunger, and I want the TV at the very front: then you
have to lower the plunger to clear the TV. I think that looks weird,
but tastes vary.
- I want the launcher at normal height, and I want the TV at the front:
then you have to dump the plunger and go with a Launch Ball button.
I wouldn't want to forego the plunger, but not everyone feels as
strongly.
Inset depth
The first decision you have to make about TV positioning is whether to
install the TV screen flush with the top of the cabinet, or recessed
into the cab by some distance. In the latter case, most cab builders
think of this in terms of placing the TV at the normal playfield depth
of the real machines.
These two main options are illustrated below, for the sake of
clarifying our descriptions, but I wouldn't try to make an aesthetic
judgment from the diagrams alone. The differences in question are
subtle enough that it's hard for an illustration or photo to capture
the full effect.
First, placing the TV flush with the top:
Playfield TV flush with the top of the cabinet, taking
the place of the top glass. The top glass can be added
if you set the TV back by about 1/4" to make room.
And second, recessing the TV into the cabinet to about the depth
of a normal playfield:
TV at roughly the same depth as a normal pinball playfield.
In comparing these for aesthetics, note that we've made the "filler"
areas at the top and bottom more conspicuous than they'd be in a real
build. You'll probably make these a darker color in your actual build
(probably black, maybe with some graphics decorations). We wanted to
make it obvious in the illustrations that they're not part of the TV
screen, which they might appear to be if we made them a flat black.
Pros and cons
Aesthetically, I have a strong preference for the inset version. I've
seen both setups in person, and I find the flush-top version to look
too much like a video game, with the whole top being a TV screen.
Setting the TV screen down into the cabinet makes it look more like a
regular pinball machine, and creates more of a 3D effect. It also
lets you add a raised apron at the front, which adds another 3D
element to contrast with the flatness of the TV screen.
Some people prefer the flush-top version on the theory that the
simulated pinball tables already depict a portion of the inset
depth. I don't find that reasoning convincing, because most of the
pinball programs let you adjust the point of view to show as much or
as little of the side walls on the TV as you want. The less the
better, as far as I'm concerned, because video images of the walls
take away TV space that could be used for actual playfield area, and
they don't look as realistic as real side walls.
In terms of playability, I don't think it makes any difference
one way or the other. For the most part, once you're into a game,
your eye only pays attention to the active playfield, and mostly
ignores the surroundings.
Functionally, each version has its advantages. The inset version
makes room for a flasher panel at the back, which I see as a major
plus, as well as LED strips along the sides. It also leaves
an air gap for cooling between the screen and the top glass (if you're
including top glass).
The flush-top version has the advantage that it rotates the screen
slightly closer to a head-on viewing angle. Everyone knows that the
picture degrades on many flat-screen TVs when viewed from too steep an
angle off to the side, so this might be a concern for some TVs.
However, I think a lot of cab builders get overly worried about this.
Keep in mind that the viewing angle difference between the "inset"
setup and the flush-top setup is only about 2-3°, and they're both
pretty far from head-on. I think on most TVs it will make little or
no difference. If you're concerned about it, test your TV from the
two angles and see if it makes a big enough difference to be the
deciding factor.
A second advantage of the flush-top setup is that it consumes a little
less vertical space in the cabinet. That's usually not a big deal one
way or the other in a full-sized cab, but the extra space might make a
bit difference in a mini-cab.
What is the standard real playfield depth?
If you're using an inset to simulate the playfield depth of the real
machines, what's the authentic distance?
We actually have a fairly large range to choose from, because the real
machines vary quite a bit, mostly by vintage. In the 1970s and
earlier, most machines had very shallow playfield insets: the
playfield surface was typically only about 1½" to 2" below the
top glass, all the way from front to back, and the top of the apron
was almost flush with the glass. In the 1980s, the depth started to
increase to make room for the three-dimensional features that became
common, such as ramps and two-level playfields. A mid-1980s machine
might have an inset of 3" at the front and 6" at the back. Note that
this generation started sloping the playfield relative to the top
glass, so that it had more headroom at the back, to allow for taller
ramps and other features. As the years went on, the 3D features got
even taller. By the 1990s, the playfield depth had increased to
around 4" at the front and 8½" at the back. It reached a
plateau at that point; the latest Stern machines tend to be about the
same.
Recommendations
I much prefer the "inset" style over the flush-top design
aesthetically, so that's my first recommendation. I'd only use a
flush-top design if you have to due to some kind of physical
constraint, like an oversized TV that can only sit on top of the side
walls.
Assuming you're going with the inset style, the depth and angle are
pretty flexible, since the real machines cover such a wide range. I
don't think you need to replicate the precise measurements of any
particular real machine - I think all you need to do to look "right"
is to maintain the general proportions. Specifically, I'd say this
means:
- the playfield should be set in by at least the height of the ball
(about an inch)
- it should be angled slightly upward (about 5° to 6° relative
to the floor)
- for WPC-style cabinets, the angle should be less than the angle of the
top glass, so that the back of the TV is set in deeper than the front
- for older EM-style cabinets, the angle should usually be about the same
as the top glass
In terms of looks, that gives us a pretty wide range to work with.
There is one practical consideration that I'd add: if you're using
an apron at the front and/or a flasher panel at the back, you'll need
to leave a little extra vertical space for those. Exactly how much
depends on how you want those features to look. For example, the
flasher panel can be horizontal, tilted, or vertical:
I personally like the tilted style best, but that's probably a matter
of taste more than anything else. In terms of space, a flat
flash panel only needs about 1¼" of headroom, for the height of
the domes. A tilted flasher panel needs more, depending on the angle;
I'd give it at least 2". A vertical panel needs at least an inch (for
the diameter of the domes), but you'd probably want to leave some
margin for visual borders as well.
To summarize my recommendations:
- Use the inset style
- Choose a depth based on the era your cabinet is based on:
- For a WPC-style cabinet, inset the playfield by about 2"
from the top of the wall at the front and 4-5" at the back
- For an EM-style cabinet (1970s or earlier), inset by
a uniform 1½" to 2", or as much as needed to make
room for the flasher panel
Front-to-back positioning
The second decision you have to make about TV positioning is where to
put it front-to-back. Assuming you're building a cabinet to something
like the standard proportions, the playfield area will be longer than
a 16:9 TV, so there will be some leftover space front-to-back. The
extra space typically amounts to about 6" in a standard-body cab.
The question here is whether to split the extra space between the
front and back ends of the cabinet, like this:
...or to put it all at the back, like this:
Space at the front can also be functionally useful, because of the
potential conflict between the TV and the plunger, as described in
"The dreaded plunger space conflict"
above. So you might have already
decided to set the TV back to make room for the plunger.
Even if you're not forced to set the TV back by your plunger setup,
I'd still consider it a valid aesthetic choice. Splitting the extra
space front and back makes for a more balanced look, in my opinion,
and I like the way an apron-like area in the front adds a 3D element.
But many cab builders are very attached to the idea of having the TV
all the way at the front, so that might be a higher priority for you.
For what it's worth, I also thought that way when I was planning my
cab layout, and only reluctantly accepted a front gap after
determining that it was the only workable solution for the plunger
conflict. But as it turned out, I think I'm happier with the
apron-style setup than I would have been with no front gap.
De-case it or not?
When I built my virtual cab, it was common practice to "de-case" your
playfield TV, meaning that you disassembled the TV and discarded the
outer plastic case, keeping only the bare LCD panel and circuit
boards. The point was to remove the bulky exterior bezels around the
perimeter of the screen, which at the time were often quite wide. On
many TVs, the case extended a couple of inches below the bottom of the
viewable screen area to make room for buttons and input jacks. That
was a huge problem for cab builders, because we use the TVs in
"portrait" mode - turned sideways. So if there was a wide area at the
bottom of the TV, it became a wide area along the left or right side
when we turned the TV sideways. Obviously quite undesirable in a cab.
The solution was to get rid of the case. After de-casing, you'd
normally be left with a bare LCD panel. That still had a bezel of a
sort, in the form of a metal frame holding the panel together, but it
was typically fairly thin - maybe 1/2" wide - and the same on each
side.
De-casing is no longer common. There are two big reasons for this.
The first is that it's simply not possible for many newer TVs. Older
LCD TVs were built around self-contained panels, so you could fairly
easily open up the case and extract the panel. The panel was usually
a sealed unit, so it would stay in one piece when you removed it.
With many newer TVs, it seems that the TV is the panel. That
is, there's no longer anything like a separate component inside that
you could call "the panel"; instead, the exterior plastic case serves
as an exoskeleton that holds the parts of the panel together. If you
take off the case, you're left with a bunch of loose parts that won't
stay together on their own. Several people on the forums have
reported discovering this the hard way.
The second reason is that there's no longer as much of a need to
remove the case (even if you could). The whole motivation in the old
days was to get rid of the bulky exterior bezel surrounding the
viewable screen area. Newer TVs generally don't have that bulky
exterior in the first place. The exterior bezels on newer TVs are
usually as minimal as the interior frames were on the old de-cased
panels, thanks to the exoskeleton design. Newer TVs also don't tend
to have any buttons or input jacks anywhere on the front, so there's
no need for one side to be any wider than the others.
I'd only consider de-casing a newer TV if you can find information on
the Web about how to safely de-case the particular model you're
using. In the absence of reliable information on the specific model,
I'd plan on using the TV with its case intact. Take this into
account when shopping by looking for a TV that has minimal bezels.
Use the full case width stated in the spec sheet when figuring which
TVs will fit in your cab. If you're designing a cab around a selected
TV, figure the cab size based on the TV's case width.
Side trim
Unless you're building your cabinet to a custom width to exactly fit
your TV, you'll probably have some space left over side-to-side
between the TV and cabinet walls. Most people want to hide the gaps
as much as possible.
The best option I know of is to use black acrylic strips, custom-cut
to the required width.
You can have acrylic cut to a custom size by a local plastics store or
hardware store. If you're on the west coast, check for a local
TAP Plastics store.
You can also order custom plastic online at
Ponoko.com. They have two
drawbacks compared to a local shop: you'll have to pay for shipping,
and their maximum sheet length is about 31". A TV in the
standard-body size range will usually be about 36" wide. You can deal
with that by splitting the trim along each side into two pieces, but
that leaves a seam.
You attach the trim on top of the TV's side bezels using a strong foam
tape.
Tilt-up mounting
In a real pinball machine, the playfield is mounted on a hinge at the
back, so that you can tilt it up like the hood of a car.
This gives you easy service access to the interior of the machine.
There's nothing to disassemble, no fasteners to remove; you just take
off the lockbar and lift the playfield.
The reason we're looking at how the real machines do this is that we
can use it as a model for how to mount the TV in a virtual cab.
Access to the interior is just as important for a virtual cab. And we
can copy more than just the idea - we can adapt the mechanisms used in
some of the real machines. As I've said before, it often pays to look
at how the real machines accomplish things, because they came out of
decades of experience solving some of the same problems.
How it works in a real machine
The exact mechanism used on the real machines varies by manufacturer
and vintage. The particular version that I think translates best
to a virtual cab is the one used in Williams machines from the 1980s
and early 1990s. They used a simple but clever scheme, with a hinge
bracket attached to the bottom of the playfield, and a pivot bolt
fastened to the side of the cabinet.
Here's a more schematic view:
Taking away the side wall of the cab for a moment, here's how this
all fastens to the cab:
The main fastener is the carriage bolt. (That's a type of bolt with a
smooth round head on the outside, without any screwdriver slots. This
makes it visually inconspicuous on the outside.) On the inside, we
slip a pivot nut over the bolt. The pivot nut is basically a round
metal sleeve that threads onto the bolt; it provides a smooth pivot
point for the bracket. A conventional hex nut is added on the end to
hold lock the assembly in place.
The nice thing about using a carriage bolt as the pivot is that it
only intrudes into the cabinet by about an inch. It doesn't get in
the way of anything inside the cab for maintenance access.
Going back to the bracket, note how it's open at the bottom. The
bracket isn't in any way permanently attached to the pivot pin, like
it would be in a regular door hinge. Instead, the playfield bracket
just sits on top of the pivot. It's held in place by gravity (a
playfield is heavy enough that gravity does a very good job of it!).
If you want to remove the playfield entirely, it's a simple matter of
tilting it up like this and then lifting it straight out of the cab:
That's the really clever thing about this arrangement. With this
simple mechanism, we get two levels of access, both without any
tools needed:
- For routine access, just tilt up the playfield (or TV in our case)
like a car hood
- If you need to remove the playfield (TV) entirely, unplug
the power and video cables from the TV and lift it out
There's a surprising third benefit to this design: it's fairly cheap.
Using the real pinball parts, it comes to about $20. It would be hard
to create a similarly functional mounting with generic parts from
a hardware store, and even if you could, it probably wouldn't be
any cheaper.
Adapting it to a TV
Here's my all-purpose plan for adapting this to a virtual cab TV. The
general design should work with virtually any TV and with any cab
size, although you'll have to adjust the dimensions if you're not
using the standard WPC cab size.
- Create a plywood base, approximately the size of a standard
playfield
- Attach the TV to the plywood base using the VESA mounting holes on
the back of the TV
- Attach the pinball playfield brackets to the back of the base, just
like they'd attach to a real playfield
- Attach the pivot nuts to the side walls of your cab, just like
they'd attach to a real cab
- Drop the TV into the cab so that the brackets rest on the pivots,
just like in a real cab
When I say this plan is "all-purpose", I mean not only that it'll fit
different cab sizes, but that it'll work with any of the TV placement
options we've discussed. The diagrams show the setup I like best,
with a recessed TV set about midway front-to-back, with an apron at
the front and flasher panel at the back. But that's all for the sake
of illustration. The plan doesn't force any of those decisions on
you. It's flexible enough to work with many alternative setups:
- You can put the TV anywhere you like front-to-back. The plan uses
a platform that holds the TV, running most of the length of the cab.
You can place the TV anywhere you like on the platform.
- You can use this plan for a flush-top TV or a recessed TV. It's
just a matter of where you position the hinge pivots.
- You don't have to use an apron or flasher panel with the plan.
They're optional add-ons.
At each stage in the plan, I'll point out where your TV placement
design decisions come into play.
Parts
The easiest way to implement this design is with the real pinball
parts. The playfield brackets in particular are highly specialized
for this job; there's no generic equivalent. Fortunately, the parts
aren't expensive.
- Playfield holder bracket (left side), Williams/Bally 01-8726-L-1
- Playfield holder bracket (right side), Williams/Bally 01-8726-R-1
- Pivot nut, 7/16", Williams/Bally 02-4244; or 1/2", 02-4329 (quantity 2)
- Carriage bolt, 3/8"-16 x 1-3/4", black, Williams/Bally 4322-01123-28B (quantity 2)
In addition, there are some generic hardware parts, which you can
get from the pinball vendors or from a hardware store:
- Washer, 3/8" x 1" outside diameter (quantity 2)
- Hex nut, 3/8"-16 (quantity 2)
Finally, the mounting base and bolts:
- Good-quality 1/2" to 3/4" hardwood plywood (at least 2' x 4')
- M4 or M6 bolts as needed for your TV's VESA mount, 20mm length for 1/2" plywood,
30mm length for 3/4" plywood (quantity 4)
- Washers to go with the M4/M6 bolts (quantity 4)
The plywood base isn't going to be visible, but you should use
high-quality material anyway, because it needs to be strong and (maybe
more importantly) flat. The cheaper stuff they use for framing and
roofing doesn't tend to be all that flat. You want a nice flat piece
here so that the TV sits securely and doesn't wobble due to a warped
base.
Don't use particle board or MDF. Particle board is terrible at
supporting point weights, as we need to do at the hinges. It also tends
to sag over time.
Strength and weight
The pivot setup puts all of the TV's weight on the hinges when the TV
is raised, so it's reasonable to ask if the hinges are strong enough.
We know that the mechanism has a proven track record on the real
machines, so as long as we're not asking more of it in terms of weight
than the real machines do, we should be safe. I'd estimate that a
pinball playfield (assembled) is in the range of 50 to 75 pounds.
A modern TV in the 40" range is under 20 pounds, and the plywood
should be around 10 pounds. That leaves us with a weight budget of
about 30 additional pounds for other features that we might want to
attach - apron, flasher panel, and solenoid devices to simulate
flippers and bumpers.
So I think we're very safe! The only thing to be concerned about
might be a full slate of unusually heavy feedback devices. Contactors
wouldn't be a problem by any means as they're quite light. Real
pinball mechanisms are heavier, though (they're the main reason the
real playfields are so heavy), so if you're using those you might want
to keep track of how much weight you're adding at each stage. You
can always split things up so that some of the devices are mounted
to the TV platform and others are mounted in the main cabinet.
How to install
Here's the step-by-step procedure for building and installing the
universal, all-purpose tilt-up mounting system.
Step 1: Measure your TV's depth. Place the TV on its back on the
plywood sheet you're going to use for the base, making sure it's flush
with the VESA mounting area, like it's going to be when installed.
Measure the height from the bottom of the platform to the top of the
TV.
This measurement will let us figure the alignment position of the
platform in the cabinet that will position the TV's screen surface
where you want it.
Step 2: Mark where the TV will go. Choose where you want
the TV to go in the cabinet, as described earlier in this chapter.
In particular, figure out the inset depth where you want the
TV screen surface to lie - flush with the top of the cabinet, or
set into the cabinet by some distance.
In your cabinet, measure and mark the positions where the bottom
of the platform will go towards the front and back of the side walls.
The front point should be right around the flipper buttons, and the
rear point should be around the rear shelf.
At each point, calculate the desired TV screen inset depth (the distance
you want between the top of the cabinet and the TV screen) plus the
TV-and-platform depth measured in Step 1.
For example, if you like my recommended inset of about 2" at the
front and 4" at the back, and your combined TV-and-platform depth
is 4", you'd mark a spot 6" below the top at the front and 8" below
the top at the back.
Once you mark the front and rear spots, mark a straight line through
the points with pencil or painter's tape. This will be the position
of the bottom of the platform.
Mark both side walls the same way.
Step 3: Install the front stops. When the TV
isn't
tilted up, it needs something near the front to support its weight. I
call these the "front stops" - the stops where the front of the TV
rests.
Each stop will have to support about a quarter of the weight
of the whole assembly (the combined weight of the TV, plywood base,
and any feedback toys you attach to the bottom of the base).
You can use a sturdy metal post or a wood block for each stop. It
only has to extend into the cabinet by about 3/4" of an inch to do the
trick, since we're going to make the plywood platform base almost as
wide as the cabinet. I'd suggest using a piece of 3/4" plywood cut to
a convenient size, say 2" x 2", fastened to the cab wall with
four #6 x 1¼" wood screws.
Align the top of each stop with the position where the bottom of
the platform will rest, as marked in the previous step. (If you
used painter's tape to mark the position, you might want to remove
it before installing the block on top of it!)
Step 4: Figure the length of the base. The base should
cover the area from about an inch or two behind the coin door
mechanisms, to about directly underneath the backbox shelf.
If you're using the standard-body WPC plans, the result should
be about 40".
Step 5: Create the plywood base. Cut the plywood base sheet as
shown below, making the following adjustments first:
- Adjust the width to equal 1/4" less than the inside width
of your cabinet
- Use the overall length you calculated in the previous step.
TV platform template for a standard-body WPC cabinet. Adjust
the length and width for your cabinet as described above.
The cutouts at the front are there to provide clearance around the
flipper buttons and plunger. They also make it easier to mount an
apron at the front, which we'll come to later. The cutouts at the back
are for mounting a flasher panel.
The shape shown is only a suggestion - it's really just the simplest
shape that fits the requirements. I wanted to provide something that
you can use "off the shelf", but at the same time I don't want to
imply that this shape is the only one that will work. Don't hesitate
to adjust it to fit any special requirements of your own. Just pay
attention to the core requirements that went into this design:
- It needs to fully cover your TV's VESA mounting area
- The front should come as close to the coin door as possible (while
clearing the protrusions on the inside), so that you'll be able to
reach in through the coin door and lift up the TV when you want
to access the cabinet interior
- The area near the back where the hinge brackets are mounted needs
to be at full width
- The area near the front where it'll rest on the front stops needs
to be at full width
- Front cutouts are required to make room for the flipper buttons and
plunger mechanism
- Rear cutouts aren't required, but are helpful for attaching a
flasher panel
Step 6: Measure for the hinges. I'm a fan of using the
actual work pieces to make the measurements whenever possible, since
there's less chance of making a mistake reading the ruler, and less
accumulation of rounding errors. So now that we have the platform
ready, we can use it to figure where the hinges go.
This step will also give us a chance to test the fit, to make sure the
platform looks as expected and fits the cabinet properly.
Place the platform in the cab where you want it to be situated when
finished. Rest the front end on the front stops we installed earlier,
and hold up the back end, aligning the bottom of the platform with
the pencil line or painter's tape that marks where it goes.
Judge the position mostly by the front: you want this to be within
easy reach through the coin door, so that you can use it to lift up
the TV when you want to access the interior, while leaving enough
clearance that it won't collide with the coin mechanisms and other
protrusions inside the door. Also check that the back lines up where
expected, right around the front of the backbox shelf. Exact
alignment isn't important.
Once it's in the right position, get out your pencil or painter's
tape and make another mark, this time making the position of the
rear cutout.
You can take the platform out, leaving behind the new rear marking.
Step 7: Determine the hinge position.
Now we come to the question of exactly where to position the pivot
point. It should be pretty apparent that the vertical position is
purely determined by the desired TV depth. But the front-to-back
position doesn't have to go at a fixed point. It has to go somewhere
near the back to make the balance work, but beyond that, should
it go at the very back, or somewhere closer to the midpoint? Remember
from the picture earlier of the real pinball playfield that
they positioned it quite a ways from the back. And they
did that for a reason, which will become clear shortly.
I'm going to give you a one-size-fits-all location for the hinges, but
I also want to let you know how I came up with it, and explain the
trade-offs involved. You might want to check my work and figure out
if you want to adjust the location for your cab.
First, the one-size-fits-all location: put the pivot point forward
of the rear shelf by about the combined depth of your TV and platform,
plus 1/2":
This is just a rule of thumb, so it might not be perfect for your
setup. But it should be pretty good for most cabs. The reason this
works is that it's just far enough forward to create clearance with
the backbox shelf to allow the TV to tilt up almost to the vertical.
Now to the details.
The pivot point is at the nexus of some conflicting geometric
constraints. On the one hand, a pivot point that's further forward in
the cabinet creates more clearance between the playfield and backbox.
On the other hand, the further forward the pivot point, the longer the
overhang at the back that has to dip into the cabinet, which means you
need more empty space within the cabinet to accommodate it.
To illustrate, if we put the pivot point too far forward, we get lots
of clearance above, allowing us to lift the TV more than 90°, but
we create space conflicts in the cabinet below:
If we put the pivot point too far back, we leave plenty of room in the
cabinet below, but we can't raise the TV very far before it hits the
backbox shelf:
Note how the further-back position allows us to tilt the TV higher
than the further-forward position when we take all of the constraints
into account. But if we look between these two extremes, we can
actually do even better.
There's no solution where we're completely free of the constraints,
but there's a happy medium between the two extremes where we get the
best overall combined clearances, and the greatest overall tilt-up
angle. That's the good news. The bad news is that I can't give you
the magic optimal number for your cabinet. It's probably obvious from
the diagrams that the number will be different for every combination
of TV size, cab geometry, and what's installed inside the cab. The
optimal number for your cab is going to be unique to your cab. So
there are two ways you could approach this:
- Mock up your cab's geometry (with a cardboard model, say, or with a
CAD program) and work out the optimal location by experimentation
- Pick a pretty-good-but-not-optimal location based on the rule
thumb provided earlier
Even though I'm picky about these things, I think it might be just
fine to go with the pretty-good solution in this case. In my own cab,
I used a less sophisticated hinge mechanism that only lets me tilt up
the TV by about 60°, and while that's sometimes an obstacle, it's
more than adequate for most jobs. I think the pivot system I'm
describing here will do better than that even if you don't optimize
the pivot position perfectly - you should be able to get around
80° without trying too hard to find the perfect position. The
optimal solution will be slightly better, but I think there will be
diminishing returns; if the TV is in the way at 80° tilt, another
another few degrees won't get it out of the way completely. And
remember that this hinge mechanism also makes it easy to remove the TV
entirely, so tilting up the TV isn't the last resort for the rare
cases when you need unobstructed access.
Step 8: Mark the bracket position. Using the distance to
the pivot figured above, hold the bracket against the side of the
cab, with its top aligned with the "bottom of the platform" line
marked earlier, and the pivot opening centered on the pivot distance.
Make two measurements/markings, as illustrated below:
- Measure and record the distance between the "back of platform"
and the edge of the bracket. We'll need this number when we install
the bracket on the platform later.
- Mark the circle where the pivot goes. We'll need this location
to drill the holes for the pivot bolts.
Remove the bracket and mark the center of the pivot circle. This
is the drilling location for the pivot carriage bolt.
Step 9: Install the pivots. Drill a 7/16" hole in each side
wall at the marked pivot position. Insert a 3/8" x 1-3/4" carriage
bolt into each hole from the outside. Place a 1" diameter washer over
each bolt on the inside, then thread a pivot nut into each bolt and
tighten. Add a hex nut and tighten.
Step 10: Install the platform brackets.
Flip the platform over so that the bottom side is face up. Place
the bracket onto the platform, using the "distance to bracket" that
we measured and recorded in step 8, and aligning the outside edge
of the bracket so that it's flush with the edge of the platform.
Mark the locations of the three holes illustrated below.
Drill holes for #6 machine screws at the marked positions.
Fasten the bracket to the base with #6 machine screws and nuts
in the drilled holes. Use #6 wood screws in the remaining three
holes to further strengthen the attachment.
(In terms of strength, this method of attachment should be at least as
strong as on the real pinball machines I've looked at. They use two
machine screws mated with T-nuts, plus four wood screws.)
Step 11: Figure the TV position. You could figure the TV
mounting position on the platform by measuring and dead-reckoning, but
let me suggest a more direct approach that I think is a little easier.
What we'll do is create a template for the VESA drill holes, and
position the template on the platform using the TV itself itself.
That will let you see exactly what it looks like in place, and
fine-tune the final position.
To create the template, put the TV face-down, and stretch a strip of
paper over the back of the TV, covering the VESA mount area. You can
Scotch-tape together a few sheets of 8½-by-11 paper if you
don't have something big enough. Use masking tape at the sides and/or
front to hold the paper in place.
Locate the four VESA mounting holes on the back and poke holes in the
paper at those spots.
Install the platform in the cab, placing it on the hinges and lowering
it to the front stops.
Now flip the TV over, and place it on the platform. Position it where
you want it to go when this is all done.
Once you're happy with the position, untape the template from the TV,
and tape it to the platform instead. Be careful not to let it move at
all while you're transferring it.
Use the holes in the paper to mark the positions of the VESA drill
holes on the platform. Remove the template.
Step 12: Attach the TV. Drill holes for the VESA mounting bolts
at the positions marked in the previous step. Drill 3/16" holes for M4
bolts or 1/4" for M6 bolts. Attach the TV to the base with the
appropriate bolts. Use washers on the outside.
Remember that the typical orientation is with the bottom of the TV
facing the left of the cabinet.
Step 13: Install and test. Hold the TV-and-platform assembly up so that
it's almost vertical. Position it over the pivots in the cabinet.
Lower the brackets onto the pivots. Once they're seated, lower the TV
onto the front stops. Test the tilt action, checking clearances at
the front and back.
Step 14: Add something to hold the TV up. You'll need something
to hold the TV in the tilted-up position when you want to work inside
the cabinet.
One option is to install a prop rod. The Williams System 11 and WPC
machines use this approach. On my own machine, I improvised one using
1" aluminum "L" channel, cut to a suitable length. It's attached to the
cabinet wall with a large bolt as the pivot.
On the cabinet side, it's probably good enough to use a large wood
screw (perhaps #8) screwed into the cabinet wall as the pivot. This
does have to carry some weight, though, so I wanted something more
robust in my own cab. I used a bolt screwed into a separate wood
plate, with bolts on each side of the plate, and the plate screwed
into the cabinet wall with four wood screws.
You could do the same thing more simply with a carriage bolt inserted
through the side of the cab wall, if you don't mind another external
bolt head adorning your artwork.
On the playfield side, I made a little wood bracket to keep it locked
in place when deployed:
The prop-arm approach above has worked well on my machine, and it's
not too difficult to set up. If you want a simpler approach, you
could use a lanyard or luggage strap in combination with a couple of
eyelets - one on the playfield, one on the backbox. Simply attach
hook strap to the eyelets to hold the TV up.
Whatever solution you use, make sure it's sturdy enough. It won't
actually have to support a lot of weight most of the time, since most
of the weight will be on the pivots when the TV is tilted up. But you
should make it a little stronger than that, so it won't break or get
dislodged if you accidentally bump the TV while working.
Hanger brackets
There's one more engineering detail on the real machines that I want
to mention.
In the design above, the front end of the playfield rests on a couple
of "stops" on the sides of the cab wall, as described in "Install the
front stops"
above.
The real machines do something a little different. They use "hanger
brackets" to support the front of the playfield. These are metal
hooks at the very front of the playfield that fit into slots on the
lockbar:
In terms of the main job of holding up the playfield at the front, our
front stops work just as well. However, the hanger brackets serve
another function that our stops don't accomplish: the brackets also
serve to keep the playfield from tilting up whenever the
lockbar is in place.
Why is that important? Most of the time it's not, since gravity is
enough to hold the playfield down. However, there's one situation
where this changes: if you want to tip the machine up onto its back
for transport. When you do that, the playfield will want to tip away
from the lockbar. On the real machines, the hanger brackets will
prevent it from going anywhere, since the lockbar will hold them in
place. Our front stops won't do that. If you have a glass cover, the
glass will stop it - assuming it's strong enough to support the
weight. I'm not sure I'd want to count on that, especially if I
were putting the thing on a truck.
Given that we're using the standard pinball parts for the hinges, you
might wonder why we didn't also use the standard hanger brackets
instead of the improvised front stops. The problem is the fit. The
hanger brackets are only available in certain sizes that are designed
to fit real playfields. TVs are usually too deep for these to fit
directly. It would be possible to adapt them with some more complex
construction, but I thought the design was already complicated enough
as it is.
I don't have a good alternative solution hold-down solution,
unfortunately. I think the best bet if you want to ship the machine
anywhere would be to simply remove the TV and box it up separately.
It's some consolation that we've made it easy to remove the TV, at
least!
Apron mounting
Once you have the platform assembled, it's fairly easy to add an apron
equivalent, if you have unused space in front of the TV that you need
to fill.
My suggestion is to build a simple box out of thin plywood. The apron
doesn't have to carry any significant amount of weight, so this box
doesn't have to be especially strong. Attach it at the cutouts we
left at the front for the flipper buttons and plunger.
For the visible part of the apron, acrylic works nicely, since it has
such a nice flat, polished surface, and it makes a great base for
attaching a decal with custom graphics. You could also just use a
thin plywood sheet with a nice paint finish. Attach it with whatever
means are convenient, such as glue or foam tape, but I recommend
Velcro to allow easy removal and replacement should you ever want to
make changes.
For ideas about designing the apron's cosmetics, see "Apron" in
Chapter 43, Finishing Touches. That section includes a template for
laser-cutting an acrylic cover with cutouts for standard-sized pinball
instruction cards.
On the real machines, the apron sits well above the playfield, usually
2 to 3 inches. You probably don't want quite that much depth on a
virtual cab; this is more about creating an impression than exact
duplication. I think a vertical distance of about 1" or a little less
looks good. On the other end, the apron should be set in a little
from the top glass as well, perhaps another 1" on that side.
Flasher panel mounting
Adding a flasher panel at the back is basically the same as adding
an apron at the front. Build a little box to serve as the platform,
and mount the panel on top of that.
See
Chapter 56, Flashers and Strobes for more on designing and building the
flasher panel itself, including the electronics and how to
connect it to the software.
One extra detail that you have to pay attention to with the flasher
panel is clearance with the lip below the backbox shelf. Depending
on how your panel is set up, the domes might stick up above the
bottom of the lip. If they stick up too far, they might hit the
lip when you lift the TV.
The easiest way to be sure is to test it, but you can also figure it
out from the measurements when planning. The key is that everything
rotates around the pivot point, so everything always stays at exactly
the same distance from the pivot point - that is, everything moves
along a circle centered at the pivot. That means that the flasher
domes won't collide with the lip as long as the highest point on each
dome is within the limit circle of the shelf lip:
Alternative tilt-up design with a sliding pivot
The later WPC machines and modern Stern machines use a different, more
elaborate design that I at least want to mention, even though I don't
think it translates well to a virtual cab.
The newer machines use a sliding pivot point that lets the
playfield slide forward before tilting up. They switched to
this new system because it provides more vertical clearance than the
old fixed-hinge system, allowing for longer playfields and taller
ramps.
This approach might look attractive for a virtual cab, too, because it
solves some of the geometry problems that we discussed
earlier in "Determine the hinge
position". But on closer inspection, I don't think it actually works
that well for a virtual cab. The problem is that moving the pivot
point forward like this ends up blocking access to a larger portion of
the cab interior. That's fine on a real pinball machine, because the
cab interior is mostly empty anyway - most of the parts you want to
get to for service are on the underside of the playfield. But in a
virtual cab, we tend to install lots of stuff in the cab, so the
slide-and-pivot design works against us in that respect.
Given those geometry drawbacks, as well as the added complexity, I
don't think most virtual cab people will want to implement a design
like this. So I'm only going to offer an overview of how it works,
rather than going into such great detail as I did with the fixed hinge
system. I'd be happy to revisit the subject if there's enough
interest, though, so let me know what you think.
In the Williams WPC machines, they implement the pull-out system with
a rather complicated "slider bracket" mechanism, which uses
spring-loaded levers and latches to provide the sliding capability and
lock the pivot point in place at the forward and aft positions. The
slider brackets are mounted to the bottom of the playfield, taking the
place of the simple pivot brackets of the older design. As in the
older design, the slider brackets rest on top of pivot nuts mounted to
the side of the cabinet. The difference is that the slider brackets
let you move the playfield back and forth across the pivot point, so
that you can pull it out (as illustrated above) before tilting it up.
The slider bracket system works nicely in the real machines, and I
think it would be possible to adapt to a virtual cabinet, but the
parts are expensive - about $75 for a set of the slider brackets. If
you're interested in investigating further, the Williams part numbers
for the slider brackets are are A-17749.1-1 (left side) and
A-17749.1-2 (right side); those mate with the same pivot nuts
(02-4244 or 02-4329) and 3/8"-16 x 1-3/4" carriage bolts as
in the older design.
Stern's modern machines also have a pull-out system, but they use a
completely different mechanism. Stern's system is simpler and
cheaper, but some Stern owners say that it's a bit clunky to operate.
Stern's design essentially inverts the Williams design: it uses pivot
pins on the bottom of the playfield instead of on the side
walls, and has rails mounted on the side walls that the pivot pins
ride on. To slide the playfield forward, you slide it along the rails
until it reaches stops at the front. The clunky part is that the
Stern rails don't have the spring latches that lock things in place at
the different positions in the Williams design; instead, they rely on
gravity and little bumps in the rails. Here's an illustration of how
the mechanism works:
As you can see in the illustrations (which I've tried to keep to
scale), the bottom of the playfield ends up positioned much further
forward in this design than in the fixed-hinge system. That's really
the whole point, since that's how this system deals with the geometry
problems of the fixed-hinge system, but it's a negative for a virtual
cab because it only gives you access to the front half of the cab.
You're likely to have things mounted further back than this.
If you do want to go with this system, I think you could easily adapt
the step-by-step installation procedure outlined earlier for the fixed
hinge system. The parts in the two systems are analogous, so you
should be able to use the same techniques to measure and align
everything. Here are the Stern parts you'd need:
- Pivot brackets, 500-5329-03 (alternates: 500-5329-00, 500-5329-01, 500-5329-02) (quantity 2)
- Left side wall support rails, 535-5990-00
- Right side wall support rail, 535-5989-00
- Carriage bolts, #10-24 x 1-1/4", black (to attach the side support
rails to the walls) (quantity 6)
- #10-24 hex nuts (quantity 6)
- #10 lock washers (quantity 6)
- Playfield slides (attach to the rear outside bottom edges of the
playfield), 535-5988-01 (quantity 2)
Also see the
EZ slide playfield support brackets at Back Alley Creations.
That's an after-market replacement for the original Stern support
rails that's supposed to offer smoother operation. (The Stern parts
are all metal, without any wheels or bearings, so there's a lot of
metal-on-metal scraping involved. The "EZ slide" replacements use a
smooth plastic for the rails to make it less of a nails-on-chalkboard
experience.)
Rail mounting
A simpler alternative to the tilt-up mounting is to rest the playfield
on rail supports along the sides of the cabinet. This still lets you
access the cabinet interior when needed, by removing the TV, although
it's not as convenient as simply lifting the TV without removing it
as you can do with the tilt-up design.
While this is a little simpler to build than the tilt-up mounting, I
wouldn't use it myself. I consider it too inconvenient, since you'd
have to entirely remove the TV (and unplug all of its cables) every
time you wanted to get into the cabinet. That would turn minor work
into a big hassle.
Some random thoughts if you use this type of design:
- For the supports, I'd only use rails along the sides of the cabinet,
not across the width of the cabinet. Cross-bars make it more
difficult to reach into the cabinet.
- Be sure your TV is adequately supported underneath. Some TVs might
not be strong enough to be suspended from the sides only. You might
still want to mount the TV to a plywood base via its VESA anchors, as
in the tilt-up mounting design above, then rest the plywood base on
the rails rather than placing the TV directly on the rails.
- A base would also allow you to build the flasher panel and/or apron
area into the TV assembly, as in the tilt-up design. This lets you
remove the whole thing as a unit when you need to access the cabinet
interior.
Routed slot mounting
If you want to use a TV that's slightly wider than the interior
width of your cabinet, you can route grooves in the side walls
that the TV fits into.
This is similar to the "rail" design above, in that the TV is
supported from the sides. As with the rail design, you should make sure
that your TV is strong enough to be suspended this way, and if not,
add some kind of base underneath to support it.
The main attraction of this approach is that it can produce a
"wall-to-wall" video screen effect, by hiding the TV's bezels in the
grooves. I can see the appeal, but it has too many functional
tradeoffs for me. In particular, with a routed slot mounting, you'd
only be able to get the TV in and out by sliding it through the front
wall. In other words, you'd have to remove the front wall to
get the TV out, and that's impossible with a conventional cabinet
design, since the front wall is permanently attached. To me, it's a
must that you be able to access the interior of the cabinet at any
time, so I wouldn't use this approach unless I could find a way to
make the TV easily removable without having to disassemble the whole
cabinet.
Permanent installation
Some people install their TVs permanently, fastening them directly to
the cabinet with screws, nails, or glue, with no provision for tilting
up the TV or otherwise moving or removing it. You can't beat the
simplicity of this approach, but I'd personally rule it out for any
cab project of my own, since it would make maintenance and repair so
difficult.
30. Backbox TV Mounting
Continuing the theme of installing our TV screens, we turn now to
installing the backbox TV.
Positioning the TV and light-sealing
I recommend positioning the TV so that it's centered in the space
above the speaker/DMD panel.
If you're using a translite cover, I'd try to position the front
surface of the display so that it's flush with the translite, or as
close to flush as you can make it. That will make it look very much
like the artwork is being displayed on the back of the glass/acrylic,
which looks just like the real thing.
On my machine, I put strips of black felt around the perimeter of the
display bezel (fastened with double-sided tape). This lets the
translite be right up against the monitor face without too much risk
of scratching it, and it also forms a nice light seal around the
perimeter.
The Jersey Jack Pinball approach
The WPC-era machines didn't have anything resembling a full-sized TV
in the backbox, so there's nothing we can directly adapt from their
design or hardware to mount the TV. But if we widen our scope beyond
the post-WPC era, we can find one example from the real pinball world
that's very similar. Jersey Jack Pinball, maker of Wizard of
Oz (2013), The Hobbit (2016), and a few other titles, uses
a 27" LCD panel in the backbox in place of the WPC-era DMD. They even
install a translite (with a cutout for the TV) in front of the panel,
so it's almost exactly like the typical virtual cab setup. The only
difference is that they place the panel at the bottom of the backbox,
whereas we typically place it near the top, so that we can also put a
traditional DMD-sized display in the speaker panel area. But that
difference in placement doesn't affect the mechanics of the mounting.
Their approach to mounting the panel is straightforward. They start
with an uncased OEM display panel, and mount it to an MDF backing board
with metal clips around the edges. For a virtual cab adaptation,
I'd use plywood instead, since it's stronger and lighter.
The backing panel is cut to the height of the panel, so that you can
easily fasten it with clips as shown. The width is the same as the
inside width of the backbox.
In the backbox, they install metal "L" brackets along the side walls.
These can simply be screwed into the backbox walls with wood screws.
The overall weight of an uncased panel plus plywood backing board
should be under 10 pounds, so each corner clip only has to support
a couple of pounds. So we don't need super-strong hardware here.
To facilitate installing the panel, pre-install a bolt in each
bracket, with the end pointing forward as shown below. Secure each
bolt with a lock nut.
Drill holes in the plywood backing to match the positions of the
pre-installed bolts. Installing the TV is now just a matter of
fitting the backing panel onto the bracket bolts. Secure it
in place with another set of nuts on the outside.
Some notes on this approach:
- When constructing the backbox, don't install the upper (15")
translite guides. Those would get in the way of inserting and removing
the TV panel. See "Translite/DMD guides" in Chapter 21, Cabinet Body.
- You might replace the outer nuts with wing nuts, so that the TV
can be installed and removed without tools. Better still would be
some kind of quick-release latches - if you have any concrete ideas
along those lines, let me know and I'd be happy to add pointers here.
Adapting to a TV still in its case
This design works well with a bare, uncased LCD panel, but it requires
some changes if you're leaving the TV in its plastic case.
First, use the TV's VESA mounting holes on the back to attach it to
the plywood base, instead of the edge clips. You just need four M4
screws long enough to go through the plywood (probably 20mm to 30mm).
Second, with the added depth of a full case, it might be too
cumbersome to reach behind the monitor on the sides to fasten and
unfasten the nuts that hold it in place. So I'd move those so that
they're above and below the TV, where you'll have a little more room
to work.
Further improving the design
Even with the bolts moved vertically above and below the TV in the
revised plan above, I think it's going to be a little cumbersome to
fasten those top bolts. The space above the monitor is quite tight
with a 28" display.
So I think the next step in improving this plan would be to substitute
some type of hanger hook at the top, such as a heavy-duty picture
hanger or "J" bracket. Or perhaps better yet, the latch bracket
used on the speaker/DMD panel (Williams/Bally 01-8535), which is
designed for this exact function with the speaker panel.
The bottom bolts are easy enough to access that we can keep those.
The new installation procedure would look like this:
- Tilt the monitor back slightly and fit into the hanger hooks at
the top
- Tilt the bottom onto the bottom bolts
- Fasten the nuts on the bottom bolts
I used a mounting similar to this on my own cab, and it works pretty
well. This should give you a little more than an inch of clearance
behind the TV for installing a replay knocker and EM-style shell
bells. You'll be able to access those devices for service if
necessary, since the TV can be removed fairly easily.
Fixed mounting
Another, easier way to mount a TV in the backbox is to more or less
build the backbox around the TV. You get the TV situated and bolted
down while the backbox is still being assembled, and then you finish
installing the remaining backbox walls.
There are different ways to go about this, but I've seen people use
procedures something like this:
- Start by building the backbox without its back wall
- Cut a piece of plywood to the interior dimensions of the backbox
- Fasten the TV to the plywood (via its VESA mount, for example)
- Fasten the plywood to the side walls at the desired depth,
such as via "L" brackets or corner braces
- Install the back wall of the backbox
If you've read much else in this guide, you can probably guess that I
don't recommend any approach that would make it difficult to remove
the TV later. If you have to wait to finish the backbox assembly
until the TV is installed, you're going to have to reverse those last
assembly steps if you ever want to remove the TV, and that could be
difficult and destructive.
An argument could be made that it's okay that you can't remove the TV,
because why would you ever need to? Modern consumer electronics tend
to keep going for years and years without trouble. That's usually
true, but not always, plus it ignores the possibility that you might
need to access or remove the TV for some reason other than repair:
upgrading it to a newer model, say, or changing which video plugs
you're using.
There's also a potentially bigger problem: it'll be impossible to
access anything installed behind the TV without taking the back
off the backbox again. There's at least one part commonly mounted
behind the TV that you might at some point need to repair: the replay
knocker. This isn't a hypothetical risk, either. I've talked to a
couple of people on the forums who had to do major surgery - including
taking out nails and glue - to replace a dead replay knocker. So I
really strongly advise against any design that would seal up any
important components behind barriers that you can't remove, such as a
TV with a fixed mounting.
If you are using a fixed mounting, then, you might want to do one
of the following:
- Don't install anything behind the TV in the first place, so you'll
never need to get back there. Treat the space behind the TV as a
forbidden zone that no parts can set foot in. This solves the access
problem, but you give up some prime real estate in the deal.
- Make the back wall removable, or build a big door into it. This
restores access, but at the cost of significantly weakening the
backbox. The fixed back wall is a key structural component.
I don't like any of these trade-offs, so I just wouldn't use a fixed
mounting like this.
Ideas from the real pinball world
What follows isn't a how-to plan, but just some food for thought.
I'm hoping someone can take the ideas here at some point and turn
them into a workable implementation plan. For now, though, these
are just some ideas.
The WPC-era machines didn't have anything quite like a backbox TV
that we can adapt in terms of mounting hardware, but they did have
something analogous that at least provides an interesting idea for
how a TV mounting might function.
The WPC machines have something called a "backbox insert", which is a
sheet of plywood directly behind the backglass, holding the little
light bulbs that illuminate the artwork. This is exactly where
our backbox TV goes, so it's worth looking at how they installed this.
Backbox insert: a sheet of plywood installed just behind
backglass. The little spots scattered around are the lamps
that back-light the artwork.
On the WPC machines, all of the control electronics are mounted inside
the backbox, so you obviously have to be able to move the insert out
of the way for service work. The WPC design made this really
easy. You don't have to disassemble anything or even remove the
insert. It's attached with hinges on the left side, so you just swing
it out of the way like opening a door.
Backbox insert in open position. It's hinged on the left side
so that it can swing open like a door, to provide access to the
electronics installed behind it.
It would be great to be able to do the same thing with a TV - just
swing it out of the way when necessary, without even having to unplug
any video cables.
I'm afraid I don't have a How To plan to offer here to accomplish
this, though. My first thought would be to try to adapt the original
insert hinge hardware they used on the WPC machines, but those won't
work for a TV; they have the wrong geometry for anything deeper than
a sheet of plywood, and I don't think they'd be strong enough for
a 10-15 pound TV on a long lever-arm like this.
My next thought would be to look for some generic hardware that
could do the same thing, but I haven't found any. The sticking
point is the depth of the TV. To make the geometry work, we need
to place the pivot point at the front corner of the TV, and that
means that the TV itself has to be mounted on an articulated
platform. To use the TV's VESA mounting, this has to articulate
by the depth of the TV. The apparatus would have to look like this:
I think this can be done in principle, but I don't have a concrete
proposal for how to build it. I'm not sure how to make a TV platform
in that shape that would be strong enough. I don't think plywood is
strong enough, given that the full weight of the TV has to be
supported at that back left corner (in the illustrations). It might
also be challenging to find suitable hinges, although that's probably
just a matter of some legwork on Amazon, as there are lots of pivot
hinges available; there's probably something strong enough in the
right size.
If you can come up with a mechanism that would accomplish this with
generic hardware, please let me know! I'd be thrilled to be able to
include it in this guide. But for now, I'm going to say that a hinged
mechanism isn't practical for our purposes here.
31. Speaker/DMD Panel
The speaker/DMD panel is a fairly complex piece of equipment, and new
cab builders can find it challenging to assemble and install. This is
one of those features of the real machines that's not well documented
anywhere, and it's really not obvious looking at the parts how they're
supposed to go together.
There are two rather different styles of speaker panels that were used
in the Williams machines from the 1990s that most of us use as the
model for our virtual cabs. Both types can be adapted to a virtual
cab, so the first step in setting up your speaker panel is to decide
which one to use. This chapter provides some details on the two types
to help you decide. In the two following chapters, we'll provide
detailed instructions for assembling and installing each type.
They're different enough that we'll give each type its own chapter.
Original 1990s style
The first type of speaker panel that we'll look at is the "original"
style that was used in Williams machines from the early 1990s to about
1995. This style uses an MDF panel with a front plastic facing
silkscreened with game-specific graphics. For example, here's
the panel from Theatre of Magic (Bally, 1995):
This design is something you can fabricate yourself, since the main
elements are the MDF base (which you can make with a router) and the
plastic facing (which you can have made by a laser-cutting service).
You can also buy the pre-cut MDF panels and the plastic facing (in
acrylic) from VirtuaPin.
The original original speaker panels that Williams used had
asymmetrical speaker cutouts - a 5.25" cutout on the left and a 3"
cutout on the right. This was because they used different speakers on
the two sides: a large midrange driver on the left and a smaller
tweeter on the right. This arrangement might seem strange in a modern
context, where the whole point of a left/right speaker pair is stereo
sound. But it makes more sense if you remember that all of the audio
source material on these games is monophonic. They had no need for
left/right channel separation. It's just a single-channel enclosure
with a woofer and a tweeter.
For virtual cabs, everyone (almost everyone, at least) uses a matched
stereo pair of full-range speakers instead of the midrange/tweeter
combination that the real machines used. As a result, we don't want
that bizarre arrangement with two different cutout sizes; we want the
same cutouts left and right. So that's what we use in our plans
presented later in this chapter: we give you the choice of two 4"
diameter cutouts or two 5.25" inch cutouts. VirtuaPin's MDF panels
are available with the same options. (VirtuaPin also sells the
original asymmetric design for people replacing original equipment on
real machines, but you probably don't want to use one of those for a
virtual cab.)
Another small difference between the "original original" design and
the reproduction design we use for virtual cabs is that the originals
used a PETG plastic facing with the graphics directly silkscreened
onto the plastic, whereas a reproduction typically uses acrylic with
printed decals. There's no practical difference in the results; the
arcylic-with-decals approach is just a more DIY-friendly process.
WPC-95 panel style
Most of the Williams machines made in 1995 and later used a revamped
design for the DMD panel, which we refer to as the WPC-95 style. In
this design, they greatly simplified the manufacturing process by
making the whole panel a single piece of molded plastic. They
dispensed with the MDF base and the plastic facing, integrated the
H-channel trim into the plastic form, and got rid of most of the extra
hardware.
They also made the appearance more generic, to make the part
interchangeable among games. The plastic facing with the custom
graphics for each game is gone; instead, you just see the matte black
face of the plastic panel. The only graphics on the production
machines were a Williams or Bally logo.
Because of the single-piece molded plastic design, it's not practical
to fabricate these as a DIYer. But you can buy new ones as
replacement parts from any of the pinball suppliers, for about $100.
Stern Spike 2 style
Many of the newer Stern games, made from about 2016 onwards, feature a
15.6" LCD video display in place of the 1990s dot matrix display.
Like the WPC-95 panels, the Spike 2 panels omit any game-specific
graphics.
Virtual cab builders have long used LCD panels of this same size to
emulate the older DMD devices. 15.6" is a common panel size that's
widely available, and it just happens to be almost exactly the same
width as the traditional 128x32-dot plasma DMDs used in the 1990s
machines, so it's a near-perfect fit as a DMD replacement. The only
incongruity is that a 15.6" laptop panel is a lot taller than the
original plasma DMDs, but that's an easy problem to solve: just stick
the LCD panel behind a regular speaker panel with a standard DMD-sized
cutout, and the panel hides the excess height. Some of the screen
area goes unused, since it's hidden behind the panel, but the player
doesn't care.
The Stern Spike games take this same setup and open up the cutout
vertically to show the full height of the panel. This lets the Stern
game designers use the full 16:9 display area rather than confining
the graphics to the smaller (shorter) DMD area.
The Spike 2 speaker panel would work well in a virtual cab if you like
the idea of exposing the entire video display, rather than simulating
the older DMD look. I don't have enough information on these
panels to provide fabrication instructions, but there's little
reason to build your own anyway, since the original factory part is
readily available. Here are the Stern part number references:
- Spike 2 display/speaker panel, 515-9842-00
- Speaker panel spacer, 545-9877-01
- Speaker panel hinge, 515-9845-00
- 4" speaker, 031-5004-02
Note that the Stern panel doesn't include a mounting bracket for the
LCD panel, since the bracket has to be customized to fit the specific
panel you choose. You'll probably have to improvise your own bracket.
This panel style might be interesting as future-proofing. At the
moment, most Visual Pinball simulations won't take advantage of the
extra display height compared to the WPC DMD style, since their score
graphics are exact reproductions of the original DMD layout, leaving
most of the top and bottom of the screen blank. As time goes on,
though, it's possible that newer games will take more advantage of
larger displays. I imagine that the newer Stern games will eventually
make their way into Visual Pinball simulations, at which point the
original full-screen graphics would take full advantage of your larger
display area.
Recommendations
My personal favorite style is the "original" 1990s style (the type
with printed artwork on the plastic facing). I like the ability to
customize the artwork to complement the overall cabinet theme, and the
structure (MDF base and acrylic facing) is something that a DIYer can
fabricate. What's more, the old design is flexible about what type of
speakers you use, since you can cut the speaker openings to any size
you desire (if you're fabricating it yourself), and you can drill
additional holes in the MDF as needed for fasteners, in case the
speakers don't fit the exact layout of the original design.
Some people prefer the WPC-95 style (the one-piece molded plastic
design) because it looks more modern to their eyes, being the style
used on the last generation of machines that Williams made. Some
people also prefer it because you can buy the factory part rather than
having to build something yourself. I think the plain black styling
is a bit boring, but that's arguably a big plus for a virtual cab,
where you want the cab to be a chameleon.
The Stern Spike 2 style is gaining popularity among virtual cab
builders because of its larger display area, and because it looks the
most modern, being the format that the newest Stern machines use. I
personally have a nostalgic preference for the early 1990s look, as
most of my all-time favorite titles are from that era, but that's an
aesthetic preference. In terms of function, the Spike 2 format's
larger display area is clearly more versatile, and will leave your
system better prepared for virtual versions of the newer Stern games
with full-screen video.
Assembly and installation
The details of the two panel types are very different, so we'll
break them out into separate chapters:
32. Original WPC Speaker Panel
This chapter goes into the details of the "original" WPC style of
speaker/DMD panel, based on the ones used in the Williams and Bally machines of
the early 1990s. These panels feature flat plastic front facings
with silk-screened graphics, customized for each game. As an example,
here's the speaker panel from Theatre of Magic (Bally,
1995):
Panels for other games from this era have the same overall shape,
with the same cutouts for the speakers and display, but each game
has its own unique graphics that harmonize with the backglass
artwork (which is, of course, positioned immediately above this panel).
Around 1995, Williams switched to a different style of panel, which
dispensed with the artwork to make them interchangeable among games,
and which was constructed as a single molded piece of plastic to
reduce assembly cost. See
Chapter 31, Speaker/DMD Panel for more about the
two main types of panel, and see
Chapter 33, WPC-95 Speaker Panel for
details on the WPC-95 type in particular.
Buying or building
Fabricating your own speaker panel from scratch is a fair amount of
work, because it requires a lot of precise cuts with a router. If you
do want to do it yourself, we'll give you complete plans
later in this chapter.
If you want to buy a fully pre-fabricated panel, you can get a "blank"
panel (without any game-specific graphics) from
VirtuaPin. These come fully
assembled with all of the required parts (MDF base, clear acrylic
facing, H-channel, speaker grills, and fasteners). You just need to
add a decal for graphics. The price is about $130.
Notably, none of the pinball supply companies currently sell the MDF
base panels. VirtuaPin seems to be the only place you can get those.
The pinball suppliers do sell all of the miscellaneous hardware, such
as the latch brackets and H channels, but not the MDF base. The Marco
Specialties catalog lists a large number of game-specific "speaker
panels", but those are just the silk-screened plastic face plates -
they don't include the MDF base. The same is true for almost every
"speaker panel" listing you'll see on eBay. If you're looking for
full ready-to-use panel, check carefully before buying to make sure
you're getting the complete panel and not just the facing.
There are also two options for partially building the panel, with some
help with the trickiest wood-working portion:
- VirtuaPin sells the bare MDF
base, with all cutting and routing done, but without any hardware.
That runs about $30. This takes care of what I consider the hardest
parts of making the MDF panel, which are cutting out the openings for
the display and speakers. Those have to be precisely measured and
neatly cut for the result to look professional. The rest of the
work with this option is just installing a bunch of T-nuts and
other hardware, which is comparatively easy.
- You can have a laser-cutting or CNC service cut the panel outline,
the speaker and display cutouts, and the drilled holes, all from a
computer template, and then do the routing and assembly by hand. The
price varies a lot by vendor, but you should be able to have this done
for about $30 including materials.
Installing the panel
Let's start with how you install the speaker panel in the backbox. This is
one of the big mysteries for first-time cab builders, so I think
it'll help with the rest of your planning to see how the panel fits
into the backbox, and how you install it and remove it.
First, there's one set of parts that we have to install on the speaker
panel. Specifically, we have to install the latch brackets that hold
the panel in place. (If you already have a fully assembled panel with
the latch brackets installed, you can skip this step.) These are
Williams/Bally part number 01-8535, and they look like this:
They install on the back of the panel at the top corners:
If you bought a pre-cut speaker panel from one of the pinball vendors,
it should already have two holes drilled for each bracket, and a T-nut
(#8-32) should be installed behind each hole, so all you have to do is
line up the brackets and screw them in. Use #8-32 x 3/8" machine
screws, of the "countersunk" type illustrated below. If you're
fabricating your own panel, see our plans
later in this chapter for the drilling
locations.
Fasten the latch brackets with #8-32 x 3/8" countersunk machine screws
Next, there's some prep work in the backbox. The DMD panel is held
in place by a couple of wood rails attached to the walls (which we
call the "guides"), and a "U" channel at the bottom of the backbox.
If you followed our WPC cabinet plans to build the backbox, you should
already have installed the guide rails. If not, you should go back
and put those in place now. The detailed plans are under
"Translite/DMD guides" in
Chapter 21, Cabinet Body.
(Note that speaker/DMD panel only requires the lower set of guide
rails described there. The upper set is for the translite, and you
might not need or want those, depending on how you're installing your
main backbox TV.)
To save you a little time, here's a quick summary of the plan:
Our WPC cabinet plans didn't say anything about that "U" channel,
though. We intentionally saved that for now, because it's easiest
to get it aligned properly using the assembled DMD panel as a guide.
The "U" channel is also known as the Lower Speaker Panel Bracket,
Williams/Bally part number 01-8569-1. The original part is
available at
PlanetaryPinball.com (none of the
other pinball vendors seem to carry it), and you can also find
upgraded replacements with custom finishes from "mods" vendors.
You can substitute a generic
⅝" x ⅝" U channel
from a hardware store, cut to the required length to fit your backbox width
(27⅛" for the standard WPC backbox).
This type of U channel is available in aluminum from Home Depot and
other hardware stores. Note that it's only sold in fixed lengths
(like 4' or 8'), so you'll have to cut it to the right length
yourself. But that's easy to do with a hacksaw; the metal is pretty
thin.
To prepare it for mounting screws, drill three holes in the bottom of
the channel as illustrated below. I'd use 3/4" #6 wood screws for
this, so drill to fit those. The exact locations aren't important;
just eyeball them, one hole near each and and one near the center.
Paint it as desired before installing. In the original pinball
machines, it was always painted to match the backbox interior color
(usually black). But it is a visible piece of trim, so some people
use a metallic finish to match the side rails and lockbar, especially
if they're using custom finishes for those.
To install it, use the speaker panel as a template to figure the alignment:
- Put the U-channel on the floor of the backbox at about the front
edge; this is the tentative position where it'll go
- Tilt back the speaker panel slightly, and fit the hooks on the
back of the panel over the guide rails
- Lower it into position on the rails and into the U channel
(adjusting the U channel position as needed), until the panel is
resting in the channel
- Mark the position of the U channel
- Remove the speaker panel
- Make sure the U channel is aligned with the markings you just made,
and secure it using wood screws
Any time you need to remove the DMD panel, simply lift it out of the U
channel, lift the latch brackets clear of the guide rails, and it's
free. To put it back, repeat the procedure above: fit the latch
brackets over the rails and lower the bottom into the U-channel until
it's firmly seated.
Designing graphics for the panel facing
The speaker panels on the real machines from the early 1980s to mid
1990s were printed with custom game-specific graphics. This was
sometimes an extension of the backglass art, such as in Theatre of
Magic, and sometimes included extra display features, such as
The Addams Family's ☆THING☆ lights or
Earthshaker's jackpot value display.
Speaker panel graphics examples: Theatre of Magic (Bally, 1995);
The Addams Family (Midway, 1992); Earthshaker (Williams, 1989)
For a virtual cab, this is another area where you can create your own
custom graphics. Here's my speaker panel, for example:
Printing the decal
There's a slight complication in using a decal for the speaker
panel graphics: the cutout in the middle for the display.
With all of the other decals in your cab, holes in the middle are no
problem. You can just cut them out with an X-acto knife after
installing the decal, by running the knife around the edge of the
hole. That technique works for the flipper button holes, coin door
cutout, etc, but it won't work here! The problem is that we're going
to affix these decals to the clear acrylic facing, and there's no
DMD hole to trace in the acrylic facing. In the original design
that Williams used, and in both our plans and VirtuaPin's products,
the acrylic facing is continuous across the DMD area with no cutout.
The speaker openings are cut out, by necessity, but not the DMD
area. This was intentional in the Williams machines, probably mostly
to protect the display physically, but it also creates a cleaner
appearance.
So if it's impossible to use the X-acto knife tracing technique, what
can we do? There are a couple of potential ways to handle this, but
really only one good way:
- Not so good: Print the whole decal on transparent film. This is
what I thought of first when I was building my cab, but Brad Bowman
(the printing pro who did my decals) set me straight on this,
explaining why it's not a good idea. To do it right, you'd need the
print shop to print an opaque white layer under your graphics, which
most retail print ships can't do. Without an opaque white backing,
the graphics would be invisible against a black MDF background, and
washed out against a white MDF background. In addition, you don't
want the sticker to cover the DMD opening anyway, even if it were
transparent, since it wouldn't be as crystal clear as the
acrylic.
- Good: Print on normal opaque stock, and have your print shop
laser-cut the DMD opening out of the decal during production.
This is the right solution, and most print shops can do it.
You give them a cutting template and they'll make the cutouts as
specified. You can have them laser-cut the speaker openings at the
same time so that you don't have to cut those out by hand later.
I used this approach for my speaker panel decal and it worked perfectly.
Applying a decal with cutouts is easier than you'd think. The
trick is that the print shop will install a "mask" on the visible
side of the decal. The mask is a layer of adhesive paper (similar
to masking tape) that covers the whole decal, including the cutout
areas. It makes installing a decal with cutouts just like
installing a decal without any cutouts. Once the decal is in
place, you peel off the mask, and what's left behind is the
decal with your cutout areas removed.
Here's the cutting plan for the decal. This is based on the plans we
provide later in this section, so it'll work if you're fabricating
your own panel based on our plans. If you're using pre-cut panels
from VirtuaPin or another vendor, I'd take measurements from your
physical panel instead of relying on this, since there might be some
variations in different vendors' versions of the panel.
Some notes:
- Center the speaker cutout circles vertically
- The speaker cutout circles should be exactly the same size as
the ones used in your MDF panel and acrylic facing (the usual
sizes are 3¾" diameter cutouts for 4" speakers, and
4¾" diameter cutouts for 5.25" speakers)
- Center the speaker cutout pair left-to-right in the overall decal width
- Center the DMD cutout left-to-right in the overall decal width
- Many printers will want you to include some extra padding around the
perimeter of your design, such as an extra 1" all the way around. Adjust
the cut positions accordingly.
Painting
Before assembling the panel, you should paint the MDF panel in the
desired finish color. The most important areas to paint are the
inside edges of the DMD and speaker openings, since those are visible
through the cutouts. Everything else is hidden - the whole front is
hidden by the plastic facing, and the back is inside the machine. I
found it easiest to paint the whole front side, getting the edges of
the cutouts while I was at it. This also ensures that you won't see
any raw MDF poking out around any of the openings. The original
Williams panels are painted flat black, which helps avoid any
reflections around the display.
I think it's better not to paint the back side, in case you want
to use any adhesive fasteners for anything attached to the back.
Assembling the panel
Here's the procedure for assembling the panel from parts. If you
bought a partially assembled panel from VirtuaPin, just skip the parts
where we talk about things they've already installed for you.
Install the T-nuts
Install #8-32 T-nuts for the speakers, latch brackets, and H-channel,
as illustrated below. The T-nuts are all installed from the front
side of the panel. The front is the side with the insets around the speakers.
When all of the T-nuts are installed, it should look something like this:
Install the DMD screws
The original WPC speaker panels used an unusual type of screw for the
DMD attachment points, known as a "spiral fin shank" screw. These have
flat nail-like heads, machine screw threading down most of their
length, and wood screw threading at the top (head) end. This weird
combination is designed so that you can permanently fasten the screw
to a wood panel with the threaded end sticking out, to make an
attachment point.
These are so minutely specialized that you can probably only find them
from pinball vendors like Marco Specialties or Pinball Life. Look for
Williams/Bally part numbers 237-5957-00 (#6-32 x 1-3/16") or
4506-01104-20 (#6-32 x 1-1/4").
If you prefer to avoid the special pinball parts, you can make this
work with ordinary #6-32 x 1-1/4" machine screws. It takes a little
extra improvisation, which we'll explain below.
With either type of hardware, you insert screws from the front
side of the panel, as illustrated below.
Note how the screws go in through the front side of the panel so that
the threaded ends stick out the back. These screws are going to serve
as mounting posts for the DMD device or laptop display screen. The
DMD (or mounting bracket for your video panel) has holes that will fit
over these screws, and you'll use nuts to fasten it.
The arrangement with these screws is unusual in that you want them
locked in place on the panel. You'll use them to secure the DMD
device, by fitting nuts onto the bolts - but to make this work, the
bolts must be fixed in place so that they can't turn, because you
won't be able to access the screw heads after assembling the panel.
If you're using the special fin shank screws mentioned above, they're
specifically designed to work this way, but if you opted for ordinary
machine screws instead, they'll need a little help.
For the special spiral fin shank screws:
- Push the screw into the hole in the panel, tapping it with a hammer
if necessary, until it's pushed through up to the "fin" portion
- Slip a #6 washer over the threaded end sticking out the back
- Fit a #6-32 nut onto the threaded end
- Tighten the nut, holding/pressing the head to keep the screw from turning
- As you tighten the nut, the fin threading will be forced to tap into the wood like a wood screw
- Keep tightening the nut until the fin is fully embedded in the wood
and the head is flush
- Remove the nut and washer; the screw should stay securely locked
into the panel by the fin threading
For ordinary #6-32 machine screws, the best way I can think of to keep
the screws locked to the panel is to glue the heads into place with
epoxy or other strong glue. I don't recommend using nuts or other
fasteners instead, in part because they might get in the way of the
DMD or video panel, and in part because they could loosen over time.
You won't be able to access the heads after assembly because of the
way the front plastic facing will be attached with adhesive, so the
screws really have to be permanently installed. Here's the procedure
I used:
- Mix up some epoxy, or use some other strong glue of your choice
- Insert the four DMD screws from the front side of the panel,
so that their heads are all the way into the little recesses
- For each screw, back it out just enough to expose the head, put a
generous dab of glue all around the head under it, then push it
back in all the way in
- Keep the panel turned front-side-down while the glue dries, so
that the glue won't ooze down the screw threads
- Put wax paper (or something that the glue won't stick) to under
the panel while it dries, in case any glue drips
The idea is to glue all of the screws in place at the heads without
spreading glue over the rest of their length. You still want to be
able to fit nuts onto them to install the DMD panel, so you don't
want any glue smearing onto the threads while you insert the screws
or dripping down the threads after they're installed.
Install the speaker grills
Parts:
- For 4" speaker openings: Stern 535-8081-00, 535-8081-01.
Available in a variety of colors, including metallic finishes.
- For 5.25" speaker openings: I can't find any speaker screens
specifically for 5.25" speakers in the old panels. The closest thing
is the speaker grills for the WPC-95 panels, Williams/Bally
04-10382-7-4. Those are for the 5.25" squarish openings in the newer
panels, but they should also fit the round openings in the old panels,
possibly with a little trimming required. Another option is to get a
pair of the 7" screens designed for use with the subwoofer
ports in the bottom of the main cabinet (Williams 03-8603-1, 03-8603-3,
01-6733). Those are the same material, and it's easy to cut them to a
smaller size with scissors.
- If you want to look for the raw materials, the
screens are made from perforated plastic, black, 1/16" thick, with 1/8"
holes on staggered 3/16" centers, 40% open. That turns out to be a
common perforation pattern for both plastic and metal sheets (such as
stainless steel or brass, which can look nice in some color schemes).
You can find materials like this from bulk industrial supply vendors
online. The snag is that those guys all sell in large sheets, which
can be pricey. Expect to pay upwards of $50 for a 24x24 inch or
larger sheet of plastic, and more for metal sheets. The other
snag is that, for whatever reason, it's hard to find the bulk plastic
sheets in black - they're usually white or gray. But that might be
just the thing for your color scheme.
The speaker grills install on the front side of the panel. Fit them
into the recesses around the speakers.
The 4" type should come with holes pre-cut at the corners to match
the screw holes, so align those with the T-nuts. For the 7" type,
you'll have to cut holes at the corners to match the screw holes.
You might want to tape these in place with a little masking tape, to
keep them from sliding around during the rest of the assembly
procedure. The screws that attach the speakers will help hold the
grills in place once they're installed, but we need something to keep
them stationary until then. Make sure that the tape isn't be visible
through the cutouts.
Install the acrylic facing
If you're planning to use decals with graphics, apply the decals to
the acrylic before installing it.
The acrylic attaches to the MDF with double-sticky tape. (It seems
jury-rigged, but that's the way they built many of the originals.
Some apparently used glue instead, but I find the tape easier to work
with.) Use a good quality foam tape, but not one of the super-strong
permanent adhesives, because you might want to be able to pry this
thing off at some point. There all of those buried parts that you
can't get to any other way. And don't get carried away with vast
amounts of tape. A couple of pieces of tape at the bottom corners
should be enough. The whole top edge will be held in place by the "H"
channel molding, so you don't really need any tape there.
Once the tape is in place, carefully align the facing with the MDF and
press it onto the tape.
Install the latch brackets
The latch brackets are Williams/Bally part number 01-8535:
They install on the back of the panel at the top corners:
Install each bracket with two #8-32 x 3/8" countersunk
machine screws:
Install the H-channel trim
The H channel trim goes across the top of the panel. Orient the
channel so that the screw holes are on the back side, on the bottom
half, so that they align with the screw holes in the MDF.
Fasten the panel with four #8-32 x 3/8" pan-head machine screws. On
the real machines, they also use external-tooth lock washers with
these.
Note that the H channel and MDF panel both have holes for five screws.
You should omit the middle screw. The Williams panels also
usually left out the middle screw, because it's too close to the DMD.
This is even more important with an LCD video display, since it'll
extend a little past the top of the H channel - if the screw is there,
it can come into contact with the face of display and scratch it.
Better to leave it out to avoid that.
Installing the speakers
This part should be easy. Your speakers should have mounting holes
arranged in a square pattern around the perimeter of its base plate.
Assuming your speakers are the right size for your panel, these should
line up with the four pre-installed T-nuts around the perimeter of
each speaker opening in the panel.
Fasten with #8-32 screws. You might need to try different lengths to
find the right length, since it depends on how tall the base ring
around the speaker housing is. Make sure the screws aren't so long
they hit the acrylic on the other side; you can always add some
washers to take up extra length if needed.
The real machines use external-tooth lock washers with the screws to
help secure them. This is to help prevent the screws from working
themselves loose from vibration - and obviously, a speaker's whole
job is to produce a lot of vibration.
If your speakers don't fit the panel, you can either replace them with
speakers that do fit, or you can create an ad hoc adapter from another
piece of MDF or plywood. To create an adapter, cut a piece of MDF
slightly larger than your speaker's footprint, with a circular cutout
large enough for the speaker aperture, and mount your speaker to that.
Drill holes in the adapter to match the speaker mounting holes in the
speaker/DMD panel, then mount the adapter to the panel.
Installing speaker LED strips
One of the popular mods with the pinball collectors these days is
speaker lighting, usually via LED strips placed around the perimeter
of the speaker openings.
You can buy retail kits to retrofit this kind of lighting into the
real machines. One of those would easily adapt to a virtual cab since
we're using identical speaker panels. But as long as you're
assembling your own panel, it's actually pretty easy (and inexpensive)
to add lights yourself.
The parts required are:
- The common "5050" RGB strips sold on eBay, RGB, 1cm wide, 60 LEDs
per meter (the exact same type used for Chapter 58, undercab
lighting). You need a length equal to the twice the circumference
of your speaker openings; about 1 meter should be plenty.
- One
"Mini Controller for RGB LED light strips" from eBay; many types are
available, including remote controlled and Wi-Fi, but the cheap "mini
3 key" type (about $3-5) like the one pictured at right is more than
adequate for this job
- 1cm nylon spacers for your speakers, quantity 8
- Stiff cardboard or similar material, black
If you're lucky, you won't even need the spacers and cardboard. The
4" speakers I got from Flipper Fidelity have a built-in 5/8"-deep
spacer ring at the front, which is perfect for this - I simply stuck
my LED strips around the inside perimeter of the spacer ring.
But most speakers don't have any sort of spacer at the front, so you
have to fashion your own. Cut a 1 cm-wide strip of the cardboard or
other material you're using as the spacer - equal to the width of
the LED strip. Form this into a circle. Stick the LED strip to
the inside. Position it over the speaker opening in the panel.
Use the nylon spacers to install the speaker just behind the ring.
Alternatively, you might be able to stick the LED strip directly to
the perimeter of the speaker cutout circle in the MDF itself. The
only snag is that the MDF isn't as thick as the LED strips are wide,
so it's not a perfect fit. The LED strips are 1 cm wide, and the MDF
is only about 7 mm thick here because of the speaker grill routing on
the front, so the LED strip will stick out beyond the back of the
panel by about 3 mm. If your speaker's cone is a little recessed, the
excess might happen to fit into the recess, in which case you're done.
But if there's not room, you can add 5 mm nylon spacers between the
speaker and the panel, or you can just use a few washers to serve as
spacers.
Wiring the speaker LEDs
The red and black wires coming out of the
mini-controller have to be wired to 12VDC power, so you'll need to
run some hookup wire into your cab where you can get to a 12V power
supply. The LED connection to the mini-controllers usually use those
little 4-pin LED strip connectors, which you can also find on eBay.
See
Chapter 58, Undercab Lighting for information on the peculiar little
connectors used with these light strips - since these are the same
type of light strip, you should be able to cobble together the right
set of connectors by consulting that section.
It can be a little difficult to manage the wires attaching to the LED
strip. I don't have any particular tricks to suggest; just be patient
until you find an arrangement that works. You should secure the
wiring to the back of the panel with a couple of wire clips once you
have a good setup so that you don't pull it loose in future work.
I simply wired the strips in my two speakers together with hookup
wire, so that they both run off of the same controller. The
controller I have remembers its last mode setting, so it's a
set-and-forget sort of thing. You just click through the modes until
you find one you like, and leave it there; that same mode will then be
used each time you power up the machine. The mode I use on my machine
is a slow color rotation.
If you prefer, you can skip the mini-controller entirely, and instead
use your feedback controller and DOF to control the speaker lights.
This is just a matter of wiring the speaker LED strips exactly like
the same way you wire your undercab strips, as explained in
Chapter 58, Undercab Lighting. The DOF config tool doesn't have a
pre-programmed toy for "Speaker Lights", so the simplest thing to do
is wire the speaker lights directly to your undercab lights, so that
they use the same DOF color effects.
Foam tape around the DMD opening
This is optional, but on the real machines, they installed a ring of
1/4"-thick black foam tape around the DMD opening on the back of the
panel. Common weatherstripping tape works perfectly,
and it's cheap. To match the original equipment, use tape
that's 1/4" thick and 3/4" wide, self-adhesive on one side. (Don't
use double-sticky tape - you don't want it to stick to the display
device.) Simply affix a strip on each edge of the DMD opening, flush
with the edge. Black tape is best because it'll be essentially
invisible and won't reflect any glare from the display, and it's the
easiest thing to find anyway.
Use black foam weatherstripping tape around the edges of the
DMD opening, 1/4" thick by 3/4" wide. This protects the display
panel from scratches and creates a little gap between the display
and the back of the MDF, which is especially helpful for LCD panels.
They used foam tape on the real machines with the original amber
plasma DMD devices, but it happens to be even more beneficial with LCD
panels. The tape protects the display from scratches, reduces rattles
(there are speakers attached right next to this thing, after all!),
and it spaces things out a little bit. The extra space is especially
helpful with LCDs because of the way they stick up slightly above the
top of the MDF panel. The extra space keeps the panel from pressing
against the top "H" channel trim.
Installing a real DMD
It's easy to install a real DMD device in the standard panel, since
the layout of the "posts" you installed earlier is designed
specifically to fit the mounting holes on the DMD. All real DMD
devices should use exactly the same mounting hole pattern that they used
on the original displays from the 1990s.
Your DMD device should have corner mounting holes that line up with
the four "posts" sticking up out of the back of the panel - those
1¼" screws that we epoxied into the panel earlier. Fit the DMD
mounting holes over the posts and seat the front of the DMD flush
against the panel. Use #6-32 nuts with lock washers to fasten it.
Installing a video panel for the DMD
Installing a laptop LCD panel in place of a DMD device takes some
improvisation, since the speaker panel wasn't designed with this in
mind. There are some slight mismatches that we have to work around.
The first mismatch is that the laptop panel will probably be too tall.
A 15.6" 16:9 LCD display is a perfect fit for the width
of the DMD opening, but it's much taller than the opening, and it's
even a little taller than the speaker panel overall. Being taller
than the opening is no problem; when you set up the window layouts in
your various pinball programs, you can just move the DMD window so
that it's in the visible portion of the display, and leave the hidden
portion of the display unused. Being taller than the whole panel is a
little more of a problem in that a small portion (usually less than an
inch) will stick up above the top of the panel. But that's usually
not a problem. If you're using a translite, the translite will sit
directly above the top of the panel, resting in the H-channel, so the
excess portion of the laptop display will be hidden behind the
translite. There's usually nothing else occupying this space, so
there shouldn't be any conflicts. So the height mismatch, at least,
is one of those things that looks like it might be a problem, but ends
up solving itself.
The second mismatch, which does require some work on your part, is
that the LCD panel won't have any mounting hardware that lines up with
the "posts" on the speaker panel. A suitably sized panel should just
fit between the posts side-to-side.
So you have to come up with your own mounting apparatus. It's not
hard, but I don't have any "standard" solution to suggest. I used
sheet metal to fashion some brackets that fit over the "posts" and
hold down the edges of the panel, securing these with nuts on the
posts. If you want something more off-the-shelf, you might try
looking at picture/mirror hangers at a hardware store - something
like a mirror clip would probably work.
Speaker panel construction plans
The original Williams speaker/DMD panel was designed to hold an
asymmetrical speaker pair, with a large 5.25" speaker on the left and
a small 3" speaker on the right. The speaker cutouts and mounting
holes in the panels were sized to match. The different speakers were
used because, contrary to appearances, they were not a
left/right stereo pair. They were in fact a midrange/tweeter pair,
and were wired for monophonic playback.
In contrast, most virtual cab builders today use a pair of full-range
car speakers, and connect them as a stereo pair. As a result, we want
the two speaker openings to be the same size, unlike the original
Williams panels with their asymmetrical cutouts.
Fortunately, it's easy to adapt the basic speaker panel plan to
whatever mix of speaker sizes you prefer. Everything about the plan
stays the same except for the size of the speaker cutouts and the
positions of the screw holes for mounting the speakers - those
obviously have to be changed to match the speakers you're using.
So we'll start with the base plan, with all of the specs that are
independent of speaker size. Then we'll provide two sub-plans for the
most commonly used speaker sizes: 4" and 5.25". Those are the sizes
that almost everyone uses because they're standard sizes for car
speakers, which means that lots of options are available.
Materials
- The main panel is 3/8" MDF (medium-density fiberboard)
- The plastic cover on the original equipment was 2mm PETG,
but most virtual cab builders use 2mm clear acrylic,
since it's easier to find
- Optionally, a decal printed with custom artwork
The original equipment had the artwork screen-printed directly onto
the PETG cover, but that's not practical for most DIYers. You can
easily have a custom decal printed, and it'll look just as good.
Base plan
Everything in the base plan is independent of speaker size, so
start with this regardless of what type of speakers you're using.
All of the routed insets (shown in the diagrams below as green and
orange areas) are on the same side, which will be the front of
the panel when it's done.
The panel is symmetrical left to right (the left side is a mirror
image of the right side), so everything in the panel should be
referenced to the center point. This will be especially helpful if
you're using a custom width.
All illustrations below show the front side of the panel
(the side with the acrylic overlay, facing the player).
Note: if you're using the special spiral fin shank screws for the DMD
attachment posts, drill 1/8" holes; if you're using ordinary machine
screws, drill 9/64". The smaller hole will help the fin shank screw
fasten more securely.
Cutouts for 4" speakers
Use these speaker cutouts if you're using speakers that fit the
standard 4" car speaker design. Everything else is the same as in the
base plan above. Center the cutouts in the speaker grill area.
Cutouts for 5.25" speakers
Use these speaker cutouts if you're using speakers that fit the
standard 5.25" car speaker design. Everything else is the same as in
the base plan above. Center the cutouts in the speaker grill area.
Cutouts for custom speaker sizes
Since the base plan is independent of speaker size, it's easy to use
any non-standard speaker size.
To create a custom plan:
- Start with the base plan
- Measure the distances between the centers of the mounting
holes on your speaker, as shown below:
- For the circular cutout, use a diameter of D minus 3/4"
- Center the circular cutout in the speaker grill area
- Use the speaker as a template to mark the positions of the mounting
holes, centering it on the circular cutout, or use the measured side
distance "S":
- Drill and route the mounting holes using the normal #8 T-nut
scheme from the base plan
Front facing
The plastic facing, thankfully, has a much simpler cutting plan than
the MDF. The only cut lines needed are the exterior outline and the
two speaker opening cutouts.
Center the speaker cutouts vertically, and center the pair
horizontally, with the spacing between their centers as shown.
The cutout circles should be exactly the same size as the speaker
cutout circles in the MDF panel. The usual sizes are 3¾"
diameter cutouts for 4" speakers, and 4¾" diameter cutouts for
5.25" speakers, but go with whatever you used for the MDF panel.
The width we're using for the plastic facing is a hair less than the
width of the MDF panel (1/16" less, to be precise). This is
intentional, and it also seems to be what Williams did, at least for
the panels I've measured. My rationale for making it slightly narrow
is to allow a little room for error in case you don't get the width
cut perfect on both pieces. The MDF is sized to be a tight fit to the
backbox, so if the facing were to overhang the MDF on either side, it
might not fit at all. Cutting the facing a hair narrower than the MDF
makes it a little more forgiving, especially considering that you also
have to line up the speaker cutouts on both pieces.
WPC-95 style facing
If you want to emulate the
Chapter 33, WPC-95 style
using the original style's MDF construction, you could substitute
matte black acrylic for the clear acrylic, and cut out the DMD opening
in the facing. (With clear acrylic facing, the DMD is normally left
covered by the acrylic, and that portion is left transparent rather
than being covered by graphics.)
One visual difference with the WPC-95 style facing is that the speaker
cutouts in the front facing are square rather than round.
Approximately square, anyway; the sides are a little rounded, as
illustrated below.
Here's a cutting plan for the acrylic layer using this design.
Use that for the acrylic facing only. For the MDF portion, use the
base plan with 5.25" circular speaker cutouts.
Note that this still won't look exactly like a true WPC-95 speaker
panel. The plastic on those panels is textured to give it a satin
finish, which you wouldn't be able to reproduce precisely with
acrylic. In addition, the edges of the speaker and DMD cutouts are
beveled with a rounded fillet; the edges will be squared with
laser-cut acrylic. But those differences are very minor; only
a real pinball nerd would ever notice them.
Customizing the width
If you're using a custom backbox size, adjust the overall width of
your panel to just slightly less than the inside width of your backbox
- 1/16" to 1/8" less, depending on how tight a fit you want. For
comparison, the original Williams speaker panels are about 1/16" less
than the inside width of the standard backbox.
Here's how to adjust the other elements when changing the width:
- Keep the DMD cutout centered, and at the same height
- Keep the latch bracket T-nuts at the same distances from the outside edges
- Keep the H-channel T-nuts at the same distance from the top edge
- Place the middle H-channel T-nut on the left/right centerline, and position
all of the other H-channel T-nuts based on their distances from the middle one
- The standard H-channel trim will fit fine on a wider-than-standard
panel; it'll just leave some uncovered space at the sides. You'll
have to cut the H-channel for a narrower-than-standard panel. Cut equal
amounts from either side so that the screw holes remain centered.
- Adjust the speaker positions left-to-right for the desired appearance;
nothing else depends on these positions, so you can put them wherever
you like as long as they don't conflict with the DMD, latch brackets,
or H-channel
33. WPC-95 Speaker Panel
This chapter goes into the details of the WPC-95 style of speaker/DMD
panel, which is the type used in Williams and Bally machines from about 1995
and later. This type of panel is formed from a single piece of injected-molded
plastic, in matte black, usually with a Williams or Bally manufacturer
logo in metallic paint.
These panels didn't have any artwork apart from the manufacturer logo,
so they're interchangeable across games from the WPC-95 generation.
There's a different style used in Williams/Bally machines made before
1995, which had an MDF core and plastic facing with screen-printed
graphics specific to each title. See
Chapter 31, Speaker/DMD Panel for more
about the two panel types, and see
Chapter 32, Original WPC Speaker Panel for
details on fabricating, assembling, and installing the older style.
Buying or building
It's probably impractical to fabricate your own version of this type
of panel. The originals are single-piece injection-molded plastic,
which is a process that's very cheap if you're making a lot of copies
of something, but expensive if you're just making one. 3D printing
can often come to the rescue in a situation like this, but in this
case it's probably not workable, since the part so large - 27" wide.
A commercial 3D-print service might be able to fabricate an item this
large, but it's likely to cost at least twice as much as buying
the factory part.
If you really want to create your own panel of this style from
scratch, I think you're better off not trying to duplicate the exact
construction, but instead faking it a little bit, by building one that
looks like this style but uses the construction techniques of
the
Chapter 32, older panel style. You can use
the old design to make a panel that looks very much like the WPC-95
style simply by using a matte black plastic piece for the front
facing. It'll still be a little different in the details, mostly in
that it will lack the beveling around the speaker and display cutouts,
but you'd have to look very closely to notice.
If you want an exact match to the WPC-95 style, you can simply buy one
as a replacement part from a pinball supply vendor, such as Marco
Specialties or Planetary Pinball. Replacement panels are available
with Williams or Bally logos pre-printed in silver or gold. Look for
part numbers 04-10382-7A, 04-10382-7B, 04-10374-7A, 04-10374-7G: those
are all the same except for the logo selection. They run about $100.
Backbox preparation
The WPC-95 panel installs in the backbox via "bushing buttons",
Williams/Bally part 02-5223. You need four of these. These install
with #8 x 1" flat-head wood screws.
Install on the inside of each side wall (left and right) of the
backbox, as shown below:
- Locations are to the centers
- Drill a small pilot hole for each screw
- The lower bushing is 1" above the floor, 5-9/16" from the back wall
- The upper bushing is 7⅜" above the floor, 5-9/16" from the back wall
- Screw in each bushing with a #8 x 1" wood screw
- Orient the bushing so that the side with the conical indent for the
screw head faces out - the screw head should recess into the indent so
that it's flush with the bushing once installed
- Install the other two bushings on the opposite side
How to insert and remove the panel
The panel has slots on the back that fit over the bushing buttons.
To install the panel initially, lay it flat with the back facing up.
Fit the bottom edge under the lower bushings.
Align the bottom slots in the panel with the lower bushings, then
lift the panel to fit the bushings into the slot. Pull the panel
forward about an inch to seat the bushings in the slot.
The panel is now installed! You can remove it again at any time by
reversing the process to free it from the lower bushings and slide it
out of the backbox.
The current position, with the panel attached to the lower bushings
and folded down, is the normal service access position. You can fold
it down like this any time you need to access the back of the panel,
or any time you need to access the interior of the backbox behind the
panel. This ability to fold the panel down without removing it is a
convenience feature for the repair staff - one of the little
improvements in the WPC-95 design.
To finalize the installation and get the panel into its proper
position, simply tilt the panel up, rotating it around the lower
bushings.
When it's almost straight up, you'll have to lift it slightly to fit
the top slots in the back of the panel over the upper bushings.
Once you have it aligned, push the panel back onto the bushings,
then lower the panel into the seated position.
To fold it back down for service access, lift the panel straight up
to get the top slots aligned with the upper bushings again, then
ease the top edge forward to get it free of the upper bushings.
It'll now rotate on the lower bushings to fold down flat against
the top of the cabinet.
Installing the speaker retainer rings
Important: if you're not using 5.25" car speakers in your panel, you
might want to skip installing the retainer rings, if they're not
already installed. The retainer rings are designed specifically for
5.25" speakers. For other sizes, it's better to skip the original
rings and create your own adapter instead. If you are using
5.25" speakers, you should install the rings, since they make it
really easy to mount the speakers.
In keeping with the molded plastic design, the WPC-95 panel has some
companion parts called "speaker retainer rings" that are needed to
install speakers.
There are two types of these retainer rings:
- "Large", for 5.25" car speakers, Williams/Bally part number 04-10382-7-2
- "Small", for 3" car speakers, Williams/Bally 04-10382-7-3
For a virtual pinball project, you'll usually want two of the 5.25"
rings, which look like this:
And when installed:
In addition, you'll need speaker grills that are cut into the right
shape to fit the openings. Pre-cut grills are available under Williams/Bally
part number 04-10382-7-4.
WPC-95 speaker grills, part #04-10382-7-4
On the 1990s machines, Williams always used an asymmetrical speaker pair,
with a large midrange speaker on the left and a small tweeter on the
right. You'd think this would have been a stereo pair, but it wasn't;
Williams thought of the panel as a single-channel speaker with two
drivers. As a result, if you order a complete WPC-95 speaker panel
assembly with all of the goodies included, it'll probably include one
large and one small retainer ring. So you might need to order a
second large ring to accommodate your second speaker.
Some panels come with speaker rings pre-installed, and if so, the
right side will usually have the small 3" ring. In this case, you'll
probably want to remove the small ring so that you can replace it with
a 5.25" retainer ring instead. To do so, remove the eight push nuts
around the perimeter; once they're gone, you can simply lift the
retainer ring off the posts. The push nuts are designed to be
installed once and then never removed, so you might have to break them in half
to get them out. Many people who have done this say that the best or
maybe only way to extract them is to cut them in half with wire
cutters; others report success prying them out with small
screwdrivers. In either case, be very careful not to break the molded
plastic posts while you're working. The push nuts are expendable, but
the posts would be hard to fix.
If your panel didn't come with the retainer rings already installed,
or if you have to install a second large ring after removing a small
one on the right speaker cutout, installation is easy:
- Install the speaker grill first - it has to go under the ring.
Fit it over the opening with the notches at the corners aligned
with the posts in the panel.
- Fit the ring onto the eight posts around the perimeter of the speaker
cutout.
- Install a 1/4"-shaft push nut on each post to secure the ring. The
push nuts work just like the name says - push them onto the posts as
far as possible.
- If your assembly didn't come with push nuts, or you had to destroy
your old ones to remove them, you just need some generic 1/4"-shaft
push nuts. The pinball suppliers don't seem to have anything
matching, so you'll have to get these from a hardware store or online.
They're kind of obscure for the likes of Home Depot, so it'll probably
have to be online. One part that reportedly fits is Tinnerman PS250385.
Installing 5.25" speakers
If you haven't already installed a 5.25" speaker retainer ring in each
speaker cutout, follow the procedure above. If your speaker panel came
with the retainer rings pre-installed, but one of them is for a small
3" speaker, you'll have to remove the 3" retainer ring and replace it
with the 5.25" version. This is also explained in the section above.
Once the retainer rings are installed, there's nothing to installing
5.25" speakers. The rings have screw holes that should line up with
the mounting screw holes on your speakers. Line up the speaker and
fasten it with #6-32 machine screws. The length of screw needed will
vary depending on the thickness of your speaker's mounting frame base.
Start with 3/4" screws, and use something longer if necessary.
Installing other speaker sizes
Williams designed these panels for 5.25" and 3" speakers, period.
They didn't make any attempt to facilitate installing other sizes
of speakers.
If I had some other size of speaker that I wanted to install, my first
inclination would be to return them and get some standard 5.25"
speakers instead. It's easy to find good speakers in that size, and
the integrated mounting hardware on the panel makes it practically
no work to mount them (see the section above).
If you really insist on using a different speaker size, it can be done
- you just have to create your own improvised adapter plate. This
will take the place of the normal retainer ring.
- First, remove any existing retainer rings already installed on the
panel. See the section on installing the retainer rings above for
details on how to remove rings that are already in place.
- Create an adapter from a 4½" square piece of ½" thick MDF.
Cut a circular opening in the middle of the MDF matching your
speaker's aperture, and drill holes around the perimeter that line up
with the mounting holes on the speaker. Also drill holes at the
corners that match the pattern of the eight posts on the back of the
speaker panel that are used to attach the speaker retainer ring.
- Mount the speaker to the MDF board using machine screws and nuts.
- Attach the MDF board to the back of the speaker panel, where the
speaker retainer ring would normally go. Fasten with push nuts.
- For more detailed instructions, try Joseph "Tony" Dziedzic's
tutorial for upgrading original WPC-95 speakers:
Lighting the speakers
Some people install LED strips around the perimeter of the backbox
speakers, just for the sake of another lighting effect. See
"Installing speaker LED strips" in
Chapter 32, Original WPC Speaker Panel. The same approach
should work for the WPC-95 speaker panel. The retainer rings should
serve as a good mounting surface, assuming your speakers don't
protrude too far in front of their mounting base; if they do,
you can add some spacers between the speaker and retaining ring
to create more room for the LED strips.
Installing a real DMD
Before installing a DMD, you should install the clear acrylic display
shield (Williams/Bally part number 01-13636). Fit it over the posts
and fasten with push nuts. The same push nuts used with
the speaker retainer rings (such as Tinnerman PS250385) will work here.
The speaker panel is designed specifically to fit the plasma DMD
devices that were used in the original WPC machines. The DMD should
have mounting holes at its corners that align with screw holes in the
back of the speaker panel. Align the device and fasten with #6-32
machine screws. You might need nylon spacers between the device and
the panel.
Installing a video panel for the DMD
You'll probably want to install the clear acrylic display shield
(Williams/Bally part number 01-13636) before installing a video
display. Fit it over the posts and fasten with push nuts. The same
push nuts used for the speaker retainer rings
(such as Tinnerman PS250385) will work here.
The speaker panel's mounting holes are specifically designed for the
plasma DMD devices used in the WPC machines. Williams didn't
anticipate that these would ever be switched to a different type
of display, so they made no provision for
attaching modern video panels. You'll have to improvise your own
brackets. Laptop panels are small enough and light enough that you
don't need anything particularly strong, so this isn't too difficult,
but I don't have any "standard" solution solution to suggest. On my
"original style" speaker panel, I used sheet metal to fashion some
brackets that fit over the edges of the video panel, and then fastened
those to the speaker panel using the screws intended for the DMD. If
you want something more off-the-shelf, you might try looking at
picture/mirror hangers at a hardware store - something like a mirror
clip might work.
Note that a laptop video panel in the appropriate width for the DMD
window is usually just a little too tall for the speaker panel. It'll
probably stick up above the top of the speaker panel by a little under
an inch. That's usually not a problem, since the extra height will be
hidden behind the translite.
34. Cabinet Buttons
One of the top ten questions that every new cab builder asks on
the forums is:
"Which buttons should I include?"
I think most of us start off thinking the answer is so obvious that
it's not even worth asking the question: why, the same buttons they
put on real pinball machines, of course! But as soon as you
start actually designing your cab, it becomes apparent that it's not
as simple as it seems. Some of the complications:
- Real machines don't all have the same buttons. There are three
buttons that are pretty much universal: the two flipper buttons and
the Start button. Beyond that, different machines have their own
extra buttons, some common and some unique. Some common buttons that
appear on many machines are the Magna Save buttons (alongside the
flipper buttons), a flipper-like button on top of the lock bar (often
labeled "Fire"), an Extra Ball or "Buy In" button on the front of the
cabinet, and a Launch Ball button in place of the plunger. If you
want to be able to play re-creations of tables with those extra
buttons, you'll need some equivalent of the extra buttons on your cab.
- Modern pinball machines have some additional, hidden buttons, inside
the coin door, that let the operator access the game's setup menus.
It's useful to have these on a virtual cab, too, because you're going
to be the operator and will want to be able to access the setup menus.
- Virtual pinball needs some additional controls for the "virtual"
aspect, such as inserting virtual coins, navigating the game selection
menus, viewing game instruction cards, viewing flyers, exiting an
active game and returning to the game selection menu, and controlling
the PC audio volume. Many of these functions can be comfortably
assigned to the regular pinball buttons (flippers, Start, etc), so you
don't actually need a big array of extra controls, but most people
find it necessary to have at least one extra button, for the special
function unique to virtual pinball of exiting out of the current
table.
This section will try to help you answer that big question about which
buttons to include. I don't want to presume to dictate a single slate
of buttons that everyone should use. Tastes vary about whether you
should have lots of buttons or as few as possible, and some cabs have
more space than others available for buttons. So instead of trying to
answer the question with a list of "these are the buttons you should
include", we'll go over all of the buttons commonly used on virtual
cabs, even the ones only rarely seen, and we'll explain each
one's purpose and offer an opinion on each one's importance.
(There is, however, a summary of recommendations
below, in case you want
to cut to the case.)
Later in the section, after surveying all of the button functions,
we'll get into the details of the equipment to use for each type of
button, including what to buy and how to install it.
Minimalist vs. maximalist
When you add up all of the buttons used across different real pinball
machines, plus all of the special buttons for virtual pinball needs,
you get a pretty long list.
One way to cover all the bases is to simply include every button you
can think of. It's impractical to include every unique button on
every machine - there are just too many of those - but you can include
all of the special buttons for all of the games you think you might
want to play. This "maximalist" approach gives you the best chance of
replicating the original playing experience for all of the different
games. It also gives you lots of blinking lights, and we all like
shiny things.
Some cab builders prefer a more "minimalist" approach, with the aim of
replicating the appearance of a real pinball machine more closely.
Most real pinballs have only a few buttons, so a cabinet with too many
extra buttons can start to look conspicuously "virtual". The
minimalist tries to limit exterior buttons to about the same number
found on most real machine, for a more authentic appearance.
Fortunately for the minimalists, the modern software environment makes
it possible to access all of the important functions with only a few
extra buttons beyond the core set found on all real pinballs.
If you're a determined maximalist, note that the practical limits of
available space might cramp your style a bit. A standard cabinet with
a coin door can really only fit a maximum of four buttons on the front
panel, in addition to the plunger, the Launch Ball button, and the
coin door controls.
I personally favor a middle path, closer to the minimalist side, but
allowing a few extra buttons for the sake of the broadest
playability. With this in mind, the list below has my recommendations
for which buttons to include and which to skip, or at least find a way
to hide.
Master list of buttons
To help you decide which buttons you need, whichever camp you're in,
here's a list of all of the common and less common virtual cab
buttons, how important they are (in my opinion), and where they're
usually situated. The list is roughly in order of importance, from
most important to least.
- Power button: Essential. Pushbutton, bottom of cab, front right side.
On the real machines, the power is controlled with a toggle switch
wired to the main power supply line, located in a little recess
on the bottom of the cab at the front right corner. In a virtual
cab, we usually replace this with a "soft" power button in the same
location, wired to the PC motherboard's power control header.
See "Floor" in Chapter 21, Cabinet Body for details on installing a
pushbutton in the proper spot, and Chapter 11, Power Switching for
more on setting up the PC soft power controls.
-
Start: Essential. Round pushbutton, front panel, top left.
This is a core button found on every real pinball. Push it to start the game.
Most "front ends" (the game menu software that lets you select games to play)
also use this as a "select" button when navigating through menus.
- Flippers: Essential. Standard flipper buttons, sides of cab.
These are core buttons found on every real pinball.
- Exit:
Essential. Round pushbutton, front panel, below Start.
You
won't find this button on real pinballs; you "exit" a real pinball
game by walking away. But it's a must for a virtual cab. This button
exits the current game and returns to the "front end" game selection
menu. Front ends typically also use this to navigate within their
menu structure (to back out of a menu or acknowledge a pop-up message, for example).
-
Coin In: Essential. No standard location, but commonly either
a round pushbutton on the front panel, or repurposing the Coin Reject buttons on the coin door slots.
This button lets you simulate inserting a coin to add credits to the current game.
Even though you'll probably be setting most of your games on Free Play via the
operator menus, a Coin button is still needed in some cases, since some older
tables simply don't have a Free Play option.
If you have a full coin door with coin slots, you don't absolutely need
a separate button for this, since you can use actual coins instead, just like in a
real arcade machine. Most coin doors don't come with coin mechs installed, so
you'll probably have to separately purchase the mechs (about $10 each for US
quarter acceptors) and install them yourself. You'll also have to wire the
coin slot microswitches to your key encoder, which is just like wiring
a button switch. This is all covered in detail in Chapter 40, Coin Door.
Even if you do install and wire physical coin acceptors, you might still
want to add a separate Coin In button, since a lot of people find it tedious
to feed in quarters once the novelty wears off. The most obvious way to
add a Coin In function is to simply add one more round pushbutton to the
front panel. If you don't like the added visual clutter of another button,
though, there's a neat way to hide it in plain sight. Specifically,
you can use the "Reject Coin" buttons in your coin slots as your virtual
coin buttons. To do that, you have to
add microswitches behind the buttons, as explained in Chapter 40, Coin Door.
My favorite option
is to include both the real coin mechanisms and the Reject button
switches. That way you can use real coins when you're in the mood for
the full arcade experience, and just push the buttons when you're not.
- Magna Save: Essential-ish. Standard flipper buttons, sides of cab.
This is a second set of buttons on the sides of the cabinet, just behind or
below the flipper buttons, using the same
button style as the flipper buttons.
Everyone calls these "Magna Save" buttons, because a few games in the 1980s
famously used such buttons for a magnetic ball-save feature with that
trademarked name. Calling them Magna Save buttons is a little misleading,
because similar buttons were used on many other pinball machines over the
years for all sorts of different special features, but we really don't have
a better name, so Magna Save it is.
I'm grading these "Essential-ish", because you can get by without them in
the majority of games. But if you omit them, you'll give up some important
features in a lot of games - many more games than you'd think based on the
Magna Save name. Dozens of real tables featured similar buttons.
Even if you're a hard-core minimalist about buttons on your cab, there's a
case to be made that these buttons appear on enough real pinball machines to
be considered part of the basic set of authentic pinball controls. But the
real reason to include them is that an even greater number of Visual Pinball
tables rely on them for special game-specific features, because these
buttons have become the standard fallback for emulating unique controls.
You really need these buttons on your cab if you want to enjoy full playability
for many Visual Pinball tables. To see what I mean, take a look at the
lists in Appendix 4, Tables with MagnaSave Buttons.
-
Tilt bob: Essential-ish. Inside the cab.
The tilt bob is a little mechanical pendulum that detects excess
cabinet motion. This isn't exactly a button, but it acts like one in almost
every way - you connect it to the key encoder like a button,
and it provides input to the software as though it were a button.
Don't confuse the tilt bob with a nudge sensor. The purpose
of a tilt bob isn't to simulate nudges in the software, but rather
to detect when you're nudging too much. The tilt bob serves
exactly the same function in a virtual cab that it serves in a
real pinball machine. See Chapter 36, Nudge & Tilt
for a full discussion of the distinction between "nudging" and
"tilting", and the tilt bob's role in this.
Visual Pinball has its own simulated tilt bob, but I strongly
recommend installing a physical tilt bob anyway. VP's version just
isn't very realistic. The interaction between
a real cabinet's motion and the tilt bob's motion is complex; it's one
of those compound pendulums that's rather difficult to model,
and VP doesn't really try. And I don't see why it should, when
we can so easily get exactly the right handling by just hooking
up a real tilt bob! That's why I rank this as practically essential.
And it doesn't affect aesthetics, since it goes inside the cab.
- Launch Ball: Nice to have if you have a plunger; essential if not.
Large round pushbutton, front panel, right.
A fair number of games from the 1990s used a Launch Ball button in place of a
regular plunger. This was usually a large round pushbutton, but some games
used unique devices instead, such as a gun trigger on Terminator 2: Judgment Day
or a gear shift lever on The Getaway: High Speed 2. On
the real machines that use such a thing, the button
or device is typically positioned exactly where the plunger would
normally go, at the top right corner of the front panel.
For a virtual cab, this button is optional if you're going to
install a plunger using the Pinscape Controller or the plunger kit
from Zeb's Boards. Both of those let you simulate the Launch Ball
button using the plunger, so you don't absolutely need the button.
Even so, I still recommend including the button in addition to the
plunger, since it replicates the original playing experience more
faithfully for Launch Ball tables.
Alternatively, you can use a Launch button instead of a
regular plunger. All of the PC pinball simulators are designed
with desktop use in mind, so they all let you control the on-screen
plunger with a key press. You can simply map the Launch Ball button
to the software plunger key and dispense with the real plunger. This
saves front panel space and the complexity and cost of a real plunger.
In my opinion, the best option is to have both a regular
plunger and a Launch Ball button. Controlling the on-screen plunger
with a button is possible, but it's a really poor substitute for
a genuine plunger. Besides, the plunger is a defining feature of
pinball; for me it's simply a must in a virtual cab. If you do choose
to include both the plunger and the button, the button can go just
above or just below the plunger. I prefer to put the plunger in
its standard location on a real pinball, which means the button has
to go below it. But some people prefer putting the button above the
plunger to make it easier to see and reach, which requires lowering
the plunger by a couple of inches from the standard position to make
room for the button. I'm not wild about the unusual appearance of
the lowered plunger, but some cab builders have to lower the plunger
anyway because the normal position is blocked by the playfield TV.
- Audio volume: Recommended. No standard location; preferably hidden.
I find that I adjust the audio volume quite frequently on my cab,
so I very much like have a way to do this conveniently.
Getting out the keyboard or mouse or opening up the cab
don't count as convenient, so some kind of external control
for this is recommended.
Some people like to use the straightforward
approach of adjusting the volume via the amplifier's volume
knob, so they locate the amp somewhere easily accessible.
My preference is to control the audio volume via external cabinet
buttons for Volume Up and Volume Down. This is possible if you
use some software to provide a keyboard interface to the
Windows master line-out volume level, such as my
PinVol
utility.
If your keyboard encoder has the concept of a "Shift" button (Pinscape
and the i-Pac encoders do), you don't need separate physical buttons
for volume. You can instead double up some of the regular
buttons, using them as volume controls in addition to their
normal functions. This is the approach I
use myself, and I like it because it makes the volume controls
easily accessible without requiring any extra physical buttons.
I use the right MagnaSave/flipper buttons as Volume Up/Down
buttons, in combination with my Extra Ball button as the Shift
button. That is, when I press and hold Extra Ball, I can
use the right buttons to adjust the volume. Easy, convenient,
and requires no extra buttons.
If you prefer separate, physical Volume Up/Down buttons, where do they go?
There's no standard location for these, but even the maximalists
seem to agree that these particular buttons should be hidden.
Some cab builders accomplish this by putting them inside the
coin door. That's a little too inconvenient, in my opinion,
for something I access so often. A better option is the bottom
of the cabinet, near the front edge: that puts them out of sight,
but they're easily accessible and you can find them by feel.
Another option that you might prefer is a knob that sends volume up/down
keystrokes to the PC. See the vpforums thread
Coin Door Volume Control
for a way to build such a knob and mount it on the coin door.
- Coin door position switch: Recommended. Inside the
coin door.
The real machines have a switch inside the coin door
that senses whether the door is open or closed, like the switch in a
refrigerator that turns on the light when you open the door. I'm sure
this seems like a ridiculously nitpicky detail, but it's actually
important, because a lot of the ROM software on the modern games
requires the signal from this switch to access the service menus.
(They're so insistent about it because they use it as a safety
measure, to cut off the high voltage power supply when the operator is
working inside the machine.) Installing the switch to match the
software's expectations just makes things easier, and it's not
difficult or expensive to install. For full details, see "Coin door
position switch" in Chapter 40, Coin Door.
- Fire!: Nice to have; essential
for Stern fans. Top center of lockdown bar.
Many newer Stern games (2005 to present) feature this extra button on
top of the lockdown bar, usually centered side to side. (The lockdown
bar is the metal piece at the front edge holding the cover glass
down.) The button itself is usually a clear flipper button and
usually has a lamp inside.
Up until recently, I think many cab builders considered the Fire button
to be one of those special, game-specific buttons that isn't widely enough used
to justify including it as a physical button. But it's
not that game-specific any more, given that nearly every newer
Stern title has one. I think it's on its way to becoming a new core
button on the strength of Stern's consistent use, and because it's
just a good location for an extra button. It's visually appealing
even if you're in the minimalist camp, and it's easy to reach
during play.
The complication is that
you either need a special (more expensive) version of both the lockbar
and receiver that are pre-drilled to accept the button, or you need to
modify the standard ones. See "Fire button" in
Chapter 23, Cabinet Hardware Installation for more on finding the
required parts.
- Service
buttons: Nice to have. Inside the coin door.
If you're
using a real coin door, it will probably come with a little "service
button" panel pre-installed on the inside of the door. Modern coin
doors for WPC and Stern machines have four buttons here; older
1980s games usually had three buttons.
On a real machine, these let the operator access the setup menus for
the game, which are used adjust pricing and feature settings and to
access self-diagnostics. These menus are where you set up Free Play,
for example, or change from 3-ball to 5-ball play. In a virtual cab,
you can access the same menus via the authentic buttons if you have
them, by connecting the buttons to your key encoder. If you don't
have a real coin door, or it doesn't include the service buttons, you
can access the service menus via your PC keyboard. This isn't
something you have to do very often, so I don't consider these buttons
to be essential. But I do consider them to be a big convenience that
I wouldn't want to do without on my own machine. Assuming you have a
coin door, these buttons don't affect the aesthetics,
since they're hidden inside the machine.
- Extra Ball/Buy-In: Nice to have. Round pushbutton, below Start.
A few games from the 1990s feature an extra front-panel button labeled
"Extra Ball", "Buy-In", or in a few cases something marketing-ese like
"Super Ball". The button on the real machines is either below the
Start button or below the plunger. It lets you
buy an extra ball for a credit after the last ball ends (which can be
a decent deal if you're close to a replay or close to beating the
high score). Realistically, for virtual play, you'll probably never use
it: why bother "buying" an extra ball when every game is free? Even so,
I included one on my machine mostly for completeness, because I like
a lot of games from the era where this button was common. If you
do include it, it also gives you one more option for mapping special
functions in games with unique buttons.
- Night Mode: Nice to have. Hidden; no standard location.
If your cabinet has mechanical feedback devices (contactors,
solenoids, replay knocker, etc), you might want to include a button or
switch to activate "Night Mode", which turns off the noisy devices for
quieter play in the wee hours. The wiring depends on your
output device controller; if you're using a Pinscape Controller for
feedback devices, you can assign any button input to serve as the
Night Mode button. The generic arcade controllers (LedWiz, PacLed)
don't have this feature at all, but you can improvise something
with a switch that cuts off power to the noisy devices.
See Chapter 44, Feedback Devices Overview. Like the audio volume controls,
this button is an "operator" button that you'll probably want to
place somewhere out of view, such as on the bottom of the machine
or inside the coin door. With Pinscape, you can assign it
as a secondary ("shifted") function of one of your other buttons.
- Slam tilt switch:
Neutral. If you have a WPC-style coin door, it will probably have a
slam tilt switch pre-installed. The slam tilt looks like a leaf switch
with a big metal slug attached to the end of the main leaf. It's usually
mounted on the inside of the coin door.
This is related to the tilt bob, but rather than detecting
excess motion, it detects excess force. It's triggered by very hard jolts to the front
of the cabinet. That big round slug at the end of the main leaf has
a lot of inertia, which is what makes the switch work. A hard enough
slam will propel the slug by sheer inertia far enough to close the
switch and trigger the alarm.
I don't find the slam tilt to be all that necessary on a virtual
cab, since its main purpose is to deter the sort of extreme abuse
that a coin-op machine in a public place can be subjected to.
It's unlikely you'd ever trigger it in regular play, even if you're
an aggressive nudger. So I wouldn't go out of my way to add
this device if your coin door doesn't already have one. But if
it's already there, I'd go ahead and wire it up, since VPinMAME
does recognize it as a standard input. The WPC doors usually do
come with a slam tilt switch; the Stern and SuzoHapp doors don't.
See Chapter 40, Coin Door for more on wiring a pre-installed
slam tilt switch and information about how it's treated in the
software.
- Virtual service buttons: Kinda nice to have. Inside the coin door.
There are a few miscellaneous "operator" functions specific
to virtual pinball that might merit their own buttons inside
the coin door, such as engaging night mode, doing a hard reboot of the PC or
activating plunger calibration mode. One way to do this
is to add your own bank of additional service buttons somewhere
inside the coin door. See "Adding an extra service panel"
in Chapter 40, Coin Door for ideas.
- Flyer, Instructions, Info: For the maximalist only.
Below Start.
Some front ends (game selection menu programs) use
keys to select selection certain functions within the UI, such as
viewing a game's promotional flyer, viewing its instruction card, or
displaying other information about the game. Some cab builders
include a bunch of cabinet buttons dedicated to these front-end
functions. Functionally, you don't really need a bunch of special
buttons for the menu program, since the newer front ends let you
access everything through the basic keys. You can include them if you
like the aesthetics of lots of buttons, though, and they do give you
more options for mapping special functions in tables that had unique
extra buttons of their own.
- Nudge: Not recommended. No standard location. In the
early days of virtual cabs, some cab builders added special extra
buttons for nudging. This simply transplanted one of the bad features
of desktop play (the lack of real physical interaction) into the
cabinet, which is the opposite of our ultimate goal of emulating the
elements of real pinball play in software. But it was the only option
back then, so people did it to have some kind of nudge interaction,
even if it wasn't very good. Fortunately, there's a much better way
to handle nudging now: use an accelerometer. That lets you
virtually nudge the simulated game by actually nudging
the physical cabinet. Unlike the bad old days of push-button nudging,
where the nudge command was one-size-fits-all, the accelerometer
registers the amount and direction of the force you apply, so
that the software response can be proportional.
It makes the play much more natural and immersive than trying to
fumble for buttons at critical moments. See Chapter 36, Nudge & Tilt.
Recommendations
Here's a summary of my recommendations, in descending order of
importance.
Essential (all cabs need these):
- Power button
- Start
- Flippers
- Exit
- Coin In
All but essential:
Recommended:
- Audio volume up/down/mute
- Coin door position switch
Nice to have:
- Launch ball (essential if you don't have a plunger)
- Service buttons
- Extra Ball/Buy-In
- Night Mode
- Stern-style lockbar Fire button
Neutral:
- Slam Tilt
- Virtual service buttons
For the maximalist only:
Not recommended:
- Nudge buttons (use an accelerometer instead!)
Illuminated buttons
Most people want illuminated buttons for the common front panel
buttons - Start, Exit, Launch Ball, Extra Ball, Coin In, etc.
This is fortunately really easy to do, because you can buy
pre-assembled button-plus-lamp assemblies in the "small round
pushbutton" style used on modern pinball machines.
Most people further want to have the software control the button
lights, so that the Start button flashes when the game is ready to
start and the Launch Ball button flashes when a ball is ready to
launch, and so on. This is also easily done, as long as you have
a feedback controller like an LedWiz or Pinscape Controller.
A lot of first-time cab builders find this idea little confusing at
first. The big question a lot of people ask is how you're supposed to
connect a button lamp to your keyboard encoder. The answer is that
you're not supposed to connect the lamp to your encoder.
You're supposed to connect it to your feedback controller.
This becomes a lot easier to grasp if you think about the
switch and the lamp as two separate devices. What
throws people is that the two are built into a single plastic housing.
But, electronically, they're not connected at all. Think about it
like this:
- there's a switch, which you connect to your keyboard encoder
- and there's a lamp, which you connect to your feedback controller
But then you might wonder: How does the feedback controller know that
the lamp goes with the button, and how does the keyboard encoder know
that the switch goes with the lamp? Well, they don't. And they don't
have to. The key input and the feedback output port are separate
entities in the software as well. So you don't have to worry about
coordinating between the two physical devices in terms of the wiring;
it's all handled in the software.
Incandescent and LED lamps
Most of the button-with-lamp assemblies that you can buy from the
pinball vendors come with incandescent lamps. The standard lamp type
for most of these is called a #555 bulb. These are longish cylindrical
bulbs with wedge-shaped bases. They run on 6.3V power and draw about
250mA of current.
Plug-and-play LED replacement bulbs are available for the #555
incandescents. You can find these at the pinball vendors as well as
from Amazon or eBay. The LED versions draw considerably less power
than the incandescent versions and run at full brightness on 5V
(the incandescents need the unusual voltage of 6.3V for full
brightness).
If you do opt for LED replacements, pay attention to color. White
LEDs are actually composed of separate red/green/blue elements, so if
you put a white LED behind a blue-tinted button cover, two-thirds of
the light (the red and green parts) will be blocked out, so the light
will only look 1/3 as bright as it should. What you should do instead
is match the color of the LED to the button color as closely as you
can: for a yellow button face, buy a yellow LED.
Regular vs. "non-ghosting" LEDs: Many of the pinball vendors
offer two types of LED replacement bulbs: regular and "non-ghosting".
The non-ghosting kind is marketed as a premium upgrade, so at first
glance you might think it's worth spending a few extra dollars to get
the "best". But beware! For virtual cab use, the non-ghosting type
are actually a downgrade. A non-ghosting LED has a little
capacitor inside that makes it switch on and off slowly. This is
specifically designed to work around a strobing problem that can occur
if you plug regular LEDs into older pinball machines. That strobing
effect was a result of the design of the older machines, and it
doesn't happen with the modern PWM controllers we use in
virtual pin cabs. In fact, the delayed switching is actively harmful
in pin cabs, because it interferes with PWM brightness control. So
you should avoid non-ghosting LEDs for your virtual pin cab -
use the regular kind instead. In most cases, if the vendor doesn't
specifically say they're non-ghosting, they're probably not, because
non-ghosting is inherently more expensive and so the seller will want
to call attention to it as a selling point.
(An aside, for those interested in the technical details of the
strobing effect. The pinball machines of the 1980s and 1990s used
what they called a "lamp matrix" to operate the controlled lamps - the
lamps that the controller could switch on and off individually during
the game, such as an "Extra Ball When Lit" light. The lamp matrix was
a way of reducing the amount of wiring and the number of transistors
needed in the main control board. Rather than dedicating a transistor
switching circuit to each lamp individually, the lamp matrix placed
each lamp at the intersection of a "row" and "column" in the matrix,
so that they only needed one transistor per row and one per column.
This let them control 64 lamps with 8 row transistors and 8 column
transistors. Transistors were more expensive in those days, so
controlling 64 lamps with 16 transistors was a significant cost
savings. Because of the shared transistors, though, the controller
could only turn on one column at a time, so it had to rapidly cycle
through the columns to make all of the lamps light up. This worked
fine with incandescent bulbs, because incandescent filaments take a
fairly long time to heat up and cool down. Even though each lamp was
energized only briefly as the controller cycled through the columns,
the filaments stayed hot enough between pulses that the bulbs kept
glowing, with only a slight dip in brightness between pulses, too
slight for the eye to see. When people started replacing the bulbs
with LEDs, the column cycling became visible, because LEDs turn on and
off almost instantly. They don't have filaments that retain heat
between pulses. The column strobing was slow enough that the human
eye could easily see it with an LED. So that's where non-ghosting
LEDs come in. They have capacitors inside that replicate the slow
switching times of incandescents, so that each lamp stays on long
enough that it doesn't flash between column cycles. This is actively
harmful with modern PWM controllers, because PWM also uses rapid
flashing, to control brightness. In the case of PWM, the flashing is
so fast that the human eye can't see it, so we don't need to
filter it out, and we don't want to filter it out, since that
would cancel out the brightness controls. If you put in the
non-ghosting capacitors, the PWM controller won't be able to create
the brightness fading effects that we want.)
Common pinball button types
Small round pushbutton
Most cab builders use the SuzoHapp "small round pushbutton" for the
Start, Exit, and (if present) Extra Ball buttons. These can also be
used for any other front-panel buttons you're including, such as Coin
In, Instructions, Flyer, etc.
This is the same type used on most real machines made from the 1990s
to present, including the WPC machines and newer Stern machine, so it
looks exactly like the real article. It's convenient to install
because it combines the plastic housing, a microswitch, and a lamp in
a self-contained package. No other parts are needed for installation;
you just pop it through a 1" diameter hole and fasten it with the
included nut.
You can buy these buttons in assorted face colors, with no labels
installed, directly from the manufacturer,
SuzoHapp. Search for part
D54-0004-2.
They're also available from pinball suppliers with various
pre-installed labels used on real machines (Start, Extra Ball, Super
Ball, Buy In). Search for part numbers 20-9663, 500-6388-02.
I'd buy the pre-labeled buttons to the extent you can, since they're
easier, but you won't find pre-labeled buttons for virtual cab
functions like Exit, Coin In, etc. You'll have to make your own
labels for those. Fortunately, it's pretty easy; see "Custom
labels" below.
Installation
To install with the button flush with the outside surface:
- First, route a 1⅜" diameter inset, ⅜" deep
- Then, drill the rest of the way though with a 1" hole saw bit or
Forstner bit (don't use a spade bit - they cause too much chipping
with plywood)
The routed inset recesses the button enough that it'll be roughly
flush with the outside wall. If you want to keep it simpler and you
don't mind having the button stick out a bit, you can skip the
inset, and instead just drill a single hole straight through with
the 1" hole saw bit or Forstner bit.
- Gently twist the microswitch base 1/8 turn to release it
- Fit the button into the hole you drilled for it. Insert the
button from the outside of the cabinet.
- Fit the nut over the shaft and tighten
- Fit the microswitch base back into the main body; when you find
the spot where it fits, press it in slightly and give it a 1/8
turn to lock it back in place.
Wiring
Wiring these illuminated buttons is like wiring two completely
separate devices: the switch, which you connect to your keyboard
encoder; and the lamp, which you connect to your feedback device
controller.
If you don't care about controlling the lamp through software, you can
just wire the lamp directly to a power supply so that it's always
illuminated. Some cabinet buttons (such as Exit and Coin In) don't
really have any interesting software effects anyway, so you can save a
little effort this way (and conserve ports on your feedback
controller). See
Chapter 55, Button Lamps for how to identify the lamp
terminals, then just connect those terminals directly to the
appropriate power supply. #555 incandescent bulbs are designed to run
on 6.3V (they'll work on 5V as well, but they'll be a little dimmer
than intended). #555 LED bulbs are a little more forgiving about
voltage and should look fully bright at 5V.
Typical key assignments
Here are the usual key assignments for the front-panel buttons:
- Start = "1" (the digit "1" key)
- Extra Ball = "2" (the digit "2" key)
- Coin In = "3" (the digit "3" key; "5" represents the second or right-hand
coin chute in a door with two chutes with different denominations, such as
dimes and quarters; "4" represents the middle chute for three-denomination
doors, which are rarely seen in the US but are more common abroad; "6"
represents a fourth chute, which is typically a dollar bill acceptor in the US)
- Exit = "Esc" (the Escape key)
Custom labels
You can install a custom label in these buttons by prying the lens cap
off (see the step-by-step instructions below) and inserting a new
label printed on transparency film.
If you want to customize the label, it's best to start with a
blank button, rather than one that's already labeled "Start"
(or whatever). The pre-labeled ones from the pinball vendors usually
have the label text printed directly on the little plastic diffuser
inside the lens that gives the button face its color. I don't know of
a way to remove the pre-printed text. So the best bet is to buy
buttons that don't have any labels in them at all.
You can buy blank buttons from
SuzoHapp.
They're the original manufacturer of the buttons the pinball vendors
sell, so you're getting exactly the same button, directly from the
source. They also offer the buttons in more colors than you can
usually find at the pinball vendors. Search on the SuzoHapp site for
D54-0004-2 to get the list of available colors.
Design your labels to fit a 7/8" circle, as illustrated below.
These are just some random examples for you to use as templates
for your own custom buttons, but feel free to use any of these
you like.
This image is rasterized at 300 dpi for print reproduction.
Right-click and "Save As" to save the PNG.
Some tips for printing:
- Use a laser printer only, not an ink-jet printer. Ink-jet inks
aren't opaque enough
- Print onto transparency film
- Use film that's specifically designed for laser printers - it has
a special coating that makes the laser toner stick properly
- You can use white paper in a pinch, but it's a poor substitute; the
paper grain will be visible, and the text won't be opaque enough
- After printing, use an X-Acto knife to cut out the label just inside
the circle
To install the label in the button:
- Twist the squarish micro-switch base about 1/8 of a turn to release it,
then pull it out of the housing
- On the bottom of the housing, pinch the white prongs together and
push them into the housing. This will free the movable part of the
pushbutton and let you pull it out the front.
- Now the slightly hard part: pry the lens off the top. This isn't
actually that difficult, except that it'll seem at first like it's
stuck on there with super-glue and won't come off without shattering.
It's actually just snapped on. Use a very small screwdriver, like
the type for fixing eyeglasses, and slip it under the lip. Aim
for the little notches in the perimeter of the white piece underneath.
- Pry the lens a little bit at a time at quarter turns until it comes loose;
once it's loose, you can just pull it off.
- You'll now have three pieces: the button body, the clear plastic lens,
and the colored diffuser.
- It's easiest to get the label aligned if you start by fitting into the
lens, printing side facing out through the lens.
- Fit the diffuser back over the button body, place the lens (with your
new custom label) over the diffuser. Note that orientation: the text
should be oriented so that the prongs are "vertical" relative to the text.
- Fit the spring back into the button body between the prongs
- Compress the spring enough that you can pinch the prongs together and
fit them back into the main housing. Push the prongs all the way through
the other side.
Launch Ball button
The standard Launch Ball button is the SuzoHapp "large round
pushbutton" (the red one is SuzoHapp part number D54-0004-10; other
colors are available with the same prefix, D54-0004-1). This is the
type used on several Williams machines from the 1990s that used launch
buttons in place of the standard plunger, so it's the one to use for
an authentic appearance.
The SuzoHapp version is sold with a blank face with no printed label.
Pinball vendors sell these with pre-printed "Launch Ball" labels in
various font styles - look for Williams/Bally part number 20-9663-B-4.
As with the small round pushbuttons, it's possible to use custom
labels if you don't like any of the pre-printed options. The process
is the same as for the small buttons, as described above.
These buttons are in almost every respect exactly like the "small
round pushbuttons" described above. The only real differences are
that the outer button face is larger, and the drilling pattern is
slightly different.
Here's the drilling pattern for these buttons. The small holes above
and below the main 1" drill are for little "nubs" on the back of the
button face that help align the button and prevent it from rotating
freely once installed. These don't have to be drilled all the way
through; the nubs are only a couple of millimeters deep.
The typical keyboard assignment for the Launch Ball button is the
"Enter" key.
Unique ball launchers
The Big Red Button above was used on several real machines from the
1990s (Medieval Madness, Attack from Mars, Monster
Bash, Champion Pub, among others), so it's a perfectly
authentic choice.
But there's another option that provides an opportunity for extending
your artwork theme. A few games that had auto-launchers used unique
theme-based toys for the launch controls. Functionally, most of these
were no different from plain buttons, but they added novelty and
echoed the game's theme. Some examples:
- The gun grip launcher on Terminator 2: Judgment Day (Williams, 1991)
- The phaser pistol launcher on Star Trek: The Next Generation (Williams, 1993)
(which was substantially the same equipment as T2's gun launcher)
- The gun launcher on Indiana Jones: The Pinball Adventure (Williams, 1993)
(exactly the same idea as the ST:TNG and T2 launchers,
but new equipment, styled to look like an antique pistol)
- The fishing reel launcher on Fish Tales (Williams, 1992)
- The gear shifter lever on The Getaway: High Speed II (Williams, 1992)
(which, unlike most of the other unique launchers, is more than just a dressed-up
button: it has two actions, Shift Up and Shift Down, which are used throughout
the game)
Many of these unique controls are available as replacement parts from
the pinball vendors, so if one of them fits your theme, you could buy
one and use it in place of the generic round button.
Or, if you want to get more creative, you could design your own and
fabricate it with 3D printing. Most of the unique launchers on the
real machines were just fancy plastic housings with a small pushbutton
embedded. You can find suitable pushbuttons from Mouser or DigiKey,
and embed one in your own custom plastic housing to create
theme-specific launcher toy.
Rectangular pushbuttons
Some cab builders prefer a rectangular or square shape for some of
their buttons. These are particularly popular among the "maximalists"
who want the Mission Control look for the cab's front face. These
also work well as hidden buttons on the bottom of a cab, since
they're large enough that you can easily operate them by feel.
I recommend the large square button below for the main power button,
for example.
Variations of the SuzoHapp pushbuttons are available to fit these
needs, such as their "large rectangular pushbutton":
Search for SuzoHapp part number prefix D54-0004-5 for this button in
assorted face colors, without any pre-printed labels. You can add
custom labels to these using the same procedure described for the
small round pushbuttons above.
To prepare for installation for the large rectangular buttons pictured
above, use a hole saw bit or Forstner bit to drill a 1" center hole.
You also have to drill shallow indents, about 3/16" diameter and 3/8"
deep, at either side of the button. The indents are for small "nubs"
that keep the button from rotating when installed.
A variation with a square button face is also available; search for
part number prefix D54-0004-4. These only require a simple 1" diameter
hole for mounting.
In every other respect apart from the shape of the face, these buttons
are identical to the "small round pushbuttons" detailed above.
Installation and wiring are the same.
Flipper buttons
Here's the thing you have to know about flipper buttons: only leaf
switches will do.
Some first-time cab builders want to use arcade buttons with built-in
microswitches, like the SuzoHapp pushbuttons above or similar buttons
from DIY arcade cabinet companies. You might be especially inclined
in this direction if you've built a MAME video game cabinet in the
past, since you've probably already bought buttons from these DIY
arcade places before and it's easier to go with what you know. Even
if you're not a MAME cab veteran, the the assembled pushbuttons can
seem attractive just because they're easier, being self-contained.
And indeed, they're great for Start buttons, Exit buttons, and pretty
much all of the other buttons - but not for flipper buttons.
The problem with the assembled buttons is that they don't have the
right feel for the flippers. Flipper buttons have a very specific
mechanical and electrical action that comes from the leaf
switch inside. The microswitches used in most of the
self-contained buttons have a mechanical snap action instead, which
feels very different and doesn't have the same fast and precise
response you get with a leaf switch.
I also think it's important to use standard flipper buttons as the
pushbutton part, also to get the feel right. They have a specific
size, shape, and spring weight. The arcade buttons are designed for
video games; they don't try to match the mechanical feel of a flipper
button.
My advice is to just do this the right way: Go to a pinball supply
vendor (Pinball Life, Marco Specialties, VirtuaPin) and get a set of
the real pinball flipper flippers and the matching leaf switches.
Don't waste your time trying to find "close enough" products from the
MAME gadget Web stores; the exact right buttons are easy to find at
any of the pinball vendors.
Here's the full menu of parts:
- Flipper buttons:
- Standard length (1-1/8"); Williams/Bally part A-16883
- Or: Longer length (1-3/8"); Williams/Bally 3A-7531-5, 3A-7531-9; Stern A-711, 515-7791-00
- Pal nuts (one per button), metal or nylon; Williams/Bally 02-3000
- Leaf switches:
- Flipper leaf switch, single contact, low voltage (gold contact points); Data East/Stern 180-5048-01
- Or: Double-contact leaf switch, low voltage (gold contact points); Williams/Bally SW-1A-192
- Optional: VirtuaPin leaf switch bracket;
works with longer (1-3/8") button only
You don't need all of these - for each button position, you just need
one of the buttons (shorter or longer), one of the leaf switches, one
Pal nut, and, if desired, the switch bracket. Read on for details of
the variations and how to choose.
Which color?
If you're going to illuminate your flipper buttons (which is a nice
effect - see "Flipper Buttons" in
Chapter 55, Button Lamps),
get them in clear transparent. That lets you light them up in any
color under software control.
If you don't want lighted flipper buttons, choose whatever color you
like with your cabinet artwork. You can buy transparent or opaque
buttons in a wide range of colors in the standard 1-1/8" length (the
longer 1-3/8" buttons are more limited in this regard). I personally
prefer the appearance of the transparent ones over the opaque buttons,
even when they're not illuminated, but that's just an arbitrary
preference.
Longer or shorter button length?
Nearly all of the machines made from the 1980s onward used the shorter
1-1/8" flipper buttons, so I consider these the "standard" length, and
they're the easiest to find and have the most color variations
available.
Many older machines used the longer 1-3/8" flippers, so this longer
length is still being made, but it's not in as much demand so they
don't make them in as many colors. The only options I've seen are
opaque red, opaque white, and clear transparent. Clear transparent is
all you need if you're lighting the buttons, but if not, I suppose
the limited color choices might be a reason to use the shorter ones.
Reasons to use the longer buttons:
- They work with the VirtuaPin switch brackets
Reasons to use the shorter buttons:
- They're available in more colors
- They're easier to fit into the limited space next to the plunger
(especially if you're using a plunger position sensor that needs extra
space)
I personally use the shorter ones, but mostly because the longer ones
weren't available in clear transparent when I built my cab, and I
needed transparent buttons so I could illuminate them. A transparent
version of the longer button is now available now, so that's no longer
a limiting factor. I might still use the shorter ones anyway, though,
because they really do fit better on the plunger side.
Installing the button
On the real machines, they usually drill a three-level structure
for each flipper button:
- Using a 1⅛" diameter hole saw, Forstner bit, or straight router bit, drill 5/16" deep from the outside
- Using the same 1⅛" diameter bit, drill 3/16" deep from the inside,
on the same center
- Drill the rest of the way through, on the same center, with a ⅝" drill bit
This three-level structure creates a narrow "neck" that the central
shaft of the flipper button fits through, with a recess on the outside
for the bezel and a recess on the inside for the Pal nut.
I recommend a simpler approach: just drill all the way
through with the 1⅛" diameter bit. This method
is better in two cases:
- You're using the VirtuaPin bracket. That bracket provides its own
collar on the inside, so you don't need the "neck".
- You're using the LightMite boards to illuminate the button. You
don't want the narrowedr neck in this case, because it gets in the way
of the LEDs. The wider opening lets you fit the LEDs into the opening
alongside the button. And the LightMite board serves as the collar on
the inside.
For either type of drill, fit the flipper buttons through the holes
from the outside, and attach the Pal nut on the inside.
Leaf switch - VirtuaPin holder
The VirtuaPin switch brackets make it easy to install the leaf switches.
They come pre-assembled with leaf switches properly aligned for the
longer 1-3/8" buttons. To install them:
- Fit the flipper button into the cabinet hole
- On the inside, fit the switch bracket over the button shaft
- Slip the Pal nut onto the end of the button shaft and tighten
They look like this when assembled:
These only work with 1-3/8" flipper buttons (the "longer" length
buttons).
These won't fit with the LightMite boards for illuminating the
buttons. You'll have to use the wall mounting (below) for that.
Leaf switch - cabinet wall mount
If you're using the standard 1-1/8" flipper buttons, or if you want to
use the LightMite board to illuminate the buttons, you can't use the
VirtuaPin switch holders. Fortunately, it's fairly easy to mount the
switches directly to the cabinet wall instead.
Switch gap adjustment
Leaf switches can be finicky about the size of the gap
between the contact points. If you see any flaky behavior from your
flipper buttons, such as weird auto-repeats, or flippers flipping
randomly while you're holding the button down, you might need to
make some adjustments to the switches. See "Adjusting the leaf switch gap" in
Chapter 26, Inside the Cabinet.
Single or double leaf switch?
Single-contact leaf switch (left) and double-contact switch (right)
>
For most people, the single-contact leaf switch is all you need.
The double-contact switches are used in real machines with extra
flippers on one or both sides, such as the upper flipper on
Funhouse (Williams, 1990) or the double right flippers on
Aladdin's Castle (Bally, 1976). On those machines, they wired
each flipper to a separate switch contact. This lets you control each
flipper separately with the single button, by carefully
modulating how far you press in the button.
I don't think most pinball players are aware that this is possible.
So most people would never miss it on a virtual cab. But if you're
one of those super-skillful players who knows how to take advantage of
this feature - or maybe if you just aspire to get there someday -
you'll undoubtedly want to re-create this feature on your cab. It'll
certainly impress your pinball nerd friends if you include it.
As a practical matter for virtual cabs, the double-contact feature is
not an inherent part of Visual Pinball or other simulators.
Visual Pinball tables can take advantage of it, but they have
to be specially programmed to do so on a table-by-table basis. This
is an uncommon feature even among cab builders, so most table authors
have no idea it's even possible, and it's not widely implemented in
existing tables. If you're a big fan of the feature, and you know
your way around Visual Pinball and its scripting language, you can
add the feature to tables yourself with a little work.
In Visual Pinball tables that don't specially implement the
double-contact feature, as well as in most other simulators, extra
flippers will usually just be tied to the main flipper button input,
so you'll see the same effect as if you had a regular single-contact
switch. In other words, both flippers on each side will fire when
you press the button far enough for the first level of the double
switch to make contact, and the second level won't do anything
at all.
Flipper feedback effects
Most cab builders these days want some kind of feedback effect for the
flippers, usually with contactors or solenoids, to reproduce the
palpable "thunk" that the flippers produce on a real pinball machine.
Some new cab builders imagine that it's necessary to add some extra
wiring between the flipper buttons and the contactors or solenoids in
order to achieve the feedback effect.
If you're planning to include
Chapter 46, DOF in your setup, no
extra wiring is necessary to achieve flipper feedback effects. DOF
will automatically fire your flipper solenoids at the appropriate
times to match the flipper action in the software simulators. This is
the best way to handle flipper feedback effects, because it will make
the flipper effects exactly match the on-screen effects in the
simulation.
If you're not using DOF, though, you can add some rudimentary feedback
effects by hard-wiring your flipper buttons to flipper solenoids or
contactors. This requires some extra parts, because of the high
voltages needed for the flipper solenoids. You can't just directly
wire both the solenoids and the key encoder to your flipper switches,
because the solenoid voltage will damage the key encoder. The extra
wiring is described under
Chapter 59, Flipper button feedback control
in
Chapter 59, Flippers, Bumpers, and Slingshots.
Wiring
For a single-contact leaf switch, wire one contact to the "common" or "ground"
terminal your key encoder, and wire the other to a unique input for
the button. The order of the terminals doesn't matter.
For a double-contact switch:
- Connect the "common" or "ground" key encoder input to the
middle blade of the switch
- Connect the regular "Flipper Button" input to the blade
closest to the button
- Connect the "Second Flipper Button" input to the blade
farthest from the button
Typical key assignments
Left flipper: the left "Shift" key
Right flipper: the right "Shift" key
Left MagnaSave: the left "Control" (Ctrl) key
Right MagnaSave: the right "Control" (Ctrl) key
Second-level contact in a double leaf switch, left side: "L" key
Second-level contact in a double leaf switch, left side: "R" key
Optical interrupter switch
Okay, this is going to seem crazy after all of that lecturing and
haranguing earlier about how you must use leaf switches, but...
The pinball manufacturers stopped using leaf switches in the early
1990s.
That's when they switched to "opto-interrupter" switches. An
opto-interrupter is basically an "electric eye" type of switch, with a
light beam and a receiver that detects if anything is in the way of
the beam. In the case of the new flipper switches, this is all packed
into a compact little unit about a centimeter wide, with a thin gap
between the light source and receiver. There's also a little piece of
plastic that sits in the gap, blocking the light from hitting the
receiver. When you press the flipper button, it moves the little
plastic shield out of the way and lets the light hit the receiver.
That's what activates the switch, taking the place of the direct
electrical contact between the two metal blades in the old leaf
switches.
The first question is, why did they make this change? Reliability,
mostly. The metal contact points on a conventional switch tend to get
dirty over time from dust and grime in the air, plus the metal can
oxidize and abrade. This all makes the contacts become less
conductive as they age, which can weaken the flippers or make them
operate sporadically. The leaf switch blades also tend to lose some
of their elasticity and bend out of alignment from the constant
back-and-forth flexing. Arcade operators always had to spend lots of
time cleaning and re-aligning flipper leaf switches to keep their
machines working properly. The optical switches, in contrast, are
essentially maintenance-free. Arcade operators like that feature
because it keeps their machines working and earning money more of the
time, and reduces their repair budgets. Since arcade operators were
their main customers, the pinball makers often designed around what
the arcade owners wanted, and in this case, opto switches were
desirable because of their improved reliability.
Second question: do the opto switches "feel right"? In other words,
do they have the same force feedback properties and switching action
as traditional leaf switches? In my opinion, yes. Some people
disagree and believe the opto switches have a different and inferior
feel compared with leaf switches, but I can't personally perceive a
difference. I have real machines with both kinds of flipper switches,
and they feel about the same to me. In fact, I owned both kinds of
machines for many years before I even knew about the different switch
types. If you look at the innards of the opto switches, you'll see
that their construction is very much like that of leaf switches,
physically: a flexible plastic blade takes the place of the metal
leaf, and the motion of that blade controls the motion of the light
shield in the optical portion of the switch. The mechanical action is
essentially the same as for a leaf switch. The electronics are
different, obviously, but I don't think that was ever much part of the
feel; the mechanical action is what matters.
Third question: can I use these in my virtual cab? Yes,
with some extra work getting the wiring right.
Fourth question: should I use these in my virtual cab?
Probably not. They're more expensive and more complex to install, and
I don't think there's enough of a benefit for a virtual cab. Remember
that the main benefit of the optos is that they're low maintenance.
That's a big deal for an arcade machine that's getting played all day
every day. It's less of a concern for a home machine, though, since
we don't put nearly as much mileage on it. The electronics in a
virtual cab aren't as hard on the switch, either, since we're using
low voltages. The leaf switches on the old pinball machines directly
switched the 50V coil power, and that high power caused much more
rapid oxidation of the switch contacts than you get with the 3V logic
switching we use. What's more, you can get leaf switches with
gold-plated contact points, and since gold doesn't oxidize, the
contact points won't degrade from age alone.
Fifth question: how can I use these in my virtual cab? If you really
want to use them despite the dubious benefits for home use, it's not
too complicated. The part to buy is the WPC Fliptronic opto board and
switch assembly, Williams/Bally A-17316. (The components are also
available separately.) The opto switches should be compatible with
most keyboard encoder devices; wire them as normal, connecting the
Ground (GND) pins on the opto board to the Ground or Common terminal
of the encoder, and connecting the SW1 (switch 1) and SW2 (switch 2)
pins of the opto board to the flipper button inputs on the encoder.
These boards have two optos to provide the same effect as a
double-contact leaf switch; if you only want a single-contact switch,
connect SW1 and leave SW2 unconnnected. You also have to supply the
board with a +12V power supply connection to the labeled pin; this
powers the light source for the optical switch.
Tilt bob
The easiest option is to buy a complete tilt bob assembly; look for part
A-15361 at the pinball vendors. You can also buy the parts separately:
- Mounting plate A-15360
- Upper bracket 01-3444
- Lower bracket 01-3445
- Pendulum 03-8668
- Plumb bob wire 535-5319-02
- Plumb bob 535-5029-00
You'll also need two #6-32 x 3/8" machine screws to assemble the pieces to the
mounting plate, and two #6 x 1" wood screws to mount it to the cab wall.
You can skip the mounting plate if desired and simply screw the two brackets
directly into the cab wall. The mounting plate just makes it easier to get
everything aligned properly.
In the real machines, the tilt bob is usually installed on the left
side wall near the front of the cab.
When installing, you should have the machine set up with its legs
attached and leveled, so that the machine is sitting at the same angle
that it'll have in regular use. Angle the tilt bob so that the
pendulum is centered in the ring when at rest.
Adjust the sensitivity of the tilt by moving the plumb bob up or down
on the hanger wire. (Loosen the thumb screws to free the plumb bob to
move up and down; tighten them again when the plumb bob is at the
desired position.) A tilt is signaled when the plumb bob comes into
contact with the surrounding ring, so it increases the tilt
sensitivity when you move the bob upwards on the wire (reducing the
margin between the bob and the ring). You can always come back and
adjust the sensitivity after play-testing if it's too sensitive or too
permissive.
To wire the tilt bob, connect one wire from the keyboard encoder to
the terminal on the upper bracket, and connect the other wire to the
terminal on the ring bracket.
The standard keyboard assignment for the tilt bob in Visual Pinball is
the letter "T" key. But some extra configuration is required! See
"How to configure VP for a tilt bob" in
Chapter 36, Nudge & Tilt.
Slam tilt
A slam tilt switch is a leaf switch with a big weight slug attached to
the main leaf. This detects excessive jolts to the cabinet via the
mechanical inertia of the slug.
WPC coin doors normally have a slam tilt switch pre-installed, so all you
have to do is connect its wires to your keyboard controller.
See
Chapter 40, Coin Door for details on how to access the pre-installed
wiring in the WPC door.
Slam tilt switch in a WPC coin door (interior side of coin door shown).
The WPC doors typically have the switch pre-installed.
If your coin door doesn't already have a built-in slam tilt switch,
and you want to install one separately, look for these parts at the
pinball vendors:
- Weighted leaf switches: B-8372, 27-1066, 502-5032-00
- Mounting bracket (should be usable with any of the above): 01-1168
- Weighted switch with mounting bracket (pre-assembled): B-9141
- Planetary Pinball Supply weighted switch with mounting bracket: A-17195
Slam tilt switch with bracket, mounted to cabinet floor.
It'll also work mounted to the front or side walls. Install
near the front of the cab.
Mount the switch to any convenient spot on the cab floor, front wall,
or one of the side walls, close to the front end. It should be within
a foot or so of the front so that it'll be triggered if the front is
lifted and dropped.
To wire, simply connect the wires from your keyboard encoder to the
two leaf switch terminals.
The standard keyboard assignment for a slam tilt in VPinMAME is the
"Home" key (the cursor navigation key).
Service buttons
If you have a WPC coin door with built-in service buttons, the buttons
can be connected through the coin door's wiring harness.
See "Wiring to the key encoder" in
Chapter 40, Coin Door
for details.
The Stern/SuzoHapp coin doors don't typically come with service
buttons installed. You can separately buy a Stern 4-button service
assembly (Stern part number 515-1963-00) that fits these doors. These
come with four pushbuttons that you have to wire yourself. Connect a
wire from the Common/Ground of your keyboard encoder to one terminal
of each button (you can daisy-chain this connection across the buttons
- there's no need to run a separate wire for each button back to the
encoder). Connect the other terminal of each button to a unique
key input on the encoder.
The standard key assignments for these buttons are:
- Green button = Cancel = "7" (the "7" keyboard key)
- Left red button = -/Down = "8" (the "8" keyboard key)
- Right red button = +/Up = "9" (the "9" keyboard key)
- Black button = Enter = "0" (the "0" keyboard key)
If you're not using a standard coin door, but you want a service
button panel somewhere, you might be able to adapt the Stern 4-button
panel above to another mounting location. Or you could just get some
small pushbuttons and attach them somewhere convenient with an
improvised mounting. Wire them and assign keys the same way
described above.
Coin door position switch
35. Button Wiring
In the previous section (
Chapter 34, Cabinet Buttons), we looked at all the
types of buttons that you might include in a virtual cab, and how to
do the basic installation and wiring for each type. Now we'll look at
the other end of the wiring: how you connect these buttons to your PC
so that they can interact with the software.
If you're using a Pinscape Controller (either standalone or with
the expansion boards), you might want to skip straight to
Chapter 110, Pinscape Button Inputs, since that's a more streamlined How To guide
for the Pinscape controller specifically. Likewise, if you're using
one of the commercial encoders, read through its documentation for
a quick start with its wiring setup.
The basic approach that we use to connect the buttons to the PC is to
make them act like keyboard keys. To do this, we need a device known
as a "key encoder", which is essentially the same circuitry that's
inside an actual PC keyboard to convert physical key presses into USB
signals that Windows can read.
In fact, in the early days of virtual cabinets, a lot of people
literally used the circuitry from PC keyboards, disassembling
an old keyboard and soldering their button wiring to the key switches
inside. That was clever, but it was also rather difficult. If you've
ever opened up any modern electronics, you know how microscopic and
delicate everything inside is these days.
Fortunately, we no longer have to resort to such jury-rigged salvage
jobs. There's a much easier way now: you can buy or build a dedicated
key encoder built specifically for wiring arcade buttons. There are
several turn-key commercial products available, or you can fairly
easily build your own using the Pinscape Controller plans.
Joystick encoders vs keyboard encoders
Note that some encoders send button presses to the PC as joystick
button commands instead of keyboard keys. These work exactly like
keyboard encoders in terms of all of the physical setup and wiring, so
everything in this chapter applies equally well to joystick encoders.
For the most part, we use the term "keyboard encoder" to refer to both
types, since they're really no different other than the USB commands
they send.
(In fact, some controllers use both types of commands. The Zeb's
Boards plunger controller uses a mix of keyboard and joystick keys for
its button inputs. The Pinscape Controller lets you use either type
for any button, letting you configure the selection for each button
individually.)
Key encoder options
Several good commercial and DIY options are available. The commercial
products are more expensive, but require little to no work to assemble
or configure. The DIY options are cheaper but require some setup
work.
- Standalone KL25Z: DIY. If you only need keyboard input (and not any
feedback controller features), a bare KL25Z loaded with the Pinscape
software is all you need. Fairly easy DIY setup and configuration,
with no electronics assembly involved. The default configuration
has 24 button inputs that can be mapped to any keys or joystick
buttons, but you can assign more ports as button inputs (up to about
50 maximum) if you're not using them for other purposes.
- Pinscape expansion boards: DIY (very). The same Pinscape key
controller functions as with the standalone KL25Z version are also
there if you're using the expansion boards. 24 button inputs by
default, with four more unassigned pins available. Requires extensive
electronics assembly work and fairly easy software setup.
- Zeb's Boards plunger kit: Commercial. Provides
inputs for 20 buttons.
- VirtuaPin plunger kit: Commercial. Provides
inputs for 16 buttons.
- i-Pac 2: Commercial. 32 button inputs.
- i-Pac 4: Commercial. 56 button inputs.
- i-Pac Ultimate I/O: Commercial. 48 button inputs.
Basic wiring plan
As with all wiring, make sure all power plugs are completely
disconnected while you're working.
All of the key encoders (commercial and DIY) use the same basic wiring
plan, so we'll show you how this works in general. You'll have to
look at the instructions for your specific device to identify the
actual physical terminals that we're talking about.
Here's the basic plan:
- At one end, you have the button. Electrically, each button is
really just a switch that connects two wires together when pressed.
So at the button end, we're connecting two wires, one to each
terminal of the switch.
What about buttons with more than two terminals? No problem:
you still only connect two wires. It's just a matter of figuring out
which two terminals to connect. See "How to identify button
terminals" below for help
figuring out which two terminals to use.
(Any additional terminals on a button have other purposes that
we don't care about when connecting the key encoder, so you
can just ignore them for now. We might connect them to something
else later, though. For example, an illuminated button with a
lamp inside has terminals for powering the lamp, which we'd want
to connect to the feedback device controller. But that's a
separate matter for another chapter! For now, you can just
leave any extra terminals disconnected.)
- At the other end, you have the keyboard encoder. We take
those two wires that we connected to the button, and connect the
other end of each wire to a terminal on the keyboard encoder.
- One wire to every button always connects to the "Common" terminal on
the key encoder. Depending on which encoder you're using, this might
be labeled GROUND, GND, COMMON, CMN, or C. Check your device's
documentation if you're not sure which one that is.
Some key encoders have two or more Common terminals. If so, you
an use any of them. They're all wired together internally so it
doesn't matter which one you choose. Some of the controllers
provide multiple Common terminals as a matter of convenience,
to give you more flexible in how you wire everything.
- The other wire to each button connects to a unique button
port on the key encoder. On dedicated key encoders like the
i-Pac, these are often labeled with pre-assigned arcade button
functions, so you might see labels like "Start", "Player 1", "Coin 1",
and so on. You should check your encoder's documentation to figure
out which input is appropriate for which pin cab function. If you're
using a Pinscape Controller, see Chapter 110, Pinscape Button Inputs.
If your
encoder lets you customize the keyboard mapping (the i-Pac and
Pinscape allow this), it really doesn't matter which button you wire
to which unique input terminal, because you can assign any key to any
button later in the software setup. The function labels on the i-Pac
are just the defaults.
If you're using a controller with a fixed set of key assignments
(like the Zeb's Boards plunger kit), you'll need to wire each key
to the port that matches the function. Your encoder's documentation
should list the pre-defined keyboard assignments. See "Common key
assignments" below for
a list of the keyboard keys normally used in pinball software -
that should help you match up each button to its appropriate
port on your encoder.
- Every unique button port terminal can only connect to one
button. That's why we call it "unique"!
- The COMMON or GROUND terminal will connect to every button
in your system.
You don't have to connect a separate wire from every button all
the way back to the Common/Ground terminal on the encoder, though!
It's often easier to "daisy chain" the common, by connecting it
from button to button:
All of the commons are connected together electrically, so it
doesn't matter whether they connect back to the encoder with a
separate wire or if they connect to each other in a daisy chain
like this. You can mix and match the two approaches, too!
Just connect each button's Common/Ground terminal to whatever's
closest physically in the cab. If there's another button nearby,
connect to the other button's Common/Ground. If the key encoder
is closer than any button, run a wire back to the key encoder.
What type of wire should I use?
Any ordinary stranded hookup wire will work fine here. These are all
low-voltage, very low-power connections, so you don't need anything
beefy. 24 AWG is fine. (Thicker wire is more expensive; there's no
reason to waste money on thicker wires here.)
I like to use a mix of insulation colors to make it easier to trace
wires through the cab when necessary. I'd use one color for all of
the Common/Ground wires - black, if you want to follow the normal
conventions - and a mix of other colors (never the same as the
Common/Ground color) for the unique button port wires.
Software setup
All of the key encoders emulate either a keyboard or a joystick, so
there's no need for Windows device drivers. Windows should
automatically recognize them as soon as you plug them in to the USB
port or keyboard port.
Some of the commercial controllers (such as the i-Pac) also have
their own setup programs that let you configure the keyboard mappings.
Refer to your controller's documentation.
If your controller uses joystick buttons instead of keyboard keys,
you'll have to configure Visual Pinball and any other pinball software
you use to recognize the joystick buttons. For VP:
- Run VP without loading a table (just open the blank editor)
- On the menu, select Preferences > Keys in VP 9, or
Preferences > Configure Keys, Nudge, and DOF in VP 10
- In the Button Assignments section, set the drop list for each
button function to match the joystick button number of the corresponding
button, as you wired it to the key encoder. For example, if you
wired the left flipper button to your key encoder port that sends
Joystick Button 3 as its input, you'd set the drop list under
Left Flipper to "Button 3".
Common key assignments
Here's a list of the key assignments that most of the PC pinball
simulators uses by default. Most of the software gives you a way to
change the key assignments, but it's always easier to use the defaults
as much as possible. Fortunately, almost all of the PC pinball
simulators have used the same core key assignments for decades, so you
won't have fight with the software too much if you stick to the
standard keys.
Function | Key | Notes |
---|
Start | 1 | |
Exit | Esc | |
Extra Ball | 2 | |
Left Flipper | Left Shift | |
Right Flipper | Right Shift | |
Left MagnaSave | Left Ctrl | |
Right MagnaSave | Right Ctrl | |
Launch Ball | Enter | |
Left 2nd flipper | L | For double-contact leaf switches, rarely used; see "Single or double leaf switch" in Chapter 34, Cabinet Buttons |
Right 2nd flipper | R | For double-contact leaf switches rarely used; see "Single or double leaf switch" in Chapter 34, Cabinet Buttons |
Coin In (main/left slot) | 3 | Used in VP/VPinMAME; "5" is more typical in other games |
Coin In (middle coin slot) | 4 | VP/VPinMAME only |
Coin In (right coin slot) | 5 | VP/VPinMAME only |
Coin In (fourth slot/dollar bill) | 6 | VP/VPinMAME only |
Tilt bob | T | See "How to configure VP for a tilt bob" in Chapter 36, Nudge & Tilt |
Slam tilt | Home | |
Open/close coin door | End | |
Service Escape/Exit | 7 | |
Service Down/- | 8 | |
Service Up/+ | 9 | |
Service Enter/Select | 0 | |
VP Volume Up | + | Only used in VP |
VP Volume Down | - | Only used in VP |
Note that the VP Volume Up/Down key assignments really aren't very
useful. Those just adjust the relative volume of VP's table effects,
and VP doesn't remember the settings across games, so you have to keep
adjusting them over and over if you want to use them. It's pretty
worthless. If you want general volume control buttons, I'd recommend
skipping VP's keys and assigning the "Media Volume Up" and "Media
Volume Down" keys instead, which Windows will use to adjust the master
system volume level. That at least sticks across program sessions.
Or better yet, use something like
PinVol, which gives you finer
controls that let you set per-game volume levels that are restored
each time you return to a game.
How to identify button terminals
Electronically, every button is just a switch - basically a little gap
between two pieces of wire that you can open and close. When the gap
is open, the two wires are disconnected from each other, so no
electricity can travel between them. When the gap is closed, the
wires touch, conducting electricity through the switch.
So for each button, you need to start by identifying the two terminals
for its switch.
This is trivial for some buttons, because two terminals is all they
have! But a number of common arcade button types have multiple
terminals, which makes it a little harder.
Let's take a look at some common button types and how to identify
their switch terminals.
Arcade pushbuttons
This is the type you'll probably use for the front panel buttons on
your machine. These combine a microswitch and a light bulb socket
into a small plastic base. The complication is that they add two
extra terminals for the lamp power wires, so you have to figure out
which wires go to the lamp and which go to the switch.
Most of these have five terminals, arranged like this:
You should be able to find markings on the plastic body for at least
two of the switch terminals, one labeled "C or "COM", and the other
labeled "NO" or "NC". Match the markings to the diagram above, and
take into account any changes.
- Connect the Ground/Common wire from your key encoder to the "C"
or "COM" terminal on the button
- Connect the other wire to the "NO" (Normally Open) terminal
If there aren't any markings, or the terminals are laid out
differently, you might have to resort to the
experimental method described below.
What about the lamp terminals? That's a whole separate subject,
because even though the lamp is part of the button assembly, it's
controlled by a whole separate electrical system on your virtual cab.
That's covered in
Chapter 55, Button Lamps.
Microswitches
These come in small black plastic cases with two or three terminals.
There's usually a metal lever on the top that actuates the switch, but
sometimes the switch paddle is just a little bump on top.
These usually have some kind of markings on the case near the terminal
legs telling you how the terminals are wired inside the switch. The
markings might only be raised or embossed in the plastic rather than
inked, so they can be hard to see. Try looking at the switch under
a strong light if no markings are apparent.
>
- NO, NC, C (or COM). Look for these markings next to
the terminal legs. These stand for Normally Open,
Normally Closed, and Common. The C or COM
label might not be there at all, but if the other two are marked
NC and NO respectively, the unmarked leg must be the Common.
>
For this type of marking, connect the Ground/Common wire from
your key encoder to the C or COM terminal,
and connect the other wire to NO.
- Numbered terminals. Look for a small "1", "2", and "3"
near each terminal leg. If you find these, you should also find
a diagram printed (or embossed) on the case that looks something
like this:
>
The "1", "2", and "3" lines represent the terminals. The diagonal
line in the middle represents the moving contact in the switch.
The diagram is telling you that normally, the moving contact
connects between 1 and 2, but that when you press the switch,
the moving part tilts the other way so that it connects 1 and 3.
Connect the Ground/Common wire from your key encoder
to terminal "1", and connect the unique button input on the encoder
to terminal "3".
Note that the numbers themselves aren't what's important here:
your switch might use different numbering or different labels
entirely. The relationship between the terminals is what's
important.
>
Coin door buttons: If you're using a real pinball coin door, it
probably has several buttons and switches built in:
- Service panel buttons. A set of 3 or 4 pushbuttons inside
the door. On a real machine, these access the operator menu.
>
- Slam tilt switch. This is a secondary tilt switch that's
activated by hard jabs to the front of the machine.
>
- Coin chute switches. Each coin chute has a microswitch
that's triggered when a coin is accepted.
>
You can connect all of these switches to your key encoder in the same
way as other buttons. Visual Pinball has keyboard equivalents for all
of these functions, so connecting these switches lets you access each
function the same way you'd do it on a real machine.
Things get a little complicated at this point, though. The snag is
that there are several types and several generations of coin doors
available, and each one is wired differently. In particular, each
type has its own special type of connector. You can find more details
on the common types of connectors in
Chapter 40, Coin Door.
If you can't find a wiring diagram for your specific coin door type,
you can use the
experimental
method described below to trace the wires.
Once you identify the button and switch wires, connect them to the
controller just like any other buttons. The coin door wiring usually
includes a single common wire that connects to one terminal on each
switch, plus one unique wire per switch. That's exactly how the basic
key encoder wiring is set up, so just connect the coin door common
wire to the key encoder's Ground/Common wire, and connect each unique
switch wire to a separate button port on the encoder.
Coin door open switch: On a real pinball machine, there's a
switch that detects when the coin door is open. Pinball ROMs use this
to control access to the operator menus, so I'd recommend including
one in your build if you're using a coin door. The
Chapter 40, Coin Door chapter has suggestions for what
kind of switch to use and how to mount it.
Once you have a switch set up, wire its "Common" terminal to the key
encoder Ground/Common, and wire its NC or Normally
Closed to a button port on the encoder. Note that this is
backwards from most buttons, where you wire the Normally Open
terminal. The reason for the reversal is that the geometry of the
installation is kind of backwards: when the door is closed, it pushes
down on the switch paddle, so the switch is "on". When the door is
open, it releases the paddle, so the switch is "off". But we want
Closed to read as "off" and Open to read as "on". The easy way to
accomplish this reversal is to use the Normally Closed half of the
switch, which reports the opposite status of the Normally Open side.
The coin door open button needs a little bit of special treatment in
the software setup. On a real pinball, the coin door switch is just a
switch: it's ON when the door is open and OFF when the door is closed.
But Visual Pinball, by default, treats it as a toggle button, not a
switch: push the button to open the door, push the button again to
close the door. You can change this handling in VP with a little
scripting work - see "Setting up the coin door switch in VP" in
Chapter 40, Coin Door.
Tilt bob
You can connect a tilt bob to a button input, to detect TILT
conditions the same way a real machine does.
Note that the tilt bob
isn't there for "nudging" in the
simulation. It's far too blunt an instrument for that. The tilt bob
is there to serve the same purpose it does in a real machine, which is
detect the overly aggressive nudging that counts as cheating. For the
kind of nudging where you want to influence the ball motion in the
simulation, use an accelerometer. That can differentiate between
gentle nudges and hard nudges and everything in between. See
Chapter 36, Nudge & Tilt for more.
To connect a tilt bob, simply connect the two usual wires from the key
encoder (Ground/Common and a unique button input) to the two ends of
the bob: one to the hanger hook, the other to the ring at the bottom.
Standard pinball tilt bob assemblies have screw terminals where you
can attach the wires - the arrows below show where.
Where to attach the switch wires to a tilt bob.
Note that this is the tilt bob in a real pinball machine. If you're
wondering about the diode visible in the photo, that's only there
because of the "matrix" switching used on the real machines. It's not
needed in a virtual cab.
Switches with four or six terminals
A switch with more than three terminals is probably a "double pole"
switch, meaning that it has two separate switches inside, mechanically
linked so that they turn on and off together. These can come with
four terminals or six terminals.
If the terminals are marked, they should indicate some kind of
grouping to let you know which terminals belong to which switch. For
example, you might see something like "1NC - 1NO - 1COM / 2NC - 2NO -
2COM". All of the "1" terminals are part of the first switch, and the
"2" terminals are part of the second. Alternatively, you might see a
little switch diagram like the "numbered terminals" diagram above, but
with two copies of that circuit. The two circuits represent the two
switches.
This type of switch connects to your keyboard controller with two
wires (Ground/Common and a unique button input), just like any simpler
switch or button. The trick is just to ignore that second switch,
acting like the extra terminals don't even exist. As before, you just
need to identify one pair of Normally Open contacts. You can leave
the other terminals unconnected.
Identifying button terminals experimentally
If you have an unusual button that doesn't fit any of the styles
above, and you can't find any markings, you can always use a voltmeter
to identify the terminals.
In fact, even if you've identified a button's terminals based on
markings, it's not a bad idea to double-check your findings with a
voltmeter to make sure you read correctly.
If your voltmeter has a Continuity Tester setting, select that. On
this setting, the meter should emit a beep when it detects a good
connection. If you don't have a Continuity setting, use the Ohms
setting instead, and read it like this: INFINITY (∞) Ohms means
no connection, 0 Ohms (or close to 0 Ohms) means there's a good
connection.
If you already think you know which pair of terminals to use, touch
the meter's leads to the two terminals. It should read as infinity
Ohms (no beeping if you're in continuity tester mode). Keeping the
leads on the terminals, press the button. The meter should change to
0 Ohms or should beep in continuity mode.
If you have no idea which terminals are which, simply try each pair in
turn until you identify the pair that behaves as just described.
36. Nudge & Tilt
Nudging and tilting are essential aspects of real pinball for any
serious player. A simulation has to do these well to be convincing.
It's easy to set up good nudge and tilt handling on a virtual cabinet,
thanks to a type of sensor known as an accelerometer. We'll explain
the specifics of setting everything up shortly. First, though, some
background information to explain why you want this.
Nudging vs tilting
Nudging and tilting are two separate things to pinball
people, but this can be a little confusing because casual players often
use them interchangeably. To be sure we're all talking about the same
thing, let's define our terms.
Nudging is an attempt to influence the motion of the ball by
pushing, bumping, wiggling, shaking, lifting, and otherwise moving the
pinball machine. A reasonable amount of nudging is fair play. It's
one more way of interacting with the game. It's integral to pinball's
uniquely mechanical nature; it's part of what makes pinball different
from video games.
Tilting is the result of too much nudging. A tilt occurs when
the machine decides that the player is nudging too aggressively. The
machine penalizes the player by immediately ending the current ball
and canceling any bonus.
On real machines
It's hardly worth explaining how nudging works on a real machine,
since it's intuitive everyday physics. However, if your past
experience with pinball is entirely virtual, your intuition about it
might be a bit distorted, since the PC pinball simulators tend to
exaggerate it quite a bit compared to reality. You really should find
a physical pinball machine and play around with it to calibrate
yourself. The real thing is rather subdued and subtle compared to PC
simulations, mostly because real balls and cabinets are a lot heavier
than they act in most PC pinball games.
Tilting is a more
interesting topic, since most people haven't had a chance to look
inside a real machine to see exactly how it works. A real machine enforces
the tilt limits with something called a "tilt bob". This is a simple
mechanical sensor that goes back to the early days of pinball.
A tilt bob is a free-swinging pendulum surrounded by a metal
ring. Both the pendulum and the ring are connected to opposite ends
of an electric circuit, so if the two come into contact, it closes the
circuit, just like tripping a switch. Shoving or lifting the machine
makes the pendulum swing, and if it swings enough to come into contact
with the ring, it triggers the tilt switch. The sensitivity of the
tilt can be changed by adjusting the spacing between the pendulum and
ring. The weight at the end of the pendulum is usually cone-shaped,
so the distance can be adjusted by moving the weight up or down on the
pendulum arm. This lets operators make tilting easier or harder
according to how much abuse they want their machines to put up with.
Newer electronic games usually give you warnings for the first couple
of contacts between pendulum and ring, and tilt if you exceed the
warning limit. The warning count is adjustable in the operator menu
on newer games, giving the operator another way to adjust the tilt
sensitivity. Older EM machines usually tilted immediately on the
first contact.
The tilt bob is the standard on modern machines, but if you look at
older machines you'll sometimes find other types of tilt switches, in
addition to or instead of a tilt bob. For example, some 1960s
machines had a ball that could roll up and down a track inside the
cabinet, to detect if someone tried to lift up the front of the
machine.
Slam tilt
In addition to the tilt bob, most real machines also have something
called a "slam tilt" switch. This is a weighted leaf switch inside
the coin door, which can be set off by sudden forward accelerations,
such as someone kicking the front of the machine. It's really more of
a "slam" detector than a "tilt" detector; you wouldn't set one off
with any amount of nudging. The real machines include them mostly to
deter excessive abuse by frustrated players.
I personally wouldn't go out of my way to include a slam tilt switch
on a virtual cabinet, but if you install a real coin door, it'll
probably have one built-in. Visual Pinball and PinMAME have support
for this switch as an input, so you can attach it if you wish.
See
Chapter 40, Coin Door for more on that.
>
Virtual nudging, part 1: the sensor
In my opinion, there's
only one type of nudge sensor worth considering: a digital
accelerometer. If you're planning to buy one of the commercial
plunger kits, it'll have one built in. Otherwise, I recommend buying
a Freescale KL25Z (which costs about $15) and installing the Pinscape
software (free). The KL25Z comes fully assembled; all you have to do
is plug in a USB cable. It has an excellent on-board accelerometer,
and the Pinscape software is compatible with VP's nudge input system.
In the early days of virtual pinball cabs, digital accelerometers
weren't readily available, so people came up with various other
schemes. I wouldn't recommend any of these for a new build, but for
the sake of historical interest, I've included a
summary of older methods at the end of the
chapter.
Virtual nudging, part 2: the software
Visual Pinball has two completely different ways of handling nudge input,
to accommodate the two main ways VP is used: desktops and cabinets.
For desktop users, VP accepts "digital" nudges via the keyboard. VP
lets you enter three types of keyboard nudges: forward (by pressing
the space bar), left (by pressing /), and right (by pressing Z). This
keyboard convention was invented by the earliest desktop PC pinball
games, long before VP's time, and has been the universal standard ever
since. When you press one of these keys, VP simulates a single sharp
nudge in the corresponding direction.
I call these keyboard nudges "digital" because you can't control the
intensity or duration. VP at least gives you a small amount of
control over the direction, but even that's severely limited, in that
there are just the three fixed directions to choose from.
For cabinet users, VP accepts "analog" nudges, via the joystick
USB interface. VP doesn't expect you to hook up an actual joystick;
it just uses the joystick interface because it's a simple, standard
device type on Windows. The way you use this is to connect a device
that pretends to be a joystick, but actually sends
accelerometer readings.
VP interprets joystick nudge input by reading the X and Y axes from
the joystick, and treating them as the amount of X and Y
acceleration. Importantly, this allows for varying degrees of
strength in the nudging. It also allows VP to detect the direction
of the motion - side-to-side and front-to-back. Since each axis
is analog, these can combine to represent nudging in any direction
and at any strength.
Virtual tilting
As with nudging, VP has two different approaches to tilting, geared
respectively to desktop and cabinet users.
VP's default approach is geared towards desktop users, who use only
simulated nudging via the keyboard. In this case, nothing "real" is
moving, so VP has to judge when enough is enough entirely within the
simulation. This is usually handled in the scripting (programming)
code for each individual table, and it's usually based on a timing
model where you're limited to a certain number of nudges within a
certain time frame. If you press the nudge keys faster than allowed
by this limit, the table tilts.
The scripted approach doesn't work for accelerometers, because the
accelerometer input comes in through the joystick, not the keyboard.
The accelerometer doesn't press the keys no matter how hard you shake
the machine. To make up for this, VP has its own internal simulation
of a tilt bob. Whenever the physical accelerometer detects motion, VP
feeds the motion into its simulated tilt bob. When the simulated bob
swings too wildly, VP sends a "center tilt" key press to the game
script so that it can register the tilt.
There's a third approach that I prefer to either of these, which is to
install a real tilt bob in your cabinet. This is the most realistic
solution because it detects the physical motion of the cabinet exactly
like the real machines do. This captures all of the nuances of your
cabinet's actual motion, which is too complex for VP's simple model to
simulate realistically.
Installing an accelerometer
The Pinscape controller software and the commercial plunger kits are
programmed to feed their accelerometer readings to VP using exactly
this joystick interface. The whole setup is almost entirely
plug-and-play with any of these devices. Just plug the device into
your PC with a USB cable. Windows and VP should recognize it as a
joystick.
The commercial plunger kits come ready to use out of the box. For the
Pinscape controller, you'll have to install the Pinscape firmware,
described in
Chapter 89, KL25Z Software Setup.
For best results, you'll want to attach your device to the floor of
your cabinet. The device should be fixed firmly in place, because you
want it to move with the cabinet and experience the same accelerations
that the cabinet does when the player nudges the machine.
If you're using a commercial plunger kit, check its documentation for
the recommended positioning and orientation.
For the KL25Z, you should mount it flat on the cabinet floor,
preferably near the middle front, with the edges of the KL25Z card
parallel to the sides of the cabinet. As long as it's parallel to the
sides, the orientation is up to you. You can position it with the USB
cable connectors at the front, back, left, or right, whichever is most
convenient. You just have to tell the software which way it's
positioned so that it can adjust the readings accordingly.
Valid orientations for the KL25Z, as viewed
from above. Position with the edges of the card parallel to
the sides of the cabinet, around the front middle of the cab.
Do I need to add rubber foam to isolate it from vibration?
Probably not. I've seen a lot of posts on the forums suggesting that
you need some kind of soft padding to isolate the accelerometer from
vibrations coming from the speakers, solenoids, and so on, as though
it were an LP player in an audiophile's stereo system. But I think
that advice is based on the mistaken idea that the accelerometer is
"triggered" by motion. That might have been true of the older,
kludgier nudge devices that people used before accelerometers became
popular, but it's not true with accelerometers. An accelerometer is a
measuring instrument, not an alarm. It isn't triggered by
motion - it measures motion, quantitatively. It distinguishes
between a little motion and a lot of motion, and all points in
between, and the data it sends to the pinball simulator reflects the
amount of motion measured, on a linear scale. It's not an all-of-nothing,
on-or-off sort of thing. If the accelerometer picks up the tiny
sub-millimeter motions of the cabinet from the speakers, it sends
correspondingly tiny signals to the pinball game, and the pinball game
responds with proportionally tiny effects on the ball's motion,
which (when things are adjusted properly) are so small that they're
invisible. There shouldn't be any need to filter them out. If you
think about it, the steel balls in a physical pinball machine are
themselves affected by all of the same sorts of cabinet vibrations -
they're not wrapped in foam. If
you install an accelerometer and find that speaker vibrations are in
fact causing anomalous nudge input, my first impulse would be to
reduce the "gain" setting in the pinball simulator. Small vibrations
causing big effects suggests more than anything that the pinball
simulator is amplifying the input way too much.
How to configure Visual Pinball for an accelerometer
Visual Pinball handles accelerometer input via the joystick interface.
All of the pinball nudge devices (including Pincsape and all of the
commercial plunger kits) are set up to work this way by default, so
there's usually nothing you have to do with the device other than plug
it in to a USB port. The only configuration you have to do is to VP
itself.
Quick device test: Before firing up VP, it's a good idea to
make sure your accelerometer device is working properly. VP doesn't
give you any feedback at all about whether there's even a device
present, let alone if it's working, so you can save yourself some
frustration by checking to make sure Windows recognizes the device
and can see the acceleration input.
First, make sure the device is plugged in to a USB port. Now press
Windows+R to bring up the Windows "run program" box, type in
joy.cpl, and press Enter. This should launch the USB joystick
control panel, which should show a list of attached joystick devices.
Find your accelerometer device in the list. For example, if you're
using Pinscape, you should see a "Pinscape Controller" entry in the
list.
If you don't see your device listed, Windows didn't recognize it as a
joystick. Check your device's documentation or contact the vendor for
advice, or ask on one the forums (e.g., the
vpforums
cab builders group). I'd advise against messing around with Device Manager
or trying to install or update device drivers. Joysticks don't usually
need device drivers in the first place, so that's almost never
the problem (unless your device's documentation specifically says otherwise).
>
Double-click the list entry for your device. This will bring up the
"Test" window, which lets you see the raw joystick input the device is
sending to Windows.
Warning! DON'T use the "calibration" feature.
Windows calibration isn't suitable for nudge devices; it'll
distort the readings and cause erratic behavior in VP.
See
below for more information.
>
For nudging, the thing to pay attention to is the "X Axis / Y Axis"
box with the little "+" inside. The "+" shows the current X/Y axis
reading from the joystick, which is where the nudge device reports the
accelerometer data.
If you haven't yet installed your device in the cabinet, you can pick
up the device and tilt it in different directions. Gravity is a type
of acceleration, so as you tilt the device, it should report an
acceleration in whichever direction is pointing up. (That sounds
backwards, I know. But you can thank Einstein for this bit of
disillusionment in the name of science. It turns out that the
right way to think about it isn't that gravity is pulling us down, but
that the ground is pushing us up. That contradicts our subjective
experience of it, I know, but only in the same way that the Earth
going around the sun contradicts our subjective experience of that
everyday phenomenon.)
If you've already bolted down the device inside your cab, you can test
it simply by nudging the cabinet. You should see the "+" dance around
when you push the cabinet, and the distance it moves from the center
should be proportional to the strength of the push.
Don't worry too much about the particulars of the motion. The
important thing is that you can make the "+" move left, right, up, and
down in response to tilting the device. Note that many accelerometers
are sensitive enough to pick up rather minute vibrations, so you'll
probably see the "+" jiggling around a little bit even when you're
not nudging the cabinet or tilting the device. As long as it's
staying very close to the center, a little random motion is normal.
However, the difference between the random motion at rest and the
response to a nudge should be large and obvious: you shouldn't be
seeing a lot of motion when the device is at rest, just a little
random jiggling.
If the "+" is moving around as expected, the accelerometer working,
and you can move on to setting up Visual Pinball. If you're not
seeing any motion on the X/Y axis display, or the motion doesn't
correlate with physical accelerations you apply to the device,
something's not working properly. You might need to contact the
vendor or ask on one of the forums for help.
Ren tries to impress upon Stimpy the importance
of not pressing the joystick calibration button
Warning: DON'T use Windows
calibration! The Windows joystick setup dialog has a "Calibrate"
button, and if you're like most people, clicking it will be all but
irresistible. But resist! The Windows calibration is designed for
actual joysticks. It's all wrong for nudge devices. If you run the
calibration on a nudge device, it will screw up the nudge readings,
and you'll see erratic behavior in VP.
But don't worry, there's no permanent harm if you did click the button
at some point. You can easily undo it. Go to the Settings tab in the
joystick dialog (the one pictured above), then click "Reset to
default". That'll erase the Windows calibration data.
Setting up Visual Pinball: Start by bringing up the VP editor.
(In some versions, you have to cancel out of the initial file selector
dialog to reach the editor.) In the Preferences menu, select Keys to
bring up the keyboard dialog. The accelerometer settings are in
the "Global Options" area.
Here are the key things to set:
- Enable Analog Nudge: Check this box to enable accelerometer
input. VP ignores the joystick input if this box isn't checked.
- X-Gain and Y-Gain: These determine the strength of
the nudge effect in the simulation for a given physical acceleration.
Higher numbers make the effect of the same nudge stronger, lower numbers
make it weaker. In most cases, the X-Gain and Y-Gain numbers should
match. Finding the ideal settings for your system requires experimentation.
For now, start with the defaults and finish setting up the rest of the
options. We'll explain how to find ideal settings below.
- Enable Nudge Filter: Check this box to tell VP to "filter"
the raw accelerometer data to make the nudge effect more consistent and
stable. The filter tries to cancel out certain types of systematic
measurement errors that are common with these devices. Without the
filter, the raw accelerometer data can make the ball "drift" as
though the playfield were slightly tilted. The filter is optional,
though, since any type of processing like this can introduce artifacts
of its own. I recommend enabling the filter initially; you can
always experiment with it later once you have the basic setup working
to see if you prefer the unfiltered input.
- Tilt sensitivity: If you check the box, it enables a
simulated tilt bob within VP, with the number specifying how
easily it triggers a tilt. Higher numbers make tilts easier to
trigger. Disable this if you're using a real tilt bob, since
the simulated tilt bob is redundant.
- Axis assignments: In the Axis Assignments box, there's
a drop list next to each of "X Axis (L/R)" and "Y Axis (U/D)"
that lets you assign a different joystick control to the axis.
In most cases, you should leave these at the default settings,
unless your nudge device's documentation tells you otherwise.
The defaults are the obvious mappings: "X Axis (L/R)" = "X Axis"
and "Y Axis (U/D)" = "Y Axis". Make sure the Reverse boxes are
un-checked.
After you set all of the options, click OK to close the dialog,
then close all VP windows to exit VP. It's important to
completely close VP after changing these settings, since VP
won't reload the new settings until you close the program and
launch a brand new session.
VP 9 vs VP 10: Before going on, one really important thing to
be aware of is that VP 9 and VP 10 require radically different Gain
settings. If you're using both versions on your system, you'll have
to find the right gain settings for each version separately, because
they don't translate across the versions. The rule of thumb is that
VP 9 settings should be approximately 10 times higher than VP 10
settings.
For example, if a Gain of 100 works well for you in VP 10, you'll
probably set the VP 9 Gain to about 1000. The ratio might not end up
being exactly 10 to 1 on your machine, since the ideal settings vary
by system and according to your taste, but it should be in that
ballpark.
Finding the ideal X/Y Gain settings: I'm afraid I can't just
give you one-size-fits-all numbers to plug in to the X/Y Gain boxes.
The ideal settings for your system depend on the particulars of your
machine: which nudge device you're using, your CPU speed, your
graphics card, your personal taste, and even which games you're
playing.
The way to find the right settings is by experimenting, by running a
game and testing different nudges to see what kind of effect they have
on the ball. It's easiest to do this when a ball is sitting in the
plunger chute or captured with a flipper. Give the cabinet a push and
see how strong the reaction is. Try different strengths of pushes and
see if the reaction seems natural or not.
Follow this procedure to adjust settings:
- Open a game of your choice in the VP editor
- Run the game
- Test some nudges and see if the effect feels natural
- If the effect feels too strong (the simulation overreacts
to slight nudges), you'll need to reduce the gain settings
- If the effect feels too weak, you'll need to increase the
gain settings
- Quit out of the game and return to the editor
- Bring up the Keys dialog via the Preferences menu
- Increase or decrease the Gain settings as you decided above: try
large changes at first (double or halve the settings, perhaps),
and make smaller changes as you zero in on the sweet spot
- Click OK to close the dialog
- Close all VP windows. This step is crucial because
VP won't load the new settings until you completely exit
the program and restart it.
- Re-launch VP from the desktop and start over
While you're testing the nudge strength, also observe the
direction of the ball's response and make sure it seems
appropriate. A forward push should make the ball move up/down, not
side-to-side, and a sideways push should make the ball move
side-to-side rather than up/down. If these seem backwards, you might
either have your device oriented incorrectly, or you might need to
adjust the "Axis Assignments" in the VP setup.
Remove other joysticks:
Visual Pinball won't work correctly for nudging if you
have multiple joystick devices connected to your system.
Some game controllers that don't physically look like
joysticks act like joysticks as far as VP is
concerned, so if you're having any problems getting
nudge working, try disconnecting all USB game
controllers apart from your nudge device.
>
What's realistic?
The ideal strength of the effect is of course up to you. One of the
great things about virtual pinball is that it doesn't have to be
perfectly realistic: parts don't have to break, the playfield paint
never has to get worn down, and nudge reactions can be as wild as you
want.
If you want to calibrate for realism, though, it's a really good idea
to find a real machine and play a few games, paying special attention
to the way a real ball reacts to nudges. Run the same kinds of tests
suggested above, such as nudging with a ball sitting in the plunger
chute or trapped on a flipper. Gauge how much force it takes to make
the ball jump a noticeable distance off the flipper when trapped. If
you're accustomed to desktop pinball, you'll probably be surprised at
how much force is required to get even a slight reaction on a real
machine, let alone sending the ball flying an inch or two off the
flipper the way a keyboard nudge does in desktop play.
One thing that can be hard to get accustomed to if you're coming from
a desktop pinball background is the idea that accelerometers are
analog devices. In desktop pinball, nudging is a "digital" action:
you push a button and the ball jumps a certain fixed amount. In a
virtual cab with an accelerometer, though, a nudge doesn't have a
single fixed amount of force in the game. The simulated response
should be proportional to the physical force you apply. Don't think
of the cabinet as a giant space bar that you press to get that digital
nudge. You shouldn't expect or want the ball to make that same fixed
digital jump every time you give the cabinet the slightest touch. The
reaction should be proportional to how hard you nudged. It's okay if
there's no obvious reaction to a very slight nudge; go back to the
real machine and see how much force it takes before you see any
reaction at all.
It's fine to calibrate for an exaggerated version of reality if that's
what you prefer, but it's still worthwhile to get a visceral idea of
what the real thing looks like, as a reference point. I personally
find that a slightly exaggerated degree of reaction feels about right
on VP; calibrating for reality leaves things a little too flat in the
virtual version.
What about interference from the shaker or subwoofer?
One of the frequently asked questions by new cab builders is whether
cabinet vibrations from the game itself, such as from the audio system
or from the shaker motor, will cause unwanted accelerometer feedback.
This seems like a reasonable worry when you consider that
accelerometers are designed to pick up tiny motions.
Here's a sanity-check question to ask yourself. Do real pinball
machines have the same sources of vibration? Obviously they do. Do
these same vibrations on a real pinball affect the ball noticeably?
Obviously they don't. So, should vibrations that don't affect the
ball in a real game affect the ball in a virtual game? Or put another
way: is the simulation accurate if it responds differently from a
real game to the same vibrations?
This brings us back to the point above in "What's realistic?", that
virtual pinball tends to exaggerate the effect of nudging. If you
do see interference from your shaker motor or audio system,
it's a very good sign that you have the Gain settings turned up
well above realistic levels. Go back to the
accelerometer settings in VP and make further adjustments to find a
happy medium for the Gain level: high enough that the ball responds to
your intentional nudges, but low enough that the ball doesn't go
veering off every time the music plays loud.
In practice, some cab builders do have problems finding this happy
medium in Gain settings. In my opinion, the accuracy of the
accelerometer is the crucial factor here. I've found the KL25Z
accelerometer to be excellent for virtual cab use, so if you're using
a different nudge device and simply can't find the happy medium, you
might consider adding a KL25Z with the Pinscape software. The KL25Z
is inexpensive (about $15), and the nudge feature is easy to set up,
just a matter of plugging in the USB cable and installing the Pinscape
software. The Pinscape software happily coexists with other I/O
devices (LedWiz, PacLed, other plunger kits, button encoders, etc), so
you can use it for its nudge features alone even if you've already
decided on other devices for other functions.
Setting up FX2/FX3 to work with an accelerometer
Pinball FX2 and FX3 can also simulate nudging using an accelerometer,
but they don't use the joystick interface that the Pinscape Controller
and most other nudge devices use.
Instead, they require input through the XBox controller interface.
To bridge the gap, there's a program called
x360ce that can make a
joystick device emulate an XBox controller. That can reportedly
be used to make a joystick-based accelerometer work in FX2/FX3.
I don't use this in my own system, so I don't have any details about
how to set it up. If anyone wants to write up instructions, I'll
be happy to include them here.
Installing a real tilt bob
The best option for a tilt bob is to buy a real one from a pinball
parts supplier (see
Chapter 4, Resources). They cost about $10 to $20.
You could also fashion one yourself, but the real ones are cheap
enough that it's probably not worth the added effort.
On a real machine, the tilt bob is usually installed on the left side
wall near the front of the machine. This is the best place for it
because the player will primarily be nudging the machine near the
front. If you haven't already installed your playfield TV and flipper
buttons, be careful to pick a spot that won't get in the way of
anything.
Electrically, wire the tilt bob just like a button or switch. As with
all buttons, you'll run two wires between the bob and your key encoder
device: the "common" or "ground" wire, and a wire connected to the
input port you'll use for the tilt key. On the bob, one wire connects
to top of the pendulum, and the other connects to the ring. It
doesn't matter which wire goes to which end. The bob parts are
usually all metallic, so you can attach the wires anywhere that's
convenient. The standard tilt bob assemblies for real machines
include screw terminals for the wires.
Screw terminals (arrows) for connecting switch wires
to a standard pinball tilt bob assembly
If your key encoder has a pre-programmed port for "tilt" or "T" key,
use that. If your encoder is programmable, attach it to any port, and
program that port to send the "T" key.
How to configure VP for a mechanical tilt bob
As far as Visual Pinball is concerned, the tilt bob is simply another
keyboard input. If you installed a physical tilt bob as described
above, it will send a "T" key press to the PC whenever the tilt bob
makes contact, as though you typed "T" on the keyboard.
VP didn't originally support real tilt bobs at all, since VP was
initially designed for desktop PCs, before anyone even thought of
virtual pin cabs. Support for tilt bobs had to be retrofitted into VP
later in its evolution, and like most retrofits, the support isn't
quite seamless. But with a little tweaking, we can fix that and make
it work right for virtual cabs.
The way that VP handles the "T" key input is simply to pass it through
to the Visual Basic script that controls the table. That's really
what's "not quite seamless" about VP's handling of tilt bobs: most
table scripts are programmed for desktop play, so they don't expect
a real tilt bob to be present.
Fortunately, most table scripts use a single, shared script file for
the nudge key handling. That means we can modify most of our
installed tables simply by updating this one shared script file.
What's more, we don't even have to edit the main shared script file by
hand. The shared script has a "plug-in" design that lets us change
some of its behavior by placing a script file with a certain name in a
certain VP folder.
Just for reference, here's what the standard shared script does. When
the "T" key is pressed, the default script performs a "fake" keyboard
nudge, applying a brief acceleration to the physics model so that the
ball's motion is deflected a little bit. The script also keeps a
count of "T" key presses, and uses a timer to keep track of when they
occur. If several "T" key presses occur within a few seconds, the
script sends a "tilt switch" signal to the game's ROM. The counter
and timer serve as a crude approximation of a real tilt bob: the idea
is that too many of these fake nudges too quickly should count as a
tilt.
Here's what we want to happen instead. Since we're using a
real accelerometer, we don't need or want the fake nudges. And since
we're using a real tilt bob, we don't need the crude approximation of
the tilt bob provided by that counter/timer system. Our real
tilt bob already registered a real tilt, so we don't need the script
to make any further decisions about it - we just want to send the tilt
switch signal directly to the game's ROM. That's what would happen
in the real version of the game, so it's what we want to happen in
the simulation, too.
Here's how you can fix the shared script to accomplish this:
- For VP 10.4 and later:
- Go to your Visual Pinball program folder
- Open the Scripts folder you find there
- Find the file NudgePlugIn_mjrAccelAndTilt.vbs, and rename
it to NudgePlugIn.vbs
- For VP versions before 10.4:
- Go to your Visual Pinball program folder
- Open the Tables folder you find there
- Download NudgePlugIn.vbs and
place it in the Tables folder (make sure the filename is NudgePlugIn.vbs)
- Double-check your keyboard encoder device setup to make sure
that your tilt bob is set to generate T key presses
- In Visual Pinball, go to Settings > Keyboard, and make
sure that the keyboard key for "Mech Tilt" is set to "T". That's
the default, but it's worth checking that it didn't get changed
accidentally.
If you read through
Chapter 15, Pinball Software Setup,
you might recall my advice about setting up a text file where you
record your customizations. This would be a good thing to add to
that file now, so you'll remember it if you have to set up VP
again at some point.
You should now have proper tilt bob handling for most tables.
Virtually all modern tables with electronic displays should work with
this, because the VP versions of those tables almost always use the
shared scripts.
You'll probably run into some exceptions - tables that don't use the
shared scripts, and so don't benefit from this custom version of the
shared script. This is especially likely for older "EM" or
"electro-mechanical" tables from the 1960s and earlier, the type with
mechanical score reels. The VP versions of these older tables often
use custom scripts for tilt handling, because the shared scripts are
designed with more modern games in mind. The symptom you'll see in
these older tables is that they behave in the weird "default" way
described earlier. That is, when your tilt bob fires, you'll see
a "fake nudge" in the game rather than a Tilt condition.
Whenever you run into an older table that behaves like this, you'll
have to do some hand-editing of its script. That'll require a
little sleuthing work on your part, since you'll find the right
section in the table's custom script code and replace it by hand.
Here's the basic procedure:
- Open the table in the VP editor
- Open the script window (View > Script in VP 10, Edit > Script
in VP 9)
- Search for the text "KeyDown". You should find some code that
looks something like this:
Sub Table1_KeyDown(ByVal keycode)
if keycode = 20 Then
Nudge 90,2
TiltIt
end if
End Sub
- If you can find code like that with a test for if keycode = 20
then or if keycode = keyBangBack then, then all you
have to do is delete the line that starts with "Nudge".
- If you can't find a line exactly like that, but you find similar
lines with tests like if keycode = CenterTiltKey, you should
simply add a new block of code like this just after the Sub line:
if keycode = 20 then
TiltIt
end if
- This is where some sleuthing comes in. You'll have to replace
the line that reads "TiltIt" in the example above with whatever
the equivalent in the actual script is. Look for the code that
handles the similar cases, such if keycode = CenterTiltKey, and
copy what it does, except that you should omit any lines
that start with Nudge.
If you can't find code that looks like this, or you can't make
enough sense of the code to see how to make these changes, try
asking in the forums. Lots of people on the forums are adept
at coding these scripts, so someone should be able to help you
figure out the necessary changes.
How to configure VP for a "virtual" tilt bob
What if you don't want to install a physical tilt bob, but you still
want VP to detect tilt conditions when players get too aggressive with
nudging? In this case, you can enable VP's simulated software tilt
bob. The simulated tilt bob will monitor the accelerometer nudge
input, and will generate a press of the space bar key when the
simulated tilt bob swings too far.
We're talking about this situation:
- You're using an accelerometer
- But you're not using a physical tilt bob
This is really easy to configure, since the simulated tilt bob is a
built-in feature in VP.
- Set up your accelerometer, and configure it in VP
- Follow the the procedure to configure VP for a mechanical tilt bob,
even though you're not actually using one - this will make VP treat the
software tilt bob the same way it would treat a mechanical one, which
is just what we want when using an accelerometer
- Go to the VP Keys dialog, and check the box
to enable the Tilt sensitivity setting
The last step is what enables the simulated tilt bob - the dialog
refers to it rather obliquely as "Tilt Sensitivity".
The number in the Tilt Sensitivity setting lets you control how much
nudging it takes to trigger a tilt condition. Higher numbers make it
more sensitive. There's no rule for what this setting has to be -
it's just a matter of experimenting with it to get the feel you
prefer, by playing games and testing how much nudging it takes to
trigger a tilt. If it feels too easy to trigger a tilt, increase
the number.
Older nudging schemes
In the early days of virtual pinball cabinets, it wasn't as easy to
find digital accelerometers as it is today. So early cab builders had
to resort to other approaches for nudging. There's no reason to think
about any of these for a new build: digital accelerometers are simply
the right tool for the job, plus they're cheap and easy to use. But
for the sake of historical interest, we'll survey the schemes that
older cabinet builders used.
Buttons. It's not exactly subtle, but one way of telling the
machine you want to nudge it is to provide a button that inputs a
"nudge" command to the software.
This is a direct carry-over from
desktop pinball games, where you nudge by pressing a keyboard key
(usually the space bar). Early cabinet builders just ported this idea
to the cabinet by including nudge buttons.
Button nudging is simple, but it's not very satisfying in a cabinet,
because it's not anything like how you play real pinball. So cab
builders started looking for ways to detect cabinet motion.
Mercury switches. It's not common these days, but at one time
there was a popular kind of light switch (the kind on the wall in your
house) that had a little capsule of liquid mercury inside. The switch
wires stuck into the capsule at one end. Moving the switch lever up
would tilt the capsule so that the mercury ran to the end with the
wires. Mercury is of course a conductive metal, so when the mercury
spilled over the wires, it closed the connection and turned on the
light. Moving the switch lever down made the mercury run to the other
end, away from the wires, breaking the connection and turning off the
light.
The point of these switches was to be quieter than regular
mechanical light switches, since there was nothing inside to go CLICK.
But cabinet designers realized they had another use. Because of the
flowing mercury inside, you can use them as simple motion detectors.
If you position one of these switches with the mercury capsule almost
horizontal, with just at a slight tilt, a little push will send the
mercury inside sloshing and make a momentary switch connection. If
you wire one of these to the nudge key input on the PC, you can
simulate a "nudge" key press by giving the cabinet a shove.
This approach eliminates the need for pressing buttons, so it acts a
bit more like real nudging. But it's still pretty crude in that it
can't detect how hard each nudge is. It's purely binary: nudge or no
nudge.
Weighted joysticks. What we're really after is a way to detect
not just when the cabinet is nudged, but how hard the nudge is. One
way to do this is to use a joystick as a pendulum: hang the joystick
upside down, so that the stick is pointing straight down. Put a
weight on the end of the stick to give it some inertia. When you
nudge the machine, the inertia of the weight will make the stick want
to stay in place, which means that it appears to move in the opposite
direction of the nudge, relative to the machine. By reading the
joystick position, we can see how far it moves from center, which is a
rough analog to the amount of force in the nudge.
This gives us the comparative strength of the nudge that we're after,
so it's the best idea yet. But it's a fairly complex mechanical
system. Most people who set these up find it difficult to get them to
behave consistently. It's hard to keep the joystick precisely
centered when everything's at rest, and the weight tends to swing back
and forth after a nudge, which can generate spurious aftershocks.
It's also hard to control the sensitivity, since the spring force and
damping friction in the joystick aren't usually adjustable.
Old video game motion controllers. The next better approach
is to use a motion controller from an old video game. These generally
look like joysticks to the PC, and inside they have an electronic
accelerometer that senses when the controller is tilted or moved.
This is very similar in principle to the weighted joystick, but it's
easier to set up mechanically.
This approach came closest to the modern accelerometer solution.
The downsides are that you had to find an old video game to scavenge,
and that the accelerometers in these old controllers weren't very good
by modern standards. In addition, many were designed for proprietary
video game consoles rather than PCs, so you need additional software
to make them emulate joysticks. More software, more problems.
>
37. Plunger
The plunger is certainly one of the defining features of pinball.
It's as iconic as the flippers and steel balls. It's also one of the
trickier parts of building a virtual cab. Plungers obviously aren't
standard input devices for PCs, like keyboards and mice. There really
isn't anything in the standard set of PC input devices that's at all
equivalent. If you want a plunger for your cab, you need specialized
hardware, purpose-built for the job.
Happily for us cab builders, such specialized hardware
exists. There are a couple of commercial options available, and
the Pinscape software offers multiple sensor options
that you can build yourself.
In this chapter, we'll look at the plunger hardware options available,
and some of the issues involved in planning and installing them. The
good news is that there are lots of good options if you want a
plunger, but all of them require some planning work.
Plunger or Launch button?
The first decision you should make about plungers is whether you want
one at all. Most real pinball machines have plungers, but a plunger
isn't an absolute necessity for a virtual cab. A simple Launch Ball
button is adequate - although a compromise, because it doesn't give
you the same degree of control as a physical plunger.
There are really three configurations to choose from:
- Plunger and launch button. The most popular option among pin
cab builders. Lets you choose the best type of control for each game.
- Launch button only. Simpler and cheaper, but sacrifices the control
of a real plunger for skill shots.
- Plunger only. This is an option if you're using Pinscape or a Zeb's
Boards plunger, because these devices can do double duty as virtual
Launch buttons when needed.
Option 1: Plunger and Launch button
I haven't done a scientific survey of cab builders, but I think the
most common answer to "plunger or launch button?" is "both". With
the plunger in the standard position, there's room directly below
it for a Launch button, at least in a full-sized cab.
Some cab builders flip this arrangement upside down, with the Launch
Button in the normal plunger location and the plunger located below
it. I don't personally like the appearance of that; it always looks
to me like the plunger got installed in the wrong spot. If part of
your motivation for installing a plunger is a more realistic look,
this works against that purpose. Aesthetics aside, though, there are
some pragmatic advantages to the inverted arrangement. One is that
it's arguably more ergonomic: the plunger-on-top arrangement makes the
Launch Ball button a little inconvenient to reach, since the plunger
sticks out enough to be in the way. The other is that it gets the
plunger out of the plane of the TV, which makes it possible to
position the TV all the way forward against the front wall of the cab.
If you were going to move the plunger down from its normal spot anyway
to accommodate a TV, this arrangement can at least get some extra
mileage out of that.
Option 2: Launch button only
Some pin cab
builders choose to forego a plunger entirely and just use a Launch
Ball button. This is a perfectly viable option functionally, because
all of the PC pinball programs let you operate the on-screen plunger
via the keyboard. And it doesn't make your machine look unrealistic,
since a number of popular real arcade pinball machines also used
button launchers.
If you're accustomed to playing pinball on your desktop PC, you
already know how button-based plunging works. The convention on most
desktop pinball games is that you press and hold the Enter key to
start pulling back the plunger. As long as you hold down the Enter
key, the plunger keeps retracting at steady pace. As soon as you
release the Enter key, the game fires the plunger from however far
back it was at the the moment of release. You control the strength of
the launch by timing the release. To make this work with a pin cab,
you just wire the Launch Ball button to act like the Enter key.
This time-based plunger action is a compromise for playability,
obviously. It doesn't give you the same control you'd have with a
physical plunger, and it's not a very good translation of the
mechanics of a real plunger. But it at least serves the function,
letting you make do with just a button if that's your preference.
Option 3: Plunger only
If you use a Pinscape Controller plunger or one of the plunger kits
from
Zeb's Boards, it can
serve double duty as a Launch Ball button for tables that don't have
conventional plungers, such as
Medieval Madness or
Terminator 2: Judgment Day. This makes it possible to
play every type of game using just the plunger, so that you don't
have to install a separate Launch button.
If you're using another plunger device, you should stick with the
"plunger and Launch button" option. The ability to simulate the
launch button is a feature of the plunger device, and other devices
besides Pinscape and Zeb's don't generally have this ability.
If you're building a Pinscape Controller plunger, see
Chapter 109, ZB Launch Ball for details on how to set this up. If you're
using a Zeb's Boards unit, consult the owner's manual for the device.
Which option is best for you?
The only reasons I'd consider not including a plunger in your
cab is if you're on a very tight budget, or you want to keep the
project very simple. A plunger has such strong advantages that I'd
only decide against one because of some external constraint like that.
In terms of functionality and aesthetics, I think there's no contest.
If you do decide on a plunger, I personally think it's best to include
a Launch button as well, so that you can use the control type that
exact fits each game. But if your plunger can simulate a Launch
button (as Pinscape and Zeb's Boards plungers can), this is only a
slight edge functionally. You can choose according to whether you
think more buttons will make your cab look cooler or make it look
cheesier.
Why do I give the plunger such high priority? There are two main
reasons. The first is aesthetics: a plunger makes your pin cab
look more like a real pinball machine. The plunger is practically a
defining feature of pinball, so its presence will instantly convey to
anyone looking at your cab that it's a pinball machine. Yes, there
are some real arcade pinballs that use launch buttons or gun triggers
or something else in place of a plunger, but to some extent they do
that to stand out from the crowd. With pin cabs the challenge is
to make them stand out less from the real machines than they
already do by virtue of their virtual-ness.
The second reason is that plungers are actually useful for game play.
If you're not an experienced pinball player, plungers might seem
pretty binary: you pull it back and let it go. But if you've played
more seriously, you know about the venerable tradition of the skill
shot, an element of many tables where you can score a bonus by
launching the ball with just the right speed or timing. That requires
precise control. A good virtual plunger can give you that control; a
button just can't. The extra control adds to the fun for games with
skill shots.
To summarize, here are the advantages of each option:
Plunger | Launch Button |
Realistic | Simple |
Skill shots | Cheap |
Classic look | Modern look |
Choosing a plunger device
This can be a tough decision. There are several options available,
with different tradeoffs. Let's look at what's available and the
relative advantages of each option. We'll start with a quick
comparison chart for easy reference, then go into the details on each
of the options.
The prices shown are only estimates, and of course they're likely to
change over time, as prices tend to do! For the DIY options, the
estimates are even more approximate, since there are different ways
you can build the projects. For example, many of the DIY plans
include custom 3D-printed parts. If you have your own 3D printer at
home, you can fabricate those for the cost of the filament, which
might only be a few dollars; but the same parts might cost $10 or $15
if you have to order them from a commercial 3D print service. And for
that matter, you can sometimes make do without the 3D-printed parts,
by substituting something improvised. To be conservative, though, my
estimates assume that you're using the recommended 3D-printed parts
and ordering them through a commercial print service.
Also note that the Pinscape options all require a KL25Z
microcontroller board to run the Pinscape software. I didn't include
the price of the KL25Z in the price estimates, since I'm assuming that
you're already pricing that into your system for its other features.
A single KL25Z can handle the plunger along with all of the other
Pinscape functions, so you just need the one. If you weren't
already planning to include a KL25Z in your system anyway, you should
add $15 for the KL25Z to the price estimates for the Pinscape plunger
options.
Device | Type | Price (est.) | Degree of difficulty | Accuracy | Features |
VirtuaPin plunger kit |
Commercial |
$160 |
Easiest |
Not tested |
15 buttons, accelerometer |
Zeb's Boards plunger kit |
Commercial |
$150 |
Easiest |
Not tested, est. Very Good (<1mm) |
19 buttons, accelerometer |
Pinscape potentiometer |
Open source |
$20 |
Medium Low |
Very Good (<1mm) |
All Pinscape features |
Pinscape with Oak Micros potentiometer |
Open source |
$25 |
Low |
Very Good (<1mm) |
All Pinscape features |
Pinscape TCD1103 |
Open source |
$50 |
High |
Excellent (0.1mm) |
All Pinscape features |
Pinscape AEDR-8300 |
Open source |
$30 |
High |
Excellent (0.1mm) |
All Pinscape features |
Pinscape VCNL4010 |
Open source |
$10 |
Low |
Good (1mm) |
All Pinscape features |
Pinscape VL6180X |
Open source |
$20 |
Medium |
Low (1cm) |
All Pinscape features |
Pinscape TSL1410R |
Open source |
N/A |
Medium High |
Very good (0.25mm) |
All Pinscape features |
("Not tested" means that I don't have any hands-on experience with
that device, so I can't say how well it works compared to the options
that I've tried in person.)
Top picks: I've tried to provide all of the details to let
you make a fully informed decision yourself, but if you want my summary
opinion, here are my top picks according to what you consider the
most important priority:
- If you want it super easy: the Zeb's Boards kit
- If you want it super cheap: Pinscape with potentiometer or VCNL4010
- If you want the Pinscape features, with fairly easy setup:
Pinscape potentiometer, VCNL4010
- If you want the best performance, and you're up for a more challenging
build: Pinscape AEDR-8300 or TCD1103
Now let's look at the available options in depth.
Commercial options: The two available commercial options that
I'm aware of are from
VirtuaPin
and
Zeb's Boards. You might also
see an old product called the Nanotech Mot-Ion Adapter mentioned in the
forums, but that was discontinued years ago and is no longer available
for purchase.
- VirtuaPin's product uses an IR proximity sensor to detect the plunger
position. That's a nice design in principle because it's physically
simple and reliable, but when I tested their version 2 product years
ago, I found that it was too low-res for my needs. Their version 3
product (current as of 2021) uses a different sensor that has better
native performance, but I haven't tested their implementation.
The v2 sensor resolution was the only problem I had with this product,
though; otherwise it's a solid offering, well packaged and easy to
set up. It includes a button encoder that lets you connect about 15
cabinet buttons, and an accelerometer for analog nudge input. It's
not expandable, though, and 15 buttons is a bit limiting for a
decked-out pin cab.
- The Zeb's Boards plungers use slide potentiometers as sensors. I
haven't tested any of Zeb's plunger products myself, but I consider
the basic physical sensor type sound because the same sensor type
works well with the Pinscape software. The Zeb's Boards products
include button input connections and accelerometer nudging features
similar to the VirtuaPin product. Zeb's has an excellent
reputation for technical support.
The big advantage of the commercial products, and it really is a big
advantage, is ease of setup. They both come as complete packages,
with all necessary parts included, and installation is simple for
both. They also come with official technical support from the vendors
(with a personal touch, too, since both are small businesses; you
won't have to talk to an outsourced tech support call center).
The downside of the pre-packaged products is that they're closed
systems with somewhat limited feature sets. Not overly limited - they
both have good coverage of the basic pin cab necessities. But the
cost of keeping things simple is that they don't offer much
configurability or flexibility to expand beyond their fixed features.
And of course the software is proprietary, so there's no way to
add features or fix bugs yourself; you have to rely on the vendors
for bug fixes and feature upgrades.
Pinscape options: Pinscape is a semi-DIY option. "Semi" in
that you have to buy all the parts and do all of the physical setup
work yourself, but you don't have to figure everything out from
scratch, and you don't have to write any of the software. This build
guide has plans that you can follow for a number of plunger sensor
options, including parts lists and assembly instructions, so while
it's not as easy as ordering a finished product and plugging it in,
it's also not a research project. And of course all of the software
is already written. If a research project is what you're looking for,
though, this can be a good starting point. It's all open-source, so
you're free to modify the sensor designs and software if there are
things about them you want to improve.
All of the Pinscape options naturally require the Pinscape software
running on a KL25Z, so you should factor the cost of the KL25Z (about
$15) into the overall price if you weren't already planning on a
Pinscape device anyway. (If you were, you won't need a separate
KL25Z for the plunger - a single KL25Z can handle all of the Pinscape
functions simultaneously.)
The Pinscape software has built-in support for the following sensor
types:
- Potentiometer: A potentiometer is a variable resistor, in this case
one with a sliding lever that smoothly varies the electrical
resistance level as you move it from one end to the other. They make
these primarily for audio mixing panels and similar control panels,
but they also work well for plunger position sensing, since the
plunger slides back and forth in a straight line. The plunger travel
range is about 80mm long, so we need a sliding potentiometer with a
slightly longer travel than this. Suitable pots around 100mm long
are easy to find.
The performance of these sensors is pretty good. In my testing,
you get accuracy of about 1mm, which is good enough for smooth
on-screen animation and tracking. The only negative is that the
analog nature of the device means that there can be some random
noise in the signal, which shows up on-screen as "jitter". It's
pretty minor, and the Pinscape software has a filtering option
to reduce it, with some trade-off in accuracy.
Pots are the least expensive type of plunger sensor, since the
only required part (other than KL25Z) is the potentiometer,
which runs about $6 at Mouser. If you want to keep it really
cheap, you can improvise your own mounting apparatus out of
plywood and generic fasteners (L-brackets or that sort of thing).
If you want to make it a little tidier (at slightly higher cost),
the plans in this guide include a 3D-printable mounting bracket
that you can fabricate.
- Oak Micros's potentiometer (no longer available):
This works the same as the DIY potentiometer above, but it comes
with an easy-to-install mounting bracket and saves you the work of
sourcing the parts and assembling and wiring everything. I don't
think this is available any longer, because Oak Micros announced
in June 2021 that they're no longer shipping any of their products.
You can check the original announcement on vpforums to see if there
are any updates:
- VCNL4010: An IR proximity sensor that can measure the distance to a
nearby object, such as the end of the plunger. For a Pinscape setup,
you mount the sensor near the end of the plunger, so that it can
measure the distance between itself and the plunger; that serves as a
measurement of the plunger's current position. This sensor is cheap
(about $7.50) and easy to set up (maybe even easier than the
potentiometer), and it's completely non-contact (no wear and tear from
moving parts). Its performance isn't quite as good as some of the
other options (the potentiometer, AEDR-8300, and TCD1103 are all more
precise), but it's still pretty good. Given its low price and easy
installation, it's worth considering.
- TCD1103: This is an optical imaging sensor that detects the plunger
position by rapidly taking pictures of the plunger. The TCD1103 chip
is a high-resolution CCD (a type of camera sensor) that produces great
quality images, which makes for excellent performance in the position
sensing. It's capable of reading the plunger position to better than
1/300", with great stability, which makes for a very smooth on-screen
response. The downsides of this sensor are that it's complex
to build, and fairly expensive. It requires some additional electronics to interface to the
KL25Z, as well as a small lens to focus the plunger image onto the
sensor. I've designed a printed circuit board and 3D-printable
mounting bracket (both open-source, of course) to bring it all
together, so it's fairly straightforward to assemble one of these
systems using my plans. However, there are enough parts involved that
it does take a little online shopping work to source everything -
plus, the printed circuit board uses SMD (surface-mount) components,
which can make the soldering job intimidating if you haven't worked
with these before. But I really like this sensor for its excellent
performance and the fact that it has no mechanical contact with the
plunger (so there are no moving parts to wear out). See
Chapter 105, Plunger Setup (TCD1103).
This is a fairly expensive option. The sensor chip all by itself
costs about $15 at Mouser, and you'll also need a lens (around $8),
lens holder (about $1), circuit board ($6-$15), a 3D-printable
mounting bracket (around $10 if you have to order it from a
commercial 3D print service), and a few other electronic
parts ($5), for a total around $50.
- AEDR-8300: This is a specialized IC chip known as
a "quadrature encoder", which uses optics to detect motion across a
pattern of uniformly spaced, alternating black and white bars. The sensor tracks
motion by counting the bars it passes. The bars are closely
spaced, 75 line pairs per inch, and the sensor can determine its
position to half the width of a bar, so the position reading is accurate to 1/300".
This is an excellent sensor in terms of accuracy and
stability; when set up properly, it really does achieve that 1/300"
accuracy, which makes for silky smooth animation and tracking in the
on-screen plunger. The big downside is that it's rather complex to
set up, both because it requires a bunch of specialized (but easily
fabricated) parts, and because the AEDR-8300 chip itself is a tiny
SMD (surface-mount) chip that can be intimidating to work with
if you haven't done SMD soldering work before.
See Chapter 104, Plunger Setup (AEDR-8300 Encoder).
This option requires a custom circuit board ($5), the electronics
for it ($10), a laser-cut acrylic piece (about $1, although it's
only practical to order in quantities of about a dozen),
and a 3D-printable bracket ($15), which adds up to
about $30 in parts.
- VL6180X: This is a "time-of-flight" IR distance sensor, which means
that it measures the distance between the sensor and a nearby object
by measuring the amount of time it takes for a pulse of light to
reflect off of the object and return to the detector. For use with a
plunger, you position the sensor at the end of a tube that you place
around the plunger, with the sensor pointing at the plunger tip to
measure the distance to the tip. The software works out the plunger
position using the distance reading, knowing that the sensor is always
at the same fixed position. These are relatively cheap and very easy
to set up, since you can buy pre-built boards featuring these sensors
from several hobby-electronics companies. Unfortunately, I don't
consider these accurate enough to be usable - close, but not close
enough. They nominally take distance readings in 1mm increments, but
they're really only accurate to about 1cm. That makes the on-screen
plunger animation very "chunky" when you connect them to a pinball
program. They need about 10x better accuracy to be really workable;
maybe the next generation in a few years will achieve that. I don't
recommend these, but given how easy they are to set up, some people
might find them "good enough." See Chapter 106, Plunger Setup (VL6180X Distance Sensor) if you want
to read more about these.
You can buy pre-built boards with this sensor for about $15 from
Sparkfun, Adafruit, and some other hobby robotics companies. You'll
also need to improvise some kind of mounting bracket, which might
add a little cost if you come up with something requiring 3D printing.
- TSL1410R/1412S: This is the late, great, original Pinscape sensor,
but sadly, the manufacturer stopped making it and the supply dried up
a long time ago. This sensor was a linear photosensor array,
consisting of a single row of 1280 pixels (1410R) or 1536 pixels
(1412S). The row of pixels was by a magical coincidence roughly the
same length as the overall plunger travel distance of about 80mm, so
the idea was that you placed the sensor near and parallel to the
plunger rod, and placed a light source on the other side; the software
read the position by taking a snapshot of the pixels and scanning the
image for the shadow cast by the plunger. This worked pretty darn
well and was only middlingly difficult to set up, although the sensors
themselves were fairly pricey (about $40). But alas, it's more or
less impossible to build this design now since it's more or less
impossible to find the sensors. But for the sake of historical
reference, you can still read about it here: Chapter 101, Plunger Setup (TSL1410R Optical Sensor).
The sensors listed above are the ones that are already supported in
the software. But they're not the absolute last word in sensors by
any means. It's perfectly possible to add new sensor types, if you
come up with something not already supported. The software internally
uses an abstract C++ class for the basic plunger interface; each
actual sensor's code is written as a subclass of this abstract base
class. Adding a new sensor is a matter of adding a new subclass. You
can do that yourself through the miracle of open-source software, or
you might well be able to persuade me to write the code if you come up
with something that improves on the sensors already supported.
Fully DIY options: It's certainly possible to come up with a
whole new design of your own, without any commercial products involved
and without basing anything on the Pinscape software or hardware
plans. I don't think full DIY is the best option for most people,
given that the Pinscape software is open-source, meaning that can use
it as a starting point no matter how radically you want to change or
customize it. That should save you a ton of time compared to starting
completely from scratch. On the other hand, if you're as fond of
tinkering with these things as I am, the challenge of building a whole
new system from scratch might be way more appealing than just adapting
an existing piece of software.
It would obviously defeat the purpose of "fully DIY" to give you a
list of particular DIY options here. But purely to spark your
imagination, I'll mention some approaches I've heard about, without
going into too much detail:
- Use a computer mouse that's either attached to the plunger rod, or
positioned so that it can scan something attached to the plunger rod.
See "My Mouse Plunger Setup (aka... Cheap :)":
www.vpforums.org/index.php?showtopic=38064.
- Some early pin cab builders created a sort of hybrid of the plunger
and launch button by using a microswitch at the end of the plunger
travel as the sensor. The switch was connected to a button encoder as
the Enter key, so that pulling back the plunger by any amount acted
like pressing Enter, and releasing it would hit the switch again and
release the Enter key. You launched the ball using the desktop
convention of a timed plunger pull based on how long you held down the
Enter key. This isn't a position sensor by any means, but it's simple
and at least creates the appearance of a plunger.
- One person on the forums several years ago used an LVDT (liner
variable differential transformer), a type of position sensor that
uses inductive coils to sense the position of a metal rod. Sounds
perfect for a plunger sensor, doesn't it? The snag is LVDTs are super
expensive (hundreds or even thousands of dollars) and hard to come by.
LVDTs were apparently popular in industrial applications ten or twenty
years ago, but they seem to have been largely replaced by optical and
magnetic quadrature sensors in more recent times. The ones still on
the market are ridiculously expensive specialty products that are way
out of range for a pin cab project. It also looks like the
electronics to interface one to a microcontroller are pretty complex.
Positioning the plunger
Before you start drilling holes for your plunger, you should carefully
consider all of the other things that have to fit into the
same area, to be sure you don't have any conflicts when you start
installing things.
A standard plunger sticks into the cabinet by about 5¾" from
the inside of the front wall. It occupies the area out to a minimum
of about 1⅝" from the inside right wall for the plunger rod
itself, but your plunger sensor might require extra clearance on top
of that. For example, the Pinscape AEDR-8300 sensor requires a
plastic part to be attached to the plunger rod, which increases the
clearance area to about 1¾" from the inside right wall.
Clearances required around the plunger.
Things to take into account when determining the plunger position:
Plunger on top vs. Launch button on top: Most cab builders who
include both a plunger and a Launch button put the plunger on top.
But some people invert the stacking, placing the Launch button in
the normal plunger spot and moving the plunger down a few inches.
Above left: Exterior appearance with the standard plunger placement,
with plunger on top and Launch button below. Above right: Inverted
arrangement with the plunger on the bottom.
The main reason to put the plunger on the bottom is to make room for
the TV to come all the way to the front of the cabinet. With the
plunger on top, you'll probably have to push the TV back a few inches
to leave enough room for the plunger; some people hate the idea of
that gap between the TV and the front of the cabinet. I personally
find the gap benign, and in fact I even prefer a little set-back, so
that you're not looking straight down at the flippers. The inverted
arrangement also looks weird to my eye, since the plunger is
always at the same spot in the real machines.
Lowering the plunger to get it out of the way of the TV,
so that the TV can be moved all the way forward to the front
of the cabinet.
If you decide to move the plunger down to make room for the TV, be
sure to measure everything carefully with your actual TV. The shape
of your TV case is important here, since that determines how far down
you'll have to move the plunger to clear the back of the case. Also
pay attention to the slight upward tilt of the plunger rod relative to
the housing. The rod is angled upward at about 3°, which makes
the front of the rod slightly higher than the holes drilled in the
front wall (see the diagram below). The open area needs to be about
¼" higher than the top of the drilled holes in the front wall.
If you're including a Launch Ball button in the position where the
plunger normally goes, make sure you leave room for its intrusion on
the inside of the cabinet when positioning the TV. It requires about
about 1½" clearance from the inside front wall. This usually
isn't a problem, because you'll probably want to position the TV at
least 2" from the inside front wall anyway, since a standard lockdown
bar covers up about that much space.
Drilling the holes
See "Plunger and Launch button" in
Chapter 21, Cabinet Body for a
drilling template for the plunger opening, and measurements for
the standard placement of the plunger and Launch button.
Remember to make any adjustments to those plans if you're
repositioning the plunger vertically.
Standard ball shooter hardware
If you buy a commercial plunger kit, the plunger assembly is usually
included in the price. If you're building one yourself, here are the
parts you need.
You can buy fully assembled ball shooters from any pinball parts
supplier, such as Pinball Life or Marco Specialties (see
Chapter 4, Resources). Nearly all machines made since about 1980 use
the same assembly, which you can find listed at the pinball parts
vendors under these Williams/Bally part numbers: B-12445-1, B-12445-6,
B-12445-7.
Alternatively, you can buy the individual parts separately, if you
wish to customize anything. Pinball Life lets you choose colors for
the knob and rubber tip, but you'll have to buy à la
carte if you want a custom knob. You can also buy a "knobless"
shooter rod, which lets you create your own custom knob for a unique
look.
Springs are available in different tensions. I'd recommend a lower
tension spring for virtual pinball use, because you're never going to
hit an actual ball. The energy has to go somewhere when there's no
ball to hit, so it usually goes into rattling the cabinet. Lower
spring tension reduces the speed and cuts down a bit on the rattling.
Here are the individual parts, with Williams/Bally part number references:
- Shooter rod: 20-9253
- Shooter housing: 21-6645-1
- Shooter housing sleeve: 03-7357
- Barrel spring (¾" long x ⅝" diam): 10-149
- Inner spring (5½" long x ½" diam): 10-148-1
- E-clip (⅜" shaft, 5/16" groove): 20-8712-37
- Washers (25/64" x ⅝", 16 gauage, qty 2): 4700-00051-00
- Rubber Tip: 545-5276-00
There's also a special mounting plate that goes with the ball
assembly, which for some reason is never included in any of the
complete assemblies or pin cab kits. It's not an absolute
requirement, but it makes the installation easier and cleaner. You'll
also need some specific machine screws, which also aren't included in
the assemblies or kits; they're common parts you can easily find
at a hardware store.
- Ball shooter mounting plate: Williams/Bally 01-3535
- #10-32 x ⅝" machine screws (quantity 3; ¾" length will also work)
Custom knobs: Pinball Life sells a "knobless" shooter rod,
which gives you the option to create your own completely custom
knob. Use your 3D printer to create something unique. Fasten
it with epoxy.
Custom knobs are popular "mods" for real machines. You can find lots
of after-market options on the Web by searching for "custom pinball
shooter". These will work just as well for virtual cabs.
How to assemble a standard plunger
Assemble the parts in the order shown in the diagram above:
- Slip the barrel spring over the shooter rod and push to the knob end
- Slip the washer over the shooter rod and push down to the barrel spring
- Insert the nylon sleeve into the shooter rod opening in the housing
(from the inside of the housing)
- Insert the shooter rod into the opening the housing (from the outside
of the housing)
- Slip the other washer onto the shooter rod
- Slip the main spring onto the shooter rod
- Attach the E-clip to the rod. You'll have to hold the spring back
while you do this, since the spring will be compressed in its normal
position. The E-clip fits into the groove near the end of the rod.
Use needle-nosed pliers to snap it into position.
- Fit the rubber tip over the end of the rod. (This is optional in a
virtual cab; you probably don't need the tip unless you're using some
kind of optical sensor that requires it. Leaving it out will save a
little space if you have tight clearance to the TV.)
How to install the ball shooter assembly
The plunger is designed to be fully assembled before you install it,
so start by assembling the parts as described above.
Insert the housing into the drilled opening in your front panel, from
the outside. Fit the plunger mounting plate over the screw holes in
the assembly on the inside wall of the cabinet. Fasten with three
#10-32 x ⅝ machine screws. Make the screws fairly tight, since the
plunger is subject to a lot of mechanical force when you use it (but
don't overdo it - you don't want to strip the threads in the housing).
38. Plunger Setup on the PC
Most of the popular pinball player programs have support for plunger
devices built in, but they all require you to configure some option
settings to enable the plunger support and fill in the details of your
device. This section explains how to set up Visual Pinball and
Future Pinball, and how to do some simple tests to make sure
everything's working properly.
Windows itself generally doesn't require any special setup to work
with a plunger. Plungers emulate joysticks, and Windows has excellent
plug-and-play support for joysticks built in.
Plunger device basics
Before getting into the details of setting up the software, it's worth
understanding how a plunger device communicates with Windows and the
pinball player software.
At the Windows device level, all of the plunger devices pretend to be
joysticks. The Windows joystick interface defines several "axes" that
report the positions of the moving parts of the joystick. A regular
joystick typically has an X axis and Y axis that report the left/right
and up/down position of the stick. These are reported numerically, on
arbitrary scales; for example, the left/right axis might report
position values from -1000 for "all the way left" to +1000 for "all
the way right". That's just a made-up example; the actual numerical
ranges depend on the individual device, and they're usually in
abstract units that don't correspond to inches or centimeters
or any other real units.
The convention used by all of the plunger devices I know of is to use
the joystick "Z" axis to report the plunger position. For a real
joystick, the Z axis is supposed to represent some kind of vertical
motion of the stick, but that's just a convention; Windows doesn't
know or care what the physical geometry of the device is like. If the
device reports "Z=500", Windows just passes along "Z=500" to any
application software (like VP) that asks.
As with all joystick axes, the numerical range of the Z axis is
arbitrary and abstract. But Visual Pinball does define one special
point on the Z axis: Z=0 (zero) is assumed to be the resting position
of the plunger. That's the position where the plunger sits when it's
in equilibrium, when it's not in motion and when you're not pulling it
back. If you run through the plunger calibration procedure in the
Pinscape Config Tool, one of its jobs is to identify the resting
position and calibrate it so that it reports Z=0.
Visual Pinball and the other pinball programs that know about plunger
devices all use this joystick interface. They look for a joystick
device in the system, and if one is found, they read the Z axis value
to determine the position of the physical plunger. Visual Pinball
uses this to control the simulated on-screen plunger, so that the
simulated plunger action in the game can be controlled by moving the
physical plunger.
Plunger device axis setup
Some plunger devices give you options about which axis to use.
The Z axis is the most common choice, since that's the one that
almost all of the pinball player programs expect you to use.
However, in some rare cases you might need to choose a different
axis to avoid conflicts with other devices.
If your device does use some joystick axis other than the Z axis,
be sure to substitute that axis for the Z axis in all of the
settings throughout the rest of this section.
Testing with the Windows joystick control panel
You can run a really simple test that your basic plunger hardware
setup is working using the Windows joystick control panel. This
is a good early test because it doesn't depend on your Visual
Pinball or Future Pinball settings; it just tests the basic
USB joystick input.
- Press Windows+R
- Type joy.cpl into the Run box
- In the Game Controllers list, double-click on your plunger device
- Look for the "Z Axis" bar on the properties page
- Move your plunger
If all is working, you should see the on-screen Z Axis bar track
the motion of your physical plunger as you move it back and forth.
(If you set up your plunger on the Rz (rotational) axis, there
should be a "Z Rotation" bar instead, and that should track the
plunger motion.)
If the Z Axis (or Z Rotation) bar doesn't move, your plunger isn't
sending USB readings to Windows properly. Go back and check your
plunger hardware settings to make sure they're correct. If you're
using Pinscape, you can use the Pinscape Config Tool's plunger tester
to see the raw input from the plunger, to make sure that the position
sensor is working.
If your plunger device doesn't appear in the Game Controllers list,
make sure it's connected to USB and that it's configured properly
in its hardware settings.
Important: do not calibrate! The Game Controllers control panel
has a "Calibrate" button under the Settings tab that many people see
and think it would be a good idea to click. Don't! This particular
calibration process is designed for real physical joysticks only.
It's unsuitable for plunger/nudge devices and it'll make your device
act erratically. If you clicked the Calibrate button at some point
thinking it would improve matters, you should undo that, by returning
to the Settings tab and clicking "Reset to default". That will erase
the troublesome calibration data and restore normal operation. (This
advice applies to the Pinscape Controller and most of the other nudge
devices I know about, but there might be exceptions. If your device's
owner's manual tells you to use the Windows joystick calibration
despite what I just said, go with the owner's manual's advice.)
VP and FP plunger preference setup
Most of the pinball player programs have option settings that let you
specify whether or not a physical plunger is attached, and if so, how
it should be read. If your plunger isn't working with a given pinball
player program, the first thing to do is check the program's options
and make sure the plunger is enabled and is using the correct joystick
interface.
Visual Pinball 9: Open the VP editor. Select Preferences
> Keys from the menu. Find the "Plunger" section. Set the
plunger axis to match the one reported by your plunger device; this is
usually the Z axis. If you changed your Pinscape settings to Rz (or
you're using a different plunger controller that uses something other
than the Z axis), select the appropriate axis here.
VP 9 plunger settings in the Keys preferences dialog
Visual Pinball 10: Open the VP editor. Select Preferences
> Keys, Nudge & DOF from the menu. Find the "Plunger"
section. Set the plunger axis to match the one reported by your plunger
device; this is usually the Z axis. If you changed your Pinscape
settings to Rz (or you're using a different plunger controller that
uses something other than the Z axis), select the appropriate axis
here.
VP 10 plunger settings in the Keys preferences dialog
Future Pinball: Open the Future Pinball editor. Select
Preferences > Game Keys and Controls from the menu.
Select your plunger device from the "Mouse/Joypad Controller"
drop list, and make sure the "Enable" box is checked. Find
the Plunger axis setting, and select "Z-Axis" from the drop list.
(Or select the actual axis that your plunger device uses, if different.)
Future Pinball plunger settings in the keys & controls preferences dialog
Testing your plunger with VP or FP
It's a good idea to test a new plunger device with a stripped-down
starter table in each player system, to make sure that the basic
hardware and software setup is working. Once you know the plunger is
working in a test table, you can be sure that any problems you have
with individual tables are those tables' fault, not something wrong
with your basic setup.
You should go through these steps with each player program that you'll
be using, including each version of VP if you've installed more than
one. The preference settings are specific to each program and
version, so it's possible for VP 10 to be working but VP 9.9 to be
broken, or vice versa.
Here are the basic steps to test the plunger device in VP:
- Run VP and go to the blank editor (cancel out of any initial "Open File") dialog
- On the menu, select File > New to create a new blank table
- Make sure the Properties panel is showing on the right; if it isn't,
click the Options button in the left tool window
- On the menu, select Edit > Select Element, then scroll down
to the Plunger object and click on it
- In the Properties window, make sure Enable Mechanical Plunger
is check-marked
- Press F5 to run the game
- Try moving your plunger
If everything's set up correctly, the on-screen plunger should track
the motion of your physical plunger. If the on-screen plunger doesn't
move, go back through the
plunger
preference setup steps above.
The procedure for Future Pinball is simpler, because FP doesn't have
an equivalent of the "Enable Mechanical Plunger" checkbox that VP
uses. It's just always enabled. So simply create a blank table and
run it, and test that the on-screen plunger tracks the motion of your
physical plunger.
Fixing individual tables
Okay, if you've made it this far, your plunger is sending joystick
input to Windows successfully and is working with test tables in the
pinball players you're using. Ideally, we'd be done at this point:
just load up some tables and play.
There's just one slight problem with that: some individual tables
might not work properly, particularly with Visual Pinball, and
particularly with VP 9. This is despite the fact that we know that
the plunger input is correctly reaching VP itself. The snag is that
individual VP tables don't always use the built-in VP plunger object,
or don't use it properly for real plunger input. Some tables use
their own improvised scripting code that doesn't take plunger devices
into account.
VP tables that don't work properly with a plunger device can usually
be fixed, sometimes easily and sometimes with a bit of work. That's a
fairly big subject, so we cover it separately in
Chapter 39, Fixing VP Plungers.
39. Fixing VP Plungers
If you built one of the plunger sensor options for the Pinscape
Controller, or if you bought a commercial plunger kit, you'll
certainly want to use the plunger when playing simulated pinball
tables. Many tables work with plungers automatically, but some don't.
Fortunately, for open systems like Visual Pinball, it's possible to
edit the table files yourself, so you can often fix any games that
don't already work with the plunger. This section shows you how to do
this for Visual Pinball tables.
Plunger support has evolved in Visual Pinball over the years. Most
Visual Pinball 10 tables should work automatically. It's much more
hit-or-miss with Visual Pinball 9, though; many tables, especially
older ones, lack proper support for the plunger.
Commercial game software doesn't usually give you any ability to
modify the software yourself. Your only recourse for a commercial
game that doesn't work is to contact the publisher's technical support
people.
How plungers are supposed to work in Visual Pinball
The "right" way for a Visual Pinball 9 table to implement a plunger is
to use VP's intrinsic plunger object. VP has had built-in support for
plunger devices since early releases of VP 9.
The built-in plunger object in VP automatically takes input from a USB
plunger device, if you have one in your system. This works by reading
the USB joystick interface, using what's called the Z axis (although
you can configure this in VP's settings dialog to use a different
axis, if your physical plunger device uses something different). The
name "Z axis" is taken from mathematics, where it conventionally
refers to the vertical axis in a 3D plot. But PC joysticks use the
term loosely, to refer to "just some random third axis" - third
because the first two, X and Y, are the two degrees of freedom of the
stick itself, left/right and forward/back. Z usually represents some
other control attached to the joystick, such as a slider control or a
throttle. For virtual pinball plungers, we only pretend to be a
joystick, but we still have to use their notation. So we continue the
PC joystick tradition of assigning idiosyncratic meanings to the
mathematical axis names, using X and Y to represent accelerometer
readings for nudging, and using Z to represent the plunger position.
Tables that take advantage of VP's built-in plunger feature usually
"just work", because the built-in plunger itself just works (once you
have it properly configured, at least).
Why plungers don't always work in VP tables
If tables authors would always use VP's built-in plunger object,
plungers would work properly in all tables.
But table authors don't always go along with this plan. A lot of VP
tables, especially older tables written before about 2016,
don't use VP's built-in plunger feature. Instead, a lot of
them reinvent the wheel plunger by using Visual Basic scripting
(which is another thing built into VP) to create their own completely
new object that's supposed to look and act like a plunger.
To be fair, many of the table authors that scripted their own custom
plunger objects were well-meaning. The early versions of VP's plunger
looked cartoonish and had a rather poor physics simulation. Table
authors working on re-creations of real tables naturally wanted their
tables to look good and work right, so they didn't want to settle
for the poor plunger implementation in early VP 9 releases.
But well-meaning or not, all of this re-inventing created huge hassles
for those of us with physical plunger devices. Many of the table
authors who created their own plungers in VB scripting didn't think to
read the joystick input. If a table doesn't read the joystick input,
it obviously won't work with your physical plunger device, which sends
information via the joystick input.
VP's built-in plunger was overhauled around version 9.9.5 to give it a
photo-realistic appearance and to make its physics work properly, both
for desktop play using keyboard input, and for cabinet play with a
physical plunger device. The new plunger was carried over into VP 10
and has been a part of VP 10 from the beginning. So newer tables -
those written later in VP 9's tenure, and anything written for VP 10 -
mostly use the new plunger object and mostly "just work". The only
exceptions among newer tables are a few written by authors who were
accustomed to the bad old way of doing things and didn't get the memo
about the built-in plunger overhaul. But those should be increasingly
rare as time goes on, and I certainly hope no one is still using the
bad old way for new tables at this point.
How do you fix a table that ignores the joystick input?
Unfortunately, it's not easy - but it can be done. Basically, you
have to rip out all of the scripted plunger code in the table, and
substitute the "real" built-in plunger object instead. The thing that
makes this difficult is that there's not a simple, rote procedure you
can follow, because every table that re-invented the plunger
re-invented it in its own way. You have to look at each table
individually to find its plunger scripting code and the associated
table objects so you can remove all of that. But there are two rays
of sunlight here. The first is that most table authors didn't
actually reinvent their custom plungers from whole cloth - most did a
copy-and-paste job from another table. So once you've fixed a few
tables, you'll start recognizing common patterns, and it'll become
easier each time. The second nice thing is that you don't really have
to write any new code - mostly it's just a matter of deleting all of
the custom plunger code so that the built-in plunger can take over.
The table scripts will end up simpler and cleaner when you're done with them.
At any rate, I'll try to give you the outline of a procedure that
works for many tables, but be warned that it still takes some work on
your part; it's not a simple "recipe" that you can apply mechanically.
Why plungers don't always work, part II
There's actually one more reason that plungers don't always work in
VP. This one's a lot easier to fix than the first one.
Remember how I said that the built-in plunger in older versions of VP
had bad physics? The situation was so bad that the bad physics
actually interfered with ordinary desktop use, even if you didn't have
a joystick attached. So a lot of table authors who used the built-in
plunger as the basis of their scripted re-inventions explicitly
disabled the joystick input so that desktop users wouldn't have to
put up with the bugs.
So for some tables, you'll find that there's already a proper built-in
plunger object present, and that all you have to do is tick a box in
the settings to re-enable joystick input.
How to fix a VP table
Here's my procedure for fixing VP tables with broken plungers. Be warned
that this isn't a simple recipe you can follow mechanically; it's more of
an outline.
Before starting, save a backup copy of the table! We're going to go
into the table definition and do some major surgery. It's possible to
hopelessly screw up the table this way, and sometimes the easiest way
to get back to a working state is to scrap all of your changes and
start over from the original working version. You'll feel better
about messing around with the table's innards if you have a backup
copy tucked away that you can easily restore if things go haywire.
If you're already adept at using VP, you probably just need a quick
overview of the steps at a high level:
- First, check for a Plunger object in the table. If it's there:
- Make sure Enable mechanical plunger is enabled in its properties
- Make sure it's positioned so that it can hit the ball
- Make sure it's visible
- Set its style to Custom, and set the image to CustomWhiteTip or CustomBlackTip (see Making the
built-in plunger look nice below)
- If there's not already a Plunger object, try adding one, setting it
up to use the new "Custom" visual style and positioning it so that can
hit the ball when fired
- Delete any playfield objects (ramps, walls, lights, EMReels) that
are being used to draw the scripted plunger on-screen
- Go through the table's scripts and delete all of the old
plunger-related scripting code
If you're not a VP power user, read on for a more detailed
explanation.
Open the table in the VP editor
Fire up VP. Open the table in the editor (not in "playing" mode).
Look for an existing plunger object
The first step is always to find out if there's already a built-in
plunger object. Many (maybe most) of the tables with scripted
plungers also have a built-in plunger object that's used as a
helper for some of the scripted operations.
If there is a built-in plunger, it might be hidden or located
somewhere off the table or in a remove corner of the table where it
can't interact with the ball. So it might not be obvious that it even
exists when you look at the table layout in the editor.
The easiest way to find this object is as follows:
- Edit > Select Element (or Ctrl+Shift+E)
- Look through the list for something called "Plunger" or something
similar, like "Plunger1"
- Click it in the list
- Click Select - a rectangular outline should light up somewhere in
the layout showing where the object is positioned
- Close the dialog
Enable mechanical plunger
If you successfully found a plunger object in the previous step:
- Select the object as described above
- If the properties window isn't already showing, click Options in the
left panel to bring it up
- In the State section, make sure the Visible box is checked
- In the State section, if Park Position is set to 0, change it to 0.16667
- In the State section, make sure the box for Enable mechanical
plunger is checked
- If the Enable mechanical plunger box wasn't already checked,
this might be all you need to do to fix it! This might be one of
those tables where the original author disabled joystick input (this
is the option that does that) because of the old physics bugs it
caused for desktop users. Checking the box re-enables the joystick
input, so the table might suddenly start working. Save the table,
fire it up in "play" mode, and test it out. If the on-screen plunger
tracks your physical plunger and launches the ball properly, you're
done! If it mostly works at this point but the plunger is
too weak or too strong, see "Other physics adjustments" below.
Try moving the plunger object
If you found a plunger object, but "Enable mechanical plunger" didn't
turn out to be a magic one-step fix, there's another simple thing we
can try before we have to dig deeper into the table.
A lot of table authors who "re-invented" the plunger did so by tying
their scripted object to a real plunger, and kept it from getting
involved in the physics by moving it somewhere out of the way where it
couldn't hit the ball. You might be able to see this easily just by
looking at the table layout - the plunger might be obviously off in
left field somewhere. But in some cases, this might not be visually
apparent. Some table authors just move it back a few pixels from the
ball position, so that it gets tantalizingly close but can't actually
hit the ball.
So the thing we can try now is moving it into the proper position.
The first thing to do is to make sure the object is movable. If the
object lights up with a gray rectangle when selected, it's "locked",
meaning VP won't let you move it. But we have the key! Right-click
it and un-check "Locked" in the context menu. If it lights up in blue
when selected, it's already unlocked and movable.
If the object is obviously off in left field somewhere, try moving
it into the shooter lane area. If it's already more or less in the
shooter area, try moving it further up on the playfield (in the
upwards direction on the editor screen).
It can be hard to visually parse VP's editor screen, because
everything is so schematic (just a few black lines showing the rough
outline of each object) and there can be so many things overlapping in
one area. Most games have an arrangement something like shown below,
with a "wall" object shaped like a little wedge that holds the ball in
place at the bottom of the shooter lane, just above where the plunger
strikes. That's the key point for aligning the plunger. It has to
overlap that wedge-shaped wall slightly - by about 1/6 of the plunger
length - in order to hit the ball.
You won't find this exact layout on all tables, so don't be overly
literal about looking for this exact picture. You might not find a
"wedge" wall like this at all. It's a common motif, but every VP
table author does things their own unique way. You might find a
differently shaped wall in roughly the same area, or no wall at all.
There's also usually a bunch of other stuff overlapping in the same
area, so even if the wedge is there, it might be hard to visually
separate from all of the other objects. If you're having trouble
identifying which squiggle belongs to which object, remember that you
can select an object by clicking on it. This will at least highlight
it so that you can see which of the lines belong to this one object,
and it'll show its name and object type in the Properties window,
which can help identify its purpose.
Once you've moved the plunger into what appears to be the proper
position, test again in "play" mode. Again, check if the on-screen
plunger tracks the motion of the physical plunger (it's a great sign
if so), and check if you can launch the ball.
Other physics adjustments
If you can make the plunger work at all with the changes we've
covered so far, you might still need to make some further adjustments
to make it work well. In particular, if the launch speed is too slow
or too fast (for example, the ball doesn't make it all the way up the
lane even when you pull the plunger all the way back and release),
you can adjust that by changing the plunger properties. Here's how:
- Select the plunger object
- Bring up the Properties window
- Adjust the Mech Strength property: increase the number if
the launch is too slow, decrease it if the launch is too strong
Removing a double image
Some tables use their own objects to simulate the visuals of the
plunger, hiding the real plunger by positioning it somewhere out of
sight. Moving it back into its proper position for the sake of the
physics will also make it appear at the proper position visually,
so you might now have two plungers showing up on-screen.
The easiest way to fix this is to make the built-in plunger object
invisible:
- Select the plunger object
- Bring up the Properties window
- Un-check the Visible box under the State section
That leaves the built-in plunger working as far as the physics go,
but hides its visuals, so you get the custom graphics that the table
author designed.
Personally, though, I prefer to do the opposite: I prefer to switch
tables to use the built-in visuals instead. This usually looks much
better than the old scripted visuals. The "new" built-in plunger in
VP looks photo-realistic, plus it's very smoothly animated. The
custom scripted graphics in many older tables look okay, and some look
great, but almost all of them have really choppy animation with just
a few "stops" the plunger can appear at.
Getting rid of the old graphics can be a bit of work, so be prepared.
The first step is to change the built-in plunger to use the new visual
style that actually looks nice. Existing plunger objects in older
tables are always set up to use one of the old visual styles, which
all looked crappy. See "Making the built-in plunger look nice" for
the procedure.
The rest is a matter of ripping out the game's custom scripted plunger
graphics. The procedure is exactly the same as "Replacing the
scripts" below, since you want to get rid of the scripts and use
the built-in object instead.
Adding a new plunger
If the table you're working with doesn't have a built-in plunger
object at all, you've got a bigger job ahead of you.
The first step, at least, is easy. You add a new plunger and
move it into position. Adding the object is just a matter of
clicking the "Plunger" button in the left pane in the VP editor,
then clicking on the playfield where you want to position it.
Make sure that the following options are set in the Properties
for the new plunger object:
- Enable mechanical plunger
- Visible
Repeat the steps above under "Try moving the plunger object" to
get it into the proper position.
Making the built-in plunger look nice
If you had to create a new plunger object, or you're working with a
pre-existing plunger object, chances are that it's using one of the
old visual styles that look cartoonish or bad.
The trick to making the built-in plunger look nice is to switch it
to the "Custom" style. It's a fairly long procedure, but it's all
very straightforward:
- Create a new VP table
- On the menu, select Table > Image Manager
- Find CustomWhiteTip in the image list and select it
- Click the Export button
- Save the file somewhere on your local hard disk
- Close the Image Manager dialog and discard the new table
- Go back to the table we were working on
- On the menu, select Table > Image Manager
- Click the Import button
- Find and select the CustomWhiteTip.png file that you saved from the new table above
- Close the Image Manager dialog
- Select the plunger object
- Bring up the Properties window
- In the Color & Formatting section, select PlungerTypeCustom
in the Type drop-list
- In the Image drop list, select CustomWhiteTip
Note that there's also a CustomBlackTip object you can use if you prefer
a plunger with a black rubber tip - this fits some tables better. You
can also create your own original texture if you're familiar with how
3D texture mapping works. That's a bit of an arcane process, though,
which is beyond the scope of this chapter.
Note also that there are a bunch of other properties in the Color
& Formatting section that let you further customize the drawing,
such as setting the diameter of the plunger rod and how many loops of
the spring are shown. You can tweak those to get the visuals just
right for the table.
Removing the old plunger scripts
Now to the hard part: getting rid of the table's custom plunger scripts.
This is only necessary if you weren't able to get the plunger working
by enabling (or creating) and properly positioning a built-in VP
plunger object, as outlined above. It's also necessary if you already
got the plunger working in terms of the physics but you want to get rid
of the old scripted graphics.
Delete fake plunger objects
Start by looking for objects on the playfield around the plunger area
that serve no apparent purpose. These will often be one of the following
types:
The most likely thing will be a big rectangular object (of one of the
types above) covering roughly the same area where the plunger appears.
These will usually be somewhat larger than the plunger.
If you find such an object, check its property list to see if it has
an associated image in the Color & Formatting section. If so,
check what the image looks like in the Image Manager:
- On the menu, select Table & Image Manager
- Find the named image in the list
- Click it and look at the thumbnail
If the image looks like a plunger photo, that clinches it - you've
found exactly what we're looking for.
If there's no image, though, it might still be an object of interest.
The scripts might be assigning an image in Visual Basic land instead
of using the object properties directly. If the object is in the right
area, you can make a guess that it's what we're looking for.
If you don't find anything on the playfield, you might try looking at
the Backdrop. This is an extremely hacky hack that some table authors
use to force an object to appear on top of the table - the "Backdrop"
is a sort of super-layer that gets drawn on top of everything (the
opposite of what you'd guess from its name!). You might find something
called an EM Reel object there:
- Click Backdrop in the left pane
- Note that the Backdrop view is rotated 90 degrees from the regular view,
so the plunger area is at the top right in this view
- Look for one or more rectangular objects of type EM Reel around the plunger area
If you find something matching the description - a ramp, wall, light, or EM Reel
in the right area and possible with the right image type, try deleting it. Just
select it with the mouse and press the Delete key on the keyboard.
Note that might have to "unlock" the object before you can delete it.
If it lights up with a gray rectangle instead of blue, it's locked.
Right-click it and un-check "Locked" from the context menu.
One good sign that you found the right object is that there's
another object right behind it that looks exactly the same. A lot
of table scripts use a big stack of objects piled one on top of the
other as a series of flip-book animation frames. The Visual Basic
scripts will make one of the objects visible at a time to animate the
plunger motion. If you find a stack of 10 or 20 identical objects in
the same spot, you've found an animation flip book. Just keep
selecting and deleting them until they're all gone.
Delete scripts
The next (and fortunately last) step is hard to express as a recipe.
You're going to be somewhat on your own here. What you have to do now
is find and delete scripting code that refers to those objects we
deleted above.
If you're good at reading Visual Basic code, you can go through the
script and look for subroutines related to the plunger. When you find
one, you can usually just delete it outright, from the line that says
"Sub name" to the matching "End Sub".
A lot of tables with plunger scripts are actually pretty helpful about
grouping all of the plunger scripts together in one place. You might
find a section marked with comment like this:
'**********************************************************
' Plunger scripts
'
>
If you find something like that, you can try selecting everything
that follows that looks plunger-related (based on the names of the
subroutines, for example) and deleting it.
If you don't want to pore over the script, there's a pretty easy
trial-and-error way of finding the trouble spots. Specifically, you
can rely on the fact that all of the plunger scripts will probably
make reference to the playfield objects we just deleted. Whenever
any of those references are encountered at run-time, Visual Basic
will halt the program and throw up an error message telling you
that the code is referring to a non-existent object. VB is usually
pretty good about showing you exactly where each error occurs,
by highlighting the error line in the editor, so this can be a
quick and reliable way to find each error and remove the code.
- Run the game
- Wait for Visual Basic to throw up an error message
- If you don't get any errors immediately, try pressing and holding the
Enter key on the keyboard to pull back the plunger. Let it pull all
the way back, then release the Enter key to release the plunger. If
there are any scripts that rely on deleted objects, one of them
should trigger an error at some point during this process.
- If you don't get any errors with the keyboard, try again with your
plunger device. Hook up the device, move the plunger around, and see
if any errors occur at any point.
- Find the line of code where the error occurred
- Delete the code:
- If the error location is in a Sub..End Sub section that looks totally
plunger-related, delete the entire Sub..End Sub section
- If the error location isn't in a Sub at all, it's probably
"initialization" code that runs at table startup. Just delete
that one line that contains the error
- If the code is inside a Sub called something like Table_Init, it's
also initialization code. Just delete the one line containing the
error.
- If the code is inside a Sub called something like Table_KeyDown
or Table_KeyUp, it's keyboard handler code. Don't delete the whole
routine; just delete the line that's causing the error.
- Go back and repeat this whole process until the game runs reliably
In most cases, tables with plunger scripting use subroutines that are
fairly self-contained and dedicated to the plunger operations. So
when you find an error, you can usually just delete the entire
subroutine that contains the error line: that is, all lines from the
nearest Sub name that precedes the error line to the
nearest End Sub that follows it.
Something that's likely to happen during this process is that you
might delete one subroutine block that another subroutine
calls. So after you delete the code with the first error, run again,
and you'll probably hit a new error in code that's trying to
call the code you just deleted.
Getting the table working now is usually just a matter of repeating
this seek-and-destroy mission until until you stop getting errors.
If all else fails
In some cases, the "delete code until it starts working" approach can
backfire. Some tables are just too complicated, with Visual Basic
code that's too intertwined, for mere code deletion to work. You
sometimes have to rework the code a bit instead.
If you know VB well enough, you can analyze the code and figure out
what you have to change. If you're not a VB power user, well, it's a
bit beyond scope of this section to turn you into one. My advice
would be to ask nicely for help on the forums - maybe you can find the
original table authors and persuade them to update the table to modern
standards, or enlist help from one of the many Visual Pinball power
users on the forums.
40. Coin Door
If you want your pin cab
to look authentic, a standard coin door is a must. The coin door has
been a fixture on pinballs since the 1950s, and the design has been
fairly uniform since the 1980s. It's so ubiquitous that I'd consider
it part of what makes a pinball machine look like a pinball machine.
Even if you haven't taken conscious notice of the coin doors on real
machines up until now, you've probably seen them often enough that
you'd notice that something was missing if you didn't include one on
your virtual cab.
Beyond the cosmetic value, the coin door also has some practical,
functional features that make it worth including. If you've only
experienced pinball as a player, as opposed to as an owner or
operator, you probably only see the coin door as the place you feed in
quarters. But for a machine you own and operate, which your cab will
be, the coin door actually has some other important functions.
For one thing, the coin door is the access port for opening the
machine up for maintenance work. Opening the coin door lets you
access the lever that releases the lock bar, which in turn lets you
take off the top glass, which in turn lets access the playfield, and
(on a real machine) lift up the playfield to get access to its
underside and to the interior of the cabinet.
The coin door is also the place where you'll find the "service
buttons": a cluster of three or four push-buttons inside the coin
door, which are let you access the operator menus in ROM-based tables.
These menus are where you set the game options: Free Play mode, 3 ball
or 5 ball mode, replays as extra balls, and so on. In a virtual cab,
you can always use your PC keyboard to access the menus, so the
physical menu buttons inside the coin door aren't absolutely required,
but I think they're a lot more convenient.
The inside of the coin door is also an excellent place to conceal any
added custom controls of your own. Some people put the volume knob
for their audio amplifier here, for example. It's obviously not a
great place for anything you'll access frequently, but it's ideal for
any operator controls that you only need to access once in a while for
setup purposes.
Finally, the coin door is useful for its nominal purpose as the place
to insert coins. Even for a virtual cab, it's useful to be able to
feed in quarters - either for real or in a virtual way, such as by
pushing a button. In either case, the coin door is the ideal place
for the coin chutes and/or coin buttons. The reason it's important to
have some kind of coin feature in a virtual cab is that some tables
don't have a Free Play mode, so the only convenient way to play them
is to make them think you're adding quarters. The early solid-state
ROM-based games in particular tend to have very primitive software
with few or no configurable options. A lot of the older EM
(electro-mechanical) tables also lack coinless play options, although
for those you can at least add it yourself via scripting. In any
case, it's nice to have an easy way to add coins to deal with tables
you can't set to Free Play. One way is to make the physical coin
chutes functional, and another is to add a button that simulates
inserting a coin. I personally like having both options. Both
approaches are covered later in this chapter.
Buying a coin door
If you're salvaging an old pinball machine to use as your cab's body,
and it already has a coin door installed, you're set. If you're
building a new cab from scratch, you can buy a new pinball coin door
from an arcade parts supplier (see
Chapter 4, Resources). You can
also look for used ones on eBay, although as always, check prices for
new parts first: used pinball parts on eBay tend for whatever perverse
reasons to be more expensive than new ones.
One really nice feature when you're buying a coin door is that most of
the different types can be used interchangeably, since they're all
designed to fit the same cutout. They've been using a standard size
since about the mid 1980s. Doors designed for Data East, Stern,
Williams, and Bally machines will all fit the same the standard
cutout, as long as they're for machines from the 1980s or later.
However, the different makes do have some differences on the inside,
such as the type of service buttons and the type of wiring plugs used.
Here are the top options currently available commercially:
- Williams/Bally WPC-era coin door, Williams part numbers 09-17002-26,
09-23002-1, 09-37001, 09-46000, 09-61000-1, 09-61000-1, and 90-96017.
These typically come fully assembled, with the lock and key, slam tilt
switch, brackets for two coin mechanisms, coin chute lamps,
coin switches, and service buttons. All of the electronics are
pre-wired to a 13-pin connector. The only parts not included are
the coin mechs (the little Rube Goldberg devices that check
inserted coins to make sure they're real). You can buy those for about $10 apiece and pop
them into the chutes if you want to be able to use real coins.
This is the door I used on my cab. I like it because it exactly
replicates the look of the Williams 1990s machines, which is the
cohort that includes most of my all-time favorite games. It
does have a couple of downsides, though: it's more expensive
than the SuzoHapp door below, and the design makes it way more
difficult than it should be to replace the coin inserts (the
little lighted coin chute labels saying "insert quarters").
WPC coin door (with my custom Pinscape coin slot inserts!)
- SuzoHapp universal coin door, manufacturer part number 40-0696-30.
This is a third-party replacement part compatible with OEM parts for
almost any machine from the mid 1980s or later. It's also
the factory-installed part on some of the newer Stern and Jersey Jack machines. This
one comes with all of the coin slot hardware installed, including
the coin mechs (for quarters), but it doesn't have any pre-installed
wiring and doesn't include service buttons.
This is my top pick for the DIYer. It's about 40% cheaper
than the pre-assembled Williams door above, and it's functionally
equivalent after you add the service buttons. The lack of pre-installed
wiring might actually be a plus in a pin cab, since you can wire it
with your own connectors instead of the obscure Molex
connector used on the WPC doors. The design is also nicer in
some ways than that of the WPC doors: it's easier to install the coin
mechs in this door, and it's much easier to install custom
coin slot inserts. The only downside, really, is that it doesn't
look exactly like the original WPC doors, although it's close
enough that most people wouldn't know the difference.
If you want service buttons (which I think you do!), you can
easily add them as an extra part. Buy the Stern 4-button service assembly
(part number 515-1963-00). Note that there's a similar service button panel
designed for the WPC doors, but it has a different mounting
bracket that won't fit this door, so be sure to buy the Stern version.
You get the same set of buttons with either
assembly, so there's no functional difference; it's just the
mounting hardware that's different.
One other minor feature missing in this door vs. the WPC door
is a slam tilt switch. You can add that separately if you want
100% parity with the Williams door. I personally don't see any
functional reason to include a slam tilt switch on a virtual cab,
since it's only present on the real machines to discourage extreme
abuse that you'd never subject your home machine to.
But you can certainly include it for the sake of completeness if you like.
SuzoHapp coin door, also used on most modern Stern machines
- Stern coin doors, for SAM machines (Stern part 501-5018-172) or
SPIKE machines (501-5018-173). SAM and SPIKE refer to the last two
generations of the Stern platform, not to specific table titles.
These are functionally about the same as the Williams door listed
above. The main difference from the Williams door is that these use
different connector plugs for the electronics. The SPIKE version is
actually the same equipment as the SuzoHapp option above, but adds
pre-installed service buttons and wiring.
- Data East coin door. These come bare-bones, with nothing installed
except for the key and the basic coin slot brackets (no coin mechs).
As a result, they're cheap. They're a good budget option if you
only want the facade of a door (without all the functional bits) for
cosmetics. I wouldn't recommend this if you do want all of the
functional elements, though: you probably won't save any money after
adding all of the parts it's missing compared to the turn-key options
above, and it'll be a lot of hassle to source the parts and assemble
everything.
- Smaller video game coin doors. If you're building a mini-cab, the regular
pinball coin door might be too large. There's a narrower type of door
commonly used in video games. Try SuzoHapp
for a variety of options.
- Fakes/Decals. If you only want the cosmetic effect of a coin door
without any functionality, you could use a 3D-printed plastic
façade, or simply a custom-printed decal with a photo of a coin
door (see Chapter 22, Cabinet Art for more on decals). This might let you
squeeze out a little cost if you're on a tight budget, or if your
cab is too small for a real coin door.
Coin mechs
Coin "mechs" (mechanisms) are the gadgets that validate coins inserted
through the slots in the door. These use a modular design, with a
standardized physical form factor, that lets you swap in mechs for
different types of coins or tokens. If you want to use quarters, you
install a mech that takes quarters; if you want to accept arcade
tokens, you install a token mech.
Your new coin door assembly probably came without any mechs installed
- just empty brackets where the mechs go. So if you want your pin cab
to accept quarters or other coins, you'll have to buy the mechs
separately and install them in your coin door.
US coin doors (anything from the 1990s to present) are almost always
set up with two coin slots fitted with brackets for the standard coin
mechanisms. The pinball vendors (Pinball Life, Marco Specialties)
sell mechs that accept US quarters. Those run about $10 each.
You can also find mechs that accept other coin types besides US
quarters, but not at the pinball vendors; they only sell the quarter
mechs. Here are some leads on where to find mechs for other coin
types:
- SuzoHapp sells mechs that accept
Canadian coins (quarters, loonies, and toonies), plus mechs for
several types of arcade tokens. They also sell matching arcade
tokens.
- Coin Mechanisms, Inc. sells acceptors
for nearly all types of US coins, plus acceptors for numerous other
countries' coins. Navigate to Coin Doors, Coin Mechs & Face Plates
> Mechanism Coin Mechanisms.
- You might also find mechs for various coin types on eBay, but be
careful that you're buying a compatible mechanism. I'd consider only
mechanical coin acceptors, not anything electronic. The
electronic mechs are usually meant only for Asian and European
markets, where the coin doors have a different setup. The electronic
mechs usually won't fit a US coin door, and even if they do, they
might not interface easily to a virtual cab's key encoder.
Here are a few pictures to help you identify the right type by
physical form factor, if you're looking for a non-quarter denomination
on eBay:
Note that your mechs might have the stubby little posts coming out of
both sides. The SuzoHapp/Stern doors need all four posts to seat
properly, whereas the WPC doors only use the rear posts. The pictures
above show the WPC configuration with only the rear posts in place.
If your mech has all four posts, and you have a WPC door, no problem:
you can easily remove the unwanted extra posts by unscrewing them.
"Any Coin" dummy coin mech
The standard coin mechs described above are designed to accept
specific coins or tokens. Since they're sold for commercial use,
they're designed to validate the coin's authenticity by size and
weight. They'll reject anything besides the correct coin type.
For home use, you might not care about the validation part, since you
might want to use tokens or assorted coins instead of keeping a supply
of quarters on hand. In that case, there's an alternative dummy coin mech
available that accepts just about anything resembling a coin, without
trying to validate it:
>
The Any Coin mechs are drop-in replacements for the standard mechs, so
you should be able to use them in any of the common coin doors. The
price is about the same as the standard mechs, so the main reason to
buy them would be that you like the option of using assorted coins and
tokens instead of just quarters. They might also be less likely to
jam than the standard mechs, since they don't need the intricate
internal maze that the standard mechs use to reject invalid coins
(although I don't find that the real mechs jam much either).
I'm personally happier with the standard mechs, just for the sake of
authenticity. But then again, I rarely use coins anyway when
playing games on the machine, so it makes little difference at a
practical level.
How to install a mech in a WPC door
If your coin mech has four of the little stubby posts, remove
the ones on the front side - the side that faces the coin door.
Simply unscrew the posts and set them aside (you can put them in your
misc parts drawer, or just discard them). The mechs often come with
all four posts installed, because some other coin doors require
them, but they won't fit into the WPC-style doors.
Coin mech with all four posts installed. You'll have to
remove the posts on the front (door) side before installing
the mech in a WPC-style door.
Open your coin door and find the brackets that hold the mechs. These
are right behind the coin slots. You should see a couple of big latch
levers near the top of the door, as pictured below.
There might be a cotter pin installed in each latch to lock it in
place; if there is, remove it. Pull the latch outward from the bottom
and flip it all the way up. (It might offer a little resistance when
all the way down, but you shouldn't have to exert too much force.)
The coin mechs fit in the space below the latch, in the area marked in
the photos (above and below) as the "seating slot". This area isn't
very well delineated - figuring out exactly where the mechs should
land is the hardest part of installing them, in my opinion. The
picture below shows more of a head-on view that might help. The
"slot", such as it is, is that open space between the two stubby
little protrusions along the front wall. You want to fit the front
bottom corner of the mech between those nubs.
That big adjoining opening in the floor is not part of the
seating slot, by the way. It's the opening that the coins drop
through. Don't try to squeeze the mech in there; it'll end up
resting right on top of that opening.
To orient the mech, find the big plastic lever that's alongside one of
the edges. (The lever is engaged when you press the "push to reject"
button to clear a coin jam.) When you install the coin mech, install
it with the lever facing up, and the hinge towards the back, facing
away from the coin door. The hinge side should also be the side with
the two posts.
Insert the coin mech into the slot. You'll have to insert it an
angle, as shown below, to get around the back end of the bottom
bracket. Orient it as shown, with the little metal posts sticking out
the back, and the metallic side of the unit facing you. At this
stage, there won't be any sensation that you're fitting the mech into
a slot; it just kind of sits there. But the bottom front corner
should be nestled between those two little nubs we pointed out above,
and you should push the mech as far forward as you can against the
door.
If everything's aligned correctly, you should now be able to push the
bottom rear of the mech - the part where the bottom post is sticking
out in back - into the bottom bracket. This should straighten things
out so that the mech is square with the door. This will be a fairly
tight fit, but it shouldn't take a lot of force. If it doesn't slide
into the bracket fairly easily, the mech is probably sticking out too
far in back because you don't have the front aligned correctly with
the nubs. Try wiggling the front to get it more completely into the
little recess between the nubs. You might also have to slide it
upwards slightly to fully seat.
Now flip down the top latch (the one we flipped up in the first step).
It should fit over the top post at the back of the mech. If it doesn't
seat, try sliding the mech upwards a little, and try moving the
top back and forth a little to fit into the lever.
If you took out a cotter pin at the start of the procedure, re-install
it now.
Done! If you have a second coin mech for a second slot, the procedure
is exactly the same for that.
The blank space in the left half of the WPC-style door is designed to
accommodate a paper dollar bill acceptor. I haven't installed one of
those myself, so I don't have any installation instructions to offer
(and I doubt that most virtual cab builders would be interested anyway).
Some cab builders use the space for other purposes, such as audio
volume knobs or extra buttons.
How to install a coin mech in a SuzoHapp/Stern door
Open the coin door and find the brackets that hold the mechs. They're
right behind the coin slots.
Make sure the metal tabs at the top and bottom of the slot are in the
"open" position, meaning they're out of the way of the slot. Slide the
upper tab all the way up, and slide the lower tab all the way down.
Loosen the set-screws if necessary. (The brackets might take a little
effort to slide up and down even after loosening the screws, but of
course don't force anything.)
At the front of the area where the mech will sit, you should see two
little circular recesses at the front of the slot. These are where
the posts on the front edge of the coin mech fit.
Slip the mech into the space, fitting the posts on the front edge into
the recesses. Orient the mech as shown below, with the metallic side
facing you. You can also identify the orientation by the "ledge" that
sticks out on from one side of the mech. The ledge is at the top, and
should be on the side facing you.
The back of the mech should now align with the metal brackets above
and below. Slide the brackets so that the posts on the back of the
mech fit into the openings on the brackets.
Now all that remains is to tighten the set-screws to fix the mech in
place. Done!
European coin doors and coin mechs
My understanding is that the coin doors sold for European markets use
a different design that's not compatible with the mechanical quarter
acceptors used in the US. The European coin doors are set up for
electronic coin acceptors that can be programmed for multiple
denominations, to accommodate a wider range of coins. The electronic
coin acceptors have a different physical form factor from the
mechanical ones used in the US, so they need different brackets and
have a different installation procedure. I'm afraid I don't have any
experience with these, so I have to leave it up to you to figure out
the procedure. (If anyone wants to supply me with a photo sequence for
European doors, I'll be happy to add that here.)
Custom coin slot inserts
Each coin slot
on the coin door has a "reject" button at the top for clearing coin
jams. These usually come with pre-printed legends indicating the type
of coin accepted, usually "Quarters" or "25¢" for a US door.
The legend is printed on a little piece of transparency film
sandwiched inside the button, so you can take that out and replace it
with a custom label. This lets arcade operators swap in labels saying
"Tokens Only" or "SBA Dollars", for example. For a virtual cab, it's
an opportunity to personalize your machine.
You can buy pre-printed inserts for common denominations, but it's
pretty easy to create your own custom inserts with a laser printer.
To help you get started, here are the dimensions for the most
common coin door types:
>
If you're not sure that your inserts match one of these layouts, you
can just measure the old one currently in your door after extracting
it, which we'll get to in the "how to install" sections below.
Your inserts will look best if you use white text and graphics on a
black field. That's the way the "real" ones look. The black
background should ideally be completely opaque, which is why you need
a laser printer; the ink used in ink-based printers just isn't opaque
enough.
When I created my labels, I had good results with plain white paper
printed on a laser printer. Your mileage may vary, though; laser
printers certain vary in how darkly they can print. I've seen posts
on the Web from other people who tried to create custom inserts this
way and weren't satisfied with the opacity. If you try it and find
that the results look too washed out when back-lit, you might try a
double layer approach: print a bottom layer on white paper, and a top
layer on laser printer transparency film. Cut out the two pieces and
carefully align them to overlay the graphics. The double layer of
toner should greatly improve the opacity of the black, and since the
top layer is clear film, it won't (much) dim the white parts. You can
try two layers of white paper if you don't want to spring for the
special laser transparency sheets, but the white parts will probably
be too dim with that approach.
Once you have the inserts printed, you still need to install them in
the buttons. The exact procedure for that depends on the type of coin
door you have.
I think white paper makes a better base layer than making the whole
thing transparent, by the way, because white paper will do a better
job of diffusing the back-lighting. The original inserts that come
with your coin doors will probably be printed on thin white plastic
film, which is probably even better than paper, since it doesn't have
the visible grain that paper has. You can find laser-printable
translucent film sheets on Amazon and at art-supply shops, but I
haven't tried any of them myself. (Try searching for "backlight film"
or "lightbox film".) If you've used a particular product that you'd
like to recommend, let me know and I'll pass along the recommendation
here.
Replacing inserts in WPC coin doors
Fair warning: this process is a bit of a pain with the WPC doors.
(Which I hope you won't find to be too much of an understatement.)
I'd strongly recommend doing one chute at a time: leave one
chute fully assembled while working on the other one. That way, if
you get stuck during re-assembly, you can use the still-assembled one
as a reference to figure out how things are supposed to go. This
could be especially important if your door doesn't exactly match the
one I used to formulate these instructions. I'm sure there are some
little variations in different versions of this product that they've
shipped over the years.
To get to the orange button, you have to take off the entire top coin
mech bracket. Start by removing the coin mech itself (reverse the
procedure for installing a coin mech in this door, described above).
Then remove the four screws shown below.
The screw labeled "A" above attaches the bracket for the lamp that
back-lights the button. Pull the lamp out of the bracket (it'll be
sitting in a hole in the back of the bracket). You don't have
to disconnect the lamp or disconnect any wires. Just let the lamp
dangle from the wire.
Screw "D" holds down both the bracket and a wiring clip. Try to keep
the wiring clip attached to the wire to make it easier to put things
back the same way later. (I did warn that this was going to be a
pain.)
The bracket should now be free, so gently remove it. It might be a
little tangled in the wiring, so if it doesn't come right out, gently
ease it out from under any wires pinning it down. Again, you
shouldn't have to disconnect any wiring at any point in this entire
process.
You can now easily remove the orange button. In fact, it'll probably
pop out on its own when you pull out the bracket, because there's
a spring actively pushing it away from the door, and the bracket
was the only thing keeping it in place.
Note that you'll want to remove that entire black bracket that the
button is housed in, even if the button came out before you had the
bracket all the way out. It'll be easier to get it back together
later if you just take the bracket out entirely.
We've almost reached our objective of removing the old insert. The
orange button might look like a single piece of molded plastic with
the insert forever locked inside, but it's not. There's a removable
cover, and the insert is just under that. You should be able to see
the seam pretty easily about a millimeter from the front. The cover
isn't molded in or glued on; it's just held in place by four friction
pins. You should see a notch on each side along the seam. You can
stick a flat screwdriver in there and twist gently to pry the cover
off. Be gentle so that you don't break the little plastic pins, and
do the prying as evenly as you can. Pry a little on one side, then
pry a little on the other side, and rock it back and forth like that a
few times until the cover comes loose.
Once you have the cover off, just take out the old plastic film and
insert the new one. The cover has a very slight recess for the
insert, so I'd put the cover face down on a table, put the new insert
into the cover, and then reattach the back to the cover, keeping the
cover lying flat so that the new insert stays put. Align the pins
and press the two pieces together until flush.
Pay attention to the subtle asymmetry of the cover! One side has
curved corners, and the other side has square corners. You'll want
those to align when it's back together, so make sure you install the
new insert right-side-up.
Put the spring on the button stem, noting that the narrow end of the
spring faces the button.
The rest is just a matter of reversing the disassembly steps. It's a
bit of a hassle to get the bracket back in the proper position in the
door, especially since the spring-loaded button wants to keep falling
out. Be patient, and you should be able to get it seated again.
Remember to look through the coin button opening in the front side of
the door as you get the button seated - that'll make it easier to get
everything aligned again.
When you have the bracket aligned properly (with the coin slot and
button in the right place as viewed from the front side of the door),
hold it in place while you screw in the bottom screw (screw "C" in the
first photo above). That should be the longest of the four screws you
removed.
Fasten screw "B" (on the left side) next. That's one of the two
middle-size screws.
For screw "A" (at the top), remember that this also attaches the lamp
bracket. Use the smallest screw in this slot. Insert the lamp back
into hole in the back of the button bracket, and fasten screw "A"
though the lamp bracket.
Similarly, screw "D" (on the right side) attaches a wire clip, so put
the wire clip back in place (hopefully with all of the wiring still
threaded through) and fasten the screw through the clip. Screw "D" is
one of the middle-size screws.
Now you just have to repeat the whole thing for the second coin chute.
If it's any consolation, it should be easier the second time
through, now that you've had some practice.
Customizing the coin button colors: The WPC coin doors come
with orange plastic buttons, so you're kind of stuck with a Halloween
color scheme for your inserts (orange and black). But there's a way
to fix this: you can buy clear plastic replacements for the orange
buttons. With clear buttons, you can use whatever color scheme you
want for the printed inserts, and/or you can change the back-light
color, by replacing the white #555 lamps with color LED bulbs. For
the clear buttons, search for part number PBL-100-0072-00 at Pinball
Life, or 27-1081-CC at Marco Specialties. Both companies also sell
#555 LED bulbs in various colors.
Replacing inserts in Stern/SuzoHapp coin doors
If you opted for a SuzoHapp door instead of a WPC door, good news:
they made the process of replacing the inserts quite simple in these
doors - much less of a chore than for the WPC-style doors.
In the SuzoHapp doors, the orange button is held in place by an e-clip
on the button stem inside the coin door. To remove the button, just
pry off the clip. You might be able to get it off with fingers alone,
or you can use needle-nose pliers to pull it loose.
Removing the clip frees the button and lets you pull it out
of the door on the front side.
Removing the old insert is just a matter of sliding it out through the
paper-thin slot in the top of the button.
There's nothing holding the insert in place except friction, but
there's enough friction that it won't fall out on its own. There's a
narrower slot in the bottom of the button that you can feed something
super-thin into (try a folded piece of paper) to dislodge the old
insert, or you might try just blowing into the bottom slot.
Once the old insert is removed, simply slip the new insert in through
the top slot.
To put the button back into the door, just reverse the removal
process. Put the spring back on the stem, push the button into the
socket, and slip the e-clip back onto the stem on the inside. You'll
probably need to use needle-nose pliers to snap the e-clip into place.
The coin door wiring harness
If you buy one of the pre-built and pre-wired coin doors, it will come
with a connector plug, known in the jargon as a "wiring harness", with
pins for all of the electrical connections inside the door. If you
want to take full advantage of the functional components in the door,
you'll have to connect the pins in the wiring harness to other
points in your cab:
- Connect the switches and buttons to your key encoder. This includes
the operator buttons, the coin chute switches, and the slam tilt
switch, if present. All of these connect to the key encoder following
the same pattern as other cabinet buttons, as explained in
Chapter 35, Button Wiring.
- Connect the lamps at the top of the coin chutes to power, to make
them light up when the machine is on. You can optionally connect them
to your output controller to make them light up under software
control; if you want to go that route, connect them just like any
other feedback device, as explained in Chapter 47, Feedback Device Wiring. In
my opinion, there's no good reason to go to that kind of trouble; I'd
just hard-wire them directly to power. That's exactly what the real
machines do, so there's no "realism" gained from controlling these
through software.
The wiring harness connectors on the pre-built doors are standard
parts, which means that you can buy mating connectors from an
electronics vendor like Mouser. I'd recommend doing exactly that: I
like using modular plug-in connectors wherever possible, because it
makes the wiring neater, and it makes maintenance easier if you ever
have to remove anything.
Some cab builders don't want to deal with the hassle of finding
matching connectors, so they use wire cutter to snip off the wiring
harness connectors and then make their connections either by soldering
the wires, or using a screw-down terminal block. I don't recommend
cutting off the connector, since you can't easily undo that, but some
people go this route for the sake of expediency.
Whether you use the pre-attached connector or cut it off and connect
the bare wires, you'll need to know how the wiring is all connected.
See the sections below for wiring diagrams for the various door types.
Williams 13-pin connector
The Williams coin door comes with a pre-wired 13-pin connector of this type:
Molex 09-50-3131. This connector is designed
to plug into a circuit board that has the mating header:
Molex 26-60-4130.
Here's how the pins in the connector are wired:
The 13-pin Williams connector.
The pin marked "Blocked key pin" is physically blocked in
the connector, so that the mating pin won't fit into it. The
matching pin on the PCB connector must be clipped off. This
ensures that you can't insert the plug backwards, or plug
it into the wrong circuit board. The "Middle coin" pin isn't
wired at all in coin doors for the US market, which only have
two chutes (left and right). The pin colors in the diagram
approximate the wire colors leading to the harness, but note
that some of the wires are striped in two colors; the diagram
only shows the base color.
The "All switch common" pin is daisy-chained to one terminal of each
switch and button, so it corresponds exactly to the "Common" terminal
on your key encoder and should be connected there. Each of the other
switch pins should be wired to the corresponding button input on your
key encoder.
The odd man out among the switches is the "slam tilt" wiring, which
has its own separate pair of pins rather than connecting through the
"common" pin. You can simply connect one of these pins (it doesn't
matter which) to the "common", and connect the other to the
appropriate button input for the slam tilt switch.
The coin chute lamp pins provide the 6.3V power connections for the
lamps that illuminate the coin chutes. These are normally hard-wired
to power on a real pinball machine, so I suggest doing the same in a
virtual cab. The lamps normally installed are incandescent #555
lamps, which are designed to run on 6.3V but will run (noticeably
dimmed) on 5V. Incandescent bulbs aren't polarized, so it doesn't
matter which order you connect (+) and (-) on these. See
Chapter 45, Power Supplies for Feedback for advice on adding 6.3V power to your cab.
You can connect the coin lamps to your output controller to put them
under software control if you wish, but I personally wouldn't bother:
it won't add much of a special effect, since the software will just
leave them on all the time anyway.
How to connect to the plug
Now that you know how the connector is wired, there's still the
matter of physically connecting wires to it. There are three main
options:
- Cut off the connector and use your own wiring
- Use a "Z" adaptor and wire your own matching wire harness
- Use a custom circuit board
The first option is the most straightforward, especially if you're not
much into electronics as a hobby, but I don't like it much because
it's not easily reversible should you want to re-purpose the coin door
in the future. The Z adapter option is easy to understand, but it's
really about as much work as setting up a custom circuit board, since
you have to build the mating plug out of crimp pins. That's why my
favorite option is the custom circuit board. That takes a little more
up-front planning work, but the assembly process is easy and it's very
convenient to install and use once it's assembled.
Read on for the details on how to implement each option.
Custom circuit board for Williams 13-pin plug
On the original Williams machines, the 13-pin connector plugged into
the mating header on a small circuit board mounted on the left inside
wall of the cabinet. This circuit board in turn had other connectors
that led back to the CPU board (for the switch terminals) and the
power connections (for the coin chute lamps).
You can create a simple circuit board for this, using the 13-pin
header linked above. For your convenience, I've drawn up EAGLE plans
for a board that includes the pin header and breaks out the
connections for easy wiring to other points in your cab. You can have
this board made by
OSH Park for
under $10. Simply upload the EAGLE plans to their site and they'll
make 3 copies of it for you.
The board design includes a 6.3V regulator to provide the correct
voltage for the coin chute lamps. Just plug in a 12V supply (you can
use an ATX power supply for this). The on-board 6.3V regulator can
also supply power to up to four additional front panel button lamps,
which usually use the same 6.3V bulbs.
"Z" adapter for Williams plug
It might seem like
too much work to build a whole separate circuit board just to
accommodate that special coin door plug. The thing that would be a
lot simpler would be to find a mating wire-harness connector that you
could wire to your key encoder and power supply, and then just plug
the two connectors together directly, without any extra circuit boards
in between. There is a way to do this, but it requires a special
adapter plug that serves as a gender changer for the Molex plug,
so that you can plug two of the same Molex plugs together. The
adapter is often called a "Z Connector" because of its shape.
You can find these at pinball suppliers and some electronics
vendors. Search for part number MWWS156-1624. Get the version with
at least 13 pins (MWWS156-1624-13). A version with more pins will
work if you can't find the 13-pin version.
Once you have that part in hand, you can build your own cable
connector using the same connector that's on the coin door harness
(
Molex 09-50-3131). Then just plug
the two cables together using the "Z" adapter.
This option is marginally less work than the circuit board
approach above, and slightly cheaper. I don't think it's
quite as tidy, since it leaves these two big cable plugs
loose in the cab, but you can fix that easily enough with
some cable ties.
This connector is a "crimp pin housing" type. See
Chapter 82, Crimp Pins for help with ordering the necessary parts
assembling the connector.
Connecting to the bare wires
The most straightforward option is to cut off the 13-pin plug and
connect to the bare wires. If you're using a circuit board or a Z-adapter
as described above, you can obviously skip this section.
And I generally recommend you do use one of those other options, since
cutting off the plug is destructive and not easily reversible, and
because pluggable connectors are easier to work with later when doing
maintenance. But if you don't have the
patience for one of the more structured approaches above, this
is a workable last resort.
One fairly easy way to deal with the bare wires after
cutting off the connector is to wire them to a screw-terminal block
like the one pictured at right. Look for a terminal block with 12 or
more terminal positions. You can mount the block on the cabinet wall
adjacent to the coin door. Install the coin door first, then connect
each wire from the coin door to one of the screw terminals. Then you
can run a wire from each screw terminals to the corresponding
connector on your key encoder, in the case of the switch wires, or to
the appropriate power connections in the case of the coin chute lamps.
Alternatively, you can create your own wiring harness using a different
connector of your choice. I personally don't see a lot of benefit in
this approach, since it's about the same amount of work as creating
a connector that mates with the existing 13-pin plug.
Stern SAM connector
The SAM-era coin doors use a 12-pin Molex connector for their switch
wiring. Unfortunately, I haven't yet been able to confirm the gender
or pin pitch - it looks like a Molex .063" plug
(
Molex 03-06-2122), which makes the
matching connector the .063" 12-position receptacle
(
Molex 03-06-1122). But it could be
the other way around. If you're buying one of these doors, you'll
have to wait until you have it in hand to determine the exact plug type -
and when you do, please let me know which it is so that I can improve
the advice here!
These are connected as follows (refer to the diagram at
right for pin numbering):
- Left coin
- Not used
- Right coin
- Not used
- Not used
- Slam tilt switch
- Back/Cancel service button
- Down/- service button
- Up/+ service button
- Enter/Select service button
- Key (blocked pin for orientation)
- Switch common
>
These doors appear to have an additional four-pin connector for power
to the coin chute lamps. I don't know the type of connector used
here, so again, please let me know if you have reliable information so
I can include it here. At any rate, the wires you want to connect in
that plug are the yellow and yellow/white wires: those connect to 6.3V
power. The bulbs are incandescent, so the order of the (+) and (-)
connections doesn't matter for these. You can leave the other two
pins unconnected.
To integrate this connector into your own wiring, you have basically
the same options as for the Williams 13-pin connector: you can either
build a matching plug, or you can cut off the plug and connect the
bare wires. I think it's a better idea to keep the plug for the sake
of ease of maintenance down the road, but that requires a little more
up-front work. Review the section on the Williams 13-pin plug above
for thoughts on these options.
Stern SPIKE connector
The SPIKE-era coin door wiring harness is terminated in two
connectors, each female 0.1" pin header connectors that connect to
0.1" single-row pin headers. These are common connectors that you can
find easily from electronics vendors; see
Chapter 80, Connectors for
more on these. One of the plugs has the wiring for the service
buttons, and the other has the wiring for the coin chutes and
slam tilt switch.
The first connector, which has the service button wiring, fits a
6-pin, single-row 0.1" header. The pins are arranged as follows. The
"Key" is a blocked pin to ensure that you insert the plug in the right
direction; this pin must be snipped off on the header to allow the
plug to fit.
- Escape/Cancel
- -/Down
- +/Up
- Enter
- (Key - blocked pin)
- Switch common
The second connector has the wiring for the coin chutes. This one
fits a 9-pin, single-row 0.1" header. The pins on this connector are
arranged as follows. There's no key pin on this connector, so you
have to be careful to plug it in the right way. You can identify the
end with the LED power pins by the yellow wires going to the plug.
- +5V (power to coin chute LEDs)
- 0V (power to coin chute LEDs)
- Switch Common
- Slam tilt switch
- Coin 5
- Coin 4
- Coin 3
- Coin 2
- Coin 1
Connect the coin chute LED pins to your 5V power supply. I recommend
connecting these directly to the power supply, since they're similarly
hard-wired to power on the real machines. But if you prefer, you can
connect the 0V side to a port on your output controller to place the
coin chute lights under software control. I don't feel that's worth
the trouble, since the software will just leave the lights on all the
time. See
Chapter 47, Feedback Device Wiring for more details.
The Switch Common pins on both connectors correspond to the Common
port on your key encoder and should be connected there. Connect the
other button and switch pins to corresponding input ports on your
key encoder.
To integrate these connectors into your own wiring, you have basically
the same options as for the Williams 13-pin connector: you can either
build the matching connectors, or you can cut off the plugs and use
the bare wires. I think it's a better idea to keep the existing plugs
for the sake of ease of maintenance down the road, but that requires a
little more up-front work. Review the section on the Williams 13-pin
plug above for thoughts on these options.
Creating your own wiring harness
If you buy one of the basic coin door options that requires you to
install the wiring yourself, I'd recommend creating your own
plug-and-socket connector for it, rather than wiring everything
directly to other points in your cab. This will make future
maintenance easier. The Molex .063" wire-to-wire connectors are good
for this, as they come in a wide variety of pin counts. See
Chapter 80, Connectors for more on building custom connectors.
Wiring to the key encoder
The service buttons are just like any other cabinet buttons, so wire
one terminal of each button in a daisy chain to your key encoder's
Common terminal, and wire the other terminal of each button to an
individual button port on the encoder. See
Chapter 35, Button Wiring for more on the general wiring plan for
buttons.
The coin chute switches and slam tilt switch all act just like
buttons, so wire them the same way.
All of the pre-wired door types provide wiring that's compatible with
the general key encoder wiring plan. They all use a Common wire
that's daisy chained to the various buttons; this corresponds exactly
to the Common terminal on your key encoder, so simply connect the two.
What about multiple Common wires on the coin doors? Some of the
pre-wired doors provide multiple Common wires for different groups of
buttons. You can just connect all of the Common wires together if
there are more than one. The doors that use multiple Common wires do
so for compatibility with the more complex "matrix" wiring used in
real machines from the 1980s and 1990s, where switches were grouped
into blocks that had separate commons. The key encoders we use in
virtual cabs have more modern electronics that allow a simpler scheme,
with a single common across all buttons.
Key assignments
If your key encoder is programmable, assign the coin door button ports
to keyboard keys as follows. (The first four items represent the
labels on the "service" buttons.)
- Cancel = 7
- -/Down = 8
- +/Up = 9
- Enter = 0
- Coins = 3 (see "How to set up multiple coin chutes"
below)
- Slam tilt = Home
If your key encoder isn't programmable, and it uses a fixed set of
joystick buttons as inputs, you'll have to do the programming in
Visual Pinball instead of in the key encoder. Open the Visual Pinball
editor, with no game running, and select Preferences > Keys from
the menu. For each of the buttons you connected, find the entry in
the dialog for that button. (The Coin buttons are labeled "Add
Credit", "Add Credit 2", "Coin 3", and "Coin 4". The service buttons
are grouped together in a section labeled "Service Buttons".) Under
each button label, you'll find a drop list where you can select the
joystick button number assigned to each input. You'll have to repeat
this process with each version of VP that you intend to use on your
cab (VP 9, VP X, PhysMod5, etc), since each version keeps its own
separate settings.
If your key encoder isn't programmable, and it uses a fixed set of
keyboard key assignments, you'll have to pick the ports on your key
encoder that are already assigned to the keys listed above when wiring
these buttons. If your key encoder doesn't provide some of these, you
won't be able to use these buttons with that encoder. In that case,
you might consider adding a Pinscape unit purely for the additional
programmable key inputs. It only costs about $15, and the procedure
for wiring it for button inputs is essentially identical to the
procedure used for the commercial key encoders.
Check your VP "Coin 1" setting
Open the Visual Pinball editor and bring up the keyboard preferences
dialog (select Preferences > Keys from the menu). Check that the
entry for Add Credit is the 3. If it's not, click
the Add Credit button, then press the 3 key on the
keyboard.
While you're at it, also check that Add Credit 2 is set
to 4, and change it as well if necessary.
Make sure Add Credit is assigned
to 3 and Add Credit 2 is assigned to 4
Note that each version of VP (9, 10, PhysMod5) stores it settings
independently of the other versions, so you'll have to repeat this
process for each version of VP that you intend to use on your cab.
This is required even if you're using joystick input, and in
fact it's especially important if you're using joystick input
due to a bug in the VP core scripts. Current versions of the VP
scripts ignore these settings and always use 3 and 4
respectively, no matter what you set in the dialog. That's confusing
at best, but it's even worse if you're using a joystick, because VP
will internally map the joystick input to the key assigned in the
dialog. If that doesn't match the hard-coded 3 and 4
keys used by the scripts, your coin inputs will be ignored by most
tables.
How to set up multiple coin chutes
In the US, the most common coin door configuration is two slots that
both accept quarters. Each slot has its own separate switch, so
you'll have two inputs to connect to your key encoder. You have
two options for this:
- Wire the two switches together to the same key encoder input
- Wire them to separate inputs
If both slots accept quarters, I recommend the first option: wire both
switches to the same key encoder input, and assign this input to the
3 key on the keyboard. In the PC pinball simulators, this
represents the primary coin slot. You can instead wire the two slots
to separate inputs; if you do, use the 4 key for the second
slot's key assignment, as this represents the secondary coin slot in
the PC pinball software's mappings.
The reason I recommend using a single key encoder input for two
quarter slots is that it simplifies the software setup considerably.
Almost all Visual Pinball tables will handle the primary coin slot the
same way, but the handling for secondary coin slots can vary from one
table to the next. You'll have to use the operator menus to adjust
pricing options on many tables if you want consistent handling for the
secondary slot.
The advice above only applies if your two (or more) slots all accept
the same coin denomination. If you're using slots that accept
different coins (e.g., dimes and quarters), you should wire each slot
to a separate key encoder input so that the software can distinguish
the different coin types properly. Visual Pinball allows up to four
distinct coin keys for this purpose. However, be warned that this is
a bit of a pain to set up in the software. You'll have to go into the
operator menu for each individual table to set up pricing options.
This is handled by the emulated ROM software, so there's no way to
share the settings among games; Williams and Bally and the rest sadly
lacked the foresight to build Internet cloud storage into their games
in the 1980s and 1990s. What's more, each table has its own unique
operator menu tree, so you'll have to learn how to use each one. The
Williams games from the 1990s have nicely designed menus that are easy
to navigate, but games from earlier generations can range from mildly
confusing to utterly obtuse, roughly in proportion to age. Be
prepared to hunt through the operator's manuals for older games.
To use two distinct coin denominations, assign the primary coin slot
to the 3 key, and assign the secondary slot to 4. You'll
have to go through your installed games and set up the suitable
pricing options in each one via its operator service menus.
If you're using three denominations, assign the third to the 5
key. Assign a fourth denomination to the 6 key. The PC pinball
software stops at four slots, so there's not much you can do on a
virtual cab with slots beyond the fourth.
Using the Reject buttons as virtual coin buttons
We've already mentioned that you should include some way to insert
coins, either real or virtual, because of the difficulty of converting
some older games to Free Play mode. If you're installing coin
mechanisms in the chutes and wiring the coin switches, you'll be able
to accomplish this using real coins. Alternatively, you can skip the
coin mechs and just install a "Coin" button that simulates coin
insertion. And in my opinion, you really should include a "Coin"
button even if you install real coin mechs, since it's fun to use real
coins once in a while, but only once in a while. You'll want the
convenience of a front-panel button the rest of the time.
The perfect place for
the "Coin" button, in my opinion, is the Coin Reject buttons at the
top of the coin chutes. You could just add another pushbutton to your
front panel of the same sort as the Start button, but that adds
clutter and makes the machine look less "real", since real pinballs
are almost all very minimalistic about buttons. The Reject buttons
let you hide the Coin button in plain sight, using a button that's
going to be there anyway. It's also an intuitive place for the
virtual Coin button since it serves a coin-related function already.
It's not realistic, of course; an arcade machine obviously isn't going
to provide a button that lets anyone add free credits. But that's
just all the more reason to "hide" the button like this.
Using the Reject buttons as coin buttons isn't just a matter of wiring
them to the key encoder, because there's no wiring to these buttons to
begin with. They're not the electrical kind of button that operates a
switch; they instead operate mechanical levers in the coin acceptor
mechanisms that widen the coin passage to help free jammed coins. To
make these into buttons we can wire to our key encoder, we have to add
microswitches in such a way that pushing the button operators the
microswitch.
Basic geometry of the coin reject button for
the Williams-style coin doors (other types vary slightly in the
details but have roughly the same layout). A plunger sticking
out from the back of the button engages the lever when pressed.
The button's total travel range is about ¾".
The obvious place to add a switch is just behind the plunger:
That's workable but not ideal. The problem is that the plunger has to
travel about ¾" in order to fully engage the lever that clears
jams in the coin mechanism. If you put the microswitch directly
behind the plunger as shown above, it'll block that full range of
motion. An over-zealous player could also push the button hard enough
to bend the microswitch or break it off its mounting. If you're not
using real coin mechs, though, this simple arrangement might work for
you, since you probably don't care about giving the button the full
range needed to clear jams.
The next most obvious arrangement, if you want to avoid blocking the
full travel range, is to position the switch at the end of the
plunger's travel. There's no good way to do that in such a way that
the plunger engages it directly, since as you can see, that large
lever is in the way. What you can do, though, is let the lever engage
the switch.
This arrangement, like the first, works but isn't great. This plan
has the benefit that you can press the button all the way in,
but it has the drawback that you must press it all the way in.
That's unpleasant for players, because it takes a bit of effort to
push the button all the way in; there's a lot of friction and spring
force in the coin mech levers. It also makes the button feel very
different from the other front-panel buttons, which all take a light
touch.
Fortunately, there's a better arrangement that overcomes both of these
problems: it doesn't block the full travel range of the button, and it
lets you engage the coin switch with only a slight push. The trick is
to install the coin switch "backwards", so that the microswitch is
compressed by the coin mech lever in the normal position, and released
when the lever moves forward. It's backwards in the sense that
pressing the button releases the switch, and releasing the button
engages the switch.
This arrangement trips the switch after pushing the button only
a short distance, so it gives the button the same light touch as
the other front-panel buttons. And it doesn't get in the way of
the normal jam-clearing function of the button.
It takes a little finesse to get the positioning right. You have to
position the switch so that its metal arm is held down by the big coin
door lever when the button isn't being pressed. You also have to
arrange it so that the switch arm stays out of the way of the plunger.
This doesn't leave a lot of room to maneuver, but it can be done.
You'll have to improvise something for a mounting bracket for the
switch. My recommendation is to fashion a bracket from sheet metal,
or perhaps use a 3D printer to create a custom bracket with the right
geometry for your switch. There's a good attachment point for
whatever bracket you come up with, just above the coin chute where the
lamp holder is attached. You can unscrew the lamp bracket and add
your own bracket on top of it, fastening it with the same screw.
Microswitch added to Coin Reject button
in "backwards" arrangement, so that the spring-loaded coin lever
presses the switch when the Reject button is in its rest position.
Pressing the Reject button pushes the lever forward, which releases
the switch. The microswitch is mounted on an improvised sheet-metal
bracket. The bracket is fastened to the door with the same mounting
screw that fastens the lamp holder for the chute.
Recommended mounting point for the
microswitch bracket. The coin door should have a lamp holder
installed above the chute, on a bracket fastened with a machine
screw at the top of the chute. If you use a similar thin metal
bracket for the microswitch, you can share the mounting point.
Remove the mounting screw, layer your switch bracket behind
the lamp bracket, and put the screw back in through both brackets.
The microswitch isn't installed in this view; this is just
the "before" view to show where it goes. The purple and white
wires visible here are the power wires for the lamp.
Wiring the coin switch
If you use the "better" plan above, where the switch is installed so
that pressing the button releases the switch, the trick with wiring is
to use the switch's Normally Closed terminal. This is the terminal
that connects to the switch's Common terminal when the switch isn't
engaged (its "normal" position). That lines up with our "backwards"
switch arrangement. So with this mounting plan, simply connect the
wiring to the switch's NC and COM terminals.
If you're using one of the more straightforward plans where pressing
the button engages the switch, wire to the switch's NO (normally open)
and COM (common) terminals instead.
My advice for the next step is to solder the two wires from the
microswitch directly to the two terminals wired to the coin chute
switch directly below it. That will make button switch and the coin
chute switch interchangeable. They'll both end up wired to the same
key encoder input, so pressing the Reject button for one of the chutes
will have exactly the same effect in the software as inserting a coin
into that chute.
The diagram below shows this wiring plan, with one small adjustment:
we identify the existing "all switch common" wire, which is daisy-chained
in the pre-installed wiring from switch to switch, and we extend that
daisy chain to our new switches as well.
Wiring the Reject button switches. Identify
the "common" wire in the existing wiring first: this is the wire
that's daisy-chained between the existing coin chute switches.
Extend that daisy chain to one terminal each on your new switches.
Then connect the other terminal of your new switch to the corresponding
other terminal of the existing coin chute switch.
Wiring a Free Play mode switch
If you want to get really fancy, you can add a switch that enables
or disables the Reject button switches. That will let you turn
Free Play mode on and off as desired. This requires only a small
change the basic wiring plan above: splice a switch into the
"common" daisy chain wire before your first added switch. When
the switch is off, this will disconnect both of your added
switches from the common wire, so they'll do nothing when
pressed. When the switch is on, the common connection is
restored, so they'll work as normal.
Other places to hide buttons in the coin door
Many cab builders these days prefer to minimize the number of visible
buttons on the front face, to better replicate the uncluttered look of
a real pinball machine. You might like the aesthetics of fewer
buttons, but sometimes you do want a few extra buttons for the sake of
functionality and ease of use. One way to resolve these conflicting
goals is to create "secret" buttons that function like regular
pushbuttons but don't look like buttons. We saw above how you can do
this with the Coin Reject buttons, taking a standard feature of the
coin door that's there anyway, and turning it into a pin cab
pushbutton - you get a functioning extra button without any added
visual clutter. The coin door offers a few other opportunities
for secret buttons:
Coin return slot flaps: If you don't plan to implement working
coin chutes, you can use the little flaps in front of the coin return
chutes as secret pushbuttons. Just install a microswitch behind each
flap, so that pushing the flap operates the switch. (This won't work
if you do want working coin chutes, since you'll want to leave the
return chutes clear, so that you can remove rejected coins as usual.)
Coin door lock: If you're using an entirely fake coin door,
it'll probably have a fake lock tumbler, to simulate the appearance
of the real doors. If that's removable or made of flexible plastic,
you could position a microswitch behind it and use it as a button.
Dollar bill acceptor plate: All of the modern coin doors for
the US market (including the WPC, Stern, and SuzoHapp models) include
removable rectangular plates where you can install a dollar bill
acceptor mechanism. The space behind these plates on the inside of
the door is always left open, to leave room for the bill reader, for
operators who install them. I've never heard of anyone installing a
dollar bill reader in a home-use pin cab, so this space usually goes
unused. You could either drill one or more holes in the plate and
install pushbuttons, or replace the plate with your own button panel.
This isn't really hidden the way the other ideas above are, but you
can at least make it inconspicuous by using low-profile black
pushbuttons. Alternatively, with a little improvisation, you could
make the cover plate itself into a button by attaching a hinge on one
side and placing a switch behind the plate.
Adding an extra service panel
The inside of the coin door is a good place for any extra
"operator" controls you need in your cab. I wouldn't put
anything you might access frequently here, but it's great
for controls you use occasionally, since it avoids adding
any visible clutter to the exterior of the cab, but is
still in easy reach when you need them. Some examples
of suitable controls:
- Night Mode switch
- PC hard-reset button
- Plunger calibration button
- Master volume knob for your audio amplifier
- Audio mute
- TV power controls (in case you have a balky TV that doesn't always
power on at the right times, or that needs to be power cycled occasionally
because it loses the signal from the PC video card, like my DMD
monitor occasionally does)
Most of the modern US coin doors have a large open space next to the
coin chutes where you can install a dollar bill acceptor, and include
mounting screws in that area. That makes a good place to mount
an additional set of buttons.
You can buy an extra operator button panel of the same sort that's
already installed in the WPC doors, and install it in the dollar bill
reader area. Those control panels are just rows of ordinary buttons,
so they're easy to wire for any control that uses a momentary switch.
These are also fairly easy to improvise using individual pushbuttons
and a sheet-metal bracket.
The extra service buttons in my pin cab, inside the coin door,
in the space provided for a dollar bill acceptor.
Coin door position switch
On real pinball machines, there's switch inside the coin door that
detects when the door is open and closed. You'll probably want to
install one of these on your virtual cab, for reasons we'll come to
shortly.
The coin door switch works like the light switch in a refrigerator
door. The switch is located just inside the door at the bottom of the
hinge. A metal actuator plate attached to the door presses down on
the switch's plunger when the door is closed.
Above: Coin door switch on a 1990s Williams machine.
These machines typically use two switches stacked vertically; you
can see the individual switch plungers. One switch is the high-voltage
power supply safety interlock, which cuts power to the playfield solenoids
when the door is open. The other switch is a logic input to the CPU
that lets the ROM software detect when the door is open.
Top view of the switch and actuator, to make
the geometry easier to see. The "actuator" is just a fixed metal plate
attached to the door that presses down on the switch plungers when the
door is closed.
The switch is a safety interlock on the original arcade machines. The
50V power line that supplies voltage to the big solenoids on the
playfield is routed through this switch, which disables the 50V feed
as soon as the door is opened. That helps avoid electric shock when
working inside the machine.
The ROM software on machines from the 1990s and later also monitors
the switch. When you open the door, the software typically does three
things:
- Displays a message to let the operator know that the high-voltage
power has been turned off
- Enables access to the game's setup menus through the operator
buttons
- Enables write access to the game's non-volatile memory, so that
settings changes made through the setup menus can be saved
Which brings us to the reason to include a coin door switch in your
virtual cab. When you're running a re-creation of a modern game,
you'll have to send the "coin door is open" signal to the VPinMAME
emulator before the software will allow access to the menus. That
might seem like a ridiculous restriction to replicate in a simulated
version, but remember, we're usually running the original ROM
software, so everything in the software works just like on the
real machines. Even odd things like this.
If you really want to avoid installing a coin door switch, there are
ways to work around the ROM warnings, such as pressing keys on the
keyboard to simulate the door switch. But why bother? Installing the
switch is pretty easy and cheap, and it makes things work exactly like
they're supposed to. I think it's easier in the long run to set it up
like the software expects.
The answer to the virtual pin cab FAQ,
"Why do I need a coin door switch?" With many games from the DMD era,
a message like this will appear on the DMD if you try to
use the operator menu buttons while the coin door is closed. This
is a safety precaution on the real machines, but it carries
over to virtual cabs because we're running the same ROM software.
Toggle mode or switch mode
The old, bad way of handling the coin door switch was as a
"toggle" button. That is, each time you opened or closed the real
coin door, you had to send a key press to Visual Pinball to toggle the
open/closed status of its simulated coin door.
Up until recently, that was VP's only way of handling the coin door
switch. This comes from VP's desktop heritage. In desktop play, you
don't have an actual coin door with a switch; you do everything with a
keyboard and mouse. So VP gave desktop users an easy way to simulate
an imaginary coin door: press a key to open the imaginary door, and
press the same key again to close it.
Needless to say, this desktop/keyboard scheme made things tricky for
cabinet builders with real coin doors. The "natural" way for a door
switch to operate is to be ON or OFF according to whether the door is
open or closed. There's no simple way for a switch to "press a key"
whenever it changes between ON and OFF, which is what the old
VP model asked it to do.
Fortunately, VP now has a option that lets cab builders wire their
coin door switches the natural way. You don't have to worry about the
old "toggle" scheme any longer. The installation and wiring
instructions below are all designed with the new and better system in
mind. You'll have to do a little setup work in VP to enable the new
"switch mode", since the old "toggle mode" is still the default, but
it's fairly easy (certainly easier than setting up the physical
switch as a toggle control), and we'll explain everything below.
If you read forum posts about the coin door switch, be warned that
you'll see a lot of material about setting up toggle-mode switches,
and it might make you worry that we're missing something important:
everyone on the forums says it's so hard! My advice is to just keep
reminding yourself that all of that is old and obsolete advice, from
back in castle times when toggle-mode was the only option and you had
to get your Internet on AOL dial-up. If you follow the instructions
below, the result will not only work, but will work more reliably than
the old toggle schemes did.
Recommended parts
In your virtual cab, you'll wire this switch to your key encoder, just
like any other button (see
Chapter 35, Button Wiring). This means
that you can use almost any type of switch or button. Many people
improvise with an ordinary microswitch, for example. My recommendation
is to do it the easy way and use the same parts they use in the real
machines:
- Switch: Williams part no. A-18249-1, A-18249-3; Stern 180-5136-00
- Mounting bracket: Williams 01-12676
You can search for those part numbers at any pinball or arcade supplier
to find the correct parts. You can also find equivalent switches under these
part numbers: Cherry E75-E79, Lamp PP2-1H7-2A2.
You can also use an ordinary microswitch, but I find those harder to
set up for this situation, because they have very short throws that
require pretty precise alignment. The plunger switches are much
easier to set up for this, especially if you're using the
purpose-built mounting bracket, mostly because they have nice long
throws that give you lots of leeway in aligning them.
Installing the switch
You should install your coin door before installing the switch, so
that you can use the coin door as the alignment guide. You'll
also want to remove the playfield TV or lift it up so that you
can access the inside of the coin door area from above, with the
coin door closed.
Start by installing the switch in bracket, as shown at right. The
rotation of the switch doesn't matter.
Close and lock the coin door. Position the switch so that the plunger
is pressed against the actuator plate on the coin door, and pressed
down most of the way so that the switch is in the "on" position. It
doesn't have to be pressed in 100%, but it should be pressed in most
of the way, to ensure that the actuator will reliably engage the
switch every time you close the door.
Once you have a good position mapped out, hold the plate in place
while you mark the locations of the screw holes on the front wall
of the cab.
Remove the switch assembly and drill some small pilot holes at the
screw locations you marked. (Be sure not to drill more than 1/2" deep
so that you don't drill through the front face!) I recommend using
1/2" #6 wood screws for this (and most other things that you need to
attach to the inside cabinet walls). Remove the switch from the
plate, and screw the plate securely to the wall using your pilot holes
as a guide.
The plate should now be positioned properly, so you just have to pop
the switch back in. Before you do, though, you might want to connect
the wires, since that's easier while the switch is dismounted.
Once you're ready to re-mount the switch, slip it back into the
mounting plate opening, then test that the switch clicks on and off
when you open and close the door.
Wiring the door switch
If you're using one of the big "plunger" switches recommended above,
it might look a bit confusing, since it'll have six terminals. It's
easier than it looks, though, because we only have to connect wires
to two of the terminals: the Common (COM) and the Normally Closed (NC)
for one of the two switches inside the device. For the Lamb and
Cherry switches listed above, use these two terminals:
Check the labeling on your switch to make sure it matches this
terminal layout. On the Lamb switches, they usually print the
legends COM1, NC1, NO1, COM2, NC2, NO2. Other switches might
use a notation like this:
Labeling on some switches of this type. The
numbered circles represent the switch contacts; the vertical lines
lead out to the corresponding external terminals. The diagonal line
shows the "Normally Closed" (NC) connection, that is, the terminals that
are connected when the switch is at rest, with the plunger not
depressed. The other terminal is the "Normally Open" (NO) terminal.
This type of diagram can be ambiguous because it doesn't show
clearly which terminal is the "Common" and which is the NC. In
the case of these plunger switches, the outside terminal
is typically the Common. So the correspondence with the COM/NC/NO
labeling format is 1=COM, 3=NC, 5=NO.
The terminal layout for the Cherry and Lamb switches listed above
is the same, but it's always a good idea to check the labeling to
be sure your switch matches. You can double-check with a multimeter
in continuity test mode if you're not sure how to read the labeling.
Once you've identified the COM and NC terminals to use, wire your
switch to your button encoder like this:
Why use the Normally Closed side? Don't people usually use
Normally Open when wiring a switch? Yes, that would be
more typical, but in this case VP lets you wire it either
way, and our VP setup instructions below assume you're
wiring to NC. Given that it's all the same to VP, we
suggest wiring to NC because of the effect it will have
on your regular keyboard input. Wired this way, the
key encoder input will be OFF whenever the coin door is
closed, which it probably will be most of the time. That
means the key encoder won't be sending any key presses on
behalf of the coin door as long as the door stays closed.
When you open the door, it will return the switch to its
default position, connecting the NC side of the switch
and turning the key encoder input ON. So your key encoder
will tell the PC that you're holding down the End key
whenever the coin door is open. When running VP, this
won't make any difference. But when you're not
running VP, wouldn't you rather not have the key
encoder sending the extra End key press all the time, so that
you can use the End key on the keyboard for text editing
and other functions? That's why we suggest wiring things
this way: as long as the coin door is closed, the coin door
won't cause any extra key presses to register on the PC.
>
How to choose which key encoder input to use
- If your key encoder has a special dedicated input for "Coin Door",
use that
- If your key encoder has a special dedicated input for the "End" key,
use that
- If your key encoder is programmable, use any free input. Run the
setup program for your key encoder (e.g., for Pinscape, run the
Pinscape Config Tool; for i-Pac, use the i-Pac setup program). Find
the input that you wired the switch to. Set this input to send the
keyboard End key to the PC.
- If your key encoder isn't programmable, and uses joystick buttons as
inputs, use any free input, and note the joystick button number
assigned to that input. Run Visual Pinball - don't load or run a
table; just open the blank editor. (Click Cancel if VP shows an Open
File dialog.) Select Preferences > Keyboard in VP 9 or "Keys,
Nudge, and DOF" in VP X. Find the section in the middle labeled
"PinMAME Buttons", and find the entry for "Door (END)". Underneath
that label, use the drop list to select the joystick button number
assigned to the key encoder port you selected. Note that you'll
have to repeat this process with each version of VP (9, 10, PhysMod5,
etc) that you intend to use, since they all keep their own independent
settings.
Setting up the door switch in VP
As described earlier, Visual Pinball is programmed by default for
desktop users who use the keyboard to simulate an imaginary coin door,
by pressing the End key on the keyboard to "toggle" the door's
open/closed status. That's no good for us, since we're using a
real coin door with a real position switch. Fortunately, VP can
handle this situation as well, but we have to specifically tell
it to override the defaults.
If you're already read through
Chapter 15, Pinball Software Setup, you might
recall my advice to set up a "customization log" - a text file on
your cab's desktop where you record special changes you make to your
VP setup, so that you can repeat them the next time you update to a
new VP version. This is one of those situations! Make a note of
the changes you make here.
- Make sure no VP windows are open
- In the Windows desktop, go to your Visual Pinball installation folder
- Open the Script sub-folder
- Find the file VPMKeys.vbs. Right-click it and select Edit
from the menu. (If that doesn't work for some reason, open Notepad,
then select File > Open from the menu to open this file.)
- Find the following lines:
toggleKeyCoinDoor = True
inverseKeyCoinDoor = False
- Change those lines to:
toggleKeyCoinDoor = False
inverseKeyCoinDoor = True
- Save changes (Ctrl+S)
The next time you run VP, it will read this script when you run a
table, and the table should respect these keyboard settings for
handling the coin door switch input. Note that these scripts are
shared by all versions of VP installed in this same folder, so you
don't have to do anything extra for the different versions.
Setting toggleKeyCoinDoor = False changes from the default
"toggle mode" that desktop players use to the switch mode that
cabinets use.
inverseKeyCoinDoor = True tells VP you're using the "Normally
Closed" wiring recommended above in
Wiring
the coin door switch: it tells VP that the key is pressed when the door
is open. (I wish they'd chosen more intuitive variable names for
this!) If for some reason you prefer to use "Normally Open" wiring
for your switch, leave the default (False) setting in effect for this
one.
What about Future Pinball or others? As far as I know, VP is
the only available pinball emulator that currently uses emulated ROMs,
which makes it the only one where the coin door switch is used at all.
All of this extra setup should therefore be irrelevant to other pinball
programs.
Cashbox
If you install coin
acceptor mechanisms in your coin chutes, you should install a
container under the chutes to capture inserted coins. You don't want
them bouncing around loose inside the cabinet where they could come
into contact with wiring or make other mischief.
The only downside of the standard cashbox is that it's rather large:
about 10.5" wide and 11" deep. That consumes a lot of floor space at
the front of the cab that you might prefer to use for PC parts, fans,
or feedback devices.
If you want something more compact, you can improvise a smaller box
using wood, plastic, or cardboard. For my own cab, I didn't have
enough space for the regular cashbox, so I found a rectangular plastic
food container of about the right height, and used an X-acto knife to
cut slots in the lid that line up with the coin chutes. A bungee cord
hooked to a eyelets in the cab floor holds it in place. It's not an
elegant solution, but it doesn't have to look nice given that it's
hidden inside the machine.
41. Audio Systems
In this chapter, we'll look at how to design and implement your
virtual cab's sound system. We'll help you decide on an overall
system design, as there are several ways to set this up, then
we'll get into the details of what equipment you can buy and
how to install and configure it.
Visual Pinball's two soundtracks
Before we start on the equipment, it's worth taking a moment to
understand the way Visual Pinball generates sound effects. It has
some special features for virtual cabs that are a little beyond
the basic task of playing back the game's music.
Visual Pinball provides two soundtracks for each game:
- The "music" soundtrack. For any table that's a simulation of a real
pinball machine, this is the soundtrack from the game's original ROM
software. It includes all of the synthesizer music, voice cues, and
other digitized effects that were played back through the speakers on
the original machine.
- The "mechanical" soundtrack. This includes all of the sound effects
that aren't from the original ROM - the ones that are added into
the Visual Pinball simulation. These are called "mechanical" effects
because they're almost always the sounds of things happening on the
playfield: the ball rolling across the playfield and
bumping into things, flippers, bumpers, and slingshots,
chimes and bells in EM machines, and anything else in the physical
game.
The point of separating the two types of effects into separate
soundtracks is that it lets you play them back through separate
speakers. In a pin cab, this means you can have VP play the
mechanical sound effects through a separate set of speakers hidden
inside the main cabinet, under the TV, so that the playfield effects
sound like they're actually coming from the playfield. This adds to
the illusion that it's a physical pinball game.
Newer versions of VP take the idea one step further with a "surround"
option. This lets you use four speakers in the cab, so that VP
can adjust the relative volume levels to make it sound like each
effect is coming from a precise position in space. Mechanical effects
don't just sound like they're coming from the playfield, but sound
like they're coming from a precise position on the playfield.
VP doesn't require that you provide all of these speakers. If you
only have two speakers, VP will mix all of the effects together and
play them back on your two speakers. That's in fact what it does by
default; you have to go a little out of your way to achieve the surround
effects. So the multiple soundtracks are a bonus feature that you can
take advantage of if you have the extra equipment, but which you can
just ignore if not.
As far as I know, Visual Pinball is the only pinball simulator with
this notion of separate "music" and "mechanical" effects channels.
All of the other emulators will just provide a single soundtrack, with
all effects playing back through your main speakers. If you don't
plan to run Visual Pinball, you probably wouldn't want to bother
with the extra surround speakers.
Removing unwanted VP sound effects for DOF solenoids
If you're using solenoid-based feedback devices on your cabinet to
simulate flippers, kickers, bumpers, and so on, you probably
won't want to hear VP's recorded sound effects for the same
devices. The recorded sound effects tend to sound artificial compared
to the real thing, and they also sound jarringly redundant when they
fire at the same time as the real devices.
Fortunately, it's possible to disable individual mechanical sound
effects in Visual Pinball.
The procedure is detailed in "Disabling unwanted sound effects in a VP table"
in
Chapter 46, DOF Setup.
Sound system architecture
If you want to take advantage of VP's multiple soundtracks, you need
to provide the extra speakers it uses. If you want to keep things
simpler and/or cheaper, you can omit those. With that in mind, there
are basically three ways to set up pin cab audio system:
- Basic stereo: The simplest setup is a stereo system, with two
main speakers and an optional subwoofer. The main speakers are
usually placed in the backbox, facing the player, and the subwoofer is
inside the cabinet, facing down through an opening in the floor.
Most people use the same speaker placement that the real machines
used in the 1980s and 90s (and that newer titles still use today,
for the most part), with the main speakers mounted on a separate
panel at the bottom of the backbox. With this setup, all sound
effects (including the playfield mechanical effects) are played
back through this single set of speakers.
To implement this, you need:
- The two backbox speakers, typically 4" or 5.25" full-range car speakers
- The subwoofer, typically a 6" to 7" car speaker
- A 2.1-channel amplifier (two main channels plus a subwoofer channel)
A separate sound card isn't needed as long as your PC motherboard
has built-in audio.
- Music speakers plus separate monophonic playfield speakers:
This is the next step up. We keep the backbox speakers and subwoofer
from the basic stereo system, and add one or two speakers inside the
cabinet, under the TV. These are for the playfield effects. The added in-cab
speakers should be placed somewhere around the middle of the cabinet.
This setup makes mechanical effects sound like they're coming
from the playfield, but they all sound like they're coming
from the middle of the playfield, with no attempt to place
them at different positions spatially. VP will only play
back monophonic playfield effects with this setup, even if
you have two speakers, because VP requires four speakers
if you want to use the full spatial placement feature.
To implement this, you need everything from the basic system,
plus:
- The in-cab speaker or speakers, typically small speakers or "exciters"
- Another 2-channel or 2.1-channel amplifier
- A second sound card, only if your PC motherboard doesn't have at least 5.1-channel surround sound audio output
I wouldn't recommend this approach for a new build, as the four-speaker
set up is not much more work to implement and provides much greater
functionality. This one- or two-speaker setup is really only something
you would have before VP had the surround sound ability.
- Separate music speakers and playfield surround speakers:
This is the most powerful setup. We keep the backbox speakers
and subwoofer from the basic stereo system, and we add four
speakers inside the cabinet, placed near the corners. This lets
VP balance the volume among the four in-cab speakers to make it
sound like each mechanical effect is coming from a precise
position on the playfield.
To implement this, you need everything from the basic system, plus:
- Four in-cab speakers, typically "exciters"
- Two additional 2-channel or 2.1-channel amplifiers, or a 4-channel amplifier
- A second sound card, only if your PC motherboard doesn't have 7.1-channel surround sound audio output
This is the setup I'd recommend, if you have the budget for
the extra equipment. Separating the mechanical effects and
playing them back through in-cab speakers makes a subtle but
noticeable difference. This isn't the most dramatic upgrade
you can make, so I wouldn't prioritize it above, say, some
of my favorite tactile devices (flashers, shakers, fans, replay knockers).
But it's definitely a nice upgrade for a well-equipped cab.
Sound cards
In the past, PC audio usually required adding a sound card. These
days, that's usually not necessary, since most PC motherboards now
include built-in audio, usually with full surround-sound capabilities.
I think the only reason to add an extra sound card would be if your
motherboard audio doesn't support 7.1 surround sound, and even then,
you'd only need a separate sound card if you want to use Visual
Pinball's full surround capabilities. In that case, you'd need an
add-in card with 7.1 support. Like anything else in the PC world,
sound cards come in a wide range of prices, from dirt-cheap to
extravagantly expensive. The high-end cards are marketed especially
to gamers, so you might be tempted to buy a deluxe gaming sound card,
given that a pin cab is a sort of gaming rig, but I don't actually
think it's worth the extra money. Remember that a lot of the original
sound effects in pinball simulations come from games that were built
with 8-bit hardware in the 80s and 90s, so most of the source material
isn't all that demanding. In my opinion, any decent modern sound card
will be more than up to the task. I'd just look for an inexpensive
7.1 card that gets decent user reviews on Amazon or NewEgg.
A lot of people worry that Windows will get confused if you add a
sound card in addition to the built-in audio. Happily, this is one of
the rare cases where Windows makes things easy. Windows is perfectly
happy to have multiple sound cards installed. There should be no
complications if you do decide to add one.
Main speakers
Equipment: For the two speakers in the backbox, most people use
car speakers. If you're planning to use a 1990s style speaker/DMD
panel, and you've already purchased or built it, it'll have cutouts
for a particular size of speaker - either 4" or 5.25" - so you'll need
to match that size.
The 4" and 5.25" size specs are standard car speaker sizes. These are
"nominal" sizes that refer to the cutout size needed. If you shop on
Amazon or elsewhere for car speakers, most products will conform to
the standard sizes. There are lots of other standard sizes and shapes
- what you're looking for is the circular type, with a circular
aperture and a set of four mounting holes in a square pattern around
the perimeter. It should be obvious from the pictures when shopping.
The subwoofer is less constrained on size. Anything from 6" to 8"
with a round aperture should work. You could even go larger, but
remember that space in the cab will be somewhat limited when you have
everything installed.
If you want something more targeted for pinball, Flipper Fidelity
makes a number of speakers specifically designed for real pinball
machines. They'll fit a virtual cab just as well if you're using one
of the standard 1990s-style speaker panels. The Flipper Fidelity
speakers are similar in design to car speakers, so you can find other
options at lower prices with something more generic, but Flipper
Fidelity's products save you some legwork in that you can be assured
that they'll be the right size and that they'll sound decent in a pin
cab setting. I've purchased some of their speakers myself, and I
think they're well designed and sound good.
In my opinion, it's hard to go too wrong on the speakers as long as
you find something of reasonable quality in the right size. There are
lots of good car speakers on the market, and while some are certainly
better than others, I think any speaker that gets positive user
reviews from people using them in cars will also sound good in a pin
cab.
PC speakers: Some people use PC speakers instead of separate
components (like car speakers). PC speakers have the advantage that
they come with their own built-in amplifiers, so you can just plug
them straight into your PC's audio jacks. With component speakers,
you have to install a separate amplifier (which we'll come to
shortly).
The downside of PC speakers is that they're built into little black
plastic boxes that are meant to be placed on a desktop or attached to
a monitor. It can be difficult to make these look properly integrated
with a pin cab, especially if you're using one of the standard 1990s
speaker panel designs. The standard speaker panels are specifically
designed to accommodate car-type speakers, so those integrate easily.
You might be able to improvise something with a PC speaker, but it's
not a natural fit. It is possible, though - some cab builders have
successfully used this approach. In addition, if you don't care about
integrating the speakers, you can always just pop them on top of the
backbox or something like that. I wouldn't be happy with that kind of
setup aesthetically, but it would be perfectly functionally.
Placement: The main speakers are usually situated in the
backbox, facing the player. If you're using a 1990s-style speaker/DMD
panel, you already have the natural place for them. If not, you'll
have to come up with your own ideas for where to put them. For the
best sound, I'd orient them so that they're facing the player, and put
them somewhere in the backbox, with circular openings about the size
of their apertures. They'll sound a bit muffled if you put them
behind solid plywood without the openings, and the sound might seem to
come from odd directions if you don't have the speakers facing the
player.
The subwoofer typically goes inside the main cabinet, on the floor,
with its speaker cone pointed down. You'll need to cut a circular
hole in the cabinet floor about the same size as the speaker aperture.
In the original WPC plans, the opening was roughly centered in the
floor, but my plans in
Chapter 21, Cabinet Body place it further towards
the back, to leave more space for the PC motherboard. From what I've
been able to learn about building speaker enclosures, the placement of
the opening has little or no effect on the acoustics, so you can move
it further back or further forward if that would be more convenient
for your setup.
Wiring: Use ordinary stranded hookup wire, in a fairly sturdy
gauge. 18 AWG should be more than adequate. The people who sell
speaker wire want you to believe you need extremely thick wire for
even tiny speakers, but we're working with fairly low-power amplifiers
here; you don't need to go overboard.
See the diagrams in the "Amplifiers" section below for specific
wiring plans.
Speaker lights
Amplifiers
The sounds outputs from a PC motherboard or sound card are "line
level" outputs, meaning they have to be connected to an amplifier,
which is in turn connected to the speakers. Speakers that are made
specifically as "PC speakers" generally have their own built-in amps,
meaning you meaning you can just plug them straight into the sound
card. But this isn't the case when you're working with a standalone
speaker designed for a car or pinball machine: for those, you need a
separate amplifier.
So you can either use PC speakers, which have their own challenges, as
we mentioned earlier, or you can use component speakers and install an
amplifier. Assuming you're going with a separate amplifier, let's
look at options.
Power levels (Watts per channel)
You're probably accustomed to stereo/home theater receiver amps with
power ratings of 100 Watts per channel and up. That's much larger
than the power ratings you're likely to see for the sorts of amps
we're considering here, and much larger than you need in a pin cab.
The Watts-per-channel rating can be a bit misleading. Most people
take it to be an indicator of the loudness that an amplifier can
produce. That's basically true, but not quite in the way we tend to
think. We tend see these numeric scales as linear, so we think that
100W is twice as loud as 50W. The relationship between power and
loudness is actually logarithmic, so the real situation is that 100W
just sounds incrementally louder than 50W. The rule of thumb
is that you have to roughly double the wattage for the ear to perceive
any difference in loudness. Doubling the power is like going from "5"
to "6" on the volume dial, not like going from "5" to "10".
My point is that you shouldn't be too alarmed if the amps you're
looking at have advertised wattage levels well below what you're
accustomed to for home theater systems. By way of comparison, the
1990s Williams pinball machines had a whopping 14 Watts of power
combined for the speakers in the backbox, and a second 14 Watt
channel for the subwoofer.
Integrated 2.1-channel amplifiers
For the main speakers, we need three channels of amplification: the
left and right backbox speakers, and the subwoofer. The most common
way that pin cab builders accomplish this is with a so-called
2.1-channel amplifier - a single unit that has two main channels
(that's the "2" in "2.1") and a subwoofer channel (the ".1").
The advantage of an amp designed for 2.1 channels it that it should
have a built in "crossover", which is a little filter circuit that
sends the higher-frequency part of the signal to the main speakers and
the lower-frequency part to the subwoofer. This lets each speaker
reproduce the range of frequencies it was designed for, which makes
them sound better than if you didn't do the filtering.
Here's how you wire a 2.1-channel amplifier:
Note: some amplifiers use 1/8" stereo jacks for inputs instead of RCA
connectors. Substitute a cable with 1/8" stereo plugs at both ends in
that case.
As far as Windows is concerned, there are only two speakers in this
setup, even though you have three (left, right, subwoofer). This
works because the amplifier has the crossover circuit that divides the
signal between the main speakers and the subwoofer. To configure
the speakers in Windows, tell Windows that you have "full-range"
speakers for the left and right speakers:
- Press Windows+R, type mmsys.cpl, press Enter
- Select the Playback tab
- Select your speakers from the list
- Click Configure
- Select 7.1 surround (even if you're not actually using surround speakers).
Click Next.
- Un-check Subwoofer and Center. Check-mark Side Pair and Rear Pair
if you're using playfield effects speakers, un-check them if not. Click Next.
- Make sure Front left and right is checked for Full-range speakers
- Click Next then click Finish
Separate channel amplifiers
2.1-channel amplifiers are convenient, but there are many more options
available if you look at single-channel, 2-channel, or 4-channel
amplifiers, without the integrated crossover.
In car audio, the most common setup is to use a 2-channel amplifier
for the main stereo speakers and a separate "monoblock"
(single-channel) amplifier for the subwoofer. As a result, if you
shop for car amplifiers, you'll find tons of 2-channel and monoblock
options, and very few 2.1-channel options.
This type of setup is actually easy to implement on Windows, as long
as your motherboard or sound card supports 5.1 or 7.1 channel output.
The secret is to let Windows handle the crossover, so that you
don't need a separate crossover circuit in the amplifier, which a
2.1-channel amp would normally provide. Your PC audio outputs should
include a jack with "Center/Subwoofer" output, usually color-coded
orange.
Why would you want to do this? Because it gives you more options
when shopping for amplifiers. You don't have to limit yourself
to the small number of 2.1 amplifiers available; you can use just
about any car amp.
Wiring with a monoblock amp
Here's how you'd wire a 2-channel amp and a separate subwoofer
monoblock amp:
Note: some amplifiers use 1/8" stereo jacks for their inputs instead
of RCA connectors. Substitute a cable with 1/8" stereo plugs at both
ends in that case.
Be sure to read the section below on configuring Windows for separate
subwoofer output. You have to make some settings changes in Windows
before it'll send any sound output to the subwoofer jack.
Wiring with a 4-channel amp
Here's how you'd wire a 4-channel car amplifier:
Notes on the separate amplifier plans
Some important notes on both of these plans:
- The Center/Sub output on the PC is a combined output for the center
channel and the subwoofer channel. When you plug in a
mini-plug-to-RCA cable as shown, one of the RCA jacks will be wired to
the subwoofer channel, and the other will be wired to the center
channel. None of the current pinball software makes any use of the
center channel (it's there for home theater setups, not pinball), so
most pin cabs don't connect it to a speaker. That means we have to
leave one of the RCA plugs on this cable - the one for the
center channel - unplugged.
- There's unfortunately no rule about how the Center/Sub output is
wired to the RCA plugs. The Center might be the white plug and the
Subwoofer might be the red plug, or it might be the other way around.
I don't think there's any way to find out other than trial and error,
so if you can't get any sound to come from the subwoofer using the
red RCA plug, try the white RCA plug instead.
- Be sure to protect the unused RCA plug on the center/sub cable so
that it doesn't accidentally come into contact with anything. It's
still electrically connected to the sound card so you don't want it
touching a power connector or anything else. Cover the metal end with
electrician's tape, perhaps.
- Some four-channel car amps let you "bridge" channels 3
and 4 to create one subwoofer channel with twice the power. Bridging
is only possible if the amplifier is designed for it, and the exact
method to enable it varies. Check your amp's instruction manual to
find out if bridging is possible at all, and how to enable it if so.
Follow the instructions below to configure Windows for this setup.
Windows configuration for separate subwoofer output
If you're using the subwoofer output from your PC audio output, you
have to go through some extra steps to make Windows handle the
crossover, so that Windows distributes the sound properly between the
main speaker and the subwoofers.
In particular, you have to tell Windows that your front speakers are
not full-range speakers. "Not full-range" means that they
shouldn't receive the low-frequency part of the signal. You also have
to enable "Bass Management", which tells Windows to send the subwoofer
that low-frequency portion of the signal that it's not sending
to the main front speakers.
Here's the procedure:
- Press Windows+R, type mmsys.cpl, press Enter
- Select the Playback tab
- Select your speakers from the list
- Click Configure
- Select 7.1 surround (even if you're not actually using surround speakers).
Click Next.
- Check Subwoofer, Un-check Center. Check-mark Side Pair and Rear Pair
if you're using playfield effects speakers, un-check them if not. Click Next.
- Un-check Front left and right in the Full-range speakers list
- Click Next then click Finish
- Back in the playback device list, click on the Properties button
- Go to the Enhancements tab
- Check-mark Immediate Mode
- Check-mark Bass Management in the list
- Click OK
Car amplifiers
Audio amplifiers for cars run on 12VDC (like almost everything else in
a car), which makes them easy to adapt to a pin cab, where we already
tend to have a 12V power supply handy. And there's a huge selection
of car amps available.
The biggest reason to consider car amps is that they tend to have
reliably good audio quality, especially compared to the other options
we'll see below. I ended up using a 4-channel car amplifier for my
main speakers (the backbox and subwoofer channels) after trying the
Lepai and DIY amplifier types and deciding that their sound quality
was unacceptable.
There are three main downsides to car amps:
- They're relatively expensive. Expect to pay at $100 for a decent
one, and upwards from there.
- They're big. Many are too big to fit comfortably in a standard cab.
Check the dimensions before buying anything to make sure there's room.
- It's difficult to find 2.1-channel options. Most are either
2-channel or 4-channel. However, this isn't necessarily a problem, as
you can use the "Separate channel amplifiers" setup described earlier.
DIY 2.1 amplifiers
There are lots of inexpensive amplifier boards available these days
designed for hobbyists building Arduino projects or DIY audio systems.
I call these DIY amplifiers, but they're not DIY in the sense that you
have to build them, just in the sense that they're for DIYers.
The ones I'm talking about are actually fully assembled circuit
boards. What makes them DIY is that they don't come with enclosures;
they're just bare circuit boards. Which works fine in a pin cab,
where the cabinet can serve as the enclosure, just like for the PC
motherboard.
You can find many options from Chinese sellers on eBay, and several
are available on Amazon.
I've had poor results with these so far, unfortunately, so I don't
have any first-hand recommendations to offer. The ones I've tried had
unacceptable background noise levels (that is, noise playing through
the speakers when no audio was playing on the PC). This problem
actually afflicts a lot of amplifiers in a pin cab environment,
because we power them with switching power supplies. An amplifier
needs quite good power line filtering to sound good with a noisy power
source, and most of these hobbyist boards have little or no power
conditioning, to keep the cost down.
All of the DIY amplifier boards are based on specific integrated
circuit chips that do most of the amplifier work, so when you go
shopping for these, you'll find them identified primarily by the type
of IC chip they use. These are all no-brand products, though, so one
board based on a particular chip might be great, and another board
based on the same chip might be terrible. It's a crap shoot if you
buy these on eBay. I think your best bet might be to buy these on
Amazon, where you can at least compare user reviews, even if those
aren't perfectly reliable.
Some people on the forums have reported good results with
TPA3116D2-based boards. I've actually tried one of these and
found it to be unacceptably noisy at low input signal levels, although
it did well at playing loud sounds. But the chip itself seems to be
very well regarded among audio hobbyists, and there are some newer
TPA3116D2-based boards available on Amazon that get good user reviews,
so one of these might be worth a try despite my experience.
Be sure to look for a board that works on an ordinary DC power supply.
Some of the older amplifier IC chips needed AC power supplies (using
transformers) or require unusual DC voltage levels. The newer chips
are mostly designed for more common DC voltages like 12V or 24V.
Advantages:
- Inexpensive - $25 to $40
- Available in 2.1 configurations with crossover
- Compact, easy to fit in a cab
- Relatively high power levels are available (TPA3116D2 amps are nominally 50W/channel
with the right combination of power supply and speakers)
Disadvantages:
- No-brand products, so quality is hit-or-miss
Lepai LP-168HA 2.1 amplifiers
The LP-168HA is a 2.1-channel amp, which is what makes it popular
among pin cab builders. It's so difficult to find 2.1-channel options
that I think this one became popular by default. VirtuaPin used to
sell these as part of their speaker packages - they don't seem to
offer them any more, but you can easily find them on Amazon and eBay.
This has long been the go-to amp for most pin cab builders. I'm
afraid I haven't had good experiences with it, though. I've tried two
of them; the first one performed so badly that I assumed it was
defective, so I sent it back for a replacement, and that was just as
bad.
The problems I had with the Lepai were all with its audio quality. It
had a lot of background noise with no signal playing; it was too
underpowered to produce even modest volume levels with my 4" backbox
speakers; and the crossover basically didn't work (on either unit I
tried), making it almost impossible to get a proper volume balance on
the subwoofer - the sub would be either off or driven to total
distortion, with nothing in between. I've seen reports of the same
problems on the forums and Amazon reviews, so I tend to think these
reflect design flaws, but they could merely be common defects that
only affect some percentage of units.
To be fair, some people on the forums have said they're happy with
these amps, so I might have just had the bad luck to get two
particularly bad units.
If want to try the Lepai, be aware that there are a number of
identical looking units sold under very slightly different names, like
"Lepy" and "Lepei". I don't know if Lepai just can't decide how its
name ought to be rendered in a Western alphabet, or if the variations
are knockoffs (I'd say "cheap knockoffs", but the original was already
cheap). Maybe it's a mix of both. For what it's worth, I've talked
to a couple of people using the maybe-knockoff brands who were happier
with the results than I was with the (I assume) original brand.
Other packaged 2.1 amplifiers
There are a few other packaged 2.1-channel amplifiers, similar to the
Lepai above, available on Amazon and eBay. (By "packaged", I mean
that they come in enclosed cases, not just raw circuit boards like the
DIY amps mentioned earlier.) Some of them are newer designs based on
more powerful chips like the TPA3116D2, and I wouldn't be at all
surprised if at least a few of these are just repackaged versions of
the DIY boards. I haven't tested any of these myself.
Home stereo receivers
I don't know of anyone who's done this, but a home stereo receiver
could potentially be re-purposed as a pin cab amplifier. These tend
to have excellent sound quality, even the cheaper ones. The challenge
is that they tend to be much bigger than you could comfortably fit in
a pin cab.
Playfield effects speakers
In addition to the main backbox speakers, a separate set of speakers
can be placed inside the cabinet, usually under the TV where they
can't be seen, to reproduce "mechanical" sound effects - the sounds
made by things on the playfield, like the ball rolling around and
bumping into things, flippers flipping, bumpers bumping, and so on.
Newer versions of Visual Pinball have support for a "surround sound"
system for the playfield effects. This isn't quite the same as a home
theater surround sound setup, where you'd place speakers at the sides
and back of the room to create a 360° sound field that surrounds
the listener on all sides. For a pin cab, we borrow the same
multi-channel technology they use in home theaters, but instead of
using it to surround the listener, we use it to make the sound effects
sound like they're coming from specific points on the playfield. So
the thing we're "surrounding" is the playfield, not the listener. As
such, we place the speakers as shown above, at the corners of the
playfield area inside the cabinet.
Older versions of Visual Pinball (before 2017, when the surround
feature was added) had a more primitive version of the feature that
allowed you to play the mechanical effects through speakers in the
cab, but without the multi-channel capability. It at least created
the illusion that sounds were coming from the playfield area, but only
generally, since sounds couldn't be positioned in space the way they
can with four speakers.
Equipment
To set up a surround-sound playfield effects system, you need:
- Four speakers
- Two 2-channel or 2.1-channel amplifiers
Speakers/exciters
The playfield effects are just another set of audio channels, so at a
basic level, you just need another set of four speakers.
The best type of speaker for this job seems to be something called an
"exciter", also known as a tactile transducer or tactile subwoofer.
An exciter is like a speaker without the paper cone part. They're
designed to be attached to a rigid surface, and they work by making
that attached surface vibrate. The surface takes the place of the
paper cone in a normal speaker. In our case, the wall of the cabinet
serves as the surface.
One reason that exciters work well for this job is that they're
smaller than regular speakers. It's a lot easier to find space for
them in a cab. And they're designed to mount to a flat, rigid
surface, which is a perfect fit here, since we can use the side walls.
The other reason they're so good for this job is that they're
specifically designed to produce a tactile effect for low-frequency
sounds, which is precisely what we want from the playfield effects.
The playfield effects are all meant to simulate mechanical things on
the playfield moving and around and bumping into each other.
There are many options for exciters and tactile subwoofers available
online from Amazon and other Web sellers. I think any exciter that
gets decent user reviews on Amazon would be fine, since this isn't
exactly the most demanding audiophile scenario; these speakers are
mostly for percussion-type effects, not music or voices. So I'd
recommend doing a little research on Amazon to see what's currently
on offer. At the risk of listing equipment that may no longer be
available by the time you read this, here are some specific exciters
that forum members have mentioned favorably:
- Dayton DAEX25
- Dayton Audio DAEX25VT-4
- Dayton Audio DAEX58FP
You can use regular speakers if you prefer, but I don't think there
are any advantages. Regular speakers are larger and less tactile.
In the days before VP's surround sound support, some people set up
one- or two-speaker systems using their TV's built-in speakers. I
don't recommend this approach. Flat-panel TV speakers are invariably
small and tinny. They won't reproduce percussion-type effects with
any fidelity.
You should use four identical speakers or exciters for the effects
speakers. This helps with the illusion of spatial positioning by
matching the tonal quality at each speaker as closely as possible.
Amplifiers
For four speakers, you need four amplifier channels. This is in
addition to the amplifier(s) you're already using for the main backbox
speakers and subwoofer.
The usual setup is to add two more 2-channel or 2.1-channel
amplifiers. Use one for the front pair of exciters, and the other for
the rear pair.
I'd recommend using one of the DIY amplifier boards mentioned earlier,
as they're inexpensive and compact, and the ones based on newer chips
like the TPA3116D2 produce decent sound quality. I'm personally a lot
less picky about audio quality for these amps than for the main
backbox speaker amp, since these speakers are mostly for
percussion-type sound effects, not for music or voice effects.
Where to install the playfield effects speakers
For a four-speaker surround system, the speakers should go roughly
at the corners of the playfield TV.
Exciters are designed to mount on flat surfaces. The side walls of
the cabinet are perfect for this. I'd mount the exciters on the side
walls just below the TV, being sure to leave enough vertical clearance
for the TV.
Wiring the playfield effects speakers
The wiring plan for the playfield speakers is very similar to the plan
for the backbox speakers. The main difference is that we need two of
the 2-channel amps now, since we have four speakers on four separate
audio channels. It's most convenient to think of these as two pairs
of stereo speakers - a stereo pair at the front and a stereo pair at
the back. Each stereo pair connects to one of the amps, using the
normal Left/Right stereo hookups on the amps.
Key features to note:
- The Front output jack on the PC remains connected to the
main backbox speaker amplifier as before - make no changes to that
- Use two 2-channel amplifiers, one for the front left/right
speakers, and one for the rear left/right speakers
- The amplifier for the front speakers connects to the Rear Surround
audio jack on the PC
- Let me say that again, because it's too crazy to read right the
first time: the Front speakers plug into the Rear Surround jack
- The amp for the rear speakers connects to the Side Surround
audio jack on the PC
What's up with that bizarre wiring with the Front speakers
connected to the Rear surround jack on the PC? I know it
sounds crazy. The way to make sense of it is to think about the way
surround sound works in a home theater setup. The surround
sound feature in Windows is all designed around the home theater way
of thinking. Home theater people think in terms of a speaker layout
like this, with the listener at the center, and speakers placed
around the perimeter of the room:
This is how Windows sees the 7.1 audio format.
The format is designed with home theaters in mind, so it assumes
this particular spatial layout. This is an overhead view; the
figure at the center is the listener.
Windows is very attached to the idea that the speakers have this
specific spatial layout. When the Visual Pinball developers were
adding the surround sound feature, they had to work with that layout.
So how does this map onto a pin cab most easily? Like this:
So hopefully the twisted logic becomes more apparent now:
- Windows "Front Left" and "Front Right" = the main backbox speakers
- Windows "Center" = unused
- Windows "Side" = rear cabinet speakers (towards the back of the cab)
- Windows "Rear" = front cabinet speakers
Now we can see how we got to that confusing last element, where what
Windows calls "Rear" corresponds to what we think of as the front
of the cabinet. Remember that Windows thinks about this in home theater
terms, where the listener is in the middle of the picture, rather than
standing at one end. You have to picture the listener sitting somewhere
in the middle of the playfield for Windows's idea of "Side" and "Rear"
to make sense.
Also note that the "Front Center" speaker in the Windows layout isn't used
at all. We don't even connect a physical speaker there.
If this speaker were present, it would have to be situated right in
the middle of the speaker panel. We can't put a speaker there
because that's where the DMD (score display) goes.
Even if we could fit a speaker there, there wouldn't be any benefit
sonically, since the left and right speakers are so close together.
The center channel in the 7.1 audio format is intended for home
theater systems, where the front left/right speakers might be placed
six or eight feet apart. In that case, the sound field is so wide
that it's helpful to have an extra speaker in the middle, to keep
the dialog sounding like it's coming directly from the screen.
That extra degree of localization is pointless in a pinball setup,
since the left and right speakers are so close together that the ear
can't really localize sound to one or the other anyway.
Configuring Windows for playfield effects speakers
- Press Windows+R, type mmsys.cpl, press Enter
- Select the Playback tab
- Select your speakers from the list
- Click Configure
- Select 7.1 surround. Click Next.
- Check Side Pair and Rear Pair. Un-check Center.
Leave Subwoofer as before, according to how you set it up for the main backbox speakers.
Click Next.
- Leave the "full-range" settings as before, according to how you set it up
for the main backbox speakers. Click next.
- Click Next then click Finish
Configuring Visual Pinball for playfield effects speakers
- Launch Visual Pinball, without loading any game yet
- On the menu, select Preferences > Audio Options
- In the General output sound device, select your main sound card/speakers from the list.
It's better to select the device specifically rather than the default "Primary Sound Driver",
since that doesn't always work.
- In the Backglass specific Sound Device, select the same device
- In the Multi-channel output section, select 7.1 Surround
If that little homage to Orwell saying "Front is rear, black is white,
war is peace" that you see in the parentheses after "7.1 Surround"
seems confusing, it's because VP is trying to explain the whole speaker
layout in 10 words or less to fit the dialog box. Here's what it's
trying to say:
- Your pin cab's main backbox speakers connect to the PC audio "Front" output jack
- Rear playfield effects speakers connect to the PC "Side Surround" output jack
- Front playfield effects speakers connect to the PC "Rear Surround" output jack
This can seem backwards at first glance, but it makes a kind of sense
when you take into account how Windows thinks about surround sound.
The section above on wiring the effects speakers has a more detailed
explanation of the Windows surround sound model and why the
connections have to be arranged like this.
Editing Visual Pinball games to send sounds to the backbox speakers
If you have playfield effects speakers set up and configured in
Visual Pinball, VP's rule for deciding when to use which speakers
is really simple:
- If the sound comes from the game's ROM (the original game's
software, being emulated in VPinMAME), it's played through the backbox
speakers
- Otherwise, it's played through the playfield effects speakers
That rule usually does exactly what you want, because almost all of
the sound effects that aren't from the ROM are meant to simulate
something mechanical on the playfield. In some cases, though, you
might prefer for some of the non-ROM sounds to be played through the
backbox speakers. This might be desirable, for example, if you're
adding your own extra music or voice effects to supplement the game's
original soundtrack. It might also be better for certain mechanical
effects, such as EM-era bells (which were often situated in the
backbox in the originals) or scoring reel sounds.
VP lets you override the rule on an effect-by-effect basis, so
that you can redirect specific sound effects to the backbox speakers.
See "How to play table sound effects through the backbox speakers"
in
Chapter 18, Customizing VP Tables.
Using playfield effects speakers instead of feedback devices
"Poor Man's DOF" or "Surround Sound Feedback" (PMD or SSF) refers to
using playfield speaker effects to replace all of the tactile feedback
effects that many cab builders implement with DOF using contactors,
solenoids, and the like. The main difference between this and the
basic playfield speaker setup is that some PMD/SSF builders add extra
exciters to strengthen the tactile effect, particularly at the front
of the machine where it's more noticeable. For example, some people
put an exciter under the lockbar, since that's where you rest your
hands while playing.
For more information, see the SSF group on Facebook:
>
I personally prefer discrete feedback devices for the solenoid
effects, as I find their audible and tactile effects more convincing
than audio recordings. I see playfield effects speakers as a great
complement to DOF, for other non-solenoid noises such as the ball
rolling and colliding with things. But the PMD/SSF approach is
attractive to some people for its lower cost and lower complexity.
Volume controls
Your amplifiers probably have volume knobs. But here's the problem:
do you think you're going to want to open up your cabinet and adjust
those knobs every time you want to turn the sound up or down?
Certainly not. You're going to want some kind of external volume
controls instead.
Pin cab builders over the years have come up with several ways to
approach this. Some of the early cab builders were stuck on the idea
that you had to use the volume knob to adjust loudness, so they came
up with ways to accomplish that without having to take apart the cab
every time:
- Situate the amplifier near the coin door, so that you can reach
in through the door and turn the knob
- Install the amplifier so that the knob actually sticks out
through a hole in the side of the cabinet, so that you can turn
the knob without even opening the door
- Install a remote-controlled motor that turns the knob for you when
you push buttons on the remote
My advice is to stop fixating on the volume knob, and use a whole
different approach: let Windows control the volume. Windows
has its own notion of the line output volume, which can be adjusted in
software. Doing it software means that you can control the volume
with the keyboard or mouse. That greatly simplifies the physical
controls, because you no longer have to worry about how to reach the
volume knob on the amplifier.
Pre-set the volume knob
To let Windows control the volume, the first step is to set a fixed
reference level for the volume controls on your amplifiers.
You'll turn the amplifier knob to this setting, and then just leave
it there from that point on. When you want to adjust how loud a
game sounds, you won't open up the cab and turn the knob.
You'll change the Windows volume level instead.
It's important to understand that the function of a volume knob on an
amplifier is turn down the power. An amplifier has an
intrinsic maximum power level, which is a function of the way it's
designed. If you didn't have the volume knob at all, the amplifier
would simply run at that maximum power level. The volume knob's
function is to reduce the power level from that maximum to whatever
lower level sounds right to you. When the volume knob is turned all
the way up, it means that you're letting the amp run at full power -
you're not attenuating the power at all.
So in principle, the fixed reference level for any amplifier should
simply be what you get when you turn the volume knob all the way up.
In practice, though, you usually don't want to do that. The problem
is that an amplifier amplifies not only the audio signal but also the
random background noise that's always present on the signal input.
When you turn the knob all the way to 10, the amplification is usually
so strong that it exaggerates the background noise, so that you hear a
constant loud hiss or buzz when there's no audio input signal playing.
So what you want to do is find a reference level that's as high as
possible, without producing excess hiss or buzz when the audio input
is quiet.
The procedure to find this level is pretty simple. Get everything
connected and turn on the amplifier. Make sure it's connected to the
PC output jack so that this is a fair test of normal playing
conditions, but make sure Windows isn't playing any sounds. Turn the
volume knob on the amp all the way down. Now turn it up slowly. Keep
going as long as the background noise coming out of the speakers
doesn't get excessive.
If you have a really good amplifier and good wiring, you might be able
to turn the knob all the way up, or very close, without excess noise.
To test that this setting is loud enough for normal use:
- Turn the Windows master volume level all the way down, using the
volume controls in the "system tray" at the bottom of the screen
- Play some sample music in your a media player, just to test the level
- Gradually turn up the Windows master volume until it's as loud as
the loudest level you'll likely want to use for pinball simulations
- If that's less than 100% on the Windows volume knob, you're done
- If you get to 100%, and it's still not loud enough, turn up the volume
on the physical volume knob on your amp until it's loud enough
- Turn the music off and re-check the background noise level coming
from the speakers. If it's acceptable, you're done.
- If there's too much noise at the new physical volume knob setting,
try turning the physical volume knob back down until the noise is
okay. Then repeat the music test.
- You might have to repeat the loud/quiet test a few times to find the
optimal balance between "loud enough" and "quiet enough". Some of the
cheapie 2.1 amplifiers and DIY amps can be pretty noisy when turned up
to high volumes, so you might have to put up with a certain amount of
background noise to get enough loudness at the high end. Or,
conversely, you might have to accept a limit on maximum loudness to
make it quiet enough.
PinVol
I wrote a little utility program called PinVol that helps with audio
volume management, specifically for pin cabs. It's free and
open-source. Find out more about it here:
>
PinVol lets you assign any keyboard keys or joystick buttons to serve
as volume controls. It also has the notion of a "global" volume level
and a separate "local" volume level for each table, which is designed
to help you equalize the the loudness level across different tables.
Some VP tables are much louder than others. PinVol remembers the
per-table volume setting for each table and automatically restores it
each time you run a table, so that you don't have to keep manually
changing the volume level every time you switch tables (which I found
myself doing constantly, because of the big variations in loudness
from one table to the next).
With PinVol, you can assign different keys to control different
aspects of the volume:
- "Global" volume keys to control the system-wide volume
- "Local" volume keys to control just the volume level for the current table
- Global mute, to silence all audio effects
Set up physical buttons for controlling the volume
The next piece of the puzzle for controlling the volume through
Windows is to set up some physical controls to adjust the Windows
master volume.
If you're not using PinVol, you typically just need two or three
buttons: Volume Up, Volume Down, and Mute.
If you're using PinVol, you'll want at least four buttons: Global
Volume Up, Global Volume Down, Local Volume Up, and Local Volume Down.
You might also want a Mute button and/or a Night Mode button.
There are several common options for setting up physical buttons:
- If you're using the Pinscape Controller or an i-Pac as your key
encoder, you can use "shifted" buttons for the volume controls.
Shifted buttons let you assign two separate functions to each physical
button - a normal function and a "shifted" function. The shifted
function is engaged by holding down another button - the Shift button
- and pressing the first button.
For example, I use the Extra Ball button as my Shift button,
and I use the shifted flipper and MagnaSave buttons as my
volume controls. The flipper buttons are just flipper buttons
most of the time, but when I hold down the Extra Ball button,
my right MagnaSave/Flipper buttons become the Table Volume Up/Down
buttons, and the left ones become the Global Volume Up/Down
buttons. I find that pairing the buttons on each side as
an Up/Down pair is intuitive and easy to use.
This is my favorite approach because it's so convenient
and it doesn't require any additional physical controls. To
set this up in the Pinscape Config Tool, go to the button
assignment section, and read the on-screen instructions for
setting up a Shift button.
- Add a rotary encoder dial. This can be mounted anywhere a button
can be mounted, but it gives you a combined Up/Down control in one
small knob, so it's somewhat less conspicuous than a pair or trio of buttons.
Some dials can also act as a pushbutton when you press the knob, which makes
an intuitive place for the Mute button, giving you three controls in one.
See this thread on vpforums:
This is my second-favorite option after using "Shifted" buttons.
A lot of people consider it their top choice because a knob is
so natural as a volume control. The only reason I rank it
second-best is that it is, after all, another control.
- Add some more front-panel pushbuttons, of the same type as the Start
and Exit buttons. Most people don't like doing this because of the
excess clutter, but you can mitigate the clutter by using smaller
buttons or small rocker switches, and you might be able to hide
them somewhat by installing them in the coin door, which is pretty
good at hiding things because it's matte black.
- Add pushbuttons or small rocker switches on the bottom of the
cabinet. This is nicely hidden, but it's also less convenient to
access.
- Add controls inside the coin door. This is also nicely hidden,
but it's even less convenient to access than bottom controls.
Software setup for volume controls
The last step in setting up software volume control is to map the
physical buttons on your cabinet that you've designated as the volume
controls so that they trigger the Windows master volume adjustments.
If you're not using PinVol, the easy way to do this is to the
assign buttons to the special keyboard keys Media Volume Up,
Media Volume Down, and optionally Media Mute. These are
standard keys on a USB keyboard, and your key encoder will hopefully
include them among the keys you can assign to buttons. Windows
automatically recognizes these keys and uses them to adjust the master
volume control in the system tray, so you don't have to do anything
special in your Windows setup - these keys should just work
automatically as soon as you assign them to buttons.
If you're using the Pinscape Controller as your key encoder, you can
find these keys here on the little mini-keyboard that pops up when you
assign keys in the Config Tool:
For other key encoders, look for similar icons, or look for the key
names Volume Up, Volume Down, and Mute.
If you're using PinVol, you can assign any keys or joystick
buttons as the volume controls. PinVol shows instructions in its main
window for assigning the desired keys. Just follow the on-screen
prompts.
If you're using a Pinscape Controller for button input, I recommend
assigning high-numbered "F" keys, like F14 through F20, for the PinVol
hot keys. The PinVol hot keys are global to the entire Windows
system, which means that once they're assigned to PinVol, other
applications won't be able to use them. The high-numbered "F" keys
are a good choice for this because I've never seen any applications
use them as default key mappings, so they shouldn't conflict with
anything else you're running. Here's the procedure to map them:
- Run the Pinscape Config Tool
- Go to the Settings screen
- Scroll down to the button assignments section
- Assign each button input for a volume control button to the desired
keyboard key or joystick button
- Save settings and exit the config tool
- Run PinVol
- Click in one of the key assignment boxes ("Global Volume Up", etc)
- Press the button you want to assign to that function
- Repeat for each button
42. Backbox Toppers
Toppers are extra decorations on top of the backbox, such as The
Addams Family's cloud or Whirlwind's fan. A few titles
over the years included toppers as original equipment, but not all
that many, so they were a great novelty feature that helped a machine
stand out from the crowd in an arcade. In more recent times, pinball
collectors have become fond of adding after-market toppers to every
machine in their collections that didn't already have one from the
factory.
Virtual cab builders like their toppers as well, but often for
different reasons. For the real pinball machines, toppers are mostly
about novelty and decoration. In the virtual world, in contrast,
toppers tend to be more about function than decoration. There are
certain feedback devices that just won't fit anywhere else,
particularly fans and beacons. We virtual cab builders tend to view
the topper area primarily as free space for feedback toys.
I think it's worthwhile in a virtual cab to take both views of the
topper - it's a functional feature, but it's also part of the artwork.
We all put a lot of effort into our cabs and want them to look as
great as they play, so it's worth thinking about how to incorporate
the topper elements into our visual themes. It's nice for the topper
to feel like a natural extension of the cabinet art, rather than just
a bunch of gadgets bolted on top.
Let's start with a look at how some of the real machines used toppers
to enhance their visual theming, to get some ideas about how we can
do the same thing.
What makes a good topper?
The obvious place to start looking for ideas for a virtual cab topper
is in the real machines. If you do a Web search for "pinball topper",
you'll find all sorts of after-market toppers for sale. Most of these
are add-ons for machines that didn't have factory toppers, though, and
for the most part they're not all that imaginative (in my opinion, at
least). A lot of them are just acrylic signs that copy some of the
cabinet artwork, and most of the rest are some little doo-dad that's
vaguely related to the theme.
The best toppers on the real machines, for the most part, are the ones
that came as factory equipment. Many of those were thoughtfully
integrated into the theme and formed a part of the overall artwork.
One of my favorite examples is the taxi cab roof sign from Taxi
(Williams, 1988). It's the perfect icon for the game's theme, but it
also meshes with the backglass art, sitting right on top of the taxi
depicted in the art. It's a clever extension of the backglass
painting into the 3D space above the backbox.
Along the same lines, a number of police-themed pinballs over the
years featured rotating beacons, or even complete police-car light bars,
as toppers. Police themes are nearly as common in pinball as in
CBS dramas, so there are lots of examples, but the canonical
one is High Speed (Williams, 1986), where the beacon fits
into the backglass art using exactly the same trick as Taxi's
roof sign:
A beacon isn't just a passive decoration, either. It can be an active
part of the game action, lighting up and spinning in sync with events
in the game. It's no wonder they used these over and over on the real
machines. They even used them in a few cases where it's hard to see
any relation to the theme. One curious example is
F-14 Tomcat (Williams, 1987), which had not one, not two, but
three beacons.
I wouldn't consider this one to be good integration of topper and
theme. Even so, it's understandable why Williams used beacons so
often, since they add not just an extra decoration, but also a
functional element, in the form of a light show.
Another great functional topper is the fire bell on Fire!
(Williams, 1987). It's the sort of bell you'd expect to see on an
antique fire wagon, so it's a good theme icon, even if it doesn't meld
as seamlessly with the artwork as the Taxi sign and High
Speed beacon. Like the police beacons, it's an active part of the
game's sensory effects - it has a solenoid hammer that rings the bell
when certain events occur in the game.
Yet another brilliant functional topper is the cloud-shrouded fan on
Whilrlwind (Williams, 1990). It's the perfect active toy for
the theme; the fan activates during multiball modes and other events
in the game, creating a tactile sensory effect from the blowing air.
The cloud shape of the enclosure meshes with the backglass artwork,
extending the stormy sky in the art into the space above the
backbox.
The somewhat similar cloud topper on The Addams Family (Midway,
1992) takes the same approach, and also serves as the top of the
Addams mansion, whose roof extends out of the frame at the top of the
backglass. It doesn't have anything as dramatic as the
Whirlwind fan, but it has flashers inside that simulate a
lightning storm when you start a multiball mode.
Funhouse (Williams, 1990) didn't have a topper as original
equipment, but here's an example where someone came up with an add-on
topper that's as good as anything that came out of the factory.
Heinz-Peter Bader.
designed this topper for his own
Funhouse. He took a vanity
mirror light - the kind with a row of big round bulbs, like in the
stereotypical actor's dressing room mirror lights - and filled it out with party
bulbs in assorted colors, then put it on top of the machine with the
bulbs pointing up. (I've seen at least one other similar
Funhouse
topper mentioned in a pinball forum, so I'm not sure who came up
with the idea first, but this is certainly a nice implementation
in any case.)
Photo courtesy of Heinz-Peter Bader
It's interesting to compare this design to the various after-market
commercial toppers for Funhouse that the "mods" companies sell.
The bulb topper works so well because it's perfectly in scale and it
captures the carnival atmosphere of the theme, plus it's a natural
extension of the backglass artwork (which is already festooned with
little marquee bulbs) into the space above. In contrast, all of the
commercial topper I've seen for Funhouse just reiterate
something from the artwork, without feeling like part of it: a giant
"Admit One" ticket, a cut-out of Rudy. They do nothing to merge with
the backglass art.
Virtual cab toppers
Virtual cab builders usually take a utilitarian view of the topper,
focusing on the functional elements. There's a fairly standard set of
feedback devices that most cab builders incorporate in their toppers:
Most cabs have at least one of these, and many use all of them.
They're all great additions functionally. Beacons, flashers, and
strobes all make nice light shows, and a fan adds a wonderful tactile
element that movie theaters would market as a "4D experience" with
a $10 ticket surcharge.
But does a big pile of devices make for a "theme"? Well, from one
perspective, it actually does. One way to see a virtual cab is as a
whole arcade's worth of pinball tables in one box. So you could say
that the theme is "all the pinballs" - which makes "all the topper
toys" an apt fit.
Personally, though, I like the idea of giving a virtual cab some kind
of theme more personalized than "all the pinballs". I discuss that
idea a bit in
Chapter 22, Cabinet Art. If you
are giving your
machine a specific theme, I think it's also a nice touch if you can
extend your theme to the toppers.
Of course, functionality is still the starting point in choosing which
devices to include. I'd never suggest that you should forego a fan
just because your theme doesn't have an obvious connection to air
circulation. But maybe you can find ways to work some of the
functional elements into your theme, even though the theme isn't the
reason you included them. For example, on my cab, I came up with a
custom plastic enclosure for the fan that's meant to look like a
star-burst, to go along with the outer space theme of my cab graphics.
So I didn't really try to make the functionality of the fan fit the
theme, but I did at least try to work its shape into the visual
layout. (If you're interested in my specific topper design, you can
find some more details
below.
Some ideas for how to work your toppers into a theme:
- Brainstorm for natural real-world "topper" items fitting your theme,
like Taxi's sign topper.
- Think about custom enclosures for one or more of the items. The fan
is perhaps the most obvious enclosure to customize (like I did on my
cab), since you need some sort of enclosure anyway, and it's easy to
build around a bare motor-and-blade fan core. You could also create
your own custom covers for beacons or strobes, or work them into a
larger enclosure like a police-car light bar.
- Consider versions of the topper devices or exterior finishes that
fit your theme. For example, if you're using a steam-punk theme, give
your toppers a Victorian industrial look, with brass finishes and
exposed rivets.
The Pinscape topper
The topper design that I came up with for my own pin cab is very
specific to my theming, so I doubt it'll be of much interest to most
pin cab builders other than as one more example. But in case anyone
wants to reproduce it or use it as a starting point, here are some
details about the design.
Most of the topper is made from off-the-shelf parts:
- A row of five standard pinball flasher domes with high-power RGB
LEDs inside is arrayed across the front edge. These are simply wired
in parallel with the main flasher board at the back of the playfield,
so they always light up at the same time and in the same colors as
the main flashers. See Chapter 56, Flashers and Strobes for details on setting
up a standard flasher panel.
- A pair of Peterson 771 dome-shaped rotating beacons, one in red and
one in blue. See Chapter 57, Beacons.
- A pair of "22 LED white strobes" that you can find on eBay.
See Chapter 56, Flashers and Strobes.
The centerpiece is a custom-built fan with a 3D-printed plastic
enclosure.
The fan is built with a generic 12V DC motor with a 1/4" shaft, mated
to a press-on plastic blade. The blade is a part originally used in
microwave ovens, Thorgren model number 6C2504C1, in black. This
happens to be the same OEM part that Williams used for the topper fan
in Whirlwind, so I was delighted to be able to find the exact
same part. But don't worry if you can't find that particular blade;
eBay has lots of similar fan blades that look just about the same.
Just look for a 6" fan blade with a shaft bore that's the same size
as your motor's shaft. A good search term to try is 6" fan
blade.
To mount the fan motor, I rigged a simple bracket using sheet metal. I
don't have any tricks to suggest here; the bracket I came up with
isn't particularly clever or elegant. You just need something that
you can attach to the motor body to hold it at the right height above
the backbox roof.
For more on building a fan like this from parts, and for details
on how to wire a fan to your output controller, see
Chapter 63, Fans.
The fan enclosure is designed to fit between the beacon domes, to
create the impression that the enclosure and domes are connected. The
area around the fan opening is meant to suggest a blazing sun, in a
sort of cartoonish style.
You can download 3D plans for my fan enclosure in STL format here:
>
Note that the ZIP file contains "front half" and "back half" models in
addition to the full model. I created the half models to fit the
limits of the specific manufacturing process I used, so these probably
won't be useful unless you happen to use a printer with very similar
constraints, but I included them just in case.
There's one more detail worth mentioning: the fan enclosure is decked
out with lighting. (If you want to see it in action, I made a short
video:
www.youtube.com/watch?v=wJ1czPnjvDQ.)
The fan enclosure has two types of lighting. The first is one of
those common 5050 RGB LED strips, installed around the perimeter of
the front fan opening. This is the same type of LED strip normally
used for
Chapter 58, under-cab lighting. If you look
carefully at the fan enclosure model, you'll see a little lip on the
inside of the opening, about 1 centimeter deep. That's the mounting
surface for the LED strip. The strip is mounted on the inside of this
lip, so that the LEDs face inwards towards the center of the opening.
This creates a nice ambient light effect inside the fan. I wired the
LED strip straight to my undercab lighting, so it shows the same
colors as the undercab lights. That creates a nice effect with the
output in DOF set to show the "undercab complex" effects, which
changes the LED strip colors in response to game events. It makes the
fan interior lighting fairly dynamic.
The second bit of lighting installed in the fan consists of nine
high-power RGB LEDs, arranged around the perimeter of the opening,
facing forward. Again, looking carefully at the STL model, you'll see
a small circular hole in each of the "points" of the star-burst shape.
These holes are the right size for typical 3W RGB LEDs, of the same
type commonly used for RGB flashers, but in this case, without
the aluminum "star" base that's usually used for the flashers. You
can find these LEDs on eBay by searching for "3W RGB LED" - they look
like this:
These are actually the same LEDs used in the "star base" type. The
only difference is that they're sold as bare LEDs, not mounted to the
aluminum heat sink base. The procedure for wiring them is the same as
for wiring the flasher LEDs; see
Chapter 56, Flashers and Strobes for more on
that.
The method I used to mount the LEDs in the fan enclosure is inelegant
and a little tricky (it takes some manual dexterity and a bit of
patience), but it worked well and has held up well over the several
years since I built it. I started by soldering hookup wire to the
LEDs, with just enough wire between adjacent LEDs to reach from one
hole to the next. The LEDs are wired in series, meaning that
the "+" side of one LED connects to the "-" side of the next LED, and
so on down the chain. There are no resistors in this chain - just the
wires and the LEDs. Once all of the wiring was soldered, I arranged
all of the LEDs into the desired locations, poking out through the
star-burst holes. This is the part that requires dexterity and
patience.
And now for the part that's truly inelegant. To secure the LEDs in
place, I stuffed some packing foam into the pockets behind the LEDs.
I tried some other approaches, the best hope being 3M VHB tape (which
is pretty amazing for many similar applications), but that didn't
work; it's hard to get anything adhesive to stick to 3D-printed
plastic, since the surface tends to be uneven and powdery. The
packing foam turned out to work surprisingly well, and it has the nice
feature that it's easy to remove if any of the LEDs ever needs to be
replaced or if a solder joint ever breaks.
Controlling the 3W perimeter LEDs is almost a whole separate project.
There are two main parts:
- The first is the power supply for the 3W LEDs. Wiring LEDs in
series means that you need to supply them with a voltage that's higher
than the sum of the VF ("forward voltage") values for all
of the LEDs. For 9 of the 3W RGB LEDs, this works out to about 33V.
So I used a DC-to-DC step-up buck converter to convert power from a
12V supply to 33V. (You can find such step-up converters on eBay;
they run about $10 for the size needed here.)
- The second part is something to control the LEDs. You could just
wire them to your DOF output controller, and assign them to one of the
existing DOF device types, such as the strobes or under-cab lights. I
wanted something a little unusual, though, which required some more
custom electronics. What I wanted was to coordinate the LEDs with
both the strobes and the beacons: when the strobes fire, I want the
LEDs to flash white, and when the beacons run, I want the LEDs to
flash rapid red and blue patterns like a modern police cruiser. You
might be able to produce something like this with DOF directly,
but it seemed easier in this case to build a little microcontroller
project instead. As usual with microcontrollers, GPIO pins provide
the connections to the outside world: GPIO input pins connect to
the DOF outputs for the strobes and beacons, so that the controller
can monitor DOF activations on those devices, and GPIO output
pins connect to the fan LEDs, via MOSFETs. I wrote a small custom
program for the microcontroller that watches the input connections
from DOF, and when it sees one of them activate, it generates the
appropriate light show on the fan LEDs.
The ZIP file linked above (with the 3D design for the fan
enclosure) contains a hand-drawn schematic for my controller
circuitry, and the C++ control program for the Trinket. The
program is designed to be compiled and downloaded into the
Trinket with the Arduino IDE. I apologize for the rough
appearance of the schematic; this is directly from my original
working notes, and I haven't had a chance to clean it up
into a proper presentation.
Reviewing this circuit plan with fresh eyes, I see a couple
of changes I'd suggest, if you plan to deploy this in your own cab:
- Add a diode (1N4007 should work
nicely) in series between each optocoupler cathode
(pin 2 of the PC817) and the DOF output controller port,
with the striped end of the diode on the DOF port side.
This will avoid any danger of feeding back the beacon/strobe
supply voltage into the optocoupler LED. (LEDs don't typically
have very high reverse voltage tolerance on their own.)
- You might need to add a capacitor, connected
across the Trinket power supply pins, to filter
electrical noise from the rest of the system. You'll
know this is necessary if the Trinket randomly resets
or behaves erratically; if it's stable, don't worry
about this. If you see any glitchy behavior, try
adding a 0.1uF capacitor with its leads connected
to the Trinket's BAT and GND terminals. Position
it as close to the Trinket as practical.
If erratic behavior persists, try different size
capacitors, even up to large sizes like 1000uF.
Sometimes two capacitors in parallel work even
better than one, such as a 0.1uF and a 100uF.
(Larger capacitors, 100uF and above, are
usually electrolytic, which have a "+" and "-"
side, so be sure to connect the marked "-" lead
to the GND terminal. Smaller "disk" capacitors
aren't polarized. See Chapter 73, Capacitors for
more if you're not sure.)
Note that my circuit design doesn't use conventional
current-limiting resistors for the LEDs. Instead, it uses
a feedback loop on the MOSFETs to throttle the current through
the LEDs. I did it this way mostly because I was curious
about how to create a current-limiter circuit like that.
I don't think it's all that much better than the simpler
approach with ordinary resistors, since ultimately it's just
using the MOSFETs as variable resistors and burning off
the extra power as heat, just as fixed resistors
would. But it seems to work nicely, and it does have the
slight advantage that you don't have to figure out the right
resistor size for each channel; the feedback circuit
amounts to a little analog computer that does the math
for you each time you apply power.
43. Finishing Touches
Should you ever find yourself in a position where you're finished with
your virtual cab and can't think of any more work to do on it, here are
some miscellaneous ideas for extras, Easter eggs, and final polishing
work.
Apron
If you installed your playfield TV with a setback from the front of
the cabinet to make room for the plunger, you'll need something
cosmetically appealing to fill the space. My preference is to make
this area resemble a pinball "apron", since that's what you'd find in
the same space on a real machine.
The apron from Space Station (Williams, 1987). This
is a fairly generic apron, with the Williams logo and some
simple stripes for decoration. Most aprons from the era used
the same overall shape and size, but many from the 1990s
had custom graphics tied to the game theme in place of the
generic logo and stripes.
We can't precisely replicate this look for a virtual cab, since
we don't want that "V" shape that funnels the balls into the trough at
the center. We just need a simple rectangular shape, to fill the area
between the front of the cab and the bottom of the TV. But we can
still duplicate the whole bottom section, which has the most
distinctive visual elements anyway - the card inserts and center logo
graphics.
The "apron" from my virtual pin cab, filling the space between
the front of the cabinet and the TV.
Live card monitors
If you want to get really elaborate with the apron, replace one or
both of the cards with displays. Real pinball instruction cards are
around 6" wide by 3.25" high (that's the exact size for Williams games
from the 1990s, and other manufacturers used slightly different sizes
in the same range), which is very close to the size of a 6" diagonal
16:9 display. And you can actually buy LCD screens in that size -
they make them for microcontrollers like the Raspberry Pi.
This is an extremely uncommon feature (I've only heard of one cab
builder who's implemented it), so it's not all that well supported in
the virtual pinball software suite. My own
PinballY front end has
built-in support for it, but that's about it as far as I know. I
think it would be pretty easy to come up with your own custom software
to keep it in sync, though, since all you need to do is display a
static image each time a game is started.
How to construct an apron
On the real machines, the aprons are made of sheet metal, and typically
have a smooth satin finish with silk-screened graphics or decals.
The virtual cab equivalent is such a simple shape that you can easily
make it from a thin piece of plywood or particle board. However, it
can be hard to get the right finish that way, since you'll probably
end up with visible wood grain (even if you cover it with a decal for
the graphics).
Another option is to make it out of sheet metal, if you have the tools
for that. The finish is easier to get right, since the real ones use
sheet metal as well.
I made mine with laser-cut acrylic. That let me cut the diagonal
openings to hold the corners of the cards, to better match the look of
the real machines. I faced it with a custom-printed decal - the same
sort used for the cabinet itself. The combination of acrylic and the
decal has exactly the right finish to match the originals.
Here are the dimensions I used for the corner cutouts. These are
sized for the 6" x 3.25" instruction cards that Williams used on their
machines in the 1990s. I'm leaving out the overall dimensions since
you'll almost certainly need to adjust it to fit your cab. The
overall width should be just slightly (about 1/4") less than the
inside wall-to-wall width of your cab, and the height should be about
the same as the distance from the lockbar receiver to the TV. (You
want the lockbar to cover the bottom of the apron, for a seamless
appearance, with no gap between the lockbar and apron.) Position the
two instruction cards as you see fit, but I'd balance them so that
they're at the same inset from their respective outside edges.
Instruction cards
Instruction cards on the real machines vary by manufacturer, so you
don't have to match an exact size to look authentic. For reference,
the Williams cards from the 1980s and 90s are 6" wide by 3.25" tall.
Traditionally, the left card has playing instructions, with a summary
of the game's rules, and the right card is the pricing card, with the
price per game, number of balls per play, and the obligatory "For
Amusement Only" disclaimer.
You can find many examples of instruction and pricing cards for the
real machines online by searching for "pinball instruction cards".
There are some sites with collections of the original cards and
fan-made custom versions. The original manufacturer cards were
usually printed in black text on a white card, usually in a pretty
plain style with minimal (if any) graphics. A lot of collectors these
days like to replace the boring originals with fancier custom versions
featuring full-color graphics based on the game's theme, so a lot of
those are in circulation as well.
For a real game, the instructions card summarizes the scoring rules
for the game; for a virtual cab, you'll probably want to summarize how
to operate your game selection menu system instead. And the pricing
card is usually a simple "Free Play" announcement. To give you some
more specific ideas, here are the cards I created for my cab. You
won't want to use them as-is, since they're so customized for my
graphics theme, but maybe they'll be helpful starting points.
Sample virtual cab instruction card. The instruction card
is traditionally displayed on the left side of the apron.
Sample virtual cab pricing card. The pricing card is
traditionally displayed on the right side of the apron.
Maintenance labels
It's a really good idea to label anything on the inside of your
cab that's not pretty obvious just looking at it. That'll be a
big help later on if you ever have to repair anything or if you
want to make any upgrades. Do this while you're building the
machine or shortly after you're done, while things are still
fresh in your mind. Some things that are helpful to label:
- Wire harnesses and pluggable connectors. Put a label on each
connector saying what it's for and where it plugs in.
- Wires going to screw terminals. Mark which terminal they
connect to.
- Power supplies. Label each one's main function ("PC power
supply", "feedback device 24V supply", etc).
- Power supplies with adjustable voltages, and adjustable step up/down
voltage converters. Label with the purpose ("shaker motor speed
control") and the voltage that you've determined as the correct
setting.
- High voltage warnings. Put a high voltage warning label near any
exposed wires or terminals with anything above about 24V. A general
"High voltage inside" warning might also be appropriate; the real
machines feature a label like that on the lockbar receiver.
- Other warnings. Label anything else that you know to be
hazardous, so that if anyone else tries to do any work inside,
they'll know where they need to be careful.
Install 0 balls
This is just a little pinball-nerd joke. On the real machines, there's
always a label on the top of the lockbar receiver (the metal part on
the inside of the front wall that latches the lockbar in place)
telling the operator how many pinballs the game takes, in case
they were removed for transport.
"Install 4 balls" label, from Theatre of Magic (Bally, 1995)
For a virtual pin cab, the right number is, of course, zero. It makes
a cute Easter egg for your pinball collector friends when you're giving
a behind-the-scenes tour.
This image is rasterized at 300 dpi for print reproduction.
Right-click and "Save As" to save the PNG. Cut at the
registration marks (the final result should be about
2.5" x .75").
Here's the Math Nerd variation. It's based on the assumption that the
largest "imaginary" number of balls you'd ever have to install would
be the number needed to accommodate the virtual version of Apollo 13
(Sega, 1995), with its rather silly 13-ball multiball mode.
Manufacturing label
Real machines have a product label on the outside back of the main
cabinet, at top left, listing the manufacturer, model number, serial
number, etc.
The manufacturing label on the back of a 1990s WPC machine,
at arrow.
(The other two stickers are a UL approval label and
an FCC approval label for radio-frequency emissions. I wouldn't
advise imitating official certifications; let's
just say that we'd like to avoid any Imperial entanglements.)
Here are a couple of mock-ups of the layout of these labels, to use as
a model for creating your own. The styles are typical of the WPC
machines of the late and early 1990s, respectively. These are usually
printed at around 4"x4" to 5"x5".
If you want to be really thorough, there's usually a second copy of the
manufacturing label on the inside of the cabinet, typically stuck to the
right wall near the front. In addition, a small warranty sticker
(also with the serial number) is often affixed to the front of the
cabinet below the coin door.
Original manufacturer's warranty sticker with the machine's
serial number, typically placed on the front of the
cabinet under the coin door.
Backbox warning label
Most pinball machines have a warning on the back of the backbox
cautioning operators to fold down the backbox for transport. The
typical 1990s label is shown below. You can reproduce it (or
something similar) for another bit of added authenticity.
This image is rasterized at 300 dpi for print reproduction.
Right-click and "Save As" to save the PNG.
This is normally printed at 18" wide by 15" high, on the back of the
backbox (the exterior side), roughly centered. On the original
machines, it was screen-printed, but that's prohibitively expensive
for most pin cab builders. A more economical alternative is to use a
printed vinyl decal as with the side art. Pre-printed decals with the
standard warning text can be found online; search for pinball
backbox warning decal. If you're having custom decals made for
your side art, you can probably have a custom copy of the backbox
label made at the same time.
Custom plunger knobs
This mod is popular with pinball collectors these days. Several small
companies make themed knobs for specific titles, such as the Thing
hand knob for The Addams Family, or a golf ball knob for No
Good Gofers. If you based your cab's artwork on a particular real
pinball title, a custom knob designed for that machine would fit
nicely. There are also lots of ball-shaped knobs with metallic
finishes, powder-coat finishes, and hand-painted patterns. You should be
able to find something that matches just about any art theme.
For any of those options, search the Web for "custom pinball shooter knob".
In keeping with the DIY spirit of the pin cab project in general, I
like the idea of creating your own completely original shooter knob.
This is actually pretty easy thanks to the availability of "knobless"
rods. These are standard plunger rods, just without knobs at the end.
Drill a hole in whatever you want to use as the knob, and epoxy it to
the end of the rod. Combine this with 3D printing and you can fairly
easily create a custom shooter with any theme-appropriate toy for the
knob.
The knobless rods are available from any of the big pinball supply
vendors; look for part 20-9253 (with no additional number like "-1" at
the end) or search for "knobless shooter rod".
Lighted knobs
You can also find knobs with embedded LEDs that light up the knob from
within. The ones I've seen are based on the modern Williams-style
ball shooter assembly, so they should work on a virtual cab just as well as
on a real one. Search for "illuminated pinball shooter rod".
Music jukebox mode
If you installed a decent set of speakers and amps in your cab, you
can get double duty out of them by turning your cab into a music
jukebox when it's not playing pinball.
I don't have any particular recommendations for jukebox software, but
any Windows music player with a visualization mode should work.
Most people who do this set up the music player as a "system" under
their menu system front end - that is, as though it were another
pinball program like Visual Pinball or Future Pinball. A "system" in
the front ends serves as an association with a Windows program (an
application .exe file) that lets you launch that program to run any
game listed with the system. Then you just create a pseudo "game"
that represents the player and add it to your game list. To launch
into music mode, you just navigate to the pseudo-game entry and launch
it like any other game; that fires up the music program that you
associated with the system.
For specific recommendations for music players and details on
setting them up with the front ends, search for "jukebox" on the
vpforums pin cab forum.
Part Three. Feedback Devices
44. Feedback Devices Overview
Feedback is probably the most challenging thing to set up in a cab.
It requires coordination among several separate pieces of software and
a specialized output controller device, all of which can be balky and
hard to debug, and it also requires a certain amount of improvisation
to create the various tactile and lighting effects. But this is one
of those difficult jobs that's worth the effort. Pinball is an
inherently physical, mechanical game that engages the sense of touch
as much as sight and sound, so it really improves the simulation to
bring some tactile elements into it.
Even though it's not exactly trivial to set up a good feedback effect
system, it's not nearly as hard as it used to be. There was a time
when these systems were elaborate, ad hoc contraptions, every one
unique. That's no longer the case. Those early ideas have been
refined and improved to the point where there are solid, repeatable
recipes that you can follow. There's still plenty of room for
creativity and experimentation, and you'll still have to do a little
work figuring out what parts to buy, but I can give you detailed
pointers on what you need and where to find it.
The next several chapters aim to make the big job of setting up a
feedback system approachable, even if you're new to all of this.
We'll try to cover all of the details: how to set up the PC software,
what to buy for an output controller, how to install it, how to wire
the devices to it, and how to build devices for all of the popular
effects.
How feedback works
The whole idea of feedback devices is completely outside of our
everyday experience as PC users, so if you're new to pin cabs,
you probably have a lot of questions about how this works. I'll try
to answer the big ones here.
How can a PC control all this stuff? Lights, motors, solenoids, etc?
Using a special hardware device called an "output controller".
You have to buy one of these (or build one, if you're using Pinscape)
and connect it to your PC, usually with a USB cable. The controller
is the bridge between the PC and the physical devices.
The controller has wiring terminals, called "ports", where you
connect the lights, motors, and solenoids. Once the feedback devices
are wired to the ports, and the output controller is connected to the
PC, software on the PC can send commands to the output controller to
turn the attached feedback devices on and off or to different
intensity (brightness) levels.
You can find a list of the available output controller options, with a
detailed comparison of features, in
Chapter 12, I/O Controllers.
Does that output controller need device drivers? Not in most
cases, but it depends on which type of controller you're using. The
LedWiz, PacLed, and Pinscape don't require any device drivers; the
SainSmart relay boards do. If your device needs drivers, its
documentation should cover that.
How many different feedback devices can I have? There's
no upper limit as far as the PC is concerned, but each controller
has its own limit for how many devices it can connect to.
A single LedWiz can control 32
devices. Most of the SainSmart relay boards can handle 8 outputs.
The Pinscape expansion boards can handle 65 outputs in the typical
setup, but you can add modules for up to 128 outputs if you need
more (which you probably won't!). You're not limited to a single
controller, either, so if you need more ports, you can usually
just add another controller. All of the controllers can coexist
with one another, too, so you can mix and match them if you
need different capabilities.
How do games know about my shaker motor? My flippers? Etc?
That's handled in some software you run on the PC. There's a suite of
software that almost everyone uses to make this all work, and it has a
setup procedure where you enter information about your feedback
devices. You tell the software if you have a shaker motor, flipper
solenoids, flasher lights, etc, and you enter information on how
they're wired to your output controller (more on this shortly).
Do I have to program every game with my devices? No. The
device setup information is shared by all games, so you only have
to enter this information once.
What if I install some devices but not others? That's fine.
Games will use the devices you have, and won't care that others
aren't present.
Do I have to program feedback into every game? No. Most
VP 10 tables are pre-programmed to use feedback and will activate it
automatically if your cab supports it. For VP 9, most games are
pre-programmed to use feedback, but many require a couple of extra
steps to enable it. We'll cover that in
Chapter 46, DOF Setup.
Software and controller setup
There's a chicken-and-egg problem when it comes to deciding whether to
install the feedback software or the feedback hardware first. To a
certain extent, it doesn't really matter which one you work on first,
because you really need both in place before either one will do
anything. Even so, I recommend starting with the software,
specifically DOF. That way, you'll be ready to do a practical
test as soon as you get your first feedback device wired.
If you haven't already decided on an output controller, read
Chapter 12, I/O Controllers. That chapter goes over the commercial
and DIY options available for all of the I/O controllers. For our
purposes here, focus on the output controllers, since that's what
you need for feedback effects.
Once you've selected an output controller, proceed to the next
chapter,
Chapter 46, DOF Setup. That will help you set up the PC software
that connects the pinball simulation to the hardware devices.
Next, set up your selected controller. If you're using a Pinscape
controller, you'll want to read through
The Pinscape Controller for
instructions on building the hardware and setting up the software. If
you've already done the basic setup work, you can skip straight to
Chapter 111, Pinscape Feedback Outputs.
If you're using one of the commercial options, it should come with
instructions of its own. But those are often pretty sketchy, and
never contain any information specifically about pin cab use, so we've
provided our own setup guides for the most popular options:
If you're using one of those, we'll walk you through the process of
installing the device, setting it up in Windows, and wiring output
devices to it. If you're using a different device, you'll need to
rely on the manufacturer's instructions, but we do have some generic
advice in
Chapter 47, Feedback Device Wiring.
Types of feedback devices
Here's a quick overview of the most widely used feedback devices. You
certainly don't have to limit yourself to these ideas; the software
and hardware let you hook up anything you can think of. But the
devices below have become a sort of standard set that the existing
software will put to good use automatically, activating them in
sync with relevant events during game play.
Chapter 55, Button Lamps. These make your various buttons light
up under software control: flashing the Start button, turning on the
Launch Ball button when a ball is in the chute.
Chapter 57, Beacons. Rotating or flashing police car-type
lights. These are another part of the light show, and they're also found
on so many real machines that they add a bit of authenticity to many games.
Chapter 61, Shaker motors. Create a dramatic tactile effect that
makes the whole machine vibrate. Some real machines have the exact
type of device, so for those, a shaker re-creates the authentic
playing experience. It also makes a great added effect even for
games that didn't originally have a shaker.
Chapter 62, Gear motors. These simulate the sound of the small
motors found on many real machines to animate playfield elements.
Chapter 63, Fans. These re-create the backbox fans featured
on a scant few games (
Whirlwind,
Twister), but like
shaker motors, they make for a dramatic effect that enhances many
games that never had fans in the real versions.
Chapter 64, Chimes and Bells. Re-create the mechanical scoring
chimes used in nearly all machines from the 1960s and earlier.
These can make re-creations of older tables feel much more authentic.
A ranking by importance
Here's my purely subjective, totally biased ranking of the relative
importance of the devices. The "importance" is on scale from 1 to 10.
Now, keep in mind that these aren't goodness ratings; they're just
relative degrees of importance. "1" isn't meant as a negative review
score and certainly doesn't mean a device is bad to have. "1"
just means that I rank that device as among the least important. All
of the devices are nice to have if you can afford the cost, space,
output ports, and time to set them up.
If you want a fully decked-out cabinet, these rankings shouldn't
matter to you. You should just install everything. But if you're on
a budget, or you want to start small and add more as you go, these
might help you prioritize. Again, though, these are just my opinions,
and are not by any means the official consensus of the pin cab
community.
Device | Importance |
Shaker Motor | 10 |
Flipper Solenoids | 10 |
Flashers | 9 |
Fan | 9 |
Bumpers | 8 |
Slingshots | 8 |
Chimes/Bells | 8 |
Replay Knocker | 7 |
Strobes | 5 |
Addressable Light Strips | 5 |
Button Lamps | 4 |
Beacons | 4 |
Undercab light strips | 3 |
Gear Motor | 1 |
A few of these deserve an explanation.
I rank the shaker motor and fan so highly for the same reason: they
both add a dramatic, tactile effect that goes way beyond "video game".
Even after playing a lot of games on my cab, I still find these
effects particularly engaging because they extend the
game's reach beyond sight and sound.
Flasher lights are also at the very top of my list. They add visual
impact that video can't approach. Real pinball machines have always
used lighting to attract players and add to the playing experience,
and this became even more important in the solid state era, where the
software running the game could create complex lighting effects
coordinated with the game action. Simulations reproduce the original
lights in video form, of course, but video just isn't bright enough to
create the same dramatic effects as real flashers. Flashers go a long
way towards making it feel real.
The various solenoid effects - flippers, slingshots, bumpers - all
rank near the top because these mechanisms are so central to real
pinball. If you think recorded audio does these justice, you probably
haven't played a real pinball machine in a while. The coils on the
real machines are seriously strong. You don't just hear them, you feel
them; they give the whole machine a jolt every time they fire. If you
want to re-create the real playing experience, you really need to
simulate that palpable jolt. The flippers, bumpers, and slings are all
important, but the flippers are easily the top choice if you
have to pick only one type. They're the ones you actually interact
with constantly in every game, so the tactile feedback they
provide is particularly noticeable and particularly enriching
to the experience.
The replay knocker and chimes are close on the heels of the other
solenoid devices for all the same reasons. Recorded audio simply
can't do these percussion instruments justice. I personally find the
knocker to be more important than its frequency of use would suggest.
Its importance comes from the fact that whenever it goes off,
something great just happened in the game; the added sensory effect of
that inimitable hammer strike really adds something. And if you're
a fan of older electromechanical games, the realism added by chimes
will make a world of difference.
The button lamps come in relatively low on the list mostly because you
could get almost the same effect by just wiring the buttons to be
constantly on. But it's still nicer to have them under software
control, especially the Launch Ball button, which shows useful
information on the game state in some games.
The gear motor ranks so low because it's just there for the sound
effect, and this sound (unlike knockers and chimes) actually can be
reproduced fairly well on the audio system.
Night Mode
Many cab builders like to include a "night mode" switch, to disable
the noisy tactile devices so that they can play during evening hours
without disturbing housemates or neighbors.
Some of the plug-and-play feedback kits from Zeb's Boards also
include this feature.
None of the commercial controllers have a native Night Mode feature,
but you can set up your own DIY night mode switch pretty easily. The
basic idea is to add a switch into the power supply circuits that feed
power to the noisy devices. Set up the switch to control the "+"
voltage going to the selected devices. When you turn the switch off,
it cuts power to the noisy devices. For devices that don't need to be
disabled at night, simply bypass the switch and wire them directly to
the power supply.
If you need to include devices at different voltage levels in the
night mode switching system, you'll need a "multi-pole" switch. A
multi-pole switch is essentially a bunch of separate switches built
into a single housing and controlled by a single lever, so that they
all switch on and off together. You can use this to wire several
voltages to the same switch, since the internal switches are all
electrically independent even though they turn on and off together.
If you need to control two separate voltage supplies, you'd need a
double-pole switch. To control three voltages, you need a three-pole
switch. You can find multi-pole switches from suppliers like
mouser.com.
45. Power Supplies for Feedback
Feedback devices require power, so you'll have to provide power
supplies in your cabinet for the devices you install.
All of the common devices run on low-voltage DC power. You'll
probably have a mix of devices with different voltages, so you might
need multiple power supplies to cover the different voltages. In this
section, we'll help you figure out the set of voltages you'll need,
and provide pointers for what to buy.
Common voltage levels
Here are the common voltage requirements for most of the feedback
devices found in pin cabs.
Go through the list above and find the devices that you plan to
install. For each one, note the type of power source required and
add it to the list of components for your system.
You'll only need one power supply of each type, even if you have
multiple devices that use it, because all of the devices that need
a particular voltage can share the same power source.
Below, we'll go into the details on what to buy for each power source
and how to set it up.
Interconnecting grounds
Whatever combination of power supplies you're using, there's an extra
step you should take with each one: connect the "ground" terminals of
all of your power supplies together.
"Ground" has several different technical meanings in electronics
jargon, so let's make sure we're talking about the same thing. The
ground terminals that I'm talking about interconnecting are the
negative DC terminals. On ATX power supplies (the standard
type of PC power supply), these are the black wires on all of
the connector cables coming out of the box. On a power supplies with
screw terminals, this is the negative DC output terminal, usually
marked with one of the following:
- - (a minus/negative sign)
- -V
- -24V (or whatever voltage the supply produces)
- 0V
- G
- GND
- Ground
In all cases, this is one of the power supply's DC output
terminals, not anything on the AC input side that connects to the wall
plug.
The point of interconnecting the power supply grounds is to ensure
that all of the different circuits at all of the different voltage
levels have a common reference point for 0V. This allows them to work
together in a single system. This is important for the feedback
devices because they connect to the output controller, which in turn
connects to the PC (through the USB cable). Without a common 0V
reference point, the common connections through the PC could allow
hazardous current flows between power supplies. Interconnecting the
grounds prevents this.
Note that it's not necessary to make any extra connections for step-up
or step-down voltage converters. These are inherently connected to
the common ground through their power input wires, as long as the
power supply they're connected to is itself connected to the common
ground point.
Wiring suggestions for ground interconnects
The important thing is to connect all of the grounds together
electrically. Exactly how you wire this is up to you.
The easiest way is to simply daisy-chain a hookup wire from one power
supply ground to the next.
A somewhat neater approach is to install a "power distribution block"
or "ground bar". This is basically a metal bar with a number of screw
terminals for attaching wires; since it's one big metal bar, all of
the terminals are electrically connected, so any wires you connect
will all be shorted together, exactly as we want. Adafruit makes a
nice power block that you can buy directly from their site or via
retailers like Mouser.com:
Adafruit 737. It
looks like this:
You can find similar products at home supply stores and hardware
stores, where they're usually called "ground bars". The Adafruit
setup is a bit nicer because it has a plastic housing for easy
mounting; the hardware store type is usually just a plain metal bar
with screw terminals. In any case, both types provide screw terminals
that are all connected together electrically. Simply connect a wire
from each of your power supply's Ground terminals to a terminal on the
bar.
Individual power supply descriptions
Now let's look at the common types of power supplies you can
use in a pin cab.
ATX power supplies
ATX PSUs - the same type
that you're probably using for your PC motherboard - are great for
feedback power because they're cheap sources of the most common
voltages you need, 5V and 12V. They crank out tons of power at a low
price; the cheaper ones only cost about $30 and provide 300W or more.
It might be tempting to take advantage of the fact that you
already have an ATX PSU in your cab to power the PC
motherboard, and give it double duty powering your feedback devices as
well. But I'd recommend against that. You really should buy a second
ATX PSU that you can dedicate entirely to your feedback system.
The reason to use a separate power supply for feedback is that many of
the devices are electrically "noisy", meaning that they inject voltage
spikes and dips into the power supply circuits when they operate. The
mechanical devices in particular (solenoids, contactors, motors) can
cause the power supply voltage to fluctuate quite a lot when they
switch on and off, because of the sudden change in load. If you
connect these devices to the PC's power supply directly, you'll
subject your motherboard to that electrical noise and the fluctuating
voltages. It's best to use a whole separate PSU to better isolate
your motherboard from all of that and keep its power supply as stable
as possible.
There's no need to match your ATX PSUs, by the way: you don't have to
buy the same make or model for the secondary unit that you're using to
power your motherboard. Any cheap, low-end ATX PSU rated around 300W
of power should be perfectly adequate for feedback device power.
How big an ATX power supply do I need?
For powering feedback devices in a pin cab, most people are fine with
a low-end ATX PSU rated at 300W or higher.
Figuring out the exact size of the ATX PSU you might need isn't easy,
because the spec sheets for ATX supplies don't usually list the exact
power limits at the different voltage levels (3.3V, 5V, and 12V).
They only tell you the total power. These supplies always have
lower internal limits on the individual voltages. Some manufacturers
list the specs at that level of detail, but most don't; usually they
just advertise the total Wattage. Fortunately, even a low-end ATX
supply (300W, say) has enough power for the standard feedback devices,
so in practice there's usually no need to figure out the exact specs
you need. Just buy a cheap ATX PSU and it'll probably work fine. If
you feel that you have an unusually power-hungry set of feedback
devices, you might upgrade to something in the 500W range, but
I think it's diminishing returns beyond that.
If you want to figure out exactly what you need, start by grouping
your devices into 5V and 12V groups. Don't include devices that
you'll power from separate power supplies, such as 24V contactors or
50V solenoids. (However, do include any devices that you'll
connect indirectly to the ATX power supply via things like voltage
step-up or step-down converter boards.) Figure out the "worst case"
for how many of the devices in each group will be activated
simultaneously. That tells you the maximum current (Amps)
needed at any one time at each voltage. Once you know that highest
simultaneous current draw, multiply it by the voltage to get the
wattage. If you can find manufacturer specs for your ATX supply that
tell you the individual power limits for the 5V and 12V rails, use
that to make sure the power supply is big enough; if the specs don't
include that level of detail, I'd make a wild guess that you can
expect at least 30% of the rated total power to be available on each
rail. So for a 300W power supply, I'd expect at least 100W to be
available on the 12V rail, for a limit of at least 8A.
How to connect devices to an ATX power supply
The connectors on an ATX power supply are all designed to plug into
matching connectors on PC motherboards, video cards, and disk drives.
Pin cab feedback devices aren't equipped with the matching connectors,
though, so we have to improvise a bit to break the ATX power supply
out of its connector jail. There are three main ways to do this:
- Use a breakout board. This is the easiest way. A breakout board is
a small circuit board that you can buy on eBay or Amazon that has a PC
motherboard socket and a bunch of screw terminal connectors for the
voltage outputs - ground, 3.3V, 5V, 12V. Plug the main
24-bin motherboard power cable from the power supply into the socket
in the breakout board, and connect your devices to the appropriate
screw terminals.
If you buy a breakout board, you can skip all of the details
below about overriding the soft power circuit and wiring up
your own disk-type connectors. Simply use the screw terminals
on the breakout board to connect hookup wire between the
devices and the breakout board.
To find suitable boards, search for ATX 24-pin breakout board.
The easiest kind to use is the type with screw terminals for
the voltage outputs. These are currently about $15 on Amazon.
(Some boards use other types of plastic
plugs for the outputs, which doesn't really help if you just
want to use hookup wire directly.)
- Attach your own matching connectors to your feedback devices.
This is a little more work than using a breakout board. Follow
the steps below if you want to go this route.
- Snip off the disk connectors from the ATX power supply cables, and
connect the devices directly to the exposed wiring, by soldering or
using a screw terminal strip. This procedure is basically the same as
creating your own matching connectors, except that you get to skip the
connectors and just connect directly to the wires. Follow the steps
below.
Overriding the soft power circuit
In order to use an ATX power supply with feedback devices, you have to
override its "soft power" control circuit. This is a circuit inside
the power supply that allows the computer operating system to switch
the power on and off under software control. This is how Windows
powers off your computer when you select "Shut Down" from the Start
menu.
The snag this creates for our secondary ATX power supply is that the
default condition is "power off". The motherboard has to send a
signal to the power supply to turn the power on in the first place.
With a secondary ATX supply, we're not connecting it to a motherboard
at all, so we have to send this signal ourselves.
Fortunately, overriding the "power on" signal is extremely simple.
It's just a matter of shorting together a particular pair of wires in
the big 24-pin connector that you'd normally plug into the
motherboard.
- Find the large 24-pin motherboard connector. On older units, this
might be a 20-pin connector. See the illustration below.
- The wires to the connector are all color-coded. Find the
green wire. There should be only one green wire, and it should
be the fourth wire from the left if you're holding the connector as
shown below.
- Find the black wire next to it to the left.
- Connect the green and black wires together.
Exactly how you connect these two wires is up to you. Here are some
options:
- Use a piece of solid hookup wire around 22AWG in thickness, and
about 1" long. Strip both ends. Insert the ends in the pin connector
sockets for the black and green wires. Tape it securely in place with
electrician's tape. This is simple and doesn't permanently modify the
PSU, in case you ever want to return it to service as a regular PC
power supply in the future. The downside is that it can be flaky. To
improve reliability, use wire that's thick enough to fit snugly in the
sockets without any play, and make sure it's inserted far enough that
it won't work its way loose.
- If you don't mind permanently modifying the power supply, you can
simply cut the black and green wires at the ends where they enter the
connector plug housing, strip the ends, and solder them together.
Wrap the exposed solder connection with electrician's tape to insulate
it. This approach is simple, and it's more reliable than the jumper
wire technique above, but it permanently modifies the cable. You
won't be able to use the power supply as a regular PC power supply
in the future.
You can test your wiring simply by plugging the power supply into AC
power. If the fan turns on, your wiring worked, and the power supply
will now be permanently powered on. If the fan doesn't turn on, check
your wiring; if you used the non-permanent jumper wire technique, try
jiggling the wire to see if you just have a loose contact. Also make
sure the "hard" power switch (usually located next to the AC power
cord) is switched on - that cuts the AC power input when switched off,
so you'll want to leave that switch in the on position permanently.
If your jumper wire looks solid and the fan still won't turn on, or
if it mysteriously shuts off after a few minutes, your power supply
might require a minimum load to operate. More on this below.
Minimum load
Some ATX power supplies have a load sensor circuit that shuts off
power if the computer isn't drawing at least a minimal amount of
current. This is meant to prevent the power supply from operating
when unplugged from the motherboard.
You probably won't have to worry about this, because most ATX power
supplies don't have anything like this. The cheaper ones are less
likely to have them than more expensive ones.
You can easily test for a load sensor by plugging your PSU into AC
power, after overriding the "soft on" circuit as described above. If
the fan doesn't turn on, you might have a load sensor that you'll have
to deal with, but you should double-check the easier stuff first to
make sure you're not on a wild goose chase: make sure the hard power
switch on the back of the unit is switched on, make sure it's plugged
in to a working AC outlet, and make sure your green-to-black jumper
wire is installed properly (see
Overriding the soft power circuit
above).
If the fan is running, leave the PSU on for about five minutes without
anything else attached. If the fan is still running, you probably don't
have any sort of load sensor, so you don't have to worry about the
rest of this part.
If the fan won't turn on at all or turns off after a few minutes, you
probably have the load sensor. Like the soft-on circuit, you can work
around this and force the PSU to operate, but the procedure is a
little different. You can't just cross a pair of wires in this case;
what you have to do is provide the minimum load that the sensor is
looking for.
The easiest way to set up a minimum load is by installing a resistor
between a
red and
black wire in the motherboard
connector (the same connector that has the green wire for the soft-on
circuit). Use a
10Ω, 10W resistor, such as a
Xicon 280-CR10-10-RC.
As with the soft-on circuit, you can wire this to the ATX motherboard
connector plug by inserting wires into the sockets, or you can clip
the wires and solder them to the resistor leads. There are several
black wires and several red wires going to the 24-pin connector; you
can pick any of them, since they're all wired together inside the
power supply.
The 10Ω resistor creates a constant load of about 500mA, or 2.5W.
This should be enough to satisfy the load sensor on any power supply
that has one. Unfortunately, the resistor simply wastes this power by
turning it into heat, but 2.5W is a tiny fraction of the available
power even for a very cheap, low-end ATX PSU. The cheapest ones
supply about 300W, so wasting 2.5W won't make a noticeable dent in
your power budget.
Note that the 10Ω resistor will get pretty hot: remember that its
whole purpose is to waste power by producing heat. You should mount
it in an open area where it gets some airflow and where nothing else
will come into contact with it, particularly wires (the heat could
melt their insulation).
How to connect 5V and 12V devices
I recommend using the disk connectors to connect feedback devices.
These are the large 4-pin female connectors, also often (incorrectly)
called "Molex connectors", that look like this:
An ATX power supply typically has at least two cables attached
with one or two connectors of this type per cable, in a daisy chain
arrangement. You'll probably also find one or two of the thinner
SATA power connectors on each able as well.
I like using the large 4-pin connectors because they have a high
current capacity (about 10A per pin), and they're fairly plentiful. They
also use a standard plug format, so you can build a mating connector
that you can simply plug in without modifying the PSU wiring.
The wires connected to these plugs are color-coded to tell you the
voltage on each wire. The wire colors are standardized across all
ATX power supplies, so they'll be the same no matter what brand
you're using.
Wire Color | Voltage |
Black | 0V (Ground) |
Red | +5V |
Yellow | +12V |
The easiest way to use these connections is to cut off the plug with
wire cutters, strip the ends of the wires, and solder your own hookup
wire to the ends, to extend them to the needed length to reach the
devices you want to connect. (Be sure to cover the exposed wire and
solder joints with electrician's tape for insulation when you're
done.) You can then run your hookup wire to a terminal block for
distribution to different devices, or you can run the wires directly
to the devices that use them.
The slightly more difficult, but neater and cleaner, way to use these
is to build mating connectors. The official brand name for the
connectors is Amp Mate-N-Lok. Here are the parts you need to
build a housing with crimp pins:
These are crimp-pin housing, so it's best to use a crimping
tool to assemble them. See
Chapter 82, Crimp Pins.
If you build the housing, you can attach hookup wire and run it
to a terminal block for distribution or directly to the devices.
So it gives you the same end result as cutting off the connectors
and soldering the wires, but it's nicer because you don't have to
modify the power supply wiring at all. You just plug in the
connector.
I recommend using 20 AWG wire for these connectors, since this will
fit the crimp pins and provide plenty of current carrying capacity
(about 11A). You want a fairly high current limit for these wires,
since they'll probably be carrying power to multiple feedback devices.
By the way, the two black wires going to this connector are both
0V/Ground connections, in keeping with the standard color coding. The
reason there are two copies of the ground wire is that the extra wire
doubles the current carrying capacity of the cable. The ground
connection has to handle all of the current going through both the +5V
and +12V wires to this connector, so it makes sense that they'd
provide twice as much wire capacity for it.
Single-voltage OEM power supplies
You can find cheap, no-brand
power supplies on eBay in a variety of common voltages needed in
virtual pin cabs, including 5V, 12V, 24V, and 48V. eBay sellers often
call these LED light strip power supplies, but they're really designed
for sale to manufacturers who will incorporate them them into finished
products, so they're sometimes called OEM power supplies (for
"original equipment manufacturer").
These units are your best option for voltages you can't get from an
ATX PSU, particularly 24V for contactors and chime coils, and 48V for
replay knockers and other pinball coils. You can also find OEM PSUs
in 5V and 12V, but I prefer using an ATX power supply for those
voltages. ATX supplies are usually cheaper for the amount of power
you get, and they have a safer design.
As unbranded OEM parts, these units tend to be inexpensive, but by the
same token, and they're not at all consumer-friendly. They don't come
with any instructions, and they don't even come with AC power cords,
since they're meant to be installed inside a product that provides
one. You'll have to wire the AC line power yourself. That involves
hazardous voltages, so if you're not somewhat comfortable with DIY
electronics, you might want to find another option. You'll probably
also have to improvise a protective cover for the AC power
wiring, since these units usually have exposed screw terminals for the
AC wires.
Where to buy
eBay is the place to buy these.
To find them, search eBay for the "24V power supply", or whatever
voltage you're looking for. You should be able to find 5V,
12V, 24V, and 48V versions. They should look approximately like the
picture above: bare metal cases with a set of screw terminals on the
back. There are generally no switches, controls, or indicator lights;
there's sometimes an adjustment screw to fine-tune the output voltage,
but that's usually it as far as controls go.
When you find items that match this description, do a little
comparison shopping to find a good value. It's always important to
comparison-shop on eBay, since some sellers set asking prices that
are completely uncompetitive.
Choosing power capacity
In addition to the output voltage, you'll also have to choose the
power capacity you need. Higher power is more expensive, naturally,
so you're wasting money if you buy something much bigger than you
need. Higher-power units also tend to be physically larger. However,
you do have to be sure to get something adequate for your needs, or
you'll overload the PSU. A properly designed power supply has
protective circuitry that momentarily cuts power to the attached
devices if it's overloaded, but I don't necessarily trust the cheap
OEM supplies to have that protective circuitry built in.
To determine the power capacity you need, make a list of the devices
you're planning to attach to the supply. Estimate how many of them
will typically be activated simultaneously. Add up the current
draw in Amps of the largest devices that will be activated at the
same time.
For example, if you're using a 24V supply for a set of contactors, you
could reasonably expect three or four of the contactors at most to
fire at the same time (both flippers, a couple of bumpers). Each
contactor draws about 500mA, or half an Amp, so four of them at once
would draw 2A. To be conservative, I'd add 25% to 50% as a safety
margin, so in this case I'd look for a PSU rated for 3A or higher.
eBay sellers will typically quote ratings in both Amps and Watts, but
some will only give you one or the other. Fortunately, it's easy
to convert in either direction. Use this formula:
Watts = Volts × Amps
>
For example, if a seller tells you that a 24V power supply is
rated for 120W, you can use the formula to calculate that it can
supply 5A (120W ÷ 24V = 5A).
Wiring
Wiring these power supplies is fairly easy. They usually come with
screw terminals, so connecting hookup wire is just a matter of
stripping a bit of insulation off the end, wrapping the bare wire
around the screw, and tightening the screw.
The one snag is that they usually don't come with AC power cords, so
you'll have to buy that separately. You can buy these at hardware
stores and electronics stores, or you can use an extension cord or an
old PC power cord if you have one lying around. To convert an
extension cord or PC power cord, cut off the female end, cut off a few
inches of the outer insulation (being careful not to cut the wires
inside), and strip about 1/4" of insulation off the ends of the three
inner wires.
The AC power cord's inner wires should consist of a black wire, a
white wire, and a green wire. Connect the black wire to the power
supply's "L" terminal, connect the white wire to "N", and connect the
green wire to "G". The "G" terminal might instead be marked with the
"ground" symbol
().
Here's a wiring diagram showing the typical markings on the generic
eBay power supplies, and how to connect each terminal. Your unit
might have different markings. If the markings are different and the
correspondence with the diagram isn't obvious to you, check with the
seller or ask for help on the forums. Connecting the AC power to the
wrong terminals could be hazardous, so be sure you've identified the
correct terminals.
For safety, be sure to cover the terminals with an insulating cover
after the wires are connected, and make sure that no bare wire is left
uncovered. These power supplies usually come with a plastic cover for
the screw terminal area, but if yours doesn't include one, you should
improvise something to protect against accidental contact. The AC
power cord wiring carries hazardous high voltage, so you want to make
absolutely sure that you can't accidentally touch those wires while
working in the cab, and also make sure that nothing else in the cab
(including loose parts) will ever come into contact with them. Any
short circuit involving the AC wiring could cause a fire or other
severe damage.
24V power supplies
A few devices require 24V power supplies, particularly the Siemens
contactors that many cab builders use to simulate flippers,
slingshots, and bumpers. The coils in 1960s chime units also run on
24V, and you can also use 24V for the replay knocker, although I
recommend using a higher voltage for that
(
see below).
The easiest way to get a 24V source is to buy a cheap no-brand
24V single-voltage supply on eBay. See
OEM power
supplies above.
If you're only using your 24V supply for contactors, a 3A/72W unit
should be sufficient. If you're using it for a replay knocker and/or
a chime unit, I'd look for at least 6A, and preferably 8A to 10A.
6.3V step-down converter
Most cab builders
use the small round arcade buttons of the type pictured at right for
the main front panel buttons: Start, Exit, Extra Ball. The standard
type has an integrated lamp for illuminating the button. These are
usually type #555 incandescent bulbs, which require an unusual power
supply voltage of 6.3V.
If you're using these buttons, check the type of lamp inside. It
might be an incandescent bulb or an LED. If it's an LED, it will run
fine on 5V, so no special voltage is needed. If it's an incandescent
#555 bulb, though, it's designed to run on 6.3V. (If you're not sure
which is which, incandescents are the type with a visible wire
filament inside a clear glass bulb or tube.)
If you have the incandescent type, there are three main options for
how to deal with their special voltage needs:
- Ignore the special voltage and just use 5V from your ATX power
supply. Many cab builders do this because it's convenient. The bulbs
will work with a 5V supply, but they'll be noticeably dimmer than with
the 6.3V they're designed for. For many cab builders, the reduced
brightness is an acceptable tradeoff for the convenience of using the
existing 5V supply.
- Avoid the whole problem by replacing the bulbs with LEDs. Pinball
and arcade supply vendors like
Pinball Life sell drop-in LED
replacements for #555 bulbs that fit the same sockets. Search for
"#555 LED" at Pinball Life or your arcade supplier. The LED
replacements should run equally well on 5V or 6.3V, with no
significant change in brightness.
- Use a step-down voltage converter to convert 12V from your ATX power
supply to 6.3V. Use the 6.3V converter output to power the bulbs.
This allows the bulbs to operate at full brightness, but it's slightly
more work (and expense) because it requires buying and installing the
converter. The rest of this section explains how to set this up.
What to buy
You can find fixed-voltage 6V step-down converters at
pololu.com.
If you prefer the variable voltage type, search on eBay for "DC to DC
step down". This should turn up several small devices that look roughly
like this:
These come in a variety of voltage and power ranges. They'll state
voltage ranges like this: "7-32V to 1-28V". This means that the
device accepts input voltages from 7V to 32V, and produces regulated
output voltages from 1V to 28V. For our 6.3V bulbs, we need something
where 12V is within the input range, and 6.3V is within the output
range. So "7-32V to 1-28V" will work: our required 12V input voltage
is within the quoted input range of 7-32V, and our required 6.3V
output voltage is within the quoted output range of 1-28V.
Note that you should find one with a range of outputs
("1-28V"), rather than a set of discrete outputs ("3V, 3.3V, 5V...").
A range of outputs means that the device has an adjustment screw that
lets you select any voltage in the range. A list of discrete outputs
means that it has a switch that can only select among the listed
voltages. We need the adjustment-screw type because we need to dial
in an unusual voltage that won't be offered on any of the pre-selected
switch types.
The device will also quote a power level, in Amps, Watts, or both.
Each #555 bulb requires 0.25A, so if you have four such bulbs, you
need 4 × 0.25A = 1A. This gives you the minimum; buy something
rated for that much or higher. Most of the devices you find on eBay
will be rated for much higher power levels than you need; you can
buy anything that meets your minimum requirement.
How to wire the converter
These converters are simple to wire. They usually have four screw
terminals with these markings:
The markings should be printed either on the top of the circuit board
near the terminals, or on the bottom of side of the board directly
under the terminals. Sellers sometimes include diagrams in the eBay
listing page showing the terminal assignments, so check for that and
make a screen shot of the page if you find it. That might come in
handy later.
Once you identify the terminals, the connections are straightforward.
Use hookup wire to make the following connections:
- IN+ connects to +12V (yellow wire) from your secondary ATX power supply
- IN- connects to 0V/Ground (black wire) from your ATX power supply (or,
equivalently, you can connect it to the terminal block where all of
your power supply grounds are interconnected: see Interconnecting grounds).
Before you proceed, you must adjust the output to the 6.3V we're
after. You need a voltmeter for this step. Set your meter to read
VOLTS. Connect the meter's leads to OUT+ (red lead) and OUT- (black
lead) on the converter. Turn on the ATX power. Find the adjustment
screw on the converter; this is normally a small slotted screw
sticking up from a small plastic box on the top of the unit. Watching
the voltmeter reading, turn the screw. Observe the effect on voltage.
Adjust the screw until the output voltage reads 6.3V. Let it sit
for a minute to make sure it remains stable. Once you have the right
voltage dialed in, you can turn off power and put away the meter.
Now you can complete the wiring:
- OUT+ connects to one of the power terminals for each button lamp.
Incandescent lamps aren't polarized, so both terminals are equivalent.
You can daisy-chain this connection from one button to the next.
- OUT- can be left unconnected. (It's already be connected internally
to IN- within the converter, so you don't have to wire it to anything
yourself.)
14V converter
If you're using large rectangular arcade buttons on your cabinet (for
example, for front-panel buttons), these sometimes come with #161
incandescent bulbs to illuminate the buttons.
As with #555 bulbs, these bulbs require an unusual power supply
voltage, in this case 14V. You can power these with the 12V supply
that you probably have available from the ATX power supply, but
they'll be quite dim if you do; they need 14V to operate at normal
brightness.
You have three options with these, as with the #555 bulbs: you can
accept the reduced brightness and use the conveniently available 12V;
you can replace the incandescent #161 bulbs with LED substitutes,
which should run at full brightness at 12V; or you can provide a
special 14V supply for them.
If you want to provide a 14V supply, and you also have a 24V supply in
your system, the easiest way is to use exactly the same procedure
described above in
6.3V step-down
converter. The only differences are that (1) you use the 24V
supply as the input to this second converter, and (2) you'll dial in
14V when it comes time to adjust the output voltage.
If you don't have a 24V supply available, there's another alternative:
you can use a "step-up" converter to convert 12V from your ATX power
supply into 14V. This is almost exactly the same procedure as using a
step-down converter, but in this case you have to specifically search
for a "DC-to-DC step-up converter". A step-up converter has
the ability to increase the input voltage, whereas a step-down
converter can only limit the input to a selected lower voltage.
Step-up converters are slightly more expensive, so the 24V step-down
option is cheaper if you already have a 24V supply.
30-50V supply for replay knocker (and other pinball coils)
If you're using a real pinball replay knocker, it's probably designed
to operate on 50V. This is the case if you bought a new knocker
assembly from a pinball parts vendor; if you have an older knocker
salvaged from a machine made before the 1990s, it might have a
lower-voltage coil.
Similarly, if you're using real pinball assemblies for your flippers,
slingshots, or pop bumper effects, and they're for machines from
the 1990s or later, the coils in those are also designed
for 50V operation.
Many pin cab builders run their 50V knocker coils using 24V power
supplies, since that's the highest voltage supply that most cab
builders install. This will work, but the effect will be weaker than
it should be. To get the full effect like in a real machine, you need
a higher voltage. You don't necessarily need the full 50V, but the
closer you get, the stronger and more realistic the effect will be.
There are two straightforward ways to get a supply voltage closer
to 50V.
Warning: 50V is a hazardous high voltage, so use
appropriate caution if you install any type of supply in this range.
Add a 48V power supply: The easiest option is to buy a
dedicated 48V power supply. You can buy OEM power supplies that
produce this voltage. See
OEM
power supplies earlier
in this chapter for instructions on buying and installing these.
Use a step-up voltage converter: This is almost exactly like
setting up a step-down voltage converter, as described in
6.3V step-down converter. Follow the instructions
in the 6.3V converter section, except that when you search for the
part on eBay, look for a "DC-to-DC
step-up converter". The
"step-up" part is key, because you need a converter that can convert
from 24V to a higher voltage.
Which option is better? It depends on your setup, since each
solutions has pros and cons. A dedicated 48V
supply is easier to set up and will have much higher power limits
(Amps/Watts). But a step-up converter is cheaper and takes up less
space.
My recommendation: if the only thing you're going to connect to the
high voltage supply is a replay knocker, shop for each type, and use
whatever's cheaper. If you have multiple high-voltage pinball coils
that will share the supply, forget the converter and go with a dedicated
48V supply. It's too difficult to find a step-up converter with
enough power capacity for multiple devices.
Variable supply for shaker motor
Most shaker motors nominally run on 12V, but some people find that the
shaking effect is too strong if they use the full voltage. You can
moderate the effect, if you wish, by reducing the voltage.
Note that if you're using a MOSFET-based output controller to control
your shaker motor, such as a Pinscape power board or one of Zeb's
booster boards, there's no need to adjust the voltage. You can
adjust the strength via software instead. See
Adjusting shaker strength via DOF
below for how to do this.
If you're using a relay to control your shaker, though, the only
way to adjust the strength is to adjust the power supply voltage
to the motor.
The easiest way to do this is to use a variable step-down voltage converter, as
described in
6.3V step-down
converter. Follow the same procedure described in that
section, but in this case, connect the converter output to the
shaker motor's power input rather than to button lights.
In addition, you're not looking for a specific voltage in this case.
You're only looking to adjust the shaking effect to your liking. So
instead of using a voltmeter to dial in a specific voltage, you need
to find the right setting by experimentation. Start by setting the
output to the full 12V (using the voltmeter as in the 6.3V setup
instructions). Run the shaker and observe the effect. If it's too
strong, adjust the voltage downwards and try running the shaker again.
If it's still too strong, turn it down some more; if it's too weak (or
the shaker won't start at all), turn the voltage up. Repeat until you
get the effect you want.
Adjusting shaker strength via DOF
If you're using a relay to control your shaker motor, the only
way to control its strength is by adjusting the supply voltage.
If you're using a MOSFET-based output control, though, such as
a Pinscape power board or one of Zeb's booster boards, you don't
need any voltage adjustment hardware. You can adjust the strength
in DOF instead.
If you're already set up DOF, here's how to adjust the shaker
strength in software:
- Open the DOF Config Tool
- Log in
- Click the Port Assignments tab
- In the "Device" drop-down, select the output controller device where your shaker motor is attached
- On the right side of the page, look for the section near the top labeled
"Shaker Motor"
- Adjust the "Max Intensity" setting
- Click Save Config
- Click Generate Config
- Unzip the downloaded config files into your DOF folder
- Try running the shaker motor via a DOF test table in VP
- If the shaker effect is still too strong, go back to the config tool
and decrease the Shaker Motor Max Intensity setting; if it's too weak,
increase the setting
See
Chapter 46, DOF Setup for more details on setting up DOF, using the Config
Tool, and using DOF test tables in VP.
46. DOF Setup
One of the best tricks you do with a virtual pin cab is feedback
effects: things like flashing lights, shaker motors, fans, solenoids,
replay knockers, and bells and chimes.
To connect output devices to your pin cab PC, you need a special
hardware device called an output controller. That's described in
detail in
Chapter 12, I/O Controllers. Once you have an output
controller installed, you have to set up some special software called
"DOF", or DirectOutput Framework, that serves as the middle-man
between the output controller and the pinball software (such as Visual
Pinball). This chapter is all about DOF and how to set it up.
If you're not going to include any feedback devices in your pin cab,
you won't need to install DOF at all, so you can skip this section.
What is DOF?
DOF is a separate piece of software that you can install on your
system to control feedback devices. It's not really a full separate
program; it's more of an add-on that works together with Visual
Pinball and other software. DOF handles the communications between
the pinball software and your output controller devices. It performs
two main functions.
First, DOF handles communications with several different kinds of
output controllers: LedWiz, PacLed, SainSmart relay boards, Pinscape,
and more. Before DOF came along, a program that wanted to access
multiple output controllers had to be specially programmed with each
controller's language. DOF provides a common interface that VP can
use to access any of these devices without having to know its details.
Second, DOF translates between VP's simulated game elements and
the output controller's physical device connections. VP thinks in
terms of the elements in the simulated pinball table: left flipper,
middle bumper, right slingshot, etc. The output controllers, on the
other hand, don't know anything about pinball. They only know about
generic devices attached to their numbered "output ports": port 1,
port 2, port 3, etc. Each output port on an output controller is
basically a wired connection to a physical device such as a solenoid
or flasher light. But the output controller devices don't know anything
about what's attached; they just know there's something wired
to each port.
DOF acts as an interpreter to translate between VP's game-oriented
model and the output controller's physical device list. DOF
accomplishes this using a configuration file that you provide,
which tells it the "meaning" of each physical output port.
How VP and DOF communicate
DOF doesn't actually talk directly to VP. It talks to VP through
the B2S Backglass program, which is another VP add-on that handles
the backglass artwork display.
The first step is that VP communicates with the B2S. VP and B2S
exchange information on game events, which are things like "the ball
just hit switch #22" or "lamp #17 just turned on". B2S in turn sends
the game event information to DOF. DOF translates the game events
into feedback device actions, and sends the appropriate ON and OFF
commands to the output controller device.
How this relates to individual tables
Newcomers to DOF often have a question at this point: Is this already
programmed into every VP table?
The answer is a qualified Yes. Almost every VP X table has full DOF
support built in. Most later VP 9 tables also have DOF support,
although many VP 9 tables require you to make a small manual change to
their scripts to activate DOF support. We'll explain how to do this
later.
How to install DOF
Before you install DOF, you must first install Visual Pinball and the
B2S Backglass program. If you haven't already installed those, go
back to
Chapter 15, Pinball Software Setup and follow the instructions there. If
you're planning to use PinballX as your game selection menu system,
you should also install that first.
Once VP, B2S, and PinballX are installed, you're ready to install DOF.
You have two options for this: automatic or manual.
In either case, you'll have to choose a folder for the DOF files. I
recommend C:\DirectOutput, if that's convenient on your system.
You can use a different name if you wish, but note the following:
- Avoid using spaces in the DOF folder name. A few
people have run into problems that were very difficult to isolate,
but which seemed to come from using a folder name containing a space
character, such as "C:\Direct Output". Even though this shouldn't
be a problem, it does seem to cause weird errors on a few machines,
so I'd avoid it.
>
- Try a C: folder if it doesn't work on another drive.
Some people have had problems installing DOF on other drives
(like D: or E:). As with the space character issue, it
should be just fine to use D: or E: or any other drive,
but doing so seems to cause problems on some machines.
There are sometimes good reasons to use a disk other than C:,
so go ahead and try it if you prefer to keep your programs
on a different drive. But if you run into any mysterious problems,
try moving it to the C: drive to see if that helps.
>
System requirements
If you're on Windows 7, make sure your system has .Net 4.6
installed before proceeding. That's a core Windows component that DOF
requires. It can be installed via Windows Update. Most newer systems
will already have this installed, but you might have to install it
manually if you're using Windows 7 and recently did a fresh install of
the operating system.
Automatic DOF Setup
The easy and recommended way to install DOF is to use the Windows
Setup-based automated DOF installer. You can find the automated
installer here:
Look for the latest "Windows Setup (MSI)" edition. Download
it and run it. When the installer asks you to pick a folder name,
remember to use a name that doesn't contain any spaces.
If all goes well with the automatic setup, you can skip all of the
"manual setup" steps listed below. The installer takes care of
everything for you. Skip directly to
Check
that it's working below.
Troubleshooting:
The automatic setup is usually pretty reliable, but there are a couple
of issues that sometimes come up. If you run into any error messages
that aren't self-explanatory, try these steps:
- Check that UAC is enabled. Some people disable UAC
based on advice they find on the Internet. That kind of advice
is all badly out-of-date (from the Windows Vista days), but
it keeps getting repeated anyway. It's bad advice these days.
UAC is an integral part of modern Windows.
Disabling it changes some system internals in ways that create
headaches.
>
- Mysterious permission errors might be due to a special
system "owner" of the C:\ root folder, or wherever you're
trying to install DOF. You can check the owner as follows:
- Right-click the folder on the desktop
- Select Properties from the Context menu
- Go to the Security tab
- Click Advanced
- Look for the "Owner" listing
If the owner is SYSTEM or Trusted Installer, the root folder is
protected against writing by ordinary user accounts. You can
either choose a different parent folder that's not protected
like that, or you can run the installer in "Run as Administrator"
mode. In the latter case, the new folder will also have a protected
system owner when you're done,
which will create other problems later. But you can fix that
after the install completes, by changing the new folder's
owner to match your regular user account:
- Repeat the process above to get to the Owner for C:\DirectOutput
- Click the Change link next to the owner name
- Type your regular user account name in the box
- Click Check Names
- Make sure this expands to a valid Domain\Username and click OK
>
>
Manual DOF Setup
I strongly recommend using the automated installer above rather than
attempting a manual installation. DOF is notoriously difficult to
install by hand; it has a million fiddly little details that you have
to get right, and any small oversight breaks the whole thing. And DOF
is bad at explaining what's wrong when something does go
wrong, so it's extremely difficult to troubleshoot bad installs. The
automated installer has proven to be much more reliable.
If you insist on doing it the hard way, though, here's my recommended
manual setup procedure.
Note! To keep things as simple as possible, the instructions
below leave out some details that most people don't need. If you want
the full story, see the DOF documentation, which you can find via the
DOF documentation links later in this
chapter. In addition, the DOF version we link below isn't the only
one available. There are some other modified versions with slightly
different extra features available. See
release status for details.
- Create a DirectOutput folder on your PC called C:\DirectOutput
(or a name of your own choosing, but remember that it must not contain
any spaces)
- Download the ZIP file edition of my
Grander Unified DOF R3+
- Unzip the contents into your new DirectOutput folder
- Unblock all of the new DLL and EXE files. For each file in the new
folder with a .dll or .exe suffix, do the following:
- Right-click the file
- Select Properties from the menu
- Select the "General" tab in the properties window
- Look for a message like this: "Security: This file came from another
computer and might be blocked to help protect this computer"
- If you see the message, click the Unblock button next to it
- Open the folder where you installed Visual Pinball. Open the sub-folder
Tables. Look for a sub-folder called Plugins. If
it's already there, great, otherwise create it:
- Right-click in a blank area within the Tables folder window
- Select New > Folder from the menu
- Type Plugins to set the new folder's name
- Open the Plugins folder that you just found or created, then:
- Right-click in a blank area in the folder window
- Click New > Shortcut in the context menu
- Type the full path to your Direct Output folder into the box
(e.g., C:\DirectOutput - this is the folder you created above,
at the very beginning of this process)
- Click the Next button
- Type DirectOutput for the name
- Click the Finish button
- For the next step, you'll need a Visual Pinball table that includes
a B2S backglass installed. The backglass has to be in a separate
file with the same name as the .vpx table file, but with a .directb2s suffix.
If you don't have any of these table/backglass pairs installed already, you'll
have to install one now. For this test, you can use 2001, because
it's easy to find, being one of the first ones in the list on vpforums.org:
- Open vpforums.org in your Web browser
- Log in (create an account there if you don't have one yet)
- In the navigation bar near the top of the main page, click "Visual Pinball Tables"
- In the box that pops up, look for the "VPX Tables" section, and click "All"
- Click on "2001 (Gottlieb 1971)", which should be near the top of the list
(if not, try any of the other tables)
- Click the "Download" link and follow the instructions to download
- Unzip the downloaded file into the Tables folder inside your
Visual Pinball program folder
- Make sure that the ZIP file you just downloaded included both a .vpx
file and a matching .directb2s file. If not, you'll have to try
downloading other tables until you find one that includes both, because
the backglass file is required for the next step. Alternatively, you
can look for the matching .directb2s file separately:
- Click Frontend Media & Backglass on the vpforums navigation bar
- Click dB2S Animated Backglasses in the popup box
- Search the list for the matching file
- Click on the file and download it as above
- Make sure the downloaded file has the same filename as the
.vpx file for your table, with .vpx replaced by .directb2s.
You can simply rename the B2S file manually if its name isn't an exact match.
- Once you have a VP 10 table and matching backglass ready to try,
load it into VP 10 and run it. This should display the table and
backglass in separate windows.
- Right-click anywhere on the backglass. This should bring up the
B2S options dialog. It should look like this:
To bring up the B2S options dialog, you have to
run a VP 10 table that has a matching B2S backglass file installed.
Running the table from within Visual Pinball will display the table
and backglass in separate areas on your screen. Right-click the mouse
anywhere in the backglass area to bring up the B2S options dialog.
The B2S options dialog. The "Plugins" section at the
bottom is what we're interested in here.
- Check the box next to Activate plugins, and un-check the
box next to Error message without backglass.
Make sure that Activate plugins is checked,
and Error message without backglass is un-checked
- Click Save Settings
- Exit the table (press "Q" and then "Q" again) and close VP
Check that it's working
Before proceeding, make sure you close all VP windows that you might
have had open from the steps above. You want to make sure VP has a
chance to restart with the new settings.
Now start VP, and load a table that has a B2S backglass. You can use
the same table you used during the setup procedure in the step where
we updated the B2S backglass settings.
As before, when the backglass appears, right-click the mouse anywhere
in the backglass display area to bring up the options dialog. Look
to see if the Plugins button at the bottom is enabled:
If the button is disabled, DOF isn't getting loaded. Go to the
troubleshooting section below for
things to try.
If the button is enabled, click it. This will bring up a separate
dialog that shows the status of each plugin.
Look for a
DirectOutput entry in the list.
If you don't see any such entry, it means the same thing as a disabled
Plugin Status button, namely that DOF isn't being loaded. Go to the
troubleshooting section for help.
Finally, check the Status and Last Exception columns for
the Direct Output entry.
If the Status is Disabled, or there's a message in the Last Exception
box, see the
troubleshooting section for help.
If the Status is Active and the Last Exception column is empty,
congratulations! Your DOF setup work was successful! DOF is loading
and starting correctly.
Extra controller setup
If you have any of the following controller types, you have to do some
additional work to tell DOF how to access them:
If you're not using one of the controllers listed above, you can skip
to the next section. Most other controller types don't require
any extra configuration work on your part, because DOF finds them
automatically each time it runs. DOF automatically detects Pinscape,
LedWiz, and Pac-Led.
If you're using one of the controllers that requires extra configuration,
follow these steps:
- In your DirectOutput folder, check for a config folder. If
it's not already there, create a new folder and name it config.
- If you're using my DOF R3++ version, there should be an examples
folder inside the config folder. Go to that folder and copy the
files there to the config folder. If there's no examples
folder, download the following files into your config folder (these
are the same files included in my DOF R3++ version):
- In your DirectOutput folder, run the program file GlobalConfigEditor.exe
by double-clicking it
- On the menu at the top of the window, select File > Load
- Navigate to your DirectOutput > config folder and select
GlobalConfig_B2SServer.xml
- Click on the Cabinet Config tab at the top
- Click Select File
- Navigate to your DirectOutput > config folder and select Cabinet.xml
DOF should now load Cabinet.xml every time you start a game in Visual
Pinball. The Cabinet.xml file provided above is just a starting
point, though - you still have to edit it to add information on your
Sainsmart relay board or Teensy light strip controller. See the
sections for those devices for details on what to add to the file.
The DOF config tool
The next (and nearly final) step is to tell DOF how your feedback
devices are connected to your output controller. If you haven't
already started installing your feedback devices, you might want to
skip this section for now and come back to it when you get to that
point.
The basic thing we have to do is tell DOF which type of device
is connected to each port number on your output controller.
What's a "port number"? Every output controller is a little
different, but they all give you a set of wiring terminals where you
connect your output devices. For example, the LedWiz gives you two
rows of screw terminals that look like this:
You connect one device to each screw terminal. For the details of how
the wiring is actually connected, see
Chapter 47, Feedback Device Wiring, but
for our purposes here, let's just think of it like this: each device
is connected to one terminal on an output controller.
You'll notice that there's a number printed next to each terminal on
the LedWiz board. Those are the port numbers we mentioned. Every
physical wiring terminal has a port number assigned.
You'll also notice that there's not anything printed on the
LedWiz about "Left Flipper", "Shaker Motor", "RGB Flasher #1", or
anything like that. So which terminal are you supposed to connect the
shaker motor to? The answer is easy: it's up to you, so just pick
one! As far as the LedWiz (or other controller) is concerned, all of
the ports are the same. They're just general-purpose outputs that you
can connect to just about anything. The LedWiz doesn't have to know
anything about what's connected, because its only job is to turn the
port on and off when commanded by the software.
But if the ports are all the same, how is DOF supposed to know which
port is the shaker motor, which port is the left flipper, and so on?
That's where the DOF Config Tool comes in. The Config Tool lets you
set up exactly this connection between port numbers and device types.
Which is why we said earlier that you should have already mapped out
your device wiring before you get into this step. You need to be able
to tell the Config Tool which device you're going to attach to which
port number, so you'll need at least a plan for how your ports are
laid out.
Step 1: Log in
The DOF Config Tool is an online tool that you access from a Web
browser. Here's the link:
If this is your first time here, click "Create Account" in the top
navigation bar to set up a new account. An account is required
because the Config Tool has to store each user's unique cabinet setup
data separately.
Step 2: Select your output controllers
After creating an account, the next step is to click "My Account" on
the navigation bar. This takes you to a page where you can tell the
tool which output devices you have.
Go through the list and tell the tool which devices you have. If you
have only one type of controller, all you have to do is find that type
in the list and set its drop-down to "1". The number simply indicates
how many units you have of each type, so if you have a single
unit, set it to "1".
If you're using a Pinscape controller, set Number of Pinscape
devices to 1 and leave "Number of FRDM-KL25Z Devices" set to 0.
This is a little confusing: Pinscape runs on a KL25Z, so it might seem
like, technically, you do have one of those as well. But the
"FRDM-KL25Z" listing in the Config Tool really should be labeled "old
Pinscape v1 firmware". Assuming you're planning to use the modern
Pinscape firmware, just say that you have one Pinscape unit and zero
KL25Z's.
When finish setting the output controller selections, click "Save
Settings" to save the updates. Note that, throughout the Config Tool,
you always have to click the Save button before leaving the current
page if you want changes to stick. If you navigate away from a page
before saving, any changes made on that page are usually discarded.
Note that your settings in the Config Tool are never set it stone.
You can always come back to this page later to make changes, if you
ever add a new output controller, for example, or change to a
different one.
Step 3: Set up your port assignments
After saving, click "Port Assignments" in the nav bar. This will
take you to the page where set up the mappings between output port
numbers and specific devices. We've finally reached the point
where we're talking about concrete, specific devices!
This page lets you work on one output controller at a time. If you
have more than one controller in your system, you simply set up each
one separately. The "Device" drop-down at the top of the page lets
you select the one you want to work on. As always, remember to save
any changes before selecting a different device.
For now, ignore the boxed items on the right side of the page ("Shaker
Motor - Min Intensity - Max Intensity", etc). These are for
fine-tuning your setup once you have everything working. It's best to
leave the defaults in place initially.
During this step, we're going to set up the "Port number" items
on the left side.
The number of "Port" items shown on the page depends on the type of
output controller you're using. For an LedWiz, for example, there
should be 32 ports, Port 1 through Port 32, because that's how many
physical ports an LedWiz has.
For a Pinscape controller, the page will show 128 ports. You might
not have that many physical ports in your setup, but that's the
maximum that the firmware can handle. Your actual number of ports
depends on how whether or not you're using the expansion boards, and
if so, which ones you're using and how many of each. To keep things
simple, though, the Config Tool ignores all of that and just gives you
the theoretical maximum of 128 slots. You should simply treat any
slots beyond the ones in your actual system as "reserved for future
expansion", in case you add more expansion boards later, for example.
Just leave any extra slots blank on the Config Tool page.
To set up the port mappings, all you need to do is go through the
ports one by one, and select the device type attached to each port
from its drop-down list. If you've already connected your feedback
devices to their output ports, hopefully you kept notes on which
device was wired to which port! Get out those notes now and enter the
same information the Config Tool port list.
If you're not sure what any of the terms in the drop-down list mean,
see
Appendix 5, DOF Config Tool Device Descriptions. That provides a full list of all of
the devices in the drop-down lists, with detailed explanations of how
they're usually implemented in virtual cabs. The devices in the drop
lists are mostly self-explanatory, but some of them are pretty
obscure, plus there's a certain amount of "virtual pinball jargon"
that probably won't make much sense if you haven't spent a lot of time
in the forums.
Once you enter all of the devices, click Save.
Step 4: Generate your config files
If you're still on the Port Assignments page, you should see a button
near the top called Generate Config. Click it. The Config Tool
will now create your customized configuration files and download
them to your PC as a ZIP file.
Wait for the download to complete. Open the ZIP file. Unzip the
contents into your C:\DirectOutput folder (or wherever you installed
the DOF files back at the start of this process).
Important: Unpack all of the .ini files from the ZIP
file generated by the Config Tool, and don't rename any of them.
Some people get confused by the multiple files and think you're
supposed to choose one of them. You're not. You need all
of them, with the exact names generated. Each file corresponds
to one output controller, and the number in the name (if any)
tells DOF which controller the file goes with. If you don't
unpack all of them, or if you rename any of them, DOF won't
work correctly.
Step 5: Test it
You should now have a fully working DOF setup! You should try running
a DOF testing table to check that the commands can make it all the way
through from Visual Pinball to your devices. See
testing below for instructions.
Update your config any time you change your device setup
Any time you change anything in your cabinet that affects the DOF
setup, you'll have to return to the Config Tool, make appropriate
changes to the settings there, and then re-generate your config
files. The Config Tool remembers your saved settings between sessions
(that's why you have to create a user ID and log in), so you'll only
have to enter any new or changed information for your output
controller list or your port assignments. After you make any needed
changes, repeat the Generate Config step: click the button, download
the ZIP file, and unzip the contents into your Direct Output install
folder. Simply replace the old copies of the config files each time
you do this.
Running a DOF test table
The final and most important test is to see if Visual Pinball can
successfully control your feedback devices during a game. The
easiest way to do this is with a VP table specially designed for
testing DOF.
Here's a good test table you can use:
(If that link doesn't work, try searching the
vpuniverse files section for
"DOF Test Table VPX", or just do a Web search for the same term.)
Once you find a suitable test table, download it, unzip it into your
Visual Pinball > Tables folder. Open it in VP and press F5
to play the game. The test table linked above provides on-screen
instructions with keys to press to try activating different devices.
You can go through your attached devices and verify that they work.
If none of your devices work, your DOF setup probably has a configuration
problem. See the
troubleshooting
section below for help.
If some of your devices work and some don't, you can be certain that
DOF itself is working, since a software problem with DOF would prevent
anything from working. Check the wiring to the non-working devices,
and double-check that they're set up correctly in the DOF Config Tool.
For example, double-check that the port number that you entered for
each device in the Config Tool matches the port number printed on the
controller board where the wiring to the device is connected.
How to enable DOF in VP
There are two requirements for a game to work with DOF:
- First, it has to be listed in the DOF Config Tool's database.
To see the current list of supported tables, log in to the
Config Tool,
go to the Table Configs tab, and open the Table Name drop-down
list. This has all of the tables that the Config Tool currently
supports.
- Second, the table's script in Visual Pinball has to include
B2S backglass support.
With VP 10, almost every table automatically uses B2S if it's
installed. There's usually nothing you have to do as a player to
enable DOF for these tables; it should just work when you run the
table.
With VP 9, the situation isn't nearly as DOF-friendly. Most
tables in VP 9 require a small amount of script editing to enable
B2S support, which in turn enables DOF support.
Both DOF and B2S came onto the scene during the years that VP 9 was
the dominant version, so there was a lot of evolution of the common
scripting practices among VP 9 table authors. As a result, there's
not a simple formula for "fixing" VP 9 tables to use B2S and DOF.
Many later VP 9 tables, written around 2016, have native B2S support,
and you won't have to do anything to get it working. Slightly earlier
tables have support for B2S coded in and ready, but disabled by
default; you have to do a little script editing to enable it. And
most earlier tables have no pre-coded support for B2S, but support can
be added with some minimal script editing.
To determine which type of VP 9 table you're working with, start by
downloading the table file (.vpt) and the matching backglass file
(.directb2s). Make sure that both files have the same name, except
for the respective .vpt and .directb2s suffixes. Now:
- Open the table in VP 9
- On the menu, select Edit > Script
- Look for a line like this:
Const cController = 0
- If you find such a line, simply change the "0" to the
number listed for B2S. (Or, if the comments also call
out a setting specifically for DOF, use that number
instead.) Save and run the table. If it
successfully displays the B2S backglass, you're set.
- If you can't find a "cController" line like the one
shown above, try searching for a line that looks like this:
Set Controller = CreateObject("VPinMAME.Controller")
- When you find that, replace it with this:
Set Controller = CreateObject("B2S.Server")
- Save, and try running the game. Again, if it displays the
B2S backglass, the table should now work with DOF.
- If you can't find any mention of "VPinMAME.Controller" anywhere, it's
probably not a ROM-based game. In this case, the table can
be converted to use DOF, but it requires substantial custom
scripting work that's beyond the scope of this chapter.
Disabling unwanted sound effects in a VP table
VP tables are mostly written with desktop play in mind, so they
assume that you want digitized sound effects for every mechanical
event in the game: flippers, slingshots, bumpers, replay knockers,
gear motors.
The whole point of using DOF feedback devices is that real mechanical
devices produce more realistic audio and tactile effects than
recordings. But when you play a DOF-enabled table on a DOF-enabled
cabinet, you'll notice that VP often still plays those canned sound
effects, on top of the real mechanical action that DOF is providing.
If you're like most DOF users, you'll probably find that recorded
sound effects sound artificial and redundant when played at the same
time as real mechanical DOF effects. So you'll probably want to turn
off the canned effects that match up with the toys you have installed.
If you have flipper solenoids installed, for example, you'll probably
want to turn off the simulated flipper sounds VP plays via audio.
Fortunately, you can do this. VP 10 makes it easy. At least, it
makes it easy for properly programmed tables.
- Open VP X in "editing" mode (no table needs to be loaded)
- On the menu, select Preferences > Keys, Nudge and DOF
- Look for the DOF Controller Options section on the right
side of the dialog
- Go through the listed devices. For each one where you have a
DOF device installed, change the setting from Both to DOF.
- Contactors refers to the bumpers and slingshots
- Knocker is the replay knocker
- Chimes refers to EM-style chimes
- Bell refers to the bell used in some games
- Gear refers to the gear motor
- Shaker refers to the shaker motor
- Flippers refers to the flipper solenoids
- Targets controls sound effects produced when the ball
hits stand-up targets; with DOF, these use the bumper devices to
simulate an impact effect
- Drop Targets controls sound effects produced when the
ball hits drop targets; with DOF, these use the bumper devices
These settings will only work with VP 10 tables that were scripted
properly. Most newer tables should conform, but you might find a few
that don't, which will be noticeable because they won't properly
disable the sound effects according to your settings changes above.
You might be able to fix such a table by following the procedures for
VP 9 tables below. Or you can just contact the table's author and
suggest updating the table to use the modern scripting conventions
that take DOF into account.
In VP 9, the same thing is possible, but unfortunately, it's not
nearly as easy. VP 9 doesn't have option settings for the individual
DOF toys. What you have to do instead is edit the individual table
script for each table you want to fix.
In older tables, you usually have to edit the scripts by painstakingly
scanning through the scripts, finding all of the sound effects
commands, and removing the ones you don't like.
Many later VP 9 tables (written in 2015 and later) include
pre-programmed support for removing individual sounds, but it still
requires you to edit the script to activate it.
Here's the basic procedure for both kinds of tables:
- Open the table in VP 9
- On the menu, select Edit > Script
- Look through the comments at the top for options relating to
"Sound Effects", "DOF Sounds", or "Cabinet Sound Options". Some
scripts offer variables to set DOF mode (which usually turns off
all canned mechanical sounds), and some have several variables
to selectively turn off certain mechanical sounds.
- If you don't see any such comments, you can still disable selected
sounds yourself by manually editing the script, but it will take a lot
of work:
- Search for PlaySound. The name in quotes after
PlaySound is the sound effect file to play; this
usually has a name that suggests its purpose. Each time
you find a PlaySound line that has a sound you want to
turn off, you can "comment out" the line by putting an
apostrophe (') at the very start of the line.
- Search for vpmSolSound. This is another way that
scripts play sound effects. For these, don't comment out
the line, but instead delete the name inside the quote
marks that follow, leaving the quotes intact. For example,
replace "vmplSolSound ""Knocker"","
with "vmplSolSound """",".
Full documentation links
You can also find the documentation on the DOF project page on GitHub:
directoutput.github.io/DirectOutput/. However,
as of this writing, that version has only been updated as far as the older R2 version.
DOF release status
DOF's release status is a little confusing, because its original
author, SwissLizard, suspended work on the project before finishing a
major update that was in progress. He released a few "beta" test
builds of the new "R3" release in late 2015, but he never completed
the official, final R3 release. Fortunately, he published the project
under an open-source license, so other people have been able to
continue work on the project. It's very much alive and well as a
result. The downside is that multiple unofficial versions have
emerged. That creates a little more work for you, since you have
to decide which one to use.
Here are the main options:
- My latest "Grander Unified" DOF R3++
is a merge of all four of the forks of DOF on GitHub as of January 2018, plus some
additional updates I've made since then. As of this
writing, it has every feature of every alternative version, so you don't have to
choose among versions with subsets of features. This is the one I recommend
because it has everything all of the other versions offer.
- My original "Grand Unified" DOF R3+
incorporated all of Swiss Lizard's final published code, plus some
necessary changes to support Pinscape devices. This also contains my
LedWiz enhancements.
- Swiss Lizard's own beta R3 releases are badly out of date at this point,
but if you want to find them anyway, try this Web search:
site:vpforums.org
DOF R3 beta. That should turn up the DOF R3 beta announcement
thread on the forums, which contains links to the download files.
Look towards the end of the thread for the newest updates.
- The last "official" (non-beta test) release from Swiss Lizard
himself was the R2 version. This is even more out of date than the R3
betas, but if for some reason you want something that's nominally
official, this is it. Go to
vpforums, click on "Getting
Started" on the top navigation bar, then select "Frontends and Addons"
from the "Essential Files" section of the popup menu. This will take
you to a list of files. Find "DirectOutput Framework R2" in the list.
Click on the link. This will take you to a download page. (If Swiss
Lizard ever officially releases a final R3 build, it should also
appear here in due course.)
- Three other developers (as of January 2018) have created their own
forked versions of the R3 code on GitHub, to add their own extensions.
Check the main DOF page on GitHub
to see the current list of forks. All of the forks that were active
up through January 2018 were merged into my Grander Unified R3++
mentioned above, and I'm not currently aware of any further work
on any of those forks beyond what I merged.
My intention with the Grander Unified R3++ version of January 2018 is
provide a One True DOF, re-unifying all of the forks and eliminating
any confusion about which one to use. The unified version combines
all of the features from all of the forks, so there's no need to pick
a subset of features.
Troubleshooting your DOF setup
When DOF doesn't just work the first time you try to set it up, it can
be a real pain to figure out why. The big problem is that DOF doesn't
have very good error reporting. When something goes wrong, DOF often
gives no indication what the problem might be, leaving you to make
wild guesses until you hit upon the solution.
Taking shots in the dark is an inefficient and time-consuming way to
debug a problem, and it can often make things worse if you try random
changes without thinking things through. So the first thing you
should do is not panic. Don't try random things. Instead, follow the
steps below. DOF does offer a few subtle clues about the nature of
the problem when something goes wrong, if you know where to look.
We'll try to help you read the tea leaves to figure out what's going
wrong and how to fix it.
Step 0: Check your Windows configuration. Make sure that UAC
(User Account Control) is enabled. Some people disable it
because of old/bad advice on the forums. Don't. Turning off UAC
doesn't do what people think; it changes some Windows internals in
subtle ways, and some people have had DOF problems as a result.
Step 1: Make sure you only have one copy of B2S installed. For
whatever reason, a lot of people have run into the bizarre situation
where they have multiple copies of B2S installed on their system.
This can send you down blind alleys for hours. You spend a lot of
time trying to get the B2S configuration files right only to find that
you're changing an old copy that's no longer in use.
So before wasting a lot of time, search your entire hard disk
for the main B2S files and make sure you only have one copy installed.
A good file to look for is B2SBackglassServer.dll.
If you do find extra copies, delete them. Then go to the correct
folder - which should have the one remaining copy - and run
B2SBackglassServerRegisterApp.exe by double-clicking the file.
It's important to run this step because it updates some Windows
Registry settings to point to this copy. If you had an old copy
somewhere else, the Registry settings might have left been pointing to
the (now deleted) old copy.
Step 2: Check the B2S Plugins button. Open the B2S
settings dialog by running a VPX table and right-clicking the
mouse in the backglass area. Check the status of the Plugins
button.
If it's disabled, it means that the DOF .dll files aren't
being loaded at all. In this case, don't even think about what
might be wrong with your DOF config files or anything like that.
You have a very basic problem where DOF isn't even getting into
memory. Here are the main things that can cause this, and how
you might be able to fix them:
- The B2S backglass program doesn't know that you want it to load DOF
in the first place. Make sure that the Activate plugins box
is checked. If not, check it now, click Save Settings, quit out of
the table, exit out of VP, and try checking again with a new VP session.
- B2S can't find the DOF .dll files. Check the DirectOutput
shortcut in the Visual Pinball > Tables > Plugins
directory. Make sure the shortcut points to the correct folder,
the one where you installed the Direct Output .dll files. Make sure
that everything is named correctly: the Plugins folder itself,
the DirectOutput shortcut file, and the directory link within
the shortcut file. The exact names are critical, so put on your
proof-reading glasses and check carefully.
- B2S can find the .dll files, but it can't load them. Go back to
the Direct Output folder and bring up the Properties window for
each .dll file (right click on the file and select Properties
from the context menu). Make absolutely sure that you've unblocked
every file. Many people who have problems getting DOF to load
find that the culprit was blocked .dll files, even though they
were certain they unblocked everything the first time through.
Double-and triple-check the files, and make sure you look at
every single one with a .dll suffix.
- Search your entire hard disk (using the Windows desktop search
tools) for extra copies of Direct Output that you might have
installed by accident or at different times. Some people have
had this experience: they keep checking and re-checking the
.dll files to make sure everything's unblocked, and it is. And
after the umpteenth time, they realize they've been unblocking
a second copy of the files in a whole separate location from
the ones that B2S is trying to load.
If none of that helps, you might want to try deleting everything
in your Direct Output folder and downloading a fresh copy of the
files.
Step 3: Check the DOF plugin status. Click the Plugin
Status button above (if it's disabled, go back to step 1).
This should bring up a new dialog showing the status of each
plugin.
Find the entry for DirectOutput in the list. If there
is no DirectOutput entry, it means the same thing as a disabled
Plugin Status button: B2S never managed to load DOF in the
first place. Go back to step 1 above, because this is exactly the
same problem described there with exactly the same possible causes.
If the DirectOutput entry is there, it means that DOF has been
loaded. Now check the rest of the entry. If the Status column
says Active and the Last Exception column is empty,
it means that DOF was successfully loaded and started without
any fatal errors and is running properly, at least as far as
B2S is concerned.
If the status is Disabled, and an error message is displayed in
the Last Exception box, it means that a fatal error occurred
trying to load the DOF program files. Right-click on the Last
Exception box and select Show Exception Details on the menu to
see the full text of the exception. These messages are usually much
too long to fit into the little box. Unfortunately, they're also much
too technical to be of any help unless you're familiar with the inner
workings of DOF's source code. Even so, it's worth taking a look at
the message to see if there's anything in it that suggests to you what
the problem might be. Don't feel bad if it looks like so much
nonsense, though; B2S makes no attempt at all to interpret these
internal system error codes into anything meaningful to humans.
So what do you do with these error codes that were never meant for you
to see? I'm afraid there's not much you can do with them other than
copy them into a forum posting asking for help. There are people on
the forums who know the internals of B2S and DOF who can often help
you track down the problem given these technical details, so you can
try posting to see if someone can help you out. Post the full text of
the exception message, along with details about your directory layout
and anything you've already tried to fix the problem.
Step 4: Check the log file. If B2S says that DOF is loading
properly, but it's not controlling your devices properly, you can
check DOF's log files to see if there are any errors there. If you
tell it to, DOF will write a bunch of status information to a log file
as it runs. This can be helpful when a problem occurs, since the
status information sometimes has details about the specific cause.
First, make sure logging is enabled:
- Open your DirectOutput folder in Windows Explorer
- Run the program file GlobalConfigEditor.exe by double-clicking on it
- On the menu at the top of the window, select File > Load
- In the file open dialog, navigate to your DirectOutput > config
folder and select the file GlobalConfig_B2SServer.xml.
(If you can't find this file, create one as described below.)
- Click the Logging tab
- Check the box "Enable logging"
- Type .\DirectOutput.log into the Log File box
- On the menu at the type, select File > Save
- Select the same file we started with (GlobalConfig_B2SServer.xml) and
confirm
DOF will now create a log file called DirectOutput.log in your
Visual Pinball > Tables folder each time you run a game.
To test this out:
- Start a new VP session
- Load a table that includes DOF effects
- Run the game (press F5)
- As soon as the game finishes loading, you can quit ("Q" then "Q")
and close VP
- Open your Visual Pinball > Tables folder
- Look for a file called DirectOutput.log
- Bring up the file's properties and check its Date Modified: it
should be moments ago, since it should have been created or updated
during the VP session you just finished
- This is an ordinary text file, so you can open it in Notepad
to view its contents
Look through the file to see if there are an ERROR or EXCEPTION
messages. If so, read the messages to see if they mean anything to
you. Many of these messages are of a technical nature that are
meaningful only to someone familiar with DOF's program source code,
but some will tell you about straightforward problems like missing
files. If the messages give you any indication what's wrong, try
correcting the indicated problem; if there are error messages that
you don't understand, you can post them to the forums and see if
anyone there can decipher them.
Manually create the DOF global config file
If you downloaded my DOF R3++ version listed in the setup instructions,
it should have included a config folder inside your main
DirectOutput folder, and a subfolder under that called examples.
That should contain a file called GlobalConfig_B2SServer.xml.
You can simply copy this file to the config folder.
If you don't see the config > examples folder or the
GlobalConfig_B2SServer.xml file, you can create them manually:
- Go to your DirectOutput folder in Windows
- Right-click in the background area of the window and select
New > Folder from the context menu
- Name the new folder config
- Open the config folder
- Download this file into the config folder:
GlobalConfig_B2SServer.xml
47. Feedback Device Wiring
The basic principle of operation for all feedback device wiring is
that the output controller acts as a switch for the device's power
connection.
Before we get into that, though, let's start small, by just thinking
about how you'd set up the power wiring for a device on its
own, without having any sort of output controller or switching
involved. This would be a simple matter of hooking up wires between
the (+) and (-) terminals on the power supply and the device:
Wiring a feedback device directly to a power supply.
A device wired this way will simply stay on all the time, and
there will be no way for the software to control it.
Now, that's obviously useless for a pin cab, since it just makes the
device turn on and stay on. The one exception is that you might wire
some of the lamps in your front-panel buttons this way, if you don't
care to place them under software control. And now that you mention
it, this is exactly how the lights in my coin chute "reject" buttons
are wired. There's really no need for them to ever turn off. Even on
a real pinball machine, those are just hard-wired to power all the
time. But for just about everything else, you'll want the software to
control the device state, so this simple circuit plan simply won't do.
But you already knew that - the whole point of this section is
output controller wiring, after all!
So how exactly do we insert an output controller into this picture?
The exact details can vary a little bit depending on the type of
controller you're using - and we'll show you those exact details for
each type of controller in the chapters ahead - but the principle is
always the same. The basic idea is that we "cut" one of the power
wires, and stick the output controller into that gap.
Basic plan for solid-state controllers
We're going to start with the "solid-state" controllers - LedWiz,
PacLed, and Pinscape. We call these solid-state controllers because
they use transistor switches to turn the attached devices on and off.
We start with these because they all work roughly the same way,
and they all have a fairly simple approach to connecting devices.
The alternative to a solid-state controller is a relay-based
controller, such as a SainSmart board. And even for those, most of
what we're going to cover for the solid-state controllers applies,
which is another reason we're starting with those. We'll cover the
specifics of the relay boards later on, but I hope you'll read through
the solid state section first to get a mental picture of how all of
this works in general terms. Just be aware as you read the
solid-state material that there will be a few little differences for
the relay boards. We'll provide the exact circuit
diagrams for the relay boards in
Chapter 51, SainSmart Relay Board Setup, so treat the circuit
diagrams in the solid-state section as "theory" rather than practice.
The same goes if you're using a relay board to "boost" an LedWiz or
PacLed's power. I sincerely hope you're not thinking of using a
relay board to boost Pinscape's power, though, because the expansion
boards are such a better way to do that.
If you're using a solid-state controller - Pinscape, LedWiz, or PacLed
- you'll be able to follow the wiring diagrams in this section pretty
literally, so you can pay as much attention to the details as you
like. The same applies if you're using any of these boards with a
solid-state booster board, such as one of Zeb's booster boards or a
Pinscape DIY booster circuit.
Okay, let's get back to this idea that we're going to "cut" into
one of the power wires to interpose the output controller as a
"switch" that can turn the device on and off by controlling its
power connection.
For all of the "solid-state" output controllers (Pinscape, LedWiz,
PacLed), you don't have any choice about which wire has to be
cut. The cut always goes in the (-) wire for these
controllers:
Basic feedback wiring plan for LedWiz, PacLed,
and Pinscape. Connect the feedback device's (+) terminal
directly to the power supply (+) terminal.
As you can see, we did as described above: we "cut" the wire between
the feedback device's negative (-) terminal and the (-) terminal on
the power supply, and we inserted the output controller into the gap.
Specifically, we connected the device's (-) terminal to a "port"
on the output controller.
If you're paying close attention, you might want to point out a big
error in this diagram: we lost a piece of wire here! The connection
that we had before to the (-) terminal on the power supply is nowhere
to be seen! You're right - that connection is definitely required.
The reason we didn't show it is that it's actually part of the output
controller's basic wiring that you set up when you install the output
controller itself. It's not something you have to add for each
device. For the sake of completeness, though, let's put it back
into the picture:
A more complete view of the basic feedback
wiring plan, showing the output controller's wire back to the (-)
terminal on the power supply. This was elided in the earlier
diagram because it's part of the basic wiring that you do when
you set up the output controller, not something you have to add
for each device you connect.
To clarify what we mean about not having to add this wire for every
device, let's look at how you'd add a second device to this
setup. To add a second device, you'd just add the two wires
we showed in the first picture: the wire from the power supply
(+) to the device (+), and the wire from the device (-) to the
output controller port. For a second device, you'd of course
use a different port, since each device must have its own
separate port.
Adding a second device to the controller.
The new device is wired just like the first device, using a
separate port on the controller. Note that we don't have to
add another wire back to the power supply (-) port: all devices
share a single "ground" connection.
There are two things to notice here. The first is that, as we pointed
out, you don't have to add another connection to the power supply's
(-) terminal. The single "ground" connection that you set up when you
install the controller is shared by all devices, so adding a new
device only requires the two wires: power supply (+) to device (+),
and device (-) to output controller port. The second thing to notice
is that we "daisy-chained" the power supply connections. We didn't
have to run a separate wire all the way from the second device back to
the power supply; it's sufficient to connect them through the same
wire. This can save you a lot of wire, since you'll probably have a
few devices that are fairly far away from the power supply.
This is all well and good if you want to hook up a bunch of devices
that run on the same voltage. But what about devices that run on
different power supplies that use other voltages? If you already read
through
Chapter 45, Power Supplies for Feedback, you know that you might need
as many as five or six different voltages if you're using a diverse
mix of devices:
- 5V for flasher LEDs
- 6.3V for incandescent button lamps
- 12V for the shaker motor and gear motor
- 14V for #161 lamps in the big square buttons
- 24V for contactors and chimes
- 30V or more for the the replay knocker
So how do you hook up all of these different devices, when each one
has to be connected to its own power supply? What happens to that
common wire back to the (-) on the power supply when we have five
power supplies?
Happily, this turns out to be easy. If you go back and review the
section on
Chapter 45, Interconnecting
Grounds in the Power Supplies chapter, you'll find the answer.
You're going to explicitly wire all of your power supply (-) terminals
together when you set up the power supplies.
So that wire that connects from the controller to the (-) terminal on the
one power supply actually connects to the (-) terminal on
all
of the power supplies. This important power supply setup step is
explained in detail in
Chapter 45, Power Supplies for Feedback.
Now that we've settled the question of the (-) wire, it becomes
straightforward to connect a mix of devices that use different
power supplies. You just repeat that same formula for each device
and its particular power supply: device (+) to power supply (+),
device (-) to output controller port.
Adding a third device that uses a different
voltage and a different power supply. The new device is wired
just like the other devices, with its (+) connected to its power
supply (+) and its (-) connected to an available output port.
All power supply (-) terminals are connected together at a common
ground interconnect point, so the output controller's GND connection
only has to connect to the common interconnect point.
Hopefully, it's clear now how this generalizes if you wanted to add a
third or fourth power supply to the mix. I don't want to elaborate
the diagram any further to show even more devices and power supplies,
since it's already getting pretty busy (and I'm running out of colors
for the wires), but you just apply the same principle for each
additional power supply:
- Connect the power supply (-) to the common ground interconnect point
- For each device using the power supply's voltage, connect the
device's (+) terminal to the power supply (+) terminal, and
connect the device's (-) terminal to a free output port
Basic wiring plan for relay-based devices (SainSmart)
If you're using a SainSmart USB relay board, or some other type
of relays, the wiring plan is almost the same as shown above.
There are two slight differences, though.
First, with a relay, you can "cut"
either the (+) or (-) supply
wire to insert the relay into the circuit, but it's considered better
engineering practice to insert the relay into the "+" wire. That's
the way it's shown in the diagrams in the
Chapter 51, SainSmart Relay Board Setup, which
is part of why I warned you earlier that the relay-based wiring
diagrams would look a little different when you got to them. (The
reason it's better to cut the (+) wire is that this leaves the device
without any live positive voltage connected when it's switched off.
That's safer in case you accidentally touch one of the wires, or
there's an accidental short circuit.)
Second, relay boards don't have that single common ground wire
that runs back to the shared (-) terminal interconnects. Instead,
you simply insert the relay into the circuit as though it were an
ordinary switch (which, in fact, it is!).
Device-specific wiring considerations
You can use the basic wiring plan above with all types of feedback
devices. However, some devices have additional, special wiring needs
of their own that you have to add onto the basic generic plan.
The sections on the individual device types contain details on
any special wiring requirements, but here's a quick overview of
the things you have to watch out for.
LED current-limiting resistors
LEDs always require something to limit the amount of current
(amperage) going through them. Without some kind of current limiter,
an LED acts like a short circuit, which will make it overload itself
or its power supply. The simplest and most common type of current
limiter is a resistor placed in series with the LED.
For a detailed explanation of LED resistors, including a calculator
to pick resistor sizes, please see
Chapter 52, LED Resistors.
Diodes for coils, motors, solenoids
Any feedback device that uses a magnetic "coil" requires that you
install a protective diode on the device. All coils inherently cause
voltage spikes that can damage other components in your cab and can
cause weird computer glitches. Diodes are used to suppress these
spikes. They're cheap and install to install, so don't omit them.
The following all require diodes:
- Motors (shakers, gear motors, fans)
- Solenoids
- Contactors
- Replay knockers
- Chime coils
- Other pinball coils
- Relays
AC devices
It's rare for anyone to use an AC-powered device in a pin cab, but I
wanted to mention this just in case: Do not connect an AC-powered
device to any of the solid-state output controllers. All of these
(LedWiz, PacLed, Pinscape) are designed to work with DC voltages only.
I recommend avoiding this issue entirely by sticking with the common
DC-powered devices, but if there's something AC-powered that you
really want to include in your cab, it's possible with a little extra
work. What you have to do is connect an AC-compatible switching
device between the output controller and the AC device.
You have a few options for the switching device:
- Relay
- Solid-state relay
- H-bridge
If you're using a SainSmart USB relay board as your output controller,
you already have this covered, because those use AC-compatible relays.
You can connect an AC-powered device to the SainSmart the same way
you'd connect any DC-powered device.
If you're using one of the solid-state controllers, I'd recommend
keeping it simple by using a relay. Here's how. First, connect the
relay coil to a port on your output controller exactly as though the
relay coil were an output device in its own right:
Now connect the AC device to the "Normally Open" (NO) and "Common" (C
or CMN) contacts on the relay. Run the following wires:
- From one AC power supply terminal to the relay NO terminal
- From the relay CMN contact to one power terminal on the device
- From the other power supply terminal to the other device power terminal
If you're familiar with solid-state relays or H-bridges, you can use
one of those devices in place of a relay. Those generally aren't
designed to be directly compatible with LedWiz or Pinscape-style
switching, though, so you'll likely have to rig some additional
circuitry to make that work. I'm going to leave that as an exercise
to the reader for those are so motivated, and recommend that everyone
else go with the simple relay setup described above.
48. Pinscape Outputs Setup (Expansion Boards)
If you've built a set of expansion boards, you're past the hard part.
Connecting output devices is fairly easy.
The Pinscape boards use the same basic wiring plan as other solid
state controllers, as described in
Chapter 47, Feedback Device Wiring:
- Connect a wire from the positive terminal of the power
supply to the feedback device's positive terminal
- Connect the feedback device's negative terminal to an output
port pin on the Pinscape expansion board
- As described in Chapter 45, Power Supplies for Feedback, you should already
have connected the power supply's negative terminal to the
common ground interconnect for all of the feedback power supplies
Repeat this pattern for each device.
For devices that run on the same voltage, you can either run a wire
from each device's (+) terminal all the way back to the power supply,
or you can daisy-chain the positive terminals together. You can do
whatever's most convenient for each device, and you can freely mix and
match.
It's fine to mix devices that run on different voltages, and it's
fine to connect them side by side on the same expansion board. Just
connect each device to its appropriate (+) voltage supply.
Config tool settings
Make sure you've configured the Pinscape firmware for your
expansion boards:
- Launch the Pinscape Config Tool
- Click the Settings icon for your device
- Near the top of the page, make sure that the System Type is set
to Pinscape Expansion Boards
- Make sure that the number of power boards and chime boards is
set to match your physical configuration
Mixing power supply voltages
The Pinscape boards switch power on the "Ground" (negative or 0V)
side of the connection. This means that it's okay to mix different
devices with different power supply voltages.
This is confusing to a lot of people because they only see power
inputs on the Pinscape boards for 5V and 12V. But what if you want to
connect a 24V device? Or a 50V device?
Here's how you have to think about this. The 5V and 12V power supply
connections to the Pinscape boards are there to power the Pinscape
boards themselves. Those connections aren't there to power
the feedback devices. The feedback devices take their power
directly from the power supplies, not from the Pinscape
boards.
That means you don't have to connect the "+" from a 24V supply
anywhere to the Pinscape boards, but you can still connect it
to feedback devices that need 24V.
Use protective diodes if necessary
Most mechanical devices require protective diodes. These
are required for anything with a coil: solenoids, contactors,
replay knockers, motors.
Diodes are critical! Coils and motors can damage your PC motherboard
and other components if diodes aren't used.
Fuses
Many cab builders include a fuse in each device output circuit. This
isn't strictly necessary, but I think it's a good idea for the
higher-powered mechanical devices. Fuses can help protect the
Pinscape board from overloads caused by wiring faults and device malfunctions,
reducing the chance that the board will be damaged if something like
that goes wrong. See
Chapter 84, Fuses for details.
Where to connect what
The expansion boards have a number of output ports that are designed
for particular device types. It's best to attach devices to their
special ports when present, since that takes the best advantage
of the special design features on the boards.
Here's a quick summary of where to attach each common device type. If
you're not familiar with any of these, we'll look at each type in
depth over the next few chapters.
Device | Where to connect |
Beacon (rotating police light) | Power board |
Bell (one-shot type) | Chime board |
Bell (reciprocating type) | Power board |
Bumper contactors/solenoids | Power board |
Button lamps (front panel) | Power board |
Chimes | Chime board |
Fan (backbox topper) | Power board |
Flasher LEDs (two sets can be wired in parallel) | Main board, JP11 (RGB Flashers) |
Flipper button LEDs | Main board, JP8 (Small LEDs) |
Flipper contactors/solenoids | Power board |
Gear motor | Power board |
Pinball bumper assemblies | Chime board |
Pinball slingshot assemblies | Chime board |
Replay knocker | Main board, JP9 (Knocker pin) |
Shaker motor | Power board |
Slingshot contactors/solenoids | Power board |
Strobes | Main board, JP9 (Strobe pin) |
Undercab LED strips (up to about 3 meters without separate amplifiers) | Power board |
Addressable light strips | N/A; needs separate controller |
Main board output ports
Output ports on the main expansion board.
JP11 (left) is for five RGB flashers; JP9 (top) is for the replay knocker
and strobe; and JP8 (right) is for small (20mA) LEDs.
Warning! Don't connect a strobe or any other output
device to any of the pins on JP12. JP12 is not
an output port header. The printing on the board is so packed
together in that area that it's easy to read the STROBE label as
part of JP12. It's not! The STROBE pin is on JP9, right
next to the KNOCKER pin.
Be careful about where you connect the
strobe and knocker. Both of these connect to the pins on JP9.
Don't connect any output device to JP12. The pins on JP12 connect
directly to GPIO pins on the KL25Z, so connecting them to power
is extremely likely to damage or destroy the KL25Z.
Main board JP11 (RGB Flashers) is designed for high-power RGB
LEDs, for flasher lights. See
Chapter 56, Flashers and Strobes for information on
the type of LED most people use. This header has 15 outputs, which is
enough to connect the standard complement of 5 flasher LEDs (as each
RGB LED takes up three channels, one each for red, green, and blue).
The pins on the header are labeled 1R, 1B, 1G, 2R, 2B, 2G, etc. "1R"
stands for the Red channel on the first LED, for example. This is
purely a suggestion for how to connect the color channels; you can
rearrange the connections if necessary. If you connect them according
to the labels, though, it will make the software setup easier, since
this ordering matches the default settings in the firmware.
This connector also provides a +5V power supply pin. The idea is that
you can connect a single 16-wire ribbon cable between this header and
a matching header on your flasher panel to provide all required wiring
for the flashers. This is just here as a convenience; if for some
reason you'd prefer to provide your own power supply connection to
your flasher panel, simply don't connect anything to the +5V pin
on this header.
You don't strictly have to connect flashers to these outputs, although
if you're going to use flashers in your system at all, this is the
best place to connect them. If you're not using flashers,
though, you can re-purpose these outputs for other types of devices,
as long as you stay within the limits of 50V and 1.5A per output.
Don't connect anything that draws more than 1.5A, as that can
potentially destroy the IC chips that drive these outputs. For
anything that takes more than 1.5A, always use the Power Board outputs
instead.
The strobe output is driven by exactly the same chip that controls
the flasher outputs, so it has the same power limits (50V and 1.5A).
You can use it for other purposes besides a strobe if you prefer,
as long as you stay within those limits.
The knocker output is driven by a MOSFET that can handle very large
loads, which is necessary because real replay knockers are designed
for 50V supplies and draw about 3A. However, it's not great as a
general-purpose output, because it has a "time limit" circuit that
prevents the output from staying on for more than about 2 seconds at a
time. The time limit is specially designed to protect replay knocker
coils against common software faults in Visual Pinball that can leave
devices stuck on; this problem has destroyed replay knockers on more
than a few virtual cabs, but you're relatively immune to this with the
Pinscape boards because of the built-in time limiter circuit. The
downside is that it means that the port is really only suited for a
replay knocker, since you wouldn't want similar time limits on most
other types of devices. The one bit of re-purposing that could be
appropriate for this output is that you could use it for a music
chime, since chime coils have the same vulnerability to overheating that
replay coils have.
See the
warning above about the
proper location of the STROBE output.
Main board JP8 (Small LED/Opto) has 16 pins designed
for low-power LEDs. These are intended primarily for controlling
LEDs in the flipper and MagnaSave buttons; see
Chapter 55, Button Lamps
for how to set those up.
As with the RGB flasher header (JP11), these pins are labeled with
color channels - 1R, 1G, 1B, 2R, 2G, 2B, etc. And as with JP11,
you're free to ignore the labels if you prefer, but following them
will save you a little software setup time.
In addition to labeled outputs for 5 RGB LEDs, there's an extra pin
labeled LED6. This is a spare that you can use for an additional
monochrome LED, or just leave unconnected. For that matter, there's
no common use for a 5th RGB LED, since a typical cab only has the four
flipper/MagnaSave buttons. You can repurpose the 5R-5G-5B outputs for
whatever other small LED uses you can think of, and you're free to
treat them as separate channels and connect each one to a monochrome
LED. The RGB-ness is only a suggestion.
This header provides a +5V power supply pin that you can use to
power the attached LEDs.
This header has a special feature for LEDs: it has a built-in current
limiter for each channel, which eliminates the need to use a separate
external resistor for attached LEDs. (See
Chapter 52, LED Resistors.)
You can safely connect LEDs directly to these ports, with no resistors
required. The current limit is determined by the resistance (Ohms)
value of resistor "R5" on the main board. If you used the default
2.2K resistor from the parts list, the current limit is set at 20mA,
which is perfect for most small LEDs.
The term "Opto" in the label, by the way, refers to optocouplers.
Optocouplers have internal LEDs with the same general properties as
the small LEDs that these outputs are designed for, so you could
connect an optocoupler to any of these ports in lieu of an LED. That
would allow you to control another circuit through the opto. I don't
have any particular applications for this in mind - it's just an
option for people who like tinkering with electronics, since it gives
you a way to control just about any custom circuit via a Pinscape
output.
Power Board output ports
All 32 of the Power Board outputs are general-purpose, high-power
outputs that you can connect to almost anything. These outputs are
suitable for lights, motors, solenoids, and just about anything else
commonly used in a pin cab. They can handle devices that use power
supplies up to 60V and current up to 4A.
Power board outputs. These are general-purpose
outputs suitable for almost anything in a pin cab. Each output can
handle 4A at 60V.
Chime board output ports
All 8 of the Chime Board outputs are high-power outputs with
time-limiter circuits of the same type used in the replay knocker
output on the main board. As with the replay knocker, these are
designed to protect pinball coils from software faults on the PC that
could leave an output stuck on. They're nominally for "chime units"
(see
Chapter 64, Chimes and Bells), but they're really appropriate for any sort
of standard pinball coil, such as bumpers and slingshots. You
wouldn't want to use them with flippers, however, as you certainly do
want to allow flippers to be held on for long periods.
Chime board outputs. These outputs have the
same type of time limiters as in the replay knocker output on the
main board, to protect attached pinball coils from overheating if
the software on the PC crashes and leaves outputs stuck on. Outputs
are automatically turned off if stuck on for more than about 2 seconds.
Each output can handle 4A at 60V.
Power limits
Here's a summary of the power limits for the various outputs on the
expansion boards. The amperage limits are per port.
The Timer column indicates whether or not the output has a timer
circuit that cuts off power after it's been on continuously for more
than a couple of seconds. These apply to the replay knocker output on
the main board and all outputs on the chime board. The timer circuit
is there to prevent software crashes from leaving a pinball coil stuck
"on", which can overheat and destroy those coils. The timed outputs
are good for pinball coils, where you only ever want momentary
activation; they're not good for anything that you actually want to
leave running for long periods, like shaker motors, gear motors, fans,
beacons, lights, etc.
Board | ID | Description | Max Limits | Timer |
Main | JP8 | Small LEDs | 18V | 20-50mA | No |
Main | JP9 | Knocker | 60V | 4A | Yes |
Main | JP9 | Strobe | 50V | 1.5A | No |
Main | JP11 | RGB Flashers | 50V | 1.5A | No |
Power | JP5, JP6 | General Purpose | 60V | 4A | No |
Chime | JP9 | Chimes | 60V | 4A | Yes |
DOF Setup
To set up your Pinscape unit with DOF, you of course have to
install DOF on your PC first. See
Chapter 46, DOF Setup for instructions.
Once the DOF software is installed, you use the
DOF Config Tool to tell DOF that
you have a Pinscape unit, and to tell it which output ports are
wired to which feedback devices.
- Open the DOF Config Tool in your browser
- Click the My Account tab
- Set Number of Pinscape devices to 1 (or if you have more than one
KL25Z running the Pinscape, select the appropriate number of devices instead).
The number of expansion boards connected to the same KL25Z doesn't matter
here - if you have a main board and two power boards and two chime boards,
you should still enter 1 for Number of Pinscape devices, since
they're all part of the same USB connection from the PC's perspective.
- Set Number of KL25Z devices to 0 (see below
if this seems confusing)
- Save changes
- Go to the Port Assignments page
- Select "Pinscape 1" in the Device drop list
- Go through the port list, assigning each port number in the DOF list
to the device that you wired to the corresponding expansion board port
The port list in the Port Assignments page uses the same port
numbering (Port 1, Port 2, etc) that's shown in the Pinscape Config
Tool output port list. This isn't a physical pin number
from any of the headers. It's the abstract port number from the
output port assignment list.
To figure out what DOF's "Port 1" or "Port 2" means in terms of the
physical expansion board pins, you have to look at the output port
list in the Pinscape Config Tool's Settings page. In the output list,
find the same port number shown in DOF - if you're looking for DOF's
"Port 1", you want the first row, #1, in the Pinscape output list.
Trace across the row to find which physical pin that port is assigned
to. If you want to see a picture of where that pin is physically
located, click the pin name in the row - that will pop up the pin
selector, which will show the pin location highlighted on a picture
of the appropriate expansion board.
The online DOF Config Tool has a confusing
bit of terminology in the device setup section on the "My Account" page.
In the list of devices, you'll find separate entries for "Number of Pinscape
devices" and "Number of KL25Z devices".
For Pinscape boards, use only the Pinscape devices option.
Always leave "Number of KL25Z devices" set to zero (0). This applies whether
you're using the expansion boards or a standalone KL25Z.
This is confusing because the Pinscape software does happen to run
physically on a KL25Z board, so it might seem like you should enter
the same number for both line items. Don't. Pretend that you've
never heard of a KL25Z and that you have zero of them.
The Config Tool has the "KL25Z devices" line item for historical reasons
that date back to the first version of the Pinscape software, when it
was limited to 32 output ports. It should more properly be titled
"Number of Pinscape v1 devices", because that's what it really means.
In any case, just ignore it and leave it set to zero.
49. Pinscape Outputs Setup (Standalone KL25Z)
The standalone KL25Z (without the expansion boards) is capable of
controlling feedback devices such as LEDs, motors, and solenoids.
However, there are some important limitations you should be aware of:
If you can live within these limits, the standalone KL25Z makes a
great output controller at low cost. If you need more outputs in
general or more PWM outputs in particular, you might want to consider
adding the Pinscape expansion boards - which were specifically
designed to overcome all of these limits - or one of the commercial
I/O controller devices. See
Chapter 86, Expansion Boards Overview for more on the
expansion boards, and
Chapter 12, I/O Controllers for a survey of
the commercial alternatives.
An additional option for adding more outputs, if you run out
of available GPIO pins, is to simply add a second KL25Z. The
Pinscape software is set up so that you can run multiple KL25Z's
in the same system.
Viewing and assigning output ports
Most of the GPIO pins on the KL25Z can be assigned to different
purposes using the Pinscape Config Tool. The default configuration
for a standalone KL25Z (without the expansion boards) assigns
22 pins as output devices, but you can add more output ports
by reassigning pins assigned to other purposes, such as button
inputs.
To view the list of ports currently assigned as output pins:
- Run the Pinscape Config Tool
- Go to the Settings page
- Scroll down to the Feedback device outputs section
That will show you a list of all of the pins assigned as output ports.
Each port has a port number, which is used to identify the port in the
DOF Config Tool. That port number is
just an abstract label, for DOF's sake, that doesn't mean anything in
terms of KL25Z hardware. To find the KL25Z hardware pin, scan across
the row to find the GPIO pin.
Each row also show a port type, which can be Digital Out or PWM Out.
Digital ports are simple on/off ports, with no ability to control
brightness or intensity. PWM ports can set different brightness
levels on the output, so they're best for LEDs and other lighting
devices. ("PWM" stands for "pulse width modulation", which means that
the port switches on and off very rapidly. The ratio of "on time" to
"off time" determines the effective brightness or intensity.) PWM
ports are also good for shaker motors and fans, since the intensity
control can be used to adjust the speed of the motor.
The KL25Z has an inherent hardware limit of 10 PWM ports. Further,
only certain pins (about 20 of them) have PWM capability at all.
There's no need to memorize which pins are which; the Config Tool's
pin assignment dialog always shows you the available pins of each
type.
A "Virtual" port is simply a port that's not connected to anything.
It still shows up over the USB connection, so DOF and other PC
software can access it as though it were actually there. But when DOF
sends it a command, it'll just harmlessly ignore the command. Virtual
ports let you satisfy DOF's expectations that a certain number of
ports are present even if you don't have enough physical GPIO pins
available for all of the ports DOF expects.
To add a new output port, go to the feedback device outputs
section as described above, then:
- Find one of the ports that's currently marked "Virtual". If
there aren't any of those, click the "+" icon in the blank row
at the very end of the list. That will add a new Virtual port.
- Click the pin assignment box (currently "Virtual") in the
port row you want to assign. This will open a pin selector
dialog.
- In the pin selector, click the type of port you want to add
at the right (Digital Out or PWM Out).
- Select the GPIO pin you want to assign.
Important! A pin can only be assigned to one function at a time. The
dialog will allow you to select pins that are already assigned to
other functions, but if you do, the pin will show a little error icon
(
) next to the
pin. You
must resolve any such warnings before the device will
work properly.
To determine what a pin warning means, simply click the warning icon.
This will pop up a dialog explaining what's wrong. The usual problem
is that you've assigned the same pin to two or more functions. That's
simply not workable at a hardware level, so you'll have to remove the
conflicting assignment(s). The warning message in the popup will tell
you exactly where the conflicting use is assigned. Go to the
appropriate section of the Settings page and remove that conflicting
assignment.
Wiring KL25Z outputs
The basic wiring plan for a KL25Z output looks like this:
The complication is that little box labeled "booster circuit". That's
required because the KL25Z itself only allows a tiny, tiny amount of
current to flow through each GPIO pin. Too much current will damage
the KL25Z by overheating its delicate internal wiring.
The reason we show the booster circuit as a little box rather than
an electronic schematic is that you have multiple options for what
to put there. We'll look at some common options in a moment.
Note that the diagram above also leaves out other details specific to
the type of output device. For an LED, you'd need a current-limiting
resistor somewhere in the wiring; see
Chapter 52, LED Resistors. For a
coil, solenoid, motor, etc., you'd need a diode to protect against the
magnetic field effects; see
Chapter 53, Coil Diodes. See the descriptions
of the individual types of feedback devices for more details on each
one's special needs.
Remember, the exact KL25Z pins that correspond to output ports are
under your control! That's why we're not just printing a list here -
there is no fixed list to print. To find out what's currently
assigned in your setup, look at the Settings page in the Pinscape
Config Tool as described above.
NPN booster
This is a simple and inexpensive booster you can build for a low-power
device, up to about 600mA at 40V. That's enough for a small
incandescent lamp (e.g., a #555 bulb in a front-panel button), a
flasher LED, or a small relay.
The power supply (+) and GND connections are meant to connect to the
secondary power supply that you're using for the feedback devices.
Note that you should provide a wire directly to the power supply
ground from the transistor's emitter, as shown, rather than connecting
it to a Ground pin on the KL25Z. The KL25Z ground pins ultimately do
all connect back to the power supply grounds, but they go through the
computer's USB port, which has limited current carrying capacity.
It's important to bypass that with a wire directly to the power supply
ground to avoid forcing too much power through the USB port.
The 2N4401 is a common transistor that should be easy to find, but
there's nothing magical about that particular part. There are
hundreds of similar "small signal transistors" that can be
substituted. Common substitutes: BC547, 2N3904, PN2222. If you do
substitute a different transistor, check its data sheet for the power
limits, since the limits quoted above (600mA, 40V) are specifically
for the 2N4401, and other transistors might have different limits.
The maximum values to look for in the data sheet are the "Absolute
Maximum" ratings for:
- Collector-Emitter Voltage (VCEO): maximum power supply voltage
for the feedback device
- Collector current, continuous (IC): maximum feedback device current
Any ordinary 2.2K resistor will work. (The smallest resistors are
usually 1/8 Watt, which is perfectly fine for this job. Higher
wattage resistors will work as well but are unnecessary.)
DIY MOSFET booster
This is my go-to booster circuit. It's the one used in the Pinscape
power boards. It's versatile enough for just about anything you'd
want to put in a pin cab, including high-power toys like shaker motors
and replay knockers. The exact power limit depends on the specific
MOSFET you choose, but common MOSFETs are readily available that can
handle way more than you'd ever need, upwards of 10 or 20 Amps.
This circuit is more complex than the NPN booster above, but it's
still pretty simple - only five parts.
The resistor slots can all be filled with ordinary resistors with
the specified "Ohms" values. There's no special Wattage rating
needed for any of these.
Which MOSFET to use? Here's a list of parts I've tried that work
well:
- BUK7575-55A
- FQP13N06L
- FQP30N06L
But lots of other MOSFETs will work just as well. Any N-channel type
sold by an Arduino or robotics company will probably be suitable,
since robotics projects often use these parts exactly the same way we
do (and for the same reasons). If you want to cast a wider net by
looking on Mouser, the basic type of part you need is an N-channel
enhancement-mode MOSFET - but that turns up about 8,000 matches on
Mouser, so here are some more specific characteristics to look for:
- Low "on" resistance (RDS(on)), below 1Ω (preferably
something like 100mΩ)
- Drain-source voltage (VDSS) sufficient for your feedback
device power supply, preferably above 40V
- Continuous drain current (ID) sufficient for your feedback
device's needs, preferably above 10A
- Through-hole package (for easier soldering)
Here's a Mouser search for those characteristics. This still matched
about 1,400 parts when I tried it, so it doesn't exactly narrow things
down to a trivial selection, but I'd sort by price, pick one of the
cheaper ones, and scan the data sheet to make sure it looks like a
suitable part for logic applications.
>
As with the NPN booster above, the power supply (+) and GND
connections are meant to connect to the secondary power supply that
you're using for the feedback devices. (Don't connect "Power Supply
GND" through a KL25Z Ground pin.)
If you're connecting a device with any sort of coil (including
solenoids, relays, contactors, and motors), be sure to use a diode
with the device, as explained in
Chapter 53, Coil Diodes.
Note: the old version 1 Pinscape Build Guide had a similar circuit
plan for a MOSFET booster, but that plan added a Darlington transistor
chip between the GPIO pin and the PC817. This newer version dispenses
with that extra chip. The purpose of the Darlington was to boost the
weak signal from the KL25Z to better drive the opto, because I was
concerned in the early days about the optos being sensitive enough for
the KL25Z to drive them directly. Experience has shown that the extra
boost isn't needed, so I've simplified the circuit plan to remove the
unnecessary extra part. The older plan will still work just fine,
too, it's just more complicated than it has to be.
Pre-built MOSFET booster
Thanks to the popularity of Arduinos and hobby robotics, you can buy
pre-built boards that implement roughly the same circuit as the DIY
MOSFET booster above.
There's no name-brand board or seller that I can point you to,
unfortunately. The boards I've seen are sold on eBay and
Aliexpress.com, so the sellers are small shops that come and go. If I
gave you a link here, it would probably be gone by the time you tried
it. So instead I'll tell you what to search for on those sites: try
something like "Four channel MOSFET board".
Most boards like this will have a very similar design to the DIY
MOFSET circuit shown above. The one big difference will be that the
resistor between the signal input terminal (where you connect the
KL25Z GPIO pin) and the optocoupler will typically be smaller than the
one in the DIY circuit. That's because generic boards like this will
always be intended for use with an Arduino, which has much higher
power capacity on its GPIO pins that the KL25Z does.
So I recommend the following procedure:
- Set up the board as recommended by the manufacturer, but add
a 1K resistor between the KL25Z GPIO pin and the input
terminal on the board.
- Test it (with the Pinscape Config Tool's output tester, for example)
to see if the output turns on as expected. If so, you're done!
- If it doesn't turn on, try removing the 1K resistor and replacing
it with a 680Ω resistor. Repeat the test. If it works, great;
if not, drop to 470Ω and try again.
The point of the extra resistor is to reduce the current on the GPIO
port to a safe level for the KL25Z. The KL25Z has a maximum limit of
4mA per port. These boards are usually designed to work at
about 20mA, because the Arduino can tolerate the higher current.
If you have a multimeter, you can test the actual current being drawn
on the port to verify that it's within the safe range, below 4mA. You
can try resistors below 470Ω if necessary, but if you do you
should measure the current to verify that it's not too high.
Sainsmart booster
There's a non-USB version of the Sainsmart relay boards, designed
mostly for Arduino users, that can be be used with the KL25Z. Some
people using the Pinscape software have successfully used that as a
booster. However, I don't recommend it, because I've heard too many
bad things about reliability. The relays reportedly have a short
lifetime (weeks or months) when used in a pin cab. The transistor
solutions above are much more reliable, and probably cheaper.
LED strip mini amplifier
If you search on eBay for "LED strip mini amplifier", you'll find
products that look like this:
Some people have used these successfully with the KL25Z as a power
booster circuit. However, I don't recommend doing this, because some
of these devices are electrically incompatible with the KL25Z and can
damage it if attached directly. It's difficult to tell whether a
given mini-amp is safe to use with the KL25Z, so my advice is simply
to avoid them entirely.
Testing and troubleshooting
The best way to test your connections is using the Pinscape Config Tool:
- Make sure all of the wiring is in place for the feedback device you want to test
- Run the Config Tool
- Click on the Output Tester button
- Find the port you want to test in the list
- For a PWM port, use the slider to test the brightness control. For
a digital out port, use the ON/OFF button to test it.
The output tester sends commands directly to the KL25Z via the USB
connection, so it bypasses other software layers (such as DOF and VPinMAME).
If a port is working in the output tester, you can be confident that the
hardware and wiring is all working correctly, and that any problems
you're having with it in Visual Pinball or other programs are purely
software configuration issues. If a port isn't working in the
output tester, the problem is probably in the wiring or in the
feedback device itself.
Voltmeter tests
You can do some simple testing with a voltmeter to confirm that the
KL25Z is sending the right signal to the GPIO pins.
This test has to be done with the power on, so be careful! Make sure
that you only touch the meter's probes to the pins you want to test,
and that you don't short together adjacent pins. The pins are closely
spaced, so you have to be really careful about this.
- Disconnect the output from the GPIO pin you want to test (including
both the feedback device and the booster circuit)
- Power up the system
- Run the Pinscape Config Tool
- Click on the Output Tester button
- Set your meter to DC Volts
- Connect the meter's black probe to one of the KL25Z's ground (GND)
pins, or to any convenient ground connection to your power supplies.
(Remember that all of the grounds should be interconnected, as described
in Chapter 45, Power Supplies for Feedback, so any of these points should be equivalent.)
- Connect the meter's red probe to the GPIO pin you want to test
- When the port is off in the output tester, it should read
close to 0V (exception: an Active-Low port should read close to 3.3V)
- When the port is on in the output tester, it should read
close to 3.3V (exception: an Active-Low port should read close to 0V)
If this test passes, your KL25Z is working correctly, and the software
is configured properly so that the software port is connected to the
physical GPIO pin. Any problems must be in the wiring to the booster
circuit and/or to the feedback device.
If this test fails, either your KL25Z hardware is broken, or you have
a problem with the software configuration. Check carefully that the
pin you're looking at in the output tester matches the physical pin
that you're testing on the KL25Z. Look very closely - make sure that
you don't have the KL25Z flipped upside-down, for example, since that
would make all of the pins in the mirror-image locations from where
you think they are.
DOF Setup
To set up your standalone Pinscape device with DOF, you of course have to
install DOF on your PC first. See
Chapter 46, DOF Setup for instructions.
Once the DOF software is installed, you use the
DOF Config Tool to tell DOF that
you have a Pinscape unit, and to tell it which KL25Z pins are
attached to which output devices.
- Open the DOF Config Tool in your browser
- Click the My Account tab
- Set Number of Pinscape devices to 1 (or if you have more than one
KL25Z running the Pinscape, select the appropriate number of devices instead)
- Set Number of KL25Z devices to 0 (see below
if this seems confusing)
- Save changes
- Go to the Port Assignments page
- Select "Pinscape 1" in the Device drop list
- Go through the port list, assigning each port number in the DOF list
to the device that you wired to that port on the KL25Z
The port list in the Port Assignments page uses the same port
numbering (Port 1, Port 2, etc) that's shown in the Pinscape Config
Tool output port list. This isn't the GPIO port name or
physical pin number on the KL25Z. It's just the abstract port
number from the output port assignment list.
To figure out what DOF's "Port 1" or "Port 2" means in terms of the
physical GPIO pin on the KL25Z, you have to look at the output port
list in the Pinscape Config Tool's Settings page. In the output list,
find the same port number shown in DOF - if you're looking for DOF's
"Port 1", you want the first row, #1, in the Pinscape output list.
Trace across the row to find the KL25Z port name and pin. If you want
to see a picture of where that pin is physically located on the KL25Z,
click the pin name in the row - that will pop up the pin selector,
which will show the pin location highlighted on a picture of the
KL25Z.
Using two (or more) KL25Zs
If you like the idea of using a standalone KL25Z as your output
controller, but you need more ports, there's an easy solution: add a
second KL25Z. Or even a third or fourth. Additional units give
you more output ports - and on secondary units, you don't even have
to share GPIO pins with other functions like buttons and plungers.
You only need those input pins on the first KL25Z unit, so nearly
all of the pins on secondary units can be reassigned as outputs.
The Pinscape software is set up so that you can have up to 16 separate
KL25Z units in your system. The only additional setup work required
to add a second KL25Z is to give it a unique ID, using the Pinscape
Config Tool:
- Detach all of your other KL25Z units
- Attach the new one you want to program with a new ID
- Run the Pinscape Config tool
- Go to the Settings page for the unit
- In the USB ID section, set the ID to LedWiz Unit 9
- In the Pinscape ID section, set the ID to Pinscape Unit 2
- In the Joystick section, un-check the "Enable joystick
input" box
Repeat this process for each additional KL25Z, advancing to the
next LedWiz Unit number and Pinscape Unit number for each additional
device.
(The USB ID doesn't actually have to be an LedWiz unit number at all,
and doesn't have to be in this exact order. That's just the
recommended order for the widest software compatibility. You should,
however, use Pinscape unit numbers 1, 2, and so on, in that order.
The DOF Config Tool is difficult to set up otherwise.)
Why disable the joystick input? Because you want to make sure that
only one of the KL25Z units is sending accelerometer (nudge) readings
to the PC. Pinscape sends those readings by default, so you have to
turn off the readings in all of your secondary units to avoid
confusing the PC with a barrage of different information from
different units.
DOF setup: To set up a second Pinscape unit with DOF:
- Open the DOF Config Tool in your browser
- Click the My Account tab
- Change the "Number of Pinscape devices" to the appropriate number
- Save changes
- Go the Port Assignments page
- Select "Pinscape 2" in the Device drop list
- Set up the ports for the devices attached to the second KL25Z
- Repeat for additional units
The online DOF Config Tool has a confusing
bit of terminology in the device setup section on the "My Account" page.
In the list of devices, you'll find separate entries for "Number of Pinscape
devices" and "Number of KL25Z devices".
For Pinscape boards, use only the Pinscape devices option.
Always leave "Number of KL25Z devices" set to zero (0). This applies whether
you're using the expansion boards or a standalone KL25Z.
This is confusing because the Pinscape software does happen to run
physically on a KL25Z board, so it might seem like you should enter
the same number for both line items. Don't. Pretend that you've
never heard of a KL25Z and that you have zero of them.
The Config Tool has the "KL25Z devices" line item for historical reasons
that date back to the first version of the Pinscape software, when it
was limited to 32 output ports. It should more properly be titled
"Number of Pinscape v1 devices", because that's what it really means.
In any case, just ignore it and leave it set to zero.
50. LedWiz Setup
The LedWiz has long been the most popular output controller for
virtual cab builders. It was originally created for video game
cabinets, not for pin cabs, but the two have a lot in common: they
both use a PC to run their software, and they both use arcade controls
built into a custom enclosure. Video game cabs use the LedWiz mostly
to control button lamps and other cabinet lights. But a device like
the LedWiz that can turn lights on and off can really turn just about
anything on and off, so it filled the need when early pin cab builders
wanted to install mechanical force feedback devices in addition to
lights.
The LedWiz has a lot of virtues. It's inexpensive, it has a
"driverless" software design that makes it practically effortless to
set up in Windows, it has lots of output ports (32), and it has the
ability to control the brightness on all ports via PWM. Its only
serious limitation is power handling.
Power limits and boosters
The LedWiz has fairly low power limits, because of its legacy as a
video game device. In a video game cab, the only "feedback" devices
most people install are small light bulbs and LEDs. The LedWiz's
designers chose the power limits accordingly.
The exact limit is 500mA per output port. (To be really technical,
there's also a limit on the combined power across groups of ports, but
we can mostly ignore that in a pin cab; that only applies if all of
the ports are switched on for long periods at the same time, which
essentially never happens in a pin cab.)
500mA is plenty for the light bulbs and LEDs that the LedWiz's
designers had in mind. But it's not enough for some of the mechanical
devices we use in pin cabs. Many types of solenoids, contactors,
coils, and motors can greatly exceed this. Some high-power LEDs can
exceed it, too. So whatever you're connecting, be sure you know how
much current it uses, and be sure it's safely under the 500mA limit.
If you can't find information on a device's power usage in its
instructions or spec sheet, you can measure it with a multimeter set
to Current (Amps) mode.
What should you do if a device exceeds the 500mA limit? Well, for
starters, don't connect it directly to the LedWiz. If you do,
you'll likely destroy at least the one LedWiz port that you connected
the device to, and possibly a whole group of eight ports (because each
group of eight ports is controlled by a single chip on the LedWiz, and
an overload on one port can destroy the whole chip).
What you need in this case is a "booster" circuit of some kind. A
booster is something that increases the power handling on a port,
which it accomplishes by adding a second electronic switch between the
LedWiz and your high-power feedback device. The LedWiz controls the
booster's second switch, and the second switch controls the feedback
device.
Here are the main types of boosters you can use:
- A booster board from zebsboards.com.
Zeb's sells several boards that connect to an LedWiz. These use
high-power transistor switches, so they're compatible with PWM brightness
control. This is the easiest option, because Zeb's products are
built specifically for virtual pin cab use, so you won't have to
improvise anything to fit them into your system.
- Your own DIY booster circuit using a MOSFET or other transistor. We
provide a simple circuit design below.
It's easy to build, and it's powerful enough for just about any type
of pin cab device.
- An LED light strip
amplifier from eBay. Search for "Mini LED amplifier", and look for
products similar to the one pictured at right; they go for about $1
apiece if you buy a lot of 5 or so. These use transistor switches
based on the same principles as Zeb's boosters or the DIY booster
circuits described above. These are designed to be used with RGB
light strips, so each unit has three independent channels of
amplification, so you'd need 11 of them to boost all 32 ports on an
LedWiz. Each channel can typically handle 4A, which is enough for
most pin cab devices. The main drawback with these is that it you'll
have to improvise a bit to wire them, since they're physically
designed to mate with the common LED strips.
- Individual relays. A relay is a mechanical switch controlled
by an electromagnet. Normally, the switch is disconnected ("open").
When the magnet is energized, the switch "closes", connecting the
attached wires. To use a relay as an LedWiz booster, you connect
the relay coil to the LedWiz as though it were the feedback
device; that lets the LedWiz turn the relay switch on and off
according to the port status. You then connect the actual feedback
device to the relay switch. When the LedWiz turns the port on,
it energizes the relay, closing the switch and connecting power
to your feedback devices. This is fairly easy to set up, and
you can find relays that can handle enough power for large devices.
The downside is that a relay can't handle PWM for brightness control,
so it's not good for lights, and also doesn't work for motors if
you want variable speed control.
- A SainSmart relay board (the non-USB type). SainSmart sells boards
with different numbers of relays (from 1 to 16) that can be controlled
by a device like the LedWiz. This is the same idea as using an
individual relay as described above, but the SainSmart boards make it
a little more convenient if you want to boost multiple outputs this
way. As with individual relays, the SainSmart relays can't handle
PWM, so they're not great for lights or adjustable-speed motors.
Note that SainSmart
sells two completely different kinds of relay boards: USB and non-USB.
For an LedWiz booster, you want the non-USB type, also known as
an "Arduino module", since they're sold primarily to Arduino users.
Don't get the USB type for this use case, since that's a standalone
controller that you'd use instead of an LedWiz.
What about the "H-bridge hack" I've read about for motors?
Back in the early days of pin cabs, someone came up with the idea of
hacking into the LedWiz's internal wiring to connect a special type of
booster circuit known as an H-bridge. The idea came from the Arduino
robotics world, where H-bridges are often used to control robot wheel
motors from Arduino GPIO ports. Someone in the pin cab world must
have read about it and thought that "H-bridge" and "motor" just
naturally go together, and the idea made its way into the forums and
got repeated a lot. But you actually don't need an H-bridge to
control any of the common virtual pinball motor devices.
The special feature of an H-bridge is that it can be boost both
positive and negative input voltages. That's useful with robot motors
because it lets you run the motor bidirectionally. But in a pin cab,
we have no need to run our motors in reverse. The motor devices
we use - shakers, gear motors, fans, beacons - only need to run in
one direction.
So in a pin cab, you don't need an H-bridge for your motor
devices. You just need one of the general-purpose boosters we cover
here. The only special requirement is to make sure the booster you
choose has a high enough current limit for your motor. Shaker motors
and windshield wiper motors (if that's what you're using for your gear
motor) run at about 4A, while fan motors and beacons are typically
more like 1A to 2A. The generic DIY MOSFET circuit described later in
this section can easily handle any of those loads.
Note that you could use an H-bridge if you really wanted to, but
there's no benefit, and they're more complex and expensive to set up
than a standard booster circuit. And the H-bridge "hack" for the
LedWiz is actively harmful. The "hack" requires you to modify your
LedWiz by soldering a wire onto a tiny pin on one of the LedWiz's
surface-mount IC chips. It's a difficult soldering job because of the
small pins involved, and it runs the risk of damaging the device.
So I'd definitely ignore the whole H-bridge idea and use one
of the simpler booster options instead.
Connecting the LedWiz to the PC
Connecting the LedWiz to the PC requires two bits of wiring.
First, you'll need some insulated hookup wire. (I'd recommend 22 AWG,
but anywhere from 16 AWG to 24 AWG is fine.) Connect one end to the
External Ground terminal on the LedWiz, which is labeled G (for
Ground) and should be near the USB connector. Connect the other end
of the wire to an unused disk power connector on your PC power supply
or a secondary ATX power supply. Be sure to connect to one
of the black wires in the disk connector.
Connecting the LedWiz ground terminal. Use
ordinary hookup wire (around 22 AWG) to connect the G terminal
on the LedWiz to the black wire in an unused disk power connector on
your power supply. The LedWiz comes in a couple of versions, so yours
might not look exactly like the photo, but there should still be a
similar G terminal.
Second, plug a USB cable into the USB connector on the LedWiz, and
plug the other end into a free USB port on your PC.
Positive power supply connections
Some versions of the LedWiz have a set of terminals for connecting the
positive (+) voltage from your power supply. You should simply
ignore these and leave them unconnected. These inputs are
unnecessary as long as you use your own diodes for any
attached coils or motors, and they complicate the wiring if you do use
them. It's best to use your own diodes and ignore these inputs.
The function these inputs serve is to connect some internal diodes
within the LedWiz chips across the output port terminals. The diodes
are meant to provide a degree of protection against power spikes from
inductive devices. That protection is important, but you can get
better protection by installing your own external diodes, as explained
in
Chapter 53, Coil Diodes. Doing that will make the internal diodes
redundant, allowing you to leave the LedWiz voltage inputs
unconnected.
Basic device wiring plan
Before connecting anything to the LedWiz, please make sure its power
draw is safely below the LedWiz's limit of 500mA per output. Any
device that draws more power requires a booster circuit; see
Power limits and boosters above.
Attaching a device that draws too much power can damage or destroy
the LedWiz.
The basic feedback device wiring plan for an LedWiz is pretty simple:
- All of the "-" or "Ground" connections from all of your power
supplies should be connected together (see Chapter 45, Power Supplies for Feedback)
- Connect the "+" terminal from the power supply directly to
the "+" terminal on the feedback device
- Connect the "-" terminal on the feedback device to one of the numbered
LedWiz terminals
The LedWiz acts like an electronic switch that connects and
disconnects the "-" side of a device to the power supply. The LedWiz
can only switch the "-" side, so it's important to wire the
polarities exactly as described above.
Some feedback devices aren't polarized, meaning they don't care which
power input is "+" and which is "-". This is true for most coil
devices, like solenoids and relays, as well as for incandescent lamps.
If the device doesn't have "+" and "-" markings for its power
terminals, simply follow the same wiring plan shown above, but you can
attach the wires to the feedback device itself in either order.
Use protective diodes if necessary
Most mechanical devices require protective diodes. These
are required for anything with a coil: solenoids, contactors,
replay knockers, motors.
Diodes are critical! Coils and motors can damage your PC motherboard
and other components if diodes aren't used.
Fuses
Many cab builders include a fuse in each LedWiz output circuit. This
isn't strictly necessary, but I think it's a good idea with the LedWiz
because of its low power limits. Fuses can help protect the LedWiz
from overloads caused by wiring faults and device malfunctions,
reducing the chance that the LedWiz will be damaged if something like
that goes wrong. See
Chapter 84, Fuses for details.
Windows setup
The LedWiz requires absolutely no Windows hardware drivers. It's
completely plug-and-play.
Visual Pinball and PinballX access the LedWiz through DOF, so you'll
need to set up DOF as described below.
LedWiz.dll
Some older software, such as Future Pinball, accesses the LedWiz
through a "DLL" file (a Windows "dynamic link library") called
ledwiz.dll. You can download this from the manufacturer's Web site
(
GroovyGameGear.com), but I recommend
using my upgraded, open-source version instead. You can find
it here:
DOF R3 &
LEDWIZ.DLL updates. My version works more reliably than the
official DLL, because it has special logic to work around some
recently discovered hardware bugs on the LedWiz itself.
LedWiz.dll should generally be installed in the same directory as each
program that uses it (e.g., Future Pinball). You might need to
install multiple copies if you're using multiple programs that
use the DLL.
You don't need ledwiz.dll for Visual Pinball, DOF, or
PinballX.
DOF setup
DOF is required to use your LedWiz with Visual Pinball and
PinballX. If you haven't already installed DOF on your system, follow the
instructions in
Chapter 46, DOF Setup.
Once you have the DOF software installed on your PC, follow
these steps:
- Point your browser to the DOF config tool
- Click the My Account tab
- Find "Number of LedWiz Devices" in the list, and set it to "1"
(or to the number of LedWiz units you've installed, if more
than one)
- Click Save Settings
- Click the Port Assignments tab
- In the "Device" drop-down, select "LedWiz 1"
- Go through the port list (Port 1 through Port 32), and select
the type of device that you've physically wired to each output
port. The port numbers in the list correspond to the numbers
printed on the LedWiz board next to the screw terminals for
the ports.
- Click Save Config
- If you have more than one LedWiz, repeat the process for
each device by selecting the devices one at a time in the
"Device" drop-down at the top of the page
- When done, click Save Config, then click Generate Config
to download your updated DOF config files
- Unzip the downloaded files into your DOF install folder
Power boosters
Let's look at how to use the various booster options with
an LedWiz, in case you need more power for devices that
exceed the limit of 500mA per output.
Zeb's boards boosters
If you're using a booster board from Zeb's boards, see the wiring
plans included in the instructions that come with the board.
DIY booster circuit
Here's a circuit plan for a generic booster circuit that you can build
yourself with a few components. This is basically the same circuit
used in the Pinscape expansion boards. It's a great general-purpose,
high-power booster circuit that can drive just about anything in a pin
cab, from motors and solenoids to flashers and button lamps. This
circuit is fully compatible with the LedWiz's PWM dimming control.
The power limit for the attached device is determined by the type of
MOSFET you choose. The MOSFETs listed below can all handle upwards of
10 Amps, which is plenty for just about any pin cab device. (Shaker
and gear motors typically run at around 3A to 4A, and large pinball
solenoids like knocker coils need about 4A. All of the other common
devices have much lower power needs.)
Here's the circuit plan:
The resistors can all be filled with any ordinary resistor of the
specified "Ohms" size, except for the 220Ω resistor, which should
have a power rating of 1/4 Watt or higher. (You can always use a
higher wattage than specified with resistors.)
Which MOSFET to use? Here's a list of parts I've tried that work
well:
- BUK7575-55A
- FQP13N06L
- FQP30N06L
But lots of other MOSFETs will work just as well. Any N-channel type
sold by an Arduino or robotics company will probably be suitable,
since robotics projects often use these parts exactly the same way we
do (and for the same reasons). If you want to cast a wider net by
looking on Mouser, the basic type of part you need is an N-channel
enhancement-mode MOSFET - but that turns up about 8,000 matches on
Mouser, so here are some more specific characteristics to look for:
- Low "on" resistance (RDS(on)), below 1Ω (preferably
something like 100mΩ)
- Drain-source voltage (VDSS) sufficient for your feedback
device power supply, preferably above 40V
- Continuous drain current (ID) sufficient for your feedback
device's needs, preferably above 10A
- Through-hole package (for easier soldering)
Here's a Mouser search for those characteristics. This still matched
about 1,400 parts when I tried it, so it doesn't exactly narrow things
down to a trivial selection, but I'd sort by price, pick one of the
cheaper ones, and scan the data sheet to make sure it looks like a
suitable part for logic applications.
>
Individual relay booster
The idea here is to connect the relay coil to the LedWiz as though
it were the feedback device. So you connect the coil exactly
as you would any other device.
You must also connect a protective diode across the coil's terminals,
to suppress the voltage spike that the coil will produce when it
switches off. A 1N4007 diode is a good general-purpose diode that you
can use for this. See
Chapter 53, Coil Diodes for full details.
Then you connect the actual feedback device to the relay's switch
terminals. Most relays are of the "double-throw" type, meaning
they have three switch terminals: common, normally open (NO), and
normally closed (NC). You connect the device to the common and
normally open terminals.
When shopping for a relay, pay attention to two important
specifications. First, make sure its coil current is safely
below the LedWiz's 500mA limit. Most small relays are well within
this, but some larger relays require more current. Second, make sure
that its switching load limits are above the voltage and current
required by the feedback device you intend to attach. Pay particular
attention the VDC (Volts DC) number and make sure it's above
the power supply voltage for the feedback device. Maximum DC
switching voltages are usually much lower for relays than their AC
switching voltages because DC voltage creates arcs more easily in the
switch contacts, so you might see a relay rated for 250VAC but only
30VDC.
SainSmart relay board as a booster
Start by connecting the relay board to the power supply. Find the
pins labeled GND and VCC, and connect these to your PC
power supply (or secondary ATX power supply), using an unused disk
connector. Connect GND to the power supply black wire. The SainSmart
boards come in 5V and 12V versions. If you have a 5V version, connect
VCC to the red power supply wire; for the 12V version, connect VCC to
the yellow power supply wire.
SainSmart relay board power hookups. Connect
the SainSmart GND pin to the black wire in a disk power cable
from the PC power supply. Connect the Sainsmart VCC pin to the
red wire if you have a 5V board, or the yellow wire if it's a 12V board.
Next, connect the relay board's input pins to the LedWiz output ports.
Find the pins labeled IN1, IN2, etc. These are the inputs.
IN1 is the input for the first relay, usually labeled
K1, and the other inputs correspond to the other relays the
same way. Connect a wire between each INx pin and an LedWiz
output port terminal.
Note that the choice of four LedWiz ports shown in the diagram is
arbitrary, purely for the sake of illustration. You can connect any
other ports instead, and they don't have to be adjacent as shown.
Finally, connect the output devices. Each relay has three terminals,
and you need to identify the Common and Normally Open
connections. The markings vary by board. You might see the legends
NC, C, and NO printed on the board next to the
terminals. These stand for Normally Closed, Common, and Normally
Open. You might instead see a little line diagram like this:
If you can't find any markings, look for the set of three terminals
nearest the relay. The Common is almost always the center terminal,
and the Normally Open is usually the top terminal when the relay is
oriented like this:
Once you identify the Common and Normally Open terminals for the
relay, connect your feedback device like this:
LED amplifier as a booster
First, connect the LED amplifier to the power supply. You need a 12V
power supply for this; you can use a PC ATX power supply, preferably a
secondary unit rather than the one that's powering your PC
motherboard. Use the yellow and black wires for 12V.
The amp should have a pair of wires attached, one red and one black.
Red connects to +12V, black connects to the power supply ground.
Next, connect the LED amplifier to the LedWiz output ports. Run a wire
from each of the three Input pins on the amplifier to a port
terminal on the LedWiz. Don't connect the amplifier pin labeled
"+" or ▶.
The inputs and outputs on these amplifiers are designed to mate with
special 4-pin connectors. They're basically just thick wires, so you
might be able to improvise something, but the easiest approach is to
buy some of the special connectors. These can be found on eBay:
search for "LED male connector". The easiest ones to work with,
in my opinion, are this type:
I like these because they use plain wires between the connectors, so
you can cut off the LED strip connector (the white connector in the
type pictures above) and be left with four wires that you can easily
attach to other types of terminals, such as the LedWiz terminals.
Using that type of connector, the connection to the LedWiz looks
like this:
Note that the specific ports shown in the diagram are arbitrary. You
can connect any three ports to each amp, and they don't have to be
adjacent. But I'd try to keep things organized cleanly anyway, for
your own, so that you can follow your wiring more easily when you come
back to it later.
Finally, connect the feedback device to the amplifier. Wire the
feedback device's "+" terminal to the power supply "+", and wire the
device's "-" terminal to one of the three Output pins on the
amplifier. The output pins are the same form factor as the input
pins, so you can use the same kind of connector described above
to connect these.
Note that each output pin on the amplifier corresponds to the input
pin across the case from it. You can use that to determine which
LedWiz port controls which output.
Using multiple LedWiz's
You can use more than one LedWiz in the same system, but there's a
slight catch: when you buy the second or third or Nth LedWiz, you have
to special-order it as the second or third or Nth device.
The reason this is necessary is that each LedWiz unit has a built-in
hardware ID that it uses to communicate with Windows over the USB
wire. The LedWiz documentation calls this the "device number" or
"unit number". This can only be set at the factory, so you have to
specifically order each device with a different unit number. If you
don't specifically ask, the unit number is usually "1". So if you want
to connect a second LedWiz to your system, you have to make a special
request for "unit number 2" when you buy the second one. If you want
to connect three, ask for "unit number 3" when you buy the third one.
And so on.
If you buy directly from the manufacturer,
GroovyGameGear.com, look
for the "Choose device number" area on the ordering page,
and enter the device number you need.
If you buy from eBay or another seller, you'll be stuck with whatever
unit number was set at the factory. That's completely fine if you
only need one LedWiz in your whole system. But if you want to connect
more than one, you'll have to order each unit with a different device
number, so you should order from someone who lets you specify this
when ordering.
51. SainSmart Relay Board Setup
The SainSmart USB relay board is an inexpensive output controller
option, and it's fairly easy to set up electrically. It's somewhat
more trouble to set up the software for these devices, though.
Warning: DOF currently only supports the 8-channel version
of the Sainsmart USB board. Sainsmart makes the USB boards with
different numbers of relays, from 4 to 16 channels, but DOF is
only programmed to recognize the 8-channel version. Other types
won't work with DOF.
The big advantage of the SainSmart boards over the LedWiz and PacLed
controllers is that SainSmart boards can directly control high-power
feedback devices like motors and solenoids, because they use relays
instead of transistors for switching. The LedWiz and PacLed are
designed primarily for switching low-power devices like LEDs, and
their power limits are too low for most motors and solenoids. The
SainSmart relays, in contrast, can handle just about anything commonly
used in a pin cab. In addition, a lot of pin cab builders prefer
relay switches over the transistor-based boards just because they're a
more familiar technology.
The SainSmart USB boards come in 4-relay and 8-relay versions.
You can use more than one board in your system, so you can have
as many ports as you need simply by adding more boards.
The SainSmart boards are most attractive if you only plan on a
relatively small set of feedback devices, and all of them are
mechanical. If that describes your needs, these boards are a good
option. However, the SainSmart boards aren't the best choice if you
want a decked-out cab with all of the popular toys. For one thing,
they're not great if you need a lot of ports, because even though can
keep adding boards as needed, the individual boards take up a lot of
space. The solid-state controllers pack more ports into less space.
The other thing that makes SainSmart boards less than ideal for a
complex cab is that they don't work very well with LEDs, because they
can't vary the brightness - they're strictly on/off switches. If
you're planning to use flasher LEDs or other lighting devices, you'll
really want a solid-state controller (such as LedWiz, PacLed, or
Pinscape), since those provide brightness control in addition to
on/off switching.
Warning: there seem to be some no-brand relay boards out there
that look very much like Sainsmart boards, with the same blue relays
laid out the same way, but which aren't compatible at the software
level. I'd avoid anything like this that isn't sold with clear
Sainsmart branding, because the no-brand units probably won't work
with DOF and the other pinball software.
USB vs non-USB boards
When you go shopping for these boards, be aware that SainSmart
sells two completely different kinds of relay boards: USB and non-USB.
- The USB type has a USB port for connecting to the PC. This is
the type we're talking about in this chapter, and it's the type you
should buy if you don't want to have to combine it with a
separate device like an LedWiz.
- The non-USB type doesn't have any ports for connecting to a PC.
Instead, it's designed to be used with a microcontroller device like
an Arduino, so it has individual control terminals for the relays that
the Arduino connects to. Don't buy this type if you're looking for
something standalone. However, this type can be used as a
booster for the LedWiz (more about that in Chapter 50, LedWiz Setup).
Connecting to the PC
There are two steps required to connect the board to the PC.
First, connect the board's power terminals to your PC's power supply,
as shown in the diagram below. Connect the GND terminal to the PC
power supply ground (the black wire in any of the disk connector
cables coming out of the PSU), and connect the VCC terminal to +5V
(the red wire in any disk connector).
Second, connect the relay board to the PC via USB. Plug a USB cable
into the connector on the board, and plug the other end into an
available USB port on your PC/motherboard.
These boards require software drivers to be installed on the PC.
Follow the instructions that come with the board.
Basic wiring plan
Each relay on the board can control one feedback device (for example,
one relay can control your shaker motor, another relay can control
your left flipper device, etc). You can see on the board that each
relay has a group of three screw terminals next to it:
A relay is simply a mechanical switch, a lot like a regular pushbutton
switch, except that it's controlled electronically by a little
solenoid coil inside the relay that moves the switch lever. The relay
turns the attached device on and off by connecting and disconnecting
the power to the device through the internal switch. It's just like
turning on the lights in your house with a wall switch, except that
the solenoid inside the relay is what moves the switch lever up and
down.
The relay's switch section has three terminals, not just two, because
the relay is a "double-throw" switch. That means that the switch can
connect the center terminal (the common connection) to either of the
two outside terminals. One terminal is the "normally closed", often
abbreviated to "NC", meaning that it's connected to the center
terminal any time the relay is OFF ("closed" means "connected" when
we're talking about a switch, and "normally" means "when the relay is
OFF"). The other terminal is "normally open", or "NO", meaning that
it's not connected to anything at all when the relay is OFF ("open"
means "not connected"), but it is connected to the center terminal
when the relay is switched ON.
Your wiring for the device should be connected to the center
(or common) and normally open terminals. Check the
documentation that came with your board to identify these. You can
also usually tell by markings on the board, but these vary. You might
see the legends NC, C, and NO printed on the
board next to the terminals. These stand for Normally Closed, Common,
and Normally Open. You might instead see a little line diagram like
this:
If you can't find any markings, look for the set of three terminals
nearest the relay. The Common is almost always the center terminal,
and the Normally Open is usually the top terminal when the relay is
oriented like this:
Once you identify the Common and Normally Open terminals for the
relay, connect your feedback device like this:
Follow this same plan for any type of feedback device. If the device
you're connecting has specifically marked "+" and "-" terminals, be
sure to connect the "-" terminal on the device to the "-" connection
on the power supply.
Should I wire (+) or (-) to the relay?
In the diagram above, we showed the wiring with the (+) connection
from the power supply going to the relay switch, and the (-)
connection going directly to the feedback device.
If you look at the "general purpose" wiring diagram for other
controllers in
Chapter 47, Feedback Device Wiring, though, you'll see the
opposite setup, with the (-) connection going to the controller port,
and the (+) power supply connection going directly to the feedback
device. We show the same polarity in our diagrams for the individual
device types as well.
So why did we show this as different for Sainsmart? It turns out that
you can do it either way with Sainsmart boards. For the solid-state
boards, you
must use the polarity shown in
Chapter 47, Feedback Device Wiring, because the solid-state boards use
transistors, which only allow current to flow in one direction. The
Sainsmart uses mechanical relay switches, though, which don't care
about the direction of the current. That makes them more flexible,
letting you hook up the power wiring in either direction.
I know that I'm creating a little confusion here by showing it both
ways, but there's actually a reason for it. Maybe not a good enough
reason to justify the confusion, but a reason nonetheless.
Specifically, given the choice of polarities that we get with the
Sainsmart, I'd rather put the relay switch on the positive side of the
circuit, because it's safer. When you put the switch on the positive
side, as shown in the diagram above, the power supply wiring to the
device itself is "dead" when the device is off - there's no voltage
going to it. That eliminates any shock risk if you should
accidentally touch any of the wires to the device. When you wire
things the other way, as we must do for the solid-state controllers,
the positive wire is always "live", even when the device is off, so it
always runs the risk of shock. For 12V or even 24V devices, the
voltage in the live wire isn't that dangerous, but it really is a
safety hazard for a 50V device like a knocker coil.
So my apologies for the conflicting diagrams! I hope that this
explanation clears it up, but if you still find it confusing, here's
some good news: you can follow either diagram with your
Sainsmart wiring (the special Sainsmart diagram above or the "general
purpose" diagrams shown everywhere else), and it'll work equally well
either way.
Use protective diodes
Most mechanical devices require protective diodes. These
are required for anything with a coil: solenoids, contactors,
replay knockers, motors.
Here's the basic wiring plan:
Diodes are critical! Failing to include one where needed can result
in damage to your computer motherboard, power supplies, or other
equipment in your pin cab.
The Sainsmart relays are themselves coils, so they need diodes, too.
However, I think that all of the Sainsmart boards already have diodes
pre-installed, so it shouldn't be necessary to add your own there.
USB disconnects and other electrical interference
I've seen a lot of reports on the forums from pin cab builders
using Sainsmart units and experiencing electrical interference
problems.
The most common symptom is probably USB trouble, such as the Sainsmart
or some other USB device suddenly disconnecting at random. This can
be followed by the device re-connecting by itself after a few seconds,
or the device might simply stay disconnected until you manually unplug
it and plug it back in. Other symptoms include random keyboard
input, random feedback device activation (lights flashing randomly or
solenoids firing randomly), or the PC suddenly rebooting.
If you're having any of these symptoms, the first thing to check is
that all of your mechanical feedback devices are equipped with diodes.
See
Chapter 53, Coil Diodes. Devices like solenoids, contactors, and
motors cause electrical interference on the power wiring, which can
usually be suppressed sufficiently by properly installing a diode on
each device's power connection. The Sainsmart relays themselves have
the same issue, since they use magnetic coils, but you don't usually
have to worry about those because most of the boards come with
suitable diodes integrated into the design. Even so, you should
check to make sure that your boards do in fact include a diode for
each relay, and if not, you'll need to add one.
The second thing to try (after ensuring all necessary diodes are
installed) is to add a small capacitor on each Sainsmart relay switch.
Mechanical switches create their own kind of electrical noise (called
"bounce") during the brief instant when the contacts come together or
separate. This can be significant when a relay switch controls a
high-current device like a coil, motor, or large LED. You can
mitigate this by adding a small capacitor across the switch contacts.
Try a capacitor around 0.1µF (which is the same as 100nF). Use
a ceramic disc type capacitor. These aren't polarized, so it
doesn't matter which direction you install it.
If a 100nF (0.1µF) capacitor doesn't help, or seems to reduce
the problem but doesn't fix it entirely, you might
experiment with other nearby capacitor sizes, from 200nF to 1µF.
Whereas diodes protect against the special type of interference that
magnetic coils generate, capacitors help suppress the transient noise
caused by switch contacts connecting and disconnecting. So capacitors
might be needed for any type of feedback device controlled by a relay
switch - even something like an LED that doesn't need a protective
diode. However, I wouldn't bother installing any switch capacitors
unless you're experiencing a problem that you can isolate to a
particular device, and that device is already protected with a diode
(or doesn't need one).
If the device in question is a motor, and the problem isn't solved by
adding a diode and a capacitor, there's one more thing you can try: an
inductor filter, also known as a choke. Capacitors act as voltage
filters, leveling out little spikes in voltage changes, whereas
inductors act as electric current filters, smoothing out sudden
changes in current flow. Motors can sometimes benefit from the
latter. See "Electrical interference" in
Chapter 61, Shaker motors for parts selection
and a wiring diagram.
Quick summary:
- Diode:
- Required for anything with a coil (solenoid, contactor, relay, motor)
- Not required for non-coil devices (LEDs, lamps)
- Capacitor:
- Not required for any device
- But might be helpful for any type of device that causes interference
- Try ceramic disc capacitors with values 100nF to 1µF
- Inductors:
- Not required for any device
- But might be helpful for motors that cause interference
- Try inductors around 4.7µH
- Use one or two per motor, wired in series with the power wiring to the motor
Fuses
Some cab builders include a fuse in each SainSmart output circuit.
Fuses can help protect an output controller against wiring faults or
device malfunctions. I'm usually pretty conservative on these things,
so this might be surprising, but I don't think fuses are all that
useful with SainSmart outputs. The reason is that these outputs use
relays, so they're pretty tough to start with. Fuses are certainly
appropriate for solid-state devices like an LedWiz, but I don't think
they add much useful protection for a relay board. If want to add
them anyway, see
Chapter 84, Fuses.
DOF Setup
If you're using my DOF R3++ version, it includes automatic SainSmart
board detection and configuration. You shouldn't have to do any of
the additional config file setup described below. Just run DOF and it
should automatically find your SainSmart board. You can skip straight
to
DOF Config Tool setup below.
With older DOF versions, SainSmart boards require some extra
setup to use with DOF.
If you're using the template Cabinet.xml file provided with my DOF
setup instructions, you should find a section with a pair of lines
like this:
<OutputControllers>
</OutputControllers>
>
If you got your Cabinet.xml file from another source, these lines
might be missing or might have other contents in between. If
they're missing, add them directly under the line(s) that looks
like this:
<Name>My Pin Cab</Name>
>
There might be different text between the bracketed <Name> markers,
but that's okay. What's important is that you add the <OutputControllers>
section just below the <Name> section.
If there was already something in the <OutputControllers> section,
that's okay, too. You just need to add the new text at the end of the
existing text, just before the line that at the end that reads
</OutputControllers>.
Now copy and paste the following into the file, placing it between the two
<OutputController> markers:
<FT245RBitbangController>
<Name>Sainsmart 1</Name>
<SerialNumber>A1234XYZ</SerialNumber>
</FT245RBitbangController>
>
You have to make one more change to that text: you have to edit the Serial Number
and replace it with the correct value for your SainSmart board. You might be able
to find your serial number printed on your board or the packaging. If not, the
board should have come with some software (or a link to download software), which
should include a program called FTDIChipList.exe. Run that program. This will
list the serial numbers for all of the similar devices in your system.
If the program lists more than serial number, you must have other devices that
use the same USB chip set. The SainSmart uses a common chip that's also used
in a variety of other devices, so it's quite possible the chip finder program
will discover more than one such device in your system. If this happens, and
you're not sure which of the devices is the SainSmart board, try the following:
- Exit the chip finder software
- Unplug the SainSmart board
- Run the chip finder software
- Write down the list of chips it reports
- Exit the software
- Plug in your SainSmart board and give it a few seconds to connect
- Run the chip finder software again. Compare the new list to
the list you wrote down last time. Since the SainSmart board
was unplugged last time, it shouldn't have been included in the
previous list, so you should be able to identify the SainSmart
board as the new entry that wasn't in the old list.
Once you determine the correct serial number, go back and edit the
Cabinet.xml file to replace the fake placeholder text I provided in
the template ("A1234XYZ") with the true serial number.
There's one more step. Look for a pair of lines like this:
<Toys>
</Toys>
>
As with the previous section, you'll have to add the lines if
they're not already there. Add them just after the closing
</OutputControllers> line. And as before, if this section
is already there and already contains other text, simply add
the new text at the end of the existing text, just before the
final </Toys> line.
Here's the text we're going to add to the <Toys> section:
<LedWizEquivalent>
<Name>SainsmartLWEQ 1</Name>
<LedWizNumber>40</LedWizNumber>
<Outputs>
<LedWizEquivalentOutput>
<OutputName>Sainsmart 1.01</OutputName>
<LedWizEquivalentOutputNumber>1</LedWizEquivalentOutputNumber>
</LedWizEquivalentOutput>
<LedWizEquivalentOutput>
<OutputName>Sainsmart 1.02</OutputName>
<LedWizEquivalentOutputNumber>2</LedWizEquivalentOutputNumber>
</LedWizEquivalentOutput>
<LedWizEquivalentOutput>
<OutputName>Sainsmart 1.03</OutputName>
<LedWizEquivalentOutputNumber>3</LedWizEquivalentOutputNumber>
</LedWizEquivalentOutput>
<LedWizEquivalentOutput>
<OutputName>Sainsmart 1.04</OutputName>
<LedWizEquivalentOutputNumber>4</LedWizEquivalentOutputNumber>
</LedWizEquivalentOutput>
<LedWizEquivalentOutput>
<OutputName>Sainsmart 1.05</OutputName>
<LedWizEquivalentOutputNumber>5</LedWizEquivalentOutputNumber>
</LedWizEquivalentOutput>
<LedWizEquivalentOutput>
<OutputName>Sainsmart 1.06</OutputName>
<LedWizEquivalentOutputNumber>6</LedWizEquivalentOutputNumber>
</LedWizEquivalentOutput>
<LedWizEquivalentOutput>
<OutputName>Sainsmart 1.07</OutputName>
<LedWizEquivalentOutputNumber>7</LedWizEquivalentOutputNumber>
</LedWizEquivalentOutput>
<LedWizEquivalentOutput>
<OutputName>Sainsmart 1.08</OutputName>
<LedWizEquivalentOutputNumber>8</LedWizEquivalentOutputNumber>
</LedWizEquivalentOutput>
</Outputs>
</LedWizEquivalent>
>
You can use that exact text, with no changes, as long as you have
one SainSmart unit only, and it's the 8-relay type.
If you have two SainSmart units, you first must repeat the <OutputControllers>
entry we added above, again substituting the actual serial number for the second
device. And second, you must repeat the <Toys> entry we added above, but
this time, change the <LedWizNumber> section to 41 (make it 42 for
a third unit, 43 for a fourth unit, etc), and change all of the
Sainsmart 1.0x entries to Sainsmart 2.0x for the second unit
(or 3.0x for the third unit, 4.0x for the fourth unit, etc).
If your SainSmart unit has a different number of relays (they make them with 1, 2,
and 4 relays as well), go through the >Toys> text we added and delete all
of the sections beyond the number of relays you have. For example, if you have
a 4-relay board, you should delete the "1.05" through "1.08" sections.
DOF Config Tool setup
Almost done! The one remaining step is to enter your new SainSmart
board into your DOF Config Tool settings. This step is pretty easy
compared to the previous one, fortunately.
- Point your browser to the DOF config tool
- Click the My Account tab
- Find "Number of SainSmart Devices" in the list, and set it
to "1" (or the number of these boards you've installed, if more than one)
- Click Save Settings
- Click the Port Assignments tab
- In the "Device" drop-down, select "SainSmart 1"
- Go through the port list (Port 1 through Port 8), and select
the type of device that you've physically wired to each output
port
- Click Save Config
- If you have more than one SainSmart board, repeat the process for
each one by selecting the devices one at a time in the "Device"
drop-down at the top of the page
- When done, click Save Config, then click Generate Config
to download your updated DOF config files
- Unzip the downloaded files into your DOF install folder
52. LED Resistors
LEDs always require something to limit the amount of current
(amperage) going through them. Without some kind of current limiter,
an LED acts like a short circuit, which will make it overload itself
or its power supply. So it's always necessary to put something in the
circuit that sets a safe limit on the LED's power consumption. The
simplest and most common way to do this is by placing a resistor in
series with the LED.
Which LEDs need resistors?
All LEDs require something to limit current, but some LEDs
come with suitable resistors already built in. You don't
need to add anything external for devices with their
own built-in resistors.
How can you tell if resistors are built-in?
A rule of thumb is that any LED that you buy as a bare component
requires an external resistor, whereas finished products that
happen to contain LEDs usually have any necessary resistors built in.
Here's a handy guide to which is which, for the parts commonly
used in pin cabs:
- "Star" LED: external resistor required
- Common small LED: external resistor required
- Light strips, standard type: resistors are built in
- Light strips, addressable type: resistors are built in
- LED #555 replacement bulbs: resistor is built in
- LED #161 replacement bulbs: resistor is built in
Special exception: You don't need a resistor with any type of
LED when using it with a "Small LED" output port on the Pinscape main
expansion board. The Small LED outputs are special in that they have
their own built-in current limitation, which makes an external
resistor unnecessary. This exception doesn't apply to the Pinscape
flasher output ports or any other output ports; it only applies to
the "Small LED" ports.
>
How to wire the resistor
Here's the basic wiring plan for connecting a
current-limiting resistor to any LED feedback device:
As you can see, this doesn't change the basic wiring plan for an
output device, it just adds to it, by inserting the resistor into
the wiring between the LED and the output controller.
Note that it's equivalent to insert the resistor into the
positive voltage wire (the one that connects the LED to the power
supply) instead of the negative wire (to the output controller port).
You can do that if you prefer it for some reason. But it's almost
always more convenient to put it on the negative side, as shown,
because it's usually easier to daisy-chain all of the positive voltage
connections together. In fact, for some RGB LEDs, the negative side
is the only option because the positive connections for the three
color channels are sometimes wired together inside the LED.
I'd recommend keeping things simple by adopting a uniform rule that
the resistor always goes on the negative side.
For an RGB LED, each color channel needs it own resistor. In
fact, the resistor values for the three channels might even be
different. When you're calculating the resistor values (which we'll
come to in a moment), you should do a whole separate calculation for
each channel. Even though an RGB LED looks like one LED, it actually
has three physically separate LEDs inside, each with its own current
and voltage specs.
Basic resistor wiring plan for an RGB LED.
This type of LED has separate connections for the three color
channels. Each color channel must be wired to its own resistor.
Note: the order of the pads shown here won't necessarily
match your LEDs.
Choosing a power supply
In most cases, you can use a 5V supply for LEDs.
LEDs should always list a "forward voltage" value, sometimes written
VF. This is usually somewhere between about 2V and 4V.
Red LEDs tend to be at the lower end of that range, and blue and green
are at the higher end. A common point of confusion for new cab
builders is what this voltage means for the power supply. The forward
voltage isn't the same as the supply voltage: you don't have to
use a power supply that exactly matches the LED's forward voltage.
Rather, the forward voltage tells you the minimum required
supply voltage.
The basic rule is that the supply voltage has to be higher than the
forward voltage. Ideally, it shouldn't be too much higher, because
the higher it is, the more power will get wasted as excess heat burned
up by the resistor.
5V is usually the ideal choice, because it's the lowest common
supply voltage that's high enough to work with most LEDs.
Choosing the resistor
The exact resistor you need depends on the LED. To figure the right
resistance value, you need to know two electrical specs for the LED
and one for your power supply:
- The LED's Forward Voltage, sometimes written as VF
- The LED's Forward Current, or IF
- Your power supply voltage, which we'll write as Vsupply
You should be able to find the LED figures on the LED's packaging,
the manufacturer's data sheet, or the eBay seller's page where you
bought it. If you buy from eBay, be sure to write down those figures
when you place your order, since eBay pages don't always stay
around indefinitely.
The power supply voltage is simply the voltage of the power supply
you're using to power the LED. It's best to use the lowest power
supply you have that's above the VF voltage. For
example, if VF is 3.2V, any power supply higher than
3.2V will work, so you should use your 5V supply.
For an RGB LED, you'll need three resistors - one per color
channel. What's more, you might need different resistors for each
color. In the specs for the resistor, you should find separate
VF and IF values for the Red, Green, and Blue
components. Calculate each resistor value separately, as though
it were for a separate LED (which it really is).
Once you have those three figures, plug them
into this interactive calculator to figure the required resistor
type:
>
Important: Pay attention to the reported wattage value!
Choose a resistor with the specified wattage or higher.
If you use a resistor that has too low a wattage rating, it could overheat.
Please pay close attention to the "ohms" units reported by the calculator.
If the calculator says 5.6Ω, it truly means 5.6 Ohms, not
KΩ. If the calculator comes up with a value in in KΩ, it will
say so. This might seem too obvious to belabor, but this is a
frequently asked question! If you've done some electronics work, you
can get so accustomed to only seeing resistors in the 100s or 1000s of
ohms that something like "five Ohms" looks like a typo. But it's not -
there really is such a thing as a 5.6Ω resistor, without the "K".
And that's about the size you usually need for the high-power
"Star" RGB LEDs. So if the calculator comes up with 4.7Ω or 5.6Ω
or something else in the single digits, don't assume there's an implied
"K" that was accidentally omitted. 5.6Ω really means 5.6Ω.
The calculator rounds the resistance value up to the nearest
standard resistor value that's commercially available, to make it easier
to find a matching part to buy. It also builds in a safety factor for the
wattage by assuming that you don't want to go above 60% of the rated wattage for
the resistor. The "raw results" are the exact mathematical results
of the calculation before those adjustments, but those exact sizes
usually aren't available for purchase anywhere, thus the adjustments.
In case you're interested in the details, the calculator
figures the resistance value based on this formula:
>
Once you have those three figures, you can simply plug them into
this formula to calculate the resistance required:
>
R = (Vsupply − VF) / IF
>
By the way, if you bring up the on-line version of this chapter
in your Web browser, you'll find a handy interactive calculator
that does this calculation for you, and automatically applies
the adjustments described below to round to a standard size. It
also calculates the required wattage.
>
Note that formula takes the Forward Current (IF)
value in Amperes, not milliamps. The LED will probably specify
IF in milliamps. To convert from mA to Amps, simply divide
by 1000. For example, if IF is quoted as 20mA, use 0.02
Amps in the formula; if IF is 350mA, use 0.350 Amps.
The result R is in Ohms (Ω). It's not in KΩ
or any other multiplied value - it's in plain old Ohms.
For a high-power "Star" RGB LED, you might be surprised to get a
value in the single-digit Ohms range, like 5.2Ω. That's
perfectly normal, so don't second-guess the formula and think the
result needs to be in a different unit. As long as you entered
the inputs correctly in Volts and Amps (not milliamps),
the result is always in Ohms.
The mathematical result of the formula tells you the exact resistance
you'd need in theory to get the desired current. But you can't buy
resistors in just any size; they only make them in certain standard
sizes. The standard resistor sizes are 1Ω, 1.2Ω, 1.5Ω,
1.8Ω, 2.2Ω, 2.7Ω, 3.3Ω, 3.9Ω, 4.7Ω, 5.6Ω,
6.8Ω, and 8.2Ω, plus each of these values multiplied by 10,
100, 1000, 10,000, 100,000, and 1,000,000.
So after you figure the theoretical R value with the formula, round
up to the nearest standard size. For example, if the formula
says you need a 4.9Ω resistor, round up to the next standard
size of 5.6Ω.
We're going to call this rounded-up value the adjusted
resistance. (Sorry if this is starting to feel like filling out
a tax form!)
After you figure the resistance value and round up to a standard
size, the next step is to calculate the required wattage for the
resistor. This is important because resistors generate heat, so
you need to buy a resistor that's capable of handling the amount
of heat it's going to generate.
To calculate the wattage, plug the adjusted R value (the
value rounded up to a standard size) into this formula:
Iactual = (VS - VF) / Radjusted
>
That will tell you the actual current you're going to get with
the adjusted resistance value. Now plug the result of that
formula into this formula:
W = (VS - VF) * Iactual / 0.6
>
That yields the amount of power the resistor uses in Watts, and adds a
safety margin so that we never operate above 60% (that's the 0.6) of
the maximum rating for the resistor. That's just to make sure we're
not pushing our luck, and accounts for any manufacturing variations in
the LED or resistor that make them a little outside of their rated
specs.
As with the Ohms value, they only make resistors with certain wattage
ratings, so you'll have to choose the next available larger wattage.
Common wattage values for resistors are ⅛W, ¼W, ½W,
1W, 2W, 5W, and 10W.
Now you're set to go out and buy resistors! Go to an electronics
vendor like Mouser and enter the Ohms and Watts values you just
calculated. You should be able to find matching parts. If you have
any trouble finding something with the required Watts value, it's
always safe to use a larger rated wattage. For example, if the
formula says you need 5.6Ω at 1W, it's fine to use a 2W resistor
instead. Larger wattage resistors are physically larger as well, so
it'll take up more space if you have to use a much higher wattage than
the formula gives you, but it will be perfectly functional and safe.
53. Coil Diodes
For every mechanical feedback device that you install in your cabinet,
you should install a protective diode. This applies to anything
with a magnetic coil:
- Contactors
- Solenoids
- Replay knockers
- Chimes
- Bells
- Relays
- Motors of any kind (shaker, gear, etc)
- Rotating beacons
>
It's important to install diodes on these devices, because all of them
have magnetic coils that generate voltage spikes as part of their
normal operation. These spikes, known as "flyback" current, can be
quite powerful and can damage your computer motherboard and other
electronics, such as your output controllers and other USB devices.
Diodes suppress these spikes and block them from propagating through
your system.
Note that these voltage spikes from the coils are unrelated to power
surges in your house wiring, the kind that you buy surge-suppressor
power strips to protect against. The coil voltage spikes come from
the devices inside your cabinet, so a surge suppressor on your
power strip will provide no protection against them. You always need
a diode on each individual coil, to cut off the spike at the source.
Fortunately, diodes are simple to install, and you don't need to know
anything about electronics to set them up.
You don't need protective diodes for LEDs, incandescent bulbs, LED
strobe lights, or LED light strips.
Diodes are also used in the Pinscape expansion boards, and have many
other uses besides coil protection. This chapter is only concerned
with the coil protection usage. If you want to know more about
diodes as circuit board components, see
Chapter 74, Diodes.
Don't use diodes with AC devices
Everything we say here applies only to DC devices, using DC
voltage as the power supply. Don't use diodes this way with
devices that run on AC power (for example, anything that plugs
directly into a wall outlet for 120V or 240V mains power). Doing so
will cause a short circuit that will blow a fuse (or worse).
Choosing a diode
I'll just cut to the chase here:
1N4007.
1N4007 diodes are cheap (15¢ apiece) and have pretty ideal
electrical specs for this job. Buy one for each coil-type device in
your cab.
Like any other engineering question, there are different schools of
thought on this, and you'll probably be able to find competing
recommendations if you ask around. But the 1N4007 is an
excellent general-purpose choice that works well for everything in a
pin cab. If you look at the real pinball machines made in the 1980s
and 1990s, they all use 1N400x diodes for this same job.
(One question that's come up in the forums is whether 1N4007 diodes
are suitable for high-current devices, such as 4A knocker coils or 3A
shaker motors, when the 1N4007 data sheet says the "forward current"
limit is only 1A. The answer is yes, 1N4007 is still suitable for
this! As we'll see below, we're not actually using the "forward
current" capacity of the diode to carry the 4A knocker coil current or
the 3A shaker motor current, because we're going to install these
diodes backwards. The diode will only carry the "flyback"
current from the coil, which is quite different from the supply
current when the coil is operating. The 1N4007 has good properties
for this job because it has a very high reverse voltage rating [700V],
which makes it safe to install backwards for high-voltage devices,
and it has a high rating for momentary surge current [30A], which is
precisely the nature of the flyback current.)
How to install them
Each coil-type device in your system should have its own diode.
That's one diode per motor, one per solenoid, one per contactor, and
so on.
Type of device: Use a diode for everything with a coil, magnet,
motor, or really anything with moving parts: relays, contactors,
solenoids, knockers, motors, bells, chimes, rotating beacons. You
don't need to add diodes to lights with no moving parts
(incandescent lamps, LEDs, LED strips, strobes, flashers).
Location: Install each diode as close to the coil as is
convenient. The diode's purpose is to shunt the voltage surge from
the coil back into the coil, to keep the surge from propagating into
the rest of the wiring. As such, you want it physically close to the
coil. I recommend installing the diode directly across the coil's
terminals or connecting wires.
Don't worry about getting extremely close to the coil. I've
talked to a few people who took the advice about getting close
to the coil very seriously, to the extent of disassembling the
packaging around a motor or solenoid so that they could get a few
centimeters closer. It's really not necessary to do that. Just
attach the diode at a convenient place where the device's terminals or
wires are exposed for connecting externally. The same terminals where
you attach the power wires to the coil are perfect for the diode.
Orientation: The striped end of the diode must be
attached to the positive (+) supply voltage to the device. The other
end must be attached to the (-) terminal, which you'll connect to a
port on your output controller.
Orientation is critical! Always double-check that you get it
right. If you get it wrong, it'll create a short circuit as soon as
you turn on the device, which will most likely damage your output
controller.
"But doesn't the stripe on a diode always go to minus???"
In normal uses for diodes, you're exactly right. But this
is a somewhat unusual use case, and in this case we really do want
the diode to go against the normal flow of current. The
striped end really must go to the positive voltage.
>
How to attach them: The best way to attach a diode to a
particular device can vary depending on the type of terminals it has.
No matter what, though, I recommend always soldering the diode
to something. This creates a permanent connection, which is
much more reliable than temporary connections like screw terminals.
It will also help protect against accidentally reversing the diode if
you should ever have to disconnect the wires, since the diode itself
will be permanently installed.
If you're using contactors, or anything else with screw terminals, I
recommend soldering the diode to your wiring. Put it a few inches
from the ends that you connect the screw terminals.
For devices with solder terminals, such as pinball coils and DC
motors, you can usually solder the diode directly to the device's
terminals. If they're not close enough together, simply add a short
piece of wire to connect one end.
If you're using a genuine pinball coil, such as a replay knocker, it
might already have a factory-installed diode. If so, you don't need
to add another one.
Wherever the diode ends up, you should take care that the bare wire
leads of the diode can't come into contact with any other metal or
wires. I recommend wrapping any exposed wire or solder with
electrical tape to insulate it.
My system works without 'em! Why bother?
Some people build their systems without ever hearing about the need
for diodes, and sometimes they get away with it, with no obvious
problems appearing. But even if your system seems to work without any
diodes installed, you're running the risk of something breaking in the
future. You're putting stress on your other components every time a
coil or motor switches off.
The coil surge current isn't always big enough to fry everything
instantly. You can often get away without diodes for a while without
any obvious problems. But the surge current is happening nonetheless,
and chances are that it's causing incremental damage that will
eventually make something break.
In some cases, missing diodes can cause symptoms that appear to be
software problems. The most common issues that can often be traced to
missing diodes are phantom keyboard input (keys seemingly pressed at
random), and intermittent USB device disconnections. If you're seeing
anything like that, make sure your coils all have diodes installed,
and that the diodes are installed correctly.
Do I really need this with a motor?
There's a common notion that the surge current from a motor
comes from the "generator effect" of the motor. As you probably know,
any electric motor can also serve a generator: turn the shaft with an
outside force and you'll generate some electricity with the motor. So
you might reasonably think that the motor's momentum will cause it to
keep spinning for a few moments after you turn off the power, making
it generate some residual electricity. Is this what causes the
voltage spike in a motor?
The generator effect is real, but no, it's not the source of the spike
that we're worried about. The generator effect voltage is too low to
be a problem.
Motors have magnetic coils - that's what makes them go - and these
coils have the same physics as solenoid coils. That means they have
the same surge current as other coils. This is completely separate
from the mechanical action of the motor; it's a purely electromagnetic
effect, and it causes the same problems in motors that it does in
other inductors.
The main reason I point this out is that it's easy to talk yourself
out of adding a diode to a motor if you think in terms of the
generator effect alone. You might look at the motor and decide that
it just doesn't have enough momentum for this to be a problem. But
that misses the more important point that you need a diode for a
motor anyway, simply because it's an inductive device with a magnetic
field.
Theory of operation
If you're interested in learning more about the physics behind this,
read on. You can skip the rest of this section if you only care
about the practical dimensions. Just install the diodes as outlined
above and you'll be set.
How it works
If you know a thing or two about electronics, you might have noticed
that the diode is installed "backwards" from how you'd normally use
it, in that we have the stripe attached to the positive side.
Good catch if you noticed that, but it's not an error! We really do
want the diode to be installed opposite to the normal current
flow. Why? Think about what would happen if it were installed
the other way: when the power goes on, the diode would happily conduct
all of the current straight through, bypassing the load. In other
words, it would create a short circuit from the power supply directly
to the output controller. This would instantly fry something - the
diode, the power supply, or the output controller - with the
unrestrained current.
With the diode installed opposite to the flow, though, it doesn't
conduct at all when the power goes on. It's like it's not even there.
All of the power goes through the load (the feedback device) just like
we want it to, and nothing gets fried.
So if the diode never conducts, what good is it? Well, it's not quite
true that the diode never conducts. It never conducts in
the power supply direction. But it does kick in when the power
turns off. That's when the coil releases the current surge
we've been talking about. Due to the physics of magnetic fields, it
turns out that the surge current goes in the opposite direction of the
original current that created the field in the first place.
Basically, the energy that gets stored in the magnetic field by the
power supply current comes rushing back out in the opposite direction
when you take the power away, like the air coming back out of a
balloon if you stop inflating it. The surge current is going
"backwards", and the diode is installed "backwards", so the surge
current is actually forwards from the diode's perspective. The diode
thus allows the surge current through, sending it back into the
coil. This blocks it from flowing down the other wires that go to the
power supply and the output controller.
The electrical resistance of the coil wiring quickly turns the surge
current into heat, safely disposing of it. So the surge fizzles out
without damaging any sensitive components at the ends of the wires.
There might appear to be a couple of contradictions in what we've just
said. Let's address any lingering doubts. First, if it would have
fried something to run the original current through the diode,
why doesn't it fry something when we run the reverse current
through it? The answer is that the total energy in the reverse
current is much lower, because it's not being driven by a power
supply; it's limited to the energy stored in the magnetic field, which
is fairly small in absolute terms. The surge does heat up the coil a
tiny bit - that's where the excess energy goes - but only a tiny bit.
Not enough that you'd be able to feel it by touch, and not enough to
do any damage. Second, if the flyback current is so dangerous, why
doesn't it hurt the coil, or the diode itself? In this case, the
answer is in the different natures of the different components.
Transistors and IC chips are extremely sensitive to voltage, even at
very low total energies, because their internal structures are so
tiny. Exposing them to high voltages can punch holes in their
internal structures and destroy them. Coils and wires, on the other
hand, are relatively indifferent to voltage levels as long as the
total power is limited. The point of the diode is to isolate the
surge current so that it stays inside the coil - and away from your
other circuitry - since the coil isn't affected by momentary high voltages.
As for the diode itself, it's a perfect gate-keeper, because the
1N4007 can handle high voltages and high momentary current
surges, which is exactly what the flyback current looks like.
Where the surge current comes from
When you send electricity through a coil of wire, the moving electric
charge induces a magnetic field in the region around the coil. For
devices like solenoids and motors, the magnetic field is the whole
point, because it's what converts the electrical energy into
mechanical action.
The inductive effect converts the energy going into the coil from
electric to magnetic energy. Most of that magnetic energy goes
straight into the mechanical action that the device is designed to
produce, such as spinning the motor or moving the solenoid plunger.
But a portion of the energy goes into the field itself. So the
field contains a certain amount of energy as long as it's standing.
When you switch off the electricity, you stop feeding energy into the
magnetic field, so the field can no longer sustain itself and starts
collapsing. At this point, the energy contained in the field has to
go somewhere. The most direct path for the field energy to escape is
straight back into the coil wiring. Like many processes in physics,
induction works in both directions: an electric current induces a
magnetic field, and a magnetic field induces an electric current. The
collapsing magnetic field induces a current through the coil wiring.
This "field collapse" current moves in the opposite direction of the
original current (from the power supply) that created the field.
The current induced by the magnetic field collapse is the
surge we've been talking about. The thing that makes it harmful
is that the field collapse happens very quickly. When the electricity
shuts off, the magnetic field has a Wile E. Coyote moment where it
suddenly realizes it's suspended in mid-air, and instantly plummets to
the ground. In this case, the magnetic field energy escapes rapidly into the coil, transferring all
of its energy to the coil in a few milliseconds. The sudden surge of
charge drives the voltage very high. For a 12 Volt coil, the surge
can spike to 300 or 400 Volts.
Even though that's a very high voltage, it's not typically a threat to
human safety, because the total amount of energy in the collapsing
field is relatively small. The voltage gets so high only because the
surge is so brief. But a brief high voltage is a threat to
certain types of electronic components, especially the
microelectronics in integrated circuit chips. Those devices are
physically so tiny that it doesn't take much energy to damage them.
It only takes a brief blast of high voltage. It's the same thing that
makes static electricity discharge such a danger for many electronic
devices.
You can find more about this in the Wikipedia
article about
flyback diodes.
54. Coil Timers
If you're using any real pinball coils in your virtual pin cab, you
might want to consider using some kind of "time limiter" circuit with
them. The reason is that most types of pinball coils are only
designed to be energized for very brief intervals, typically just a
fraction of a second at a time, and can overheat if energized for too
long at a time. Overheating will melt the wire inside the coil
and destroy the device.
Examples of pinball coils where this is an issue:
- Replay knocker
- Bumpers
- Slingshots
- Chime units
This is actually a fairly common property of solenoids in general, not
just pinball coils, so it might apply to your pin cab if you're using
other types of devices to simulate any of the above:
- "Open frame" solenoids bought on eBay or elsewhere
- Automotive starter solenoids
How a time limiter circuit works
A time limiter circuit can be used as a fail-safe to protect your coil
devices against getting stuck on for long periods. A time limiter
adds some special additional circuitry to an output controller port
that automatically limits the amount of time the port can be "on"
continuously. If the port stays on for longer than the limit, the
timer circuit forces the port to turn off, overriding any software
signal to the contrary.
The reason to implement this with a hardware timer, rather than with
some kind of software fix, is that the main thing we're worried about
is software failure. A separate hardware circuit won't be affected by
any errors or crashes in the software.
The Pinscape expansion boards include built-in time limiters for the
Replay Knocker port and for all ports on the Chime boards. You can
add your own custom timer to any other type of output controller as
well, which we'll describe below.
Why this is a concern
There are two places in a virtual cab where coil overheating can
be a problem: flippers, and everywhere else.
For flippers, it should be fairly obvious why this is an issue. The
player can keep a flipper button pressed indefinitely to trap a ball,
consider a shot, have a beer... The flipper coil will stay energized
this whole time. It might seem like a typical player wouldn't
typically hold the button on all that long, but it's not the
typical case we have to be concerned about. We have to consider the
longest time that anyone will ever leave hold the button on, since
all it takes is that one time to fry the coil.
For bumpers, slingshots, replay knockers, chimes, and everything else,
there's no reason in normal operation that any of these will
ever stay on for more than a brief instant at a time. So it might
seem like you don't have to worry about them. But you do, because of
the chance of abnormal operation. Specifically, the devices in a real
cab are controlled by software, and software can fail unexpectedly.
There's a particular failure mode in Visual Pinball where VP can crash
just after turning on a device, leaving the device stuck on until the
user can intervene manually. This isn't just a random fluke, either;
if it were, it wouldn't be likely enough to worry about. The reason
it's a concern is that it's relatively likely to happen in this
particular way (device turns on, then VP crashes) because of the way
VP scripts are constructed.
Devices that you don't have to worry about
Not all coils or solenoids have this problem:
- Contactors. These are large electrical relays designed for
high-power switching applications. They're specifically designed to
be activated continuously for indefinite periods (even for months or
years) without overheating. They're popular for simulating flippers
in virtual cabs for exactly this reason.
- Older pinball flipper coils, for machines made before about
1990. On the real machines, they had to deal with exactly the same
issue that we do when it comes to the flippers: the player can press
the button and hold the flipper on for long periods. So the pinball
manufacturers came up with various ways to prevent the coils from
overheating. The technique they used up until about 1990 also works
well on virtual pin cabs, so flipper assemblies for those older
machines are usually safe to use on a pin cab without any special
timer protection. See "Flipper assemblies" below for more on the
different types.
- Some other solenoids. Some non-pinball solenoids are built for long
duty cycles and others aren't. If you have a data sheet for your
device, it might list the maximum continuous "on" time or maximum duty
cycle. If not, you can test it. Apply power and carefully monitor
the device's temperature. You don't need a thermometer; it's enough
to check if it's getting hot to the touch. If it starts getting hot,
cut power immediately. If it got hot in a few seconds, you definitely
want to do something to limit the device's "on" time. If you can
leave the device continuously on for a few minutes and it's not
getting noticeably hot, it should be safe to use without any time
limiter. If it's somewhere in between, you should err on the side of
caution and limit its "on" time.
Flipper assemblies
As mentioned above, some flipper assemblies are safe for use in
virtual pin cabs, without any special timer protection. Real pinball
machines have to deal with the same problem we do when it comes to
flippers - that the player might press and hold the button for long
periods. The manufacturers came up with a variety of solutions over
the years.
The standard approach for many years was to use two coils for
each flipper: a high-power "lift" coil and a low-power "hold" coil.
The lift coil fires briefly when you first press the button, to carry
out the the rapid "flip" action. As soon as the flipper is all the
way up, the lift coil cuts out, and the low-power hold coil takes
over, to keep the flipper flipped while you hold the button. The hold
coil had much less lifting power - just enough to hold the flipper up.
Less power means less heat, so the hold coil stays cool enough that
you can leave it activated indefinitely. Problem solved.
Note that the two coils were always wound together into one physical
unit, so it looks like there's only one coil involved. The
giveaway is that the coil has three terminals instead of the usual
two.
Up until the early 1990s, the two-coil flipper assemblies switched
between the "lift" and "hold" coils using an end-of-stroke switch
embedded in the flipper assembly. The coil was wired directly to
this switch. When the flipper flipped all the way up, it hit the
switch, cutting off the lift coil power and activating the hold
coil power. This system works well in virtual pin cabs, since the
flipper assembly itself takes care of switching between the two
coils.
Starting in the 1990s, Williams changed to their "Fliptronic" system.
This also uses the two-coil design, but the end-of-stroke switch is no
longer wired directly to the coils. Instead, it's wired to the CPU,
and the CPU decides when to switch between the two coils. The
Fliptronic assemblies aren't safe with a virtual machine,
because the coil switching is no longer part of the flipper assembly -
it has to be directed by the software. The pinball emulators on the
PC don't have the necessary programming. If you connected one of
these newer Fliptronic assemblies to DOF, DOF would just leave the
"lift" coil on the whole time, and we'd be back to the overheating
problem.
Newer Stern flipper assemblies also aren't safe for virtual
pin cabs, because they use an even newer design that uses just
one physical coil and uses software to reduce the coil power
during the "hold" period.
To see if you have a "safe" flipper assembly using the two-coil
design, first check to make sure there's an "end-of-stroke" switch.
If there's not, you probably have a newer Stern assembly that's not
safe for virtual use. If you do have an end-of-stroke switch,
inspect its wiring. Check that it's wired directly to the flipper
coil. If it's only wired to an external connector, you have a newer
Fliptronic assembly that's not safe for virtual use. If it's wired
directly to the coil, you have the older type that is safe
for a pin cab.
If you have one of the newer types, don't panic! There's still a way
you might be able to make it work. If you're using the Pinscape
boards, you can enable the Pinscape "Flipper Logic" feature, which
uses the same PWM power reduction approach that the newer Stern
machines use. Flipper Logic is handled directly in the Pinscape
firmware, so it doesn't require anything on the PC to be aware of it,
meaning it's compatible with all PC software that can access the
flippers at all. See "Flipper Logic"
below
for more details.
Pinscape expansion boards
The replay knocker output on the main Pinscape board has a time
limiter circuit built-in. All outputs on the Chime boards feature the
same time limiter. (The time limiter is the whole point of the Chime
boards.)
Connect devices to the timer-protected output ports exactly the same
way you would connect devices to any of the other Pinscape output
ports. The timer function is built into the port's hardware and is
always active. There's nothing to configure and no software setup
required.
The timers on these output ports cut off power after about 2 seconds
of continuous "on" time. They automatically reset as soon as the port
turns off.
The short time limit is designed for devices like replay knockers,
chime units, bumper coils, and slingshot coils. In normal use, these
devices always fire momentarily. The instant reset allows the devices
to be fired in quick succession, such as when the ball is bouncing
rapidly back and forth between two bumpers.
DIY time limiter circuit
Here's the schematic for the coil timer circuit used in the Pinscape
expansion boards. This is a standalone circuit that doesn't depend
on anything else on the expansion boards; it can be used with any
type of microcontroller to control just about any kind of coil.
External connections:
- VCC is the positive voltage supply for the microcontroller. This
circuit will work equally well with 3.3V and 5V microcontrollers.
- GND is the "ground" for the microcontroller power supply.
Connect this to any GND pin on the microcontroller.
- Input is the GPIO pin on the microcontroller that will be
controlling the device. This is a high trigger circuit, meaning
that the GPIO line must be driven high (to VCC voltage) to turn the
coil on.
- COIL- is the negative terminal of the coil to be controller.
Connect the other terminal of the coil directly to the coil power
supply's positive voltage.
- COIL PSU (-) is the coil power supply's negative or GND
terminal.
This circuit is designed to be used with a microcontroller, so the
input takes a "high" voltage value (the same voltage as VCC) to turn
the coil on.
The circuit as shown includes a high-current MOSFET that controls the
coil, so you can connect this circuit directly to the coil without any
external relays or amplifiers needed. The MOFSET shown in the
schematic will handle 14A at 55V, which is enough for any pinball
coil.
Adapting for LedWiz use: The circuit could be adapted for use
with an LedWiz or similar device, but I'm going to leave this as an
exercise to the reader, because I haven't actually built or tested an
LedWiz interface version. There are two changes you'd have to make:
- First, you must change the input to trigger on a "low" voltage
value, since that's how the LedWiz signal works. You can do this by
adding an optocoupler to the input stage. Connect the optocoupler LED
anode (+) to +5V, connect the cathode to a 100Ω resistor, and
connect the other end of the resistor to the LedWiz output. Connect
the Input line in the schematic above to the optocoupler emitter, and
also connect it to ground through a 1K resistor. Connect the
optocoupler collector to +5V. Use +5V for VCC throughout.
- Second, you'll have to "smooth out" the PWM signal produced by the
LedWiz. The circuit is designed for a simple digital logic high/low
GPIO output from a microcontroller. The LedWiz produces a pulsed
signal that's never 100% on. Every pulse will reset the timer
circuit, which will prevent the timer from ever expiring, which will
defeat the entire purpose of the timer. To overcome this, I think you
could use a simple low-pass filter on the input from the LedWiz.
I think a simple first-order filter, with one resistor and capacitor,
would do the trick. You'd have to choose the filter parameters
according to the actual controller device you're using; the LedWiz
PWM runs at about 50 Hz.
If you successfully build and test an LedWiz-compatible version of the
circuit, I'd really like to hear about it! Send me the actual circuit
that you got working and I'll publish it here instead of this
"exercise for the reader" dodge.
Pre-built timer device
You can buy a pre-built timer device on eBay that provides similar
functionality, and put it in your output circuit between your output
controller and the coil you want to protect.
The product offerings and sellers on eBay are constantly changing, so
I can't provide you with a link to a specific product; if I did, it
would just be a dead link by the time you read this, and that wouldn't
be very helpful. So I'll have to tell you how to search for it
yourself. I'll warn you, though: this will take some persistence on
your part, and maybe some trial-and-error buying, because the relevant
eBay listings can be difficult to decipher. The products you're
looking for will all be from Chinese sellers who don't always write
perfect English ad copy on their pages.
The basic search term that usually works best is:
multi-function relay timer board
>
In very vague and general terms, you're looking for:
- a relay to control an output
- with adjustable timers
- and a big list of different timing modes
These will usually have 15 to 20 different "modes" or "functions"
listed. They'll say things like "Function 1: timing on: after power,
time delay pull relay T1, between adjustable 0.1 seconds 270 hours,
CH1 interface to high level signal, repeat function", and then a giant
list of similar tortured sentence fragments.
That much is pretty easy to find on eBay. What's a little harder is
making sure that the list of 15-20 modes includes the exact mode we're
looking for. In my experience, anything that has a big list of modes
like that will have the right mode in there somewhere, so if
you're feeling lucky and don't want to make your brain hurt parsing
Google Translate output, just buy one and give it a try. But if you
don't want to risk the $20, you'll need to scan through the modes and
verify that there's one that does what we need.
So I'll try to describe the specific mode you need, in terms that
hopefully are comprehensible. Don't look for my exact
words. I'm trying to use sensible English, which the ads generally
don't. I'm trying to give you an understanding of what the mode is
actually supposed to do, on the theory that if you can internalize
this with a solid mental model of the desired function, you'll have a
better chance of fitting the poor descriptions on eBay to your good
internal understanding. So here's what you're trying to accomplish
with the device:
- You fire a trigger signal (by "you" I really mean "the LedWiz" or whatever:
the point is that the signal is being fed into the relay board from
an external source)
- In response to the trigger signal, the relay board immediately turns
the relay output on
- After a timer expires, the relay board turns the output off, even
if the trigger signal is still on at that point
- When the trigger signal turns off, the cycle resets, so that the
board is now ready to receive a new trigger signal and start the
whole process over
As an example, here's some actual verbiage I just pulled from a random
eBay ad for a random device that does what we're looking for:
Function 14: Disconnect and then pull the trigger timing: After power
relay does not act, a high-level interface to CH1 pulse signal,
immediately pull the relay, the relay off delay time T1 after arrival;
T2 arrive after disconnecting time relay, delay time between T1 and T2
in 0.1 seconds -270 hours adjustable, repeat CH1 interface to a high
level pulse signal, repeat the above functions;
>
Again, don't try to look for these exact words. This is just
one example. Every eBay seller will use their own words for this, and
they'll all be different, and they'll all be bizarre and hard to read
in their own way. But let's pull this particular example apart, as a
practice exercise and to help illustrate how this relates to the
functions we're looking for:
- "After power relay does not act": this is telling you that the timer
doesn't do anything special when first powered on. Weird that they
say what it doesn't do, right? Well, they're just spelling
this out because a lot of the other functions of these boards
are all about doing something special when the power first
comes on. So they're trying to be helpful by saying explicitly
that this function isn't related to the power initially coming on.
- "...a high-level interface to CH1 pulse signal": this is the
user-generated trigger signal. "CH1" probably stands for "channel 1",
which is the input that you'd connect to the external signal source,
such as the LedWiz output we want to use as the control. Some of
these boards have more than one trigger input, so they might have
"CH1" and "CH2" for the two inputs. We only need one input for our
purposes, but if the board has two or more, that shouldn't be a
problem, as long as there's a mode that operates on the basis of a
single input. This particular mode's description doesn't say anything
about any other inputs being involved. "High-level" means that the
board's input terminal senses the trigger when the connected voltage
goes "high", meaning it goes from 0V to 5V or whatever the supply
voltage is.
- "...immediately pull the relay": the relay turns on. Just what we
want. I'm not sure why the verb is "pull"; maybe they're thinking of
the relay's magnetic coil turning on and tugging on the switch
contacts to toggle the switch. I bet it makes more sense in Chinese.
The Google Translate round trip probably looks hilarious when you
translate it back.
- "...the relay off delay time T1 after arrival": the relay turns
back off after a delay. "T1" is one of the programmable delay
times.
- "T2 arrive after disconnecting time relay...repeat": everything
resets after the further delay time T2, also programmable. In other
words, you get a forced "off" time of T2 before you can fire the relay
again. That's not part of what I said to look for, but we can
effectively ignore this by setting T2 to a very short delay time
(minimum 0.1 seconds according to this ad).
High-level inputs: As with my "DIY timer circuit" above, most
of these relay boards require a "high-level" input, meaning that they
trigger when the input signal changes from 0V to 5V (or whatever the
logic voltage is for the board). And as I mentioned with my DIY timer
circuit, that's the opposite of how LedWiz's work. See "Adapting for
LedWiz use" in the DIY timer circuit section above for some pointers
on interfacing to an LedWiz.
Slow-blow fuses
"Slow-blow" fuses are designed to perform a similar function to the
type of timer we've been talking about. Rather than blowing
immediately on overload, a slow-blow fuse is designed to tolerate an
overload for a certain amount of time, eventually cutting off power if
the overload goes on too long.
I'd consider a slow-blow fuse to a be a good back-up to a timer. Add
one if you want to be extra-cautious, just in case the timer doesn't
do its job. But I wouldn't consider a fuse to be a good replacement
for a timer. The problem with fuses is that they're not precision
devices; they don't blow after precise time periods or when exact
loads are exceeded. You can count on a timer to have precise timing
characteristics; you can't expect the same thing from a fuse. And, of
course, fuses are expendable, and must be replaced if they ever
actually do stop an overload; a timer can be triggered over and over
without any harm done.
See
Chapter 84, Fuses for information on selecting slow-blow fuses
and how to predict their timing and loading properties. That chapter
includes a section on pinball coils and how to select appropriate
slow-blow fuses for them.
Pinscape "Flipper Logic" setting
The Pinscape Controller firmware has a Flipper Logic feature that
can be used to provide similar timer protection at the controller
firmware level.
The Flipper Logic feature is implemented in software, so I wouldn't
consider it as bulletproof as a dedicated hardware timer. Software is
just categorically less reliable than hardware. But I'd consider it
far more reliable than software on the PC, since it runs in the KL25Z,
which is a much more isolated and controlled environment. So it's a
good first line of defense, and much better than nothing. If you're
using the Pinscape software, and you don't want to go to the extra
trouble and expense of implementing hardware timers, you can greatly
reduce your coils' exposure to overload by enabling the Flipper Logic
feature for them.
What Flipper Logic does: The feature wasn't actually created as
an alternative to coil timers, but it can serve that purpose anyway.
What it was actually created to do was to emulate the "lift" and
"hold" power settings in real pinball machine flipper assemblies. As
we mentioned above, most real pinball flippers generally use two
physical coils, a high-power "lift" coil, and a low-power "hold" coil,
which are engaged, respectively, as the flipper is first activated and
then held.
Some newer Stern machines do the same thing with a single physical
coil, simulating the low-power "hold" coil by reducing power to the
main coil. That's exactly what Flipper Logic does. Flipper Logic
provides full power to a port for a given initial interval immediately
after the port is first activated, and then reduces power to a lower
PWM level if the port is kept on beyond that initial period.
How to use it as a coil timer: The trick to using this as a
software coil protection timer is that the "hold" power can be set to
zero, cutting off power to the coil entirely. When the hold power is
set to zero, it's effectively the same thing as a coil timer. The
only difference is that it's implemented in software rather than as
a dedicated hardware circuit.
How to use for flippers: For flipper emulators, you don't
want the flippers to un-flip when the time limit expires. You want
them to act like real flippers and stay flipped, just with reduced
"hold" power, to avoid overheating. So you want to find lowest hold
power level that keeps the solenoid activated. The required power
level is a function of the specific coils or solenoids you're using,
so you'll have to experiment. Start at the lowest setting, and turn
it up until the flipper stays flipped. Once you find that level, test
it to make sure it doesn't overheat the coil! Carefully monitor the
coil while holding the flipper on - you can just check to see if it's
getting hot to the touch. If it stays cool after being on for a
couple of minutes, it should be safe indefinitely. Note that a little
heating is okay, but it shouldn't ever start feeling hot.
Enabling Flipper Logic: Flipper Logic can be enabled
individually on each output port via the Pinscape Config Tool. Go to
the Settings page and scroll down to the Output Ports section. In
each port, you'll find a little "flipper" icon in the group of control
icons at the right side of the page. Click the flipper icon. This
will let you enter two parameters: the initial full-power time
allotment, and the "hold power" PWM level. To use this as a coil
timer, set the initial full-power time to a suitable value (around
500ms should be good for any momentary device like a bumper,
slingshot, knocker, etc), and set the hold power level to 0.
Remember to click "Program KL25Z" after you've finished making changes,
to save the new settings to the controller board.
55. Button Lamps
Most of the buttons on a pin cab can be illuminated. Any button with
a lamp can have the lamp controlled by software, too, so that the
button lights up, turns off, blinks, and fades in and out when
appropriate.
Examples of illuminated buttons on a pin cab:
- The Start button on a newer (1990s+) machine usually lights up
when a new game can be started, and sometimes blinks
- The Launch Ball button can light up or blink when a ball is ready
to launch
- Some machines have an Extra Ball button that lights up when the
"buy-in" feature is available
- The flipper and Magna Save buttons can be illuminated and can
be set up to show different colors for different games, to match
the original flipper button colors of the arcade versions
- The coin slots in most coin doors are illuminated
Button lights are optional, but most cab builders include them because
they make the machine seem more alive. And controlling the buttons
through software is also optional (you can just hard-wire them to be
constantly on instead), but most cab builders want them actively
controlled, since that makes the machine more interactive and more
realistic.
If you're not sure what all of the buttons are for, see
Chapter 34, Cabinet Buttons for more detailed descriptions of the various
button types commonly found on virtual cabs.
Hard-wired vs software controlled
Some pin cab builders simply wire all of the button lamps so that
they're always on. That's the easy way to do it, certainly, but most
cab builders want the software to be able to control each of the
buttons, so that they only light up when appropriate. To do this, you
need to think of the button lamps as output devices, just like shaker
motors and solenoids.
If you wire the button lamps to your output controller, DOF can
control them in sync with the game action, just like other output
devices. All of the common buttons are specifically supported in the
software, so all you have to do is set up your DOF configuration so
that DOF knows which output controller port is connected to each
button lamp (the Start button lamp, Launch Ball button lamp, etc).
What controls the lights?
A lot of new pin cab builders have a hard time picturing how the
lighted buttons get wired for software control. The thing that's
confusing is that these devices are both buttons and lights.
You're going to have to wire the buttons to a button input encoder
device... so does that mean that the input encoder also controls the
button lights? No.
The right way to think about this is to picture the button's switch
and the button's lamp as completely separate devices. Then it's easy
to see what connects to what:
- The switch connects to the key input encoder, just like any other button
- The lamp connects to the output controller, just like any other feedback device
This isn't just a convenient way of thinking about it, either. It's
literally what's going on. The switch part and the lamp part are
separate devices electrically. They're not connected to each other in
any way in terms of wiring. They just physically occupy the same
plastic housing. That makes it look like a single combined
device, but it's really two devices inside one piece of plastic.
RGB or plain white?
Quick summary: plain white for the front panel buttons; RGB for
the flipper and Magna Save buttons.
The front-panel buttons (Start, Exit, Launch Ball, etc) typically use
plain white lamps, because the DOF config tool only provides
monochrome settings for them. You can install RGB-capable LED
lamps for these if you wish, but most people don't bother because of
the lack of DOF support.
There's nothing technical stopping DOF from supporting RGB for the
front panel lights. The only reason it doesn't is that there hasn't
traditionally been any demand for it. This could change one day if
enough people thought it was desirable.
DOF does provide full color control for flipper and Magna Save button
lights, so if you install those, you should use RGB LEDs.
There's one other button where you might want to install RGB
illumination: the lockbar Fire button, if you have one. DOF doesn't
have RGB support for the Fire button lamp as of this writing, but
there's at least one real machine that uses RGB lighting for it
(Stern's Star Trek, 2013), so it seems like one that DOF should
add in the future. Installing an RGB LED in your cab would be good
future-proofing. You could also use it immediately by setting it up
as a "Custom RGB" device in DOF, but that would require some extra
work on your part to program the DOF Config Tool with the desired
effects for each game.
(What does it actually mean for DOF to support RGB vs monochrome for a
given output? In terms of hardware, full-color lighting is
accomplished with a three-component LED: an LED with individually
controlled elements for red, green, and blue light. The three color
elements have to be controlled separately, so they require three
output ports on your output controller for the single lamp. For
example, if you have an RGB flipper button, your flipper button
requires three separate output controller ports: "red flipper light",
"green flipper light", and "blue flipper light". To use this with
DOF, DOF has to think of the "flipper light" output as consisting of
those three separate channels, so that it can generate the separate
signals to control the relative brightness of the three ports. The
DOF software itself is indifferent to this; it just thinks about the
individual output ports. But the DOF Config Tool does know
about it. The Config Tool has special handling for RGB devices that
groups three consecutively numbered ports together into an RGB group,
so that "RGB flipper button" really translates into the three output
ports on your controller: red flipper button, green flipper button,
blue flipper button. The Config Tool is inflexible about this; some
devices are pre-ordained as RGB and the rest aren't. There's no way
for you as a user to change that; it's up to the guy who runs the
Config Tool. So when I say that "DOF" doesn't support RGB for the
front panel lights, what I really mean is that the Config Tool doesn't
have RGB definitions for the front panel lights. It assigns them as
single-port = monochrome devices.)
Basic wiring plan
Keeping in mind that we're really working with two separate devices
combined into one housing - a lamp, and a switch - the wiring plan is
simply a combination of the generic wiring plan for any output device
(the lamp) and the generic wiring plan for any button (the switch).
Start, Exit, Extra Ball
These buttons are typically installed on the front panel, usually on
the left side of the machine.
The standard part used on real machines (from the 1990s and later) is
known as a "small round pushbutton with lamp", made by SuzoHapp, part
number D54-0004-2x (the last digit is a color code). If you're
searching at a pinball parts vendor (Pinball Life, Marco Specialties),
look for Williams/Bally reference number 20-9663.
These buttons are socketed for #555 incandescent bulbs, which run on
6.3V and require about 250mA. If you buy from a pinball parts vendor,
the button will usually come with a #555 bulb installed. The pinball
parts vendors also sell plug-and-play LED replacement bulbs that fit
the same socket.
Labels: If you buy your buttons from a pinball parts vendor,
you can find buttons that come ready-made with labels for "Start",
"Extra Ball", and a few other options. You can also buy blank buttons
(with no labels) and install your own labels. You can print a label
with any custom text you want using a laser printer and transparency
film. To install a new label, you have to pry the plastic lens off of
the button, remove any label already installed, insert your new label,
and snap the lens back on. This is described in more detail in
Chapter 34, Cabinet Buttons.
Identify the terminals: The first time you look at one of
these button-plus-lamp assemblies, it can be a little daunting,
because they have so many prongs sticking out. It's easier if
you keep in mind that the base of the assembly is really just a
standard microswitch, with a lamp socket bolted on top:
When you look at it that way, it's pretty easy to pick
out the terminals for the switch portion and the added terminals
for the lamp portion.
Note: the "Common" and "NO" (Normally Open) might not be positioned
exactly as shown above for your switch. Double-check the markings
on the switch to be sure before connecting anything.
See
Chapter 35, Button Wiring for tips on reading switch markings.
>
This is even easier to see if you take the button housing off.
To do this, gently twist the bottom switch portion slightly until
it comes loose, then pull the switch housing away from the base.
Now you can see more clearly the way the lamp is tacked on to
a normal microswitch.
Wiring: Once you've identified the two terminals for the lamp,
connect them to your output controller following the basic wiring plan
above.
Incandescent bulbs aren't polarized, so there's no "+" or "-" to worry
about; the two terminals are interchangeable. (LEDs are
polarized as a rule, but nearly all of the #555 replacement bulbs are
specially designed to work with either polarity, since they're
designed to replace incandescents in existing machines.)
Connect one lamp terminal from the button directly to the "+" voltage
from the power supply. You can use 5V, but for the incandescent
bulbs, it's better to use 6.3V, which is the voltage they're designed
for. See below for more on that.
Connect the other lamp terminal from the button to an available port
on your output controller. Each button lamp requires its own separate
output port, so that each lamp can be individually controlled.
DOF setup: The
DOF Config Tool
has entries specifically for the common front-panel buttons. On the
Port Assignments page, assign the appropriate ports to the
function that matches the button type:
- Start Button
- Extra Ball
- Exit
- Fire Button
6.3V supply: Incandescent #555 bulbs are designed to run
on 6.3V. That's not a voltage you'll find on a PC ATX power supply,
so many pin cab builders use the 5V ATX output, since it's reasonably
close. That works, but the bulbs will be noticeably dimmer at 5V
than they're meant to be, which might make your button illumination
look a little sad. If you're using LED lamps, on the other hand,
the voltage won't noticeably affect the brightness, so 5V is fine.
If you want to add a 6.3V supply, an easy way is to buy a
"DC-to-DC step-down voltage converter". These are inexpensive
(under $10 on eBay) and easy to set up. If you buy one on eBay,
look for the type with a variable output voltage, so that you
can dial the desired 6.3V. Alternatively,
pololu.com offers a high-current
converters with a 6V output, which is close enough; that's a
little easier since it doesn't require adjusting the voltage.
To connect:
- Connect 12V (yellow wire) and Ground (black wire) from your
secondary ATX power supply to the step-down converter's (+) and (-)
input terminals
- If your converter has an adjustable output voltage, adjust
it to 6.3V, using a voltmeter connected to the output terminals
to measure it (you'll need to apply the power during this step)
- Turn off power
- Connect the converter's (+) output to one terminal of each
6.3V #555 lamp
- Connect the other terminal of each lamp to an available port on
your output controller (following the standard wiring plan
in Chapter 47, Feedback Device Wiring)
Launch Ball button
Several real machines from the 1990s used big round "Launch Ball"
buttons in place of plungers. Many pin cab builders use the same
buttons, either instead of plungers or in addition to plungers.
See
Chapter 37, Plunger for more on choosing whether to include
one or the other or both, and where to place the Launch button if
you're including one.
The standard type of Launch button is just a variation on the "small
round pushbutton" type used for the Start button and the others above.
The typical type is SuzoHapp part number D54-0004-1x (the last digit
is a color code), which you can find at pinball parts vendors under
Williams/Bally reference number 20-9663-B-4. The generic SuzoHapp
type doesn't have any label text; the type sold by pinball parts
companies will include a "Launch Ball" label insert.
Wiring: the Launch Ball button is wired exactly like
the small round pushbuttons described above.
DOF setup: The
DOF Config Tool
has several entries specifically for Launch Ball buttons:
- Launch Ball: choose this if your cab has only a launch
button, and no plunger.
- Authentic Launch Ball: choose this if your cab has both a
plunger and a launch button.
- ZB Launch Ball: ignore this one. It's not for button lamps,
but for something else entirely (see Chapter 109, ZB Launch Ball).
Why the distinction between Launch Ball and Authentic Launch Ball?
It's to accommodate different styles of cab building and different
personal tastes.
The Authentic Launch Ball is designed to replicate exactly what the
original pinball machine would have done in terms of lighting up
the Launch button. It's controlled purely by the emulated ROM, just
like in the original machines. That means that it never lights
up at all when you're playing a table that originally used a plunger
rather than a Launch button. This is the right choice if you have
both a plunger and a Launch button, since the Launch button will only
draw attention to itself when you're playing a game that actually had
a Launch button in the original version; it'll stay dark when you're
playing a table that originally used a normal plunger.
The Launch Ball button, in contrast, lights up much more often -
essentially whenever there's a ball in the launch chute. This isn't
true to the original games, since most original games didn't have a
Launch button at all. But if your pin cab doesn't have a plunger,
you'll probably prefer this, since it makes every game (even games
that originally had plungers) act like the Launch button is part of
the game.
Big rectangular buttons
Some pin cab builders use a larger rectangular version of the buttons
from the same family as the "small round pushbutton" type above. You
can find these under SuzoHapp part number D54-0004-5x (the last digit
is a color code). SuzoHapp and other arcade suppliers sell a number
of other version of basically the same button in different sizes and
shapes, so you should be able to find something to match the look
you're going for with a little searching.
These buttons all work just like small round pushbuttons above in
terms of wiring.
Flipper buttons
You don't often see this on real pinball machines, but a nice
embellishment for virtual cabs is to illuminate the flipper and Magna
Save buttons.
The DOF Config Tool has support for this. A really nice touch is that
the Config Tool database is pre-programmed to use RGB coloring to
match the original arcade button colors for most tables. Whenever a
table is loaded, the flipper buttons will light up in a color matching
the plastic button color in the original arcade version. If you have
Magna Save buttons, those will light up for games that originally had
similar extra buttons, also using the same colors as the original
arcade machines.
Virtually every real arcade pinball machine had matching colors for
the left and right flipper buttons, so the DOF config tool doesn't
distinguish between left and right. When you're planning your wiring,
you should simply connect the left and right flipper button lights to
the same output ports. In contrast, machines with extra flipper
buttons often were asymmetrical about it (usually, the asymmetry was
simply that an extra button was installed on one side only rather than
on both sides), so the DOF config tool does distinguish between left
and right Magna Save outputs. If you can spare the additional output
controller ports, you should wire the left and right Magna Save
buttons to separate ports, so that they can be controlled
independently.
Be sure to use RGB LEDs for these lights, so that DOF can control
the color.
Parts: For full-color flipper button lights, you need either a
clear plastic button or a translucent white plastic button. I much
prefer the completely clear type because they're a lot brighter, and they look
more interesting to me. Some people worry that clear plastic wouldn't
diffuse the light enough to make the light visible, but in fact they're
really very bright, and the internal
reflections in the plastic make for a pleasing jewel effect. (The
picture above shows my clear plastic buttons. This is with the camera
flash on, so you can get a sense for how bright they are.)
Translucent white plastic produces more diffuse light but reduces the
brightness.
The clear plastic flipper buttons are available in 1⅛" and
1⅜" lengths:
- Standard 1⅛" length, Williams part number A-16883-13
- Longer 1⅜" length, Stern 515-7791-00 (this is nominally
sold as the "Fire" button for Stern lockbars, but it's really just
a standard flipper button in the longer length)
If you bought a button kit from Virtuapin, it probably included the
longer 1⅜" buttons in opaque red and white, with some neat
little plastic leaf switch holders that attach directly to the
buttons. Those switch holders only work with the longer 1⅜"
buttons, so be sure to get the long buttons if you want to use the
switch holders in your final setup.
The shorter buttons are cheaper and easier to find in clear plastic,
but you can't use them with the Virtuapin switch holders. The switch
holders are convenient but are hardly required - it's really not all
that hard to mount the leaf switches without the holders. On my own
cab (and on all of the "real" pinball machines I've seen), they're
simply attached directly to the side wall of the cabinet. You'll need
some kind of spacer to get the positioning right, but otherwise it's
easy. See the photo below of my leaf switch mounting to see how this
looks.
For the lights, there are a few options:
- DIY, using my custom circuit board design. You can find
my EAGLE plans for a board that works like the Lightmite boards
here:
It's easy to manufacture those boards. Just go to
OSH Park and upload the
.brd file from the download, and click through to the
order page.
My EAGLE plan are designed to be drop-in replacements for
the Lightmite boards, so to assemble them, follow the same
instructions below for the Lightmite boards.
- Oak Micros's flipper button LED boards (no longer available).
These come fully assembled
with the LEDs built in, and they're compatible with the VirtuaPin
leaf switch holders as long as you use the longer 1-3/8" flipper
buttons. As of June 2021, I don't think Oak Micros is selling any of
their products any more, but you might check the original vpforums
thread for any updates:
- Lightmite LB boards from
NiceMite.com. I used these for
my own build and would be happy to recommend them, but unfortunately
they don't seem to be available any more. The site is
down as of this writing (April 2020), and although it says
"Temporarily Closed", I'm pretty sure it's really gone for good
because it's said that for at least six months. If they should ever
come back, go with either the plain board or the assembled kit with
the manually controlled 4 lead RGB LED. (Don't buy the
"auto changing" kits. Those don't allow software control over the
colors.)
The assembled Lightmite boards. The LEDs stick
out on the back. The leads should be bent so that the LEDs will fit
into the open space around the button.
Installing the Lightmite boards. Upper left:
the inside of the cabinet with the clear plastic flipper button
installed. Upper right: positioning the Lightmite board. Lower
left: the board in place. Lower right: with the pal nut
installed, screwed onto the shaft on the back of the button.
Full Lightmite board installation, with the
leaf switch back in place. Note that I used a small piece of
plywood as a shim to get the leaf switch positioning right. The
leaf switch has to be set off from the cabinet wall by about
¼", so you'll probably need a similar improvised spacer.
Assembly instructions for Lightmite boards or my EAGLE plans:
Buy one board/kit per button. You need two boards/kits if you only have a pair
of flipper buttons, or four if you have both flipper and Magna Save
buttons.
If you buy the plain Lightmite board or use my EAGLE plans, you'll need to buy the LEDs and other
electronics to populate the board. Buy the quantities listed below
multiplied by the number of boards you're assembling.
- (2) LEDs: common anode (common positive lead) 5mm, 20-25mA RGB LED,
such as Kingbright WP154A4SEJ3VBDZGW/CA
- (2) resistors for the red channel: for the LED above, 150Ω 1/8W
- (2) resistors for the green channel: for the LED above, 100Ω 1/8W
- (2) resistors for the blue channel: for the LED above, 100Ω 1/8W
- (1) 2x2 0.1" pin header
- (1) 2x2 0.1" female crimp pin housing with 4 crimp pins
Wiring: Connect the pins on the Lightmite boards or my EAGLE boards as labeled:
- Connect the + pin on the Lightmite board to +5V from your
secondary ATX power supply
- Connect the R, B, and G pins from the Lightmite
board to ports on your output controller. Each color pin connects to
one port. The ports must be consecutively numbered, and must be in
R-G-B order. For example, if you connect R to port #15, connect G
to port #16 and B to port #17.
- If you have enough ports to spare, connect the left and right
flipper buttons to separate port triplets so that DOF can control them
separately. If you want to conserve ports, you can simply connect the
left and right flipper buttons together. DOF doesn't currently
distinguish left and right flipper button colors, so there's no
immediate benefit to giving them separate port assignments, but
connect them separately anyway if you can so that you'll be able
to take advantage of any future updates if DOF does eventually
separate them.
- Connect each Magna Save button (left and right) to its own group of
three output ports. You can connect them together if you want to
conserve ports, but separating them allows DOF to control the left
and right sides separately.
DOF Setup: Assign the red/green/blue port group for the flipper
buttons to the "RGB Flippers" device type in the DOF Config Tool. If
you wired the left and right buttons to separate port groups, assign
both port groups the same way, both to "RGB Flippers". DOF doesn't
provide distinct left/right versions of the flipper lights, because
essentially every real pinball machine used matching colors for the
left and right flipper buttons in the original arcade version.
DOF does have separate left/right versions of the Magna Save buttons,
because there are many examples of real machines where the left and
right "extra" buttons weren't symmetrical. In nearly all cases, the
difference is that an extra button was only installed on one side. In
these cases, the separate port assignments let DOF leave the missing
button unlit, to better replicate the original arcade setup. So in
the DOF Config Tool, assign the port group for your left Magna Save
button to "RGB Left Magnasave" and connect your right button ports to
"RGB Right Magnasave".
Coin chute buttons
Most people leave the coin chute lights hard-wired to constant power.
If you have a separate Coin button, you can do the same thing. Even
in the real machines, the coin chute lights are almost always
hard-wired to stay constantly on. You can wire these to DOF
outputs if you really want to, and DOF provides a "Coin" output type,
but there's not much practical benefit, as the standard DOF Config
Tool database setting simply leaves this output constantly on, just
like the real games.
If you're using a real coin door, you can find more information
about how the coin chute lights are wired (and how to access that
wiring) in
Chapter 40, Coin Door.
56. Flashers and Strobes
Flashers and strobes are extra lights on your cab to reproduce the
bright flashing light effects of the real machines. I personally rank
flashers in the top tier of must-have feedback devices, as they add a
huge amount of excitement and realism to the playing experience.
Pinball machines have always used blinking lights to attract players
and add to the visual appeal of the game. The light shows became more
sophisticated when software started controlling the games in the 1980s
and 90s, as complex lighting patterns could be programmed and
coordinated with the game action.
One of the key light show components in the 1980s and 90s machines is
the "flasher" light. A flasher is a bright lamp in a plastic dome,
usually situated above the playfield, maybe near a ramp or other
vertical element sticking up out of the playfield. Games from the 80s
and 90s typically have five or six flashers distributed around the
playfield. As the name implies, flashers light up briefly at key
times to create a brilliant strobe effect, to underscore an event
in the game and add drama.
Flashers in real pinballs: alongside the
right ramp in Earthshaker; behind Rudy in Funhouse
The flasher lights from the original games are, of course, reproduced
on-screen in the Visual Pinball versions and other simulator versions.
They appear in the video version just where they would have been on
the real playfield, and they light up when they're supposed to.
That's fine for desktop play, but when you blow it up to life size in
a pin cab, it becomes more apparent that they're artificial; the video
version just isn't as bright as the real thing.
That's why many pin cab builders include actual flasher lights on
their cabs. Rather than relying entirely on the on-screen video
renditions of the flashers, you can supplement the video display with
a set of real flashers, which produce the same brilliant light as the
real thing.
Related to the flashers is the "strobe" light. This is an
embellishment thought up by the pin cab community, not something you
find on real pinball machines (not commonly, anyway). It usually
takes the form of a very bright white light somewhere in the player's
line of sight. The DOF software will flash this briefly (thus the
"strobe" monicker) at dramatic points in the game play. This might
just seem like one more flasher light, and in broad terms, it is. The
only reason for calling it out as a separate device is that it's
usually implemented with a much brighter light source than the regular
flashers, so that it produces a particularly dramatic burst of light
at appropriate moments.
Flasher panels
In the real games, flashers are arranged around the playfield in
different places in each game. There's obviously no way a virtual pin
cab can reproduce the exact placement of the original flashers in
every game (other than with the video renditions that we've already
decided we want to supplement). We can't even move them around per
game; we have to pick a fixed set of locations. So the usual
arrangement is to group a set of flasher lights together in a "flasher
panel", usually arranged in a straight line across the width of the
cabinet.
There's no fixed rule about how many flashers you use or where to
place them. It should go without saying, but it's your cab, so it's
your call. But given the constraints, there are some common
arrangements that most cab builders end up using. Let's look
at the options.
Number of flashers: Most pin cab builders use a panel with
three or five flashers.
What's magical about the numbers 3 and 5? History, mostly. The DOF
Config Tool database has specific support for 3- and 5-flasher setups,
because those are the most common setups that people build. (And now
everyone goes with those setups because they're what's supported.) The
5-flasher setup also has a somewhat deeper significance in that it
maps well to the original physical flasher layout in most real tables.
Most of the 1980s and 90s machines used about five flashers total, so
a 5-flasher panel lets DOF map the flasher effects from the original
games directly to your physical lights.
You can build panels with any number of flashers you want, but a
3- or 5-flasher setup is easiest to work with because of the
pre-programmed DOF support.
I'd recommend the 5-flasher setup if you're building a full-size cab,
since it will easily fit and will produce the most interesting light
show effects. The 3-flasher setup is mostly for mini-cabs where
there's not room for five.
Placement: Once you have your panel of three or five
flashers, the possibilities for where to situate it become
fairly apparent based on the space available in your cabinet.
The most common places are:
- At the back edge of the playfield TV. This is the most common
placement, because it answers the question "what should I do
with the extra space behind my TV?" that most cab builders are
faced with. Nearly all pinball cabinets
designs (even the "widebody" plans) are longer and narrower than a
standard 16:9 TV, so there's usually some extra front-to-back
space to fill, typically between 3" and 6".
You can position the panel so that it lies flat in the same
plane as the TV, or you can tilt it up at an angle, if you left
any vertical space between the playfield and the glass cover.
My panel is tilted up at about a 30° angle to fill the
vertical space (see the photo below).
- Vertically, on the inside back wall of the cabinet above the TV.
Some people prefer this arrangement because the lights point more
directly at the player, which might slightly reduce reflections from
the glass cover.
- On the front of the backbox, in the speaker panel area just below
the DMD. If you positioned your TV at the very top of the cabinet
with no room between the TV and glass cover, you probably can't fit
flashers inside the cabinet. You can position them outside the
cabinet instead, on the front of the backbox.
- Across the top of the backbox, near the front edge. I have an extra
set of five flashers here on my cab. This is a good place for a
supplemental set of flashers, but I wouldn't recommend it as the
location for a lone set, since it's not in the player's line of sight.
That greatly reduces the impact. It does add to the effect for
bystanders, though, which is why I like it as a secondary location.
My flasher panel. Five flasher domes are
distributed across the width of the cabinet. The panel is
at the back of the playfield TV, tilted up at about a 30°
angle to the plane of the TV, so that it fills both the
horizontal and vertical gap at the back of the cabinet.
Building a flasher panel
LEDs: For the full effect, you'll want to use an RGB LED
for the flashers. This allows the software to control the color
emitted. An RGB LED has separate elements internally for red,
green, and blue light (the "R", "G", and "B" of the name).
The type that most people use in pin cabs can be found on eBay
by searching for "star base LED" or "3W LED RGB". They look like
this:
The type on the left is the "star base" type. These come with a metal
base that serves as a heat sink and makes the wiring a little easier.
The type on the right is actually the same LED, just without the base.
You can buy them either way. Most people think the type with the base
is a little easier to work with.
These are sold in individual colors as well as RGB, so be sure to
order specifically the RGB type. All of the parts I've seen for these
on eBay are the same basic device, so there's not too much risk of
finding a wrong part that looks similar, but here are the approximate
electrical specs to look for just to be sure you have the right thing:
- Red channel: 2.2 to 2.4V, about 400mA
- Green channel: 3.2 to 3.4V, about 400mA
- Blue channel: 3.2 to 3.4V, about 400mA
Plastic domes: Most pin cab builders use the same domes
used on the real pinball machines for their flashers. They come
in two main types, which are different only in how you attach
them. Here are the Williams part numbers:
The screw tab type is a little easier to install; the twist-on type
looks a little cleaner since the fasteners are hidden under the dome.
You can easily make either type work as long as you plan for it.
The domes come in various colors (red, purple, amber, etc.), but for
pin cab purposes, you almost always want the clear type, since we use
them with color-changing RGB LEDs. If you want a particular color for
some reason, the last two digits of the part numbers above are the
color code for "clear", so you can find the other colors by searching
for the part number prefix without the -13 suffix.
Voltage supply: Plan on supplying the flasher LEDs from a
5V power supply.
A lot of new cab builders find LED voltage specs confusing. LEDs
always quote a "forward voltage", and it's always something weird like
2.2V or 3.4V. And it's usually a range, like 2.2-2.4V. Does this
mean that you're supposed to find a 2.2V power supply? Fortunately
not! The "forward voltage" for an LED
isn't the supply voltage
required. It's the amount of voltage that the LED "drops" when
operating, which is sort of the amount it uses or consumes. That's
why it's often quoted as a range; the manufacturer is just saying that
the exact number varies a little bit from one individual part to the
next, but it should always be in this range, and will usually
gravitate to the middle of the range. What does this mean for the
supply voltage, then? It's really simple: the supply voltage can be
any voltage higher than the forward voltage. So if the forward
voltage is "3.2-3.4V", it means that you can use pretty much anything
higher than 3.4V. It's best to pick the lowest conveniently available
voltage higher than the required minimum, because the higher the
voltage, the more energy will get burned up in heating the resistors.
In a pin cab, you usually have a 5V supply readily available, (see
Chapter 45, Power Supplies for Feedback), so 5V is the best option for almost every
LED. If you had a 4V supply or a 3.7V supply, that would be better
still, but those aren't typical voltages in a pin cab; 5V is what
we usually have readily at hand.
You might read advice on the forums to use a 12V power supply for the
flasher LEDs. Ignore that. It's best to use the lowest conveniently
available supply voltage above the LED's "forward voltage" spec.
Using a 12V supply just burns up all of the extra voltage in resistor
heating, which forces you to use physically larger resistors that can
tolerate all of the extra waste heat. A 5V supply lets you use
smaller resistors that waste less energy.
Resistors: The star base LEDs are bare LEDs that do not
include any sort of built-in current regulation. This means that you
must include separate resistors in the circuits when wiring them.
It's important to choose the correct type of resistor for each
color channel.
Chapter 52, LED Resistors explains how to choose,
and includes a calculator to determine the correct Ohms and Watts
value for each.
The resistors have to be wired into the circuit in series with the
LED. They can go on the (+) side or the (-) side; it's exactly
the same either way.
You can wire the resistor for the LED on
the negative side or positive side, whichever is more
convenient for your setup. It's the same electrically
either way.
The red, green, and blue channels are independent devices, so each
channel needs its own resistor. The channels will have different
resistance values, too; that's why they quote the "forward current"
and "forward voltage" separately for each color.
Pay attention to the wattage value that the resistor calculator
reports, and be sure you buy resistors with at least the required
wattage. This is not some kind of "detail for nerds" that
you can ignore; it's part of the spec for what you need to buy.
Here's a simple circuit board design for the resistor panel. This is
designed to be used with a ribbon cable connector to the output
controller board. The pin layout of the 16-pin connector (at the
bottom of the board as pictured below) matches the pin layout of the
Pinscape expansion board RGB Flasher connector, so you can
conveniently connect this directly to the expansion board with a
ribbon cable. You can also easily use this board with non-Pinscape
output controllers; you just have to program the controller so that
the LED channels match the pins on the connector.
Here are the EAGLE plans, if you want to have this board manufactured:
>
You can have it made in lots of three by
OSH
Park for about $16, with an extremely simple ordering process (just
upload the .BRD file from the ZIP above). You can have it made
more cheaply per board at PCB makers like Elecrow, but they have larger
minimum order sizes and require you to generate Gerber files. That
procedure is explained in
Chapter 93, Fabricating the Expansion Boards.
To assemble this board:
- Install a 2x8-pin 0.1" pin header as shown in the picture
- If you use a shrouded header for the 2x8 connector, make the sure
the keying slot on the shroud is aligned properly for your ribbon
cable; see Chapter 81, 0.1" Pin Headers
- Figure the resistor values required as explained in Chapter 52, LED Resistors
- Be sure to pay attention to the wattage calculation in that section, and
use resistors with at least the required wattage specs
- The board is designed for resistors up to 4mm in diameter and
up to 12mm in length (the gigantic squarish "cement" resistors won't fit)
- Install the resistors in the R_xx slots: R_1R is the resistor
for LED 1 RED channel, R_2B is LED 2 BLUE, etc
- Resistors aren't polarized, so it doesn't matter which direction
you install them
- I'd solder hookup wires from the boards to the LEDs directly to the
edge connector terminals; 1R is for LED 1 RED, 2B is LED 2 BLUE, etc
- If you prefer, you can install single-row 0.1" pin headers on the edge
connectors, but I don't think that's necessary in this case, because I'd
consider this board to be an integral part of the flasher board that can
be hard-wired to the LEDs
- If you're using the Pinscape expansion boards, simply connect the
resistor board to the RGB Flashers header using a 16-conductor ribbon
cable with a 16-pin IDC plug at each end; see Chapter 83, Ribbon Cables
for help building these cables
- When plugging in the cable, be sure that the ribbon cable is oriented
so that Pin 1 on the expansion board connects to Pin 1 on the resistor
board (Pin 1 on both boards is marked by the little triangular arrow
next to the header)
Building the panel: I went with a simple design for my panel.
- I started with a piece of 3/8" plywood, cut to the inside width of
my cabinet and a height that I measured to fit the available space
where I planned to install it.
- I drilled five 1/2" holes at regular intervals, where I wanted to
place the lights.
- I soldered four wires to each of the five star LEDs: one wire to
each of Red(-), Blue(-), and Green(-), and a fourth wire that I
connected to all of the (+) terminals. As described in
Chapter 47, Feedback Device Wiring, the standard wiring plan for all devices
is to switch on the (-) side, so the (+) side is always connected
directly to power and can thus be daisy-chained across all devices
that share the same voltage.
- I then installed the LEDs in the pre-drilled holes, holding them in
place with little metal clamps. The clamps aren't anything standard;
they're just something that I made custom by cutting them out from a
piece of sheet metal from Home Depot.
- I ran the wires from the LEDs to a small circuit board containing
the resistors (see above). This is just an ad hoc circuit board I
made for the cab. You can just wire the resistors in-line through the
wires without a circuit board if you find that easier.
- On the front side of the board, I attached the plastic dome with
wood screws.
Finishes for the panel: Most people just paint their panels in
the same color as the inside cab walls, usually black. I used
custom-printed adhesive decals that I had made at the same time as the
decals for the exterior of my cab. See
Chapter 22, Cabinet Art.
Heat sinks: Some people use large heat sinks with these LEDs.
I don't personally think it's worth the trouble, because flashers are
activated intermittently, for brief periods. Plus, the metallic star
bases already provide a moderate degree of heat dissipation. If you
were leaving these LEDs on at full power for long periods, heat sinks
would be warranted, but they're not necessary in this application.
If you want to use heat sinks anyway, you can find a variety of
suitable products on eBay. Attach them to the back of the star
base with thermal paste.
Wiring to the output controller: Follow the general plan in
Chapter 47, Feedback Device Wiring to connect the LEDs to your output
controller. Connect the (+) side of each LED to the +5V from your
power supply, and connect the (-) side to an available port on your
output controller. Keep in mind that each channel requires a resistor
(see above) in series with the LED, inserted either between +5V and
the LED (+) terminal, or between the output controller port and the
LED (-) terminal.
The DOF Config Tool requires that you use consecutively numbered
output ports for each Red-Green-Blue group, in that order.
For example, if you wire the RED channel of Flasher #1 to output port
#8, you must wire GREEN to port #9 and BLUE to port #10.
DOF setup: In the
DOF Config Tool,
after you've done the basic setup for your output controller,
go to your Port Assignments page. For each flasher LED in your
setup, find the port number for that device's RED channel, and
set it to the appropriate flasher device:
- For a 5-Flasher setup, the flashers are labeled, from left to
right, "5 Flasher Outside Left", "5 Flasher Left", "5 Flasher Center",
"5 Flasher Right", and "5 Flasher Outside Right".
- For a 3-Flasher setup, the flashers are labeled, from left to
right, "3 Flasher Left", "3 Flasher Center", and "3 Flasher Right".
When you select the appropriate "5 Flasher" or "3 Flasher" device for
the RED channel's port, the Config Tool will automatically assign the
next two output ports in sequence to the GREEN and BLUE channels for
the same device. This is why you had to physically wire each LED to
three consecutively numbered ports in Red-Green-Blue order. It's just
the way the Config Tool thinks about RGB, so you have to do the wiring
to match its expectations.
Pinscape expansion boards: If you using the Pinscape expansion
boards, you should connect the flashers to the dedicated Flasher
outputs on the main board. These outputs have enough power handling
capacity for about three sets of flashers in parallel, if you have
multiple sets (such as my arrangement with the main flasher panel at
the back of the cabinet, plus a second set on top of the backbox).
Strobes
Strobes make a nice accompaniment to flashers. Strobes are simply
bright white lights, usually much brighter than the flasher lights,
that the software can light up occasionally for particularly dramatic
events in the game.
Unlike flashers, strobes are typically monochrome, not RGB. They're
just plain white lights. This makes them a little quicker and easier
to set up since you only need a single output port to control them.
One question that new cab builders always ask is whether you need some
kind of special timed bulb that handles the rapid flashing effect.
The name "strobe" certainly suggests this. The answer is no: the
flashing effect is handled entirely by the DOF software. All you need
for the physical device is a bright white LED.
Parts: The device that most pin cab builders use for strobes
are small but bright LED panels designed for automotive use (emergency
lighting, spotlights, etc). They can be found on eBay by searching
for 22 LED white strobe. (This search might also turn up some
"22 Inch" LED light bars for trucks. Ignore those. You're looking
for the smaller "22 LED" products.) The ones you're looking for look
like this:
Since these are designed to be installed in cars and trucks, they
usually come with a separate control box, which lets you blink the
lights in various flashing patterns. You don't need these
control boxes for DOF - just discard the control box and plug the LED
directly into your output controller. That will let DOF control the
flashing effects directly. (This also means it's perfectly fine to
use an LED that doesn't come with any sort of control box.)
Positioning: A lot of people put a pair of the 22-LED
strobes on their flasher panel, usually one at each outside edge.
Others put them on top of the backbox or in the speaker panel area.
I put mine on top of the backbox, facing forward (facing the player).
I'm happier with that location than in the main flasher panel because
I find them too bright to have directly in your line of sight while
playing. Having them on top of the backbox makes the strobe effect
suitably dramatic without blinding the player every time they fire.
Power supply: Check the specs on your specific product to be
sure, but the standard power requirement for strobe panels like the
ones described above is 12V DC. The same is true for almost anything
made for automotive use, since that's the standard car "cigarette
lighter" voltage.
LED resistors: Not needed for the typical 22-LED panel. These
are meant to be plugged directly into a car's 12V power supply, so
they have the necessary resistors built in.
- Connect the 22-LED panel's (+) terminal (usually the red wire) to
the +12V power supply (the yellow wire from your secondary ATX power supply)
- Connect the LED panel's (-) terminal (usually the black wire) to
an available port on your output controller
- If you bought one of the car-and-truck strobes that comes with a
blinker control box, discard the control box and connect the wires
from the LED panel directly to your output controller (LedWiz/Pinscape/etc).
DOF will handle the flashing effects, so you don't need any separate blinker
control box; including it in the circuit will just interfere with the
wider range of effects DOF can create.
No additional parts are needed with these (in particular, no resistors
are needed).
The typical 22-LED panels require about 500mA. This is just barely
within the safe range for an LedWiz output, so you can connect it
directly to an LedWiz. Don't connect two panels in parallel to
the same LedWiz port, though, as this would require 1000mA, which is
double the LedWiz's safe limit.
Pinscape expansion boards: You can connect a 22-LED panel to
the dedicated "Strobe" output, to any RGB Flasher port, or to a power
board port. Any of these ports will handle two of the 22-LED panels
wired in parallel.
DOF setup: In the
DOF Config
Tool, go to your Port Assignments page. Find the output
controller port number where you wired the strobes. Assign this
to "Strobe".
57. Beacons
In virtual pin cab
parlance, a beacon is a rotating or flashing light like you'd find on
a police car or ambulance. Beacons make good backbox toppers, since
they're the right size, and they can play an active role in the light
show. They're also a good simulation feature, since lots of real
pinball machines featured beacon topers.
Parts: The only part needed is the beacon itself, which you can
buy as a ready-made product. I haven't seen any good DIY designs,
probably because it's pretty easy to find off-the-shelf products that
fill the bill.
The thing to look for is "police beacon" or "rotating beacon light".
You can look for these on Amazon or eBay, but unlike most product
categories, neither site tends to have very good options. The ones
you'll find on either site are mostly "disco" or "party" lights -
novelty toys, which won't be very bright or realistic. So instead of
looking at a general retailer, you might try specialty automotive
supply stores, such as
Vehicle Safety
Supply.
A particularly good option that I've found is the Peterson 771
series. I use a pair of these on my cab. They're inexpensive (about
$25 apiece), they're exactly the right size and shape, they feature a
traditional motorized rotating light with directional reflector, and
they're available with red, blue, or amber lenses. They're a perfect
fit for this job. To find them, search on the Web for Peterson
V771A for amber, V771B for blue, and V771R for red.
Another option is the very similar looking Wolo Manufacturing 3100
series: 3100-A (amber), 3105-B (blue), 3110-R (red). I haven't seen
these in person, but from the pictures and specs, they look
essentially identical to the Peterson V771 series. They might even be
the same thing under a different brand name. Current prices are about
$20 per unit.
Beacons mounted on my cab's backbox, one
red and one blue. These are off-the-shelf items, Peterson
model 771, available from automotive supply sites.
Mounting: Many of the beacons you'll find (including the
Peterson 771) come with magnetic bases that are intended to hold the
light to the roof of a car. You'll probably want to remove the
magnetic base and attach the light to the top of your backbox with
screws or other wood fasteners. You could alternatively glue them in
place, although I try to avoid glue as it can't be easily removed if
you ever need to replace the device.
Wiring: Check with your product's documentation to be sure, but
anything automotive generally runs on 12V DC. That works well in a
pin cab because we usually have a 12V supply available from a
secondary ATX power supply; see
Chapter 45, Power Supplies for Feedback for more on
that.
- If your beacon has a motor, be sure to connect a diode between the
(+) and (-) leads of the beacon, with the striped side of the diode
connected to the (+) lead of the beacon, as described in Chapter 53, Coil Diodes.
This is required if there's any sort of motor or coil in the device.
Any beacon with a rotating light has a motor inside to drive the
rotation.
- Connect +12V from your power supply (the yellow wire for an ATX
power supply) to the (+) terminal of the beacon
- Connect the (-) terminal of the beacon to an available output
port on your output controller
The beacon might not have specific (+) and (-) terminals. If not,
the order of the connections probably doesn't matter.
Electrical interference: If you're using a mechanical beacon
with a motor that drives the rotating light, be sure to use a diode as
mentioned above. If you still have problems with electrical interference
when it runs (for example, USB devices randomly disconnect, or you see
random keyboard input on the PC), you might need to add more filtering.
The two-inductor filter described for the shaker should work here. See "Electrical
Interference" in
Chapter 61, Shaker motors for
the wiring and parts details.
Check the power: You should check your beacon's power usage to
make sure that your output controller can handle the load. The
beacons I use draw about 500mA each, so the pair of them requires
about 1A. If your product's documentation doesn't specify the power
draw, you can test it yourself using an ammeter.
For Pinscape expansion boards: It should be safe to connect any beacon
to any MOSFET Power Board output. Those outputs can handle up to
about 4A. Nearly any beacon should be well under 1A. It's best to
check (measuring with an ammeter if necessary) if you're not sure,
though.
If you're using an LedWiz: It's safe to connect a beacon directly to
an LedWiz output if the device draws
less than 500mA. If it's
above 500mA, you'll need some sort of "booster". See "Power Limits"
in
Chapter 50, LedWiz Setup.
DOF setup: In the
DOF Config
Tool, go to your Port Assignments page. Find the output
controller port number where you wired the beacon. Assign this
to "Beacon".
Increasing the brightness: Most of the rotating light beacons
you'll find come with small incandescent bulbs. If your cab includes
flashers and strobes, the beacons might look dim and
unimpressive in comparison. This isn't really the beacons' fault;
it's more that the LED devices we use for flashers and strobes are
extremely bright. They'll put a little incandescent bulb to shame
(especially with the darkly tinted plastic dome covering it).
You can increase the brightness somewhat by installing an LED bulb in
place of the incandescent that your beacon comes with. Most of the
beacons use common automotive bulb types for which LED replacements
are readily available. Almost all automotive light bulbs run on
12VDC, so the main trick is to figure out the type of socket base that
your beacon uses, so that you can find a bulb that fits. Check your
beacon's instructions, or just look at the bulb itself. The bulb type
is often printed or embossed somewhere on the metal base of the bulb.
The Peterson model 771 beacons use bulbs with socket type 1156, also
known as BA15S. Any LED replacement bulb with the same base and a 12V
supply voltage should work.
In case you were wondering, you
don't have to add extra
resistors if you switch to LED bulbs. If you've read the chapter on
Chapter 52, LED Resistors, you know that "bare" LEDs require resistors
in the circuit to limit the power going through them. But we're not
talking about bare LEDs here; we're talking about LED replacements for
incandescent bulbs. Any LED bulb that's designed as a plug-in
replacement for an incandescent bulb has the necessary resistors built
in, so no external resistors are needed.
If you install an LED, and the motor runs but the LED won't light up,
you might need to reverse the polarity of the power supply connection
to the beacon. Incandescent bulbs aren't polarized, but LEDs are. If
the LED bulb won't light, try swapping the (+) and (-) leads connected
to the beacon. This might also have the effect of reversing the
direction of the motor, but it should make the LED light up.
Warning: if you've attached a diode to the beacon (required if
your beacon has a motor), be sure to reverse the diode at the same
time that you reverse the voltage polarity.
Another thing you can do to improve the
apparent brightness
of the beacons is to supplement the beacons with some additional
red and/or blue strobe lights. The "22-LED strobes" recommended
in
Chapter 56, Flashers and Strobes also come in red and blue varieties. So:
- Buy a 22-LED blue or red strobe, matching the color(s) of your beacon(s)
- Mount it on top of your cab next to or behind the beacon, facing
the ceiling
- Unlike the advice for strobes in Chapter 56, Flashers and Strobes, do use
the little control box that comes with the strobe panel, so that the
LEDs flash when the beacon is activated rather than turning on
continuously.
- Wire the control box to the same output port as the beacon, so that
the LEDs start flashing whenever the beacon is running
- Make sure that the added power of the LED panel doesn't overload
your output controller port. If the combined load would be too
great, use a second port for the strobe panel instead, assigning
it in the DOF configuration to the same "Beacon" device.
The added LED panel obviously won't increase the actual brightness of
your beacon, but it will increase the overall amount of flashing red
or blue light during a beacon display, which will create the
impression of a brighter beacon. I recommend this approach because I
use something like it myself to good effect. (My setup is a little
more custom, but it's basically the same idea. I use some extra LEDs
around the perimeter of my custom fan housing instead of the 22-LED
panels, and I use a custom-programmed flashing pattern controlled by a
Teensy microcontroller.)
58. Undercab Lighting
Some pin cab builders put LED lighting on the underside of their
cabinet, to create a pool of light around the machine. This can also
be used on the back of the main cabinet and backbox, to create an aura
effect on the wall behind the machine. Unlike most of the other
feedback equipment, this isn't meant to replicate a feature of the
real machines (not an original feature, anyway, although undercab
lighting is a popular after-market mod). This is more of an extra
feature to add to the arcade atmosphere.
Undercab or behind-the-cab lighting is usually implemented with LED
light strips. These are narrow plastic strips with small LEDs mounted
about every half inch. The strips can be cut to any length, so they
can be adapted to cover whatever area you want to cover. The closely
spaced LEDs provide a nice diffuse glow over the whole area.
LED strips are easy to find on eBay, Amazon, etc., because a lot of
people use them for home lighting applications.
You can buy strips with single-color LEDs, but for our purposes,
you'll want the full-color "RGB" type. These combine red, green, and
blue lighting elements that can be controlled independently, allowing
them to display any color by adjusting the mix of the three color
components. That lets DOF show different color effects for each game,
and optionally change the colors in sync with the game action during
play.
There are two rather different kinds of the RGB strips that look very
similar on the surface, but serve different functions: the standard
"dumb" type, and the "addressable" type. The standard type lets you
set all of the lights on the strip to the same color. You can set
them to any color, but all of the LEDs will show that same color. The
addressable kind lets you set each individual LED on the strip to its
own separate color.
For undercab lighting, most people use the standard type, because the
goal is simply to create a diffuse pool of light. The addressables
are much more expensive and much more complex to set up, which makes
them hard to justify for ambient lighting. That's not to say you
shouldn't use addressables at all - they actually have other uses
apart from undercab lighting where you'd want them; see
Chapter 65, Addressable Light Strips. But for undercab lighting, the
simpler "dumb" type is more appropriate.
Parts
Light strips: eBay usually has the best prices on these
light strips. Search for
5050 RGB LED strip. Matching listings
typically use photos that look something like the one at right.
The strips on eBay are most commonly sold in 5-meter reels (labeled
"5M" on eBay). 5 meters is about 16 feet; for a full perimeter around
the underside of your cabinet, you'll need about 3.5 meters, so one
5-meter reel will do the job. Don't worry about finding the exact
length you need, as the strips can be cut to any length.
Don't buy a "kit"; look for a bare reel only. Many eBay sellers offer
kits that come with accessories such as remote controls or wall-wart
power adapters. You won't need those in a pin cab installation.
The eBay seller pages for the reel strips often combine a bunch of
different options. Here are the common choices and what you should
select:
- 3528/5050/5630 type: choose 5050 (usually the only type available in RGB)
- Color: RGB, sometimes called multi-color or full-color
- Length: 5 meters (5M)
- Waterproof/non-waterproof: choose the non-waterproof
- Number of LEDs: 60 per meter (the seller might indicate this as "300
LEDs" if it's a 5-meter strip)
Wire connectors: You can find solderless wire connectors for
the strips like the one pictured below. Search for "4-wire RGB light
strip connector". Look for the type with the white plastic connector
at one end. The white plastic bit is designed to clamp onto the end
of a light strip to connect it without soldering.
These are optional. You can also just solder wires directly to the
copper pads on the strip. That's a little tricky, though; the
solderless connectors are easier.
Note that the black plastic plug on these connectors mates with the
LED amplifiers below, so these are also helpful if you're going to be
using any of the amplifiers.
Corner connectors: If you're going to set up a ring around
your cab's floor, corner connectors can be very helpful. These
look like the ones pictured at right.
Amplifiers: If
you're going to attach the strips to an LedWiz, PacLed, or standalone
KL25Z, you
must use an amplifier to power an undercab strip. These
aren't necessary if you're using a Pinscape power board to control the
strip, as long as your combined strips aren't more than about 4 meters
long. (And if you do need more than 4 meters of strips, you could
still avoid the amps by breaking the strips up into 4 meter sections,
and attaching each section to its own separate set of power board
output ports.)
You can find amplifiers built specifically to work with these strips
on eBay, by searching for "LED amplifier". Look for the "mini"
amplifier like those shown at right. Don't buy a "remote control" or
color changer device - those can look quite similar, but they'll have
buttons to change modes. You just want a plain amplifier, since DOF
is going to do all of the color control.
To determine the amount of current the strip will draw, check the
specs on the product you bought to determine the Amps per meter it
uses, and multiply that by the combined length of your undercab
strip(s). The typical power spec is 1.2A per meter per color channel
(1.2A per meter for the Red channel, and the same for Green and Blue).
A typical undercab lighting setup needs about 3 to 3.5 meters of the
strips, which comes to about 4A per channel. That's way above the
LedWiz's 500mA (0.5A) limit, so you'll need to use an amplifier with the
LedWiz. 4A is fine for the Pinscape power boards, though.
Positioning
The arrangement I recommend is to make a ring
around the perimeter of the cabinet, close to each outside edge. I'd
attach the LEDs to the flat bottom panel, not to the edges of the side
walls, as the glue will adhere better to the flat plywood surface than
to the more porous edges.
Another place that some people like to put the strips is on the back
of the backbox. A couple of vertical strips, one at each edge, should
work nicely there.
Installation
The first step is to measure out the length you need for each run, and
cut the strip into the required lengths.
You can cut the strip only at certain points, where the copper pads
are exposed. On all of the strips I've seen, the cut points are
spaced about 2 inches apart, every 3 LEDs. There should be a line
marked on the strip down the middle of the copper pads. Use a pair of
scissors to cut right down the center line.
When deciding where to cut, take into account the extra space you'll
need for the wire connections to the end of the strip and any corner
connectors you'll be using.
Connecting wires to the strips: The easiest way to wire the
strips is to use the solderless connectors mentioned above.
To use these, pry open the white clamp cover (there's a little locking
tab on one side), so that it looks like image (1) below. Position the
end of the strip so that the copper pads on the strip fit over the
metal prongs in the connector, as in (2) below. Note the labeling on
the strip: the pad labeled "+12V" should line up with the black wire,
"G" should line up with the green wire, "R" should line up with the
red wire, and and "B" should line up with the blue wire. Once the
strip is positioned, close the white plastic cover and make sure the
lock tab engages. This should hold the strip in place mechanically
and form a good electrical connection to the wires.
If you prefer, you can solder your own hookup wire directly to the
copper pads on the strips. I've found it tricky to get the solder to
stick, though, since the pads are so small. And even when you get a
wire to stick, the solder joints will be fragile, due to the
flexibility of the plastic strip. If you do decide to use solder,
test your work by applying power to all channels and verifying that
the strips light up white, then securely wrap the solder joint and the
adjacent inch or so of wire with electrical tape. You want to make
the area around the connection stiff enough that it won't bend much
while you're working with the strip. The solder isn't nearly as
flexible as the plastic strip, so the solder joints will break easily
if you flex the plastic even slightly.
Connecting corners: If you're making a ring around the
perimeter of your cab, use the corner connectors mentioned above to
connect adjacent strips at the corners. The corner connectors work
just like the solderless wire connectors: snap open the cover of the
white plastic bit, fit the end of the strip into it so that the copper
pads on the strip line up with the metal prongs in the connector, and
snap the plastic cover shut to lock the strip in place.
Corner connectors, with the covers closed
(left) and open (right). Fit the end of a strip into each
connector so that the copper pads on the strip line up with
the metal prongs in the connector.
Attaching to the cabinet:
The strips come with a self-adhesive backing, so in principle you can
just peel off the backing and stick the strips to the bottom of your
cab.
In principle, anyway. In practice, the glue on the backing isn't all
that strong, at least when used with bare plywood. On my own cab, the
strips seemed to attach well initially, but they started peeling and
drooping after a couple of months. I've heard the same story from
several other people. So you might need to shore up the attachment
with something stronger: staples, hot glue, epoxy, or a strong
double-sided adhesive foam tape.
If you use staples, be really careful not to pound them in so hard
that you break the delicate copper traces on the plastic strips. Also
be careful that they don't come into contact with any of the exposed
metal traces or pads on the strips, as that could cause a short
circuit that could damage the power supply.
If you use hot glue or epoxy, put a tarp down while you're working so
that you don't drip any glue on the floor.
If you're using the wiring connectors and/or corner connectors, it's
worth gluing or otherwise fastening those to the cab as well, as they
add some weight that would otherwise be borne by the adjacent strips.
Wiring
Direct connection: If you're not using an LED amplifier
(e.g., you're connecting the strip directly to a Pinscape power board),
the wiring follows the standard plan for typical RGB devices,
as illustrated below.
Warning! Don't use a direct connection like this with an
LedWiz or standalone KL25Z. Doing so will damage or destroy the
controller. The current (amperage) is too high for either one to
control directly, and the voltage is too high for the KL25Z. You also
can't use direct connections with a PacLed, since those are also
limited to low current levels. Skip down to the part about using LED
strip amplifiers below.
You can use a direct connection like this with the Pinscape
expansion boards, using Power Board outputs.
- Attach a connector to the end of the LED strip as described above.
- Cut off the black plug from the connector.
- If necessary, solder an additional length of ordinary hookup wire
(22 to 24 gauge should work) to each of the RED, GREEN, and BLUE wires
coming out of the connector, to make the wires long enough to reach
your output controller. Also solder an addition length of hookup wire
to the black wire from the connector, but in this case you need it to
reach the +12V terminal on your power supply.
- Connect the red, green, and blue wires to available ports on
your output controller.
- You must follow the standard DOF rule about RGB devices: the red,
green, and blue wires must be connected to consecutively numbered
ports, in red-green-blue order. For example, if you plug the red
wire into port 15, green has to go to port 16, and blue has to
connect to port 17.
- Connect the black wire from the LED strip connector to the +12V
terminal on your power supply. You can use the secondary ATX power
supply for this; see Chapter 45, Power Supplies for Feedback.
Connecting through LED strip amplifiers: The wiring with an amplifier
involved looks like this:
- Attach a connector to the end of the LED strip as described above.
- Plug the black end of the connector into the "Output" side of the
LED amplifier. The four-pin black plug on the solderless connector
mates with the LED amplifier's Output socket. To orient the plug
properly, match the black wire on the connector to the arrow or
"+12V" printed on the LED amplifier body. This should match up with
the "+12V" marking on the LED strip itself.
- Plug another connector of the same into the "Input" side of the LED
amplifier. Again, the black 4-pin plug on the connector should mate
with the Input socket on the amp. Match the black wire on the
connector to the arrow or "+12V" marking on the amp body.
- Cut off the white plug at the other end of the connector you just
plugged into the Input side of the amp.
- The black wire from this bundle can be left unconnected.
- If necessary, solder an additional length of ordinary hookup wire (22
to 24 gauge should work) to each of the RED, GREEN, and BLUE wires
coming out of the connector, to make the wires long enough to reach
your output controller.
- Connect the red, green, and blue wires to available ports
on your output controller.
- You must follow the standard DOF rule about RGB devices: the red,
green, and blue wires must be connected to consecutively numbered
ports, in red-green-blue order. For example, if you plug the red
wire into port 15, green has to go to port 16, and blue has to
connect to port 17.
- The LED amplifier has two loose wires hanging out of the back, one
red and one black. These are the power connections for the amplifier.
They simply connect directly to your 12V power supply. Connect red to
+12V and black to ground. You can use the secondary ATX power supply
for this; see Chapter 45, Power Supplies for Feedback.
DOF setup
In the
DOF Config Tool, go to your Port
Assignments page. Find the numbered port that you wired to the RED
channel of the light strip. Set this to either "RGB Undercab Smart"
or "RGB Undercab Complex". In standard DOF fashion for RGB devices,
this will set the next two ports in numerical order to the Green and
Blue color channels for the same device. (This is why you have to
wire the red, green, and blue wires to consecutively numbered ports in
red-green-blue order. It's just the way the Config Tool works
with RGB outputs.)
"Smart" and "Complex" are both for undercab lighting, so you can
choose either one. They have slightly different behavior to
accommodate different taste:
- RGB Undercab Smart shows a fixed color that's customized for each
game. The color generally reflects the predominant color of the
cabinet artwork for the original arcade version of each game.
- RGB Undercab Complex uses the same color as RGB Undercab Smart as
the base color, but also animates the color in response to game
action. For example, it might flash white when the strobes fire, or
show the same color as the flasher lights in response to some events.
The choice is just a matter of taste. Some people like the added
lighting effects of the "Complex" option, and others find it too
distracting. If you're not sure which one you'd prefer, I'd recommend
giving the Complex option a try first; you can always switch to the
more subdued Smart option later if the Complex effects are too much.
59. Flippers, Bumpers, and Slingshots
Real pinball machines are mechanical contraptions with lots of moving
parts. It's what makes them stand apart from just about every other
kind of arcade game. When you translate pinball into a video game,
you lose that physicality. In a virtual pin cab, you can bring back
some of the mechanical feel of the real thing by adding similar moving
parts that can be actuated in sync with the game action.
The moving parts on a real machine that produce most of the tactile
experience for the player are the ones controlled by solenoids:
flippers, slingshots, bumpers, kickers. All of these are driven by
powerful magnetic coils that propel the metal parts at high speed.
The kick of the solenoids is palpable while playing. This chapter is
about reproducing that tactile solenoid effect in a virtual cab.
How many? Where do they go?
It's up to you which devices to include in your setup. The common
setups, which DOF supports most readily, use two devices to simulate
flippers, two to simulate slingshots, and four to six devices to
simulate pop bumpers.
Flippers: The most basic solenoid setup uses just two
solenoids, one for each flipper. These should be positioned near the
location where the actual flippers appear in the video presentation,
near the bottom of the TV. You can mount these inset a bit from the
sides of the cabinet, where the actual flipper solenoids would be on a
real machine, or you can mount them directly to the cabinet walls. If
you're using slingshot solenoids in addition to the flippers, you
might want to use the inset positioning for the flippers, and position
the slings further apart, to make the sounds more noticeably separated
in space.
Slingshots: These go just behind the flipper devices. Most
people mount these directly to the side walls of the cabinet, since
real slingshots are also close to the walls.
Bumpers: There are two common configurations for bumpers.
The "deluxe" arrangement uses six devices, arranged as a row of
three across roughly the middle of the playfield TV, and a second
row of three closer to the rear of the TV. This provides devices
at enough different places that DOF can do a good job of placing
each sound effect close to its simulated origin in the game.
The other common arrangement uses a single row of three across
the middle of the TV, and one more near the rear center.
DOF refers to these two common bumper configurations as "10-Bumper"
and "8-Bumper" setups. That's a bit confusing, because it doesn't
really mean bumpers. In both cases, two of the devices
are flippers and two are slingshots. So what DOF really means
is "10-Solenoid" and "8-Solenoid".
Here's what the two arrangements typically look like in a cab.
"10-Bumper" placement. The actual "bumpers" are
the six devices across the middle and back playfield area.
The two devices at the front are the flippers,
and the two just behind those are the slingshots.
"8-Bumper" placement. The actual "bumpers" are
the four devices across the middle and back playfield area.
The flipper and slingshot devices are the same as in the
"10-Bumper" layout.
Parts
The most effective way to reproduce the sensory effects of a pinball
solenoid is to use some of kind of solenoid.
In a real pinball machine, they have to use a specific mechanism for
each job, because each mechanism has to do the actual work of
propelling the ball (or whatever it's meant to do). In a virtual cab,
we don't have that constraint. Our devices don't have to actually do
anything physical in the game; they just have to produce the right
sensory impression. So we're free to substitute anything that sounds
and feels similar. That opens up our options and lets us consider
other properties when we're selecting devices, such as cost, size,
durability, and power needs.
If you open up the field to consider anything with a solenoid in it,
you have an overwhelming number of options. Fortunately, people have
been building pin cabs for long enough now that a few winning options
have emerged, so you won't have to spend months doing research on
this; you can just pick one of the common solutions below. Like most
pin cab features, everything has some tradeoffs, so there's not a
perfect one-size-fits-all solution. We'll give you the pros and cons
of each to help you decide.
Note that you don't have to settle on a single device type! Many pin
cab builders do use one device type for everything, but others think
it's a plus to use different devices for different roles, so that each
type of device sounds a little different. For example, you might use
the Siemens contactors for the flippers, and starter relays for the
bumpers and slingshots.
Contactors
A contactor is a type of electrically controlled switch used in
high-power applications, such as controlling industrial equipment or
large appliances like air conditioners. "Contactor" is just
another word for "relay" - they're fundamentally the same thing - but
they call it a contactor when it's the higher power type.
On the inside, a contactor is a mechanical switch controlled by a
solenoid. The solenoid moves a set of mechanical switch blades when
energized. Because of the high power that a contactor is designed to
handle, the switch blades have to be hefty, and they have to move
across a wide gap when switching.
It's that big moving switch element that makes contactors useful for
our purposes. The large moving parts make a nice "thunk" when the
device switches on and off, strong enough to resemble a pinball
flipper, slingshot, or bumper.
What to buy: The type of contactor that's popular with pin cab
builders is made by Siemens. One particular known quantity that many
cab builders use is Siemens model number 3RH1140-1BB40 (pictured at
right). It's safest to look for that exact part, but Siemens makes a
large number of similar devices, and I suspect that any Siemens model
that physically resembles this one will have substantially the same
component parts inside and will produce similar sensory effects.
Many other types of contactors are also available from other
manufacturers, so there are undoubtedly many more options out there
that would work. However, there's no reason to assume that any random
contactor would sound "right". If you're considering another device,
ask in the forums to see if anyone else has tried it; or try it
yourself if you want to be a pioneer, but ideally buy it from someone
who will let you return it if it doesn't do the job.
Cost: You can buy these devices new, but you shouldn't:
they're $50 and up apiece new. Given the performance tradeoffs,
they're not worth the money; if you have that kind of budget,
real pinball parts would be a far better investment. So you should
instead buy them used on eBay, where they can be found for about $10
apiece. You might have to be patient to find them at a reasonable
price, since they seem to be a fairly low-volume item on eBay.
Power supply: The Siemens contactors require 24VDC power.
That's not available from a computer ATX power supply, so you'll need
a separate power dedicated 24V supply. See
Chapter 45, Power Supplies for Feedback
for advice.
The Siemens contactors draw about 400mA each. I'd plan on sufficient
power for three or four of them to fire simultaneously, so be sure
your 24V power supply is rated for at least 2A (equivalent to 48W).
Wiring: Here's how to hook up the typical Siemens contactors:
Note that most of the terminals on the contactor are left unconnected.
The other terminals are all intended to be wired to whatever circuits
the contactor is controlling, but in our case, we don't control
anything at all with the contactor. It's just there for the sound
effect it makes when it switches on and off, so we only connect
the terminals that control its coil, typically A1 and A2 on the
Siemens devices.
The diode is required to protect the output controller and computer
electronics from noise from the magnetic coil inside the contactor.
See
Chapter 53, Coil Diodes. The stripe on the diode must connect to the
positive (+) power side.
Pros: The biggest "pro" with contactors is that they're happy
to be left in the "on" position indefinitely. That's not at all true
of most solenoids: most solenoids will overheat if left on for long
periods, and many can only tolerate a couple of seconds at a time.
For simulating flippers, the ability to stay on for long periods is
critical, because the player could hold the flipper button
indefinitely to trap a ball.
The tonal quality of audio/tactile effect of the Siemens contactors is
another plus. It's a nice solid mechanical "thunk" that creates the
impression of a large device.
Other good features: they're compact, self-contained, easy to install,
run on fairly low DC voltages (the Siemens devices referenced above
run on 24VDC), and use relatively little power (about 350mA for the
common Siemens device).
Cons: The biggest negative is that the effect is far weaker
than a real pinball solenoid (even though the tonal quality is good).
Also, they require 24V, which means you have to add an extra power
supply for them. The Siemens devices are pricey, unless you buy them
used, and used ones sometimes have a lot of wear that greatly reduces
the strength of the "thunk" effect, which is the whole point for our
purposes. Used ones might not be entirely reliable, either; a couple
of my own Siemens contactors are intermittently "sticky", where
they'll stuck in the on or off position for a while and won't make any
noise. I've heard from other people seeing the same problem.
Recommendation: The Siemens contactors are a popular way to
implement the simulated flippers and other solenoids because they're
simple to install and they won't overheat if left activated for long
intervals. The tolerance for long activation times makes them especially
attractive for flipper effects. They're the best bet if you want to
keep things simple. But the effect isn't nearly as strong as the real
thing, so if realism is a high priority, look at other options.
Automotive starter solenoid relays
This is another kind of high-power relay, in this case specific to
cars. Starter solenoids are used in automotive engine starting
systems; they switch the high-current connection between the battery
and the big solenoid that cranks the engine when you turn the ignition
key. As such, they have very much the same purpose as contactors -
switching high-power loads through a relay switch - and similar
construction.
Like contactors, these have big moving parts inside that create a nice
"thunk" effect when actuated. The effect is similar in tonal quality
to the Siemens contactors, and it's often quite a bit stronger, but
usually not as strong as real pinball coils.
Starter relays are cheaper and easier to find than the Siemens
contactors. Many types sell for under $10 at auto supply stores,
eBay, Amazon, Wal Mart, and other big retailers. Like the contactors,
they're self-contained and easy to install.
Unlike contactors, these devices will overheat if energized for
extended periods, so they're not ideal for flippers. You might be
able to use them for flippers if you take special precautions, such as
using Flipper Logic (see
below).
Overheating is less of a risk when you use these devices for bumpers
and slingshots, since those typically only fire in brief bursts in
normal play.
Reliability is also a concern. If you think about it, these devices
aren't typically fired all that often in their intended application of
starting a car. A pin cab will subject them to much heavier use than
the manufacturers presumably expect (and design for). Some people on
the forums have reported that they need to replace these as frequently
as every few months, which I'd find overly frustrating. But I'm sure
the durability varies a lot according to how you use your cab and
which specific devices you buy.
What to buy: The type most often mentioned on the forums is the
Ford SW3 type (pictured at right). As with the contactors, numerous
other options are available, but this one is a known quantity
that other pin cab builders have found to work well.
Power supply: Almost every automotive device runs on 12V DC
(but as always, check the product documentation or seller page to
confirm details for the actual product you buy). You can use the 12V
output from your secondary ATX power supply. Note that these devices
place a large load on the power supply - about 6A, or 72W - so make
sure you have a powerful enough 12V supply, and don't connect them to
the same ATX power supply running your computer motherboard. When
calculating power needs, take into account that there will be times
during normal play when several of the devices fire simultaneously, so
multiply the amps/wattage rating by three or four to figure how much
total power you might need. See See
Chapter 45, Power Supplies for Feedback.
Wiring: For the Ford SW3 type commonly used, the wiring
plan looks like this:
On the Ford SW3 type, you'll find four screw terminals sticking
out from the body of the device. The ones on top (in the orientation
shown above, anyway) should be labeled "S" and "I". The ones sticking
out from the sides aren't typically labeled. In addition, the large
metal plate that looks like a mounting bracket is indeed a mounting
bracket, but it's also the electrical ground connection for the
device. The terminals of interest for pin cab use are the one
labeled "S" and the mounting bracket/ground plate.
If your solenoid isn't labeled like the Ford type above, you'll have
to figure out which terminals are which. On any automotive device,
you can count on any exposed metal on the outside being wired to the
electrical ground, so look for an unpainted mounting plate or a socket
for a mounting bolt. Now get out your multimeter. Set it to measure
resistance. Connect one probe from the meter to the ground point
(that exposed metal or mounting plate or whatever), and use the other
probe to measure the resistance to each of the other terminals, one at
a time. One terminal should have a low but non-zero resistance,
probably something like 3 or 4 ohms. That should be the +12V coil
terminal - the one that corresponds to the "S" terminal on the Ford
devices.
Connect +12V from the secondary ATX power supply to the "S" terminal.
Wire the mounting bracket to an available port on your output
controller.
The diode is required to protect the output controller and computer
electronics from noise from the magnetic coil inside the contactor.
See
Chapter 53, Coil Diodes. The stripe on the diode must connect to the
positive (+) power side.
These are high-power devices. Do not connect them directly to an
LedWiz output; you'll need some kind of booster circuit or relay with
an LedWiz. If you're using Pinscape expansion boards, you can connect
these directly to any power board port or chime board port.
Pros: Inexpensive, readily available, self-contained, easy to
install, run on 12V DC power. The sound effect they produce has a
good tonal quality, and it's stronger than the Siemens contactors
(though probably weaker than real pinball solenoids).
Cons: They're not designed for continuous activation, so they
shouldn't be used for flippers without special precautions. Some
types might not be durable enough to last more than a few months with
the heavy use they get in a pin cab. For most starter relays, the
effect isn't as powerful as real pinball solenoids.
Recommendation: These are a good choice for everything except
flippers, and they can even be used for flippers if use something like
the Pinscape "Flipper Logic" feature to reduce hold power. Many
people think they sound more realistic than the Siemens contactors.
Durability is the main drawback; some people on the forums have had
to replace them after only a few months. Given their low cost,
though, that might be an acceptable risk, as long as your cab
allows easy maintenance access.
Real pinball mechanisms
If you want maximum realism, you can use real pinball assemblies for
flippers, slingshots, and bumpers.
This is rarely done, but not unheard of. A few cab builders on the
forums have reported going this route. It has a number of challenges
compared to the other methods:
- It's really expensive. The relevant pinball assemblies run about
$50 each, so a full set (two flippers, two slings, six bumpers) comes
to about $500.
- The assemblies take up a lot of room in the cabinet.
- They require a high-voltage (50V), high power (600W) power supply.
That's expensive, and many pin cab builders are uncomfortable working
with such hazardous voltages.
What to buy: Buy these at any pinball supplier (Pinball Life,
Marco Specialties). You can also buy them used on eBay, but my
standard warning about used pinball parts on eBay applies: they'll be
beat up and the sellers all think you're an idiot who wants to pay new
prices for old parts. At least price the new ones first so you know
whether an eBay bargain is really a bargain.
The key word when searching the pinball vendors is "assembly":
- "Flipper assembly" (e.g., Williams reference C-13174-L, C-13174-R)
- "Slingshot assembly"
- "Bumper assembly" (e.g., Williams reference A-9415-2, B-9414)
Important note on flippers: Real flipper assemblies from the
1980s and 90s should have "dual coil" arrangements. You won't
actually see two separate coils - the two coils are wound around a
common core and look like a single coil. But you should see three
terminal wires coming out of the coil. The flipper assembly should
have an end-of-stroke switch that diverts power from the high-power
"lift" coil to the low-power "hold" coil when the flipper reaches the
end of its arc.
The dual-coil arrangement makes it safe to hold the flipper button
on for long periods. The lower-power hold coil is specifically
designed for continuous activation without overheating.
I mention all of this because some newer Stern assemblies
don't
use the dual-coil design and aren't safe to use in a virtual pin cab
without special software provisions. If you use one of these newer
assemblies, it's critical that use something like the Pinscape Flipper
Logic feature (see
below) to
reduce power to the flipper coil when it's held on. Because of this
additional complication, I'd recommend avoiding the Stern assemblies
and using a traditional dual-coil Williams/Bally assembly. That
should be safe to use with any controller without any additional setup
work, since the hold power reduction is handled directly in the
flipper assembly hardware itself.
Cost: About $50 per assembly. A full "10-Bumper" setup (in
DOF parlance - two flippers, two slings, six bumpers) is about $500.
Power supply: Real pinball coils in modern machines require 50V
DC power supplies. Most of them draw 3-5A. To allow for multiple
devices firing at once, you should plan on a minimum 10A (500W)
capacity.
50VDC power supplies are expensive hard to find. It's easier to find
a 48V supply, which will work about as well. 48V supplies are widely
used for LED lighting applications; you can find them in the
500W range on eBay for about $50.
Warning! 50V (or 48V) is a hazardous high voltage that can cause
electric shock. With most of the pin cab output controllers
(including LedWiz and Pinscape), the controller requires you to wire
solenoids so that one terminal is connected directly to the "+" power
supply voltage. This means that +50V is always present at one
terminal of each coil, even when the coils are off. Real
pinball machines have a hard-wired safety interlock switch in the coin
door that cuts off all coil power to the playfield when the coin door
is opened, to protect an operator from shock hazard while working
inside the cabinet. If you install real coils and a 50V supply, I'd
strongly recommend using a similar safety interlock. The switch
should disable the +50V power supply when the door is open.
Wiring: Each coil will have two terminals for the power
connections. Connect these following the generic output device wiring
plan (see
Chapter 47, Feedback Device Wiring).
Many of the flipper, bumper, and kicker assemblies for modern machines
include diodes pre-installed on the coils. If a coil is already
installed, it should have markings for the "+" and "-" wires. This is
often by wire color: red is "+" and black is "-".
If a diode
isn't already installed, you must add one. See
Chapter 53, Coil Diodes. When a diode isn't present, the coil itself will
be unpolarized, so the order of the wires doesn't matter. Just be
sure that the diode you add is installed with the correct polarity.
If you're using an LedWiz, these devices require some kind of booster
or amplifier, because they use much more power than an LedWiz can
handle. If you're using Pinscape expansion boards, you can connect
these to any Power Board or Chime Board port.
I'd recommend using the Pinscape Chime Boards, if you have them, for the
bumpers and slingshots (but
not for the flippers). Those coils
will overheat and melt if they get stuck on by a software fault. If
you don't have any Chime Boards but you're using the Pinscape
software, use the Flipper Logic feature (see
below) to cut off device power if
a port gets stuck on, by setting the "hold power" to 0%.
Pros: Not merely realistic - real.
Cons: Expensive; take up a lot of space; vulnerable to
overheating if they get stuck on; require high-voltage power supply;
electric shock hazard.
Recommendations: The ideal solution, if cost is no object and
you're willing to work with the high voltage.
Open-frame solenoids
The core element of every solenoid-based pinball device is the
solenoid itself, so some cab builders bypass the various devices built
around solenoids (like the contactors and starter relays
mentioned above) and just use standalone solenoids. You
can find options on eBay, and from hobby robotics suppliers like
Adafruit and Sparkfun.
Plain solenoids don't seem to be widely used on pin cabs, and many of
the people who have tried them seem to be dissatisfied with the
results, judging by the forum discussions on the subject. I think
it's possible to create a good effect with a plain solenoid, but it's
much more challenging than with the pre-made devices like contactors
and starter relays. There are two main reasons for this.
The first is cost. Many pin cab builders who use plain solenoids do
so because they think it's a cheaper way to accomplish these effects.
You can find cheap solenoids, but the cheap ones tend to be small toy
solenoids that aren't nearly as powerful as pinball coils. The
effects they produce will be correspondingly small and unimpressive.
They'll just make metallic clicks. If cost is your main concern,
you're probably going to do better with something like a starter
relay.
The second challenge is that pinball assemblies we're simulating
aren't just big solenoids. They're big solenoids with other
moving parts attached. Typically big, heavy, metal parts. Those
other parts are integral to creating the right sensory effect. If you
want to produce a convincing effect, you'll have to contrive your own
additional moving parts similar to what's in the pinball assemblies. This is what
makes the contactors and starter relays so plug-and-play: they have
their own built-in moving parts that happen to produce effects similar
to what we're after.
I think this can be a promising avenue to pursue, but moreso if you're
willing to buy somewhat more expensive parts and do some
experimentation to find the right combination of attached parts to
produce the right effect.
What to buy: On eBay, look for "open frame solenoid". I'd
avoid the small 12V devices; those are little toy solenoids that will
just sound like metallic clickers. Look for something 24V or above.
Sparkfun sells a 36V solenoid that a couple of people on the forums
have mentioned favorably.
Cost: $5 and up. The Sparkfun 36V device sells for about $20
as of this writing.
Power supply: Varies by device. Check the specs on what
you buy to determine what voltage you need.
If you have to buy an additional power supply, pay attention to the
Volts and Amps required by the device. Make sure the power supply has
a voltage that is the same as the solenoids, and that it provides
at least the required amperage. If you're using multiple
devices of the same type, the power supply will need to provide enough
power for several of the devices simultaneously; I'd multiply the
solenoid amperage by 3x or 4x to get a suitable minimum.
If you see specs in Watts for either the solenoid or power supply, you
can convert between Watts and Amps using this formula:
Watts = Volts × Amps
>
Wiring: The solenoid should have two wires attached.
Solenoids aren't polarized, so the order of attaching the wires
doesn't matter. Connect one lead to the (+) supply voltage
(use the correct voltage for the solenoid), and connect the
other to your output controller, as shown below.
The diode is required to protect the output controller and computer
electronics from noise from the magnetic coil inside the contactor.
See
Chapter 53, Coil Diodes. The stripe on the diode must connect to the
positive (+) power side.
Pros: Many options are available; infinite customization
possibilities.
Cons: Sensory effects are less predictable than with contactors
or starter relays; you might have to experiment with several devices
and several mounting styles to get a satisfactory effect. More
complex to set up than contactors or starter relays if you want to
contrive additional moving parts to improve the sound effect. Smaller
devices will produce weak, tinny effects. Most solenoids will
overheat if actuated for more than a couple of seconds at a time, so
special measures (such as Flipper Logic) might be needed, especially
when used for flippers.
Recommendations: If you're thinking of using cheap eBay
solenoids to save money, I'd reconsider: you'll probably be unhappy
with the results and end up replacing them with something better, so
your total cost will be higher than if you just started with something
better. But plain solenoids might work for you if you're willing to
buy more expensive ones with more force, and you're willing to do some
extra work to improvise additional moving parts to simulate the action
of the full pinball assemblies.
DOF setup
In the
DOF Config Tool, go to your
Port Assignments page. Find the numbered ports where you wired
your solenoid-type devices. Assign each one to the appropriate
output device.
If you're using a full 10-device setup (see the diagrams above):
- Flipper Left/Right
- 10 Bumper Middle Left/Center/Right or Back Left/Center/Right
- Slingshot Left/Right
If you're using an 8-device setup:
- Flipper Left/Right
- 8 Bumper Left/Center/Right/Back (if you're using an 8-device setup)
- Slingshot Left/Right
"Flipper Logic"
If you're using a Pinscape controller, a special feature is available
to help avoid overheating devices that aren't designed to be activated
for long periods. This isn't necessary with contactors or most real
flipper assemblies, since those are specifically designed to tolerate
continuous activation. It's useful for almost everything else: all
other standard pinball coils, automotive starter relays, and
miscellaneous open-frame solenoids.
The idea behind Flipper Logic is to simulate the way real pinball
machines solve the overheating problem for their flipper coils.
Real flipper coils would have the same overheating issue as our
substitutes if they didn't take special measures. On older pinball
machines, the special measure is that they use two separate coils in
the flipper. A high power "lift" coil provides the initial jolt of
power to flip the flipper and propel the ball, and a low-power "hold"
coil takes over as soon as the flipper is all the way up. (This isn't
obvious looking at them, because the two coils are wound into a single
body. But electrically, there are two coils there.) In the real
machines, an end-of-stroke switch in the flipper mechanism redirects
power from the lift coil to the hold coil.
In some newer Stern machines, they keep the hardware simpler by using
a single high-power coil, and solve the heating problem through
software, by modulating the power using PWM controls. When you press
the flipper button, the software initially applies full power to the
flipper (simulating the "lift coil" power). If you continue to hold
the button for more than a brief time, the software automatically
reduces the power through PWM (simulating the lower "hold coil"
power). The lower power is enough to keep the flipper flipped, but
it's low enough that it won't overheat the coil even if it's held on
for a long time.
Flipper Logic works like the newer Stern machines, reducing the power
to the port after a brief period at full power. This makes it
possible to use more types of devices as a flipper substitutes, by
avoiding the overheating problem common to many solenoids.
You can activate this feature on a port-by-port basis, for any
PWM-capable port. To activate it:
- Run the Pinscape Config Tool
- Go to the Settings page for your controller
- Scroll down to the Output Ports section
- Click the flipper icon ()
at the right side of the port you want to set up
This lets you enter two parameters: Initial Time and Hold Power. The
Initial Time specifies how long the port receives full power each time
it's activated. You can adjust this from 50ms (1/20 of a second) to
800ms (0.8 seconds) in 50 millisecond increments. The Hold Power is
the PWM power level that's provided to the port after that point, as
long as the port is held on. This can be adjusted from 0% to 100% in
increments of about 7%.
To determine the proper reduced power level for a device, you'll have
to experiment with it. Each device is different. Start at the lowest
non-zero setting. Try the coil: turn it on and leave it on. If it
actuates and then returns to the rest position after about a second,
the power is too low, so try the next higher setting. Repeat until
the device actuates and remains actuated as long as the port is on.
Caution: always monitor the device for heating! Once you find a
setting that's high enough to keep the device actuated, you have to
verify that it's not too high a setting that overheats the
device. It's possible that some devices don't have a safe operating
zone at all - that is, a power level where they'll stay actuated and
won't overheat. You should be able to monitor the device by touch:
if it gets hot to the touch, turn if off immediately, since it's
heating too rapidly and will probably overheat if you leave it on.
If you can leave it on for a couple of minutes without having it
get hot to the touch, it's probably in thermal equilibrium, meaning
it should be safe to leave on in that state indefinitely.
Flipper button feedback control
One question that a lot of new pin cab builders ask on the forums is:
how do I make the flipper buttons control the feedback solenoids for
the flippers? In other words, how do I wire it so that pressing the
flipper buttons activates the flipper solenoids?
There are two ways to go about this. The way that most people do it
these days, which I consider the correct way, is to let DOF handle it.
Happily, this is also the easiest approach, because it doesn't require
any extra wiring or any extra configuration beyond the normal DOF
setup you're going to do anyway.
The older way of handling this, which people did before DOF came
along, was to hard-wire the flipper buttons to the flipper solenoids.
This might seem simpler at first glance than the DOF approach, since
it's just a directly wired connection. But it's actually more
complicated to build! Some extra parts are required because you have
to isolate the higher voltage that the solenoid uses from the low
voltage that the key encoder uses. So DOF takes less work and fewer
parts, assuming you're going to use DOF anyway. The only reason to
use the hard-wired approach is if you're not going to include a DOF
controller.
The thing I particularly like about the DOF approach, apart from
its simplicity, is that it does a better job of simulating
real pinball machines. If you think about how a real pinball machine
works, the flippers only fire when the game allows them to fire - not
between games, not after a TILT condition, etc. If you use the
hard-wired approach, the flipper solenoids will end up firing every
time you press the buttons, so the feedback effects won't always
match the on-screen simulation. With DOF, they'll always match.
The modern way: let DOF handle it
If you're using
Chapter 46, DOF, you don't have to do any extra
work for flipper effects. Just set up DOF, and the flipper solenoids
will work just like all of the other DOF effects. DOF will take care
of activating the flipper devices whenever the on-screen flippers flip
in a DOF-enabled game. The wiring for the flipper buttons and
solenoids is exactly the same as for every other type of button and
every other type of feedback device: wire the flipper buttons to your
key encoder, just like all of your other buttons, and wire the flipper
solenoids to your output controller, like your other feedback
devices.
If you're trying to picture how the flipper solenoids actually operate
with a DOF setup, here's the sequence of events:
- You press the flipper button, closing its switch
- The flipper button switch signals the key encoder
- The key encoder sends a "Flipper Button Pressed" keyboard event to the computer
- Visual Pinball (or whatever simulator you're using) gets the "Flipper Button Pressed" key
event and fires the simulated flipper in the game
- DOF sees the simulated flipper event, and sends a FLIPPER SOLENOID ON command to the output controller
- The output controller activates the output port wired to your flipper solenoid
- The flipper solenoid fires
This approach is better than hard-wiring the solenoid for two reasons.
First, it keeps the wiring simpler. The flipper button switch is only
wired to the key encoder, and the flipper solenoid is only wired to
the output controller - exactly the same wiring as for all of your
other buttons and feedback devices. Second, it allows full software
control over the flipper. That's the way it works on a real machine:
try walking up to a real pinball machine some time and pressing the
flipper button while GAME OVER is showing on the display. Does
anything happen? No, of course not: the flippers are dead when a game
isn't in progress. By wiring the flipper solenoids through the output
controller, you'll get exactly the same effect. Hard-wired flipper
solenoids would fire every time you press the buttons, whether or not
a game was in progress.
What about latency? When DOF was new, and people started switching
over to the DOF approach, there was some worry about the extra
software steps adding a noticeable lag time between pressing the
flipper buttons and hearing the feedback effects. Fortunately, it
turns out that DOF is fast enough that this isn't a problem. You
could measure the added latency using lab equipment, but it's not
enough to be perceptible to a human. The human nervous system has
a latency perception limit of about 30 milliseconds, and DOF in
a properly working system is comfortably faster than that.
The old-fashioned way: hard-wire the buttons to the solenoids
If you're using DOF, you should ignore this section, because there's
no reason to even consider hard-wiring the flipper buttons to the
flipper solenoids. However, if you're not using DOF, you can get some
very basic feedback effects by wiring your flipper buttons to your
flipper contactors or solenoids, so that pressing the buttons directly
activates the solenoids.
At first glance, it seems like it would be dead simple to wire the
buttons to the solenoids. The complication is that you also need to
wire the buttons to your key encoder, so that pressing the buttons
sends key presses to the PC, to operate the simulated flippers in
Visual Pinball and other pinball software. That dual wiring makes
things more complex because of the different voltages used in the key
encoder and the contactor or solenoid. The higher voltage needed for
the contactors or solenoids would damage or destroy the key encoder if
you wired both of them together directly. Instead, we have to isolate
the two voltages, so that the solenoid voltage doesn't damage the key
encoder.
To isolate the voltages, we can use something called an "optocoupler".
That's a sort of solid-state relay that lets the voltage in one
circuit control a separate circuit with a different voltage, while
keeping the two voltages separated and isolated from one another.
Which is exactly what we need in this case.
If you've tinkered with electronics before, you might be more familiar
with regular mechanical relays, and you might be tempted to go with a
mechanical relay to keep things simpler. That would work, but I don't
recommend it, because mechanical relays are fairly slow. Slow enough
to cause an annoying amount of lag time in the software every time you
press the buttons. Mechanical relays also tend to wear out with heavy
use. Optocouplers are better because they're very fast and last a lot
longer.
Here's the basic circuit design that should work for any of the common
key encoders.
If you trace through the circuit, you'll see that the flipper button
is wired so that it activates both the contactor and the optocoupler
when pressed. Activating the contactor makes it fire, so you'll get
the flipper feedback effect whenever you press the button. Activating
the optocoupler completes the circuit on the key encoder side, so
pressing the button will also send the key press for the flipper
button. So whenever you press the button, you'll simultaneously hear
the flipper feedback effect and send the key press to the PC. The
optocoupler is the key to making both devices work together, because
it uses the higher voltage on the solenoid side to control the key
encoder side, but it does so without allowing the higher voltage to
reach the key encoder side.
The diode is needed to protect the rest of the circuit from the
voltage surge effect from the contactor or solenoid. A diode like
this is needed for every device with a coil or motor. See
Chapter 53, Coil Diodes for more details.
Parts selection:
The PC817 optocoupler shown is only an example. Just about any
standard optocoupler should work, if there's another type you prefer
or that you can find cheaper.
The resistor has to be selected according to the contactor's power
supply voltage and the type of optocoupler you're using. Here are
the appropriate resistor sizes for the PC817 and common power supply
voltages for the contactor:
Voltage | Resistor |
5V | 180 ohms, 1/8 Watt or higher |
12V | 560 ohms, 1/4 watt or higher |
24V | 1200 ohms (1.2K), 1/2 watt or higher |
48V | 2400 ohms (2.4K), 1 watt or higher |
If you're using a different optocoupler chip, the required resistor
values might vary slightly from the table above, so you should
calculate it using an LED resistor calculator. See
Chapter 52, LED Resistors for help with this - that chapter includes an
interactive calculator that will figure the right resistance value
for you. You'll have to look up the following numbers in the data
sheet for your optocoupler, which you can then plug into the calculator
in the LED Resistors chapter:
- IF, the Forward Current for the optocoupler LED
- VF, the Forward Voltage (also known as Voltage Drop) for the optocoupler LED
Plug those two values into the calculator in the LED Resistors
chapter, along with the power supply voltage for your contactor, and
the calculator will tell you the size of resistor to use.
60. Replay Knockers
The replay knocker is the device in a real machine that makes the loud
knock noise when you win a free game, exceed the replay score, etc.
This is implemented in the real machines with a solenoid coil
positioned in the backbox so that its plunger strikes a metal plate
when fired.
The knocker isn't used all that often, and all it does is make a
noise, but I still consider this a must-have toy. When the knocker
does fire, it's always at particular dramatic points during play, so
it really demands the same dramatic sensory effect as the real thing.
Recorded audio played back through speakers is a pale imitation.
Parts
Knockers are pretty simple mechanisms, so it wouldn't be hard to
improvise a DIY version using a push-type solenoid. But there's not
much point to that, since you can just buy a real one for about the
same money it would cost to build a DIY version. And the real ones
comes as full assemblies, so they're easy to buy and install.
There are two parts to buy, both available from pinball parts vendors
like Pinball Life and Marco Specialities:
- The knocker assembly itself. Look for Williams/Bally reference
B-10686-1. You might be offered a choice of coils. Any of the
options available from your vendor should work, but the recommended
one is AE-26-1200. These sell for about $25.
- A knocker strike plate. This is a small steel plate that the
knocker plunger hits, to enhance the sound effect (and protect the
backbox area where the plunger hits). You can substitute a similar
metal plate from Home Depot, such as a steel backing plate or tie
plate, but the pinball part is cheap (about $3), so you might as well
add one to your cart as long as you're ordering the knocker assembly.
Installation
Modern replay knockers are designed to be mounted vertically in the
backbox, on the back wall near the top, so that the plunger strikes
the ceiling of the backbox. They have to be installed vertically
because the assemblies don't have springs; they depend on gravity to
pull the plunger back to the rest position after firing.
Install the knocker as shown above, so that the top of the knocker
assembly is about 1" below the ceiling of the backbox. Mount the
strike plate on the ceiling just above the knocker assembly.
The knocker assembly should come with the plunger already inserted
through the coil, but it can fall out. If it has fallen out, insert
it so that the white plastic tip is facing up. The white
plastic tip is the part that hits the strike plate. Many people find
this surprising - it seems like the metal end should be the hammer
end. That's understandable but wrong. The metal end is actually the
magnetic element that gets pulled into the coil, so it should be
facing down.
Power supply
Modern replay knockers are designed to run on 50V DC power. They'll
run on lower voltages, down to about 24V, but the power of the effect
will be correspondingly reduced.
50V supplies are expensive difficult to find, but you can find
relatively inexpensive 48V supplies on eBay. If your budget can
tolerate it, I'd buy a dedicated 48V, 5A supply, which are available
for about $20. If you're using any other real pinball assemblies,
such as flippers, slingshots, or bumpers, you'll need a 48V supply for
those anyway, so you can just attach the knocker through that.
If your budget is tight, you can use an existing 24V supply, but the
effect will be a bit weak. You might consider buying a "DC to DC
step-up converter" on eBay to boost the power as high as possible;
converters that will take the power to about 40V are available in the
$10 range. But given that a dedicated 48V supply is only a little
more expensive, I think that's a better option.
Caution: 48V is a hazardous high voltage. Be careful to turn off
power when working inside the cabinet once you have a 48V supply
installed. Note that there will be a live +48V voltage to the
knocker's red wire any time the power supply is connected, even
when the knocker isn't firing, since the knocker is controlled
through the black wire.
Wiring
A new knocker assembly usually comes with a diode already installed,
and two wires, one red and one black. Connect the red wire directly
to the positive (+) power supply voltage. Connect the black wire
to an available output port on your output controller.
If your coil
doesn't come with a diode already installed, you
must add your own, to protect your output controller and other
electronics from interference from the magnetic field from the coil.
See
Chapter 53, Coil Diodes.
The Williams/Bally knocker assemblies come with a Molex 3-pin .093"
cable connector. You can cut this off and solder your own wires if
you like, or you can buy a matching connector. The matching connector
is available from pinball vendors and from electronics companies
like Mouser:
If you're using the Pinscape expansion boards, connect this to the
"Knocker" pin on the JP9 pin header. This is a "timer protected"
output, to prevent the knocker coil from getting stuck on. That
protects the coil from overheating in case of software failure.
See
Chapter 54, Coil Timers.
If you're using an LedWiz, you'll have to use a booster circuit of
some kind. The replay knocker will draw 3-4A when activated, which
exceeds the 500mA (0.5A) maximum for an LedWiz port. You can connect
the knocker directly to the Pinscape expansion board's dedicated
"Knocker" output, or directly to any Power Board or Chime Board output
port.
DOF Setup
In the
DOF Config Tool, go to the Port
Assignments page. Find the port number where you wired the replay
knocker coil. Assign this to "Knocker".
61. Shaker motors
The shaker motor is one of my favorite feedback toys. It does what
the name suggests: it shakes the cabinet when activated. When done
properly, the effect is a deep rumble that reverberates
through the floor like an earthquake. Appropriately, the first arcade
pinball that featured a shaker motor (as far as I know) was
the earthquake-themed Earthshaker (Williams, 1989).
Stern has enthusiastically embraced shakers in recent years, offering
them as optional equipment in nearly all of their titles since 2010.
Shakers were rare in the arcade before that, appearing only in a few
titles where there was some kind of thematic connection, such as
Earthshaker (for obvious reasons) and Red and Ted's Road
Show (for the demolition theme). I think Stern realized that the
tactile effect is a lot of fun for its own sake, even when it doesn't
particularly tie in to the theme, which is exactly why shakers are
popular in virtual cabs. You can profitably work it into pretty much
any game, even older games that didn't have shakers in their original
arcade versions. The DOF Config Tool database takes this to heart,
liberally adding shaker effects to lots of older tables - as of this
writing, the DOF database uses the shaker in 237 (!) games. Of
course, DOF also faithfully reproduces the authentic usage in games
like Earthshaker that actually did have shakers originally. If
you include a shaker, it will get plenty of use.
Theory of operation
A shaker is simply a motor with an unbalanced weight attached to the
shaft. It's like a washing machine a big heavy load on spin cycle.
Off-the-shelf pinball shakers
You can buy ready-to-use pinball shaker units from the pinball parts
vendors, including Marco Specialties and Pinball Life.
Off-the-shelf kits sell for $100 to $200, depending on the target
machine type.
The different kits currently available all use exactly the same shaker
mechanism (as far as I can tell). The only reason there are so many
different kits is that each comes with an interface board that works
with a particular type of Stern machine. For a virtual cab, you
actually don't need an interface board at all, because your DOF output
controller will perform that function instead. So any of the Stern
kits should work, and I'd just buy the cheapest one you can find,
currently around $100. When the kit arrives, just throw away the
Stern interface board, and plug the motor directly into your feedback
device controller; see
Wiring below.
Off-the-shelf vibration motors
There's another off-the-shelf option that's less expensive than the
Stern shaker kits: replacement "vibration motors" for massage chairs and
similar appliances. Some people on the forums have tried these
and reported generally positive results.
You can find these on Amazon, eBay, and Aliexpress. Some are as
little as $20. They're all no-brand parts from third-party sellers
that come and go overnight, so I can't give you any specific model
numbers or product links, but you can find options by searching the
retail sites for vibration motor. Look for devices that have
two counterweights and a speed of 4500 RPM or less. Lower speeds are
better - higher speeds will feel too much like buzzing.
Be aware that there are smaller and larger versions of these motors.
The smaller ones are more like cell phone buzzers, so skip those. You
want one of the larger ones, sold for applications like massage
chairs.
Even the largest vibration motors I've found still use smaller
counterweights than the Stern units, so they'll produce a weaker
shaking effect. I've seen a couple of negative comments about this
from virtual cab builders. But stronger isn't necessarily better;
there's an element of taste to this, plus, a less powerful unit might
be more suitable if your cab is smaller and lighter than a full-sized
pinball machine.
DIY designs
Shakers are simple enough that you can build one yourself for about
$50 to $100 in parts. That's not much of a cost savings compared to
buying one of the ready-made Stern kits, and it's actually more
expensive than buying an OEM vibration motor, but some people might
want to build their own just for the enjoyment of the project. A DIY
shaker also gives you more control to tweak the effect to your liking, by
adjusting the amount of weight and the geometry.
Hare are some detailed DIY plans you can find online:
The two Pinside plans closely replicate the mechanical design of the
Williams and Stern shaker units (which are themselves nearly
identical), so they yield nicely professional-looking results, but
they're challenging to build because they require cutting, drilling,
and thread-tapping steel bar stock. They also require some
sheet-metal work. You need some specialized tools for all of that
metal working, and the steel bar stock itself is rather expensive.
Darkfall's design is easier to build because it doesn't require any
metal fabrication, and it doesn't require any especially exotic parts.
The first shaker I built was based roughly on Darkfall's design, and
it works nicely. My only criticism is that its method for attaching
the weights to the motor shaft is a bit jury-rigged and seems
precarious - although, to be fair, the one I built has held together
for many years now. My own design is an attempt at a more elegant and
robust way to attach the weights, while still being easy and
inexpensive to build. Almost all of the parts required in my plan are
common hardware store items, and the only things you have to fabricate
yourself are some simple plywood pieces.
Designing your own shaker
If you prefer to develop your own DIY plan, here are some parameters
you can use as a starting point, based on what seems to work in
practice for the commercial units and the DIY designs:
- Around 3000 RPM for the spin rate
- About 350 gram-centimeters (5 ounce-inches) of off-balance weight
The "gram-centimeters" figure refers to the result of multiplying the
total weight of the counterweights by the distance from the shaft to
the center of mass of the counterweights. It's the product of these
two numbers that matters, so you should get the same effect from a 100
gram weight at 3.5cm or a 350 gram weight at 1cm, for example.
For reference, the counterweights in most of the commercial shakers
are steel bar stock, 3/4" wide x 3/4" thick x 2" long, weighing 140g
each. The shaft is placed 1/2" from the center of the long dimension
(2").
Selecting a motor for a DIY unit
The motor is the hardest part to find when building a DIY shaker unit.
There are hundreds (maybe thousands) of types of small electric
motors available online, but most are unsuitable for one reason
or another - they're too big, too small, use too much
power, etc. It's especially hard to find all of the right properties
in a dual-shaft configuration, since there just aren't that many
dual-shaft motors available. A dual-shaft motor isn't an absolute
requirement, but all of the DIY designs call for one, because it's
easier on the motor's bearings to divide the weight into two smaller
chunks than to have a single large counterweight.
The easiest way to source a suitable motor, by far, is to buy one that's
marketed specifically as a replacement motor for a pinball shaker
unit. Those are more expensive than comparable generic motors
from eBay or Aliexpress, but you can be confident that they're
suitable for the task, and you won't have to comb through hundreds of
listings looking for the right specs. The pinball parts vendors
currently (2022) stock several such motors:
If you want something less expensive, or you just enjoy the hunt,
here are the properties to look for in a generic motor:
Parameter | Range | Comments |
Configuration |
Dual-shaft (also called double-shaft) |
This means the rotating shaft sticks out at both ends of the motor,
allowing you to attach a weight at each end.
|
Voltage |
12VDC |
Most DC motors will run on a wide range of voltages (e.g., 6V-24V),
so just make sure that the power supply you plan to use is within
the voltage range listed for the motor. 12VDC is usually the most convenient
power source in a pin cab.
|
Power |
20W-50W |
The power rating gives you an idea of the mechanical force that the
motor can muster, and the load it places on the power supply. A motor
rated for 20-50W should have enough mechanical power for strong shaking,
with a power draw at 12V of 4A or less. That's in the range
that most ATX power supplies and high-power DOF controllers
can safely handle. Motors with higher wattage ratings might
overload your power or control systems.
|
Speed (no load) |
3000-4500 RPM |
Higher speeds might feel more like buzzing than rumbling.
|
Shaft diameter |
4mm-6mm or 1/4" |
This won't affect the feel of the effect, but smaller shafts
might bend under the force of the shaking.
|
For reference, here are some specific motors that virtual cab builders
have used successfully in the past. It's probably impossible to find
anything on this list that's more than a couple of years old - the
manufacturers generally seem to do a single large production run for
each model, and once that's sold out, they're gone. But it might
still be worth checking, since you can sometimes the older models as
remnants and used items on eBay.
- Generic 775 12V/24V 50W dual-shaft motor (available on
Amazon
and Aliexpress as of June 2022;
note that the "775" is not a model number or brand, but is simply a standard designation for the motor's dimensions;
many other "775" motors are available that look similar but
which have very different electromechanical characteristics)
- Pittman 9414H255-R2 (last seen around 2015)
- Buehler 480-0211-01 (last seen around 2015)
If you know of any other specific motor models that I should add to the
list, please let me know.
Historical note: The motor in the original Williams shakers was
labeled Johnson HC970. Unfortunately, that's not very helpful for
finding replacement parts, because Johnson Electric apparently used this
designation for a number of different OEM parts that they
custom-manufactured for different customers. I've seen a couple of
reports on the forums from people who found Johnson HC970 motors
on eBay that turned out to be unsuitable.
Converting a regular motor to dual-shaft
Most shaker unit designs call for dual-shaft motors. But dual-shaft
motors are relatively rare. This is the main thing that makes it so
difficult to source a motor for a DIY shaker unit. One way around
this to buy a regular motor, and convert it to a dual-shaft
configuration.
This isn't exactly an easy solution. It requires taking the motor
apart, modifying its inner workings, and putting it back together in
working order. You'd have to be comfortable doing major repair work
on mechanical appliances to contemplate this, and you should only
consider it if you can tolerate the risk that you'll destroy the motor
in the process. Most small DC motors are not at all designed to be
taken apart by the end user. Attempt this only with a cheap motor that
you don't mind replacing if you end up breaking it.
The basic idea is to disassemble the motor and replace its original
shaft with a longer one - long enough to stick out from both ends of
the motor body. The full procedure is beyond what I can document
here, especially because motors aren't all exactly the same on the
inside. There are some Youtube videos on the subject that you might
find helpful - try searching for convert motor to dual shaft.
Here's just a rough outline of the process:
Enclosure
A shaker needs a sturdy cover that will contain the weights in case
they ever come loose. A detached weight could become a high-speed
projectile that could cause a lot of damage if not contained.
The off-the-shelf pinball shaker units all come complete with their
own plastic enclosures, so that's another point in their favor. If
you build a DIY plan, or buy one of the generic vibration motors
mentioned earlier, you'll need to provide your own enclosure. I'd
suggest a simple hand-built plywood box. (A clear acrylic cover is a
nice enhancement if you build your own box, since it lets you safely
observe the shaker in operation whenever you want to check that it's
working properly.) You could also re-purpose a plastic food container
or storage box, if it's strong enough to contain an ejected weight.
Where to mount
On the real machines that have shakers, the units are installed
somewhere near the front of the cabinet, but the exact location varies
by title. I think it's just a matter of what's convenient in that
machine's cabinet layout. Most of the recent Stern machines place
the shaker in one of the front corners, alongside the coin box. In
other machines, the shaker is behind the coin box, either centered
left-to-right or off to one side.
I don't think there's much difference in effect from the different
placement options, so put it wherever you have room. The only
imperative, I think, is that it's better to keep the shaker close
to the front of the cabinet, since that's where the player is.
In every commercial pinball setup I've seen, the motor shaft is
oriented parallel to the long axis of the cabinet. I think this
orientation does matter, since it creates a side-to-side shaking
motion. That's probably the best direction for maximizing motion
transfer, given the cabinet's proportions.
Interaction with nudge devices
Some people have trouble with the nudge device picking up
accelerations from the shaker. The nudge device is an accelerometer
whose whole purpose is to detect cabinet motion, so it necessarily
detects the motion that the shaker causes the same way that it detects
motion from the player's nudges.
The shaker's motion shouldn't interfere with game action, even though
it registers on the accelerometer. The motion from the shaker is
different from nudges in that it's symmetrical, it's faster, and it's
lower amplitude. The back-and-forth shaking motion should essentially
cancel out on the time scale of manual nudging. Player nudges, in
contrast, tend to be bigger and in one direction, and they happen on a
longer time scale.
If you're having a problem with your nudge device going crazy when
your shaker is on, there are two ways to address it:
- Turn down the intensity of the shaker
- Turn down the sensitivity of the nudge device
Before taking either action, you should ask yourself: What would a
real pinball machine do? In other words, would that same exact shaker
motor affect the ball on a real pinball machine the way it's affecting
your virtual game? If the answer is yes, then the shaking effect is
probably too intense, and the solution is to reduce the shaker
motor speed. Shakers on the real machines don't send the ball flying
around. If your shaker is at a level where it wouldn't affect the
ball on a real machine, but it's affecting the virtual game to a
troublesome degree, then the problem is in your nudge sensor
calibration: you've turned up the sensitivity to unrealistic levels.
I'd always start by adjusting the shaker to produce a tactile effect
you like, ignoring its effect on your nudge sensor. The easiest way
to adjust the shaking intensity is to adjust the speed of the motor,
either by adjusting the voltage or by adjusting the DOF PWM
parameters; see "Speed adjustment" below. If you built a DIY shaker,
you might also be able to change the shaking intensity by increasing
or decreasing the amount of weight in the counterweights.
If the shaker is still causing excessive nudge interference after
you've adjusted the intensity of the tactile effect to your liking,
the next step is to adjust the sensitivity of your nudge device. You
might balk at this suggestion, but go back to that question about real
machines: does the ball fly around wildly on a real machine when the
shaker is on? No, it doesn't. The thing is, most virtual cab
builders initially set their nudge devices to be far too sensitive.
This is natural - you want to see an immediate and obvious effect from
the new toy. But it's easy to overdo this. I always urge new cab
builders to go find a physical pinball machine and play around with it
for a while, to see how the ball reacts in reality. If you mostly
play virtual pinball, you'll probably be surprised by how "dead" a
real machine feels when you nudge it. On a real machine, a ball trapped
on the flipper will not fly up off the flipper when you give
the machine a little push, the way many people think it's supposed to
work in Visual Pinball. If you want the shaker to coexist peacefully
with your nudge device, you'll have to adjust your nudge device
sensitivity so that it's closer to the subdued response a real
ball would show.
One more thing: please don't use "dead zones" in your accelerometer
setup. Dead zones are terrible. They make erratic behavior even more
erratic because they create a non-linear "cliff" where there's no
response at all at one level, and suddenly a huge response just a hair
above that. It's better to stick with purely linear settings, like the
"Gain" settings in Visual Pinball.
Speed adjustment
The amount of shaking you get out of your motor is a function of
the weights, the distance they are off-axis, and the speed of the
motor. It also depends on factors that aren't related to the
motor itself, like where it's mounted in the cabinet, the overall
weight of your cabinet, the stiffness of the legs, and the
construction of the floor the machine is sitting on. The same shaker
motor will produce somewhat different effects in different cabinets.
Of all of these factors, there's one that we can easily change: the
speed of the motor. Once you have everything set up, you can
fine-tune the effect by adjusting the motor speed up or down.
There are two ways to control the motor speed: adjusting the voltage
of the power supply, and adjusting the power in software via PWM
control (Pulse Width Modulation - a method of varying the power level
in a digital circuit by rapidly switching the power on and off).
Adjusting the voltage: Most DC motors will work with a range of
power supply voltages, spinning faster at higher voltages and slower
at lower voltages. You can take advantage of this to adjust the
motor's speed by varying the power supply voltage.
The best way to control the voltage is to connect an adjustable
voltage regulator between the motor's power input and the 12V supply,
as shown in the diagram below. Look for a "DC-to-DC step down
converter" on eBay, and find one that has a dial or set-screw that
sets the output voltage. This will let you adjust the voltage to
anywhere between 0V and 12V, so that you can fine-tune the motor speed
to your liking.
Select a regulator that has an amperage rating high enough for the
motor (equal to or higher than the amperage the motor draws).
Note that a motor always has a minimum voltage level, below which it
won't have enough torque to start spinning. The exact minimum is
something you have to determine experimentally, since it depends upon
the amount of load the motor is driving. If you try a low voltage and
the motor stalls, don't leave the power on very long, as a stalled
motor can quickly overheat. When experimenting to find the right
voltage, it's safest to start with the dial turned up to the high end
(12V), and gradually reduce the voltage until the speed is to your
liking.
Typical wiring for a shaker motor with a DC-to-DC step-down
voltage regulator to adjust the voltage supplied to the
motor. Check your converter for the correct input/output
terminals (don't rely on the illustration - your converter
might have a different terminal arrangement). Note that
the converter's (-) input and output terminals are both
connected to the power supply ground.
Adjusting with PWM: The DOF Config Tool lets you set the power
range for the shaker motor. Go to the Port Assignments page, and look
for the "Shaker Motor" section on the right side of the page. This
will let you set a maximum intensity, on a 1-48 scale. The default
is level 48, to run the motor at full speed. Lower settings should
slow down the motor; you can try different settings until you find
a speed you like.
Most motors have a minimum power level they need to operate at all, so
there will probably be some minimum PWM value below which your motor
won't start. Don't leave the power on to the motor if it's stalled,
as that can overheat it. When experimenting to find the right PWM
level, it's safest to start at the maximum (48) and work down from
there until the speed is to your liking.
Note that the PWM control only works if you're using a PWM-capable
output controller, such as an LedWiz or Pinscape Power Board. PWM
won't work with a relay-based controller such as a Sainsmart. You'll
have to use the voltage adjustment approach with those.
Wiring
Follow the general wiring plan for any output device
(
Chapter 47, Feedback Device Wiring). Connect one terminal of the shaker
motor to the positive (+) power supply voltage (usually 12V). Connect
the other terminal to an available port on your output controller.
A diode is required, to protect your output controller and other
electronics from interference from the motor's magnetic field. See
Chapter 53, Coil Diodes. If you're using a pre-built shaker assembly, it
might or might not already have a diode installed; if you don't see
one, assume there isn't one and add your own.
If you're using one of the off-the-shelf Stern shaker kits, and it
came with an interface board for a real pinball machine (for example,
a Stern SAM connector or a SPIKE connector), you won't need that
interface board to use the motor in your virtual cab. Those boards
are designed to interface to the specific electronics found in the
various Stern machines, so they're not relevant to a virtual cab. We
just need the motor itself.
If you're using the Pinscape expansion boards, you can connect the
shaker directly to any MOSFET Power Board port. If you're using an
LedWiz, don't connect the motor directly, as it will draw too much
power for an LedWiz port; you'll need some kind of booster or
amplifier circuit. See "Power limits and boosters" in
Chapter 50, LedWiz Setup.
H-bridges: If you read through old posts on the forums, you
might see people say that you need an "H-bridge" to control a shaker
motors. You don't. The idea got embedded at some point in the
group consciousness because someone read about it on an Arduino forum
and it got repeated a lot. H-bridges are useful if you need to
control a motor bidirectionally, which is something that Arduino
robotics hobbyists often want, but isn't necessary with a shaker
motor. A shaker motor just needs to run in one direction, so you can
connect a shaker directly to any feedback device controller port that can
handle the motor's power level. If you're using the Pinscape
expansion boards, you can run a shaker motor directly from any Power
Board port. If you're using an LedWiz, you'll need a power booster
circuit, the same as you'd use for any other type of high-power
device like a solenoid or coil.
LedWiz hacks: You might also see old posts with some really
scary LedWiz modifications involving soldering wires to IC pins on the
LedWiz board. Ignore those. They're based on that old
H-bridge notion. If you're using an LedWiz, you will need some kind
of booster circuit, but that's something you can add on externally.
There's no need to modify the LedWiz in any way. You just need
the same sort of booster circuit you'd need for any other high-power
device, as described in
Chapter 50, Power
limits and boosters in
Chapter 50, LedWiz Setup.
Electrical interference
Motors produce a lot of electrical noise, which can feed back into the
power supply wiring and propagate into your system's logic circuits, such as the
feedback controller and even the PC motherboard.
Diodes are a must, as already mentioned, because they help suppress
the high-voltage transients that motors produce.
For some motors, diodes might not be enough. If you start seeing
noticeable glitches when the motor is running, such as USB disconnects
or random keyboard input, you might need some additional filter
components.
The typical noise filtering for a motor is to add a pair of "chokes"
(a type of inductor), in series with the wiring to the motor. Add one on
the power input to the motor and one on the connection to the feedback
controller.
Try a 4.7 µH inductor, with an amperage rating equal to or
higher than your motor's operating current. Here's an example
part from Mouser that should work well:
Coilcraft DR0608-472L 4.7µH, 5.8A radial inductor -
at Mouser
>
Inductors aren't polarized, meaning they don't have a special
orientation when you install them. It doesn't matter which lead
connects to the "+" side and which connects to the "-" side.
(The diode, in contrast, has to be installed with its striped
side going to the "+" voltage, as shown in the diagram.)
The inductors shouldn't be necessary on most virtual cabs. I haven't
had a need for this with any motors on my machine. But it's something
to try if you experience interference problems that seem to
coincide with shaker activation. You can also add inductor
filtering to any other motor-based devices that cause interference,
such as gear motors, fans, and beacons.
Note that you should always keep the diode in place even when adding
inductor filters. The inductors provide a different type of filtering
and aren't a substitute for the diodes.
DOF Setup
In the
DOF Config Tool, go to the
Port Assignments page. Find the port number where you wired the
shaker motor. Assign it to "Shaker".
At the right side of the page, you'll also find a section labeled
"Shaker Motor" that lets you set the intensity range. If you're using
a PWM-capable controller (e.g., an LedWiz or a Pinscape power board),
this lets you set the range of power that DOF uses when the shaker
runs. The intensity values are on a 1-48 scale, where 48 is the
highest power. The default settings use the full available range. If
you find that the shaking effect is too powerful when DOF activates it
during game play, you can reduce the maximum intensity setting to slow
down the motor. Similarly, if the motor seems too weak some of the
time, or doesn't have enough power to start spinning in some cases,
you can raise the minimum setting.
Note that the intensity adjustment won't work unless you're using a
PWM-capable output controller. If the motor is connected through any
kind of relay, such as a Sainsmart board, the DOF PWM adjustment won't
work and you'll have to adjust the speed some other way, such as with
a varying voltage supply (see "Speed adjustment" above).
62. Gear motors
A gear motor can be used in a virtual pin cab to re-create the noise
made by the playfield motors found in many real pinball games. A gear
motor is just a small DC motor with some step-down gears to reduce the
shaft speed.
If you look at real machines through the 1980s and 90s, you'll find a
surprisingly high percentage had some kind of moving playfield feature
that was animated by a small motor: Thing in The Addams Family,
the cannon in Terminator 2: Judgment Day, the magic trunk in
Theatre of Magic, the drawbridge in Medieval Madness,
and many more.
The point of adding a gear motor to a virtual cab is simply to
replicate the noise those little motors make in the real games. The
motor doesn't actually do any mechanical work, and you don't have to
attach anything to its shaft; it's simply the noise of the motor
itself that we're interested in. As with other noise-making devices,
it's always more realistic to have something real making the noise
than to rely on recorded audio played back through speakers.
I'd rank gear motors at the low end of the impact scale, as all they
do is make a little noise - and that's actually a little artificial,
since the motors in the real machines were almost never audible over
the game's other sound effects. In virtual cab use, most people
intentionally use motors that are louder than the real thing because
they want to be able to hear the effect. So I'd give higher priority
almost all of the other toys if you're economizing. But I'm in the
minority on that; a lot of cab builders really like their gear motors.
And if you're going for a decked-out cab with all the toys, by all
means include a gear motor, as it does add a little something, even if
the emphasis is on little.
Parts: You just need the gear motor itself, and whatever
fasteners you need to mount it somewhere inside the cabinet.
Gear motors are available in almost infinite varieties, but there
are two types most commonly used in pin cabs.
The first is small, cheap DC gear motors made for robotics (Arduino)
use. Search eBay for "small 6V gear motor" and you'll find numerous
options. The type favored by pin cab builders has exposed gears
like the one pictured at right. The exposed gears are desirable
because they make for noisier operation, which is what we're
after here.
The second common type in pin cabs is replacement motors for
windshield wipers in cars. Like nearly all automotive products, these
operate at 12V DC, so they can be conveniently powered from a computer
ATX power supply. One model that many people use (I use it on my own
cabinet) is a VW OEM replacement part; look for part number
251955119191955113A on eBay or an auto supply store site.
Which to choose?
- If you want something cheap, use a robotics motor.
You can find dirt-cheap options on eBay for those (under $5).
- If you want something loud, use a robotics motor.
- If you want something more subtle, use a windshield wiper motor.
They're designed to be quiet - passengers in the car don't want to hear
them, after all. They produce a subtle, low frequency "hum" or "whir", vs the
loud buzzy noise you'll get from a robotics motor.
I don't want to make "subtle" sound like a value judgment. This is a
matter of taste, so there's no right or wrong here. The downside of
making the motor quieter is that you can't hear it if you make it
too quiet, and there's no point in installing it if you can't
hear it. And the windshield wiper motors can in fact be
too quiet. You might not hear it at all lot of the time, and when you
do, the effect will be very understated. I personally think the
understated effect is a lot more realistic, as (like I said above) you
rarely hear the motors operating in the real machines. But that
defeats the purpose of including it at all for a lot of people, so if
you think you'll be disappointed with too much subtlety, you might
prefer something noisy enough that you're sure to hear it.
The original gear motors in the real pinball machines that we're
emulating were typically somewhere in between the robotics motors and
windshield wiper motors in size, but more at the wiper-motor end of
the spectrum. Most of the ones I've encountered in person are pretty
much inaudible - you tend to hear the sound effects that the game
plays when the motor is operating, not the motor. So in that respect,
I think it's more authentic to use one of the quieter wiper motors.
Positioning: It's worth giving a little thought to where the
gear motor will be mounted, since human hearing is pretty good at
locating sounds in space. You want the motor noise to sound like
it's coming from the playfield element it's simulating.
My recommendation is to mount the motor under the playfield TV,
centered side-to-side and about 2/3 of the way back from the front of
the TV. In the real games we're simulating, the motorized feature
is almost always some major centerpiece element, and those tend to
be towards the rear of the playfield. The rear center of the TV is a
pretty good "average" of the locations where the elements we're
simulating would appear in the real thing, so it will make the sound
seem to come from about the right place most of the time.
There's no standard way to mount these motors. Just improvise
something using fasteners from a home supply store. U-bolts are
often helpful here.
Wiring: Make sure you're using a suitable supply voltage for
your motor. An automotive windshield wiper motor should run on 12V;
the eBay robotics motors might specify anything from 3V to 12V,
depending on what you buy. DC motors will usually run happily on
voltages lower than their rated voltage, with a corresponding
reduction in speed. You just want to make sure the voltage is high
enough to make the motor turn at all, since a completely stalled motor
might overheat or overload your power supply. So if you find a
nominally 6V robotics motor, it's probably safe to operate it on 5V.
- Connect a diode between the (+) and (-) leads of the motor, as
described in Chapter 53, Coil Diodes. Diodes are always required for
motors because of the magnetic fields created by the motor's
operation.
- Connect the (+) terminal of the motor to the positive voltage
from your power supply
- Connect the (-) terminal of the motor to an available output
port on your output controller
If the motor's terminals aren't labeled (+) and (-), it probably
doesn't matter which order the wires are connected. Most DC motors
will simply run backwards if the polarity of the power connection is
reversed. Gear motors sometimes have a preferred direction because of
the gearing, though, so do check markings for a preferred polarity.
If the motor terminals aren't marked, you might want to try
both polarities to see if one produces a better sound effect, since
the gears might sound rather different running in each direction.
Electrical interference: Be sure to use a diode with the motor.
If you still have electrical interference problems with the motor (for
example, USB devices randomly disconnect, or you see random keyboard
input on the PC), you might need to add more filtering. The two-inductor
filter described for the shaker should work equally well for a gear
motor. See "Electrical Interference" in
Chapter 61, Shaker motors for the wiring
and parts details.
DOF setup: In the
DOF Config
Tool, go to your Port Assignments page. Find the output
controller port number where you wired the motor. Assign this
to "Gear" (which is short for "Gear motor").
63. Fans
At least two real pinball machines featured fans mounted on top of the
backbox: Whirlwind (Williams, 1990), Twister (Sega,
1996). Two titles might seem like an awfully skimpy reason to include
a fan on a virtual cab, yet this has become one of the more popular
toys, and I'd highly recommend it. The reason? Fans are uniquely
tactile. They add a completely new sensory effect to the playing
experience.
As you'd expect, the DOF database replicates the authentic fan action
in Whirlwind and Twister. Including a fan on your cab
will make those games that much closer to the original. Now, if that
were all the use you'd get out of a fan, it probably wouldn't be worth
the trouble unless you had a rather fanatical devotion to one of those
specific games. Fortunately, that's far from the only use your fan
will see. The DOF database is programmed to trigger the fan in dozens
of games - 41 as of this writing.
I really like the fan effect and the way DOF uses it, and I think most
pin cab builders who've included them would agree. I rank this toy
near the top of my priority list. It's a lot like the shaker motor in
terms of its effect on game play: it just makes the game feel more
exciting and immersive.
Auto/boat fans
The easiest way to add a fan is to use an off-the-shelf fan made for
use in cars or boats. These can be found in the right size range to
fit nicely on top of a backbox (about 6" diameter), and anything made
for a car or boat will run on 12V DC, which means you can power it
from a secondary ATX power supply. Search on Amazon for "car boat
fan" to find options.
DIY
For my own cabinet, I wanted something that looked more custom, to fit
with my cab's artwork, analogous to how Whirlwind's fan
enclosure is shaped like a storm cloud. I started with a bare fan
assembly, just the fan blade and motor, and built my own custom
3D-printed plastic enclosure around it.
My DIY fan assembly. A run-of-the-mill 12VDC motor with a 1/4" shaft,
with a 6" plastic fan blade press-fitted onto the shaft, mounted on a
makeshift wood and sheet metal bracket. The blade is the same one that
Williams used for Whirlwind, which happens to be an OEM part
for microwave ovens (!).
My 3D-printed fan enclosure (in the wiring stages, installing
LEDs around the perimeter).
The fully assembled Pinscape fan.
If you want to go the DIY route, there are a couple of ways to get a
bare fan assembly to use as the core. One is to buy a car/boat fan
like above and remove its case. Another is to build your own entirely
DIY fan assembly from parts.
The completely DIY approach is probably easier. It's certainly more
predictable; you never know with a pre-assembled fan if it'll be
possible to remove the case without destroying the whole thing. To
build a fan from parts, you really only need two pieces, both of
which are easy to find:
- A 12V DC motor with a 1/4" shaft. You don't need anything
particularly special; most 12V motors will have plenty of power to run
a fan. Look on eBay, Amazon, or robotics hobby vendors.
- A blade. The
original Whirlwind fan, amusingly enough, was actually an OEM part for
microwave ovens (Thorgren model number 6C2504C1). It's plastic, has
four blades, and a 1/4" bore, like the one pictured at right. You
might be able to find that exact part on eBay or appliance parts
vendors, but there's really no need unless you have a special fondness
for Whirlwind in particular. You can find any number of
similar appliance fan blades on eBay by searching for 6" fan
blade. Look for blades with a 1/4" bore, as these will easily
press-fit onto a 1/4" motor shaft.
You'll also need to build a bracket to attach the motor to the
backbox. You should be able to improvise something if you have some
minimal woodworking skills. (You'd need to build this part even if
you're re-purposing an auto/boat fan, so I didn't count it in the "two
pieces" I said you needed for a fully DIY fan.)
In-cab blowers
A few pin cab builders have built fans into the cabinet body rather
than putting it on the backbox. One technique mentioned on the forums
was to use an air duct to to route air from a small fan through an
opening in the coin door. (One potential opening to use for this: the
dollar acceptor slot. Newer coin doors made for the US market tend to
include a large square opening intended for dollar bill acceptors.)
Here's a particularly amusing take on this theme:
>
I personally like the effect of the fan blowing at you from the
backbox, but at least one person who built the coin door version
commented on the surprise value of the sneaky placement.
Wiring a fan (DC voltage)
Connecting the fan is just like any other feedback device:
Connect one terminal of the fan motor to the +12V from your
secondary ATX power supply. Connect the other terminal to an
available port on your output controller.
The diode is required to protect your output controller and
computer electronics from interference from the magnetic field
generated by the motor. See
Chapter 53, Coil Diodes.
If you're using an LedWiz, don't connect the fan directly to the
LedWiz. Fans use too much power for an LedWiz, so you'll need some
kind of booster circuit. If you're using the Pinscape expansion
boards, you can connect the fan directly to any MOSFET Power
Board port.
Electrical interference
Be sure to use a diode with the motor, as shown above. If you still
get electrical interference when it runs (for example, USB devices
randomly disconnect, or you see random keyboard input on the PC), you
might need to add more filtering. The two-inductor filter described
for the shaker should work equally well with a fan motor. See
"Electrical Interference" in
Chapter 61, Shaker motors for the wiring and
parts details.
Wiring a fan (AC voltage)
If you're using an AC-powered fan,
don't connect it directly to
an LedWiz, Pinscape controller, or any other solid-state controller.
You'll need a relay for this instead. If you're using a Sainsmart
relay board, the outputs on those are in fact relays, so you can
connect an AC device directly. For LedWiz and Pinscape, you'll need
to add a relay to the circuit: your output controller will control the
relay coil, and the relay will control the AC motor. See
"AC devices" in
Chapter 47, Feedback Device Wiring
for the wiring plan.
DOF Setup
In the
DOF Config Tool, go to the
Port Assignments page. Find the port number where you wired the
fan. Assign it to "Fan".
At the right side of the page, you'll also find a section labeled
"Fan" that lets you set the intensity range. If you're using a
PWM-capable controller (e.g., an LedWiz or a Pinscape power board),
this lets you set the range of power that DOF uses when the fan
runs. The intensity values are on a 1-48 scale, where 48 is the
highest power. The default settings use the full available range.
If you find that the fan is too powerful (runs too fast) when
DOF activates it during game play, you can reduce the maximum
intensity setting to slow it down. Similarly, if the fan seems
too weak some of the time, you can raise the minimum setting.
64. Chimes and Bells
Next time you're watching a TV show or movie, and you notice a pinball
machine being played in the background, pay attention to the sound
effects. I can almost guarantee you that the sound effects will mimic
the bells and chimes from a 1960s electromechanical machine, even if
the on-screen machine is a 1980s or 1990s solid-state table. You and
I know that those solid-state machines actually have electronic sound
systems that include speech and music, but when you see them in TV and
movies, the sound effects will almost always be EM chimes. Why is
this weird technical gaffe so comically predictable? Maybe in part to
avoid music licensing costs, but the main reason, I think, is that the
sound designers know that those chimes are what most people think of
when think of pinball. They're not going for technical accuracy with
those sound effects; they're trying to create a sonic impression.
EM chimes are the "audio icon" for pinball.
Which brings us to the topic at hand: chimes and bells in a virtual
cab as physical feedback devices. Before the solid state machines
came along in the 1980s, pinball machines made those iconic bings and
bongs with little solenoid-driven percussion instruments. These
instruments came in two main types. The first is known as a "chime
unit", which is essentially a miniature xylophone consisting of three
or four metal keys. The second type is bells, typically the circular
half-shell type you might find in an old-fashioned alarm clock or fire
alarm.
If you play only games from the 1980s and later, these will be of
little interest to you. If you enjoy games from the electromechanical
era, though, real chimes and bells can be a great enhancement.
Recorded effects played through speakers can't approach the visceral
impact of real percussion instruments.
Chime units
A chime unit is a
miniature xylophone played by solenoid-actuated hammers. The
xylophone keys are metal bars tuned to selected musical notes, and
each key has a solenoid positioned underneath with its plunger aimed
at the key. When the solenoid fires, the plunger pops up and strikes
the key, setting it ringing.
The chime unit pictured at right is a classic Gottlieb model, which
was mass-produced and used in numerous Gottlieb EM titles throughout
the 1960s and 70s. The black box at the back is a resonance chamber:
an enclosed air space sized to resonate at each bar's fundamental
frequency, to amplify the sound and make the ringing last longer. The
resonance chamber is probably the most important part of the design
acoustically, since it can make the notes sound richer and warmer by
sustaining the ringing effect. Williams and Bally also manufactured
chime units with similar basic designs, but Gottlieb's is widely
considered to be the most sonorous, thanks to its particularly
well-designed resonance box.
What to buy: The pinball manufacturers had a few standard chime
unit designs that they mass-produced during the 1960s and 1970s. They
stopped making the originals a long time ago, but you can often find
used ones on eBay. There are also two modern reproduction models
available for purchase (as of March 2022):
- Marco Specialties sells
a 3-bar reproduction based on the Gottlieb units from the 1970s.
Search for part number B-12023. About $300.
- McCullough's Chime Unit, available at
www.chimeunit.com. This is apparently an
approximation of the original designs, not an exact replica of any
particular original. I haven't seen these in person; the reviews I've
read are positive but say that they don't sound quite as good as the
original Gottlieb units. About $150.
DIY chime unit
Given the difficulty of finding an original chime unit and the high
prices of the modern reproduction units, a few pin cab builders have
at least explored the idea of building their own chimes from scratch.
The basic design is straightforward, but the details are tricky enough
that I don't think many people have successfully built them. I
haven't attempted it myself, but it seems like an interesting project,
so I'll pass along a few things I've learned from reading about other
people's attempts. If you do build your own, I'd love to hear about
how you went about it and how it turned out.
The basic components are:
- Metal bars to serve as the xylophone keys
- Solenoid hammers to strike the bars
- A resonance chamber to sustain the ringing effect
The solenoid coils are easy to find. You need nylon-tipped plungers
for the coils to serve as the hammers; the ones used in replay
knockers should work. You could just buy a replay knocker coil and
plunger for each key, although knocker coils are probably overpowered;
the original chime units had smaller 24V coils.
You can find replacement metal bars for the original chime units from
online pinball vendors. It's also fairly easy to create your own from
raw metal stock, which you can find at hardware stores or online. You
just need to cut bars to appropriate lengths for the different chime
tones. There isn't a simple formula for length vs. frequency, since
many variables go into it; it depends on the type of metal as well as
the thickness and length of the bar. Other things being equal,
though, a longer bar produces a lower tone. You can find Web sites on
the subject if you want to work out the math, but I think it might be
easier to do some ad hoc experiments by cutting metal bars to
different lengths until you find a pleasing set of tones.
Some additional tips:
- Use a solenoid plunger with a nylon tip, not a metal tip. A metal
tip will make a sharp metal-on-metal sound; a nylon tip will just set
the bar ringing, producing the bar's pure tone without any sharp
contact noise.
- Support the bars with small rubber grommets, to minimize damping
(you want the bar to ring after being struck). You can find
purpose-made grommets as replacement parts from pinball vendors, but
generic grommets from a hardware store will probably work just as
well.
- Place the supports at two points, centered relative to the bar's
width and inset from each end by about 22% of the total bar length.
To find the exact positions, sprinkle some sawdust or salt evenly over
the bar and give it a whack with a hammer. The dust/salt will settle
at the nodes of the bar's acoustic vibration waveform, which are the
exact points where the supports should go because they're stationary
while the bar is ringing.
Aside from the xylophone keys, a good chime unit also needs a
resonance chamber: a rigid box with an opening on the side facing the
chime. This serves to sustain the ringing sound for a time after each
hammer strike, which creates a more sonorous effect than the chimes
alone. The size of the box has to be chosen according to the
frequency of the adjacent chime, so each bar needs its own box. You
can find formulas for calculating the resonant frequencies of chambers
with various shapes in the Wikipedia article on
acoustic
resonance.
The resonator boxes in the original chime units were made of some kind
of hard plastic. I don't think the material is critical, as long as
it's something rigid and fairly smooth, so that it doesn't absorb much
of the sound energy. I imagine that you could make this work with
3D-printed plastic.
Here's a forum post about a DIY chime unit (using metal pipes rather
than the more conventional bars):
>
How many chimes?
Gottlieb and Bally each mass-produced their own three-chime units in
the 1960s and 70s, and used them as standard parts in most of their
games during that period. That makes the three-chime setup by far the
most common in EM games you're likely to see re-created in the virtual
systems.
In addition, Bally created a four-chime system that they used in a few
machines from about 1976 to 1979. This wasn't actually a whole new
design; it consisted of their pre-existing three-chime unit, plus a
second unit with a single, extra-long chime bar installed. The
combination extended the three-tone set to four tones, with the fourth
tone being a new extra-low note.
DOF has a provision for a fifth chime bar as well, but as far as I can
tell from reviewing
IPDB game descriptions and
other sources, there were never any real machines that actually used a
fifth chime. DOF's use of it appears to be entirely in the "fantasy"
realm - an embellishment for virtual pin cabs, not something that
replicates a real machine feature. So if you do install a fifth chime,
it's completely up to you what tone it plays: there's
no authentic reference point from the real machines for what it
"should" sound like.
For a pin cab, I'd personally go with a three-chime unit. Only a
few real games were made with the four-chime units, so the extra work
and cost of a fourth physical chime probably isn't worth it to most
people. And DOF's fifth chime slot is purely a DOF embellishment,
and is only used by a handful of tables.
You can always map DOF's fourth and fifth chimes to fire your
other physical chimes, so you'll still be able to get something to happen
when it fires, even though it won't be a distinct tone.
Musical notes
The real three-chime units typically play notes in the fifth octave,
usually about two musical notes apart. If you're designing your own
chimes, a good target set of notes might be C5, F5, A5. The extra
chime on the Bally four-chime units is reportedly about a C4.
Shell Bells
Chime units weren't the only type of percussion instrument in the EM
machines. Some machines had "shell" bells instead: circular shell
bells, with solenoids positioned to strike them at the edge. These
bells are similar to those you'd find on a children's bicycle.
Machines equipped with bells usually had two of them, one larger and
one smaller, to produce different tones. A common arrangement was one
3" bell and one 5" bell.
You can buy similar bells as replacement parts from the pinball supply
vendors; look for "bell" and "bell assembly". You can also find these
used on eBay.
You could also use any sort of similar bell, such as a bicycle bell, a
bell from an old alarm clock or phone, from a fire or burglar alarm,
etc. You can improvise your own firing mechanism using a pinball bell
strike coil assembly, or using a cheap eBay push-type solenoid.
Chimes and bells were mutually exclusive in the real machines, as far
as I've seen. They serve exactly the same purpose and worked the same
way, the only difference being the shape of the ringing element. The
pinball manufacturers probably chose whether to use chimes or bells in
a given machine according to parts cost and availability, and perhaps
the whims of the game designers.
For a virtual cabinet, should you install bells, chimes, or both? In
my opinion, a chime unit should be your first choice. Chimes were by
far the most common noisemaker in the real EM machines over the years,
so a chime unit will create the most authentic simulation for most
games; and a chime unit can easily stand in for shell bells for games
that used those instead. My second choice would be a chime unit
plus a pair of shell bells (one large and one small), if your
budget allows it and you have space in your cabinet. Shell bells do
have a different tonal quality compared to chimes, so they'll add some
variety to your EM games, and they'll give you better authenticity for
games that used them.
If you do install shell bells, you can assign them to the Shell
Bell Large and Shell Bell Small devices in the DOF Config
Tool.
Repeating bells
This isn't exactly in the same category as chimes, but it's related.
A few real machines over the years have featured repeating bells, like
the ringer in an old-fashioned telephone, or a fire alarm. The key is
that the hammer rapidly hits the bell over and over as long as the
bell is energized, rather than just hitting it once.
Space Shuttle (Williams, 1984) has a bell like this that fires
each time you complete the stand-up targets, and also serves as the
replay knocker. Taxi (Williams, 1988) also has a bell like
this, which sounds when multiball starts or when you collect a
jackpot.
You might be able to find the original bell unit for a game that
featured one (such as Space Shuttle or Taxi) from a
pinball parts vendor. It might be easier to find some other
electrically operated bell and adapt it, though. Look for "12V alarm
bell" on eBay, for example.
The DOF Config Tool has a device type called Repeating Bell
that you can assign to a physical device like this, if you install
one.
Bells as toppers
Large decorative bells make good backbox toppers. Some real machines
used bell toppers as part of their theming, most famously Fire!
(Williams 1987).
You might be able to find the specific replacement part for
Fire! form a pinball vendor or used on eBay, but it's probably
easier to find a random decorative bell with the right size and shape.
As with the shell bells, you can improvise your own firing mechanism
using a pinball bell striker coil assembly, or a cheap eBay push-type
solenoid.
If you assign a decorative bell, you can assign it to the device
named Bell in the DOF Config Tool.
>
Installing in a virtual cab
If you found a chime unit (or built your own), it will probably be too
big to fit in the backbox. In the original EM machines, these were
typically mounted in the front corner of the main cabinet, under the
plunger. I think they mounted them there simply because it was a
convenient place to put them, not because it's a special spot in terms
of acoustics, so install it wherever you have space available.
Bells were more typically mounted in the backbox. Again, though, I
don't think there's any need to slavishly replicate this placement.
Placing them in the main cabinet should also work if you don't have
room in the backbox.
Wiring
Each chime in a chime unit has its own coil, so simply wire each
coil to a separate output controller port.
If you're using the Pinscape expansion boards, you can connect a chime
or bell directly to any MOSFET Power Board or Chime Board port. If
you're using an LedWiz, don't connect a chime coil directly to it,
since these coils use more power than the LedWiz can handle; you'll
need some kind of booster circuit to use chime with an LedWiz.
Always use diodes with coils. Diodes are required to protect your
output controller and other electronics from interference from the
magnetic field generated by a coil. See
Chapter 53, Coil Diodes.
If you're using a repeating bell (the type where the hammer strikes
repeatedly), it might cause more electrical interference than a
regular coil does due to the way it operates. A ringing bell uses a
mechanical switch in the hammer to produce the rapid repeat firing, by
interrupting the power to the coil every time the hammer strikes.
This mechanical switching action can inject a great deal of electrical
noise into the circuit. If you have any problems after installing the
bell with your other electronics (e.g., the output controller resets
or disconnects from USB when the bell fires, or other devices fire
when the bell fires), try adding a small capacitor (maybe a 0.1uF disc
capacitor) in parallel with the coil diode. If possible, place it
directly across the mechanical switch terminals inside the bell; if
you can't do that, place it physically close to the bell's electrical
terminals.
Timer protection circuits
Pinball coils like those used in bells are designed to be fired in
short bursts only. They'll overheat if they're energized for long
periods. Under normal conditions, this isn't a concern for chime
coils, since games that use chimes should naturally fire them in short
bursts, exactly as they're designed to be used. However, PC software
sometimes has bugs or glitches, and one of the things that can happen
when something goes wrong on the PC is that an output port can get
stuck on. This can destroy a pinball coil if it's not quickly fixed.
The Chime Board from the Pinscape expansion boards has a dedicated
hardware timer for each output to protect against exactly this failure
mode. If you're using the Pinscape boards, it's recommended to use
Chime Board outputs for chimes and bells.
Note that this doesn't apply to repeating alarm-type bells, since
those are intended to fire for a longer periods.
If you're using the Pinscape software but not the Chime Boards,
you can still get some of the same protection by using the
"Flipper Logic" feature for your chime ports.
DOF Setup
In the
DOF Config Tool, go to the
Port Assignments page. Find the port numbers where you wired your
chime/bell coils. Assign to the appropriate DOF devices:
- Chime Unit High Tone through Chime Unit Low Tone
are for traditional three-bar chime units. Assign the shortest
bar to Chime Unit High Tone, since the short bar has the
highest-pitched tone. Assign the remaining bars in descending tone order.
- Chime Unit Extra-Low Tone is for the fourth chime
in the Bally four-bar chime units from the late 1970s. If you
have a fourth chime bar, assign the Extra-Low Tone DOF
slot to the physical bar that produces the
deepest tone (the one with the longest bar). If you have a more
typical three-chime unit, you can assign this DOF slot to the same
physical chime as your "Low Tone" port.
- Chime 5 is an extra DOF chime that doesn't correspond to
any physical chimes from any real machines, but is used as a DOF
embellishment for a few tables, to add some extra variety to their
sound effects. If you have a fifth physical chime device, you can assign it here. If
not, you can assign this to the same physical device as one of your
other chimes. Very few games use this, so you won't miss much if you
just leave it unassigned.
- Shell Bell Small and Shell Bell Large are for shell
bells like those found in some 1960s machines (see
shell bells above). These work exactly
like chimes, but use circular metal bells rather than bars as the
ringing element, for a different tonal quality.
If you install physical shell bell devices, assign them to these
DOF slot. If you don't have physical shell bells but you do
have a chime unit, assign Shell Bell Small to your shortest
chime bar, and assign Shell Bell Large to your longest
chime bar.
- Repeating Bell is for a bell that rings continuously
when energized, like on an old-fashioned telephone (see
repeating bell above). If you
have such a device, assign it to this slot. Since this slot is
specifically for repeating bells, I wouldn't map it to any other
single-firing chimes or bells; I'd just rely on the digital
sound effects recordings in the games instead for this one.
- Bell is intended for a large novelty bell of the sort found
as the backbox topper on Fire! If you have a device like
this, assign it here. If not, and you have chimes or shell bells,
I'd assign this slot to fire the one with the deepest tone.
65. Addressable Light Strips
Addressable or "smart" light strips are similar to the basic light
strips most cab builders use for
Chapter 58, undercab
lighting, but with the added feature that each LED on a smart
strip can be set to a different color. That's what "addressable"
means: each LED can be addressed - commanded - individually.
In pin cabs, these can be used in a variety of ways, such as:
- A strip of lights down the entire length of each side of the
playfield TV, usually mounted on the side wall of the cabinet just
above the TV. These can show chaser lights that follow the ball at
certain times (such as when launching from the plunger), and can also
show flashes of light situated near playfield flasher lights on the
TV, to reinforce the video rendition of the flasher with a brighter
nearby LED flash. (See Chapter 56, Flashers and Strobes.)
- One strip or several rows of strips across the width of the back
edge of the playfield TV. This can display more ball chaser light
effects, and can also take the place of a dedicated flasher panel (see
Chapter 56, Flashers and Strobes). In matrix form (multiple rows of strips), it
can also serve as a sort of supplemental DMD, to display additional
dot animation effects during game play.
- A strip or several rows of strips mounted near the top of the
backbox. This can simulate "beacon" devices (see
Chapter 57, Beacons).
- Addressables can also be used to illuminate the flipper and
MagnaSave buttons (see Chapter 55, Button Lamps). This function can
also be performed (more easily, in my opinion) by a general-purpose
output controller like an LedWiz or Pinscape unit, but you could use
addressables if your system doesn't include a general-purpose
controller at all, or if all of its ports are committed elsewhere.
The placements listed above are the most common, and DOF has
pre-programmed effects for them. But you're not limited to those
setups. The DOF Config tool lets you create your own custom
programming in addition to the pre-programmed effects. So if you have
other ideas about how to arrange the strips, you're free to set them
up as you like, as long as you're willing to do the additional work to
program the effects yourself.
Controller
You can't use an LedWiz, Pinscape, or other general-purpose
output controller to run a smart light strip. Instead, you need a
separate, special type of controller just for these strips. That
makes smart strips different from all of the other output devices
we've looked at.
The required controller is a bit of a DIY project. Being a DIY
project, you can build the whole thing from scratch any way you like,
but fortunately there's a standard recipe to follow. If you want to
use the standard setup, here are the parts you need:
- Teensy 3.2
(an Arduino-like microcontroller board, about $20)
- OctoWS2811 adapter for Teensy 3.2
(interfaces the Teensy to CAT6 jacks for easier wiring to the light strips, about $10)
- A CAT6 cable to connect the light strips to the adapter
- A USB micro to USB "A" cable to connect the Teensy to the PC
The Teensy isn't a light strip controller by itself. It's just a
microcontroller (a small single-board computer). To turn it into a
light strip controller, you need some special software:
>
Follow the instructions there to download the software onto your
Teensy. The project Wiki linked there also has more information about
setting up your light strip hardware, so you might look there if you
run into any issues not covered in this chapter.
Parts for the light strips
Look for WS2812 light strips on eBay.
The strips are available with 30, 60, and 144 LEDs per meter. As
you'd expect, the higher densities are more expensive. For strips
along the side of the cabinet, I'd recommend the 60/meter type.
60/meter is also good for a single strip across the back. If you're
attempting to create a DMD-like effect by using multiple rows at the
back, though, you'd probably prefer the 144/meter type there, as the
higher density will allow for better rendering of shapes across
multiple "pixels".
WS2812B strips are equivalent to WS2812. (The difference with the "B"
type is related to the physical solder pad geometry of the individual
LEDs. That makes no difference when you're buying a strip, since the
LEDs are already soldered to the strip. It would only matter if you
were buying the individual LEDs to make your own custom strip or
circuit board layout.)
You can also use WS2811 light strips, but I'd stay away from those
because they're less predictable. In particular, some of the WS2811
strips are set up so that the LEDs can only be controlled in groups of
3, not individually. The WS2812 LEDs are always individually
addressable, which is what you probably want if you're going to all
this trouble. If you do buy a WS2811 strip, be sure to check the
seller's description carefully to make sure that the elements are
individually addressable.
Power supply
Make sure that your power supply has enough capacity. Long light
strips can consume a surprising amount of power. Computer ATX power
supplies are usually sufficient for typical pin cab light strips, but
smaller "wall wart" power supplies might not have enough power for
long strips.
To determine the total power requirement, count up all of the
individual LEDs across all of your strips, and multiply the total
number by 60mA. This will give you the total current used. Many
power supplies list their capacity in Watts rather than Amps, though,
so you might have to convert. For a 5V supply, use this formula:
Watts = Amps × 5
>
Note that this formula is written in terms of Amps, not milliamps. To
convert from mA to Amps, simply divide by 1000.
For example, if you have two meters of 60 LED per meter strips, you
have 120 LEDs. 120 × 60mA = 7200mA = 7.2A, or 36 Watts (7.2 × 5).
Once you determine the power requirements for your LED strips, check
to make sure that your power supply is rated to deliver at least that
much power. A wall wart supply or power brick usually has markings
showing the rated Amps or Watts.
Wiring
Two connections to the LED strip are required: the power supply, and
the control signal from the Teensy.
You only need a single control signal connection to each contiguous
strip. This always connects to the very end of the strip. The strips
have a directional signal flow, with arrows marked on the strip to
show the signal direction. Your data connection has to go at the
"starting" end of the strip, so that the arrows point away from that
side.
If you're using a CAT6 cable, prepare it to connect to the strip
like this:
- Cut off the plug from one end, as you need bare wires to attach
to the strips
- Strip off at least a foot of the outer insulation jacket,
being careful not to cut any of the wires inside. Strip more if you
need to in order to make the wiring reach multiple strips.
- Carefully unwind the four twisted pairs from each other, keeping
the individual pairs twisted together.
- Each twisted pair connects to one light strip. See the diagram
below.
Note! The wire colors are for CAT6 cables using T568B termination,
which is how most cables are set up. However, some cables use T568A
termination, which looks the same but swaps the orange and green
pairs.
>
The connection from the controller uses the two wires from a twisted
pair from the CAT6 cable. Each twisted pair consists of a solid color
wire and a white wire striped with the same solid color. For example,
a solid orange wire is paired with a white/orange striped wire.
Connect the solid color wire to the DIN pad on the strip, and
connect the striped wire to GND.
For power, you must provide a separate connection at each end of the
strip, and an extra connection at least every 180 LEDs. The
extra connections are required because the copper traces on the strips
are limited in the amount of current they can carry, and every LED
between power connections adds to the current used. Multiple
connections are required to distribute the load so that the traces
don't carry too much current through a single section.
At each point where you connect power, connect the power supply's
5V terminal (the red wire on an ATX power supply) to the +5V
pad on the strip, and connect the power supply 0V/ground (black
wire on an ATX supply) to the GND pad on the strip.
For power connections in the middle of a strip, leave the DIN/DOUT
pads unconnected at that point. You only need the single DIN
connection at the "input" end of the strip.
For the power connection at the start of the strip, where you're also
attaching the data connection, note that the GND pad on the strip will
connect to both the power supply 0V/ground and the white
striped wire from the CAT6 twisted pair.
Here's a full wiring diagram for the first strip. Each additional
strip is wired the same way, but connects to a different wire
pair from the CAT6 cable: the second strip connects to the blue/white
pair, etc.
Connecting multiple strips
You'll probably have several sections of strips, in which case each
strip needs its own data input connection. There are two ways to
handle multiple strips:
- Connect each strip to a separate twisted pair in the CAT6 cables
from the Teensy adapter. The adapter has plugs for two CAT6 cables,
and each cable has four twisted pairs, so you can connect up to eight
strips this way. See the diagram of the adapter above to figure out
which wires in the CAT6 cable connect to which strips.
- Daisy-chain the strips. Using twisted pair wiring, connect wires
from the DOUT/GND pads at the end of the first strip to
the DIN/GND pads at the start of the second strip. Repeat
for each additional strip.
Most people find the first approach (wiring each strip directly to the
Teensy adapter) to be easier and more reliable. Daisy-chaining is
possible, but you have to provide good clean connections between the
strip segments, using twisted-pair wires, to make it work. The
challenge is that the data signal operates at high frequencies and can
be very sensitive to electromagnetic interference from other devices
in the cab. Twisted pair wiring provides a degree of shielding.
Daisy-chained connections are more or less required, though, if you're
creating a matrix of strips with multiple rows. In that case you'll
probably have too many strips to use the direct connect approach.
Mounting in the cab
Most of the WS2812 strips are sold as bare strips without any adhesive
backing, so you'll have to provide your own adhesive. Most people use
double-sided foam tape.
If you're installing strips along the inside walls of your cabinet
adjacent to the playfield TV, pay attention to clearance so that you
don't make it impossible to get the TV in and out of the cab. Many
people build their cabs so that the TV is a very tight fit, so strips
that intrude even a couple of millimeters could make it difficult or
impossible to lift the TV or remove it. If the strips are permanently
installed along the inside cabinet walls, you'll be stuck without
access to the inside of the cab, which you should never let happen.
Here are a couple of approaches other cab builders have used:
- Mount the strips on a removable platform, such as a thin aluminum bar.
Attach that to the cab wall with Velcro. This makes it easy to
remove the strips to get them out of the way any time you need to lift
or remove the TV. This is the way that many pinball collectors do it
when they add similar light strips as mods to their real machines.
If you're using anything metallic as the removable platform,
be sure to place an insulating layer between the strips and the metal.
Many types of LED strips have exposed copper pads on the back, so they'll
short out if you mount them directly to a metal surface. Foam tape
is a good solution, because it can serve the dual purposes of sticking
the strips to the metal and insulating the backing.
- Recess the strips into the wall, so that they don't get in the way
of the TV. Use a router to cut channels into the cabinet wall where
the LEDs will mount. Make the channels deep enough that the LEDs are
fully recessed, so that the front surface of the LEDs is flush with
the interior wall.
Available DOF effects
The
DOF Config Tool provides
pre-programmed effects for the standard light strip placements. The
easiest way to set up strips with DOF is to use these programmed
effects. Here's a list of the available effects and how they're
typically assigned to physical light strips in the cab.
DOF Effect Name | Use with | Description |
PF Left Flashers MX |
Left playfield TV strip |
Simulates playfield flashers near the left edge of the playfield |
PF Left Effects MX |
Left playfield TV strip |
Special effects along the left side of the playfield, such as ball chaser lights |
PF Back Flashers MX |
Playfield TV rear strip/array |
Simulates a dedicated 5-flasher panel (see Chapter 56, Flashers and Strobes) |
PF Back Effects MX |
Playfield TV rear strip/array |
Special effects near the rear of the playfield |
PF Back Strobe MX |
Playfield TV rear strip/array |
Simulates a dedicated strobe light (see Chapter 56, Flashers and Strobes) |
PF Back Beacon MX |
Playfield TV rear strip/array or backbox strip/array |
Simulates a dedicated |
PF Back PBX MX |
Playfield TV rear strip/array |
Additional special effects used in PinballX |
PF Right Flashers MX |
Right playfield TV strip |
Simulates playfield flashers near the right edge of the playfield |
PF Right Effects MX |
Right playfield TV strip |
Special effects along the right side of the playfield, such as ball chaser lights |
Flipper Button MX |
Flipper button lamps |
Illuminates the flipper buttons in the appropriate color for each game |
Flipper Button PBX MX |
Flipper button lamps |
Additional flipper button lighting for PinballX |
Left MagnaSave MX |
Left MagnaSave button lamp |
Illuminates the left MagnaSave button in the appropriate color for each game |
Right MagnaSave MX |
Right MagnaSave button lamp |
Illuminates the right MagnaSave button in the appropriate color for each game |
RGB Undercab Complex MX |
Undercab lights |
Ambient illumination effects for undercab lighting (see Chapter 58, Undercab Lighting) |
DOF Setup
There are two parts required to set this up with DOF: a "cabinet
configuration" file, and the DOF Config Tool settings.
Part I: Cabinet config file. You'll have to manually create a
file on your PC called Cabinet.xml, in the DOF folder,
to describe your hardware setup for the strips.
Before you do that, though, you
also have to set up a "global"
config file to tell DOF to use your Cabinet.xml config file.
(Nothing's ever easy with DOF!) That procedure is explained in
"Extra controller setup" in
Chapter 46, DOF Setup. Please read through
that section and follow the steps listed there. That will give
you a starting point for the Cabinet.xml file that you can fill
in with the light strip information.
The light strip entries in Cabinet.xml file are quite complex, and
they're covered in the Wiki page for Swiss Lizard's Teensy code, so
I'm not going to reiterate all of that here. If I copied it here, it
would just gradually drift out of date and become more confusing than
helpful. Better to go straight to the source:
>
Another helpful resource is this VPForums thread, which has examples of
the cabinet config file.
>
Part II: DOF Config Tool settings. Once you have the
Cabinet.xml file set up, DOF will be able to find your hardware. But
wait! There's more! You have to go through yet another procedure now
to tell DOF to actually use that hardware.
This procedure uses the
DOF Config Tool.
Hopefully you're already familiar with that from setting up your
general-purpose output controller. If not, please read through "The
DOF Config Tool" in
Chapter 46, DOF Setup.
The first step is to tell the Config Tool that you have a Teensy light
strip controller device:
- Click the "My Account" tab to go to the account settings page
- Set "Number of WS2811 Devices" to 1. (This reflects the number of
Teensy light strip controllers, not the number of light strips.
If you have so many strips that you need two or more Teensy devices
to control them all, set this accordingly.)
The second step is to create "combined effects". This is required
because the Config Tool has multiple effects that usually end
up being assigned to the same physical light strip. The reason for
breaking these out as separate effects is that some people with very
elaborate setups might actually have a separate physical light strip
for each effect. But most people have simpler setups.
For example, the Config Tool has effects for "PF Left Flashers MX"
(simulated playfield flashers along the left side) and "PF Left
Effects MX" (other non-flasher effects for the left side). DOF
separates these effects because you could provide two separate
light strips for these effects. But most people don't; most people
just run one strip up each side of the TV. If you're in the latter
camp, you'll want to combine these into a single effect, so that
you can assign that effect to your left strip:
- Click the "Combine Toys" tab
- In the "Toy Category" column, select RGB Addressable from the drop list
- In the "Toy 1" column, select "PF Left Flashers MX"
- In the "Toy 2" column, select "PF Left Effects MX"
- Click the "Add" button and confirm the change
- Repeat for each set of combined effects you'd like to create.
- Save changes
Here's a list of the typical effect combinations:
- PF Left Flashers MX + PF Left Effects MX (use for a single physical left playfield strip)
- PF Right Flashers MX + PF Right Effects MX (for a single physical right playfield strip)
- PF Back Flashers MX + PF Back Strobe MX + PF Back Effects MX + PF Back Beacon MX + PF Back PBX MX
(for a physical rear playfield strip or array)
- Flipper Button MX + Flipper Button PBX MX (flipper button lamps)
The final step is to tell the Config Tool about your physical strips
and what each one should be used for. The DOF Config Tool thinks of
the individual strips as "ports" in your Teensy controller. This is
analogous to the way the general-purpose output controllers work: in a
regular controller, you tell DOF that "port 1 is my shaker motor, port
2 is the replay knocker..."
Now, with smart strips, it's a little different, because DOF doesn't
think of smart strips in terms of physical device types like "left
playfield strip" the way it does for "shaker motor" or "replay
knocker". It's a little more abstract. The equivalent device types
for smart strips are the effects listed under "Available DOF
effects" above. Also, since smart strips are RGB devices, each
physical strip takes up three DOF ports.
So putting those together, you set up your physical strips by saying
things like "Port 1-3 is my PF Left Flashers MX strip". You can also
use any "Combo" effects you set up above: "Port 4-6 is my Combo2 strip".
- Click the "Port Assignments" tab
- Select WS2811 - directoutputconfigini30 from the Device
drop list
- Set Port 1 to the effect that you want to assign to your first light
strip (the strip connected as "Strip #1", the orange/white wire pair
from the wiring diagram earlier)
- If you created combined effects above, you can use those by selecting
"Combo1", "Combo2", etc. You can also select the individual "MX" effects
from the drop list. See the list above for an explanation of the
different effects and where you'd usually want to assign them.
- Since the light strips are RGB devices, the step above will actually
set ports 1 through 3 as a group, for the Red, Green, and Blue channels
for the device. So the second strip will be assigned to port #4, the
third will be assigned to port #7, etc.
- Set Port 4 to the effect that you want to assign to your second
light strip (the strip connected as "Strip #2")
- Repeat for each additional light strip
Troubleshooting the "all white" problem
A common problem that many people seem to experience when first building an
addressable light strip is that all of the lights turn on full white.
This is a result of a missing external pin connection on the Teensy. I
think this varies according to the version of the Teensy you're using,
so you should probably test first to see if you do indeed have the
"all white" LED problem. If so, the solution is to add a jumper wire
that shorts together pins 15 and 16 on the Teensy.
Here's a thread on the forums about it:
>
Part Four. A Crash Course in Electronics
66. Electronics Overview
If you're planning to build any of the add-ons for the Pinscape
controller, it'll help to know a little about electronics. The next
few chapters will try to get you up to speed on the basics. This
isn't by any means a complete introductory course in electronics; it's
more of the Cliff's Notes version. I've tried to keep the focus on
the practical aspects of building the Pinscape projects.
I've tried to organize this material to be useful both as a tutorial
and as a reference. If you want to bring yourself up to speed on some
basic electronics before embarking on a big project like assembling
the Pinscape expansion boards, hopefully the following chapters will
help. On the other hand, if you want to get straight to the assembly
process, you can dive right in, and come back here to look for answers
if you run into any questions. To help navigate this as reference
material, the
Chapter 69, Field Guide to Components chapter provides a quick visual guide
to many common electronic parts (including most of the parts used in
the Pinscape projects), with pointers to the relevant chapters. That
should help you identify any mysterious parts you have on hand and let
you find out more about them, as well as help you figure out what a
particular schematic symbol means.
67. Static Electricity Precautions
Some electronic parts are hyper-sensitive to static electricity. You
can damage them just by touching them, if your body is charged up with
static. This is especially likely in dry climates - if you live
somewhere dry, you know how often you get zapped touching metal
fixtures. And even if you don't notice blue sparks flying around, you
can still have enough static charge on your body to damage IC chips
and other especially sensitive devices.
There are some simple precautions you should take to avoid this danger
when building circuit boards.
Which parts are sensitive?
An easy way to tell that a particular part is static-sensitive is to
look at its packaging. If it comes in one of those silvered mylar
bags, it's probably sensitive to static.
The parts that are typically most sensitive to static are:
- IC chips
- Transistors
- MOSFETs
- Diodes
- LEDs
- Circuit boards with any of the above
Precautions
First, leave parts in their silvery bags until they're needed, and
keep the bags closed. The bags provide good protection, so it's best
to keep the parts there when you're not actively working with them.
When it comes time to install parts on a board, you obviously have to
take them out of the bags. The basic rule for handling
static-sensitive devices is to ground yourself early and
often.
The term "grounding" is pretty literal. We're not talking about some
kind of meditation exercise. We're talking about literally connecting
yourself electrically to the soil around your house, to dump any
excess static charge on your body into the ground. The Earth is
basically an infinite reservoir of neutral charge, so excess charge
naturally flows into the ground if given a path.
In practical terms, the thing to look for is an appliance with an
unpainted metal case and a three-prong plug. Metal appliance cases
are almost invariably wired to the third prong in the AC plug, which
in turn connects in your house wiring to a big stake somewhere under
the foundation that's driven into the dirt. As long as an appliance
is plugged into a three-prong outlet, its metal case should be
grounded.
A PC tower case is a pretty reliable example of this. The metal back
plate (assuming it's unpainted) is a great grounding surface.
You don't have to keep one hand on a grounded surface the whole time
you're working, although that would certainly be the ideal. A
momentary touch is enough to discharge any static you've accumulated.
Repeating this every few minutes while you're working will prevent new
charge from building up.
Some rules of thumb:
- Ground yourself before taking a part out of its anti-static bag
- Ground yourself again any time you get up and walk around
- Ground yourself again every few minutes in any case
- Avoid wearing static-prone clothes like wool sweaters while working
- Work in an uncarpeted area
Grounding straps
You can buy a grounding wrist strap that keeps you continuously
connected to ground while working - the equivalent of keeping one hand
on a metal surface the whole time, but way more practical. A ground
strap consists of a conductive bracelet that you wear around your
wrist, and a wire that connects the strap to something grounded. Most
types have an alligator clip at the other end of the cord that you're
meant to attach to a grounded metal surface, so they assume that you
have a grounded appliance or metal surface near your work area. You
can also find grounding straps that plug into a three-prong outlet
directly.
If you live in a dry climate, or you do a lot of electronics work, you
might consider one of these. It's probably a bit more trouble than
it's worth if you're only doing occasional hobbyist work. Maybe I've
just been lucky, but in my experience, it's adequate to use the "touch
a metal surface" technique as long as you're diligent about it.
68. Circuit board assembly tips
Assembling a circuit board can be a little intimidating if you haven't
done it before, especially one with as many parts as the Pinscape
expansion boards. But remember that the whole point of a printed
circuit board is to make it easier to build a circuit. Ideally, a PCB
turns circuit assembly into a paint-by-numbers project.
Order of assembly
For most circuit boards, the Pinscape boards included, the order of
installing the parts really doesn't matter. Most PCBs have simple
flat layouts, without any parts layered on top of others.
The only thing I'd add is that it can sometimes be a little easier if
you start with the smaller parts and save the larger ones for last,
especially the taller ones that stick out the most. A couple of
taller parts close together can create a little valley, where it might
be harder to see the board markings for the parts that go in between.
Reading the markings on the board
The markings on the board are designed to make it easy to figure out
where each part goes. Each part generally has three things marked:
- An outline showing the "footprint" of the part on the board. This
is basically the way the part looks when installed if you look at it
from straight overhead.
The outline often includes something to help you
orient the part correctly. For example, a MOSFET's outline shows a
thick bar on the side where the MOSFET's big metal heat-sink fin goes.
You just have to line up the metal fin with the bar mark, and the
part will be oriented properly. Similarly, a polarized capacitor's outline
includes a "+" sign on the pad where the "+" leg goes.
- The part's "reference designator" (or just "designator") that identifies
it in the parts list, like R1 for a resistor or C7 for a capacitor.
To find the part to install, you just look up the designator in the parts
list, and the parts list will tell you exactly which part to use.
("Reference designator" seems to be the formal term for this. I realized
when writing this material that I didn't know what this was really called
before; I didn't have a term in my mind for it, and just thought of it as
a label or name. This seems to be true for most people, and indeed, even
the engineer-focused EAGLE software just calls it the "name". But "label"
and "name" are too ambiguous when you're trying to talk about the schematics
as a language; they could be easily confused for manufacturer part numbers,
or part values like "100Ω".)
- A very concise description of the part, such as the Ohms value for a
resistor, the uF (micro Farads) value for a capacitor, or the part
number for an IC chip. This information is redundant with the
designator, since you can use the designator to look up a more
complete description in the parts list, but this is there as an
additional guide. It's also a good idea to cross-check the value
printed on the board against what you find in the parts list, to make
sure you're really looking at the right labels. Sometimes two parts
are so close together on the board that you can mistake one part's
labels for another's.
For example, here are the markings you might see for a capacitor (in
this case, a polarized electrolytic capacitor, which has designated
"+" and "-" leads):
In the chapters that follow, where we go into more detail on each of
the common component types, we'll show you the specific types of
circuit board markings for each type.
Installing through-hole parts
All of the parts on the Pinscape expansion boards are "through-hole"
parts, meaning that they have wire leads that you insert through holes
in the circuit board and then solder into place.
Here's the basic procedure to install a through-hole part:
- Identify the part's footprint on the circuit board - the little
outline showing where the part goes, which should contain all
of the holes for the part's wire leads
- Determine the proper orientation (see the chapters on the various
component types for more on how to do this for each type)
- Straight out or bend the leads on the part, as needed, so
that they line up with the holes in the board
- Orient the part properly and feed the leads through the holes
- Try to seat the part as close to the circuit board as you
comfortably can, without forcing anything. Parts should ideally sit
flat against the board, so that they can't move around or bend once
installed. But it's not necessary to force anything flush with
the board; sometimes the leads won't quite bend enough and the
part will sit a few millimeters above the board. That's fine.
- Holding the part in place (and keeping it from slipping back
further away from the board), flip the board over and solder
each of the leads to the pads on the bottom of the board
- After the solder cools, use wire snippers to clip off the
excess length from the leads, so that there's no dangling wire
past the solder joint
Soldering tips
- See the recommendations on soldering tools in
Chapter 87, Tools, including the recommendations on
the solder itself. I've heard so many people on the forums say "I'm
not a very good solderer", but what they often really mean (without
knowing it) is "I'm using a
crappy Home Depot soldering iron and crappy Home Depot solder". Those
soldering irons are for casual home repair jobs, not delicate
electronics work. Using them for circuit boards can be
painfully difficult. You'll be amazed at
how much your skills improve when you have the right tools.
- Keep a wetted solder-tip cleaning sponge handy while working. A
soldering station should include this. Saturate it, then squeeze out
the excess water. It should be thoroughly moistened but not dripping
wet.
- Wipe the soldering tip on the sponge from time to time while
working to keep it clean.
- Make sure the iron is at full temperature before you begin. A
proper soldering station has a readout showing the temperature and
a thermostat that holds the temperature steady.
- The default temperature setting on my Hakko soldering station
is 750° F, and that seems to work well for PCB soldering work.
- When the iron is hot, coat it with a little bit of solder, just
enough to flow over the surface. Wipe off any
excess bead on the solder cleaning sponge.
- Most newbie solderers want to use the iron to melt the solder, and
then try to drag the solder onto the parts. That's the wrong
way to do it.
- The right way to do it is to heat the parts.
- Start by putting the two parts to be joined into the desired
position.
- With the parts held together in this position, firmly press the tip
of the iron against the point where the parts meet. Hold it there for
several seconds to let the parts heat up. Then touch the solder to
the junction point in the parts - not to the soldering iron,
but to the join point. If the parts are hot enough, the solder will
melt and flow over the parts, forming a bubble around the junction
point.
- Don't use too much solder - just enough to flow over the parts
and form a bubble.
- As soon as the solder flows over the junction, withdraw the
soldering tip, but keep holding the parts together, keeping everything
as still as possible, for about 5 to 10 seconds while the solder
cools.
- Visually inspect the solder joint to make sure that the solder is
confined to the desired area, and that it completely surrounds and
covers the junction point. On a circuit board, it should stay within
its solder pad, and it should form a nice little droplet shape
covering the solder pad and wire lead. Make sure there are no gaps
and that the wire lead is covered all the way around. Wiggle the
part gently to make sure that the connection to the pad is
thoroughly immobilized.
69. Field Guide to Components
Or, how to recognize electronic parts from quite a long
way away. Here's a quick visual reference guide to the major
components used in the Pinscape expansion boards. We'll cover each
category in greater detail in the chapters that follow.
Note that the example photos are just that - examples. All of these
parts come in an almost infinite variety of shapes, sizes, and colors.
These photos should at least look similar to most of the parts used in
the Pinscape projects, but there's a lot of variation even in that
limited scope, so don't worry if you don't see an exact picture of one
of the parts you're using.
Description | Examples | Schematic symbols |
70. Schematics
A schematic is a map of a circuit showing the components and how
they're connected to one another.
You don't have to learn how to read a schematic to build the Pinscape
Controller projects, but it's a skill that might come in handy if you
need to troubleshoot one of the Pinscape boards after building it. So
this section provides a very quick introduction, hopefully just enough
that you can make sense of the Pinscape schematics should you ever
need to look at one.
Schematics use their own special symbolic language, the way that music
has its language of staffs and notes, so they can look pretty opaque
at first. A lot of electronics-for-newbies tutorials try to avoid the
formalism of schematics by using pictorial circuit diagrams. I've
even used a few of those in this guide, like this one from the
Chapter 52, LED Resistors chapter, showing how to wire a
current-limiting resistor into a flasher LED circuit:
That's fine for simple circuits, but it doesn't "scale up" well to
large circuits with many components. It's also a bit fuzzy, in
that the little pictures of the parts could be mistaken for something
else, especially if there were more than a few distinct parts in the
diagram. Warm and fuzzy might be fine for artists and puppies, but
engineers don't like fuzzy. They like clarity and precision.
Schematics were invented as a more concise and precise way of showing
this kind of information. To a large extent, a schematic is a lot
like the pictographic representation above; the big difference is that
we replace the pictures of the parts with symbols representing the
parts. Here's a schematic version of the circuit above:
The symbols give schematics their precision, since there's a standard
set of them that everyone agrees on. They constitute a sort of
vocabulary, so you'll find yourself able to read most schematics
pretty readily once you learn the basic symbol set.
Wires
The simplest schematic symbol is a wire, which is shown as a line
between two parts.
This schematic idea of a "wire" is an abstraction - it doesn't
necessarily represent a literal piece of wire. And you'll notice it
doesn't say anything about how long the wire is or where it goes on
the circuit board. A schematic "wire" just represents some
type of electrical connection. In the physical realization of the
circuit, the schematic "wire" could be an actual piece of wire, or it
could be a copper trace on a printed circuit board. The schematic
wire is just saying that the two points are connected electrically,
with the details left up to whoever builds the circuit physically.
(Which also means that you could build a functionally identical
circuit in different physical arrangements: on a printed circuit board,
on a breadboard, with a bunch of loose parts and wires...)
When wires run directly into components as shown above, it means that
the components are connected to the wires. When wires cross over each other,
though, they're not automatically connected. Here are two
separate pieces of wire that aren't electrically connected to each
other:
Two separate wires, not connected to each other
Some schematics show non-connected wire crossings with a little hump:
Another way of showing a non-connected wire crossing
The little hump is to make it more explicit that there's no
connection. But this seems to be more of a "beginner" convention that
you don't see much in engineering schematics. The modern practice is
to use simple straight crossings.
Whenever the wires at a crossing are connected, we add a big
dot to indicate the connection:
Two wires connected together
The dot is also used at any connected "T" junction:
Cross-references
When a schematic reaches a certain level of complexity, you get so
many wire lines going across such large swaths of the diagram that it
gets hard to follow them all. So there's a convention that greatly
reduces the tangle of wire lines by removing long lines and replacing
them with "cross-references".
A cross reference point looks like this:
The word inside the arrow-shaped box is the cross-reference label.
Sometimes you see it with the arrow box, and sometimes you see it with
just the text label:
They both mean the same thing. I like the box notation because it
makes it easier to spot these points at a glance, but some engineers
don't bother with them. It's like the little humps to represent
explicit "not connected" crossings: a text label by itself at the end
of a wire can only mean one thing, so some engineers see the little
box as redundant.
In either case, what this means is that this point in the wiring is
connected to all of the other points in the wiring that have
the same label. This lets you connect two points on opposite sides of
the schematic without having to route a green line all the way across
the page.
Now, that's just an oversimplified example - when the two "CLK" points
are close together like that, you'd usually just draw the wire. But
imagine if those two "CLK" points were at opposite corners of a large
schematic. In that case, drawing the wire all the way across would be
harder to trace than the cross-reference notation.
The label in a cross-reference is just an arbitrary name defined by
the person who drew the schematic. It doesn't mean anything within
the schematic language the way that a resistor symbol means something;
it's just a name for that connection point, like the name of a street.
These names are usually chosen to be somehow descriptive, but that's
purely within the context of the particular circuit.
In the Pinscape expansion board schematics, you see this in a lot of
the connections to the KL25Z:
This notation is necessary for many of the KL25Z connections because
it's such a central component with so many things connected. Many of
the connected items are in far-flung areas of the schematic. It would
have been too hard to follow all of those green wire lines across the
whole page - or worse still, across several pages.
Buses
In addition to the cross-reference notation, there's another wiring
short-hand known as "buses" that the Pinscape schematics use in
places. A bus represents a bundle of related wires all grouped into
one line on the map.
On the old Williams pinball schematics, buses are represented like
this:
The thick striped wire is the bus, which represents the combination of
all of those individual D0 through D7 wires going into it at the top.
This bus might run between a couple of IC chips, or it might connect
many parts. At other points along the bus, some or all of those same
D0 through D7 wires would come back out of it, representing the
break-out into the individual connections again.
The EAGLE notation for a bus is a little different. I personally
prefer the old Williams notation, since I think it's clearer, but the
EAGLE approach is really the same idea once you learn what it looks
like. EAGLE's way of drawing this is to just use a thick blue line to
represent the bus.
Some important things to note about the bus notation:
- Unlike regular wire-to-wire connections, there are no "dots" to
indicate the connection points. Any regular wire that ends at a bus
line is connected to the bus.
- The wires going into the bus aren't connected to each other.
D0 through D7 are still all separate wires. This is just
short-hand to show the whole group of wires as a single line/bar
rather than having to draw all of them individually.
- If you want a physical analogy, you can think of the bus as a
shrink-wrap tube that wraps around all of the wires making up
the bus.
Ground connections
"Ground" has several meanings in electronics, so you see different
symbols for it. The most common symbol you see is this, which
typically represents an "Earth" ground, meaning literally a connection
to the soil, usually through the ground prong in your house's power
wiring.
In the EAGLE schematics, we don't use that exact symbol, and we don't
have any points where we're talking about the literal Earth ground.
You'll see these two symbols in the EAGLE schematics instead:
In our schematics, these are what's known as DC grounds. If you think
about a power supply as though it were a battery, it would have a "+"
post and a "-" post. In that way of thinking, the "-" post
corresponds to the DC ground. That's not quite the way engineers
think of power supplies, though: they think of what you'd call the "-"
end of the battery as 0V for "zero volts". That's the reference point,
and all of the other supply voltages are relative to that reference
point - so the disk connectors on an ATX power supply, for example,
have a +5V supply line and a +12V supply line, relative to that 0V.
This 0V point is what we call "ground" in a DC circuit.
Why do we have two different ground symbols, and what's "GND3"? I'm
sure you already guessed that "GND" is an abbreviation for "Ground".
"GND3" stands for "Ground 3", which is a separate DC ground point in
the circuit from the regular "GND". You'll see "GND2" in other
places, which is a second one.
The Pinscape schematics use the multiple grounds for two reasons.
- The first is what you might expect, which is to isolate different
parts of the circuit. The expansion boards are set up to isolate the
"logic" part from the "power" part, by using separate power supplies
for the two sections. The regular "GND" point is the 0V ground
connection for the PC power supply (the "logic" section), and "GND1"
is the corresponding connection for the secondary power supply that
powers your knocker coil and shaker motor (the "power" section).
We use the two separate symbols to suggest this separation visually.
- The second is an inelegant way handling some special needs of the
circuit boards. GND1, GND2, and GND3 in these schematics are actually
all connected together. They're given separate names because that
lets us persuade EAGLE to given them different trace widths on
the circuit boards, mostly so that some of the connections can
handle high current loads.
All of the connected ground points use the same "triangle" symbol,
which hopefully helps suggest the connection visually.
In all of these cases, the GND points are ultimately connected to the
Ground connection on a power supply unit. For a PC-style ATX power
supply, the "ground" connection is the black wire in all of the disk
cables coming out of the unit.
Power connections
As with the grounds, the expansion boards use two symbols to represent
power supply connections:
We use the two symbols for the same reason that we do with the
grounds: because the expansion boards are designed to be connected to
two separate power supplies. One symbol, the little arrow, represents
the main PC power supply. We use the circle-plus symbol for the
secondary power supply.
The power supply connections are labeled with the voltage.
Just to be clear, these power supply symbols represent power
inputs, where you connect the circuit boards to a separate
power supply unit that supplies the labeled voltage. (As opposed to
representing power outputs where the boards are generating power for
something else. That's not something we do in any of the Pinscape
boards.)
Resistors
A resistor is a simple component that adds electrical resistance
(analogous to friction in a mechanical system) to a circuit.
See
Chapter 72, Resistors.
The symbol on a schematic is a jagged line.
The version on the right is the same as the version on the left, just
rotated 90°. We wanted to show that just to clarify that it means
the same thing no matter how it's rotated. The same is always true
for all other component types. Schematic writers will orient each
symbol as they see fit for legibility.
A resistor on a schematic is usually accompanied by two labels,
usually placed on either side of the resistor symbol.
The first is an "R" followed by a number - in the example above, R13
and R14. This is formally called the "reference designator" for the resistor,
or just the "designator". It's an arbitrary, unique identifier for
the part, primarily for cross-referencing to the parts list. It has
no meaning by itself; it's just a name. The "Rnumber" notation
is just a convention, too; in principle any sort of label would do.
But the "R" labeling for resistors is practically always used.
Designators always have to be unique throughout the schematic, so that
you can identify each individual physical part.
The second label is the resistance value in Ohms. This is usually
written in one of these formats:
- 47R means 47 Ohms - the "R" suffix is usually
used instead of the real symbol for Ohms, Ω, probably
because the Ω symbol could be mistaken for a zero, or
maybe just because it was hard to enter the Ω symbol in
older software
- 4R7 means 4.7 Ohms - an "R" sandwiched between
numbers like this stands in for a decimal point; this notation
is used because real decimal points aren't always legible in
crowded areas or tiny fonts
- 47K means 47 Kilo Ohms = 47 kΩ = 47000 Ohms;
the "K" means "times a thousand Ohms"
- 4K7 means 4.7 Kilo Ohms = 4.7 kΩ = 4700 Ohms;
as with the embedded "R", an embedded "K" replaces a decimal point,
and also still means "times a thousand Ohms"
- 47M means 47 Mega Ohms = 47 MΩ = 47,000,000 Ohms;
"M" means "times a million
- 4M7 means, you guessed it, 4.7 Mega Ohms = 4.7 MΩ = 4,700,000 Ohm
A resistor has two connections to the outside world. The schematic
symbol shows this as a straight line sticking out of each end.
Resistors aren't polarized, meaning the two ends are interchangeable.
There's nothing in the symbol indicating which way the resistor goes
because it doesn't matter which way it goes.
Capacitors
A capacitor is a simple component that adds electrical capacitance to
a circuit, which is similar to a (very) tiny rechargeable battery.
See
Chapter 73, Capacitors.
The symbol for a capacitor consists of two parallel lines
separated by a small gap, or one straight line and one curved line
next to each other. In some cases, there might be a little "+" sign
adjacent to the straight line.
As with resistors, each capacitor in a schematic is typically
accompanied by two labels.
The first label is a "C" followed by a number. This is the
capacitor's reference designator - an arbitrary ID for the part,
purely for looking it up in the parts list. It's the capacitor
equivalent of the "R" number for a resistor. It doesn't have any
meaning by itself; it's just a name to look up in the parts list.
Reference designators always have to be unique throughout the whole
schematic, so that you can uniquely identify every physical part that
goes into the circuit. Note that there's no absolute rule that a
capacitor's designator has to start with "C", but almost everyone uses
that convention, so it's practically a rule.
The second label is the capacitance value in Farads. This is almost
always in one of the following formats:
- 100pF means 100 pico Farads or 100 trillionths of a Farad
- 100nF means 100 nano Farads or 100 billionths of a Farad
- 100uF means 100 micro Farads or 100 millionths of a Farad
(this is more properly written 100µF, but the Roman alphabet
"u" is usually used instead because of pervasive ASCII chauvinism in
computer software)
- 100mF means 100 milli Farads or 100 thousandths of a
Farad (these are extremely large capacitors that you rarely see in
micro-electronics, but you might see one in a power supply; there's
a 30mF capacitor in my Whilrlwind's lamp power supply circuit,
and it's about the size of a soda can)
A capacitor has two connections, represented in the symbol by the
lines coming out of either end.
If there's a "+" sign in the symbol, the capacitor is a "polarized"
type, meaning that one end has to be connected to the positive voltage
and the other end is for the negative voltage. The "+" sign in the
symbol marks the end that connects to the positive voltage.
If there's no "+" sign in the symbol, the capacitor is an
"unpolarized" type, meaning it doesn't matter which end connects to
which voltage. The two ends are interchangeable (like in a resistor).
The polarized or unpolarized status is a function of the physical type
of capacitor you're using. If the schematic symbol has the "+" sign,
you must use a polarized capacitor in the physical build. If
not, you must use an unpolarized capacitor. You can generally
tell if a particular physical capacitor is polarized by looking at its
material type:
- A ceramic disc capacitor is always unpolarized
- An electrolytic capacitor is always polarized
There are several other types besides these, but these are the only
types you'll see in the Pinscape boards. Most of the other, more
exotic types are non-polarized, including film and glass capacitors.
Tantalum capacitors are a type of electrolytic capacitor, so they
are polarized.
Diodes
A diode is a semiconductor that only lets current flow in one
direction, sort of an electronic one-way valve. See
Chapter 74, Diodes.
The symbol for a diode on a schematic is an arrow with a bar:
Each diode on a schematic is typically accompanied by two labels. The
first is a "Dnumber" label giving the reference designator, for
looking up in the parts list. As with resistor "R" numbers and
capacitor "C" numbers, this has no meaning by itself; it's just an
arbitrary ID for cross-referencing with the parts list. Almost
everyone uses "D" for "diode" in these labels by convention.
The other label is the semiconductor identifier for the type of
diode to be used. This is sort of like a manufacturer part number or
catalog number, but it's not specific to any one manufacturer; it's a
generic descriptor system that the industry uses. Diodes don't have a
simple "unit" that describes them like Ohms for resistors or Farads
for capacitors, so schematic writers use this semiconductor ID to
specify which part they want you to use. For a diode, this usually
starts with "1N", as in the example above, 1N4007. You can use
this ID on sites like Mouser to search for matching parts to buy.
Diodes are inherently polarized, so they have to be wired into the
circuit in the correct direction. If you put a diode in backwards, it
won't work properly (and might do damage). The direction is indicated
by which way the arrow is pointing. On the physical diode, you should
see a stripe painted on one end; that stripe corresponds to the bar
that the arrow is pointing to in the schematic symbol.
LEDs
An LED is actually just a special case of diode. That's the "D" in
the acryonym - "Light Emitting Diode" - and it's quite literal. The
schematic symbol for an LED is therefore basically the same as the
symbol for a regular diode, with an embellishment to indicate that
it's the special light-up kind: a couple of little arrows representing
the photons flying away.
An "LEDnumber" reference designator usually takes the place of
the "D" designator for a regular diode, but there's less of a
universal convention about this, so you might see other formats. You
should always see some designator, though, for looking up in the parts
list.
And as with a regular diode, an LED symbol will often be accompanied
by some sort of formal part ID, such as a manufacturer part number, to
tell you what to buy. This might not be present in the schematic,
though, in which case you'll have to check the parts list.
Transistors - bipolar
A bipolar transistor (or bipolar junction transistor, BJT) is a common
type of transistor that's used in all sorts of circuitry as a small
amplifier or an electronic switch.
See
Chapter 77, Transistors.
The symbol for a transistor consists of a thick bar with three lines
sticking out, one straight line on one side, and two diagonal lines on
the other side. One of the diagonal lines has an arrow, which might
point towards or away from the middle bar.
If the little arrow points away from the bar, the symbol
represents an "NPN" transistor. If the arrow point towards the
bar, it's a "PNP" transistor.
Note that the little arrow might be shown at top or bottom, and it
might be on the left side or the right side. None of that makes any
difference - the symbol means the same thing no matter how it's
flipper or rotated. Schematic writers will flip the symbol
top-to-bottom, or left-to-right, or rotate it at different angles,
according to what's convenient to make the lines between nearby
connections shorter. It doesn't change the meaning.
The three lines represent the three connections to the transistor,
called the base, collector, and emitter:
- The straight line by itself on one side is always the base or B
- The diagonal line with the arrow is always the emitter or E
- The other diagonal line is always the collector or C
On some schematics, the whole thing will be enclosed in a circle:
The circle doesn't change anything; it's just an alternative way
of drawing the symbol.
Transistors have parts list tags just like other components. These
most commonly start with "T" or "Q". As with the "R" tags for
resistors and "C" tags for capacitors, these are just arbitrary tags
to look up in the parts list, with no other meaning.
Transistors are also usually labeled with the semiconductor ID, like a
diode is. In the case of a transistor, this usually starts with "2N".
You might also see other part numbers, such as the "BC337" in the
examples above. When two numbers are listed for one part like this,
it indicates alternative parts that you can use - so in the
case of T8 above, you could use a 2N4401 or BC337 interchangeably.
Transistors have to be inserted into the circuit with the three prongs
in exactly the right order. As with diodes, each prong has a
different function, and the part won't work if it's not inserted
correctly. There's no standard way of marking a physical transistor
to indicate which leg is which - the only way to tell is to look it up
in the manufacturer's data sheet. In the case of the Pinscape
expansion boards, though, you can tell how to orient the part from the
looking at the silk-screened markings on the circuit board; we'll
explain that in
Chapter 77, Transistors.
Transistors - Darlington
A Darlington transistor is a variation on the basic bipolar transistor
that combines two bipolar transistors in one physical package, for
greater amplification and power handling than a regular bipolar
transistor can handle. See "Darlingtons" in
Chapter 77, Transistors.
For the purposes of building the Pinscape boards, Darlingtons are the
same in every respect as bipolars. But they have a different symbol
in a schematic, so we wanted to show you what that looks like so that
you can recognize it when you see it:
The symbol is pretty literal - it looks like two regular transistors
connected together, because that's just what a Darlington is. A
Darlington still has the same three external connections (base,
collector, and emitter).
Transistors - MOSFET
A MOSFET is another kind of transistor constructed in a different way
from a bipolar transistor. It performs the same transistor functions
as a bipolar, but the electrical characteristics are somewhat
different, so it has its own representation on a schematic:
As with bipolars, there are two types of MOSFETs, known as N-channel
and P-channel MOSFETs. The schematic symbols for the two types are
almost the same, befitting their similar construction and behavior,
with one subtle difference: the direction the arrow points in the
middle of the diagram. In an N-channel MOSFET, the arrow points
inwards, into the middle section; in a P-channel MOSFET, it points
outwards.
MOSFET symbols in a schematic are labeled like other transistors, with
a reference designator (we're using a Q prefix here, but you
might also see a T prefix) and a part number. For MOSFETs,
this is almost always a manufacturer part number, so there won't be
any particular pattern to it; it'll just be an alphanumeric string
that you can look up on Mouser and in other vendor catalogs.
Like bipolar transistors, MOSFETs have three prongs with distinct
functions, and they have to be oriented properly when installed.
The prongs of a MOSFET go by different names from a bipolar's legs:
- The Gate is the prong off by itself on one side
- The Source is the prong that connects to the arrow
- The Drain is the remaining prong
As with bipolar transistors, there's no standard marking system to
identify which leg is which on the physical part; you just have to
look it up in the manufacturer's data sheet. The Pinscape expansion
boards show how the part is oriented on the silk-screened markings
on the circuit boards.
IC chips
Integrated Circuit (IC) chips are complex devices consisting of many
components packed into a single package. See
Chapter 79, IC Chips.
ICs are extremely diverse in function and physical packaging, so it's
not entirely fair to lump them all into a single category. But there
are enough commonalities to how they're handled in schematics that we
can make some practical generalizations. For our purposes, an IC is a
bit of circuitry all packed into a discrete physical package, with
multiple connection points ("pins" or "leads" coming out of the
physical chip). The schematic treats an IC as a "black box": a bunch
of wires connect it to the outside world, but what's inside is of no
concern in the schematic. As a result, the schematic symbols for
ICs look pretty much like empty boxes:
Here are some features to note:
- The overall IC package is represented by a rectangular box
- We're using the term "black box" figuratively, as you can see that
we haven't literally drawn the box in black ink here; "black box" is a
metaphor that engineers use to talk about something with complex inner
workings that we don't have to see (or understand) in order to use it
- The wires coming out of the box represent the "pins" or
"leads" on the physical IC, which are the electrical connection points
- Different ICs have different numbers of pins, so you might see boxes
like this with three wires coming out (such as for a voltage
regulator), or a couple hundred wires (for a CPU chip), or anything in
between
- The positions of the wires around the perimeter of the box don't
correspond to the physical layout; this is just an abstract
representation, like any other schematic symbol
- The order of the wires in the symbol doesn't reflect the ordering of
the pins on the physical chip - for that you need to consult the the
little number written adjacent to each wire just outside the box,
which tells you the pin number on the physical chip that this wire
corresponds to
- The labels written on the inside of the box adjacent to
the pins are mnemonics for the functions of the pins; these are
purely for convenience, to help you remember the function of each
pin without having to keep going back to the chip's data sheet
- The schematic symbol will usually be accompanied by a reference
designator, analogous to "R5" for a resistor or "C7" for a diode; for
an IC, it's usually of the form "IC10", but lots of other prefixes are
used, including odd ones like "U$" - engineers started running out of
unique letters for these tags at some point, so they resorted to other
symbols. The prefix might also be specific to the type of IC; for
example, the Pinscape schematics use "OK" for optocouplers.
- The schematic symbol will also usually be accompanied by the
manufacturer part number for the specific IC ("TLC5940" in the case of
this example); some of these are generic part descriptors for parts
made by many manufacturers, while others are manufacturer-specific
There are exceptions to this "black box" treatment. Some types of ICs
have specific functions that are so commonly used that they have their
own unique schematic symbol that's more representative of the
function. We'll see this for optocouplers below. Other examples
include common logic gates, such as NAND and NOR gates and inverters,
which sometimes (but not always) are shown with special logic symbols
in place of the plain box. The Pinscape boards don't use any of
those types of symbols, but you might see them in other schematics.
For example, a NAND gate might be drawn like this:
That's a very specific notation that engineers recognize as a NAND
gate, so it's sometimes used in place of the more generic "black box"
notation for miscellaneous ICs. But you might just as well see the
plain black box notation; it's really up the schematic writer. You
might even see a hybrid notation that shows the NAND IC as a black
box, and then also draws the logic symbol inside the box. This
is just a more pictographic equivalent of the little mnemonic labels
that you see in the TLC5940 diagram above, since it shows you the
function of each pin visually. For example, here's how you might
see a chip that contains four NAND gates represented:
Multi-gang chips
There's another "advanced" convention that you should know about
when it comes to IC chips, and even some other types of components
(such as relays, as we'll see below).
Some chips come with two or four or eight copies of the same basic
building block. For example, the Pinscape boards use the PC847 chip,
which consists of four separate optocouplers on one chip. That
makes it a "quad optocoupler" chip. Pinscape also uses a "quad
Darlington" chip, the ULN2064, which consists of four Darlington
transistors on one chip. This is quite common with basic components
like logic gates, optocouplers, op-amps, and transistors.
In schematics, one way to represent these multi-gang chips is the
generic way we saw above, where you draw a big box for the entire
chip. The ULN2064 uses a generic symbol like that in the Pinscape
schematics:
So nothing new so far! But now we come to the novel part. Sometimes,
rather than using the generic black box format, schematics will
represent a multi-gang part with its individual building blocks all
separated from one another, as though they were separate
components. EAGLE uses this approach for the PC847, that
"quad optocoupler" we mentioned. Rather than drawing it as a big
box with 16 pins coming out of it - which is, in fact, exactly
what the physical package looks like - EAGLE draws this
as though it were four separate optocouplers. Here's an excerpt
from the Pinscape "main interface board" showing one PC847 broken
up into four optocoupler symbols:
If you didn't already see what we meant about how schematic symbols
are "abstract", this probably really drives it home.
Two questions: Why in the world do they do this? And how are you
supposed to tell that those four boxes are really one physical IC
chip?
First the "why". They do this to make the schematics more readable.
I know, it can seem like it does the opposite. But if you think about
it in terms of understanding what the circuit does as opposed
to how to build it out of parts, this representation is actually a lot
more useful than drawing all of those 16 wires going into a black box.
With this format, you can plainly see which wires control the LEDs and
which wires are connected to the photo-transistors.
There's another benefit that's not even apparent in this picture, too.
Those four boxes representing the individual optos don't have to be
grouped together in one place in the schematic - they can be split up
and spread out. They really are four separate boxes as far as the
schematic is concerned. This allows the schematic writer to place
each one close to the other components it's connected to, so that the
wire connections are shorter and easier to follow. The Pinscape
boards keep all of the groups like this together, but if you look at
some old Williams pinball schematics, you'll find that they take
ruthless advantage of this ability to spread the parts around. You'll
find quad NAND gate chips with the individual gates on different
pages, and dual op-amp chips with the individual op-amp blocks
likewise widely separated.
Now to the second question, how you're supposed to relate the four
boxes back to one physical chip. The trick is to look for matching
tags. You can see that each individual opto in the diagram above has
its own separate set of labels - each one is tagged "PC847" (the chip
name) and "OK1x" (the reference designator for the parts list lookup)
- as though it were a standalone part. The designator is what gives
away the secret that all of these "OK1" elements are part of the same
physical chip. And why is that? Because a designator is
always unique across the whole schematic - like Highlander,
there can be only one OK1. The fact that the same designator appears
on four symbols means that the symbols are all portions of the same
physical component.
Okay, back up a sec... I'm sure you noticed that these aren't
actually all labeled "OK1". They're labeled OK1A, OK1B, OK1C, and
OK1D. But when have we ever seen a letter after a number in a
designator before? Never. Tags until now always ended in a number.
You've probably already guessed what it means when you add a letter to
the end: it means that we're talking about a sub-block of a multi-gang
chip like this. The physical chip is still called "OK1", but they've
given these additional "A" through "D" suffixes to the individual
optos within OK1 to help us distinguish them.
Those A-B-C-D suffixes aren't always used, by the way. They're used
for this particular opto, but for other types of chips, you might just
see the same base designator repeated on each block. Each block might
be tagged, say, IC9, with no suffix. The A-B-C-D suffixes aren't
really all that necessary, since you can still tell which block is
which in physical terms by looking at the pin numbers. If you look at
OK1A through OK1D above, you'll see that each pin is still numbered in
terms of the overall 16 pins of the physical chip, the same as if it
were the black-box kind of symbol.
Optocouplers
An optocoupler is a special kind of IC chip that connects two parts of
a circuit via a photo-emitter and a photo-receiver. This provides
electrical isolation between the two parts of the circuit while
allowing them to transmit information across the interface. See
"Optocouplers" in
Chapter 79, IC Chips.
As we mentioned above, some types of IC chips are so commonly used
that they get their own schematic symbols. The optocoupler is one of
these special cases. An optocoupler looks like this on our schematics:
That's a little like the NAND gate example we talked about above, in
that it starts with the generic IC "black box", but then adds a
pictograph inside to depict what the pins do. An optocoupler
internally consists of an LED (usually infrared) and a phototransistor
(a special type of transistor that's activated when light hits it,
rather than being controlled by an electrical signal), so you see the
symbols for an LED and a transistor. Just as with the mnemonic text
labels inside the black box on our TLC5940 example earlier, the
pictogram is just a mnemonic to help you remember what the pins do.
In terms of actually using the chip physically, you can really ignore
all of that, since all you have to pay attention to is the pin numbers
written on the outside wires - exactly like any generic IC chip.
Note one other deviation from more generic ICs: the Pinscape
schematics use "OK" as the designator prefix instead of "IC", so in
this case, "OK5" instead of "IC5". You might also see "OC" prefixes
in other people's schematics.
Relays
A relay is an electrically-controlled mechanical switch. An
electromagnet in the relay operates a little rocker switch that
connects and disconnects another circuit. See
Chapter 76, Relays.
The schematic symbols for a relay vary. Here's the format that we use
in the EAGLE plans for the Pinscape boards:
This is a little hard to parse, because it breaks up the relay into
its component parts:
- the little box at the right represents the electromagnet
- the two clusters at the left represent the mechanical switches
(this particular relay has two of them, because it's a "double pole"
relay, meaning it has two electrically independent switches operated
by the same electromagnet)
This follows exactly the same convention that we saw for some IC chips
with multiple repeated blocks - see "Multi-gang chips"
above for more on that. The short
summary is that we can tell that these three little blocks are
actually part of the same physical relay from their tags. They're all
tagged "K1". Since a designator must be unique across the whole
schematic, the fact that we have three things tagged K1 can only mean
that they're all part of the same physical component.
As with an IC chip, the numbers on the connection points indicate the
pin numbers on the physical relay. There aren't really any
conventions for how the pins on a relay are numbered; it's just
something you have to look up in the data sheet for the individual
device.
You might also see schematic symbols for relays that are more literal,
with a pictograph for the electromagnet coil, and the whole thing
enclosed in a black box like an IC chip. For example:
Connectors and pin headers
Circuit boards need connections to the outside world, usually in the
form of some kind of plug-in connector. We provide an overview of
some of the most common types, and the ones we use on the Pinscape
boards, in
Chapter 80, Connectors.
On a schematic, we draw connectors like this:
It looks a bit like a generic IC, but note that the wires all go into
the box and connect to little circles. The circles represent the pins
on the connector. The numbers next to the circles are the pin
numbers, which tell you which pins they correspond to on the physical
connector. The pin numbering conventions are different for different
parts; we explain our conventions in
Chapter 80, Connectors. As
always with schematic symbols, the order and arrangement of pins shown
in the schematic doesn't necessarily correspond to the physical pin
layout, so you have to pay attention to the pin numbers.
On the Pinscape schematics, most connectors have a "JP" label, for
"jumper", as in JP7 or JP15. (Another common convention that you'll
see on other schematics is a simple "J" prefix, such as J9.) As
usual, this is the reference designator, for looking up the connector
in the parts list, and (as usual) it has no meaning other than to
serve as a cross-reference. You might also see a manufacturer part
number, as in the example above. Some of the connector types are
generic enough that you can substitute equivalent parts from other
manufacturers, so the part number might only be a suggestion to help
you find a matching part. It's always critical to match the total
number of pins when substituting parts.
One subtle detail to note in the diagram above is that some of the
pins might be left unconnected. That's indicated by the simple
absence of a wire connected to the pin, as in pin #16 in the
example above.
You might sometimes see one (or possibly more) of the pins drawn with
an "X" over it:
This means that the marked pin is meant to be snipped off on the
physical pin header, and the same pin socket in the mating connector
plug is meant to be blocked (literally plugged up with a little piece
of plastic, so that you couldn't insert a pin there if you wanted to).
The point is to "key" the connector so that it's impossible to insert
the wrong way. When you connect the plug the right way, the blocked
socket in the plug lines up with the snipped-off pin on the header, so it
fits and everyone's happy. If you try to insert it the wrong way, the
blocked socket collides with one of the pins that wasn't snipped,
preventing you from attaching it that way and alerting you that you've
got something wrong.
The Pinscape schematics don't use keyed connectors like that anywhere,
but it's something you might see on other schematics. The Williams
pinball machines do this for most of their connectors to help prevent
operators from re-connecting cables the wrong way when making repairs.
Pin numbering on the physical connector
The pin numbers on the schematic symbol tell you which physical pin
corresponds to each schematic pin.
Single-row pin connectors: the physical pins are numbered
sequentially starting at one end. On many boards, such as the KL25Z,
they indicate this by printing a "1" next to pin 1:
You can then infer all of the other pin numbers by just counting them
across the row, starting at pin 1. Note that in the picture above,
they've also helpfully labeled pin 3 at the other end. The KL25Z does
this on each header, labeling the pins at either end.
For the Pinscape boards, the convention is to show a little triangular
arrow next to pin 1:
Pin 1 is always at the end with the arrow, and the rest of pins are
numbered sequentially across the row (2, 3, 4...).
Double-row pin connectors: As with the single-row headers, look
for a pin 1 marking to identify pin 1. Some boards (including the
KL25Z) mark this with a numeral "1" next to one of the pins. The
Pinscape boards use the same triangular arrow they use for single-row
connectors.
For double-row headers, the numbering goes by column:
71. Wire
One electrical component that you'll use a lot of in a pin cab is
wire. I'd recommend buying about 100' up front if you're setting up a
basic cab without feedback devices, and at least 200' if you're
installing feedback devices.
For most uses in a pin cab, I'd recommend 22 AWG stranded wire. It's
a good general-purpose type that will work for practically everything,
from button wiring to feedback devices. For a few special cases, like
power wiring and speaker wiring, I recommend 18 AWG stranded.
24 AWG works as well as 22 gauge for most purposes, and it's a little
cheaper, so you can mostly use 24 if you want to save a little money.
However, you'll still want some 22 AWG on hand because 24 gauge is a
little thin for some of the higher-power items, particularly motors
(shaker motor, gear motor, and fan). See the current-limit table
below for some guidance on this. The thing I like about 22 AWG is
that it has enough power capacity for just about everything in a cab,
so you don't have to think too much about power limits if it's your
default wire type.
Stranded or solid
Wire comes in two basic types: stranded and solid. Solid wire has a
single piece of metal making up the wire. Stranded wire is made by
winding several finer pieces of wire together into a bundle.
The electrical properties of stranded and solid wire are pretty
similar. For a low-power application like a pin cab, there's little
difference between the two types electrically. For our purposes, the
main differences come down to the mechanical properties.
Mechanically, stranded wire has the advantage. It's more flexible,
less susceptible to metal fatigue, and works better with crimp
connectors.
Copper or tinned copper
Generic hookup wire generally uses plain copper as the conductor.
There's also an upgraded type of conductor known as tinned copper,
where the copper strands are coated with a thin layer of tin. The tin
layer inhibits oxidation, so tinned wire is more durable, especially
when the wiring might be exposed to water or high humidity. It's also
more expensive; tinned copper wire costs about 2-3X as much as plain
copper hookup wire.
I personally think plain copper is perfectly adequate for a pin cab,
since you'll probably keep it indoors and treat it gently. That said,
the pinball manufacturers deemed it worth the extra cost, because
you'll find tinned wire throughout most real machines. But I think
that's part of the tradition of building the real ones like tanks,
which they have to do because so many are deployed in public spaces.
Gauge selection
Here are my quick rules of thumb for picking wire gauges. If you
follow these, you should end up with safe wiring, without having
to give a lot of though to each individual run:
- For all feedback devices, use 22 AWG
- For button wiring and other low-power logic signals, use 24 AWG (or
22 AWG if you prefer to minimize the different types you have to keep
on hand)
- For speaker wiring and high-voltage power wiring (e.g., wires
connecting power supplies to 120V), use 18 AWG
More details about wire gauge
The "gauge" or "AWG" number tells you the diameter of the wire
(specifically, of the metal conductor part). The gauge scale
is kind of backwards: larger AWG numbers mean thinner wire.
18 AWG is thicker than 22 AWG.
How do you choose a gauge? There are two constraints that
generally bracket the size of wire you can use for a given
function:
- The current carrying requirement of the function, which
sets a minimum thickness
- What kind of connectors the wire will fit into
The thicker the wire (or the lower the gauge), the more current it can
carry. To be really safe in terms of current capacity, you could
always just use the thickest wire you can find. But thicker wire has
a few downsides, too. It's harder to work with than thinner wires,
and it's more expensive. What's more, there's a limit to how thick a
wire will fit into a given connector. You don't want a wire that's
too thick to fit a terminal that you have to connect it to.
So it's not as simple as "bigger is better". What you really want is
wire that's thick enough to safely carry the current needed for its
particular function, but not too much thicker than that.
If you do a little Web research, you can find lots of tables of
"ampacity" - current capacity by wire gauge. Unfortunately, most of
the tables have different numbers, because there are a lot of factors
that go into the calculations, such as insulation type and what kind
of environment the wire will be used in. For your convenience, I'm
going to provide my own table below, but keep in mind that these are
only approximations. I think they're pretty conservative, though,
because most ampacity calculations are based on continuous
current levels. For a pin cab, most devices are only used
intermittently. Continuous usage is a much more rigorous requirement,
because current limits are all about heat dissipation; a wire that
only carries power intermittently doesn't have as much heat to
dissipate. So for most pin cab devices, I think the numbers below
represent a generous margin of safety. For devices that you plan
to run continuously (light strips, for example), you might consider
bumping up to the next thicker gauge if you want to be cautious.
AWG gauge | Max Amps |
16 | 22 |
17 | 19 |
18 | 16 |
19 | 14 |
20 | 11 |
21 | 9 |
22 | 7 |
23 | 4.7 |
24 | 3.5 |
25 | 2.7 |
26 | 2.2 |
I highlighted the 18, 22, and 24 gauges in the table because these are
the sizes I find most useful in a pin cab. You should be able to wire
everything in your cab with a supply of each of these three sizes.
From the table, you can see that 22 AWG wire has a capacity of about
7A. The highest power devices in a pin cab tend to be shaker motors,
gear motors, and knocker coils, and those all run at around 3 to 4
Amps. That's why I like 22 AWG as my "standard" wire type throughout
the cab: it has high enough capacity to handle anything in the cab,
but it's still a fairly thin wire, which makes it easy to work with
and relatively inexpensive.
24 gauge has a capacity of about 3.5A, which makes it suitable for
most of the "other" uses (besides heavy-duty devices like shaker
motors) in a pin cab. 24 AWG is appropriate for everything carrying
logic signals, like button wiring, and for low-current lighting
devices like button lamps and flipper button LEDs. 24 gauge is a bit
cheaper than 22, so you might prefer to use it wherever possible. But
you shouldn't use it for larger mechanical devices like shaker motors
and knocker coils, since those need a little more current capacity
than 22 gauge can safely carry.
You can also see that 18 gauge has a very high capacity of 16A.
That's plenty for the main power connections, such as the wires
between the power supply and the Pinscape expansion board. It's also
a good size for speaker wiring.
Labeling, color-coding and color striping
One thing you'll notice as you get into your project is that these
machines use a lot of hookup wire. You'll be running wires to
buttons and feedback devices spread around the cabinet. Many of these
wires will connect to central "switchboards", particularly the key
encoder and feedback controllers. That will make for a rat's
nest of wires around those central points.
For maintenance purposes down the road, it's awfully nice if you can
tell which wire is which at those junction points where you have lots
of wires coming together. The obvious way to do that is to use a
unique insulation color for each wire. But that's not really
possible, because there are only about ten color choices available for
common hookup wire (white, gray, black, yellow, orange, red, green,
blue, purple, and brown). That's not nearly enough for all of the
separate wiring functions in a pin cab. Your key encoder will have
about 20 wires coming into it, and your feedback controller might have
30 to 50. You'll also have four or five different power supply
connections to keep track of (ground, 5V, 12V, 24V, etc). That adds
up to around 100 separate functions. With only ten colors to work
with, we'll obviously have to re-use some colors for more than one
function.
The place I like to start for assigning the colors is the power supply
connections. These connect to practically everything in the cab, and
they're especially important to keep track of, since getting them
wrong can cause damage. So a consistent convention is really helpful.
The main power supply lines are the "ground" or 0V (zero volts) line,
which connects to practically everything, and the 5V and 12V power
supply connections. The convention I like to follow here is the same
one that virtually all PC power supplies use:
- Black = ground
- Red = 5V
- Yellow = 12V
If you have a typical rainbow assortment of eight to ten insulation
colors, that leaves five to seven unique colors for everything else.
Which obviously isn't enough to assign a unique solid color to each of
perhaps 50 to 100 separate connections to buttons, feedback devices,
and speakers.
The easy way to deal with this is to reuse colors. That's what I did
in my own cab. It's not ideal, but you can at least try to use
separate colors for adjacent connections. For example, rotate the
colors for adjacent ports on your button controller, and use different
colors for two buttons situated near each other.
Reusing colors is easier during setup, but it can make future
maintenance work more tedious and error-prone. If you want to be more
methodical about it, and give every wire a unique appearance, for
easier tracing, there are a couple of techniques available.
The first is that you can attach tags or labels to either end of each
wire, with printed legends naming the function. This has the
advantage that you don't have to go look at a separate chart of wire
colors; you can see the intended function of each wire just by looking
at the label. But I've never found wire tags to be a very
satisfactory solution over the long run, because they tend to fade or
fall off over time. They can also get in the way and become
cluttered, especially in places where a bunch of wires come together
(like the connections to a button controller).
The second approach, which is what they do in the real pinball
machines, is to use "color striping". That is, you paint a stripe
down the length of each wire, so that the wire isn't just "white", but
"white with green stripe", say. This lets you create many unique
color schemes with just a few base insulation colors.
Some examples of wires with color-striped insulation
(from the bottom of a Williams playfield from the 1980s).
The stripes on the white base color insulation are the
most obvious, but if you look closely you can see that the
dark green wire at the left is striped with yellow, and the
various yellow and red wires are striped in different colors.
The real machines group related connections into a common base color,
to make it easier to remember the purpose of each wire. For example,
a group of switches might all use green as the base color, with a
different stripe color for each switch. That's a good technique to
apply to your virtual cab, if you decide to use color striping.
Alas, it's not easy to buy color-striped wire off-the-shelf. Marco
Specialties and Planetary Pinball Supply sell it, but I've found that
they both tend to have only a few color combinations in stock at any
given time, so it's difficult to set up a full collection. The other
downside is that their wire runs about 2-3X what you'd pay for generic
hookup wire, because the type they sell uses tinned copper (see above).
You can find striped wire from a few other Web vendors as well, but
the ones I've been able to find have very limited color and gauge
selections.
If you want to use striped wire, you might actually be better off
creating your own rather than trying to buy it. There's a clever DIY
system for creating your own striped wire out of the cheaper
solid-color wire. Some of the home-brew pinball people use this.
(Yes, there really is such a thing as home-brew pinball - people who
build physical pinball machines of their own design from
scratch.) Here's a page on the subject on one of the DIY pinball
sites:
>
Their approach is as follows:
- Start with a collection of ordinary hookup wire in assorted solid
colors. These will serve as the base colors.
- Get a set of oil-based Sharpies or similar permanent markers
in assorted colors. These will be used for the stripe colors.
Oil-based inks are a must for this - regular water-based inks won't
adhere to the plastic insulation. (I've tried it; the ink will just
end up all over your hands.)
- As you dispense wire, use one of the oil-based markers to stripe it.
- To make the striping more automatic, set up a dispenser that feeds
the wire through a slot that the marker sits on top of. The
pinballmakers site suggests using a PVC T joint to hold the pen.
The great thing about this approach is that you don't have to buy a
hundred spools of wire with unique color combos. You just need a
basic rainbow assortment of the common single-insulation-color wire,
plus a small assortment of markers. And it doesn't add a lot of extra
prep work, since you create the color striping as you spool out the wire.
72. Resistors
The resistor is one
of the simplest component types. A resistor's function is (as the
name suggests) to resist electric current. Electrical resistance is
somewhat analogous to friction, in that resistance sloughs off some of
the electrical energy going through a circuit and converts it to heat.
Technically, just about everything in a circuit has some resistance,
even the wires, although that's all usually small enough that we
mostly ignore it. Resistors usually have much higher resistance
than what's naturally there from the wires and the rest. Resistors
are useful because they let us insert a specific amount of resistance
into a circuit just where we need it, to control the way current
flows.
Most resistors look something like the ones pictures at right: a
little roughly-cylindrical main body with a wire coming out of each
end. (It's usually more of a dumbbell shape than a true cylinder, but
close enough.) This main body can range in length from a few
millimeters to about an inch. The body is marked with colored stripes
that use a secret code to indicate the resistance value. If you buy
your resistors from someone like Mouser that packages each component
in a clearly marked plastic bag, you probably won't have to bother
learning to read the color code, but it's explained below in case
you're interested.
Orientation
Resistors aren't polarized, meaning that they
don't have a preferred direction. You can install a resistor in a
circuit in either direction and it'll work the same way.
Installing in a circuit board
All of the resistors on the Pinscape board are the same shape: little
cylinders with wire leads sticking out of each end. Most of the ones
on the parts list are rather tiny "thin film" resistors, most only a a
few millimeters in length.
The install location for a resistor on the circuit board is marked
with a little outline of the resistor showing how it'll look when
installed, when viewed from straight overhead. This shows an outline
of the barrel-shaped body, with lines on either side representing
the wire leads.
The lines sticking out of the body-shape outline extend to the solder
pads where the resistor is installed.
A resistor's wire leads will usually start out sticking straight
out from the resistor body. You have to bend the leads at a 90°
angle on either side of the body to fit it into the board, like this:
Use the spacing of the holes as a guide to where to make the bends.
The holes are usually placed so that you simply have to bend the leads
as close to the resistor body as you comfortably can. You can just
bend the leads by hand, but you'll get sharper corners if you use
needle-nose pliers, which can make the resistor fit into the board
more easily.
Once the leads are bent to fit the hole spacing in the board, fit
the ends of the leads into holes, and feed them all the way through
until the resistor is seated more or less flat against the board.
As always, there's no need to force anything - just get the resistor
as close to flat as you comfortably can. The fit is sometimes a
little too tight to get it perfectly flat, which is okay.
Once the part is in place, hold it there, flip the board over, and
solder the leads to the pads on the bottom of the board. Snip off
excess length from the leads after the solder cools.
On schematics
Resistors are represented on schematics as a jagged lines, as shown at
right. They're usually marked with an
Rnumber reference
designator, such as R5 or R10. The "R" is for resistor, and the number is
arbitrary, purely to match up against the parts list. Designators
always have to be unique within the whole schematic, so that each
part can be individually identified. Resistors on schematics are also
usually labeled with the resistance value in Ohms, which we'll come to
shortly. In this case, the "4.7K" label means 4.7 Kilo Ohms = 4,700
Ohms.
Somewhat confusingly, the symbol "R" is also used as a
substitute for the Ω symbol for Ohms, so you might see a
resistor with the pair of labels "R6" and "4R7". The one with the
number after the R is the part label, so this is part number
R6. The one with the number before the R is the Ohms value.
In this case, we have a number both before and after the "R", which
you should read by replacing the "R" with a decimal point and using
the result as a number of Ohms: so "4R7" means 4.7 Ohms. In my own
schematics and boards, I prefer to keep all of the digits before the
"R" and simply use regular decimal points, so I'd write 4.7R in this
case. But you might see the "4R7" type notation in other people's
schematics and boards. The same convention applies to the K (for
Kilo Ω) and M (for Mega Ω) symbols, so you might see
4K7 instead of 4.7K, or 1M2 instead of 1.2M.
Here's a summary of the common formats:
- 47R means 47 Ohms
- 4R7 means 4.7 Ohms
- 47K means 47 Kilo Ohms = 47 kΩ = 47000 Ohms
- 4K7 means 4.7 Kilo Ohms = 4.7 kΩ = 4700 Ohms
- 47M means 47 Mega Ohms = 47 MΩ = 47,000,000 Ohms
- 4M7 means, you guessed it, 4.7 Mega Ohms = 4.7 MΩ = 4,700,000 Ohm
Selection
The main parameter for selecting a resistor
is the resistance in Ohms. In some cases, it's also necessary to pick
a resistor with a high enough power handling capacity in Watts.
Resistance value (Ohms): Every resistor has a numerical value
specifying how much electrical resistance it has. The resistance is
marked on most resistors via the colored stripes we just mentioned; in
some cases, it's simply printed numerically instead. Either way, the
value is in Ohms, which has the symbol Ω: so 100 Ohms can be
written as 100Ω. Thousands of Ohms are written as Kilo Ohms, K
Ohms, KΩ, or simply K, so 4.7K means 4,700 Ohms. Similarly,
1MΩ = 1M = 1 Mega Ohm = 1,000,000 Ohms.
Pay close attention to the "K" or "M", and especially pay attention to
the absence of a "K" or "M". One of the most common mistakes
that people make when reading schematics or parts lists is to assume
that resistor values are always in "Kilo Ohms" even when they don't
see a "K" in the Ohms value. This especially happens with LED
resistors, which are sometimes really tiny values like 4.7 ohms. A
lot of people see that "4.7" and think that there was supposed to be a
"K" there because there's always a "K" there! They think maybe
the "K" was left out by accident, or it's one of those conventions
where engineers leave out some implied information because everyone
knows it's always there whether it's stated or not. There really are
a lot of situations like that in engineering, but this isn't one of
them! If there's no "K" stated, there really is no "K". "4.7 Ohms"
is a perfectly valid resistor value, and it's very, very different
from "4.7 K Ohms". So always pay attention to whether or not a "K" is
there.
You might sometimes see a different notation in schematic drawings and
on printed circuit boards. In these contexts, it's become
conventional to replace the symbol Ω with the letter R, in part
because of the difficulty of writing Ω on older computer
systems. If you see 100R, it means the same thing as 100Ω. You
might see an even stranger notation, with numbers on both sides of the
"R", as in "6R8". In this case, replace the R with a decimal point:
so 6R8 means 6.8Ω. Similarly, 4K7 means 4.7 KΩ. There's
a method to the madness here: they use this notation because decimal
points aren't always legible in schematics, and can be especially
impossible to see in the tiny text silk-screened onto circuit boards.
Wattage: Resistors have a second rating, separate from the
resistance value, specifying how much power they can handle. This is
given in Watts. Typical resistors are rated for either 1/8W or 1/4W.
For higher wattage values, you have to find parts specially made for
the higher power.
There are no markings on a resistor's physical package to tell you the
wattage value (the way the color stripes tell you the Ohms value).
The only way to find the wattage is to refer to the package the
resistor came in. When you're buying resistors, though, it's one of
the parameters you can use to select parts.
In the parts lists in this guide, we'll always tell you if you need a
specific wattage. In most cases, any wattage rating will work,
because in most cases the actual power usage will be less than 1/8 W,
which is almost always the smallest wattage value that they make
resistors in at all. If we don't say anything about wattage, you can
go by the Ohms value alone and choose a resistor with any wattage
rating. In cases where a specific wattage is required in a
parts list, it's always a minimum. You can use any resistor
rated for that wattage or higher. For example, if a parts list calls
for a 1/2W resistor, you can use a resistor with a 1/2W rating, or a
1W rating, or anything higher. But do be aware that a higher wattage
rating usually means the resistor is physically larger, so don't go
overboard. If you're going to use a resistor in a circuit board, you
don't want to get something so huge it won't fit in its allotted
space.
Stripe color code
Most resistors are marked with a set of color stripes that tell you
the resistance value of the part, using a special color code system.
Three, four, or five stripes
Color-coded resistors are marked with three, four, or five stripes.
If there are three stripes, all three stripes represent the
resistance value in ohms, as explained below.
If there are four stripes, three of them should be grouped
together and one should be set apart by an extra-wide gap.
The three grouped stripes represent the Ohms value, exactly
like a three-stripe resistor, and the separate fourth stripe
represents the "tolerance" value. Both are described below.
If the resistor has five stripes, the first four represent
the Ohms value, and the fifth represents the tolerance.
Ohms Value
The Ohms value of a resistor can be read from the group of three
stripes in a three- or four-stripe resistor, or the group of four
stripes in a five-stripe resistor.
The first step is to read the colors, starting with the one
nearest the end. If you've already found the "tolerance" stripe,
start at the opposite end from that. Otherwise, start at the stripe
closest to an end.
The next step is to convert the colors to digits, using this table:
Color | Digit | Multiplier (10X) |
Black | | 0 | 1 |
Brown | | 1 | 10 |
Red | | 2 | 100 |
Orange | | 3 | 1,000 |
Yellow | | 4 | 10,000 |
Green | | 5 | 100,000 |
Blue | | 6 | 1,000,000 |
Violet | | 7 | 10,000,000 |
Gray | | 8 | 100,000,000 |
White | | 9 | 1,000,000,000 |
Gold | | | 0.1 |
Silver | | | 0.01 |
Finally, string the digits together into a number, like so:
AB times 10X or ABC times 10X
>
As you can see, the last stripe represents a power-of-ten multiplier. You can
read it as 10X, using the same color-to-digit mapping to get the X value.
Or you can just use the "multiplier" value in the table above, which we wrote out
for each power of ten. It's the same value either way.
You might notice that gold and silver are special cases. They
represent 10-1 (0.1) and 10-2 (0.01)
respectively. You'll never see them in a "digit" slot - only as a
multiplier.
For example, for Yellow-Violet-Red, you'd read this as A=Yellow=4, B=Violet=7, X=Red=2,
so you'd form the numeric value as
AB times 10X = 47 times 102 = 47 x 100 = 4700
>
That means you have a 4700 Ohm resistor, usually written as 4.7KΩ or just 4.7K.
1KΩ = 1000&Omega, and 1MΩ = 1,000,000Ω.
Tolerance (precision)
If the resistor has four stripes, one of them, always at one end,
is the "precision" or "tolerance" stripe. If the resistor has
five stripes, the fifth is the precision stripe. This extra stripe
should be separated from the other stripes by an extra-wide
gap, to visually identify it as standing apart from the others.
This extra stripe tells you how carefully calibrated the resistor is.
Some situations call for very precisely calibrated resistors, others
only need something approximate. It's more expensive to manufacture
parts with better calibration, so the manufacturers offer cheaper,
less precise parts for when you don't care, and pricier, better
calibrated parts for when you do. This stripe tells you what sort you
have in hand.
The tolerance is expressed as a plus-or-minus percentage value.
A tolerance of ±10% means that the resistance of the part
is within 10% of the resistor's nominal value, above or below.
For example, a 100 Ohm resistor with a 10% tolerance (silver
stripe) should have an actual resistance value within 10 Ohms
of the nominal 100 Ohms, meaning the actual resistance should
be from 90 Ohms to 110 Ohms.
If there are only three stripes, the tolerance is implicitly 20%.
Here are the code colors:
- Brown = ±1%
- Red = ±2%
- Green = ±0.5%
- Blue = ±0.25%
- Violet = ±0.1%
- Gray = ±0.05%
- Gold = ±5%
- Silver = ±10%
>
73. Capacitors
The capacitor is a basic electronic building block that adds a
measured amount of "capacitance" to a circuit, or the ability to
temporarily store a quantity of electric charge.
The ability to store charge makes capacitors look glancingly similar
to batteries, but they're rather different in their physical
construction and electronic properties, and they're used for different
purposes. A battery uses a chemical reaction to store energy, which
allows it to store potentially large amounts of energy over long time
spans. In contrast, a capacitor stores its energy in a standing
electric field, so it can only store a (relatively) small amount of
energy over a short period of time. This makes a capacitor a poor power
source. Instead, the property of a capacitor that's most often used
in circuit design is its ability to resist changes in applied voltage,
which happens because the stored electric field acts as a sort of
buffer that has to be charged up or depleted before voltage changes
can get past the capacitor. This effect can be exploited for purposes
such as signal frequency filtering and power line conditioning.
Types of capacitors
All of the capacitors used in the Pinscape projects fall into one of
two categories: ceramic disc capacitors and electrolytic capacitors.
These aren't the only types that exist - there are about a dozen in
all - but they're by far the most common in everyday electronics.
Most other types are only seen in specialized applications.
Ceramic disc capacitors
These capacitors are usually flat and disc-shaped, but sometimes
they're flat and squarish. Small ones can be bulbous or cigar-shaped.
Ceramic capacitors aren't polarized, so they can be installed in
either direction. There's no "+" or "-" leg.
Disc capacitors tend to have small capacitance values, usually below 1
µF (micro Farad). Common sizes are measured in fractions of a µF,
such as 0.1µF, or in whole nF (nano Farads). Very small ones
are measured in pF (pico Farads).
It's best to keep disc capacitors with their packaging until you're
ready to use them, because they can be so tiny that it's difficult to
read any markings. If you need to identify a disc capacitor, look for
a three-digit number printed on the face of the disc.
For a three-digit number, take the first two digits, and add the number
of zeroes given by the third digit. So for the "154" example pictured
above, we'd take out the "15" and add 4 zeroes, giving us 150000.
This is always a value in pF units - pico Farads, equal to trillionths
(10-12) of a Farad. 1000 pF is the same as 1 nF, so our
"154" capacitor above is 150000 pF or 150 nF, which is also the
same as 0.15µF.
If a letter follows the three-digit number, it's a tolerance code
telling you how precise this measurement is. This is typically K for
±10% or M for ±20%. (You can find tables of these
codes online if you need the full set; search for "disc capacitor
code".)
Electrolytic capacitors
Electrolytic capacitors usually come in cylindrical metallic cases as
pictured above. The leads may be "radial" as shown (both sticking out
the same end), or "axial" (each lead sticking out one end of the
cylinder).
These capacitors are polarized, meaning that they're sensitive to the
direction of the voltage applied. One leg has to be connected to the
"+" voltage and the other to the "-" voltage. See the section below
on orientation for help figuring out which leg is which.
Most electrolytic capacitors have relatively large capacitance values,
measured in whole µF (micro Farads). The smallest electrolytics
are around 1µF, and the largest are very large indeed, sometimes
in the hundreds of thousands of µF. (Very large ones might even
be measured in mF - milli Farads - although it seems more common to
stick with the µF units even for very large values.) For the
Pinscape projects, the largest ones you'll see are around
1000µF, which run about an inch tall and half an inch in
diameter.
The capacitance value of an electrolytic is usually printed right on
the case directly, including units, as these capacitors are big enough
physically that there's no need for secret codes. You might see a
label saying "1000µF", for example.
Installing in a circuit board
Most of the capacitors used in the Pinscape project use radial
through-hole leads, meaning that they have two wires sticking out
their bodies, side by side.
Find the marked spot on the circuit board for the capacitor. It
should show an outline that roughly matches "footprint" of the
part when installed. Then fit the leads through the holes in
the solder pads. Feed the leads all the way through until the
part is nearly flush with the board.
For example, a ceramic disc capacitor is typically shown on the
circuit board with a little rectangular outline:
An electrolytic is shown on the circuit board with a circular
outline, with one solder pad marked with a "+" sign to indicate
which way to orient the part:
Orientation
Ceramic disc capacitors are unpolarized, meaning that they don't have
a preferred direction. You can install these in a circuit in either
direction.
Electrolytic capacitors, in contrast, are polarized. They must be
installed in the correct direction. To determine the correct
direction to install one on a circuit board, find the part outline
printed on the board, and look for a little "+" sign printed next to
one of the solder pads:
This is the pad where you solder the "+" leg of the capacitor, so
the other, unmarked pad is for the "-" leg.
Now look at the capacitor itself. There should be a prominent stripe
painted along one side of the barrel. In most cases, this will be
marked with "-" (minus) signs. The leg closest to this stripe is the
"-" leg of the capacitor. In addition, the legs will usually be
different lengths: the short leg is "-".
Match up the leg on the capacitor near the "-" stripe with the
unmarked "-" solder pad on the board, and match up the unmarked "+"
leg of the capacitor with the marked "+" solder pad on the board.
As with most components, it's best to seat the capacitor close to
the board. There's no need to force anything, but get it as close
as you comfortably can. Solder the leads on the bottom side of
the board, and snip off the excess after the solder cools.
On schematics
Capacitors on schematics are shown with symbols that look like two
parallel lines, or one straight line and one slightly curved line.
For electrolytic capacitors, which are polarized and thus have "+" and
"-" ends, the schematic symbol will show a little "+" sign on the
positive end. If there isn't a "+" sign, it means that an unpolarized
capacitor, such as a ceramic disc type, has to used here.
Capacitors are usually marked with a Cnumber designator,
such as C7 or C9. The "C" is for Capacitor, and the number is
arbitrary, purely to serve as a reference to the parts list. One of
the cardinal rules of schematic writing is that designators have to be
unique in the schematic, so that every part can be individually
identified.
The schematic will usually also show a capacitance value in Farads (F).
This will almost always use one of the following formats:
- 100pF means 100 pico Farads or 100 trillionths of a Farad
- 100nF means 100 nano Farads or 100 billionths of a Farad
- 100uF means 100 micro Farads or 100 millionths of a Farad
Selection
Capacitors have three main specs: the type, the capacitance value in
Farads, and the maximum voltage rating.
Type: In most cases, either ceramic disc or
electrolytic. There are about a dozen other more exotic types
(glass, air-gap, film), but ceramic disc and electrolytic are by far
the most common. They're the only types needed for the Pinscape
projects.
You always have to match the type shown in the schematics and parts
list. If it's not clear from the parts list, check the schematic
symbol for the capacitor: if it includes a "+" sign, an electrolytic
type is needed, otherwise a ceramic disc type must be used.
Capacitance: A value in Farads, almost invariably expressed in
µF, nF, or pF (micro, nano, or pico Farads). Match the value
specified in the parts list or schematic exactly when selecting a
capacitor.
Pay attention to the units - µF, nF, and pF are very different!
1 µF is 1000 nF, and 1 nF is 1000 pF. If you substitute a 1nF
capacitor for one that was supposed to be 1pF, you'll be off by a
factor of 1000; if you substitute 1uF for 1pF, the error is a factor
of a million!
But by the same token, you can take advantage of the factor-of-1000
relationships to figure equivalences. If you're looking for a 0.1uF
capacitor, you can substitute 100nF, since it's exactly the same value
expressed with a different multiplier.
Voltage rating: Every capacitor is rated for its maximum
allowable voltage. This is the highest voltage that it can be exposed
to in the circuit.
If the parts list specifies a voltage rating (e.g., "100uF/50V"), you
must select a capacitor rated for at least that voltage. So if
the parts list says you need a 50V capacitor, you can use a 50V
capacitor, or a 100V capacitor, or anything higher.
If the parts list doesn't specify a voltage rating, it means that the
lowest rated available capacitors (usually 25V) can be used.
Precision: Capacitors are also rated for precision, also known
as tolerance. This is usually given as a percentage, typically 10% or
20%. This means that the manufacturer claims the part will be within
the stated range of its nominal capacitance value. For some
applications, it's critical to be very close to a particular value, so
the engineer who designed the circuit might specify that you need a 5%
or 1% tolerance capacitor in a particular spot. The Pinscape projects
don't have any such requirements, so you don't have to worry about the
tolerance value when selecting parts for these boards.
74. Diodes
The diode is perhaps the most fundamental semiconductor component. It
serves as a one-way valve in a circuit, allowing current to flow in
only one direction.
If you've looked at installing any tactile feedback devices for your
system, such as solenoids or motors, you've probably already run into
one common use of diodes in pin cabs, which is to block the harmful
"flyback" current that coils produce when switching off (see
Chapter 53, Coil Diodes). Diodes have many other uses as well, such as
voltage rectification (converting AC current to DC) in power supplies,
and as components in logic circuits.
Physically, a diode typically looks like a small black cylindrical
body with wire leads sticking out of each end.
Orientation
Diodes are polarized (they have a "+" end and a "-" end), so it's
important to orient them correctly when installing in a circuit.
The standard convention is that the "-" end of the diode is marked
with a painted stripe - a ring around the cylinder. It's usually a
white stripe to contrast with the black case, although sometimes the
ink is so thinly applied that it comes out a pale gray. You might
need a bright light to see it. I had to artificially increase the
contrast in these photos to make the stripe apparent.
Installing in a circuit board
The circuit board install location for a diode is marked with a little
outline of the diode as seen from above when installed, showing the
cylindrical body, and lines extending on either side to represent the
wire leads. The lines extend to the solder pads where the diode is to
be installed.
This looks very similar to the outline for a resistor, so to help
clarify that it's a diode, the outline has the schematic symbol for
a diode inside:
This symbol is also there as an orientation marker, so pay close
attention to it! The stripe on the diode goes on the side with
the stripe in the picture:
As with resistors, a diode's wire leads usually start out sticking
straight out from the body, so you have to bend each lead at a 90°
angle to fit it through the closely-spaced holes in the circuit board.
You can bend the leads by hand, or use needle-nose pliers if you want a
sharper corner, which can make for an easier fit on the board. Use
the spacing of the holes on the circuit board to determine where to
bend the leads - usually they have to bent as close to the body as
you can get.
With the leads bent to fit the hole spacing in the circuit board, fit
the ends of the leads into the holes in the solder pads, then feed the
leads through until the diode is seated flat against the board. As
always, you should get it as close as comfortably possible, but don't
force it.
Be sure to orient the diode properly! Remember, the stripe painted on
the aligns with the stripe in the circuit board outline, and also with
the "bar" in the diode symbol printed on the board.
With the diode seated - and after you've double-check the orientation!
- hold the diode in place, flip the board over, and solder the leads
to the pads on the bottom side of the board. Snip the excess length
from the leads after the solder cools.
On schematics
A diode is represented by a symbol like this on a schematic:
This is meant to represent the diode's one-way-valve property; the
arrow points from positive to negative, and the little bar indicates
the barrier to reverse flow.
When relating the schematic symbol to an actual diode, the key is
to line up the bar on the schematic symbol with the stripe on the
diode body.
The diode symbol on a schematic should always be accompanied by a
reference designator, usually a "D" number (D1, D2, etc), "D" for
diode. As always, this is just an arbitrary name for looking up in
the parts list and doesn't mean anything by itself.
You'll also usually see (as we do here) a part number for the diode,
in this case 1N4007. Many diodes have generic "1N" numbers,
indicating a common type of diode that's made by multiple
manufacturers to the same specs.
(If you've taken a high school physics class, you probably know the
jaded history of this symbol and how it points in the "wrong"
direction in a physical sense. During the early days of electronics,
it was believed that the charge carriers in an electronic circuit were
positively charge ions, so the convention was to draw diagrams showing
current flowing from positive to negative. It was later discovered
that the actual moving particles are electrons, but everyone agreed it
would be too confusing to change, given all of the existing literature
based on postive-to-negative current flow. So we still use those
original conventions to this day, even though everyone now understands
that the electrons are actually traveling against the arrow.
Engineers today just make the reversal mentally whenever they have to
think about the physics of it. At least they're consistent:
the same wrong-way-arrow can be found throughout electronics
symbolism, such as in the symbols for transistors and MOSFETs.)
Selection
Unlike resistors and capacitors, diodes don't have any simple "unit"
that describes them. So instead, schematics and parts list will
specify a particular diode to use, by part number.
Part numbers starting with "1N" are common, generic types of diodes
that are made by multiple manufacturers to the same specs. There are
also less common diodes manufactured for specific properties by one
company, so you might see specific manufacturer part numbers instead
of "1N" numbers as well.
In any case, use the part number to search at Mouser or another vendor
to find matching parts. It's always easiest to go with an exact
match, but in some cases, you might find cross-references where the
manufacturer says that a different part can be substituted for the
part you're looking for. These substitutions are usually listed in
tables in the data sheets, so searches on vendor sites might not turn
them up, but Google searches might. You can try search terms like
"1N4007 equivalent" if you have trouble locating the exact part
you're looking for.
75. LEDs
LEDs are in fact diodes - it's right in the name, Light Emitting
Diode. They're just a special type of diode that glows when current
is flowing.
Using an LED in a circuit board is mostly like using any other diode
in a circuit board, so you might want to take a look at
Chapter 74, Diodes. The main difference with an LED is that the
physical package is usually a little different. Through-hole LEDs
usually use "radial" packages, with two leads sticking out of the
bottom.
Static electricity warning
Identifying the positive and negative legs
Regular diodes use a stripe on the body to indicate the negative end,
but that doesn't work for most LEDs because of the different package
shape. Instead, LEDs usually indicate the positive and negative
sides using a longer leg and a shorter leg:
It's actually kind of mnemonic: shorter = minus.
The negative lead of an LED is also known as the cathode; the positive
lead is the anode. (Here's my handy trick for remembering which is
which. Remember CRT TVs? CRT stands for Cathode Ray Tube. We know
that a "Cathode Ray" is actually an electron, and that electrons have
negative charge. So the cathode is the negative side.)
Orienting on a circuit board
The circuit board markings for an LED will indicate the orientation,
either by marking one of the pads with a "+" sign for the "+" leg, or
via the outline on the circuit board. If it's indicated via the
outline, one side of the outline circle will be flattened:
The flat side on the diagram corresponds to the flat side on the base
of the LED's plastic bubble. It's pretty subtle on smaller parts -
so much so that I can't get a good photo. Instead, here's a 3D
rendering that exaggerates it enough to see clearly:
To orient the LED for installation, line up the flat side on the base
of the bubble with the flat side of the outline on the circuit board.
If there's not an obvious flat side, match up the short leg on the LED
with the flattened side on the circuit board outline.
On schematics
The schematic symbol for an LED reflects that it's really a diode, by
using the same basic symbol. But there's also a little embellishment
added to show the special light-emitting feature: a couple of little
arrows pointing out, representing the photons being emitted.
As with a regular LED, the arrow points from positive to negative,
so the side with the "bar" is the negative lead or cathode.
LED specs
LEDs are characterized mainly by two values: the forward voltage
and forward current.
A lot of people get confused about the forward voltage number,
thinking that it means the required supply voltage. That's a
completely reasonable mistake, because for just about any other kind
of device, a "voltage" spec would mean just that. But for an LED,
it's something different. The forward voltage is actually the voltage
that the LED "drops" in the circuit, which is sort of like consuming
the voltage. In order for an LED to function, it must be supplied
with more than its forward voltage.
For example, if you have an LED rated with a forward voltage of 3.5V,
it'll work if you supply it with 5V, since 5V is greater than the
rated forward voltage. It won't work if you supply it with 3V,
because that's less than the rated forward voltage.
The supply voltage has to be higher than the LED's forward voltage,
but it's more efficient if it's not too much higher. The
higher the voltage, the more power has to be wasted in
current-limiting resistors. For example, if you have an LED with a
3.5V forward voltage, and you have a choice of powering it with a 5V
or a 12V supply, you should choose the 5V supply. Both 5V and 12V
are above the required threshold, so either one will work, but 5V
is more efficient because it's the lower voltage option.
You often see LEDs rated with a range for the forward voltage, such as
"3.2V - 3.4V". That just means that there are some variations in the
manufacturing process, so individual LEDs will each be a little
different, but each one should be somewhere in that range. If you're
trying to figure the required supply voltage, just make sure the
voltage is higher than the high end of the range.
The other spec for an LED is the forward current. That's more
straightforward: that actually is the current level that you're
supposed to use with the LED. You might also see a separate maximum
forward current; this is a level you should never exceed. LEDs don't
vary much in brightness when you change the current level, but they do
get hotter, so there's usually no benefit in using a higher current
than the recommended forward current. Doing so just reduces the
lifetime of the part.
Selection
LEDs are usually placed in a circuit solely for their ability to emit
light, as opposed to serving some kind of active function that affects
the other electronics in the circuit. This makes them more
interchangeable than regular diodes, where the circuit designer might
be relying on a particular diode's special electronic characteristics.
So in most cases, the only two things that matter when selecting an
LED are its forward voltage and forward current ratings.
And you don't typically have to match these exactly - you just need
compatibility. What constitutes compatibility depends on the circuit:
- If the circuit has active current regulation, so that it won't
exceed a given current level through the LED, an LED is compatible
with the circuit if the LED's forward voltage is lower than the
power supply voltage in the circuit, and the LED's maximum
forward current rating is at least the regulated current level that
the circuit uses.
For example, if your circuit board provides 5V power to an LED
with current regulated to 20mA, you can use an LED with a forward
voltage of 2V (because 2V is less than the 5V supply voltage)
and a maximum current rating of 50mA (because 50mA is greater
than the regulated 20mA). You can't use an LED with
a forward voltage of 6V, because that exceeds the 5V supply
voltage.
- If the circuit board uses a resistor to regulate the current (see
Chapter 52, LED Resistors, and you can't substitute a different
resistor, you can use any LED with approximately the same forward
voltage that the circuit designer specified, and with a maximum
current rating at least as high as the forward current that the
circuit designer specified. I can't give you a hard-and-fast
rule for exactly how "approximate" you can be, but let's say
within 10% or so.
For example, if your circuit board uses a resistor to regulate
current and calls for an LED with a 3.2V forward voltage and
20mA forward current, you can use any LED with a forward voltage
of about 2.9V to 3.5V (within 10% of the specified 3.2V), and a
maximum forward current of 20mA or higher.
- If the circuit board uses a resistor to regulate the current,
and you can substitute your own resistor in place of what
the designer specified, you can use any LED with a forward voltage
less than the supply voltage in the circuit.
In this case, you'll
have to select an appropriate resistor based on the LED you actually
end up using. See Chapter 52, LED Resistors for
the formula
an on-line calculator
for selecting the resistor. When figuring the resistor value,
use the LED's forward voltage spec, and use the desired current
in the circuit. The desired current must be less than or equal
to the maximum current specified for the LED, and it must also
be less than or equal to the maximum current that the circuit
can safely supply. For that, you'll have to consult the circuit
board's specifications or ask the designer.
If you're installing an LED in a circuit board, it also obviously has
to match the physical size and shape that the board was designed for.
76. Relays
A relay is a mechanical switch controlled by an electromagnet,
allowing one circuit to control another circuit. Because the
switching is done mechanically, there's no need for the two circuits
to be connected electrically, which simplifies control interfaces
between incompatible circuit types. One very common use along these
lines is controlling a high-voltage AC power line circuit from a
low-power DC logic circuit.
The Pinscape main expansion board includes a relay for the TV
switching function. It uses a relay precisely because of the
isolation the relay provides: it doesn't require any electrical
contact between the TV and the Pinscape boards, so it doesn't have to
make any assumptions about how the TV control switches are wired.
This chapter is about relays as electronic components in general.
There are a couple of specific ways that relays are commonly used in
pin cabs that we cover separately in other sections:
- Relays can be used as an interface between the popular LedWiz
feedback controller and higher-power devices such as solenoids and
motors. The LedWiz can't be directly connected to large devices
because of its relatively low power handling limits. Relays can be
used to bridge that gap, although there are better alternatives, such
as MOSFETs. This is covered in Chapter 50, LedWiz Setup.
- Some pin cab builders use USB-controlled relay boards from Sainsmart
as their output controllers. These are turn-key controllers that let
you switch a bank of mechanical relays via USB commands, so they can
be used for many of the same functions as an LedWiz. They're
covered in Chapter 51, SainSmart Relay Board Setup.
Protective diodes
The physical mechanism inside a relay that operates its switch is an
electromagnet. This is a type of electromagnetic coil, which means
that it's affected by a phenomenon known as "flyback current" that
affects all coils. Flyback current is essentially a type of
electrical interference or noise that gets injected into the circuitry
attached to the relay coil, and this interference can be harmful to
other components in the same circuit.
There's a standard remedy to protect against this harmful
interference, which is to connect a diode to each coil. We cover this
in detail in
Chapter 53, Coil Diodes.
We wanted to call your attention to it here because it might not be
obvious from reading that section that a relay is one of these
coil-based devices. That section is all about things like motors and
solenoids. But a relay is in the same class because of its integrated
electromagnet. Note that if you're controlling a coil-based device
using a relay, such as a motor or solenoid, that device will need its
own protective diode, in addition to the one needed for the relay
coil. Also note that it's the relay coil that requires the
diode, not the relay switch. The coil is the part where the
"input" or control signal feeds into the relay.
The Pinscape boards already include the necessary protective diodes
for their relays, so you don't have to worry about adding your own
separate diode there. All of the Sainsmart boards should likewise
include pre-installed diodes.
On schematics
There are several different ways to represent relays in schematics.
Here's the format that we use in the EAGLE plans for the Pinscape
boards:
This breaks up the relay into its component parts:
- the little box at the right represents the electromagnet
- the two clusters at the left represent the mechanical switches
(this particular relay has two of them, because it's a "double pole"
relay, meaning it has two electrically independent switches operated
by the same electromagnet)
You can tell that all of these little sub-symbols are actually part of
one physical device from the repeated reference designator: all three
parts are labeled "K1". This convention (of breaking up one part into
multiple schematic symbols) is a little subtle, but it's pretty
common; it's explained in more detail in "Multi-gang chips" in
Chapter 70, Schematics.
The numbers on the connection points indicate the pin numbers on the
physical relay. These numbers aren't anything you're supposed to
"just know" on your own - they come from the relay's data sheet.
Every relay uses its own peculiar numbering, so you just have to
look it up for each relay.
The Pinscape EAGLE schematics use the symbology above for relays, but
it's not the only one. If you look at other schematics, you might see
other relay symbols. The most common format is a box containing a
little pictogram of a coil representing the electromagnet, and one or
more switch symbols for the controlled switches:
Physical packaging
I don't think there's any industry standard packaging for relays (the
way there is for transistors and ICs). Relays seem to use unique
cases designed by each manufacturer for each part. Most of these
follow roughly the same pattern, though: a rectangular plastic box
with a set of pins or terminals on the bottom. Some relays use small
round pins or leads suitable for installation in a circuit board,
while others use solder terminals for connecting hookup wire.
Orientation
All of the relays I've encountered have asymmetrical pin layouts that
make it impossible to plug them in wrong. That's true of the ones
used in the Pinscape boards. If it fits into the solder pad holes in
the circuit board, you've got it right. If it doesn't fit, you've
got it backwards, so just rotate it until it fits.
Installing in a circuit board
The Pinscape boards mark the install location of a relay with an
outline of the part as seen from above, as usual:
To install, match up the pins on the bottom of the relay with the
circuit board solder pads, and fit them into the holes in the pads.
The relay should only fit one way (if it doesn't fit, you probably
just have it rotated wrong, so try turning it around).
The relay should fit flat against the circuit board when properly
seated.
Hold the relay in place so that it doesn't fall out, flip the board
over, and solder the pins to the pads on the bottom side.
Selection
When building a circuit board like the Pinscape boards, it's best to
stick to the exact part listed. Use the manufacturer part number in
the parts list to search for it on Mouser or other electronics vendors.
If you need to find a substitute for a relay listed in a circuit
design, you'll need to match several properties from the original
relay, which you can find in the relay's data sheet:
- The coil voltage should match exactly. Make sure that it's both the
same voltage level and the same type (AC or DC).
- The new relay's coil current should be the same as or lower than the
original relay's. You might be able to use a higher current if the
circuit board allows it; check with the circuit board designer if
you're not sure. In the case of the Pinscape TV ON relay, a coil
current up to 600mA is safe.
- The voltage and current limits on the switch should be sufficient
for the application. If you're not sure what's needed, it's safest to
select a new relay with limits equal to or greater than the original
relay's.
- If you're going to install the relay in an existing circuit board
design, you'll also have to match the exact package type and pin
layout of the original, so that the new relay fits the same solder pad
holes in the board. The pin layout for each part should be documented
in its data sheet.
77. Transistors
A transistor is a fundamental semiconductor component that acts like
an electronic valve, with a control signal that determines how much
current can flow through the transistor. This ability can be used for
amplifying a small signal into a bigger one and for electronic
switching. Virtually all modern electronic computing is based on
logic gates constructed from transistors acting as switches.
"Transistor" is an umbrella term for several rather different types of
semiconductor devices, based on different physical effects, with
considerably different behavior in a circuit. They're all lumped
together under the name "transistor" because of the ability they have
in common to function as amplifiers and switches.
This chapter is about the
bipolar junction transistor, which is
what people usually mean when they talk about a "transistor" without
saying specifically which kind. The BJT was the first type of
transistor that was widely produced, and was by far the most widely
used until the 1980s, when its dominance was supplanted by a different
type called the MOSFET (the subject of the
Chapter 78, next
chapter). Even though MOSFETs are more numerous these days
(mostly because they're the transistors underlying nearly all
integrated circuit chips), BJTs are still foundational to modern
electronics, and they're extremely useful devices that are still
widely used as discrete components (that is, outside of integrated
circuit chips). We're including them in this guide for all of those
reasons, but more specifically because the Pinscape boards use a few
of them.
Static electricity warning
NPN and PNP
Transistors (the BJT type) come in two varieties: NPN and PNP. These
are essentially mirror images in terms of the voltage polarities of
the signals they work with. The P's and N's in each abbreviation are
for "positive" and "negative" (although in a very specific and
technical way that you shouldn't take to refer to simple voltage
polarities).
The main thing you have to know about NPN vs PNP transistors when
you're building a circuit is simply that they're different types, and
that you can never swap one for the other. If a particular part in a
schematic or circuit board plan calls for an NPN, you must use an NPN
transistor there, and likewise for PNP.
On schematics
The schematic symbol for a transistor consists of a thick bar with
three lines sticking out, one straight line on one side, and two
diagonal lines on the other side. One of the diagonal lines has an
arrow, which might point towards or away from the middle bar.
If the little arrow points away from the bar, the symbol
represents an "NPN" transistor. If the arrow point towards the
bar, it's a "PNP" transistor.
Note that the little arrow might be shown at top or bottom, and it
might be on the left side or the right side. None of that makes any
difference - the symbol means the same thing no matter how it's
flipper or rotated. Schematic writers will flip the symbol
top-to-bottom, or left-to-right, or rotate it at different angles,
according to what's convenient to make the lines between nearby
connections shorter. It doesn't change the meaning.
The three lines represent the three connections to the transistor,
called the base, collector, and emitter:
- The straight line by itself on one side is always the base or B
- The diagonal line with the arrow is always the emitter or E
- The other diagonal line is always the collector or C
Pay attention to where the arrow is, because that's the real key to
decoding the symbol. Remember that the symbol can be flipped
top-to-bottom or left-to-right, or it can be rotated. But the
arrow is always the emitter, no matter where it's positioned. The
line on the opposite side of the bar from the arrow is always the
base, and the arrow-less line on the same side of the bar is always
the collector.
Transistors have parts list tags just like other components. These
most commonly start with "T" or "Q". As with the "R" tags for
resistors and "C" tags for capacitors, these are just arbitrary tags
to look up in the parts list, with no other meaning.
Transistors are also usually labeled with the semiconductor ID, like a
diode is. In the case of a transistor, this usually starts with "2N".
You might also see other part numbers, such as the "BC337" in the
examples above. When two numbers are listed for one part like this,
it indicates alternative parts that you can use - so in the
case of T8 above, you could use a 2N4401 or BC337 interchangeably.
On some schematics, the transistor symbol will be enclosed in a circle:
The circle doesn't change anything; it's just an alternative way
of drawing the symbol.
Physical packaging
Transistors come in many shapes and sizes. There seem to be about 20
industry-standard package types for through-hole transistors (the kind
with leads that you insert through holes in a circuit board). There
are probably quite a few more non-standard proprietary packages as
well.
The Pinscape boards only use one package type, known as TO-92, which
looks like a little black half-cylinder about 5mm on a side, with
three leads sticking out the bottom.
Orientation
The TO-92 case is an industry-standard shape and size, but oddly, they
didn't standardize the order of the leads while they were at it. If
you want to figure out which lead is the base, which is the
collector, and which is the emitter, you have to look at the data
sheet for the part you're using. For example, if you look at the
data sheet for the 2N4401 transistor, it'll include a little diagram
like this:
In the diagram, E = emitter, B = base, C = collector.
Other transistors in the exact same TO-92 package might have the
leads in a completely different order.
Even though they didn't standardize the lead order for the TO-92
package itself, they do always use the same lead order for
a given transistor. Every 2N4401 in a TO-92 case will use the
same lead order shown above.
Printed circuit boards take advantage of that fixed lead order for
each specific transistor type to give you a handy orientation key for
each transistor, printed right on the circuit board. If you look at
the outline for any transistor in a TO-92 case, you'll see that the
outline (as usual) matches the shape of the transistor when you view
it from straight overhead. The outline has that same half-circle
shape with one side flattened. That flat side is the orientation key.
Just line up the flat side on the transistor with the flat side on the
printed outline.
Installing in a circuit board
Orient the transistor to match outline printed on the circuit board as
shown above. Fit the three leads through the corresponding three
holes in the circuit board. Feed the leads through the board until
the part is seated as close to the board as you can comfortably get it
without forcing it.
Hold the part in place, flip the board over, and solder the three
leads to the solder pads. When the solder cools, snip the excess
length from the leads.
Selection
Transistors don't have a simple "unit" that describes them, the way we
have Ohms for resistors or Farads for capacitors. Instead, schematics
and parts lists will specify a particular transistor to use, by part
number.
Transistor part numbers starting with "2N" refer to common, generic
transistor types that are made by many manufacturers to the same
specs. Many other transistors are identified by a manufacturer's
proprietary part number. Manufacturer-specific part numbers don't
follow any particular standard format, as they're up to each company
to define.
In either case, use the part number listed in the schematic or parts
list to search for a matching part at Mouser or another vendor.
It's always best to use the exact part listed, but many transistors
have mutually compatible substitutes available. Try a Google search
for a term like "2N4401 equivalent" if you can't find the exact
original part specified.
All of the NPN and PNP transistors used in the Pinscape boards are
used for their switching function. That makes them largely
interchangeable with other transistors that are described as "small
signal transistors". If you can't find the exact option for a
transistor in the Pinscape parts list, you can probably substitute any
other "small signal transistor" that meets these requirements:
- It's the same basic type (NPN or PNP) as the original
- Its maximum collector current (IC, typically listed in
the "Absolute Maximums" section of the data sheet) is at least as
high as the value listed for the original part in its data sheet
- Its maximum emitter-base voltage (VEBO) is 12V or higher
- Its maximum collector-emitter voltage (VCEO) is 12V or higher
- It has the same case type (TO-92, TO-220, etc), to ensure that the
leads will fit in the same solder pad holes in the circuit board
- Its leads (emitter, base, collector) are in the same order, so that
you can plug it in the same way. (Alternatively, it can be in the
reverse order, as long as you remember to rotate it 180°
from the way it's depicted on the circuit board when installing it,
to match the reversed lead order.)
Note that those rules are specifically for the Pinscape boards. If
you're trying to make similar substitutions for other circuit boards,
you should those specs for VEBO and VCEO from "12V
or higher" to "at least as high as the value listed on the original
part list". I was just trying to save you the trouble of looking
those up for the Pinscape parts, since in those cases you wouldn't
need specs higher than 12V.
Darlington transistors
A Darlington transistor isn't really a different type of transistor;
it's just a different kind of physical packaging. But it's worth
mentioning because it looks a little different on schematics.
A Darlington is a pair of NPN or PNP transistors, linked together
inside a single physical package. To the "outside world", it looks
and acts very much like a single NPN or PNP transistor. What makes
these devices useful is that the linkage of the two transistors
greatly increases the amplification power - the first transistor
amplifies the input signal, and the second transistor amplifies that
amplified signal, so it's like multiplying the two together. A
circuit designer can accomplish the exact same thing by wiring two
transistors together the same way, but this is such a common trope in
circuit design that it's convenient to have it available as a single
part. It's one less discrete part to install when you're building a
board.
On a schematic, a Darlington is drawn as a pair of regular transistors:
This schematic symbol is so similar to the symbols for two individual
transistors that it's kind of hard to distinguish whether it's a
single Darlington or two regular transistors. The tell-tale is that
there's only one reference designator and part number shown for the
pair. The other way you can tell (although less definitively) is that
the two individual transistor symbols are drawn so closely together,
with almost no "base" line in the second transistor symbol. If they
were were in fact meant to be discrete parts, they'd probably be
spaced out a little more.
Physically, a Darlington is just like a regular NPN or PNP. Like the
regular kind, it has three leads, labeled Base, Collector, and
Emitter. You install it in a circuit board just like the regular
kind of transistor.
78. MOSFETs
A MOSFET is a type of transistor (that's what the "T" in MOSFET is
for). MOSFETs are very different from the older kind of transistor we
saw in the last chapter (the bipolar junction transistor or BJT), but
they're still called "transistors" because they have the same
abilities to amplify and switch signals that all transistors have.
Up until around the 1980s, nearly all transistors used in practical
applications were BJTs. That completely changed in the 80s, because
the manufacturing processes used to create integrated circuit chips
favored MOSFETs. MOSFETs are much more prevalent today as a result.
They're also widely used as discrete transistors because of their
excellent power efficiency. The Pinscape boards use MOSFETs for the
high-power switching needed to control feedback devices, which is an
application that MOSFETs are particularly good at.
Static electricity warning
Types of MOSFETs
MOSFETs come in four varieties, combinations of two "modes" and two
"channel" types:
- Depletion Mode or Enhancement Mode
- N-channel or P-channel
The mode refers to how the switching function works in the device;
depletion mode means that the device conducts when no control
voltage is applied, and enhancement mode means that it conducts when a
control voltage is applied. The difference between N-channel and
P-channel MOSFETs is similar to the distinction between NPN and PNP
bipolar junction transistors; it refers to the charge polarity of the
material used in the semiconducting region.
As with NPN-vs-PNP for BJTs, you don't need to know anything about how
these variations work to build a circuit that uses MOSFETs. What's
important is simply to know that you always have to use the exact mode
and channel type called for in the circuit plan. If the plan calls
for an "N-channel enhancement mode" MOSFET, you have to use exactly
that type.
All of the MOSFETs used in the Pinscape boards are N-channel
enhancement mode devices.
On schematics
The schematic symbol for a MOSFET is vaguely similar to the symbol for
a bipolar junction transistor, but different enough that you wouldn't
confuse them with each other:
The direction of the little arrow in the symbol indicates whether
it's a P-channel or N-channel device. An N-channel device has
the arrow pointing inwards, towards the middle bars; a P-channel
device shows the arrow pointing outwards.
The mode (enhancement or depletion) is depicted by the main bar:
a broken bar indicates enhancement mode, and a solid bar indicates
depletion mode.
The N-Channel Enhancement Mode version is the only one you'll see in
current Pinscape schematics, but you might see any of the other types
in other schematics.
A MOSFET has three connections to the outside world, called the gate,
source, and drain.
- The line off by itself on one side is always the Gate
- The line that connects to the little arrow is always the Source
- The remaining line is always the Drain
Note that the gate, source, and drain are often designated G, S, and D
on diagrams. If you look at a MOSFET's data sheet to find the order
of the case leads, they'll probably label them G, S, D in the diagram.
You might sometimes see the MOSFET symbol enclosed in a circle.
That's just a visual affectation; it doesn't change the meaning at all.
Physical packaging
Like any transistor, MOSFETs come in numerous package types. The
Pinscape boards only use one package type, though, known as TO-220,
which looks like a little black plastic brick with three legs coming
out the bottom, and a big metal heat sink fin on the back.
Front view:
Back view:
Most devices in this type of case will be printed with text across
the front indicating the part number.
Orientation
The order of the leads isn't standardized for the TO-220 case, so
the only way to tell the order for a particular part is to look it up
in the part's data sheet. The data sheet will usually include a
diagram like this:
G, D, S stand for Gate, Drain, and Source.
The arrangement of TO-220 leads will always be the same for any given
MOSFET, so the Pinscape boards can take advantage of this to show you
the correct orientation without forcing you to track down a data
sheet. This means you can figure out the correct orientation for
a MOSFET just by looking at the circuit board markings
As usual, the Pinscape boards show a little outline of each MOSFET, as
viewed from above, where it's meant to be installed. For a TO-220
package, the outline shows a rectangle the size of the plastic brick
part, with a heavy line on one side. The heavy line represents the
metal heat sink fin. So to orient the MOSFET properly, you just have
to line up the fin with the heavy line printed on the board.
Installing in a circuit board
Orient the MOSFET to match the outline printed on the board as shown
above. Fit the three leads through the corresponding three holes in
the circuit board. Feed the leads through the board as far as you
comfortably can.
TO-220 packages usually have little barbs on the leads near the
plastic case. This is intentional, to force a little distance between
the case and the board to allow air flow for cooling. Just feed the
leads through until you reach the barbs, then stop.
Hold the part in place and flip the board over to solder it. Try to
keep it at right angles to the board. With the barbs in the leads,
it's easy for the part to want to tilt a bit in one direction or the
other, so try to keep it straight up and down while soldering.
Solder the three leads to the solder pads. When the solder cools,
snip the excess length from the leads.
Selection
Schematics and parts lists will always specify which MOSFET to use by
manufacturer part number. There aren't any generic "units" to
describe a MOSFET like there are with resistors and capacitors. Use
the manufacturer part number to search for a matching part at Mouser
or another electronics vendor.
It's easiest to use the exact part specified in the parts list, but as
with BJTs, many MOSFETs have compatible replacement parts that can be
safely substituted. Try a Google search term like "IPP121 replacement".
The large MOSFETs in the Pinscape boards are used as on/off switches,
which makes it fairly easy to find compatible replacements. The parts
list, in fact, lists several options for each one. If you can't find
any of those and need to look for other alternatives, here are some
tips on what to look for:
- The same type (N-channel enhancement mode)
- The same case type (TO-220)
- The same lead order (G-D-S when viewed from the front), so that
the part can be plugged into the circuit board slot in the same
orientation marked on the board, or the reverse lead order, so
that you can plug it in rotated 180° from the marked orientation
- Maximum drain current (ID, normally listed under
"absolute maximums" in a data sheet) of at least 6A, or however
much current you need the circuit in question to carry
- Drain-source breakdown voltage (VDS) at least 55V, or
however much voltage you want to be able to switch on the circuit
in question
- Gate-source breakdown voltage (VGS) at least 15V
Even with those criteria in hand, you might find it challenging to
search for parts, in part because MOSFET data sheets are packed with a
lot of other information, but more because there are just so many
MOSFETs on the market. A quick Mouser search shows 20,116 distinct
catalog results for "MOSFET"! Even filtering to in-stock, N-channel,
enhancement-mode, TO-220 case, VDS ≥ 55V, ID
≥ 6A, VGS ≥ 15V turns up over 650 matches. If you
don't have working knowledge of MOSFETs beyond the scant introduction
we've provided here, you might want to ask someone who does to
sanity-check the data sheet for you before committing to a selection.
79. IC Chips
Integrated circuit (IC) chips are ubiquitous in modern electronics,
and you'll find several of them on the Pinscape boards. An IC is
essentially a miniature circuit board consisting of a collection of
the more basic components (resistors, capacitors, and transistors)
that we use elsewhere in our own circuit boards. There are ICs for
thousands of different functions and applications, ranging from simple
things like resistor arrays to complex computing tasks like running
Windows.
We'll start with some general information that's common to most IC
chips, then look at each of the specific chip types used in the
Pinscape boards. If you're working on building the boards
and you're trying to figure out how to install a particular chip, look
for the section on the chip in question later in the chapter.
Static electricity warning
Identifying a chip
Most chips can be identified pretty easily by the number printed
on the top of the case.
Each chip pictured above has two lines of random-looking alphanumeric
strings. This is pretty typical, but it's not any kind of standard;
some chips might have more or less printing, which might be arranged
in other formats. Whatever the format, the chip name should always be
in there somewhere. That should match the name that's used in the
schematic and printed on the board. Anything else is usually opaque
manufacturing codes not meant for our eyes, such as lot numbers and
date codes. How do you pick out the chip name from the other stuff?
You pretty much have to figure it from context, by looking for a chip
name you recognize. Somewhere in there, you should find the name of
the chip as shown in the schematic and on the PCB silkscreen.
Note that the name printed on the chip sometimes has slight variations
from the name used in the schematics. In particular, there might be
some extra prefix or suffix characters. These usually denote
variations of the chip, or different manufacturers, which have already
been accounted for in the parts list. Even so, if you do find such a
discrepancy, it might be worth double-checking the part list to make
sure you haven't accidentally swapped two parts that have similar names.
Chip orientation
Orienting a chip properly before installing it is critical. In the
best case, a chip that's installed in the wrong orientation simply
won't work, and in the worst case, the error might destroy the
backwards chip, or even other components, when you turn on the power.
So always make sure you have the right orientation before soldering
anything.
Most of the chips used in the Pinscape boards are "DIP" (dual in-line
package) chips with two rows of pins sticking out. It's easy to
tell which side is the top and which is the bottom: the pointy ends
of the pin point down, since they go through matching holes in the
circuit board.
What's not as obvious is the proper rotation. DIP chips are
rotationally symmetrical: they'll fit the space on the board if
you rotate them 180° from their proper orientation. So you
have to be careful to get that right.
When you look at the Pinscape boards, you'll see little outlines for
all of the chips printed on the top of the board. Most of the IC chip
outlines look roughly like this:
The first thing to note is the printing inside the outline, in this
case "PC847". That's the name of the chip to install here. When
you're about to plop a chip into position, it's always a good idea to
double-check that the name printed on the chip matches the name
printed on the board. Different chips can sometimes share the same
footprint, so it's good to make the extra check.
Don't be distracted by the fact that the writing is upside-down. The
text printed on the board is almost all oriented the same way with
respect to the overall board, for the readability's sake. If the text
were printed at all sorts of different angles across the board, it
could make some of the legends hard to read or even ambiguous (e.g.,
is that an "N6S" or an "S9N"?). The trade-off is that this often
makes the text appear upside-down or sideways with respect to the
component it refers to, as in this case. The important thing to
remember is to always pay attention to the outline, not the text, to
determine which way a component goes.
Which brings us to the second big feature in the photo: the notch.
That's the most important feature of the outline, because it's your
key to orienting the chip properly.
Whenever you see a notch in a chip outline like this, turn the board
so that the notch is at the left like in the photo. In that
orientation, pin 1 is the bottom left pin, just below the notch.
Now you know where pin 1 goes on the board, so all you have to do
is match that to pin 1 on the chip.
Some chips have the same type of half-circle notch that's printed on
the circuit boards. The notch in the chip isn't usually printed in
ink, though - it's usually a slight indentation or depression in the
plastic case. When you find a notch on the chip, orienting it to the
diagram on the board is easy: just line up the notch on the chip with
the notch printed on the board.
Not all chips use the notch, though. The other common convention
is a little circular "dot" in one corner. The dot is sometimes
marked in ink, and other times it's just a subtle indentation in
the chip casing. When there's a dot, it's in the corner nearest
to pin 1.
Common orientation markers on IC cases.
Some ICs have indented notches on one side; simply line this up
with the notch in the printed outline on the circuit board.
Other chips use a "dot" at one corner of the chip to mark the
location of pin 1. The dot might be printed in white ink, or
might be indented in the plastic.
If you don't see the notch or dot, it might just be a really subtle
one that's hard to spot. Look at the chip under a strong light,
and hold it at different angles. The indentation for the notch
or dot is sometimes very slight.
Once you find the notch or dot, it's just a matter of lining up
pin 1 on the chip with pin 1 on the board.
Examples of how to match the chip marking
with the board marking to find the proper orientation. Top:
the chip has a notch in its case like the one printed on the
board, so simply line up the notch on the chip with the one
on the board. Bottom: The chip has a dot near one corner.
Orient the chip so that the dot lines up under the notch
printed on the board.
Sockets
There are two main ways to install a DIP-type chip on the circuit
board: solder it directly to the board, or use a socket.
A socket is a receptacle that matches the exact footprint of an IC
chip. It has pins coming out the bottom, matching the pins on the
chip. You fit the socket's pins through the holes in the board
intended for the chip, and solder the socket pins to the board. The
top of the socket has matching openings for the chip's pins. Once the
socket is soldered to the board, you just plug the chip into the
socket. The pin openings in the socket are spring-loaded, so they
hold the chip in place without having to solder the chip.
IC sockets: top view of a 16-pin socket;
side view of 16-pin socket; top view of 28-pin socket. Note
the notch at the left side in the top views: this has the same
purpose as the notch printed on the circuit board outline of
the chip, to serve as an orientation guide. Line up the
notch on the socket with the notch printed on the board
when installing the sockets.
The main advantage of using a socket is that it makes it practically
effortless to remove and replace a chip. That's a great time-saver if
you find that one of your chips is defective, or if it ever fails
later, or if you accidentally install it backwards on the first try.
In contrast, it's extremely difficult to remove a chip that's been
soldered directly to the board. It only takes a tiny bit of solder on
each pin to make it stick, and it's next to impossible to get all of
the solder off all of the pins on a large chip.
I recommend using sockets for all of the large chips, but it does
slightly increase the cost, so some people prefer to solder the chips
directly.
If you use sockets, note that each socket has a notch cut into the
plastic. This is meant to mimic the notch in the chip outline printed
on the circuit board, to serve as the orientation marker. You should
be sure to line up the notch in the socket with the notch printed on
the circuit board when you install each socket. That way, you can
use the notch in the socket as a proxy for the notch in the circuit
board chip outline when plugging in the chip - which is important
because the printed outline will probably be hidden behind the socket
once the socket is in place.
How to install a chip on a circuit board
If you're using a socket, follow the procedure we're about to describe
for soldering the chip, and just substitute the socket for the chip in
all of the steps. After the socket is installed, plug the chip into
the socket, taking care to orient the chip properly as described
above.
To solder a chip (or socket) to the board, first find the outline
printed on the board for the chip. Most IC chip outlines look
roughly like this:
Check that the chip type printed on the board matches the chip you're
getting ready to install.
Line up the chip's or socket's pins with the holes along the edges of
the outline. The number of holes should match the number of pins.
Carefully insert the pins through the holes.
Make sure the chip is oriented properly, as described above. This
is an excellent time for the "measure twice, cut once" rule - check
and double-check that you have the chip turned the right way.
Now insert the pins into the holes.
With DIP chips (the ones with two rows of pins), the pins are usually
angled out just a little wider than the holes, so you usually have to
bend one row of pins inward very slightly to fit them through the
holes. To make this easier, I like to start by inserting one row of
pins first. Then you can apply a little pressure to the whole chip to
uniformly bend the now-seated pins enough to fit the opposite row
through its holes. (Sockets don't usually require this kind of
maneuvering, since their pins stick straight down. It's another way
sockets make things a little easier.)
Inspect the pins from the top to make sure they all got seated
properly. It's easy for one or two pins to miss their holes and go
sideways when you seat the rest. If this happens, you
might be able to nudge the missing pins into their holes if they're
not too far askew, but don't force anything. The pins are delicate
and don't stand up to much bending and re-bending. If necessary, take
the chip back out, carefully (very carefully) straighten any pins that
went sideways, and try again.
Once you're satisfied that all of the pins made it into their
respective holes in the board, hold the pin in place from the top and
flip the board over. Verify that all of the pins really made it
through the openings, as seen from the bottom of the board.
If everything looks good, it's time to solder the pins in place.
Keep the board flipped over and solder the pins from the bottom.
Solder a pin at one corner first (any corner will do). You should
hold the chip firmly in place against the board from the other side
during this step to make sure that gravity isn't pulling it a little
away from the board.
Check again that the pins are still all in place. They
can sometimes work loose during all of this board flipping and
soldering.
If everything is still in place, solder the pin at the diagonally
opposite corner next, still holding the chip pressed firmly against
the board from the other side.
Do one more check that the pins are all still where they should be.
This is basically the point of no return - it's not too difficult to
get the chip free if necessary with only the two pins soldered, but
it'll be practically impossible once you solder more pins. So it's
worth making sure that everything is good before going on.
At this point, the two attached pins at the diagonal corners should be
enough to secure the chip mechanically, so you shouldn't have to worry
about anything coming loose from this point forward. You can just
work through the rest of the pins one at a time to solder each one in
place.
Pin numbering
All of the pins on a chip are numbered, for the purposes of
identifying them in the schematic.
The pin numbers are irrelevant when you're installing a chip, since
all you care about is getting the orientation right. However, you
might find a need to cross-reference the individual pin connections in
the schematic with the physical boards if you ever have a problem that
requires debugging with a voltmeter. If you ever have a problem with
the boards, one of the first debugging tasks will likely to be check
the continuity between various points on the board, to make sure that
pins that ought to be connected actually are connected.
Fortunately, pin numbering on the physical chips is pretty
straightforward, and better yet, it's highly consistent across
different kinds of chips.
The Pinscape boards mostly use DIP chips - the type with two rows
of pins on opposing sides of the plastic case. All DIPs follow these
rules:
- Pin 1 is at the lower left (with the chip properly oriented)
- Pin numbers increase counter-clockwise around the chip
Chip symbols on schematics
The schematic symbols for chips can vary a little bit. There are a
few types of chips that have special symbols because of the function
they perform. Most chips, however, are so specialized that there's no
special symbol for them, so they're shown on schematics quite
generically, as simple rectangles with lines sticking out to represent
the pin connections. For example, here's the symbol for a TLC5940,
which is the large PWM controller chip used on the Pinscape expansion
boards for feedback device outputs:
The rectangle represents the TLC5940 package, and the little lines
sticking out from the sides represent the pins. Note how every line
has a number. Those are the pin numbers, and they correspond to the
physical pin numbers we described above. You can use those numbers to
match up every pin on the schematic with the corresponding physical
pin on the board, which is important when you're trying to debug a
problem.
If you look closely, though, you'll see that the numbers shown on the
schematic aren't in the same order as the physical pins. That's in
keeping with the whole idea of a "schematic" - an abstract
representation that only keeps the essential information. Even so, it
might seem like it would be simpler if they'd use the same pin
ordering, but there's a reason they don't. To understand the
reasoning, look at the labels inside the TLC5940 box. Those are the
"names" of the pins, which are just arbitrary mnemonics that are there
to help a circuit designer remember the function of each pin without
having to memorize all the numbers or constantly refer to the data
sheet. Notice how the whole left side is OUT0, OUT1, OUT2, etc.
Those pins are all of the PWM outputs. On the physical chip, they're
not all together, but they're grouped on the schematic. That keeps
the schematic drawing a little neater.
In any case, the important thing to take away from this is that
you shouldn't pay any particular attention to the order of the pins
shown on the schematic; just pay attention to the numbers. Every
pin's number is explicitly shown, so you don't have to remember
a counter-clockwise or anything else; you just look at the numbers
printed there.
In the sections below on the specific chips making up the Pinscape
boards, we'll show each chip's exact symbol so that you can more
easily recognize it on the schematics.
Selecting chips
When you're ordering parts, the basic rule for IC chips is that you
should exactly match the chip name shown on the parts list.
This doesn't mean you have to get the exact Mouser part number listed.
That's different from the chip name; the Mouser part number is
Mouser's catalog ID, which encodes the manufacturer as well as the
chip type. Many chips are only made by a single manufacturer, so in
those cases they amount to the same thing. However, some chips are
generic, and interchangeable versions are made by several different
manufacturers. In these cases, the different manufacturers will all
use the same chip name, because that describes the specific function
and electrical characteristics of the chip, but the different version
will have different Mouser catalog numbers. So the thing to pay
attention to is the chip name.
If you find parts that have similar but not identical chip names, it's
better to err on the side of caution and assume they're different.
There are some very different chips with confusingly similar names out
there. If you think you found a match with a slightly different name,
the only way to be sure is to carefully compare the data sheets for
the two parts and make sure they really are functionally equivalent.
Chips on the Pinscape boards
555/7555 timer
The 555 is a venerable and widely-used timer chip. The Pinscape
boards use it (or more specifically, a variant called the 7555) to
implement the "timer-protected outputs" for the replay knocker and
chime outputs.
The 7555 is a more modern CMOS version of the original 555. The
Pinscape boards use the 7555 because it integrates better with logic
circuitry than the regular 555.
When buying parts, be sure to buy the 7555 when the parts list calls
for it, not the original 555 or other variant. The variants all come
in the same package and have the same pin layout, so they'll
physically fit the sockets, but there are some differences in their
electronic properties.
On a schematic, a 7555 is depicted with the generic IC box diagram,
with eight pins. "ICM7555" is printed near the box to identify the
chip type. The component name for a 7555 is of the form ICn.
The physical chip is an 8-pin DIP. My samples have an
easily visible notch for orientation. To install on the circuit
board, just line up the notch on the chip with the notch in
the chip outline printed on the circuit board.
7555: chip package, circuit board outline,
and chip installed in circuit board. Line up the notch on the
chip with the notch printed on the circuit board outline to
orient the chip properly. The writing on my sample chip is
so faint that you can barely see it in the left photo, and
can't see it at all in the right photo, but you can see it
on the actual chip with the right lighting.
LD1117AV33 3.3V regulator
The Pinscape boards use a type of chip known as a voltage regulator to
supply 3.3V to some of the logic chips on the boards. The part name
for the 3.3V regulator we use is LD1117AV33. Similar regulators are
available for numerous other voltages, but the Pinscape boards currently
only use the one type.
When buying parts, don't try to "fuzzy match" the name of this chip
with similar-looking parts, because suffix in this case ("AV33") is
highly significant: it indicates the regulated voltage. That's a
critical element of the circuit design. Similarly named chips with
slightly different suffixes regulate to different voltages, so they
won't work as substitutes.
These chips don't come in the usual DIP form factor. Instead, they
use a type of package more commonly used for transistors, known as
a TO-220. Here's what it looks like:
Front and back view of LD1117. Note that the part
name is printed on the front of the plastic case to help identify
the part.
Note that the TO-220 package type is widely used for other, completely
different components, particular MOSFETs and power transistors.
Anything in a TO-220 looks just like this, so you can't identify an
LD1117 by the shape of the case alone. For positive ID, check the
markings on the case. For this part, the chip name (LD1117AV33) should
be printed on the front of the plastic case.
On the schematic, these chips are shown with the standard generic IC
box diagram, with three pins. However, unlike most IC box symbols,
these don't show any pin numbers. They only show mnemonic labels for
the pins. The reason is that there aren't any standard pin numbering
conventions for the TO-220 package used for this chip, so pin numbers
would only be confusing. This is a case where you have to look at the
data sheet to figure out the correspondence between the pins on the
schematic and the physical pins on the device. But we'll save you the
trouble:
Above left: the LD1117 voltage
regulator symbol on a schematic. Above right: diagram of the
package showing how the physical pins relate to the pins on
the schematic symbol. The package diagram shows the
"front" of the package, with the black plastic case facing the
viewer. The back of the chip is the big metal fin, visible in
the diagram sticking out from the top.
>
The component ID shown on the schematic for these chips uses
the typical form for IC chips, ICn.
On the circuit board, the LD1117 doesn't use the standard
notched-rectangle outline, in keeping with its unusual packaging.
Instead, it shows an outline with a heavy bar on one side, which
represents the big metal fin on the back of the chip package:
To install the chip in the circuit board, orient it so that the
metal fin on the back of the chip lines up with the heavy bar
printed on the PCB outline. The heavy bar in the outline represents
the fin, so you just need to make sure the actual fin is oriented
on the side indicated on the outline.
When you install the chip in the board, note that the plastic package
won't quite sit flush against the board. The legs have kinks near the
tops (the case side) that act as stops, which will keep the plastic
case part a couple of millimeters above the board surface. That's
perfectly normal; don't try to force the kinks through the holes. The
extra distance from the board is there by design, to help the fin
radiate heat more efficiently. You can be sure that any part you see
with a big metal fin like this is something that gets hot in normal
use, and the fin is there as a heat sink.
To install this chip, insert it through the holes, checking that the
fin is oriented to match the heavy bar in the outline printed on the
board. Flip the board over (taking care to hold the chip in place so
that it doesn't fall out), and solder the three pins to the pads from
the bottom of the board. The leads on these chips are quite long and
will stick out about a centimeter from the back of the board when
you're done, so you should trim the excess with wire cutters after the
chip is in place. Trim the leads to be roughly flush with the top of
the solder ball.
ULN2064B Darlington transistor array
The ULN2064B is an array of four Darlington transistors. Darlingtons
are high-gain transistors that can be used for amplifiers, or in our
case, switching medium-power loads from logic circuits. These chips
can handle loads up to 1.5A on each output. The Pinscape main boards
use these for the flasher LED outputs, because they have plenty of
power capacity for large LEDs and are physically compact.
This chip uses the standard generic IC box symbol on schematics,
with 16 numbered pins. The component name shown on the schematic
uses the form ICn.
The physical chip is a standard 16-pin DIP.
ULN2065B 16-pin DIP package. The half-circle
notch (visible at the left edge of the package) serves as the
orientation marker when installing. Line up the notch on the chip
with the notch in the chip outline printed on the board. Note that
this is the ULN2065B, which can be substituted for ULN2064B.
On the circuit board, the location for this chip is shown with the
usual chip outline, with "ULN2064BN" printed in the outline. Line
up the notch on the chip with the notch in the printed outline
to orient the chip properly.
Substitutions: The ULN2065B can be substituted for the
ULN2064B. The two are almost identical chips, the only difference
being that the 2065 is rated for higher maximum voltage. In other
words, the 2065 is just a slightly tougher version of the same chip.
PC817 optocoupler
The PC817 is an optocoupler, which is a device that connects two
circuits via light signals rather than electronic signals. The light
signals are transmitted by a tiny IR LED inside the chip, and are
received by an adjacent phototransistor. (All of the light
transmission happens inside the chip, so you won't see light coming
out of it, and you don't have to worry about interference from ambient
light. An optocoupler isn't the same as an "opto interruptor", which
is a kind of switch that's controlled by blocking and unblocking a
light beam, like an electric eye. An optocoupler doesn't have an
exposed beam that you can block.)
This might sound like a lot of trouble - turning electrons into
photons, and then turning the photons back into electronics. But it
serves a very useful purpose: it lets the two circuits transfer
signals without any electrical contact. That has many applications,
but the one we use it for in the Pinscape boards is to create a sort
of safety barrier between logic circuits and power circuits, to help
protect the logic circuits from the higher voltages and currents used
in the power circuits.
On a schematic, the PC817 looks a little different from other ICs,
because it doesn't use quite the same generic IC box. Optocouplers
are important enough in electrical engineering practice that they have
their own special symbol:
If you ignore the interior of the box, you'll see that this actually
does still follow the same pattern as the generic IC box: it's still a
box with lines attached representing the IC pins, and the pins are
numbered as usual. What's different is that the interior of the box
shows symbols instead of mnemonic labels for the pins. To an engineer
who knows the language, the symbols are the equivalent to the mnemonics
used on other chips, in that they indicate the functions of the pins.
The symbol on the left side of the box represents the phototransistor
that receives the optical signal; the symbol on the right represents
the LED that transmits the signal; and the two diagonal arrows in the
middle represent the photons carrying the signal from the one side
to the other.
You might also notice that this chip's component ID is "OKn"
instead of the usual "ICn". This is an EAGLE-ism; "OK"
probably stands for "Opto-Koupler", and I'm not sure why they chose
"OK" rather than "OC", but at a guess it's to avoid confusion with "C"
for "capacitor". At any rate, just be aware that the schematics and
parts lists use this unusual "OKn" designation for these chips,
even though they're like any other ICs for all practical purposes.
The physical chip is a 4-pin DIP:
The orientation marker on these chips is usually the "pin 1" dot,
in the corner nearest pin #1. The chip in the photo above uses the
indentation form of the dot, but yours might have a printed white
dot instead. As always, the dot can be such a subtle indentation or
faint ink mark that it's tough to see without a strong
light and/or magnifying glass.
This chip's proportions are unusual for a DIP, which can be confusing.
You get accustomed to all the other DIP chips being wider than they are
tall. So it can be tempting to think that this one needs to be
rotated into "landscape mode", with the pins at the left and right
sides. That's even the way the printing on the chip is aligned,
because of the limited space. But consistency is the key here: this
is still a DIP, so apply the standard DIP rules. When properly
oriented, the pins go along the top and bottom edges, and the pin 1
dot goes at the lower left corner.
Orienting the PC817. Even though its "aspect
ratio" is unusual for a DIP, use the same orientation rules you'd use
for any other DIP chip, placing the pins along the top and bottom
edges and the "pin 1" dot at lower left.
On the circuit board, the slot for a PC817 is marked with the standard
IC outline, with the notch on the left side and "PC817" printed inside
the outline to indicate which part to install.
Install the chip like any other DIP. Hold the board so that the
notch in the printed outline is at the left side, and orient the
chip with the pin 1 dot at lower left.
Substitutions: The LTV817 is equivalent to PC817.
PC847 quad optocoupler
The PC847 is a chip that consists of four PC817 units packaged into a
single IC. There's really no difference at all electrically or
functionally between one PC847 and four PC817 chips, but the quad
package is a little more convenient to work with when multiple
optocouplers are grouped in the same area of the board, simply because
it reduces the the number of parts you have to solder.
On a schematic, a PC847 is even represented just like it's four
separate PC817 chips. Which it really is, functionally speaking, and
schematics are all about function.
The schematic symbol for a PC847 chip consists
of four separate PC817 symbols. The only clue that they're the same
physical chip is the component ID: look for the A-B-C-D suffix, which
tells you the sub-unit within the chip.
There are a couple of things to notice. The first is that the
individual units all have the same "OKn" component ID, but each
one also has a suffix - A, B, C, D. The suffix tells you which
sub-unit we're talking about. The common OKn prefix is how we
know that these units are all part of the same physical PC847 chip.
In my own schematics, I also make a point of grouping the sub-units
together on the page, so that you don't have to go hunting around to
find all of them, but you might encounter cases in other people's
schematics where the sub-units aren't grouped.
The second thing to notice is the pin numbering. Note how the pin
numbers aren't grouped contiguously on each sub-unit. For example,
unit A uses pins 1, 2, 15, and 16. If you scan over all four
sub-units, you'll see that all 16 pins are accounted for (and each
appears exactly once).
The chip is packaged as a standard 16-pin DIP:
LTV847 (equivalent of PC847). These chips
use a (faintly) printed dot to mark the location of pin 1.
On the circuit board, a PC847 is marked with the standard IC
chip notched outline, with "PC847" printed inside to identify
the part to install there.
Installing a PC847 is just like any other DIP. Orient the board
so that the notch in the printed outline of the chip is at the
left side, then orient the chip with the pin 1 dot at the lower
left corner.
Substitutions: The LTV847 is equivalent to PC847.
TLC5940NT PWM controller
The TLC5940NT is a PWM (pulse-width modulation) controller chip. This
means that it generates a series of very fast and precisely timed
on/off pulses, under the control of a computer or microcontroller.
PWM has many uses, but for our purposes, it's a way to control the
brightness of a lighting device, the speed of a motor, or the force of
a solenoid. The Pinscape expansion boards use these chips to
implement the output ports on the main board and the power board.
The TLC5940 is a proprietary chip from Texas Instruments, and TI no
longer manufactures the DIP version used on the Pinscape boards. They
do still manufacture the same chip in "surface mount" packages, but
those aren't nearly as hobbyist-friendly as DIPs, so the Pinscape
boards still use the DIP version for ease of assembly. Fortunately,
the DIP version has always been extremely popular with robotics and
Arduino hobbyists, and perhaps as a result the supply continues to be
plentiful. That continues to surprise me, since TI hasn't made the
DIP version since about 2014, but some people conjecture that the
continuing supply is coming from gray-market versions manufactured by
(presumably unauthorized) third-party factories. Whatever the reason
for this good luck, the Pinscape boards will continue to use the DIP
version as long as it remains easy to find. If that ever changes,
I'll update the boards designs to use one of TI's newer PWM chips
instead. That will make assembly a little trickier, because those are
all surface-mount parts, but on the plus side, TI's newer PWM chips
have much nicer designs than the rather aged TLC5940.
On a schematic, the TLC5940NT appears as the standard generic IC
box, with 28 numbered pins.
The physical chip is a 28-pin DIP.
Note that the sample pictured above has both the half-circle notch at
the left side and a "pin 1" dot, both as slight indentations in the
plastic. You might also notice larger, shallower circular depressions
centered vertically at either end of the chip. Ignore these; I think
those are just artifacts from the molding process that carry no
meaning. Just pay attention to the standard notch and dot markers.
On the circuit board, the TLC5940NT is marked with the standard
notched outline for an IC, with "TLC5940NT" printed within. To
install the chip, orient the board so that the notch in the printed
outline is at the left side, and then orient the chip so that pin 1 is
at lower left.
74HC595 shift register
A shift register is a logic chip that lets a microcontroller set the
on/off voltage states for a number of pins on the chip. The Pinscape
chime boards use these chips to control the outputs on the chime
board.
On a schematic, the 74HC595 is drawn with the usual IC box:
There is one unusual feature of this symbol that you might not even
notice if you saw it as part of a larger schematic, but it stands out
when we isolate the symbol like this. The unusual part is that
separate-looking bit at top. Above the chip box, the symbol shows two
of the IC's pins that aren't included in the box. The way you
can tell that those disembodied pins are part of the same chip is the
"IC8P" marking. The "P" suffix tells you that these pins constitute a
part of "IC8"; the "P" is for "power", as these are the power and
ground connections for the chip.
This use of separated schematic elements is somewhat reminiscent of
the PC847 that we saw earlier, where the individual optocoupler units
within the chip are drawn as separate boxes. In this case, the pins
are separated simply to reduce clutter within the box. The symbol's
designer thought that there were enough pins already and wanted to get
a few out of the way. The power and ground pins were elected because
they're givens in any chip. Some engineers just short-hand them away
entirely, leaving them off the schematics and letting the reader
assume they're connected in the standard way. I prefer showing them
explicitly, which in this case that means adding this little islands
of pins separated from the chip. I consider this style rather
obfuscatory, and fortunately this is the only chip in the Pinscape
boards that uses it.
The physical chip is a 16-pin DIP.
My samples have an indented notch on one side of the case to indicate
pin 1: as always, if you orient the chip so that the notch is at the
left side, pin 1 is the bottom left pin.. As always, this can vary by
lot, so yours might have a painted or indented "pin 1 dot" instead.
On the circuit board, this chip uses the standard IC notched outline,
with the part name (74HC595) printed within to identify the component
to be installed there. To install, orient the board so that the
notch in the printed outline is to the left, then orient the chip so that
pin 1 is at the lower left.
80. Connectors
One of my "design rules" when I built my own cab was that everything
should be modular: pieces should be self-contained, and it should be
easy to take anything out for servicing or replacement without major
surgery, and just as easy to put it back. In the case of the
electronics, this meant that nothing should be "hard-wired" into the
cabinet. I should never have to cut a wire or unsolder anything just
to remove an electronic device. The way to achieve that is to make
sure all of the connections in the wiring are made with modular
connectors that can be plugged and unplugged, just like a power plug
in a wall outlet.
When I started planning my cab, then, I knew I wanted to use some kind
of pluggable connectors throughout, but I didn't have enough
electronics experience to know exactly what to buy. I looked to see
how other cab builders handled this, and found that there aren't any
widely agreed "best practices" in this area. Looking at Mouser to see
what's available only muddied the waters further, because they have
literally thousands of options for connectors. Worse still, many of
the available connectors are themselves fairly complex systems, where
you have to assemble plugs and sockets out of multiple. It's hard to
know where to begin when faced with the vast array of available
options.
That's why I'm devoting a whole chapter to this seemingly trivial
subject. In the course of building my own cab, I managed to narrow
the huge range of available connector options to a few versatile types
that have served me well. The Pinscape parts lists use some of these
directly, so some of the information we'll cover is simply to help you
recognize and use the parts required for the Pinscape components.
We'll also look at some of my go-to connectors for other miscellaneous
connections throughout the cabinet, to save you the trouble of
repeating all that research.
0.1" pin headers
This is one of the most ubiquitous connectors that you'll see in hobbyist
electronics, and really electronics in general. A pin header is basically
just a row of connector pins sticking up out of a circuit board, to
provide a connection point to the outside world for a group of circuits.
You plug into the pin headers with matching connectors. In most
cases, the connector attaches to a ribbon cable or hookup wires that
lead off to whatever is meant to be connected to the board. This
lets you plug and unplug the whole collection of circuits represented
by the header with a single connector.
Pin headers can be out in the open, as in the top two examples
at right, or can be enclosed in a plastic "shroud", like the bottom
example at right. The pin spacing is the same either way; the
shroud is there primarily to make sure you can't orient the
mating plug the wrong way when plugging it in. The little slot
you can see in the picture of the shroud at right lines up with
bump on the connector, so if you try to insert the connector
backwards, the bump hits the other side of the shroud and prevents
you from inserting it.
Pin headers and the matching connectors are described in more
detail (with product links and installation instructions) in
Chapter 81, 0.1" Pin Headers.
PC disk power connectors
An ATX power supply comes with an array of power cables with different
connectors on the ends. If you want to use an ATX supply to power
feedback devices or audio equipment, the easiest way to tap into its
power outputs is via the disk connectors. These are the four-pin female
connectors that look like this:
The four pins are connected to color-coded wires. You can identify
the pins by the wire colors:
Wire Color | Voltage |
Black | 0V (Ground) |
Red | +5V |
Yellow | +12V |
The easiest way to connect to these is to snip the connector off the
end of one of the cables, strip the wires, and solder your other wires
directly to the ends, or connect them through screw-terminal blocks.
But that's not great because it permanently modifies the power supply.
A better way is build your own mating connectors and just plug
into them, the way you'd plug in a PC disk. It's pretty easy to
build the matching connectors. Here are the parts you need:
PC motherboard "front panel" connectors
Most modern PC motherboards feature a standardized connector for the
miscellaneous case buttons and indicator lights - the soft on/off
button, reset button, power light, disk activity light, etc. This is
known as the F_PANEL or Front Panel connector, and is usually labeled
as such on the motherboard.
Intel defined a standard layout for this connector, so that motherboards
and cases can easily inter-operate without proprietary connectors.
It happens to use the standard 0.1" pin header layout, with a 10-pin
(dual-row, 2x5 pins) header.
You can plug into these with one of the 0.1" crimp pin housings
described above.
Molex wire-to-wire connectors
For any parts that you want to be able to easily remove from the
cabinet, I always recommend using plug-in connectors. The pin headers
described above are one type of plug-in connector, but those are
mostly suitable for circuit boards. What about cases where you want
to create a pluggable connection for something that's not a circuit
board, like, say, your shaker motor?
For those connections, I like using a "wire-to-wire" connector. This
is what they call any connector used to join two wire runs. A
familiar household example is the connector at the end of an extension
cord: it's there so that you can plug one wire (the power cord of an
appliance) into another wire (the extension cord itself). Inside a
pin cab, there are lots of situations where similar wire-to-wire plugs
can be helpful.
There are lots of options for these. In my pin cab, I made lots of
use of a couple of connector types made by Molex: their Standard .062"
and Standard .093" systems. I was familiar with these because they're
the connectors Williams used for similar purposes in their real
machines for many years. The .062" and .093" systems are similar; the
difference is the pin size, with the larger .093" pins having a higher
power capacity. Both systems use plastic crimp-pin housings that come
in a range of pin counts, with keyed connectors that only fit one way.
This makes them pretty foolproof: the keying ensures that you can't
plug a particular connector in the wrong way, and the different pin
counts let you use a variety of different connectors in your cab to
prevent mistaking one connector for another. You can't plug a 9-pin
plug into a 12-pin socket.
Molex .062" 9-pin connector, plugged (top) and unplugged.
These systems are available as separate parts (male and female
housings and crimp pins/sockets), but the easier way to buy them is
in kits. You can find the kits on Amazon as well as Mouser. Here's
a Mouser search that should work:
>
(That's a search for Connectors > Pin & Socket connectors, product=Kits.)
Amazon searches for "Molex .062 kit" and "Molex .093 kit" shoudl also turn
up similar results.
Terminal blocks
An easy way to make point-to-point connections without soldering is with a screw-terminal
block - a plastic block with a set of paired screw terminals, like the
one pictured at right. Screw terminals are easy to connect and can be
removed or changed at any time.
To make a connection between two wires with a screw terminal:
- Strip 1/4" or so of insulation from the end of each wire
- Pick a pair of connected screws on the terminal block
- Unscrew the screws a few turns (don't unscrew them completely)
- Wrap one of the wires around one of the screws, and tighten the screw
to secure the wire
- Wrap the other wire around the other screw and tighten
Terminal blocks like this can be easily found on Amazon and eBay. I'd
recommend getting the type that comes with plastic cover, which protects
the terminals against accidental contact with other wires or metal parts.
Screw terminals are good for wiring that's more or less permanently
installed in the cabinet. I wouldn't use screw terminals for any
wiring that attaches to parts that you want to be able to remove
frequently, because it's a bit of a pain to disconnect and reconnect
the wires. It's better to use pluggable connectors, such as one the
Molex wire-to-wire connectors mentioned above, for anything that you
might have to remove more than rarely. For example, any parts that
you have to remove to access other parts should be easily pluggable.
81. 0.1" Pin Headers
A very common type of connector used on printed circuit boards
is the "pin header", so named because it has a series of metal pins that
fit into sockets on a mating cable connector.
The Pinscape boards use this type of header for most of their external
connections.
Pin headers in this style come in different sizes, but the most common
(and the one used on the Pinscape boards) size is 0.1" pin pitch.
This means that the pins are spaced at intervals of 1/10 of an inch.
(To be more precise, that's the distance between the center points of
adjacent pins, when viewing the header from directly above.) You'll
sometimes see this expressed as 2.54mm pitch, which is of course the
same as 0.1".
0.1" headers come in single and double rows. They're listed in a
parts list according to the number of rows and columns: 2x09 for two
rows of nine pins, for example.
Pin numbering
There's a standard convention for numbering the pins on the headers.
If you have to look at the schematics, this will help you relate the
wiring on the schematics to the physical pins on the board.
On the schematics, the pin numbers are indicated by little numbers
printed next to the pins on the connector symbols:
On the Pinscape boards, the pin numbers aren't printed as such.
Instead, there's a little white arrow pointing to pin #1:
Once you've identified pin #1, you can determine the rest of the
pin numbers just by counting them off starting at pin #1.
The numbering pattern is always the same:
- For a single-row pin header, the pins are simply numbered
sequentially across the row
- For a double-row header, the pins are numbered in "column" order:
Installing in a circuit board
The pictures above show how these look before you install
them on the board. The black part is a plastic base that holds the
pins at the proper spacing. You'll notice that the metal pins stick
out of both sides of the base. The long part at the top is the
connector, where you attach the mating cable socket. The short
part at the bottom goes through holes on the board and gets soldered
into place.
To install in a circuit board:
- If using a breakaway strip, use needle-nose pliers to break the
strip to the required number of pins
- Insert the short end of the pins through the holes in the top of
the board
- The plastic base should sit flat against the board as pictured
above
- Hold the assembly in place and flip the board over
- Solder the pins to the pads on the bottom of the board
Some people ask if it's okay to just solder a couple of the pins,
since that should be enough to hold the whole assembly in place
mechanically. The answer is no: you have to solder all of the
pins. The solder isn't only there to fasten the pin headers
mechanically - it also makes the electrical connection between the pin
and the solder pad. Each pin needs its own separate electrical
connection to its pad, so every pin has to be properly soldered.
What to buy
The common 0.1" pin headers are interchangeable with each other and
with 0.1" connector plugs. Any of the following options should work
for the Pinscape board and KL25Z headers.
Option 1: Individual parts. The obvious thing to do is buy each
size you need individually. If the parts list says you need a 2x8
for one header and a 2x10 for another, you go to Mouser and order a
2x8 and a 2x10. Our parts lists give you an exact Mouser part number for
each size individually, so you can just order the items on the parts
lists if you want to go this route.
Option 2: Breakaway strips. Alternatively, you can buy
breakaway pin strips, which are extra-long versions that you can break
up into sections to get the various sizes you need. These have from
20 to 50 pins in each row, and they're designed to be broken into
smaller pieces at any pin. The plastic bases are notched so that you
can easily split them up by hand or with pliers. This is the "buy in
bulk" approach, so it's usually a little cheaper than buying the
pre-cut sizes individually. It also simplifies things a little by cutting down
on the number of different parts you have to order and keep track of.
Product options:
- Pololu has
inexpensive unbranded single-row and double-row strips. These
are under Electronics > Connectors > 0.1" Male Headers.
- TE Connectivity (at Mouser):
- Molex (at Mouser):
Shrouded pin headers
The plain pin
strips pictured above are simple to set up, but they have the drawback that
there's nothing to prevent you from accidentally plugging in the
mating cable backwards. An alternative is to use "shrouded" headers.
These have the same arrangement of metal pins as in the plain headers,
and attach to a printed circuit board the same way, but they add a
plastic box - the shroud - surrounding the pins.
The shroud offers some mechanical protection for the pins when the
mating cable is unplugged, but its big benefit that it has a notch on
one side (see the illustration at right) that accepts a corresponding
"key" on a mating connector. The key is a little bump that fits into
the notch; it makes it impossible to insert the cable backwards
because the key won't fit in the other side where there's no notch.
Most IDC connectors (for
Chapter 83, ribbon cables)
have these keying bumps. Crimp housings sometimes have them and
sometimes don't. Crimp housings that don't have the keying bumps will
fit perfectly well into keyed shrouds, so there's no compatibility
problem, but they'll fit backwards as well as forwards since they
don't have the bumps to prevent backwards insertion. So you can use
them, but you don't get the orientation sensing of the keyed kind.
The pins in a 0.1" shrouded header are identical to the pins in a 0.1"
plain header, so you can often substitute a shrouded header anywhere a
plain header is called for, or vice versa. However, the shroud takes
up extra space, so there's not always room for it in a tightly packed
board. Before substituting a shrouded header for a plain pin strip,
make sure there's not another component (or another header) within the
shroud's footprint on the top of the board.
The Pinscape expansion boards are designed to leave enough space around
most of the data connectors to allow shrouded headers to be used.
Shrouded headers won't fit on the standalone KL25Z's pin pads.
They're spaced too tightly.
What to buy
Matching connectors
A 0.1" pin header obviously only forms half of a connection. We
now need something to plug into this header. There are two main
types of matching connectors available:
- 0.1" crimp pin housings. A housing is the shell of a plug, which
you have to build out with crimp pins. The idea is that you crimp a
special little metal pin socket to a piece of hookup wire, and then
insert the socket into the housing. You repeat for each pin position.
When you plug the populated housing into the pin header, each pin
socket mates with one pin on the header, forming a connection to
the attached hookup wire.
Crimp pin housings are best when you specifically want to wire
each pin separately, with a separate piece of hookup wire. This
is appropriate when the far ends of the individual connections are scattered. For
example, you'll want to connect the pins in the button input header
on the Pinscape boards to the various buttons scattered around
your cabinet, so a crimp pin housing is a good choice for that
connector.
See below for more details on crimp pin housings.
- Ribbon cables. A ribbon cable is a flat cable with
several conductors side-by-side. These are mated with IDC plugs, which is a
connector that attaches to a ribbon cable via some little teeth
that puncture the insulation and grab the wires. It's easy to
assemble custom ribbon cables with these connectors, because you
just line up the connector on the cable and squeeze the teeth
into place.
Ribbon cables are ideal when you want to connect two like
pin headers on different boards. You don't have to mess around
with a bunch of individual hookup wires, and the connectors
are quick and fairly easy to install because they install for
all of the conductors at once. This is the right choice for the
Pinscape board-to-board data connectors, such as the PWM data
connection between the main board and the power board.
See Chapter 83, Ribbon Cables for details on buying and building
these cables.
0.1" (2.54mm) crimp pin housings
This is one option for connecting to the common 0.1" pin headers
detailed above. It's ideal when you specifically want to connect
individual hookup wires to the pins, rather than using a single
combined cable like a ribbon cable. For example, this is perfect for
connecting buttons to the Pinscape expansion board button input
header, since it lets you run an individual hookup wire to each button
switch. That's good for buttons because they're scattered around the
cabinet; a combined cable like a ribbon cable wouldn't be convenient
for that since you'd have to split it up into individual wires to
route it.
A "housing" is the shell of a plug. It's a plastic shell that
holds the metal prongs that make up the plug, but it doesn't actually
come with the plugs pre-installed. It's up to you to install the
prongs, which are more technically called crimp pins.
This all takes some specially designed parts and tools. The crimp
pins are specially designed to fit the housing, and they're specially
designed to attach to hookup wire by crimping. They have little flaps
that fold around the wire and grasp it to form a connection. You have
to use a special tool (called a "crimp tool", naturally) that folds
the flaps into just the right shape.
What to buy
Each manufacturer designs its crimp pin housings to work with its own
crimp pins. You shouldn't try to mix and match housings and crimp
pins; if you buy a Molex housing, you must use the matching Molex
crimp pins.
- Pololu has inexpensive crimp pin
housings in sizes from 1x1 to 2x20 (although not in all possible
sizes in between).
- The housings are under Electronics > Connectors > Crimp Connector Housings
- The matching crimp pins are under Electronics > Connectors > Female crimp pins for 0.1" housings
(they're also linked from the pages for the individual housings)
- Molex makes housings from 1x2 to 2x32 under their CGRIDIII series:
- Single-row housings: 90156-01XX (search for 90156-01 on Mouser for a list)
- Double-row housings: 90142-00XX (search for 90142-00 on Mouser for a list)
- Female crimp pins: 90119-0109 (for 22-24 AWG wire), 90119-0120 (for 26-48 AWG wire)
- Harwin makes housings from 1x2 to 2x12 under their M20 series:
- Single row housings: M20-106XX00 (XX = number of pins, 02 to 12)
- Double-row housings: M20-107XX00 (XX = pins per row, 02 to 12)
- Polarizing key: M20-003
- Female crimp pins: M20-116004X, M20-118004X (X = 2 gold/tin plated, 6 tin plated)
How to assemble
82. Crimp Pins
A crimp pin housing is a connector that you build yourself, by
crimping hookup wires to individual metal pins, and then inserting the
pins into the housing. The housing is essentially a plastic shell,
with sockets that the pins lock into.
What makes crimp pin housings useful is that you get to attach your
own wiring to the connector, with an individual hookup wire for each
pin. That makes them ideal for connections where the individual wires
won't all go to the same place at the other end. Some examples:
- The button input header on the Pinscape expansion boards. The
header is set up for a single connector with 26 pins. Each pin
connects to a wire that connects to an individual button, so these
wires will all go off to different parts of the cabinet.
- The feedback device outputs on the Pinscape boards. Like the
buttons, these headers provide a group of pins that plug into a
single connector, and each pin on the connector will connect to
a separate device.
Crimp pin housings are more work to assemble than ribbon cables with
IDC plugs because of the pin-by-pin construction. That makes ribbon
cables better for connections where all of the wires go off to the
same place on the other end, such as a board-to-board data connection.
Ribbon cables lose their convenience advantage when the wires all go
to different destinations, because a ribbon cable is inherently
constructed as a single unit with all of the conductors bundled
together.
Tools
The key to easy assembly for these connectors is a crimp tool.
This is a sort of hyper-specialized pliers that's purpose-built to
perform the crimping step, where you attach the wire to the pin. If
you have the right crimp tool, the crimping step is quick and easy.
This is the tool I use:
They also have a similar but slightly cheaper option, item #1929,
which is basically the same tool with a more limited size range of
20-28 AWG. Either one of these will work with the parts needed for
the Pinscape boards, but I'd spend the extra $5 on the wider-range
model. That gives you the flexibility to use some of the larger Molex
crimp connector systems elsewhere in the cabinet.
Assembly
We'll illustrate the assembly process using the Pololu 0.1"
connectors. The other types of crimp connectors all work very much
the same way, so you should be able to follow these steps for any of
the other pin sizes and types.
This procedure is specifically for the Pololu crimper. The overall
procedure should be the same for other crimper types, but I'm not sure
they all use the same orientation for how you insert the pins. Check
your crimper's instructions to see if you have to reverse anything in
our illustrations.
Step 1: Prepare the wire. Cut a piece of hookup wire to the
desired length. Strip about 3/16" (5mm) of insulation from one end.
Make sure that the strands are nice and straight, and all tightly
bundled. You can give them a little twist with your fingers if
necessary to tighten the bundle. What you don't want is to have any
stray strands sticking out sideways.
Be sure you're using the right wire gauge for the pin. Each type of
pin has a compatible range of wire gauges, listed in its data sheet.
The 0.1" type listed in the Pinscape parts list are good for wires in
the 30-22 AWG range.
Step 2: Prepare the pin. Take the pin you want to crimp out
of its packaging. The pins might come attached to a metal strip:
The pins are only attached to the strip by thin metal filaments that
are meant to break away easily, so just bend it back and forth a few
times to release it by way of metal fatigue.
Step 3: Prepare the crimp tool. If you're using the Pololu
tool, make sure its jaws are full open. If they aren't, squeeze the
handles all the way together and release. That should release the
ratchet and let them spring open. If they lock shut, squeeze the
handles even more tightly and release.
Orient the tool as shown below.
Step 4: Choose the slot. Choose the slot to use based on
the size of the pin you're using.
(The cheaper Pololu 2-slot tool has the same "small" and "medium" slots
as the 3-slot tool.)
If you're not sure, try the slots from small to large. The pin should
fit snugly when placed as in the next step.
Step 5: Insert the pin. Insert the pin on the left
side of the slot as illustrated below. Be sure to use the correct
slot for the pin size as shown above. Position the pin with the
open side of the flaps pointing down.
Be sure that only the part with the folding flaps is inside the
teeth. The rest should be hanging out the left side.
Tip: you should be able to find the magic spot by feel. Hold the pin
in the slot starting at the right side of the slot, and pull it left
while keeping downward pressure on it. You should feel a little
resistance when it reaches the right spot - this is where the larger
outer flaps on the pin come up against the slightly narrower part of
the teeth at the halfway point in the slot.
Step 6: Lock the pin. Lock the pin into place - but
don't bend anything yet - by gently squeezing the
handles until the teeth are closed just far enough to grasp the
pin.
Remember, nothing gets bent at this point. The teeth should just be
tight enough to hold the pin so that it can't move, but not any
tighter.
Tip: if you got something wrong and you need to start over, you can
release the ratchet early. Very gently apply just a little
pressure to the handles, then press the little lever illustrated
below to release the ratchet lock.
Step 7: Insert the wire. Insert the stripped end of the wire
into the pin from the right side as illustrated below.
It's hard to see what you're doing with the pin held in the jaws,
but here's how the wire is supposed to be positioned:
The idea is that the "inner" flaps grasp the bare part of the wire
(for the electrical connection), and the "outer" flaps grasp the
insulation (for a strong mechanical bond).
If you're using the right wire size for the pin, it should be easy to
insert it to the right point by feel, because the insulation should
easily fit through the outer flaps and then get blocked at the inner
flaps. Make sure the wire strands make a nice straight bundle - any
stray strands sticking out sideways can make it hard to find the right
insertion point by feel.
Step 8: Crimp! Making sure everything stays in place, squeeze
the handles all the way together. That'll crimp the pin and release
the ratchet. The finished wire-and-pin combo should pop out.
Step 9: Seat in housing. Find the slot where the pin goes in
the housing. Insert it from the "back" side of the housing (the side
the wires come out of). This is the side with the larger pin
openings.
The pin should slide into the slot fairly easily. Push it all the way
in until snaps into place.
If you can't get it to snap or lock into place, try taking the pin
back out and rotating it 90°. The slot in the housing should have
a little plastic latch that grabs onto a little tab sticking out from
one side of the pin, so those have to align for the pin to lock. Each
pin/housing system has its own peculiar mechanics for this (it's where
the MEs at the connector companies earn their salaries, I suppose).
Some of them work with the pin in any orientation, and some of them
only work if the pin is lined up a certain way. It should be pretty
obvious how the latch is supposed to work if you look closely at the
pin and housing, but it's usually easy enough to do it by feel. I can
usually get them on the second try if the first one didn't work.
83. Ribbon Cables
A ribbon cable is a flat, insulated cable with some number of
conductors side by side, running parallel down the length of the
cable. Ribbon cables are ideal when you want to connect two (or more)
like connectors together. The flat geometry of the cable makes for
good signal propagation in high-speed data connections, which
is part of why these cables have long been used in the innards
of PC wiring.
You can buy pre-assembled ribbon cables in certain lengths and widths
(that is, the number of pins/conductors). However, it's hard to find
them in anything other than a few common widths.
Fortunately, it's easy to build your own ribbon cables. You can get
the bare cable in almost any length and width, and you can get the
connectors in almost any pin count. Building your own cables is also
cheaper than buying pre-assembled cables.
To build a ribbon cable, you need two types of parts:
- The ribbon cable itself
- IDC plugs, one for each end of the cable
"IDC" stands for Insulation-Displacement Connector. This is the type
of connector normally used to build a ribbon cable. It attaches to
the cable via little teeth that pierce the insulation and grab the
wires, so all you have to install one of these connectors is
position and squeeze it, which clamps it onto the cable.
Buying ribbon cable wire
The wire making up a ribbon cable is a generic part that you can buy
anywhere. Mouser sells it by the foot, and you can also buy it on eBay,
Amazon, and at Fry's Electronic.
Here's a Mouser search that will turn up some suitable options:
(That's a search for IDC ribbon cables, no connectors, 1.27mm pitch.)
Selecting wire: Ribbon cable is usually sold by unit length (foot or meter).
Your vendor will probably have a giant spool and will cut the
length you ask for. When figuring the required length, measure the
distance between boards that the cable will have to cover, and add in
some length for bends and to leave some slack. I usually double the
apparent distance to make sure I have enough.
Apart from length, there are two main parameters when selecting cable:
the number of conductors, and the wire "pitch" (the distance from one
conductor to the next across the cable).
Pitch: For all of the expansion board connectors, you need
1.27mm pitch wire.
In general, ribbon cables have half the pitch of the pin
headers they connect to. The pin headers on the Pinscape expansion
boards used with ribbon cable connectors are all the standard 0.1" pin
pitch type, which equals 2.54mm. The matching ribbon cable pitch is
half of 2.54mm, or 1.27mm.
Number of conductors: The number of conductors for a given
connection has to match the number of pins on the header it connects
to. For example, the plunger connector on the main expansion board
(JP2) is an 8-pin (2x4) header, so it requires an 8-conductor ribbon
cable.
Splitting cables to make different widths: You can buy ribbon
cables in a variety of widths (Mouser currently carries it in even numbers
from 4 to 20 conductors), so you should be able to find it in each exact width
you need.
It's not strictly necessary to buy the exact width, though, thanks to a little
trick. You can easily tear a ribbon cable along the seam between any
two wires to split it into two cables. For example, if you buy a
16-conductor cable, you can split it along the seam between the 8th
and 9th wires to turn it into two 8-conductor cables. Or you can
split a 24-wire cable in a 16-wire plus an 8-wire cable. The reason I
mention this is that it's often cheaper to buy a single wider cable -
a 20- or 24-conductor cable, perhaps - and split it up into the narrow
widths you need.
Buying ribbon cable connectors
The specific connectors needed for the Pinscape boards are listed in
the parts list.
0.1" ribbon cable connectors are standardized, so you can mix and
match parts from different vendors for these. The Pinscape parts list
uses parts from the series listed below (use the series name as a
search key on Mouser to find the matching parts). These series
include similar parts for different numbers of pins/conductors, in
case you need to build cables for other pin header sizes.
- Kobiconn 164-9000 series, available in various sizes from 10 to 50 pins
- Wurth Elektronik WR-BHD series, available in various sizes from 6 to 64 pins
Assembling a ribbon cable
Step 1: Prepare the connector.
IDC plugs consist of two pieces that lock together around the cable,
with the cable sandwiched between them. New connectors usually come
with the two pieces loosely assembled but not locked, with a strip of
cardboard or plastic to keep them separated until you're ready to
assemble them.
To prepare them for installation, you might be able to slip them off
the end of the separator strip, or you might need to take the two
pieces completely apart to get them free. To separate them, just pull
them apart gently.
Be careful of the jagged metal teeth on the inside surface of the
lower piece. They're razor-sharp by design, so that they can easily
pierce the ribbon cable insulation when you install the connector.
Once it's free, loosely reassemble the connector if you had to
take it apart. Don't lock the two pieces together yet.
Maintain as big a gap as possible between the two pieces. The cable
has to feed into this gap.
Step 2: Position the connector. Fit the connector
loosely onto the pin header where you'll ultimately plug this
guy in.
If you're using a shrouded header on the board, make sure that the
connector is oriented to match. Pay particular attention to the
little bump on one side of the connector - it should match up with
the slot on one side of the shrouded header. The bump and slot
are the "key" that makes sure you can't plug the connector in
backwards, so make sure they line up now.
Step 3: Cut the ribbon cable to the desired width and length.
If you're using the "zip" method to split a wide ribbon cable into
narrower cables, do so now to create a cable with the same number of
conductors as there are pins on the connector you're attaching.
Cut the ribbon cable to the desired length. Most ribbon cables
can be easily cut with scissors.
Step 4: Mark pin 1 on the cable. Use an oil-based
red Sharpie to mark one edge of the cable as the "pin 1" side.
You should use an oil-based marker because regular water-based
inks won't stick to the plastic insulation.
The cable is symmetrical, so it doesn't matter which side you
choose, but you should mark the cable down its whole length.
This will help you orient the connectors properly by providing
a visual marker to tell you were pin 1 is on the cable.
Step 5: Align the cable with the connector. Find the
pin 1 mark on the circuit board next to the header where this
cable plugs in. On the Pinscape boards, pin 1 is marked with
a little triangular arrow at one corner:
Position the cable so that the red stripe you marked on the
cable is on the same side as the pin 1 arrow.
You'll usually want the connector to be attached near one end of the
cable, so position the cable accordingly.
Step 6: Insert the cable. Keeping the connector and cable
oriented as they are, insert the end of the cable into the gap in the
connector. There cable should extend at least a little bit, perhaps
an eight of an inch, out of the other end of the connector. The cable
should fit precisely across the width of the opening.
Step 7: Lock the connector. Take the connector off of the pin
header, take care to keep the cable and connector pieces positioned as
they were. Use an IDC crimp tool or a pair of pliers to squeeze the
two halves of the connector together. Apply flat, even pressure
across the whole width of the connector - it's important to press it
straight down so that the teeth align properly with the individual
conductors in the cable as they pierce the insulation.
Continue applying pressure until the two halves snap into place
and lock together.
Step 8: Repeat for the other end. Repeat the whole procedure on
the other end. Be sure to align the cable properly so that the side
you marked with the red stripe for "pin 1" aligns with the circuit
board marking for pin 1 on the other end of the cable.
Multiple connectors on one cable
One more thing to note about ribbon cables is that the IDC plugs
aren't limited to the ends of the cable. They can also be attached at
any desired intervals along the cable. This lets you create a single
cable that connects three or more boards.
I use this feature on my own pin cab to connect two flasher panels
with a single 16-pin ribbon cable:
- An IDC plug at one end of the cable plugs into the output controller
- A connector at the other end of the cable plugs into the flashers
on top of the backbox
- A connector midway along the cable plugs into the flasher panel at
the back of the main cabinet
84. Fuses
If you're including any feedback devices in your system, it's a good
idea to include a fuse in each output circuit.
A fuse's job is to cut off power if too much current flows through a
circuit. In your house wiring, the fuses and/or circuit breakers are
there to prevent fires, by ensuring that your appliances don't try to
force too much current through the wiring inside the walls. Wires
that carry excessive current will overheat, and this obviously would
be catastrophic for wiring inside walls.
Fuses help with fire protection in a pin cab context as well, but
that's not usually our primary concern, because most everything in a
pin cab draws its power from a DC power supply with its own built-in
overload protection. The thing we're more concerned about in a pin
cab is protecting our controller electronics against overload. Most
controller boards have relatively low power-handling limits, typically
well below the overload level of the power supplies, so it's good
practice to use fuses to protect controller circuits from overload.
This also has the side effect of giving us some additional protection
against fire.
Are fuses required?
Fuses aren't absolutely required, but most pin cab builders consider
them worthwhile. It comes down to a simple cost calculation: a
50-cent fuse might save a $50 circuit board if an output overloads.
I'd rather replace the 50-cent fuse than the $50 circuit board.
On the other hand, if you have a decked-out cab with twenty or thirty
devices, the cost of parts for all of those fuses (taking into account
the fuse holders and the additional wiring) might add up to more than
the cost of the board you're protecting. So rather than fusing every
output, you might prioritize the most "dangerous" outputs:
- Motors (including shakers, gear motors, and fans): very high
priority. DC motors are particularly likely to cause random
overloads because a motor's current draw increases with mechanical load.
It's possible for a motor
that's been working normally for a long time to suddenly draw a ton
of current due to a mechanical issue, such as something jamming
the motor.
>
- Solenoids: high priority. Solenoids can cause surges of
current when first energized, and like motors, their current
draw is somewhat unpredictable because it can depend on
mechanical conditions.
>
- Contactors, relays: lower priority. These are basically
solenoids at heart, but most have relatively low power needs
and are self-contained enough that they're not likely to
be affected by the mechanical environment.
>
- LEDs and incandescent lamps: low priority. These draw
predictable current levels, and they're unlikely to misbehave
at random. I'd skip fuses for these unless you're being very
rigorous about fusing every last output.
>
Note that there's a secondary risk that applies to all of your output
devices: wires that get crossed accidentally and create
short-circuits. This can happen due to wiring errors, dropped
screwdrivers, hex nuts that come loose and fall onto exposed contact
points, etc. This isn't a purely hypothetical risk; these things
actually do happen from time to time, judging by reports I've seen on
the forums. This might be reason enough to use fuses for every
feedback device.
Fuse wiring overview
We'll start with a diagram summarizing which devices need fuses, and
where the fuses fit into the wiring. To make the diagram easier to
read, we only show the wire segments where fuses are involved (so
don't base your whole machine's wiring on this!).
Here are some key points to note:
>
- For feedback devices:
>
>
- Each feedback device (contactor, flasher, motor, etc) should
have its own fuse
>
- Use fuses regardless of which output controller you're using
>
- Wire the fuse between the output controller port and the device
>
- Position the fuse close to the output controller port
>
>
- For non-ATX power supplies, and step-up/step-down
voltage converters:
>
>
- Use one fuse for the whole power supply or converter
>
- Connect it to the positive voltage output (+V out)
>
- Use the fuse as the common point of connection to all
of the devices the PSU/converter powers
>
- Place the fuse physically close to the PSU/converter
>
>
- For ATX power supplies (standard PC power supplies):
>
- Fuses generally aren't needed for PC ATX-type power
supplies, because these usually have built-in overload protection
>
- The built-in protection in an ATX supply is typically
provided by a thermal "resettable fuse" that only cuts power temporarily,
and automatically resets itself after the overheated parts cool off
>
>
Fuse selection quick reference
Here are some recommendations for fuses for the most common pin cab
devices. For each device, we list the electrical specs you should
look for, and provide an example of a fuse that meets the
requirements. You don't have to use that exact fuse, just one that
meets the specs listed. We'll explain what the specs mean and how we
came up with them later in the chapter.
Fuses and ratings marked with asterisks (*) are examples only, because
they're for component type that vary so much that no one fuse will be
right for every example.
Device |
Fuse Amps |
Fuse Volts |
Speed |
LedWiz output port (no boosters)
|
0.5A | ≥50VDC** | Fast |
Bel Fuse 2JQ 500-R
|
Zeb's LedWiz booster board output port
|
4A | ≥50VDC** | Fast |
Bel Fuse 2JQ 4-R
|
Pinscape power board output port
|
5A | ≥50VDC** | Normal |
Bel Fuse 2JQ 5-R
|
USB relay board (e.g., Sainsmart) output port
|
5A* (Use Max Amps for relay switch) | ≥50VDC** | Normal |
Bel Fuse 2JQ 5-R *
|
Replay knocker & other pinball coils
|
1.5A | ≥50VDC** | Slow-blow |
Bel Fuse 3JS 1.5-R TR
|
OEM/eBay/generic power supply
|
10A* (Use PSU's Max Output Amps) | ≥PSU output volts DC | Normal |
Littelfuse 0AGC010.V *
|
Step-up/Step-down DC-to-DC
voltage converter
|
5A* (Use converter's Max Output Amps) | ≥Converter output volts DC | Normal |
Bel Fuse 2JQ 5-R *
|
* means that this is an example only, because this type of equipment
varies. Check the actual Max Amps ratings on your equipment in these
cases and substitute appropriate fuses if necessary.
** I used a blanket 50VDC recommendation for the sake of simplicity.
This is high enough for anything commonly used in a pin cab, including
knocker coils and other real pinball coils. It's actually difficult
to find fuses rated for such high DC voltage, though; it's much easier
to find 32VDC fuses, since that rating is used for virtually all
automotive fuses. You can safely use 32VDC-rated fuses in any circuit
where your actual power supply voltage is 32VDC or below.
How to choose a fuse
Fuses aren't one-size-fits-all. You have to choose fuses according
to the electrical specs of the circuits they're protecting. Each
circuit has its own requirements, so you might need different fuses
for different circuits.
Current (Amps). This is the most important number when choosing
a fuse. The whole purpose of a fuse is to limit the amount of current
that's allowed to flow in a circuit, so choose a fuse for each circuit
according to the maximum safe current for the components in the
circuit.
A fuse's current rating tells you maximum the fuse will allow without
blowing. For example, a fuse rated for 5A will allow up to 5A to
flow, and should never blow as long as the current stays at or below
5A. If the current goes above the rated level, the fuse will blow -
eventually. Not necessarily immediately. If the current is
only a little above the limit, the fuse might not blow for minutes or
even hours. The higher the current goes above the limit, the faster
the fuse will blow.
In a pin cab, most of our fuses are for protecting delicate
electronics, like LedWiz outputs. These can be damaged very quickly
by overloads, so we don't want the fuse to think about it for too long
if the current exceeds the safe level for the device. A rule of thumb
in these cases is to choose a fuse rated for about 75% of the maximum
current for the device. For example, LedWiz outputs can be damaged
above 500mA, so you might look for a fuse rated at around 375mA.
Voltage. The voltage rating on a fuse is a maximum. You don't
have to match your circuit's voltage; you just have to make sure the
fuse is rated for at least the circuit voltage. The voltage
rating has nothing to do with the current limit, so it's fine to use a
fuse with a higher voltage than your circuit uses. For example, a
125VDC fuse is fine to use in a 24VDC circuit.
You should select fuses with DC voltage ratings, since pin cab
circuits are almost all DC. Many fuses are only rated for AC
voltages. You might think this doesn't matter, but the fuse
manufacturers warn that DC ratings are more stringent than AC, so a
fuse that hasn't been rated for DC use might not properly stop current
flow if used in a DC circuit. All of the fuses linked in this chapter
are DC-rated.
Speed. Fuses come in two main speed classes: normal fuses that
act quickly, and "slow-blow" fuses that act on a time delay.
Slow-blow fuses are designed to withstand brief current overloads, for
a period of several seconds to a couple of minutes, depending on how
big an overload occurs. Normal fuses, in contrast, act quickly when
the current goes over the limit.
Some manufacturers also make extra-fast fuses that operate even
more quickly than the "normal" type, to protect especially sensitive
circuits that can't tolerate even brief current surges.
The terminology for "fast" and "slow" can be confusing when shopping,
because the terms aren't always used consistently. Some sellers use
"fast" to refer to the extra-fast type, whereas others simply use
"fast" for everything that's not "slow". When extra-fast fuses are in
the mix, sellers will usually also offer "medium" or "normal" fuses,
which refer to the regular fast-blow type, as opposed to extra-fast.
If a site you're shopping at only offers "fast" and "slow" categories,
you can probably assume that the "fast" ones are only the normally
fast type.
Which speed class is best for a pin cab? It depends on the type of
circuit you're protecting. For most circuits, normal fuses (not
time-delayed and not extra-fast) will work well. You might consider
extra-fast fuses in a few situations where small IC chips are part of
the power circuit, specifically for LedWiz controllers, since the
small driver chips on those devices can fail quickly when overloaded.
Slow-blow fuses are useful for circuits driving pinball solenoids,
such as replay knockers or chimes. Pinball coils are specifically
designed to operate at intermittent "overload" levels, which is
exactly what slow-blow fuses are good for, since they only act when an
overload is sustained for an extended time period. We'll offer some
advice on selecting slow-blow fuses for solenoid circuits in the
section on coils below.
What if a fuse keeps blowing?
If a fuse in your cab blows repeatedly in normal use, one of two
things could be going on. One possibility is that something's wrong
with the circuit that's causing an intermittent overload. The other
is that you just need a fuse with a slightly higher limit.
To debug this kind of situation, I'd always start by assuming the
worst - that there's a fault in the circuit that's causing a real
overload situation. Carefully check the circuit for potential
problems. If the fuse blows seemingly at random, check for the sorts
of things that can cause intermittent problems, such as loose wires.
If you can't find anything wrong, the next thing I'd do is
double-check the current load of the circuit to make sure it's within
the expected limits. For example, if this is a solenoid feedback
device, use a multimeter to check the current drawn by the solenoid,
and make sure that it's below the limit for the output controller
port. If the device draws more current by design than the output
controller allows, you'll have to either get a beefier output
controller or substitute a smaller solenoid.
Assuming that you don't find anything wrong with the circuit, and that
everything is within the expected limits, you might simply have to use
a fuse with a slightly higher rating. For an inductive device like a
motor or solenoid, if you're currently using a normal fuse, try
switching to a slow-blow fuse with the same current rating. If you're
already using a slow-blow fuse, try increasing the current rating on
the fuse. Be conservative; raise it by maybe 25% of the original
rating. Don't iterate this process indefinitely, though: it defeats
the whole purpose of using a fuse if you have to use a fuse with such
a high limit that something else in the circuit blows before the fuse
does. If the problem doesn't clear up with a modest increase in the
fuse rating, I'd go back and check again for faults, and failing that,
I'd consider substituting a different device (a smaller solenoid, for
example).
Form factor
Fuses come in several physical package types. For pin cabs, I
recommend one of the types that plugs into a socket or holder, since
this lets you replace a blown fuse by simply pulling the old one out
of the socket and plugging in a new one. There are two main options
for these: cartridge fuses and blade fuses.
Cartridge
Blade
>
I prefer cartridge fuses. They're the most widely used type in
electronics in general, so they have the greatest range of options
available.
Note that sizes for these fuses vary. There are about ten size
classes each for the cartridge fuses and the blade fuses. The fuses
linked in this chapter are all cartridge fuses in the 5x15mm (also
known as 2AG) and 6.3x32mm (3AG) sizes. I apologize for not sticking
to just one size: I was hoping to do that to keep things simpler, but
unfortunately I wasn't able to find good matches for everything in one
size, so I ended up with a mix.
Fuses holders
Cartridge fuses are designed to plug into sockets or holders, so
you need the holders to complete your installation. There are
several options available; search on Mouser or other electronics
sites for "fuse holder". The type I like is a one-piece plastic
holder, like these:
Note that there are several different sizes of cartridge fuses, so
you'll need holders that match the size you're using. Here are
example holders for the most common sizes (these cover all of
the fuses linked in this chapter):
>
These have a screw hole for mounting to just about any surface, so you
can mount them directly to your cabinet wall or floor or to a separate
piece of plywood that you can later mount in the cabinet. If you're
using an output controller, I recommend mounting the controller plus
the fuses for all of is outputs on its own plywood carrier. That
lets you do all of the initial wiring on your workbench rather than in the
confined spaces inside your cab. If you're using an LedWiz or Pinscape
board, you'll have a lot of fuses to install, so it makes the work
a lot easier.
Once it's all set up, you can then mount the whole thing in your
cabinet with a couple of screws. This also lets you remove the whole
setup later if you ever need to do any repair or upgrade work.
Note that a key element of a modular setup like this is pluggable
connectors. You'll want to use some kind of mating plug-and-socket
connector to connect all of the wires coming out of the fuses to
the devices inside the cabinet. You can see one of the connectors
I use in the lower right of the picture above; here's a closeup.
That's a connector from the
Molex
.062" series, which I found useful for many of the interconnects
in my cabinet. There's more information on these and other options in
Chapter 80, Connectors. The thing I like about pluggable connectors
like this is that they help avoid dumb mistakes. You only have to
plan out and wire the connectors once, and from then on it's just a
matter of plugging the mating connectors back together any time you
have to do any work that involves removing something. You don't have
to match up the individual wires again, since they're bundled into
connectors that only fit one way.
What to protect
If you're not experienced with electronics (and even if you are), it
can be tempting to add fuses anywhere and everywhere. But every fuse
you add has costs: not just the monetary cost of the fuse, but the
space it takes up, the time it takes to wire, and the additional point
of failure. It's best to limit yourself to circuits that really
benefit from fuse protection.
Let's look at the places in a typical pin cab where fuses are most
useful.
Output controllers
If you're using any sort of output controller to attach feedback
devices (such as solenoids, contactors, lights, motors, etc.), it's a
good idea to place a fuse in each individual output circuit. This
is probably the most important place to use fuses in the whole cab,
because it's the place where things are most likely to go wrong.
In this case, the point is to protect the controller. We're
protecting the controller from two things. First, from simple short
circuits. Feedback devices are scattered around the cabinet, so they
often have long wire runs, leaving lots of openings for accidental
shorts. Second, we want to protect the controller from the attached
device. Every output controller has limits on how big a load it can
handle, so we want to make sure that the attached device doesn't draw
too much power, either routinely or due to a malfunction. A fuse
accomplishes that by shutting down the circuit if the power draw goes
over the limit.
In most cases, we don't need to be concerned with protecting the
feedback device itself (the light, motor, etc). That device is
usually the threat, not the victim. If anything else in the circuit
malfunctions, the worst that usually happens as far as the device is
concerned is that it gets turned on at full power. But that's what
it's designed for in the first place, so this usually isn't a threat.
The exception to this rule is pinball coils, which we'll come to
shortly.
Since we're protecting the output controller, we need to choose a fuse
based on the current limit of the controller:
>
- LedWiz (with no booster board): 500mA (0.5A) per output.
>
- Pac-Drive (with no booster board): 500mA (0.5A) per output.
>
- Pinscape power board: 5A per output.
>
- Pinscape main board flasher & strobe outputs: 1.5A per output.
>
- Pinscape main board flipper button LED outputs: no fuses are
necessary, because these outputs have built-in current limiters.
>
- Pinscape DIY MOSFET output circuit: the limit depends primarily
on MOSFET you choose, but 5A is a safe (conservative) choice for all
of the options we recommend in our circuit plans.
>
- Zeb's booster board for LedWiz: 5A per output. You don't
need a separate fuse for the LedWiz in this case, because the
booster board isolates the LedWiz.
>
- PacLed, i-Pac Ultimate I/O: these have built-in current limiters
per output, so fuses aren't required.
>
- Zeb's booster board for PacLed: 5A per output. You don't
need a separate fuse for the PacLed.
>
- USB relay boards (e.g., Sainsmart): Check the specs for your board
for the DC current limit for the relay switch. It's usually about 10A.
>
>
The wiring for a fuse in an output circuit is the same for all of the
controllers, so we'll just show the LedWiz as an example. The basic
plan is to interpose the fuse between the output controller port and
the device.
First, connect a wire between the output port on the controller and
one end of the fuse. Next, connect a wire from the other end of the
fuse to the feedback device (the light, motor, etc). If the device
cares about polarity, this is the negative or "ground" terminal
on the device.
In the diagram above, we used an LED as the example output device, so
there's actually an extra step involved, because LEDs usually require
resistors (that's a whole separate subject, explained in
Chapter 44, Feedback Devices Overview). In this case, the resistor goes between
the fuse and the LED, so we connect the wire from the fuse to one end
of the resistor, and connect a wire from the other end of the resistor
to the output device. For anything but an LED, there's no resistor,
so the wire from the fuse goes straight to the device.
Fuses don't care about polarity, so it doesn't matter which direction
it goes. Resistors don't care either.
Pinball coils
Unlike most other feedback devices, real pinball coils can benefit
from fuse protection. As we mentioned above, most other feedback
devices don't need fuses for their own sake; the fuse is to protect
the output controller, not the device itself. But pinball coils are
different. They're designed to be activated only in split-second
bursts. If you turn one on and leave it on, it'll quickly get so hot
that its internal wiring melts, destroying it.
To protect against this danger, we can use a special type of fuse
called a "slow-blow" fuse. "Slow-blow" means that the fuse takes
longer to blow than a regular fuse does. A slow-blow fuse allows a surge of
current to flow briefly, but if the current is sustained for too long,
the fuse blows. This is exactly what we need to protect pinball
coils, which are likewise designed for brief bursts of power, but
can't withstand sustained use.
Why are we even worried about this? We only use these coils to
simulate bumpers and other things that fire momentarily, so why would
the software ever leave them on for long periods? Normally, it
wouldn't. The danger is that the software doesn't always work
perfectly. Sometimes it crashes, and if it crashes at the wrong
moment, it can leave an output stuck on. This isn't just a
theoretical possibility, either: this has actually happened to other
cab builders. It might seem incredibly improbable that the software
would crash at such a perfectly wrong moment, but it's actually an
especially likely time to crash, because it takes special code to fire
a coil in the first place. That code can contain an error that makes
the program crash right after the coil turns on, so the code that was
supposed to turn the coil back off never gets a chance to run, leaving
the coil stuck on.
As an alternative to using fuses, or as a second layer or protection,
you can use a special time limiter circuit. These circuits contain
their own timers that turn the coil off after a couple of seconds,
even if the software doesn't. See
Chapter 54, Coil Timers for details
on how to build one of these. If you're using a Pinscape main
expansion board for your knocker, it has this type of timer built in
to the knocker output. All of the outputs on the Pinscape chime board
also have these timers. In my own cab, I use both the timer and the
fuse for my knocker coil. I think of the timer as the primary
protection, but I still like having a fuse as a last resort in case
the timer fails.
The types of pinball coils that can benefit from fuses include:
- Replay knockers
- Chime units
- Bells
- Bumper assemblies
- Slingshots
>
Flippers are more complicated; more on them below.
How do you choose the right slow-blow fuse to protect a pinball coil?
It takes a little research and some guesswork.
The first step is to figure the normal operating current for the coil.
You need two numbers to figure the current: the voltage you're going
to use to operate the coil, and the coil's electrical resistance. The
voltage is easy: it's the voltage of the power supply you're going to
use with the coil. The resistance is something you can measure with a
multimeter: set your meter to the "resistance" or "ohms" setting and
measure across the coil's terminals. You should measure the coil
while it's not connected to anything else, of course. Here are the
specs for some commonly used knocker coils:
- AE-26-1200: 10.9 ohms
- AE-23-800: 4.2 ohms
>
Once you have the voltage and resistance, determine the amperage
as Volts/Ohms. For example, if you have a replay knocker with an
AE-26-1200 coil that you'll operate at 35V, the current is
35V/10.9Ω = 3.2A.
Step two is to decide on a time limit. This is balancing act. We
want to pick a time limit that's short enough that the fuse will blow
before the coil overheats, but long enough that the fuse won't blow
during normal operation. The complication is that slow-blow fuses
have inexact timing. They don't give you an exact delay time, just a
range of times.
Pinball coils on real machines fire for a fraction of a second,
anywhere from a few milliseconds to about half a second. We can
consider times in this range to be safe for the coil, so we don't want
our fuse to blow within the first half-second. But how long is too
long? Unfortunately, I don't have any hard data on that. I haven't
been willing to sacrifice a bunch of coils to methodically measure
burn-out times experimentally, and as far as I know, neither has
anyone else. So this is where a bit of guesswork comes in.
Anecdotally, I've heard from a few people who've had their coils get
stuck on and burn out. From those reports, it appears that coils will
pretty reliable overheat after about a minute, maybe two. I've also
heard one or two reports of failure after much shorter times, around
10 seconds. Based on these reports, it seems best to choose a fuse
that will blow after perhaps 10 to 20 seconds.
Step three is to choose a fuse that matches the combination of the
current and time we came up with in steps one and two. This is
another research step, because slow-blow fuses aren't sold with
simple, fixed time limits. Instead, the time limit is a function of
the current. The manufacturer presents this function with a chart
in the data sheet, like this one, taken from the data sheet for the
Bel Fuse 3JS data sheet:
Each green curve represents the current/time relationship for one type
of fuse, labeled at the top.
Here's the way I use this type of chart to pick a fuse. Let's say we
want to pick a fuse for a replay knocker with an AE-26-1200 coil that
we're running at 35V. As we calculated above, that gives us 3.2A as
the normal operating current for the coil, and as we guesstimated
above, we'd like a fuse that blows in perhaps 10-20 seconds. So let's
go to the chart, and find the intersection of 10 seconds and 3.2A. I
marked that spot with a red dot. That happens to fall right on one of
the green lines - if it didn't, it would be between two lines, so we
could pick the closest. I highlighted the line we're on to make it
easier to follow. Now trace the line to the top of the chart to see
which fuse it's for: it's the 1-1/2A (1.5A) fuse.
It seems a little strange that we're going to use a 1.5A fuse for a 3A
coil, but the amp rating on the fuse is only nominal. The timing
chart tells the full story, and in this case the timing chart says
that the nominally 1.5A fuse will let our 3 Amps flow for up to about 10
seconds. In case you're still not convinced, I've been running with
this fuse protecting my own AE-26-1200 replay coil, and it hasn't
ever blown on a false alarm.
Since this is such a common coil in virtual pinball machines, I'll
save you the trouble of finding the 1.5A version of this family.
Here's the part number and a Mouser link:
Bel Fuse 3JS 1.5-R TR.
Wiring the fuse for a knocker is just like wiring a fuse for any
other output device. The fuse goes between the output port on
the controller board and the knocker coil. Here's a diagram;
we use an LedWiz with booster board as an example, but it's
the same for any other type of output controller.
First, run a wire from the output port on the controller board to one
end of the fuse. Next, run a wire from the other end of the fuse to
the knocker. This connects to the negative side of the knocker
coil, usually signified by a black wire. (The coil itself doesn't
care about polarity, but it should have a diode attached, and the
diode does care.) Fuses have no polarity, so the direction you
connect the fuse doesn't matter.
Flipper coils
Flipper coils are more complicated than most other types of pinball
coils, but in a way that actually simplifies things for our purposes
here. In most cases, you won't need a fuse for a real flipper coil.
The reason is that flipper coils for real machines are built to
tolerate being activated for long periods. They have to be, because
players routinely hold a flipper up to trap a ball. So unlike other
pinball coils, these coils are designed to withstand continuous power,
and thus don't need to be protected from getting stuck on.
How do they accomplish this, when other coils can't? Their trick is a
clever two-coil design. Flipper coils are really two coils in one:
two separate coils of wire wrapped around the same core. One coil is
the high-power "lift" coil, which generates the strong initial force
that lifts the flipper from the rest position and propels it (and the
ball) through the flipper's arc. The other coil is the low-power
"hold" coil, which only kicks in when the flipper reaches the top of
its arc. The hold coil only has to exert enough force to hold the
flipper in place; it doesn't have to propel the flipper or the ball.
This allows the hold coil to operate at much lower power - low enough
that it can be left on indefinitely without overheating. The flipper
assembly toggles power between the two coils by way of an
end-of-stroke switch, which the flipper trips mechanically when it
reaches the top of its arc.
If you're planning to use a real flipper coil in your virtual cab, you
should make sure that it's part of a full flipper assembly
that has the end-of-stroke switch in place and properly adjusted. The
end-of-stroke switch is critical because it's what prevents the lift
coil from getting stuck on. If the lift coil gets stuck on, it'll
overheat like any other pinball coil.
The dual-coil design isn't universal. Newer Stern machines (2000s
onward) dispense with this somewhat complex electro-mechanical design
and use a somewhat complex software system instead. On these
machines, the flipper coil is just an ordinary coil with a single
winding. The flipper button is connected to the CPU, not directly to
the flipper. When you press the button, the CPU turns the coil on at
full strength. But this lasts only for a split second, long enough
for the lift stroke. Once that initial time period has passed, the
software reduces power to the coil using PWM, or pulse-width
modulation. PWM is a method for controlling power by switching the
voltage on and off rapidly (hundreds of times a second).
The single-coil Stern design isn't suitable for virtual cabs, because
it requires the specialized software system to manage the power. None
of the current software or hardware in the pin cab environment can do
this. So if you want to use a real flipper assembly, you should use the
traditional dual-coil type, not the newer Stern single-coil type.
Other solenoids
Solenoids might or might need the same protection as pinball coils
(see above) against being left on for long periods.
To find out whether you need a fuse for your particular solenoid,
start with the data sheet, if one is available. Look for information
on maximum continuous "on" time.
If you can't find a data sheet, or it has nothing to say on the subject,
you can do some testing of your own. Apply power to the solenoid for
a couple of seconds, then cut power. Check to see if the solenoid
feels hot. If not, try again, leaving it on a little longer. Repeat,
extending the time on each trial, until the solenoid starts feeling
hot to the touch. If you can leave it energized continuously for
several minutes without it getting too hot, you probably don't have to
worry about a special fuse for it. If it does start getting hot
within a couple of minutes, though, you should add a slow-blow fuse
using the same procedure explained above for pinball coils.
If you're using a solenoid to simulate any sort of rapid-fire device,
like a bumper, slingshot, replay knocker, chime, bell, etc., the same
rule of thumb for timing that we used for pinball coils should work
well here. However, you might want to extend the maximum time a bit,
like taking it up to 30 to 60 seconds, assuming your solenoid didn't
overheat that quickly in the tests above. The reason is that bumpers
and the like get a lot of use in some games - they fire briefly, but
many times in a row. Many short bursts in a short time add up, since
this is all about heat dissipation. So choosing a fuse with too short
a time limit might result in the fuse blowing unnecessary during
bursts of activity during normal play.
Wire the fuse for a solenoid the same way you would for a pinball coil.
PC/ATX power supplies
Good news! You probably don't need any fuses for PC ATX power
supplies. These almost always have built-in thermal overload
protection that temporarily shuts them down if they overheat. That's
the same function a fuse performs, so there's no need for a separate
fuse; the built-in protection is all you need. The thermal protection
circuit in an ATX power supply should automatically reset itself when
the temperature returns to normal, so you won't have to open it up to
replace a fuse, or even push a reset button, if you ever trigger an
overload. Just unplug everything for fifteen minutes or so to let the
power supply cool down. (And while you're waiting, you might also
want to fix whatever caused the short circuit or overload in the first
place!)
OEM power supplies
Pin cab builders
often use a mix of power supplies that includes one or more generic,
no-name power supplies from eBay that look similar to the ones shown
at right. These are often sold on eBay as LED strip PSUs or OEM PSUs,
since they're primarily designed for sale to other manufacturers
to embed in consumer devices.
These power supplies might or might not have built-in overload
protection. Check the site where you bought your to find out if they
say anything about it. Also check to see if it has its own
replaceable fuse accessible from the exterior of the case (this is
rare).
If there's no built-in overload protection, you might want to protect
the power supply with a fuse.
Choose a fuse that matches the rated maximum output amperage for the
unit. If the unit's output limit is only stated in Watts, you can
determine the maximum amperage by dividing Watts by Volts, using the
voltage on the output side. For example, if your power supply has 12V
output and a maximum power output of 48W, the maximum amperage output
is 48W/12V = 4A. So you'd choose a 4A fuse.
(Earlier, we talked about a 75% rule of thumb, where we use a fuse
rated for 75% of the maximum for what we're protecting. That applies
when we're protecting a transistor or IC chip. Power supplies
shouldn't need this adjustment, since the components they use aren't
as vulnerable to brief current surges.)
Connect a power supply fuse as shown in the diagram below. (We show a
24V supply as an example, but the principle is the same for any
voltage.) Run a wire from the power supply's positive (+) output to
one end of the fuse. Connect the other end of the fuse to whatever
devices the power supply will be powering.
Step-up and step-down voltage converters
Pin cab builders sometimes use step-up and step-down voltage
converters to get special voltage levels that you can't easily get
from a PC power supply or eBay/OEM unit. For the purposes of
fuses, you can treat these converters the same as power supplies.
Look at the instructions or spec sheet for the converter to determine
its maximum output current. Select a fuse that matches the maximum
current.
Note: If you're only using a converter to power a single device
(e.g., a knocker coil or a shaker motor), and you already have a fuse
in the circuit, you don't need a separate fuse for the converter. The
first fuse will protect the whole circuit. Just make sure that its
amperage limit is below the converter's maximum output amperage
rating.
Wire the fuse for a converter the same way as with a power supply.
Connect a wire from the converter's positive (+) voltage output to
one end of the fuse. Connect the other end of the fuse to each
device that the converter will be powering.
Fuses vs resettable devices
Fuses have the downside of being expendable: when a fuse blows, you
have to throw it away and replace it.
It's possible to find resettable (non-expendable) circuit protection
devices in the range of currents we use in a pin cab. I don't have
experience with any of these devices myself, and I haven't found any
options that look ideal for our purposes. But I wanted to mention
them in case you don't like the idea of expendable fuses and wanted to
look into reusable alternatives.
One thing you could look at is mechanical circuit breakers. These are
similar to the ones you might find in the electrical panel in your
house. There are options for these with suitable specs for a pin cab.
The cheapest are a few times the price of an equivalent fuses, so
they're more expensive if you never blow a fuse, but could end up
being cheaper if the same circuit overloads several times.
Another possibility is PPTC (polymer positive temperature coefficient)
devices. These are essentially temperature-dependent resistors that
develop very high resistance when they got hot. High current levels
heat them, triggering the rise in resistance, effectively cutting off
current (or at least greatly reducing it). These devices have the
advantages of being very compact, and being passive: you don't have to
reset them after a fault (the way you do with a mechanical circuit
breaker), since they return to normal resistance when they cool.
PPTCs are widely used in PC equipment, including ATX power supplies.
The big problem I see with circuit breakers and PPTCs is that they're
slow. They tend to have timing curves similar to slow-blow fuses.
That makes them good for fire prevention, but bad for protecting
semiconductors - which is the primary function we need fuses for. For
circuits where we need to protect transistors and ICs from short
circuits and overloads, we need something that interrupts the current
flow almost instantly on overload. The only thing I've found that
does this is traditional, expendable fuses.
Part Five. The Pinscape Controller
85. Pinscape Controller Overview
This section leads you through the process of assembling the
Pinscape expansion boards, setting up the KL25Z controller board,
and setting up the software.
Here are the main steps involved:
>
- Buy a Freescale Freedom-KL25Z controller board. This
is a retail product that sells for about $15 to $20 at any
of the major electronics vendors. You can also find it on
eBay and Amazon, but it's usually more expensive there.
The KL25Z board is required for all systems, whether or
not you're using the expansion board. It's included on the
Chapter 91, electronics parts list, so you can order it
along with any other components you need. This board comes
fully assembled and ready to use.
>
- If you're going to build the Pinscape expansion boards,
get hold of the blank printed circuit boards (PCBs) for
the expansion boards. You can have a set fabricated by
a PCB factory by sending them the freely available design
files. You don't need any special electronics knowledge
to do that; we'll explain the process. Alternatively,
you might be able to get a set of pre-made boards from
someone else in the pin cab community who made a batch
for sharing.
>
- Buy the electronic components required for the expansion
boards or any other external electronics you're going to
include, such as a plunger sensor. Almost all of the
components for the various options are fairly generic items
that you can buy from any electronics vendor. We'll give
you a complete list of parts with ordering links.
>
- Set up the Pinscape software on the KL25Z. You can do this
before you build the expansion boards, plunger sensor,
or other electronics, because the KL25Z can do some things
on its own. If you're not in any hurry, you can also wait
until after building any other
>
- Configure your KL25Z settings to match your hardware
setup. This is done through a Windows program called the
Pinscape Config Tool.
>
- Gather the necessary tools for building the expansion
boards. We'll tell you what you need and provide buying
recommendations for anything you don't already have at hand.
>
- Solder the components into the boards. You'll need
basic soldering skills to do this, but you won't need any
advanced electronics knowledge. We'll provide detailed
instructions to make it as much of a "paint by numbers"
job as we can.
>
- Connect the expansion boards to the KL25Z, to one
another, and to your cabinet buttons, plunger sensor,
and feedback devices.
>
>
What to buy
I hear from a lot of people who find themselves a little confused at
this point about exactly what you have to buy, and what you have to
build, to get this project going. The list of things to buy is
outlined in broad strokes above, and in excruciating detail in the
Chapter 91, electronic parts list, but that's a lot of
material to go through. And there are several rather different ways to
approach this project, which makes it even harder to sort out. So
let's take a look at the most common scenarios, and spell out what's
involved in terms of shopping.
Option 1: Standalone KL25Z (no expansion boards)
The KL25Z on its own can handle button inputs, accelerometer-based
nudging, and it can connect to any of the plunger sensor options
that the Pinscape software supports. It can also control feedback
devices if you add separate external booster circuits for each
device.
The shopping list for the standalone KL25Z is pretty simple: you
really just need the KL25Z itself. The KL25Z is a retail product that
comes fully assembled. You can find it at the electronics vendors
like Mouser, as well as general retailers like Amazon and eBay. (A
few people have asked if I sell these; I don't.)
One small qualification to "comes fully assembled": the KL25Z doesn't
come with "pin headers" for plugging in cable connectors, because they
wanted to leave your wiring options open. I recommend adding standard
pin headers so that you can use it with standard plug-in connectors.
This requires buying the pin header parts and soldering them to the
board. It's an easy bit of soldering, and the required parts are
listed under "KL25Z Microcontroller (standalone)" in
Chapter 91, Electronic Parts List.
Option 2: DIY Expansion boards
The expansion boards give you all of the features of the standalone
KL25Z version, and add an expandable set of output ports for feedback
devices, plus built-in support for IR remote control signals to power
on your TVs and monitors during system startup. The feedback device
ports can support all of the common pin cab feedback devices without
any additional circuitry, including motors, solenoids, contactors, and
high-current LEDs.
There are three types of expansion boards (the main board that
interfaces to the KL25Z, the "MOSFET power board" that can control
high-power feedback devices like solenoids and motors, and the "chime
board", for controlling certain types of pinball coils that have to be
protected from long periods of continuous activation). The main board
is always required, and the other two boards can be used in any
combination (including two or more of each), according to how many
output devices of each type that you plan to attach.
The shopping list for the DIY expansion boards includes the KL25Z, the
blank circuit boards for your selected expansion boards, and a big
list of electronic components (resistors, capacitors, transistors, IC
chips, etc.) that have to be soldered into the blank boards.
The electronic components are all laid out in the
Chapter 91, parts list. There's a section for each board,
so you just go through those and include the parts listed for each
board you're including in your system. You can get everything on
the list from an electronics vendor like Mouser or DigiKey.
The blank circuit boards are custom-designed, so you have to get those
made by a PCB maker. They're not something you can buy off-the-shelf
from Mouser or Amazon. The plans for them are "open source", so
anyone can have them made by any PCB maker of their choosing. There
are three main ways to get them:
- Have a set made on demand by a PCB maker. There are lots of PCB
companies that cater to hobbyists, with low prices and minimum order
sizes of only 5 to 10 copies of each board. Most of the hobbyist
vendors also manage to make the ordering process pretty easy. We
provide step-by-step instructions in Chapter 93, Fabricating the Expansion Boards.
- Participate in a group order with other pin cab builders. Ask on
the forums if anyone else is interested, and get together a few people
to go in together on an order. This is a way to dispose of the extra
copies you'd get in a minimum order from a PCB maker if you don't need
all 5 to 10 copies for yourself.
- If you're in the US, you might be able to get them from me. I've
been running a sort of ongoing "group order" for a couple of years
now, but it's not the sort of group order most people run, where you
have to wait for enough people to join the order in advance; instead,
I've just been ordering small batches and sending them out to people
on request. I'm not exactly "selling" them; I only charge what the
boards cost me (plus shipping). I can't guarantee that I'll always
have boards on hand or that I'll continue doing this indefinitely, so
get in touch to get the current status. You can reach me on
vpforums by private message; my user ID there
is mjr. With apologies to those outside the United States, I'm
afraid that I only ship to US addresses.
(Former) Option 3: Oak Micros boards
Note: Oak Micros announced in June 2021 that they're no longer
shipping their boards, so the options below are not currently
available. The discontinuation sounds permanent, but I'm going to
leave the information below in place for now, if for no other reason
than historical reference. I'm sure that the forum threads listed
below will be updated if Oak Micros ever resumes selling the boards,
so check the threads for current status.
Up until June 2021, Oak Micros offered fully assembled and tested
versions of the Pinscape boards. The following options were
available:
- Pinscape All-in-One board. This combines all of
the functions of the DIY version's main board, power board,
and chime board into a single circuit board, which makes it a little
more compact and tidier to install than the DIY version. See this thread on vpforums.org for full details:
Announcement: Pinscape All-in-One product.
- Pinscape Lite board. This is a less expensive board that includes a
subset of the DIY board features: 24 input buttons, plunger sensor
input, 12 high-power outputs for solenoids and motors (2 with PWM, 10
without), 16 low-power PWM outputs for LEDs, and the standard built-in
accelerometer (nudge) sensor. This board isn't expandable, so it's
best for mini-cabs and more basic cabs where you only plan to install
a limited set of feedback toys. Details:
Announcement:
Oak Micros Pinscape Lite.
Plunger sensors
Regardless of which option you're going with for the Pinscape
controller itself, the plunger is a separate matter with a separate
parts list. The
Chapter 91, electronic parts list
includes separate sections with the parts needed for each plunger
sensor design.
86. Expansion Boards Overview
The Pinscape expansion boards are a set of printed circuit boards that
you can build yourself to add capabilities to the basic Pinscape
system that runs on the KL25Z. The main functions of the expansion
boards are:
- An almost unlimited number of high-power outputs for feedback
devices (lights, solenoids, motors, etc) with full PWM brightness/speed/intensity control
- Circuitry for switching on a TV at system startup, for TVs that
don't automatically turn on when the power is connected
- Neater wiring connections for buttons and plunger inputs
Expansion boards vs. Standalone KL25Z
The expansion boards are one way to run the Pinscape software. The
other way is to run it directly on the KL25Z, without the expansion
boards, which we refer to as the "standalone" KL25Z.
All by itself, the KL25Z can handle accelerometer-based nudging and
button input, without any additional circuitry required. The only
wiring involved is the wiring between the KL25Z and any buttons you
want to connect. You can also connect any of the compatible plunger sensors
directly to the KL25Z. The plunger sensor wiring is a little neater
and more self-contained with the expansion boards, but there's no
difference in how you build the sensors.
What the KL25Z can't do well on its own is controlling feedback
devices, such as solenoids and lights. There are three big limitations
on the bare KL25Z's capabilities in this area:
- It has a limited number of GPIO pins (the KL25Z's electrical
connections to the outside world). Each output device you want to
connect requires its own GPIO pin, but so does each button input. The
plunger sensor and IR devices also require one or more pins each, if
you want to include those in your system. The KL25Z has a total of
about 40 pins that you need to divide up among these various
functions, so the more buttons you want to include, the fewer
feedback devices you can have, and vice versa. The KL25Z by
itself simply doesn't have enough pins for all of the buttons and
feedback devices in a well-equipped pin cab.
- Separately from the limited number of GPIO pins, the KL25Z only has
10 PWM channels. PWM ("pulse width modulation") is needed for LED
outputs to control brightness, and for motors to control speed.
10 PWM channels isn't enough to cover a standard set of
five RGB flashers (which require 15 channels: one per red/green/blue
color channel per flasher).
- The GPIO pins can only control a tiny amount of voltage and current
(no more than 3.3V and 4mA, which is barely enough for the smallest
LEDs). External circuitry is required to boost this to a level that's
sufficient to control a flasher LED, motor, or solenoid.
The biggest difference the expansion boards make is their extensive
feedback device control capabilities. The expansion boards overcome
the KL25Z's limitations on the number of available pins and PWM
channels by adding an external set of PWM controller chips that
provide nearly unlimited additional output ports, all with full PWM
control. The expansion boards also overcome the KL25Z's power
limitations by adding MOSFET boosters on the outputs. A MOSFET is a
type of transistor that can control very high-power loads, so the
MOSFET boosters make it possible to connect all of the standard pin
cab feedback devices directly.
The expansion boards also add circuitry for powering up one or more
TVs at system startup. That's another bit of circuitry that you can
build on your own (the circuit diagrams are included in this guide),
but the expansion boards make it a little easier by integrating it
into the board design.
DIY vs. Buy
Most of the rest of this section of the guide is about how to build
the DIY design for the expansion boards. DIY means that you do the
whole "manufacturing" process yourself. We provide CAD files for the
circuit board designs, which specify the exact layouts and component
lists for the boards. They're open-source designs, so you're free to
modify them as you wish, or you can just upload them as-is to any PCB
maker to have them made into physical boards. The designs include
complete parts lists with the exact components needed, for ordering
from an electronics supplier such as Mouser or Digikey. Once you have
the blank PCBs and the components, you solder the components onto the
boards. I know it sounds complex, but the individual steps are all
pretty straightforward, and they're explained in detail in the pages
ahead.
If you don't like the idea of building the boards yourself, though,
there's at least one option
(as of this writing) for buying pre-built
boards that come fully assembled and ready to use:
- L'atelier d'Arnoz (Arnoz's Pin Cab Shop).
Arnoz sells a collection of circuit boards of his own design that
work with the Pinscape software and replicate many of the functions of
the DIY expansion boards. Like the original expansion boards, Arnoz's
boards comprise a set of modules that you can combine to build your
overall system. See his site for details and purchase options.
Which is better, DIY or pre-built? They both have their trade-offs.
The big advantage of the DIY approach is that you can customize
everything, from the hardware to the software, since the entire design
is open-source. But it requires a lot of time and effort. Buying
something ready-to-use is probably a better option if you don't have a
hobby interest in building your own electronics. The price of the
pre-built boards has so far been similar to what it would cost to
build them yourself.
DIY: the three-board set
For do-it-yourselfers, the expansion boards are a system made up of
three separate circuit board designs: the main board, the power board,
and the chime board. The boards work together, and each board serves
a different function. You don't have to build the full set; you can
use the boards in different combinations to suit your needs. The main
board is the only one that's required in all systems. The other two
are optional, and you can add one or more of each according to the
number and mix of feedback devices you want to connect.
Which boards do I need?
For most people, I recommend one main board and one power board. That
covers all of the specialized functions like the TV control circuits,
and gives you a total of 65 feedback device outputs: the main board's
dedicated outputs for the RGB flashers, strobe, replay knocker, and
flipper button LEDs, and the power board's 32 general-purpose outputs
for everything else (button lights, contactors/solenoids, shaker
motors, gear motors, fans, beacons, undercab LED strips). This is
enough for a system that includes every feedback device described in
Feedback Devices, and still leaves four or five spare power
board outputs in case you can think of anything else (and find room
for it in your cab!).
You might also consider adding one or more chime boards if
you're using any pinball coils or other solenoids that are vulnerable
to rapid overheating. For pinball parts, this applies to almost any
coil-based assemblies designed for the real machines:
Chapter 64, chime units, bells, slingshot assemblies, or
bumper assemblies. Flipper assemblies are sometimes safe, but not
always; see
Chapter 54, Coil Timers for details. If you do decide
to add chime boards, each board will handle eight coils.
Any chime boards will simply add more ports to your system, so
you'll still have all of the ports on your main board and power board(s).
The chime board isn't strictly necessary even for coil devices, since
the Pinscape firmware can emulate the timer protection via its
"Flipper Logic" feature (also described in
Chapter 54, Coil Timers). The main reason to use the
chime board instead of software is that I consider a hardware timer to
be inherently more reliable than a software version. That's not to
say that the firmware isn't also reliable; it's just that software is
inherently more complex, and can fail for reasons unrelated to the
task at hand. The hardware timer is immune to software faults, so
it's almost certain to do its job no matter what else goes wrong in
the system.
Main board
The interface to the KL25Z. The
KL25Z plugs into sockets on this board. This board is required for
all expansion board systems, since it's where the KL25Z connects,
and you can only use of these (unlike the other boards, where you
can you two or more if you need more ports).
This board provides:
- A pin header for up to 24 button inputs. This is just a convenience
compared to the standalone KL25Z, where the GPIO pins for buttons are
scattered around the headers. This groups all of the buttons into one
connector.
- A pin header for connecting a plunger sensor. All of the Pinscape
plunger designs in this guide use a common connector plug layout that
fits this header. As with the buttons, this is just a convenience; on
the standalone KL25Z, the pins for plunger connections are scattered
around, but here they're neatly grouped into one connector that works
with all of the plunger types.
- Outputs (grouped onto a single pin header) for a set of 5 RGB
flashers, with high-resolution, high refresh rate PWM control, for
connecting a Chapter 56, flasher panel (a feedback device
consisting of five high-intensity RGB LEDs, usually placed at the
back of the playfield TV). These outputs have sufficient power
to supply two flasher panels in parallel, in case you want to
install one both in the main cabinet and on the backbox.
- A dedicated output for a bright white strobe lamp, which is
another popular feedback device typically deployed along with
the flasher panel.
- Outputs (grouped onto a single pin header) for an additional 16
channels of low-power (20-50 mA) LEDs. This is aimed primarily at
powering four small RGB LEDs for your flipper buttons (one for each
flipper button and one for each MagnaSave button), which leaves four
additional channels that can be used for other small LEDs, such as
front panel button lamps.
- A dedicated output for a replay knocker. This has enough power
handling for a pinball knocker coil, so you can wire it directly
without any other circuitry (unlike, say, an LedWiz, where you'd need
a relay or MOSFET booster for such a high-power device). This output
also has a special timer protection circuit that protects the knocker
from software faults that could leave it stuck on, which is an
occasional problem with PC pinball software that can destroy the coil
by overheating it. The timer protection ensures this can never happen
by shutting off the coil after a couple of seconds even if the
software crashes. See Chapter 54, Coil Timers for more about
the timer protection circuit.
- A "TV ON" relay that you can hard-wire to the soft on/off button on
your TV, so that the software can turn on the TV at system startup.
See Chapter 114, TV ON Switch.
- An IR transmitter, which can be used to transmit the remote control
codes for your TV to turn them on when you power up the system. This
is a less invasive alternative to the hard-wired on/off button
connection. The IR transmitter can also be controlled from Windows,
so you can make it send whatever IR codes you want at any time.
- Circuitry that detects when the system is powering up, so that the
software can tell when it's time to send the remote control codes or
switch signals to turn on your TVs.
- An IR receiver, which can be used to teach the Pinscape software the
IR codes for your TV's remote control, so that the software can send
the codes via the IR transmitter when it's time to turn the TV on.
The IR receiver can also be programmed to send key presses to the PC
when it receives certain codes, so you can use it as a way to access
more control signals without adding physical buttons to your cabinet.
Power board
Adds 32 general-purpose high-power feedback
device control ports, which can be used to control almost any sort
of feedback toy. Each port can directly handle about 5 Amps and up
to about 50V, which is enough for shaker motors, gear motors,
fans, beacons, contactors, and solenoids. They'll also work
just fine with LEDs and lamps, including fairly long lengths of
LED strips (the non-addressable kind, anyway; you need a
separate, dedicated controller for the addressable kind).
Every on the power board port has high-resolution, high refresh rate
PWM control, so these ports provide brightness control for lighting
devices, full color mixing for RGB devices, speed control for motors,
and intensity control for solenoids.
The power board is an add-on to the main board. It's not required,
but most people use one main board and one power board, since
the main board doesn't have any general-purpose feedback outputs
of its own (all of its outputs are for more specific purposes).
Multiple power boards can be daisy-chained. The Pinscape software can
handle up to 128 feedback ports in total, which is enough for three of
these boards if you're not using all of the main board ports. In
practice, one power board is enough for a very decked-out system.
Chime board
This is another optional add-on to the main board, adding
eight high-power outputs with timer protection circuits, for controlling
chime units and pinball solenoids. These outputs have the same power
handling capacity as the power board outputs, but add cut-off timers to
prevent attached devices from being activated for more than a couple of
seconds at a time. These outputs are exactly like the dedicated replay
knocker output on the main board.
See
Chapter 54, Coil Timers for more about why timer protection is helpful
for chime units and some other types of original pinball equipment.
Like the power board, the chime board can be daisy-chained, so you can
add as many of these as you need, as long as your overall system doesn't
exceed the 128-port limit of the Pinscape software. You can use any
combination of chime boards and power boards that suits your system.
Schematics and board layouts
The boards were designed using a CAD program called
EAGLE,
from
Autodesk. EAGLE works in
terms of schematics and board layouts. A schematic is a symbolic,
visual representation of the components in a circuit and how they're
connected to one another. A board layout is the physical design of
the circuit board, showing the locations of drill holes, solder pads,
copper traces, and so on. The schematic and board layout are really
two views of the same information.
You can download the EAGLE files for all of the expansion boards here:
>
The downloads are ZIP files containing the following main file types:
- .sch files are the schematics for the boards
- .brd files are the physical circuit board layouts
The files also contain JPEG snapshots of the board layouts and PDF
printouts of the schematics, in case you want to peruse the circuit
plans without going to the trouble of installing EAGLE.
A free version of EAGLE (with some feature limits, naturally) is
available if you want to view the plans interactively. See the
Autodesk site linked above for downloads. Monthly subscription plans
to the premium versions are also available. I recommend installing at
least the free version if you're going to build the boards, so that
you can explore the schematic and board layout files in detail -
that's especially useful if you need to do any troubleshooting or
debugging after building them. Installing EAGLE also gives you the
ability to edit the plans if you want to customize them.
EAGLE is, unfortunately, rather difficult to learn. It has an
extremely idiosyncratic user interface that goes against many of the
Windows conventions. EAGLE somewhat makes up for its bizarre UI by
being powerful and competent, once you get past the steep learning
curve. To help with that, there are numerous tutorials and guides and
videos available on the Web - search for "EAGLE tutorial". EAGLE is
hugely popular with electronics hobbyists, so there's lots of
help out there on getting started with it.
87. Tools
You'll need a few tools to build the Pinscape projects. Most of
these are the basics that you'd need for any electronics project.
This section lists what you'll need and has some recommendations
for the more specialized items.
Where to buy
Pololu is a great resource for
specialized electronics tools. They hand-pick everything they sell
specifically for its utility to robotics and Arduino hobbyists, which
makes it much easier to find suitable items here than at a general
retailed like Amazon, where you have to sort through a lot of less
relevant offerings.
Amazon, has a much wider range
of options than a specialized shop like Pololu, which is both a plus
and a minus - a minus in that it's harder to find the items that
are particularly for our kind of project.
Hardware stores and home stores like Home Depot and Lowe's are good
sources for the basic hardware items like screwdrivers and pliers.
They're not as good for electronics tools, since they don't carry many
of those in the first place, and what they do carry is aimed at
electricians doing house wiring rather than at computer-type
electronics.
Miscellanous workspace tools
Good things to have on hand in your work area:
- Magnifying glass
- Strong light
Screwdrivers
A good basic assortment of screwdrivers is pretty essential in
everyday life, so you probably already have this one covered. You'll
just need a range of sizes of Phillips and flat-head screwdrivers.
For electronics projects, the smaller sizes are most useful,
particularly Philips #1 and #2. It's also helpful to have a set
of small optician/eyeglass screwdrivers on hand.
Needle-nose pliers
Another toolbox basic. You don't need anything special here;
a basic set from a hardware store should be fine.
Tweezers
Not essential, but handy to have when assembling circuit boards. Look
for the anti-static (ESD safe) type - that will turn up options
suitable for electronics work. I find the type with a curved or angled tip
especially useful.
Wire cutters
This is another everyday toolbox basic, but the type in your toolbox
might be more suited for the large-gauge wire used in house wiring.
You might want to pick up a smaller cutter more suited to the
small-gauge (20-24 AWG) used for most Pinscape and pin cab wiring.
Look for a "flush cut" type. Hakko makes a few "micro cutters" that
work nicely.
Wire stripper
This is a tool that removes the insulation from a length of wire.
This is another one that you might have in your toolbox for everyday
jobs around the house, but as with wire cutters, the one in your
toolbox might be mostly for larger-gauge house wiring. Look for a
wire stripper that has slots specifically for wire gauges 16, 18, 20,
22, and 24.
"Dupont" cables
For testing purposes, it's extremely handy to have a collection
of "Dupont" cables on hand. These are hookup wires with male and/or
female 0.1" pin header connectors attached at each end. They're great
for testing the expansion boards, because they make it easy to test a
connection to any individual pin on any header. Most of the
connectors on the expansion boards use the same 0.1" pins that the
Dupont connectors are for.
You can find sets of these cables on eBay for extremely cheap, if
you're willing to wait a month for shipping from China. The same
cables are also available at all of the hobby robotics Web stores -
Pololu, SparkFun, Adafruit, etc, and of course from Amazon. Search
for "Dupont cable" at any of those sites. You'll also see them
described as "breadboard jumper wires".
Pick up a full set with all of the gender combinations - male-to-male,
female-to-female, and male-to-female.
Alligator clip cables
Also for testing purposes, you might want to pick up a set of cables
with "alligator clips" at the ends. Alligator clips are just little
spring-loaded metal clips that you can connect to wires, pins, and
terminals of just about any kind, so they're great for making
temporary, ad hoc connections when testing.
You can find these at all of the same places where the Dupont cables
are sold.
Voltmeter/Multimeter
It's not strictly necessary as a build tool, but a multimeter is
pretty essential for debugging. All of my EE friends swear by their
Fluke meters, and I agree that they're probably the best. But the
Fluke meters are really expensive, and my own experience is that the
cheaper brands are just fine for hobbyist electronics like a pin cab
project. You can find perfectly good meters for under $20.
Look for a model that can measure the following:
- Volts DC
- Volts AC
- milliAmps/Amps DC
- Ohms (resistance)
- Continuity testing (preferably with an audible signal)
The cheapest models have "manual ranging", meaning that you have to
set a dial to a range of values that you want to measure. For
example, the dial might have a series of DC voltage settings with
labels labels like 100mV, 1000mV, 10V, 100V, etc. This means that you
have to set the dial to the range you expect to measure. In contrast,
an auto-ranging meter has a single dial setting for "Volts DC",
and automatically figures out the right range to use to display each
reading.
I'd recommend going with an auto-ranging meter, since they're easier
to use, and they're not much more expensive than the manual type.
Soldering tools
You'll need a soldering tool of some kind for just about any pin cab
build. If you're building the Pinscape expansion boards or any other
circuit boards, you'll obviously be doing some soldering work. But
even if you're not building any circuit boards, you'll probably run
into at least a few places in your cab where you'll need to solder
a couple of wires together or solder a wire to a terminal.
There are two very different types of soldering tools: soldering irons
and soldering stations. A soldering iron is a cheap tool (about $10)
for household jobs; a soldering station is a more expensive
professional tool ($100 and up) for electronics work.
A soldering iron is fine if you're not building any circuit boards;
it'll be adequate for a few miscellaneous connections in a cab. If
you're planning to do any circuit board assembly, however, I strongly
recommend investing in a soldering station. This is one of those
cases where the right tool makes the job much easier, and makes your
work product much better.
The big difference between a soldering station and an iron is that a
station has a thermostat that precisely maintains a temperature on the
tip, and has an adjustable temperature setting. This alone makes a
world of difference, since having the tip at a consistent temperature
makes the solder behave predictably. Soldering stations also heat up
much more quickly than irons, typically in 30-60 seconds, and they
tell you when they're ready, so there's less waiting around and no
guesswork. The stations also tend to use much higher quality tips
than basic soldering irons do, and the tips can be changed for
different types of work.
There are two models in the $100 range that seem to be the "standards"
among hobbyists: the Hakko FX888D and the Weller
WE1010NA. Both have similar features and are widely used. I use
the Hakko and have been quite happy with it.
Desoldering pump ("solder sucker")
This is a tool to remove solder, so that you can remove
a previously soldered part (to replace a dead part, for example)
or just remove excess solder if you apply too much.
This is more of a nice-to-have than a must, but it can come in
handy.
The type I've had the best luck with is what's known as a manual
de-soldering pump or "solder sucker". This is a fairly cheap tool, but
pretty effective. You can find these on Amazon for $10 to $25.
The other cheap option is "solder wick", which is supposed to soak up
solder, but I've never had very good luck with this.
There are also dedicated de-soldering stations, with powered solder
pumps. These are in the same price class as soldering stations, so I
wouldn't buy one for occasional hobby electronics. But I'd definitely
consider one if I did a lot of repair work, since the manual tools
require a great deal of patience when they work at all. The
powered de-soldering stations are supposed to be vastly better, as
power tools usually are.
Solder
It might seem like "solder is solder", but some types
of solder actually work much better than others. This is another
case where the right tool will give you better results regardless
of skill level.
The reason for the variability is that solder is actually a pretty
complicated formulation. It's a mixture of metal alloys and "flux",
which is a chemical that affects how the solder behaves when melted.
The mixture of metals controls the melting point of the solder, and
the flux controls how the molten solder flows, coheres, and and
adheres to wires and surfaces. Different formulations are appropriate
for different jobs; the type you'll find at Home Depot really doesn't
work all that well for fine electronics work.
My top pick is Kester 44 Rosin Core 63/37 solder in the .031"
size. This is an all-around great solder for circuit board work.
Crimp tool
If you're planning to assemble any hand-made connectors using
crimp-pin housings, a crimping tool is essential. See
Chapter 82, Crimp Pins for tool recommendations.
88. KL25Z Hardware Setup
The KL25Z comes fully assembled and ready to use. All you have to do
to get it working is plug it into your computer with a USB cable.
If you're going to connect any additional hardware to the KL25Z
(plunger, buttons, feedback devices), there is one bit of additional
hardware assembly you'll have to do. You'll need to install "pins"
for plugging in connectors to the other devices. They don't install
these at the factory; they just include empty solder pads where you
can install your own pin headers if you wish to.
The KL25Z will run happily without the headers installed, so you
don't have to do this right now. You can skip ahead to the
Chapter 89, software setup, and come back
here later, if you want to try out the board first.
The specific headers to buy (along with the mating connectors, known
as "crimp pin housings") are listed in the "KL25Z Microcontroller
(Standalone)" section in
Chapter 91, Electronic Parts List.
They look like this on their own:
The installation procedure is a little different depending on
whether you're using the KL25Z "standalone" or with the Pinscape
expansion boards. Continue to the appropriate section below.
Standalone KL25Z pin headers
If you're using the KL25Z without the Pinscape expansion
boards, the pin headers go on the top side of the KL25Z - the side
with the large CPU chip and the USB connectors. Here's how they look
when installed:
Important! Install the pins on the top as shown only for
standalone use, not for the expansion boards. The expansion
boards require the pins to be installed on the bottom side of the
board instead.
The pin headers are pretty easy to install:
- Fit the headers onto the solder pads with the shorter pins facing the board
- Seat the plastic base flat against the surface of board
- Solder the pins on the bottom side of the board
Be sure to solder
all of the pins. Some people ask if it's
okay to just solder a couple of the pins, since that makes a strong
enough mechanical connection. It's not; you really do have to solder
all of them. The solder is there for the electrical connection
between pins and pads, so each pin needs its own solder joint. See
Chapter 81, 0.1" Pin Headers for details.
The mating connectors in the parts list are "crimp pin housings". See
Chapter 82, Crimp Pins for help assembling them. These are ideal for
wiring to the KL25Z because they make it easy to connect each pin
individually to a separate piece of hookup wire. Each pin has its own
unique function - some pins are for button inputs, some are for
connecting a plunger sensor, some are for feedback outputs. The
individual wiring per pin makes them take a little work to assemble,
but it pays off in the long run because it lets you customize the
wiring exactly to fit your cabinet.
Warning on KL25Z GPIO pins
Never connect any output devices directly to the KL25Z. The KL25Z
GPIO pins have extremely low power handling limits:
Exceeding these limits can destroy the entire KL25Z, because the GPIO
pins are wired directly into CPU core. Applying higher voltage or
current levels can overheat the CPU chip and destroy the whole thing.
You
can directly wire button inputs to the KL25Z, as long as
you follow our wiring plans in
Chapter 110, Pinscape Button Inputs. You can also
connect any of the plunger sensor designed described in this guide, as
long as you follow our wiring plans.
The main thing that you should never connect directly is any sort of
feedback device - flasher LEDs, LED light strips, strobes, button
lamps, motors, solenoids, contactors, relays, etc. You always need
some sort of "booster" circuit with feedback devices. We provide
several options in
Chapter 49, Pinscape Outputs Setup (Standalone KL25Z).
How to approach wiring with the standalone KL25Z
You'll notice that the pins on the KL25Z are arranged into four
groups, for four separate connectors, so you might think it would be
nice to use these to group pins by function: one connector might have
all of the button inputs, say, and another might have all of the
feedback outputs. Believe me, that occurred to me as well.
Unfortunately, it really can't be done. The problem is that each pin
on the KL25Z has its own special-purpose capabilities, which means
that we can only use certain pins for certain functions. And these
capabilities aren't grouped very neatly in the KL25Z pin layout.
That's not something we can change through software, since a lot of
this is baked into the circuit design inside the KL25Z CPU. So the
Pinscape functions have to be scattered among the headers.
That's where the crimp pin headers are handy. They let you connect
each pin to its own hookup wire, so it doesn't really matter that
the functions aren't grouped.
Here's how I'd approach the KL25Z wiring:
- Don't worry about pre-assembling any of the housings. You can leave
any or all of the pin slots empty in a housing, and you can insert one
crimp pin at a time, so you can fill in the pin slots as you need
them. Start with all of the connectors empty. When you install a
button in your cab, add the wiring for the button with a hookup wire
leading back to the KL25Z, crimp a pin on the end of the wire, and
insert it in the housing in the appropriate slot.
- Treat the wires as permanently installed in the cabinet, but treat
the things connected to the wire as removable, so use pluggable
connectors at the ends of a wire. For the KL25Z, the crimp pin
connectors serve. At the other end:
- For buttons, use "quick connect" push-on terminals, if possible.
The SuzoHapp buttons use 1/4" (6.35mm) quick-connect terminals,
compatible with 1/4" female spade connectors.
- For connections to other circuit board (such as a
MOSFET booster for feedback outputs), use another similar pin
header and crimp pin wire housing on that end.
- For a plunger sensor, I recommend building a
Chapter 100, plunger sensor breakout board.
That will give you an easy way to plug in any of our plunger
sensor types using the standard plugs used on the expansion
board. You can alternatively hard-wire the sensor to the
KL25Z headers, but that breaks my rule about making everything
easily unpluggable, and it'll make things harder if you ever
need to remove the sensor for any reason.
KL25Z pin headers for the expansion boards
For use with the Pinscape expansion boards, the pin headers go on the
bottom side of the KL25Z. The bottom is the side with the
rubber feet, and without any chips. The chips and USB
connectors are all on the top side.
To install the pin headers:
- Fit them onto the solder pads with the shorter pins facing the board
- seat the plastic base flat against the surface of board
- and solder the pins on the opposite side of the board (in this case,
since we're installing the pins on the bottom side, the solder goes on
the top side)
89. KL25Z Software Setup
The KL25Z is a "microcontroller", which is basically a tiny computer.
Unlike a desktop computer, though, it doesn't require an operating
system in the usual sense. There's no equivalent of Windows or Linux
to install. Instead, you only have to install one thing: the Pinscape
firmware. That serves as both the operating system and the
application software. It controls all of the virtual pinball
functions of the KL25Z, including the sensors, buttons, and feedback
devices, and it handles communications with Windows.
In addition to the Pinscape firmware that runs on the KL25Z, there's a
separate Pinscape program that runs on your Windows PC, called the
Config Tool. This provides an interactive interface for setting up
the device, configuring it, and testing it. You don't need to leave
the Config Tool running all the time; it's only needed to set up the
device. You can also run it again at any time to change options,
update the firmware, or troubleshoot problems (it includes some
testing features that can help debug the hardware setup).
The software installation process is all controlled from the PC. The
Config Tool handles the KL25Z software setup, so the first step is to
install the Config Tool on your PC. You can download it here:
>
To install, download the ZIP file above and unpack it into a folder on
your hard disk. Use any location that's convenient. Open the folder
and double-click the "PinscapeConfigTool" application.
The config tool should automatically go out and find the latest
firmware version and download it for you. The firmware files are
fairly small (in the 100K byte range), so this should only take a few
seconds if you have a broadband Internet connection.
To install the firmware, click the link "Set up a new KL25Z" in the
config tool window. The program will lead you through the process of
setting up the device and installing the firmware.
If the Config Tool doesn't recognize your device at all, you might
need to manually install a new version of the KL25Z boot loader;
see
KL25Z Boot Loader update below.
If all goes well, you should see a Pinscape device listed when you get
back to the main menu screen. This will give you options to configure
settings and test the device's inputs.
You'll also see the LED on the KL25Z flash a status indicator pattern.
Alternating green/yellow or green/blue indicate healthy operation.
See
Chapter 90, KL25Z Status Lights for the full list of status light patterns.
KL25Z Boot Loader update
In the old days before about 2018, KL25Z's shipped from the factory
with a "boot loader" that didn't work with Windows 8 or 10. The boot
loader is the part of the device's software that lets you install new
software - such as Pinscape - onto the device, so it's a pretty
critical component. More recent versions of the KL25Z have a newer
version of the boot loader that does work properly with Windows 8 and
10, so if you bought your KL25Z any time after 2018 or so, you
probably won't have to worry about this. But just in case you happen
to have found a vendor selling dusty old stock from the back of the
warehouse, I wanted to mention this.
In most cases, the Pinscape Config Tool will automatically test the
boot loader version when you use the Set up a new KL25Z
procedure described above, and walk you through the update process if
it's necessary. If you were able to go through that procedure
successfully, you can skip the rest of this section. But if the
Config Tool didn't recognize your device when you tried to set it up,
you might need to refresh the boot loader manually. The procedure
is below.
However, there's an important and rather obnoxious catch-22 you need
to know about first: This procedure might only work on Windows
versions 7 and earlier. It might not work on Windows 8 or 10. Old
versions of the factory firmware had a bug that made them incompatible
with 8 and 10. This is the obnoxious catch-22: you need the boot
loader to update the boot loader, so if you have the old
version that doesn't work on your Win 8/10 machine, you can't use it
to install the new version that does work on Win 8/10. There are some
complex workarounds that people have found, such as running Windows 7
in a virtual machine box. You can find that information in a Web
search, but I'm not going to reproduce it here, because it's very
complex and tedious, and no one should need it any more. If you just
bought a KL25Z, and find that it doesn't work with your Windows 8/10
machine (and you don't have an old Win 7 machine lying around), I'm
going to suggest that you send back the KL25Z as defective, and ask
the seller to send you a fresher one that was manufactured in 2019 or
later.
And again, if the Config Tool recognized your device and you were
able to go through the Set up a new KL25Z procedure successfully,
you don't need to worry about this procedure.
Finally, this is a one-time procedure that you should never
have to do again for this particular KL25Z. It's not necessary to
repeat this when updating Pinscape versions.
Here's the procedure:
- In your Web browser, go to pemicro.com/opensda/
- Find the section OpenSDA Firmware (MSD & Debug).
Click on the Firmware Apps link. You'll be asked to create a free account or to
provide your email address to receive a download link. Choose the option you prefer
and download the file.
- Unzip the downloaded file to a local folder on your hard disk.
- Unplug all USB cables from your KL25Z. If you have any other KL25Z cards
already installed, unplug all of those as well.
- Open the My Computer window on your Windows desktop, so that you can view
attached disk drives.
-
Press and hold the KL25Z reset button.
- Keep holding the reset button while you plug a USB cable into the
programming port on the KL25Z, and plug the other end into a USB port
on your computer.
- Release the reset button.
- You should see a new thumb drive icon appear in the My Computer window,
with a name like BOOTLOADERAPP. This represents the KL25Z's programming port.
(The name might be different depending on the old boot loader version. As long as a new
drive appeared when you plugged in the USB port, that should be the right one, no matter
what it's called.)
- In the PEMicro software you downloaded above, find the file
BOOTUPDATEAPP_Pemicro_v111.SDA. (The digits at the end are the
version number, so they can vary.)
- Drag and drop that file onto the KL25Z thumb drive.
- Wait for Windows to finish copying the file, then unplug the KL25Z.
- We're now going to repeat the steps above with a different .SDA file. As
before, press and hold the reset button on the KL25Z, and plug in a USB cable
between the KL25Z programming port and your computer. Release the reset button.
In the downloaded files, find MSD-DEBUG-FRDM-KL25Z_Pemicro_v114.SDA, and
drag it onto the thumb drive. (As before, the digits at the end might vary.)
Unplug the USB cable after Windows finishes copying the file.
- To confirm that everything worked, reconnect the KL25Z programming port
to your PC without pressing the reset button. The thumb drive should
appear again, but it should now be titled FRDM-KL25Z. You should also
see a steady (non-blinking) green LED on the card while it's plugged in.
- If any of this doesn't match what you see, the update might not have
worked. If you attempted the upgrade from Windows 8 or higher, that's probably
the problem. The old (pre-2018) factory firmware is incompatible with Windows 8-10
and will fail silently and mysteriously, with no error messages, if you're on Win 8-10.
If you did the update from Windows 7 or earlier and it still didn't work, it's
possible that the procedures have changed since this writing. Try looking
for instructions (.txt and/or .pdf files) in the files you downloaded
from PEMicro, to see if there's any information on new procedures.
- If all went as expected, your KL25Z is now ready to use. With the
updated firmware in place, the device should now work on all versions
of Windows from XP to 10 and hopefully beyond.
Software updates
I update the Pinscape firmware periodically to fix bugs and add new
features. I always try to maintain compatibility with existing
installations when making changes, so you can generally update to the
latest no matter which version you started with. However, it's
completely up to you whether or not you want to keep up to date with
the latest changes. There's something to be said for not messing with
a working system, but it's also nice to have the latest bug fixes and
features.
The Config Tool automatically checks for updates (unless you tell it
not to) each time you run it, but it doesn't install them on its own.
You have to tell it to install updates. So your firmware will never
mysteriously change when you're not expecting it.
You can download the latest versions and archived versions of the
firmware and Config Tool at the Pinscape web site:
>
KL25Z USB ports
The KL25Z features two USB ports. They're not interchangeable - each
port has a specific function.
You don't have to memorize which port is which. The ports are labeled
in tiny text on the bottom side of the board. Just flip the board
over and look for the labels if you're ever in doubt.
The "KL25Z port" is the one that Pinscape uses for all of its joystick
emulation, keyboard emulation, and LedWiz emulation functions. This
port must always be plugged in during normal operation.
The "OpenSDA port" is the "programming" port. It doesn't actually
connect to the microcontroller proper; it's connected to a separate
processor on the board that's just there to handle firmware downloads.
This port is only needed when you want to update the firmware, so you
don't have to leave it plugged in all the time. But you can; it
doesn't interfere with normal operations. I find it more convenient
to leave it plugged in all the time, especially in a pin cab setting
where you'd have to open up the cabinet to plug it in manually.
The OpenSDA port emulates a USB thumb drive, so you'll see a virtual
hard disk (usually called "KL25Z") appear on your Windows desktop
whenever the cable to this port is plugged in. This isn't a true disk
drive, so don't copy random files there - doing so can mess up the
Pinscape firmware. This virtual drive's only function is to program
the KL25Z's flash memory with new firmware.
90. KL25Z Status Lights
The Pinscape firmware blinks the LED on the KL25Z to indicate its
system status. This is a quick way to check if the Pinscape software
is operating normally (or, at least, to check if the software
thinks it's operating normally, which might not always be the
same thing!). If you suspect that something's wrong, or you're not
seeing expected input on the PC, the LED lets you check at a glance
what the Pinscape software thinks about its current health.
Here are the various flashing patterns you might see and what they
mean:
- Long blue/green lights, alternating about every second:
normal healthy operation.
- Long yellow/green lights, alternating about every second:
normal healthy operation. The device has a good USB connection and
is running normally. However, the plunger hasn't been calibrated
yet, so you should run the plunger calibration process to finish
device setup.
- Short yellow flashes, every couple of seconds: the device
has just restarted and is trying to connect to the PC via USB.
- Two short red flashes in rapid succession every couple
of seconds: the USB connection to the PC was broken. This can happen
if the USB cable is physically unplugged or the connection is
broken at a software level. Software disconnections can happen due
to software errors, and can also happen if the Windows USB drivers
intentionally disconnect.
- Long red/yellow lights, alternating: USB data transmission
problems are occurring. The device still has a connection to the
PC (or so it appears to the device), but the PC isn't acknowledging
transmissions. The device will try to restore the connection
automatically when this occurs, so this condition is usually
short-lived; the device will usually either return to normal within
a few seconds or will reboot itself to try to reset the connection.
- Medium blue flash, about half a second each: the TV ON
delay timer is running. This means that the power to the secondary
PSU has just been turned on, and the TV ON timer is waiting for the
configured delay time before turning on the TVs. You'll only see
this if the TV ON feature is enabled.
- Fast red/purple, alternating: the device is out of memory.
This means that the programmed configuration is too complex. The
KL25Z has a limited amount of memory, and each feature enabled in the
configuration consumes some of that. It's possible in principle to
exceed available memory by enabling too many features simultaneously.
This error should only occur immediately after a reboot, since
the software allocates all memory up-front during startup and uses a
fixed memory configuration from that point on. So you'll never see
this happen spontaneously because of something you're doing during a
pinball game session, for example. And at the moment, it really
shouldn't be possible to trigger this condition at all with any
real-world configuration. But you can do it by deliberately
maxing out every possible configuration option. If you do
happen to trigger this error, it will keep happening again
every time you reboot, since it's a function of the saved
configuration. The only way to clear it is to reset to the default
configuration by reinstalling a fresh copy of the Pinscape software.
Re-purposing the LED for feedback output
The status indicator LED on the KL25Z is connected to GPIO ports
(three of them - one each for the LED's red, green, and blue channel),
which means that it's under the control of the Pinscape software
program. That much is probably obvious given that the software uses
the LED to display the status light patterns listed above. But it
also means that you can assign the LED elements as feedback device
outputs. The Config tool lets you assign the GPIO pins associated
with the LED to DOF output ports, exactly like any other GPIO pins,
in the Outputs list on the Setting page.
If you do assign an LED element as a DOF-controlled output port, the
Pinscape software will cede the LED port to your control, and won't
try to use it as a status light. That means that the
flash patterns listed above won't appear if you take over the LED for
output port use. Obviously, the LED can't serve two masters, so the
Pinscape software gives precedence to your settings.
Why would you want to use the LED as a feedback device? The main use
case I see is testing. If you want to test a new DOF
configuration on your PC, for example, and you haven't set up any
external feedback devices yet, the on-board LED could be used for a
quick test that DOF signals are getting through to the KL25Z.
Finally, I'll point out a couple of odd quirks to the way the LED is wired on
the KL25Z.
The first quirk is that the LED channels are wired in "active low"
fashion, meaning that each LED color turns on when the voltage
on its GPIO pin is off. When setting up the LED elements as
outputs in the Config Tool, just be sure to enable the "Active Low"
option for each port. If the LED shows the opposite of what you want
(the LED is on when you want it off, off when it should be on), you
probably just need to go set the Active Low option.
The second quirk is way the LED connections are wired. The red and
green LED elements are wired to GPIO ports (PTB18 and PTB19,
respectively), but this is all purely internal within the KL25Z
circuit board: they're not wired to any external pins. Strangely,
though, the blue LED element (PTD1) is wired to an external
pin. So you can use port PTD1 to control something wired externally
in addition to controlling the blue LED element. I don't recommend
doing that, since it's pretty confusing to think about, but if you
were in a pinch and absolutely needed one more external GPIO pin for
some external control circuit, it would work. The blue LED would just
be sort of dragged along with whatever you were doing with the
external port, so you'd have to put up with the blue LED turning on
and off in concert with the external circuit.
Using PTD1 for button input
The blue segment of the status LED is wired to GPIO port PTD1, which
is also wired to one of the pins on the KL25Z's main pin headers (J2
pin 12; see
Appendix 1, KL25Z Pin Out). The pin header wiring means
that you can use PTD1 for other purposes besides controlling the blue
LED - but if you do, it requires some special handling, because the
blue LED connection is hard-wired on the board and can't be changed
in software.
(The red and green segments are also wired to GPIO ports internally,
but they don't have any pin header wiring, so there's no way to use
those ports for anything other than the LED connections.)
You can use PTD1 as a feedback device output port simply by assigning
it in the config tool. Assigning it as a feedback output will prevent
the Pinscape firmware from using it as part of the status indication.
However, it doesn't change the internal hard-wiring between PTD1 and
the blue LED, so the blue LED will now turn on and off in sync with
any external feedback device you wire there. (Actually, in sync, but
opposite: remember that the LED uses "active low" wiring, so the blue
LED will turn ON when the output port is OFF, and vice versa.)
You can also use PTD1 as a button input, again, simply by assigning it
as a button input in the Config Tool. With this use, the blue LED
segment will stop acting as part of the Pinscape status indicator;
instead, it'll just light up whenever you press the button.
If you do use the PTD1 header pin for one of these uses, and it
bothers you that the blue LED is affected by the port status, you can
physically modify the KL25Z to sever the connection to the LED. The
procedure is described in
Appendix 1, KL25Z Pin Out. Be aware that
severing the blue LED connection will change the Pinscape status light
patterns accordingly, since the Pinscape firmware won't be able to
light up the blue LED any longer.
OpenSDA status LED
There's a second status LED on the KL25Z: a smaller monochrome green
LED, close to the USB connectors. This one shows the OpenSDA
(firmware loader) status:
- Solid green means "OK" - the OpenSDA port is connected and the
boot loader is awaiting commands
- Slow flashing means that a firmware update is in progress
- Rapid flashing means that an error has occurred
If rapid flashing appears, indicating an error, you can clear it by
unplugging both USB cables, waiting a couple of seconds, and then
plugging the cables back in. That should reset the device and
return the status indicator to solid green. Once an error condition
appears, it stays there until you clear it manually.
If you see an error indicator, it's not due to anything you did wrong.
It's just random bugs in the KL25Z boot loader, as far as I can tell.
That part of the software comes from the KL25Z's manufacturer, so it's
not something I can easily fix. An error condition on the OpenSDA
side won't affect normal Pinscape operations, so you can ignore the
little green LED most of the time. It only matters when you're trying
to update the Pinscape firmware.
91. Electronic Parts List
This section lists all of the electronics needed for each Pinscape
Controller subsystem.
The ID column lists the "reference designator" for each component as
it appears in the schematics. That's just an arbitrary ID assigned
for cross-referencing between the schematic and the parts list. Each
ID is unique within its board, but has no meaning outside of that.
These same IDs are also printed on the circuit boards next to the
parts, so that you can match up the physical components on the boards
to schematics and the parts list.
Note that the parts lists don't include any of the custom PCBs (printed circuit
boards), such as the expansion boards. These have to be custom
fabricated, which is of course a different process than ordering off-the-shelf
parts. We explain how to do get these made in
Chapter 93, Fabricating the Expansion Boards.
Optional elements
The parts lists below reflect the "default" configurations for the
expansion boards. There are some variations possible in how you build
the boards, though, including some things you can just leave out if
you don't need them. The list itself has a lot of footnotes that
describe alternate parts or mention when something is optional, so you
pay attention to the notes while building out your shopping cart.
In addition, you might want to read through "Optional elements" in
Chapter 94, Building the Expansion Boards. That section
explains how you can omit some of the features entirely, which for the
most part is a simple matter of not installing the parts involved in
the feature. That can save you a little time and effort for functions
you don't need, and you can save on the parts cost by omitting the
unnecessary items from your shopping cart.
Warning on TLC5940NT
The TLC5940NT chip, which is central to the design of the Main Board
and Power Board, is no longer in production. That means that you can't
buy it from mainstream electronics suppliers like Mouser and
DigiKey. However, the chip is still available from sellers on
eBay and Aliexpress. There seems to be an ongoing bottomless supply
of the chip on those venues, which is both good news and bad news.
The good news is that it means we can still build these boards, and
apparently will be able to do so for the foreseeable future. The bad
news is that the only way these chips can still be coming to market
after being discontinued for so long is that someone is making
unauthorized gray-market knockoffs. Chip counterfeiters aren't known for
holding themselves to the highest quality standards. Indeed, reports on the
forums suggest that the Dead-On-Arrival rate for these chips is quite
high lately. There's not much you can do about it other than take
your chances and hope you get a good batch. The only consolation is
that the chips are pretty cheap, so the financial loss isn't huge if
you do get a bad batch. But the cost in your time for the soldering
and desoldering could be huge if you don't use sockets - please do use
sockets for these chips so that it's easy to swap them out if
necessary.
If you use the Shopping List tool below to generate an order list to
upload to Mouser, the tool will show a warning that the list doesn't
include the TLC5940NT, to remind you that you'll have to order
those separately.
I would have redesigned the boards around an in-production substitute
chip a long time ago if such a thing existed, but alas, there simply
are no similar chips available. Every similar chip that's currently
in production is in what's known as SMD (surface-mount device)
packaging, which is designed for robotic assembly and is difficult to
solder by hand. I deliberately designed entirely around parts that
can be soldered by hand, since one of the main goals of these boards
is that you can build them yourself. So we're stuck with the
gray-market TLC5940NT.
Substitutions
The lists below provide specific manufacturer part numbers for
all components, with
Mouser.com
links to the parts.
These are reference parts only, not requirements. It's
perfectly fine to buy the exact parts listed, but it's also perfectly
fine to substitute equivalent parts wherever you wish. The main
reason we list specific parts is to save you time shopping. There are
so many options available for some of the parts that it can take quite
a while to narrow the selection based on the specs alone.
If you have any trouble finding the specific part numbers listed,
or they're out of stock at your preferred vendor, you should be able
to find substitutes for most of the parts. And if you're in a shopping
mood, you might be able to find cheaper alternatives. We've tried
to select the cheapest suitable option in each case, but prices of
course vary over time and at different vendors.
Here are some guidelines for selecting substitutions:
- In all cases, make sure that the physical package is compatible.
Make sure the pin or lead wire layout matches, and check the size to
make sure the replacement isn't too big to fit the space on the board.
Physically smaller parts are usually okay; bigger parts might not fit.
- Resistors with the same resistance (Ohms) value are usually
interchangeable. However, if there's also a wattage rating listed,
you must use a part with the specified wattage rating or higher. If
no wattage is listed in the table, you can assume a default of
1/4W. (Most through-hole resistors are 1/4W or higher anyway,
which is why we don't bother mentioning the wattage in those cases.)
- Capacitors with the same capacitance (µF or nF) value
and the same type ("electrolytic" or "ceramic") are usually
interchangeable. "Ceramic" and "disc" capacitors are the same type.
Tantalum capacitors are not interchangeable with ceramic/disk,
even if they have the same capacitance value.
- The NPN and PNP transistors we use can be replaced with most other
"small signal switching" transistors. The polarity (NPN or PNP) must
always match. Pay attention to the ordering of the "legs", since
that can be different even if the physical package looks identical.
- IC chips usually need to be the exact parts listed. In some cases,
though, several manufacturers make compatible equivalents. These will
generally have the same number with a different letter prefix. For
example, there are equivalent xx847 optocoupler chips from several
manufacturers, with names like PC847, K847, LTV-847.
Ribbon cables
Some of the connections to and between the expansion boards are most
easily handled with "ribbon cables". These are the type of flat,
multi-conductor cables that you see inside PCs to connect some of the
internal components together.
The places I recommend ribbon cables are:
- The connection between the main board and power board (main board
"PWM OUT" to power board "PWM IN")
- The connection between the main board and the chime board ("Chime Out"
to "Chime In")
- The connection between the main board and the plunger sensor
- The connection from the main board to your flasher LEDs
Ribbon cabling isn't an absolute requirement for any of these, but I'd
recommended it over other options (especially crimp housings), because
it's cheaper and easier, and it makes cleaner data connections.
You can buy pre-assembled ribbon cables, but it's hard to find them
for anything other than the most common sizes used in PCs.
Fortunately, it's fairly easy to build your own. That's cheaper than
buying pre-made cables, and it lets you build the exact length you need
and with the number of conductors you need.
The parts list assumes that you're going to be building your own
custom ribbon cables where needed. As such, it lists the
connectors needed at the end of each required ribbon cable.
However, it doesn't list the wire. The wire is a generic
part that you can find anywhere, and you'll want to figure out what
length you need, so we leave it up to you to select the wire.
Shopping list builder
The list below is formatted for printing. Click the button for
a more interactive view that will let you select parts, fill
in quantities, and create an ordering list that you can upload
to different vendor sites to fill in your shopping cart without
having to find everything manually.
>
Create a shopping list
To save you some time, this page can partially automate the
process of ordering components from some of the popular vendors.
Step 1. Start by selecting the subsystems you want to
include in your order. Check the box next to each subsystem
you want to include, and adjust the quantities as necessary.
You can adjust individual line item quantities as well if desired.
Please take note of items marked as "Alternate" in the Notes column.
These components have multiple options, so you'll want to review these
and choose the option(s) you want. There are notes for each of these
explaining the options and how to choose.
After you've selected parts and quantities, click a button below for
instructions on ordering from your preferred vendor.
>
Step 2. We're now going to create a BOM (Bill of Materials) at
Mouser based on the parts you've selected. A BOM is basically a saved
shopping cart, and the nice part is that we can create it by uploading
the data in the text box below rather than finding each part by hand.
- Go to mouser.com/bomtool
- Click Import a new BOM
- Log in. If you don't already have a Mouser account, create one now.
- You should now be on the BOM import page. Look for the "Copy/Paste Import" option.
Click the "click here" button in that section. That should display a big text entry box.
- Copy all of the text in the box below and paste it into text box on the Mouser page.
- Click the Import BOM button on the Mouser page
- Mouser will now lead you through several steps. You can use the defaults on each
step - just keep clicking Continue. The last step takes a couple of
minutes because this is where the server looks up all of the parts in its database.
After you get through all of the steps, Mouser should show you the complete BOM as
a list of parts with descriptions, quantities, and prices. You can now place your
order by clicking the Order All button at the bottom. This will copy
everything in the BOM to the regular shopping cart. Go through the checkout
process to complete the purchase.
>
Step 2. The list below shows the parts you'll need. You can use
equivalent parts from other manufacturers if you prefer; the manufacturer
part numbers are just shown for reference purposes, to make it easier to look
up the specs on each part.
>
>
Step 3. The following parts aren't available from Mouser
or the other major vendors. You'll have to order them separately.
>
>
KL25Z Microcontroller (Standalone)
>
Main Board (KL25Z Interface)
>
>
>
Plunger Sensor (TSL1410R linear photo sensor array)
Note: The TSL1410/12 sensors were discontinued by the manufacturer
in 2016 and are no longer available anywhere that I'm aware of. This
section is therefore of historical interest only. I'm keeping it in the
guide for the sake of completeness, and on the off chance that someone
discovers a dusty old carton full of unsold TSL1410's buried at the back
of a shelf in a warehouse somewhere, and puts them up for sale on eBay,
or the even more remote chance that the manufacturer does another run
at some point. But for now, I'm sorry to say that these devices can't
be bought at any price, so new cabinet builders will have to look to
the other plunger sensor options instead.
>
Plunger Sensor (Potentiometer)
>
Plunger Sensor (AEDR-8300 optical encoder)
>
Plunger Sensor (TCD1103 linear image sensor)
Plunger Calibration Button (Standalone)
>
Plunger Calibration Button (Expansion Boards)
>
Williams Coin Door 13-pin Connector Board - version 2
Williams Coin Door 13-pin Connector Board - version 1
>
92. European Transistor Substitutions
If you're in Europe, you might find it convenient and cost-saving
to use different transistors from the ones specified in the parts
list.
The expansion boards use two types of transistors, which are known by
their part numbers, 2N4401 and 2N4403. We chose these because they're
inexpensive and easy to find in the US. There's nothing else
particularly special about them; we use them for simple logic
switching, which is a job that many other similar transistors can
perform equally well.
If you're in Europe, the 2N440x series is reportedly hard to find, and
importing them from the US is expensive in terms of postage and
customs fees. Fortunately, these parts have equivalents that are
readily available in Europe:
- 2N4401 → BC337
- 2N4403 → BC327
You can simply make these substitutions everywhere you see the 2N440x
parts on the circuit boards. Be sure to replace each 2N440x with the
corresponding BC3xx device as shown above, since these are
complementary pairs (NPN and PNP).
Attention! Reversed Leads!
If you do make these substitutions, there's a really important
detail: the order of the leads is reversed on the BC3xx versus the
2N440x. This isn't a big problem, though. If you use the BC3xx
parts, simply rotate the device 180 degrees from the 2N440x part
orientation. That'll put the leads in the right order for the board
wiring.
But there's yet another complication! It's a complication that's
designed to make your life easier, but it's still something to
be aware of.
There are EU versions of the expansion boards that are marked
properly for the BC3xx parts parts. These are electrically
identical to the US boards, but the silkscreen printing on the
board is drawn for the BC3xx parts. If you have the EU boards and
you're using the BC3xx parts, the orientation marker on the board is
already correct, so you don't have to rotate the parts from what's
shown on the board.
If you're not sure if you have US or EU boards, check the tiny text
printed inside the transistor outlines on the board. This will tell
you the type of transistor that the board is marked for - it will show
either "2N440x" or "BC3xx". The text really is tiny, so you might
need a magnifying glass.
If you see 2N440x printed there, you have a US board, so
you'll need to rotate your BC3xx parts 180° from the
outline printed on the board.
If you see BC3xx printed on the board, you have an EU board,
so simply install the BC3xx exactly as shown on the board.
93. Fabricating the Expansion Boards
The Pinscape expansion boards were designed using a software package
called
EAGLE,
from
Autodesk. One of the
things EAGLE can do is to convert a circuit plan into a set of
Computer Aided Manufacturing files that you can upload to a PCB
manufacturer to have a physical board made from the plans.
This section explains how to do that, so that you can have your own
copies of the Pinscape boards made by a PCB maker.
You can also use this process to create custom versions of the
Pinscape boards with any modifications you want to make. The Pinscape
EAGLE files are all open-source, meaning you're free to customize them
as needed, and free to manufacture your own versions. EAGLE itself is
available in a free hobbyist version; see the Autodesk site for
downloads. (The free version of EAGLE has some limitations; if you
need a less restricted version, Autodesk sells EAGLE on a monthly
subscription basis, so you can use it for a small job without a huge
investment.)
Where to download the board plans
The EAGLE plans for the Pinscape boards are available here:
>
That page may show multiple versions. I'd recommend downloading the
latest "Release" version listed, unless you have a reason to use one
of the older releases. The "latest working snapshot" version reflects
work in progress, so it might have changes that haven't been finalized
or tested yet. It's usually better to use a version specifically
identified as a release version.
EAGLE files in the downloads
In the board plan downloads, you'll find two main EAGLE file types:
- .sch files are the schematics for the boards. A schematic is
an abstract circuit plan showing the components and their connections,
without any information on how they're physically arranged on a board.
- .brd files represent the physical layouts for the printed
circuit boards, showing how the parts are arranged, where all the
holes are drilled, and how the copper traces on the board are laid
out.
The .sch and .brd files are always paired. When you open one of the
other type of file in EAGLE, it will look for the counterpart and open
it as well, to keep the two in sync.
Other files in the downloads
- BOM.csv files are spreadsheets (in comma-separated value or
CSV format) with the "Bill of Materials" for the boards. These were
geneated by EAGLE from the schematics to list all of the parts used in
the schematics. These can be useful for uploading to a vendor like
Mouser or DigiKey to order the parts needed to populate the board.
(These can also be used with PCB manufacturers who can assemble the
complete boards, but don't get your hopes up that you'll be able to
get a PCB maker to assemble the boards for, as this service is
prohibitively expensive unless you're ordering large quantities of the
boards.) You can open these files in a spreadsheet program like Excel.
This is only for reference; to place an order, it's better to use
the Chapter 91, Electronic Parts List in this guide.
- MouserCart.csv is another CSV file that contains a version
of the parts list in the Mouser shopping cart export format.
This is only for reference; to place an order, it's better to use
the Chapter 91, Electronic Parts List in this guide.
- Schematic.pdf contains a print-out of the schematics in
PDF format, for viewing in Adobe Acrobat or a Web browser. These
are provided in case you want to look at the schematics without
bothering to install EAGLE.
- Layout snapshot.jpg contains a JPG screen image of the board
layout from EAGLE, so that you can view these without installing
EAGLE.
- Gerbers (Elecrow).zip contains the Gerber files (see below)
generated for Elecrow.com, which is the manufacturer I've been using
to make copies of the boards. See below for an explanation of what
the Gerber files are. You can use these files to place your own order
from Elecrow without going through the whole Gerber generation
process. You probably can't use these with any other vendor, since
each vendor has its own design rules that you should use to generate
a new set of Gerbers specific to your chosen vendor.
Selecting a vendor
There's a nice online tool for selecting a PCB manufacturer for
a project:
>
If you want to shop around for the best price, go there and plug
in the appropriate parameters for the Pinscape boards:
- 10x10 cm (be sure to select centimeters, not inches)
- 2 layers
- Any mask color you like (it makes no functional difference)
- Top silkscreen (two-sided is not required)
- Cheapest surface finish
- Cheapest board thickness, usually 1.6mm
- Cheapest copper weight, usually 1 oz
- Minimum trace width 6 mm
- Minimum drill 16 mil
- No stencil required
- No quality certifications required
- 1 design
For quantity, the most common minimum order size is 10 copies, but
some go as low as 5 copies. You can try pricing with 5 and 10 copies
to check options. It might be cheaper to order 10 copies than 5,
paradoxically, so I'd try both options even if you don't actually need
10 copies.
For any of the options you're not sure about, you can just leave them
with the default settings. The Pinscape boards don't have any unusual
requirements. The default options offered by most manufacturers will
work just fine.
Recommendations
I've used
Elecrow for most of my
PCB orders. Elecrow is a Chinese electronics e-tailer with a decent
Web site and good prices on PCB manufacturing in small quantities for
hobbyists. The board quality for my orders has been consistently
good. I've heard from a couple of other people who weren't entirely
happy with Elecrow's quality, although their complaints weren't about
severe problems, just that the manufacturing precision wasn't up to
their expectations. So far I've been satisfied that Elecrow's product
is precise enough for the Pinscape boards (which aren't extremely dense
by modern standards).
There are numerous other Chinese manufacturers with prices and
capabilities similar to Elecrow's. There seems to be a large enough
hobbyist market that many vendors offer small-quantity production at
low prices. There are also some American and European fabricators.
The prices at the Chinese companies are much lower than their Western
counterparts, although shipping prices from China are quite high; in
most of my Elecrow orders, the shipping charges have been on par with
or even higher than the manufacturing cost. You should also take into
account any import duties you'll have to pay in your country. (If
you're in the United States, you don't have to pay any import duties
on goods received below $200 per day.) If you can find a domestic
company, you might save enough on shipping and duty charges to make up
for the higher PCB prices.
One American company I'll call out specifically is
OSH Park. They make it extremely
easy to order, by letting you upload an EAGLE .brd file directly,
without going through the Gerber generation process described below.
They have great, fast service, free shipping, and a minimum order size
of only 3 copies of a board design. They're fantastic for prototyping
small boards. The downside is that they're quite expensive for larger
boards like the Pinscape expansion boards. I'd highly recommend them
for tiny boards, such as the sensor board for the
Chapter 104, AEDR-8300 plunger - that only costs about $5 to
make at OSH Park, including shipping.
PCB ordering process
Once you've selected a vendor, you can follow the basic process below
to order copies of the Pinscape PCBs. There might be some variations
at different vendors, so be sure to read your chosen vendor's
instructions as well.
- Select the PCB manufacturing options
- 10x10 cm (be sure to select centimeters, not inches)
- 2 layers
- Any mask color you like (it makes no functional difference)
- Cheapest surface finish
- Board thickness 1.6mm, or cheapest
- Copper weight 1 oz, or any higher value if it's cheaper (but don't go below 1 oz)
- No stencil required
- Upload the design files that the vendor requires:
- If you're using Elecrow, you can upload the appropriate xxx Gerber (Elecrow).zip
files from the Pinscape downloads. Elecrow wants you to upload the .zip file itself,
so there's no need to unpack it on your system.
- If you're using a vendor other than Elecrow, and they require Gerber
format files, generate a set of Gerbers as described below and upload
those. Most vendors will want you to combine all of the Gerber output
files into a single .zip file before uploading.
- If your vendor accepts EAGLE .brd files, simply upload the appropriate
.brd file from the Pinscape downloads.
Note! For the Expansion Boards only, you might want to upload Gerber files,
generated using the procedure below, even if your vendor accepts .brd files
directly. The reason is that the Expansion Boards have some custom printing
layers for the silkscreen (which controls the white text printed on the board,
showing the part names and outlines and so forth), which the PCB vendor
probably won't include by default if you just give them the .brd files.
Those extra printing layers are purely cosmetic, so the boards will still
function the same way without them, but it might be harder to figure out
which parts go where without the extra guide markings.
This only applies to the expansion boards; I don't think any of my other board
designs (such as the plunger interface boards)
have any special printing layers, so those should all be fine to upload as .brd files.
- Place the order!
Generating vendor-specific Gerbers
Most PCB manufacturers require you to submit the plans using a file
format known as Gerber files. These files describe the various
elements that go into manufacturing the boards, such as the placement
of the drill holes, copper traces, and silkscreen markings.
The thing that's a little tricky about Gerber files is that they
contain manufacturer-specific information. That means that the Gerber
files have to be created specially for each manufacturer. That's why
the Gerber files included in the Pinscape downloads are specifically
labeled as Elecrow Gerbers: these are the Gerbers I use to submit
orders to Elecrow, and they're only for Elecrow.
Fortunately, EAGLE provides an automated to generate the Gerber files
for a given PCB maker. EAGLE's .sch and .brd files are universal, so
we do all of our design work in that format so that it can be used
with any PCB maker. When it comes time to actually manufacture the
boards, we pick our PCB maker, and then use EAGLE's generator process
to convert the .brd file into a Gerber specifically for our chosen
manufacturer.
Here's the procedure:
- Download EAGLE.
Autodesk offers a free hobbyist version that you can use for this process.
- Choose your PCB maker.
- On your PCB maker's Web site, read their instructions for submitting
orders. As part of this, they should provide an EAGLE .cam
file that you can download. Do so. The .cam file is the key
to generating the Gerbers. Some vendors have multiple .cam files for
different board types, such as 2-layer or 4-layer boards; if you're
offered such a choice, use the 2-layer option for the Pinscape boards.
- Open the appropriate Pinscape .brd file in EAGLE.
- In the EAGLE board editor window, go to the menu and select
File > CAM Processor.
- In the CAM Processor dialog, go to the menu within the dialog
window and select File > Open > Job.
- Select the .cam file that you downloaded from your PCB vendor site
and click Open.
- Find the "Silk Top" tab and select it. In the Layer list on the
right, make sure that layers 200 and 201 are selected. These are
the layers containing the snazzy Pinscape logo.
- Also in the "Silk Top" tab, select either layer 100, US-Transistor,
or layer 101, EU-Transistor, according to whether you want
to use the US or European transistor option. If you're using the
standard parts list, the correct option is layer 100. Layer 101
is only if you want to use the European substitute parts for the
small signal transistors; see Chapter 92, European Transistor Substitutions for details.
(This choice doesn't affect anything about the actual electronics,
so you can't screw things up too badly here. It only affects the
printed orientation guide markings for the transistors. The
European transistor substitutes have their legs arranged in
the reverse order of the US versions, so they have to be installed
"backwards". We offer the two marking options so that you can
use the markings that match your choice of parts, to make it easier
to insert them the right way when assembling the boards.)
- Click the Process Job button at the bottom.
- Close the dialog and exit EAGLE.
- In the folder containing the .brd file, you'll find a bunch of new
files with the same name as the .brd file but with different
extensions, including some or all of the following: .GBL, .GPI, .GTL,
.GTO, .DRI, .GBO, .GBP, .GBS, .GML, .GTP, .GTS, .TXT. There might
be some others as well - the exact set of files you get will depend
on your manufacturer. Sorry I can't just give you a list, but it
varies by PCB maker! The other obnoxious thing here is that EAGLE
just dumps these files into your .brd folder rather than grouping
them somewhere else. So the easiest way to identify the files is
by "Modified Date" in the Windows Explorer listing. Open the
folder in Windows Explorer, switch to the Details view, and select
Sort by > Date Modified. You should now see all of the new files
grouped together at the top of the listing, all with Modified dates
moments ago. These are the Gerber files we've been talking about!
- Once you've identified the collection of new files, create a
.ZIP file and add all of the new Gerber files to the ZIP.
- You're done! The .ZIP file is what most PCB vendors will want
you to upload.
Note that it's a good idea to read fully through your PCB maker's
instructions for submitting orders to make sure there aren't any extra
steps they require that we've left out. You should also check to see
if your PCB maker accepts .brd files directly: if so, you should be
able to skip this whole Gerberfication process and just upload the
.brd file.
Checking that your vendor can make the boards properly
If you want to double-check that your chosen vendor has the necessary
manufacturing capabilities to make a working set of Pinscape boards,
EAGLE provides another automated process that can help. It's known as
a "design rules check". Your vendor can provide you with a special
file, known as a Design Rules or DRU file, that specifies their
manufacturing limits, such as the thinnest copper trace width, minimum
spacing between traces, and smallest drill hole. EAGLE can read this
file and check it against the board layout, to make sure that the
board layout is within the tolerances and limits that the manufacturer
specifies. If EAGLE finds any problems, it'll show you warning
messages explaining what's wrong. These warnings indicate places
where the board design might not turn out correctly in the
manufacturing process. Every vendor has their own limits, so these
checks have to be made on a vendor-by-vendor basis.
It's up to you whether or not you want to go to the extra trouble of
running the design check. I personally would do it when working with
a new manufacturer, but only because I'm meticulous about these
things. I don't actually think it's that important to run separate
tests for each vendor, because the Pinscape boards are pretty low-tech
by modern standards. All of the manufacturers I've looked at have
better tolerances than are required for the Pinscape boards. Most
people making PCBs today are using very high densities with tiny
little surface-mounted parts that are intended to be assembled by
robots. The Pinscape boards intentionally use larger "through-hole"
parts (the type with leads and pins that get inserted into holes in
the board) to make them easier for us hobbyists to assemble by hand.
The PCB makers all use processes that accommodate those denser
surface-mount boards, so the Pinscape boards shouldn't faze any of
them.
If you do want to run the validation process, it's similar to
the Gerber generation process described earlier:
- Find the EAGLE .DRU ("design rules") file on your PCB vendor's site.
Most vendors include this on their submission instructions page,
alongside the .CAM file for generating Gerbers. Download the .DRU file.
- Open the .brd file in EAGLE.
- In the EAGLE board editor window, go to the menu and select
Tools > DRC. ("DRC" stands for Design Rules Check.
Autodesk really knows how to make things intuitive, don't they?)
- In the dialog, click the Load button. Select the .DRU file
you downloaded from the PCB vendor and click Open.
- Click the Check button.
- If there are any problems, a dialog will pop up with a list of
warnings. If there's no dialog, there are no warnings.
If you do get warnings, you should check each one. You can ask on the
forums or contact me if there's anything you're unclear about or that
you think might be a serious issue.
Note that you can ignore any "Overlap" errors. Those are due to the
inelegant way that we designed some of the circuit traces (they're the
way they are due to limitations in EAGLE that I don't know how to work
around in a more elegant way), and any that remain in the "Release"
versions of the boards will have already been carefully examined and
deemed to be intentional. That doesn't stop EAGLE from warning about
them, unfortunately, so you just have to know to ignore them when you
see them. For each Overlap error, you can click the "Approve" button
to tell EAGLE not to warn you about that particular item again in the
future.
There might also be some "approved errors" in the boards. You can
also ignore these, as "approved" means that I've already reviewed them
and determined that they're intentional.
94. Building the Expansion Boards
If you've worked with PCBs before, you should find building the
Pinscape boards to be pretty straightforward. The boards can look
pretty daunting to build, because there are admittedly a lot of
components to install, but all of the components are individually
pretty easy to handle. All of them are "through-hole" parts, with
wire leads that install through holes in the board. That type of part
is easy to solder by hand. (Modern electronics has largely
moved to "surface-mount" parts, which are more designed for
installation by robots, and can be tricky to solder by hand. I think
it's in keeping with our fundamentally retro hobby that these boards
use the older style parts that are more human-friendly.)
If this is your first time working with electronics or building
printed circuit boards, you might want to browse through our
introductory section,
A Crash Course in Electronics. The expansive-sounding
name notwithstanding, we've tried to keep it focused on the
practicalities of building the Pinscape boards, so hopefully it won't
waste too much of your time on academic points. Among other things,
you'll find help there with reading the markings on the blank circuit
boards, so that you can figure out where the parts go, and an
introduction to the different component types used in the boards.
The electronics section also some advice on soldering technique (see
Chapter 68, Circuit board assembly tips), in case you're looking for help
with that. I've found this to be an area that a lot of new cab
builders are particularly worried about when embarking on this project
because of unhappy past experiences with their soldering irons.
There's definitely a little bit of technique needed for successful
soldering, but it's not all that hard to learn the basics, so I've
tried to offer a few tips that will hopefully make things easier this
time around.
Where to begin
Before you start the assembly process, look over the "Optional
elements" below and decide if there's anything you want to omit or
change in the default configuration. There are some parts you can
just omit entirely if you don't need them, and there are variations in
the parts you can choose from to slightly change the way some parts of
the board work.
When you're ready to proceed, gather the necessary items:
Then just start fitting the components into the boards and soldering
them in place. There's no particular order that you have to use to
install the components, but I usually like to start with the smaller
and flatter components and finish with the taller ones, to avoid
having to squeeze into tight spaces between the larger parts.
Component cheat-sheet
Matching the parts to their spots on the circuit board might seem a
little intimidating at first, but the "language" of the circuit board
markings is designed to make it as straightforward as possible. All
of the markings on the circuit board are there to let you see at a
glance what goes where. They also tell you how to orient the parts
where that matters. (Some parts, like resistors, don't care which
direction they go; other parts, like transistors and diodes, have to
be oriented the right way to work properly.)
There are only about a dozen different types of components on these
boards, so you'll see the same "footprints" used repeatedly. Once you
learn to recognize the common ones, you'll be able to quickly identify
the right parts.
Here's a quick visual reference to the circuit board markings for the
various component types. See the linked sections for more details on
the component type.
Component | Board Markings | Example |
Chapter 72, Resistor |
|
|
Chapter 73, Capacitor (ceramic disc) |
|
|
Chapter 73, Capacitor (electrolytic) |
|
|
Chapter 74, Diode |
|
|
Chapter 75, LED |
|
|
Chapter 77, Transistor (TO-92 package) |
|
|
Chapter 78, MOSFET (TO-220 package) |
|
|
Chapter 79, LD1117AV33 (IC chip, TO-220 package) |
|
|
Chapter 79, IC chip |
|
|
Chapter 76, Relay |
|
|
Chapter 81, Pin headers |
|
|
KL25Z sockets
The footprint on the circuit board for the KL25Z consists
of four slots that look like ordinary 0.1" pin headers:
Even though they look like the standard pin header footprints, they're
actually intended for 0.1" pin sockets, which look like this:
Those mate with the corresponding 0.1" pin headers, which you're
supposed to install on the bottom of the KL25Z (the side
without the IC chips).
The KL25Z simply plugs into those sockets when you're done assembling
the board. Flip the KL25Z top-side-up so that the pins are facing
down, and plug the pins into the sockets on the main board.
But don't plug it in just yet! There are a bunch of parts on the
circuit board underneath where the KL25Z sits, so you'll need to leave
the KL25Z out for now while soldering parts there. For now, just
install the sockets on the main board, and the matching pin headers on
the KL25Z, and set the KL25Z aside. You can plug in the KL25Z when
the rest of the board is done. The KL25Z just plugs in, so it can
inserted and removed at any time; it's not permanently installed.
Special note on JP12 on the main board
This isn't mentioned anywhere in the parts list or on the board
itself, but you might want to omit the JP12 pin header on the
main board. Just leave that slot blank by not installing the
pin header.
What this header is for: This header connects back to four unused GPIO
ports on the KL25Z. I call it the "expansion port", which I know is a
silly port name for an "expansion board", but it fits: this port is
for custom additions, if you want to make some custom mods to the
firmware to do something with those four free GPIO ports, and
similarly for future uses I might come up with some day that I haven't
thought of yet.
Why you might want to leave it blank: This header is really
confusingly marked (sorry I didn't notice this problem during the
design process). See how the word STROBE is written next to it, with
an arrow? A lot of people understandably take this to mean "Hey,
guys, the STROBE is over HERE!" But it doesn't mean that at all. The
STROBE marking is actually for the next pin header over, that little
2-pin header JP9. The arrow is just the "Pin 1" arrow used on most
of the headers, and isn't an "over here" kind of arrow at all.
The confusion is potentially harmful to the KL25Z, because it might
trick you into connecting the STROBE device to pin 1 on JP12. That
connects directly to a GPIO pin on the KL25Z, so connecting it to
a 12V strobe device can destroy the KL25Z.
Leaving out the pin header entirely will eliminate that risk.
Why you might want to install it anyway: There actually is one
thing that JP12 is good for with the current firmware: you can use it
for four extra button inputs. If you're going crazy with the buttons,
and you need more than the standard 24 button inputs already on the
main board, you can use JP12 to get an extra four.
You can always wait and install the header later if you decide you
need it. Or you can just install it up front now that you're aware of
which header is which. It's only a risk if you get confused about
which pin is for the STROBE, and hopefully that won't be a problem now
that you've read through all of this.
Special note on IC12 on main board
Note that the slot for IC12 (a 3.3V regulator IC chip) looks exactly
like the slot for a MOSFET (the big power transistors we use repeatedly
on the power board):
That's because this IC chip is packaged in a TO-220 case, which is
exactly the same case type used for all of our MOSFETs.
Installing this part is exactly like installing a MOSFET. The only
thing you have to be careful about is making sure you use the right
part! Don't install a MOSFET there; be sure to read the label on the
part and install the LD1117AV33 regulator chip. You can't tell the
difference just looking at the shape of the case - you have to read
the tiny text printed on the face of the case.
Special note on BYPASS resistors on the chime board
The chime board has eight resistors labeled BYPASS. Normally,
you don't install anything there. Just ignore this slot and
leave it empty. One less part to solder!
The BYPASS slot is there for the "Timer Bypass" option, which lets you
skip the timer protection circuits for the replay knocker and/or any
of the chime board outputs. See "Bypassing the timers on the chime
board" later in this section for details on how to do that.
Optional elements
Some of the components on the boards are optional. You only need to
install them if you want to use the features they implement.
Omitting the JP12 pin header on the main board
Read the "Special note about JP12" above for why you might want to
omit this pin header.
Configuring the "Small LED" current level
The "Small LED" ports on the main board (on pin header JP8) are
"constant current" outputs. This means that they have a built-in
current limiter that caps the current at a selected level, which
allows you to connect LEDs to these outputs directly, without
any current-limiting resistors. The function of the current-limiting
resistors is replaced by the built-in current limiter, eliminating the
need to install the resistors separately.
All of the Small LED ports have the same current limit, but you can
adjust what that common limit is, because it's determined by the value
of resistor R5. If you use the R5 value specified in the parts
list, 2.2K, the limit is set to 20mA. You can change this by using a
different value for R5.
You can select any value from 10mA to 60mA. To determine the resistor
value for a desired current level, use this formula:
(Resistance in Ohms) = 39060 ÷ (Desired current in milliamps)
>
For your convenience, here are some pre-figured values showing the
standard resistor sizes that approximate some selected current levels:
Current | R5 value |
10mA | 3.9K |
20mA | 2K |
30mA | 1.3K |
40mA | 1K |
50mA | 750Ω |
60mA | 680Ω |
Don't use a resistor that would set a current above 60mA. Higher
currents might stress or even overheat the TLC5940 chip.
Any small-wattage resistor (1/8W or 1/4W) with the chosen Ohms value
will work here.
Omitting the TV relay
If you don't need the TV ON feature, you can simply omit all of the
following parts:
- D1 (1N4007)
- K1 (G5V-2 relay)
- OK15 (PC817)
- R39 (560R)
- R49 (2.2K)
- T6 (2N4401)
Omitting the TV IR remote features
If you don't need the IR remote control features, you can simply omit all
of the following parts:
- C2 (150nF)
- R7 (220R)
- R9 (2.2K)
- R11 (27R)
- T8 (2N4401)
- U$2 (TSOP38438)
Configuring the IR remote for 1 or 2 emitters
If you're including the IR remote control features, you can build it
to power either one or two IR "emitters" (the IR LEDs that transmit the
remote control signals).
Why might you want to use two emitters? To control two TVs! If you
use two emitters, you can place one near each TV's remote control
receiver, to ensure that both TVs get strong signals. Given the way
things are packed into a pin cab, it might not be possible to set up a
single emitter with a good line of sight to both TVs.
The only change you have to make between one IR emitter vs. two IR
emitters is the value for resistor R11 on the main board:
- For one IR emitter, use a 39Ω, 1/2W resistor for R11
- For two IR emitters, use a 27Ω 1/2W resistor for R11
When connecting two emitters, connect them in series. This
means that you wire then in a daisy chain:
Recall that the longer leg of an LED is the positive (+) lead. IR
LEDs such as these emitters follow the same rule.
Omitting the knocker output
The whole knocker output circuit is optional. To remove it, simply
omit all of the following parts:
- C5 (1uF)
- C7 (100nF)
- C8 (1uF)
- C9 (100nF)
- IC11 (ICM7555)
- OK5 (PC817)
- Q1 (MOSFET)
- R6 (1M)
- R8 (2.2M)
- R10 (100K)
- R12 (100K)
- R12 (100K)
- R13 (47R)
- R14 (1K)
- R18 (47R)
- R37 (2.2K)
- T2 (2N4403)
- T3 (2N4401)
>
The list above includes all of the parts that make up both the
knocker's time-limiter circuit and the output control circuit, so if
you omit all of those parts, you can skip the section below about
bypassing the knocker output timer. The output timer won't be there
at all if you omit the parts above, so there's nothing left to bypass!
Bypassing the knocker output timer
The replay knocker output on the main board has a built-in hardware
timer that cuts off power to the output if it stays on continuously
for more than a couple of seconds. This is designed to protect your
replay knocker from software faults on the PC - it's been known to
happen that Visual Pinball can crash in the middle of an operation
that leaves the knocker coil energized. Leaving a knocker coil on for
more than a few seconds can overheat it and burn it up. However, if
you like to live dangerously, or if you want to re-purpose this output
for a different kind of device that doesn't need the timer protection,
it's possible to bypass the cut-off timer and turn this into a
general-purpose output with no time limiter.
Note: the procedure here omits just the timer part of the
circuit, leaving the output circuit for the knocker in place. If you
want to leave out the entire knocker circuit instead, including
both the timer and the output portion, see "Omitting the
knocker output" above.
To bypass the timer circuit and turn this into an un-timed, general-purpose
output:
- Omit all of the following parts (simply don't install anything
in their slots on the board):
- C5 (1uF)
- C7 (100nF)
- C8 (1uF)
- C9 (100nF)
- IC11 (ICM7555)
- R6 (1M)
- R8 (2.2M)
- R10 (100K)
- R12 (100K)
- T2 (2N4403)
- In place of the 47Ω resistor for R18, install an 82Ω resistor
- Install a jumper wire between pins 3 and 8 of IC11 (remember, we're not
installing the IC there). "Jumper wire" just means that you can use an
ordinary piece of hookup wire.
With these changes, the replay knocker output will turn into an
ordinary, general-purpose, digital output with no timer cut-off.
"Digital" means that it's purely an on/off port: it doesn't have PWM
capabilities, so you can't use it for a device that requires
brightness or intensity control.
The power-handling capacity isn't affected by the timer bypass. No
changes are needed in the software (either in the Pinscape firmware
setup or on the PC), since it's invisible to the software in the first
place; the timer (when installed) acts to cut off power at the
hardware level without any software involvement.
The chime board's outputs are designed to be protected by hardware
timers, to prevent a coil from getting stuck "on" in case of a
software crash. If you wish, though, you can bypass the timers to
turn these outputs into ordinary, general-purpose outputs that you can
use for devices that don't need the timer protection. The timers can
be installed or bypasses individually for each output, so you create
any mix of timer-protected and general-purpose outputs on each board.
Bypassing a timer doesn't have any impact on the software on the KL25Z
or on the PC. The timers are completely invisible to the software,
since they intervene directly at the power switch level.
Note that the chimer board outputs are all "digital": they don't have
any PWM control capability, so you can't adjust the brightness or
intensity on one of these outputs. They can only be fully on or fully
off. That's true with or without the timer circuit.
To bypass an individual timer circuit:
- First, identify the timer block area for the output whose timer you
want to bypass. Each output has its own timer, and each timer can be
built or bypassed independently of the others. The timer block for a
each output is outlined on the board in a white rectangle. The blocks
correspond to the outputs as shown below - timer block 1 on the
diagram corresponds to output 1, etc.
- You can also identify which block connects to which output by looking
for the ICM7555 IC chip within the block. These are numbered the same
as the outputs: IC1 is in timer block 1 for output 1, IC2 is in timer
block 2 for output 2, etc.
- Now we're going to build the "null" timer circuit, without the timer.
This means we're going to basically omit all of the normal parts.
- The only part from the original timer that you're going to install
here is the PC817 optocoupler chip, also labeled OKn
where n is the timer block and output number (OK1 for timer
block 1 and output 1).
- Now we're going to add two parts within this block that aren't
part of the normal timer circuit. First, find the BYPASS resistor slot.
It's the slot with a resistor footprint, labeled BYPASSn (n
is the block/timer number we're working with again).
- Install a jumper wire in that slot. In other words, simply
install a short piece of hookup wire between the two ends of the
resistor footprint.
- The second part is trickier. In the timer block, find the 2.2K
resistor and the 47R resistor that are placed right next to each other.
Every timer block has a pair like this. And there's a really unusual
marking on this pair: a white diagonal line across the pair.
- That diagonal line is where you're going to install the second
extra part: a 220Ω resistor. Install it with one lead
going through the solder pad hole at one end of the diagonal line,
and the other lead in the solder pad hole at the other end of the
diagonal line. (As always for resistors, the orientation of the
resistor itself doesn't matter.)
And that's it! You've successfully converted this output into an
ordinary output with no timer cut-off.
95. Expansion Board Power Cables
Each of the expansion boards has two connectors that have to be
plugged into ATX power supplies. These are designed to work with
special, custom power cables that you build as part of the expansion
boards. This section explains what's needed and how to build the
cables.
Connection plan
There are two cables, one for the "primary" ATX power supply, which is
the one that powers your pin cab's PC motherboard, and one for the
"secondary" ATX supply, which is dedicated to powering feedback
devices.
The "primary" cable connects to your PC's power supply at one end,
and then runs in a daisy-chain to each expansion board, plugging
into the "PC PSU" connector on each board.
Here are some things to note:
- This is a custom power cable that you're going to construct out
of hookup wire and the Molex 2-pin crimp-pin connectors in the
parts list
- The connection at the ATX power supply end can be handled
in a few different ways, such as using a compatible plug to plug
into a free disk connector, using a breakout board, or soldering
directly to a disk cable on the power supply; we'll look at
the details later in this section
- The primary power connector only needs two wires: the red +5V
wire, and the black Ground wire; these connect to the corresponding
wires in the ATX disk connector or breakout board
- Each expansion board has its own plug
- The plug for each board is the same type
- Each plug connects back to the main wire with a "T" connection
- You can solder the connection at each "T"
- Or you can a "T-Tap" splice connector for a solderless joint
(available at Amazon, Home Depot, etc)
The "secondary" cable, similarly, connects to your secondary PC's
power supply at one end, and runs in a daisy-chain to each
expansion board, plugging into the "2ND PSU" connector on each
board.
Wire
To build these cables, use ordinary hookup wire. Here are the
recommended wire types:
- Primary PSU connectors:
- 22 AWG
- One black wire
- One red wire
- Secondary PSU connectors:
- 18 AWG
- Two black wires
- One red wire
- One yellow wire
Note that the secondary PSU connector uses two black wires,
which connect to the corresponding black wires in the disk connectors.
Be sure to connect both of these even though it seems redundant to use
two. The reason we use two is that it doubles the current-carrying
capacity. The black wires on these connectors carry the
combined current from all of the feedback devices, so
they can be subjected to very high currents at times. It's the same
reason the ATX power cables use two black wires - all of the current
for all of the different voltages ends up going through these wires.
For each wire:
- Cut one piece long enough to reach from the power supply to
the farthest expansion board
- Cut one additional piece for each additional expansion board,
long enough to reach from the main cable to that board
How to connect to the expansion boards
- A two-pin connector for the PC PSU (primary power supply) connections
- A four-pin connector for the 2ND PSU (feedback devices/secondary power supply) connections
These are crimp pin housings, so you have to build them by crimping
the pins onto the ends of the wires, and inserting the pins into the
housings. Full instructions are in
Chapter 82, Crimp Pins.
Here's the pin ordering for the two-pin primary power supply
connector. To orient it properly, look for the "ramp" side, which is
the side that faces the ramp on the circuit board header when you plug
it in. (The ramp is the vertical plastic projection on one side of
the header, which ensures that you plug the connect in the right way.)
The ramp side on this connector isn't marked very clearly, but you can
identify it because it's the solid side - the opposite side has narrow
slots where the crimp pin lock tabs fit. You can also tell the
difference between the two sides by the distance to the pin openings
in the bottom: notice in the picture how the pin openings are closer
to the ramp side.
Here's the pin ordering for the four-pin secondary power supply
connector. To orient it, look for the "ramp tabs" - the little
triangular tabs sticking out on one side of the connector. This is
the side that faces the ramp on the circuit board header when you
plug it in.
Once the housings are built, you connect them to the Pinscape boards
simply by plugging them in to the matching headers. The connectors and
headers are keyed so that you can only plug them in one way.
How to connect to the ATX power supplies
One end of each of the special Pinscape power cables connects to one
of your ATX power supplies. There are several ways to handle the
connection at this end.
Through a disk connector plug
My preferred way to connect to each ATX power supplies is through a
free disk power connector on the power supply. This approach doesn't
require any modifications to your power supply; you just plug into
it the way you'd plug in a disk drive.
The disk power connectors are the four-pin connectors that look like this:
This is a standard connector - the brand name is AMP Mate-N-Lok.
(It's commonly misidentified as a Molex connector. There is in fact a
similar-looking Molex connector, but it has a slightly different plug shape
that's not compatible.) The connector that's attached to your ATX
power supply is female, so to connect to this, you need the male side:
These are crimp pin housings, so they require some assembly. See
Chapter 82, Crimp Pins for details on how to build this kind of
connector.
One slight complication: the AMP crimp pins for this housing are
designed for wire gauges from 20AWG to 14AWG. That's fine for the
secondary PSU connector cabling, for which I recommend 18AWG hookup
wire. But the primary connector cabling can't be thicker than 22AWG
because of the crimp pins we use at the expansion board end! You
might find that these large AMP crimp pins don't crimp onto the 22AWG
wire tightly enough. If it won't stay in place after crimping, you
can secure it by soldering the wire to the pins. Which defeats the
purpose of the crimp pins (easy of assembly), but works.
Alternatively, you can use thicker wire (18AWG, say) at the AMP
connector end, and solder those thicker wires to the thinner 22AWG
wire needed at the Pinscape end.
Through a breakout board
If you're using a breakout board to
access your ATX power supply's 5V and 12V connections, you should use
whatever connector type your breakout board uses. For example, if
your breakout board uses screw terminals, simply strip 1/4" or so of
wire from the end of the custom Pinscape power cable that's going to
connect to the breakout board, and screw the ends into the appropriate
terminals.
Hard-wired
The simplest way is to solder the Pinscape cabling
directly to your ATX power supply's wiring, preferably to one of the
disk power connector cables. This isn't my favorite approach, because
it permanently modifies the power supply, but it's quicker and easier
than messing around with crimp pins, and cheaper than adding a
breakout board.
To do this, chop off one of the disk connector plugs on the power
supply. That'll leave you with four bare wires you can solder to.
Strip 1/4" or so of insulation from the end of each wire. Do the same
with the wires in the Pinscape cable. Solder the ends together.
Cover the exposed solder joints with shrink-wrap tubing or
electrician's tape.
This leaves you with an ATX power supply with one less disk power
cable, and a permanently attached Pinscape power cable. You can still
plug and unplug the Pinscape ends, so there's no loss of modularity.
Frequently asked questions about the power connectors
I've helped a number of people debug problems that came down to
missing power connections, so I wanted to clarify some points about
the power wiring. Some of the confusion probably comes from the LedWiz
and some of the other arcade devices that have a bunch of connectors
that you don't really need, so people probably get used to the idea
that the connections on these controllers are mostly for "other
people" with unusual setups. Not in this case! The connectors
on these boards are for everyone. So, to answer some questions
that have come up several times:
- Do I really need to connect the 5V and 12V wires in the secondary connectors?
Yes! These power connections actually provide power to the logic
chips and transistors on the board. If the supply voltages aren't connected,
the logic chips and transistors won't have power, and they simply
won't work.
- Do I really need the both black wires in the secondary connector?
Yes! The secondary connector provides the common ground connection for all of your feedback
device power connections. When your 3A shaker motor runs, that 3A goes through these
wires. When your 3A shaker motor runs at the same time as your 4A gear motor and
your 2A fan, the combined 9 Amps from all of those devices goes through these wires.
We use two wires because it doubles the current-carrying capacity of one wire.
We need that extra capacity because of the high combined current that can result
when multiple feedback devices are running at the same time.
- Do I really need to connect both the primary and secondary connectors to each board?
Yes! The two power connectors supply power to separate circuits on each board.
The primary PSU connector supplies power to the "logic" circuits that connect to
the KL25Z, such as the TLC5940 chips on the main and power boards, and the
555 timer chips on the chime boards. If the primary PSU connector isn't
connected, none of the logic circuits receive any power, and nothing works.
The secondary PSU connector supplies power to the MOSFETs that carry out
the power switching, and they provide the ground connections for
all of the feedback devices' power supply connections. If this
connector isn't connected, the MOSFETs can't switch and the feedback
devices don't have any connection to ground, so nothing works.
- Do I really have to use two separate ATX power supplies for these boards?
No. It's possible to run everything off of the single ATX power supply that's
powering your PC motherboard. You do still have to connect both
power cables, though - you'd just connect them both to that single ATX supply,
if that's all you have.
But this is one of those cases where you shouldn't do something just because you can.
The reason that we take it for granted that you're using two power supplies
is that sharing a single power supply with feedback devices places too much
load on your single PSU, and creates too much opportunity for electrical
interference.
96. Initial Expansion Board Testing
This section gives you some tests you can perform on your newly built
expansion boards to make sure they're working. I'd recommend going
through these tests with a new board before installing it in your
cabinet, since it's a lot easier to isolate and debug problems before
everything is connected. The test procedures here are designed to
test each subsystem in isolation (as much as possible).
Configure the firmware
Before plugging anything into the expansion boards, you should make
sure that your Pinscape firmware is installed, and that you've
configured it for the expansion boards. Some of the GPIO pin
assignments are different between the standalone configuration
and the expansion board configuration, so things won't work
properly if you don't set the right system type.
You can do all of the initial software setup and configuration with
the KL25Z on its own, not plugged into the expansion boards.
To configure the firmware for the expansion boards:
- Launch the Pinscape Config tool
- Click the Settings icon for your device
- Make sure the System type (near the top of the page) is set to
Pinscape Expansion Boards
- Set the boxes below that to reflect the correct number of power
boards and chime boards you're going to connect
Tools and supplies for testing
For the initial testing, it's really helpful to have some items
available:
- An ATX power supply. You can use the power supply that you're using
with your pin cab motherboard if it's convenient, or you can use a
separate one.
If you're using a separate power supply, make sure you've hacked it
so that it powers up without a PC motherboard attached.
If you're using a "breakout board" to get at its power connections,
that should do the trick. If you're using your own connectors,
you have to bridge a pair of pins on the motherboard connector to tell the
PSU to power on. See "Overriding the soft power circuit" in
Chapter 45, Power Supplies for Feedback for the procedure.
For testing purposes, it's okay to just use a single ATX power
supply. As we've said before, it's best to use two separate ATX
supplies for your full cab setup - one for the PC, a separate one
for the feedback devices. And if you have both power supplies
conveniently available, you might as well test with the full setup.
But it's also okay to use a single power supply for now, since
we can do all of the testing with low-power devices.
- The special expansion board power cables, to connect between the ATX
power supply and the Pinscape board. Two cables are required - one
for the primary power supply connection, one for the secondary power
supply connection. The two cables use different connectors (the
primary uses a two-pin connector, the secondary uses a four-pin
connector). You need both cables, even for testing purposes.
See Chapter 95, Expansion Board Power Cables for instructions on assembling the cables.
- Some "Dupont" cables, for making temporary test connections to the
0.1" pin headers. You can find these on eBay by searching for "Dupont
cable", and you can get them from any of the hobby robotics Web stores
(Pololu, SparkFun, Adafruit). These are simply hookup wires with
individual 0.1" pin header male pins/female sockets attached to the
ends. They let you safely plug a wire into any pin on any of the headers
to test the connection. It's convenient to have a full set of the
different gender combinations - male-to-male, female-to-female, and
male-to-female.
If you buy a set of these on eBay, they'll often come as a sort of "ribbon cable",
with all of the wires joined together in a flat bundle. For testing
purposes, we'll just need a few individual wires, with one pin on each end.
You can peel individual wires (or groups of wires) off of the ribbon cable
bundles as needed simply by zipping them along the seams between the wires.
The insulation should tear easily at the seams. You can pull off individual
wires as needed - no need to separate them all up front.
- Alligator clip cables are also handy, for making temporary test
connections to everything else, apart from the 0.1" pin connectors. These
aren't a good substitute for the Dupont connectors, though, since it's
hard to use them with pin headers; it's too hard to keep the bare
metal of the jaws from coming into contact with the pins adjacent to
the one you're trying to connect to.
- A small "bubble" LED - the type that runs on 5V or less and draws
about 20mA.
- A 220Ω resistor to use with the LED. (220Ω should work
with any 20mA LED and a 5V supply, but you can find the exact
value for your particular resistor using the calculator
in Chapter 52, LED Resistors.)
We're going to assume you have these items on hand, but feel free
to improvise or substitute similar items as you see fit.
Cautions about connecting power
As a general rule, make sure the power supplies are OFF whenever you
plug in or unplug the expansion board power cables.
Similarly, make sure that all power is OFF and that both USB cables to
the KL25Z are unplugged when inserting the KL25Z into the expansion
board sockets or removing it.
Static electricity precautions
It's a good idea to ground yourself from time to time while working
with the bare boards. Touching the metal case of a plugged-in ATX
power supply is a good way to do that, or the metal back plane of a
PC. See
Chapter 67, Static Electricity Precautions.
Connect the KL25Z and the power supplies
Nothing should be connected the main board at this point - no
power cables, no cables for the button or plunger inputs, no feedback
outputs, and none of the connections to the other boards. It should
just be completely on its own.
Unplug the KL25Z from USB, and seat it in the sockets on the main
board.
Plug in the USB cable(s) between the KL25Z and the PC. You can
connect both ports or just the "KL25Z port":
Plug the "PC PSU" and "2ND PSU" cables into the main board. Again,
the power supply should be OFF while doing this.
Remember that both power connectors are always required.
If you're only using one ATX power supply for the testing phase,
you still need both cables - just plug them both into the single
ATX supply.
Turn on the power
Okay, we're all set up to try applying power. If the PC isn't already
booted up, do so now.
Go ahead and turn on the power supply or supplies. Be ready to cut
power quickly if anything seems wrong.
Pay attention to any burning odors coming from the board, and check by
touch to make sure that nothing is getting hot. If there's any sign
of overheating, cut power immediately (by turning off the power
supplies - as always, don't unplug the expansion board power
connectors while the power supplies are on).
If nothing seems to be overheating, check that the KL25Z has connected
to Windows as usual. It should be showing up in the Pinscape Config
Tool's list of attached controllers in the main window.
Test button inputs
If the board passes the initial power-on test, the first actual function
I'd test is the button inputs, since they're really easy to test.
In the Pinscape Config Tool, click on the Buttons icon for your device.
That'll bring up the Button Tester window. This is the most direct
way to test buttons, because it shows you the status of the physical
GPIO pins. The firmware has to do some work to turn those hardware
pin states into keyboard key presses and joystick button events, so
other ways of testing are less direct, and any problems could reflect
software or setup issues rather than hardware issues. The Button
Tester lets us look at the hardware more or less directly to check
the basic wiring.
The first thing to check is that all of the buttons are showing their
Pin Status as OFF. A button input that isn't connected counts
as OFF, so assuming you haven't already connected any of the button
pins to anything else, an ON indication indicates a problem.
Specifically, it means that the wiring for that button is shorted to
the KL25Z "ground" connection.
Tip: If button #6 is stuck ON: This is a frequent setup problem
that lots of people run into. If button #6 is stuck ON, and the
others all look okay, you probably have the System Type
still set to "Standalone KL25Z" in the settings. Button #6 has
different GPIO pin mappings in the Standalone vs Expansion Board
configurations, because the pin originally used in the standalone
setup had to be moved to a different function for the expansion
boards. This commonly manifests as button #6 being stuck ON,
because the software is monitoring that re-deployed pin instead
of the pin on the Button Inputs header. To fix this, all you
usually have to do is go back
to the Settings and make sure System Type is set to Pinscape
Expansion Boards.
>
Next, get out one of the Dupont cables we mentioned earlier. Use a
female-to-female type - one with a 0.1" socket at each end. Find the
Button Inputs header (JP1), and find the pin on that header labeled
CMN (Common). If you orient the board so that the Button Inputs
header is at the bottom, the CMN pin is at the bottom left of the
header.
Attach one end of the Dupont cable to the CMN pin.
The button inputs work by connecting the individual button pins
to the CMN pin. So to test a given button pin, all you have to do
is plug the other end of the Dupont cable into the pin you want to
test.
Go through the pins one by one. Connect the free end of the Dupont
cable to the button pin, and observe the on-screen status in the
Button Tester window. The status for each pin should change to
ON as long as the cable is plugged in to that pin.
Debugging tips:
The button inputs are really simple - they're just direct
wiring connections from the Button Input header pins to
the KL25Z GPIO pins. So there's really nothing that can
go wrong with these other than bad solder joints.
The first thing I always try if nothing is working is to swap
in a different set of Dupont cables.
The cheap ones sometimes have bad connections at one or the
other end. I've had this happen with Dupont cables and
alligator clip cables multiple times - it's such a huge
waste of time when it turns out your test equipment is the
problem, and not the board you're trying to test! If you
find a bad one, fix it or throw it out immediately so you
don't keep stumbling over this red herring on future tests.
Barring bad cables, the most likely problem if none of the
buttons are working is the CMN (Common) connection. All
of the buttons have to go through that, so it's the prime
suspect when the whole thing isn't working. Check the solder
joint on the bottom of the board for the CMN pin.
If some buttons are working and some aren't, you know the
CMN pin is good. The problem must be in the individual
non-working button pins. Check the solder
joint for the non-working pin. If that looks good,
trace it back to the corresponding pin on the KL25Z
connector. Check the solder joints on the expansion board
(for the KL25Z socket at that pin), and check the
solder joint on the KL25Z itself for the corresponding pin.
It's also a good idea to sanity-check the software
configuration to make sure the pin you're tracing is the
same one the software is using. In the Settings page,
in the System Type section, there's a checkbox for
"Show KL25Z pin assignments". Check that box, then
scroll down to the Buttons list. Each button port
will be listed with the KL25Z GPIO port that it's
assigned to - "PTC2", "PTB3", etc. Make sure that
the connection for the pin you're trying to debug
actually does trace back to the port listed in the
settings.
>
Test the TV ON relay
If you installed the TV ON relay, it's easy to test that the
relay itself is working:
- Return to the main Config Tool window
- Click the TV Relay button for the device
- In the TV ON Tester window, click the Pulse Relay
button
- You should hear a couple of soft clicks from the relay on
the board as it switches on momentarily and then back off
- You can also switch it on indefinitely by clicking the
Relay On button; click the button again to switch it off
Check the power status reading
Still in the TV ON Tester window, check the Status. It should
read PSU2 Power is on.
If you're using two separate power supplies for these tests, you can
test the power sensing circuit further by switching OFF the secondary
(feedback device) power supply. (Don't unplug it from the expansion
boards - just turn off the power supply itself with its on/off
switch.) You should see the status change to PSU2 Power is off
when you turn off the supply. When you turn it back on, you should
see it change to TV ON delay timer is running for a few
seconds, then switch to PSU2 Power is on. You might see it
briefly flash Pulsing TV ON relay just before that last step,
and you should again hear the TV relay click on and off briefly.
Test the Small LED outputs
This is another easy set of functions to test. For this, you need one
a small (20mA) LED, and a few Dupont cables and/or alligator clip cables.
Do this test with the power on. There's no need to shut down before
making the LED connections for this test.
You
might also need the 220Ω resistor, but probably not.
Remember the option to set a custom current regulator level for the
Small LED outputs, in
Chapter 94, Building the Expansion Boards? If you followed
the procedure there to set a custom current regulation level above
20mA, you should use a 220Ω resistor with this LED. You don't
need the resistor now if you used the default current regulator
resistor when you built the board. If you don't know what I'm talking
about, you probably used the default one, so you don't need the extra
resistor now.
Set it up like this:
- Connect the long leg of the LED to +5V on the Small LED header
- Connect the short leg of the LED to the pin labeled "1R" on the Small LED header
- If you need the extra resistor (see above), put it between the short leg of the LED and the "1R" pin
Use whatever combination of Dupont cables and alligator clip cables
works for you. I find it easiest to plug into the pin headers with
the Dupont cables, and then use alligator clip cables to connect
everything else.
Once you have that set up, bring up the Config Tool's output tester:
- Launch the Pinscape Config Tool
- Click the Outputs icon for the device
The Output Port Tester window shows a list of all of your configured
output ports. Each port shows the following information:
- The first column, Port No. (Output # in prior versions of
the Config Tool), corresponds to the Port No. in the output port
list on the settings page.
All of the ports are listed in exactly the same order
as on the settings page.
If you're trying to puzzle out how a port
in the Settings page list is related to a port in the Output Port Tester
list, it's super easy: the first row in the Settings list is the first
row in the Output Port Tester list, the second row is the second row,
etc. Just look for the port number in the first column of each table.
- The Pin column shows the GPIO pin or IC chip port controlling this
output.
Most of the expansion board outputs are handled by TLC5940 chips,
so these will mostly say things like "TLC5940 #3 OUT7", which means that
this is port 7 on TLC5940 chip #3. The TLC5940 chips are numbered in
sequential order of attachment; the two on the main board are #1 and #2,
the two on the first attached power board are #3 and #4, and subsequent
power boards on the daisy chain have sequentially higher numbers.
Note that the Pin number is not related to the output port
number in any way. The Pin number tells you the location of the physical
circuit controlling the port. The output port number is just an abstract
label that DOF uses to refer to the port. It can be confusing to see
"OUT6" in the Pin column and think that has something do with "Port 6"
in the settings list or the DOF list. It doesn't - "OUT6" in the Pin
list is just the physical pin location on the chip.
- The Setting column is where you can test the output. This column
shows a slider control or an on/off button for each port. Ports that have
PWM (brightness) control get sliders; non-PWM ports just get on/off buttons.
On the sliders, 0 is all the way off and 255 is all the way on. Values
in between are proportional intensity/brightness levels, so 128 is about
half of full brightness.
Now that you know everything about the Output Port Tester, let's go ahead
and test the port. All of the Small LED outputs are controlled by TLC5940 #2,
so find the port listed in the Pin column as TLC5940 #2 OUT0. If
you didn't move any ports around in the settings, this should be Port No. 50.
Turn the slider all the way up. The LED you wired above should light up to
full brightness. You should be able to adjust the brightness by adjusting
the slider.
To test the second port, simply move the connector from "1R" to the
next port, "1G", and use the corresponding slider control to activate
the port. Repeat for each port. The ports are wired to the TLC5940 #2
pins in sequential order:
Pin on JP8 | Pin name in Output Tester |
1R | TLC5940 #2 OUT0 |
1G | TLC5940 #2 OUT1 |
1B | TLC5940 #2 OUT2 |
2R | TLC5940 #2 OUT3 |
2G | TLC5940 #2 OUT4 |
2B | TLC5940 #2 OUT5 |
3R | TLC5940 #2 OUT6 |
3G | TLC5940 #2 OUT7 |
3B | TLC5940 #2 OUT8 |
4R | TLC5940 #2 OUT9 |
4G | TLC5940 #2 OUT10 |
4B | TLC5940 #2 OUT11 |
5R | TLC5940 #2 OUT12 |
5G | TLC5940 #2 OUT13 |
5B | TLC5940 #2 OUT14 |
LED6 | TLC5940 #2 OUT15 |
Debugging tips: If
none of the ports are working, make
sure that you've got the LED installed in the right direction. It won't
light up if installed backwards.
Also try different test cables, in case the ones you're using have
bad connectors. I've had this happen more than once!
Using a voltmeter set to Volts DC (VDC), conenct the red probe
from your meter to +5V pin on JP8, and the black probe to one of the
JP6 PWM OUT pins closest to the edge of the board. (Those are all
Ground pins.) This should read 5V. If it doesn't, the problem is
in the wiring to the +5V pin.
See Chapter 97, Debugging the Expansion Boards for further tests.
>
Test the RGB Flasher outputs
Testing the flasher outputs is very much like testing the Small LED
outputs. For this test, though, you'll definitely need the 220Ω
resistor, because the Flasher outputs don't have any built-in current
regulation.
The wiring is very much the same as for the Small LED tests:
- Connect the long leg of the LED to the +5V pin on JP11 (RGB Flashers)
- Connect the short leg of the LED to one end of the 220Ω resistor
- Connect the other end of the resistor to pin 1R on JP11
The flasher ports are normally assigned to port numbers 1 to 15.
They correspond to the pins on TLC5940 chip #1 as follows:
Pin on JP8 | Pin name in Output Tester |
1R | TLC5940 #1 OUT0 |
1G | TLC5940 #1 OUT1 |
1B | TLC5940 #1 OUT2 |
2R | TLC5940 #1 OUT3 |
2G | TLC5940 #1 OUT4 |
2B | TLC5940 #1 OUT5 |
3R | TLC5940 #1 OUT6 |
3G | TLC5940 #1 OUT7 |
3B | TLC5940 #1 OUT8 |
4R | TLC5940 #1 OUT9 |
4G | TLC5940 #1 OUT10 |
4B | TLC5940 #1 OUT11 |
5R | TLC5940 #1 OUT12 |
5G | TLC5940 #1 OUT13 |
5B | TLC5940 #1 OUT14 |
Strobe | TLC5940 #1 OUT15 |
Note that the last row is different from all of the others: it's
the Strobe output, which we'll come to next.
Test the Strobe output
The Strobe output is wired to the same chip that handles all of the
RGB Flasher outputs, so you can test it almost exactly like the
flasher outputs. It's just on a different pin header. So continue
with the same test setup used for the RGB Flashers above, but
move the "-" end of the connection over to the Strobe pin on JP9.
And in the Output Port Tester window, use the port assigned
to TLC5940 #1 OUT15, usually port 16.
Warning! The Strobe connector is on that little
2-pin header labeled
JP9. There's a really
confusing marking on the board (my fault for not noticing
it in the design process) that makes a lot of people think
that the Strobe output is the next one over, on that 4-pin
header labeled JP12 - the thing that makes it look that way
is that the "pin 1" arrow for JP12 is so close to the word
"STROBE" printed on the board that it looks like the two
are supposed to be connected, like it's saying "Hey guys,
strobe is over here." Sorry for the misleading marking,
but that arrow is just the standard "Pin 1" arrow that I
use for all of the headers - it's not connected to the word
STROBE in any way. The 4-pin JP12 header just connects
into four unused GPIO ports on the KL25Z, for custom
uses or future software updates.
Never connect a
strobe or any other output device to JP12.
>
Test the knocker output
You can keep the same test rig we've been using so far, and move the
"-" side over to the Knocker pin on JP9. That's the one right next
to the Strobe pin.
This one has a different appearance for its Pin assignment in the
Output Port Tester window: the Pin column for the knocker will show
PCT8 (Digital). "Digital" means that it's a non-PWM output,
with on/off control only (no brightness or intensity). As a result,
there's no slider control for this port, just an on/off button.
Once the LED is wired to the output, click the button to turn on
the output.
The knocker output is one of those special "timed" outputs, with a
timer circuit that cuts off power after a couple of seconds of
continuous ON time. So you should see the LED light up for a couple
of seconds and then turn off. If you click the button to turn the
port off, and then click it again to turn it back on, the cycle
should repeat.
The timer doesn't set a minimum ON-time. It only sets a
maximum. So if you quickly click the button ON and back OFF, the LED
will turn off immediately; it doesn't stay on for the timer duration.
Test the power boards
If you've been following our procedures so far, you've now tested all
of the major systems on the main board at this point, so you can move
on to the power board. Before attaching the power board, power down
the system and turn off the ATX power supplies.
Connect the power board to the main board via a 10-pin ribbon cable.
See
Chapter 83, Ribbon Cables if you haven't built this cable yet.
This cable connects between
JP6 (PWM OUT) on the main board
and
JP2 (PWM IN) on the power board.
Be sure to align pin 1 on both ends of the cable. I recommend
marking a red stripe along one edge down the whole length of the
cable, and calling that the Pin 1 side. That makes it easier to
get the orientation right at both ends, since all you have to do
is align the red stripe with the "Pin 1 arrow" marked on the board
at each end.
Also connect the two power connects (PC PSU and 2ND PSU) to the power
board, exactly as on the main board. As always, both power
connectors must be connected for the board to function
properly.
Power up the PC and the ATX power supplies. As with the original main
board test, pay close attention to any signs of overheating parts, and
be ready to shut down the power supplies immediately if necessary.
Assuming that nothing is overheating, we can proceed with testing the
power board outputs.
The test rig here is the same one we used for the flasher, strobe, and
knocker tests on the main board. Keep one end of the LED attached to
the +5V output on the RGB Flasher header on the main board.
You might wonder: why are we using +5V flasher pin from the
main board to test the power board outputs? There's
nothing magic going on here. The reason this works is that +5V
flasher pin is simply a direct connection to the 5V rail on your
secondary ATX power supply. You could just as well connect to the ATX
5V wire (the red wire in the disk power connectors) directly. That's
more like what you're going to do with the actual deployed devices
that you connect to the power board. But I think the 5V flasher pin
is more convenient for this test. It's the same thing
electrically, so you might as well use what's easiest.
In the Config Tool Output Port tester, the power board ports are
the ones with Pin labels TLC5940 #3 and TLC5940 #4.
#3 controls the first bank of outputs, on JP5. #4 controls the
second bank of outputs, on JP6. The outputs are numbered across
the pins, starting at the "Pin 1 arrow" on each header. In the
standard setup, JP5 is assigned to Port No. 18 through 33, and
JP6 is Port No. 34 through 49. But pay more attention to the
TLC5940#3 and #4 in the Pin column - that's the way to identify
these ports for sure.
As with the flasher ports, each one has a slider. When the LED is
connected to a given port pin, sliding the port's slider up to 255
should turn the LED on at full brightness.
Testing a second power board
If you have a second power board, the test procedure is very similar
to the first. The only difference is that you're going to connect the
"starting" end of the second power board's ribbon cable to the
first power board's JP3 (PWM OUT) connector instead of
connecting it to the main board. That forms the daisy chain from the
main board to the first power board to the second power board.
As always, power everything down before connecting the data cables or
power cables to the new board. And as before, monitor it for
overheating parts for the first couple of minutes, just in case
something's installed wrong.
The second power board's ports will be the ones with Pin labels
TLC5940 #5 and TLC5940 #6. Otherwise, the test procedure
is exactly the same as for the first power board.
Test the chime boards
Testing the chime boards is very similar to testing the power boards.
Power everything down before proceeding. Connect the PC PSU and 2ND
PSU power cables - as always, both cables must be connected to each
board.
Connect the ribbon cable between the main board's CHIME/DIG OUT port
(JP5) and the chime's board's CHIME/DIG IN port (JP1). As with the
power board ribbon cable, make sure that the cable is aligned so that
Pin 1 on the main board header connects to Pin 1 on the chime board
header. I recommend marking a red stripe on one edge for the whole
length of the ribbon cable to mark the Pin 1 side, to make it easier
to get the orientation right when plugging it in.
We'll continue using the same test rig used for the power board
ports and main board flasher ports. Keep the "+" end of the LED
connected to the +5V flasher output on the main board, and move
the "-" end over to the chime board outputs, one at a time.
The chime board ports will be listed with Pin names starting with
74HC595 #1. That's the digital controller chip that's used
on these boards. There's one chip per board, so the first chime board
attached will be 74HC595 #1. If you attach a second chime board, it'll
be labeled 74HC595 #2.
The chime board outputs are "digital", meaning they're simple on/off
outputs without PWM control. So the Output Port Tester just shows
a simple on/off button for each port, just like the knocker port on
the main board. And like the knocker port, these ports have hardware
timers that will cut the power if the port is left on for more than
a couple of seconds. As you test each port, you should see the LED
light up for a couple of seconds and then automatically shut off.
Testing a second chime board
The procedure for testing a second chime board is almost identical to
testing the first one. The only difference connecting it is that you
connect the starting end of its ribbon cable to the CHIME/DIG
OUT (JP2) port on the first chime board instead of connecting it
to the main board. And the only difference testing is that the output
ports will have Pin names in the Output Port Tester starting with
74HC595 #2 for the second board (and #3 for the third board,
and so on).
Test the IR transmitter and receiver
If you installed the IR devices, you can test them simply by running
through the IR TV control setup procedure in
Chapter 112, IR Remote Control. I
don't have any more simplified tests to suggest, since there's nothing
really to test other than their ability to receive and transmit
signals, which the programming procedure will exercise.
97. Debugging the Expansion Boards
This section has some things you can try to diagnose and fix any
problems you've having with a set of expansion boards.
If you haven't already, you should run through the test procedures in
Chapter 96, Initial Expansion Board Testing. That should give you a clearer idea of what's
working and what's not working. That section also includes some basic
debugging steps that might solve some simpler problems.
If you go through all of the debugging suggestions for a particular
symptom without identifying the problem, let me know. I'd like to
include as many causes and fixes as possible, so if you come up with a
new one that I haven't covered here, I'd like to add it.
Top problem sources
Here are the main causes of problems I've seen when helping people
debug expansion boards:
- Bad solder joints. These boards have lots and lots of solder pads,
so it's very easy for a couple of them to fail. A so-called "cold
solder joint" is one that looks good visually, but has tiny fractures
in the solder, blocking electrical contact. The best way to test for
these is continuity testing (see below); we'll point out which points
in the circuits you should test for each failure mode.
- Defective chips. Some chips are simply defective when they roll off
the factory assembly line, and some get damaged during shipping or
storage. I've had defective chips a couple of times even when
ordering from Mouser, but it seems to happen a lot more with eBay.
With Mouser, you can count on them to sell you authentic,
factory-direct parts, and to handle them properly at their warehouse,
but a few dead parts still slip through the cracks. With eBay, who
knows what you're getting. I've heard from several people who had
problems with their boards that turned out to be dead TLC5940 chips
that they ordered from eBay. You can't get those chips anywhere but
eBay these days, so you just have to hope for the best. I've also run
into a couple of bad optocouplers (PC817 and PC847). Unfortunately,
there's no easy test procedure you can perform for the TLC5940 or
PC8x7 chips individually (and you shouldn't have to do that anyway,
since you should be able to count on the factory to do quality control
checks). But there are some things you can do once they're installed
to trace a problem to a particular dead chip, which we'll get to
shortly.
- Simple chip insertion or cabling errors. See "quick sanity checks"
below.
Quick sanity checks
At the risk of belaboring the obvious, it's always good to double-check
some of the basics:
- Make sure all power cables are connected. The PC PSU and 2ND PSU
connectors must both be connected for the boards to function
properly.
- Make sure cables are inserted the right way. For ribbon cables,
I always recommend marking one edge of the cable with a red stripe
(or something similar), and making sure that the red stripe is on
the side with the "Pin 1" marking on the circuit board connector
at both ends.
- Make sure IC chips are inserted the right way. See Chapter 79, IC Chips
for how to properly orient each type of IC used in the project.
- If you're using sockets for the IC chips, visually inspect
them and make sure the chips are fully seated, and that all
of the pins are inserted. Make sure none of the pins are sticking
out the side of the socket or got folded under the chip.
Visual solder check
I recommend giving the board a careful visual inspection with a
magnifying glass, looking for suspicious solder joints. This is an
easy test, and it's pretty effective - I can usually catch one or two
bad connections this way after first assembling a board. Some bad
solder joints can evade visual detection, so this probably won't catch
them all, but it can save you some time later if you catch the obvious
ones up front.
Continuity testing
One of the main tests we'll recommend throughout this section is
"continuity testing," which means that you use a multimeter to check
that there's a solid connection between two points.
I think the most common cause of problems I've seen with the expansion
boards is bad solder joints. It's no wonder, since these boards have
quite a lot of individual pin pads, and I think even the most
experienced soldering experts still have some percentage of "cold"
(non-connected) solder joints on the first attempt. Every time I've
built these boards myself, I've had two or three bad connections per
board.
The tricky thing about cold solder joints is that they can look
perfectly normal to visual inspection. The solder can sometimes form
tiny fractures as it cools that aren't readily visible but are big
enough to prevent electrical contact. So the best way to find them is
to test for electrical continuity. We'll point out specific places to
test for each set of symptoms.
Most multimeters have a continuity testing mode that makes this fairly
easy. The way this usually works is that the meter beeps when it
detects good continuity, so you can test connections between several
points quickly without having to stop and look at the meter. A slower
alternative if you don't have a proper continuity-test mode is to use
the resistance mode (to measure Ohms). A good connection should show
a very small resistance value, well below 1Ω, and usually
something like .01Ω.
Always test continuity with the power OFF.
When testing continuity to an IC pin, always test (if possible) at the
pin itself. Not the solder pad on the bottom of the board, but
rather the metal leg coming out of the chip, on the top side of the
board. That's the surest place to test. If the problem is a cold
solder joint, the whole problem is that the solder hasn't adhered
properly to the pin. It might have adhered properly to the copper
trace on the circuit board, so you might see continuity to the little
glob of solder. But that doesn't matter if the solder isn't attached
to the pin. So if you measure at the solder, you might see good
continuity, even if the pin isn't attached properly. So measure at
the pin when possible. The same goes for resistors, capacitors,
transistors, and so on. Likewise, when testing a pin header, measure
directly at the pin on the top side.
If a continuity test fails, the best and easiest remedy is to get out
your soldering iron and re-melt the solder at each end of the
connection. You might also apply fresh solder, but I'd only do that
if the current joint looks starved for solder; you don't want a giant
glob that might create a short circuit with an adjacent pad.
After re-soldering to try to fix a failed test, check continuity
again. If it looks good, go back and repeat the live test that
led you to do the continuity test in the first place - test the button
input, output port, etc. Most problems are due to single continuity
errors, so re-soldering the pins when you find such a problem will
usually fix the whole problem.
EAGLE plans
For trickier problems, we might ask you to open the plans for the
boards in the EAGLE software, which is the circuit board design
program used to create them. I know - that might sound scary. But
the tasks needed for this section are pretty simple, and we'll walk
you through them. The EAGLE files are the definitive source of
information on the details of how the parts on the board are
connected, so that's really the most reliable way to get some of
the needed information when tracing connections.
If you do get to a point where we ask you to go to the board
plans, here's how to set that up:
- Download and install the free personal-use version of EAGLE from
Autodesk:
- Download and UNZIP the board plans:
- Launch EAGLE
- In the EAGLE control panel menu, select File > Open > Board
- Select the .BRD file for the expansion board you want to look at
A few EAGLE usage tips
- The .BRD (board) file represents the layout of the board, as a 2D top-down view; everything
is in the same place as on the physical boards
- Spin the mouse wheel to scroll in and out
- Press and hold the mouse wheel to pan the circuit board view
- Right-click on pins or circuit traces for a context menu with possible commands for the object
- On the main menu, select File > Switch to schematic to view the circuit schematic
- For help reading the schematic, see Chapter 70, Schematics
How to trace a circuit in EAGLE
EAGLE makes it easy to see exactly what's connected to a particular
point on the circuit board. This is the best way to trace a
connection.
- Run EAGLE and load the .BRD file you want to look at as described above.
- Find the header pin, IC pin, or other component connection point you want trace
- Right-click on the center of the pin
- Select Show from the context menu
- The network of connections to that pin will light up, including the
copper traces on the circuit board, and the IC/header/component pins
connected at the other end or along the way. For example, here's
the connection from a pin on the Button Input header to the KL25Z
sockets:
Button inputs
Test button swith the Button Tester window in the Config Tool - not,
say, by checking for Windows keyboard or joystick input. The Button
Tester window is a more direct view of the hardware input.
Double-check the System Type setting in the Config Tool settings
to make sure it's set to Pinscape Expansion Boards.
No buttons are working
If none of the button inputs are working, the CMN (Common) pin on the
button input header is the likely culprit, because that's the one
connection that all of the inputs share. Check continuity from
the CMN pin on the header to a ground pins on the KL25Z, such as
J9 pins 12 or 14 (see
).
Some buttons are working, some aren't
If button #6 is the only one that's not working, there's a very good
chance that your System Type in the settings is set to Standalone
KL25Z. If so, change it to Pinscape Expansion Boards.
The individual button input pins connect directly to KL25Z GPIO
pins, so really the only thing that can go wrong other than software
configuration problems is cold solder joints. Check continuity
on each non-working button as follows:
- Use the Button Tester window to identify the GPIO port for the
non-working pin. The number in the Button# column corresponds
to the pin number on the expansion board header. The GPIO Pin
column tells you the KL25Z GPIO port. If you move the mouse over
the button's row, the location of the GPIO pin will be highlighted
on the KL25Z diagram on the right.
- With the power off, test continuity from the pin on the Button Inputs
pin header (testing the pin on the top side of the board) to the KL25Z
pin highlighted in the diagram.
- If the continuity is bad, try re-soldering the Button Input header
pin and the corresponding KL25Z socket pin on the expansion board.
While you're at it, re-solder the header pin connection on the KL25Z
itself - it might be bad at the KL25Z end.
- If the continuity is good, you might try re-soldering the KL25Z
header pin connection anyway, as you can't really check continuity
all the way to the KL25Z itself - only to the pin. So the problem
could still be a cold solder join in the KL25Z pin header.
- If none of that helps, go back and check the software configuration
again, and cross-check it against the EAGLE plans for the board:
- Check the GPIO pin assignment in the Config Tool
- Open the .BRD file for the main boards in EAGLE
- Find the pin of interest on the Button Inputs header
- Right click in the center of the pin and select Show from the menu
- That'll light up the whole network of things connected to that pin,
including the traces on the circuit board and the KL25Z socket pin on
the other end. Zero in on the KL25Z socket pin. Make sure it's
in the same position as the one you've been testing.
- See "How to trace a circuit in EAGLE" above for more on this.
Feedback device outputs
Test feedback outputs using the Output Port Tester in the Config Tool,
not DOF or LedBlinky or other third-party programs. The Output Port
Tester is the most direct test of the hardware, bypassing any
configuration problems with other software. DOF in particular has
lots of its own things that can go wrong; you don't want to have to
guess whether the problem is in the software or the hardware.
Main board flasher/small LED ports: none are working
The RGB Flasher ports and Strobe port are controlled by the first
TLC5940 chip, labeled IC1 on the circuit board. The Small RGB LED
ports are controlled by the second TLC5940 chip, IC2.
If all 32 of these ports are dead, the most likely cause is a bad
connection to one or more of its main data or power inputs. These
chips have several critical inputs that all have to be working for the
chips to function, so a single continuity problem in any of the input
pins will make the entire chip appear to be dead.
Another possibility is that one or both TLC5940 chips are defective -
the chips are daisy-chained, so a defective IC1 can make both chips
appear to be dead.
If you installed the TLC5940 chips in sockets, and you have additional
TLC5940 chips on hand (spares, or the chips installed in a power
board), it's easy to swap the installed pair for another pair to check
for bad chips. Even though the DOA rate for these chips is fairly
high with eBay sources, I don't think I've talked to anyone who had
more than one or two bad chips in a batch. So if you bought at least
four or five of them, the odds are good that some of them will
work. So:
- First, try swapping IC1 and IC2 with one another; do another test run
- If everything's still dead, try replacing both IC1 and IC2 with
spares
If that didn't help, it's still possible that you got an entirely bad
lot of TLC5940 chips, but hopefully not - I haven't heard from anyone
who's had that happen yet. It's more likely that at least some of
your chips are good, and that the problem is instead in the wiring.
Make the following continuity tests. I'd recommend having the .BRD
file open in EAGLE while you're doing this, since that makes it a lot
faster to find the test points on the physical boards. If you prefer,
you can refer to the
Appendix 1, KL25Z pin-out diagram
to locate the pins on the KL25Z. When we say something like "J1 pin 11"
on the KL25Z, we're talking about the location KL25Z's pin headers, not the
expansion board headers.
- Pin 17 on IC1 only should connect to PIN 26 on IC2
- Pin 18 on IC1 and IC2 should connect to KL25Z PTA1 (J1 pin 2 on the KL25Z)
- Pin 19 on IC1 and IC2 should connect to the GND pin on the PC PSU connector
- Pin 22 on IC1 and IC2 should connect to the GND pin on the PC PSU connector
- Pin 23 on IC1 and IC2 should connect to KL25Z PTC7 (J1 pin 1 on the KL25Z)
- Pin 24 on IC1 and IC2 should connect to KL25Z PTC10 (J1 pin 13 on the KL25Z)
- Pin 25 on IC1 and IC2 should connect to KL25Z PTC5 (J1 pin 9 on the KL25Z)
- Pin 26 on IC1 should connect to KL25Z PTC6 (J1 pin 11 on the KL25Z)
- Pin 26 on IC2 only should connect to Pin 17 on IC1 (as already noted above)
- Pin 27 on IC1 and IC2 should connect to the GND pin on the PC PSU connector
If all of that looks good, check that the chip's power supply is working.
With the power on, carefully measure DC voltage at pin 21 (on both chips).
Connect the meter's red probe to pin 21 on the chip, and connect the black
probe to one of the PWM OUT pins in the row nearest the edge of the board.
This should read 3.3V. If not, check the pin 21 solder connection, and
check all of the solder connections for IC12 (the LD1117AV33 chip that
looks like a MOSFET).
Main board flasher/small LED ports: no flasher ports work, some/all Small LED ports work
The most likely problem here is that the +5V connection on the flasher
header isn't connected properly to power. Check continuity between
that pin and the +5V pin on the 2ND PSU header (JP10). If that looks
good, try measuring the voltage at the flasher +5V pin, carefully,
with the power on. Connect the red probe of your meter to the flasher
+5V pin, and connect the black probe to one of the middle pins (pin 4
or 5) on IC8. If that doesn't read 5V, the problem must be in your
2ND PSU power cable - check its connections carefully.
The next possibility, although it's really unlikely, is that IC1 is
defective. Given that IC2 must be working for the Small LED ports to
work, we can easily test this possibility by swapping IC1 and IC2. If
the working and non-working ports trade places, the problem is a
defective chip - the one in IC2 after the swap. If nothing changes,
both chips are probably good, and the problem is in the wiring.
Go back to the "none are working" section and check the power inputs
to IC1. You can also check the signal inputs, but it's unlikely that
IC2 would be working at all if any of IC1's signal inputs aren't
working, since IC2 takes its signal input from IC1's output, so a
broken IC1 will usually prevent IC2 from working either.
Main board flasher/small LED ports: some/all flasher ports work, no Small LED ports work
If some of the ports are working, but all of the Small LED
ports are broken, the problem is probably the second TLC5940 chip,
IC2. This is a direct corollary to "none are working" above, but
isolated to IC2. The main things to look at in this case are
continuity to the IC2 data and power inputs, and the possibility
of a defective IC2.
One other, simpler possibility is that the +5V pin on the Small LED
header isn't working. Check continuity between that pin and the +5V
pin on the PC PSU header (JP7). You might also want to check the DC
voltage reading on that pin with the power on - to read that voltage,
connect the red meter probe to the +5V pin on the Small LED header,
and connect the black probe to one of the Ground pins on JP6 (PWM OUT)
- any of the pins on that header in the outer row (closer to the edge
of the board). If continuity to the PC PSU header is good, the
problem must be a bad connection in your power cable.
If you installed the chips in sockets, we can easily check to see if
IC2 is bad by swapping IC1 and IC2. We know that IC1 is a working
chip, since some or all of its ports are working. If we swap IC1
and IC2, then, we move the known-working chip into the IC2 socket,
and the questionable chip into the IC1 socket. So power down, swap
the chips, and run the port tests again. Here's what we'll learn:
- If all of the ports are dead now, or the live and dead ports trade
places (the working ports move to the Small LED group, and all of the
flasher/strobe ports are now dead), you have a bad chip - the one
that's now in the IC1 socket is the dead one, and the other one is
good. Throw out the chip in the IC1 socket and try a new one.
- If the same set of ports remain working as before, the chips are
both good, so the problem is in the wiring. Proceed with the
continuity checks below.
If the problem is in the wiring, it's most likely either the power
connections to IC2, or the data connections to IC2. Follow the same
procedures to test continuity to the TLC5940 inputs described
above under "none are working", but you should only have to
look at the IC2 inputs in this case.
Main board flasher/small LED ports: some work, some don't
If some of the flasher and small LED ports are working and some
aren't, it's almost certain that the TLC5940 chips are working
properly and that all of their power and data inputs are working
properly. The chips and their inputs have to be working for
any of the ports to work, so we can rule out those sorts of
problems if even a single port works correctly.
If you installed the TLC5940 chips in sockets, one easy test that you
can do to rule out a partially defective chip (mostly working, but
with a few dead ports) is to swap IC1 and IC2 with one another. If
the bad ports followed the chips, you must have a chip with one or
more bad ports. I haven't talked to anyone who's encountered such a
thing, but it seems like a possibility in principle. If the dead
ports are exactly the same before and after the swap, the chips must
be good - it's the wiring.
Checking the small LED output wiring
The Small LED outputs are connected directly to the TLC5940 output
ports, so if one of those ports isn't working, it's probably just a
bad solder joint at either the Small LED header pin or the
corresponding TLC5940 pin. To identify the path to trace:
- Launch EAGLE and load the .BRD file
- Right-click in the center of the Small LED header pin of interest
- Select Show from the context menu
- This will highlight the circuit trace from the Small LED header
pin to the TLC5940 pin for the port. The highlighted TLC5940 pin
is the one to check. Test continuity between that pin and the
header pin.
- If there's no continuity, re-solder the connection at each pin
(the header pin and the TLC5940 pin)
- If you're using sockets, also check to make sure that particular
TLC5940 pin is properly inserted in its socket
Checking the flasher/strobe output wiring
The flasher/strobe ports are more complex to trace than the Small LED
ports, because the former are connected through optocouplers and
Darlington transistor chips to allow them to drive larger devices.
The problem for a flasher port could therefore be a continuity problem
along the chain of connections through those other components, or it
could be that one of those components is defective.
You'll need the EAGLE .BRD plans to trace these connections:
- Launch EAGLE and open the .BRD file
- Right click on the RGB FLASHERS header (JP11) pin or STROBE (JP9)
pin that you want to trace
- Select Show from the context menu
- This will highlight a trace leading back to one of the ULN2064BN
chip pins. Continuity check the connection between the header pin
and the UL2064BN pin. If that's bad, re-solder both pins - this
might be the whole problem, so do a new power-on test of the output.
- For the next step, you'll need the schematic window to be open:
on the main menu, select File > Switch to schematic
- In the "Sheets" list on the left, select Sheet 3 ("Flasher/Lamp Outputs")
- Click on the Board window's title bar to bring it to the front, and Show the pin again
- Click on the Schematic window's title bar to bring it to the front. The same pin should be highlighted
on the schematic in two places: on the JP11 header and on one of the
ULN2064BN chips. Find the highlighted ULN2064BN pin - this should
be labeled "O1", "O2", "O3", or "O4" inside the ULN2064BN box.
- Trace across the ULN2064BN box to the corresponding "I" pin on
the opposite side - from "O1" to "I1", "O2" to "I2", etc.
- Right-click the red line sticking out of the ULN2064BN box
for that pin and select Show
- Click on the Board window's title bar to bring it to the front. You
should now see two new pins highlighted: a ULN2064BN pin, and a pin on
a PC847 chip. Check continuity between those two pins. If it's bad,
re-solder both pins - this might fix it, so do a new power-on test of
the output.
- Still not there? Click on the Schematic window's title bar to bring it to the front, and find the
PC847 pin that's now highlighted as part of the circuit trace.
This should be the "emitter" of a PC847 - a line with a little
arrow pointing out of the box. Find the pin on the opposite side
of the PC847 box - right click it and select Show.
- Go back to the Board view. Yet another pair of pins should
be highlighted: one on the PC847, and one on the TLC5940.
Check continuity between these pins. If it's bad, re-solder
both pins, and do another power-on test of the output.
We've now traced the circuit all the way from the pin header to the
TLC5940, so if it's a continuity problem, you should have found it by
now. The remaining possibility is that one of those two components we
just traced is bad - either the ULN2064BN or the PC847. (Hopefully
you paid attention in the steps above to which ULN2064BN and which
PC847 we were tracing through. If not, go back through the tracing
steps to identify the chips. Write down their chip numbers so that
you know which ones to look at more closely.)
If you installed these chips in sockets, the easiest test is always to
do a chip-swap. Do one swap at a time: first swap the ULN2064BN with
one of the others on the board, or with a spare if you have one.
Run the live test again. If that doesn't fix it, swap the PC847
with one of the others on the board or with a spare.
Main board knocker port isn't working
The knocker port is a pretty complex one to trace because of the timer
circuit. For whatever reason, though, this one doesn't seem to give
anyone any trouble. The parts in this circuit are simple ones that
are likely to be reliable, so any problems are probably due to a bad
solder connection. Rather than trying to trace through the many
connections one by one, I'm going to just point you to the parts to
check. Check the solder joints on each part and re-solder any that
look suspicious. On the circuit board, these parts are mostly
clustered around the knocker/strobe output header, but a few
are scattered elsewhere.
- C5
- C7
- C8
- C9
- IC11
- OK5
- R6
- R8
- R10
- R12
- R13
- R14
- R18
- R37
- T2
- T3
- Q1
For the definitive list of parts, look at the EAGLE schematic,
on Sheet 2 ("Knocker Output").
Power board ports: none work
The power board ports are controlled by TLC5940 chips, like the
flasher and small LED ports on the main board, so the diagnosis
process is similar. If all of the ports on this board are dead,
the main possibilities are:
- The data cable from the main board isn't connected properly.
Visually check that it's installed properly and that both ends are
oriented properly. Make sure that the same edge of the cable aligned
with the "Pin 1" arrow on the main board is aligned with the "Pin 1"
arrow on the power board. Make sure that it's plugged in the
PWM IN port on the power board, and the PWM OUT port on the main
board. (The PWM IN and PWM OUT ports on the power board look
identical, so read the label and make sure you have the IN port
on the power board. Likewise, the PWM OUT and CHIME OUT ports
on the main board look identical. Make sure you're using the PWM OUT
port on the main board and not the CHIME OUT port.)
- If the data cable looks to be installed properly, check continuity
(with the cable connected, and power off) for each pin on the headers
headers. Unlike the usual rule about testing the pin, this time you
want to check continuity on bottom of the board, testing at the
solder pads. The reason is that we're testing the cable this time, so
we want to make sure we have a good connection from solder joint to solder
joint. Check pin #1 on the main board PWM OUT against pin #1 on the
power board PWM IN, pin #2 against pin #2, etc. All pins must be
connected.
- Assuming you have all of the outputs on the main board working at
this point, and assuming you installed the TLC5940 chips on both
boards in sockets, you can test for a defective chip by swapping the
TLC5940 chips on the power board with the ones on the main board. We
know that the ones on the main board must be working if their outputs
are working.
- If the chip swap doesn't change anything, test continuity to the
data connections. This is similar to testing the TLC5940 pins on the
main board:
- Pin 17 on IC1 only should connect to PIN 26 on IC2
- Pin 18 on IC1 and IC2 should connect to KL25Z PTA1 (J1 pin 2 on the KL25Z)
- Pin 19 on IC1 and IC2 should connect to the GND pin on the PC PSU connector
- Pin 22 on IC1 and IC2 should connect to the GND pin on the PC PSU connector
- Pin 23 on IC1 and IC2 should connect to KL25Z PTC7 (J1 pin 1 on the KL25Z)
- Pin 24 on IC1 and IC2 should connect to KL25Z PTC10 (J1 pin 13 on the KL25Z)
- Pin 25 on IC1 and IC2 should connect to KL25Z PTC5 (J1 pin 9 on the KL25Z)
- Pin 26 on power board IC1 only should connect to Pin 17 on main board IC2 (note that
we're testing ICs on separate boards here!)
- Pin 26 on IC2 only should connect to pin 17 on IC1
- Pin 27 on power board IC1 and IC2 should connect to the GND pin on the PC PSU connector
- If all of that looks good, check that the chip's power supply is
working. With the power on, carefully measure DC voltage at pin 21
(on both chips). Connect the meter's red probe to pin 21 on the chip,
and connect the black probe to one of the PWM OUT pins in the row
nearest the edge of the board. This should read 3.3V. If not, check
the pin 21 solder connection, and check all of the solder connections
for IC12 (the LD1117AV33 chip that looks like a MOSFET).
Power board ports: some work, some don't
As with the main boards, if some ports are working, the data and power
inputs to the TLC5940 chips must be good, since these chips won't work
at all if there's a problem in any of those inputs. So the problem is
either an isolated port failure in one of the TLC5940 chips (unlikely
- I haven't heard of a case of this actually happening in the wild,
only complete failures of the entire chip), or more likely, a problem
in the wiring between the TLC5940 and the output port pin.
If you installed the TLC5940 chips in sockets, you can do a quick test
to rule out the bad chip scenario by swapping chips. Simply swap the
two TLC5940 chips with one another, and do another power-on test. If
the pattern of bad ports remains the same, the chips are okay; if the
pattern changes after swapping the chips (in particular, if the bad
port follows the chip to a new port), the chip controlling the bad
port probably has a bad output. Try replacing it with a fresh TLC5940
chip.
If the chip swap doesn't turn up anything, we have to trace the output
circuit from the TLC5940 pin to the output pin header. You'll need
to open the .BRD file in EAGLE for this process. As always, if you
find a continuity problem, re-solder the pads at each end of the
connection, re-check continuity, and if it looks good, run another
live test to see if the problem is resolved.
- In the EAGLE Board view, right-click the pin on the HI POWER OUTS
header that you want to trace, and select Show from the context
menu
- This will highlight a trace back to one of the MOSFETs. Test
continuity between the two points (the pin and the MOSFET - try to
test at the MOSFET leg on the top side of the board if possible).
- Next, test the other two MOSFET legs. One will be connected to
the super-wide ground trace; test continuity from that MOSFET leg
to the GND pins on the 2ND PSU power connector (JP4). The other
will connect to a resistor; check that connection from the MOSFET
leg to the resistor leg.
- The other end of that resistor will connect to two points:
another resistor right next to it, and a pin on a PC847 chip.
Check both connections.
- At this point we have to consult the schematic to find the next
jump. On the main menu, select File > Switch to schematic.
In the "Sheets" list on the left, select page 2 ("MOSFET Outputs").
- Click in the Board window's title bar to bring it back to the front.
Show the connection to the PC847 again. Note the chip number
(OK1, OK2, etc). Click on the Schematic window's title bar to bring
it to the front. Find the same OKn chip, and find the
highlighted pin. It will be hard to spot because it's just a short
wire segment, but it'll connect to the "emitter" side of one of
the OK's.
- Trace across the OK chip from the highlighted emitter pin side to
the pin on the opposite side of the box. Right-click that pin
and select Show.
- Click on the Board window title bar to bring it back to the front.
You should see a highlighted trace from a highlighted PC847 pin
to a highlighted TLC5940 pin. Check continuity between those two
pins.
That's the whole circuit, so if it's a continuity problem, it should
have turned up somewhere in that process. If there are no continuity
problems, you must have either a bad PC847 or a bad MOSFET. If
you installed the PC847 chips in sockets, try swapping the suspect
PC847 with one of the others, and do another live test.
Replacing the MOSFETs is more difficult since there's no good way to
socket them, but at least they only have three pins, so it's possible
to de-solder them with some patience. If you want to do a more
definitive live test of the MOSFET before going to the trouble of
de-soldering it, it's possible, but a little tricky. You have to
do this as a live test with the power on, so be really careful
about touching wires anywhere other than the exact points we say to:
- Go back to the schematic and find the PC847 controlling the
MOSFET, following the procedure above to trace through the circuit.
- Identify the pin shown below on the schematic. Use the
right-click Show command on each pin to highlight it and
identify the physical pin location on the Board view. This is
the first pin we're going to short in our test.
- In the board view, type into the command box at the top
show +12V and press Enter. That will highlight a
bunch of pins on each PC847 - one of them should be right
next door to the one you identified above. This is the
second pin we're going to short.
- With the power running, carefully short the two pins identified
above. If the MOSFET is working, the output should turn on. If it
doesn't, the MOSFET is probably dead, so I'd try replacing it.
Chime board ports: none work
There are two main "single points of failure" that would make
the whole chime board fail to work:
- The data cable
- The 74HC595 chip
Start with the data cable, since it's easy to check. Make sure that
it's installed with the same edge facing the Pin 1 arrow on the main
board and the chime board. (I recommend the "red stripe" trick to
make that easier: mark a red stripe down the whole length
along one edge, and check that the red stripe aligns with the Pin 1
arrows marked on both boards.)
Make certain that the cable is plugged into the CHIME/DIG OUT port on
the main board and the CHIME/DIG IN port on the chime board. Check
the markings carefully - the OUT port on the chime board looks exactly
like the IN port. And the CHIME port on the main board looks exactly like
the PWM port; make sure you're using the CHIME port with the chime board.
If you're sure the cable is installed correctly, check continuity
across the pin headers connecting to the cable. Do this with the
cable connected and the power off. Unlike the usual rule about
testing at the pin, this time you want to check continuity on
bottom of the board, testing at the solder pads. The reason is
that we're testing the cable this time, so we want to make sure we a
good connection from solder joint to solder joint. Check pin #1 on
the main board CHIME/DIG OUT against pin #1 on the chime board
CHIME/DIG IN, pin #2 against pin #2, etc. All pins must be connected.
The next thing to check is the 74HC595 chip. This controls all of the
outputs, so if none of them are working, the problem could be a
defective chip or a bad data or power connection. The chip won't work
at all if the data or power connections aren't working.
If you installed the chip in a socket, and you have a spare, you can
swap the chip with the spare, as an easy way to check for a defective
chip.
To test the data connections to the 74HC595, leave the data cable to
the main board attached, so that we can test continuity all the way
back to the KL25Z pins:
- Pin 8 on the chime board 74HC595 should connect to the GND pin on the PC PSU connector (JP7)
- Pins 10 and 16 on the chime board 74HC595 should connect to the 3V3 pins on the KL25Z
(J9 pins 4 and 8)
- Pin 11 on the chime board 74HC595 should connect to PTA4 on the KL25Z (J1 pin 10)
- Pin 12 on the chime board 74HC595 should connect to PTA12 on the KL25Z (J1 pin 8)
- Pin 14 on the chime board 74HC595 should connect to PTA5 on the KL25Z (J1 pin 12)
The next test will require voltage testing with the power on, so be
careful - don't let your multimeter probes short any pins together
while working.
- Power up the system for a live test
- Connect the multimeter's black probe to one of the Ground pins on
the CHIME/DIG OUT connector - the pins on the side nearest the edge,
except for pin 2 (the one near the pin 1 arrow), which isn't
connected
- Use the red probe to measure the voltage
- Pin 13 on the 74HC595 should read a low voltage, about 0.6V
If pin 13 reads zero voltage, or nearly zero, or weird random
fluctuating voltages, there might be a continuity problem - check the
connection to the pin 7 (ENA) on the CHIME/DIG IN connector on the
chime board. If it reads about 3.3V, the problem is probably on
the main board side. Check wiring to the following main board
parts:
For the definitive connections in that section, see the main board EAGLE schematic
for the connection to the CHIME/DIGITAL OUT header (JP5) pin 7 (ENA).
Chime board ports: some work, some don't
If some individual chime board ports are working and others aren't,
the data cabling and the 74HC595 wiring must be sound, so the problem
lies in the timer circuit or MOSFET for the individual non-working
outputs. These are fairly complex circuits, and fortunately they
don't seem to give anyone trouble, so I'm not going to go through
a complete tracing process for them here.
If you do need to debug one of these circuits, note how each output's
timer circuit is grouped together into a little rectangular section of
the circuit board, marked on the top of the board with a box around
it:
The numbers in the diagram show the correspondence between the output
port pins and the timer block boxes. So if output pin 3 isn't
working, for example, find the box marked 3 on the diagram, and focus
on the parts within that box. You can also identify which block
connects to which output by looking for the ICM7555 IC chip within the
block. These are numbered the same as the outputs: IC1 is in timer
block 1 for output 1, IC2 is in timer block 2 for output 2, etc.
Given the number of parts and complexity of the network, it's probably
more trouble than it's worth to trace individual connections and check
continuity. Instead, I'd just inspect all of the solder joints within
the bad output's timer block carefully, and if you can't find a
visually apparent bad one, re-solder them all. Do a live test.
If that doesn't solve it, try the following live test. As always with
live tests, be really careful not to short any pins besides the ones
we're going to test.
- Find the PC847 chip within the block
- Identify pin 1 (by the dot on the chip)
- Short together the two pins shown below
That test will bypass the timer block and simply activate the MOSFET.
If the output turns on when you do this, the MOSFET is good, and
something is wrong in the timer block. If the output doesn't turn
on, the MOSFET is probably bad. To identify the MOSFET in this
case, look for the "Q" label that matches the output port number:
port 1 is MOSFET Q1, port 2 is Q2, etc.
98. Connecting the Expansion Boards
Before connecting of disconnecting any of the expansion board cabling,
you should have the power off to the PC and all of the power supplies.
The same applies for seating and removing the KL25Z in the main board
sockets.
Attach the KL25Z
The KL25Z simply fits into the sockets on the main board. It only
fits in one way, since the sockets are asymmetrical.
In addition, connect the "KL25Z port" to the PC via a USB cable.
The "KL25Z port" is the one that Pinscape uses for all of its joystick
emulation, keyboard emulation, and output controller features. The
"OpenSDA port" is only needed when downloading new firmware onto the
KL25Z, so you don't have to leave it plugged in all the time. But
it's fine to do so - it doesn't interfere in any way with normal
controller operations. I leave it plugged in on my cab so that I
don't have to mess around with connecting cables when I want to update
the firmware; it's always plugged in and ready to go with updates.
Connect power cables
All of the expansion boards have two power input: one labeled
PC PSU and one labeled 2ND PSU. Both of these inputs
must be connected to power in order for the boards to operate.
The PC PSU connector is meant to connect to the ATX power
supply that's powering your PC motherboard. You should connect
the cable for this connector to a free disk power plug on your
PC's power supply.
The 2ND PSU connector is meant to connect to a separate,
"secondary" ATX power supply that's dedicated to powering your 5V and
12V feedback devices, such as flasher LEDs, light strips, motors,
fans, beacons, and possibly solenoids.
Do I really need two power supplies?
Not absolutely, but it's better to use two.
If you have some serious constraint that prevents using two supplies,
you can get away with sharing a single ATX power supply for
both the PC power and the feedback devices. The reason we recommend
against this is that it places a lot of load on the one PSU. Some of
the feedback devices draw enough power that they can momentarily
overwhelm the PSU's voltage regulator, especially when switching on
and off, which can make the PSU's output voltage levels fluctuate.
Exposing a PC motherboard to that kind of fluctuation can cause
glitches, such as USB disconnects or random Windows crashes. Using a
separate power supply unit avoids placing that kind of load on the
PC's supply.
If you do decide to run everything on a single power supply, the
expansion boards still need both connectors to be plugged in.
In this case, you simply plug both connectors into the main PC power
supply, rather than plugging them into separate supplies.
Connect the first power board to the main board
Connect the power board to the main board via a 10-pin ribbon cable.
See
Chapter 83, Ribbon Cables if you haven't built this cable yet.
This cable connects between
JP6 (PWM OUT) on the main board
and
JP2 (PWM IN) on the power board.
Be sure to align pin 1 on both ends of the cable. I recommend
marking a red stripe along one edge down the whole length of the
cable, and calling that the Pin 1 side. That makes it easier to
get the orientation right at both ends, since all you have to do
is align the red stripe with the "Pin 1 arrow" marked on the board
at each end.
Connect additional power boards
If you're using two or more power boards, connect their data cables
in a daisy chain, from the PWM OUT port of one board to the PWM IN
port of the next board:
- The second board's PWM IN port connects to the first board's PWM OUT port
- The third board's PWM IN port connects to the second board's PWM OUT port
- And so on
Connect the first chime board to the main board
Connect the ribbon cable between the main board's CHIME/DIG OUT port
(JP5) and the chime's board's CHIME/DIG IN port (JP1). As with the
power board ribbon cable, make sure that the cable is aligned so that
Pin 1 on the main board header connects to Pin 1 on the chime board
header. I recommend marking a red stripe on one edge for the whole
length of the ribbon cable to mark the Pin 1 side, to make it easier
to get the orientation right when plugging it in.
Connect additional chime boards
The chime boards connect in a daisy chain, like the power boards.
In this case, you connect the CHIME/DIG OUT port of one boards to the
CHIME/DIG IN port of the next board.
Connect the plunger sensor
The plunger sensor connects to the main board pin header marked
PLUNGER (JP2).
The easiest and best way to connect to this header is using a ribbon
cable. There's a separate chapter for each type of plunger sensor,
and each contains instructions for building the ribbon cable connector
for that sensor. Also see
Chapter 83, Ribbon Cables for general
instructions on building ribbon cables.
When connecting the plunger sensor connector, take care to line up the
Pin 1 connection on the plunger sensor with the Pin 1 arrow
marked on the main board.
Connect button inputs
The buttons all connect to the header on the main board marked
BUTTON INPUT (JP1).
The numbered pins on this connector correspond to individual button
inputs. The pin marked CMN is the "Common" pin.
Physically, pin cab buttons are typically either microswitches (such
as the SuzoHapp pushbuttons most people use for the front panel
buttons, such as Start and Exit) or leaf switches (usually used for
flipper buttons). In either case, the part you wire to the expansion
board is a "Normally Open" switch - a switch with two terminals that
come into contact when you push the button. To wire a button to the
expansion board, then, you connect one terminal of the switch to one
of the numbered button input pins, and you connect the other terminal
to the CMN (Common) pin. All of the buttons connect to the Common pin
(thus the name!), but each button gets its own individual numbered
input pin.
The pin header is designed to mate with a 26-pin crimp housing
(listed in the parts list). For help assembling crimp pin
housings, see
Chapter 82, Crimp Pins.
Some advice on assembling the crimp pin housing for this connector:
I'd start with an empty housing (without any wires installed yet), and
gradually install the wires as you install the buttons themselves.
One nice thing about these crimp pin housings is that you can insert
pins one at a time, so there's no need to install all of the pins at
once. Each time you install a button, run the wiring from the button
back to the expansion board, crimp a pin on the end of the wire, and
insert the pin into the housing.
The one pin you probably will want to install up front is the Common
wire, since all of the buttons will need to connect to that. You
might want to connect that to a terminal block or something similar,
so that you can easily add more wires that connect to this same
common point as you add more buttons.
TV ON connections
IR remote control connections
Feedback device connections
99. Accelerometer (Nudge) Setup
The KL25Z has an on-board accelerometer, which is a sensor that
measures the amount of acceleration applied to it. With a little
classical Newtonian physics, we can use acceleration measurements to
infer related information about the physical motion of the pin cab,
which we can feed into a physics simulation like Visual Pinball so
that nudging the cabinet can translate into a suitable effect on the
game.
Analog acceleration sensing adds a whole new kind of "control" to
pinball simulation, on par with real flipper buttons and mechanical
plungers. Physical interaction with the game via subtle and
not-to-subtle nudges is a huge part of real pinball that's completely
lost in desktop pinball. Desktop pinball tries to make up for it with
a "nudge key" that you can press, but that's not even close to the
real thing; it's like trying to replace the feeling of throwing a ball
with a button labeled "throw ball". The physical interaction you have
with a real pinball machine is automatic, subconscious, intuitive, and
the effect on the game is proportional and directional. A pin cab
with an accelerometer brings that same mode of interaction to virtual
pinball.
The KL25Z's accelerometer is built-in, and the Pinscape software uses
it by default to send readings to the PC. So there's very little to
set up on the controller side, other than physically installing the
KL25Z to take best advantage of the sensor. There are some options
you can set to fine-tune the input, though. And there's a small
amount of work needed on the PC side to configure pinball programs to
use nudge input.
This section is specifically about setting up Pinscape nudging. You
might also want to take a look at
Chapter 36, Nudge & Tilt, which looks at the
subject more generally.
Positioning the KL25Z
The KL25Z's accelerometer is a three-axis type - it measures
accelerations side-to-side, front-to-back, and up-and-down. The
accelerometer chip is mounted on the KL25Z board so that the axes
align with the plane of the board.
To take the best advantage of this, we want to align those native axes
on the device with the axes of the cabinet, so that it's easy for the
software to translate the sensor readings from the device to the
motion of the cabinet. Specifically, the KL25Z board should be
roughly flat on the floor, and it should be square with the front and
sides of the cabinet.
"Square" with the front and sides means that the sides of the board
are parallel with the corresponding cab walls. That makes any of the
following orientations work (viewing the main cabinet from directly
above):
So that tells us how to orient that board. The exact placement within
the cabinet is a little more flexible. To a certain extent, it
shouldn't matter too much where you place it, because the board will
always move with the cabinet no matter where you put it. But the
cabinet's motion has some subtleties because of the way it sways on
the four legs, so I think it's best to locate the board close to the
front, roughly centered side-to-side. That'll place it closest to
where you're actually applying the nudge forces, so it should make it
pick up motions in the same directions as your nudges, or at least
as close as possible.
Finally it's very important to tightly attach the KL25Z to the cabinet
floor. It should be secured to the cabinet so that it moves exactly
as the cabinet moves. It shouldn't have any play that lets it slip
around on its own; you want it to precisely track the motion of the
cabinet. If you're mounting the KL25Z stadalone, attach it with a
couple of screws through the mounting holes near the USB connectors,
and make sure all four rubber feet are firmly planted. If you're
using the expansion boards, the KL25Z plugs in via pin sockets that
are a good tight fit, so you just have to make sure the main board
itself is securely installed on standoffs.
To summarize:
- Place the board flat on the floor of your cab
- Top side facing up (the side with the IC chips)
- Square with the sides, in one of the four orientations shown above
- Close to the front of the cabinet
- Roughly centered side-to-side
- Mounted securely so that it moves precisely as the cabinet moves
Config Tool nudge setup
The Config Tool has a few settings for the accelerometer that you can
configure. To edit settings:
- Launch the Pinscape Config Tool
- Click the Settings icon for your device
- Scroll down to the Accelerometer orientation section.
The most important thing to set here is the device orientation. Select
the radio button that matches the orientation of the physical device.
Dynamic range: this setting lets you change the maximum
acceleration that the device can register. There's a trade-off: a
wider dynamic range also means lower precision (the ability to
distinguish small differences in degree). The KL25Z's accelerometer
chip can be set to a maximum range of 1G, 2G, 4G, or 8G (meaning
N times the acceleration due to Earth's gravity). The 1G
setting has the best ability to distinguish fine shades of differences
at small accelerations, down to about 1/10000 of a "G", but any actual
acceleration higher than 1G (about 10 meters per second) will just
read as the maximum 1G. 8G is at the other extreme: it can
distinguish strong accelerations up to 8 times Earth's gravitational
acceleration (which are very strong accelerations indeed), but at the
low end can only distinguish to about 1/1000 of a "G".
In my opinion, the high-precision 1G setting is the best option for
pin cab. A 1G acceleration is pretty strong in this context, and I
don't see any practical need to distinguish nudges that are even
stronger than that. We're better off with the finer gradations of
subtle nudges that this setting can distinguish.
Auto-centering: If you could mount the KL25Z perfectly flat in
your cabinet, it would read "zero" on the X and Y axes all the time
naturally. If you have even a slight tilt, though, Earth's gravity
will register as a slight constant pull on these axes. Since this is
practically impossible to eliminate in the physical mounting, the
Pinscape software compensates for it by subtracting out any constant
acceleration on either axis. This compensation is called
auto-centering.
The auto-centering option is enabled by default, with a default
interval of 5 seconds. That means that any time the accelerometer
hasn't been registering any significant motion for 5 seconds, the
firmware will take the average reading over that period to be the true
rest position of the physical device.
You can change this to disable centering entirely, or to change to a
longer or shorter period. If you disable auto centering, you can use
the joystick viewer in the Config Tool to manually re-zero the
readings at any time.
I'd recommend leaving auto-centering enabled. The true physical
orientation in space of you pin cab will inevitably change slightly
over time, as a natural consequence of your pin cab shifting on its
footings. The KL25Z accelerometer is so sensitive that it'll pick up
these slight shifts. If you don't allow the software to compensate by
auto-centering frequently, you'll see a constant small bias in the
readings, as though you were constantly nudging the machine slightly.
The constant compensation provided by the auto-centering software
keeps these biases from developing.
Testing nudge input
The Config Tool has a built-in viewer/tester for the joystick
interface.
- Launch the Pinscape Config Tool
- Click the Joystick icon for your device
That brings up the joystick viewer window:
This lets you view the information that the device is sending to
Windows, to verify that the USB joystick interface is working properly
and that the accelerometer, plunger, and button inputs are working as
expected.
The little diagram at the left labeled "Accelerometer" shows you the
current nudge readings. The little crosshairs in the middle
represents the accelerometer reading in 2D space; up/down corresponds
to the front-to-back direction on your cabinet, and left/right
corresponds to left/right on your cabinet.
Check the orientation:
When you give your cabinet a push from any direction, you should see
the crosshairs jump briefly in the same direction as the force you
applied. Push the cabinet from the front, and the crosshairs should
briefly deflect upwards; push from the left, and the crosshairs should
deflect to the right.
If the crosshairs move in the wrong direction when you nudge the
cabinet, go back and check the device orientation setting to make sure
it matches the way you positioned the KL25Z in the cabinet.
Button inputs: The red circles at the bottom represent the
joystick buttons. These don't represent the physical button
inputs on your KL25Z - they're strictly the joystick button presses
that Windows sees through the joystick device interface. If you
programmed a button to send a keyboard key instead of a joystick
button, you won't see anything light up in the joystick viewer when
you press the button.
Windows calibration = bad
Windows has its own joystick device calibration procedure, which you
get to via the Windows control panel called "Set up USB game
controllers". Don't use it!
Everyone always wants to run this. They see the calibration option in
Windows and think it must be there to help. It is there to
help, but only for real joystick devices. It's a disaster to
use with nudge/plunger devices, because they're not anything like real
joysticks. Nudge/plunger devices only pretend to be joysticks
so that they don't need separate device drivers.
If you accidentally ran the Windows calibration before you read this
warning (everyone does!), you'll need to delete the Windows calibration.
The Windows calibration will screw up the Pinscape readings and make
your nudge and plunger inputs act erratically. Fortunately, they
made it pretty easy to reset the unwanted calibration data:
- Open the "Set up USB game controllers" control panel
(press Windows+R, type joy.cpl, press Enter)
- Select the Pinscape device
- Go to the Settings tab
- Click Reset to Defaults
Visual Pinball setup
VP can use accelerometer input for simulated nudging. This isn't
enabled by default; you have to adjust some settings in VP to get
it working.
FX2/FX3 setup
Pinball FX2 and FX3 can also simulate nudging using an accelerometer,
but they don't use the joystick interface that Pinscape provides.
Instead, they require input through the XBox controller interface.
To bridge the gap, there's a program called
x360ce that can make a
joystick device emulate an XBox controller. That can reportedly
be used to make Pinscape nudging work in FX2/FX3.
I don't use this in my own system, so I don't have any details about
how to set it up. I anyone wants to write up instructions, I'll
be happy to include them here.
Conflicts with other joystick devices
Windows is happy to let you attach multiple joysticks to your system
at the same time, and doesn't have any trouble telling them apart.
However, not all applications are so accommodating. Some people have
run into conflicts between the Pinscape device and other joysticks or
joystick-emulating devices.
There are two main ways to deal with conflicts:
- Temporarily disable one of the devices when running applications
where the conflicts occur
- Switch one or the other device to use different "axis" assignment
for their data input
These techniques are described in more detail below.
Temporarily disabling a device
Many of the Microsoft software development kits (SDKs) include a tool
called devcon, which lets you temporarily enable and disable
individual devices. This can be a good way to deal with a conflicts
with another device that you only use with certain applications. That
is, you simply disable the other device when you're not using the
specific applications it's needed for.
For example, one person on the forums reported a conflict with a
special arcade controller device he only uses with certain video game
programs. The arcade device was creating a conflict with the Pinscape
device in Visual Pinball. But he didn't actually use the arcade
device with Visual Pinball, so the simple solution was to disable it
when Visual Pinball is running, eliminating the conflict in VP.
Installing devcon: The program comes with the Windows SDK,
which you can download from the Microsoft site separately or as part
of Visual Studio. You might also be able to find a plain devcon
download with a Web search, although I don't think Microsoft makes
it officially available separately from the SDKs.
Identifying the device: To disable a device with devcon,
you need to know its USB ID. devcon itself has a way to list devices
and their IDs. From a CMD prompt, go to the folder where you installed
devcon.exe and run this command:
devcon listclass HIDClass
>
That will show you a list of devices with their cryptic internal ID
strings on the left, and a device description on the right. The only
problem is that the device descriptions aren't very specific; they're
mostly vague things like "HID-compliant game controller". I think the
easiest way to figure out which one corresponds to your device is
the differential approach:
- Plug the device in
- Run the devcon listclass HIDClass command
- Unplug the device
- Run devcon listclass HIDClass again
- Compare the lists - the item(s) missing from the second list
represent the device you just unplugged
Disabling the device: Once you've figured out which cryptic
ID string corresponds to your device, you can disable it as follows:
- Open a CMD prompt window in Run as Administrator mode (necessary
because we're messing with device drivers)
- Go to the folder where you installed devcon.exe
- Type devcon disable "@xxxx", where xxxx is the full ID
string from the "listclass" list
Re-enabling the device: Same procedure as above, but replace
the devcon disable command with devcon enable.
Automating it: You can automate the disable-enable procedure
by putting it into a .BAT script. However, keep in mind that you'll
have to run the .BAT script with "Run as Administrator" mode.
Axis settings
Another way to deal with conflicts is to tell Pinscape to report its
input on a different set of axes than it normally uses. This can
be useful if you're getting conflicting readings on the two devices
in a program that can't distinguish between different joysticks,
such as Visual Pinball.
Most joystick devices send their input to Windows via the main
joystick position axes, known as the X and Y axes. That's how
Pinscape normally sends its accelerometer inputs. There's also a
third standard joystick axis, called the Z axis, that Pinscape uses
for plunger input.
Pinscape has an option to switch its inputs from using the X-Y-Z axes
to a separate set of axes, called the "R" axes - Rx, Ry, Rz.
The axis assignment change can be made in the Config Tool's Settings
page, under the Joystick section:
In case you're wondering, the "R" stands for rotation. In a real
joystick, the R axes are used to report twisting motions on the stick.
For Pinscape purposes, it doesn't really matter what the "R" axes were
designed for; we just use them as an alternative way to send the same
inputs.
The Rx-Ry-Rz setting can work around conflicts in VP with other
joysticks that use the X-Y-Z axes. VP can't distinguish between
joysticks, but it can distinguish the different axes.
If you do change Pinscape to report readings on Rx/Ry/Rz, you have to
update the joystick input settings in VP and other programs to match.
VP will normally look for input on the X/Y/Z axes, so if you change to
Rx/Ry/Rz, you have to tell VP to look there instead.
The downside of using Rx/Ry/Rz axes is that some pinball programs are
either hard-coded to use the Z axis for the plunger, or can't use the
"R" axes at all. Future Pinball can't use the R axes at all, for
example. You'd lose compatibility with such programs if you moved
Pinscape to Rx/Ry/Rz. So I always recommend using the default X/Y/Z
axis settings whenever possible, and only changing to the "R" axes as
a last resort when you have a conflict with another device that you
can't resolve in any other way.
Note that Pinscape only lets you change to the "R" axes as a group.
Both the plunger and nudge inputs have to be on the same axis type.
100. Plunger Sensor Breakout Board
If you're using Pinscape on a standalone KL25Z - without the
expansion boards - this section shows how to create a little circuit
board to interface between the plunger sensors and the KL25Z. This
gives you a place to plug in the standard connector that we use for
all of our plunger sensors.
You can skip this section if you're using the expansion boards,
because they already come with a dedicated plunger connector built-in.
Why do you need the breakout board?
You don't need it, but if you're using a standalone KL25Z, the
breakout board makes the connection to the plunger sensor much more
convenient and tidy.
Each plunger sensor has to be connected to a set of header pins header
pins on the KL25Z. The problem is that the pins needed for any given
sensor type aren't grouped together physically. They're scattered
around the KL25Z pin headers. It would be nice if they could be
grouped together, because then you could just plug in a small header
onto the appropriate group of pins. But we can't group them, since
the KL25Z's pin header layout wasn't up to us to decide.
The breakout board solves this problem by serving as an interface
between the scattered pins on the KL25Z and the grouped pins on the
plunger sensor cable.
- On the KL25Z, you connect hookup wires (via crimp pins) to the
scattered plunger pins on the KL25Z pin headers
- These wires connect to the breakout board
- The breakout board internally routes these wires to a single
8-pin header for the plunger sensor cable
- The plunger sensor cable plugs into this 8-pin header
The 8-pin header matches the layout of the plunger header on the
Pinscape expansion boards. This lets you build the plunger sensor
cabling the same way as you'd build it for the expansion boards.
It also means that you can easily transfer your sensor to the
expansion boards if you decide to switch to those in the future.
If you're using the expansion boards, you don't need the breakout
board, since it has the equivalent connect already built in.
How to order the board
You can order one from
OSH Park
for about $2.50 delivered. Actually, that $2.50 will buy you
three
copies of the board (that's their minimum order size), so you'll have
a couple of extras to share, or just in case.
To order from OSH Park:
Parts
How to assemble
Step 1: Solder the pin header. Fit the 2x4 pin header to the
top of the board in one of the matching outlines (either one you
prefer), with the short end of the pins facing the board. Feed the
pins through the holes, making sure the plastic base is seated flush
with the top of the board. Solder the pins on the bottom side.
Solder all eight pins.
Step 2: Determine where it'll be installed. I recommend installing
the breakout board close to the KL25Z, to keep the wiring run short.
Keep it within about a foot of the KL25Z if possible.
Step 3: Cut wires. Cut a set of wires as needed for your sensor.
See the sensor chapter for the specific wires you need. Cut each wire
to the length needed to connect between the KL25Z and the breakout board,
according to where you plan to situate the two boards.
Step 4: Strip wire insulation. Strip about 3/16" of insulation
from the end of each wire.
Step 5: Attach crimp pins. Attach a crimp pin to
one end of each
wire. Use the type of crimp pin that matches the wire housings you're using
to connect to the KL25Z, because these pins will fit into those housings.
See
Chapter 82, Crimp Pins for instructions on how to attach them.
Note! If you're already using the KL25Z's 5V, 3.3V, and/or GND pins for other
purposes, and you already have a crimp pin in any of those slots, you'll
have to tap into your existing wire, since you obviously can't add a second
crimp pin to the same slot. So instead of adding a crimp pin on any affected
wires, splice into the existing wire:
- Snip the wire in two at a convenient point
- Strip a little insulation from each end of the snipped wire
- Make a three-way solder joint between the two ends of the snipped wire
and the new wire to the breakout board
- Cover the exposed solder joint with electrical tape
Step 6: Solder the wires to the breakout board. Solder the bare
end of each hookup wire to the appropriate slot in the breakout board
- the one where you didn't install the pin header. Again,
refer to the specific instructions for your selected sensor type for
which wires to connect.
Step 7: Insert the crimp pins. Insert the crimp pins on the
hookup wires into the appropriate slots on the KL25Z crimp pin wire
housings. Once again, the appropriate slots depend on your sensor
type.
You're ready to go. When you finish building your plunger sensor, you
can simply plug in the ribbon cable to the pin header on the breakout board.
Be careful to observe the "pin 1" arrow on the board - it must line up with
same side of the ribbon cable that goes to the marked pin 1 on the plunger
sensor side.
101. Plunger Setup (TSL1410R Optical Sensor)
The TSL1410R was the original Pinscape plunger sensor, but
unfortunately, it was discontinued by the manufacturer around 2016 and
is no longer available from any source I'm aware of. I haven't
been able to find any other devices available with similar characteristics,
either, so I can't even recommend a substitute.
The TSL1410R, when it was available, was an optical sensor - basically
a camera without a lens - with all of its receptor pixels arranged in
a single row about 3⅛ inches long. This made it ideal as a
plunger position sensor, because a standard pinball plunger has a
travel of just about 3". To set this up, you positioned the sensor
just above the plunger, so that the single row of pixels was parallel
to the plunger's travel axis, with the pixel window facing down. You
also arranged a light source, preferably a point source like a single
bright LED, below the plunger, facing the sensor. In this geometry,
the plunger rod cast a shadow on the sensor. To determine the plunger
position, the software took snapshots of the "image" the sensor saw,
and found the edge of the shadow cast by the plunger - the boundary
between the bright pixels that the plunger rod wasn't blocking and the
dark pixels where the plunger cast its shadow. The TSL1410R had a
pixel pitch of 400 pixels per inch, and the shadow's edge position
could be detected to a precision of about 3-4 pixels, so the software
was able to determine the plunger's position to about 1/100 of an
inch. This is about the same as the on-screen pixel pitch in an HD
monitor, so it allowed the on-screen animation of the virtual plunger
to very closely match the actual position of the physical plunger.
Build details
Given that this sensor is no longer available and that no substitute
is available, I'm going to omit the details of how to set it up. If
you're lucky enough to find one of these devices somewhere, you can
still find the full setup instructions in the old "version 1"
Pinscape Build Guide.
Alternatives
Fortunately, the obsolescence of the TSL1410R doesn't mean you're out
of luck. There are some excellent alternatives available. The
Pinscape software is "sensor agnostic" and can work with a variety of
different sensor types. The best current options, in my opinion, are:
- The Chapter 105, TCD1103 optical sensor. Like the
TSL1410R, this is a linear imaging sensor that takes rapid pictures of
the plunger and detects its position by analyzing the images. The
TCD1103 is more complex to set up than the TSL1410R was because it
requires a focusing lens, as well as some extra electronics to
interface with the KL25Z. But with the lens, it provides even better
resolution than the TSL1410R did, and like the TSL1410R, it has no
mechanical contact with the plunger, so there are no moving parts to
wear over time.
- The Chapter 104, AEDR-8300 quadrature encoder. This can
yield extremely precise and stable position readings (even better than
the TSL1410R did), so it's a top pick for quality. However, it's
rather complex to set up, and moderately expensive (about $40 in
parts). It also has the downside that the sensor is mechanically
linked to the moving parts in the plunger, which can cause wear over
time.
- A Chapter 102, potentiometer based sensor. Most people I've
talked to who have set these up are very happy with them. This
approach is quite inexpensive (about $6 to $20) and really easy to set
up.
- A Chapter 103, VCNL4010 proximity sensor. This sensor
works by using an IR light beam to measure the distance between the
sensor and the plunger. It's not as accurate as a quadrature sensor
or potentiometer, but it's respectable, and it's cheap ($8) and very
easy to set up. It's also completely non-contact, so there's no wear
and tear from moving parts.
If you're very picky about the sensor quality, and you're not daunted
by the extra work involved, I'd go with the AEDR-8300. For most
people, though, I'd recommend giving the potentiometer a try first,
since it's so easy and cheap. If you don't end up liking it, you can
always upgrade to the AEDR-8300 (or maybe some even better option that
comes along down the road), and I think the pot is cheap and easy
enough that you won't feel like you're wasting a lot of money if you
try it and end up replacing it.
There's another option as well: come up with something completely new!
The Pinscape software is open-source C++, and it's specifically
designed so that you can plug in new code for different sensors.
(That's how it manages to support all of these unrelated sensor types
already.) The plunger is represented in the code by a C++ abstract
class that you can subclass with the interface logic for just about
any kind of physical device. Position sensing is an interesting and
surprisingly tricky problem, and I haven't come up with a perfect
solution yet - all of the current options have some tradeoffs. New
ideas for better sensor options would be most welcome. (See
Appendix 3, Plunger Sensor Technical Notes for some ideas about future sensor experiments
I'd like to try someday.)
102. Plunger Setup (Potentiometer)
The easiest type of plunger sensor to build is a sliding
potentiometer. A potentiometer (often called a "pot" for short) is
basically a continuously variable resistor. The sliding type has a
control lever that slides back and forth in a straight line - just
like a plunger. By connecting the end of the plunger rod to the
potentiometer lever, we can make the lever slide back and forth in
sync with the plunger. This in turn makes the potentiometer's
electrical resistance change in sync with the plunger position, so by
measuring the resistance, we can determine the position. The KL25Z
helps us out with this by providing a built-in ADC (analog/digital
converter), which can precisely measure the analog voltage on a GPIO
pin.
This is one of the simplest possible position sensors, since all we
have to do is connect three wires between the pot and the KL25Z
(power, ground, and the variable resistance).
Here's how this works for sensing plunger position:
- Physically, you install the potentiometer in the cabinet adjacent to
the plunger, fixed in place. You connect the control lever on the pot
to the end of the plunger, so that the control lever moves in unison
with the plunger.
- Electrically, the resistance on the pot varies according to the
control lever position, so whenever you move the plunger, it changes
the resistance on the pot accordingly.
- The software tracks the plunger position by monitoring the
electrical resistance (actually the voltage, which is directly related
to the resistance) and converting that to a position reading.
Potentiometers are inexpensive (about $6) and easy to install. They
work well, but they're analog devices, so they have a little random
noise in the signal that can be visible as a small amount of jitter in
the on-screen plunger position. The Pinscape software tries to
minimize that by taking many readings and averaging them together, and
has an adjustable "jitter" filter to calm any remaining noise in the
signal so that it doesn't show up as jumpy on-screen animation.
Oak Micros's pre-built kit
No longer available as of June 2021. Oak Micros formerly sold a
kit with all the parts needed for the plunger setup, including an
easy-to-install mounting bracket, but announced in June 2021 that
they're no longer selling their products. Here's the original
announcement on vpforums, if you want to check for any updates:
>
Selecting a potentiometer
The
Chapter 91, parts list section has a specific slide
potentiometer that's known to work well, but there are other similar
devices available. You can use any slide potentiometer that meets
these guidelines:
- 10 kΩ overall resistance
- Linear taper
- About 100mm travel length
Important: Pay special attention to the "linear taper" part.
It's not a reference to the physical arrangement with the
sliding control lever. It's an electrical spec that describes how the
pot's resistance varies across its range. There are two main types of
pots: "linear taper" and "audio taper". A linear taper means that if
you plot the resistance vs. the control arm position, you get a
straight line. With an audio taper, you get a logarithmic curve.
It's important to get a pot with a linear resistance taper, because it
gives you nice uniform distance readings across the whole sliding
range. If you get an audio taper type instead, the software won't be
able to convert the readings properly.
The absolute minimum length that will work is 85mm, but I'd look for
something in the 100mm range, because that gives you a little leeway
at each end to make sure the plunger doesn't bash the lever against
the potentiometer's limits.
If you're using the expansion boards, you'll also want to pick up the
connector specified in the parts list to make it easier to plug into
the boards. If you're using a standalone KL25Z (without the expansion
boards), see
Chapter 88, KL25Z Hardware Setup for recommendations on
connecting wires to the board.
Wiring
The wiring for a potentiometer is pretty simple, since there are
only three wires involved. The only tricky part is identifying
which terminal on the potentiometer is which, since the pins on
the device itself are often unlabeled.
If you're using a different potentiometer, I can't tell you which pin
is which, since every device has its own pin arrangement. If the
device came with a diagram showing the pins, consult that, otherwise
check the vendor's Web site to see if they have a diagram.
If you can't find any information on your device, you can
figure out the pin arrangement by testing with a multimeter.
Follow this procedure:
- Set the meter to Ohms (Ω)
- Pick two pins to test
- Attach the leads from the multimeter to the two pins you
selected
- Check the reading:
- If it reads 10 kΩ (or whatever your device's
overall resistance is, if different), and it doesn't
change as you slide the control arm back and forth,
you've found the two fixed terminals
- If it reads something below 10 kΩ, and you
see the reading changes as you slowly move the control
arm back and forth, one of the pins you've selected
is the wiper and the other is a fixed end
Test each pair of pins like this in turn until you hit upon the two
fixed terminals. Once you know which two are the fixed ends, you know
that the other one has to be the wiper by process of elimination.
Six-pin pots
If your potentiometer has six pins, you probably bought a type that
has two electrically separate potentiometers inside, both controlled
together by a single control arm. In this case, there will be more
combinations of pins to test, and there will be another type of
reading you'll see for some of the pairs: "Infinity" or "no
connection". These readings mean that the two pins you're testing are
on the two separate internal pots, so there's no connection between
them at all. Simply ignore these pairings, and continue testing other
pairs. Proceed until you find two fixed ends and a wiper that are
connected together and show readings as described above. Once you
find those, you'll only need to connect those three pins to the
Pinscape unit. You can leave the other three pins completely
unconnected.
Standalone KL25Z wiring
Here's the schematic for wiring the stand-alone KL25Z,
without the expansion boards. The two "fixed" terminals on
the potentiometer are wired to 3.3V and Ground on the KL25Z,
respectively. The "wiper" or "variable" terminal on the
potentiometer is wired to an "analog in" port, such as PTB0.
- Follow the "Expansion board wiring" instructions below to build a
pluggable connector for the potentiometer itself
- Follow the instructions in Chapter 100, Plunger Sensor Breakout Board to build the
breakout board
- Connect the following wires between the breakout board and the KL25Z:
- Breakout board B0 to KL25Z PTB0 (pin 2 on J10)
- Breakout board 3.3V to KL25Z P3V3 (pin 8 on J9)
- Breakout board GND to KL25Z GND (pin 12 or 14 on J9)
Expansion board wiring
For the expansion board connector, build a 4x2 crimp pin housing
(
housing,
pins).
First crimp a pin to the end of each wire (see
Chapter 82, Crimp Pins).
Insert the pins in the housing, following the diagram below for the pin placement.
Physical installation
I'd recommend getting all of the electrical wiring to the
potentiometer in place before installing the pot in the cab, since
it'll be hard to access the little contact pins on the pot after
installing it.
If you're using the ALPS potentiometer recommended in the parts
list, you can find 3D printer plans for a mounting apparatus
below, along with installation
instructions.
If you're using a different potentiometer, you'll have to either
modify our 3D printer plans to fit your device, or improvise
something of your own. It's pretty easy to come up with an
ad hoc mounting system using off-the-shelf hardware. Here
are the basic requirements:
- The body of the potentiometer needs to be fixed in place in
the cabinet.
- The potentiometer's control knob must be firmly anchored to the
plunger rod, so that moving the plunger moves the control knob by the
same amount. The attachment should have as little play as possible.
- Don't worry about the orientation of the sensor at this stage.
If you get it backwards, you can simply tell the software to reverse
the readings.
3D printer plans for ALPS potentiometer mounting
If you're using the ALPS potentiometer from the
Chapter 91, parts list, here's a set of 3D printing plans
you can use to mount it in your cabinet.
>
Other parts needed:
- Standard Williams/Bally plunger assembly
- M3 x 5mm to 8mm machine screws, quantity 2 (the exact length needed
might vary depending on how the 3D-printed parts come out, so you
might want to buy both lengths and use the one that fits best)
Fabricating the parts: The ZIP file contains five STL files.
Four of the STL files are the individual pieces that make up the
bracket assembly. The fifth file, Combined Parts.stl, contains
all of the other parts joined together into a single contiguous 3D
object, using the "model airplane" style where the piece are connected
by little plastic struts. The combined parts file lets you
manufacturer all of the parts in a single printer run.
You only need to print either the individual part files
or the single combined parts file. If you're using a
commercial 3D print service, I'd recommend using the combined parts
file, because many of the online services charge an extra fee for each
file you print, so it's cheaper to print the whole batch as a single
file. If you have your own 3D printer at home, use whichever
approach is more economical and easier for you.
3D printing guidelines:
- The STL files use millimeter (mm) units
- You can use any plastic material you wish, but I'd recommend Nylon
PA-11 or PA-12 if you're using an online service, as those have
excellent durability
- See Chapter 4, Resources for links to online 3D print services if
you don't have a 3D printer at home
Note that my illustrations below show each part in a different color,
but that's only for the sake of clarity in the illustrations. There's
no need to use different colors for the actual printed parts.
Installation: If you printed the combined parts file, separate
it into the individual parts, by cutting the pieces apart at the
little struts holding them together.
If you've already installed the plunger assembly in your cabinet,
remove the top two screws. Leave the bottom screw installed.
If you haven't installed the plunger assembly yet, install it now,
fastening only the single bottom screw for now (leave the top
two screws out).
Remove the rubber tip from the end of the plunger if it's there, and
remove the e-clip. The e-clip is the little semicircular metal
fastener near the end of the plunger that holds the spring in place.
The e-clip simply snaps out by pulling it sideways. You'll need to
use needle-nose pliers to get a strong enough grip. It also helps to
hold back the spring while working so that it doesn't apply extra
pressure to the clip. You can leave the spring in place after
removing the e-clip.
From the plastic set, find the "front bracket" piece illustrated
below. Slide the potentiometer into the slot as shown. Be careful
not to damage the electrical connector pin on the bottom of the pot -
the pin should fit into the slot at the front.
It doesn't matter which end of the pot you call the "front" at
this point. You can easily switch directions in the software
after installing it, so it doesn't matter if it's "backwards"
initially.
When the potentiometer is seated properly in the slot, the mounting
screw hole at the end of the potentiometer should align with the screw
hole in plastic piece. Install an M3 machine screw in the mounting
hole to fasten the pot and bracket together. (As mentioned earlier,
there can be some variation in how the 3D-printed parts fit, so the
ideal screw length needed can vary; something in the 5mm to 8mm range
should fit. Do a test fit with the different sizes and choose the
length that works best in your setup.)
Leave the screw a little loose for now, since we'll want a little play
when we finalize the alignment with the other parts later.
Now slide the bracket-and-pot assembly onto the end of the plunger,
and all the way back until the bracket is sitting flush against the
plunger mounting plate.
Reinstall the two top mounting screws that we removed from the plunger
assembly at the start of the procedure. Fit them through the holes in
the front plastic bracket. Don't over-tighten, as that could crack the
plastic piece.
Now we're going to install the plastic bracket that connects the
plunger to the slider lever on the pot. This connector bracket is
actually two separate pieces. They work together to form a clamp that
grips the pot lever from the front and back. The brackets fit over
the plunger rod, between the spring and the E-clip. The tension of
the spring holds everything in place.
Install the larger bracket first, by slipping it onto the plunger
rod as shown below and maneuvering it behind the slider lever. You'll
have to compress the spring a bit as you put it in place.
Slide the bracket over the potentiometer lever.
Slip the smaller bracket onto the plunger rod, and slide it back
until it meets the larger bracket. The two should clamp over the
pot slider lever. There'll be a little space between the two
brackets when you're done, because the slider lever on the pot
is a little wider than the spacing between the brackets. That's
intentional, so that the brackets clamp down on the slider to
make a solid grip with no play.
Push the brackets back against the spring far enough to make room
for the E-clip to fit into the matching slot on the plunger rod,
then re-install the E-clip. The E-clip just snaps into place with
a little sideways force. I find it easiest to do this with
needle-nose pliers.
The last step is to install the bracket at the far end of the
potentiometer. This bracket attaches between the pot and the side
wall of the cabinet. Fasten the bracket to the potentiometer with an
M3 machine screw. Keep it loose for now so that we can fine-tune the
positioning before tightening. (As before, the screw length should be
from 5mm to 8mm long; choose the length that fits best with your
parts.)
Before attaching the bracket to the wall, slide the plunger back and
forth a few times to get an idea of how it affects the vertical
positioning of the front of the pot. You'll want to pick a position
for the bracket that allows the pot to move freely across its whole
range, to avoid friction or stress on the mechanism. Once you've
found the right position, screw the bracket into the side wall with a
couple of #4 to #6 wood screws. (Sheet metal screws work equally
well.)
Lemming77's design (not for ALPS)
Here's another 3D-printer plan (in Sketchup format) for a mounting for
a different potentiometer, created by lemming77 on
vpforums.
These plans are not the ALPS
device from our parts list - they're for some generic OEM part
found a long time ago on Aliexpress, which is probably no longer
available. You might be able to use these plans as a starting point,
but be aware that
you'll have to modify them to fit your device's
dimensions.
Lemming77's (vpforums) design for an older OEM potentiometer from Aliexpress,
printed from the Sketchup plans linked above.
Software setup
Start the Pinscape Config Tool. Click the Settings button for your
device. Scroll down to the Plunger section. In the Sensor Type
drop list, select Potentiometer.
If you're using the expansion boards, the pins should be configured
automatically. If you're using the standalone KL25Z, set the
"Wiper" field to the GPIO pin that you connected to the "variable"
terminal on the potentiometer.
Save the new settings by clicking "Program KL25Z" at the bottom
of the window.
You should now test and calibrate the plunger. Return to the home
screen in the Config tool and click the Plunger icon for the unit
with the sensor attached. This will let you look at the raw
input from the potentiometer. When you move the plunger, the
green bar in the setup window should move along with it.
If the green bar is responding, click the Calibrate button in
the plunger viewer window. This will begin the calibration
process. Follow the on-screen instructions. The plunger
should be ready to use when the calibration process finishes.
If you're not seeing any response on the green bar, you might want to
go back to the Settings window and make sure that the settings are
right. Confirm that you've selected the Potentiometer sensor type,
and double-check that the GPIO port you selected is the one you
physically wired on the KL25Z. Also make sure that the pin isn't
marked with a warning icon (
). If it is, click the icon to
see what's wrong. In most cases, the problem is that the same
pin is assigned to multiple functions. If so, go to the other
place where the pin is assigned, and clear that entry by
setting it to "Not Connected".
If the software setup looks okay, check the physical wiring.
Inspect each wire between the KL25Z and the potentiometer.
Make each wire is connected to the right pin at both ends
(on the KL25Z and the potentiometer). Check that the GPIO
you assigned in the software matches the physical pin on the
KL25Z you've wired.
Backwards operation
If the on-screen plunger moves backwards from the real plunger, you
can fix it in the software without reinstalling the sensor. Open the
Pinscape Config Tool. In the row for the controller, click the
Plunger icon. Check the box for "Reverse orientation". (If it's
already checked, un-check it.) This tells the software to reverse the
readings from the sensor, so that it acts like it was installed in the
opposite orientation.
103. Plunger Setup (VCNL4010 Proximity Sensor)
Vishay's VCNL4010 is an IR proximity sensor. It works by projecting
pulses of infrared (IR) light in the direction of the target, and
measuring the amount of light reflected back. If enough light is
reflected back, the chip detects that an object is present within the
target range. The brightness of the reflected light can also be used
to infer the distance to the target, at least on a relative scale,
since an object reflects more light when it's closer to the sensor
than when it's farther away. It's this ability to measure distance
that makes this interesting as a pin cab plunger sensor: we can use it
to track the plunger position by pointing the sensor at the end of the
plunger rod and taking distance readings.
I added support for this sensor mainly because several people who
owned the Virtuapin plunger kit requested it, so that they could
migrate their kit to the Pinscape firmware while continuing to use the
plunger sensor that came with their Virtuapin kit. The VirtuaPin
controller is based on the same retail KL25Z board that Pinscape runs
on, so you can re-flash the board with the Pinscape firmware if you
really want to, but until recently, doing so required replacing the
Virtuapin plunger sensor with a different sensor that the older
Pinscape software supported, such as a potentiometer or a quadrature
sensor. Now that the Pinscape firmware also supports the VCNL4010,
you can migrate without changing any of the hardware.
What if you don't own the VirtuaPin plunger kit - should you still
consider this sensor? My answer is a qualified "yes": it has some
really good features, but it also has some drawbacks. If you've read
the chapter on the somewhat similar VL6180X sensor, or if you've seen
some of my posts on the forums related to IR sensors, you probably
know that I'm not too keen on the various IR sensors in general as pin
cab plunger sensors. Most of them just aren't very good at measuring
distance. But this chip actually produces pretty decent results.
It's not quite as good as a potentiometer or the quadrature or imaging
sensor options (which are described in other chapters in this guide),
but it's good enough to be quite usable. In my testing, it was able
to resolve the plunger position finely enough over most of its travel
range to produce smooth and responsive animation. This sensor's big
weakness is accuracy. Its accuracy is good when the plunger is close
to the sensor, but it drops when the plunger is farther away, so you
might see somewhat chunky animation at the far end of the plunger
travel, when the plunger is pulled back most of the way. In addition,
the sensor's response curve (measured brightness vs. distance to the
target) isn't perfectly uniform, so the distance calculations are
non-linear. The Pinscape software tries to compensate for the
non-linearity with an adjustment formula, but the actual response
curve is a little bit erratic, so I haven't been able to make the
response perfectly linear even after compensation. You might or might
not notice this, depending on how closely you look. Even with
these limitations, this sensor is still a good choice, given its other
virtues: it's really easy to set up (maybe even easier than a
potentiometer), it's inexpensive (under $10), and it's non-contact
(there's no wear from moving parts). Those features are nice enough
that you might be willing to compromise a bit on accuracy.
Firmware and Config Tool versions
Support for the VCNL4010 is new as of June 2021. Make sure you're
using versions of the Pinscape firmware and Config Tool dated
2021-06-01 or later (or, better still, just grab the latest release).
Electronics
You can buy a fully assembled VCNL4010 circuit board from
Adafruit. This is lucky for
us, because the bare chips are challenging to solder by hand (they're
really intended for machine soldering). The pre-fab boards make them
easy to use.
>
The Adafruit board has easy-to-use solder terminals, and it can
be wired directly to the KL25Z. No other hardware is required
(besides wire).
If you have the VirtuaPin plunger kit, it happens to include the
Adafruit breakout board, with the connections to the KL25Z already
wired up. So you're already set!
Wiring the board
The Adafruit breakout board comes fully assembled, except for external
wire connections. The only thing we have to do is attach the wires
between the board and the Pinscape controller.
If you have the VirtuaPin kit that includes the Adafruit board, it's
already wired, so you can skip straight ahead to the software setup.
The board comes with a pin header strip that you can optionally solder
to the pads on the board. You can use these if you'd like, but I'd
actually recommend soldering wires directly to the pin pads on the
board instead of using the pin headers. Using the pins creates a bit
of extra work, since you'll have to build an extra connector to plug
into the pins. It also creates more opportunities for troubleshooting
loose connections. So I'd skip the pins and solder wires directly to
the board terminals, since you really shouldn't ever need to
disconnect the wires from the sensor board. I do recommend using
pluggable connectors at the KL25Z end, though, so that you'll still be
able to easily unplug the whole assembly if you ever need to remove it
from the cabinet.
I recommend 24 AWG stranded wire for the connections, but the exact
gauge isn't important, as these wires carry very low power.
You'll need four wires, about three feet long each. Before cutting
the wires, check the length you'll need by measuring the distance the
wire will have to traverse to reach from the sensor location to the
Pinscape unit (the KL25Z or main expansion board). Take into account
any extra length you need to route it around your PC motherboard or
other obstructions.
Strip about 1/4" of insulation from each end of each wire.
Solder one wire to each of the following terminals on the board:
Leave the other terminals (3v0 and INT) unwired. Don't connect
anything to those terminals.
Expansion board wiring
For the expansion board connector, build a 4x2 crimp pin housing
(
housing,
pins). First crimp a pin to the end
of each wire (see
Chapter 82, Crimp Pins). Insert the pins in the
housing, following the diagram below for the pin placement.
The diagram below shows the layout of the 2x4 connector housing that
you'll plug in to the expansion boards. The labels Vin, SCL, SDA, and
GND correspond to the terminal markings on the Adafruit board.
Connect the wire for each pin in the housing to the corresponding
terminal on the Adafruit board, matching up the labels. Simply leave
the unmarked pins empty in the connector housing.
It would be a good idea to put a mark of some kind on the housing in
the corner next to pin 1 - the pin marked with the arrow on the
diagram above. That will make it easier to remember which side
aligns with the "pin 1" arrow marker on the circuit board when
you plug in the connector.
Standalone KL25Z wiring
- Build the expansion board connect as described above
- Build the ribbon cable connector exactly as described above,
as though you were using the expansion boards
- Follow the instructions in Chapter 100, Plunger Sensor Breakout Board to build the board
- Connect the following wires between the plunger breakout board and the KL25Z:
- Breakout board 3.3V to KL25Z P3V3 (pin 8 on J9)
- Breakout board GND to KL25Z GND (pin 12 or 14 on J9)
- Breakout board E20 to KL25Z PTE20 (pin 1 on JP10)
- Breakout board D0 to KL25Z PTE21 (pin 3 on JP10)
(Yes, the label on the breakout board is different in this case)
The plunger sensor breakout board makes the connection a little
tidier, but that's all it does - if you prefer, you can just wire the
Adafruit board directly to the KL25Z pins. If you want to go that
route, see "Plug it in" below for the list of the required KL25Z GPIO
pin connections.
Physical installation
If you're using the plunger sensor from the VirtuaPin kit, you can
simply continue using that whole apparatus, including its mounting
bracket and wiring.
If you're building this all from scratch, you'll have to come up with
your own way of mounting the sensor. I haven't come up with a
reference design yet, but I can at least describe the setup I used in
my test rig:
- Materials:
- 1½" angle bracket
- #6 wood screws, ½"
- double-sticky foam tape
- Mount the sensor to the angle bracket with the foam tape. Pick the
location so that the sensor lines up with the plunger when the angle
bracket is installed.
- Attach the angle bracket to the side wall of the cabinet with the
wood screws. Position it so that the sensor is aimed directly at the
plunger. Leave about 1.5 centimeters of clearance between the plunger
and the sensor.
- The sensor must be far enough away from the plunger that there's no
chance that the plunger will strike it when pulled back all the way
and released. (You don't want all of that energy smacking into the
sensor.) Test this by pressing the plunger all the way forward to
make sure it doesn't hit. But it should be as close as possible after
leaving enough clearance, since we're operating at the limits of the
sensor's distance range as it is.
It would be nicer to come up with a 3D-printed plastic bracket that's
more specifically designed to hold the circuit board, but I don't
currently have a design for that to give you. If you're motivated to
design and test a housing, and you want to share it, I'd be more than
happy to include it in this guide if you send me a copy.
Reflector
You'll also need some kind of reflector attached to the end of the
plunger. A standard white rubber plunger tip might be adequate, but
you'll probably need something larger for good results.
Make the reflector as large as you can without hitting the flipper
button switches or anything else installed nearby. A disk shape is
ideal, since it'll provide a uniform reflection even if you turn the
plunger knob. (This would be another great place for a 3D-printed
plastic part, but as with the mounting bracket, I don't currently have
a design to offer, so I can only suggest improvising.)
For test rig, I used a 1-inch disk, taped to the end of the plunger
(as you can see in the photo above). I tried several materials to see
what worked best. I had the best results with high-brightness white
printer paper, and with kitchen aluminum foil, with the dull side
facing the sensor. (The shiny side doesn't seem to work as well,
probably because its reflected light isn't diffuse enough to produce a
uniform reading at the sensor.) The foil performed very slightly
better than the white paper in my test rig, but the difference was
marginal enough that your results might vary, so I'd recommend
experimenting with a few different materials to see what works best
for you.
Don't rely on how bright a material looks to your eye to judge how
good a reflector it will be. The sensor works in the infrared part of
the spectrum, and some materials that reflect visible light well
aren't as reflective in the IR spectrum (and vice versa). It's better
to test a material rather than going by how it looks to the eye. You
can use your live plunger setup as a test instrument, by looking at
the brightness numbers in the Plunger Viewer window in the Pinscape
Config Tool. That tells you exactly what the sensor is seeing. Pay
particular attention to the brightness level with the plunger pulled
all the way back. That's the most distant point from the
sensor, which makes it the most challenging region for the sensor.
It's useful to look at the brightness number for each material, but
it's more important to look at how the brightness number varies with
small plunger movements near the all-the-way-back end. In order to
detect motion, the sensor has to be able to see changes in the
brightness level that correlate with changes in the distance. So when
you move the plunger by a few millimeters while it's nearly all the
way back, you should see the brightness number go down as the plunger
moves away from the sensor, and up as the plunger moves closer to the
sensor. If you can see that pattern reliably with the sensor near the
all-the-way-back end of its travel, your reflector should work well.
Plug it in
Expansion boards:
Once you've built the connector as shown above, simply plug it into the
plunger connector on the main expansion board. Make sure the plug orientation
is correct by match pin 1 in the housing (see the
diagram)
with the pin 1 triangle printed on the expansion board.
Standalone KL25Z:
If you're using the plunger sensor breakout board (recommended), build the
expansion board connector as described above, and just plug it in to the
pin header on the breakout board. Be sure pin 1 on the plug (see the
diagram)
to pin 1 on the board, which is marked with a little white triangle
printed next to the header.
If you prefer to use your own ad hoc wiring, connect the wires between
the board and the KL25Z as shown below.
Adafruit Board Pin | KL25Z Pin |
Vin | P3V3 (JP9-8) |
GND | GND (JP9-10) |
SDA | PTE20 (JP10-1) |
SCL | PTE21 (JP10-3) |
>
Leave the other pads on the VCNL4010 board (3vo, INT) unconnected.
Note that the GPIO ports listed above are only suggestions. If you're
already using the listed ports for other functions, you can assign the
sensor inputs to other ports using the Config Tool. Any free GPIO
ports can be used with this sensor - it doesn't have any special
requirements for particular ports. The power and ground wires aren't
configurable, though, so connect those as shown.
Software setup
Once you have the sensor physically installed and plugged in, run the
Pinscape Config Tool on your PC. Go to the Settings page. (If you
have multiple Pinscape units installed, choose the Settings page for
the unit that's plugged into your new plunger sensor.)
Go to the Plunger Sensor section. Select VCNL4010 in the "sensor type"
popup.
(If the VCNL4010 option isn't available in the plunger sensor list,
you probably have an older version of the Config Tool. Updating to
the latest version should add the option.)
If you're using the expansion boards, the appropriate pin settings
will be be selected automatically.
If you're using the standalone KL25Z, set the pin assignments for the
two I/O pins (SDA and SCL) to match the pins you connected on the
KL25Z. The SDA and SCL pins should match the pins you wired to the
like-named terminals on the sensor board.
If you have the VirtuaPin kit with the VCNL4010 board, it's already
wired to the KL25Z, so all you have to do is set the pins to match the
kit's wiring. The pin assignments for the kit are SDA = PTC2, SCL
= PTC1.
Here's a quick summary of the pin assignments, depending on your
configuration:
Configuration | SDA | SCL |
Expansion Boards | Automatic | Automatic |
Standalone KL25Z, with plunger breakout board | PTE20 | PTE21 |
Standalone KL25Z, with your own ad hoc wiring | As you wired it | As you wired it |
VirtuaPin plunger kit | PTC2 | PTC1 |
There's also a box where you can enter the "IR LED current" setting.
This adjusts the brightness of the IR emitter on the chip that's used
to produce the light beam for the distance measurements. You can
experiment with this to see what produces the best results in your
setup, but I recommend starting with the maximum
value of 200 mA. The VCNL4010 can only barely detect objects
as far away as the plunger travels, so it needs the brightest light
source you can supply to be able to track the plunger.
Note that the 200 mA power setting doesn't meant that the sensor will
actually draw 200 mA from the power supply. That power level might
look alarming, but you really don't have to worry about it. The
sensor only generates brief pulses of light, so it uses much less
power overall than this setting suggests. According to the data
sheet, the sensor only draws 4 mA overall when set to its highest
power setting (with the IR LED set to the maximum 200 mA, and the
sampling speed set to the fastest rate). 4 mA is a negligible amount
of power that won't affect the KL25Z or your USB ports. This sensor
is designed for use in battery-powered devices, so they made it
quite efficient on power.
Save the new settings by clicking "Program KL25Z" at the bottom of the
window.
You should now test and calibrate the plunger. Return to the home
screen in the Config Tool and click the Plunger icon for the unit with
the sensor attached. This will let you look at the raw sensor input.
Here's what the plunger viewer visualization looks like for this sensor:
The yellow bar shows the "brightness" of the IR light signal that the
sensor is receiving. Remember that this sensor doesn't actually
measure distance - all it can measure directly is the IR light level
it's receiving on its photo sensor. The yellow bar lets you see
exactly what the sensor is reading on its IR receiver. The brightness
level is in abstract units that range from 0 (complete darkness) to
65535 (full saturation, like an overexposed photo). The 0-65535
scale is what the sensor actually reports on its digital interface
to the KL25Z, so this shows you the unfiltered data directly from
the sensor.
The green bar superimposed over the yellow bar shows the plunger
position that the software is computing from the brightness reading.
Remember that this isn't something that the sensor measures - the
sensor only gives us that brightness reading. The plunger position
has to be inferred from the brightness. This calculation is only
meaningful after calibration, so the green bar will usually act
erratically (or it might even be missing entirely) when you first hook
things up. Don't worry about the green bar right now - let's just
make sure the sensor is working first, by checking that the raw
brightness reading (the yellow bar) is behaving properly.
To check that the sensor is working, try moving the plunger, and watch
the yellow brightness bar. It should change when you move the
plunger. The brightness should decrease (lower numbers) as you pull
the plunger back, since the amount of light reflected from an object
decreases as the object moves farther away. You might immediately
notice that the yellow bar's motion isn't "linear" - the bar doesn't
track changes in the plunger position at the same rate across the
whole travel range. That's exactly as it should be! The yellow bar
is showing you what the sensor sees at the physical level, and at the
physical level, light intensity is related to distance through an
inverse power law. As a result, the yellow bar moves faster when the
plunger is close to the sensor, and slower when the plunger is further
away.
You might also notice that the yellow bar doesn't cover the entire
numeric range from 0 to 65535 as you move the plunger. That's also to
be expected. You might see it get close (or all the way) to the
maximum 65535 when you push the plunger right up against the sensor,
but it probably won't fall to anywhere near zero when you pull it all
the way back. This is because the sensor always registers a certain
baseline background light level, which comes partially from ambient
light, and partially from the sensor's own internal electronics. This
minimum level apparently varies quite a lot from one sensor to the
next, according to the data sheet, so don't worry if the yellow bar
bottoms out with a number in the thousands. It's also better if the
numbers never quite reach the maximum, because that means you're
getting the plunger so close to the sensor that it's getting
"overexposed", where it can't distinguish distances. You might back
the sensor away from the plunger by a couple of millimeters if the
yellow bar hits 65535 before the plunger is absolutely all the way
forward.
If the yellow bar isn't there at all, or it doesn't move when you move
the plunger, the sensor either isn't working or isn't connected
properly to the software. Go back to the settings page and
double-check the GPIO pin assignments.
Make sure that none of the
pins are marked with error icons (
). If you see any of those, click the
icon to see details on the conflict. These conflicts
must be
resolved - a lot of people see the icons and think they're just just
some kind of advisory that can be ignored (I guess we're all used to
Windows software constantly pestering us with meaningless warnings and
error messages), but in this case you really have to pay attention to
them. The sensor simply won't work if there are any pin assignment
conflicts. If there are no conflicts, trace each wire and make sure
that it actually goes to the assigned pin on each end (KL25Z and
sensor board). Check that each GPIO port assignment on the settings
page matches up with the physical pin on the KL25Z and connects to the
corresponding terminal on the sensor board. Try to look at it with a
critical eye - I find that it's really easy to trick yourself into
seeing what you want to see when doing this kind error checking.
If the yellow brightness bar behaves as expected, click the Calibrate
button in the plunger viewer window to begin the calibration process.
Follow the on-screen instructions.
Make sure that everything's set up the way it would be during normal
operation when you run the calibration. For example, if you opened up
your cabinet or removed the TV to install the plunger hardware, you
should put everything back together for calibration. The VCNL4010's
brightness readings can be affected by ambient light and reflections
from nearby objects, so the calibration results will only be accurate
when the environmental conditions are the same as when you ran the
calibration. You might need to repeat the calibration process if you
make any substantial changes to your cab in the future that might
affect ambient light inside the cabinet or similar factors. (Things
like the ambient light level in the room outside the cabinet
shouldn't matter, since the cab should block all of that.)
Jitter filtering
The VCNL4010 has some inherent electronic "noise", or randomness, in
its brightness readings. If you watch the brightness number on the
yellow bar in the plunger setup dialog, you'll see that it jumps
around over a small range when the plunger is sitting perfectly still.
This is due to random variations in the brightness readings on the
sensor. A certain amount of random noise is a natural part of any
analog measurement process.
The Pinscape software has a "jitter" filter to help reduce the visible
effects of the noise. The jitter filter lets you set a range of
expected random fluctuations; the software will ignore changes within
that range. As long as the random noise from the sensor stays within
the range, the device ignores the fluctuations and reports a stable
plunger position that remains stationary when the real plunger isn't
moving, and tracks the real plunger's position smoothly when it's
moving.
To enable the jitter filter, run the Pinscape Config Tool and go to
the Plunger Viewer window. There's a setting in this window for the
jitter filter. To adjust it, start with the filter at zero, and
gradually increase it until the green bar showing the filtered reading
stops jumping around. Use the smallest value that gives you stable
readings. If set the filter value too high, the animation will start
to get chunky.
For my test setup, a jitter window of 10 to 20 works nicely, but you
should experiment. The optimal setting will vary by system, since so
many different physical factors can affect the noise level in the IR
signal.
Theory of operation
The VCNL4010 is what's called a "proximity" sensor. It's designed to
answer the yes/no question, "is there an object near (in proximity to)
the sensor?".
That's not exactly the question that we want to ask of a plunger
sensor. Our question is, rather, "how far away is that object?", and
we'd like to take our answer in millimeters, or some other unit of
distance. Technically, a sensor that's designed to answer the
question "how far?" is a distance sensor. Using a proximity
sensor like the VCNL4010 to answer "how far?" is a little bit of an
abuse of the chip, since we're asking more of it than its designers
intended. But even so, it's still a question we can meaningfully ask
with this particular chip, because the chip gives us more information
than just a yes/no answer.
What the sensor actually gives us, in lieu of directly answering "is
an object there?", is something a little more quantitative, which
we're meant to interpret as an answer to that question. The quantity
the sensor measures is the intensity of the reflected light from the
target object - the reflection of the IR beam that the sensor shines
on the target. We're supposed to compare this to a threshold
brightness level, which we have to determine by calibrating the sensor
(by placing a test object at a known distance from the sensor, and
taking a reading). After we've calibrated with a test object, we can
start taking proximity readings. If a brightness measurement is above
the calibrated threshold, we're supposed to take that to mean that an
object is nearby; if the brightness is lower than the threshold, we
take it to mean that nothing's there. Technically, that's all the
information this sensor is supposed to give us; we're not supposed to
wonder exactly how far away the object is when an object is detected.
But we could "abuse" the brightness reading by treating it as a
continuous quantity, instead of just comparing it to a single
threshold, using the physics principle that the amount of reflected
light should be inversely related to the distance to the reflecting
object. The reflected brightness is essentially a proxy for the
distance.
That might seem perfectly reasonable, so why do I call this an
"abuse"? Simply because it's not what the chip is designed for. The
brightness might be usable as a proxy for distance, but it's not
necessarily a good proxy. A good proxy would have a
well-defined relationship to distance, so that we can precisely
calculate the distance corresponding to any given sensor reading.
This chip's designers weren't at all trying to achieve that, and the
chip's data sheet is silent on exactly what the relationship to
distance might be, other than providing some rough plots of test data
for a simple reference setup.
The difficulty with figuring out the precise relationship between
brightness and distance (and why the manufacturer doesn't attempt to
specify the relationship in the data sheet) is that it depends upon
many different factors: the size and shape and reflectivity of the
target object, the sensitivity of the sensor, the amount of ambient
light, stray reflections, and so on. For a pin cab plunger, we can at
least try to arrange things so that most of those other factors are
constant, so that the only variable is the distance. But even holding
everything except distance constant, we still can't know the precise
mathematical relationship between distance and brightness, so we have
to figure that out empirically. The best we can do is observe the
relationship through calibration, and then interpolate points in
between the calibrated reference points. In the abstract, that might
or might not work, depending on how uniform and repeatable the
relationship between brightness and distance actually is in practice
for the sensor.
Fortunately, for this sensor, it turns out that the relationship is
uniform enough and precise enough that we can get pretty good results
with it.
In my testing, the best fit to the data I gathered turned out to be
simple inverse square relationship - the measured brightness is
proportional to the inverse of the square of the distance. That's
just what you'd expect from an idealized point light source, so it
matches my intuition at that level, but it's actually somewhat
different from what the Vishay data sheet suggests. As I mentioned,
the data sheet doesn't specify a numerical relationship between
distance and brightness, but it does at least provide a rough plot of
some test data, and from that it appears that the relationship they
observed is more like an inverse cube curve (it looks like about
1/r3.2 to me, but the data sheet plot is shown at such low
resolution that it's hard to read it with any precision). Even though
an inverse square law fits my intuition about an idealized
point-light-source setup, my intuition also says that our reflector
apparatus has some pretty significant geometry differences from a
point source and that we therefore shouldn't trust such simple
intuition. Even so, it seems to be what fits! But so far I've only
tested this sensor in this one installation, so we'll have to see if
the inverse square fit that the firmware is currently using works as
well for other people. I can believe that the power-law relationship
might vary a little bit based on the physical setup, and that we'll
eventually need to make that configurable to get optimal results
across different machines. But we'll see.
104. Plunger Setup (AEDR-8300 Encoder)
One of the newer sensor option for the Pinscape plunger is an "optical
encoder" chip called the AEDR-8300.
An optical encoder works with a guide rail known as a "scale" to sense
its position. The scale is marked with alternating black and white
bars of equal width. As the sensor moves along the scale, it counts
the bars it passes. Since the bars are all of the same width, the
count tells us the position in units of the bar width. The AEDR-8300
uses very fine bars, about 6.6 thousandths of an inch wide, which lets
it measure the position very precisely.
Pinball plungers are obviously well suited for this basic idea, since
they're naturally constrained to move in one dimension. The position
along the scale tells us everything we need to know about the plunger
position.
This chapter explains how to set up this type of plunger sensor.
3D printing guidelines
- The STL files linked here use millimeter (mm) units
- Nylon materials are recommended (PA12 or PA11)
- MJF (multi-jet fusion) process is recommended
I don't recommend using a home 3D printer for these parts.
Consumer-grade printers mostly use PLA or ABS, which aren't good for
functional parts like these since they tend to disintegrate rapidly
when exposed to friction. I recommend using a commercial 3D-printing
service (All3DP.com, Shapeways.com, or 3DHubs.com), and choosing a
nylon material (PA12 or PA11). If your vendor offers the newer
MJF (multi-jet fusion) process, I'd consider that - it seems to
produce extremely tough parts that should hold up well.
Parts list
This plunger project requires some specialized parts, all of which you
can make yourself from the plans below. Just a few years ago, a lot
of this would have been all but impossible for a hobbyist, but it's
actually pretty easy now thanks to 3D printing and other
technologies. In fact, the project is a nice tour of the
many modern options for "personal manufacturing":
- Two of the parts can be 3D-printed
- One part can be made from laser-cut plastic
- One piece can be printed on a regular inkjet or laser printer
- One part is a custom circuit board
Fortunately, you don't need a factory at home for any of this, since
there are companies that will do one-off 3D printing, laser cutting,
and circuit board manufacturing at reasonable prices. See
Chapter 4, Resources for my recommended vendors.
There are economies of scale in ordering some of these parts in
batches, so you might want to consider finding a few people on the
forums and place a group order. I've organized group orders in the
past myself for these sensors, so feel free to contact me to see if I
have any parts currently available.
If you want to order everything yourself, here are the pieces you'll
need.
Sensor bracket. This plastic piece fastens the
sensor to the plunger. It simply fits over the end of
the plunger rod between the e-clip and the spring, so
it's held in place by the spring.
>
As noted above, I highly recommend having this part made by
a commercial 3D-printing service (not a home printer)
using a nylon material, preferably with the MJF process.
Guide bracket. This plastic piece serves as the
anchor for the guide rail, which holds the optical bar
pattern ("scale") that the sensor scans. This fits
over the metal plate that anchors the screws holding
the ball shooter housing in place.
>
This piece can also be 3D-printed, using these plans:
guideBracket.stl (units are
millimeters).
Guide rail. This is a piece of 3mm thick mirrored
acrylic that serves as the guide rail that the sensor moves
across. This fits into the guide bracket and is held in
place with a bolt.
>
This piece should be laser-cut using
3mm mirrored
acrylic. The mirrored surface is needed to get enough
reflected light for the sensor to work properly.
Laser-cutting templates are linked below. These are suitable
for upload to
Ponoko.com,
which offers the right kind of mirrored acrylic as an option.
The "single rail" file includes only one copy of the rail, whereas
the "multi-pack" fills Ponoko's entire small sheet with copies.
The multi-pack makes the best use of materials, and gives you
lots of extra copies to share with friends. On the other hand,
you can use the single copy version if you want to fill in the
unused space with some other design of your own. This
could be interesting for making custom decorations for your
cab - the mirrored acrylic is great for making custom lettering
or logo cutouts.
Printed scale. The bar pattern that the sensor
reads can be printed with an ordinary laser printed on
transparency sheets. Use transparency sheets made for
laser printers, such as 3M CG3300.
>
A PNG graphics file with the pattern is linked below.
I recommend printing with a laser printer, not an inkjet, since
inkjet ink isn't as opaque as laser toner. Use a high quality
setting, since it's important to maximize contrast. If you
have a color laser printer, print in monochrome mode with black
toner if that option is available.
This image is at 600dpi, and should print at 5" wide. Your
printer will probably scale it automatically if necessary
to match its native resolution, but if you can't get it to
print at the proper size or it comes out fuzzy, you should
try manually rescaling it to your printer's native resolution
with a graphics program. The exact size of the bars is
important, so don't rescale the overall image to a different
print size. The only adjustment you should make is to the pixel
resolution.
Circuit board. This small printed circuit board holds
the sensor chip, plus a few resistors it needs, and pads for
a ribbon cable to connect to the Pinscape expansion boards.
This fits into the sensor bracket. You can order these
from
OSH Park simply
by uploading the EAGLE
.brd file.
>
Electronics. You'll need the sensor IC itself, plus
a few other electronic components that go into the circuit board.
Everything is listed in the
Chapter 91, Electronic Parts List in the AEDR-8300
plunger sensor section.
>
Please see the
warning on humidity
below. Don't open the AEDR-8300 plastic pouch until you're ready
to solder it to the circuit board (even though it's tempting to
open the package and check it out when you first get it).
Cable/wires.
For the expansion boards, order the ribbon cable
connectors listed in the AEDR-8300 parts list, plus an 8-conductor
ribbon cable in whatever length you need to connect to the board.
3 feet should be more than enough. If you can't find an 8-conductor
cable, you should be able to cut one with more conductors down
to size. Most ribbon cables can be easily torn like a zipper
along wire boundaries to reduce them to however many wires
you need.
>
For the standalone KL25Z, it's most convenient to use individual
wires (not a ribbon cable) to connect to the KL25Z. You can simply
solder wires directly to the sensor board, and connect the other
ends to the KL25Z via the 0.1" crimp pins listed in the KL25Z
standalone section of the
Chapter 91, Electronic Parts List.
Plunger. Of course, you'll also need a real pinball
plunger. You don't have to fabricate anything for this; you
can just buy a real one. The parts above are
all designed around the Williams/Bally ball shooter assembly,
Williams part no. B-12245. They haven't changed the design since
at least the late 1980s, so if you have an older version, chances
are it'll fit. I think the current Stern plungers are the
same size as well, but I haven't confirmed that.
>
You should also buy the special mounting plate for the
shooter assembly, Williams part #01-3535. It's only
about $2 and it makes it much easier to install.
Fasteners. The following fasteners are recommended:
>
- (Qty 1) M2x12mm or #4x½" machine screw and mating nut, preferably nylon,
for attaching the acrylic guide to the bracket
>
- (Qty 4) M2x8mm or #2x⅜" machine screws and mating nuts, preferably nylon,
for attaching the circuit board to the sensor bracket
>
- (Qty 3) #10-32 x 5/8" machine screws, steel, for the ball shooter assembly housing
>
Group orders
For the smaller parts, particularly the acrylic rail and the circuit
board, you can save money with a group order. These can be made in
batches much more cheaply than as single copies. I might have a small
supply on hand; if so, I'll be happy to send you parts from my
batch at cost as long as you're in the US. Contact me on the forums
to inquire (see
Chapter 4, Resources).
The 3D-printed parts and electronics don't have any particular scales
of economy, so I'd recommend ordering those individually. If you have
your own 3D printer, you can print the 3D parts yourself.
Warning on humidity
When you order the AEDR-8300 from Mouser, they make a fairly big deal
about its sensitivity to humidity. It'll come in a sealed plastic
pouch with a big warning sticker about humidity exposure, and an
indicator card sealed inside that changes color as it picks up
moisture from the air. The card is there to verify that no moisture
leaked into the packaging during shipping and storage, so check it
when you first open the package. (The card will start changing color
quickly after you open the package. Don't worry about that; it's
there purely to assure you that the packaging was intact. If the card
indicates that the packaging wasn't moisture-proof after all,
use the "baking" procedure that we'll come to in a moment.)
The humidity warning is there because the plastic housing material
used in this chip can absorb moisture from the air and trap little
droplets of water in pores in the plastic. When you solder the chip,
the heat will turn any trapped water into steam, and the sudden
expansion can warp or crack the housing. It's like microwaving a
sealed container. This can destroy the chip.
To avoid this danger, don't break the seal on the packaging until
you're ready to install the chip. Read through the installation steps
before you open the pouch, and make sure you have all of the necessary
tools and supplies on hand before you start, so that you can complete
the soldering job in one session once you start.
There's no need to panic, though. The guidelines for this chip say
that it's okay to solder for up to 168 hours (7 days) after opening
the package.
What happens if you go past the 168-hour deadline, or the moisture
indicator card in the packaging shows a breach? The data sheet has a
straightforward solution: "bake" the chip, placing it in an oven at
60° C (140° F) for 48 hours. That'll gently exorcise any
trapped moisture and restore the chip to a happily desiccated state.
That'll give you a fresh 168-hour window to complete soldering.
Moisture is only a worry during the soldering process. You don't have
to worry about humidity exposure once you've installed the chip on the
board.
Assembling the circuit board
Please read the warning above on exposing the sensor to humidity
before proceeding.
Take a look at the circuit board and check for any little tabs or
spurs around the edges. Small boards like this are usually made as
parts of larger panels, so there are sometimes a few rough edges left
over. If you find any tabs sticking out, trim them with wire cutters
or something similar. The board fits snugly into the 3D-printed
plastic bracket, so spurs can prevent it from fitting properly.
Installing the sensor chip
This is the only tricky step in assembling the board, and it should be
done first.
The AEDR-8300 is a small surface-mount part. As you can see in the
photo below, it's really tiny. I recommend having a
magnifying glass and forceps at the ready while working with it.
The first thing you need to do is figure out the chip's orientation.
Start by identifying the front and back. The back is the side with
the metal pads for soldering. The front is all clear plastic, with a
couple of little circular bumps for the light source and sensor lens.
Be careful: the whole package is made of transparent plastic, so you
can see the metal pads from both sides. But if you look closely, it
should be obvious which side the metal pads are on.
Front of the AEDR-8300. The little circular
areas are the light emitter and detector. There's a very subtle
"chamfer" near pin 6, top right.
Back of the AEDR-8300. The metal pads for
soldering are on this side. The center pad has a little dot, like
the dot over an "i", at the "top" end.
Once you find the front and back, all that's left is to find the right
rotation to match the circuit board. There are two ways to identify
the right rotation. One is to look for the "chamfer" on the front
face of the chip. This is a very subtle indentation, not quite
a notch. You should be able to see it with a strong enough light.
The chamfer is at the "top right" corner, near pin 6. The other way
to figure the orientation is to observe the center metal pad, which
you can see through the plastic even from the front. When the chip
is oriented correctly, the metal pad will look like a lower-case "i",
with the little dot at the top. Refer to the diagrams above and
look for that lower-case "i" shape.
Orient the circuit board as shown below, and you'll see that the
"i" shape on the chip should match the "i" shape in the pad area for
the chip on the board (labeled "OK1").
The thing that makes soldering this part tricky is that, as you can
see above, all of the solder pads are on the bottom of the chip. That
makes it hard to get your soldering iron into contact with the pad to
melt the solder.
The solution is to use something called "solder paste" rather than
ordinary solder, and heat the whole board at once rather than trying
to heat the pads individually. This is surprisingly easy even if
you've never done it before.
Solder paste is a special mixture of solder and glue that you can
spread onto the pads like Cheez Whiz. Regular solder is solid at room
temperature, but solder paste is a tacky goo - very much like paste,
as the name suggests.
The first step is to smear the paste onto the pads. If you use the MG
paste, it comes in a syringe with a needle dispenser. The pads on
this chip are so small that even this needle is too big. So I skipped
that and used a toothpick to take a tiny bit out of the nozzle
(without the needle attached) and smear it onto the circuit
board pads.
Ideally, you'd put a little bit of paste on each pad. But again,
these pads are just too tiny. It's hard to confine each dab of paste to
just the pads. I ended up smearing the paste all over the pad area.
It might look like a useless mess at this point, but it's actually
okay. The solder paste will come to the rescue when heated. It's
chock full of the magical "flux" chemical that makes the solder stick
only to the metal parts when melting. The surface tension pulls the
excess solder out of the gaps between the pads. The mess cleans
itself up. Just make sure the coating of paste is as thin as you
can make it. If there's too much solder overall, even the flux won't
be able to confine the solder to the pads.
Once the pads are covered in the paste (whether or not you managed
to keep it away from the spaces between the pads), it's time to stick
the chip onto the paste. Hopefully you already figured out how the
chip is supposed to be positioned, and you kept the chip standing by
in the proper orientation, so now it's just a matter of popping it
into place. Forceps are very helpful at this stage.
You don't have to get the positioning exact. Again, the solder paste
will make up for a lot of inexactitude in your prep work, in this case
because the surface tension between the solder and the metal pads will
actually pull the chip into almost perfect alignment when the solder
melts. But you have to be sure that each pad on the chip is at least
close to its proper destination pad on the board. The surface tension
will pull each pad on the chip to the closest pad on the board. If
the chip is badly misaligned, the closest pad might be the wrong one,
and the chip might get pulled into the wrong position. So a little
care is required here. Just make sure the chip is lined up with the
outline printed on the board.
Once it's all lined up, give it a little push with the forceps to make
sure it's snugly seated in the paste. Double-check that you didn't
dislodge it from proper alignment.
The final step is to heat the board to melt the solder.
The professional tool for this step is an SMD heat gun. ("SMD" stands
for Surface Mount Device, which is the kind of chip we're working with
here that mounts onto pads on the board rather than via wires that
feed through holes.) If you already own an SMD heat gun, I'm going to
assume you do a lot of SMD chip work and know exactly what you're
doing, so I'll leave you to it.
If you don't own a heat gun, I can recommend two good DIY alternatives:
- Buy a cheap heat gun at a hardware store.
Hardware stores and home centers sell cheap heat guns made
for miscellaneous household tasks like stripping paint and
heat-shrinking plastic wrap. You can find basic models for
as little as $10-15. For example, Harbor Freight Tools has a
$12 model that works well. These cheap household heat guns
don't have precise temperature controls like the ones made
for SMD work, but we don't actually need much precision for
soldering just one chip.
>
- Use a toaster oven. You should only do this if you have an
old one that you no longer use, because the chemicals in the solder
are toxic enough that you shouldn't prepare food in the oven after
using it for this. It's also best if your oven uses a quartz
or infrared heating element, since these come up to a desired
temperature very quickly, which make the process more likely to
succeed.
>
I like the heat gun approach better. It's cheap and it's easier
to control.
Whichever route you go, do this in a well-ventilated space. The
solder paste makes quite a stink when heated, and releases some
volatiles that can irritate your eyes and lungs. You won't
want to breathe this in concentrated form.
Using a cheap heat gun
During this step, you'll want to use something other than your
hands to hold the board in place while you work, since it will
get quite hot. You can tape it down to a piece of plywood, or
use tongs, for example.
Throughout the heating process, I recommend keeping the heat
gun pointed at the chip, but move it around slowly in small
circles to even out the heating.
The first step is to warm up the board for about 2 minutes at low
heat, to about 250°F. We want to get it warm, but not hot enough
to melt the solder. The goal is to warm everything up gradually, so
nothing jumps around when we turn the heat up to soldering
temperatures.
If your heat gun has multiple temperatures, use the low setting for
this first phase. Cheap heat guns don't usually have exact
temperature settings, but you might at least have high/low settings.
Many of the cheap guns have a nominal low setting of 600°F or so,
which is higher than we're after at this stage. If yours is like
this, just hold it back about six inches from the board so that the
board doesn't get the full heat initially. Monitor the solder paste
visually during this phase and make sure it doesn't start melting; if
it looks like it's liquifying, back off further with the heat gun. If
the board isn't even getting warm, move the gun in closer.
Once the 2 minutes is up, the next phase is to increase the heat
enough to melt the solder. We want to heat the board to about
500°F at this point. Again, many cheap heat guns don't have a
setting this low, so you might not even need to switch settings
at this point, but simply move the gun closer to the board.
This step should be fairly quick. Again, visually monitor the solder
paste. If your heat gun temperature is high enough, the paste should
begin to liquify within 15 seconds or so. You should see it start to
run and bubble. Shortly after that starts, the paste will transform
from the dull gray you've seen so far to shiny metal. That's the
solder; the flux that was mixed in is separating from the solder and
evaporating, leaving behind the shiny solder. If the paste doesn't
melt and turn shiny within 30 seconds, turn up the heat or move the
gun closer.
Maintain this heat level for about 10-15 seconds after the paste has
all transformed into solder, then turn off the heat. You want to give
it long enough for the solder to melt evenly and adhere to the pads on
both the chip and the board. You should see the chip settle in closer
to the board as the surface tension of the melting solder spreads the
solder out across the pads.
Allow the board to cool for a few minutes.
Using a toaster oven
As we mentioned above, only use a toaster oven that you don't use
for cooking food. The solder paste contains toxic chemicals. You
shouldn't use it to prepare food after this since the chemicals
could leave some residue in the oven.
It's best if your oven heats up very rapidly, because the timing
of the temperature phases is fairly important. Quartz or infrared
heating elements are great for this because they heat up almost
instantly. If your oven takes a while to pre-heat, one suggestion
I've seen is to use two ovens, one for the low-temperature
phase and the other for the high-temperature phase. That way you
can pre-heat both ovens to the correct temperatures, and move the
board from one to the next at the proper time.
Some people also recommend a skillet on the stove top, but I haven't
tried that.
The basic plan is to heat the board in three steps. The first step is
a pre-conditioning phase at medium temperature. This is called
the "soak" phase in manufacturing lingo. The goal is to get
everything thermally stable near but below the solder melting point,
so that nothing jumps around due to thermal shock during the melting
phase. The second step is at high temperature, where we actually melt
the solder. The last step is to turn the heat off and let the board
cool off gradually.
Step 1: 250°F for 2 minutes.
Step 2: heat to 500°F (or as hot as your oven gets; 450°F
works for the MG paste). Watch the board carefully at this stage:
after about 10 seconds, you should see the solder paste start to
change from gray to shiny silver as the solder melts. After about
another 10-20 seconds, you should see the IC chip move slightly - it
should look like it's getting sucked into position. It should
straighten up and get visibly closer to the board as the surface
tension draws the solder to the pads and pulls the chip pads close to
the board pads. Once this happens, give it a few more seconds to make
all of the solder is melted, then move on to the next step. Don't
stay at full heat for more than about 60 seconds, as you don't want to
overheat the chip.
Step 3: turn off the heat and let the board cool in place for about 30
seconds. Then open the door to let it cool faster. You can take the
board out after a couple of minutes. Use tongs or gloves, as it could
still be hot enough to burn you.
Check the result
Once the board, cools, visually inspect the result. Make sure that
the chip ended up in the right place. The solder should have pulled
it into the right position rather than away from it. The clear
package on this particular chip makes it possible to see through to
the pads, which is a big help. You should be able to see that the
solder has migrated out of the spaces between the pads.
Install the resistors
Solder the three resistors using conventional soldering techniques.
For each resistor, bend the leads at right angles and insert them
through the marked holes, with the resistor body on the top of the
board (the side with text printed). Make sure you put the right
resistor in each slot; the resistance value for each one is printed on
the board right where it goes. Resistors aren't polarized, so it
doesn't matter which direction it goes. Push the resistor body or
pull the leads until the body is flat against the board.
Turn on your soldering iron. Turn the board over. Hold the tip of
the soldering iron against the point where the resistor wire and board
pad meet. The goal is to heat up both pieces of metal, hot enough to
melt the solder. Give it a few moments to heat up, then touch the
solder to the lead/pad junction point you're heating. Let the solder
melt and flow over the joint, then remove the iron. Keep everything
perfectly still for about 5-10 seconds until the solder fully hardens.
The big rookie mistake in soldering is to focus on the soldering iron
tip when applying solder. What you really want to do is apply the
solder to the metal parts you're trying to join - the resistor wire
and the board pad. Those parts need to be hot enough to melt the
solder on their own. That makes the solder flow onto the parts and
stick to them as it cools. If you apply the solder to the soldering
iron tip, it won't flow properly onto the metal parts you're joining
and won't form a good joint.
Visually inspect the solder joint after you're done and make sure the
solder evenly covers the pad and resistor wire without any gaps. If
you see any gaps, the solder might not have flowed properly onto all
the metal, so re-heat it and apply more solder if necessary. You can
also wiggle the resistor and make sure the wire doesn't move at all in
the joint.
Now you can trim the resistor wire with wire cutters. Cut off the
excess lead past the solder bubble.
Ribbon cable wiring
For the expansion boards, you should install the ribbon cable connector
from the parts list. The connector matches the pin layout of the plunger
header on the main expansion board, so you can just plug it in directly
once you assemble the cable.
The connector comes in two pieces: a base with the pins sticking out,
and a clip that fits over the top. Separate these for now and set the
top clip piece aside. Be careful handling the bottom piece: the
pointy spikes sticking out of the top are sharp. They're basically
little wire cutters designed to cut through the cable insulation on
their own, which we'll come to in the final step.
Pop the connector onto the board through the marked holes. Note that
it only fits in one direction: there's a little plastic peg on one side
that has to fit into the corresponding hole on the board. If you can't
get the connector to fit properly, try rotating it 180° in case you
have the peg on the wrong side.
Flip the board over and solder the pins from the back side of the
board. This is just like soldering the resistor leads. (Except that
there's no excess wire to clip in this case.)
Now it's time to attach the cable. This connector is of the "IDC"
type, which stands for Insulation Displacement Connector, which means
that it's designed to pierce the cable insulation when you press the
cable into it. These connectors are designed to do most of the work
for you, so don't worry if you haven't done this before.
Grab the top "clip" piece for the connector that you set aside
earlier. Position it loosely on top of the base. You can see
that it slides into latches on either side. Don't push it down all
the way yet; leave a gap big enough for the cable.
Now slip the cable into the gap. If your cable has a stripe (usually
red) down one edge, put that on the side with the triangle/arrow
printed on the circuit boards - that's pin #1. The red stripe will
make it easier to identify the corresponding pin #1 at the other end.
If your cable doesn't have a stripe, I'd strongly recommend adding a
stripe with a red marker. Use an oil-based ink marker -
water-based inks won't stick to the plastic insulation. Draw the
stripe down the whole length of the cable along one side (it doesn't
matter which one; you just pick one as the "pin 1" side).
The cable should just barely fit into the gap. This is part of the
design, to ensure that the cable is positioned properly. Let the end
of the cable extend about 1/4" past the clip.
Once you have it positioned properly, get out some pliers. (There's a
specialized IDC crimper tool for this job, but ordinary pliers will
work if you're careful.) Carefully apply pressure to the top of the
clip. Start at one end, push it down just a little bit there, then
gradually move to the other end. Work your way back and forth a few
times until the clip is all the way down and snaps into the locks.
You have to be careful not to do this all at once, since the locks
aren't strong enough if the pressure is too lopsided.
When you're done, the clip should be fully flush with the sides
locked into the latches. You'll be able to see the insulation
poking into the holes on the top of the clip.
Finally, install the IDC connector at the other end. This is the plug
that connects to the expansion board header. This is almost exactly
the same as assembling the first connector; the only difference is
that there's nothing to solder this time.
The one thing to be careful about is to line up pin #1 on the plug
with the pin #1 wire in the cable. On the plug, you should find a
small triangle or arrow at one corner. That's the pin #1 side. If
you already identified pin #1 with a red stripe on the cable, make
sure the stripe is on the pin #1 side of the plug. Pin #1 on the
sensor board corresponds to pin #1 on the expansion board plunger
header, which is marked on the expansion board with an arrow. Just
line up the pin #1 markings down the whole chain and everything will
communicate properly.
Standalone KL25Z wiring
If you're using a standalone KL25Z (without the Pinscape
expansion boards), wiring is a little tricky, because the pins you
have to connect it to on the KL25Z are scattered around different
pin headers.
I recommend using a ribbon cable and the
Chapter 100, plunger sensor breakout board to connect
to the standalone KL25Z. It'll make things much easier in the long
run by giving you a pluggable connector between the plunger and KL25Z.
- Build the ribbon cable connector exactly as described above,
as though you were using the expansion boards
- Follow the instructions in Chapter 100, Plunger Sensor Breakout Board to build the
breakout board
- Connect the following wires between the breakout board and the KL25Z:
- Breakout board 5V to KL25Z 5V (pin 10 on J9)
- Breakout board 3.3V to KL25Z P3V3 (pin 8 on J9)
- Breakout board GND to KL25Z GND (pin 12 or 14 on J9)
- Breakout board D0 to KL25Z PTD0 (pin 6 on J2)
- Breakout board D5 to KL25Z PTD5 (pin 4 on J2)
If you want to use ad hoc wiring instead (which I don't recommend),
see "Plug it in" below for wiring instructions.
Final assembly
Good news! The circuit board was the hard part. The rest is
almost easy.
Laser-print the scale graphic (see the parts list at the start of this
chapter) on transparency film. Cut out the bar area to just slightly
smaller than the acrylic guide rail (so that the edges don't
overhang). Attach it to the acrylic. Attach it on the shiny mirrored
side, with the printed side facing the acrylic (this will help protect
the printing from wear as the sensor slides back and forth). You can
just use a little piece of Scotch tape at each end to attach it, making
sure it's pulled tight so that it stays flat against the acrylic.
Attach the circuit board to the 3D-printed sensor bracket. Place it with
the sensor facing outward and the ribbon cable or wires at the bottom.
Secure it with four small machine screws and nuts. I recommend M2x8mm or M2x10mm,
or #2x⅜". Nylon parts are ideal here. Insert the screws from the
component side of the board so that the nuts are on the back of the bracket.
If you already fully installed your plunger, I'm afraid you're going
to have to take it back apart at this point. Remove the e-clip that's
holding the main spring in place (a pair of pliers is helpful: first
hold the spring back so that it's not pressing against the clip, then
grab the back edge of the clip with the pliers and pull it off). Slip
the spring off. Now remove the top two screws from the
housing. Leave the bottom screw in place.
If you haven't already installed your plunger, it's time to do that.
Insert the housing through the opening in the front of the cabinet.
Slip the mounting plate over it, aligning the screw holes. Screw
the bottom screw only into the housing and tighten.
Leave the top two screws out for now. Slip the barrel spring onto
the shooter rod, then add a washer. Make sure the nylon sleeve
is installed in the housing, then slide the rod into the housing.
Add the second washer on the inside.
Slip the 3D-printed scale bracket over the shooter rod. It
fits over the shooter rod holder in the housing, and the screw
holes align with the screw holes in the housing.
Install the two screws. Don't overtighten, to avoid stressing
the plastic.
Pop the scale/guide into the slot in the bracket, with the
printed side facing the cabinet wall.
Fasten it with a small bolt and nut through the provided hole in the
bracket. Any nut/bolt that fits will work; an M3x12mm or #4x½"
should work well. I'd recommend a nylon bolt and nut if you have them
handy. In any case, don't overtighten; this one doesn't have to
handle much force, so just make it tight enough that it won't work
itself loose.
Slip the spring onto the shooter rod.
Slide the assembled sensor bracket onto both the shooter rod and the
guide rail. The round hole in the top fits over the shooter rod and
the slits fit over the guide rail. You'll probably want to compress
the spring with one hand while sliding the bracket onto the rod.
Once it's in place, keep holding the bracket back (compressing
the spring) and slip the e-ring into its slot on the shooter rod.
Pop it into place with a pair of pliers. You can now gently release
the spring tension so that the spring pushes the sensor bracket
against the e-clip. This is the final working configuration.
Plug it in
Expansion board: Plugging the sensor into the
expansion board is easy if you used the ribbon cable connectors. Just
plug the 8-pin connector into the PLUNGER header on the main board.
Make sure pin 1 on the plug corresponds to pin 1 on the board, which
is marked with a little white triangle printed next to the header.
Standalone KL25Z: If you're using the plunger sensor breakout
board as recomended, just plug the ribbon cable connector into the
header on the breakout board. Be sure pin 1 on the plug corresponds
to pin 1 on the board, which is marked with a little white triangle
printed next to the header.
If you prefer to use ad hoc wiring - which I don't recommend - you can
just run some hookup wires between the sensor board and the KL25Z. Be
sure to make the wires long enough to reach comfortable between the
sensor and KL25Z, and remember to account for how the sensor moves
with the plunger. Follow the wiring plan below.
Sensor Board Pin | KL25Z Pin |
3.3V | P3V3 (J9-8) |
5V | P5V (J9-10) |
Gnd | GND (J9-12) |
Ch A | PTD0 (J2-6) |
Ch B | PTD5 (J2-4) |
Note that the two GPIO ports, PTD0 and PTD5, are only suggestions. If
you're already using these ports for some other function, you can
assign the sensor inputs to other ports using the Config Tool.
However, note that only ports with "PTA" or "PTD" prefixes can be used
for these. (The inputs have to be PTA or PTD ports because only those
ports are capable of generating interrupts on the KL25Z. The Pinscape
firmware needs interrupt capability on the inputs to process the
signals from this sensor.)
(The power and ground wires aren't configurable. Connect those as
shown.)
In case you want to set up your own custom connector for the
ribbon cable, here's how the pins on the expansion board end
of the ribbon cable connector are arranged:
Software setup
Start the Pinscape Config Tool. Click the Settings button for
your device. Scroll down to the Plunger Sensor section. In the
Sensor Type drop list, select AEDR-8300.
(If the AEDR-8300 option isn't available in the plunger sensor list,
you probably have an older version of the Config Tool. Updating to
the latest version should add the option.)
If you're using the expansion boards, the pins should be configured
automatically. If you're using the standalone KL25Z, select the pins
you wired to the sensor's data channels ("Ch A" and "Ch B" on the
sensor board).
I recommend enabling the "auto-zeroing" feature, and setting a fairly
long delay time, perhaps 60 seconds. If this feature is enabled, the
Pinscape firmware will "zero" the plunger when it hasn't moved at all
in the amount of time you specify. Zeroing means that the firmware
assumes the plunger is exactly at the normal rest position. Why do
this? Because the AEDR-8300 is a purely "relative" position sensor.
That means it doesn't ever know the plunger's true position; it only
knows how far it's moved since the system was turned on. If the
sensor ever misses a tiny bit of physical motion, the sensor's notion
of the relative position will get a little out of sync with the true
position. Auto-zeroing corrects for this by forcing the internal
position counter back to the starting position whenever the plunger is
motionless for a long time. It's usually a safe bet that a perfectly
motionless plunger really is sitting at the normal rest position,
since the spring always takes it back there when you're not
intentionally moving it. Just be sure to pick a long enough time that
you won't ever hold it still that long during normal play, such as
when lining up a skill shot. 60 seconds seems like a good choice, but
use your discretion if you think that might not be long enough.
You can also disable this feature entirely if you ever find it
troublesome. In my own testing, the AEDR-8300 is remarkably close
to perfect at picking up every bit of movement, so in practice you might never
find that the plunger gets out of sync with reality in the first place.
Save the new settings by clicking "Program KL25Z" at the bottom of the
window.
You should now test and calibrate the plunger. Return to the home
screen in the Config Tool and click the Plunger icon for the unit
with the sensor attached. This will let you look at the raw sensor
input. Move the plunger and make sure it seems to be tracking
properly.
If the sensor is working properly, click the Calibrate button in
the plunger viewer window to begin the calibration process, and
follow the on-screen instructions.
If the sensor doesn't seem to be working, go back to the Settings screen and
double-check the sensor pin assignments. Make sure that none of the pins
are marked with warning icons (
).
If you see any warnings, click on the icon for details. In most
cases, the problem will be that you've assigned the same pin to
multiple functions. If so, go to the other place the pin is
assigned, and clear that entry by setting it to "Not Connected".
If the software setup looks okay, check the physical wiring. Inspect
each wire and make sure that it goes to the proper pin on each end
(KL25Z and sensor board). Check that each GPIO port assignment on the
settings page matches up with the physical pin on the KL25Z and
connects to the corresponding terminal on the sensor board.
Backwards operation
If the on-screen plunger appears to move backwards from the physical
plunger, you can fix it in the software without reinstalling the
sensor. Open the Pinscape Config Tool. In the row for the controller,
click the Plunger icon. Check the box for "Reverse orientation".
(Or, if it's already checked, un-check it.) This tells the software
to reverse the readings from the sensor, so that it acts like it was
installed in the opposite orientation.
Note: Versions of the firmware released before January 2020 had a bug
that made the "Reverse orientation" option not quite work right with
this sensor. If you need to use this option, you should update the
firmware to a 2020 (or later) version. If for some reason you can't
or don't wish to update, then instead of using the "Reverse
orientation" checkbox, you can achieve the same effect by going to the
Settings page, finding the GPIO pin mappings for the sensor, and
swapping the "Channel A" and "Channel B" pin assignments. That will
reverse the way the software interprets the directional signals from
the sensor, achieving the reversed motion you're after.
105. Plunger Setup (TCD1103)
Beta Test Alert! This section is new and barely tested. This is a
brand new sensor design added in April 2020, with little or no
field testing so far - just my own lab-bench work putting together the
design. In my testing, it's been performing extremely well, so I'm
publishing the design in the hope that other people will find it
useful as well. But be aware that if you build one, you'll be a very
early adopter. There might be errors or omissions in the plans here
that we'll have to work out. I'd be very interested in hearing from
you if you do build one! Let me know if you run into any problems or
have any ideas to improve the design, and if you actually deploy it,
definitely let me know how it works for you in real everyday use.
>
The original Pinscape plunger system, first published back in 2015,
was based on a special type of optical sensor called a "linear image
sensor", meaning all of its pixels are arranged into a single row (in
contrast to a normal camera sensor, which has a rectangular array of
pixels). The particular linear image chip we used, known as the
TSL1410R, was an improbably perfect fit - literally - for plunger
sensing, because it consisted of a row of sensor pixels about 3" long,
exactly the length of travel of a standard pinball plunger. By
placing the 3" sensor window adjacent to the plunger, and placing a
light source on the other side of the plunger, the sensor was able to
determine the plunger position by scanning the pixels for the shadow
cast by the plunger along the 3" window.
Sadly, the manufacturer stopped making that 3" sensor a long time ago,
and there's nothing else like it on the market, so this hasn't been an
option lately for new pin cab builds. There are some excellent
alternatives, particularly the
Chapter 104, AEDR-8300 quadrature
sensor and the
Chapter 102, sliding potentiometer design.
But none of the other available designs has the special charm of an
imaging sensor, which is that it's completely "non-contact", meaning
that there's no mechanical connection between the sensor and the
plunger, and thus no moving parts to wear out over time. Operating a
standard ball shooter involves a lot of force and high speeds, which
inevitably causes some wear on the sensor parts if they have to be
mechanically connected and move at the same high speeds and jerky
accelerations. (Another non-contact sensor has recently been
added: the
Chapter 103, VCNL4010 proximity sensor. But
it's not as precise as I'd like.)
That's why I'm pleased to present a new option that brings back the
non-contact, all-optical approach, using a different sensor that you
actually can buy (as of 2020). The new design isn't quite the same as
the old one, because the new sensor is rather different. Whereas the old
sensor had that gigantic 3" pixel array, the new sensor described in
this section has a pixel array that's only about 8mm (about 1/3")
long. But despite its much smaller physical size, the new sensor
actually has more pixels than the old one! Each pixel is just much
smaller, obviously. To bridge the gap between the 3" plunger travel
and the 8mm sensor window, we have to add something the old design
didn't need: optics. We need a lens, to focus an image of the
plunger on the tiny sensor. It's the same principle your iPhone
camera uses to project a tiny image of the Eiffel Tower onto the tiny
CCD chip inside the phone.
The need for a lens makes the system a little more complex than the
old one, which is unfortunate. But the lens has a major upside, too,
which is that a focused image gives us better accuracy in determining
the plunger position. The old "shadow" image was inherently fuzzy, so
it didn't take full advantage of the native pixel resolution of the
sensor. With a lens involved, we can capture a much sharper image,
which lets us determine the plunger position with greater precision.
The new sensor has higher native resolution than the old one to start
with, so when we add in focusing optics, we get a system with
significantly better performance than the old one (which was already
very good).
Introducing the TCD1103 sensor
The Toshiba TCD1103 is an optical linear image sensor chip. This is
similar to the image sensor in a digital camera, but rather than
having a rectangular array of pixels like in a camera, the TCD1103 has
all of its pixels arranged into a single row. That's the "linear"
part. To be more specific, the TCD1103 has 1500 pixels in a row about
8mm long.
With a US quarter, for scale:
This sensor can be made into a limited sort of optical camera by
fitting it with a lens to focus an image onto the pixel file. We can
use this to track the the plunger position by pointing the camera at
the plunger, with the pixel file oriented along the plunger's axis of
motion. The camera will see an image of the plunger, and as the
plunger moves back and forth, we'll see the image move along the pixel
file. With a little image analysis, the software can figure out where
the tip of the plunger is along the pixel file, which in turn tells us
how far back the plunger is being pulled.
To keep the image analysis simple, we'll set up the plunger so
that it creates a certain image pattern on the sensor.
We'll put a bright white wrapper on the tip of the plunger, so that the
end of the plunger stands out as a clear bright area in the image, and
we'll place a dark (matte black) background behind the plunger, to create
high contrast between the plunger tip and the background. This makes
it easy for the software to find the end of the plunger in the image:
it just looks for the edge between the dark background and the bright
spot at the plunger tip.
This is probably my favorite plunger sensor out of all of the current
options. It can read the plunger position to a very high degree of
precision, thanks to the 1500-pixel resolution of the TCD1103 and the
focusing optics; the plunger position can be reliably determined to
better than one part in a thousand over its range of travel, which
works out to around 1/400 of an inch. The sensor is fast, capturing
images about every 4ms, or 250 times a second, which allows the
software to accurately track the high-speed motion when you pull back
and release the plunger. And it has the inherent "non-contact"
advantage of an imaging system: there's no mechanical contact between
the plunger and the sensor, so there are no moving parts in the sensor
to wear out.
The only disadvantage of this sensor system is that it's a bit complex
to build, in that it requires the lens, a mounting apparatus, and some
extra electronics to interface the sensor to the KL25Z. The plans
presented below include parts lists, 3D-printable designs for the
mounting bracket, and a custom circuit board layout with all of the
interface electronics, so you won't have to improvise any of the
elements yourself. Most of it is just a matter of gathering the
necessary parts from various sources, and we'll give you details on
exactly what to buy and where to look for it. But there is one
special task required that does add a degree of difficulty, which is
that the circuit board uses surface-mount (SMD) parts. That can be a
little intimidating if you haven't done SMD soldering before. If
you're willing to give it a shot, you might find that it's not
actually not that hard, and we include detailed instructions to try to
make it as approachable as possible. But it is a task that many
people find intimidating, so I wanted you to be aware of what you're
getting yourself into.
Bill of materials
This project requires a fairly large set of parts. A few have
to be custom-made, and the rest are off-the-shelf items, mostly
things that are easy to find. Here's the full list:
- Standard pinball plunger assembly; see "Plunger" in
Chapter 20, Cabinet Parts List for part numbers
- M12 lens, 16mm focal length, 1/2.7" image format. These can be
found on Amazon and other online vendors for under $10. Make sure to
match our specs for focal length and image format. Some lenses will
list compatibility with multiple image formats; that's fine as long as
1/2.7" is included among the compatible formats.
Note that the figure 1/2.7" is the image format that the
lens is designed for, which corresponds to the sensor size. It
looks confusingly similar to the "f/" figure that's always quoted
with lenses for real cameras, but it's a completely different
thing. (The "f/" number is a measure of the lens aperture size,
which determines its light-gathering power. It's a dimensionless
ratio.) Many of the vendors selling M12 lenses seem to be confused
about this, so you might see weird figures like f/2.7"
or f/16mm, which are of course bogus. I've also seen "megapixels" figures
like 3MP or 5MP, which are meaningless with a lens. If you
find a candidate lens whose seller seems too confused to quote
the proper specs, you might want to look elsewhere rather
than guessing at what the seller really meant.
- M12 lens holder with 20mm mounting-screw spacing and an overall
height of 14mm, as depicted in the diagram below. Most of the ones
I've seen for sale match these size specs, but there are some other
sizes available, so check the product dimensions against the diagram.
The mounting screw spacing is critical, to fit our circuit
board and mounting bracket designs, and the height is important
because it affects the range of adjustment for focusing the lens.
Suitable lens mounts are available from Amazon and other online
vendors for about $5 for a pack of 10. (The lens mounting can't be
3D-printed, because the threading patterns for the lens and mounting
screws are too fine.)
- M12 lock ring, to help keep the lens from moving once you've
set the focus properly. M12 lenses usually come with these, but
you can also find them as separate parts if needed, on Amazon
and other sites. Look for "M12 lock ring".
- 3D-printed mounting bracket. No special materials are needed;
any type of plastic print material should produce acceptable results.
The design can be printed on a home 3D printer, or by an online service
such as All3DP or Shapeways.
Ordering it through an online service should run under $10. The plans are available here:
- Custom circuit board. You can have this fabricated by OSH Park,
Elecrow, or other PCB makers; we explain the procedure below.
The custom board at OSH Park costs about $6.50. The EAGLE plans
are here:
- PCB stencil. This is another custom part that you can fabricate
from the EAGLE plans for the board, for about $8. This is optional
but recommended, since it makes the SMD soldering work much easier.
We describe the procedure for ordering a stencil below.
- The electronic components for the circuit board. See
the TCD1103 section in Chapter 91, Electronic Parts List.
Important: don't break the seal on the TCD1103 sensor chip's anti-static bag
until you're ready to solder. Don't even open it long enough
to peek at the chip. The chip is sensitive to ambient humidity, so
the packaging was prepared at the factory under super-dry conditions and
sealed against moisture. It's important to keep the packaging sealed until
you're ready to install the chip.
See the "Warning on humidity" below.
- 1W red LED, to serve as
a light source. Suitable LEDs are readily available on Amazon and
eBay. I like the "star" LED type depicted at right.
These are fairly easy to solder, and the base serves as a heat
sink and is easy to attach to a mounting bracket. If you happen to
have extra extra 3W RGB star LEDs of the type often used in
Chapter 56, flasher panels, you can use one of those, with
just its red channel powered.
- A 10Ω, 2W resistor for the LED
- A 1" metal "L" bracket, to serve as a mounting bracket for the red
LED. You can find these at any hardware store or home improvement
store.
- Thermally conductive paste or tape (also known as "heat sink" paste
or tape), for attaching the LED to the "L" bracket
- M2-0.4 x 12mm (also known as 2mm x 0.4mm x 12mm) machine screws,
quantity 2, for attaching the lens mount to the bracket. Note that
the lens mount I'm using takes M2 metric screws, but some other types
might use #2 screws instead (the non-metric sizing system,
which is almost but not quite the same size). #2 x ½"
should fit if you need the non-metric type. Check the product page
for the lens mount you buy, but I've never seen anyone bother to
say which type is needed, so you might have to end up guessing. I'd just buy
both screw types (M2x12mm and #2x½") to be sure you have the right
one on hand when it comes time to assemble everything.
- #6 x 1/2" wood screws, quantity 3, to fasten the sensor bracket
and light source to the cabinet wall
Tools for SMD soldering
This circuit board uses all SMD parts, most of which have small,
closely-spaced pin pads - especially the star of the show, the TCD1103
sensor chip. SMD chips are difficult to solder the old-fashioned way
(that is, using a soldering iron to heat each pin and melt solder onto
it individually). In fact, regular soldering is practically
impossible in this case because of the physical design of the TCD1103,
which has all of its pins fully concealed under the chip, with
no exposed metal that you can hit with the soldering iron. Soldering
this type of part requires a whole different technique.
But the "whole different technique" is actually easier than
regular soldering, given the right tools. The industry didn't migrate
to SMD parts to make assembly harder, after all! Granted, the main
motivation was that SMD assembly is easier for robots, but it's also
faster and easier for hand-assembly if you have the right tools.
The right tools consist of:
- SMD soldering paste. Solder paste is the secret
sauce that makes SMD assembly easy. When cold, it's a tacky
paste (as you might guess from the name). It lets you stick
the parts to their assigned places on the board, and holds them
there until the heating step. When heated, it melts
into a combination of liquid solder and "flux", which helps
confine the solder to the metal pads and keeps the solder from forming
shorts to adjacent pads. You just heat up the whole board to
solder-melting temperatures, and all of the parts are
simultaneously soldered to their proper places. It's
almost magic. (This is also what makes it so much easier
than regular soldering: you don't have to laboriously heat
each connection point individually. You just heat the
whole board at once.)
A popular choice that I've seen many people
recommend is Chip Quik SMD291SNL50T3, available in 50g tubs
for about $17 from Amazon, SparkFun, and other online sites.
That's lead-free, so it's somewhat easier on your household
air quality than leaded solders.
I've also had great luck with MG Chemicals 4860P-35G, although
that comes in a tube that's better suited for small jobs with a
few pads.
- A solder stencil for the board we're building. This is a plastic or
metal sheet with holes etched to match all of the SMD pin pads on the
board. It (obviously) has to be custom-made for the board. A stencil
isn't absolutely required, as you can apply the solder paste by
hand to the individual pads. But it's quite difficult to get the right
amount of solder in the right places with a complex board like this
one, especially given how tiny many of the pads are. A stencil makes
it easy: you position the stencil over the board, align the holes with
the pads, smear a glob of solder paste over the whole stencil, and
wipe off the excess. This leaves the paste deposited wherever there
was a hole in the stencil, which should exactly line up with the pads
on the board. You can have the stencil made at OSH Park's sister
site, OSH Stencils, for about
$8. It increases the overall project cost, but it makes the assembly
process so easy and reliable that I think it's well worth it.
- A heat gun. You can also use a toaster oven or a skillet
on a stovetop, but for a small board like this, I prefer a heat gun,
since it's easy to control and easy to see what you're doing.
Specialized heat guns for SMD soldering are available, but they're
expensive, and I've found that a cheap hardware-store heat gun works
just fine for a small board like this one. I have a heat gun from
Harbor Freight Tools that cost about $20, which I've successfully
used to solder many small SMD boards.
- Tweezers or forceps. Optional, but very helpful for manipulating
small parts. I found a pair of anti-static tweezers on Amazon (Vetus
Pro ESD-safe fine-tip curved tweezers, model ESD-15, $2-$10 from
various Web sellers) that have worked well for me.
- PCB jigs. Optional; you can also just use some spare blank circuit
boards if you have them. These are just some plastic pieces the same
thickness as the circuit boards (typically 1.6mm) to place around the
board to keep in place while you're working with the stencil. It's
the thickness that counts, which is why spare blank circuit boards work as
improvised jigs; the idea is to make a flush surface around the edges
of the boards with something of the same thickness. If you order the
stencil from OSH Stencils, they'll throw in a jig set for $6.
- Solder paste spatula/spreader. Professional metal and plastic
spreaders are available at professional prices, but most hobbyists
just use something improvised, like a putty knife from a hardware
store. Old expired credit cards are supposed work pretty well, too.
OSH Stencils throws in a credit-card sized plastic spreader as a
freebie with each order.
Order the circuit board
You can have the circuit board custom-made at
OSH
Park,
Elecrow, or any other
circuit board maker.
The EAGLE plans for the board are available here:
>
Since this board is small, I'd highly recommend OSH Park if you're in
the US. They're inexpensive, fast, top quality, and their
ordering process is delightfully easy:
- Open the OSH Park site in your browser
- Upload the .brd file from the EAGLE plans linked above
- Click through to the ordering page and place the order
OSH Park will send you three copies of the board for about $6.50.
Ordering from other vendors: If you prefer to order the boards
from Elecrow or another PCB vendor, the process is a little more
complex. Other vendors don't usually accept EAGLE .brd files like OSH
Park does. Instead, they require you to upload a format known as
"Gerber" files. The reason we don't just include the Gerbers in the
ZIP is that they have to be generated separately for every PCB maker,
using a "design rules" file provided by your chosen manufacturer. You
use EAGLE to generate the Gerbers once you have the design rules file
from your PCB vendor. It's easier than it sounds, but requires a
couple of extra steps on your part. The full procedure is explained
in
Chapter 93, Fabricating the Expansion Boards. Follow the instructions there, using the
.sch and .brd files from the ZIP download linked above. That chapter
also has tips on selecting a PCB vendor, and instructions on how to
place an order with the typical vendors. You can use the same PCB
manufacturing options recommended in that chapter for the expansion
boards - the same options will work equally well with the sensor
board.
Order an SMD stencil
As mentioned earlier, I highly recommend using a stencil to aid in the
SMD soldering for this project. This circuit board has a lot of small
and closely-spaced pads; it's difficult to get the solder paste in the
right place by hand. A stencil adds to the cost, but it makes the
solder paste placement easy and reliable. You're much more likely to
be successful on the first try with this board if you use a stencil.
You can order a stencil from OSH Park's sister site,
OSH Stencils. Or, if you're
having your boards made by
Elecrow
or another PCB maker, you can have them make the stencil along with
the board order. (Note that you can always mix and match vendors,
too. OSH Stencils might be cheaper for the stencil even if you order
the board from Elecrow, so I'd check pricing at both sites before
finalizing your order.)
The ordering process at OSH Stencils is a little more complex than OSH
Park's, but it's not too difficult:
- Go to OSH Stencils in your browser
- Click Upload design and select the .brd file from the ZIP linked above.
You might be prompted to create an account or log in, so that the upload can
be stored for later access.
- In the uploaded file list, you should see three entries, with suffixes
.gbp (bottom stencil), .gtp (top stencil), and .gko
(board outline).
- The bottom stencil (.gbp) for this project is empty, so you
should simply delete it from the list by clicking the big red X at the right
- Make sure that the other two are set to their proper types in the
drop lists: .gtp should be top stencil and .gko
should be board outline. The site usually gets these right
automatically, but check, and change the drop list settings if they
don't already match.
- In the Project name box at the top left, enter a name for the
project, and click Create Project
- In the Project Name column of the file list, set each project to the
new project name
- Click Generate Stencils at the top right
- This will take you to a Projects list view. Click on the project name
in the list to open it, then click on the Top Stencil item to preview it.
The preview layout should look like the arrangement of solder pads on
the board.
- In the Stencil Settings, select your preferred options for the stencil.
You can read about the various options in the site's help/FAQ pages, but
here's what I'd recommend:
- Material type: Polyimide film, 5mil
- Border size: 0.75
If you plan to mass-produce the board, you'll want to upgrade the material
to stainless steel. It's durable enough to make probably hundreds of copies,
but it'll add about $5 to the cost. Polyimide is a plastic film that's
cheaper but less durable; it's what I'd choose if you only plan to make a
few copies.
- Click Add this Stencil to Cart at the top right
- Go to the cart and check out to complete the order
Ordering stencils from other PCB vendors: If you're ordering
the PCBs through Elecrow or another vendor, they usually give you the
option to also make the SMD stencils as part of the order. That's a
"checkbox" option with most of the other PCB vendors - you just check
a box on the order form saying you want to include the stencils, and
they automatically generate the stencils from the same Gerber files
you prepared for the PCBs. There will probably be some other options
that you have to choose, such as stencil material, thickness, border
size, and whether or not a "frame" is included. Since this is a small
and relatively simple board, I'd just choose the cheapest options. In
any case, you don't need a frame - frames are mostly for
factory machines that apply the solder paste mechanically, and since
those are industrial equipment with $100K+ price tags, I'm going to
guess you don't have one at home. (And if you do, you know way more
about PCB stencils than I do!)
Fabricate the 3D-printed bracket
The plans for the mounting bracket can be downloaded here:
>
No special materials are required for this print job. You can print
this on a home printer, or use any online vendor. I've had great
results with
All3DP lately; they have
a pricing engine that gets quotes from several vendors, which found
good prices for the parts I've tried. I've also used
Shapeways for several projects,
and I've always had good results with them.
The printed part actually has two components, printed together into a
single block using the "model airplane" approach. The main component
is the bracket itself, and the smaller attached component is a spacer
that goes between the circuit board and the lens mount, to position
the lens mount properly above the sensor chip. To separate the two
parts, use scissors or wire cutters to snip the little plastic strut
connecting them. You can trim off and discard the strut.
Install the plunger
While you're waiting for the circuit board and 3D print job to arrive,
you can get the plunger itself set up in your cab. The sensor doesn't
have any mechanical connection to the plunger, so you don't have to
wait for the rest of the parts to install the plunger. There's also
nothing special you have to do to install it; just set it up like a
regular pinball plunger. See "Plunger" in
Chapter 23, Cabinet Hardware Installation for assembly instructions.
Set up a reflector on the plunger
We have to make one small modification to the standard plunger
assembly. We're going to replace the standard rubber tip that's
normally included in a real plunger with a reflective paper cylinder.
This cylinder will serve as a reflector, which will show up as a
clear, bright region in the image on the sensor.
We use the paper reflector for a few reasons. One is that white paper
is more reflective than the white rubber they use in the plunger tips,
so we'll get a brighter image with a paper reflector. Another is that
the rubber tips are rounded at the end, and we'll get a shaper edge in
the image (which is what the software looks for) with a squared end.
A third reason is that we can make the paper reflector a little bigger
than the rubber tips, which will give us more leeway in aiming the
lens, which makes installation easier.
- Remove (or skip installing) the rubber tip at the end of the
plunger. If you bought complete ball shooter assembly with the rubber
tip already installed, you can remove it simply by pulling it off the
end; it's just held on by friction.
- Grab some ordinary white paper, letter size
- Cut three strips lengthwise: 1/2", 1/2", and 3/4"
- Using cellophane tape or masking tape, tape one end of one of the
1/2" strips to the plunger tip, aligning one edge of the paper with
the e-clip that holds the spring on.
- Tightly wrap the strip around the plunger to form a cylinder.
- Tape down the end of the strip
- Repeat with the second 1/2" strip
- Repeat with the 3/4" strip
- You should now have a 3/4"-long paper cylinder at the end,
about the same diameter as the e-clip
- Check clearance with your flipper switches by pulling the plunger
all the way back and making sure that the paper cylinder doesn't catch
on the switches. If you don't have enough clearance, you can try
wrapping the paper strip a little more tightly, or you can trim a
little of the length off one of the strips and re-wrap it.
Q: "Why the different strip widths?" A: To make the outer edge
sharper. We want the sensor image to see a sharp edge at the end of
the plunger, so that the software can identify the boundary between
the plunger and the dark background as clearly as possible. A clear,
sharp edge in the image makes the position reading more accurate and
stable. I noticed that if you make the whole strip the same width,
some of the inner windings can poke out a bit beyond the end of the
overall cylinder, which can make the edge a little softer in the
image. Making the inner layers narrow makes them less likely to jut
out.
Q: "Why isn't this a 3D-printed part?" A: It certainly could be! But
I figured it would be better to save the extra expense given that it's
easy enough to craft this out of paper. Plus, the point is to create
a reflective surface that will show up well in the sensor images, and
white paper is a better material for that.
Install a dark backdrop above the plunger
The next step in setting up our little photo studio is to is to place
a dark backdrop behind the plunger. And by "behind", we really mean
"above", because the camera is going to be positioned near the floor
of the cab pointing up at the plunger.
The dark backdrop is there to ensure that the white reflector we just
installed at the end of the plunger stands out with good contrast in
the sensor images. That'll make it easier for the software to get a
solid reading on the plunger position when analyzing the sensor
images.
All you need to do is to install some matte black material just above
the plunger. Be sure to use something with a matte finish, not
anything shiny. Black felt is probably the ideal choice, but
black construction paper also worked well in my tests.
I'll leave the details of how to install this up to you, since the
most convenient arrangement will depend on how your cab is laid out.
You'll almost certainly have something already positioned just above
the plunger - either the underside of your TV, or the bottom of your
"apron". Whatever is there, it should be enough to fasten black paper
or black felt to the bottom of it. I'd try to cover the whole area
around the plunger, from front to back and about an inch on either
side.
If you have lights in your flipper buttons, you might also consider
installing something to block that light, so that it doesn't hit the
black backdrop. That probably isn't strictly necessary, but given
that this is an optical sensor, the less stray light the better.
Warning on static electricity
As with many electronic parts, the TCD1103 is sensitive to static
electricity. This chip is actually
very sensitive to static,
even more so than most other components, so please take extra care
handling it. All of the normal procedures needed for any
static-sensitive parts apply (see
Chapter 67, Static Electricity Precautions), but I'd
be extra vigilant with this part because of its high sensitivity.
Warning on humidity
As though static electricity weren't enough to worry about, the
TCD1103 chip is also sensitive to humidity - at least, it is during
the soldering process. After soldering the part, humidity won't
affect it, so you don't have to worry about ongoing problems if you
live in a humid climate. But humidity is a big issue for this type of
chip during the soldering process, because of the high temperatures
involved. Any moisture that leaches into the chip's plastic casing
can form steam bubbles when the chip is heated for soldering, and
these can vent explosively, cracking the plastic case and destroying
the internal wiring and silicon parts.
When you buy this chip from a reputable vendor like Mouser or DigiKey,
they'll ship it in a sealed, moisture-proof plastic bag, which keeps
the chip dessicated during storage. Don't open the bag until
you're ready to solder the chip, to ensure that it's not exposed
to ambient humidity too early.
The packaging should include an indicator card (sealed inside the
moisture-proof bag with the chip), with chemical indicator spots that
turn different colors according to humidity exposure. When you first
open the bag, immediately check the indicator card to make sure it
shows the proper color (instructions will be printed on the card).
The indicator card is there to ensure that the seal on the bag was
intact throughout the storage period, so as long as it shows the
proper color when you first open the bag, the chip is safe to solder.
(Note that the indicator card will start changing colors quickly after
you open the bag, since your house is almost certainly more humid than
the dessicated conditions required for storage. That's okay! The
card isn't there to check your house's humidity; it's there to assure
you that the package seal wasn't broken during storage. It's only
important to check the indicator when you first open the package.)
Once the packaging is opened, the part will start absorbing ambient
moisture from the air, but fairly slowly. It remains safe to solder
for up to 120 hours (five days) after opening the bag. This
assumes that your ambient relative humidity level is 60% or below; if
you live in an especially humid area, the safe period will be shorter.
The best bet is always to keep the bag sealed until just before you're
ready to assemble the board. And no need to panic or rush once you
do; you'll certainly be safe for several hours no matter how humid
your climate is.
I wouldn't count on moisture-proof handling and packaging if you
bought from a cheaper source like eBay or Aliexpress. If there's no
indicator card enclosed, you should use the baking procedure
described below to be safe.
"Baking" procedure: If you have a chip that wasn't kept in
moisture-proof conditions during shipping and storage, there's a
fairly simple procedure called "baking" that you can use before
soldering to make sure it's free of moisture. You should do this if
any of these apply:
- Your chip didn't come with a moisture indicator card in the packaging
- The indicator card showed excessive moisture when you opened the package
- You opened the packaging but didn't complete soldering within 120 hours
(less if you live in an especially humid climate)
The procedure for baking the chip is simple. You just need to pop
it in an oven, toaster oven, or under a heat lamp, where you can maintain
a temperature of 125° C (about 250° F) for 24 hours. After
keeping it in a 250° F environment for 24 hours, take the chip out
and let it cool.
The baking procedure will gently release any trapped moisture. After
baking, the chip is once again safe for soldering, and should remain
so for up to 120 hours, as though you had just taken it out of its
original factory packaging.
Build the circuit board
Be sure to read the sections above about static electricity and
humidity dangers. Please observe all of the precautions
diligently - the TCD1103 can be easily destroyed by improper handling.
This board uses surface-mount parts, so it can be a little
intimidating if you haven't done SMD soldering before, but it's not as
hard as it might seem. If you're new to this, you might want to take
a look at a tutorial or two to get an idea of what's involved and some
tips on technique; try a Web search for "SMD stencil tutorial". I'd
once again recommend using the stencil with this project because of
the small parts involved.
The SMD stencil soldering process works like this:
- Set up your work area on a large flat surface, like a workbench
or kitchen table
- Put down a fairly large pice of cardboard or heavy paper (butcher
paper, for example)
- It's easiest to hold everything in place using a PCB jig set -
acrylic corner pieces the same thickness as the board, that you can
place around the board to keep it from sliding around and to form a
uniform flat surface for a couple of inches around the board's
perimeter. You can also use some spare boards for this, placing
them around the perimeter of the board you're building.
- Tape down the board and the jig pieces to the work surface, using
masking tape. Be sure not to cover up any of the SMD pads on the
subject board with tape.
- Place the stencil over the board and line up the holes in the
stencil with the solder pads on the board. Tape it down to
the work surface (leaving all of the holes uncovered, of course).
- Scoop a big glob of solder paste onto the board on one side
- Use the spreader to smear it across the board to the other side
to form a thick layer, pressing it down as you go to force it
through the holes
- Now do another sweep with the spreader in the reverse direction,
this time scraping off as much of the top layer as you can, so
that the only paste remaining is the paste that squeezed through
the holes. Return the excess paste to the tub.
- Carefully peel the stencil off of the board
- Clean any remaining paste off of the stencil and return it to
the tub
- You should now have a nice clean layer of paste on each of the
solder pads on the board. Check the alignment to make sure that the
pads line up reasonably well. You don't have to get the alignment
perfect! Solder paste is very forgiving; its affinity for the metal
pads will make it ball up nicely on the pads when heated even if you
got a fair amount outside the lines.
- Place the parts! Use tweezers for the smaller parts.
- Match the parts to the pads on the board using the
"designator" - R1, C1, etc
- As you place the parts, press down on them gently with
the tweezers to stick them to the paste
- Resistors aren't polarized, so it doesn't matter which
direction they go
- Capacitor C1 isn't polarized, so its orientation doesn't matter
- Capacitor C2 is polarized, so its orientation does matter.
The part's plastic base has an asymmetrical shape that serves as the orientation
guide. Match the shape to the outline printed on the board.
- The transistor's (Q1) orientation should be obvious from
the pad layout
- Make sure that the sensor chip is oriented correctly: the
white circle printed on the board in the corner of the corresponds
to the "index" mark - a dot - printed on the bottom
of the chip next to pin 1. Note that the index mark is printed
on the bottom of the chip, so you'll have to do a little spatial
reasoning to keep track of where it goes when you flip the chip over.
- The other IC chip (IC2) also needs to be oriented properly,
in this case by matching the little half-moon notch on the chip
to the notch printed on the circuit board outline
- Once all the parts are placed, it's time to solder. The basic
pattern for SMD soldering is to heat the whole board
gradually for about 60 to 120 seconds,
so that nothing cracks or pops from thermal expansion, then keep it
hot enough to melt the solder for about 30 to 60 seconds. The natural
surface tension of the melted solder will make it flow over the pins and pads,
so the goal is simply to melt the solder across the whole board for long
enough for this flow process to happen. Then we can let the board
cool, again going gradually to avoid thermal shock.
Everything should freeze into place as the solder sets.
I prefer the heat gun method:
- Remove the board from the work surface and put it on something heat-safe
- Set the heat gun to low
- Point the gun at the board and hold it about an inch from the board,
straight above
- Make small circles over the board to heat the board evenly
- Do this for about 60 seconds. This is the ramp-up phase - we're trying
to heat the board gradually here so that there's no thermal shock.
- Set the gun to high, continuing to point it at the board and make small circles
- Watch the solder paste; in 30-60 seconds, it should start melting; it'll
change from the dull gray paste color to bright silver
- Once all of the solder is melted, continue heating for about 10 or 20 seconds more
to let the solder flow over the pins and pads
- Now gradually back the gun away from the board - two inches for a few
seconds, three inches for a few seconds, etc. Keep going like this for
about 30 seconds.
- Turn off the gun
- Let the board cool
- Once the board has cooled, there's still one part that has to be
soldered the old-fashioned way, namely the ribbon cable connector.
Insert that through the holes and solder the pins on the bottom
side of the board. Be sure to protect the TCD1103 while the
board is flipped over, by putting down some cardboard or paper
on the work surface.
You can skip the ribbon cable connector if you plan
to use hook-up wire instead of a ribbon cable. I'd recommend
the ribbon cable with this board, not only because it's easier
(in my opinion), but because it makes a cleaner signal path
for the high-speed data signals this sensor uses.
Install the ribbon cable
Remember to continue being careful about static electricity while
handling the board. The CCD chip remains sensitive to static even
after soldering. (Humidity is no longer a worry after soldering,
though.)
If you're using the ribbon cable connector, the next step is to attach
the cable. You should already have soldered the connector to the
board (see above). The connector comes in two pieces: a base with the
pins sticking out, and a clip that fits over the top. The base is the
part that you solder to the board. If you separated the top clip part
during soldering, put it back, but only loosely - you want to leave a
bag between the two parts big enough for the cable. If the clip is
still in place, loosen it to open up a gap for the cable.
Slip the ribbon cable into the opening. If your cable has a stripe
down one side (usually red), oriented the cable so that the stripe is
on the side with the little white triangle printed on the circuit
board. The triangle printed on the board and the stripe on the cable
both represent "pin 1" in the wiring.
If your cable doesn't have a stripe, you should add one with a
red marker. It's best to use a permanent marker with oil-based
ink for this, because water-based inks tend to rub off of the
plastic insulation too easily. Draw a stripe down the whole length of
the cable along one side. (It doesn't matter which side you pick.)
The cable should just barely fit into the gap in the connector. This
is part of the design, to make sure the cable is positioned properly
side-to-side. Let the end of the cable extend about 1/4" past the
clip.
Once the cable is positioned properly, get out some pliers. There's
actually a specialized IDC crimper tool for this job, but ordinary
pliers work well enough if you're careful. Carefully apply pressure
to the top of the clip. Start at one side of the clip, push it down
just a little bit there, then gradually move to the other side. Work
back and forth a few times until the clip is all the way down and
snaps into the locks. It's better to do this gradually so that you
force the wire down fairly evenly and keep it close to level
side-to-side.
Be careful not to dislodge the soldered pins on the bottom of the
board! If you have a spare copy of the board, you can put the spare
board under the assembled board, with the connector pins going through
the holes in the spare board. This will let you apply pressure to the
bottom of the board without applying pressure to the bottom of the
pins.
Finally, install the IDC connector at the far end of the cable.
This is the plug that connects to the expansion board header. This
is almost exactly like attaching the soldered connector.
Be sure to line up pin #1 on the plug with pin #1 on the cable. On
the plug, you should find a small triangle or arrow at one corner,
embossed in the plastic. (It can be hard to spot since it's just a
little bump, but it should be there.) That's the pin #1 side.
Make sure that lines up with the red stripe on the cable. When
you plug the cable into the expansion board, this side should also
line up with the triangle printed on the expansion board next to
the header, which is yet another pin #1 marking.
Connect and test
Before installing the sensor in the cabinet, it's a good idea to
connect it to the KL25Z and test it out, to make sure the hardware is
working correctly. This will also let you use the Config Tool's
plunger sensor viewer to view the live images coming in on the sensor,
which you'll need to be able to do during the installation process to
aim and focus the lens.
Before connecting the sensor, it's a good idea completely unplug the
KL25Z to remove power. You should unplug the KL25Z USB cables even if
the PC is powered off, because most PCs continue to power USB devices
even when the main PC power is off.
Continue to be careful about static electricity when working with the
sensor board. The CCD chip is highly static-sensitive even after
soldering.
Connect to the expansion boards
If you're using the Pinscape expansion boards, simply plug the
ribbon cable connector into the main expansion board's "Plunger"
header. Be sure to line up the "pin 1" triangle printed on the
expansion board with the red stripe on the cable.
Connect to a standalone KL25Z
If you're using a standalone KL25Z, I'd still recommend using
the ribbon cable connector. That provides a cleaner signal path
than ordinary hook-up wire would, which is important for this
sensor because it uses high-speed data signals. The easiest
way to connect the ribbon cable to a standalone KL25Z is using
the
Chapter 100, plunger sensor breakout board:
- Plug the ribbon cable into one header on the breakout board (it
doesn't matter which one), lining up the red stripe on the cable
with the "pin 1" triangle printed on the board
- Connect the pins on the other header on the breakout board as follows:
- Breakout board 3.3V to KL25Z P3V3 (pin 8 on J9)
- Breakout board GND to KL25Z GND (pin 12 or 14 on J9)
- Breakout board D0 to Kl25Z PTE21 (pin 3 on J10)
- Breakout board B0 to KL25Z PTB0 (pin 2 on J10)
- Breakout board E20 to KL25Z PTE20 (pin 1 on J10)
- Breakout board D5 to KL25Z PTE22 (pin 5 on J10)
If you're already using some of those GPIO pins for other purposes,
you can use different pins for the sensor connections, with a few
constraints. First, the wire that we connected to PTE21 requires a
PWM-capable pin. Second, the wire we connected to PTB0 requires an
analog-input (ADC) pin. The other two connections (the ones assigned
to PTE20 and PTE22) don't have any special requirements, so they can
be reassigned to any free GPIO pins. The Config Tool will show you
the allowable GPIO ports for each connection when you configure the
sensor in the Settings page, and you can also check
Appendix 1, KL25Z Pin Out for the full list of GPIO pin capabilities.
Configure the software
- You should have the sensor connected to the KL25Z at this point, as
explained above
- Connect the KL25Z to the PC using USB cables as normal
- Bring up the Pinscape Config Tool on the PC
- Go to the Settings page
- Scroll down to the plunger setup section
- In the Plunger Type drop list, select TCD1103
- If you're using a standalone KL25Z, check that the GPIO pin
assignments match your wiring. If you didn't use the default pin
assignments, click on the pin name boxes and update the pin
assignments to match the pins you actually wired. Note that the "fM
(Master Clock)" and "OS (output signal)" connections have special
requirements that limit the choice of GPIO pins; the Config Tool will
show you the valid pins for those. If you wired those connections to
GPIO pins that aren't allowed, you'll have to change wiring to valid
pins as shown in the Config Tool.
- If you're using the expansion boards, there's no need to select
the pin assignments, since they're pre-determined in the expansion board wiring
- At the bottom of the page, click Program KL25Z to save the
changes to the KL25Z firmware
Initial testing
We won't be able to get sharp images on the sensor until we install
the lens, which we'll come to shortly, but we can at least do some
rough initial testing to see if the sensor is responding to light at
all. Basic light reception is good enough to verify that the
soldering process was successful and that the software is configured
correctly. I find it very helpful to do these tests before attempting
the full installation, so that I don't have to wonder if the basic
wiring is working while trying to align the lens.
- Return to the main page in the Config Tool
- Click on the Plunger icon to bring up the plunger viewer
Note: During testing, don't point any light sources directly at
the sensor. Overexposing a CCD can cause a cascade effect that maxes
out all of the pixels and gets them stuck like that until you reset
power. Ambient light in a normally lit room should be enough to
see a response on the sensor.
The plunger viewer shows the image being received on the sensor.
Remember that this sensor only has a single row of pixels, so you
shouldn't expect to see a full rectangular image like on a normal
camera. Instead, the image is just a single line of pixels. The
viewer screen expands this into a wide bar, but at each point along
the bar (left to right), you're only seeing a single pixel value.
Without a lens installed, the image is so unfocused that it can really
only show the ambient light level. The CCD sensor is extremely
sensitive to light (especially at the red end of the spectrum), so if
the sensor is sitting out in the open and you have the lights on in
the room, the whole viewer should look fairly uniform, from dark gray
to light gray, depending on how bright the ambient light in the room
is. (Don't pay any attention to the green bar; without a lens to form
a focused image, the software can't get a good read on the plunger
position, so the green bar will probably jump around randomly.)
Typical snapshot with the sensor working. The pixels appear with
a fairly uniform shade of gray. This particular snapshot has the
sensor in a shaded area, so it's not picking up much light.
With more ambient light, the pixels will be lighter gray or
closer to white, but should still look fairly uniform. If the
pixels look "noisy", with a lot of variation from one pixel to
the next and a lot of rapid fluctuation, there might be a problem
in the wiring or pin assignments.
The most basic test you can do is to completely cover the sensor with
something opaque. You should see the sensor view change to darker
gray, still fairly uniform across the image. Uncovering the sensor
should return to a lighter gray or white image. It's okay if it's not
completely black when covered and not completely white when uncovered.
The important thing is to see a clear response to different light
levels - brighter pixels when the sensor is exposed to light, darker
pixels when it's shaded.
Another test you can try is to cover a portion of the sensor, using an
opaque piece of thick paper or cardboard. If you cover a portion of
the sensor window (holding the paper right up against the sensor), you
should see a corresponding section of the pixels in the viewer window
darken. Without a lens, you'll only be able to see a very coarse and
blurry image, but it should still be possible to see that a section of
the sensor is shaded.
If you see the expected responses to these tests, the sensor is
working! You can proceed to the cabinet installation below. If the
sensor doesn't respond as expected, the first troubleshooting step is
to confirm that all of the GPIO pins for the sensor are assigned
correctly in the Settings page. Carefully check each pin assignment
against the physical wiring - the sensor won't work at all if even one
pin assignment is wrong. (Incorrect pin assignments shouldn't cause
any permanent damage to the electronics, though.)
If the pin configuration looks right, you might try a power cycle
reboot of the KL25Z. Overexposing the sensor beyond a certain point
can cause a cascade effect that blinds all of the pixels, which can
last until you power cycle the chip. That's something you can do by
accident when you're handling the board during testing, so it can be
worth trying a power cycle reset.
If the pin assignments are all correct and power cycling doesn't help,
you probably have a problem in the soldering. Check all of the solder
joints carefully (I'd use a magnifying glass). If you spot any solder
joints that don't look properly connected, you can try using a
fine-tipped soldering iron to heat the joint long enough to melt the
solder. That's often all you need to do to fix a bad SMD joint - the
natural surface tension in the melted solder will usually "heal" a bad
joint.
What it looks like if it's not working
The typical appearance if the sensor isn't wired correctly is a
"noisy" image - pixels radpily fluctuating with different shades of
gray, and random variation from one pixel to the next. The KL25Z
reads pixels from the sensor through a GPIO analog input pin, so if
the sensor isn't working, the analog pin will typically read random
electrical noise, which shows up in the visualization as random and
rapidly changing pixel brightness. When the CCD is working, the pixel
readings tend to be stable over time and vary smoothly across nearby
pixels.
If the pattern on the image viewer isn't "noisy", but doesn't respond
as expected to changing light levels or to a partially covered sensor
window, the sensor might actually be working; the problem might simply
be that your ambient lighting is too strong or too weak. In other
words, you might be overexposing or underexposing the sensor. If the
sensor viewer is showing a uniform dark gray or black, try increasing
the ambient light level in the room, and repeat the basic tests; if
it's showing uniform bright gray or white, try decreasing the ambient
light level.
Wire the light source
For the light source, I recommend a 1W red LED of the "star base"
type. You can find these on eBay and Amazon.
A 3W RGB LED will work equally well, because that's a combination of
1W red, blue, and green LEDs in a single housing. You can just wire
up the red segment and leave the blue and green segments unused, which
will make the light the same as a 1W red LED. Note that it might seem
like powering the other segments could only be better in terms of
providing even more illumination, but I'd actually recommend against
that because we don't want to overexpose the images. 1W worth of red
light seems to be just about the perfect amount in my testing.
The reason we use a red LED as the light source is that the TCD1103's
peak sensitivity is at the red end of the visible spectrum. The
sensor actually responds to light across the whole spectrum, so it's
not absolutely required that we use a red light source; it's just that
it's most sensitive to red light, so a red light source is the most
efficient. We might need more power with a blue light to get a good
exposure level.
- Figure how long a wire you'll need to reach from the light source,
which will be installed at roughly the front right corner of the
cabinet, to a connection point for your 5V power supply
- Cut a length of red hook-up wire and a length of black wire long
enough to reach
- Strip about 1/4" of insulation from each end of each wire
- Solder one end of the red wire to the "+" pad of the star LED (or
the "R+" or "RED+" pad, if you're using an RGB LED). As always, the
best soldering technique is to hold the wire and pad firmly together,
press the soldering iron tip against the junction, wait a few seconds
for the parts to heat, and then touch the solder to the parts
(not the soldering iron tip) until the solder melts and flows
freely over both the wire and pad. Then remove the soldering iron tip
and let the joint cool for about 10 seconds while holding everything
perfectly still. For joining loose parts like this, I find it's a lot
easier if you use clamps or paperweights to hold everything in place
while you're working.
- Solder one end of the black wire to the "-" pad of the star LED
(or the "B-" or "BLACK-" pad, if it's an RGB LED).
- Cut the red wire at some point along its length, perhaps 10"
or so from the LED end
- Strip about 1/2" of insulation from the two new ends of the wire
- Solder the new wire ends to the leads of a 10Ω, 2W resistor
- Wrap electrical tape or heat-shrink tubing around the exposed
resistor leads, to protect against accidental short-circuits with
other exposed metal parts in the cab. (Don't cover
the body of the resistor - that could make it overheat.)
- Attach the LED to a 1" "L" bracket, using glue, paste, or
double-sided adhesive tape. I recommend a thermally conductive "heat
sink" tape, since that'll make the bracket into part of the heat sink
for the LED. Assuming you're using the "star" type, the aluminum star
base is already a good heat sink by itself, but it doesn't hurt to add
more cooling surface area given that we're going to leave this LED
running continuously.
Assemble the sensor
- Fit a lock ring onto the lens, and screw it all the way to the
top of (the wide part of the lens)
- Screw the lens into the lens mount
- Fit the sensor/lens spacer from the 3D-printed bracket over the sensor chip
- Assemble the mounting bracket, circuit board (with spacer), and
lens/mount combo as shown below. Use M2 or #2 screws (whichever type
fits your lens mount) to fasten the parts together. Tighten the
screws just enough to hold the lens in position loosely - tight
enough that there's enough friction to hold its position, but still
loose enough that you can move it back and forth by hand. We'll need
to be able to fine-tune the alignment later when we install it in the
cab, so you want it to still be mobile at this point.
Install the sensor
The sensor has to be carefully positioned to satisfy three constraints:
- It has to be a certain distance from the plunger vertically, so
that the range of the plunger's travel will just fill the lens's
field of view
- It has to be at a certain point along the plunger's travel front-to-back,
so that the image can capture both ends of the plunger's travel range
- It has to be positioned side-to-side so that the lens points straight
at the plunger
The mounting bracket has slotted holes to give you a little wiggle
room to fine-tune the position and aim, but it's still important to
get the overall initial position right.
Warning! Be prepared for a little bit of trial and error to find the
ideal position. Given that we're using cheap no-brand lenses, I'm not
sure how consistent the optics will be from sample to sample. There
might be enough variation in the field of view that you might have to
move the bracket a little bit up or down from what worked for me.
Here's the positioning that worked for me. This is based on the
3D-printed mounting bracket plans earlier in this chapter. Obviously,
it's the position of the sensor that matters, not the position of the
bracket per se. But the sensor position relative to the bracket is
predictable, as long as we're all using the same bracket design, so
it's easier to work in terms of positioning the bracket.
- Use the bottom of the plunger e-clip as the starting point
- Measure 8" straight down along the cabinet wall, and mark this
as the position of the top of the bracket
- From this point, measure 5/8" towards the rear of the cabinet,
and mark this as the left side of the bracket
- Now just fit the bracket so that its top left corner (as viewed in
the diagram above) fits the corner spot we just marked
Don't worry too much about getting the measurements exact. The
mounting bracket has slotted holes that will let you fine-tune the
final positioning based on what you see in the sensor viewer, plus I
tried to leave a little margin of error in these measurements so that
it'll still work if you're a little off. Besides, as I warned
earlier, your lens optics might be a little different from mine, so my
measurements might not be quite right for your setup anyway.
- Use the sensor bracket as a template to figure the screw hole
positions
- Try to center the screws in the slots so that you have
maximum room to adjust in both directions
- Drill 3/32" diameter pilot holes (about 1/4" deep) at the marked positions
- Install the bracket using two #6 x 1/2" wood screws
- Leave the screws a little loose for now so that you can adjust the
angle of the bracket when we test it in the image viewer below
Install the light source
The light source is the next (and final) piece to install. You should
already have wired the LED and fastened it to an "L" bracket for
mounting in the cab. Now you just need to find a convenient place
for it and install it.
I recommend placing the light source close to the sensor, at about the
same level vertically as the lens. If you have room, I'd put it on
the side of the sensor closer to the front of the cab, but I think
it'll work fine on the other side, since these LEDs are very bright
and not very directional.
Install the LED's "L" bracket using a #6 x 1/2" wood screw. I like
to drill a pilot hole (3/32" diameter, about 1/4" deep) first for this
type of screw.
Aim and focus
Now we have to align the sensor so that it gets a clear view of the
plunger through the lens, across the plunger's whole travel range.
There are two parts to this. The first is to position the sensor
side-to-side so that it's aligned with the plunger axis. The second
is to adjust it front-to-back so that the plunger tip stays in view
across its whole travel range. For that second step, we should only
have adjust the angle of the bracket, so you shouldn't have to move
the screws fastening it to the wall - there should be enough range in
the slots that we can rotate the bracket to get the right alignment.
You can start the side-to-side alignment by visual inspection.
Looking straight down at the plunger, slide the sensor side-to-side
along the bracket until the lens looks to be centered under the
plunger.
How precise do we have to be? The sensor's field of view side-to-side
is only one pixel wide, which translates to a fraction of a millimeter
along the plunger. The "target" that we're trying to image - the
white paper reflector - is about a centimeter wide. So we only have
to get our little one-pixel sliver to overlap that centimeter-wide
target. It's a broadside-of-the-barn situation.
Even so, aligning it by eye is just a first step, to get us into the
right neighborhood. To find the final position, we have to see what
the sensor sees. Luckily, the Config Tool lets us do just that.
- If your dark backdrop isn't currently installed, put some kind of
temporary dark backdrop in place - a piece of dark paper that you can
lay on top of the cabinet above the plunger should be adequate.
- Turn on the LED light source
- Bring up the plunger viewer in the Config Tool (run the Config
Tool and click the "plunger" icon on the main page)
What we're looking for is a clear bright-colored region that fills
about a quarter of the field. That's the paper reflector we installed
at the tip of the plunger. You might also see some faint alternating
dark and light stripes; those are images of the spring and the plunger
shaft.
If you don't see the bright region corresponding to the reflector, try
sliding the sensor side-to-side on the bracket. You might have to
hunt around a little bit before the plunger comes into view.
When you find the reflector, you should then fine-tune the position to
try to get it as close to the center-line as possible. That will give
you the clearest image, and it should also help better tolerate
vibration and small shifts in alignment. The plunger shaft usually
has a little bit of play that lets it move around by a couple of
millimeters in normal action, plus you have to expect all of the parts
to move around a little bit over time.
Front-to-back positioning: Now that you have the reflector
in view, the Pinscape firmware should be locking onto the plunger
position. You should see this as a green bar showing the current
position reading.
The goal now is to get the position reading (with the plunger at rest)
to be at about 300. Do this by twisting the mounting bracket
to re-aim the lens front-to-back. The slots in the mounting bracket
are there to allow a little rotation like this.
Check the full travel range: Check that the leading edge of the
reflector stays in view across the whole travel range:
- Pull the plunger all the way back
- Also push it forward, compressing the barrel spring as far as you
can
It's only important for the leading edge to stay in view, since
that's what the software looks for to find the position. It's fine if
part of the reflector goes past the end of the window when the plunger
is pulled all the way back.
If either end is out of view, try adjusting the mounting bracket
rotation again to get it into view.
Things to watch out for:
- What if you simply can't get both ends of the range in view, because
the field of view isn't wide enough for the travel range? This means
that the sensor is too close to the plunger. The positioning I
recommended is based on testing with my M12 lens with 16mm focal
length, but I'm not sure how consistent these cheap no-brand lenses
are from batch to batch. It's possible that the field of view won't
be quite the same with different lenses, which might mean you have to
adjust the distance between the sensor and the plunger. If the field
of view isn't wide enough, you'll have to increase the distance.
- What if the bright region starts disappearing halfway along the
travel range? This probably means that the sensor's pixel window
isn't close enough to parallel to the plunger, so that the plunger
moves "diagonally", relative to the sensor, as you pull it back. In
this case, you'll have to try to get the sensor lined up better with
the plunger axis, by rotating the sensor slightly on the mounting
bracket.
Focus: We're almost done. The next step is to focus the lens.
Use the viewer window to observe the leading edge, at the left side of
the view. Adjust the lens to get the sharpest edge you can.
Finalize: Lock everything down in the calibrated position.
Tighten the screws that hold the sensor to the bracket and the screws
that hold the bracket to the cab wall. Set the focus lock ring, by
screwing it down the lens until it locks against the lens holder.
Keep an eye on the plunger viewer throughout, to make sure that you
don't knock things too far out of alignment while tightening any of
the fasteners. I always find that things move around at least a
little bit any time I adjust a screw, so do just a little bit at a
time, monitor the effects in the viewer, and re-adjust the lens
alignment as needed.
Calibrate: There's one last step, which is to run the
calibration procedure in the Config Tool. This lets the software
determine the resting position of the plunger on the sensor and
measure its range of motion, so that it can report the position in
terms that pinball simulators like Visual Pinball can understand. The
simulators need the numbers to be expressed on an abstract scale where
"zero" is the resting position, so the calibration procedure is needed
to figure the translation between the raw pixel positions on the
sensor and the abstract scale that the simulators use.
The calibration procedure can be accessed from the Config Tool's
plunger viewer screen. Simply click the Calibrate button and
follow the on-screen instructions.
106. Plunger Setup (VL6180X Distance Sensor)
I should start by saying that I don't consider this to be a very good
option. I'm including it because it's easy to set up and fairly
cheap, so it might be appealing to some people on those grounds. It
also has the virtue of being a non-contact sensor, so it won't suffer
any wear and tear from use. But its accuracy and speed are too low
for me to recommend it. It's only accurate to about 1 centimeter,
which translates to chunky animation of the on-screen plunger (the
best available Pinscape plunger sensors are accurate to better than
1/100 of a centimeter). It's also comparatively slow, which makes it
less responsive than other options. With those warnings in mind...
The VL6180X is a distance measuring sensor that works by sending out
pulses of IR light aimed at a target, detecting the reflected pulses
with a photosensor, and measuring the round-trip travel time of each
pulse. It uses the travel time to determine the distance, using the
known speed of light in air.
To use this for a virtual pinball plunger sensor, the basic idea is
install the sensor at a fixed position just beyond the end of the
plunger, with the sensor pointing at the tip of the plunger. As you
pull back the plunger, the distance between the sensor and the plunger
increases. The sensor's distance measurement tells us the plunger's
current position.
VL6180X vs. VL53L0X
The VL53L0X is a newer chip from the same manufacturer with similar
distance measurement features. It's not an outright replacement for
the VL6180X, as it's not software-compatible and doesn't have exactly
the same features. Its main advantage over the older chip is that it
has a much higher maximum ranging distance, up to about 200cm vs only
10cm for the VL6180X. However, there's a tradeoff: it's considerably
slower than the VL6180X. The VL6180X completes a distance measurement
in about 13ms, whereas the VL53L0X requires at least 19ms, and is
happiest at about 35ms. In my testing, the newer chip doesn't have
any accuracy improvements over the old one.
Given the tradeoffs, I don't see any reason to use the VL53L0X over
the VL6180X for plunger sensing. The longer range of the newer chip
doesn't make any difference for us since we don't even need the full
range of the older chip, and the reduced speed is a negative. If the
newer chip's accuracy were noticeably better, that would make it more
of a contest, but both chips seem to have about the same (poor) accuracy.
Electronics
You can buy pre-assembled VL6180X circuit boards from several robotics
hobby companies. This is lucky for us, because the bare chips are
rather challenging to work with. The pre-fab boards make them easy to
use.
Here are three options:
All of these options are pretty much equivalent. They all provide
easy-to-solder terminals for all connections, and they all have the
necessary on-board voltage regulators and level shifters to interface
the VL6180X with the KL25Z. Any of these boards can be used directly
with the KL25Z hardware and Pinscape software; the only thing you
have to do is run a few wires between the KL25Z and the sensor board.
The instructions below are designed around the Pololu board. I chose
that one as the reference point because it's the cheapest and smallest
option. You can substitute one of the others if you prefer, but be
aware that you'll have to adapt the instructions below for any
differences in the board you choose. The other boards are all very
similar, so this shouldn't be difficult, but keep it mind as you build
the project.
Wiring the board
The breakout boards all come fully assembled, except for external wire
connections. The only thing we have to do is attach the wires between
the board and the Pinscape controller.
Your board might come with a set of pin headers that you can
optionally solder to the pads on the board. You can use these if you'd
like, but I'd actually recommend soldering wires directly to the pin
pads instead of using the pin headers. Using the pins creates a bit
of extra work, since you'll have to build an extra connector to plug
into the pins. I'd skip the pins and solder wires directly to the
board terminals, since you really shouldn't ever need to disconnect
the wires from the sensor board. We will use pluggable connectors at the
other end, where we plug into the Pinscape board, so you'll still
be able to easily unplug the whole assembly if you ever need to remove
it from the cabinet.
I recommend 24 AWG stranded wire for the connections, but the exact
gauge isn't important, as these wires carry extremely low power.
You'll need five wires, about three feet long each. Before cutting
the wires, check the length you'll need by measuring the distance the
wire will have to traverse to reach from your plunger housing to the
Pinscape unit (the KL25Z or main expansion board). Take into account
any extra length you need to route it around your PC motherboard or
other obstructions.
Strip about 1/4" of insulation from each end of each wire.
Solder one wire to each of the following terminals on the board:
- VIN (Adafruit and Pololu) or VCC (Sparkfun) (not VDD or 2.8V)
- GND
- SDA
- SCL
- GPIO0/CE (Pololu), SHDN (Adafruit), or IO0 (Sparkfun)
Note that your board will have some other terminals besides those listed
above. You can simply leave other terminals unwired.
Be careful about the "VIN" voltage input terminal! This one can
be a little confusing because some of the boards have two "V"
terminals. One is for the input voltage: this is the
one we want to connect. The other is for the output of the on-board
2.8V voltage regulator. We don't want to connect anything to
the 2.8V output. On the Adafruit board, the 2.8V output is plainly
labeled as "2v8", while it's more obscurely labeled on the Pololu
board as "VDD". In either case, just leave this terminal unconnected.
Expansion board wiring
For the expansion board connector, build a 4x2 crimp pin housing
(
housing,
pins).
First crimp a pin to the end of each wire (see
Chapter 82, Crimp Pins).
Insert the pins in the housing, following the diagram below for the pin placement.
It would be a good idea to put a mark of some kind on the housing in
the corner next to pin 1 - the pin marked with the arrow on the
diagram above. That will make it easier to remember which side
aligns with the "pin 1" arrow marker on the circuit board when
you plug in the connector.
Standalone KL25Z wiring
- Build the expansion board connect as described above
- Build the ribbon cable connector exactly as described above,
as though you were using the expansion boards
- Follow the instructions in Chapter 100, Plunger Sensor Breakout Board to build the
breakout board
- Connect the following wires between the breakout board and the KL25Z:
- Breakout board 3.3V to KL25Z P3V3 (pin 8 on J9)
- Breakout board GND to KL25Z GND (pin 12 or 14 on J9)
- Breakout board B0 to KL25Z PTB0 (pin 2 on JP10)
- Breakout board E20 to KL25Z PTE20 (pin 1 on JP10)
- Breakout board D0 to KL25Z PTE21 (pin 3 on JP10)
(Yes, the label on the breakout board is different in this case)
If you prefer to use your own ad hoc wiring, see "Plug it in" below for
the list of KL25Z GPIO connections.
Physical installation
I haven't come up with a reference design for the housing for this
sensor, so you'll have to come up with something on your own. The
basic idea is to mount the sensor at a fixed position in your
cabinet so that it faces the tip of the plunger head-on. The point
is to measure the distance between the sensor and the plunger.
There have been several commercial virtual pinball plunger kits
available over the years that were also based on IR proximity sensors,
so we can look to them as examples for how we might set this up. All
of those used a plastic tube surrounding the plunger, with the sensor
installed at the far end of the tube, facing the plunger tip. The
plastic tube serves dual purposes: it provides a place to mount the
sensor, and it shields the whole area from stray light that could
interfere with the sensor's readings. The VL6180X actually doesn't
actually need such shielding as much as the older sensors used in the
commercial kits do, since it has a "laser ping" design that's pretty
good at ignoring ambient light, but even so, it wouldn't hurt.
Choosing a material for the tube: This isn't as simple as it might
seem! Intuitively, it seems like any kind of opaque material would be
good. But the sensor uses infrared light (technically, 850 nm), and
many materials that look opaque to our eyes are actually transparent
to IR. The common 3D printer plastics PLA and ABS are both partially
transparent to IR, so it would somewhat defeat the purpose to use them
for a light shield. Black PETG is supposed to be nearly opaque to IR,
so it might be a better choice. It might also be a good idea to make
the inside surface texture of the tube or cover somewhat rough, to
minimize reflections. A smooth surface that readily reflects the
signal might be worse than no cover at all.
Choosing the sensor mounting position: Make sure that the sensor is
far enough away from the end of the plunger's range of motion that the
plunger won't ever hit the sensor. Remember that the plunger springs
forward about half an inch from its resting position, because the
barrel spring on the front can compress a bit. Leave a gap of at
least 1 centimeter (about half an inch) if possible.
When you mount the board, be sure to mount it with the component
side facing the plunger.
Here's what the Pololu board looks like. The sensor is the little
black box in the middle with two small holes (one hole is the laser
emitter, the other is the photosensor). The sensor chip looks the
same on all of the boards, but the layout of the terminals and
the other parts varies slightly.
Plug it in
Expansion boards:
Once you've built the connector as shown above, simply plug it into the
plunger connector on the main expansion board. Make sure the plug orientation
is correct by match pin 1 in the housing (see the
diagram)
with the pin 1 triangle printed on the expansion board.
Standalone KL25Z:
If you're using the plunger sensor breakout board (recommended), build the
expansion board connector as described above, and just plug it in to the
pin header on the breakout board. Be sure pin 1 on the plug (see the
diagram)
to pin 1 on the board, which is marked with a little white triangle
printed next to the header.
If you prefer to use your own ad hoc wiring, connect the wires between
the board and the KL25Z as shown below.
Sensor Board Pin | KL25Z Pin |
3.3V | P3V3 (JP9-8) |
GND | GND (JP9-10) |
SDA | PTE20 (JP10-1) |
SCL | PTE21 (JP10-3) |
GPIO0/CE | PTB0 (JP10-2) |
>
Note that the last pin, GPIO0/CE, has different names on some of the
boards: it might be labeled IO0 or SHDN. It's the same pin in any
case; the different board makers just chose to give it different
labels.
The illustration below shows the Pololu board. Be sure to adjust the
pin ordering if you're using a different board. Just match the labels
shown on the diagram to the labels printed on your board.
Note that the three GPIO ports listed above are only suggestions. If
you're already using the same ports for other functions, you can
assign the sensor inputs to other ports using the Config Tool. Any
free GPIO ports can be used with this sensor (it doesn't have any
special requirements for particular ports). The power and ground
wires aren't configurable, though, so connect those as shown.
Software setup
Once you have the sensor physically installed and plugged in, run the
Pinscape Config Tool on your PC. Go to the Settings page. (If you
have multiple Pinscape units installed, choose the Settings page for
the unit that's plugged into your new plunger sensor.)
Go to the Plunger Sensor section. Select VL6180X in the "sensor type"
popup.
(If the VL6180X option isn't available in the plunger sensor list,
you probably have an older version of the Config Tool. Updating to
the latest version should add the option.)
If you're using the expansion boards, the pin settings will be
set up automatically.
If you're using the standalone KL25Z, set the pin assignments for the
three pins (SDA, SCL, and GPIO0/CE) to match the pins you connected
on the KL25Z. The SDA and SCL pins should match the pins you
wired to the like-named terminals on the sensor board. The last one,
GPIO0/CE, goes by different names on the different boards: on the
sensor board, it will be labeled as GPIO0/CE, IO0, or SHDN, depending
on which type of board you have.
Save the new settings by clicking "Program KL25Z" at the bottom of the
window.
You should now test and calibrate the plunger. Return to the home
screen in the Config Tool and click the Plunger icon for the unit
with the sensor attached. This will let you look at the raw sensor
input. Move the plunger and make sure it seems to be tracking
properly.
If the sensor is working properly, click the Calibrate button in
the plunger viewer window to begin the calibration process, and
follow the on-screen instructions.
If the sensor doesn't seem to be working, go back to the Settings screen and
double-check the sensor pin assignments. Make sure that none of the pins
are marked with warning icons (
).
Check each wire and make sure that it goes to the proper pin on
each end (KL25Z and sensor board). Check that each GPIO port
assignment on the settings page matches up with the physical
pin on the KL25Z and connects to the corresponding terminal
on the sensor board.
Jitter filtering
The VL6180X generates distance readings in millimeters, but it's
really only accurate to about a centimeter, so the millimeter numbers
it comes up with are pretty much just wild guesses. As a result, the
readings fluctuate quite a bit from one reading to the next, even when
the target is standing still. With a stationary object, you'll see
the readings jump around constantly within about 5mm of the true
distance, plus or minus. This is annoying and unrealistic during
virtual pinball play, because it makes the on-screen plunger dance
around nervously when the real plunger is standing still.
The Pinscape firmware offers a "jitter filter" to deal with this. The
jitter filter lets you set a range for ignoring random fluctuations. As long
as the random noise from the sensor stays within the range, the device
ignores the fluctuations and reports a stable, stationary plunger.
The on-screen plunger only moves when the sensor readings move outside
of the noise window.
To enable the jitter filter, run the Pinscape Config Tool and go to
the Plunger Viewer window. There's a setting in this window for the
jitter filter. To adjust it, start with the filter at zero, and
gradually increase it until the green bar showing the filtered reading
stops jumping around. Use the smallest value that gives you
acceptable results, because larger values will reduce the usable
precision during play.
Backwards operation
If the on-screen plunger moves backwards from the real plunger, you
can fix it in the software without reinstalling the sensor. Open the
Pinscape Config Tool. In the row for the controller, click the
Plunger icon. Check the box for "Reverse orientation". (If it's
already checked, un-check it.) This tells the software to reverse the
readings from the sensor, so that it acts like it was installed in the
opposite orientation.
107. Pinscape Plunger Calibration Button
The Pinscape firmware has a provision for a dedicated, hard-wired
button to activate plunger calibration. This was a feature from the
very first version, before the Config Tool existed. When the Config
Tool came along, the dedicated button became unnecessary, since you
can now run the calibration from the Windows UI. But the firmware
still lets you connect a physical button for this if you really want
to. I don't see any good reason to do so, as the whole process is
much friendlier through the Windows UI, but I'll give you a quick
guide to setting it up, just in case.
Parts
All you need is a pushbutton of some kind. The
Chapter 91, Electronic Parts Listpart list includes the button I used for this
in my cab, which is a small illuminated pushbutton that's similar in
size and shape to the buttons in the Williams coin door service panel
(E-switch part number WBL2UOABQR05CLR). But there's nothing special
about that one other than the form factor; all you need functionally
is a pushbutton. It's nice to use an illuminated button, since the
firmware shows feedback on the progress of the calibration process by
blinking the light, but it's not required.
If you're connecting an illuminated button to the standalone KL25Z,
you'll also need a few electronic components (also listed in the parts
list) to build a small transistor amplifier to drive the button lamp.
The KL25Z on its own can't drive a lamp due to its low GPIO power
limits. It's not necessary to build this extra piece with the
expansion boards since it's already built in.
Where to mount the button
The calibration button is an "operator" feature, so I'd put it on the
inside of the cabinet, making it accessible through the coin door.
My preferred location would be an added custom service panel mounted
to the inside of the coin door, similar to the standard service panel
that you use to access the ROM operator menus. See "Adding an extra
service panel" in
Chapter 40, Coin Door.
Connecting to the expansion boards
The main expansion board has a dedicated pin header for the
calibration button and its indicator lamp, labeled on the board as
"JP3" and "CAL BTN".
- Connect the Normally Open (NO) and Common terminals on the button to
pins 2 and 4 on the header as shown above (it doesn't matter which
switch terminal connects to which pin)
- If your button has an indicator LED, connect the "-" terminal
on the LED to pin 1 on the header and connect the "+" terminal
on the LED to pin 3 on the header
You should connect this through a 2x2 crimp pin housing (included in
the parts list). See
Chapter 82, Crimp Pins for help with building the
housing and connecting the wires. Be sure to mark pin 1 on the
housing, to make it easy to remember the orientation whenever you have
to plug in the connector. Pin 1 on the housing should line up with the
arrow on the board that marks pin 1 on the board.
Connecting to the standalone KL25Z
The switch itself is easy. Find the Normally Open (NO) and Common
terminals on the switch. Connect these to PTE29 (J10 pin 9 on the
KL25Z) and GND (J9 pin 12 or 14). The order of the switch terminals
doesn't matter.
The indicator LED, if you want to use one, takes a little more work.
You have to build the little transistor amplifier circuit shown
below.
Important! The 82Ω resistor was specifically chosen for the blue
LED in the illuminated pushbutton in the parts list. If you're using
a different type of pushbutton, you'll need to recalculate the
resistor value. Look in the button's data sheet to find the "Forward
Voltage" and "Forward Current" values for the indicator lamp, then
plug those values, along with the 5V supply voltage, into the
LED resistor calculator in
Chapter 52, LED Resistors. That will
tell you the correct value to substitute for the 82Ω resistor.
(The 2.2K resistor
doesn't need to be recalculated - it's
a constant.)
The GPIO pins (PTE29 for the switch, PTE23 for the indicator lamp)
aren't set in stone. PTE29/PTE23 are the defaults that the firmware
is initially set to assume, so that's what we're showing in the
diagrams. But you can change these to any other GPIO pins you prefer
using the Config Tool. To you set different ports:
- Launch the Pinscape Config Tool
- Click on the Settings icon for your device
- Scroll down to the Plunger calibration button section
- Select the new ports in the Button Input and Indicator Lamp Output boxes
How to use the calibration button
- Make sure the plunger is at its normal rest position
- Press and hold the calibration
- The indicator lamp will flash for about two seconds, then turn solid ON
- If you're not using an indicator lamp, observe the LED on the KL25Z instead: it'll
flash blue for about two seconds and then turn solid blue
- When the indicator lamp turns solid ON (and the KL25Z LED turns
solid blue), calibration is running!
- You can stop pressing the button now - calibration is active and will run
for about 15 seconds
- Pull the plunger all the way back as you normally would during a
game, hold it for a couple of seconds, then release it
- Let the plunger come completely to rest
- Repeat the pull-and-release a couple of times
- When the indicator lamp goes out and the KL25Z LED returns to its normal
diagnostic flashing pattern, calibration is finished
- The KL25Z LED should flash blue/green to indicate that the plunger has
been successfully calibrated
108. Pinscape Config Tool Plunger Setup
The first step in setting up a plunger is to configure the proper
sensor type and hardware connections.
- Launch the Pinscape Config Tool
- Go to the Settings page for your device
- Scroll down to the Plunger Sensor Setup section
- Select your sensor type from the drop list
If you're using the expansion boards, the pin connections to the
KL25Z should be set automatically. If you're using a standalone
KL25Z, you have to set the GPIO pins to match the physical pins
where you connected the sensor.
The wiring details are different for each sensor type, and the
individual sensor-specific chapters cover that in detail, so refer to
the appropriate chapter for the type of sensor you're using for
wiring instructions.
Initial testing
After you've configured the plunger sensor type and pin connections,
you're ready to test and calibrate the plunger. Return to the main
screen, and click the plunger icon for your device:
This will bring up the plunger sensor viewer.
The green bar in the "sensor snapshot" area shows the plunger position
that Pinscape software detects. The first thing to check is to make
sure that this tracks the plunger when you move it. When you pull
back the plunger, the green bar should move towards the right,
and should track the physical plunger motion linearly. The "plunger
position" number printed just below should increase as you pull
the plunger back.
If the bar moves backwards (it moves to the left as you pull back the
physical plunger, and the plunger position number decreases), the sensor
is installed backwards from the expected orientation. But that's okay!
The software can compensate. All you have to do is checkmark the
box "Reverse orientation" towards the bottom of the window.
If the bar doesn't move at all, there's something wrong with the
sensor or the wiring to the KL25Z. First, go back to the settings
page, and double-check that the sensor type and GPIO pin assignments
are correct. If that all looks good, it must be a problem with the
physical wiring. Check all of the connections: make sure everything
is plugged in where it's supposed to be plugged in, and carefully
inspect all of the solder joints and crimp pin connections.
Calibrating with the Config Tool
Before you can use the plunger in games, you have to calibrate it, to
align the software's numeric readings with the physical range of the
sensor. Calibration is done from the sensor viewer window we used
above to view and test the sensor operation.
To calibrate:
- Launch the Pinscape config Tool
- Click the Plunger icon for the device to bring up the plunger sensor viewer
- Click the Calibrate button
- Follow the on-screen instructions
The calibration process runs for about 15 seconds, during which you
should move the plunger over its range per the on-screen instructions.
The process stops automatically after the software has collected the
sensor range data. The calibration information is saved in the
KL25Z's non-volatile memory, so the device remembers it across
reboots and power cycles.
The calibration procedure is basically a one-time operation - you only
have to do it when you first install the sensor. There's no need to
repeat it routinely (for example, you don't have to recalibrate
every time you reboot Windows or power up the machine). You only need
to run through the calibration again if you uninstall and reinstall
the sensor. Recalibration is necessary at that point because you'll
probably have changed the sensor's physical alignment, at least
slightly, so you'll want to recalibrate to get the software back in
sync with the new physical setup. You can also recalibrate any time
the sensor seems to be off (e.g., the on-screen plunger isn't coming
to rest at the normal park position).
Calibrating with the calibration button
If you installed a dedicated calibration button, you can also
calibrate using the button instead of going through the Config Tool
UI. There's no good reason to do that, as the Config Tool has a
friendlier UI that shows more information about what's going on, but
the button will work, too, if you prefer to use that for some reason.
The procedure is described in
Chapter 107, Pinscape Plunger Calibration Button.
Windows calibration = bad!
Windows has its own joystick device calibration procedure, which you
get to via the Windows control panel called "Set up USB game
controllers". Don't use it!
Everyone always wants to run this. They see the calibration option in
Windows and think it must be there to help. It is there to
help, but only for real joystick devices. It's a disaster to
use with nudge/plunger devices, because they're not anything like real
joysticks. Nudge/plunger devices only pretend to be joysticks
so that they don't need separate device drivers.
If you accidentally ran the Windows calibration before you read this
warning (everyone does!), you'll need to delete the Windows calibration.
The Windows calibration will screw up the Pinscape readings and make
your nudge and plunger inputs act erratically. Fortunately, they
made it pretty easy to reset the unwanted calibration data:
- Open the "Set up USB game controllers" control panel
(press Windows+R, type joy.cpl, press Enter)
- Select the Pinscape device
- Go to the Settings tab
- Click Reset to Defaults
Jitter filter
Near the bottom of the Plunger Sensor Viewer window, there's a setting
called "Jitter filter":
This sets the size of the "jitter window." When you set this to a
non-zero value, the window will be shown visually in the sensor
snapshot area, as a little box around the end of the plunger position
bar.
When the jitter window is set to a non-zero value, raw sensor readings
that vary within the window will be ignored. Any time the raw sensor
reading goes outside the current window, the window will move far
enough to contain the new reading.
The point of the jitter filter is to make the on-screen plunger stand
still when the real plunger is standing still. That might seem
something that should happen anyway, without any filtering, and you're
right - it should happen anyway! But remember that we're
dealing with an electronic measuring device, and all measuring devices
have some inherent imprecision. Suppose you're asked to measure the
length of a line with a ruler, to the nearest 1/32 of an inch, but the
ruler only has markings in 1/8 inches. You plop down the ruler and
squint at where the end of the line falls between the nearest 1/8"
marks, and you come up with the nearest estimate. Now you hand it
over to a friend and ask what they think. Chances are that their
reading will be just a little different from yours, since you both had
to interpolate between the 1/8" marks. And if you go back and take
another reading yourself, you'll probably get a third value. Plunger
sensor readings are like that: the sensor takes samples hundreds of
times a second, and each sample has a little of that inherent
measuring error, so each successive sample is likely to be slightly
different from the last one even when the true position isn't
changing. That shows up in the on-screen plunger as jitter. You see
those slightly variations from one sample to the next as little
motions of a pixel or two on-screen.
If the sensor is accurate enough that those little measurement errors
are too small to see in the on-screen plunger, the jitter filter can
be set to zero. The AEDR-8300 sensor is that accurate. The "analog"
sensors - the potentiometer and the IR distance sensors - tend to have
higher inherent measurement errors that make jitter filtering helpful.
To tune the jitter filter, start by setting it to zero. Observe the
green plunger position bar. If it's simply standing still, you're
set; you don't need a jitter filter at all. That should be the case
with the AEDR-8300 sensor. If it's jittering at all, gradually
increase the jitter window size. Observe the light green box around
the end of the plunger bar. When the jitter window box is standing
still (even though the raw reading, shown by the dark green bar, might
still be jittering around within the box), the window is big enough.
You can try reducing the window size to see if the green box stays
steady with a smaller value.
Smaller is better with the jitter window because a bigger window means
less precision when you do actually move the plunger. Filtering like
this always trades precision for stability. You want to apply just
enough filtering to get rid of the noise (or reduce it to a tolerable
level) without filtering out too much of the true information you're
trying to measure.
Axis selection
The Pinscape software normally sends plunger readings to the PC using the
"Z" axis, since that's the convention that almost all pinball
player software uses. I recommend sticking with that default,
since it's the most widely compatible option.
However, for special situations, the Config Tool gives you the option
to use a different set of axes, known as the "R" axes. This change
can be made in the Config Tool's Settings page, under the Joystick
section:
Auto-zeroing (quadrature sensors only)
If you're using the AEDR-8300 sensor, you should see a checkbox option
to "Enable auto-zeroing", and a box to enter the timing if this is
enabled.
This option doesn't appear for other sensor types. If you
don't see it, it's because it's not applicable to your sensor.
When auto-zeroing is enabled, the Pinscape software will automatically
reset the software plunger position to the "park" position (the point
where the plunger comes to rest on its own when you're not moving it)
whenever the sensor hasn't detected any motion for the specified time
period.
The point of auto-zeroing is to correct for accumulated errors in the
software's notion of where the plunger is currently positioned. A
quadrature sensor like the AEDR-8300 doesn't actually know
where the plunger is at any given time; this type of sensor can
only detect motion, so it only knows how far the plunger has
moved from the starting point. These distance measurements are quite
precise, but like any sensor, there's always some measurement error,
and little errors add up to big errors over time if you just let them
keep accumulating. Imagine if you had to measure a mile-long distance
with a one-foot ruler: you'd try to carefully line up the starting
point and ending point of each one-foot interval, and take a careful
measurement each time, but you'd always have a tiny bit of uncertainty
in each measurement. After adding up five thousand of those one-foot
sections, the tiny errors would add up to at least a few inches, and
probably several feet. That's basically how a quadrature sensor
measures position: it adds up the net effect of many tiny motions to
figure the overall position.
Auto-zeroing helps avoid long-term error accumulation by periodically
resetting to a "known state", by assuming that a plunger that's been
sitting still for a long period must be sitting at the normal rest
position. When there's no motion for a long period (you can specify
exactly how long that is via the "Auto-zero after" box), the software
simply sets the current internal position counter to equal the park
position.
109. ZB Launch Ball
Zeb (aka Steve) of
Zeb's
Boards came up with a clever feature for his plunger kit that lets
the plunger double as a Launch Ball button, for tables like
Medieval Madness or
Terminator 2: Judgment Day that were
plunger-less in their original arcade versions. The Pinscape software
has the same feature, which we call ZB Launch Ball in homage to its
inventor. This section explains how to set it up.
The point of the ZB Launch Ball feature is to let you eliminate the
need for a separate, physical Launch Ball button on your cabinet, by
using your plunger in place of the Launch button for tables that used
the Launch button (instead of a plunger) in the original arcade
version. Some pin cab builders choose to include both a
plunger and a Launch Button when designing their cabs, but some people
think that looks too cluttered, and would prefer to install just the
plunger, like on most of the real machines. If you prefer that
cleaner look without the extra button, the ZB Launch feature is really
useful, because it lets you operate the tables that require the Launch
button even though you don't have a Launch button installed. Plus,
even if you install both controls, ZB Launch can still be a nice
convenience feature, since many of us are so accustomed to using the
plunger that we reach for it reflexively even for games that don't use
it. It's nice to have the plunger just work at those times.
How it works
The ZB Launch Ball feature kicks in whenever you're playing table in
Visual Pinball that was originally plunger-less. It only works
with plunger-less tables. It doesn't do anything when you're playing
a conventional table with a conventional plunger.
When the ZB Launch feature engages, pulling back and releasing the plunger
translates into a momentary press of the Launch Ball button. You can
also press the plunger forward slightly to simulate pressing the
Launch button. Pressing the plunger forward and holding it there
simulates pressing and holding the button, which is useful for a few
tables (such as Championship Pub) that do something special on
long presses of the button.
How does Pinscape know that the table is plunger-less? That's the
clever part. Zeb's idea was to use a fake LedWiz feedback device to
let the pinball software switch the feature on and off in the plunger
controller. When the fake device is "on", the controller knows that
ZB Launch Ball is in effect. This fake device is now standard in the
online DOF Config Tool: it's the device called "ZB Launch Ball". The
DOF Config Tool database has entries for this device all of the
plunger-less tables.
Prerequisites
To use ZB Launch, you need DOF to be installed and working, even if
you're not using DOF for anything else. DOF is needed because it's
what sends the signal to the Pinscape device telling it when ZB Launch
Ball mode should be enabled. See
Chapter 46, DOF Setup if you haven't
already installed it. Follow the instructions to install the DOF
software on your PC and set up a Pinscape device using the online DOF
Config Tool (
configtool.vpuniverse.com).
You'll also have to set up your plunger sensor, configure it, and make
sure it's working. Be sure you've gone through the plunger
calibration process in the Pinscape Config Tool, because the ZB Launch
feature depends upon the plunger resting position being properly
calibrated. (Don't use the joystick calibration in the Windows
joystick control panel. That's a whole different thing that interacts
poorly with Pinscape.)
How to set it up
After you have the prerequisites ready, here's how you set up
the ZB Launch feature:
- Run the Pinscape Config Tool and go to the Settings page
- Scroll down to the ZB Launch Ball setup section
- Make sure the Enabled box is checked
- Ignore the "Output port number" field for now
- Select the keyboard key or joystick button you want Pinscape to send
to the PC to simulate Launch Ball button presses. The Enter key is
the default because that's what VP normally uses. If you've changed
VP to use a different key, select that key instead.
- The push distance determines how far forward you have to push the
plunger to activate a simulated button press. You can leave this
at the default setting for now; you can go back and change it later
if this proves to be too sensitive or not sensitive enough.
- Scroll all the way down to the Feedback device outputs
section, and go to the bottom of the port list. Click the green
"+" button in the empty row at the end. This will create a new
port of type "Virtual". That means it's not connected to anything
physical, which is perfect for the ZB Launch Ball port. Click
somewhere in this row. This brings up a box that lets you change
the port type. Click "ZB Launch Port". This will add a little
red "Launch Ball" button icon in the row. If you scroll back
up to the ZB Launch Ball setup section, you'll see that this
port has been entered into the "Output port number" field.
- Get out a piece of paper and a big red marker and write down the port
number you just assigned
- You're all set with the Config Tool setup, so click Program
KL25Z at the bottom of the window to save the changes
- In your browser, go to the DOF config tool (configtool.vpuniverse.com)
- Go to the Port Assignments page. Select your Pinscape unit
from the "Device" drop list.
- Remember the big red marker number we wrote down a minute
ago? Find that same port number in the list. Open its drop list and
select "ZB Launch Ball".
- Click the Generate Config button, download the ZIP file that
creates, and unpack it into your DirectOutput folder. This
will install updated DOF files with the new port assignment.
Try testing a couple of plunger-less tables as described below. Try a
popular table like Medieval Madness, since that's likely to
have the right default settings already in place in the DOF Config
Tool database.
How to test a table
- Load the table in Visual Pinball
- Run the table (press F5)
- Start a game
- When a ball is in the chute, try pulling back and releasing the plunger
- If everything's working, the ball should launch as though you pressed
the Launch button
Troll bombs and laser cannons
There are a few tables where the Launch Ball button has special uses
in the middle of ball (as opposed to the normal use, of launching the
ball from the plunger chute at the start of a ball), such as:
- Firing the cannons in Star Trek: The Next Generation
- Using a troll bomb in Medieval Madness
- Firing the cannon in Terminator 2: Judgment Day
However, by default, the ZB Launch Ball feature doesn't work at most
of those odd times. The default DOF Config Tool database is set up so
that ZB Launch only works when a ball is in the plunger chute. If you
find this annoying (which I do), you'll be pleased to know that you
can fix it. It just takes a tiny bit of work customizing your
configuration in the DOF Config Tool.
The trick is change the ZB Launch Ball output port setting in the DOF
configuration so that it's always on while playing the table in
question. The default DOF configuration doesn't do that; it only
turns ZB Launch on when a ball is in the plunger chute, for a normal
start-of-ball launch. That's why the default setup misses cases like
the laser cannons in ST:TNG and the troll bombs in MM.
I think it's set up this way out of an abundance of caution, the
concern being that the regular plunger action is disabled whenever ZB
Launch is enabled. But I personally don't see any downside to leaving
ZB Launch enabled full-time for a game like ST:TNG that doesn't
even have a regular plunger. Leaving it enabled all the time catches
all of the special cases like the laser cannons and troll bombs. (You
obviously shouldn't do this for games that also need regular plunger
input, since it would make the regular plunger unusable, but you
wouldn't usually want to use ZB Launch with plunger-equipped tables in
the first place.)
Here's the full procedure:
- Open the DOF Config Tool in your browser
- Log in
- Go to the Table Configs tab at the top
- For each table you want to fix:
- Select the table in the drop list
- Find the ZB Launch Ball row
- Enter ON in the right column
- Click Save Changes at the bottom
- After you've edited all of the tables you want to fix, click Generate Config at the bottom
to generate the new .ini files; that'll automatically download a ZIP file with the new .ini files
when it's done
- Unpack the .ini files from the ZIP file into your DOF Config folder
Troubleshooting
If it's not working, here are some things to try:
- Make sure you haven't used the calibration process in
the Windows joystick control panel. If you have (or if you're
not certain you haven't):
- Press Windows+R, type joy.cpl, press Return
- Find the Pinscape Controller device in the list and double-click it
- Go to the Settings tab
- Click "Reset to defaults".
- Make sure you've gone through the plunger calibration process
using the Pinscape Config Tool plunger dialog.
- In the Pinscape Config Tool plunger dialog, check that the on-screen
plunger position is displayed at the "Park" position when the actual
plunger is at rest. The park position is shown by purple arrows;
the current plunger position is the green bar.
- In the Pinscape Config Tool plunger dialog, check that the
on-screen sensor readings respond properly when you move the
physical plunger.
- Make sure that it's possible to push the plunger forward (against
the barrel spring) by about half an inch from the park position.
It's important to have a little room for motion forward of the park
position, because that's what triggers the simulated button press.
In the Pinscape Config Tool plunger dialog, make sure the green
bar moves properly (to the left of the purple "park" arrow) when
you push the plunger forward.
- The ZB Launch Ball feature depends on DOF, so make sure DOF is
working properly with other devices when you run the same table that
you're having trouble with. See "Troubleshooting" in
Chapter 46, DOF Setup if DOF isn't working.
- The particular table you're running in Visual Pinball must be configured for ZB
Launch Ball in the DOF configuration. To check:
- Open the DOF Config Tool
- Log in
- Go to the Table Configs tab
- Select the table you're playing from the drop list
- Find the ZB Launch Ball box in the right column
- Make sure there's something in the box
- To get the plunger to activate properly, your DOF device configuration
has to be set up to use ZB Launch Ball, not the regular Launch Ball.
- Open the DOF Config Tool
- Log in
- Go to the Port Assignments tab
- Select your Pinscape device from the drop list
- Find the big red marker port number from the setup procedure
- Make sure it says ZB Launch Ball
- Double-check that it doesn't just say Launch Ball - that's a whole different thing.
It has to say ZB Launch Ball
- Let's test that the DOF signal is getting through properly:
- Launch Visual Pinball
- Load a popular plunger-less table like Medieval Madness
- Don't run it yet!
- In the VP editor window, click on the Plunger button in the left pane
- Click in an empty area in the middle of the playfield to create a plunger
- In the Properties window for the new plunger, make sure Enable Mechanical Plunger is check-marked
- Run the table
- Find the new plunger we created above - it should be sitting out there in the middle of the playfield
- Try moving your physical plunger back and forth
- Watch that new on-screen plunger to see if it moves
- If the new plunger doesn't move, that's good. The DOF signal
is getting through properly. DOF is working; the problem lies elsewhere.
- If the new plunger does move,
the DOF signal is not getting sent to the Pinscape device. When the DOF
signal is getting sent properly, Pinscape disables the regular plunger
motion, because it knows that this is a Launch Ball button table that doesn't
take regular plunger input. So if the plunger is still moving, Pinscape isn't
getting the signal. The thing to focus on is why the DOF signal isn't getting
sent properly. Go back through the setup process and double-check all of
the port assignments, in both the Pinscape Config Tool and the DOF Config Tool.
Go through the DOF troubleshooting steps (Chapter 46, DOF Setup).
110. Pinscape Button Inputs
Once you have a Pinscape Controller set up, it's pretty
straightforward to wire your buttons to it.
We're going to assume you've already picked out which buttons you're
going to include and that you've installed them in the cabinet. If
you're still in the planning stages, and you're figuring out which
button functions you want to include, what products to buy, or how to
install the buttons in the cabinet, see
Chapter 34, Cabinet Buttons.
We discuss button wiring more generally in
Chapter 35, Button Wiring, but that section tries to cover all of
the different key encoder options, so it's a little less concrete than
this chapter. This chapter tries to give you a quick How To guide
specifically for Pinscape Controller button wiring, so it should be a
little less work to read through.
As with all jobs inside the cab, be sure to do your button wiring work
with the power off and the power cord unplugged.
Basic wiring plan
Each button connects to a Pinscape controller with two wires. On the
controller, one wire goes to an individual port for the button, and
the other goes to the "Ground" or "Common" port. On the button,
each wire connects to one switch terminal.
If your button only has two terminals, it doesn't matter which
wire connects to which button terminal. If your button
has three or more terminals, you do have to identify the correct pair
of terminals. Once you do, though, it doesn't matter which wire goes
to which of the two. We'll explain how to identify the right pair
of connections later in the chapter.
All of the buttons connect to the same Ground/Common port on the
controller, so all of the corresponding button terminals end up
connected together electrically. This means you can "daisy-chain" the
wiring to these terminals, if you wish. More on this shortly.
Standalone KL25Z: One wire from each button goes to the "GND" pin
on the KL25Z. The other wire goes to the pin for the GPIO port that
you assigned to the button in the Config Tool.
Here's an example showing how to wire a button that's assigned to
GPIO port "PTC2". For buttons assigned to other GPIO ports, follow
the same pattern, simply moving the red wire to the other port's pin.
The black wire to the GND pin remains the same.
How do you tell which KL25Z pin to use for which button? The Pinscape
Config Tool will show you. Run the Config Tool and click on the
Buttons icon. This will show you the list of buttons and their
assigned ports. Roll the mouse over a button in the list on the left
to highlight the pin on the KL25Z diagram. Note that the button
assignments are flexible, too: you can use the Settings page in the
Config Tool to move buttons to different pins, assign extra pins as
buttons, and reassign button pins to other functions.
Expansion boards: All buttons connect to the BUTTONS header
on the main board. One wire from each button connects to the COMMON
pin, #26, and the other connects to the pin that correponds to the
button number.
Here's an example showing how to connect button #1. Follow the
same pattern for each additional button; just move the purple
wire to the pin corresponding to the new button. The green
wire connects to the same Common pin (#26) for every button.
The pin numbers are printed on the board, but they're in tiny type,
so here's a cheat sheet. Note that all of the expansion board
headers have a little white arrow pointing to pin 1, and pin
numbers are always arranged with the even and odd pins in
separate rows. (Pin 25 on this header isn't used, so we put
a big black X over it here.)
Terminology note: "ground" vs. "common"
To avoid confusion, it's best to think of the shared wire that
connects to all of the buttons as the "Common" terminal, not as
the "ground" terminal. You might see people refer to this as the
ground wire when talking about button controllers in general, but
"Ground" is a somewhat confusing term because it has multiple
technical meanings that depend on context and aren't always
interchangeable (although, to make matters even more confusing,
sometimes they are).
Also, be aware that the Common for the Pinscape buttons is not
the common for non-Pinscape buttons. For example, it's not the
common for any button connections on your PC motherboard (e.g., the
motherboard Power On or Reset buttons). Don't wire any buttons
on your PC motherboard or any other non-Pinscape devices to the
Pinscape common terminal.
Daisy chaining the common wire
All of the "common" wires on all of the buttons connect to the same
terminal on the controller, which means they all end up connected
together electrically. This gives you more flexibility in connecting
the wire. In particular, it lets you "daisy-chain" the common
wire, by running wires from button to button rather than running a
separate wire from each button all the way back to the controller.
Button wiring with a daisy-chained "common" wire
(the green wire)
You can also use a mix of daisy-chaining and individual wires
to the controller, since in the end, they're all connected together
anyway. Do whatever is most more convenient for each button. For
buttons that are situated close together, daisy chaining is the way to
go, since it uses the least wire. But if a button is off on its own,
far away from any others, it might take less wire to connect it
directly to the controller "common" terminal than to connect it to
another button.
Note that you can only daisy-chain the common, not the
GPIO port wire. Each button needs its own entirely separate
connection to its GPIO port. That's how the controller tells the
buttons apart.
How to identify button terminals
Some buttons have a bunch of terminals, so it's not always obvious
which ones to connect to the controller. For help with this,
see "How to identify button terminals" in
Chapter 35, Button Wiring.
How to assign keys to buttons
What do you do with all of these buttons once you've wired them up?
You can assign each one of them to send a keyboard key or joystick
button press to Windows. The Pinscape software can emulate a standard
PC keyboard, or a joystick, or both, so you can assign any mix of
keyboard keys and joystick buttons to your physical pushbuttons.
For a list of "standard" key assignments for the main pinball
simulator programs, see "Common key assignments" in
Chapter 35, Button Wiring.
Here's how you set the keyboard or joystick mappings:
- Open the Pinscape Config Tool
- Go to the Settings for your device
- Scroll down to the Button Inputs section
- For each button, click on the little key-cap icon under the
PC Input column. Each physical button is represented by
one row in this list, so just read across the row from the
physical button to the key-cap.
- When you click the key-cap, a pop-up will appear that lets
you select a keyboard key or joystick button. To assign a keyboard key,
click the keyboard icon at the bottom to switch to keyboard mode,
then select the desired key from the mini keyboard diagram.
- To assign a joystick button, click the joystick icon at the bottom
to switch to joystick mode, then select the desired button. Joystick
buttons are simply numbered from 1 to 32. Note that Visual Pinball
is limited to 24 buttons, so don't use buttons 25-32 for anything
you want to use in VP.
- You can also assign a button to nothing at all, by clicking the
"Forbidden" icon at the bottom, then clicking "No PC Input". This
just means that the button doesn't send anything to the PC when
you press it.
Pulse Mode
Under the Options column for each button, you'll notice a little
icon like this:
That icon sets the "Pulse Mode" option for the button.
To understand what Pulse Mode does, it helps if we have a clear
picture of what normally happens when you press a button.
Normally, when a button isn't set to Pulse Mode, the button
operates as you'd probably expect: pressing the button sends a "Key
Down" signal to Windows telling it that the key is down, and releasing
the button sends a "Key Up" signal. In other words, as far as Windows
is concerned, the button registers as "pressed" for exactly as long as
you're actually pressing it.
Pulse Mode changes that behavior. In Pulse Mode, the button sends an
entire key press and release cycle to Windows as soon as you
press it. That means it sends a Key Down signal, a slight pause, and
a Key Up signal. When you release the button, Windows gets
another complete press/release cycle. During the time in
between, when you're holding down the button, Windows thinks the
button isn't pressed. As far as Windows is concerned, there's a brief
press-and-release when you press the button, and a second brief
press-and-release when you release the button. So it's as though you
had briefly pushed the button twice, instead of holding it down once.
What's the point of this? It's mostly to accommodate Visual Pinball's
old coin-door handling, which required a momentary press of the
End key when you opened the door, and another momentary press when you
closed the door. The normal way to implement the coin door switch
physically is with a toggle switch that's ON the whole time the door
is open. Pulse Mode was designed to translate that physical switch
arrangement to VP's former need for a pulse each time the switch
changed from OFF to ON or vice versa. There's actually a better way
to handle this now, which is to make some changes in VP scripting so
that it can work with the physical coin door ON/OFF switch directly.
This is all explained later in this section under "Special handling
for the coin door position switch".
"Shift" button
The Pinscape controller lets you give two meanings to each
button: a "normal" meaning and a "Shifted" meaning. This lets you
effectively double the number of commands you can access through your
cabinet buttons without adding any more physical buttons. You access
the "Shifted" meaning of each button by holding down a designated
"Shift Button" while pressing the other button.
Caution! The terminology here can be awfully confusing, because
this "Shift Button" feature doesn't have anything to do with
the normal SHIFT key on your Windows keyboard.
Pay close attention to the words key and button.
Key refers to a Windows keyboard key; button refers
to a physical pushbutton on your cab.
>
Here's how this works:
- You start by designating one of your regular buttons as the Pinscape
Shift Button. You can choose any button you want for this function,
and it's perfectly okay to use a button that already has a
normal function of its own. Let's say we designate the "Extra Ball" button
as the Shift Button (that's the one I use on my cab).
- You assign a normal meaning to each button as usual: "Start" sends the
"1" key to Windows, "Exit" sends the "Esc" key to Windows
- You even assign a normal meaning to your designated Shift Button,
so in our example we assign "Extra Ball" to send the "2" key to Windows
- You can even assign the keyboard SHIFT keys as usual! You know how I
said this was going to get confusing? Well, here it is! The Pinscape
Shift Button doesn't have anything to do with the Windows keyboard SHIFT
keys. So we're still going to assign the Left Flipper button to send
the LEFT SHIFT keyboard key to Windows, and we're still going to assign
the Right Flipper button to send the RIGHT SHIFT key to Windows.
- You can now also assign a second meaning, the "Shifted"
meaning, to each button other than the Shift Button itself
- For example, I use the right flipper and MagnaSave as "shifted"
Volume Up and Down keys. To do this, I assign the second meaning
of my right MagnaSave button to be the "Media Volume Up" keyboard key,
and I assign the second meaning of my right Flipper button to be
the "Media Volume Down" keyboard key.
- When I want to use my flipper buttons, I just use my flipper buttons.
They send the LEFT SHIFT and RIGHT SHIFT keyboard keys as usual.
- When I want to use my Volume Up and Volume Down keys, I press and
hold the Extra Ball button (my Shift Button). As long as
I'm holding Extra Ball down, all of my other buttons get their
second, "Shifted" meanings. So now when I press Right Flipper,
I'm sending a Media Volume Down key to Windows instead of a
RIGHT SHIFT key.
- How about if I want to send an Extra Ball ("2") key press to
Windows? Easy: I just press and release the Extra Ball button.
The button only acts like the Shift Button as long as
you're holding it down; if you just press it and release it,
its normal key mapping is used instead.
How to designate a Shift Button
- Open the Pinscape Config Tool
- Go to the Settings page
- Scroll down to the Button Inputs section
- In the "Shift button number" box, enter the number of
the button port that you want to use as the Shift Button
- Alternatively, just click the ghostly arrow icon in the row
next to the button you want to designate
How to tell the difference between the Pinscape "Shift Button" and the Windows "SHIFT key"
This is how the Shift Button looks in the key setup:
The setting above doesn't send a SHIFT key to Windows when
you press that button. If you press and release that button,
it'll send the "2" key to Windows. Nothing at all to do with
the SHIFT key! The green arrow means that this is the Pinscape
Shift Button, so if you hold down this button while pressing another
button, the other button will use its second, "Shifted" meaning.
This is how the Windows SHIFT keys look:
When you press one of those keys, they'll send LEFT SHIFT and RIGHT
SHIFT keyboard keys (respectively) to Windows.
Shift AND vs. Shift OR modes
Right below the Shift Button Number box on the setup page, you'll
notice this cryptic pair of radio buttons:
That lets you control how the Shift Button works when you press it on
its own.
"Shift OR Key mode" means that each press of the Shift Button will be
act as an invocation of the Shift Button feature, or it'll send
the Windows key associated with the button. Never both.
How is this decided? Easy: if you press another key while holding
down the Shift button, the Shift button has fulfilled its Shift function
and won't send its regularly assigned key. If not, it
hasn't acted as a Shift Button this time, so it sends its regular key
when you release it.
This is how I have my Extra Ball button set up. When I use it for its
Shift Button function to access my Volume Up and Volume Down buttons, I
don't want it to send a superfluous "2" keystroke to Windows
when I'm done. I just want the Volume Up/Down keys to be sent.
But when I just press the button on its own, I do want it to send
a "2" key. "Shift OR Key mode" makes it smart that way, so I get
the one function I want each time I use the button.
This "smart" action comes at a price, though. It causes a little bit
of weirdness in the key press timing, due to that part about sending
the normal key when you release the button. That can be a
little strange, because all of the other buttons send their keys as
soon as you press them. But we can't do that if we want the "smart"
behavior, since we can't predict whether or not you're planning to press
any other keys when you first press the Shift button. We're not mind readers!
"Shift AND Key mode" means that the button always performs both of its
functions every time you press it. It starts sending its associated
"normal" key assignment as soon as you press it, and it also
acts like the Shift Button as long as you're holding it down.
Some people prefer this mode because it acts more like a normal button
by sending the Windows key press immediately, rather than waiting
until you release the button. But you have to give up the "smart"
either/or feature to make that possible, so it's a trade-off. If
you've assigned this key to something that's ignored most of the time
(Extra Ball is actually a pretty good choice for that), you might
not mind the superfluous keys that get sent when you're only intending
to use the Shift function.
How to assign a second "Shifted" meaning to a key
Once you've designated a Shift Button, you should immediately see a
second column for key assignments show up in the Button Inputs list.
Before designating a Shift Button:
After designating a Shift Button:
The original "PC Input" column is where you enter the normal,
un-shifted meaning of the button. The new column that's added when
you designated a Shift Button, "Shifted", lets you enter the shifted
meaning of the button.
Entering the shifted key assignments is exactly like entering the
normal un-shifted key assignments. Just click on the little key-cap
image next to the button you want to assign, in this case the
second key-cap image, the one in the Shifted column. Then
select a keyboard key or joystick button from the pop-up.
The Shift Button itself can't be shifted
You might notice that one row is missing that second shifted key-cap
icon. Namely, the row for the Shift Button itself. That's because
you can't assign a shifted meaning to the Shift Button. There'd be no
way you could ever access that shifted Shift Button meaning, since you
can't exactly hold down the Shift Button twice at the same time. So
the Config Tool just doesn't let you enter a shifted meaning in the
first place.
Special handling for the coin door position switch
On a real pinball machine, there's a switch that detects when the coin
door is open. Pinball ROMs use this to control access to the operator
menus, so I'd recommend including one in your build if you're using a
coin door. The
Chapter 40, Coin Door chapter has
suggestions for what kind of switch to use and how to mount it.
Once you have a switch set up, wire its "Common" terminal to the
Pinscape button common, and wire its NC or Normally
Closed to a Pinscape button port. Note that this is backwards
from most buttons, where you wire the Normally Open terminal. The
reason for the reversal is that the geometry of the installation is
kind of backwards: when the door is closed, it pushes down on the
switch paddle, so the switch is "on". When the door is open, it
releases the paddle, so the switch is "off". But we want Closed to
read as Off and Open to read as On! The easy way to accomplish this
reversal is to use the "other" half of the switch, the Normally Closed
side, which reports the opposite status of the Normally Open side.
The coin door open button needs a little bit of special treatment in
the software setup. On a real pinball, the coin door switch is just a
switch: it's ON when the door is open and OFF when the door is closed.
But Visual Pinball, by default, treats it as a toggle button, not a
switch: push the button to open the door, push the button again to
close the door. There are two options for dealing with this:
- Modify Visual Pinball's core scripts so that VP treats the input
as a switch instead of a button. I recommend this approach, as it's
simpler and more reliable. See "Setting up the door switch in VP"
in Chapter 40, Coin Door
for full instructions.
- Use the Pinscape software's "Pulse Mode" option to simulate a toggle
button when sending keystrokes to the PC. This doesn't require any
change in wiring; everything is done in the Pinscape software. This
option is also easy to set up, but I still recommend using the first
option (modifying VP's scripts) instead, since it's more reliable.
The problem with the toggle key setup is that VP can sometimes miss
one of the open/close keystrokes, which makes VP's notion of the coin
door's state backwards from reality. It's very difficult to get
things back in sync when that happens.
Setting the Coin Door switch to Pulse Mode:
If you do want to use the Pulse Mode feature, it's easy to set up.
Open the Pinscape Config Tool, go to the Setup screen, and find the
slot for the button port you wired to your coin door open switch.
Click the Pulse Mode icon:
When this option is selected, Pinscape generates a single key press
for the button each time the switch changes from ON to OFF or OFF to
ON. That gives VPinMAME exactly what it wants.
Adding a manual Coin Door button: As mentioned above, I
recommend avoiding the toggle key setup for the coin door switch, and
instead modifying VP's scripts to treat the switch as what it really
is, a switch. The big problem with the toggle setup is that VP
sometimes misses an open/close key press. This can happen if you open
the door right shortly after loading a table, while the table is still
initializing, or if you just do it at the wrong moment while VP is
busy. A missed key gets the game into an annoying state where its
notion of the coin door is backwards from reality. I ran into this
enough times on my own machine that I got tired of fighting it and
added a manual pushbutton that also sends the Coin Door key to the PC.
I positioned this just inside the coin door so that I can use it as
needed whenever VP gets out of sync.
If for some reason you want to set up your coin door switch in toggle
mode despite the drawbacks, I'd recommend adding your own manual
button like I did. Just set up one more physical button, wired to a
separate Pinscape button port. Assign that button port to send the
End key without Pulse Mode.
111. Pinscape Feedback Outputs
Extensive coverage of the various feedback toys, including what to
buy and how to wire them, can be found in
Feedback Devices.
That includes sections on wiring the Pinscape feedback output ports:
112. IR Remote Control
The Pinscape software is equipped to send and receive IR remote
control codes. This is primarily for the sake of the
Chapter 114, TV ON feature, which can power up your TV(s) at
system startup by sending them the necessary IR codes. But you can
also use it to transmit any remote control codes you wish at any time,
and to translate received IR codes into Windows key presses, allowing
a remote control to effectively serve as extra "buttons" on your
cabinet.
There are two completely separate hardware projects here: an IR
transmitter, which sends out the codes to your TV, and an IR receiver,
which can receive codes from your remote control in order to learn the
codes specific to your TV or to accomplish those button-press
capabilities we mentioned.
The expansion boards include both the IR transmitter and receiver as
standard features. You can also build them as add-ons for a
standalone KL25Z with a small amount of external circuitry.
Wiring the transmitter and receiver
An IR transmitter isn't anything too exotic. It's really just an LED
that emits infrared light. Consumer electronics use a pretty standard
range of IR wavelengths, so all we have to do is select an IR LED that
emits light of the right "color".
Physically, an IR LED looks like other small LEDs. The only obvious
difference is that the case is often opaque or dark plastic rather
than the clear plastic you'd find in an optical-wavelength LED.
The Pinscape software controls an IR LED through a GPIO port on the
KL25Z. The software rapidly turns the LED on and off to form a
pattern of flashes that your TV interprets as a remote control
command.
An IR receiver is a more specialized device, purpose-built to read and
demodulate signals from an IR remote transmitter. But fortunately
they're quite cheap and easy to connect. They're actually easier to
connect electrically than an IR LED is, because they don't need much
in the way of additional parts.
Connecting an IR emitter to the expansion boards
The IR transmitter LED connects to the "TV ON" pin header on the main
expansion board, also labeled JP4. This header has six pins; the
IR LED connects to the two pins in the column labeled IR+.
You don't have to connect anything else to these pins besides the IR
LED. Just connect the LED so that its long leg connects to
the IR+ pin, and the short leg connects to the IR-
pin.
Connecting an IR receiver to the expansion boards
Simply install the IR receiver chip directly in its spot in the
expansion boards. You'll need to bend the legs at a 90° angle
to that it doesn't stick out too far, as it nestles in under the
KL25Z.
No expansion boards: using a pre-built kit
If you're not using the expansion boards, and you'd rather not build
any external circuits by hand, there are some ready-made kits
available. The ones I've seen are designed for Arduinos, which is
another microcontroller (similar to the KL25Z, but different hardware)
that's popular with robotics hobbyists. I haven't
tested any kits myself, but I've heard from a couple of people who
have successfully used this kit:
If that product link isn't working, you might try searching for similar
products on Amazon or at hobby robotics vendors like
Pololu
or
Adafruit.
The transmitters and receivers for IR remotes are fairly standardized,
so there's a fairly good chance that similar kits will be compatible
with the KL25Z electronics and the Pinscape software.
Wiring the receiver:
- Connect VCC on the receiver board to one of the 3.3V pins
on the KL25Z (pins 4 or 8 on J9)
- Connect GND on the receiver board to one of the GND pins
on the KL25Z (pins 12 or 14 on J9)
- Connect DATA on the receiver board to the GPIO pin you've
selected for input. Any interrupt-capable GPIO pin can be used,
which means that you can use any PTAxx or PTDxx port. Configure
the port you select as the IR receiver pin in the Pinscape Config Tool
settings. See Selecting GPIO
pins below.
Wiring the transmitter:
- Connect VCC on the transmitter board to one of the 3.3V
pins on the KL25Z (pins 4 or 8 on J9)
- Connect GND on the transmitter board to one of the GND pins
on the KL25Z (pins 12 or 14 on J9)
- Connect DATA on the receiver board to the GPIO pin you've
selected for the transmitter output. A PWM-capable port must be
used. Configure the port you select as the IR transmitter pin
in the Pinscape Config Tool settings.
See Selecting GPIO pins below.
No expansion boards: Build your own IR transmitter
The recommended IR LED (TSAL6400) is relatively powerful as LEDs
go, so the KL25Z can't drive it directly from a GPIO port. A small power
booster circuit is needed. All you need is a simple
transistor amplifier. Here's the schematic:
This is the same circuit used on the expansion boards (the
diagram above is actually taken from the expansion board
schematics).
- Connect the short leg of the LED to the wire labeled
IR_LED_CATHODE. The convention for all LEDs is that the
long leg is (+) and the short leg is (-).
- Connect the long leg of the LED directly to the +5V
power supply.
- Connect the wire labeled IR_OUT to the GPIO port on the
KL25Z that you're using for the IR output.
See Selecting GPIO pins below.
- Connect GND to one of the ground pins on the KL25Z. See
Appendix 1, KL25Z Pin Out.
Selecting resistor R11
Choose the resistance value
for R11 according to whether you're using one LED or two:
- For one LED, use a 39Ω, ½ Watt resistor
- For two LEDs, use a 27Ω, ½ Watt resistor
No expansion boards: Build your own IR receiver
The recommended IR receiver device, TSOP38238, contains
both the optical sensor and the demodulation circuitry.
You just need two additional parts (a resistor and a
capacitor) to connect it to the KL25Z. Here's the
connection diagram:
Selecting GPIO pins for the power sensing circuit
The IR transmitter can use any PWM-capable GPIO pin on the KL25Z.
The default for the expansion boards is PTC9, but you can use any
pin with PWM capability.
For a list of PWM pins, see
Appendix 1, KL25Z Pin Out. The Config Tool
will also show you the available pins if you go to the IR section
on the Settings page and click on the "IR LED (transmitter) pin"
box:
The IR receiver can use any interrupt-capable GPIO pin. The
default for the expansion boards is PTA13, but you can use any
pin in the "PTAxx" or "PTDxx" groups. See
Appendix 1, KL25Z Pin Out
for all interrupt-capable pins, or click on the "IR receiver
input pin" box in the IR section on the Settings page in the
Config tool:
Positioning the IR transmitter LED
Assuming you're using the IR transmitter to control a TV, it's best to
place the LED as close as possible to the IR receiver window on the
TV. You can run as much wire as necessary between the LED and the
expansion board port (or your own circuit) to position the LED
properly.
Using two IR transmitter LEDs
You can connect two IR LEDs instead
of just one. This can be useful if you need to control two
TVs, since it lets you position a separate transmitter near
each TV's IR receiver. To connect two LEDs, connect them in
series:
- Connect the +5V supply to the first LED's long (+) leg.
- Connect the first LED's short (-) leg to the second LED's (+)
leg. You can run as much wire between the two as needed to
position the two LEDs properly.
- Connect the second LED's short (-) leg to the IR_LED
connection in the schematic.
Learning IR commands from your remotes
Once you have the hardware installed, you can use the Pinscape Config
Tool to learn IR command codes from your remotes. Once Pinscape
learns a command code, you can use it for various functions:
- Transmit it at system startup to power up your TV
- Transmit it when you press a button
- Send a key press when the IR receiver receives the code
To learn IR codes:
- Launch the Pinscape Config Tool
- Go to the Settings page
- Scroll down to the IR Remote Control section
- Under that, you'll find the IR Command List
section:
- The IR Command List shows a list of the commands that Pinscape
has learned. Initially, this will be empty, so it will just show one
empty row.
- To learn the first code, click the "learn" icon ()
in the empty first row.
This will bring up another window that will lead you through the programming
process.
- Get your IR ready, pointing at the Pinscape IR receiver
- Click the Learn button in the dialog
- Press and hold the button on the remote that you want to learn
- The "learn" window will show a graphical representation of the
learned code, showing the series of on/off light pulses used for
the raw bits of the code. If it captures a code successfully,
click Save to store the code.
- After you've entered a code into the first blank row, a new blank
row will appear. You can continue adding more codes the same
way. The "learn" button ()
programs the code for the row that you click on, so you can go
back and replace any row's code with a new code later if you want.
- You can enter a description for each code (such as the name of the
remote control button it's associated with) in the Description field. This is just
to help you keep track of which buttons you've programmed, so you
can enter anything there that will help you identify the button
in the future.
- Remember to click "Program KL25Z" at the bottom of the Settings
page when you're done, to save the settings in the device.
Using a code to power on a TV
The IR remote feature was primarily designed to be used with the
Chapter 114, TV ON feature that powers up your TVs at system
startup, so the remote control code list has a special provision
to use a code with the TV ON system.
After you've programmed a code, you'll notice that there's a little
TV ON icon (
)
in the row next to the code. Just click this icon to activate
the TV ON feature for the code. When this icon is activated,
Pinscape will automatically send the code at system startup,
after a delay that you can program in the TV ON section in the
Settings page.
How to transmit an IR code via a Windows command
In your Pinscape Config Tool install folder, you should find another
utility program called PinscapeCmd.exe. You can use this
program to make Pinscape transmit any of the IR command codes it
knows at any time via the Windows command line.
- Open a CMD prompt
- Go to the Pinscape Config Tool folder: CD /D C:\PINSCAPE (or wherever it's installed)
- Type PinscapeCmd SendIR=1
The SendIR command transmits the learned command code in the given
slot. If you go back to your IR command list, the number corresponds
to the row number in that list.
You can put that command in a .BAT script as well, so you can send IR
commands from any programs that can launch .BAT scripts, such as
PinballX or PinballY, or automation programs like AutoHotKeys.
How to transmit an IR code when you press a button
You can program Pinscape to send an IR code when you press a cabinet
button. This might be useful if you want to set up a hidden button
that turns your TV on or off, for example.
- Open the Config Tool
- Go to the Settings page
- Scroll down to the Button Inputs section
- Click the Remote Control icon in the row for the button you want to assign
to an IR command
- Select the learned IR command code to send from the list
- Click Program KL25Z to save settings
- Now whenever you press that button, the associated IR code will be transmitted
How to send a Windows keyboard key press when an IR code is received
You can also program Pinscape to send a key press to Windows when the
IR receiver sees a given IR code. This lets you turn a remote control
into a set of additional "buttons" that you can use to access Windows
functions, without festooning your cabinet with even more physical
buttons.
To make this work, you'd have to situate your IR receiver where it can
"see" IR codes from your remote. The expansion boards don't really
make a provision for this, since they situate the receiver right on
the main board, where it'll probably be hidden away inside the
cabinet. I guess you could open the coin door and point the remote
inside. If you really want to use this feature regularly, though,
you'd have to come up with a fancier setup where you move the IR
receiver somewhere more accessible, like behind an opening in the
front of your cabinet.
Aside from those complications with physically getting the IR signal
to the receiver, it's easy to set up the IR-to-key-press feature:
- Open the Config Tool
- Go to the Settings page
- Scroll down to the IR Remove Control section
- Click on the key-cap icon for the command you want to associate with a key press
- That will show the same key/joystick selection popup that's used to map
buttons to key presses, so just select a keyboard key or joystick button
in the usual fashion
- Click Program KL25Z to save settings
- Now whenever the IR receiver receives that code, Pinscape will send the
associated key press to Windows
113. Pinscape Night Mode
Night Mode lets you tell the Pinscape controller to shut off the noisy
feedback devices in your cabinet, so that you can play games more
quietly during late night hours without disturbing neighbors or
housemates who are trying to sleep. You can designate specifically
which feedback devices are noisy, so that the purely visual devices
like flasher lights remain enabled.
Designating the noisy devices
Night Mode only disables the feedback output ports that you
specifically mark as "noisy" in your Pinscape settings. To select
which ports are noisy:
- Open the Pinscape Config Tool
- Click on the Settings icon for your controller
- Scroll down to the Feedback device outputs section
- Click on the "bell" icon for each port that you want to mark as noisy
Activating Night Mode
There are several ways to switch in and out of Night Mode:
- You can control the mode using commands on Windows.
- You can set up a dedicated hardware pushbutton or toggle switch just
for Night Mode. This is a perfect kind of button to put on a custom
inside-the-coin-door service panel (see "Adding an extra service panel"
in Chapter 40, Coin Door). The bottom of the cabinet
also works well for this.
- You can designate a "shifted" button as the Night Mode toggle - one
that you're already using as a regular button to send a key to the PC,
but "shifted", meaning you press it in combination with another
button to give it a second function.
Controlling Night Mode via Windows commands
Go to the directory where you installed the Pinscape Config Tool, and
you'll find another program there called PinscapeCmd.exe. This
is a utility program that you can invoke from the CMD prompt to send
commands to the controller. You can also use it in batch (.BAT) scripts.
To use the PinscapeCmd program to switch in and out of Night Mode:
- Open a CMD prompt window (Windows+R, type CMD.EXE, press Enter)
- CD to the Pinscape folder (e.g., CD /D C:\PINSCAPE)
- To turn Night Mode ON, type PinscapeCmd NightMode=ON and press Enter
- To turn Night Mode OFF, type PinscapeCmd NightMode=OFF and press Enter
The capitalization isn't important. We just showed mixed case for clarity.
Note: if you have more than one Pinscape controller device installed in your
system at the same time, you have to specify which one you want to send the
command to, by adding Unit=number to the command before the NightMode option:
PinscapeCmd Unit=2 NightMode=ON
>
You can enter the same syntax in a Windows .BAT script. That lets you
control Night Mode from any program that can launch a .BAT script,
such as a front-end program like PinballX or PinballY, or an automation
program like AutoHotKeys.
Setting up a dedicated Night Mode button
If you want to use a dedicated button or switch to control Night Mode,
simply select a pushbutton or toggle switch, and wire it to a Pinscape
button input port just like any other button. See
Chapter 110, Pinscape Button Inputs
for general wiring instructions.
You can use either a pushbutton or an on/off switch:
- If you use a pushbutton (meaning a button with a switch that only
turns on for as long as you're pressing the button, like the Start
button or a flipper button), it will toggle Night Mode on or
off each time you push it.
- If you use a toggle switch, such as a sliding switch or rocker
switch that stays on until you turn it back off, the Night Mode status
will simply follow the switch position. Turn the switch ON, and Night
Mode will be on; turn the switch OFF, and Night Mode will be off.
The wiring is the same for either kind of button.
Once you've wired the button to a port, you just have to tell Pinscape
about it. Run the Pinscape Config Tool, go to the Settings page, and
scroll down to the Pinscape After Dark section. Enter the port
number where you wired the Night Mode button in the Button input
number box.
Also set the Button type option to match the physical type
of switch you're using. If you installed a pushbutton, select "Momentary
button"; if you installed a toggle switch of some kind that stays on
until you turn it back off, select "On/off switch".
One last step: you'll probably want to make sure that the button you
selected doesn't send any keystrokes to Windows when you press
the button. To prevent it from sending any keys:
- Scroll to the Button inputs section
- Find the button you assigned (it'll be marked with a Night Mode icon)
- Click the key cap
- Click the "No Key" icon at the bottom
Of course, that assumes that you really don't want to send a key to
the PC when you press the Night Mode button. In some cases, you might
actually want to; for example, you might want to send a Media Mute key
press, so that you mute the audio system at the same time you turn off
the noisy devices. (If you're using PinVol, though, you can make it a
little more nuanced than that, since PinVol has its own Night Mode
that tracks the Pinscape Night Mode settings. See "PinVol coordination"
below.)
Using a "shifted" button
If you want to be able to activate Night Mode via a button press,
but you don't want to set up a separate dedicated button for it,
you can use a "Shifted" button.
Pinscape lets you give two meanings to each button via a "Shift"
button. The Pinscape "Shift" button is a little like the SHIFT key on
a PC keyboard, in that it changes the meanings of all of the other
buttons when you press it. But it's important to understand that it's
not actually the keyboard SHIFT key. Pressing the designated
Pinscape "Shift" button doesn't send a SHIFT key press to
Windows. All it does is change the meanings of all of your other
Pinscape buttons.
For example, I use the Extra Ball button on my cab as my Shift button.
That works well for me because it doesn't get used very much in games
(although it still works as the ordinary Extra Ball button whenever
that's needed). I use the Shift feature with my flipper and MagnaSave
buttons to make them do double duty as audio volume controls. Under
normal circumstances, they just act like normal flipper and MagnaSave
buttons. But when I press and hold the Extra Ball button, they stop
acting as flipper/MagnaSave buttons and start acting like Volume Up
and Volume Down keys instead.
You can apply this same principle for the Night Mode button. For
example, if you set up your Extra Ball button as the Shift button like
I do, you could assign the Start button as the shifted Night
Mode button. That won't take away your normal Start button - the
Start button will act like it always has most of the time. But when
you press Start while you're also holding down the Extra Ball button,
Start gets its second, "shifted" meaning of activating Night Mode.
To set up a shifted Night Mode button:
- Set up a Shift button, as described in Chapter 110, Pinscape Button Inputs
- Select which button you want to use in shifted mode as the Night Mode button
- Open the Pinscape Config Tool
- Go to the Settings page
- Scroll down to the Pinscape After Dark section
- Enter the button number in the box, and check-mark the box saying "Use shifted button"
Night Mode indicator light
You can also set up an indicator light so that you can see at a glance
whether or not Night Mode is engaged.
If you're setting up your Night Mode switch on a custom coin door
service panel, you can make it a bit snazzier by using a lighted
pushbutton, with the light in the pushbutton wired as the Night Mode
indicator. Or you can just set up a separate LED somewhere to
indicate the current mode.
Physically, the indicator light simply connects to any Pinscape
feedback output port. I'd recommend using one of the "Small LED"
outputs designed for the flipper button lights, since you'll probably
only need a small 20mA LED for this indicator. The Small LED ports
are limited to exactly this kind of small device, so you can't use
them for much else, and you'll probably have a couple left over
anyway. There are 16 of these ports total, and a full set of RGB
flipper/MagnaSave lights only requires 12 of them.
Whichever port you decide to use, wire your chosen indicator light
to it exactly as you would any other device. See
Chapter 111, Pinscape Feedback Outputs
for general port wiring instructions.
Once it's wired, open the Pinscape Config Tool, go to the Settings
page, and scroll down to the Pinscape After Dark section.
Enter the port number where you wired the light in the Indicator
lamp output port box.
Note that you shouldn't use this port as a regular output port in your
DOF setup, as the Night Mode indicator status will override whatever
DOF tries to do with it.
PinVol coordination
If you're using
PinVol to control
volume levels, note that PinVol is automatically aware of the Pinscape
Night Mode status, and will switch itself in and out of Night Mode to
match the status on the controller. That saves you the trouble of
setting up a separate key to control Night Mode for audio volume
purposes.
Just like Pinscape uses Night Mode to turn off noisy devices, PinVol
uses Night Mode to set a lower system-wide audio volume level. PinVol
maintains a separate global volume level for Night Mode, so you can
set up whatever reduced volume level you prefer when Night Mode is
active, and then switch back to that same quieter level at any time by
switching back to Night Mode.
114. TV ON Switch
The Pinscape Controller has a feature that lets you send a "Power On"
command to your TV(s) when the overall system powers up. This feature
can solve the problem that some TVs have when used in pin cabs, namely
that they don't power on automatically when they're plugged in again
after being unplugged.
This feature is only needed if your TV doesn't remember its power
state when you plug it back in after it's unplugged,
and you're
using the sort of one-button power control setup as described in
Chapter 11, Power Switching. That power control setup effectively
unplugs the TVs and other devices from AC power when the PC is off, so
each time you turn the PC back on, the TV thinks it's being plugged
back in to the wall outlet after being unplugged. Some TVs
automatically power up and return to displaying the last video source
when this happens, but many just go into standby mode. The Pinscape
TV ON feature is meant to solve this problem for TVs that go into
standby mode, by explicitly sending a "Power On" command to the TV at
system startup to get it back into operation.
Do I need it?
Before going on, you should make sure you actually need this feature.
Some TVs need it and others don't. And regardless of TV, there's no
need for it unless you're using one-button power control of the sort
described in
Chapter 11, Power Switching.
Assuming you're using that sort of power switching, here's how to
test your TV to see if it needs help powering on at system
startup:
- Set up the TV as a monitor on your PC, using the input on the TV
(HDMI, etc) that you intend to use when it's in your cab. Turn
everything ON and make sure it's all configured so that you see
the Windows desktop on the TV.
- With the TV still ON, pull the plug out of the wall socket.
- Wait a few minutes.
- Plug it back in, and don't push any buttons on the TV.
- Did the TV turn back on and show the Windows desktop again?
If the answer is yes, you don't need the "TV ON" feature. A
smart power strip is all you need to control this TV and get it to
power up in sync with the PC.
If the TV stays off or goes into standby mode, you do need the
TV ON feature. This TV won't turn on after being unplugged until it
receives an explicit "Power On" command, which is exactly what the TV
ON feature provides. You'll still need the switched outlet to control
its line power, but you'll also need the TV ON feature to get
it to wake up again each time power is restored.
Be sure to check each TV you plan to use in your cab, since some
might need the TV ON feature even if others don't.
You can approximate this test without the PC if necessary. Just tune
the TV to an over-the-air channel instead of using the PC as a video
input. The important thing is that there's some kind of active video
source, since some TVs will go into standby mode when there's no input
and wake up when there is. The test with the PC as video source is
the most reliable, because that's the exact setup you'll have in the
cab, but most TVs will behave the same way with all video sources.
What if I'm still shopping for a TV?
Some cab builders try to avoid this whole issue by only buying TVs
that pass the test above. So you might be wondering if there's an
easy way to tell when shopping. Unfortunately, I've never seen a
manufacturer or store mention it anywhere, and I don't think it would
occur to most buyers to ask. It's not even safe to assume that
similar models from the same manufacturer will behave the same way.
If you want to be sure before you buy, you'll have to either find a
store that's willing to let you test a floor model, or find a friend
or forum member who has the exact model you're considering.
What this feature doesn't do
The TV ON feature
doesn't control power at the plug, and it
can't turn OFF your TVs. For both of those functions, use the
techniques described in
Chapter 11, Power Switching. The TV ON feature
is meant to be used
in conjunction with the switched power
strip described in that chapter. TV ON isn't a replacement for the
switched power strip; it's just an add-on to deal with TVs that don't
automatically turn back on after being unplugged.
How it works
The TV ON feature works by having the Pinscape software send a
"Power On" command to the TV a short time after the computer turns on.
To physically send the command to the TV, there are two possibilities:
- By wires soldered to the switch terminals of the ON button on the TV
itself. We connect these wires to a relay controlled by the Pinscape
device. The Pinscape software pulses the relay shortly after
the computer turns on. The TV registers this as an ON button press.
- By IR remote control. We connect an IR LED to the Pinscape unit,
and position the LED so that it points at the TV's remote control sensor.
The Pinscape software can be programmed to transmit the TV's remote
control ON code at the proper time.
The Pinscape software sends the ON command a few seconds after the
computer starts up. The delay is necessary because most TVs ignore
commands for a few seconds after being plugged in. The exact amount
of time needed varies by TV, so the delay can be can be adjusted in
the Pinscape software configuration.
Using Windows commands
The normal way to use the TV ON feature is to let Pinscape do
everything automatically using the power sensing circuit
described below. If you're using the expansion boards, that's built
in, so I'd go that route. If you're using a standalone KL25Z, though,
the sensor circuit might be more trouble than you want to go to.
So let me offer an easier alternative: use Windows commands.
Here's the idea:
- Create a .BAT file
- Put commands in the .BAT file to turn on the TV (see below)
- Put a shortcut to the .BAT file in your Start Menu > Startup folder
When Windows starts up, it'll run this .BAT file because it's in
your Startup folder, so this will have roughly the same effect as the
power sensor circuit. We just let Windows tell us when the system
is starting up rather than detecting it electronically.
The commands all involve the utility program PinscapeCmd.exe, which
you'll find in your Pinscape Config Tool folder. In the command examples
below, we'll pretend this folder is named C:\Pinscape, but
it doesn't have to use that exact name. Just substitute your folder path into the
commands below if you're using something different.
If you're using the hard-wired TV ON switch, the command looks like this:
C:\Pinscape\PinscapeCmd TVON
>
The TVON sub-command briefly pulses the TV ON relay, just like the
Pinscape software would do by itself at system startup when the power
sensing circuit detects that the system has just been powered on.
If you're using an IR remote control instead of the hard-wired switch, do this:
C:\Pinscape\PinscapeCmd SendIR=1
>
That transmits the IR code in "slot 1" in your learned IR command list.
If you're going to teach Pinscape multiple IR commands, change the "1"
in SendIR=1 to whichever slot contains the right ON command
for your TV.
One more detail: if you have more than one Pinscape unit in your system
at the same time, you have to tell PinscapeCmd which unit you want to
send the command to. You do this by adding Unit=2 (or whichever
unit number you want to address) right after the PinscapeCmd
command name:
C:\Pinscape\PinscapeCmd Unit=2 TVON
>
Power sensing circuit
The Pinscape expansion boards have some special circuitry built-in
that detects when the system is powering up. This is a little more
complicated than it sounds because of the way PC power supplies work.
USB-powered devices like the KL25Z generally continue to receive 5V
power even when the PC is off. That means that the Pinscape software
can't tell from USB power alone when the system is powered on or off.
As far as Pinscape's USB power goes, the power is always on, even when
the overall system is off. Similarly, the Pinscape software can't
assume that a KL25Z reboot means that the power status has changed,
since the KL25Z can be rebooted at random times, such as when you
update option settings, or if you should unplug it for some reason.
If you want to use Pinscape's automatic TV ON system without
the expansion boards, you have two choices:
- You can make Windows run a batch script when the system boots, as described above ("Using Windows commands")
- You can build a replica of the power sensing circuit used on the expansion boards
The first option (a Windows batch script) is easier, but if you prefer
to let Pinscape handle things automatically, read on for details
on building the power sensing circuit.
Note that this entire scheme depends on following the switched
120V power plan outlined in
Chapter 11, Power Switching. In order
for this to work, you must be using:
- A "soft" power switch for the main PC
- A switched outlet that's controlled by the PC power
- A secondary ATX power supply that's plugged into the switched outlet,
for powering feedback devices and other systems apart from the PC
motherboard
If you're already familiar with that design, read on. If not, you
should go back and read about it in
Chapter 11, Power Switching,
because some of the material below won't make sense if you're not
using the same design for the main power switching system.
Here's the schematic for the sensing circuit. Again, this
is built in to the expansion boards, so you won't have to
build this separately if you're using the expansion boards.
- Connect GND to a Ground pin on the KL25Z (see Appendix 1, KL25Z Pin Out)
- Connect 3V3_KL25Z to a 3.3V pin on the KL25Z (see Appendix 1, KL25Z Pin Out)
- Connect GND2 to the secondary power supply ground (the one
plugged into the switched outlet)
- Connect +5V_PSU2 to the secondary power supply +5V
- Connect PSU2_STATUS_SENSE to the KL25Z GPIO port assigned as "Power status
input" in the Pinscape Config Tool settings
- Connect PSU2_STATUS_SET to the KL25Z GPIO port assigned as "Status latch
output" in the settings
You can use any free GPIO ports for the connections listed.
The expansion boards use PTD2 for the power status input (PSU2_STATUS_SENSE)
and PTE0 for the latch output (PSU2_STATUS_SET).
Configuring settings for the power sensing circuit
To configure your standalone TV ON circuit, run the Pinscape Config
Tool. Go to the Settings page, and scroll down to the TV ON
Switch section.
Click on the Power status input box to select the GPIO
pin you wired to PSU2_STATUS_SENSE. Then click on the Power latch
output box to select the pin wired to PSU2_STATUS_SET.
If you're using the IR transmitter instead of the hard-wired TV ON
relay switch, you can simply set the Relay output box to
Not Connected, to tell the software that no pin is connected
to that function.
The Startup delay time is the amount of time in seconds that
the software will wait after system startup to send the TV ON signals
to the TVs. This is used for both the relay switch and the IR
signals. Adjust this as needed to make sure that the system waits
long enough for your TVs to initialize. Most TVs aren't responsive to
any control inputs for a few seconds after they're plugged in, so this
delay is intended to give the TVs long enough that they're ready to
handle the ON signal when Pinscape sends it. If your TVs usually work
but seem to miss the signal some of the time, adding a few seconds
to the delay might make it more reliable.
When you've entered all of the settings, click "Program KL25Z" at
the bottom of the page to save the changes to the device.
Setting up an IR transmitter/receiver
If you're going the IR route, the minimum requirement is an IR
transmitter, to send IR commands to your TV(s). But you'll almost
certainly want to set up an IR receiver as well, so that Pinscape can
"learn" commands from your remotes. It's possible in principle to
program the remote control codes by hand, without the learning
function, but it's surprisingly difficult to find published
information for the exact model of TV you're trying to control. And
even if you can find published codes, they're hard to make sense of
because no one can agree on a universal standard format. The learning
function is by far the easiest way to figure out what codes your exact
TV is using, because it lets Pinscape read the codes directly from
your remote control.
Once you've installed the IR transmitter and receiver hardware, you can
set up the TV ON feature through IR as follows:
- Teach Pinscape the remote control code for your TV's "ON" button,
following the procedure in Chapter 112, IR Remote Control ("Learning IR commands
from your remotes")
- Click the TV ON icon ()
in the row for the "ON" button code
- Be sure to save settings by clicking "Program KL25Z"
Once you activate the TV ON icon for a code, Pinscape will automatically
transmit that code at system startup, when the power sensing circuit
detects that power has just been turned on. Remember that you must
use and configure the power-sensing circuit for this to work (the circuit
is built in to the expansion boards, but you have to build it separately
if you're using a standalone KL25Z).
Connecting a hard-wired TV ON switch
Warning: I no longer recommend this approach. Even though it's
the original solution I used in my own cab, I'd recommend avoiding it
and using the IR transmitter solution instead. Hard-wiring the
power switch requires opening up the TV, and modern flat-panel
TVs are just too delicate for this to be a good idea. The IR
solution is completely non-invasive.
If you're absolutely dead set on this approach, though, read on.
Expansion boards
The main expansion board has wiring for up to two TV switches.
The connectors are on the JP4 pin header, labeled "TV ON".
Connect the first TV's power switch to the pair of pins in the "column"
under the label TV1. Connect the second TV's power switch to the
pair of pins in the column under the label TV2.
You can just run ordinary wire between the expansion board pins
and the switch on the TV. These carry only low-power switch signals,
so you can use a fairly thin wire like you'd use for wiring cabinet
buttons, such as 24 AWG.
Standalone wiring (no expansion boards)
If you're using the expansion boards, the relay switch is built in.
If you're not using the expansion board, you can build the same
circuit yourself. Here's the schematic:
- Connect GND to a Ground pin on the KL25Z (see Appendix 1, KL25Z Pin Out)
- Connect +5V_PSU2 to the +5V of your secondary power supply
- Connect GND2 to the ground (black wire) of your secondary power supply
- Connect TV_SWITCH to the GPIO pin you're using for the TV relay
You can use any GPIO pin to control the TV relay. The default used
on the expansion boards is PTD3, but you can use a different pin if
that one is in use. You'll have to configure whichever pin you select
in the Pinscape Config Tool. In the Config Tool, go to the Settings
page, then scroll down to the TV ON section. Click the Relay
output box to set the appropriate GPIO pin.
Wiring the TV switch
You'll have to be comfortable with taking
the TV apart at this stage, because we have to connect some wires to
the On/Off button.
There are no generic instructions for taking a TV case apart, so you're
on your own for this part. Your goal is to open the case and expose the
little circuit board containing the On/Off button.
Needless to say, use extreme caution with this step. In modern LCD
TVs, the LCD panel and polarizing filter are very thin, brittle
plastic sheets and often have no structural support other than the
outer case, so it's very easy to crack them during the removal process
or after the case is off. Removing the case will also void the
warranty, so you're assuming the entire risk of breaking something
by proceeding.
>
Once you get the case open, you should find a little circuit board
located under the area where the buttons on the case are situated.
It's usually long and narrow, and looks something like this:
The red arrows in the photo above show the soldering points for the
button leads. The little squarish silver objects are the buttons.
These are normally situated immediately under the exterior plastic
buttons on the TV's bezel; pressing on the exterior plastic button has
the effect of pushing down on this metal part, which is the real
button.
Once you find this circuit board, identify which button corresponds to
the On/Off button on the outer case. Do this by position: just find
the inner button that's situated underneath the On/Off button on the
case. You can also do this by counting buttons from right to left,
since there should be the same number of silver buttons on the circuit
board as plastic buttons on the case.
Next, identify the switch leads. There are probably four leads to
these switches, one at each corner. On the TVs I've looked at, the
leads are in pairs that are electrically connected together, so there
are really only two wires here even though it looks like four. Put
your multimeter in continuity test mode and check the leads in pairs.
Find a pair that are not connected normally, but that become
connected when you press the button. These are the leads you want
to solder to.
The next step is possibly even more delicate and tricky than opening
the case. You have to solder wires to the button leads you just
identified. To do this, use fine hookup wire, 24 AWG or thinner.
Strip a very short length of insulation from the ends, around 1/8".
Melt a little solder onto the end of the wire. Position the end of
the wire at the desired contact point. Now get out some tape (I used
thin strips of masking tape here) and secure the wire to the board a
couple of inches away from the contact point. The idea is to hold it
in place at the desired position before soldering so that the solder
can just flow over the junction with everything already positioned
properly. Once everything is in place, heat the end of the wire for a
few moments, long enough for the solder to melt and flow onto the
switch lead. Remove the soldering iron carefully and try to hold
everything very still for a few moments so that the solder can
solidify over the junction point. If all went well, the wire should
stick to the switch lead. The connection will be delicate at best, so
you'll want to secure the wire with a couple more pieces of tape to
minimize mechanical stress on it.
TV On/Off switch with wires soldered to leads
Repeat this process for the second lead. Once both are soldered and
held securely in place with tape, test your work with the multimeter.
Use continuity test again. Connect the meter leads to the free ends
of the wires you just soldered. The meter should read open/no
connection. Press the button, and the meter should read
closed/connected. If that works, you're set. Put the TV case
back together, taking care to run your newly attached wires out
a suitable opening.
Now just connect the two wires from the TV's switch to the
appropriate TV ON pin pair on JP4 on the expansion board (see the
illustrations above). The order of the wires doesn't matter:
you can connect either switch terminal to either pin in the
TV ON pair.
115. Troubleshooting
Here are some miscellaneous tips for troubleshooting, based on
problems that people have reported in the forums.
Quick index:
Button input #6 isn't working
Symptom: all of your other buttons are working, but button #6 won't
generate any key presses on the PC, no matter which key you map it to.
The usual reason this happens is that you're using the Expansion Boards,
but your KL25Z is still configured with the default pin settings.
By default, the firmware is configured for the standalone KL25Z setup,
with no expansion boards. The button wiring is almost identical
between the expansion boards and the standalone setup. But it differs
in one place: button #6 is wired to a different GPIO pin on the
expansion boards. (This wasn't an arbitrary change just to make your
life more difficult; the GPIO port that button #6 uses in the standalone
setup is needed for another purpose in the expansion boards.)
The quick solution is to go to the top of the Settings page in the
Config Tool, where you set the system type. If it's currently set to
Standalone KL25Z, change it to Expansion Boards. While you're at it,
make sure to set the correct number of each type of board you're
using. Click "Program KL25Z" at the bottom and let the device reset.
If that doesn't fix it, you might have a wiring problem or some other
configuration issue. For help, see:
USB devices disconnect or reset
Symptom: Pinscape or other USB devices disconnect or reboot themselves
when they shouldn't.
For example, you're in the middle of playing a game in VP, and you
hear that Windows bleep-bloop tone meaning that a USB device has been
unplugged, or your button inputs just stop working, or your plunger
stops working, or DOF output stops working.
The right approach to debugging this depends on how it's happening, so
read on for the common scenarios.
It happens completely at random
"Completely at random" means that you can get the disconnects to
happen when nothing at all is going on. You're not touching the
computer, and there's no software loaded, just the Windows desktop.
If you feel like the problem is random, but you're always doing
something with the computer when it happens, you should actually try
that idle scenario we just described to find out if your hunch is
correct. Just leave the computer running idle for a while and see if
you observe any disconnects. If you can leave it running idle for a
long time without any disconnects, then the disconnect is
probably being triggered by some specific cause. In that case you
should try to figure out what that trigger is. The most common
triggers have to do with DOF devices - shaker motors, replay knockers,
solenoids, etc. See below for more on that.
But let's say that it is completely random: you can indeed
observe Pinscape disconnecting sporadically when nothing at all is
happening on the computer. The most likely problem in this case is a
USB compatibility problem between the KL25Z and your motherboard.
These sorts of problems are extremely difficult to diagnose with any
analytical certainty, so we have to resort to what I call "shotgun
debugging", where you throw a bunch of fixes at the problem and see if
anything helps:
- Try plugging the KL25Z in through a USB hub instead of plugging it
directly into your computer. The best bet seems to be a powered USB 2
hub. This seems to be by far the #1 fix for compatibility issues, so
if this doesn't help, the problem might not be a compatibility
conflict after all.
- Make sure your Windows USB device drivers are up-to-date. Open
Device Manager and go through the list of Universal Serial Bus
controllers, particularly the "Generic USB Hub" and "USB Root Hub"
devices. Try updating drivers via Properties > Driver tab >
"Update driver".
- You might also just have something flaky somewhere in the system,
like a loose USB cable or a bad solder connection. Check USB cables
and any soldered wire connections you've set up, just to make sure you
can't spot anything that looks suspicious.
It happens every time my shaker motor/replay knocker/something else fires
Symptom: Pinscape (or another USB device) disconnects from USB every
time your tactile feedback toys activate while playing a game in VP.
For example, this might happen when your shaker motor runs. It might
happen reliably or sporadically.
The most likely cause is electrical interference, caused by voltage
spikes from those high-power solenoid or motor devices. Computers and
logic devices like Pinscape are sensitive to tiny changes in voltage,
so it's inherently difficult to combine logic devices and high-power
solenoid devices in a single system the way we do in a pin cab. But
there are some well-established ways of "filtering" the electrical
noise so that the logic circuits won't go haywire.
It seems to happen when motors/solenoids fire, but not every the time
Symptom: The disconnects seem to happen when you're in the middle of
game in VP and there's lots of action with the DOF toys, like when
a bunch of bumper contactors fire in a short period.
This is almost certainly the same sort of problem as "It happens every
time..." above. Try the same fixes listed there. These sorts of
problems are actually more likely to be sporadic than to happen every
time, so a degree of randomness doesn't change the likely causes.
The TV ON feature doesn't turn the TV on at system startup
Symptom: The TV isn't turning on at system startup, even though you've
programmed the TV ON feature to send IR commands to the TV, or connected
a relay to the TV's ON button.
The first thing to check is that the IR commands or TV relay are working
at all. Both can be exercised via the Pinscape Config Tool:
- For the relay switch, use the TV Relay Tester dialog, which can be
accessed from the Config Tool's main screen
- For the IR remote transmitter, go the Settings page, scroll down
to the IR Remote Control section, and use the "test" button next to the
command code you want to try sending
If the relay and/or IR transmitter are working in test mode, the next
thing to test is that the "power detection" circuit is working
correctly. If you're using the expansion boards, the power detection
circuit is built in. But - and this is important - if you're using a
standalone KL25Z, you have to build the power detection circuit
separately. See "Power sensing circuit" in
Chapter 114, TV ON Switch for the circuit plans. The TV ON
system depends upon this extra circuit, so if you didn't build one,
that's probably why the TV on feature isn't working.
To test the power detection circuit, you have to watch the KL25Z's
on-board diagnostic LED while powering your system on. It should show
slow blue blinking during the TV ON delay period - typically
about five seconds - immediately after you power on the system. The
delay time is programmable via the Config Tool, so you should see the
slow blue blinking for the amount of time you programmed. If the LED
doesn't show the slow blue blinking, the power sensing circuit
probably isn't working correctly. Check the wiring and the
configuration settings for the TV ON section in the Config Tool.
The final suggestion I have, if everything above checks out, is to try
a longer delay period in the TV ON settings. The purpose of the delay
period is to give your TV time to "reboot" after the 120V power is
connected. Remember that we've set things up so that the TV is
effectively unplugged when your pin cab is powered down; when you turn
the pin cab on, it's like plugging the TV back into the wall socket.
Most modern TVs need several seconds to gather their wits when you
plug them in. They usually don't respond to any IR commands or button
presses during this time. That's what the programmable TV ON delay
period is all about: it's to give your TV time to boot up and start
listening for IR commands and button presses. The exact time required
varies by model, so what works for me might not work for you. So you
should try a longer delay time to see if your TV just needs more time
to become responsive after power is connected.
Solenoids/flashers fire briefly when
powering on the system
Symptom: When you turn on power to the system, some of the feedback
devices energize briefly. For example, the flashes all flash white
briefly, or you hear contactors or solenoids fire for just a moment.
This might happen sporadically or consistently.
Cause: In all likelihood, especially if it's sporadic (that is, it
only happens on a fraction of power-ups, at random), it's just a
design limitation in the controller. (Or perhaps a design flaw,
depending on how you look at it.) Some output controllers power up
with the output channels in a random state, so some ports might be
activated when you first turn on the power. This should only be
momentary, because the controller's software should deactivate all
ports as soon as it starts up, but the software usually takes a few
moments to get going after the power comes on. The random activation
happens in this brief window. The Pinscape expansion boards and
LedWiz both exhibit this behavior.
Solution: My "solution" is to just ignore it. As long as the misfire
events are only momentary, they're not going to damage anything. It
can be a little alarming if a bunch of noise-making devices like
solenoids all fire at once, but other than rattling your nerves, a
momentary activation won't damage the devices; they're built to fire
repeatedly and frequently during normal play, after all.
The ideal way to fix it would be to change the design of the
controller device to eliminate the random startup state. That's
obviously not feasible with a commercial device, and unfortunately I
wasn't able to find a way to address it in the Pinscape boards. The
random startup state there comes from the PWM chips we use, and
working around it would have required added circuitry, which I
couldn't find room for.
An alternative fix that is feasible to pursue, if the glitch
bothers you enough, is to add a delay timer to the power supplies for
the feedback devices. The idea is to prevent the feedback device
power supplies from powering up until after the controller has
finished initializing. Without power, the flashers and solenoids
won't be able to fire, no matter what the state of the output
controller ports. You can find multi-function relay timers on eBay
that can do this. With a power-on delay timer, you could wire the
mains (120V) power to the feedback power supplies through the timer
relay, so that the feedback devices don't receive any power until
after the controller is fully initialized. A few seconds should
be sufficient.
Ball bounces around on plunger in VP
Symptom: the ball bounces around wildly in VP when it's sitting in the
plunger lane, even when I'm not touching the plunger, and maybe even
launches itself. It stops when I pull back the plunger.
This is usually a problem with plunger calibration.
- First, make sure that you don't have any Windows joystick
control panel calibration in effect. Everyone tries the Windows
joystick calibration process because it just sounds like something
you should do, right? But it's actually designed for joysticks,
real joysticks, the kind with a stick and some buttons on
top, and Pinscape isn't one of those. It only pretends to be a
joystick for the sake of the software interface. The Windows
calibration process wreaks havoc with Pinscape and makes all
of its input wildly random and wildly wrong. If you've ever
run it, it will make your nudge and plunger inputs act
erratically. One of the common symptoms is that the ball
bounces around in the plunger chute; another is that the nudge
input is crazy.
Fortunately, it's really easy to undo the damage from
past calibration attempts. Even if you're not sure that
you've ever run calibration, do this:
- Press Windows+R, type joy.cpl, press Enter
- Find Pinscape Controller in the list and double-click
- Click the Settings tab
- Click Reset to defaults
- Now make sure that you've gone through the Pinscape Config
Tool plunger calibration process. This is a whole separate
calibration scheme from the Windows joystick calibration - the
Windows scheme is for real joysticks, and this one is specifically
for plungers.
- Run the Pinscape Config Tool
- Find the device and click the Plunger icon
- Click the Calibrate button
- Follow the on-screen steps to perform the calibration
Note that you shouldn't have to repeat the calibration process
as long as you don't mess with the physical plunger setup.
If you make any physical adjustments to the sensor, or you
reinstall the plunger itself for some reason, you should repeat
the calibration. You can also repeat it any time it seems
out of whack, as sensors can change electrically over time,
but it's not something you should have to do with any
frequency.
- If the ball is still bouncing around, and you can also see the
plunger itself jumping around erratically (while you're not touching
anything), you might have to add some "jitter filtering". Go back
to the Pinscape Config Tool and click the plunger icon again.
Without touching the plunger, is the green bar in the sensor viewer
dancing around visibly? If so, try increasing the "jitter filter"
number until the random motion stabilizes.
The jitter filter is there to smooth out the random motion
that can come from analog sensors like potentiometers and
IR distance sensors. Analog sensors tend to have a little
bit of variation from one reading to the next, even when
the plunger is perfectly still, because a digital reading
from an analog sensor is always an approximation. Each
approximation tends to be a little different from the
previous one. That shows up as random motion, which I call
"jitter". The jitter
filter smooths that out by ignoring small variations in
readings - exactly how small is determined by the "window size"
you specify. A larger
window smooths out larger variations - but at the expense
of less accurate readings. You want the window to be
as small as possible, just enough to smooth out the
visible random motion in VP.
ZB Launch Ball launches the ball by itself
Symptom: In games where ZB Launch Ball is used, the ball keeps
launching by itself, before I do anything with the plunger.
This is usually caused by the same problem as "Ball bounces around on
plunger" above. The ZB Launch Ball feature works by detecting when
the plunger moves in front of the resting position. If the plunger
isn't calibrated properly or has too much random sensor jitter,
Pinscape can get false readings that it interprets as the kind of
forward push that activates the ball launch. Try the fixes for the
bouncing ball problem above.
ZB Launch Ball isn't working at all
Symptom: The ZB Launch Ball feature is enabled, but it won't work.
The ball won't launch in plunger-less games.
The ZB Launch Ball feature only works when DOF activates it, which
means that the table you're running in Visual Pinball has to be
configured properly in DOF.
Buttons/axes are missing in the Windows joystick control panel
Symptom: When you go to the Windows joystick control panel ("Set up
USB Game Controllers") and look at the Pinscape device, it looks
weird. For example, it doesn't show all of the X, Y, and Z joystick
axes, or it doesn't show 32 buttons.
This is caused by corrupted device information in the Windows
registry, which can happen if there's a problem during the initial USB
connection setup when you plug in the Pinscape device. The annoying
thing is that Windows caches the corrupted information, so if you have
a connection problem at any point, it can leave cruft behind that
keeps showing up even when the connection later succeeds.
To fix this, you have to delete the corrupted registry key with
RegEdit. You might need to run RegEdit in Administrator mode to do
this - if RegEdit shows a permissions error when you try to delete the
key, or if the key just won't go away permanently when you delete it,
try exiting RegEdit and running it again by right-clicking RegEdit and
selecting "Run as Administrator" from the menu.
Here's the procedure:
Plug the Pinscape device back in and check again in the joystick
control panel. It will hopefully show the correct controls now. If
not, try the whole process again with "Run as Administrator" (if you
didn't already). If even that doesn't work, try the whole thing
again, and reboot the computer after exiting RegEdit. Rebooting
really shouldn't be necessary, but sometimes things stick in Windows
caches until you do, so try it as a last resort.
Here's a little background information, in case you're wondering what
those VID/PID keys are and why you're looking for these particular
ones.
The VID_xxxx&PID_xxxx keys are tied to the device's USB ID,
which is something you can select in the Config Tool. Most people
leave it with the default setting, which uses an LedWiz-compatible USB
ID, which appears in the registry with the VID_FAFA prefix
mentioned above. So that's the most common thing to look for. You'll
only see the VID_1209 key if you intentionally changed the USB
ID to use the non-LedWiz "Pinscape" USB code instead. (The Config
Tool also allows you to select a completely custom code, but that's
not something you'd do in normal use - it's really only for people who
want to repurpose the firmware code for something other than virtual
pinball. But on the off chance that you are using a completely custom
USB ID, then you'd have to look for a VID_xxxx&PID_xxxx key
matching your custom ID, instead of one of the standard ones listed
above.)
You'll probably see a bunch of other VID_xxxx&PID_xxxx entries in
your registry as well. Those are for other, unrelated devices, such
as other joysticks or gamepads. You can ignore those for the purposes
of this procedure.
The Calibration subkeys that we're deleting come from the
DirectInput subsystem, which caches a bunch of information about
gaming devices when they're first plugged in. This information comes
from the device itself, so basically, Windows is asking the device
about itself and then storing (in the registry) its own copy of the
information. The point is to avoid having to repeat the data exchange
every time you reboot Windows, to speed up reboots. It's fine when
everything works perfectly, but it can cause problems if the initial
information exchange has any sort of USB communications glitch. If
anything gets garbled in the initial exchange, Windows just goes ahead
and stores the garbled data, and never bothers to check again to see
if a correction is necessary. I personally think this is a bad design
on Microsoft's part, since USB errors are common enough that the
initial exchange actually does get garbled once in a while. The
"wrong number of buttons" or "wrong number of axes" problem is exactly
how this manifests - Windows ran into an error when first
interrogating the device, and then made the erroneous information
permanent by storing it in the registry. The procedure we're doing
here simply deletes the cached information and forces Windows to
interrogate the device again the next time you plug it in. With luck,
the data exchange process won't run into any errors on the new
attempt, and Windows will store the correct information.
Flipper buttons are flaky
Symptom: Your leaf-switch flipper buttons don't work reliably. You
might see this as random auto-repeat keys on the PC, extra keystrokes
while you're holding down the buttons, or other intermittent behavior.
You should start by checking your other cabinet buttons to make sure
they're not also exhibiting similar behavior. In particular, compare
the behavior to any buttons you have that use microswitches rather
than leaf switches. (Microswitches are the little plastic
boxes with the switch assembly fully enclosed inside. The standard
pinball "Start" buttons use this kind of switch.)
If your microswitch buttons are also acting flaky, the problem is
probably with either your key encoder or with the wiring between the
switches and the key encoder. Check the wiring, particularly the
"common" or "ground" connection that all of the buttons share. Also
check your key encoder's instructions to make sure that you've wired
it correctly and that you've done any necessary software setup for it
on the PC.
If it's only the leaf switches that are acting flaky, I'd still
start by double-checking the wiring to make sure it's solid. Assuming
the wiring looks good, there are a few things you can try.
First, make sure you have the right kind of switches. There are
actually two kinds of leaf switches, for different purposes, and it's
important to have the right type in a pin cab. Some leaf switches are
designed for high-voltage power connections, and some are designed for
low-voltage data connections. A pin cab requires the low-voltage
type. If you bought your leaf switches from a pinball vendor like
Pinball Life or Marco Specialties, and they were sold specifically as
flipper button switches, they might well be the high-voltage
type, because many of the real pinball machines that use leaf switches
for the flipper buttons are wired so that the switches directly
control the 50V flipper coils. Those high-voltage switches have
contact points made of tungsten, because it's tough and durable enough
to withstand the high voltages. In contrast, low-voltage leaf
switches have gold-plated contact points. Gold is a better conductor
than tungsten, which is why it's better for a low-voltage data switch,
and why it's the type needed for a pin cab. Tungsten contact points
aren't conductive enough for reliable low-voltage switching, so they
can make the buttons flaky when used in a pin cab. Tungsten also
oxidizes over time, which further reduces its conductivity, so
tungsten switches might work fine at first but start acting up after
they've been deployed a while. This can sometimes explain situations
where your switch problems only appeared recently or seem to be
getting gradually worse.
You should be able to tell which type of leaf switches you have by
visual inspection. Take a close look at the little disks at the ends
of the switch leaves - those are the contact points. Tungsten contact
points look dull and dark in color, whereas gold-plated contacts are
shiny and light-colored. If you think you have the high-voltage
tungsten type, you should try replacing them with the low-voltage gold
type. The last I checked, VirtuaPin only sells the gold type, so
you're probably safe if you bought your switches there. But Marco
Specialties, Pinball Life, and all of the other pinball parts vendors
sell both types, so you have to be careful when ordering to buy
the low-voltage, gold-plated type.
Second, you might need to adjust the gaps between the contacts. Leaf
switches are notoriously finicky this way, and even brand new ones
might need to be adjusted when first installed.
Third, you might simply try cleaning the contact points. This is
necessary from time to time in real pinball machines because of the
copious grime generated by all of the mechanical action, but it
shouldn't be as much of an issue in a virtual pin cab. If you do
suspect that dirty contacts are making the switches flaky, try
gently cleaning the contact points with a Q-tip dipped in rubbing
alcohol. Don't use anything abrasive and don't clean too
aggressively. The gold on the low-voltage contacts is an extremely
thin plating layer that can easily be removed by abrasion.
Nudging doesn't work in VP
Symptom: nudging isn't working at all in Visual Pinball. There's no
effect on the ball when I give the cabinet a good nudge.
This is mostly likely a problem in the VP configuration.
- Go back through the VP nudge setup procedure in
Chapter 36, Nudge & Tilt
- Make sure the axis settings in the VP dialog match your device's
axis settings. Most nudge devices use the X and Y axes by default
for nudging, but double-check that in your device setup. The Pinscape
Config Tool lets you switch to the Rx and Ry (rotational) axes instead,
so if you made that change in the Pinscape setup, you'll have to make
the same change in the VP setup. The two setups don't have any way
to talk to each other on their own.
- If you have other joystick devices in your system (actual joysticks,
or other devices like Pinscape that pretend to be joysticks),
try removing all of the other ones. VP isn't very good at handling
multiple joysticks. Even if you don't want to remove the others
permanently, at least try this as a test to see if it fixes the
problem. If that fixes it, there are a few possible approaches
to dealing with the conflict while keeping the other devices in your
system:
- Check the other devices to see if you can disable their joystick
functions while keeping their other capabilities.
- Check the other devices to see if you can change the joystick
axes they're using. In particular, see if you can get them to
stop sending any data on the X and Y axes. You might be able to
tell the other devices to use the rotational Rx and Ry axes,
for example.
- If you're using Pinscape, use the Pinscape Config Tool to change
the Pinscape accelerometer to use the Rx and Ry rotation axes.
Make the same change in the VP setup.
- Microsoft has a tool called Device Console, or DevCon,
that can selectively enable and disable individual devices from
a batch script. Some people have resolved conflicts by creating a
batch script that disables conflicting devices just before each
VP launch, and re-enables the devices after VP exits.
You can find DevCon in the Microsoft Windows Driver Kit.
Vibrations or sound effects make the ball fly around in VP
Symptom: The ball flies around or veers off course in Visual Pinball
whenever a solenoid fires, or when the shaker motor fires, or when a
loud noise comes through the subwoofer.
The problem is probably that your accelerometer is picking up the
vibration from the feedback devices or speakers, and VP is reading it
as "nudge" input. There are two reasons this could be happening:
- The first, and by far most common, is that your accelerometer
settings in VP are configured to be much too sensitive. The solution is to
reduce the "gain" settings until the vibration stops affecting the
simulated ball motion.
Almost everyone initially sets the accelerometer gain in VP
to a setting that's way too high, based on a natural desire
to see your new toy in action. Specifically, everyone wants
to see the ball react in VP, clearly and conspicuously, when
they nudge the cabinet. The problem is that most of us have bad intuition
about just how hard a nudge it should take to affect the ball.
In VP, we're all used to a light tap on the space bar making
the ball jump about a foot, so we get the idea that the same
should hold for accelerometer nudges. If you try this on a
real pinball, trapping the ball on the flipper and giving the
machine a few pushes, you'll find that a good hard shove won't
even budge the ball. The ball will not jump a foot no matter
what you do. Pinball machines are heavy, and the balls alone
weigh about a pound apiece. It takes a lot of energy to
get them to go anywhere. If you try this experiment with
a real machine some time, you'll find that real machines
don't react with nearly as much zeal as the VP space bar makes
you expect.
The right way to solve problems with over-active nudge
feedback is, in nearly all cases, simply to turn down the gain. Turn
it down until the devices stop interfering. The nudge will
feel a little dead at first, especially if you're more calibrated
for PC pinball with space-bar nudging than you are for real
pinball machines. But it should feel that way if you
value realism at all. You should still be able to see an
effect, but it should be subtle, and it should take some
real cabinet motion to appreciably affect the ball's
trajectory.
See "What about interference from the shaker or subwoofer?"
in Chapter 36, Nudge & Tilt.
- The second, much less common reason is that the KL25Z
isn't secured tightly enough the cabinet. The device should be
attached in such a way that it moves exactly as the cabinet moves,
because the whole point is to read the cabinet's motion and pass
it to the software as accurately as possible. It should be
secured tightly to a rigid surface like the floor of the cabinet.
Make sure that the KL25Z isn't loose, and that it's attached
to something that can't move around on its own. It shouldn't
be attached to a flexible or springy surface.
Some people on the forums have suggested cushioning
the accelerometer with foam padding or something like
that to reduce the vibration it receives. I don't like
that approach, because it actually defeats the purpose
of the accelerometer. You want the accelerometer to pick up
the cabinet's motion - that's what it's there for. If you
mechanically isolate it from the cabinet's motion,
you'll reduce the accuracy. Sure, if you put it on a bookshelf
across the room, it'll stop reacting to the subwoofer - but
it'll also stop reacting to the cabinet's motion.
What you want is a rigid connection to the cabinet that makes
the accelerometer move in lock-step with the cabinet.
Some additional tips:
- Make sure that you haven't ever used Windows joystick calibration
on your nudge device. Windows joystick calibration is for joysticks.
Nudge devices aren't actually joysticks - they only pretend to be, to make the
software setup easier. The Windows joystick calibration wreaks havoc
on accelerometers; it makes their readings erratic and non-linear.
If you've ever run the Windows joystick
calibration procedure, or you're not absolutely sure you haven't:
- Press Windows+R, type joy.cpl, press Enter
- Find Pinscape Controller (or your nudge device, if something else) in the list and double-click it
- Click the Settings tab
- Click Reset to defaults
- Don't use dead zones in any of the configuration dialogs for
nudging or joystick setup. Dead zones can seem at first glance like a
way to solve nervous jitter from small vibrations, but if you think
about it a little more, it's easy to see what's wrong with the
dead-zone approach. Dead zones are inherently non-linear: with a dead
zone, you get no response at all up to a threshold, and suddenly you
get a big response. What you really want is for a small nudge to
produce a small response and a big nudge to produce a big response.
Everything should be proportional. If small vibrations are producing
too much of a response, what that really means is that the big nudges
are also producing too much of a response - in other words,
everything is producing too big a response, because the gain
factor in VP is amplifying everything too much. That's most visible
with the small nudges because it's more obvious when those are
hyper-exaggerated. The solution isn't to ignore the small nudges, but
rather to use them to calibrate the gain factor, by turning down the
gain until the small vibrations don't cause noticeable or excessive
responses. If you've ever set a dead-zone in the Visual Pinball
dialogs or anywhere else, I'd immediately set them all back to zero.
The only VP setting you should adjust to get the nudging force right
is the gain.
DOF Troubleshooting
Appendix 1. KL25Z Pin Out
How to read the diagram
The diagram above shows all of the KL25Z's pin connections,
labeled by their "header" name and "pin number".
There are four headers - rectangular blocks of pins arranged in a
group. They're labeled J1, J2, J9, and J10.
In the diagram, each header's name is printed just above or below
header itself.
The pins on each header are numbered from 1 to however many pins are
on the header. The diagram shows each pin's number alongside the pin.
Throughout the Build Guide, we refer to individual pins using notation
like this:
J9-4
>
To find that pin, you go to header J9 and find pin 4
on that header.
The reason we use this notation is that the pin numbers by themselves
are ambiguous, since every header has a "pin 1" and a "pin 2" and so
on. You always have to know which header we're talking about to know
exactly which pin we're talking about. So we'll always tell you
something like "pin 7 on header J9", or the more compact shorthand
"J9-7".
Most (but not all) of the pins also have another name of the
form PTA1. The "PT" stands for "Port", and the "A1" is another
arbitrary label like the pin numbers. These range from PTA0 to PTE31.
You can see these names in the little blue boxes alongside the pins on
the diagram above. These are the names of the "GPIO" or "General
Purpose Input/Output" ports, which are electrical connections to the
KL25Z CPU itself. These are very important to us, because they're the
KL25Z's gateways to the outside world. They're where we can connect
buttons, sensors, and feedback devices.
The other markings on the diagram alongside the GPIO port names
indicate the "capabilities" of each port. The KL25Z's physical wiring
gives special capabilities to certain ports. The capabilities are
important to understand if you're writing software for the device
or working it into a hardware design, but you won't have to worry
about these if you're using the Pinscape software, since it
already takes all of this into account. The Pinscape Config Tool
will guide you to the proper port selections whenever special
capabilities come into play.
PTD1 and the blue on-board LED
The port labeled PTD1 needs some additional explanation. It's a GPIO
port, but it's also hard-wired on the KL25Z to the blue segment of the
KL25Z's on-board status LED - the RGB LED that normally shows the
Pinscape firmware's current status by flashing various color patterns
(
Chapter 90, KL25Z Status Lights).
You can use PTD1 as a feedback device output port if you wish, simply
by assigning it to an output port row in the Pinscape Config Tool. If
you do, its output port use automatically supersedes the status light
usage in the Pinscape firmware, so there won't be any conflict at the
software level. However, be aware that the on-board wiring to the
blue LED will still be there. The blue LED wiring is a fixed,
physical feature of the KL25Z board that can't be changed in software.
This means that the blue LED segment will turn ON whenever the PTD1
pin is at a "low" voltage, and OFF whenever PTD1 is "high". So the
blue LED will light up when the feedback port is OFF and turn off when
the feedback port is ON. You can just ignore that if it doesn't
bother you, or you can modify the KL25Z as described below to sever
the on-board wiring to the LED.
You can also use PTD1 as a button input port, again, simply by
assigning it in the Config Tool. As with using PTD1 as an output
port, using it as a button input port will automatically supersede its
use to control the Pinscape status LED indicator, so the blue segment
of the status light will stop functioning. And as with using PTD1 as
an output port, using it as an input port won't actually remove the
physical connection between the PTD1 pin and the blue LED. The effect
as an input port will be that the blue LED will turn on whenever you
press the connected button. That should be harmless, but if it
bothers you, you can use the procedure below to sever the internal
wiring to the blue LED.
I wouldn't attempt to use PTD1 for any other purpose (such as a
plunger input, TLC5940 output, etc) unless you sever the LED
wiring as described below. The LED wiring shouldn't interfere with
using PTD1 as a feedback output port or button input port, but it
could create problems for other uses, since it places an electrical
load on the pin in addition to whatever else you're connecting. That
could definitely interfere with using the port as an analog input or
for any high-speed signal I/O.
Severing the on-board wiring between PTD1 and the blue LED: To
break the connection to the on-board LED and turn PTD1 into a true
general-purpose port, remove resistor R11 on the
KL25Z board. R11 is a small surface-mount resistor on the top of the
board; see the diagram below to help find it. It's labeled with the
text "R11" next to the part, so double-check the printed label to make
sure you've identified the right part.
R11 isn't too hard to remove, since it has a fair amount of empty
space around it on the board. My approach to removing it would be to
use a pair of forceps to take hold of the part, and then touch a
soldering iron to the part to melt the solder, pulling away gently
with the forceps until the part pulls free. You could also just use
the tip of the soldering iron to apply some gentle sideways pressure
to the part while heating it. Continue pressing it until it comes
loose, then flick it away so that it doesn't reattach as the solder
cools.
If you do sever the blue LED wiring, the blue component of the
Pinscape status indicator light will obviously stop working. That
will disable all of blue elements of the flash patterns, and will
change purple elements to red.
RTC_CLKIN (PTC1, J10 pin 12)
Port PTC1 has a special assignable usage, as the reference clock
signal input for the real-time counter, which the KL25Z documentation
refers to as RTC_CLKIN. This provides an external reference clock
signal (a square wave running at a specific frequency) for the KL25Z's
on-board real-time module. The RTC is designed to perform
time-keeping functions, particularly related to scheduled events.
The Pinscape software doesn't currently use the RTC module, so this
pin is free for use as an ordinary GPIO pin.
If any features are ever added to the Pinscape software that require
the RTC module to be activated, this pin will have to be used for the
clock input whenever those features are activated. I don't
contemplate any such features currently, and even if some future use
does become interesting, it would be optional - you'd only have to
reassign PTC1 to that usage if you enabled the new feature.
(The pin is actually hard-wired on the KL25Z to a pin on the separate
SDA CPU - the one that runs the boot loader, for installing new
firmware versions. This is designed so that the SDA CPU can be
programmed to generate the required external clock signal for the RTC
module. The mbed version of the boot loader unconditionally generates
that signal on this hard-wired connection, so if the mbed boot loader
is installed, PTC1 can't be used as a GPIO pin - the clock generator
feeds a 32768 Hz square wave into this pin, making it effectively
impossible to use for anything else. Fortunately, the standard
PCMicro boot loader that comes with the KL25Z doesn't do this; it
leaves the connected SDA CPU output port in a high-Z state, which
effectively turns the hard-wired connection into an open circuit and
thus allows us to use the GPIO pin normally.)
SDA_PTD5 (J8 pin 2)
This is another unusual pin that can't be used for any Pinscape
function.
Even though the name makes it sound like a GPIO pin, this pin doesn't
connect into the KL25Z CPU at all. Instead, it connects to a separate
chip on the board where the boot loader resides. "SDA" is Freescale's
name for their boot loader system, which is why this pin is labeled
SDA_PTD5 instead of just plain PTD5. Confusingly, the boot loader
chip has its own set of GPIO ports, with basically the same naming
convention as the KL25Z's ports. That's why the name looks like a
GPIO pin - it is a GPIO pin, just not a KL25Z GPIO pin. That
means that it's not usable for Pinscape purposes, since the Pinscape
software has no way to access the pin.
USB Ports
(Note that the ports are labeled in fine print on the bottom
side of the KL25Z, so you don't have to just remember which is which.)
The "KL25Z port" is the one that's connected to the microcontroller
proper. This is the port that the Pinscape software uses for its USB
joystick, keyboard, and LedWiz emulation interfaces.
The "OpenSDA" port isn't connected to the microcontroller.
It's connected to a separate processor on the board that's there for
the sole purpose of downloading firmware into the microcontroller's
flash memory. That separate processor isn't involved in any of the
Pinscape functions, so the OpenSDA port doesn't need to be connected
at any time except when installing new firmware. But it's also
harmless to leave it plugged in all the time - leaving it plugged in
doesn't interfere with normal Pinscape operations. The OpenSDA
processor just sits there emulating a thumb drive awaiting firmware
downloads.
About the KL25Z
The KL25Z is a single-board computer, incorporating a 32-bit
ARM-architecture CPU (Cortex M0+), 16K SRAM, numerous on-board
peripheral devices within the CPU (three PWM modules, a 4-channel DMA
controller, real-time clock, SPI and I2C bus interfaces, a USB 2.0
host/device controller, three UARTs, an analog-to-digital converter, a
digital-to-analog converter, a flash memory controller, and more), and
additional peripherals on the board but external to the CPU (a
three-axis accelerometer, a touch sensor, a clock generator, and an
RGB LED).
The board also includes an integrated "programmer" module with its own
separate USB connection. This is what allows us to download new
firmware, such as the Pinscape Controller software, directly from a
Windows machine.
GPIO ports and special functions
All told, the KL25Z CPU chip (not the board, but the chip itself)
exposes about 80 external connections. About 50 of these connections
are exposed through header pins on the KL25Z board. The rest are
mostly dedicated to connections with the on-board peripherals; these
aren't exposed externally as they can't be reassigned. That's part of
why you find the gaps in port numbering on the exposed pins.
Most of the external header pins on the KL25Z are wired to GPIO ports
("general-purpose I/O"), which can be connected to external
electronics to send digital signals to and from the KL25Z CPU. The
diagram above shows the layout of the header pins and the GPIO port
assignments. The pin layout can't be changed by the software; the
pins are physically wired this way on the board.
In addition to the basic GPIO functions, many of the pins can also be
connected, under software control, to one or more of the on-board
peripherals. As with the GPIO port assignments, the set of these
possible connections for each pin is hardwired: each pin can only
perform certain special functions. The diagram shows which special
functions are available on each pin. The software determines which
special function a given pin performs at any given time using another
on-board peripheral called the "multiplexer". This is a essentially a
switchboard that connects pins to special modules. At any given time,
a pin can only be connected to one module. For example, a pin that's
PWM-capable only generates PWM signals when the software tells the
multiplexer to connect the pin to the PWM module.
PWM limitations
The KL25Z hardware has some rather complex limitations on its PWM
outputs. The diagram tries to make these evident, but you have to
understand the nature of the limitations to make sense of the
information in the map.
The KL25Z generates PWM signals (pulse-width modulation) through
on-board peripherals called TPMs (Timer/PWM Modules: yes, it's a
nested acryonym). The CPU has three of these modules: TPM0, which has
6 channels; TPM1, with two channels; and TPM2, with another two
channels. That's ten channels total across the three modules.
If you look at the diagram, you'll see that there are 23 GPIO pins
marked as PWM-capable. This brings us to the first limitation. You
can't actually have 23 separate PWM outputs, despite the 23
PWM-capable pins. The PWM signal reaching the pins has to be
generated in the TPM module channels, and as we've seen, there are
only 10 of these channels in all. Take a look at the map and find
PTA1 and PTB2. You'll see these are both marked "2.0" in their PWM
boxes. That means both of these pins are assigned to TPM2 channel 0.
You can assign both of these channels as PWM outputs, but if
you do, you won't be able to control them independently, because they
both get their signals from TPM2.0. Change the brightness on one pin
and you'll change it to the same setting on the other pin. So despite
the 23 PWM-capable pins, you can really only use 10 of them as PWM
outputs at once.
The subtler limitation is in the pulse frequency generation. The
duty cycle of a PWM output is controlled by its channel.
However, the period of a PWM output is controlled by its
module. All of the channels on a given module share the same
period (or, equivalently, frequency). Many PWM applications don't
care very much about the frequency, but the frequency is critical for
some purposes. For example, if we're using the PWM signal as a clock
generator for an external device, we need an exact frequency setting.
This means that if we need two such clocks at different frequencies,
we have to assign the two functions to pins that map to separate TPMs,
to given them independent control over the frequency.
The ability to set independent frequencies isn't just academic. It
actually matters for Pinscape if you're using the expansion boards
and/or the IR functions:
- The expansion boards use a PWM output to generate the master clock
signal for the TLC5940 chips (called the "grayscale clock" in the
TLC5940 data sheet). This master clock frequency isn't set in stone,
but it's constrained by a number of factors: it has to be fast enough
that the strobing effect isn't visible to the eye, and its upper limit
is constrained by the KL25Z's data transmission speed, the ability of
the physical wiring to conduct signals reliably, and the TLC5940
chip's design limits. For the full technical details, refer the
TLC5940 driver source code in the Pinscape firmware (TLC5940/TLC5940.h
in the source tree). The setting as of this writing is 350 kHz.
- The IR transmitter uses a PWM channel to generate the IR carrier
frequency. This frequency is determined by the IR protocol being
used for a given transmission, so it can vary from one transmission
to the next. The protocols currently implemented use carrier
frequencies ranging from 36kHz to 40kHz.
The requirements for these features to use specific PWM frequencies,
combined with the limitations of the KL25Z's TPM hardware, has two
important practical implications:
- First, the TLC5940 interface's master clock port and the IR
transmitter's data output port must be assigned to GPIO ports
that use separate TPM units. Each function requires the
ability to set its own frequency independently of other PWM usages,
and since the frequency of a PWM output is set at the TPM unit
level, each function must have free control over an entire TPM unit.
Therefore each must be assigned to a separate TPM unit.
The Pinscape Config Tool knows about this requirement, and it will
automatically guide you to select appropriate GPIO pins if you're
using both functions. It'll warn you if you attempt to assign the
two functions to the same TPM unit. You must not ignore these
warnings; the device won't function properly if you do.
- Second, if you're using a TLC5940 chip and/or the IR transmitter,
and you're also using GPIO ports as regular feedback output
ports, be aware that the GPIO ports you're using might have their PWM
frequencies fixed by the TLC5940 or IR transmitter functions. This
might be an issue if you're using booster circuitry with the outputs,
because the TLC5940 clock setting is a high frequency that might be
too fast for booster circuits. Booster circuits that use optocouplers
in particular might not work properly, because most optocouplers have
a speed limit of about 80kHz, well below the TLC5940's 350kHz setting.
You can mitigate this by assigning your PWM feedback outputs
to GPIO ports that use other TPM units. Refer to the matrix
below for the associations between GPIO pins and TPM units.
Here's a matrix showing the available GPIO ports for each TPM unit.
Remember, the frequency of a PWM port is set at the unit
level, so all of the ports associated with TPM Unit 0 will operate
at the same frequency, all of the ports assigned with Unit 1 will
operate a second common frequency, and all of the ports on Unit 2
operate on a third common frequency. Each channel represents
a separately controllable duty cycle that operates at the
common frequency for its unit. For example, PTA4 and PTC2
are both on Unit 0, Channel 1, so they represent the same PWM output;
they can't be separately controlled, as they share the same frequency
(set on Unit 0) and the same duty cycle (set on Unit 0 Channel 1).
TPM Unit | Channel | GPIO ports |
0 | 0 | PTD0 |
1 | PTA4, PTC2, PTD1 (blue on-board LED) |
2 | PTA5, PTC3, PTD2, PTE29 |
3 | PTC4, PTD3, PTE30 |
4 | PTC8, PTD4, PTE31 |
5 | PTC9, PTD5 |
1 | 0 | PTA12, PTB0, PTE20 |
1 | PTA13, PTB1, PTE21 |
2 | 0 | PTA1, PTB2, PTB18 (red on-board LED), PTE22 |
1 | PTA2, PTB3, PTB19 (green on-board LED), PTE23 |
Why is the pin layout so random?
Blame the Arduino.
The layout is as it is because the KL25Z's designers took Arduino
compatibility as the starting point. The Arduino is a popular
hobbyist platform that started off on some rather primitive 8-bit
hardware. One of the features was a very rigid assignment of
particular functions to particular pins - PWM output, analog in, UART
RX/TX, etc. The KL25Z is much more flexible in the way it maps these
special functions to pins, but it's not infinitely flexible; it too
can only expose certain functions on certain pins. In order to
achieve the desired pin compatibility with the Arduino, the KL25Z's
designers had to arrange the pins in the peculiar order we find them
in here. This arrangement allows the pin at each physical position to
be assigned to its traditional Arduino role, which allows some Arduino
add-on boards to be used directly with a KL25Z. (But be careful if
you plan to do this, because there is one other major difference
between the Arduino and KL25Z that can seriously affect compatibility:
voltage. Most Arduinos run on 5V, whereas the KL25Z is a 3.3V device.
The KL25Z will be damaged if exposed to 5V levels on any of its GPIO
pins. Many Arduino add-ons generate 5V signals, which makes them
incompatible with a KL25Z even if the pin layout matches.)
Appendix 2. VP Customizations Summary
For your convenience in setting up a new cab, restoring a backup, or
restoring settings up after a software update, here we present a quick
summary of all of the VP customizations recommended throughout the
book. You can find more details in the referenced chapters.
What/where are "VP core scripts"?
Where we mention "VP core scripts", we're talking about the shared
Visual Basic script files that most VP tables use. These are plain
text files with names ending in .vbs, and you can find them in
the Scripts sub-folder of your Visual Pinball install folder.
You can use Notepad or a programmer's text editor of your choice
to edit them.
Tilt bob
Synopsis: Configure VP to work with a real tilt bob
Key encoder device setup: Program your key encoder to use the T
key on the keyboard for your tilt bob input
VP script setup:
- If you're using VP version 10.4 or later, find the file
NudgePlugIn_mjrAccelAndTilt.vbs in your VP Scripts folder,
and rename it to NudgePlugIn.vbs
- If you're using an older version of VP (before 10.4), download my
NudgePlugIn.vbs
script and put it in your VP Tables folder. (Don't use this version
with VP 10.4 or later - use the updated version that comes with VP
instead.)
Coin door switch
Synopsis: Configure VP to work with a real coin door switch
VP keyboard preferences: Run VP and bring up
the keyboard dialog (select Preferences > Keys on the menu).
Make sure that Add Credit is assigned to the 3 key,
and that Add Credit 2 is assigned to 4.
Key encoder setup: In your key encoder, assign the coin door
switch to the End key on the keyboard, if possible, because
that's VP's immutable default. If your key encoder can only send
joystick button presses, that also works, but you must set the
joystick button mapping in VP: bring up the Keyboard
preferences dialog, find the Coin door (End) item, and select
the appropriate joystick button number in the drop list.
VP scripts: If you wired your coin door switch the recommended "new"
way, as a simple On/Off switch rather than as some kind of "toggle
mode" contraption, edit the core VP core script VPMKeys.vbs as
follows.
Find these original lines:
toggleKeyCoinDoor = True
inverseKeyCoinDoor = False
...and change them to read:
toggleKeyCoinDoor = False
inverseKeyCoinDoor = True
Appendix 3. Plunger Sensor Technical Notes
Tracking a plunger for pinball simulation is a surprisingly difficult
technical challenge. At first glance, it looks like a pretty easy
problem with some simple solutions: it's just a linear position
sensor, and there are some standard approaches for that. But there
are two details to pinball simulation that make the problem harder:
you need fine spatial resolution, and you need to be able to
take readings quickly.
Spatial resolution and sampling speed
How well a plunger performs in a pinball simulator depends upon its
spatial resolution and sampling speed. I consider a sensor suitable
if it can determine the true plunger position to within 1/100", and
produce at least 200 such position readings per second.
Spatial resolution refers to how precisely you can locate the current
position of the physical plunger. The pinball simulator uses the
position reading from the sensor to draw the on-screen plunger on the
video display in real time, so that the player can see the on-screen
plunger animated in sync with the physical plunger. For that
animation to be realistic and smooth, the on-screen position has to
track the physical position as finely as the video display can draw
it. On an HD screen at playfield size, the spacing between pixels is
about 1/50 of an inch, and on a 4K monitor it's about 1/100 of an
inch. On a full-sized pin cab, the on-screen plunger should be
roughly the same size as the real plunger, so if you want smooth,
pixel-accurate animation, the sensor has to be able to pick up
movement of the physical plunger on the same scale as the size of the
on-screen pixels. That requires 1/100" precision from the sensor.
Spatial resolution also affects the quality of the physics simulation.
All of the pinball simulators read the plunger position via the
Windows USB joystick interface, which is capable of representing high
precisions. Visual Pinball can handle 16-bit resolution, which
translates to one part in 65,536, or about 50 microns (millionths of
an inch) over the 3" travel of a physical plunger. That's a lot finer
than the 1/100" resolution required for smooth animation, and much
finer than any virtual pinball plunger sensors currently available
(for Pinscape or any other system). The point is that there are
practical benefits to working on better sensor designs than we have
today, since VP's physics model can take advantage of a lot finer
spatial resolution than today's sensors provide.
Sensor speed is also critically important. The plunger moves really
fast when you pull it back and release it, so in order to track that
motion in real-time, the sensor has to be able to take readings
quickly. My measurements with the AEDR-8300 sensor indicate that the
plunger in my test rig, which is a standard Williams/Bally plunger
with a medium-tension spring, moves at a peak speed of about 4.5
meters per second. That means that the plunger covers its full 80mm
travel range in about 25ms. To keep up with that fast motion, the
sensor has to be able to take readings at least about every 5ms, or
200 times per second. Sensors with slower sampling rates than that
will suffer from "aliasing", where they mistake retrograde motion for
forward motion (or vice versa) when the plunger bounces back after
hitting the barrel spring. When aliasing occurs, VP can't calculate
the speed of the plunger correctly, which screws up the physics
simulation. Aliasing can lead to wildly erroneous speed calculations.
The Pinscape firmware has special handling to detect and correct for
aliasing in slower sensors, but that necessarily loses information
about the true instantaneous speed and position, so it's better if the
sensor can produce readings frequently enough that the aliasing filter
is never triggered.
Potentiometer
This is one of the simplest ways to measure a linear position, and it
actually compares pretty well to more complicated approaches. It's
used in a lot of industrial applications where you need fast readings
without extremely high resolution.
Physically, a potentiometer consists of a fine electrode that moves
across a resistive conductor such as graphite - something that
conducts electricity, but with relatively high resistance. Resistance
in a material like graphite is a function of the distance between
measuring points, so as you move the electrode across the graphite,
the resistance between the electrode and any fixed point on the
graphite varies with the distance between the two points. If you
measure the resistance at point A as higher than the resistance at
point B, you know that point A is further away from the fixed end than
point B.
For our purposes, we use "linear taper" potentiometers, which are
built so that the electrical resistance varies linearly with the
electrode position. Voltage and resistance are also linearly related
(through Ohm's Law), so if we supply a fixed voltage across the fixed
ends of the pot, the voltage we read at the electrode will vary
linearly with the resistance, which varies linearly with the position
of the electrode. The KL25Z has an on-board analog-to-digital
converter (ADC) that can sample an analog voltage level and report it
to the software as a digital reading.
How accurate is a potentiometer? The one that we recommend in the
parts list is readable to about 1% accuracy with the KL25Z ADC. That
translates to about 3/100". So it's not quite as good as we need for
perfectly smooth animation, and it means that the "jitter filter" in
the Pinscape firmware is usually needed to get steady readings when
the plunger is standing still.
This could be improved by using a different potentiometers with higher
accuracy, but I haven't found anything available that looks like it
would do better.
The potentiometer's spatial resolution might not be perfect, but its
sampling speed is extremely fast. The potentiometer itself can be
sampled in arbitrarily short intervals, as it provides an analog
voltage level that adjusts to changes in position effectively
instantaneously. Everything at the analog level moves at the speed of
electric field propagation in the conductors, which is close to the
speed of light. So the limiting factor isn't the analog signal, but
rather the ADC sampling time. The ADC works by charging a small
capacitor internally, and this takes a more macroscopic amount of
time. The fastest possible ADC sampling time on the KL25Z is about
10µs, although there's a significant trade-off between speed and
accuracy, so we use a slower mode that takes more like 30µs for
each reading. That's still about 100 times faster than we need it to
be (as discussed earlier, we only need readings about every 5ms), so
we can take many readings over the sampling period and average them
together, to further reduce noise and improve accuracy. Since the
January 2020 version, the firmware takes readings continuously, and
computes a rolling average each time a result needs to be sent to the
PC. Each reading sent to the PC represents the average of 128 ADC
samples. This smooths out the noise and makes for highly stable
readings.
Quadrature sensors
Quadrature is an electrical engineering term describing two signals
that are 90° out of phase with each other. This has numerous
applications in signal processing, but the one we're concerned with
here is its use for motion sensing. A quadrature motion encoder works
by observing transitions between "on" and "off" zones marked along a
"measuring stick", using two sensors that are offset slightly from one
another. The measuring stick is more formally called a "scale".
The 90° phase difference in this case refers to the size of the
offset between the two sensors: it's arranged so that it's half the
size of the marked on/off zones on the scale. If you observe the
on/off signal from each sensor as they move across the scale, you'll
see the leading sensor make its on/off transitions 90° of phase
ahead of the trailing sensor. Which sensor is the "leading" sensor
and which is the "trailing" one depends on which direction they're
moving across the scale, so you can tell which direction you're moving
by observing the phase between the two signals and seeing which sensor
is making its transitions first at each step. Or, equivalently, you
can look to see if the signals are 90° or 270° out of phase
with each other.
The scale can be implemented in many ways, but the common element is
that it has to have a series of on/off zones of about equal size
across the range of travel. These can be electrically conductive and
non-conductive regions, for example, or magnetic north/south poles, or
optical black/white or transparent/opaque bars. The specific
quadrature sensors that we use in the Pinscape projects are optical
sensors, so our scales use the transparent/opaque approach. In other
words, our scale is simply a series of black bars printed on
transparent film.
A quadrature sensor isn't actually a position sensor - it's a
motion sensor. This type of sensor can only detect when it's
moving from one bar to the next on the scale, and the direction of
that motion (using the signal phase). If we combine these two
capabilities - detecting a change from one bar to the next, and
knowing which direction we went during that change - we can keep count
of how many bars we are away from our starting point. So if we have a
known starting point, and we know the length of each bar, we can infer
our current position: our position at any given time is the starting
position plus or minus the net distance we've moved since then.
For the plunger application in particular, we have an excellent "known
starting point", namely the plunger rest position. It's usually safe to
assume that the plunger starts at the rest position, so we take that
to be the initial position at startup. All subsequent inferred
positions are relative to this starting point.
There's an inherent drawback to using a quadrature sensor as a
position sensor by way of the net travel distance, which is the
possibility for missed transitions. If the sensor ever misses a
transition, the count will no longer be in sync with reality, so the
inferred position that we figure based on the count will differ from
the actual position by the number of missed counts. Sensors in
practice do tend to miss some fraction of transitions, so the error
between inferred and actual position tends to increase over time. To
mitigate this in our application, the Pinscape software can be set,
optionally, to reset the inferred position to the starting (plunger
rest) position after any extended period without any motion. Just as
it's usually safe to assume that the initial position at system
startup is the rest position, it's a good bet that a motionless
plunger is in equilibrium at its rest position, since it's
difficult to hold it perfectly still anywhere else for any length of
time, and there's no reason to do so even if you could.
Interfacing a quadrature sensor to the KL25Z is straightforward. We
treat the two sensor output channels as digital inputs (high/low
signal levels, corresponding to the on/off zones in the scale), and
set them up to trigger interrupts. The interrupt handler for each
channel uses a lookup table to figure the direction increment
represented by the current channel signal levels, adding or
subtracting one from a running counter.
A fast-moving plunger can result in extremely rapid signal transitions
on the channels - fast enough to overwhelm the KL25Z's interrupt
response time. The quadrature sensor software interface in the
Pinscape firmware uses custom hardware interrupt handlers to optimize
the response time, and with that it requires 6.5µs to process
each channel interrupt. When considering new quadrature sensors, we
have to calculate the signal rate at peak plunger speeds (about 4.5
mm/ms) to make sure it doesn't exceed the 6.5µs response time,
or equivalently, about 150kHz. In many cases, the quadrature sensor
itself might be the limiting factor - most of the ones I've looked at
quote peak signal rates in their data sheet far below 150kHz (it's
usually closer to 20kHz to 30kHz).
AEDR-8300
The AEDR-8300 is a reflective optical sensor. It has an LED emitter
that shines a narrow light beam towards the scale, and a pair of
photoreceptors that capture the light reflected back from the scale.
The photoreceptors use the usual quadrature arrangement where they're
slightly offset from one another.
The AEDR-8300 product line has parts available with different bar
spacings. The particular sensor we use has 75 line-per-inch bars,
meaning that each black/white pair is 1/75" wide. The nature of
quadrature sensing means that we can tell our position to within 1/4
of a line pair, so we effectively get 1/300" resolution.
At peak speeds, the 75 LPI spacing results in quadrature pulses from
the sensor about every 19µs. That's safely above the
6.5µs interrupt response time I've measured on the KL25Z. Note
that the finer-pitched sensors in the AEDR-8300 line would likely
overwhelm the KL25Z, and probably wouldn't be able to keep up with the
peak plunger speeds anyway, as these sensors have their own maximum
signal rates that are below the KL25Z's limit. But that's okay, since
the 75 LPI spacing gives us such high precision that we really have
no need for a finer pitch.
Linear image sensors
The first Pinscape plunger sensor was based on a linear image sensor,
the TSL1410R (and the similar TSL1412S). These sensors are no longer
available. The TCD1103 works on a similar principle, but it requires
a focusing lens, which makes it more complex to set up.
The principal of operation of these sensors is pretty simple. The
sensor consisted of a single row of light sensor pixels about the same
length as the plunger travel distance. We arranged the sensor so that
the row of pixels ran along the axis of the plunger travel, and placed
it directly adjacent to the plunger, with the pixels facing the
plunger. We put a light source on the opposite side of the plunger,
facing the pixels. This caused the plunger to cast a shadow on the
pixel array. We'd then read the pixel array and find the location of
the shadow, by looking for an edge between a light area and a dark
area in the image. The edge tells us where the plunger is currently
positioned.
In principle, a sensor of this type could achieve spatial resolution
equal to its pixel size. In practice, though, the shadow cast by the
plunger isn't perfectly sharp. Shadows always have a little fuzzy
area when the light source isn't a perfect point source, because the
light source is only partially blocked at the leading edge of the
shadow. So we can't tell exactly where the plunger was; we have to
guess based on the midpoint of the shadow. The best possible
resolution in my setup is about 1/50". That's a bit below the ideal
needed for pixel-level resolution on the TV display, so there's a
little bit of jitter (by a pixel or two) as the guess about the shadow
position would vary from frame to frame.
The TCD1103 can perform much closer to its theoretical pixel limit
thanks to the requirement for focusing optics.
The Pinscape software uses a simple edge-detection algorithm with
these sensors, where it looks for a region with a rapid transition
from a run of bright pixels to a run of dark pixels. This algorithm
inherently compensates to some extent for exposure levels, since it
works based on the difference in brightness across pixels rather than
looking for absolute brightness levels.
TSL1410R/TSL1412S
The TSL1410R happened to be perfectly designed for this application.
Its pixel row was 3" long, with 1280 pixels across the file. That's
400 pixels per inch.
The TSL1412S was almost exactly the same, with the only difference
being a slightly longer sensor window and a correspondingly larger
number of pixels (1536). The pixel spacing was the same on both
sensors, and they were identical in their electronic interface.
These sensors work by using photoreceptors to charge capacitors. The
electronic interface lets the host microcontroller connect the
individual integrating capacitors to an analog output port, one at a
time through a shift register. The capacitor charge is an analog
voltage level, so we use the KL25Z's ADC to sample each pixel's charge
level and convert it to to a digital reading.
The KL25Z has the capability to control the ADC through its DMA
(direct memory access) controller, which was key to making the image
capture fast enough to work as a plunger sensor. The DMA runs
concurrently with the CPU, so the firmware was able to start the DMA
reading process and then return to other work while the pixels were
clocked into memory by the DMA controller. This allowed a full
reading to be taken in about 2.5ms, or 400 frames per second, which is
fast enough to keep up with the peak plunger release speed.
TCD1103
This is a tiny CCD sensor made by Toshiba, with 1500 pixels arranged
in a single linear file. It works using the same edge detection
algorithm as the TSL1410R/TSL1412S, but its pixel window is only about
8mm long, so it requires a lens to focus a reduced image of the
plunger on the sensor. If the lens is properly aimed and focused,
this sensor can resolve the edge at the end of the plunger to a single
pixel, so it achieves spatial resolution of nearly its full 1500
pixels across the 80mm travel range of the plunger, which translates
to about 1/400" resolution.
The electronic interface to this sensor is similar to that of the
TSL141x sensors. Like those sensors, the TCD1103 has an electronic
shutter function that moves the pixel charges onto capacitors, which
the microcontroller reads out by sampling an analog voltage output one
pixel at a time. With DMA transfer, the KL25Z can transfer the pixel
file in about 3ms.
Distance and proximity sensors
The original commercial plunger kits (e.g., the Nanotech Mot-ION
controller, and the various generations of the VirtuaPin plunger kits)
and all used IR-based proximity sensors. IR proximity sensors work by
emitting an IR light signal and sensing the brightness of the
reflection from a nearby object via a photoreceptor.
Technically, proximity sensors are only meant to detect
proximity - a yes/no question, "is an object is within range of
the sensor?" However, most of these sensors don't answer the yes/no
question directly, but rather just give you their raw analog
brightness reading, leaving it up to the application to interpret that
by comparing it to a calibrated threshold. The commercial plunger
kits don't just treat the brightness as a binary value above or below
a threshold, however. They instead interpret it as a continuous
quantity that correlates to the distance to the target (which, in this
case, is the end of the plunger rod). At a basic physics level, the
brightness of a light source (or of a reflection) varies inversely
with the distance to the source, so by applying some math to the
brightness reading, we can infer the distance.
Proximity sensors as a class aren't meant to be used this way, though.
Their brightness sensors aren't designed to be fine measurement
instruments, and attempting to interpret the brightness reading as a
proxy for distance doesn't always yield very good results. The
relationship between reflected brightness and distance is inherently
non-linear at the physics level, even with an idealized theoretical
model. It's worse in a practical setup, since the sensor is subjected
to interference from stray light, reflections from other surfaces
besides the target, variations due to ambient temperature, and
electronic noise. The early commercial plungers, which were based on
Sharp analog IR proximity sensors, could only achieve a spatial
resolution about 1/2".
A newer IR proximity sensor chip, Vishay's VCNL4010, performs quite a
lot better. This chip has its own on-board ADC for the brightness
signal (the older Sharp chips produced an analog voltage that had to
be sampled externally, on the microcontroller), which seems to make
for much higher resolutions. This is reportedly the sensor used in
the VirtuaPin v3 plunger kit, so I recently (May 2021) added support
for it to the Pinscape firmware, to help out some VirtuaPin customers
who had requested it because they switched to the Pinscape firmware on
their controller boards. This sensor is actually pretty good: in my
testing, it reliably resolved distances to less than 1mm over most of
its range. (It gets coarser at the "far" end where the plunger is
farthest away from the sensor; this region is the most challenging for
the sensor because very little light is reflected back at that
distance.) That's not as good as some of the other sensors
(potentiometer, quadrature, linear imaging), but it's good enough to
be usable. The tricky part of this sensor is that its response curve
(the relationship between measured brightness and object distance) is
a little bit erratic. But it's close enough to a power law
relationship that the distance conversions come out looking plausibly
linear, if you don't look too closely.
There's a related but different type of sensor that uses reflected IR
light to actually measure distance - by design, not just incidentally.
These are called "time-of-flight" sensors, because they measure
distance by timing the round-trip time for light pulses to be returned
from the target, instead of just measuring the brightness of the
reflection. In principle, this should yield much more precise
distance measurements, because the time measurement isn't affected by
the reflectivity of the target, which is obviously a huge factor for
the brightness sensors. In addition, the underlying physical quantity
being measured - round-trip travel time of the IR photons - has an
inherently linear relationship with the distance, so the conversion
from measured quantity to distance is straightforward and doesn't lose
precision or magnify uncertainties, the way that the inverse power-law
relationship does for brightness-to-distance conversions.
The Pinscape software supports the current best-of-breed sensor in the
time-of-flight class (as far as I've found), the VL6180X.
Unfortunately, in my testing, this sensor is inferior to the VCNL4010,
despite the more sophisticated technology. The VL6180X has a nominal
resolution of 1mm (1/25"), which I'd consider just barely usable.
Unfortunately, that's only the nominal resolution; the actual accuracy
in my measurements is more like 5mm to 10mm. That's too coarse to be
usable, in my view; it gives you some semblance of plunger operation,
but isn't good enough for smooth animation, and definitely isn't good
enough for skill shots. The sensor is also too slow; it takes it at
least 14ms to produce a sample, in its fastest and least accurate
averaging mode.
I'm planning to keep an eye out for new time-of-flight sensors coming
onto the market, since this seems like a promising design approach
that could eventually yield high-precision non-contact distance
sensors. But right now there doesn't seem to be a production chip
available that performs well enough for our purposes. By the same
token, given that the VCNL4010 is already passably good, it would be
worth monitoring developments in that product line; it wouldn't take a
huge amount of improvement for that type of sensor to become a top
choice.
Bar code absolution position sensing
This is an experimental approach that I've been looking at but haven't
yet made work well enough. The idea is to do absolute position
sensing using an optical Gray code and a suitable small image sensor.
We create an optical scale with a Gray code printed on it with a
unique code in each position across the 3" plunger travel range, then
we use an optical sensor to reach the code at the current position.
We translate the bar code by looking it up in a table to get the
absolute position.
The principle here is simple, and a suitable sensor is available:
TSL1401CL. As you might guess from the name, this sensor comes from
the same series as the late, great TSL1410R that we mentioned earlier,
but it has a much smaller window - only about 128 pixels over 1cm.
That makes it unsuitable for the straightforward "shadow edge" method
we used with the larger sensor. But 128 pixels is more than enough to
read a bar code. With 128 pixels to work with, we could easily come
up with a bar code that could represent perhaps 20 bits. That would
be much more than we need; just 10 bits would be enough to encode 1000
unique positions along a scale. If we spread 1000 codes over 3",
we'd be able to resolve about 300 positions per inch. That's at the
high end of the resolution requirements we laid out earlier.
This all works nicely in principle, and the Pinscape firmware already
has support for a form of this, since I've done some experiments with
it. The challenge is making the optics work. I haven't been able to
find a way to get a sharp enough image of the bar code to read it
reliably at the required resolution. So the open area of research is
how to arrange a lens or other optics to get a good enough image on
the sensor.
If I can get this working, I think it would make a really great sensor
option. It should have the excellent spatial resolution and
sample-to-sample stability of the quadrature sensors, plus the
absolute position sensing of all of the other types, which would be
a powerful combination.
Rotary absolute position sensing
Absolute sensing like that described above is available in commercial
position sensors that do rotary position sensing - that is,
they measure the turn angle of a shaft, rather than a linear offset.
There are some magnetic rotary absolute sensors available with very
high angular resolutions.
The trick is to translate the linear motion of the plunger into a
rotational angle.
One possibility is a lever between the plunger and rotating shaft. A
lever connects to a shaft at one end and to the plunger at the other
end; moving the plunger rotates the shaft through the lever. One
complication is that the distance between the shaft and plunger would
vary over the plunger's range of motion, so a sliding connector at one
end would be required. The other complication is that the rotational
angle wouldn't vary linearly with the plunger's position - it would be
sinusoidal. The sine curve approaches closer to linearity the longer
you make the lever, so one solution could be to make a very long
lever. On the other hand, that would require a very high-res sensor,
since you'd only be using a small fraction of its angular range. A
better solution might be to use calibration in the software to figure
out where you are on the sine curve, and translate mathematically from
the sine curve to the linear position. That's easy in principle, but
it seems challenging to make the mechanics of the calibration
user-friendly.
Another possibility is to translate the linear motion to angular motion
through a belt that wraps around a pair of wheels. The belt moves
with the plunger, and as it moves, it turns the wheels. The angular
sensor is connected to the axle of one of the wheels. This would
yield a very straightforward linear relationship between position and
angle, so it wouldn't have any of the calibration problems of the
lever approach. This seems like a pretty straightforward mechanism,
but I haven't tried to realize it physically yet. I think the main
challenge would be ensuring a solid connection between the plunger,
belt, and wheels, so that the plunger motion directly translates to
wheel motion without any play or hysteresis. Any mechanical play
in the system would manifest as loss of precision in the readings,
so this would all have to be very solidly connected.
If the mechanics could be worked out, selecting a suitable absolute
rotary encoder and connecting to the software should be relatively
simple. There are a number of high-res magnetic encoders available
with 12-bit or higher resolution, which means 4096 counts per turn.
With the wheel arrangement describe above and 1" diameter wheels, the
3" of plunger motion would turn into almost one full turn, so we'd get
perhaps 75% of the range of the sensor. That means we could achieve
as many as 1000 counts on the sensor per inch, or 1/1000" linear
resolution. That would be far higher than any of the other sensors.
Interfacing one of these sensors to the software should be pretty
easy, as the newer ones use modern microcontroller-friendly interfaces
like SPI or I2C.
Appendix 4. Tables with MagnaSave Buttons
Most virtual cab builders include a second set of flipper buttons,
located just behind (or sometimes below) the regular flipper buttons.
Virtual pinball people usually call these the "MagnaSave" buttons,
named after the trademarked ball-save feature that Williams used in a
series of machines in the 1980s. The extra buttons on those machines
activated magnets under the playfield that could catch the ball when
it was about to enter one of the side drains.
Examples of extra flipper-type button positioning on real
tables. Clockwise from top right: Black Knight
(Williams, 1981), Special Force (Bally, 1986),
Nip It (Bally, 1972), Jolly Park
(Spinball, 1996). The in-line horizontal placement
used in Black Knight is the most common, and most
people think of it as the standard because Williams used it
on all of their later machines, but some people find the
extra buttons easier to reach with the vertical or diagonal
arrangements. Note that all of
the machines pictured here use the older, wider style of side
rails that required cut-outs for the flipper buttons. The
newer WPC-style side rails are much narrower and don't overlap
the flipper button area, so you won't have to cut any holes
if you're using modern parts to build your cab.
When I was building my cab, I was torn between, on the one hand,
wanting to include the extra buttons for the sake of playability for
those tables that need them, and on the other hand, wanting a more
authentic look to the machine. The extra buttons aren't at all common
on the real machines built in the 1990s, or indeed those built in any
era, so I was leery about the aesthetic impact of including them.
Some virtual cabs I've seen go so overboard with extra buttons that
they look more like video games or slot machines than pinballs, and I
didn't want to go too far down that road.
To help decide, I figured I should get a better idea of how many games
would actually be affected if I didn't include the buttons. I knew
there were a few MagnaSave titles from the 1980s, but I didn't know
the exact number, and I didn't know if there were any other machines
over the years that had similar buttons for other features. So I
started digging through
IPDB and
asking around on the forums.
The results surprised me. A little IPDB research reveals that the
actual MagnaSave games amount to a rather modest seven titles. That
much was in line with my expectations. What I didn't realize was how
many other games were out there with other extra-button features
besides MagnaSave. It turns out that dozens of real machines over
several decades had extra flipper-like buttons. We really should stop
calling them MagnaSave buttons, since the actual MagnaSave machines
are only a small minority of games with similar buttons. But I have
to admit that I don't have any better ideas for a name; "extra side
buttons" just isn't as catchy.
The other thing I learned was that a rather large number of Visual
Pinball tables rely on the nominal MagnaSave buttons to substitute for
other, unusual types of special controls that were used in the
original tables they're re-creating. I didn't realize before how many
pinball machines have their own unique extra controls. This really
shouldn't have surprised me, since pinball designers always want to
make their games stand out from the crowd, and novel interactive
controls are a good way to do that. But if the whole point of these
extra controls is to be unique, they present a problem to the virtual
cab builder, which is that we can't possibly include physical
replicas of all of the novel controls from hundreds of different
machines in a single virtual cab. There's just not room. And so,
Visual Pinball table authors have adopted the convention that the
MagnaSave buttons should serve as stand-ins when a table has unique
controls beyond the standard flipper, Start, and launch buttons.
This is another point in favor of including MagnaSave buttons
on your virtual cab.
The results of my survey are presented in the list below. In the
course of compiling this, it became apparent that there are two
separate categories of MagnaSave usage that are important to virtual
pin cab people, so the list is divided accordingly:
- Originals are tables where the original arcade version
featured extra flipper buttons on the side of the cabinet. For these
tables, the MagnaSave buttons on your virtual cab will serve as
accurate replicas of the extra side buttons on the real arcade game,
providing very much the same playing experience.
- Virtuals are tables that didn't have MagnaSave-style buttons
in the original arcade versions, but that do have some other
kind of extra controls - extra buttons located somewhere other than
alongside the flipper buttons, or some entirely different kind of
control, such as a lever or knob. Visual Pinball can't assume that you have anything
like those other controls on your pin cab, but it does assume
that you have MagnaSave buttons, so Visual Pinball table authors
have adopted the custom of using the MagnaSave buttons as
substitutes for special controls. That changes the playing
experience, but it at least makes it possible to fully play the game.
For my own build, this list settled the question for me, easily in
favor of including the extra buttons. As you can see, a lot of games
take advantage of them. But there's no reason you have to come to the
same conclusion; you might read through the list and conclude that
you're just not interested in enough of the titles that use the extra
buttons. That's why I thought it was useful to present a list of
specific titles, to make it more concrete than just a vague claim
that there are lots of such games.
Originals |
Game | Flipper button color | Extra button color | Function |
Black Knight | White | Red | MagnaSave |
Black Knight 2000 | Red | White - right side only | MagnaSave |
Blackwater 100 | White | Red | Buttons move flashing selection and lower start gate |
BMX | White | White | Flex-Save |
Bone Busters Inc. | Red | Green, right side only | Controls extra flipper on upper ramp |
Defender | Navy | Red | left is "Reverse" (left lane kickback), right is "Smart Bomb" (scoring feature) |
Devil's Dare | Red | Green, left side only | Ball save (manually activated outlane kickback) |
Dungeons & Dragons | White | White (varies: also pictured on ipdb as navy or red) | Flex-Save |
Fireball II | Red | White, right side only | Raises center post between flippers |
Freedy: a Nightmare on Elm Street | Red | Red, right side only | Raises center post between flippers |
Grand Lizard | Red | Red | MagnaSave |
Harley-Davidson (1999) | Red | Red, right side only | Raises center post between flippers |
Hardbody | White | White | Flex-save |
Haunted House | Red | Red | Secondary flipper buttons |
Heavy Metal Meltdown | Unknown | Unknown | Lane change |
Johnny Mnemonic | Red | Blue | Control magnetic data glove |
Jolly Park | Red | Red | Mini-playfield magnetic diverters |
Judge Dredd | Yellow | Red (large square button rotated 45 degrees) | Mode selection |
Jungle Lord | Yellow | Red | MagnaSave |
Medusa | Red | Red, right side only | Raises "Shield of the Gods" center post between flippers |
Nip It | White | White, right side only | Activates "balligator" (diverts ball to special scoring lane) |
Party Animal | White | White | Left button changes P-I-G lights, right changes O-U-T lights; scroll through high scores in attract mode |
Pharaoh | White | Red | MagnaSave |
Revenge From Mars | Red | Red (Pinball 2000-style combination button) | Mode selection, aligns crosshairs in attack mode |
Rocky | Red | Green, left side only | "Instant Win" (scoring feature) |
The Rolling Stones LE (Stern) | White | Red, right side only | Activates pop-up outlane blockers |
The Shadow | Red | Blue | Control ramp diverters ("phurbas") |
Sharkey's Shootout | Red | White | Raise ball-saving posts in outlanes, and between flippers when pressed simultaneously |
The Simpsons Pinball Party | Red | White, left side only | Unknown |
Solar Fire | White | Red | MagnaSave |
Special Force | White | Orange | Rocket buttons |
Speakeasy | Red | Unknown, left side only | "Sacrifice" scoring feature (cancels cards collected out of sequence at cost of 25000-point score penalty) |
Spirit | Red | Green | Outlane ball-save flippers |
Star Light | Navy | Blue, right side only | Lane change |
Starship Troopers | Red | Red, right side only | Controls small secondary flipper |
Star Wars Episode I | Red | Red (Pinball 2000-style combination button) | Mode selection |
Strange Science | White | Blue | Manually controlled outlane kickback |
Striker | Red | Green | Side-to-side passes (scoring feature) |
Viper | White | Red | Buttons control turret in center of playfield when ball enters it (left button reverses direction of rotation, right fires ball) |
Volcano | Red | Green | Left controls manual outlane kickback; right controls shooter guide |
World Cup Soccer | Yellow | Red, left side only | MagnaSave |
Virtuals |
Table | Flipper button color | Extra button color | Function | Original control style |
AC/DC (Stern) | Yellow | White | "Fire" | Stern-style lockbar button |
Apollo 13 | Red | Yellow | Ball launch | Rotating handle in place of plunger |
Austin Powers | Red | Red | "Fire" | Medium circular red "fire" button left of center on top of lockbar |
Baby Pacman | Red | Red | Joystick up/down on flippers, left/right on MS | Video game style console with joystick |
Black Rose | Red | Red | "Fire" | Rectangular button on lockbar |
Caveman | Red | Red | Joystick up/down on flippers, left/right on MS | Joystick on top of triple-deep lockbar |
Demolition Man | Red | Red | Launch balls & move crane | Joystick type buttons on handles sticking up from sides of cab |
The Getaway: High Speed 2 | Red | Yellow left, Green right | Gear shifters | Up/down shift lever in place of plunger |
Granny and the Gators | Blue | Green | | Video game style console with large circular "paddle" left/right buttons and "fire" pushbuttons |
The Hobbit | White | White | "Fire" | Stern-style lockbar button |
Jurassic Park | Yellow | Red | Smart Missile | Gun-like launcher with trigger and large circular red "Smart Missile" thumb button |
Last Action Hero | Red | Yellow | Smart Missile | Gun-like launcher with trigger; large square yellow "Smart Missile" button on front of cab just above gun |
Mac Attack (Mr. Game 1990) | Red | Red | Unknown, possibly used in video mode | Handles on either side of cabinet with red buttons on top |
Mustang LE (Stern) | Blue | White | Fire? | Stern-style lockbar button |
Odisea Paris-Dakar (Peyper) | Red | Black | "El Movimento" | Knobs on side of cabinet near flipper buttons |
Riverboat Gambler | White | Red, Navy | Place bets on roulette game with flippers+MS | Four rectangular buttons on top of lockbar |
Sir Lancelot (Peyper) | Red | Black | "El Movimento" | Knobs on side of cabinet near flipper buttons |
Star Trek (Stern 2013) | White | White | "Fire & Select / Punch It!" | Stern-style lockbar button |
Star Wars (Data East) | Red | Orange | Fire, Shift | "Shift" handle (pulls up) in place of plunger, with Fire thumb button on left side |
World Cup '90 (Mr. Game 1990) | Red | Red | Unknown, possibly used in video mode | Handles on either side of cabinet with red buttons on top |
Wolf Man (Peyper) | Red | Black | "El Movimento" | Knobs on side of cabinet near flipper buttons |
Notes on the special controls
Stern-style lockbar button: Many of the Stern titles from the mid "aughts"
(around 2005) to present feature an extra button on the top of the lockbar that
activates special features at certain points during the game. We usually call
it the "Fire!" button because that's how it's labeled on several of the titles.
It's so ubiquitous on newer Stern games that I think it's on the verge of joining the
set of standard controls you expect to find on a virtual cab, but so far
it's not common.
For more, see the notes on the
Chapter 34, Fire! button
in
Chapter 34, Cabinet Buttons.
"El Movimento": A few games from Peyper (a Spanish manufacturer) had a
feature known as "El Movimento", which used knobs next to the flipper
buttons that moved the playfield. The VP re-creations of these tables
approximate this by mapping the MagnaSave buttons to a special
non-tilting nudge function.
Appendix 5. DOF Config Tool Device Descriptions
When you set up your cabinet with DOF, you'll want to use the
DOF config tool to map out the
physical devices in your cab. This lets the Visual Pinball
table scripts know how your physical devices relate to the
events in the game.
The Config Tool lets you make these assignments by telling it the type
of device attached to each output controller port. The tool has a
pre-defined set of standard types, so you just choose the matching
type for each device. These are all in terms of pinball abstractions,
because that's how DOF knows to connect them to events in the game.
Most of these pinball device types are self-explanatory, but some of
them are obscure, and some use virtual pin cab jargon that might not
make sense even if you're a long-time pinball fan. To help clear up
the confusing parts, below you'll find a list of all of the device
names that appear in the Config Tool, along with explanations of what
they mean and how they're usually implemented in a virtual cab.
Start Button: The lamp inside the Start button on your cab's
front panel. On most games, this either stays lit the entire time, or
lights up or flashes when there are coin credits available to start a
new game. See
Chapter 55, Button Lamps.
Launch Button and
Authentic Launch Ball: Both of
these options are for the lamp inside your Launch Ball button,
if you have one. They're both meant to be used with the same
button light, but they behave slightly differently. You get to
choose the one whose behavior you prefer. See
Chapter 55, Button Lamps.
The difference between the two options is pretty subtle:
- The regular "Launch Button" setting turns on the button lamp in most
games whenever a ball is in the plunger chute.
- The "Authentic Launch Ball" setting only turns on the button lamp
when you're playing a machine that originally had a Launch
button in place of a plunger. On those machines, it reproduces the
original behavior of the Launch button light on the real machine.
When you're playing a game that had a plunger in the original arcade
version, this setting generally leaves the Launch button light off.
For example, suppose you load Earthshaker into Visual Pinball.
The real Earthshaker has a plunger, not a Launch button, so
the "Authentic Launch Ball" light will stay off the whole time you're
playing this table. Now suppose you load Medieval Madness into
VP. Real MM machines have a Launch button instead of a
plunger. In this case, "Authentic Launch Ball" will control the
lamp using the same pattern it would on a real MM
machine. In contrast, the regular "Launch Button" setting would
turn the light on in either game whenever a ball is in the plunger chute.
The Config Tool offers both options for the sake of flexibility, to
let you customize it according to your tastes. If you want the button
to light up for most games, even games that originally had plungers,
choose Launch Button. If you want the button to faithfully simulate
the way the real machines work, choose Authentic Launch Ball.
My advice is to choose according to whether or not you have a plunger
in addition to the Launch button:
- If your cabinet only has a Launch Ball button, and no
plunger, choose Launch Button. Since you don't have a plunger,
you'll be using your Launch button in every game, so it's nicer
to have it light up most of the time.
- If your cabinet has both a plunger and a Launch button,
use Authentic Launch Ball. That's better if you have both controls,
because it will make your cabinet give more prominence to whichever
control is appropriate for the game you're playing at any given time.
When you're playing a plunger table, the Launch button will stay
dark and discretely step into the background. When you're playing
a plunger-less table, the Launch button will light up whenever
a ball is ready, inviting the player's attention.
- If your cabinet only has a plunger and no Launch button, there's
nothing to choose, so this whole question is moot!
ZB Launch Ball: This is an unusual output in that it's a
"virtual" output only. You can ignore this for now, because it's
not intended to be connected to a physical feedback device; it's
related to the plunger setup instead. If you're curious, you
can read about it in
Chapter 109, ZB Launch Ball.
Fire Button: The lamp inside the Fire button, which is
an extra button on top of the lockbar on some real machines. This
is common on newer Stern machines, but various machines through the
years have featured similar extra controls. It's uncommon on virtual
cabinets, but some people include it for completeness. This light
turns on in some games during special modes where the button
becomes active. See
Chapter 55, Button Lamps.
Extra Ball: The lamp inside the Extra Ball light. Many real
machines from the 1990s had an "Extra Ball" or "Buy-In" button on
the front panel, usually situated below the Start button or below
the plunger. This let players buy an extra ball for a credit after
the last ball drained. This lamp turns on in most games that had
these buttons when the extra ball buy-in offer is available.
See
Chapter 55, Button Lamps.
10 Bumpers and
8 Bumpers: These are tactile feedback
devices that simulate the mechanical kick of a pop bumper on a real
machine. Virtual cab builders use a variety of devices to simulate
these, including "contactors" (a type of electronic relay), automotive
starter solenoids, open-frame solenoids, or even real pinball bumper
coils. Most virtual cab builders set up an array of these devices
spread across the middle and back of the playfield area so that the
sound effects are properly positioned in space.
See
Chapter 59, Flippers, Bumpers, and Slingshots.
The names "10 Bumper" and "8 Bumper" are a little misleading. A "10
Bumper" setup actually has 6 bumper devices, and an "8 Bumper" setup
really has 4 bumpers. It would be clearer if the names were
something like "10 Solenoid" and "8 Solenoid", because the "10" and
"8" don't count just the bumpers, but rather all of the
solenoid-type devices in your whole system, including two for the
slingshots and two for the flippers. So if you have two flippers, two
slingshots, and four bumpers, you have an "8 Bumper" setup. If you
have two flippers, two slingshots, and six bumpers, you have the "10
Bumper" setup.
Here's the typical "10 Bumper" device placement:
"10-Bumper" placement. The actual "bumper" simulators are
the six devices across the middle and back playfield area.
The two devices at the front are the flipper simulators,
and the two just behind those are the slingshots.
If you're using ten of these solenoid-type devices overall, and you've
arranged them roughly like this, you'd assign six of your ports as "10
Bumper" devices. The one at the back left corner is "10 Bumper Back
Left", the rear center one is "10 Bumper Back Center", and so on for
the others.
If you're building a smaller cabinet, or you just want to keep things
a little simpler, the "8 Bumper" arrangement is almost the same, but
only uses one device in the back row:
"8-Bumper" placement. The actual "bumper" simulators are
the four devices across the middle and back playfield area.
The flipper and slingshot devices are the same as in the
"10-Bumper" layout.
Slingshot Left and
Slingshot Right: The solenoid-type
devices that simulate the mechanical kick of the slingshots on a
real machine. The slingshots on a real machine are the kickers in
the rubber-band triangles just above the flippers on most pinball
tables. On a virtual cab, these are usually simulated by a pair
of solenoid-type devices (the same types of devices used to
simulate the bumpers - see above), usually placed near the front
of the playfield TV on or near the left and right walls of the
cabinet.
See
Chapter 59, Flippers, Bumpers, and Slingshots.
Flipper Left and
Flipper Right: The solenoid-type
devices that simulate the mechanical kick of the flippers. These
are usually placed near the front of the playfield, set in slightly
from the cabinet walls, to simulate the usual placement of
flippers on real machines.
See
Chapter 59, Flippers, Bumpers, and Slingshots.
Knocker: A solenoid device that reproduces the replay
knocker in a real cabinet. Many virtual cabs simply use actual
pinball knockers for these. They're usually placed in the backbox,
near the top left corner.
See
Chapter 60, Replay Knockers.
Shaker: A shaker motor. This is a motor place inside the
cabinet, with an off-balance weight attached to its shaft. When
activated, it makes the cabinet vibrate, creating a mini-earthquake
effect. Placement of the motor isn't critical, since the point is
to make the whole cabinet shake, but it's usually fastened to the
floor of the cabinet around the middle section.
See
Chapter 61, Shaker motors.
Gear: A gear motor, which is just what it sounds like: a small
motor with gears attached to the shaft, placed somewhere inside the
cabinet. The function in a virtual cabinet is purely as a sound
effect device, to mimic of the sound of the small motors that are
frequently used in real machines to animate playfield elements (think
of the Thing hand coming out of its box in
The Addams Family,
the rotating trunk in
Theatre of Magic, or the drawbridge in
Medieval Madness). These are usually placed around the
middle playfield, slighly rear of center, to allow for a reasonable
approximation of a range of devices in real games.
See
Chapter 62, Gear motors.
Beacon: A rotating, lighted, police-car type beacon, usually
placed on top of the backbox. This is a common backbox topper found
on many real machines, and it's a favorite for virtual cab builders
because it adds to the light show.
See
Chapter 57, Beacons.
Fan: A fan that blows air at the player when activated. A
handful of real machines had these, notably
Whirlwind, which
had a 4" fan on top of the backbox that turned on during multiball
and other game events. Virtual cab builders who include fans usually
put them on top of the backbox, à la
Whirlwind, but
some people put them in other places, such hiding them behind
vents in the coin door.
See
Chapter 63, Fans.
>
Strobe: A bright white light, usually placed at the back of the
main cabinet or on top of the backbox. Cab builders usually implement
these using LED floodlights meant for use on pickup truck light bars.
The strobe is essentially a virtual pinball community invention that
doesn't correspond to any common feature from real machines, although
a few real machines had something vaguely similar (notably
Flash).
See
Chapter 56, Flashers and Strobes.
5 Flashers: The "5 Flashers" are a set of five separate bright
lights, usually implemented with high-power, full-color "RGB" LED
lamps. In real pinball machines, "flashers" were high-intensity lamps
placed around the playfield in various spots to create dramatic
lighting effects. Most pinballs from the mid 1980s had five or six of
these placed strategically around the playfield, usually enclosed in
colored plastic domes. Virtual cab builders can't easily place these
around the playfield, since our playfields are actually TVs, so we
usually position at the back of the main cabinet, or sometimes on top
of the backbox. And we usually arrange them in a simple row of 3 or 5
evenly spaced lights.
Typical "5 Flashers" arrangement: five
flasher domes in a row across the back wall of the cabinet
above the playfield TV.
The Config Tool's "5 Flashers" devices are designed for cabinets that
have a row of five of these lights. The Config Tool assumes that
your flashers are arranged in a single horizontal row, so it gives
you entries for the Outside Left, Left (which really means "Inside
Left"), Center, Right (really "Inside Right"), and Outside Right
positions.
The flashers are usually RGB devices, meaning that each one is
actually made up of three separate LEDs - one Red, one Green, and one
Blue. These three color LEDs have to be wired individually so that
they can be controlled separate. That means that a single flasher
actually acts like three separate devices on your output controller.
You have to run three separate wires to three separate port connectors
on your controller. For five flashers, you have to assign 15 ports.
The Config Tool knows all about RGB devices, but it imposes a special
rule for them: the Red, Green, and Blue ports for each device
must be consecutively numbered, and they must be in this
order: Red, Green, Blue. For example, let's consider the Outside Left
flasher. If you connect its Red LED to port 15 on your controller,
then you have to connect its Green LED to port 16, and its Blue LED to
port 17. The Config Tool doesn't give you any other way to group the
color connections, so be sure to arrange your wiring in that order for
each flasher device.
Once you've set up your port wiring in the correct Red-Green-Blue
order, the Config Tool makes it really easy to set up an RGB device.
You simply go to the port number where the Red LED of the group is
connected, and you select, say, "5 Flasher Outside Left". This
automatically assigns the whole group of three ports to the
corresponding color channels for the same device. So even though
you have to wire 15 physical channels to your 5 flashers, you only
have to make five port assignments in the Config Tool - one for
the Red channel for each flasher. The Green and Blue channels
for each flasher will be automatically assigned to the adjacent
channels.
3 Flashers: If you're building a mini-cabinet, you might
only have room for a row of three flasher lights. Choose the
"3 Flashers" devices if you're using this configuration. Assign
one set of RGB channels to each of your left, center, and right
LEDs. As with the "5 Flashers", the DOF Config Tool requires these
to be RGB devices, so you have to assign a block of three color
channels (Red, Green, Blue) to each of the three flashers.
See
Chapter 56, Flashers and Strobes.
RGB Flippers: These are for miniature RGB LEDs inside
the flipper buttons, to illuminate the buttons from within. The
Config Tool assumes that you've wired your left and right flipper
buttons together to the same output controller ports, so you just
have to assign one set of outputs for these. As with the "5 Flashers",
these are required to be RGB outputs, so a set of three consecutive
ports is required, and they must be wired in Red, Green, Blue order.
See
Chapter 55, Button Lamps.
RGB Left Magnasave and
RGB Right Magnasave: These are
for miniature RGB LEDs inside your left and right MagnaSave buttons,
which are the second set of flipper-like buttons found on some
real machines and many virtual cabs. Like the flipper buttons,
these can be illuminated from within with RGB LEDs. Unlike the
flipper buttons, DOF provides separate Left and Right channel
assignments for these. The reason is that some real machines
had asymmetrical MagnaSave buttons (such as only including a left
or right button, or using different colored buttons on the two
sides), so it's desirable to be able to control the two sides
separately to replicate these asymmetries. As with the flipper
button lights, these are required to be RGB devices, so you have
to wire each Magnasave light to a block of three output controller
ports, and arrange them in Red, Green, Blue order.
See
Chapter 55, Button Lamps.
RGB Undercab Smart and
RGB Undercab Complex: These are
for RGB light strips mounted on the underside of your cabinet, and
sometimes the back of the backbox, to create a glowing pool of light
around the machine. This is another case where there are two options
for the same physical device type, to let you choose which type of
programming you prefer. The "Smart" version generally uses a single,
fixed lighting color for each game. The "Complex" version changes the
colors in some games sync with game events, creating more of a light
show. Some people prefer the light show effect, while others find it
to be too distracting.
See
Chapter 58, Undercab Lighting.
"MX" devices: There are a bunch of entries in the list ending
in "MX": PF Left Flashers MX, LF Left Effects MX, etc. You can ignore
these when you're setting up your main feedback devices, because
they're only for "addressable light strips", a special type of device
that requires its own dedicated controller.
See
Chapter 65, Addressable Light Strips.
Coin: This is for the lamp inside your Coin button, if you have
a separate button for this. A Coin button isn't something you'd find
on real machines; it's a button that some virtual cab builders add so
that they can easily simulate inserting a quarter. If you're using a
standard door with coin slots, you could use the Coin output to
control the lamps in the coin slots, but there's no reason to do this
for the sake of authenticity: the coin chute lights on the real
machines are simply wired to be permanently on. In any case, the
Config Tool settings for the Coin lamp generally leave the Coin light
turned on any time a table is loaded, so it's not much different from
wiring the lamp to be always on.
See
Chapter 55, Button Lamps.
How to play: This is for the lamp inside another virtual-only
button, this time a "How to play" button. This button is meant to
display a game's instruction card when you're navigating an older menu
system like HyperPin. This kind of extra button was fashionable for a
while in the early days of virtual pinball, but it's more common now
for cab builders to avoid buttons that aren't common on real pinball
machines. And the newer menu systems like PinballX don't need
dedicated buttons like this, since they expose extra features like
this with on-screen menus instead of extra buttons.
See
Chapter 55, Button Lamps.
Genre: This is for yet another virtual-only button lamp, in
this case a "Genre" button that lets you switch categories in older
menu systems like HyperPin. Like the "How to play" button, this
button isn't common on more modern virtual cabs, since the newer menu
systems don't need it.
See
Chapter 55, Button Lamps.
Exit: The button lamp inside the Exit button. "Exit" is the
one virtual-only button that you really can't do without; it stops
the current game and returns to the menu system. You need a special
button for this function because real pinball games simply
don't have a concept of "exiting" to a menu system.
See
Chapter 55, Button Lamps.
Custom Output 1-4: These are extra outputs available for
you to assign to any unique feedback devices in your cabinet that
don't correspond to anything else in the Config Tool lineup. The
standard Config Tool database doesn't do anything at all with these
outputs, but it lets you define your own rules for triggering them
during game play.
Custom RGB 1-2: These are just like Custom Output 1-4
above, but in this case they're for you're custom RGB lighting devices. That
is, devices with color channels for Red, Green, and Blue.
Bell: A large mechanical bell, such as the one on the top of
Fire's backbox, which some games use for dramatic effect.
This type of bell is meant to produce a loud,
deep note like a church bell. See
Chapter 64, Chimes and Bells.
Chime Unit High Tone through
Chime Unit Low Tone:
These are for a traditional chime unit with three chime bars, of
the sort used in many electromechanical pinballs of the 1960s. You
can install a real chime unit (or a replica) for more authentic
re-creations of the sound effects in older games.
See
Chapter 64, Chimes and Bells.
Chime Unit Extra-Low Tone: A fourth chime
bar, if you have a four-bar chime unit like those used in some Bally
machines in the late 1970s. See
Chapter 64, Chimes and Bells.
Chime 5: This is for a fifth chime bar, which (as far as
anyone can tell) is a DOF extension that doesn't correspond to real
chimes in any real machines, but can be used to add extra variety
to EM game play by adding a fifth chime tone. See
Chapter 64, Chimes and Bells.
Shell Bell Small and
Shell Bell Large: These are
for a pair of shell bells, which are similar to chime units but
use circular ringing elements for a different tonal effect. Some
EM machines from the 1960s and 1970s used this instead of chime
bars. See
Chapter 64, Chimes and Bells.
Repeating Bell: A bell that mechanically strikes repeatedly as
long as it's energized, like the bell in an old-fashioned telephone or
in a fire alarm. A few games (
Space Shuttle,
Taxi) use
repeating bells for sound effects during play. See
Chapter 64, Chimes and Bells.
Hellball Motor and Hellball RGB: These outputs are
designed to control a Varytec Hellball, which is a sort of disco party
ball. The Motor output controls motion, the RGB output controls the
spotlight color.
Appendix 6. DOF Event Codes
How does Visual Pinball know which flashers to fire when the ball hits
a target, or when to turn on the shaker motor?
VP doesn't know, really; VP just thinks in terms of events
related to the game, such as a certain target being hit or a certain
simulated lamp on the playfield lighting up. VP passes those events
to DOF, telling DOF, for example, "switch 15 on the playfield was
triggered". DOF is the part where these game-specific events are
converted into feedback device actions in your cabinet, such as a
flasher firing yellow or the shaker motor activating.
But that still doesn't answer the question! It just changes it from
how does VP know? to how does DOF know?
DOF knows because the configuration files tell it so. These are the
.ini files that you download from the
DOF
config tool when you click the "Generate Config" button, and these
files in turn get the information from the gigantic list of cryptic
codes in the Table Configs section of the config tool - the lines
that say things like "L57 m550 Blink fu500 fd550".
Those codes are painstakingly hand-crafted for each individual table,
to create a pleasing set of effects for each game during
play. Thank goodness (or more to the point, thank Arngrim) that
someone (Arngrim) already hand-crafted a good set of codes for
nearly all of the tables in existence, and put them in the DOF Config
Tool's public database for all of us to use. That saves you
the work of going through that whole coding process for the many
dozens of tables you'll eventually want to install on your cab.
If you're happy with the default DOF effects provided by the Config
Tool's database, and you don't want to make any customizations of your
own, then you don't have to know anything about how DOF works apart
from the basics of installing it on your system, which we covered
separately in
Chapter 46, DOF Setup. But if you do want to customize
anything, you'll have to learn what the cryptic DOF codes mean. DOF's
documentation has some of this information, but it's incomplete and
(in my opinion) poorly organized and almost as cryptic as the
codes themselves. So this section is my attempt at a more
approachable and more thorough explanation of what the codes
mean and how to use them.
The actual procedure for customizing tables in the Config Tool is
covered separately, in
Appendix 7, Customizing a table's DOF effects. The present section
covers just the syntax that you enter in the Config Tool to make those
customizations.
Event/Toy/Port associations
Before we get into the event code syntax, it might be helpful to
explain the overall conceptual framework that the Config Tool uses.
The elements of this framework aren't what I'd call intuitive, so I
think it's worth taking a moment to think about the "data model".
The real function of the DOF Config Tool is to tie together two big
collections of data. Each collection is like a "database table" or a
spreadsheet, where you have a list of information organized into rows
and columns. Here are the big things that the Config Tool keeps
track of for you:
- The port assignments. This is where you tell the config tool
which "toy" is attached to which numbered output port on your
output controllers. In DOF speak, a "toy" is a particular feedback
device that carries out some concrete effect, such as the shaker motor
or the left rear bumper solenoid. For example, you might tell
the Port Assignments list that Port 17 on your LedWiz is the shaker
motor.
- The Table Config for each game. This is a big list of the event
codes assigned to each toy. This relates the abstract simulation
events in Visual Pinball to one or more concrete effects on a given
toy, on a game-by-game basis. For example, if you go to the table
config for Funhouse, the Shaker Motor line might have codes
that say "run for five seconds whenever switch 19 is activated".
("Switch 19" is the part that Visual Pinball knows about, and it
represents some action on some game element, such as a particular
target getting hit by the ball.) If you go to the table config
for Earthshaker, the Shaker Motor line will have a whole
different set of triggers appropriate to that game.
The Config Tool's main job is to take those two lists, and combine
them into the even more cryptic format that the DOF .ini files
use. When you click Generate Config, the Config Tool sorts through
all of the elements in those lists to form the hardware assignments
for your machine. It combines "run the shaker motor for five seconds
when switch 19 activates" and "shaker motor is LedWiz port 17" to form
"turn on LedWiz port 17 for five seconds when switch 19 activates".
That's how DOF knows to turn on the shaker motor in your specific
cabinet wiring at the right time in the game.
It's a lot of abstraction to keep track of! But it makes sense when
you consider that everyone's cab is unique, and every pinball table is
unique. It would be terrible if the DOF just assumed that "Port 17"
meant "Shaker Motor", or that "Switch 19" is the "left drop target".
Those numbers might be right on one person's cab and one Visual
Pinball table, but they're certainly not universal. So we really do
need the multiple levels of abstraction. At least we have the Config
Tool to make these connections for us, so that we don't have to put
this all together in the right order by hand.
Toy/event mappings
Since the DOF Config Tool takes care of the details of mapping
everything to your output controller and physical hardware ports, the
only thing we have to worry about when customizing an effect is the event
codes.
Whenever I think about an effect I want out of DOF, my intuition is to
think about it like this: "when this thing happens in the game,
I want this toy to fire". For example, I might say "when the
ball hits the castle, I want the shaker to fire for a couple of
seconds".
To get into the Config Tool's (and DOF's) way of thinking, you have
to turn that around: "The shaker fires for a couple of seconds when
the ball hits the castle."
That might sound like the same thing, and it really is, but the
ordering of the nouns is important. The reason you have to think
about it as "Toy fires when Event happens" is that the entries in
the Table Configs page are all organized that way:
This becomes more apparent when you want to do something like "When I
hit the Extra Ball target, run the shaker motor for two seconds and
flash red on the middle flasher." For that case, you have to turn it
into two commands: "Shaker runs for two seconds when I hit extra ball",
and "Middle flasher flashes red when I hit extra ball". You
have to break it into two pieces like that because you're going to
have to enter the trigger event twice, once under Shaker Motor and
once under Middle Flasher.
Events
Now we come to the part I really wanted to document here, because it's
just not written down anywhere else as far as I can tell: what do
those event codes in the cryptic strings on the right side mean?
There are lots of details to get into, but at a high level, the codes
are all about (a) specifying some physical object in the table that
makes the device activate, and (b) specifying the timing details about
when and for how long it activates.
Let's look at an example, and take it apart to see how it works.
We'll use the shaker motor (the "Shaker" row on the Table Configs
page) for Medieval Madness. Here's the default definition in
the DOF database:
S4 600 I32/S8 300 I32/W37 600 I32/W45 600 I32/W46 600 I32/E102 600 I32
>
The first step in deconstructing this is to split things up at the "/" marks.
Those let us combine independent triggers, to give the shaker motor
more than one triggering game event. So what we really have here is
six separate, independent triggers for the shaker motor:
S4 600 I32
S8 300 I32
W37 600 I32
W45 600 I32
W46 600 I32
E102 600 I32
>
What we mean by "independent" is that all of these triggers are always
in effect, without any interaction with one another. If any one of
the triggers occur, DOF will fire the shaker. They don't interact
with each other in any way, so we can look at each one separately,
as though the others didn't exist.
Within each trigger, the first item is always the triggering event.
Most triggering events are simulated objects in the table, such as:
- A lamp (e.g., an Extra Ball When Lit light) turning on
- A solenoid (e.g., the top bumper or the left slingshot) firing
- A switch (e.g., the rollover switch in the right outlane) closing
DOF represents most of these game objects with one letter codes: S is
for Solenoid, W is for sWitch, L is for Lamp. There's a full list
later in this section. There's also a number after the code indicating
which specific switch/
lamp/whatever we're talking about: S8 in the
first line is Solenoid 8. Figuring out the number that corresponds
to a given solenoid/lamp/whatever in a given game is a whole separate
(and equally cryptic) subject that we'll get into in Appendix 7, Customizing a table's DOF effects.
So the first event, S8 300 I32, means that we fire this
effect when Solenoid 8 in the game turns on. The second one, W37 600 I32,
fires when sWitch 37 closes. And so on.
What does "fire this effect" mean, exactly? To a first approximation,
it just means "turn on this device". For example, if we had a trigger
in here that only said L11 and nothing else, it would
mean "turn on the shaker motor whenever lamp 11 is lit, and keep it on
the whole time it's lit." Most triggers aren't quite that simple,
though. The ones we're looking at for the shaker all have some extra
gibberish at the end, which modifies the simple "turn the device on
when this table object is on" and makes it a little more subtle.
Each of the triggers in this example has the same format:
trigger-object number Inumber. This is a really
common format that you'll see all over the place in the DOF config.
When you see a bare number like that immediately after the trigger
object, it sets the duration for the effect - how long the effect runs.
The value is always in milliseconds. So S8 300 means
"run the shaker motor for 300 milliseconds when Solenoid 8 fires".
This is an important distinction from just S8, which
would mean "run it for exactly as long as Solenoid 8 fires".
There's also a way of setting a minimum and/or maximum duration for
the effect instead of setting an exact time for it. S8 M50
means "run for at least 50 milliseconds, but keep going longer if
Solenoid 8 stays on longer", and S8 MAX300 means "run for as
long as Solenoid 8 stays on, but stop after 300 milliseconds no matter
what". You can combine min and max times, too, as in S8 M50
MAX300. None of the Medieval Madness shaker events
use the min/max limits, but you'll see them in other events.
The final item in all of these definitions is I32. "I" is
another modifier meaning "run with this intensity". The intensity is
on the rather odd scale of 0-48 (why? because DOF was originally
designed around the LedWiz, and the LedWiz uses a 0-48 brightness
scale). So I32 is about 2/3 of full intensity.
There's another common detail that's worth calling out. Some devices
are "RGB" devices, meaning that they're lighting devices capable of
showing different colors by blending red, green, and blue light at
different brightness levels. In your physical output controller
wiring, of course, this has to be wired as three separate ports, one
for each color channel. The Config Tool mercifully combines the three
channels into one line item, so you'll see "5 Flasher Left" as a
single device rather than as its three physical wiring channels. For
these RGB devices, the Config Tool lets you set a color as part of the
programming, so you might see things like S12 Magenta. That
means that we set the RGB channel mixing to show Magenta when Solenoid
12 activates. You can also use HTML-style #rrggbbaa syntax, with hex
numbers for reg, green, blue, and alpha (transparency, usually just
set to FF for fully opaque). For example, #ff0000ff is 100% red.
Now that you know how to take these definitions apart, you still
need a list of all of the specific code letters. The rest of this
section is basically that.
Table variables
Before we get to the cryptic strings, there's actually one weird
special case that we have to mention first. If you open up the DOF
Config Tool to the Table Configs list, you'll see that a slot at the
top of the list called "Table Variables".
That slot is special. It's not like the others. It looks like the
others, but it's not the same thing at all.
Table Variables is a unique slot where you can enter symbolic names
for more complex expressions that you want to use elsewhere in the
effects list. These are essentially macros, if you're familiar with
that term: text that will be substituted for the variable name.
To use a table variable, you surround the variable name with "@" signs.
For example, to use the variable playon, you'd write
@playon@.
Variable names are defined like this in the Table Variables box:
playon=(W43=0)
>
This means that the variable @playon@ will be replaced by
the text (W43=0) wherever it appears in a toy definition line.
Note that the parentheses are part of the substituted text.
Pre-defined global variables
In addition to the table variables, there are some pre-defined
variables that are always available. As with the table variables,
these are simply substituted into the text where they appear.
Variable | Description |
@dt@ |
The "drop targets" settings from your Port Assignments page,
in the form duration Iintensity. For example,
if you have the default 60ms duration and 48 intensity, @dt@
will expand to 60 I48.
|
@t@ |
The "targets" settings from your Port Assignments page,
in the form duration Iintensity. For example,
if you have the default 60ms duration and 48 intensity, @t@
will expand to 60 I48.
|
@allrgb@ |
Applies only to RGB devices (flashers, RGB flipper buttons, etc),
and works only for certain pseudo-tables that represent
"front ends" and other special programs, such as PinballX and PinballY.
Substitutes the RGB colors for the device where the rule appears,
for the "current table", whatever that means
in the program context (for PinballX and PinballY, it's the game selected
in the wheel UI). For example, if you use @allrgb@ within the
RGB Left Flipper rule, the RGB Left Flipper color for the "current
table" is used. (In order for this to work, the client program
must activate a named DOF event using the DOF ROM name of its
current table selection at any given time. PinballX and PinballY do
this automatically.)
|
Multiple event triggers
Each effect slot can have any number of independent effects,
separated by slashes ("/"):
S16/S27/S28
>
That means that this toy should be activated on any of the
listed events - S16, S27, or S28.
Event syntax
Within the "/" elements, an event looks like this:
trigger-code effect-codes
>
The trigger code specifies when this effect is fired; the effect
codes specify what happens. So the way you read this is "When
trigger-code happens, do effect-codes on the current
device". The trigger codes are mostly things that happen in the game,
such as "switch 9 hit", and the effect codes are mostly things like
"fade in for 100 milliseconds". So we can put this together to say
things like "when you hit the castle (switch 9), fade this light
on for 250ms then fade it back out for 100ms".
You can list multiple trigger codes for the same effect, by separating
them with vertical bars ("|"), so you could have something like this:
S7|S9 fu100 fd250
>
That means that we trigger this effect on S7 or S9, and carry out
the effect codes "fu100 fd250".
Trigger codes
The first element of an event code is the "trigger", which specifies what
event in the game makes the toy activate. Remember the multiple trigger
codes can be combined with "|".
Code | Example | Description |
$name |
$PBYMenu |
Named event. These are pseudo-events defined by the table, so they're specific to the table.
I think these are mostly (only?) used for non-pinball programs such as PinballX and PinballY,
which obviously don't have actual table events (switches and solenoids and so on)
to work with. The PinballY documentation has
a full list of PinballY's codes. |
(condition) |
(S7 > 1) |
A condition event. The toy fires whenever the condition evaluates
to true, or a non-zero integer value. See below for more. |
0 |
0 |
Same as OFF. |
1 |
1 |
Same as ON. |
Bnumber |
B1 |
Score digit. I don't know how these are used; I think they're related
to scoring reels in EM games. |
BLINK |
BLINK |
The toy is always on, and blinks on and off at 1-second intervals. |
Cnumber |
C1 |
Score. I don't know how these are used; I think they're related to
scoring reels in EM games. |
Dnumber |
D4 |
LED. Refers to a controlled LED in a 2000s Stern game. The numbering
is determined by the original game ROM programming. |
Enumber |
E4 |
EM table element. The "E" events are programmed in
a table's Visual Basic scripts, specifically to trigger DOF
effects. The event numbers are arbitrary and up to the
table author. If you look at a table script for an EM table
that's been programmed with DOF effects, you'll find lines like this:
Controller.B2SSetData 11,1
DOF 118,1
The first number in the pair in these lines is the "E" event code.
The second number is the value for the event, usually 0 for OFF
and 1 for ON. So "E4" in the DOF config is triggered when the
table script executes a line like DOF 4,1.
|
Gnumber |
G1 |
General illumination (GI) string. The toy is activated when the given general
illumination on the playfield is switched on. GI refers to the little lamps
scattered around the playfield, mostly under the plastics, that provide background
lighting. These lights aren't individually controlled; they're controlled as
a group, known as a GI "string". Some games only have one GI string for all
of the playfield lights, and some divide the GI lighting into two or more
strings. Many of the 1980s and 1990s games have separate GI strings for
the upper and lower playfield lights. The exact layout is determined by the
game's original programming. |
Lnumber |
L7 |
Lamp. The toy is activated when the given lamp on the table is on.
Lamps refer to the individually controlled lights on the playfield or backbox,
such as an "Extra Ball When Lit" light or a bumper lamp. The lamp numbers
are defined by the particular table, according to the game's original ROM
programming. See Appendix 7, Customizing a table's DOF effects for tips on figuring out which
lamp is which for a given table.
|
Mnumber |
M3 |
Mechanical object. The toy activates when the given mech object is activated.
Mech objects are special programming added to a few games in VPinMAME or B2SServer,
not something from the original real table. I don't know of a list of these
objects anywhere; I think you just have to look at the VPinMAME source code
to find out about them. |
Nnumber |
N3 |
Mech object value from GetMech. I have no idea what this is about. |
OFF |
OFF |
Another pseudo-event, meaning that the toy is always off. |
ON |
ON |
A pseudo-event meaning that the effect is always on when the table
is running. This is typically used for things like the Coin and Exit
buttons that you just want to stay lit all the time. |
Snumber |
S15 |
Solenoid. The toy is activated when the given playfield solenoid is activated.
Solenoids refer to (simulated) physical solenoids in the game, such as bumper
coils, kick-out coils, and slingshots. The Williams games also controlled the
flasher lamps as though they were solenoids (since they required relatively high
power), so some solenoid numbers refer to flasher lamps on original playfields.
The solenoid numbers are assigned by the game's original ROM programming;
see Appendix 7, Customizing a table's DOF effects.
|
Wnumber |
W9 |
Switch. This toy is activated when the given playfield switch is activated.
A switch is usually a (simulated) physical switch on the playfield, like a
rollover switch, stand-up target, or bumper contact. The
switch numbering is determined by the game's original ROM programming;
see Appendix 7, Customizing a table's DOF effects.
|
Effect codes
The part following the "trigger code" is a list of effect codes, separated
by spaces.
Code | Example | Description |
number |
100 |
A number on its own sets one of two things:
- If there's a BLINK specifier before it, this is the blink interval, in milliseconds
- If there isn't a BLINK specifier, this sets the duration of the effect, in milliseconds; the
effect will run for exactly this long, even if the trigger turns off earlier or stays on longer
|
number number |
100 300 |
If there's a BLINK specifier, a pair of numbers sets the blink time and
overall effect duration, both in milliseconds. (This is invalid syntax
in the absence of a BLINK command.)
|
color |
red or #FF0000FF |
This can only be used as the first effect code in the list, and can
only be used for RGB devices like flasher LEDs, flipper button
lights, or undercab light strips. This specifies the color to
use for the effect. This can be a color name taken from the
pre-defined set in the config tool (listed at the bottom of the
Table Configs page), or it can be an HTML-style #rrggbbaa code,
with hex values for rr (red), gg (green), bb (blue),
and aa (alpha transparency channel, almost always FF for fully opaque).
|
BL#low |
BL10 |
Sets the brightness of the "low" part of the blink cycle, from 0 (fully off)
to 255 (fully on). By default, this is 0 for fully off.
|
BLlow |
BL20 |
Sets the "low" blink brightness on scale of 0 to 48. This is exactly the same as
BL# except for the different scale used. BL48 is the same as BL#255. (This older
scale is an historical relic from when DOF was all about LedWiz access, as the
LedWiz uses a native 0-48 brightness scale. DOF generalized this to a 0-255
scale for finer shades of brightness possible on more modern controllers.)
|
BLINK |
BLINK |
Blinks the effect on and off at 1-second intervals
|
BNPtime |
BNP20 |
Sets the "nested" blink interval, in milliseconds.
|
BNPWpct |
BNP25 |
Sets the "nested" blink pulse width, as a percentage of the nested blink interval (1 to 99).
For example, BNP25 sets the ON time of the blink to 25% of each blink interval.
|
BPWpct |
BPW25 |
Sets the blink pulse width, as a percentage of the blink interval (1 to 99).
|
Etime |
E20 |
Extended duration, in millisecond. This makes the event continue for the
given duration after the trigger turns off.
|
Ftime |
F100 |
Sets the fade in/out duration for the effect, in milliseconds. This sets the fade-in and
fade-out to the same interval; they can also be set separately via FU and FD.
|
FDtime |
FD100 |
Sets the fade-out (-down) duration for the effect, in milliseconds.
|
FUtime |
FU100 |
Sets the fade-in (-up) duration for the effect, in milliseconds.
|
I#intensity |
I20 |
Sets the intensity/brightness of the effect, from 0 (fully off) to 255 (fully on).
|
Iintensity |
I20 |
Sets the intensity/brightness of the effect, from 0 (fully off) to 48 (fully on).
This is the same as I#, but uses the older/coarser LedWiz 0-48 scale.
|
INVERT |
INVERT |
Inverts the trigger. For example, S7 INVERT means that the event
is triggered when Solenoid 7 is off rather than when it's on.
|
Llayer |
L3 |
Sets the "layer" of the effect. Layers allow multiple effects to overlap in time.
|
Mduration |
M60 |
Sets the minimum duration of the effect, in milliseconds. Normally, the
effect ends as soon as the trigger turns off.
|
MAXduration |
MAX500 |
Sets the maximum duration of the effect, in milliseconds. The effect ends
after this time even if the trigger condition remains activated. Normally,
the effect continues for as long as the trigger remains on.
|
NOBOOL |
NOBOOL |
Makes the trigger non-boolean. The trigger codes (e.g., S7 for Solenoid 7)
are all integer values from 0 to 255 in the interface between Visual Pinball, VPinMAME, and DOF.
By default, DOF reinterprets these as simple OFF or ON values, by considering 0 to be OFF
and everything non-zero to be ON. So 1 is ON, 2 is ON, etc. NOBOOL overrides this and
makes DOF apply the trigger's actual numeric value as the brightness/intensity level
for the effect. This can be used for tables where the ROM software controls the
brightness of a flasher, for example, to pass the flasher brightness value through
from the ROM to the output device.
|
Wtime |
W50 |
Sets the wait time in milliseconds. This is the wait time after the event
trigger turns on before the effect starts (normally zero, so that the effect
starts immediately when the trigger occurs).
|
The following all apply to "area effects", for addressable light
strip matrices.
Code | Example | Description |
AAaccel |
AA10 |
Sets the area effect acceleration.
|
AABbehavior |
AABL |
Sets the area bitmap animation frame repetition behavior (O = play once, L = start at first
frame then loop, C = start at next frame from last playback then loop)
|
AACcount |
AAC10 |
Sets the area bitmap animation step count.
|
AADdir |
AADF |
Sets the area bitmap animation frame direction (F = step by frame in animated GIF,
R = step from left to right through source image, D = step from top to bottom through source image)
|
AAFduration |
AAF3 |
Sets the area bitmap animation frame duration.
|
AASstep |
AAS5 |
Sets the area bitmap animation step size.
|
ABFframe |
ABF3 |
Sets the area bitmap frame.
|
ABLleft |
ABL5 |
Sets the area bitmap left.
|
ABHheight |
ABH10 |
Sets the area bitmap height.
|
ABTtop |
ABT5 |
Sets the area bitmap top.
|
ABWwidth |
ABW10 |
Sets the area bitmap width.
|
ADshift |
ADL |
Sets the area shift direction (L=left, R=right, U=up, D=down).
|
AFDENdensity |
AFDEN5 |
Sets the area animation flicker density.
|
AFMAXduration |
AFMAX60 |
Sets the maximum area animation flicker duration in milliseconds.
|
AFMINduration |
AFMIN7 |
Sets the minimum area animation flicker duration in milliseconds.
|
AFFADEduration |
AFFADE100 |
Sets the area animation flicker fade time in milliseconds.
|
AHheight |
AH20 |
Sets the height of the matrix effect area.
|
ALleft |
AL0 |
Sets the left of the matrix effect area.
|
APCcolor |
apcRED |
Sets the color for a plasma effect; see www.bidouille.org/prog/plasma.
|
APDdensity |
APD25 |
Sets the density for a plasma effect, 0 to 100; see www.bidouille.org/prog/plasma.
|
APSspeed |
APS10 |
Sets the speed for a plasma effect; see www.bidouille.org/prog/plasma.
|
ASspeed |
AS5 |
Sets the area speed.
|
ASAaccel |
ASA10 |
Same as AA.
|
ASDshift |
ASDU |
Same as AD.
|
ASSspeed |
ASS5 |
Same as AS.
|
ASSspeedMS |
ASS100MS |
Sets the area speed in milliseconds.
|
ATtop |
AT0 |
Sets the top of the matrix effect area.
|
AWwidth |
AW20 |
Sets the width of the matrix effect area.
|
SHPshape |
SHPNumber0 |
Shows the given pre-defined shape. The shapes are defined in a separate
DOF config file, DirectOutputShapes.xml, which is included in the
ZIP file that the DOF Config Tool downloads when you click Generate Config.
You can look through that file for a list of available shapes.
|
Conditions
If a trigger code is enclosed in parentheses ("( )"), it's a
condition expression.
For the most part, these are used for simple And/Or combinations of
multiple event triggers. For example, (W7 And L9) is a
combined trigger that fires when Switch 7 and Lamp 9 are both on, and
(S5 or s6) fires when either Solenoid 5 or Solenoid 6 is on.
You can create more complex conditions than that, though. The parser
uses a full expression language, based on C# notation. All of the
trigger codes can be used as variables ("S7" for solenoid 7, for
example). They evaluate to numeric values based on the values sent
from the VPinMAME or the table's Visual Basic scripts; in most cases,
these will simply be 0 for off and 1 for on, but they can take on
other values in some cases, usually limited to a range of 0 to 255.
EM table simulations sometimes use the "E" event codes with numeric
values, for example.
The following
operators are available:
Operator | Description | Example |
+ | Add | 100 + S7 |
- | Subtract | 100 - S7 |
* | Multiply | 100 * S7 |
/ | Divide | S7 / 100 |
% | Remainder | S7 % 100 |
^ | Power | S7 ^ 3 |
- | Negation | -S7 |
+ | Concatenation | "abc" + S7 |
<< | Left bit-shift | S7 << 3 |
>> | Right bit-shift | S7 >> 3 |
=, ><, <, >, <-, >= | Comparison | S7 > 100 |
And, Or, Xor, Not | Boolean logic | ($x > 1) and (S7 < 10) |
And, Or, Xor, Not | Bitwise logic | S7 and 0x0F |
If | Conditional | If(S7 > 1, "yes", "no") |
Cast | Type conversion | Cast(S7, int) |
[] | Array index | S7[1] |
. | Property/member | S7.color |
You can also use the following literal value types:
Description | Example |
String | "red" |
Character | 'c' |
Boolean | true, false |
Real (double) | 100.25 |
Float | 100.25f |
Integer | 100 |
Integer (unsigned) | 100U |
Integer (64-bit) | 100L |
Integer (64-bit unsigned) | 100LU |
Hex integer | 0xFF, 0x1000L, 0xFFFFU |
Appendix 7. Customizing a table's DOF effects
This section covers the gnarly details of DOF and VPinMAME that you
need to know if you want to customize a table's DOF effects. This is
useful if:
- You have unique feedback devices in your cabinet that most
tables don't know about, and you want to trigger them on certain
game events in certain tables
- You want to add some new DOF effects to an existing table
- You want to extra DOF effects to an existing table that doesn't
already have any DOF support
- You're creating your own VP tables from scratch, and you
want them to support DOF feedback effects
To make use of the information in this section, you also have to
understand how DOF effects work. That's described in the previous
appendix,
Appendix 6, DOF Event Codes. That section explains how
to create the effects you want for a given event; this section
is about how to identify those source events in a given game.
Advanced topic warning! You don't need to know any of
this to use DOF with the standard configuration settings.
The details are rather complex and ugly. If you're setting
up your cabinet for the first time, I'd recommend filing a
mental note that this section is here and skipping ahead. You
can always come back to it later.
>
How to add a new table to the DOF config tool
If you're creating your own original table, or a re-creation of a real
table that no one has implemented in VP before, you'll want an entry
for the table in your DOF config files. And assuming you're generating
your files with the
DOF config tool,
that means adding an entry to the online database.
So how do you add a new table to the online database? Well, you can't - not directly, at least.
There's no provision for users to add new tables, even private ones.
Only the site administrators can do that. Fortunately, said
administrators' attitude is that every table under the sun should be
included in the master list, and they've always been quick to respond
when I've suggested missing tables. So the way to get a new table
added is to request it from the site admins. The best way I've found
to reach them is to post the request to the following forum on
VPUniverse: Digital Pinball Cabinets >
Direct Output Framework > Direct Output Support.
How to customize an existing table
If the table you want to customize is already in the DOF Config Tool's
online database, it's easy to add your own customizations:
- Open the DOF Config Tool in your browser
- Click the Table Configs tab
- Select the table you want to customize from the drop list at the top
- The left column shows the "Public Configuration", which is the default
effects defined in the DOF database
- The right column shows the "Candidate Configuration", which is where
you make your custom changes. By default, those boxes are all set to
copies of the public config. You can change any effects you want to
by typing your own effects codes into the boxes on the right side.
- The effects codes are entered per device. The way you have to think
about it is "I want the shaker motor to run when (some game event) occurs".
To make that happen, you find "Shaker" in the list of devices, and
you enter the event codes representing the triggering game event
in the Candidate Configuration box on the right side next to Shaker.
- The DOF trigger codes are extremely cryptic, but we've tried to
provide a full accounting of them in Appendix 6, DOF Event Codes.
Read that section to figure out what to enter in the box.
- After you've made your changes, click Save Changes at the bottom
- Click Generate Config at the bottom to download the new DOF .ini files;
when they finish downloading, extract them into your DOF install folder,
replacing the existing files
- You'll have to exit completely out of VP or any other programs
before testing the updates (exit out of the whole program, not just
"Play" mode)
Example: Disable the flipper solenoid effects in PinballX or PinballY
Here's a quick example of how to use the customization procedure to
accomplish a request I've seen several times on the forums: "I want to
get rid of the flipper solenoid effects in my front end program, but I
want to keep the flasher effects. How do I disable just the
flipper effects?"
PinballX and PinballY both accomplish their DOF effects using the
normal DOF configuration, by pretending that they're pinball tables
named "PinballX" and "PinballY" (respectively). This means that you
can customize the DOF effects for the front-end programs as though they were pinball
tables, using the same techniques described in the rest of this
section. This is a particularly easy special case, though, since
all we have to do is delete the flipper solenoid triggers.
So let's walk through the step-by-step procedure:
- Open the DOF config tool in your browser
- Log in
- Click the Table Configs tab in the top navigation bar
- In the Table Name drop list, select your preferred front-end program
(PinballX or PinballY)
- Find the Flipper Left and Flipper Right rows in the list of
toys. These rows specify the program events that will cause these solenoids
to fire while you're running the front-end program.
- In the right column of each row, simply delete all of the text in the edit box,
so that the box is complete empty. This removes all of the events that would
cause the flipper solenoids to fire while you're running the front-end program,
which will have the effect is disabling the solenoid effects entirely.
(The changes we're making here will only affect the table that
we selected in the Table Name drop list earlier - in this case,
your front-end program. They won't affect or disable the solenoid effects in any
other games.)
- At the bottom of the page, click Save Changes
- At the bottom of the page, click Generate Config, and wait for the
browser to download the ZIP file containing your new configuration files
- Unzip the .ini files in the downloaded ZIP, and use them to
replace the old ones in the Config folder within your DOF
install folder
You can use this same procedure to add your own custom DOF effects to
the front-end programs. Disabling the flippers is just a really easy
special case, because all you have to do is delete the DOF
instructions that activate the solenoids.
EM (Electro-Mechanical) games
If the table you're customizing is from the 1970s or earlier, and used
mechanical score reels instead of software, its handling in DOF is
completely tied to the Visual Basic script for the game.
EM machines didn't have any software, so VPinMAME isn't involved. The
table script (written in Visual Basic, assuming we're talking about
VP) contains all of the game's logic, including all of the scoring
rules and sound effects. And including DOF effects. DOF keys
everything in these games to "event codes" written into the Visual
Basic scripts.
If you look at one of those tables in the DOF database, you'll see
that everything is keyed to "E" codes - E17, E93, etc. Those "E"
codes correspond to explicit DOF calls in the Visual Basic script for
the table. They usually take one of these forms:
Controller.B2SSetData 11,1
DOF 118,1
>
To customize DOF events for an EM table, then, you need look no
further than the table script:
- Launch VP
- Open the table in the editor
- On the menu, select Table > Script in VP 10 or
View >: Script in VP 9
Scan through the script for lines like the above, with calls to
B2SSetData and DOF. The first number in each call like that
corresponds to an "E" code in the DOF Config Tool trigger. For
example, DOF 118,1 means "set event code E118 to value 1", so
a Config Tool trigger of E118 would fire when that Visual
Basic script executes.
Note that the second number in each B2SSetData or DOF command is the
value to set for the event code, so DOF 118,0 turns the event
off. Most "E" codes are only triggered momentarily, because they're
intended to fire some effect in response to something happening in the
game.
ROM-based games
ROM-based games are the ones from the solid-state era, when they
started using little 8-bit computers inside the backbox to do the
scoring, music, etc. Those computers ran software burned into a ROM
chip (read-only memory). It's like the cartridge in an old Atari
video game console.
Visual Pinball handles ROM-based games using VPinMAME, which runs the
original ROM software in emulation. The Visual Basic scripts in these
games don't have to do any of the scoring or music playback, and they
don't have to figure out when to fire the kickers or light the
playfield lamps. That's all handled by the original ROM software.
VPinMAME runs the ROM and sends commands to VP to tell it when the ROM
wants to fire a kicker or light up a lamp.
So unlike the old EM tables, you won't find anything in the
Visual Basic script for a ROM-based game for most DOF events. Most
DOF events are instead keyed to the things that the ROM controls
through VPinMAME: the kicker solenoids, the playfield lamps, the
rollover switches, etc. There's no point in searching through the
Visual Basic script for Medieval Madness to find out where the
script deploys the trolls, because it doesn't; the ROM software
deploys the trolls.
If you can't find this stuff in the Visual Basic scripts, where do you
look for it, then? Well, we could look at the Visual Basic
equivalent in these games - namely the ROM scripts themselves. And
you can, if you're good at reading 6802 machine language in binary/hex
format. But you sure wouldn't want to. And fortunately we don't have
to.
The better way to do this is to go to the documentation. The pinball
makers were pretty good about documenting everything that made up
their machines, and relating it back to the software. So we can use
the original pinball machine manuals, in combination with some
knowledge about how VPinMAME works, to piece together how the ROMs
work without actually having to decode the ROMs.
The rest of this section explains how to find the necessary
information in the original pinball machine documentation, and
how to relate it to the DOF codes.
Get the Operator's Manual
Before you go on, you should find a copy of the original Operator's
Manual for the game you want to customize. Almost every real pinball
machine has one, and you can usually find them online. The best
place to start looking is
IPDB, which has detailed
entries for most pinball machines ever made. Find the entry for the
game you're looking for, and look to see if there's a link to the
manual. If you can't find it there, a simple Web search (e.g.
"Lost World pinball operator's manual") will often turn it up.
The Operator's Manual usually has the key information required
for DOF customization. The manual generally has lists of all
of the switches, lamps, and solenoids, as well as instructions on how
to use the game's operator menu to adjust game settings and run
diagnostics.
How to identify switch numbers in ROM tables
The DOF trigger code for switches is W (because "S" was already
taken, for Solenoids), so W17 triggers an effect when switch 17
is hit.
To identify a switch for DOF purposes, you need its switch number in
the original ROM software. This is listed in the operator's manual
in the Switch Matrix table. There's usually a copy of the
switch matrix at the very front or very back of the book, and it
typically looks something like this:
The "matrix" refers to how the switches are physically wired in the
original machines, but we don't need to know any of the wiring
details for virtual purposes. We just need the software ID for
the switch, which should be printed somewhere in the box, usually
at bottom right:
That's the switch number used in the original program ROM, which is
also the switch ID used in VPinMAME. So we can use these numbers
directly in DOF W codes. For example, this tells DOF to
fire an effect for 500ms when switch 44 is hit:
W44 500
>
There are two special columns in the example switch matrix above
that we need to mention.
The first special column is the one at the far left labeled "dedicated
grounded switches". These were used in almost all of the games in the
1980s and 1990s, so you'll see this first column all the time. The
name refers to how they're physically wired in the original game,
which doesn't concern us for virtual purposes, but we do still care
about the numbering. And the numbering can look weird when they list
it in these tables:
It's a little blurry, but yes, you're reading that right - it says
"D1". That doesn't work for DOF, because DOF only allows you to enter
a number there. Fortunately, there's a pretty standard way of dealing
with this, because the "dedicated grounded switches" are so common in
games from the 1980s and 1990s. VPinMAME reserves switch numbers 1-8
for these special switches. You can simply drop the "D" and you have
the DOF number, so D1 is 1 in DOF. Note that the labeling in the
operator's manual might be something other than a "D" prefix; whatever
it is, it's usually safe to assume that the eight switches in the
"dedicated" column are simply numbered 1-8 in VPinMAME and DOF, in the
order they're listed from top to bottom.
The second special column is the one at the far right labeled "Flipper
grounded switches". You'll generally only see this one on games made
in the 1990s; in the 1980s, the the flipper buttons were wired
directly to the flipper coils, not to the CPU. The 1990s games
controlled the flippers through the CPU, so the flipper buttons and
the limit switches on the flippers had CPU connections. That's what
you see here. As with the dedicated grounded switches on the left,
these buttons often have funny numbering in the tables that doesn't work with DOF,
in this case "F" numbers:
As before, we have to translate these to something that DOF can use.
VPinMAME handles these switches by assigning them to a numeric range
above all of the matrix switches, starting at 111. So the first switch
in this column is 111, the second is 112, and so on.
How to identify lamp numbers in ROM tables
The DOF trigger code for lamps is L, so L19 triggers
an effect when Lamp 19 is lit.
Before we start explaining how to find lamps in general, you should
note that flasher lamps - the bright lamps enclosed in plastic
domes on a playfield - aren't usually "lamps" at all, at least as far
as the operator's manuals are concerned. They're usually listed under
"solenoids" or "coils". This is a quirk of the electronics used in
the 1980s-90s machines. The control circuitry for lamps could only
handle low-power bulbs. The bigger, ultra-bright bulbs they used for
the flashers were too big for the regular lamp circuits. The
circuitry that could handle such large loads was the solenoid
drivers. So they wired the flashers to the solenoid boards. From the
control software's perspective, that made them "coils", so that's how
they're listed in the manuals.
For regular lamps (not flashers), find the Lamp Matrix table
in the operator's manual. There's usually a copy near the very
front or very back of the book. It usually looks something like this:
The row-and-column format refers to how the lamps are wired physically
in the original games - remember that the operator's manual is
primarily for people maintaining and repairing the machine. For
virtual purposes, we can remain blissfully ignorant of the color
stripes on the wires connecting to the lamps and the orientation of
the matrix diodes. But there's still one piece of information
in this table that's useful to us: the lamp number.
If you look at the bottom right corner of each box, there's a little
number printed:
That's the lamp number, which is used to identify the lamp in the
ROM software. VPinMAME thankfully uses the same numbering scheme that
the ROM software uses, so you can use these lamp numbers directly
in DOF using the L code. This tells DOF to fire an effect
for 500ms when lamp 72 is hit:
L72 500
>
How to identify solenoid numbers in ROM tables
The DOF trigger code for solenoids is S, so S19
triggers an effect when solenoid 19 fires.
Solenoids are trickier to identify than switches and lamps, because
the numbers in the Operator's Manual don't usually match the numbers
in VPinMAME. VPM assigns its own numbering to the solenoids instead.
DOF uses the VPM numbering, not the original Operator's Manual
numbering, so in order to set up a DOF config, you need to figure out
the VPM numbers.
For example, the Operator's Manual might call the outhole kicker
Solenoid "2C", but VPM (and thus DOF) might call it Solenoid 32.
It would be a lot nicer if VPM could use the original numbering, but
the designers of the original tables in the 1980s and onward made that
too difficult, by treating the solenoid numbers as somewhat arbitrary
labels. So we're stuck with this extra work of figuring out the
VPM numbering for each table.
The easiest way to identify the solenoids is to actually run the game's
ROM, but not using Visual Pinball. Instead, we're going to use
a special test program, called VPinMameTest. This should be located
in the VPinMAME folder under your Visual Pinball program folder.
Here's the basic approach we're going to use. VPinMameTest has a
little window that shows messages like "Solenoid 1 is on" or "Solenoid
7 is off" whenever a solenoid changes state. The solenoid numbers
displayed there are the PinMAME solenoid numbers, and thus the DOF
"S" numbers. If the window says "Solenoid 19 is on", we know we're
talking about DOF "S19". So what we're going to do is load the table
that you want to map into VPinMameTest and then fire each of its
solenoids in turn.
But how do we get the solenoids to fire? We're going to use the
game's own built-in test menu. Almost every electronic pinball
from the mid 1980s onward has a set of operator menus for adjusting
game settings and running diagnostics. The diagnostics
usually include a solenoid test mode, which lets you cycle through
all of the solenoids in the game and fire each one. On the real
machines, repair people would use this to test the mechanical
action on the playfield to make sure that each coil is firing like
it should be. We're going to do the almost same thing,
but instead of watching real coils fire, we're going to watch
VPinMameTest fire its virtual coils. The test
menu will show us a message on the pinball DMD saying which
solenoid it's firing - it'll say something like OUTHOLE KICKR 05.
VPinMameTest will simultaneously show "Solenoid 19 is on,
solenoid 19 is off," etc. This reveals the association between
the ROM solenoids and the MAME numbers: we now know that
OUTHOLE KICKR 05 is MAME solenoid 19, and thus DOF S19.
So let's get started. The first thing to do is fire up VPinMameTest.
(Note: If you get an error when you run this program saying
"MSSTDFMT.DLL is missing", you'll need to download that file and copy
it to the same folder containing the VPinMameTest program. You can
find a copy of it
here.)
Once VPinMameTest is running, go to the drop list at the top left
corner. Select the ROM for the table you want to map. The ROM name
is usually an abbreviation of the table name. It might take a little
guesswork to figure out which is which.
You'll need to have the selected ROM file installed in your
VPinMAME/ROMs folder in order to run it. The drop list somewhat
confusingly shows every ROM that VPinMAME has ever heard of, whether
you have any of them installed or not. But you can only run the
ones that are actually present on your machine.
Once you select the desired ROM, click Start. This will fire up the
ROM, and the appropriate pinball display should appear on your screen.
This will be the usual 7-segment LED display, alphanumeric LED, or DMD
style, depending on the game. At this point, most games will run
through their power-on self test and go into attract mode. Some
games might report errors, such as switch problems or "Missing Pinball".
This is simply because the ROM is running without a physical pinball
machine attached - it's like you took the CPU board out of the pinball
machine and ran it without any of the cabinet wiring attached. But
this is okay for what we're doing here.
The next step is to enter the ROM's test menu. This is where things
get a little tricky, because every game has its own way
of doing this. Fortunately, there are commonalities among machines
within each generation, so we can offer some general instructions
that will work on most machines. Scan down the sections below
to find the type of machine you're working with.
Williams WPC games (1990s-2000s)
These games have a fairly friendly menu interface. The first
thing you'll need to do is press End, to simulate opening the
coin door. This will give you access to the operator buttons:
- 7 = Cancel
- 8 = Previous/-
- 9 = Next/+
- 0 = Enter
>
Press 0 (Enter). This will display the game name for a few moments,
then prompt you to press 0 (Enter) again to access the menu.
Press 9 (Next) until you see "Tests" displayed. Press 0 (Enter).
Press 9 (Next) until you see "Solenoid Test", then press 0 (Enter).
At this point, the menu will show you the first solenoid, and
will fire it every couple of seconds. The pinball display will
show something like "AUTO PLUNGER, T.4 01 REPEAT". AUTO PLUNGER
is the name of the selected solenoid, T.4 is just a label for
the current menu, and 01 is the ROM solenoid number, which will
also be the number used in the Operator's Manual. If you go over
to the VPinMameTest window, you should see "Solenoid 1 is on,
Solenoid 1 is off" repeating every couple of seconds. The game
is firing the solenoid selected in the menu, so this tells you
that ROM solenoid 01 is the same as MAME solenoid 1 = DOF "S1".
Press 9 (Next) to move to the next solenoid. Write down each
mapping and repeat until you've visited all of the solenoids.
Williams System 11 (late 1980s to early 1990s)
Be warned: the operator interface on these machines isn't very
friendly. There's a logic to it, but it's a bizarre and twisted
logic, driven by an evil assembly programmer's whims, rather than
anything that makes sense to a user. I've owned a couple of real
System 11 machines for nearly 20 years and I still have fits finding
my way around their stupid menu systems.
The operator controls on these machines consist of two buttons:
"AUTO/UP - MANUAL/DOWN" (7 in MAME) and "ADVANCE" (8 in MAME). The
START button (1 in MAME) on the front of the machine also gets
involved in places. (There's a third button, as you can see
in the photo, but its only function is to reset the high
scores. Why they dedicated a whole button to this, rather than
using it to make menu navigation easier, supports my belief
that the programmer had evil intent.)
AUTO/UP - MANUAL/DOWN is what makes the system so confusing. There
are two things you have to know about it. The first is that it's a
toggle button. On the real machines, it works physically just
like the clicker on a ball-point pen, in that it cycles between the
"up" and "down" positions each time you push it. So you can tell by
looking at it which position you're in. In MAME, it still has this
toggle effect each time you push the "7" key, but of course it's
just a keyboard key, so you can't tell by looking at it which mode
it's in. You just have to remember. Good luck!
The second thing you have to know about AUTO/UP - MANUAL/DOWN is that
it means three different things, depending on context. What they mean
by the name is this: sometimes it's the UP/DOWN button, and sometimes
it's the AUTO/MANUAL button. And they didn't even have room to print
this on the label, but sometimes it's the ADJUST/TEST button. Got it?
Probably not... so here are the contexts where the modes apply:
- When you're not in any menu (in other words, when the game is
in attract mode), it's the TEST/ADJUST button. When it's in the "up"
position, pressing the ADVANCE ("8") button from attract mode takes
you into the SETTINGS menu. When it's in the "down" position, pressing
ADVANCE ("8") from attract mode takes you into the TEST menu.
- When you're in the settings menus, it's the UP/DOWN button.
It controls whether the ADVANCE button moves forward or backwards
through the menu system.
- When you're in the test menus, it's the MANUAL/AUTO button.
In AUTO/UP mode, each test cycles through all of its different items
automatically, advancing to the next item every 2 seconds or so. In
MANUAL/DOWN mode, no automatic cycling takes place. Instead, the
system stays on the same test item until you press ADVANCE. (And note
that ADVANCE moves to the NEXT test item in this case, even though it
seems like we should be in DOWN mode.) moves to the next menu item,
and DOWN mode makes ADVANCE move to the previous menu item.
So now that you know how this crazy UI works, let's outline the strategy for
mapping out the solenoids. We're going to enter test mode
(MANUAL/DOWN + ADVANCE), go forward through the test menus until we
get to the solenoids section (AUTO/UP + ADVANCE until we get to
solenoids), then manually step through each solenoid in the system.
For each, we'll observe the ROM name on the alphanumeric display and
note the MAME solenoid number displayed in the test window. We'll
make a note of each, then press ADVANCE to move on to the next.
Repeat until we know the MAME number for each ROM solenoid.
- Press 7 (DOWN mode)
- Press 8 (ADVANCE) - this should enter the test menu
- Press 7 (UP mode)
- Press 8 (ADVANCE) until you see COIL TEST
- Press 7 (MANUAL mode)
>
It's sometimes hard to get the mode right initially, so you might find
yourself in the audit/setup menu rather than the test menu. If so,
you can get back to attract mode by pressing 8 repeatedly until you go
past the last adjustment item. If you're stuck in a loop going
backwards (the menu item number keeps decreasing), press 7 to switch
directions and try 8 again.
You should now see something like this on the alphanumeric display:
OUTHOLE 05 01 'A' SIDE. This is telling you that the current solenoid
being tested is the outhole kicker, labeled as solenoid 01A in the
game's Operator's Manual. You might want to look at the solenoid
table in the manual at this point to verify that it matches.
The VPinMameTest window should be displaying "Solenoid 1 is on,
Solenoid 1 is off," repeating every couple seconds. This is because
the ROM is firing the currently selected solenoid repeatedly. This
tells us that the OUTHOLE Solenoid 01A is VPinMAME solenoid 1 and DOF
"S1". Write down the association.
When you've noted this solenoid, press ADVANCE to move to the next
one. The alphanumeric display will update to the next solenoid name
and number, and the VPinMameTest window should start displaying a new
solenoid number switching on and off. Write this one down.
Repeat until you have all of the numbers mapped out.
Williams System 9 (mid 1980s)
The System 9 games are very similar to the System 11 games in the menu
design, with the big difference that they lack the alphanumeric
display. These games have simple 7-segment numeric displays only, so
their ability to display context information is severely limited.
But the structure of the menus is nonetheless similar.
You should be able to activate test mode with the same sequence of
keys as in the System 11 machines, outlined above. You'll know you're
in test mode when you start seeing all of the numeric displays cycle
through a sequence like this: 0000000, 1111111, 2222222, 3333333...
That's the display test. Press 8 to advance to the next test. The
exact location of the coil test can vary, but on many it's the
third test, so you'd have to press 8 two more times. You'll know
you're at the coil test when you start seeing "Solenoid X is on,
Solenoid X is off" messages in the VPinMameTest window.
At this point, press 7 to switch to MANUAL mode. The display will
show something like "02 10". The "02" is the menu position number,
telling you you're in coil test mode; it might be some other number,
but it'll stay the same throughout the coil test mode. The "10" is
the solenoid number currently being tested. As with the System 11
games, you can write down the association between the number shown
here and the "Solenoid X is on" number in the test window. Once
you've noted the mapping, press 8 to advance to the next solenoid.
When you reach the last solenoid, the menu will loop around to
solenoid 01 and start over.
Williams System 3-8 games (1970s to mid 1980s)
As you might expect, the operator controls on these early electronic
games are even more primitive and peculiar than the System 9 games,
but a lot of the basic structure is still similar. The big difference
is that there's another key, the DIAGNOSTICS button, which VPinMAME
maps to the 9 key. Press this button and you'll enter test mode. As
before, you can probably find your way to the solenoid test with a
little trial and error. The 7 and 8 keys generally work just like in
System 11 games, as the AUTO/UP-MANUAL/DOWN and ADVANCE buttons,
respectively.
Everything else
There are too many different systems to include every possible one
here. If the type of game you're trying to map isn't covered in the
sections above, the best advice I can offer is to find the table's
Operator's Manual online and look for instructions on running
diagnostics. (If anyone wants to send me instructions for a particular
manufacturer/generation that they know all about, I'd be happy to
add them to this section.)
The caveat with that advice is that you'll have to figure out how the
buttons mentioned in the manual map to MAME keys for yourself,
probably by trial and error. The manual will undoubtedly point you to
some special-purpose buttons, with names like TEST, DIAGNOSTICS,
ADVANCE, SELECT. MAME should have mappings for those keys, but I
don't think there's a list anywhere of what these mappings are for all
games, and my impression is that the mappings are all ad hoc, without
any real master plan. The one ray of hope here is that operator keys
are almost always mapped to 7, 8, 9, and 0, so the trial-and-error
search space is relatively small. Try pressing those buttons to see
what reaction you get. The Operator's Manual will describe what you
should see on the display (if anything) in the various menu modes, so
try the 7-8-9-0 keys until you get the expected response.
If you do happen to figure out the procedure for a group of machines
not covered above, I'd be very happy to add your findings to the
collection here, so please send them my way.
Appendix 8. Coin Door Interface Board
In the
Chapter 40, Coin Door chapter, we discuss the special wiring
plug that the Williams WPC coin door uses. That plug is wired to all
of the switches and lamps in the coin door: the coin chute switches
that detect when you've inserted a quarter, the slam tilt switch, the
service control panel buttons, and the coin slot lamps.
In a virtual cab, we have to connect that special coin door plug to
the key encoder, so that the buttons and switches in the coin door can
be used as inputs to the virtual pinball software. We also have to
connect it to a power supply, to light up the coin slot lamps.
In the original pinball machines, the coin door connector plugged into
a little circuit board located near the front of the cabinet, whose
job was simply to interface the coin door plug to the rest of the
wiring in the machine. The tidiest approach in a virtual cab is to do
the same thing, by installing a little interface board of our own that
plugs into the coin door connector on one end, and connects to your
key encoder on the other end.
I drew up plans for a circuit board to accomplish this. It's a simple
design that you build yourself. This section has download links,
parts lists, and instructions for assembling and installing it.
6.3V Power Supply
The Williams coin doors usually come equipped with #555 incandescent
bulbs installed in the coin slots, to light up the slots. Those bulbs
require an unusual voltage level, 6.3V. You probably don't have a
6.3V power supply in your pin cab, unless you installed one
specifically for these sorts of lamps.
To help with this, I included a 6.3V power regulator in the circuit
board design. If you build the full board design, you'll get the 6.3V
supply automatically; you just have to plug in power from a 12V supply
(which you probably do already have, since it's one of the voltage
levels that you get from an ordinary ATX PC power supply).
However, the 6.3V regulator is optional. You can simply omit all of
the parts for it (leaving their slots on the circuit board empty).
If you do this, you can still get the lamps to light up by using
one of these options:
- Power the lamps with 5V. #555 incandescent bulbs will work on 5V;
they just won't be as bright as they're meant to be. If you don't
mind that they're not as bright, this is easy, and you can skip buying
a few parts.
- Use 5V as above, but also replace the incandescent #555 bulbs with
LED equivalents. You can buy plug-compatible #555 LED bulbs, and most
of those will work on 5V (even though they'll nominally be 6.3V bulbs,
since they're meant to be plug-in replacements for the incandescent
bulbs). LEDs don't usually show as much drop in brightness as
incandescents at lower voltages; if they light up at all, they should
appear to be pretty much normal brightness.
- Power the lamps with a separate 6.3V power supply. If you already
have a 6.3V supply, you can plug it in to the board and the board will
pass it through to the lamps. One easy way to set up a 6.3V power
supply is to buy an adjustable DC-to-DC step-down regulator board on
eBay, and set it to 6.3V. If you're not fond of soldering, you might
prefer this to soldering the extra parts for the on-board 6.3V
regulator on the coin door interface board.
Version 2
This is a new version of the board that I drew up in February, 2021.
I had to come up with this new design because the 6.3V regulator chip
used in the original version 1 design is no longer in production. The
old design is still available, of course; see
Version 1 below. Feel free to
use the old design if you prefer it, but just be aware that you might
not be able to find the 6.3V regulator chip it calls for.
Warning: This new version hasn't been tested yet. If you'd
like to try building one and let me know how it works, that would be
very helpful! Just be aware that it might have design flaws that I
haven't caught yet. If you're not feeling so adventurous, you
might want to stick with the version 1 design.
Screw terminals or pin headers: The parts list calls for
Phoenix Contact screw terminals for JP1 and JP2, which are the places
where you connect the wiring that goes out to your key encoder and
power supply. I used the screw terminals in the design because many
pin cab builders like the simplicity of wiring them. With screw
terminals, you just strip a quarter inch or so from the end of the
wire, insert the end of the wire into the terminal, and tighten the
screw to clamp it in place. No special tools are required.
If you prefer, you can use standard 0.1" straight pin headers in place
of the screw terminals. I personally prefer pin headers in most
cases, because they mate with pluggable connectors that can be easily
plugged and unplugged. With screw terminals, you have to attach each
wire separately, which is time-consuming if you have to remove the
whole board for any reason. The Phoenix Contact terminals and the
standard 0.1" pin headers will both fit physically, so you can use
whichever type of connector you prefer. See
Chapter 81, 0.1" Pin Headers
for more about those connectors.
If you do opt for 0.1" pin headers, be aware that JP1 can accommodate
a 10-pin header, even though the parts list calls for a 9-position
screw terminal. I intentionally added drilling for an extra "dummy"
pin, so that you can use a 10-pin header. The extra 10th pin isn't
connected to anything electrically on the board; it's just there so
that a 10-pin header will fit. The reason you might want to use a
10-pin header instead of a 9-pin is that it's hard to find the mating
"crimp pin housing" in a 9-pin size, whereas it's easy to find 10-pin
housings.
To manufacturer the board: simply upload the .brd file
from the plans above to
OSH Park,
or a different PCB maker or your choice. (Other PCB makers usually
require Gerber files rather than .brd files. You can create those
with the free version of EAGLE.)
To build the board with the 6.3V regulator: Solder all
of the listed parts to the board.
To build the board without the 6.3V regulator: Don't
install any of the voltage regulator parts (C1, C2, IC1, R1, R2).
Install only the pin headers and screw terminals.
Connections: Once you've built the board, mount it near the
coin the door where you can plug in the connector from the door.
Connect power for the coin chute lamps as described above (use a 12V
power supply input if you included the voltage regulator parts, or a
5V or 6.3V supply if you didn't). Plug the 13-pin connector from
the coin door into the mating pin header on the board.
The terminals on JP1 all connect to your key encoder, to allow the
switches in the coin door to send button input signals to the virtual
pinball software on the PC. The switch outputs on the board are
labeled as follows:
- L = left coin switch
- M = middle coin switch (not used on US two-chute coin doors)
- R = right coin switch
- Cn = Service Cancel/Escape
- - = Service Down/-
- + = Service Up/+
- En = Service Enter/Select
- T = Slam tilt switch
- Co = all-switch common wire
The terminals on JP2 connect to power for the coin slot lamps. There
are several ways to connect these terminals, depending on (a) whether
or not you installed the 6.3V regulator parts, and (b) whether you
want the coin slot lamps to be on all the time or controlled by
software on the PC (via
Chapter 46, DOF). Here are the
instructions for each combination:
- With 6.3V regulator, lamps always ON:
- +LAMP not connected, or you can use +LAMP as a 6.3V power source
for up to four additional #555 bulbs
- LAMP- to 12V power supply (-) terminal (0V/GND, black wire on ATX disk plugs)
- -12V same as LAMP-
- 12V+ to 12V power supply (+) terminal (yellow wire on ATX disk plugs)
- With 6.3V regulator, lamps controlled by DOF:
- +LAMP not connected, or you can use +LAMP as a 6.3V power source
for up to four additional #555 bulbs
- LAMP- to feedback controller output port (LedWiz, Pinscape, etc) assigned to coin slot lamps
- -12V same as LAMP-
- 12V+ to 12V power supply (+) terminal (yellow wire on ATX disk plugs)
- No 6.3V regulator, lamps always ON:
- +LAMP to your 5V or 6.3V power supply (+) terminal (red wire on ATX disk plugs)
- LAMP- to your 5V or 6.3V power supply (-) terminal (0V/GND, black wire on ATX disk plugs)
- -12V not connected
- 12V+ not connected
- No 6.3V regulator, lamps controlled by DOF:
- +LAMP to your 5V or 6.3V power supply (+) terminal (red wire on ATX disk plugs)
- LAMP- to feedback controller output port (LedWiz, Pinscape, etc) assigned to coin slot lamps
- -12V not connected
- 12V+ not connected
If you didn't build the 6.3V regulator, you can use either a 5V or
6.3V power supply to power the coin slot lamps. 6.3V is preferable
since that's the voltage the bulbs are designed for; they'll work at
5V but won't be as bright. LED replacement bulbs might let you use 5V
without loss of brightness, so you might want to try that if you don't
want to bother with adding a separate 6.3V supply.
If you're using DOF to control the lamps, make sure that the output
controller port that you're using to control the lamps has enough
power load capacity. Two incandescent #555 bulbs will consume about
500mA. That's safe for any Pinscape flasher port or power board port,
and it's right at the limit for an LedWiz port. (So it might work
with an LedWiz, but you'll be pushing your luck a bit; a booster
circuit in this case would be a good idea. See the
Chapter 50, LedWiz chapter for help on adding booster
circuits.) If you replaced the bulbs with LEDs, they'll use much less
power, probably about 30mA per bulb at most, which makes them safe to
use with an LedWiz directly, with no booster.
Version 1
This section covers my original version of the board. If you plan to
use the on-board 6.3V power supply feature, you might want to consider
building the new design above instead, because the voltage regulator
chip that this design uses is out of production and hard to find. The
new design uses a newer chip that's still available.
If you don't want to include the on-board 6.3V power supply feature,
you can omit the parts C1, C11, Q1, and JP11. Simply leave the slots
for those parts on the board empty. If you already have a separate
6.3V supply, you can omit all of these and instead supply the board
with 6.3V from the external supply.
Warning: the regulator chip Q1 is no longer in production, and the
electronics vendors no longer sell it. It might still be possible to
find surplus parts on eBay, although that can be spotty in terms of
quality. Unfortunately, I don't know of any suitable substitute for
the chip that will work with this board design. That's the whole
reason I designed the new version 2 board above; there are
other chips that will do the job, but they all require slightly
different circuit designs, so I had to change the board layout a bit.
To manufacturer the board: simply upload the .brd file
from the plans above to
OSH Park,
or a different PCB maker or your choice. (Other PCB makers usually
require Gerber files rather than .brd files. You can create those
with the free version of EAGLE.)
To build the board with the 6.3V regulator:
Solder all of the listed parts to the board. Connect 12V from your
secondary ATX power supply (the one you use for feedback devices:
see
Chapter 45, Power Supplies for Feedback) to the two-pin header labeled
"12V IN". You can use the two-pin header marked
6.3V as
a power supply for other 6.3V button lamps, as long as you don't
exceed 1.5A, or a total of 6 incandescent #555 bulbs (including
the ones in the coin chutes).
To build it without the 6.3V regulator: Don't
install any of the voltage regulator parts (C1, C11, Q1, or the
12V input pin header). Install only the main 13-pin header, the
10-pin header for the switch outputs, and the 2-pin header
marked 6.3V. Connect the 6.3V header on the board to
your external 6.3V power supply; this will feed the 6.3V
directly to the coin chute lamps.
Once you've built the board, mount it near the coin the door where
you can plug in the connector from the door. Plug in the power
connection for the coin chute lamps (the 12V input if you included
the voltage regulator, or the 6.3V input if you didn't). Plug in
the 13-pin connector from the coin door.
To wire the switches to your key encoder, you can either solder
wires directly to the pin holes for the switch outputs, or (better)
you can install a 10-pin header and connect a mating 1x10-pin plug.
See
Chapter 80, Connectors for details on building the plug using
a 0.1" crimp pin 1x10 position housing.
The switch outputs on the board are labeled as follows:
- L = left coin switch
- M = middle coin switch (not used on US two-chute coin doors)
- R = right coin switch
- Cn = Service Cancel/Escape
- - = Service Down/-
- + = Service Up/+
- En = Service Enter/Select
- T = Slam tilt switch
- Co = all-switch common wire
Note that the pin between "T" and "Co" isn't connected to anything on
the board. 9-pin housings aren't readily available, so I added an
extra unused pin to make it easier to find the matching connector.
Appendix 9. Plywood Cutting Plans for Cabinet Construction
If you're building a pinball cabinet from scratch, the first step is
to buy some plywood sheets and cut them up to form the panels making
up the cabinet. This chapter provides a few options for how to
divide up the plywood.
The standard pin cab plan calls for two thicknesses of plywood: 1/2"
for the main cabinet floor and the back of the backbox, and 3/4" for
everything else. Most commercial pinball machines use particle board
rather than plywood for the 1/2" parts, to cut costs, but it's a nice
upgrade to use plywood instead if your budget permits it. In any
case, it makes no difference to any of the cutting or building plans.
Index to the layouts:
Adjustments for joinery
The cutting plans all assume that you're using mitered corner joins
for the main cabinet, where the outer edges of the corners meet at
45° angles. This assumption is important because it means that
the finished size of the cabinet on a given side will exactly match
the size of the panel on that side, since the panel extends all the
way to each corner. If you're using a join that doesn't have mitered
corners, such as a rabbet or butt join, each corner will have one
piece that doesn't extend all the way to the outside corner, meaning
that it will have to be cut a little shorter than the finished cabinet
size on that side, to make up for the overlapping section in the join.
See
Chapter 21, Cab Body - Joinery.
Adjustments for cabinet width
The dimensions shown are all for the standard-width WPC cabinet.
If you're building a widebody or custom-width cabinet, you'll
have to adjust the widths accordingly.
How to use the plans
Don't start by marking all of the cut lines shown on the plywood
sheet. That won't produce accurate results, because your saw blade
will remove some of the material between the pieces at each cut, which
you can't easily account for in the initial marking. Instead, measure
and cut one section at a time. This lets you make the next
measurement based on the actual new edge left over from the previous
cut.
Also, to make sure that your saw blade's width is accounted for in
each cut, always align the saw on the "outside" of each cut, so that
the blade's width is positioned in the "leftover" portion of the
plywood rather than within the work piece you're cutting. Align the
edge of the blade on each cut with the outside edge of the work piece.
Layout 1: Best grouping of same-size pieces
This layout groups the pieces in such a way that pieces of the same
size are grouped together, so that you only have to make one cut at a
given measurement point. The benefit is that it almost guarantees
that the grouped pieces will exactly match on that dimension, since
they're all cut along a single line. It ensures that the side walls
will end up being exactly the same length front-to-back, the front and
back walls are exactly the same width, and the backbox sides are the
same height. Another benefit is that this layout is efficient in
terms of your time, since it minimizes the number of measurements and
cuts.
The downside of this plan is that it doesn't make efficient use of the
plywood. It requires two sheets of 3/4" plywood, but it only uses a
small portion of the second sheet. You might check with your lumber
supplier to see if they sell half sheets or smaller project boards,
since you only need about 28" x 18" for the second piece.
Plywood sheet #1 - 4' x 8' x 3/4" nominal thickness.
Dimensions are all for the WPC standard-body design.
Click the image for a larger view.
1. Measure from one edge of the sheet to 51-1/2", to the cut line marked "A"
in the diagram above. Cut across the whole sheet on this line. Set aside
the smaller portion.
2. We're now going to cut the diagonal line "C" for the side panels.
On the "A" cut line, measure 15-3/4" to the point labeled "X", and
mark that spot. On the opposite side, pencil in the line marked "B",
7-1/8" from the edge. ("B" is just a reference point - don't cut
along this line.) Then measure 23-1/2" along "B" from the edge to the
point labeled "Y", and mark that spot. Draw the diagonal line "C"
through points "X "and "Y". Cut all the way along "C".
3. The piece you just cut out is one side wall of the cabinet. You
just need to cut out that 7-1/8"-long flat portion where the
diagonal edge flattens out. Mark a line 23-1/2" from the opposite
side, parallel with the opposite side, and cut along that line to
make the flat portion. The finished side piece should look like this:
4. On the remaining piece, you can repeat the measurements from step 2
to mark the 51-1/2" line "D", or you can simply use the finished first
side piece as a template, since both sides should be identical. Either
way, mark line "D" and cut along the line to cut out the second side
piece.
5. Repeat step 3 with the second side piece to cut the 7-1/8" flat
portion.
6. From the remains of the 51-1/2"-wide section, cut the two small
rectangular pieces shown at the bottom: the cashbox fence (20-7/8" x
3"), and the rear shelf lip (20-3/8" x 1" to 2").
For the rear shelf lip, cut one side with the saw blade at a 10°
tilt (bevel angle). This will match the tilt in the front edge of the
shelf. I'm giving you a size range for this piece because you'll
probably want to adjust it according to your TV setup plans. In
the original WPC machines, the lip is set up like this:
For a virtual cab, though, you might want to extend the lip to about
2", by cutting the piece to 2" wide and turning it sideways:
This is just a suggestion - you can make the lip longer or shorter
than 2" as needed. The right length depends upon how your TV and
other devices (such as a flasher panel at the back) are arranged. The
smaller size used on the WPC machines is enough to allow installation
of the plastic trim piece that holds the back of the glass cover. On
a virtual cab, a longer lip can be used to fill the space between the
top of the TV and the top of the cabinet.
7. Now we'll work on the (almost) half-sheet that was left over from
the first step, after cutting along line "A". This section should be
about 48" x 44". Mark cut line "E" by measuring 21-7/8" from one
edge.
For widebody or custom cabinets, adjust this dimension! 21-7/8" is
for the WPC Standard Body design, which fits the standard Williams
lockbar (Williams/Bally part number D-12615, A-18240). If you're
building a widebody that's matches the original Williams "Superpin"
cabinet, to fit the off-the-shelf WPC widebody lockbar
(A-16055, A-17996), the width should be 24-5/8". If you're
building to a custom size, you can determine the width to use
here by adding 1-3/8" to your desired inside cabinet width
(the distance between the inside faces of the
side walls - essentially, the width available for the main TV).
Make sure the board is oriented so that "E" goes down the
longer (48") dimension! Otherwise you won't have enough material
for the three pieces shown.
8. Using the 21-7/8"-wide section we just cut, mark line "F" 23-1/2" in
from one edge. Cut along this line. This yields the back wall of
the cabinet.
9. Continuing with the remainder of the 21-7/8"-wide section, mark line
"G" 7-1/8" from one edge. Cut along the line with the saw blade at
a 10° tilt. The 7-1/8" line is the longer face for the
angled cut - the other face should end up about 7" long. This yields
the rear shelf for the cabinet.
If your saw can't easily cut at an angle like this, you can get away
with making a square cut. Cut the piece at the shorter 15-3/4" size
in this case. The angle is to make the top edge of the piece align
with the diagonal slant of the cabinet sides, so that all the edges
are flush. But this isn't actually all that critical; it's only a
slight aesthetic imperfection if you can't make the edges flush, and
it's an imperfection you'll almost never have to look at anyway, since
the whole area is covered by the lockbar! The only time you'll see it
is when you take the lockbar off to get inside for service.
10. Set the saw blade back to straight up (no tilt/bevel angle).
Still using the remainder of the 21-7/8"-wide section, mark line "H"
15-3/4" from one edge, using the shorter face after taking into
account the tilted cut on line "G". Remember that we just cut the one
edge of this piece ("G") with a 10° bevel angle. That will be the
top of the front wall, which needs the angled top edge to match
the slope of the side walls. The other side, line "H", which we're
cutting now, is the bottom of the front wall.
When marking the cut line "H", be very careful that you're measuring
15-3/4" from the shorter side of the beveled edge "G" from the
previous step. The distance to "H" on the longer face should end up
being about 15-7/8". Here's the side profile of the finished piece,
to give you a better idea of what we're going for:
This will use almost the entire rest of the piece, but there should be
just enough left that you still have to trim this little bit.
11. There are only two pieces left to cut out of the remainder of the
first plywood sheet: the sides of the backbox. The leftover piece
should be about 22" x 48" (or less than 22" if you're building a
widebody or wider-than-standard-body cabinet). Mark line "J" by
measuring 28-1/2" from one edge. Cut along line "J".
12. On the 28-1/2" piece we just cut, mark the diagonal line "K" by
measuring a point 10" from a 28-1/2"-long edge at one end, and 6-1/2"
from the same edge at the other end. Cut along this line. This
yields the first backbox side piece.
13. On the other piece, you can either repeat the measurement to
mark the square line "L", or you can use the first backbox side
piece as a template to mark the cut line, since the two sides are
identical. Cut along the line.
We're finished with the first plywood piece! Time to move on
to the second sheet.
Plywood sheet #2 - 4' x 8' x 3/4" nominal thickness.
Click the image for a larger view.
14. These pieces will form the top and bottom of the backbox. Start
by cutting line "A", at 28" from one edge.
You can cut along line "A" all the way across the board if you like,
but as you can see, we only need the top corner for these pieces. If
you want to keep more of the rest of the board intact as a large
leftover piece, you can just cut about 18" in along line "A".
15. Mark line "B", at 10" from the outer edge. Set your blade to a
7° tilt.
The blade should be tilted so that the face you're cutting into will
be the wider side. If your saw only tilts the other way, so that the
opposite face will be the wider one after the cut, flip everything
around and measure line "B" at 6-1/2" in instead of 10" in.
Once you have it set up, cut at line "B" with the 7° tilted blade.
This yields the backbox top (or the backbox bottom, if you had to flip
things around for the 6-1/2" cut).
Sanity check on the angled cut: The result should be 10" side on one
face, and about 9-29/32" wide on the opposite face. If you did the
6-1/2" cut, the result should be 6-1/2" wide on one face. and
slightly wider, about 6-19/32", on the opposite face.
16. Set your saw back to 0° for square cuts. Orient the
remaining piece so that the angled cut with the narrow face is facing
the saw blade. Measure line "C" at 6-1/2" from the angled edge (or
10" from the angled edge if you flipped things around in the previous step).
Cut along this line. Make the same sanity check as in the previous
step for the angled cut.
Plywood sheet #3 - 4' x 8' x 1/2" nominal thickness.
Click the image for a larger view.
17. Now we're going to switch to 1/2" plywood (or particle board).
The first cut is the backbox back wall. This is a simple rectangular
piece, 28" x 27-3/4".
18. The second cut is the cabinet floor, another simple rectangular
piece, 50-5/8" x 21".
If you're building a widebody or custom cabinet size, adjust the size
to match. Here's how I calculate the floor size: start with the
outside dimensions of your cabinet, then subtract 7/8" from each
dimension. This accounts for the thickness of the walls left over
outside of the dado grooves that the floor fits into (about 3/8" on
each side, for 3/4" total), with another 1/8" of wiggle room, in case
of any irregularities in the dado depth or floor edge. You can add
back the 1/8" if you want a tighter fit; you can always do a test fit
and sand it down a little if necessary.
19. There are a few more miscellaneous pieces that you'll need to cut
out of the leftover plywood. These are covered in detail in
Chapter 21, Cabinet Body, but here's a quick summary:
- Two corner supports for the cashbox fence, each 3" long, with a
triangular cross section (exact sizing is unimportant); these can be made from a
nominal 2x2 board cut in half diagonally (at 45°) lengthwise
- Two corner braces for the front leg brackets, each 6" to 8½" long
(at your discretion), cut in a triangular cross-section (with two 1-1/16"
sides and a 1-1/2" hypotenuse)
- Two corner braces for the back leg brackets, each 6" to 21½" long
(at your discretion), cut in a triangular cross-section (same as the
front corner braces)
- Two 4-3/4" x 3/4" strips of 1/2" plywood, for DMD panel guides
- Two 15" x 3/4" strips of 1/2" plywood, for translite guides
- One 27-1/8" x 3/4" strips of 3/4" plywood, for a translite guide
- Two 12-3/8" x 1" strips of 3/4" plywood, for translite guides
- One 27-1/8" length of 3/4" reducer molding (or a similar shape
fashioned from a 1x2), for backbox trim at the top of the translite
The woodworking on the plywood pieces isn't finished after you cut the
last piece. Most of these parts require some additional work with a
router, drill, and/or jigsaw. This is all covered in detail in
Chapter 21, Cabinet Body.
Layout 2: Single 3/4" sheet plan
It's just barely possible to make all of the 3/4" pieces fit into a
single 4x8 sheet. Plywood's not cheap, so this plan is easier on the
budget. But this plan requires more measuring and cutting work than
the
group-by-size plan above, because
it's not possible to group the pieces as nicely given the more
limited space. Also, there's not enough spare room to allow for
expanding any of the pieces to widebody widths, or to any custom
width larger than the standard-body design. This plan will really
only work for a standard-body build.
You'll have to be very careful with this plan to minimize wasted
material between cuts, since everything is packed so tightly.
Note that "single" refers only to the 3/4" material. You do still
need a second sheet, of 1/2" material, for the cabinet floor and
backbox back wall.
Plywood sheet #1 - 4' x 8' x 3/4" nominal thickness.
Dimensions are all for the WPC standard-body design.
For the beveled cuts, the dimensions are all given
for the longer face on the resulting piece.
Click the image for a larger view.
Plywood sheet #2 - 4' x 8' x 1/2" nominal thickness.
Click the image for a larger view.
Layout 3: Car-friendly plan
I don't own a pickup truck, so it's always a huge hassle for me to
transport large sheets of plywood. One easy workaround is to ask the
store to break down the sheets into smaller pieces that I can fit
into my car. This is a free service at most Home Depot and Lowe's
locations - they'll usually cut full plywood sheets into two or three
pieces for you at no added charge. There are some caveats; they don't
guarantee that the measurements will be exact, and they'll only do
straight cuts parallel to the edges of the board. They also warn you
that the big industrial panel saws they use might not leave a very
clean edge. They don't consider this a "finish" carpentry
service, just a convenience for easier loading.
As an example, I came up with the layout below to fit my car. You
might be able to use this directly if it fits your car as well, but
more likely you'll need to adapt it for your car's cargo area size.
There are two rules you need to observe when creating your own layout.
First, leave some dead space on each side of the store cuts - ideally
about 1/2" on each side of each cut. That leaves margin for error in
case the store is a little off with their measurements, and it lets
you trim the edge more cleanly if their saw leaves a rough edge.
Second, when you figure which pieces you can fit into a given area,
leave a similar dead zone between pieces to account for your own saw
blade's width - about 1/4" spacing between adjacent pieces should be
sufficient.
This layout has an interesting bonus feature: if you happen to be
building two pin cabs at once, there's enough leftover material
that you can build the second cab with only one addition sheet of 3/4"
plywood. (I don't think there's a way to avoid the need for a second
sheet of 1/2" ply for the second cab, though, or at least another half
sheet.)
My layout requires two pieces of 3/4" plywood plus one piece of 1/2"
plywood. At the store, ask them to cut up each piece like this:
These are the cuts to make at the lumber store, to break down
the sheets into smaller pieces for transport. The plan requires
two sheets of 3/4" plywood plus one sheet of 1/2" material.
You can have the store cut all three sheets the same way.
Click the image for a larger view.
1. Grab two 4'x8'x3/4" plywood sheets and one 4'x8'x1/2" plywood sheet,
and take them to the panel saw station
2. Ask the store associate to make a cross-cut in each sheet at 59" from one edge
3. Now ask the associate to make a rip cut in each of the larger (59" wide)
pieces, at 24" - in other words, cut it in half length-wise
Note: The 59" measurement is based on making the smaller side
of this cut as wide as I can fit in my car. The second piece ends up
being about 37"x48" with this cut, and I can fit about 37" across my
cargo area. If your car can accommodate a piece wider than 37", you
can make more efficient use of the plywood by reducing the 59"
measurement - but don't go below 52", since that part is for
the cabinet side panels, which are 51.5" long. By the same
token, if 37" is too wide for your car, you can increase the
59" measurement in order to make the other side narrower, assuming
your car can fit a piece longer than 59".
Attention wide-body or custom width cabinet builders: You might
have to change the final rip cut for the 1/2"-thickness sheet! Figure
out how wide your cabinet is going to be on the outside, and make the
final cut at that width or wider, instead of the 24"
measurement above.
Here's how I mapped the cabinet panels onto the broken-down plywood
sheets:
Note that you don't need a full second 4'x8' sheet of the 3/4"
plywood - a half-sheet would be perfectly adequate, if your lumber
store offers it. A half-sheet isn't workable for the 1/2" section,
unfortunately, since the cabinet floor piece is longer than 48".
Appendix 10. Cabinet Construction Quick Reference
This section is a quick reference to the woodworking procedure to
construct the main cabinet shell, based on the Williams/Bally
standard-width cabinets of the 1990s (which is also used more or less
unchanged by most newer commercial machines). The plan here includes
plywood cutting dimensions and locations for drills, cutouts, and
routed grooves, and it's organized into a step-by-step procedure that
you can follow.
This is the same plan that's laid out in
Chapter 21, Cabinet Body, but it's
distilled here to just the essential checklist steps, arranged into an
efficient order of execution. The order of steps makes sure that
dependencies are done by the time you need them, and groups operations
that use similar tool setups, as much as possible, to minimize the
time you have to spend changing drill bits and so forth. The goal is
that you can just go down this list while doing the woodworking and
carry out the steps in order. To keep it concise, there's not much
explanation here, so I've provided links at each step to the more
detailed corresponding material in the main Cabinet Body chapter.
This plan is primarily for virtual cab builders, but it can also be
used to build replacement cabs for WPC-era machines and later System
11 machines, with some small variations. I've tried to point out in
the text where changes are needed for replica cabs.
Corner joinery
The plans below don't specify the type of corner joins to use for the
main cabinet, so they don't include any routing for those joins. You
can do the joinery a number of different ways, each with its own
advantages, so that's left to your discretion. However, the
measurements assume that all of the pieces extend all the way to the
corners of the finished cabinet, which is only true when you're using
one of the mitered joins (such as a simple 45° miter, a locking
miter, or a mitered rabbet). If you're using non-mitered joins, such
as butt or rabbet joins, you'll have to adjust the measurements for
the pieces that don't extend all the way to the finished
corners. References:
The backbox plans do include specific joinery routing, which is based
on locking rabbet joins.
Width adjustments for different cabinet types
These plans are based on the WPC "standard-body" size, which has an
inside width of 20.5" in the main cabinet. Williams also made
"widebody" cabinets with an inside width of 23.25". You can also
choose a custom width.
To adapt the plans to a different finished cabinet width, you
need to adjust the widths of the following pieces:
- Front wall
- Back wall
- Rear shelf
- Cab floor
The backbox width is typically kept at the same standard size
regardless of the cabinet width.
Mark the panels as you go
As you cut the panels, I think it's a good idea to mark each piece
with the following information, to avoid confusion as you work on
them later:
- Function of the piece ("cab left wall", "backbox top", etc.)
- Inside and outside face
- Top and bottom directions
I just write all of this directly on each piece with a pencil.
Cut the panels
Note: There are other ways to divvy up the plywood, but for the sake of
brevity, we're assuming the "grouped by size" layout here. See
the chapter reference above for other layouts.
Plywood sheet #1 (4' x 8' x 3/4"):
1. Cut the side pieces.
2. Cut the cab, front, and shelf pieces.
Note the 10° bevel angle on the
cut between the cabinet front and rear shelf - see
Chapter 21, Cab Body - Front Wall.
Adjust the width for widebody or custom widths.
3. Cut the backbox side panels.
4. Cut the cashbox fence and shelf lip.
Plywood sheet #2 (4' x 8' x 3/4"):
Plywood sheet #3 (4' x 8' x 1/2")
6. Cut the backbox back wall, 28" wide by 27-3/4" tall.
7. Cut the cabinet floor - adjust if you're building a widebody or custom-size cabinet.
Cut the backbox trim pieces
Quantity | Material | Dimensions |
2 | ½" plywood | 4¾" x ¾" |
2 | ½" plywood | 15" x ¾" |
1 | ¾" plywood | 27⅛" x ¾" |
2 | ¾" plywood | 12⅜" x 1" |
1 | 1x2 board cut to ¾" reducer molding shape (see diagram below) |
27⅛" length |
Reducer molding cross section:
Cut the main cab back rails
Two pieces of 5/8" thick plywood, 19" long by 1" wide. Cut ends
at a 30° bevel angle. (Substitute 3/4" plywood if
desired.)
Cut the corner braces
Cut a 2x2 board diagonally down its length to form a triangular prism
shape, for corner bracing under the leg brackets and to attach the
cashbox fence. Optionally, you can use similar pieces to reinforce
the joints between the floor and side walls. (Don't use them
with the floor joints with the front and back walls, though, since
those might get in the way of other hardware.)
For the front and back corners, the following profile is
required to fit the space under the leg brackets:
Lengths:
- Front corners (leg bracket profile): 6" to 8-1/2" long, quantity 2
- Back corners (leg bracket profile): 6" to 21-1/2" long, quantity 2
- Cashbox fence: 3" long, quantity 2
- Floor braces along side walls (optional): up to 30" long, quantity 2
References:
Route the top glass guide slots
Use a slot cutter router bit, 3/32" slot width, 3/8" slot depth
(Freude part #63-106 or equivalent).
Route the top edge of each side panel, along the slanted section,
centered in the edge. Route from
about 1" from the front to the top of the slanted section.
Mark all routing & drilling locations
At this point, I like to mark all of the panels with the locations of
the routed grooves, cutouts, and drills - essentially everything
below. It's easier to make many of the measurements now, while the
pieces are still whole, and having everything pre-marked makes
the execution much easier.
Cut the corner joins for the main cabinet
Route or cut the grooves and miters for your selected style of corner
joins for the main cabinet. This applies to the main cabinet side,
front, and back walls, at all four corners.
(I prefer to cut the corner joins first, before the floor dados, so
that the dados don't get in the way when you're aligning the cuts for
the corner joins.)
References:
Route floor dados
Cabinet sides, front, and back - inside faces.
Route 1/2" wide by 3/8" deep, offset 1/4" from bottom edge.
Note: Some of the 1990s machines I've checked have bottom offsets
closer to 3/8".
References:
Route the cashbox fence slot
In the right wall only, on the interior face, route a slot 3/8"
wide by 3/8" deep by 3-1/4" high, with the bottom at the floor dado,
and the front edge 11-1/2" from the front (the outside corner).
Route the cashbox fence locking tab
Route a groove in the cashbox fence, 3/8" wide by 3/8" deep, flush
with one end.
Route shelf bottom dados
Shelf, bottom side
Route 3/8" wide by 3/8" deep grooves at the back, left, and right edges, flush with the edges
Route the translite lock cutout in the backbox top trim
In the 27-1/8" x 3/4" x 3/4" backbox top trim piece: route a 2" wide inset,
3/8" deep, centered side-to-side. (Ignore this step if you're not
planning to install a translite lock.)
Route the backbox corner joins
Left and right backbox side walls: Route grooves on inside faces, 3/8" wide by 3/8" deep,
offset 3/8" from the top and bottom edges.
Backbox top: Route on outside (top) face, 3/8" wide by 3/8" deep, flush
with left and right edges.
Backbox bottom: Route on outside (bottom) face, 3/8" wide by 3/8" deep, flush
with left and right edges.
References:
Route the backbox back wall grooves
Backbox sides, inside faces: Route 1/2" wide by
3/8" deep, flush with the back.
Important: Only route between the top and bottom corner
join grooves. Only route the orange section as shown below.
Backbox top, inside (bottom) face: Route 1/2" wide by
3/8" deep, flush with the back.
Backbox bottom, inside (top) face: Route 1/2" wide by
3/8" deep, flush with the back.
References:
Route the translite grooves
Backbox top, inside (bottom) face:
- Route a groove, 1/2" wide by 3/8" deep, 6" from the back edge, across the
whole width of the piece. (The translite fits into this recess.)
- Route a rectangular inset, 2" wide by 2-3/8" tall by 3/8" deep, as
shown in the diagram below. (This is for the translite lock.)
Cut the backbox floor cable opening
Backbox bottom: Cut a rectangular opening, 11-1/8" by 3-1/8", as shown
in the diagram.
Note: this lines up with the cable opening in the shelf when the back
edges are aligned.
Cut the shelf cable opening
Shelf: Cut a rectangular opening, 11-1/8" by 3-1/8", as shown
in the diagram.
Note: this lines up with the cable opening in the bottom of the abckbox
when the back edges are aligned.
Test the lockbar fit
The measurements shown below for the coin door cutout and lockbar
bolts are based on the standard equipment, but I've run into some
slight manufacturing variations in the lockbar receivers, so I
like to use the actual receiver I'm going to install as a template
for drilling. That helps ensure that the final fit is closer to
perfect.
Here's the procedure. Place your lockbar receiver against the
inside face of the front panel, and align the two little tabs
on the front so that they're exactly flush with the top edge of the
panel. Mark the locations of the three bolt holes. Remove the
receiver and measure the distance from the top edge of the panel to
the center of the marked bolt hole locations. Compare to the diagram
below:
If the position you mark by testing with the receiver differs by more
than 1/32" vertically from the diagram above, I'd use the "test"
positions instead of the diagram locations. You should also adjust
all of the following up or down by the same amount to match, since all
of these pieces fit together when installed:
- Coin door cutout
- Lockbar bolt holes
- Coin door bolt holes
Note that the lockbar receiver is drilled to give you about 1/4"
of play side-to-side, so the horizontal locations don't have to be
as exact.
Cut the coin door opening
Cut a rectangular opening, 12-1/4" wide by 10-3/8" high, centered
left to right. The top of the cutout is 1-23/32" from the top of
the inside face.
(The distance is specified from the top, because the coin door has
to align with the lockbar receiver, which has to be a certain distance
from the top for the lockbar to fit.)
Cut the plunger opening
Do this only if you're installing a plunger (ball shooter). This
cutout shape only applies to the modern style, 1980s and later.
Cutout shape: Drill the four holes on the centers shown, then
route or jigsaw along the perimeter they define (black outline
in the diagram below).
Cutout location: Varies. For virtual cabs,
a location similar to that used in real machines is preferable for
aesthetics, but you can move it if needed to avoid space conflicts
with the TV. For replacement pinball cabs, the location is strictly
dictated by the playfield geometry, because the plunger has to line up
with the playfield shooter lane. The table below lists typical
locations for Williams games of the 1980s and 1990s, but individual
titles may vary, so check against a factory original if possible.
The reference point for all table entries below is the center of the
top 3/4" diameter drill. The location is measured from the top and
right edges of the outside face of the front panel.
Cabinet Usage |
Distance from top |
Distance from right |
Virtual pin cab - plunger only, or plunger above Launch Ball button |
2-1/2" |
2-1/8" |
Virtual pin cab - plunger below Launch Ball button |
5" |
2-1/8" |
Replacement cab for Williams System 11 and early WPC titles, through 1993 |
1-5/8" |
2-1/8" |
Replacement cab for later WPC titles, 1994 and later |
2-1/2" |
2-1/8" |
Cut the back wall vents
Virtual cabs: For 120mm PC case fans, cut 4-3/4" diameter circular openings.
The exact location isn't critical, so adjust as desired.
Replacement pinball cabs: Cut two passive vents, 6" wide by 2" high,
with 1" radius rounded ends, as shown in the diagram below. (Use a
2"-diameter hole saw to drill the rounded ends, then cut the
straight edges between the holes with a router or jigsaw.)
Cut the power button opening
Cabinet floor: a rectangular opening, 2-1/4" long (in the long
direction of the floor) by 1-3/8" wide (virtual cabs) or 1-1/8" wide
(replacement WPC pinball cabs), at the location shown in the diagram.
Cut the subwoofer opening
Cabinet floor: circular opening, 5-3/8" diameter, centered
side-to-side. Increase the diameter, if desired, to match your
subwoofer's aperture.
For virtual cabs, the exact placement is up to you, but it's typically
fairly close to the back, to leave a large block of space for the PC
equipment. The diagram says 9" from the back, but this is just a
suggestion.
For replacement WPC cabs, the opening is typically at 22-1/4" from the
back.
Cut the floor intake fan opening
Virtual cabs only (omit for pinball replacement cabs): Cabinet floor,
circular opening, sized to the intake fan (for a standard 120mm PC
case fan, make it 4-3/4" diameter). There's no standard location.
The diagram shows a possible location that should leave enough space
for the PC motherboard. Some people also add a second intake fan
for more air flow, mirrored on the opposite side.)
Drill the Launch Ball button
If you're using a Launch Ball button in addition to or instead of a
plunger: In the front wall:
- Drill a 1" diameter hole, for the main shaft of the button
- Drill with two 3/16" diameter holes about about 3/8" deep,
spaced 1-1/2" apart, one above and one below; these are for
little nubs on the button housing that
prevent it from rotating freely
The location isn't critical, other than avoiding space conflicts with
the lockbar receiver, leg bracket, and coin door. Typical placements:
- Plunger + Launch button, plunger on top:
Place the Launch Ball button with its center 4-1/4"
below the plunger's main drill center.
- Plunger + Launch button, button on top:
Place the Launch Ball button with its
center 2-1/2" above the plunger's main drill center.
Drill the front panel buttons
For SuzoHapp small round pushbuttons (the standard part used for the Start button on
most machines since the 1990s): Using a Forstner bit, drill a 1-3/8"
diameter inset to about 3/8" depth. Then drill the rest of the way
through on the same center with a 1" diameter Forstner bit of hole
saw.
Placement: For virtual cabs, you can put as many buttons as you like
wherever you like. But the available space limits the options, and
most people end up putting one to three buttons to the left of the
coin door. A three-button layout that fits a standard cab (and fits
with the standard hardware) is shown below. If you use your own
layout, make sure that it doesn't conflict with the lockbar, leg
brackets, or coin door.
For a replacement cab for a real pinball machine, it's best to measure
a factory original and replicate its layout. The buttons might need
to align with other cabinet hardware specific to the title, and/or
with the cabinet artwork.
Drill the lockbar receiver and coin door bolts
Drill the six 9/32" holes shown in the diagram (three across
the top for the lockbar receiver, and three more around the
perimeter of the coin door).
Reference the vertical position to the inside top edge of
the front panel. Center the middle bolts horizontally in the panel
(this should also be the center of the coin door cutout).
References:
Drill the flipper buttons
For WPC-style side rails (narrow rails that don't cover the flipper
buttons), drill at the locations shown below. The flipper button goes
at the same location whether or not you're including a MagnaSave
button.
For System 11 rails or other wide rails that cover the flipper
buttons, don't use these coordinates. Instead, drill at the same
location as the pre-cut button hole in the rail, using the rail itself
as a template.
How to drill:
- Original pattern used in most commercial machines (see diagram below):
- Drill a small pilot hole (1/8") on the center, all the way through;
use this as the center for all of the remaining drills
- Use a 1⅛" Forstner bit or hole saw to drill a
5/16"-deep depression from the outside
- Use the same 1⅛" bit to drill a 3/16"-deep depression from the inside
- Drill the rest of the way through with a ⅝" bit
- Simplified alternative: If you're using an LED board or VirtuaPin
flipper switch bracket, drill straight through with a 1-1/8" diameter
hole saw or Forstner bit.
Drill the backbox hinge pivots
Note: You might want to wait until after cabinet assembly to
drill these holes, to fine-tune the positions based on aligning the
backbox perfectly in the final fit. See the
Alternative Procedure under
Post assembly: drill the backbox
hinge bolts below.
If you want to pre-drill these holes, drill a 1/2" diameter hole
in each side of the cabinet, 9-1/2" from the back edge and 20"
from the bottom edge.
Drill the playfield pivots
This step applies only to replacement cabinets for Williams/Bally
System 11 and WPC titles. Don't drill these holes for a virtual
cab.
Single pivot nut system (games through mid 1992): The playfield
is supported on a single pivot point on each side wall. The pivot
point in older games (before about 1990) is a steel bushing
(essentially a cylindrical steel spacer), 3/8" inside diameter, 1/2"
outside diameter, that fits over a 3/8"-16 carriage bolt attached from
the outside of the cabinet. The bushing was superseded by a 3/8"-16
threaded pivot nut starting in about 1990, and you can replace the
bushings on older games with the pivot nuts when refurbishing, if
desired.
The location of the pivots varies by title. I've collected
measurements for a few machines listed below. If your specific
machine isn't in the table below, you'll have to find a factory
original to take measurements from. I'd like to expand this into a
more comprehensive list, so if you have trustworthy information for a
machine with a WPC-style cab that's not listed below, please send it
to me.
Be especially careful with these to drill the holes perfectly straight
and to line them up as precisely as possible on the two sides. The
playfield won't seat properly if the pivot nuts are angled
or misaligned.
Playfield pivot for machines with single pivot nut. Drill 3/8".
The drills are the same on the left and right sides.
The location varies by title - see table.
A = distance from front corner, B = distance from bottom edge.
Note that A is the distance to the front outside corner of the finished cabinet,
so if you're measuring it before assembly, adjust for joinery. No joinery adjustment is
needed for mitered joins, since the outer face of the panel extends all the way to the
finished corner.
Title |
A |
B |
Pivot Nut |
Carriage Bolt |
The Addams Family |
36-3/4" |
14-7/16" |
#02-4329 (1/2") |
4322-01123-20B (1-1/4")
|
Whirlwind |
36-3/4" |
14-7/16" |
#02-4324 (See note) |
4322-01123-20B (1-1/4")
|
Note: Part 02-4324 is no longer available from any of the pinball
vendors; it was a steel bushing/spacer with 3/8" ID, 1/2" OD, length
1/2", typically secured with a hex nut. One of the threaded pivot
nuts (02-4329 or 02-4329-1) should work as a substitute.
Slider bracket system (games from mid 1992): This applies to
titles starting with Fish Tales. These support the playfield
on the newer slider brackets (parts A-16637-1/A-16637-2 or
A-17749.1-1/A-17749.1-2), which rest on two 3/8"-16 x 7/8" pivot nuts (02-4329-1)
on each side. The pivot nuts fit over a spacer plate (01-11408) and
mate with 3/8"-16 x 1-1/4" carriage bolts (4322-01123-20B).
Playfield pivot for machines with single pivot nut. Drill two holes at 3/8".
The drills are the same on the left and right sides.
Note that the horizontal locations are measured from the front outside corner of the finished cabinet,
so if you're measuring it before assembly, adjust for joinery. No joinery adjustment is
needed for mitered joins, since the outer face of the panel extends all the way to the
finished corner.
Note: I think the pivot nut locations are the same for all titles
using the sliders, but I've only verified it against a couple of
machines (
Theatre of Magic and
Medieval Madness).
Swinks's plans on Pinside make the same assumption, although they
differ from mine on the exact locations of the drills by 1/8" to 1/4".
That might be due to measurement error, manufacturing variations, or
actual design differences in the titles we sampled. (The titles
mentioned in the Swinks thread are
Bram Stoker's Dracula,
Creature from the Black Lagoon, and Stern's
Iron Man.)
I think the slider system can tolerate this much variation without any
functional impact, but even so, I'd measure a factory original of your
particular title before drilling to make sure it really is in this
range. If you know of a title that's significantly different from my
figures, please let me know so I can include it in this section.
Drill the backbox floor hinge bolts
Note: I prefer to do this
after cabinet assembly, by installing
the hinges first, then getting the backbox aligned perfectly, and
marking the bolt locations once everything's in position. This ensures
a perfect final fit. See
Post assembly: drill the backbox
hinge bolts below.
Alternatively, you can do the same alignment the other way around:
pre-drill the backbox floor hinge bolts, and defer drilling the pivot
holes in the main cabinet until after doing a test fit.
If you want to pre-drill these holes, drill three 1/4" diameter holes,
1-3/4" apart, starting at 1-1/2" from the back edge, and 2-1/4" from
the outside left/right edges.
Drill the backbox floor wing screws
Drill two 1" diameter holes in the backbox floor as shown below.
Drill the shelf wing screw T-nuts
Drill two holes in the rear shelf, sized for 3/8"-16 tee nuts
(typically 15/32" diameter), as shown below. Note: these should
line up (on the same centers) with the backbox floor wing screw
holes when the rear edges of the two pieces are flush.
Drill the backbox vents
Drill 7 holes in the back wall of the backbox, 1-1/2" diameter, with
the centers 2" from the top edge and spaced 2-1/2" from center to
center, as shown below.
Drill the back wall power inlet
Drill a 2-1/2" diameter hole in the back wall, as shown below.
Drill the floor vents
Drill two 1-1/2" diameter holes near the rear of the main cabinet
floor, as shown below. (These are passive air vents for cooling
on the original WPC cabs. You don't really need these on a virtual
cab if you already cut separate floor openings for intake fans.)
Drill the translite lock T-nuts
If you're installing a translite lock in the backbox, drill holes
for tee nuts in the 12-3/8" x 1" trim pieces as shown below.
Drill the cashbox fence T-nuts
If you're installing a cashbox fence and cashbox lock bracket,
drill holes in the fence for the tee nuts. Use the bracket as
a drilling template, and drill for #8 tee nuts (typically 7/32" to 1/4").
Drill the backbox corner brace bolts
This step only applies if you're using corner braces in the backbox,
Williams part #01-9167, which attach with 1/4"-20 carriage bolts. Drill four
9/32" holes in each of the backbox top, bottom, left side, and right
side panels, as shown below.
Note for widebody/custom widths: the #01-9167 corner braces can't be
used on the bottom corners with a widebody cabinet, because the width
of the cabinet requires the hinge brackets to be placed further apart,
bringing them into conflict with the corner brackets. There's a
special version of the corner bracket for widebody cabinets that fits
over the hinge bracket and doesn't require any additional holes in the
bottom panel. VirtuaPin sells the wide brackets under part number
01-9167-W. (I'm not sure if that's the official part number - I
can't find it listed in any of the Williams parts manuals or for
sale from any of the other pinball vendors.)
For custom-width cabinets that are in between the
standard and widebody sizes, you're likely to have the same conflict,
with no easy way to resolve it, so I'd just skip the bottom corner
braces.
Drill the backbox insert panel bracket bolts
This applies only to replacement cabinets for real pinballs, for WPC
and System 11 games that use a backbox insert (the plywood panel with
lamps that sits behind the backglass to provide back-lighting). Don't
drill these holes for virtual cabinets or for later WPC games with
plastic "tub" inserts. These drills are for #10 carriage bolts,
which fasten the insert hinge brackets, parts A-12497 (upper) and
A-12498 (lower), to the inside of the left wall of the backbox. Drill
four 3/16" holes as shown, in the left side panel only.
Note: These drill locations are the same on several machines I've
checked, from a mix of System 11 and WPC-95 titles, but I haven't done
an exhaustive survey. If possible, verify the measurements for your
specific title by checking against a factory original.
Post-assembly: drill the leg bolts
Two 3/8" drills in each corner of the main cabinet, 2-1/4" apart, at
a 45° angle into the corner.
Front left/right: drill centers at 4" and 6-1/4" from the bottom edge
Back left/right: drill centers at 2" and 4-1/4" from the bottom edge
Post-assembly: drill the backbox hinge bolts
Attach the backbox hinges to the main cabinet with their pivot nuts.
Set the backbox on top of the cabinet. Center the backbox left to
right, and align the back of the backbox flush with the back of the
cabinet. Secure the backbox in this position with
wing screws, screwing them through the holes in the floor of the
backbox and into the matching T-nuts under the shelf.
Rotate the hinges up so that they sit flat against the bottom of the
backbox, and mark the locations of the three bolt holes. Do this for
both sides. Before marking positions, make sure that the hinges are
parallel to the sides of the cabinet, and make sure there's enough of
a gap that they won't rub against the sides when the backbox is
rotated.
Remove the backbox and drill 1/4" holes at the marked positions.
Alternative procedure: Drill the six bolt holes in the backbox floor
first, but do not drill the pivot bolt holes in the cabinet
sides yet. Attach the cabinet hinges to the backbox with six carriage
bolts (1/4"-20 x 1-1/4") and whiz flange nuts (1/4"-20). Position
the backbox on top of the main cabinet as described above and secure
it with wing screws. Mark the hinge pivot hole positions on the
sides of the cabinet. Remove the backbox. Drill a 1/2" diameter hole
on each side of the cabinet at the marked position.
References:
Appendix 11. A Few Woodworking Tips
I'm such a woodworking newbie that I'm a little shy about including a
section on "tips". But I'm doing it anyway, because I've come across
a few useful things that don't seem to be widely advertised, and I
want to pass them along. This isn't even remotely a tutorial on
woodworking - it's just a few miscellaneous ideas that I've found
helpful.
I picked up most of the tips here from Web tutorials and Youtube
videos. You can easily find these tips and much more with a little
online research. But the Web is vast, so sometimes it's nice to have
a curated list of highlights from someone who's not just trying to pad
out a listicle.
Measuring and marking lines
If you're accustomed to marking measurements on a board with a little "tick"
mark with a pencil, here's a slightly different method that's no more
work, but really improves my accuracy.
- Put your pencil tip right against the mark on the tape or ruler at the point you want to mark
- Make a diagonal stroke out to the right
- Put your pencil tip back at the same tape/ruler mark
- Make a second diagonal stroke out to the left
Now you have a little "V", with the point of the "V" exactly at the
measured location.
The repeatability of my measurements improved noticeably when I
starting using this technique. The old tick mark method leaves a
surprising amount of fuzziness, mostly because the little line is
never perfectly straight (not when I draw it, anyway). The "V" marks
a single point, instead of a line, so you can see exactly where
the measurement was supposed to be.
Tape measures
The best measuring tool for many woodworking tasks is a tape measure.
I used to think rulers were better when you needed an accurate
measurement, but a tape measure is actually better for woodworking in
many cases, if you use it right. The key is the little hook on the
end.
When you want to measure from the edge of a board, hook the tape onto
the edge you want to measure from, and pull the tape tight across the
board to find the point to mark. The hook sets the zero point exactly
at the edge of the board. This is much more precise than trying to
align a ruler with the edge.
Here are two tips for getting better accuracy out of your tape measure:
- The little hook on the end of the tape is supposed to be
loose like that. I always thought the looseness in my old tape
measure was from age - I thought the little rivets holding the hook
on had loosened up over time. But the sliding hook is actually a
feature, not a bug. It's there to precisely account for the thickness
of the hook itself. When you attach the hook to the outside edge of a
board, pull it tight, and the hook will align so that your reading on
the tape corresponds to the distance from the edge of the board. When
you're measuring the inside of a space, push the hook up against the
wall you want to measure from, so that the hook slides all the way
inward, and now the reading on the tape is precisely the distance from
the thing it's pressed up against.
- Use the same tape measure for all measurements that have to
align with each other or be consistent with each other. Tape measures
(and rulers as well) can have a fair amount of variation when you
compare them side by side - it seems typical to see differences
of 1/32" to 1/8" over distances of a few feet. Even a variation
as large as 1/8" over 3' is better than 99.5%
accuracy, which is great in most contexts, but those fractions
of an inch can really matter in woodworking. Anyway, you can
make those errors cancel out in most cases simply by using the
same tape measure for all related measurements. That way, at least the
readings will all be off by the same amount, so they'll line up
with each other after cutting.
By the same token, if you need a measurement to
line up with some pre-fab part (a metal trim piece, say), measure
that part with the same tape measure rather than relying on the
specs. Or just use the part itself as a ruler. Don't count on
every part to match the specs perfectly; a lot of this stuff
isn't manufactured to the highest precision.
Buying tip: I find it really helpful to have a tape where every tick
mark on the tape is marked with a number. I have an older tape that
only has numbers on the inch marks, and a newer tape with every 1/16th
tick mark individually numbered. I've made more mistakes than I'd
like to admit reading the old tape, where I misread a 1/16th tick
because I wasn't paying close enough attention or I didn't have good
enough lighting. It's harder to screw that up when the number is
printed right on top of the mark you're reading.
Comparison of tape measure markings. Every 1/16" mark is
numbered on the top tape. On the bottom tape, only the
inches are numbered, and you have to infer the fractions -
which isn't exactly hard, but it's more error-prone.
On the other hand, the bottom tape is narrower, which
makes it easier to hold the edge flat against a board
to precisely line up a mark. My ideal would be a narrow tape like
the bottom one with every tick mark clearly numbered
like the top one.
Sawing on the "right" side of the line
If you start with a board that's 12" wide, and you use a saw to cut it
exactly in half, how wide are the two resulting pieces? Strangely, the answer
isn't 6". It's actually more like 5-15/16". What happened to the
missing 1/8"? It basically vanished into thin air. Well, almost: it
got converted into sawdust. The technical term for this is the "kerf" of
the blade - the width of the slit that the blade makes as it cuts through the
board. You can easily see this in action by making a cut partway
into a board.
Partial cut, showing the slit that the saw leaves as it cuts.
Woodworkers call the width the "kerf" of the blade.
The usual goal when you're sawing a board is to produce a finished
board that's an exact target width. You don't want it to be "about"
the desired width, give or take a few sixteenths. You want the result
to be just what you measured.
The way to get the finished board to match the measured size is to
place the blade on the outside of the cut line. In other words,
position the saw so that the entire width of the blade is within
leftover part of the board. Align the inside face of the saw
blade (the face closer to the keeper part of the board) with the cut
line. That way, the slit that the saw cuts will be taken out of the
leftover part, leaving exactly the measured size for the keeper part.
How you apply this varies a little bit with different types of saws:
- For a table saw, making a rip cut using the fence, the
keeper part is the side that goes against the fence. The fence gauge
should always be calibrated to the distance between the fence and the
blade, so the reading on the gauge should reliably give you the width
of the finished piece that comes out of the saw on the fence side.
- For a cross-cut with a table saw, using a sled or miter gauge
(rather than the fence), mark the cut line on the board, and align the
cut line against the saw blade so that the whole width of the blade is
on the leftover side of the line.
- For a track saw, mark the cut line on the board, and
position the track so that it's on top of the keeper side of the
board, with the edge of the track right up against the cut line.
Drilling clean holes
The big problem that everyone encounters when drilling plywood is
splintering on the back side of the board, where the bit exits.
This seems to be a vexing problem for a lot of people, given the
bounty of How To pages about it on the Web. The usual advice is to
always use brand new drill bits, or to use special bits like stepped
bits or Forstner bits. It's hard to argue with the notion that a
sharp bit will drill cleaner than a dull one, but it's hard to imagine
anyone actually follows advice that you should treat your drill bits
as single-use disposables. And the special bits have their uses, but
none of them can fix the back-side splintering problem by themselves.
The splintering happens because of the way plywood is constructed, not
because of the type of drill bit you're using.
Another approach you often see recommended is to drill halfway through
from each side, meeting in the middle. This avoids back-side
splintering by essentially eliminating a back side. That can indeed
fix the splintering problem, but I've found that it often creates a
new problem, which is that it's difficult to get the two half-holes to
align perfectly. There's usually at least a tiny offset between them,
no matter how careful you are. You can pre-drill with a small pilot
bit to mark the center point on both sides, but even then, the
accuracy is limited to the non-zero size of the pilot hole. In some
cases, a slight offset might not matter, but it can be problematic
when precision is required, such as when you need a good fit for a
bolt.
What actually works: There's only one technique I've found that
really works, and the good news is that it works reliably, with almost
any drill bit. It's also pretty easy. The technique that works is to
use a backing board. In other words, take a piece of flat
scrap material that you don't mind drilling an extra hole in, and
clamp it tightly to the back of the board, behind where you're
drilling the hole. Tight clamping is the key - it's what makes this
work. Now just drill straight through from the top side.
The whole reason splintering happens in the first place is that the
veneer tends to bend outwards just before the bit penetrates it. As
the bit gets close to breaking through, it cuts away at the veneer
from the inside, making it thinner and thinner. This reaches a point
where the veneer is so thin and fragile that the pushing force of the
bit overwhelms the cutting action, bending the super-thin fragment of
veneer outwards instead of cutting it. The wood grain holds this bit
of bending veneer together and pulls it up and away from the board for
some distance away from the hole, resulting in those torn splinters
around the exit point of the drill.
The backing board fixes this by providing an extra layer of strength
outside the veneer that holds the veneer flat until the bit is all the
way through.
I almost always get clean holes on both sides of the board when using
this technique, as long as the backing board is clamped tightly
enough. This works for regular spiral bits, Forstner bits, and hole
saws.
Cutting rectangular openings
It's easy to cut a rectangular opening with a jigsaw, but I've never
been able to get professional looking results. My jigsaw cuts always
end up at least a little crooked. I get much nicer results with a
router and an edge guide, but it's extremely tedious to cut a large
opening in a thick board this way, because you have to make multiple
passes. You're only supposed to route about 1/4" of depth at a time.
The router also produces a ridiculous amount of sawdust.
The best solution I've found for cutting large openings is to combine
the jigsaw and router methods, in a two-step procedure:
1. Make a rough cut with a jigsaw, leaving a safety margin of
perhaps 1/8" inside the bounds you want to cut
2. Finish each side with a router and a straight bit, using an edge
guide to get a straight line at the final boundary
For the initial cut with the jigsaw, drill holes near the four corners
big enough for the jigsaw blade. Make sure that the holes are inset
from the final corners far enough that you don't drill any material
outside the lines. Now use the jigsaw to make a rough cut along each
edge, staying well within the final outline. The point is to maintain
a safety margin so that if the jigsaw swerves off course, you'll be
able to stop it before it cuts anything outside the final outline.
Any jagged lines at this point don't matter because they're all inside
the interior of the cutout, which is going to end up being entirely
removed when we're done.
After the rough opening is finished, you can use the straight
router bit to trim back each edge to the final cut line. You can set
the router bit height to the full thickness of the board, since we
don't have to make a "plunge" cut into the board. We're just going to
nibble away at the edge until we reach the cut line. This is what
makes this approach faster than doing the whole thing with the router
bit: when using just the router, you have to make the cut in 1/4"
depth increments, because router bits can burn the board if you try to
cut deeper than that all at once. But this way, we're going in from
the side instead of straight down, so we can do a little bit at a time
sideways instead of a little bit at a time in depth.
For the routing steps, I work on one edge at a time. I clamp a
straight edge to the work piece to serve as the guide, parallel to the
cut line, offset by the distance between the router bit and the
outside of the router base plate. The guide can simply be a straight
piece of plywood, or any other good straight edge, such an aluminum
level. You can measure the distance on the router itself, but I find
it works much better to make a test cut against a straight edge and
measure the distance between the straight edge and the cut. Then you
just position the straight edge the exact same distance from the line
you want to cut. Clamp it to the board. Position the router bit in
the jigsaw opening, making sure it's in a completely open area, not in
contact with any wood at this point. Turn on the router and let it
come up to speed. Gently and gradually move the bit into the target
edge, until the base reaches the straight edge. Slowly move the
router along the straight edge. Stop a little short of the corners,
to make sure you don't put a dent into the corner that goes outside
the box. Repeat for each edge.
By the way, this technique also works for other shapes with straight
edges, such as the triangular(-ish) cutout for the plunger in the
front wall of a pin cab.
There's a right direction when routing
Routers have a preferred direction for moving them across a work
piece. I didn't really appreciate what this meant even after reading
about it in my router's instruction manual, but it's actually kind of
important.
With most routers, you're supposed to move the router clockwise when
you're routing the inside of an opening, and move it counter-clockwise
when routing outside a perimeter. (Check your router's manual to make
sure it agrees, but I think it's universal - it's a function of the
bit spin direction, which I think is standardized across all
manufacturers.)
The preferred direction is important because it stabilizes the
router's motion, helping you keep the router under control. When the bit
contacts the work piece, it applies a force to the whole router.
Moving in the preferred direction helps directs this force for good
rather than evil - it tends to push the router towards the work piece,
which keeps the motion stable and under your control. If you move the
router in the backwards direction, the contact force can make the
router kick and jerk away from the work piece, often with enough force
to momentarily overwhelm your steering guidance. Apart from the
obvious danger of injury, this can easily ruin the workpiece by jerking
the router away from the intended cut line.
I keep a cheat-sheet with a diagram of the rule on my workbench, so
that it's in view whenever I use the router.
Appendix 12. Lock Miter I: The Plywood-Friendly Way
The original Williams pinball cabinets of the 1990s used a type of
corner join known as a lock miter. This join has mitered corners
(meaning the ends of the pieces that come together at a corner
are cut at 45°, so that the seam is exactly the corner, making
it practically invisible), plus an interlocking tongue-and-groove pattern on
the inside (that's the "lock" part). There are other good ways to make
the corner joins, but the lock miter is one of the best.
The corners are seamless, the joints are self-aligning and self-squaring,
and they have a lot of internal surface area for strong glue adhesion.
Lock miter corners are also make assembly really easy, since the
corners snap together like jigsaw puzzle pieces.
There are (at least) two ways to make a lock miter join. The first
method, which we'll cover in this chapter, involves making a sequence
of cuts (six steps in all) with a 1/4" straight router bit and a table
saw. I'm covering this method first because it works very well with
plywood, which is what most pin cabs are made of. This method might
look a little intimidating at first, because of the number of steps
involved, but it's actually not that bad. Most of the steps are
pretty simple, and they mostly use natural alignment points that don't
require any arithmetic or ruler measurements.
The second method involves a special router bit that cuts the entire
tongue-and-groove pattern all at once. That's covered in the next
chapter,
Appendix 13, Lock Miter II: The Special Router Bit Way. That method probably looks easier
at first glance, since the bit does all of the work for you. But
these bits are notoriously difficult to set up properly. There is a
reliable setup procedure, but the time and effort involved in that
ends up making the overall degree of difficulty similar to the more
manual "plywood friendly" method. The real drawback of the
special-router-bit approach is that the tongue-and-groove structures
that the router bits cut are too fine for most plywood, so you
lose a lot of the strength that the join is supposed to provide.
If you're new to woodworking, both methods are probably going to look
like "advanced" procedures that should only be tackled by grizzled
veterans with lavishly equipped wood shops. But don't give up yet!
I'm a woodworking newbie myself, and I've found that both techniques
are doable and can yield great results, even if you're new to this.
I've tried to reduce both methods to straightforward recipes that you
can follow without any special woodworking expertise and with
a modest set of tools.
Example of the manual method
Here are some photos of a sample corner built with the manual
method, to give you a better idea of what it looks like.
Dry fit of a test corner built using the manual lock miter method.
This is just a couple of scrap pieces that I ran through the process
in this chapter as a beta test. It took about an hour of work;
most of that was spent on the "sneaking up" phase
for the 45° angled cuts. It came out just about perfect -
the two pieces fit together nicely, and the corner is razor-sharp.
A closeup of the grooves, with the front/back piece on the
left and the side piece on the right.
Another view of the grooves. The thing I like about this
version of the lock miter (the "manual" approach) is that
the tongue-and-groove structure comes out so clean and sturdy
when rendered in plywood, thanks to the relatively large features.
Compare this to the similar pictures of the special router
bit results in
Appendix 13, Lock Miter II: The Special Router Bit Way).
Pros and cons of the two methods
If you're considering using lock miter corners for your pin cab
project, I'd suggest reading through both methods, so that you can
judge for yourself which one you feel more comfortable with. Here's
a quick summary of what I think are the high and low points of
each approach.
Router Bit Method | Manual Method |
Special router bit required ($25-$100+) |
Needs only a 1/4" straight router bit (and can be done with just a table saw, no router needed) |
No table saw required |
Requires a table saw |
Not great for plywood; tongue-and-groove features have poor structural integrity due to small size |
Excellent results with plywood, makes a super strong joint
|
Only needs one routing pass over each edge |
Six cutting steps required |
Bit setup is notoriously difficult (but doable if you follow the right procedure) |
Fairly straightforward setup for each cut (but there are still six of them) |
I've tried both approaches, and I've found that - surprisingly - the
manual method isn't really any harder or more time consuming than the
router bit method. It might even be a little easier. You'd think
that the special router bits would make things a whole lot easier,
given that they cut the entire pattern in one pass over each edge, but
the complex setup procedure makes up for it. The manual method
involves multiple cuts for each corner, but each one is fairly quick
and easy to set up, and the recipe is pretty reliable at getting all
of the cuts to line up accurately with one another.
Given that neither method has a clear advantage in terms of difficulty
level, my feeling is that the manual method has an edge for a pin cab
project, simply because of its better performance with plywood. The
main obstacle with the manual method for many people will probably be
that it requires a table saw. If you don't have a table saw and you
don't want to buy or rent one, the special-router-bit method is a good
fallback; even though it's not ideal for plywood, it is workable
with at least some plywood.
How the lock miter works
The lock miter is an elaboration of the plain miter join, which is
a simple join where you cut the ends of the two pieces meeting at a corner
at a 45° angle:
The plain miter gives you a nice clean corner without a visible seam,
but it doesn't make a very strong glue joint, and it takes some skill
to execute it well. For one thing, you have to get the two cuts
exactly at 45°, or the corner won't be square. The way the
two pieces meet means that any error in the cut angle of each piece is
doubled in the assembled corner. If you're off by 1° on the cut
angle, the corner will be out of square by 2°. The other thing
that's difficult with a plain miter cut is getting the two pieces to
align correctly during assembly. You have to get the corner aligned
across its whole length, and then keep it there while the glue dries.
There are corner clamp systems that help with this, but it still takes
some skill.
The lock miter improves on this by keeping the 45° angle at the
outside corner and adding an interlocking tongue and groove. There
are different ways to make the interlocking tabs. The special lock
miter router bits produce a pattern that looks roughly like this:
The manual method presented in this section produces this pattern:
The common features are the 45° angled cut at the outside corner,
and the interlocking tongue and groove. Like the plain miter, the
45° angle at the outside makes the corner seamless. The addition
of the locking tabs makes the assembly step almost effortless, since
the pieces can only fit together at exactly the right alignment.
And the extra surface area of the tabs forms a
strong glue joint. This join is also a little more forgiving of
imperfect 45° angles at the corner, since the locking tabs will
still keep the corner aligned and square.
You probably noticed that the router bit method and the manual method
have slightly different shapes for the interlocking tabs. The
differences aren't completely arbitrary. The key difference is that
the tongue-and-groove structures in the manual method are coarser.
That's what makes the manual method perform better with plywood. The
lock miter router bits are forced to use smaller features because
their cutting pattern has to form a mirror image. That's how they
work their magic trick of cutting both sides of a corner join with the
same bit. Every feature has to appear twice, once on each side of the
"mirror", so every feature has to be half-sized. The small
projections are problematic with plywood, in that the glued plies tend
to fall apart when cut so finely. The manual method doesn't have to
be symmetrical, since we make each cut individually. That allows for
larger features, which hold up better with plywood.
Equipment needed for the manual method
1/4" straight router bit: Just to be clear, we're talking about
a bit with a 1/4" cutting diameter (as opposed the shank size - for
that, simply match the shank size your router uses).
Router and router table: If you already have a hand router, you
can buy an inexpensive bench-top router table and use it with your
hand router. Most of the the bench-top tables are compatible with
many brands of routers, so you can generally mix and match tables and
routers. I use a bench-top table from Skil with a Ryobi fixed-base
hand router. The table isn't a high-end piece of precision equipment,
but it works for the pin cab joinery I've attempted.
Router table fence micro-adjuster: Optional but really helpful.
Provides a way to adjust the fence position in tiny fractions of an
inch, to help get the alignment perfect. This is something you can
make yourself as a simple DIY project described later in this chapter.
Table saw: For the 45° angled miter cuts.
1/4" MDF scraps: For use as alignment aids. You just need a
couple of scrap pieces, roughly 6"x6" and 2"x6". 1/4" plywood or
hard-board will also work.
Auxiliary fence for your table saw: A piece of 3/4" MDF or
plywood, cut to about the same size as your table saw's fence.
Doing it all with a table saw
You can create a lock miter using just a table saw, no router
required. You need a 1/4" dado stack in place of the 1/4" router
bit used in my procedure.
The steps in my procedure are tailored to the router table, so you
might want to look for a recipe that's specific to the table saw -
there are some equally complete table-saw versions out there. Search
the Web and/or Youtube for lock miter with table saw.
Or you could just adapt my recipe, if you don't mind puzzling out how
to translate the router fence alignment steps to the table saw. The
alignment points for the cuts are all the same relative to the boards,
so it doesn't take much translation. The main thing to watch out
for is that you'll need an auxiliary fence for a couple of steps,
since the saw blade will otherwise be too close to the main fence.
Do a practice run
This is a complex enough procedure that I felt the need to do a couple
of practice runs on scrap material before I tried it for a real
project. You might not need to, but I found it helpful as a
confidence booster, to make sure I understood all of the steps.
The other nice thing about a practice run is that it helped me
fine-tune my sense of the various alignment points. The procedure is
designed to make the alignment points easy to judge, but even so,
there's always a little wiggle room when trying to get two things to
line up. If anything comes out a little off in the test run, you can
use that as a guide to compensate the next time through.
Preparation
Get all of the panels ready: Wait until all of your panels are
cut to final sizes before starting the lock miter procedure. You
should do all of the lock miter routing across all panels at the
same time, so that you only have to do the setup part of each step
once.
I'd do the lock miter cutting on all panels before routing
other features (e.g., floor dados), drilling holes (flipper buttons,
say), and cutting openings (like the coin door cutout). The panels
are easier to handle whole.
Include a scrap "side" and "front" piece for testing every cut.
Reserve a small scrap piece of plywood for each, designating one as
"side" and one as "front". Make each cut on the corresponding scrap
piece first as a sanity check that you're set up correctly. This is
especially helpful in the steps where you have to "sneak up" on the
final alignments with a series of test cuts. The idea with "sneaking
up" is that you start with a cut that's intentionally shy of the real
cut line, then you check how close you got, and then gradually re-cut
closer and closer until you get exactly to the right spot. I
sometimes make the mistake of overshooting the final cut line because
I wasn't gradual enough in the re-do cuts. It's nice to know that
you're only ruining a piece of scrap if that happens.
Pre-mark all panels. The lock miter we're doing involves two
different cutting patterns, one for the side panels, and a
different one for the front/back panels. It's crucially important
that you cut the right pattern in each panel. To avoid switching
things around in the heat of battle, mark each piece conspicuously
before you start, to indicate whether it's a SIDE or
FRONT/BACK piece. I also like to mark the INSIDE and
OUTSIDE face of each piece so that I don't have to think about
that later. The inside/outside orientation matters for every cut. I
make all of these markings right along each edge where the lock miter
pattern goes, just beyond the cutting area (about 3/4" from the edge),
to help make sure I'm cutting the correct edge. I don't want to have
to think too much while the router is running - less chance of
screwing something up.
Install a 1/4" straight bit in your router. This bit will
be used for all routing throughout the procedure.
Set up an auxiliary fence for your table saw. Simply cut a
piece of 3/4" MDF or plywood to roughly the same size as your saw's
fence, and attach it to the blade side of the fence with clamps, with
the bottom of the aux fence about 3/8" above the table top.
A few tips, tricks, and precautions
Always unplug the router before adjusting the bit height or
fence position.
Make multiple router passes for grooves deeper than 1/4".
Router bits work best doing a little at a time. For deep grooves,
start with a first pass at 1/4" deep, then repeat at 1/2" deep, and so
on until reaching the target depth. Don't move the fence between
passes - only change the bit height.
Take a close look at your router bit and notice how it's not
perfectly round - it probably has a slightly oval shape, with cutting
edges that stick out slightly. When you're aligning something with
the outside of the bit, you want to make sure you're using the widest
part of the cutting edge as the reference point, since the bit will
remove material out to the widest point.
Table a close look at your table saw blade and notice how the
teeth are a bit wider than the main disk. When aligning an edge with
the saw blade, you always want to align with the widest point of the
teeth, since the cut line will go out that far.
To avoid tear-out at the end of each cut where the router bit
exits the board, try putting some masking tape along the trailing
edge. If that doesn't work, use a scrap piece of the same 3/4"
material, and keep it pressed up against the trailing edge as you push
the end of the real work piece past the bit.
Cutting steps
The cutting procedure works by aligning each cut with a previous cut.
I've tried to provide an easy method to hit each reference point
without any guesswork. At each step, I'll explain the goal we're
trying to accomplish, and then give you the method I use to accomplish
it. Each step also starts with a schematic diagram showing the
goal, but don't worry about trying to puzzle out the setup from
the schematic - it's just there so you can see what the step's
cut will look like and how it fits into the overall pattern.
Several of the steps have a setup procedure and a test
procedure. The test procedure in each step is optional, so feel free
to skip that part if it feels too tedious. The setup steps alone are
pretty reliable. But I find that the extra test-and-adjust steps
help me get the alignments closer to perfect.
Step 1: Inner groove on the side pieces. This groove
has to align with the inside face of the front/back piece, so we'll
use the thickness of a sample work piece as our alignment guide for
the fence. The bit height is simply 1/4".
Set the bit height to 1/4" above the table, using a ruler or other
measuring tool of your choice. (For better precision, use good set
of calibrated setup bars - search for router setup bars on
Amazon.)
To position the fence, place one of the work pieces against the fence
vertically. (It doesn't matter which piece - all we care
about here is the thickness, which is the same for all work pieces.)
Make sure to keep it tight against the fence. Place a straight edge
flat on the table along the edge of the work piece, with one end
extending out so that it's alongside the bit. Adjust the fence so
that the bit just barely touches the straight edge. Rotate the bit
back and forth to make sure that you're testing it at the widest
point.
The alignment on this step is pretty important, so if you want to be
extra-careful, you can run a quick test. Take two scrap pieces (from
the same plywood as the real pieces, of course), lay one flat, and
stand the other one up alongside it as shown below. Mark a line on
the vertical piece using the horizontal piece as a straight edge.
Route just an inch or so of the marked piece (line facing down and
towards the fence), and check that the groove is exactly up against
the line. It shouldn't cross the line or cut into the line - it
should leave the line intact and just touch it with exactly zero
clearance. If it's a little off one way or the other, use the
micro-adjuster to compensate, and test it again.
Once you're set up, it's time to the do the actual routing
for this step. Route each SIDE piece, with the INSIDE FACE down.
Remember to route both ends of each side piece, for the joins
at the front and back.
Step 2: Cut the center groove in the front/back pieces. The
groove's depth has to equal the thickness of the work piece, so we'll
set the bit height based on a sample work piece's thickness. The
inside of the groove has to align with the outside of the side groove
from step 1, so we'll set the fence position using the actual groove
in one of the side pieces as a reference point.
Grab one of the side pieces you just cut and fit a piece of 1/4" MDF
scrap into the groove as shown below. Place it on the router table
with the edge against the fence. Set the fence so that the bit just
touches the MDF.
Here's how we're going to do the routing for this step. Route the
FRONT and BACK pieces vertically against the router
fence, with the OUTSIDE FACE to the fence. But we're not
quite ready yet - we might want to check the alignment first, and we
still need to set the bit height.
If you want to check the alignment to make sure it's right, there's a
quick test that you can do before proceeding. Set the bit height to
about 1/4" above the table, grab a scrap testing piece, and route it
as shown above. This is just a test cut, so you only need to go an
inch or two. Now measure the width of the "tongue" on the
inside face, as illustrated below. I find digital calipers are
the easiest way to get a precise reading here. The thickness should
be just a hair under 1/4" (6.35mm) thick. Something like 6.2mm to
6.3mm is perfect. This tongue slots into the 1/4" groove from step 1
when you assemble the corner, so it can't be any thicker than 1/4", or
it won't fit the groove. It's best if it's just the slightest bit
thinner than 1/4", so that it fits easily but snugly. A looser fit
isn't a disaster, but it won't be as strong when assembled, and it
might not self-align as perfectly. If you're using the fence
micro-adjustor, you can use the measurement to figure out how many
turns of the screw are needed to get it exactly to a target of, say,
6.2mm. In any case, if you make an adjustment, I'd repeat the test
(in my case, because I'm 50% likely to go the wrong direction, even if
I'm looking straight at these instructions).
Measured Width | Make This Adjustment |
Over 1/4" | Move fence back (away from bit) |
Under 1/4" | Move fence forward (towards bit) |
Now we're ready to set the bit height. This is a deep enough groove
that it's best to route it in multiple passes, so that we don't try to
force the router bit through too much wood at one time.
- First pass: bit height set to roughly 1/4" above the table
- Second pass: bit height set to roughly 1/2" above the table
- Final pass: calibrate to the work piece thickness
For the final pass, calibrate the bit height to match the thickness of
the work pieces by placing a work piece flat on the table alongside
the router bit. Adjust the bit height so that it matches the plywood
thickness (or just a hair beyond). A straight edge on top of the
work piece can help get it perfectly aligned.
For each pass, route as shown in the illustration we saw earlier:
route the FRONT and BACK pieces vertically against
the router fence, with the OUTSIDE FACE to the fence.
Here's the illustration again:
Step 3: Outer groove on the side pieces. This step finishes
the "tongue" on the side pieces. The fence position for this cut has
to align with the outer side of the front/back groove from step 2, so
we'll use a front/back piece from the previous step as a reference
point. The bit height has to align to the leftover portion outside
the groove from step 2, so we'll also use a front/back piece as a
reference for that.
Take a front/back piece from step 2, and insert a scrap piece of 1/4"
MDF into the groove. Stand this vertically against the router fence
with the OUTSIDE face of the front/back piece against the
fence. Place it so that the MDF extends just past the bit.
Adjust the fence so that the router bit just touches the back
of the MDF.
This is another deep cut that's best done in two passes - first at
1/4" deep, then at full depth. So set the bit height to 1/4"
above the table for the first pass, route all of your side
pieces, and then set the final bit height as described below.
Here's how we're going to do the routing: SIDE pieces, flat
against the router table, INSIDE face down.
Before routing your actual side pieces, though, you can do a quick
test to check the fence alignment. You'll need the scrap "side" piece
from step 1, that already has the 1/4" wide by 1/4" deep groove set in
1/2" from the edge. Do the test on that piece. Route it as shown
above, but you only need to go for an inch or two for this test.
Now measure the width of the "tongue" between the two grooves:
It should measure just under 1/4" (6.35mm). This part has to fit
into a 1/4" groove, so if it's more than 1/4" wide, it won't fit.
You don't it to be too loose, either, so the ideal is something
just under 1/4", perhaps 6.2mm to 6.3mm. If it's too wide, move
the fence back (away from the bit); if it's too narrow, move
the fence forward (towards the bit).
Measured Width | Make This Adjustment |
Over 1/4" | Move fence back (away from bit) |
Under 1/4" | Move fence forward (towards bit) |
Once you're satisfied with the fence alignment, route all of the side
pieces as shown above, keeping the bit height set at 1/4" above the
table. Once done, you'll need to make one more pass over all of the
pieces at the final bit height.
To set the final bit height, use a front/back piece with a piece of
1/4" MDF inserted into the groove. Put the whole thing flat onto the
router table as shown below, with the OUTSIDE FACE facing up.
Put a straight edge on top of the MDF so that it extends out over the
bit. Adjust the bit height so that the top of the bit just touches
the bottom of the straight edge.
Step 4: Cut the 45° miter on the front pieces.
This step (and the rest of the steps) are on the table saw.
First, set up an auxiliary fence on your table saw. This is just a
piece of 3/4" MDF or plywood, cut to about the size of the fence, and
clamped to the front of the fence. Leave a gap of about 3/8" between
the bottom of the auxiliary fence and the table top, to make room for
the blade to extend 1/4" above the table.
Set the saw blade to 45°. Adjust the height so that the
blade just nicks the corner of the tongue in a front/back piece,
as illustrated below.
This cut needs to be precise, and I haven't found an easy trick like
in previous steps to align it with another cut. The best approach I
can come up with is to "sneak up" on the final cutting position with a
series of test cuts. The good news is that you only have to do a
series of test cuts for one piece. Once that one piece looks perfect,
just run the rest of the front/back pieces through the saw with the
identical fence position, and they should all come out equally perfect.
Start by positioning the fence to remove no material at all, by
pushing the work piece right up against the blade, and making the aux
fence flush with the work piece:
Now move fence back (away from the blade) by about 1/8".
When you move the work piece back behind the blade and push it
up against the fence, the bottom corner of the work piece should
now just about line up with the saw blade:
Double-check by eye that the blade is aligned as shown. Remember,
it's best to remove too little material at this point than too
much, since we can adjust things and take off a little more if we have
to. That's why we only moved the fence 1/8", even though the ultimate
target is closer to 1/4". If it looks like the blade is already going
to hit the bottom corner, move the fence a little further towards the
blade to open up a small gap.
Do a test cut, with the front/back piece OUTSIDE FACE down.
Tip: after each fence adjustment (including the first one), initially
only run the first few inches of the board through the saw, and
inspect the result to make sure the fence isn't already too back. If
the fence is too far back, you'll be cutting material off the outside
face of the outside edge, which you don't want to do. When this
happens, you'll see a little indent along the outside edge where
material was cut off. The goal is to get the 45° cut exactly
up to the outside edge of the outer face without actually cutting
any material off the outer face. Making a partial cut lets you see
immediately if you've gone too far, since the outside edge will no
longer be a straight line. You can't undo this, which is why I like
to include a scrap piece in every batch for these first cuts while
adjusting the fence.
When it's exactly right, you should have a sharp outside corner.
If the corner is still a little squared, you just need to adjust
the fence back slightly (away from the blade) and try again.
Make small changes to ensure you don't overshoot. Repeat
until the corner is sharp.
You can now run all of the remaining front/back pieces through.
Step 5: Cut the 45° miter on the side pieces. This is
essentially the same as step 5, just with a different blade position
to match the side pieces this time.
You should be able to keep the same blade height from the previous
step, but check it with a side piece to confirm.
Adjust the fence position using the same drill as last time. Start by
pushing the work piece up against the blade, and making the fence
flush with the work piece:
Now back the fence away from the blade by about 1/8".
Move the work piece behind the blade and flush with the fence, and
verify that the blade isn't quite going to cut hit the bottom corner.
As before, it's better to cut too little at this point, since we can
re-cut a little more if necessary.
Do a test cut, with the side piece OUTSIDE FACE down.
As before, we're looking for a nice sharp corner.
If the corner is still a little squared, adjust the fence back
slightly (away from the blade) and try again. Make small
changes to avoid overshooting. Repeat until the corner is
sharp.
You can now run all of the remaining side pieces through.
Step 6: Trim the tongue on the inside of the front/back pieces
so that it fits into the side slot from step 1.
I do this step last because it's another "sneak up" cut, and doing
it last lets us test to see if we trimmed enough off by doing an
actual test fit. That's the best test for exact alignment.
We'll use the table saw for this cut. Set the blade so that it's
straight up. Position a front/back piece on the table next
to the blade, inside face down. Adjust the blade height so
that it's just above the top of the tongue - about 1/4".
Put the work piece flush against the saw blade, and move the fence
so that it's flush with the work piece.
Now back off the fence, away from the blade, by about 3/8".
Since we have to "sneak up" on the final fence position with test
cuts, just do one edge of one front/back piece at first. We'll test
the fit and adjust as needed before running the other pieces.
Run a FRONT/BACK piece through the saw, INSIDE FACE
down.
Test the fit against a side piece. The two pieces should fit together
at the outside corner without any gaps. If the tongue in the
front/back piece is jutting out and preventing the pieces from fitting
together, we need to trim it back a little more. Back the fence away
from the blade - just slightly - and do another test cut. Repeat
until it's a good fit.
Once you have a good fit with one piece, finish the remaining
FRONT/BACK pieces.
That's it - you're done! The corners should all fit together tightly.
If any of them are so tight that you have to force them together, try
manually sanding the sticking points.
Router fence micro-adjuster
Table saws usually come with rack-and-pinion fences that you can
adjust fairly precisely by turning a knob. Router tables, in
contrast, usually have much simpler fences, without any adjustment
mechanism at all. The fence usually just slides freely on a couple of
parallel tracks. You move it by hand to where you want it, then
tighten some knobs that hold it in place.
That's not a very precise way of positioning the fence, but it's good
enough for most applications. There are tasks where you can really
benefit from more precise positioning, though. Lock mitering is one
of them.
There's a solution, and it doesn't even require spending a fortune on
a super-deluxe router table. You can make a really simple
micro-adjuster for your existing router table fence. You don't have
to make any permanent modifications to the router table, and you can
build the micro-adjuster out of scrap wood and hardware you probably
have lying around. Here's the one I built:
The wood is all 3/4" plywood, and the two pieces are simply glued
together at a 90° angle. (I routed a shallow 3/4"-wide dado
that the vertical piece slots into, which makes the glue joint
nearly unbreakable.) The screw is a 3" long, 1/4"-20 machine
screw. In the vertical plywood piece, I drilled a hole slightly
smaller than 1/4", and then worked the screw in so that it cut its own
threads into the wood.
I added a DIY knob, in the form of a "donut hole" cut out of 3/4"
plywood using a 1" hole saw. (There's a KEPS lock nut on the inside
to keep it in place.) I drew a big red mark so that I could easily
gauge full turns, half turns, quarter turns, etc. Alternatively, you
can buy a plastic knob at Home Depot or Amazon, or skip the knob
entirely and make adjustments with a screwdriver.
The micro-adjuster is simple to use. First, set up your fence as
close as you can get "by hand" to where you want it. Second,
tighten the knob-screw on one side to pin the fence down on that end.
Third, position the micro-adjuster behind the fence on the
other side (the un-pinned side), with the screw just touching
the back of the fence. Clamp the adjuster to the router table so that
it stays put at this position. You can now tighten the fence knob on
this side to fix the fence position here.
The micro-adjuster as deployed, sitting behind the fence on my router table.
It's simply clamped onto the table with an F-clamp.
My fence is MDF, so I masking-taped a penny to the back where the screw
contacts the fence, to make a harder contact point and prevent
the screw from making a divot in the MDF. Note that I also
clamped a small wood block behind the fence on the opposite
side to set a hard stop, to ensure that the fence can't slip back even slightly on that side. The fence
already has a knob that locks it down on each side, but I wanted to ensure
that there's absolutely no slippage when we micro-adjust the micro-adjuster side.
Now you can make tiny, precise adjustments to the fence position.
When you need to move the fence by a tiny amount, loosen the fence
knob on the micro-adjuster side only, and turn the screw in the
appropriate direction to move the fence forward or back. When moving
it back, you'll have to push the fence against the screw, since the
screw won't pull it back on its own, but the adjustment should
nonetheless stay very precise as long as you keep the fence pressed
against the screw.
If you're using a 1/4"-20 screw like I am, each full 360° turn of the screw
corresponds to 1/20 of an inch change in the fence position. (That's
the "-20" in 1/4"-20 - it means that the screw has 20 threads per
inch.) With a knob, it's easy to gauge a quarter turn, which
corresponds to 1/80 of an inch, or even an eighth turn for 1/160".
What's more, that's the distance the
screw moves. The thing that matters is how far the center of
the fence moves, since that's where the bit is. The center of the
fence only moves half as far as the screw, since the screw is at one
end and the other end is kept fixed in place. So an eighth turn on
the knob equals 1/320" of travel at the center of the fence. That's
plenty of precision for anything I've ever attempted.
You might wonder how we keep the fence "square" if we're only moving
it at one end. Moving just one end obviously will cause the fence to
angle slightly on each adjustment. If this were a table saw, that
would be a huge problem. But it's okay with a router table! The
difference is that router bits are round, so there's really nothing to
be "square" to. (Okay, technically, table saw blades are also round,
but a saw blade defines a plane that the fence must be parallel to.
There's no equivalent parallel plane for a router bit, so it doesn't
matter how the fence is angled.)
Appendix 13. Lock Miter II: The Special Router Bit Way
A lock miter bit set up in a router table, and a sample piece
of 3/4" plywood showing the pattern that the bit cuts in the
edge of the wood.
This section covers making a lock miter corner join using
a special router bit purpose-built for this join. For an
introduction to lock miter joins in general, see the previous
section,
Appendix 12, Lock Miter I: The Plywood-Friendly Way, which also describes a
different way of making this type of join using just a
straight router bit and a table saw.
I get the impression that practically everyone implementing lock
miters these days uses the special bits, rather than the more manual
approach of the previous section. It's easy to see why. The router bits only require one pass
over each edge, compared with about six separate cuts per corner for
the manual method. There's less risk of screwing up one of
the steps, or cutting one of them slightly out of alignment, if you only have to make one cut in the first place.
But there's a catch - actually, a few catches. One is
that the bits are expensive (ranging from about $25 for one that's
cheap and priced accordingly, to over $100 for a really nice one).
Another catch is that they're notoriously difficult to set up
properly. The reputation isn't undeserved; when you read through the setup
procedure below, you might start to think that six cutting steps
doesn't sound like so much trouble after all. Yet another issue is
that lock miter bits don't always perform well with plywood (some
people would rephrase that to "they always don't perform well with plywood").
The bits are really designed more for solid wood. They do work with plywood to
some extent, but the small tongue-and-groove features don't always hold up well, and the veneer
can get chipped up if you don't take some extra precautions (which
we'll outline below).
You might wonder what's so different about the manual approach that
makes it work so much better with plywood. The difference is the size
of the tongue-and-groove features. The features are about twice as
large when you use the manual approach. The smaller features in the
router bit approach are just too delicate for most plywood. Follow-up
question: why can't they make the router bit's features as big as
the manual method's features? That's because the router bit has
to cut a mirror-image pattern. That's only way that you can use
the same router bit to cut both sides of each corner - one side has
to be the mirror image of the other for the pieces to fit together.
The mirror image means that every feature has to be there twice.
And this all has to fit into the thickness of the board. That's
why the features are half-sized compared to the manual method,
where the cuts are complementary instead of mirrored.
I really like the idea of the lock miter bit, but I've found to my
surprise that the "plywood-friendly" approach isn't any harder, and
might even be a little bit easier. It's still a bit of work, but when
you take into account the lengthy setup procedure for the lock miter
bit, plus all of the extra precautions you have to take during the
routing process, it might actually be more work overall with the
special bit. Another practical drawback of the router bit method is
that the bits are rather frighteningly large and probably more
dangerous than typical router bits. Despite the disadvantages,
though, the lock miter bit has the appeal that it should produce
predictable and repeatable results after you get it calibrated
properly. The plywood-friendly procedure involves more cuts, which I
think is inherently scarier to a newbie woodworker like me, since
there are more chances for something to go wrong.
If you do decide to try the lock miter bit approach, I'm hoping that
the information in this section makes it at least a little easier for
you to carry it out. Below you'll find a step-by-step recipe that I
think is fairly complete and should produce good results if you follow
it carefully. You can also find lots of Youtube videos about how to
use lock miter bits, which I recommend seeking out - it's always good
to see a new technique in action before trying it yourself, plus
you'll get other perspectives on the right techniques. My procedure
is almost the same as what everyone else recommends, but I think I've
boiled it down to a more precise recipe than I've seen elsewhere.
I've also made a couple of improvements to the usual setup advice that
I think will help you get better accuracy with less work, and I've
added tips about a couple of issues peculiar to pin cab construction.
How lock miter bits work
Lock miter bits achieve one-pass operation by
using a symmetrical (mirror-image) pattern for the adjoining edges
at each corner. You route one edge with the face horizontally
on the router table, and you route the other edge with the face
held vertically against the fence. The symmetry allows
the two sides to mesh when joined at 90°.
The trick to making the corners align is to get the midpoint of the
mirror-image pattern exactly at the center of each board. That's
where all of the notorious setup difficulty comes from - you have to
hit that center point almost perfectly for the corners to align.
And you have to do it in two dimensions simultaneously - bit height
and fence depth.
The setup procedure is complex, but there's a pretty reliable recipe
for it, and it doesn't require superhuman woodworking skills or feats
of measurement. It's all based on iterative testing and adjusting,
using a methodical approach that should (if all goes well) quickly converge on the right
setup. Once you've dialed in the alignment, you just lock it down and
route all of your boards with that same fixed setup. You don't have
to make any further adjustments after the initial alignment - in fact,
it's critical that you don't make any changes, since you want
all of the cuts to be identical.
Does a lock miter bit even work with plywood?
A lot of woodworkers say no. In fact, the owner of VirtuaPin has
mentioned that he doesn't use lock miters for the cabinets he sells
because lock miters don't work well enough with the plywood stock he uses.
He's undoubtedly talking about the lock miter bit rather than the
plywood-friendly method, since that actually does work well with most
good-quality plywood.
You might say, "Well, Williams used it, so it must work." It's true
that Williams used a lock miter join on their 1990s cabinets, but they
didn't do it with the mirror-image bits. If you look closely at their
cabinets, you can see that they used the technique described in
Appendix 12, Lock Miter I: The Plywood-Friendly Way instead.
My own experiences with the lock miter bit have been mostly successful.
I've used it with mid-grade plywood from Home Depot for a few
projects, and it works, with some reservations. To
illustrate the kind of results I've seen, here are some photos from
my "vertical sled" build (which has its own section later in this
chapter).
Sample of lock miter results, using 3/4" birch plywood from
Home Depot. This is an ordinary mid-grade plywood,
suitable for a paint-grade project like a pin cab. The
lock miter routing is very clean on the horizontal side,
which is cut parallel to the grain. The vertical side is
cut across the grain, which is harder on the veneer, but
still comes out pretty clean, especially if we pre-score
the veneer. I left a section at the top un-scored to
show the difference that pre-scoring can make. This
one actually isn't bad even in the un-scored section -
I've seen much worse chipping in other projects.
It probably helped that I routed this one in two passes.
Another view. There's a little blow-out (chipped veneer)
at the end on the horizontally routed side - this is the
trailing end where the router bit came out. I'll just sand
it, but you could probably prevent it entirely by pressing a
sacrificial board up against this end as you run the board
through the router. On the vertical side, you can see that
the lock tongue didn't survive the routing fully intact. It
should be a perfect mirror image of the horizontally routed
side, but it's quite stunted compared to the
other side. And what's left is so delicate that it will
easily flake off if you're not really gentle with it.
The reason this comes out so poorly is that we're trying to make a very
thin strip out of the layered plies, and that just doesn't
work. The horizontal side works better because it leaves
basically one whole ply intact for the tongue. (And it's
unavoidable that we have to route the vertical side into
the plies like this - it's inherent in how these bits work.)
There's enough structure remaining
that the join will still work, and it'll still self-align
like it should, but we do lose some strength from
the missing material.
Dry fit of the two pieces above. The lock miter is tight enough
to hold the corner together with friction for a test fit, which
makes it really easy to do the final assembly.
After pointing out all those flaws, I should clarify that the end
result still usually looks nice once the corner is assembled.
The flaws are mostly on the inside, where the glue goes, and where you
can't see them in a finished cab. Most of my attempts have yielded
nice sharp corners and unblemished outer veneer.
Will you get decent results with the plywood you're using?
I can't say for sure, given the mixed experiences I've seen on the Web.
The lock miter clearly works with some plywood, but maybe not all
plywood. It's probably a function of the particular material
and/or the particular router bit. I think the only way to find
out if it'll work for your batch of plywood is to test it. One nice
thing about the elaborate setup process is that it can also serve as
a fitness test for the plywood stock, since you have a to make a bunch of test cuts and construct
at least one test corner. You should be able to tell from the test cuts whether
or not you'll get a clean enough result. If you're not happy with
the way things look during setup, you can always fall back on the
plywood-friendly technique instead.
Equipment
Lock miter router bit: These are available from several
manufacturers. They all use the same basic idea of the
mirror-image shape and the horizontal/vertical routing process.
I use an inexpensive no-brand bit I found on Amazon, and it
does an acceptable job.
Note that there are also two-piece lock miter bit sets that use
complementary bits for each side of the corner rather than a
mirror-image pattern. Those require a different setup not covered in
this section.
Setup jig: Optional, and in my opinion, not all that
helpful. If your bit comes with one, go ahead and use it,
but I wouldn't go out of my way to buy one separately from the bit.
It's too hard to make sure that the jig exactly matches the bit if you
have to buy them separately, since different bits have subtly different
shapes.
The point of the setup jig is to help set the initial height of the
bit without having to check it against the board you're cutting. The
thing that makes this of dubious utility is that you still
have to go through the test-and-adjust procedure described later
in this section, since it's so important to calibrate the bit height
to the actual plywood you're using. A setup jig helps with the initial
height estimate, but that's not the time-consuming part, so it
doesn't really save you that much.
Router and router table: If you already have a hand router, you
can buy a bench-top router table and use it with your hand router.
Most of the the bench-top tables are compatible with many routers from
many brands, so you can generally mix and match brands. I use a
relatively inexpensive table from Skil, which works pretty well. It's
not a high-end piece of precision equipment, but it's been good enough
for the pin cab joinery I've attempted, including lock mitering.
I'm afraid I don't know of any way to use lock miter bits with a
hand router alone - I think you really need a table for this job.
Router table fence micro-adjuster: Optional but really helpful.
Provides a way to adjust the fence position in tiny fractions of an
inch, to help get the alignment perfect. This is something you can
make yourself as a simple DIY project, as described in
Appendix 12, Lock Miter I: The Plywood-Friendly Way.
Vertical sled: Optional but really helpful, especially when
lock-mitering for a project that involves large pieces (such as a pin
cab). This is another DIY project discussed below.
Router bit setup procedure
Important: don't set up your lock miter bit until you're ready to
route all of the pieces that you want to route with it. The setup
is the hard part, so you want to be able to set it up once and do all
of your routing in one go.
The lock miter bit has to be set up so that the height and depth of
the cut are exactly matched to your plywood stock. The only way I've
found to do this is to do a series of test cuts, and make small
adjustments based on how well the test pieces fit together.
The bit height and fence depth settings are independent, so you can
get one dialed in first, then do the other one. The procedure that
seems to work best is to get the height adjusted perfectly first, then
set the depth.
The setup all hinges on the symmetry of the cutting pattern. The goal
is to get the pattern perfectly centered on each board. When the
centers are aligned, the corners are aligned. Remember that each
corner will consist of one piece that runs through the router
horizontally, and one piece that runs through vertically. The router
bit has to be set so that its height above the table centers the bit
relative to the horizontal cut, and the fence has to be set so that
the bit is centered for the vertical cut.
For safety, always unplug your router before making adjustments
to the bit height or fence position.
Step 1: Cut a piece of plywood to use for setup and testing, using the
same stock you're using for the lock miter corners. The exact size
isn't too important, but something like 5" x 18" should work.
Step 2: Put the test piece on the router table next to the bit. By
eye, adjust the bit height so that the board is centered within the
bit's slanted cutting area.
Most of the Youtube videos on the lock miter want you mark a
center-line on the board, and align that with the center of the bit.
If you like that idea, go with it. I find it easier to judge by the
overall height, especially with 3/4" plywood and a 3/4" bit, since the
cutting area of the bit is just a hair taller than the board. It's
mostly just a matter of getting the bit lined up so that the board
is completely within the cutting area. If you're using a larger bit or a
thinner board, it might be easier to work with center marks, but even
then I'm not sure. At any rate, it doesn't have to be perfect at this
point, since we'll micro-align it based on a test cut shortly.
Step 3: Set the initial fence position. As with the initial bit
height, this is only an approximate starting point, so you don't have
to spend a ton of time here. Rotate the bit so that the cutting edge
is pointing straight out at you (make sure it's unplugged first!).
Put a metal straight-edge on top of the board and against the fence,
and slide it across until it crosses in front of the bit. The goal is
to align the fence so that the ruler just barely touches the cutting
edge.
Note that most of the Youtube tutorials use this method to set the
final fence position, but I've never been able to get it accurate
enough this way. We'll fine-tune the fence later using a more
precise method.
Step 4: Place the test board flat on the router table, against the
fence. Turn on the router and feed the board in for just a short
distance - about 2". Take it out, flip it over, and feed it in
again from the other side, again for just 2" or so.
Step 5: Cut the short section you just routed off the end of the board,
then cut that strip in half. Flip one half over and fit the routed
sections together to test the fit.
Step 6: The goal is for the two pieces to be aligned perfectly. The
top and bottom surfaces of both halves should line up exactly, so that
you practically can't even feel the seam when you run your finger over
it. If by some miracle they're exactly aligned after that first test
cut, you're already done setting the bit height! But they'll probably
be a little off at this point, as in the test fit photo above.
To correct for the offset, you have to move the router bit up or down
by half of the offset distance. So ideally, you need to know the
exact numerical size of the offset. If you have digital calipers,
measure the thickness across the joint section, then subtract the
thickness of the board itself (as measured with the calipers) to get
the offset distance.
If you don't have calipers, you can try using a ruler, or you can just
make an estimate by eye. You'll converge on the magic spot more
quickly if you can get a more precise reading, though. I can usually
get it just about exact on the second try when I use calipers.
Step 7: Move the router bit up or down by half of the offset
distance, according to the direction of the offset:
Which way to adjust the router bit, based on the
direction of the offset. The easiest way to tell
is by looking at whether the joint
section is thicker or thinner than the
individual boards.
Most routers have a micro-adjustment dial for the depth that lets you
change the depth in tiny fractions of an inch; for example, my
router's dial has ticks at 1/128". Refer to your router manual if
you're not sure how to use that. It helps a lot in this step to be
able to control exactly how much you're changing the depth on each
iteration.
Step 8: Repeat the whole test, and check the new vertical offset. If
it's still off, measure it again and adjust the bit height by half of
the offset distance, using the same up-or-down rule as before.
Keep repeating until the two test pieces align exactly.
Try to get the alignment practically perfect before declaring victory
and moving on to the next step. Any error at this step will manifest
as double the error in the cabinet width and/or length, which could
affect the fit of your lockbar, TV, or other parts.
Step 9: Once the height is perfect, we need to adjust the fence
position to get the depth perfect. The procedure is the same, but
this time you do vertical cuts instead of horizontal cuts.
Preparing to make the vertical test cut. Hold the test board
vertically against the the fence while running it through the
bit. It's helpful to use a featherboard to keep it pressed
against the bit without placing your hands close to the
bit (a push block would also work).
As with the horizontal test cuts, make two short (2" or so) cuts,
cut off the ends with the routing, flip one piece over, and
fit them together. The goal is to have the top and bottom
surfaces perfectly aligned. If they're not aligned, we need
to adjust the fence to make the cutting depth deeper or
shallower.
In this case, if the joint section is too thick, move the fence
back, away from the front of the table. As before, we move the
fence by half of the offset distance.
As in the previous step, repeat the test-and-adjust process
until the two pieces are exactly aligned.
This is the step where the value of the
Appendix 12, fence micro-adjuster
mentioned earlier becomes obvious. Before I built the micro-adjuster,
this step could be incredibly frustrating as I kept overshooting
the magic center spot in one direction and then the other, trying
to estimate tiny fractions of an inch by eye.
The screw adjuster makes it a lot more controllable.
Step 10: The height and depth should now be dialed in. I'd do one
final test run at this point, but this time, make an actual corner
join: using two scrap pieces, run one piece through horizontally, and
run the other piece through vertically. Fit them together to make a
corner. The result should have the seam exactly at the corner.
Remember that any deviation from the seam being exactly at the corner
will throw off the assembled width and/or length of your cabinet by
twice that amount, so don't settle for close-enough. Even if you can
tolerate a little cosmetic imperfection in the corner placement, the
size deviation after assembly could turn out to be a practical
problem. It's worth trying to get it perfect at this stage.
If it looks good, you're ready to route your actual work pieces.
Don't touch the router setup again until you're done routing all
of the corners - you want to make sure the perfect alignment
remains locked in until you're done.
How to route the corners
Before you start doing the routing, I have a couple of other pieces of
advice to help improve your results, so you might want to read through
the sections below before proceeding.
When you're ready to perform the routing, start by going around the
corners and designating the horizontal and vertical routing sides.
You need one horizontal side and one vertical side at every corner.
It's up to you which is which, but you have to be sure that every
corner uses complementary orientations for its two adjoining faces.
My scheme is:
- Front face is routed horizontally on both sides
- Back face is routed horizontally on both sides
- Left side is routed vertically on both ends
- Right side is routed vertically on both ends
I do it that way because I find it easier to handle the long side
pieces in a vertical orientation by using a "sled" (see below).
To make sure that I don't get anything confused, I always take a
pencil and mark each of the edges I'm going to route - "Lock Miter
Here Horizontally This Face Down", "Lock Miter Here Vertically This
Face To Fence". All of the routing must be done on the inside
faces, so I mark the inside faces only. I like to include "Face Down"
or "Face To Fence" so that I'm more likely to catch myself if I'm
about to feed a board in the wrong way, since I'll be looking
at a face-up marking telling me it needs to be face-down.
Once you have everything marked, checked, and double-checked, it's just a
matter of running the edges through the router as marked. Again,
always be sure to route with the inside face down (for horizontal
cuts) or towards the fence (for vertical pieces).
After all the routing is done, assembling is just a matter of fitting
the pieces together. Lock-mitered corners tend to hold together
pretty well just by friction, which makes it easy to do a dry fit
to test that everything aligns properly.
Use a second layer to reduce chipping on the outer face
In order to make perfectly seamless corners, the lock miter bit has to
cut right out to the edge of the plywood. This makes the edge so thin
that it can easily chip during the cutting process.
The way to minimize chipping (and hopefully prevent it entirely) is to
place a sacrificial board right behind the board you're cutting. The
extra layer keeps the outer veneer from flexing as the bit hits it and
helps keep it in one piece. Use scrap material, since it might get
dinged just a little along the edge.
If you want, you can attach the extra top layer to the work piece
using woodworker's tape, which is a thin, double-sticky tape designed
for just this kind of job. I tried the tape a few times, and
eventually decided that it was easier to skip it, and just keep the
pieces together by hand. It helps a lot to use a featherboard on the
router table fence to press down on the workpiece - that helps keep
the two pieces pressed together even better than the tape does.
Using a second piece of plywood on top of the horizontal
work piece, to prevent chipping on the outer veneer. The second
piece should be aligned exactly with the fence side of the
board you're cutting; you can fasten it to the main board with woodworking
tape to keep it fixed in place throughout the cut. Note that
I'm set up for a shallow "first past" here, using MDF spacers
on the fence, as described below.
Using a second piece of plywood to prevent outer veneer chipping
on the vertical cut. I'm using a featherboard on the table to
keep the two pieces pressed against the fence through the cut.
Make the cuts in two passes
Your router probably comes with advice saying that you should always
make deep cuts with multiple passes. My router manual suggests going
no more than about 1/4" deep on each pass.
Well, if you look at this bit, it's quite a lot more than 1/4" deep.
Plus, it cuts a wide swath.
I've seen improved results by making each cut in two passes. The
lock miter bit's geometry lets us make multiple passes as long as
we do it by adjusting the fence depth (not the bit height - that
must stay identical for all passes).
The problem is that it's such a pain to get the fence aligned
perfectly that we don't want to touch it once it's set. But
there's an easy way to adjust the routing depth without moving the
fence: attach a little extra spacer in front of the fence. A thin
piece of MDF - 1/4" to 3/8" thick - works great for this. Cut pieces
roughly the same size as your fence halves, and attach it to the front
of the fence with small pieces of woodworking tape. After completing
the first pass on all pieces, remove the MDF spacers, and run the
pieces through again directly against the fence.
Pre-score the inner veneer to reduce chipping
My lock miter bit tends to make a nice clean cut on cuts that are
parallel to the grain. When making cross-grain cuts, though, the bit
can make a rather bad mess of the inside veneer, by knocking out lots
of little chips along the edge.
The obvious solution would be: don't do that! Unfortunately, you
can't avoid cross-grain cuts in a full-sized pin cab, because the
side walls are over 48" long. That forces you to orient the
side walls "the long way" when cutting up a 4x8 sheet of plywood,
which means that the front and back edges of the side wall will
necessarily be oriented perpendicular to the grain.
One way to deal with the inner veneer chipping mess is to just live
with it. It can look ugly, but it only happens on the inside face, so
it won't affect the exterior appearance. Plus, most of the length of
the inner corners gets covered up with the corner bracing wedges, so
most of it won't even be visible when you look inside the machine.
Another "deal with it" fix is to apply wood filler to cover up the
chipped edge. If you do that, I'd wait until after assembling the
cabinet, so that you don't accidentally fill in any of the miter cut.
I'd prefer to avoid the chipping in the first place, though. There's
a technique that can help at least mitigate it. The idea is to
pre-cut the veneer layer right along the line where the router bit
operates. The router bit will still chip the veneer, but the chips
should break off at the pre-cut line, so there should be no damage
beyond that point.
To do this, before routing, draw a line on the inside face,
parallel to
the edge, in from the edge by slightly more than 3/4" (the thickness
of the plywood). The lock miter cut has the same thickness as the
plywood, so this will be just slightly inside of where the bit will
touch the wood. Using an X-acto knife or sharp utility knife, score
the plywood along that line, all the way down the edge, cutting all
the way through the outer veneer layer (but just that deep). I'd use
a metal straight edge, clamped to the work piece along the cut line,
so that you can guide the knife by holding it against the straight
edge.
Important: Only do this on the face that goes on the
inside of the cabinet. Don't cut up the veneer on the outside -
the whole point of the lock miter is to make that look pretty by
avoiding any seams or cuts on the face.
Handling the work piece for the vertical cuts
The design of the lock miter bit requires running half of the
pieces through the bit vertically - standing them on end and
holding them against the fence, rather than laying them on flat
on the table. This is a challenge for tall pieces, because
the fence on most router tables is only a few inches tall.
It's difficult to keep a tall piece from wobbling, which
can make the cut uneven and damage the edge.
The way I arrange the pieces, the side walls get the vertical
treatment. So we have a 51" tall piece held vertically against a 4"
tall fence - not exactly easy to manage. I haven't found any way to
avoid this step, but I can at least suggest some extra tooling that
helps a bit. The idea is to build a "sled" that holds the work piece
in the awkward vertical position, so that you don't have to do that
entirely by hand. You clamp the work piece to the sled, and then you
slide the sled across the router table.
This "sled" is something that you can either buy or build yourself.
This is a common enough woodworking problem that there are a couple of
retail options available - search for "vertical router sled". But you
might be better off building one, because the retail options I've seen
aren't beefy enough to hold pieces as big as a pin cab side panel.
It's actually a pretty easy project to build. I'll outline the
design I used below.
My plan isn't especially clever, and there's no need to follow it
exactly. All that's important is the basic shape and approximate
size. The two main things to pay attention to are (1) making the
corner joint square, so that the work piece is kept at 90° to the
router table, and (2) making the vertical part tall enough to keep the
work piece steady. The whole contraption needs to be solid enough
that nothing sways or wobbles while you maneuver it through the
router.
Everything is 3/4" plywood, including the triangular braces.
I routed shallow 3/4"-wide dados for the braces and glued them.
The seam between the front and bottom pieces is a lock miter
join made with my lock miter bit, and it's also glued.
The exact dimensions aren't important, but here's why I chose
the ones I did. The width is enough that I can use an F-clamp
on each side with the wide end (23½") of a cabinet side wall.
The height is more or less arbitrary, but this is enough
contact area to keep a 50"-long cab side wall steady once it's
clamped down. The depth is about the same as
the depth of my router table to the fence - anything longer than
that would just overhang in front and add useless weight.
Note that the join between the front and bottom pieces is a good
candidate for a lock miter, since you want this corner to be as square
as possible. You'll still need bracing, and the bracing alone should
be sufficient to keep everything square, so other joins are fine too.
But it makes a good practice project if you want to try out the
lock miter procedure before applying it to your pin cab.
Summary of recommendations
- Build a simple micro-adjuster for your router fence, to make
precise fence positioning easier
- Set up the router bit first by height, then by fence position,
using a series of test cuts and compensating adjustments to get the bit
perfectly centered by height and fence depth
- After adjusting the bit and fence positions, test-build one corner
using scrap material to verify that everything is aligned perfectly
- Aim for perfect corner alignment, because the error in each
corner will result in twice that error in the overall cabinet width,
which could affect the fit for the lockbar and TV (plus, perfect alignment
will make the corners look perfect)
- Do the routing in two passes, with the first pass 1/4" to 3/8"
shallower than the final pass; make the shallower first pass by using
a temporary spacer in front of the fence
- Every time you run a board through the router, press another
(sacrificial) board firmly against it on the outside face (the face
away from the router bit) to prevent chipping on the outer veneer
- Before making a cut on an edge that's perpendicular to the grain,
score the inside veneer with an X-Acto knife, just beyond the miter
cut zone (so just slightly more than 3/4" from the edge), to reduce
chipping on the inner veneer
- When making the vertical cuts, use a "sled" to keep the work piece
square against the fence
Appendix 14. How to Make Corner Braces (and other wood prism shapes)
If you build a pin cab from scratch, you have to cut two types of
wooden "wedge" shapes - or to be more precise, triangular prisms.
One is the for the corner braces that sit under the leg bolt brackets:
The other is the cosmetic trim piece at the top of the backbox:
When I first tried to make these for myself, I found them to be
surprisingly challenging. So I thought I'd offer some suggestions
from what I've learned.
Pre-fabricated options
The simple triangular corner brace is the same shape as a type of trim
molding called a chamfer strip. Unfortunately, it's not easy
to buy such a thing. I've looked but haven't been able to find any
retail sources. Apparently there's not enough demand that anyone
wants to sell them.
The backbox trim piece is (surprisingly) easier to find. It roughly
matches the shape of a common piece of floor trim called a 3/4"
reducer molding. You might be able to find these at your local
Home Depot or Lowe's, and they're also available online. The floor
trim usually has a tab that sticks out in back, which you'll have to
cut off, but that should be easier than fabricating the whole thing.
You can probably even do that with hand tools, such as a utility
knife, hand saw, or jigsaw.
How to make them yourself
When I first tried to make these pieces myself, I realized that it
wasn't going to be as easy as feeding a 2x2 into a table saw. In
fact, the more I thought about it, the harder it seemed. So I
consulted the Internet. Which didn't actually help a lot; I found
a lot more questions about the subject than useful answers. But I did
find a few interesting leads. Here's what I came up with:
- Most people asking about how to make pieces like this are trying to
do it with a table saw. That's what I intended to use as well. And
it is doable with a table saw - it's just not nearly as
straightforward as I would have thought. Most of the rest of this
section explains the table saw technique that I came up with, which
worked well enough for me that I'll at least explain it. I'm not sure
I should actually recommend it, because the main thing I learned from
my Internet research is that this is a particularly risky kind of cut
to make with a table saw. But I came up with some things that I think
make it safer, so I'll share my approach so that you can make up your
own mind about whether or not to use it.
- I found several comments suggesting that a band saw (with a table and fence)
is the safest way to make this cut. I don't have a band saw myself, so
I can't weigh in with any personal experience, but this does seem to be widely
considered the best and safest tool for ripping narrow boards. Band saws
don't tend to cause "kickback", which is what makes narrow ripping with
table saws so dangerous.
If you have a band saw and want to give this a try, the technique should be straightforward.
Set the table to the desired cut angle, set the fence to the correct depth,
and feed the board through length-wise. See the sections below
on the corner braces and backbox trim for the specific cut angles and
dimensions.
- One person (making corner braces for a pinball machine, no less!)
reported that he cut a 2x2 in half diagonally with a hand-held
oscillating saw. I can't imagine doing this myself - my hand just
isn't steady enough. The corner braces don't have to look pretty, but
the parts that go under the leg brackets have to be fairly precise if
they're going to fit well, and I just can't imagine making a straight
enough cut with a hand-held tool. But maybe you can make this work if
you're really careful.
- I was partially successful making these with a track saw. The trick
is to firmly wedge the work piece (the 2x2 or 1x2) between scrap wood
of the same height as the work piece. That forms a platform for the
track to sit on (which is important because the track is much wider than
a 2x2), and it locks the work piece in place throughout the cut. But
I found it difficult to get consistent results this way. I also found
that the depth of the cut was challenging for my track saw.
How to make them with a table saw
Warning: Table saws are dangerous tools. Please don't attempt any of
this unless you're experienced enough with your equipment that you can
evaluate the safety of what I'm suggesting. I'm a newbie at this
stuff myself - don't take any of this as expert-approved. (By the
same token, if you know a better way to accomplish these tasks, I'd
love to hear from you.) If anything seems off or you're just
uncomfortable with anything I suggest, trust your instincts and
find another way that you're happier with.
Extra Warning: The big risk with making beveled cuts with a table saw
is "kickback", which means that the blade grabs the work piece and
throws it back at you at high speed. This can cause severe injuries.
Your saw's owner's manual will have safety advice on how to position
your body during a cut to reduce your chances of getting hit if
kickback occurs. Please read that section and follow it carefully.
(My table saw's owner's manual is one of the lengthiest of any tools I
own, but I found it worth the effort to read it all.) Kickback is
always a risk, but it seems especially likely with beveled cuts, so be
extra careful.
Let me start with what not to do - which happens to be the
thing that's most obvious, to me at least. Don't just take a 2x2
and try to feed it into the saw directly.
Don't do this. Ripping a 2x2 in half diagonally with a table
saw, with the blade set to a 45° bevel cut. This is
dangerous for several reasons.
Woodworkers call it "ripping" the board when you're cutting it down
its length like this. Table saws are great for ripping sheets of
plywood. They've even good for ripping narrow boards like this,
if the blade is oriented straight up. But a diagonal "bevel" cut
like this is dangerous with a narrow board. The big problem is that
the top half of the board coming out of the saw blade isn't supported
by anything, so it'll tend to press down against the blade, which can
potentially turn it into a projectile. It's also tricky to control a
narrow board like this, even with a regular vertical cut, because
there's so little room to push the board through between the fence and
the blade. For a 90° cut, you can solve the second problem with a
"tunnel" push block, like a Microjig Grr-ripper. But that doesn't
help with the top-half support problem when cutting at an angle. In
fact, I think it would actually make the top-half support problem
worse, because the push block applies additional downward
pressure on the unsupported half.
In my Internet searching, the best advice I found was to
not try this with a 2x2 at all, but instead to use a wider board, and cut
off just a corner. Let's see how this looks with a 2x6 in place of
a 2x2 in the original setup:
Better: Use a 2x6 instead of a 2x2 to rip a wedge-shaped
piece off one side.
A 2x6 is the same thickness as a 2x2, so it yields
the same result we were trying to get from the 2x2, but this
seems a lot safer. Unlike with the 2x2, the "top" portion remains
well supported throughout the cut - it's not going to tip over
onto the blade. The wider board is also easier to
control, and you have a lot more room between the fence and the blade
to guide the board. The gap between the fence and blade is still
tight enough that you need a push stick or push block, but at least
it's not insanely scary this time. What's more, this setup lets you
work with your saw's blade guard and anti-kickback pawls installed,
which is a major safety improvement.
Note how the saw blade is oriented relative to the fence in the
diagram above: the blade is tilted away from the fence. This
is widely recommended as the safer way to orient the saw for a bevel
cut, because this geometry is less likely to trap the work piece
between the fence and the blade. I think this is true on any table
saw, but just in case your saw has some special design that makes it
different, please read the relevant section in your saw's owner's
manual to make sure that it agrees. You should of course also check
it for any other safety advice it has about beveled cuts.
The downside of using a 2x2 to make a 1" wide strip is that you end up
with a lot of wasted material. You could get one more wedge shape out
of this by flipping the leftover portion of board over and making a
regular 90° straight-up cut just inside the newly beveled portion,
but even then you have 2/3 of the board left over. I don't think you
want to attempt a third cut, since the remainder is getting back to
the point of being dangerously narrow.
This got me thinking about how we could do the same thing without
using such a wide board. I think using a wider board like a 2x6 is
probably the safest option overall, so maybe you should just stop here
and do that, but the alternative I came up with worked pretty well for
me. I built a very simple jig that holds a narrow board at a set
distance from the fence. You move both boards through the saw at
the same time, so that the wider board steers the narrow board
through the cut. We're effectively making a shape like the 2x6
out of two boards, but we're only cutting up the narrow board, so
there's less waste.
The simplest version of this jig is just a 2x6 and some woodworking
tape. Take the 2x6, and attach the narrow board (a 2x2 or even a 1x2)
to one edge, making sure that the bottom of the work piece is flush
with the bottom of the 2x6. Attach it with "woodworking tape", which
is a thin double-sticky tape made for just this kind of temporary
attachment while you're working on a piece of material. Search for
"woodworking tape" on Amazon for numerous options.
As with cutting a 2x6 directly, you should be able to use your saw's
blade guard and anti-kickback pawls with this setup. Be sure that
the work piece is securely attached to the wider board.
Instead of a 2x6, you could use two pieces of 3/4" plywood cut,
stacked one atop the other and glued together, which gives you the
same thickness as a 2-by. I'd use glue, not nails nails or screws, so
that there's nothing metal for the blade to hit if you should ever
accidentally cut through part of the jig.
It's important that the sides of the jig are straight and parallel.
There are several easy ways to do this; do a Web search for "jointing
with a table saw" for videos showing techniques. The basic idea that
you need another board that already has one straight edge that you can
use as a reference against the fence, and then you use that board to
guide the board that you want straightened (the jig, in this case)
through the saw, to take off just enough material from the rough edge
to make it perfectly straight. After you've "jointed" one edge of
the jig this way, you can run the jig through the saw
again, holding the newly straight edge against the fence, to make the
other edge perfectly parallel to it.
It would be possible to elaborate on this jig with something that
holds the narrower board in place without tape, but I'll leave that to
your ingenuity.
Corner braces
Here's the target size for the corner braces:
Unfortunately, this is not the size you get when you cut a
2x2 exactly in half diagonally.
To get the right size, you have to cut the 2x2 a little off-center.
Exactly how far off-center depends on the thickness of your saw blade,
so the easiest thing to do is probably to make a series of test cuts,
and measure and adjust until you hit the right size.
If you want to test the fit against an actual leg bracket, grab a
couple of small pieces of scrap wood, make a corner out of them, and
screw a leg bolt bracket to the inside of the corner. Then slip the
test piece under the bracket to see if it fits. When the size is
right, the test piece should fit snugly.
The diagonal angle is 45°, so set your saw blade at a 45°
bevel tilt.
Lengths: The most critical function of the braces is to fill
the gap under the leg bolt brackets. The brackets are about 5½
inches long, so you can satisfy this function by making all four
corner braces about 6" long. Alternatively, you can make them a bit
longer, so that they provide additional reinforcement along a
greater section of the corner seams:
- At the front, the braces can extend from the cabinet floor to the
top of the brackets, which amounts to about 8½". You shouldn't
make them extend above the top of the brackets, since they might get
in the way of the plunger and front-panel buttons.
- At the back, the braces can extend all the way from the cabinet
floor to the top, about 21½".
Backbox top trim
The backbox top trim piece has this profile:
This piece is purely cosmetic, so you don't have to hit those
dimensions perfectly. Those dimensions are just what the WPC machines
use. I don't think anyone would notice the slightest difference if
you had a bit more or a bit less than the 1/4" lip at the front.
You can accomplish this shape by cutting a 1x2 with the blade set at a
20.5° angle. The 1x2 should be oriented the "tall way", and set
up the fence offset so that the bottom edge is cut to 1/4" thick.
(Approximately - again, it doesn't really matter that hit that
size exactly.)
As with the corner braces, the easiest way to get the fence position
set up is to make a test cut, and adjust the fence based on the
results.
Appendix 15. A DIY shaker motor plan
This section provides instructions for building a pinball shaker motor
from scratch, using fairly common and inexpensive parts. The only
parts that you have to fabricate yourself are some simple plywood
pieces that require only straight cuts and some drilling.
My design is hardly the first or only plan out there - see
Chapter 61, DIY Designs in
Chapter 61, Shaker motors
for a list of other plans published on various forum sites. The
reason I developed yet another design is that the existing plans all
have something that makes them a little bit challenging to implement,
either because they call for an obscure part or because they require
some difficult metal fabrication steps. My aim with this plan is to
build it entirely with easy-to-find parts and minimal fabrication
work, and still match the performance of the commercial shaker units.
I also tried to keep the finished price to a minimum. Excluding the
motor, the parts in my plan run to about $30; with a motor, the price
should come in at about $50 to $60.
At the moment (2022), there's little cost advantage to building a
shaker yourself, since you can buy a complete, ready-to-use unit from
Pinball Life for about $100. Even so, I like knowing that there's an
easy DIY plan available, in case the retail shaker units become
unavailable in the future. The Pinball Life units will eventually
sell out, and who knows if they'll restock when that happens. Pinball
parts like this historically come and go. I expect there will again
come a time when you can't buy these so easily.
Cost and availability aside, a DIY shaker has the advantage that it
gives you more control over the effect than you get with an
off-the-shelf unit. The retail units (the current ones, anyway) don't
provide any way to adjust the amount of weight or the geometry. You
can still gain some control over the force of the shaking effect by
varying the motor speed, but that also affects the "tonal" quality
of the effect, so it's not a pure strength control. With the DIY plan
laid out in this section, it's easy to fine-tune the total amount of
mass in the counterweights, so you can adjust weight and motor
speed independently to optimize the effect to your liking.
Design overview
There are really just three puzzles you have to solve to design a
shaker motor: what to use for the counterweights, how to attach the
counterweights to the motor shaft, and how to mount the motor in the
pinball machine cabinet.
This design uses fender washers as the counterweights. They're easy
to attach to almost anything, since their whole purpose is to fit over
a screw, and they're fairly heavy, being made of steel. It only
takes about ten 1" diameter washers to get the 50g of weight we're
after in one counterweight.
To attach the counterweights to the motor shaft, we use plywood
lever arms and
shaft hubs (more on those
below).
The motor is mounted to the cabinet via a plywood base (which also
serves to elevate the motor enough to make room for the weights to
spin without hitting the floor), and it's secured to the
plywood base with pipe hangers (or U-bolts, if you prefer). Pipe
hangers are common plumbing hardware for attaching metal pipes to
walls and ceilings, which makes them the right shape for bolting down
a cylindrical motor body.
The plywood pieces are the only things you have to fabricate. I
figure that most pin cab builders will have some plywood on hand
anyway, along with a drill and some kind of saw, so plywood
fabrication should be pretty approachable. Otherwise, it's all
off-the-shelf parts, and most of those are basic hardware
items that you can find at the likes of Home Depot.
Pre-fab motor brackets
Many of the DC motors that you can buy on eBay and Amazon have their
own ready-made mounting brackets available. If the motor you find has
a matching bracket, I'd go ahead and buy it, since that should do a
good job of securing one end of the motor to the base. You can use
that in place of one of the pipe hangers. Most of these special
brackets only attach at one end of the motor, so you'll probably still
need to include one pipe hanger, to secure the end opposite the
bracket. For a shaker, it's critical to immobilize both ends of the
motor body.
Shaft hubs
Most of the parts in this plan are ordinary hardware store items. The
only exceptions are the motor itself, and the "shaft hubs". Shaft
hubs are fairly easy to find online - they're used a lot in hobby
robotics, mostly to attach wheels to motors. You can buy them at
Pololu,
Amazon, eBay, or Aliexpress. They currently run about $10 a pair.
Look for something like this:
The key features are a set-screw that lets you fasten
the hub to the motor shaft, and threaded holes for machine screws in
the larger disk.
Pick out your motor before buying shaft hubs, because the hubs have to
match the motor shaft size. You need a hub with a center bore the
same size as the motor shaft diameter. Shaft hubs are available with
center bores of 3mm, 4mm, 5mm, 6mm, 8mm, and 1/4", which are common
sizes for DC motors shafts. You should be able to find the motor's
shaft size listed in specs on the seller's site.
The holes around the perimeter of the outer disk should be threaded
for machine screws. These are usually threaded for either metric M3
screws or US #4-40 screws. Pololu makes both varieties. When you buy
the hubs, take note of the type of screw they use, because you'll need
matching machine screws (3/4" or 20mm long, quantity 8) to attach the
counterweights to the hubs.
Parts list
- Motor (12VDC, dual-shaft, 4mm to 6mm shaft, power about 20W-50W, unloaded speed 3000 to 4500 RPM;
see Chapter 61, Selecting a motor in Chapter 61, Shaker motors)
- Shaft hubs, with a central bore matching the motor shaft diameter, quantity 2
- Machine screws, sized to fit the threaded holes in the shaft hubs
(typically M3 or #4-40), 3/4" (20mm) length, quantity 8
- Lock washers for the screws above, quantity 8 (optional)
- Machine screws, #10-32 x 1-1/2", quantity 8
- Machine screws, #10-32 x 3/4", quantity 4
- #10 lock washers, quantity 12 (optional)
- Hex nuts, #10-32 (preferably steel-with-nylon-insert lock nuts, also called ESN/elastic stop nuts), quantity 2
- Tee nuts, #10-32, quantity 10
- Fender washers, #10 x 1", stainless or zinc-plated steel, quantity approx. 20 (see notes below)
- Pipe hangers, quantity 2, or plumber's pipe hanger tape, sized to fit motor (see notes)
- Plywood, 1/2" thickness, about 1 sq ft
- Plywood, 3/4" thickness, about 1 sq ft
The fender washers are the main source of weight. The goal is to get
the weight up to about 50g on each side. A typical 1" steel fender
washer weighs about 5g, so about ten on each side should do the trick.
Other than their weight, there's nothing special about the washers - I
specified them because they're easy to attach with nuts and bolts.
You can substitute another size of washer, or anything else of similar
weight that you can figure out how to attach.
The #10-32 parts can be replaced by nearby sizes. Use whatever's most
convenient. I used #10 for almost everything just to keep the number
of distinct parts to a minimum.
The lock washers are optional, but I think it's a good idea to include
them. They help keep the screws from loosening over time due to
vibration, and this thing's whole purpose is to generate a lot of
vibration.
Pipe hangers are semicircular metal straps made to attach pipes to
walls and ceilings. They come in various sizes from about 1/2" to 2",
so you might be able to find one that's close to the size of your
motor. You can find them at home improvement and hardware stores.
Take your motor with you to check the fit - the nominal sizes are
misleading because they're based on the inside diameter of the
steel pipe they fit, so the actual size is always about 1/2" larger
than the nominal size. If you can't find the right size, you can
substitute plumber's pipe hanger tape, which is essentially a narrow
strip of perforated sheet metal that you can cut to any length with
sheet metal shears, and then bend around the motor to conform to the motor
body's exact size. Be careful working with the tape - it's all sharp
edges and jagged corners. Wear heavy leather work gloves.
Instead of the pipe hangers, you might be able to substitute U-bolts.
U-bolts are easier to work with in some ways, but they're only
available in certain sizes. My motor has a standard type "775" case,
which is about 44mm in diameter; it fits perfectly into 1-3/4"
U-bolts, specifically
Bolt
Depot #12489. You can also look for "exhaust clamps" or
"muffler clamps" at an auto parts store - those are basically
the same as U-bolts and might give you some additional size options, if
you can't find a hardware store U-bolt in the right size.
Construction step-by-step
Step 1: Cut two pieces of the 1/2" plywood, about 2" x 1". These
will be the "lever arms" for the counterweights.
Step 2: In each lever arm, near one end, drill a pattern of holes to
match the holes in the hub for the central shaft opening plus two to four of
the screw holes. Use the shaft hub as a template, and drill slightly
larger than the holes in the hub, so that screws of the matching size
will slide through freely. You really only need two screws for a
strong attachment, even if your hub has four or six screw holes.
Step 3: Drill a 3/16" hole in the other end of each lever arm, with the hole
center about 1/2" from the end.
Step 4: Attach the shaft hubs to the motor, with the large disk sides
facing out. Place them close to the motor body, but leave a little
gap, so that they won't rub against the motor when spinning.
Tighten the set screws.
Step 5: Attach the lever lever arms to the shaft hubs, using
machine screws that fit the shaft hub's threaded sockets.
Note: I specified 3/4" length screws in the parts list, but those
might be slightly too long or too short for some shaft hubs. If the
fit is off (for example, if the screws stick too far out the other
side of the hubs when tightened), you might need to substitute a different length.
Step 6: If you have a kitchen scale or postal scale, weigh out about
50g worth of the fender washers for each side - this should be about
10 washers per side. Or you can just start with about 10 on each side and
add or subtract some later if the shaking is too weak or too strong.
Step 7: Attach the washers to the lever arms using the #10 x
1-1/2" machine screws, lock washers, and #10 lock nuts.
Step 8: Cut a piece of the 3/4" plywood the same length as the central
motor body, and slightly wider than the pipe hangers. This will be
the upper base.
Step 9: Figure where to drill for the pipe hangers by placing the
motor on the base, and fitting the pipe hangers over it, pressing them
down tight over the motor. Mark the locations. Drill holes big
enough for the #10 tee nuts.
It's critical to position the pipe hangers to make a very tight fit.
The motor has to be completely immovable when the hangers are screwed
down, so that it won't get dislodged by the shaking action. Stretch
out the pipe hangers as necessary for a tight fit.
Note: Be careful not to cover any air vent openings in the motor
when positioning the pipe hangers, and also keep them clear of
the electrical terminals.
Step 10: Insert the #10 tee nuts into the holes from the bottom
side of the base, and pound them in until flush.
The reason we're using tee nuts, by the way, is that this arrangement
lets you attach and remove the motor straps even when the base plate
is mounted to the cabinet floor. The tee nuts are permanently
installed in the base plate, so the base plate effectively has
threaded sockets for the motor fasteners.
Step 11: Cut a second piece of 3/4" plywood, the same length as
the first one, but about 1" wider. This will serve as the lower
base.
Step 12: Fasten the upper and lower bases together, with the upper
base centered as shown. You can use a few wood screws and/or glue, as
it's okay for this to be permanently attached. Make sure this is
sturdy - it obviously has to stand up to the force of the shaking.
Important! Orient the top piece so that the tee nuts installed
earlier are between the two layers.
Step 13: Drill 3/16" holes at the corners of the lower base.
These will be used to attach the base to the cabinet floor.
Step 14: Figure where you want to install the assembly in the cabinet.
Shakers are usually installed somewhere towards the front of the
cabinet, oriented with the motor shaft pointing along the long
dimension of the cabinet, so that the shaking force is side-to-side.
The exact location isn't critical, but closer to the front (and
therefore closer to the player) seems to be better. It can be
mounted close to one side or in the middle - I don't think it
makes much difference.
Step 15: Once you've determined the location, use the base as a
template to mark the locations for the outer corner mounting holes on
the cabinet floor. These are the holes in the lower base.
Drill the marked holes in the cabinet floor - the drill size should
be the same as the outer barrel diameter of your #10 tee nuts.
Step 16: Install tee nuts in the cabinet floor at the locations you
just drilled. Insert the tee nuts from the bottom (outside) of
the cabinet floor.
Step 17: Attach the motor to the base with the pipe hangers and
the #10 x 3/4" screws and lock washers. The screws should mate
with the tee nuts installed earlier.
Remember that the fit has to be extremely tight, so that the motor
can't move at all. If necessary, you can add something under the
motor to fill any slack. I put some grippy rubber kitchen drawer
liner under the motor in mine - that not only fills the space but also
adds friction to keep the motor from rotating.
Step 18: Mount the base to the cabinet floor with #10 x 1-1/2" screws
and lock washers. The screws mate with the tee nuts you installed in
the cabinet floor earlier.
Secure the wiring
Make sure that the wires to the motor are routed so that they
won't come into contact with the spinning weights. Secure them
with cable ties as needed to make sure they stay that way.
Install a cover
A shaker motor should be fully enclosed with a sturdy cover, to
keep fingers and loose parts away, and to contain ejected weights
in case they come loose.
I'll leave the design of the cover up to you, but something like a
plastic food storage container would work, or you could build a simple
plywood box. Many people prefer a clear cover so that they can
visually check the motor without taking the cover off.
End Notes
Acknowledgments
Many thanks are due to the members of the virtual pin cab forums at
vpforums. My own build would never have gotten
off the ground if the forums hadn't inspired me with lots of great
examples of what you can accomplish, and I wouldn't have made it very
far without the forums' collective expertise to draw on. This is one
of the most helpful and on-topic online forums I've ever encountered,
with a dedicated group of regulars who go way out of their way to help
the newbies and solve the tough technical problems that inevitably
come up in a project this complex. A lot of the information in the
Cabinet Building section of this book came more or less directly from
forum discussions; my main contribution here was to organize it into a
more accessible format. As much as the forums are a gold mine of
useful information, their free-form discussion format makes it
extremely difficult to find specific topics that were discussed in the
past. I hope that this guide is at least a little easier to navigate
than old forum threads.
Another big thanks to the open-source developers who created and
continue to improve the collection of software that makes virtual cabs
possible: Visual Pinball, VPinMAME, DOF, and B2S. I especially want
to thank them for keeping it all open-source. That helps ensure a
strong future for these projects, by empowering their user communities
to improve them and build upon them.
Colophon
This book as you see it in your browser is generated from "source
code" via a set of php scripts purpose-built for this application.
The scripts take my source material, written in a simple ad hoc
markup format, and generate the styled HTML.
The original motivation for the custom scripts was more than just for
the sake of formatting. The real reason for custom scripts was that I
planned to let you generate a highly customized subset of the
material, based the unique combination of features you planned for
your cabinet. The idea was that there are so many ways to build a
virtual cab that it can get overwhelming to wade through the
instructions for everything, so I thought I could organize it
better by letting you set some filters to select only the features
that were interesting to you. As I wrote the material, though, I
could see that there's much, much more material that's common to all
pin cabs than there is unique feature-based material, and I also
realized that there are so many necessary cross-references that I
couldn't safely filter out very much without a risk of links that go
nowhere. Finally, when I stepped back and thought it about some more,
I saw that this idea about filtering was a misguided attempt to
reinvent a wheel. Book writers have been organizing complex material
for centuries, and tools like the Table of Contents, Index, and
cross-referencing are already known to work pretty well when applied
competently.
Most people (myself included) prefer to view technical material like
this online, where it can be easily searched and where cross-reference
links can be immediately followed, so my scripts are designed
primarily with Web browser presentation in mind. However, I still
have an old-fashioned affection for printed books, so I also tried to
arrange things to produce pleasing hard-copy results. If you click
the little Printer icon at the bottom, it will append all of the
chapters together into a single (rather large) document that you can
send to your printer to make a hard-copy edition.
A few people have asked about the CAD model that I used to generate
illustrations throughout this book. Unfortunately, there's no
practical way for me to share it, because it's based on an old
proprietary software package that's no longer available, and it
doesn't convert well to more modern formats (I've tried). Besides,
most of the people who have asked were hoping to use some of the
components for 3D-print manufacturing or at least for taking detailed
measurements for planning purposes, but I'm afraid the model isn't
accurate enough for those purposes. I only made it close enough to
look about right in the illustrations.
Notes on the section photos
|
Cutaway view of a CAD model of a virtual pinball machine,
used as the basis for many illustrations throughout this guide |
| Start button from a Whirlwind pinball machine (Williams, 1990) |
|
3D rendering of plans for a standard-body pin cab
replicating the Williams/Bally "WPC" cabinet design
of the 1990s |
|
A flipper assembly (the parts under the playfield that
actuate the flipper), from a Williams machine circa 1995 |
|
A Williams System 11 CPU board, which contains the main
control electronics used in Williams pinball machines
manufactured circa 1986-1990; in many ways, it amounts
to a stripped-down 8-bit personal computer from the
Apple II era |
|
Closeup of an unpopulated main interface board for the
Pinscape expansion boards |
|
The Extra Ball buy-in button from Theatre of Magic (Bally, 1995) |
